New Triterpene Glycosides from the Far Eastern Starfish Solaster pacificus and Their Biological Activity

by
Timofey V. Malyarenko
1,2,*,
Alla A. Kicha
1,
Anatoly I. Kalinovsky
1,
Pavel S. Dmitrenok
1,
Olesya S. Malyarenko
1,
Alexandra S. Kuzmich
1,
Valentin A. Stonik
1,2 and
Natalia V. Ivanchina
1
1
G.B. Elyakov Pacific Institute of Bioorganic Chemistry, Far Eastern Branch of the Russian Academy of Sciences, Pr. 100-let Vladivostoku 159, 690022 Vladivostok, Russia
2
Department of Bioorganic Chemistry and Biotechnology, School of Natural Sciences, Far Eastern Federal University, Sukhanova str. 8, 690000 Vladivostok, Russia
*
Author to whom correspondence should be addressed.
Biomolecules 2021, 11(3), 427; https://doi.org/10.3390/biom11030427
Submission received: 16 February 2021 / Revised: 11 March 2021 / Accepted: 11 March 2021 / Published: 14 March 2021
(This article belongs to the Special Issue Marine Natural Compounds with Biomedical Potential)
Browse Figures
Versions Notes

Abstract

:
Three new triterpene glycosides, pacificusosides A–C (1–3), and three previously known triterpene glycosides, cucumariosides C1 (4), C2 (5), and A10 (6), were isolated from the alcoholic extract of the Far Eastern starfish Solaster pacificus. The structures of 1–3 were elucidated by extensive NMR and ESIMS techniques and chemical transformations. Compound 1 has a novel, unique structure, containing an aldehyde group of side chains in its triterpene aglycon. This structural fragment has not previously been found in the sea cucumber triterpene glycosides or starfish steroidal glycosides. Probably, pacificusoside A (1) is a product of the metabolism of the glycoside obtained through dietary means from a sea cucumber in the starfish. Another two new triterpene glycosides (2, 3) have closely related characteristics to sea cucumber glycosides. The cytotoxicity of compounds 1–6 was tested against human embryonic kidney HEK 293 cells, colorectal carcinoma HT-29 cells, melanoma RPMI-7951 cells, and breast cancer MDA-MB-231 cells using MTS assay. Compounds 4–6 revealed the highest cytotoxic activity against the tested cell lines, while the other investigated compounds had moderate or slight cytotoxicity. The cytotoxic effects of 2–6 were reduced by cholesterol like the similar effects of the previously investigated individual triterpene glycosides. Compounds 3, 4, and 5 almost completely suppressed the colony formation of the HT-29, RPMI-7951, and MDA-MB-231 cells at a nontoxic concentration of 0.5 µM.

1. Introduction

The phylum Echinodermata includes five classes: Holothuroidea (sea cucumbers), Asteroidea (starfish), Echinoidea (sea urchins), Crinoidea (sea lilies), and Ophiuroidea (brittle stars and basket stars). These invertebrates are a rich source of a variety of low molecular metabolites with potent biological activities: triterpene glycosides, peptides, fatty acids, polar steroids and their glycosides, carotenoids, quinones, spinochromes pigments, and also sphingolipids and their derivatives [1].
Triterpene glycosides are considered to be characteristic secondary metabolites and chemotaxonomic markers of sea cucumbers. They are amphiphilic compounds consisting of lipophilic aglycon and a hydrophilic oligosaccharide chain [2]. Usually, these glycosides contain holostane type of aglycons having lanostane-3β-ol with (18,20)-lactone in the E-ring of the pentacyclic triterpene core. Some triterpene glycosides contain nonholostane aglycons [3]. As a rule, their carbohydrate chains include five or six monosaccharides such as D-xylose, D-quinovose, and D-glucose or their methylated or sulfated derivatives attached to C-3 of the aglycon. In the carbohydrate chains, the first sugar unit is always xylose, whereas 3-O-methyl-D-glucose and/or 3-O-methyl-D-xylose are predominantly the terminal monosaccharide units. These glycosides have been reported to exhibit a wide spectrum of biological activities such as cytotoxic [4,5], antifungal [6,7], bactericidal, hemolytic, antiviral, and antiparasitic properties [8]. Some triterpene glycosides were found to induce apoptosis and inhibit the growth of cancer cells [9], and show immunomodulatory properties [10].
At the same time, polar steroids and their glycosides are characteristic secondary metabolites of starfish (sea stars). The starfish steroidal glycosides may be divided into three major classes: glycosides of polyhydroxysteroids, cyclic glycosides, and asterosaponins [11,12,13,14,15,16,17,18,19]. Polyhydroxysteroidal glycosides from starfish have highly oxygenated steroidal aglycon. In most cases, monosaccharides of these compounds are represented by D-xylose and L-arabinose or their methylated or sulfated derivatives, forming monoside, bioside and/or sometimes trioside carbohydrate chains. Cyclic glycosides have several unusual structural features including a trisaccharide carbohydrate chain cyclized between C-3 and C-6 of the Δ7-3β,6β-dihydroxysteroidal aglycon as well as the presence of a glucuronic acid unit in the carbohydrate moiety. The majority of asterosaponins contain 3-O-sulfonated Δ9(11)-3β,6α-dihydroxysteroidal aglycon and carbohydrate chains, comprising usually five or six monosaccharide residues attached at the C-6 position of an aglycon.
It is worth noting that triterpene glycosides are not typical secondary metabolites of starfish. Earlier only two new triterpene glycosides, rollentosides A and B were isolated from the starfish Asterias rollestoni Bell, collected in the Yellow Sea near the shore of Jiangsu Province [20]. In addition, one previously known triterpene glycoside, holothurin A2 (= echinoside A), was isolated from the tropical starfish Choriaster granulatus [21]. In all other starfish triterpene glycosides were not found.
Herein, we report the results of our studies on triterpene glycosides from the ethanolic extract of the Far Eastern carnivorous starfish Solaster pacificus (order Valvatida, family Solasteridae) collected in the Sea of Okhotsk near Iturup Island. As a result, we have established the structures of three new triterpene glycosides, pacificusosides A–C (1–3), derived from the diet of this starfish. Moreover, we examined the cytotoxic activity of the individual compounds 1–6 or 1–6 in combination with cholesterol in human embryonic kidney, colorectal carcinoma, melanoma, and breast cancer cells. The effects of these compounds on the colony formation of the tested cancer cells were investigated using soft agar assay.

2. Materials and Methods

2.1. General Methods

Optical rotations were determined on a PerkinElmer 343 polarimeter (PerkinElmer, Waltham, MA, USA). UV spectra were recorded on a Shimadzu UV-1601 PC spectrophotometer (Shimadzu, Kioto, Japan). IR spectra were recorded using a Bruker Equinox 55 spectrophotometer (Bruker, Göttingen, Germany). The 1H and 13C NMR spectra were otained on Bruker Avance III 700 spectrometer (Bruker BioSpin, Bremen, Germany) at 700.13 and 176.04 MHz, respectively, chemical shifts were referenced to the corresponding residual solvent signals (δH 3.30/δC 49.0 for CD3OD). The HRESIMS spectra were recorded on a Bruker Impact II Q-TOF mass spectrometer (Bruker, Bremen, Germany); the samples were dissolved in MeOH (c 0.001 mg/mL). HPLC separations were carried out on an Agilent 1100 Series chromatograph (Agilent Technologies, Santa Clara, CA, USA) equipped with a differential refractometer; Diasfer-110-C18 (10 µm, 250 × 15 mm, Biochemmack, Moscow, Russia) and Discovery C18 (5 µm, 250 × 4 mm, Supelco, North Harrison, PA, USA) columns were used. Low-pressure liquid column chromatography was carried out with Polychrom-1 (powdered Teflon, 0.25−0.50 mm; Biolar, Olaine, Latvia), Si gel KSK (50–160 µm, Sorbpolimer, Krasnodar, Russia), and Florisil (60–100 µm, Sigma Aldrich, St. Louis, MO, USA). Sorbfil Si gel plates (4.5 × 6.0 cm, 5–17 µm, Sorbpolimer, Krasnodar, Russia) were used for thin-layer chromatography.

2.2. Animal Material

Specimens of S. pacificus Djakonov, 1938 (order Valvatida, family Solasteridae) were collected at a depth of 10 m–20 m by scuba diving in the Sea of Okhotsk near Iturup Island during the 42nd scientific cruise of the research vessel Akademik Oparin in August 2012. Species identification was carried out by Mr. B.B. Grebnev (G.B. Elyakov Pacific Institute of Bioorganic Chemistry of the FEB RAS, Vladivostok, Russia). A voucher specimen (no. 042–112) is on deposit at the marine specimen collection of the G.B. Elyakov Pacific Institute of Bioorganic Chemistry of the FEB RAS, Vladivostok, Russia.

2.3. Extraction and Isolation

The fresh animals (1.7 kg) were chopped and extracted twice with EtOH at 20 °C. The H2O/EtOH layer was evaporated, and the residue was dissolved in H2O (0.5 L). The H2O-soluble materials were passed through a Polychrom-1 column (6.5 × 21 cm), eluted with distilled H2O until a negative chloride ion reaction was obtained, and eluted with EtOH. The combined EtOH eluate was evaporated to give a brownish residue (48 g). These materials were chromatographed over a Si gel column (6 × 22 cm) using CHCl3/EtOH (stepwise gradient, 8:1 to 1:1), EtOH, and EtOH/H2O (4:1, 2:1, and 1:2) to yield fifteen fractions, 1–15, that were then analyzed by TLC on Si gel plates in the eluent system BuOH/EtOH/H2O (4:1:2). Fractions 4 (11.49 g) and 5 (22.79 g) were additionally chromatographed over a Florisil column (4.5 × 12 cm) using CHCl3/EtOH (stepwise gradient, 5:1 to 1:1) to yield three fractions, 41 (1.459 g), 42 (1.13 g), and 51 (652 mg). HPLC separation of fractions 41, 42, and 51 on a Diasfer-110-C18 column (10 μm, 250 × 15 mm, 2.5 mL/min) with EtOH/H2O (55:45) as an eluent system yielded pure 2 (31 mg, tR 25.8 min), 3 (13.0 mg, tR 91.5 min), 4 (89.0 mg, tR 57.8 min), 5 (59 mg, tR 71.2 min), and subfractions 41-3 (30 mg) and 42-1 (94.5 mg). HPLC separation of subfractions 41-3 and 42-1 on a Discovery C18 column (5 μm, 250 × 10 mm, 2.5 mL/min) with EtOH/H2O (50:50) as an eluent system yielded pure 1 (12.5 mg, tR 6.6 min) and 6 (3.0 mg, tR 16.3 min).

2.4. Spectral Data of New Compounds

Pacificusoside A (1), C57H86O27, white amorphous powder; [α]D25—27.7 (c 0.23, MeOH); UV (MeOH) λmax 199, 224 nm; IR (KBr): νmax = 3438, 2927, 1745, 1688, 1633, 1422, 1384, 1243, 1160, 1113, 1059, 894 cm−1; 1H and 13C NMR data are listed in Table 1 and Table 2; (+)ESIMS/MS of the ion [M+Na]+ at m/z 1225: 1093 [(M+Na)–C5H8O4]+; 947 [(M+Na)–C6H10O4–C5H8O4]+; 759 [(carbohydrate chain+Na)]+; 609 [(carbohydrate chain+Na)–C5H8O4–H2O]+; 477 [(carbohydrate chain+Na)–2×C5H8O4–H2O]+; 331 [(carbohydrate chain+Na)–2×C5H8O4–H2O–C6H10O4]+; 185 [C6H10O5+Na]+; 169 [C6H10O4+Na]+; (+)HRESIMS m/z 1225.5273 [M+Na]+ (calcd for [C57H86O27Na]+, 1225.5249); (–)ESIMS/MS of the ion [M–H]− at m/z 1201: 1069 [(M–H)–C5H8O4]−; 923 [(M–H)–C6H10O4–C5H8O4]−; 761 [(M–H)–C6H10O5–C6H10O4–C5H8O4]−; 615 [(M–H)–C6H10O5–2×C6H10O4–C5H8O4]−; 483 [(M–H)–C6H10O5–2×C6H10O4–2×C5H8O4]−; (–)HRESIMS m/z 1201.5318 [M–H]− (calcd for [C57H85O27]−, 1201.5284).
Pacificusoside B (2), C53H82O24, white amorphous powder; [α]D25—28.0 (c 0.1, MeOH); IR (KBr): νmax = 3427, 2926, 2360; 1772, 1635, 1558, 1541, 1384, 1507, 1457, 1384, 1180, 1074 cm−1; 1H and 13C NMR data are listed in Table 1 and Table 2; (+)ESIMS/MS of the ion [M+Na]+ at m/z 1125: 993 [(M+Na)–C5H8O4]+; 979 [(M+Na)–C6H10O4]+; 847 [(M+Na)–C6H10O4–C5H8O4]+; 817 [(M+Na)–C6H10O4–C6H10O5]+; 759 [(carbohydrate chain+Na]+; 609 [(carbohydrate chain+Na)–C5H8O4–H2O]+; 477 [(carbohydrate chain+Na)–2×C5H8O4–H2O]+; 331 [(carbohydrate chain+Na)–2×C5H8O4–H2O–C6H10O4]+; 185 [C6H10O5+Na]+; 169 [C6H10O4+Na]+; (+)HRESIMS m/z 1125.5091 [M+Na]+ (calcd for [C53H82O24Na]+, 1125.5088); (–)ESIMS/MS of the ion [M–H]− at m/z 1101: 969 [(M–H)–C5H8O4]−; 955 [(M–H)–C6H10O4]−; 823 [(M–H)–C6H10O4–C5H8O4]−; 793 [(M–H)–C6H10O4–C6H10O5]−; 661 [(M–H)–C6H10O5–C6H10O4–C5H8O4]−; 515 [(M–H)–C6H10O5–2×C6H10O4–C5H8O4]−; (–)HRESIMS m/z 1101.5119 [M–H]− (calcd for [C53H81O24]−, 1101.5123).
Pacificusoside C (3), C60H94O26, white amorphous powder; [α]D25—9.0 (c 0.23, MeOH); IR (KBr): νmax = 3427, 2927, 2854; 1745, 1635, 1457, 1384, 1238, 1180, 1065 cm−1; 1H and 13C NMR data are listed in Table 1 and Table 2; (+)ESIMS/MS of the ion [M+Na]+ at m/z 1253: 1121 [(M+Na)–C5H8O4]+; 759 [(carbohydrate chain+Na]+; 609 [(carbohydrate chain+Na)–C5H8O4–H2O]+; 477 [(carbohydrate chain+Na)–2×C5H8O4–H2O]+; 331 [(carbohydrate chain+Na)–2×C5H8O4–H2O–C6H10O4]+; 185 [C6H10O5+Na]+; 169 [C6H10O4+Na]+; (+)HRESIMS m/z 1253.5920 [M+Na]+ (calcd for [C60H94O26Na]+, 1253.5926); (–)ESIMS/MS of the ion [M–H]− at m/z 1229: 1097 [(M–H)–C5H8O4]−; 1083 [(M–H)–C6H10O4]−; 951 [(M–H)–C6H10O4–C5H8O4]−; 921 [(M–H)–C6H10O4–C6H10O5]−; 789 [(M–H)–C6H10O5–C6H10O4–C5H8O4]−; 643 [(M–H)–C6H10O5–2×C6H10O4–C5H8O4]−; 511 [(M–H)–C6H10O5–2×C6H10O4–2×C5H8O4]−; (–)HRESIMS m/z 1229.5952 [M–H]− (calcd for [C60H93O26]−, 1229.5961).

2.5. Acid Hydrolysis and Determination of Absolute Configurations of Monosaccharides

The acid hydrolysis of 1 (3.5 mg) was carried out in a solution of 2 M trifluoroacetic acid (TFA) (1 mL) in a sealed vial on a H2O bath at 100 °C for 2 h. The H2O layer was washed with CHCl3 (3 × 1.0 mL) and concentrated in vacuo. One drop of concentrated TFA and 0.5 mL of L-(–)-2-octanol (Sigma Aldrich) were added to the sugar mixture, and the sealed vial was heated on a glycerol bath at 130 °C for 6 h. The solution was evaporated in vacuo and treated with a mixture of pyridine/acetic anhydride (1:1, 0.6 mL) for 24 h at room temperature. The acetylated 2-octylglycosides were analyzed by GC using the corresponding authentic samples prepared by the same procedure. The following peaks were detected in the hydrolysate of 1: D-quinovose (tR 20.32, 20.55, 21.91, and 21.13 min), D-xylose (tR 20.75, 20.91, and 21.19 min), D-glucose (tR 24.24, 24.86, 25.10, and 25.38 min), and 3-OMe-D-xylose (tR 19.33, 19.57, 19.84, and 20.00 min). The retention times of the authentic samples were as follows: D-quinovose (tR 20.30, 20.50, 20.86, and 21.13 min), D-xylose (tR 20.70, 20.89, and 21.15 min), D-glucose (tR 24.23, 24.83, 25.06, and 25.37 min), 3-OMe-D-xylose (tR 19.32, 19.57, 19.86, and 20.02 min), L-quinovose (tR 20.12, 20.60, and 21.17 min), L-xylose (tR 20.57, 21.03, and 21.34 min), L-glucose (tR 24.39, 24.63, 24.83, and 25.06 min), and 3-OMe-L-xylose (tR 18.92, 19.50, and 20.10 min).

2.6. Anticancer Activity

2.6.1. Reagents

Phosphate buffered saline (PBS), L-glutamine, penicillin-streptomycin solution (10,000 U/mL, 10 µg/mL), dimethyl sulfoxide (DMSO), BuOH, 99.9% (pure p.a.), and cholesterol, 99.5% were from Sigma-Aldrich. MTS reagent (3-(4,5-dimethylthiazol-2-yl)-5-(3-carboxymethoxyphenyl)-2-(4-sulfophenyl)-2H-tetrazolium) was purchased from Promega (Madison, WI, USA). The Basal Medium Eagle (BME), Minimum Essential Medium Eagle (MEM), Dulbecco’s Modified Eagle’s Medium (DMEM), McCoy’s 5A Modified Medium (McCoy’s 5A), trypsin, fetal bovine serum (FBS), and agar were purchased from Thermo Fisher Scientific (Waltham, MA, USA). Organic solvents, inorganic acids, and salts were commercial products (Laverna, Moscow, Russia).

2.6.2. Cell Lines and Culture Conditions

Human embryonic kidney HEK 293 cells (ATCC® no. CRL-1573™), colorectal carcinoma HT-29 cells (ATCC® no. HTB-38™), melanoma RPMI-7951 cells (ATCC® no. HTB-66), and breast cancer MDA-MB-231 cells (ATCC® HTB-26™) were obtained from the American Type Culture Collection (Manassas, VA, USA). HEK 293, HT-29, RPMI-7951, and MDA-MB-231cells were cultured in complete MEM/10% FBS, McCoy’s 5A/10% FBS, and DMEM/10% FBS, respectively, contained 1% of penicillin-streptomycin solution. The cell cultures were maintained at 37 °C in humidified atmosphere containing 5% CO2. Every 3–4 days cells were rinsed with PBS, detached from the tissue culture flask by 0.25% trypsin/0.05 M EDTA, and 10%–20% of the harvested cells were transferred to a new flask containing fresh culture media. After three passages the cells were used for the experiments.

2.6.3. The Preparation of Solutions of Compounds

Compounds 1–6 were dissolved in sterile DMSO to prepare stock concentrations of 20 mM. Cells were treated with serially diluted compounds 1–6 (culture medium used as diluent) to give the intended final concentrations. The vehicle control is the cells treated with equivalent volume of DMSO (less than 0.5%) for all presented experiments.
Cholesterol (10 mg/mL) was dissolved in 99.5 % BuOH and added to compounds 1–6 to get their stock concentrations of 20 mM and incubated for 12 h at room temperature. Then samples were vacuum evaporated and dissolved in DMSO to their stock concentrations of 20 mM.

2.6.4. Cell Viability Assay

Cells (1.0 × 104) were seeded in 96-well plates (Jet Biofil, Guangzhou, China) and cultured in 200 µL of complete culture medium for 24 h at 37 °C in 5% CO2 incubator. The cell monolayer was treated with compounds 1–6 or 1–6 combined with cholesterol at concentrations of 5, 10, 20, and 40 µM in fresh appropriate culture medium for 24 h. Cells were also treated by cisplatin (positive control) at 1, 5, 10, 50, 100 µM for 24 and 48 h. Subsequently, the cells were incubated with 15 µL MTS reagent for 3 h, and the absorbance of each well was measured at 490/630 nm using Power Wave XS microplate reader (BioTek, Wynusky, VT, USA).

2.6.5. Colony Formation Assay

Human cancer cells (2.4 × 104/mL) were seeded into 6-well plate and treated with compounds 1–6 (0.1, 0.5, and 1 µM) or cisplatin (3 µM) in 1 mL of 0.3% BME agar containing 10% FBS, 2 mM L-glutamine, and 25 µg/mL gentamicin. The cultures were maintained in a 37 °C, 5% CO2 incubator for 14 days, and the cell colonies were scored using a Motic microscope AE 20 (XiangAn, Xiamen, China) and ImageJ software bundled with 64-bit Java 1.8.0_112 (NIH, Bethesda, MD, USA).

2.6.6. Statistical Analysis

All assays were performed in at least three independent experiments. Results are expressed as the mean ± standard deviation (SD). Student’s t test was used to evaluate the data with the following significance levels: * p < 0.05, ** p < 0.01, *** p < 0.001.

3. Results

3.1. The Isolation and Structure Elucidation of Compounds 1–6 from S. pacificus

The concentrated ethanol extract of S. pacificus was subjected to sequential separation by chromatography on columns with Polichrom-1, Si gel, and Florisil followed by HPLC on semipreparative Diasfer-110-C18 and Discovery C18 columns to yield three new triterpene glycosides, named as pacificusosides A–C (1–3), and three previously known triterpene glycosides 4–6 (Figure 1). Compounds 4–6 were identified by comparison of their 1H and 13C NMR, and MS spectra with those reported for cucumariosides C1 (4), C2 (5), and A10 (6), triterpene glycosides from the holothurian Eupentacta fraudatrix [22,23].
The molecular formula of 1 was determined to be C57H86O27 from the [M+Na]+ sodiated molecular ion peak at m/z 1225.5273 (calcd for [C57H86O27Na]+, 1225.5249) in the (+)HRESIMS and from the [M–H]− ion peak at m/z 1201.5318 (calcd for [C57H85O27]−, 1201.5284) in the (–)HRESIMS (Figure S1). The IR spectrum of compound 1 showed the presence of hydroxy group (3438 cm−1), lactone carbonyl (1745 cm−1) and olefinic (1633 cm−1) groups, as well as one characteristic absorption band at νmax = 1688 cm−1 of α,β-unsaturated aldehyde group (Figure S2). The 1H and 13C NMR spectroscopic data of the pentacyclic moiety of the aglycon of 1 showed the resonances of protons and carbons of four methyl groups (δH 1.15 s, 1.17 s, 1.24 s, 1.32 s; δC 32.3, 17.6, 24.1, 28.7), the 7(8)-double bond (δH 5.68 m; δC 121.1, 145.3), two oxygenated methine groups [δH 3.35 dd (J = 11.6, 4.1), 5.81 q (J = 8.3); δC 89.1, 73.6], one OAc-group (δH 1.86 s, δC 21.1, 169.7), and one lactone carbonyl (δC 178.5) (Table 1, Figures S4 and S5). The 1H-1H COSY and HSQC correlations attributable to triterpene nucleus revealed the corresponding sequences of protons from C-1 to C-3, C-5 to C-7, C-9 to C-12 through C-11, and C-15 to C-17 (Figure 2A, Figures S6 and S7). Key HMBC cross-peaks, such as H-3/C-30; H-5/C-10, C-19; H-6/C-10; H-7/C-9; H-12/C-13, C-14, C-18; H-15/C-13, C-14, C-17, C-32; H-16/CO(OAc); H-17/C-18, C-21; H3-19/C-1, C-5, C-9, C-10; H3-30/C-3, C-4, C-5, C-31; H3-31/C-3, C-4, C-5, C-30; H3-32/C-8, C-14, C-15; H3C(OAc)/CO(OAc) confirmed the overall structure of the pentacyclic triterpene moiety of 1 (Figure 2A, Figure S8). The key ROESY cross-peaks H-1α/H-3, H-5α; H-2β/H3-19, H3-30; H-3/H-5α; H-5α/H3-31; H-6β/H3-19; H-7/H-15α; H-9β/H3-19; H-12α/H3-21, H3-32; H-15α/H3-32; H-16α/H3-32; H-17α/H3-21, H3-32 showed the common 5α/9β/10β/13β,14α stereochemistry of the triterpene nucleus and 3β,16β-configurations of oxygenated substituents in 1 (Figure 2B, Figure S9).
Table 1 demonstrated the presence of one methyl group (δH 1.56 s; δC 28.9) and α,β-unsaturated aldehyde group [δH 7.28 d (J = 16.0), 6.46 dd (J = 16.0, 7.6), 9.78 d (7.6); δC 159.4, 127.6, 193.1] (Table 1, Figures S4 and S5). The existence of the α,β-unsaturated aldehyde group was confirmed by the UV spectrum (λmax = 224 nm in MeOH) (Figure S3). The protons sequence from H-22 to H-24, correlated with the corresponding carbon atoms of the side chain of 1, was assigned using the COSY and HSQC experiments (Table 1, Figures S6 and S7). The key HMBC correlations H3-21/C-17, C-20, C-22; H-22/C-20, C-23, C-24; H-23/C-20; and H-24/C-23 and ROESY correlation H-22/H-24 supported the total structure of the Δ22-24-aldo-25,26,27-trinorlanostane side chain (Figure 1). The trans configuration of 22(23)-double bond followed from J22,23 = 16.0 Hz. To the best of our knowledge, compound 1 has a novel type of triterpene aglycon, containing Δ22-25,26,27-trinorlanostane side chain with unique C-24 aldehyde group, never found before in the sea cucumber triterpene glycosides or starfish steroidal glycosides.
In addition to the above-mentioned signals, the 1H NMR spectrum of 1 exhibited five resonances in the deshielded region due to the anomeric protons of monosaccharide units at δH 4.84, 5.20, 4.94, 5.21, and 5.36 that correlated in the HSQC experiment with a carbon signals at δC 105.0, 103.0, 104.7, 106.0, and 105.8, respectively, as well as one resonance due to an O-methyl group at δH 3.85 that correlated in the HSQC experiment with a carbon signal at δC 60.4 (Table 2, Figures S4 and S5).
Along with mass spectral information, these data showed the presence of five monosaccharide residues in the oligosaccharide moiety of 1. The existence of 6-deoxy-sugar unit was supported by methyl doublet at δH 1.70. The coupling constants (7.0–8.0 Hz) of the anomeric protons were indicative of β-configurations of all glycosidic bonds. The chemical shifts and coupling constants of H-1′–H-6′ of the monosaccharide units were determined by irradiation of anomeric protons in the 1D TOCSY experiment. The 1H-1H COSY, HSQC, HMBC, and ROESY experiments led to the assignment of all the proton and carbon signals of the carbohydrate chain of 1 (Table 2, Figures S4–S9). The spectral data of the oligosaccharide moiety strictly coincided with those of terminal 3-O-methyl-β-D-xylopyranosyl and β-D-xylopyranosyl residues, and internal 3-O-substituted β-D-glucopyranosyl, 2,4-di-O-substituted β-D-quinovopyranosyl, and 2-O-substituted β-D-xylopyranosyl residues as in the earlier reported spectra of known cucumarioside C1 from E. fraudatrix [22].
On the basis of all the above-mentioned data, the structure of pacificusoside A (1) was determined as 3β-O-{3-O-methyl-β-D-xylopyranosyl-(1→3)-β-D-glucopyranosyl-(1→4)-[β-D-xylopyranosyl-(1→2)]-β-D-quinovopyranosyl-(1→2)-β-D-xylopyranosyl}-16β-acetoxy-25,26,27-trinorholosta-7,22-dien-24-al.
The molecular formula of 2 was determined to be C53H82O24 from the [M+Na]+ sodiated-molecular ion peak at m/z 1125.5091 (calcd for [C53H82O24Na]+, 1125.5088) in the (+)HRESIMS and from the [M–H]− ion peak at m/z 1101.5119 (calcd for [C53H81O24]−, 1101.5123) in the (–)HRESIMS (Figure S10). The IR spectrum of compound 2 showed the presence of hydroxy group (3427 cm−1), lactone carbonyl (1772 cm−1), and olefinic (1635 cm−1) groups (Figure S11). The 1H and 13C NMR spectroscopic data belonging to the pentacyclic moiety of the aglycon of 2 showed the resonances of the protons and carbons of four methyl groups (δH 1.02 s, 1.12 s, 1.30 s, 1.35 s; δC 23.9, 17.3, 28.6, 33.9), a 7(8)-double bond [δH 5.64 brd (7.1); δC 122.6, 147.4), two oxygenated methine groups [δH 3.31 dd (J = 11.7, 3.8), 4.74 brd (J = 2.2); δC 88.9, 80.4], and one lactone carbonyl (δC 180.7) (Table 1, Figures S12 and S13). The proton and carbon signals of the OAc-group in the 1H and 13C NMR spectra of compound 2 were absent. The 1H-1H COSY and HSQC correlations attributable to triterpene nucleus revealed the corresponding sequences of protons from C-1 to C-3, C-5 to C-7, C-9 to C-12 through C-11, and C-15 to C-17 (Figure 2A, Figures S14 and S15). Key HMBC cross-peaks, such as H-2/C-10; H-3/C-4, C-30, C-31; H-5/C-4, C-19; H-7/C-9; H-12/C-13, C-14, C-18; H-15/C-8, C-32; H-16/C-18; H-17/C-13, C-14, C-20, C21, C-22; H3-19/C-1, C-5, C-9, C-10; H3-30/C-3, C-4, C-31; H3-31/C-4, C-5, C-30; H3-32/C-8, C-13, C-14, C-15 confirmed the overall structure of the pentacyclic triterpene moiety of 2 (Figure 2A, Figure S16). The key ROESY cross-peaks H-1α/H-3, H-5α; H-2β/H3-19, H3-30; H-3/H-5α, H3-31; H-5α/H3-31; H-6β/H3-19; H-7/H-15α, H3-32; H-9β/H3-19; H-12α/H3-32; H-15α/H-17α, H3-32; H-17α/H3-32 showed the common 5α/9β/10β/13β,14α stereochemistry of the triterpene nucleus and 3β,16β-configurations of oxygenated substituents in 2 (Figure 2B, Figure S17). The proton and carbon signals of the aglycon side chain of 2 demonstrated the presence of only one methyl group (δH 1.75 s; δC 23.0) and one 20,22-double bond (δH 5.06 s, 4.98 s; δC 139.9, 113.9). The key HMBC correlations H3-21/C-17, C-20, C-22 and H-22/C-17, C-21 and the key ROESY correlations H3-21/H-16, H-17, H-22; and H2-22/H-16 supported the total structure of the side chain (Figure 2A,B). The NMR spectroscopic data of aglycon part of 2 were coincident with those for known cucumariosides A10 and I4 from the sea cucumber E. fraudatrix with 23,24,25,26,27-pentanorlanosta-7,20(22)-diene-18(16)-lactone-3β-ol aglycon [23,24], but the carbohydrate chain was different.
On the basis of extensive 2D NMR and MS analysis of glycosides 1–3, we have suggested that oligosaccharide moiety of 1 are identical to those of glycosides 2 and 3. On the basis of all the above-mentioned data, the structure of pacificusoside B (2) was elucidated to be 3β-O-{3-O-methyl-β-D-xylopyranosyl-(1→3)-β-D-glucopyranosyl-(1→4)-[β-D-xylopyranosyl-(1→2)]-β-D-quinovopyranosyl-(1→2)-β-D-xylopyranosyl}-23,24,25,26,27-pentanorlanosta-7,20(22)-diene-18(16)-lactone.
The molecular formula of 3 was determined to be C60H94O26 from the [M+Na]+ sodiated-molecular ion peak at m/z 1253.5920 (calcd for [C60H94O26Na]+, 1253.5926) in the (+)HRESIMS and from the [M–H]− ion peak at m/z 1229.5952 (calcd for [C60H93O26]−, 1229.5961) in the (–)HRESIMS (Figure S18). The IR spectrum of compound 3 showed the presence of hydroxy (3427 cm−1), lactone carbonyl (1745 cm−1), and olefinic (1635 cm−1) groups (Figure S19). The thorough comparison of the 1H and 13C NMR data of compound 3 with those of 1 (Figures S4, S5, S20, and S21) showed that they differed from each other only in the signals of their side chains (Table 1). The proton and carbon signals of aglycon side chain of 3 demonstrated the presence of three methyl groups (δH 1.53 s, 1.59 s, 1.65 s; δC 28.5, 17.9, 25.7) and one double bond (δH 5.12 m; δC 124.4, 132.1). The protons sequence from H-22 to H-27, correlated with the corresponding carbon atoms of the side chain of 3, was assigned using the COSY and HSQC experiments (Table 1, Figures S22 and S23). The key HMBC correlations H3-21/C-17, C-20, C-22; H-22/C-17, C-20; H-23/C-20, C-21; H-24/C-26, C-27; H3-26/C-24, C-25, C-27, and H3-27/C-24, C-25, C-26 and key ROESY correlations H3-21/H-17, H-22 and H-24/H3-27, H3-26 supported the total structure of the Δ24-lanostane side chain (Figure 1). Thus, aglycon of glycoside 3 was identical to aglycon of known cucumarioside A1 from E. fraudatrix [25]. Therefore, the structure of pacificusoside C (3) was established as 3β-O-{3-O-methyl-β-D-xylopyranosyl-(1→3)-β-D-glucopyranosyl-(1→4)-[β-D-xylopyranosyl-(1→2)]-β-D-quinovopyranosyl-(1→2)-β-D-xylopyranosyl}-16β-acetoxyholosta-7,24-diene.

3.2. In Vitro Anticancer Activity of Compounds 1–6

The cytotoxicity of investigated compounds 1–6 was tested against human embryonic kidney HEK 293 cells, colorectal carcinoma HT-29 cells, melanoma RPMI-7951 cells, and breast cancer MDA-MB-231 cells using MTS assay. The results of the experiment are expressed in IC50 values (Table 3). The compounds 4–6 reveal high cytotoxic activity against the tested cell lines (Table 3, column a). Compound 3 has comparable high cytotoxic activity against HEK 293 (IC50 = 6.7 ± 0.2), HT-29 (IC50 = 6.2 ± 0.3), and MDA-MB-231 (IC50 = 6.4 ± 0.4) cells and moderate effect against RPMI-7951 cells (IC50 = 23.7 ± 0.4). Compound 2 inhibits cell viability of all tested cell lines with IC50 value more than 20 µM (Table 3, column a). In contrast, compound 1 was nontoxic against all types of cells at concentrations range up to 40 µM (Table 3, column a). Cisplatin, a well-known chemotherapeutic drug, was used as the reference cytotoxic drug (positive control). IC50 of cisplatin against HEK 293, HT-29, RPMI-7951, and MDA-MB-231 cells was 64.6 µM, 95.4 µM, 48.4 µM, and 7.8 µM, respectively, after 48 h of treatment (data not shown).
Such potent cytotoxicity of compounds 3–6 can be explained by the fact that the studied triterpene glycosides are capable of interacting with cholesterol of cellular membranes, which leads to cell death as a result of disruption or loss of the integrity of the cell membrane. Since cholesterol is known for its function of stabilizing the cell membrane, the loss of cholesterol itself or the loss of its ability to perform this function is undoubtedly a reason of the observed instability of the cellular membranes and membranolysis of the target cells [26,27,28]. Since the triterpene saponins are able to complex cholesterol [29], we analyzed the influence of triterpene glycosides 2–6 combined with cholesterol on the cell viability. It was found that the cytotoxic activity of 2–6 combined with cholesterol was greatly reduced compared with activity of the investigated individual triterpene glycosides (Table 3, column b). The IC50 value of compounds 3–5 was increased by approximately 3 times, and compound 6—by 1.5 times (Table 3, column b). Obtained data suggested that mechanism of cytotoxic effect of triterpene glycosides 2–6 may be related to binding of membrane cholesterol resulting in membranolysis and cell death. Several works confirmed that triterpene glycosides from sea cucumbers possess potent membranolytic activity [30,31].
It was demonstrated that the investigated compounds 1–6 (at concentrations 5, 10, 20, and 40 µM) did not show selective cytotoxicity on cancer cells, because the viability of normal cells was also suppressed. That is why we investigated the effect of compounds 1–6 on colony formation at the nontoxic concentrations of 0.1, 0.5, and 1 µM, at which they did not influence the viability of normal HEK 293 cells (data not shown).
Compounds 1, 2, and 6 at a concentration of 1 µM possess moderate inhibitory activity on the model of the colony formation of the cancer cells, namely, 1, 2, and 6 decreased number of colonies of HT-29 by 21, 22, and 28%, respectively; RPMI-7951—by 27%, 26%, and 45%, respectively; MDA-MB-231—by 28, 25, and 40%, respectively (Figure 3). Compounds 3, 4, and 5 almost completely suppressed colony growth of HT-29, RPMI-7951, and MDA-MB-231 cells at concentrations of 0.5 µM and 1 µM (Figure 3). To the best of our knowledge this is the first evidence that triterpene glycosides at nontoxic concentrations significantly inhibited the colony formation of human cancer cells.

4. Conclusions

The isolation of a series of new triterpene glycosides from starfish is a rare case. Previously, triterpene glycosides, characteristic metabolites of sea cucumbers, were isolated only from two species of starfish: A. rollestoni Bell and C. granulatus [20,21]. Pacificusosides A–C (1–3), new glycosides from the starfish S. pacificus have a great structural similarity with the triterpene glycosides earlier obtained from the sea cucumber E. fraudatrix. In particular, the isolated glycosides 1, 3 contain the holostane type of aglycons with 16β-acetoxy group and 7(8)-double bond and glycoside 2 contains the rare nonholostane type aglycon, 23,24,25,26,27-pentanorlanosta-7,20(22)-diene-18(16)-lactone-3β-ol.
The oligoglycoside chains of 1–3 have 3-O-methyl-D-xylose as a terminal monosaccharide unit. This monosaccharide residue was previously found only in the sea cucumber E. fraudatrix. It was previously suggested that this structural peculiarity is a chemotaxonomic marker of E. fraudatrix [32]. The finding of 3-O-methyl-D-xylose unit in pacificusosides A–C (1–3) from the starfish shows that these glycosides are food markers. Probably, these compounds are partly metabolized in the starfish glycosides from the sea cucumber, belonging to the genus Eupentacta and obtained with diet. The studied starfish has the synonymized name: Solaster endeca pacificus (Djakonov, 1938). It was reported that in the Atlantic Ocean S. endeca pacificus feeds on other starfish and bivalve mollusks, but in the Pacific, its diet is mainly sea cucumbers and other invertebrates [33]. Without doubt, the starfish S. pacificus feeds on sea cucumbers, as was reported earlier.
At the same time, glycoside 1 has a novel unique type of side chain, containing the aldehyde group in the triterpene aglycon. This structural fragment was not previously found in the sea cucumber triterpene glycosides or sea star steroidal glycosides. Obviously, pacificusoside A is a metabolite, formed by the transformation of a toxic glycoside from a diet in the starfish. It is of particular interest that modified glycoside (1) is significantly less cytotoxic when compared with intact cucumariosides from E. fraudatrix. We assumed that the formation of an unusual glycoside, pacificusoside A (1), from related glycosides of the starfish is carried out in two stages. At the first stage, cucumarioside C2 (5) from the sea cucumber E. fraudatrix, most probably the biosynthetic precursor of pacificusoside A (1), is oxidized by oxygenases similar to P450 cytochromes. At the second stage, the shortening of the Δ22,24-lanostane side chain of compound 5 occurs in the starfish S. pacificus with the formation of the Δ22-24-aldo-25,26,27-trinorlanostane side chain in glycoside 1 (Figure 4). Presumably, the cleavage of part of the side chain occurs under the action of specific oxygenases, similarly to the formation of pregnenolone from cholesterol under the action of cytochrome P450scc in mammals during the synthesis of progesterone. The existence of such oxygenases in sea stars can be confirmed by the detection of (24R)-5α-cholestane-3β,4β,6β,8,15β,24,25-heptaol, which has hydroxy groups at C-24 and C-25 in cholestane side chain [34] as in the intermediate on Figure 4.
We believe that the formation of similar compounds with an aldehyde group in the side chain of glycosides 3 and 4 is also possible, but requires more time after feeding. Moreover, the slow metabolism of the toxic triterpene glycosides in starfish allows them to use the accumulated dietary ichthyotoxic compounds to defend themselves against predators.
Thus, the oxidation with a subsequent decrease in the number of carbon atoms in the side chain of the triterpene glycosides partly led to the decrease in the cytotoxicity of the modified compounds. Indeed, based on the obtained data, one can see a pattern between the structure and biological activity of the isolated compounds. The highest cytotoxicity against all types of cancer and normal cells, as well as the highest inhibitory effect on colony formation of cancer cells, were demonstrated by glycosides 3–5, which have Δ24-lanostane and cis- and trans-Δ22,24-lanostane side chains in the triterpene aglycon, respectively. At the same time, the IC50 of pacificusoside A (1) on all cell types was more than 40 μM, and this compound also slightly inhibited the colony formation of all types of cancer cells in a soft agar assay. According to the data of the colony formation assay, the glycosides 2 and 6, which have a triterpene aglycon with a rearranged 18(16)-lactone, are less active than glycosides 3–5, which have a holostane triterpene aglycon with an 18(20)-lactone.
Finally, we once more confirmed the hypothesis that triterpene glycosides are membranolytic and exert their cytotoxic effect by binding the components of the plasma membrane of target cells. In fact, when cholesterol was combined with the compounds 1–6, the cytotoxicity of all glycosides decreased markedly. This is likely due to the fact that some of the molecules of triterpene glycosides 1–6 bind the cholesterol added to these compounds.
On the other hand, glycosides 3–5, which showed significant or complete inhibition the colony formation of cancer cells at nontoxic concentrations, can be further studied as potential anticancer agents.

Supplementary Materials

The following are available online at https://www.mdpi.com/2218-273X/11/3/427/s1, Figure S1: (–)HRESIMS spectrum of pacificusoside A (1); Figure S2: IR spectrum of pacificusoside A (1) in KBr; Figure S3: UV spectrum of pacificusoside A (1) in MeOH; Figure S4: 1H NMR spectrum of pacificusoside A (1) in C5D5N; Figure S5: 13C NMR spectrum of pacificusoside A (1) in C5D5N; Figure S6: 1H-1H COSY spectrum of pacificusoside A (1) in C5D5N; Figure S7: HSQC spectrum of pacificusoside A (1) in C5D5N; Figure S8: HMBC spectrum of pacificusoside A (1) in C5D5N; Figure S9: ROESY spectrum of pacificusoside A (1) in C5D5N; Figure S10: (–)HRESIMS spectrum of pacificusoside B (2); Figure S11: IR spectrum of pacificusoside B (2) in KBr; Figure S12: 1H NMR spectrum of pacificusoside B (2) in C5D5N; Figure S13: 13C NMR spectrum of pacificusoside B (2) in C5D5N; Figure S14: 1H-1H-COSY spectrum of pacificusoside B (2) in C5D5N; Figure S15: HSQC spectrum of pacificusoside B (2) in C5D5N; Figure S16: HMBC spectrum of pacificusoside B (2) in C5D5N; Figure S17: ROESY spectrum of pacificusoside B (2) in C5D5N; Figure S18: (–)HRESIMS spectrum of pacificusoside C (3); Figure S19: IR spectrum of pacificusoside C (3) in KBr, Figure S20: 1H NMR spectrum of pacificusoside C (3) in C5D5N; Figure S21: 13C NMR spectrum of pacificusoside C (3) in C5D5N; Figure S22: 1H-1H COSY spectrum of pacificusoside C (3) in C5D5N; Figure S23: HSQC spectrum of pacificusoside C; (3) in C5D5N; Figure S24: HMBC spectrum of pacificusoside C; (3) in C5D5N; Figure S25: ROESY spectrum of pacificusoside C; (3) in C5D5N.

Author Contributions

T.V.M. isolated the metabolites, elucidated their structure, and prepared the manuscript; A.A.K. and N.V.I. analyzed the compounds and edited the manuscript; A.I.K. performed the acquisition and interpretation of NMR spectra; P.S.D. did the acquisition and interpretation of mass spectra; A.S.K. investigated the cytotoxic and anticancer activity of the compounds; O.S.M. described the results of the biological activity of the compounds and prepared the manuscript.; V.A.S. edited the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

The isolation and establishment of the chemical structures were partially supported by Grant No. 20-03-00014 from the RFBR (Russian Foundation for Basic Research). The study on the cytotoxic and the anticancer activities of starfish metabolites was supported by Grant No. 18-74-10028 from the RSF (Russian Science Foundation).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding authors.

Acknowledgments

The study was carried out on the equipment of the Collective Facilities Center “The Far Eastern Center for Structural Molecular Research (NMR/MS) of PIBOC FEB RAS”. We are grateful to B.B. Grebnev (G.B. Elyakov Pacific Institute of Bioorganic Chemistry FEB RAS, Vladivostok, Russia) for species identification of the starfish, V.I. Kalinin for reading and discussion of the manuscript, E.V. Evtushenko for providing sample of 3-O-Me-Xyl, V.P. Glazunov for providing IR spectra of compounds and N.Y. Kim for providing UV spectra of compounds.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gomes, A.R.; Freitas, A.C.; Rocha-Santos, T.A.P.; Duarte, A.C. Bioactive compounds derived from echinoderms. RSC Adv. 2014, 4, 29365–29382. [Google Scholar] [CrossRef]
  2. Mondol, M.A.M.; Shin, H.J.; Rahman, M.A.; Islam, M.T. Sea cucumber glycosides: Chemical structures, producing species and important biological properties. Mar. Drugs 2017, 15, 317. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Kalinin, V.I.; Silchenko, A.S.; Avilov, S.A.; Stonik, V.A. Non-holostane aglycones of sea cucumber triterpene glycosides. Structure, biosynthesis, evolution. Steroids 2019, 147, 42–51. [Google Scholar] [CrossRef]
  4. Kalinin, V.I.; Aminin, D.L.; Avilov, S.A.; Silchenko, A.S.; Stonik, V.A. Triterpene glycosides from sea cucumbers (Holothurioidea, Echinodermata), biological activities and functions. In Studies in Natural Product Chemistry (Bioactive Natural Products); Atta-ur-Rahman, Ed.; Elsevier Science Publisher: Amsterdam, The Netherlands, 2008; Volume 35, pp. 135–196. [Google Scholar]
  5. Careaga, V.P.; Maier, M.S. Cytotoxic triterpene glycosides from sea cucumbers. In Handbook of Anticancer Drugs from Marine Origin; Kim, S.-K., Ed.; Springer International Publishing: Cham, Switzerland, 2015; pp. 515–528. [Google Scholar]
  6. Chludil, H.D.; Murray, A.P.; Seldes, A.M.; Maier, M.S. Biologically active triterpene glycosides from sea cucumbers (Holothuroidea, Echinodermata). In Studies in Natural Products Chemistry; Atta-ur-Rahman, Ed.; Elsevier Science Publisher: Amsterdam, The Netherlands, 2003; Volume 28, pp. 587–615. [Google Scholar]
  7. Kim, S.K.; Himaya, S.W.A. Chapter 20-Triterpene glycosides from sea cucumbers and their biological activities. Adv. Food Nutr. Res. 2012, 63, 297–319. [Google Scholar] [CrossRef]
  8. Maier, M.S.; Roccatagliata, A.J.; Kuriss, A.; Chludil, H.; Seldes, A.M.; Pujol, C.A.; Damonte, E.B. Two new cytotoxic and virucidal trisulfated triterpene glycosides from the Antarctic sea cucumber Staurocucumis liouvillei. J. Nat. Prod. 2001, 64, 732–736. [Google Scholar] [CrossRef]
  9. Aminin, D.L.; Menchinskaya, E.S.; Pisliagin, E.A.; Silchenko, A.S.; Avilov, S.A.; Kalinin, V.I. Anticancer activity of sea cucumber triterpene glycosides. Mar. Drugs 2015, 13, 1202–1223. [Google Scholar] [CrossRef]
  10. Aminin, D.L.; Pislyagin, E.A.; Menchinskaya, E.S.; Silchenko, A.S.; Avilov, S.A.; Kalinin, V.I. Immunomodulatory and anticancer activity of sea cucumber triterpene glycosides. In Studies in Natural Products Chemistry (Bioactive Natural Products); Atta-ur-Rahman, Ed.; Elsevier Science Publisher: Amsterdam, The Netherlands, 2014; Volume 41, pp. 75–94. [Google Scholar]
  11. Minale, L.; Riccio, R.; Zollo, F. Steroidal oligoglycosides and polyhydroxysteroids from Echinoderms. Fortschr. Chem. Org. Nat. 1993, 62, 75–308. [Google Scholar] [CrossRef]
  12. Stonik, V.A. Marine polar steroids. Russ. Chem. Rev. 2001, 70, 673–715. [Google Scholar] [CrossRef]
  13. Iorizzi, M.; De Marino, S.; Zollo, F. Steroidal oligoglycosides from the Asteroidea. Curr. Org. Chem. 2001, 5, 951–973. [Google Scholar] [CrossRef]
  14. Stonik, V.A.; Ivanchina, N.V.; Kicha, A.A. New polar steroids from starfish. Nat. Prod. Commun. 2008, 3, 1587–1610. [Google Scholar] [CrossRef] [Green Version]
  15. Dong, G.; Xu, T.H.; Yang, B.; Lin, X.P.; Zhou, X.F.; Yang, X.W.; Liu, Y.H. Chemical constituents and bioactivities of starfish. Chem. Biodivers. 2011, 8, 740–791. [Google Scholar] [CrossRef]
  16. Ivanchina, N.V.; Kicha, A.A.; Stonik, V.A. Steroid glycosides from marine organisms. Steroids 2011, 76, 425–454. [Google Scholar] [CrossRef] [PubMed]
  17. Ivanchina, N.V.; Kicha, A.A.; Malyarenko, T.V.; Stonik, V.A. Advances in Natural Products Discovery; Gomes, A.R., Rocha-Santos, T., Duarte, A., Eds.; Nova Science Publishers: New York, NY, USA, 2017; Volume 6, pp. 191–224. [Google Scholar]
  18. Stonik, V.A.; Kicha, A.A.; Malyarenko, T.V.; Ivanchina, N.V. Asterosaponins: Structures, taxonomic distribution, biogenesis and biological activities. Mar. Drugs 2020, 18, 584. [Google Scholar] [CrossRef]
  19. Xia, J.M.; Miao, Z.; Xie, C.L.; Zhang, J.W.; Yang, X.W. Chemical constituents and bioactivities of starfish: An update. Chem. Biodivers. 2020, 17, e1900638. [Google Scholar] [CrossRef] [Green Version]
  20. Zhan, Y.C.; Sun, Y.; Li, W.; Lin, Y.; Sha, Y.; Pei, Y.H. A new triterpene glycoside from Asterias rollentoni. J. Asian Nat. Prod. Res. 2006, 8, 631–636. [Google Scholar] [CrossRef]
  21. Ivanchina, N.V.; Kalinovsky, A.I.; Malyarenko, T.V.; Kicha, A.A.; Dmitrenok, P.S. A holothurian triterpene glycoside holothurin A2 (= echinoside A) isolated from the starfish Choriaster granulatus. Nat. Prod. Commun. 2019, 14, 1–3. [Google Scholar] [CrossRef]
  22. Afiyatullov, S.S.; Kalinovsky, A.I.; Stonik, V.A. Structures of cucumariosides C1 and C2–two new triterpene glycosides from the holothurian Eupentacta fraudatrix. Chem. Nat. Comp. 1987, 23, 691–696. [Google Scholar] [CrossRef]
  23. Silchenko, A.S.; Kalinovsky, A.I.; Avilov, S.A.; Andrijaschenko, P.V.; Dmitrenok, P.S.; Martyyas, E.A.; Kalinin, V.I. Triterpene glycosides from the sea cucumber Eupentacta fraudatrix. Structure and cytotoxic action of cucumariosides A2, A7, A9, A10, A11, A13 and A14, seven new minor non-sulfated tetraosides and an aglycone with an uncommon 18-hydroxy group. Nat. Prod. Commun. 2012, 7, 845–852. [Google Scholar] [CrossRef] [Green Version]
  24. Silchenko, A.S.; Kalinovsky, A.I.; Avilov, S.A.; Andryjaschenko, P.V.; Dmitrenok, P.S.; Martyyas, E.A.; Kalinin, V.I. Triterpene glycosides from the sea cucumber Eupentacta fraudatrix. Structure and biological action of cucumariosides I1, I3, I4, three new minor disulfated pentaosides. Nat. Prod. Commun. 2013, 8, 1053–1058. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Silchenko, A.S.; Kalinovsky, A.I.; Avilov, S.A.; Andryjaschenko, P.V.; Dmitrenok, P.S.; Martyyas, E.A.; Kalinin, V.I. Triterpene glycosides from the sea cucumber Eupentacta fraudatrix. Structure and biological action of cucumariosides A1, A3, A4, A5, A6, A12 and A15, seven new minor non-sulfated tetraosides and unprecedented 25-keto, 27-norholostane aglycone. Nat. Prod. Commun. 2012, 7, 517–525. [Google Scholar] [CrossRef] [Green Version]
  26. Schlösser, E. Interaction of saponins with cholesterol, lecithin, and albumin. Can. J. Physiol. Pharmacol. 1969, 47, 487–490. [Google Scholar] [CrossRef] [PubMed]
  27. De Geyter, E.; Swevers, L.; Soin, T.; Geelen, D.; Smagghe, G. Saponins do not affect the ecdysteroid receptor complex but cause membrane permeation in insect culture cell lines. J. Insect. Physiol. 2012, 58, 18–23. [Google Scholar] [CrossRef]
  28. Böttger, S.; Melzig, M.F. The influence of saponins on cell membrane cholesterol. Bioorg. Med. Chem. 2013, 21, 7118–7124. [Google Scholar] [CrossRef] [PubMed]
  29. Wojciechowski, K.; Orczyk, M.; Gutberlet, T.; Geue, T. Complexation of phospholipids and cholesterol by triterpenic saponins in bulk and in monolayers. Biochim. Biophys. Acta Biomembr. 2016, 1858, 363–373. [Google Scholar] [CrossRef]
  30. Wang, J.; Han, H.; Chen, X.; Yi, Y.; Sun, H. Cytotoxic and apoptosis-inducing activity of triterpene glycosides from Holothuria scabra and Cucumaria frondosa against HepG2 cells. Mar. Drugs 2014, 12, 4274–4290. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Popov, A.M.; Kalinovskaia, N.I.; Kuznetsova, T.A.; Agafonova, I.G.; Anisimov, M.M. Role of sterols in the membranotropic activity of triterpene glycosides. Antibiotiki 1983, 28, 656–659. [Google Scholar]
  32. Popov, R.S.; Ivanchina, N.V.; Silchenko, A.S.; Avilov, S.A.; Kalinin, V.I.; Dolmatov, I.Y.; Stonik, V.A.; Dmitrenok, P.S. Metabolite profiling of triterpene glycosides of the Far Eastern sea cucumber Eupentacta fraudatrix and their distribution in various body components using LC-ESI QTOF-MS. Mar. Drugs 2017, 15, 302. [Google Scholar] [CrossRef] [Green Version]
  33. Sea Stars of the Pacific Northwest. Available online: https://seastarsofthepacificnorthwest.info/northern-sun-star.html (accessed on 16 February 2021).
  34. Ivanchina, N.V.; Kicha, A.A.; Kalinovsky, A.I.; Dmitrenok, P.S.; Dmitrenok, A.S.; Chaikina, E.L.; Stonik, V.A.; Gavagin, M.; Cimino, G. Polar steroids compounds from the Far Eastern starfish Henricia leviuscula. J. Nat. Prod. 2006, 69, 224–228. [Google Scholar] [CrossRef]
Biomolecules 11 00427 g001 550

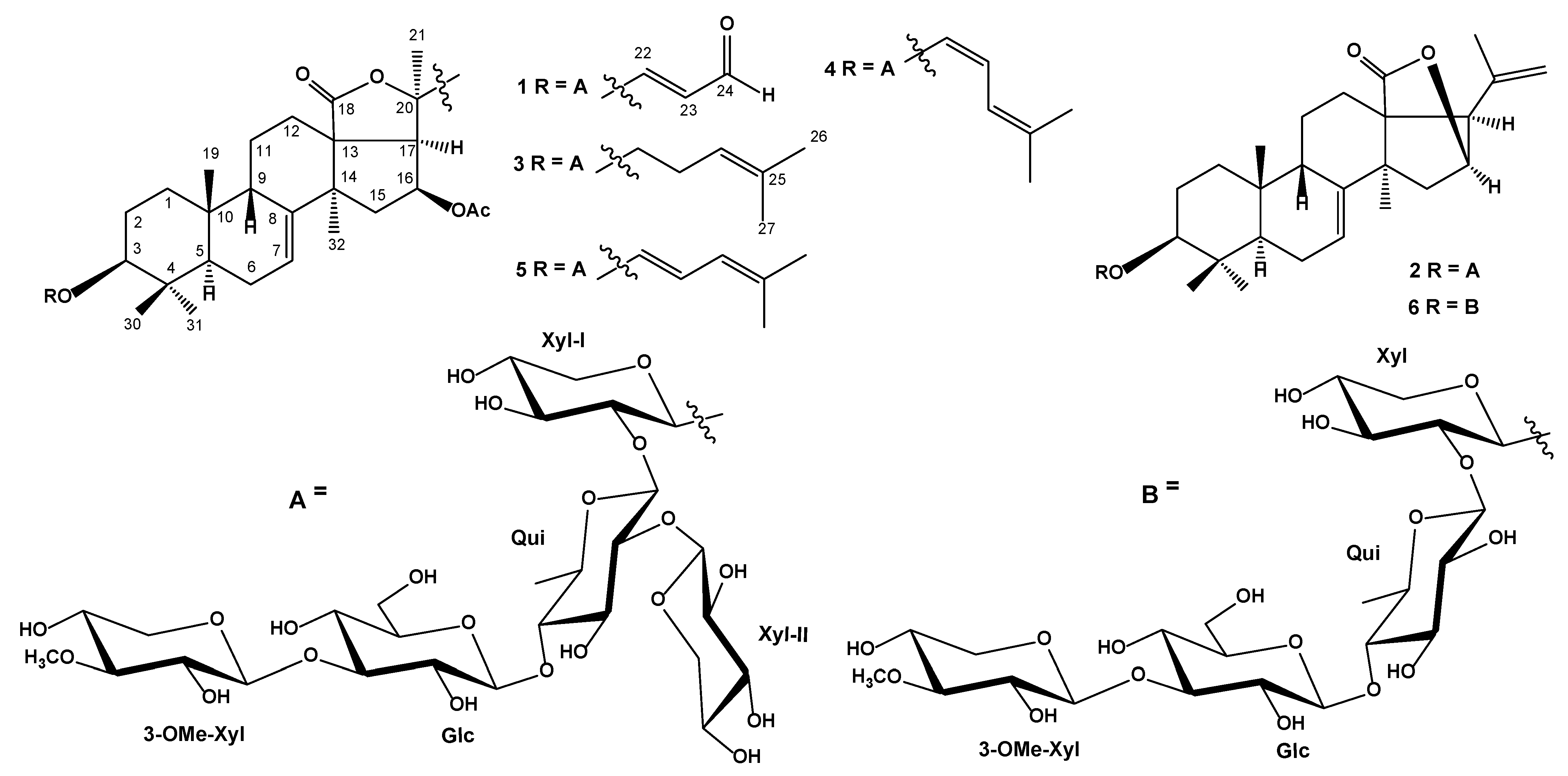

Figure 1. The structures of compounds 1−6 isolated from S. pacificus.
Figure 1. The structures of compounds 1−6 isolated from S. pacificus.
Biomolecules 11 00427 g001
Biomolecules 11 00427 g002 550

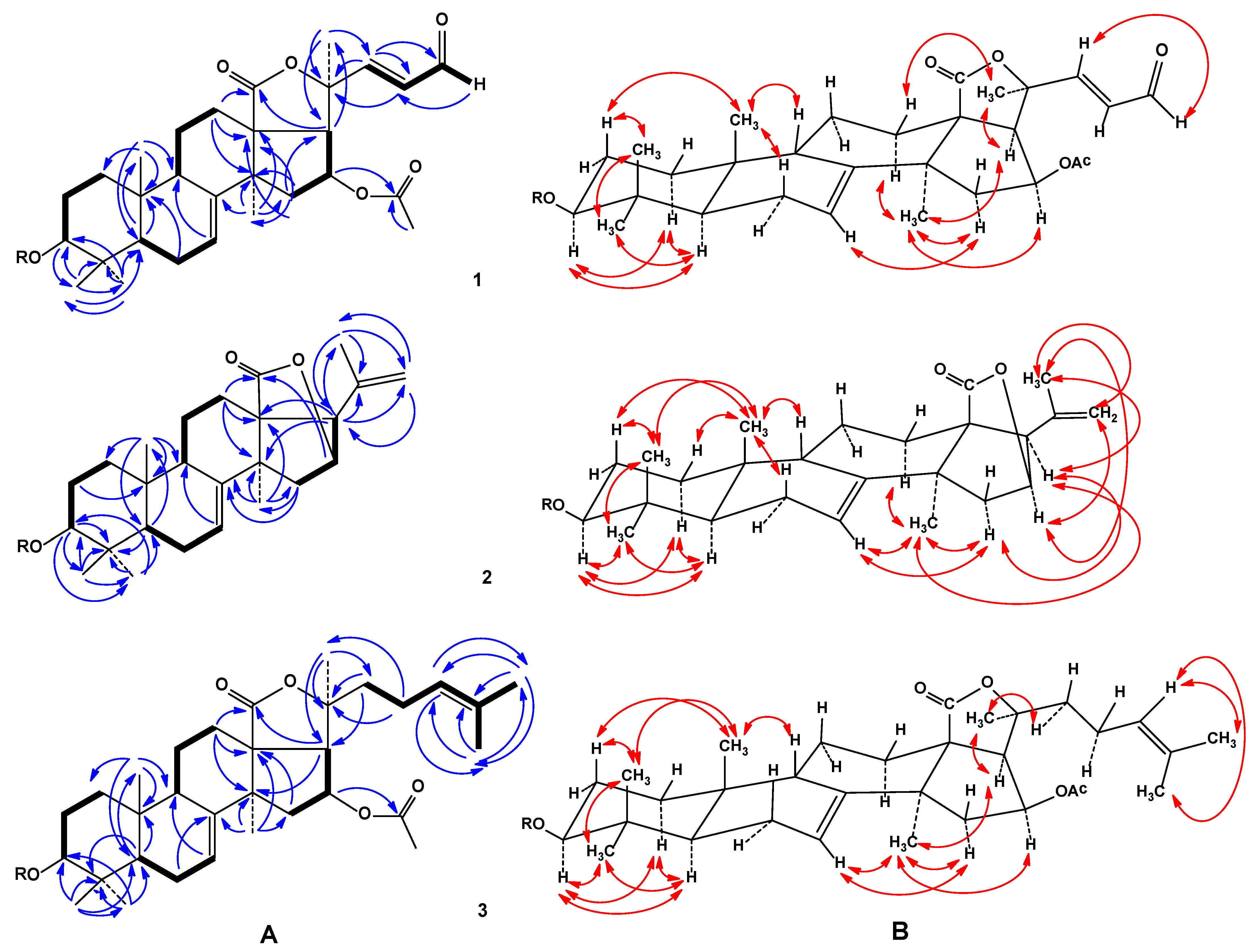

Figure 2. (A) 1H-1H COSY and key HMBC correlations for aglycon part of compounds 1–3. (B) Key ROESY correlations for aglycon part of compounds 1–3.
Figure 2. (A) 1H-1H COSY and key HMBC correlations for aglycon part of compounds 1–3. (B) Key ROESY correlations for aglycon part of compounds 1–3.
Biomolecules 11 00427 g002
Biomolecules 11 00427 g003 550

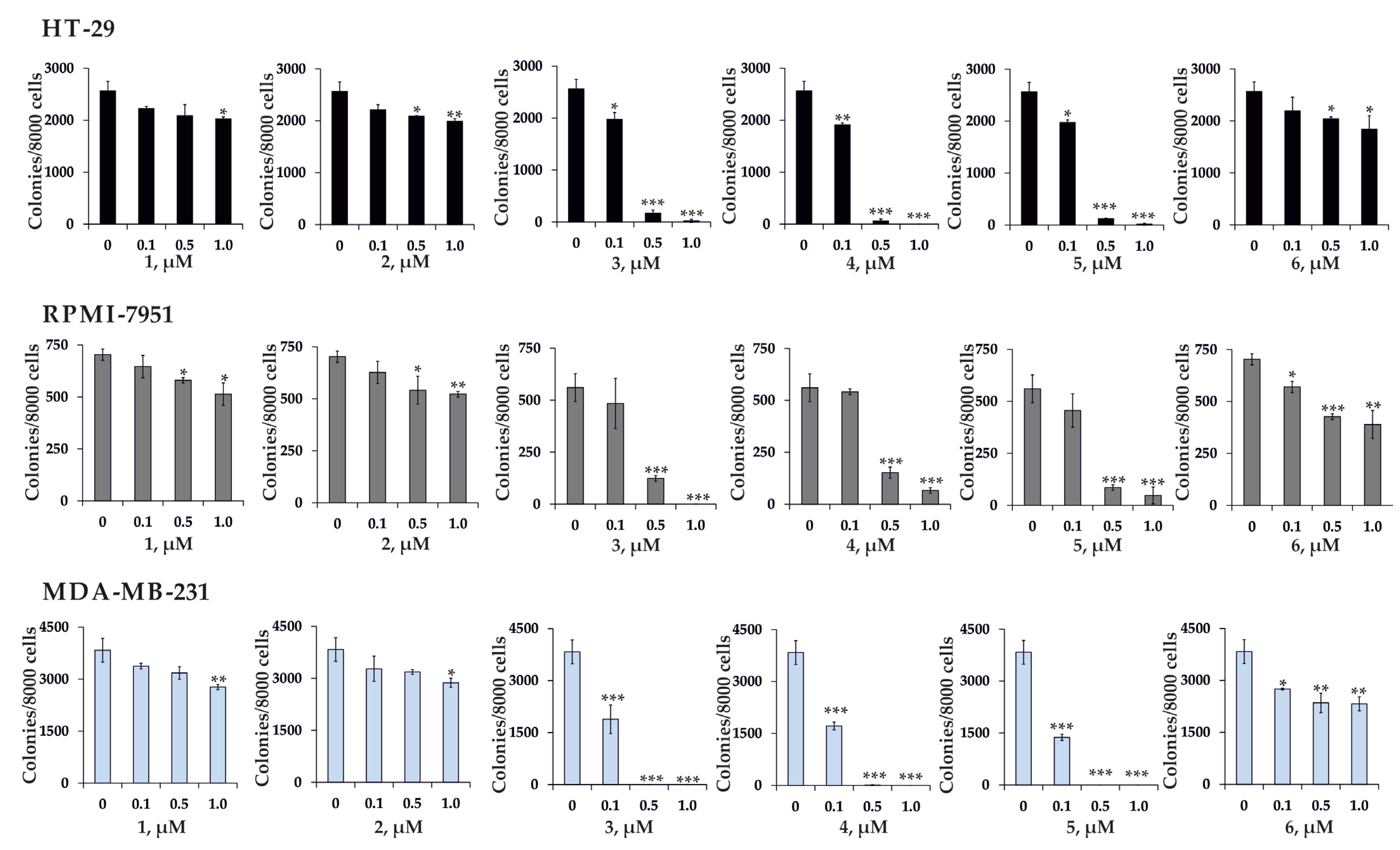

Figure 3. Effect of compounds 1–6 on colony formation of human colorectal carcinoma HT-29, melanoma RPMI-7951, and breast cancer MDA-MB-231 cell lines. HT-29, RPMI-7951, and MDA-MB-231 cells (2.4 × 104 /mL) treated with/without investigated 1–6 (0.1, 0.5, and 1 µM) and subjected into a soft agar. The culture was maintained at 37 °C in a 5% CO2 atmosphere for 2 weeks. The colonies were counted under a microscope with the aid of the ImageJ software program (n = 6 for control and each compound, n—quantity of photos). The asterisks (* p < 0.05, ** p < 0.01, *** p < 0.001) indicate a significant decrease in colony formation in cells treated with compounds compared with the nontreated cells (control).
Figure 3. Effect of compounds 1–6 on colony formation of human colorectal carcinoma HT-29, melanoma RPMI-7951, and breast cancer MDA-MB-231 cell lines. HT-29, RPMI-7951, and MDA-MB-231 cells (2.4 × 104 /mL) treated with/without investigated 1–6 (0.1, 0.5, and 1 µM) and subjected into a soft agar. The culture was maintained at 37 °C in a 5% CO2 atmosphere for 2 weeks. The colonies were counted under a microscope with the aid of the ImageJ software program (n = 6 for control and each compound, n—quantity of photos). The asterisks (* p < 0.05, ** p < 0.01, *** p < 0.001) indicate a significant decrease in colony formation in cells treated with compounds compared with the nontreated cells (control).
Biomolecules 11 00427 g003
Biomolecules 11 00427 g004 550

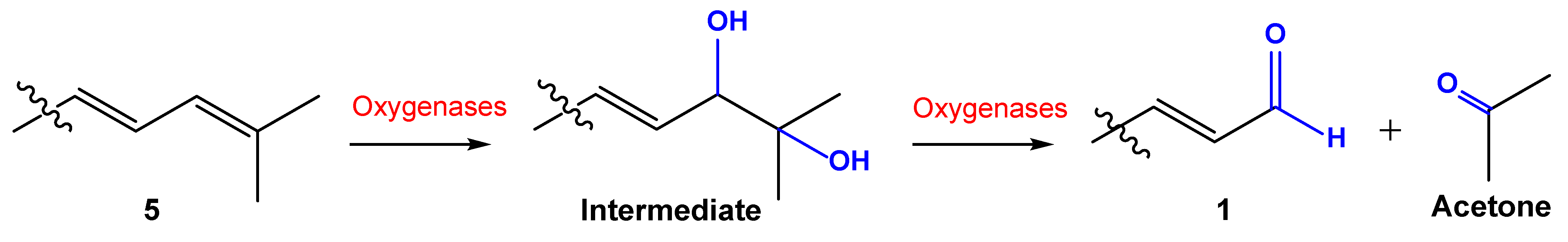

Figure 4. Hypothetic scheme of the biosynthesis of aglycon side chain of compound 1.
Figure 4. Hypothetic scheme of the biosynthesis of aglycon side chain of compound 1.
Biomolecules 11 00427 g004
Table
Table 1. 1H and 13C NMR data of aglycon part of compounds 1–3 (35 °C, C5D5N, J in Hz) a.
Table 1. 1H and 13C NMR data of aglycon part of compounds 1–3 (35 °C, C5D5N, J in Hz) a.
Position123
δHδCδHδCδHδC
11.49 m36.31.48 m35.91.48 m36.4
22.21 m
1.96 m		27.22.16 m
1.89 m		26.92.19 m
1.94 m		27.3
33.35 dd (11.6, 4.1)89.13.31 dd (11.7, 3.8)88.93.34 dd (11.5, 3.9)89.3
4-39.7-39.4-39.8
51.06 m48.11.00 dd (11.9, 3.6)47.51.06 m48.3
62.08 m23.42.07 m
1.97 m		23.32.06 m
1.93 m		23.6
75.68 m121.15.64 brd (7.1)122.65.68 brs120.7
8-145.3-147.4-145.9
93.44 brd (14.2)47.43.00 brd (14.6)46.43.48 brd (13.5)47.4
10-35.8-35.5-35.8
111.88 m
1.60 m		22.52.00 m
1.47 m		21.71.81 m
1.55 m		22.8
122.15 m
2.02 m		30.72.37 m
1.88 m		20.02.16 m
2.00 m		31.6
13-59.1-56.7-59.5
14-48.2-46.0-47.7
152.58 dd (12.5, 7.2)
1.70 m		43.32.16 d (13.3)
1.97 dd (13.3, 2.2)		43.82.63 dd (12.4, 7.4)
1.75 m		43.9
165.81 q (8.3)73.64.74 brd (2.2)80.45.96 q (8.7)75.2
173.01 d (8.3)56.82.94 s59.12.66 d (9.5)54.8
18-178.5-180.7-179.7
191.24 s24.11.02 s23.91.23 s24.2
20-82.4-139.9-85.2
211.56 s28.91.75 s23.01.53 s28.5
227.28 d (16.0)159.45.06 s
4.98 s		113.92.57 td (12.0, 4.4)
1.93 m		38.9
236.46 dd (16.0, 7.6)127.6--2.07 m2.01 m23.6
249.78 d (7.6)193.1--5.12 m124.4
25-----132.1
26----1.59 s17.9
27----1.65 s25.7
301.17 s17.61.12 s17.31.15 s17.7
311.32 s28.71.30 s28.61.31 s29.0
321.15 s32.31.35 s33.91.17 s32.4
CO-169.7---170.0
CH3-CO1.86 s21.1--2.01 s21.2
a Assignments from 700 MHz 1H-1H COSY, HSQC, HMBC (8 Hz), and ROESY (270 msec) data.
Table
Table 2. 1H, 13C, HMBC, and ROESY NMR data of oligosaccharide chains of 1–3 (35 °C, C5D5N, J in Hz) a.
Table 2. 1H, 13C, HMBC, and ROESY NMR data of oligosaccharide chains of 1–3 (35 °C, C5D5N, J in Hz) a.
Position1–3
δHδCHMBCROESY
Xyl-I
14.84 d (7.1)105.0C3-Agl; C5-Xyl-IH3, H30-Agl; H3, H5-Xyl-I
23.91 dd (8.7, 7.1)83.2C1, C3-Xyl-I; C1-QuiH4-Xyl-I
34.19 t (8.7)77.8C2, C4-Xyl-IH1-Xyl-I
44.11 m70.2C3-Xyl-IH2-Xyl-I
54.32 dd (11.6, 5.4)
3.69 dd (11.6, 9.3)		66.5C1, C3-Xyl-I
C1, C3-Xyl-I		H1-Xyl-I
Qui
15.20 d (7.3)103.0C2-Xyl-IH3, H5-Qui; H2-Xyl-I
24.11 m82.7C1, C3-Qui; C1-Xyl-II
34.09 m75.6C2, C4-QuiH1-Qui
43.61 m86.5C3, C5, C6-Qui; C1-GlcH1-Glc; H6-Qui
53.67 m71.0C4-QuiH1-Qui
61.70 d (6.5)17.9C4, C5-QuiH4-Qui
Glc
14.94 d (7.9)104.7C4-QuiH4-Qui; H3, H5-Glc
24.00 m73.8C1, C3-Glc
34.21 t (9.0)87.1C2, C4-GlcH1-3-OMe-Xyl; H1, H5-Glc
44.05 t (9.0)69.3C3, C5, C6-Glc
53.99 m77.8 H1, H3-Glc
64.47 dd (11.5, 2.6)
4.20 m		61.7
3-OMe-Xyl
15.21 d (7.6)106.0C3-Glc; C5-3-OMe-XylH3, H5-3-OMeXyl; H3-Glc
23.94 t (8.4)74.6C1, C3-3-OMe-XylH4-3-OMe-Xyl
33.60 t (8.8)87.7C2, C4-3-OMe-Xyl; OMeH1-3-OMe-Xyl; OMe
44.08 m69.9 H2-3-OMe-Xyl
54.21 dd (11.3, 5.5) 3.63 t (11.3)67.0C1, C3-3-OMe-Xyl
C1, C3, C4-3-OMe-Xyl		H1-3-OMe-Xyl
3-OMe3.85 s60.4C3-3-OMe-XylH3-3-OMe-Xyl
Xyl-II
15.36 d (7.0)105.8C2-Qui; C5-Xyl-IIH3, H5-Xyl-II; H2-Qui
24.04 m75.5C1, C3-Xyl-II
34.10 t (8.1)77.0C2, C4-Xyl-IIH1-Xyl-II
44.12 m70.4C3-Xyl-II
54.33 dd (11.7, 4.6)
3.65 dd (11.7, 9.6)		66.9C1, C3, C4-Xyl-II
C1, C4, C5-Xyl-II
H1-Xyl-II
a Assignments from 700 MHz 1H-1H COSY, HSQC, HMBC (8 Hz), and ROESY (270 msec) data.
Table
Table 3. Cytotoxic activities of compounds 1–6 and their mixtures with cholesterol. Values are indicated as mean ± standard deviation.
Table 3. Cytotoxic activities of compounds 1–6 and their mixtures with cholesterol. Values are indicated as mean ± standard deviation.
CompoundInhibiting Concentration, (IC50), µM
HEK 293HT-29RPMI-7951MDA-MB-231
abababab
1>40n.d.>40n.d.>40n.d.>40n.d.
228.6 ± 2.1>4026.2 ± 2.5>4020.4 ± 1.6>4021.5 ± 0.5>40
36.7 ± 0.224.2 ± 4.06.2 ± 0.319.4 ± 3.323.7 ± 0.4>406.4 ± 0.420.0 ± 4.7
45.5 ± 0.317.3 ± 0.85.3 ± 0.214.3 ± 3.05.8 ± 1.216.4 ± 3.13.6 ± 0.212.8 ± 0.7
57.9 ± 0.919.5 ± 1.25.5 ± 0.615.9 ± 0.265.9 ± 0.917.0 ± 2.84.4 ± 0.0912.9 ± 2.5
66.3 ± 0.613.2 ± 0.57.8 ± 0.710.9 ± 0.055.8 ± 2.611.4 ± 0.85.5 ± 0.110.5 ± 1.8
IC50, the concentration of compounds that caused a 50% reduction in cell viability of tested normal and cancer cells. a IC50 of individual compounds 1–6 for 24 h. b IC50 of 1–6 combined with cholesterol for 24 h. n.d.—not determined.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Malyarenko, T.V.; Kicha, A.A.; Kalinovsky, A.I.; Dmitrenok, P.S.; Malyarenko, O.S.; Kuzmich, A.S.; Stonik, V.A.; Ivanchina, N.V. New Triterpene Glycosides from the Far Eastern Starfish Solaster pacificus and Their Biological Activity. Biomolecules 2021, 11, 427. https://doi.org/10.3390/biom11030427

AMA Style

Malyarenko TV, Kicha AA, Kalinovsky AI, Dmitrenok PS, Malyarenko OS, Kuzmich AS, Stonik VA, Ivanchina NV. New Triterpene Glycosides from the Far Eastern Starfish Solaster pacificus and Their Biological Activity. Biomolecules. 2021; 11(3):427. https://doi.org/10.3390/biom11030427

Chicago/Turabian Style

Malyarenko, Timofey V., Alla A. Kicha, Anatoly I. Kalinovsky, Pavel S. Dmitrenok, Olesya S. Malyarenko, Alexandra S. Kuzmich, Valentin A. Stonik, and Natalia V. Ivanchina. 2021. "New Triterpene Glycosides from the Far Eastern Starfish Solaster pacificus and Their Biological Activity" Biomolecules 11, no. 3: 427. https://doi.org/10.3390/biom11030427

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
