Magnetically Suspended Control Sensitive Gyroscope Rotor High-Precision Deflection Decoupling Method using Quantum Neural Network and Fractional-Order Terminal Sliding Mode Control

Abstract

To achieve high-precision deflection control of a Magnetically Suspended Control and Sensitive Gyroscope rotor under high dynamic conditions, a deflection decoupling method using Quantum Radial Basis Function Neural Network and fractional-order terminal sliding mode control is proposed. The convergence speed and time complexity of the neural network controller limit the control accuracy and stability of rotor deflection under high-bandwidth conditions. To solve the problem, a quantum-computing-based structure optimization method for the Radial Basis Function Neural Network is proposed for the first time, where the input and the center of hidden layer basis function of the neural network are quantum-coded, and quantum rotation gates are designed to replace the Gaussian function. The parallel characteristic of quantum computing is utilized to reduce the time complexity and improve the convergence speed of the neural network. On top of that, in order to further address the issue of input jitter, a fractional-order terminal sliding mode controller based on the Quantum Radial Basis Function Neural Network is designed, the fractional-order differential sliding mode surface and the fractional-order convergence law are proposed to reduce the input jitter and achieve finite-time convergence of the controller, and the Quantum Radial Basis Function Neural Network is used to approximate the residual coupling and external disturbances of the system, resulting in improving the rotor deflection control accuracy. The semi-physical simulation experiments demonstrate the effectiveness and superiority of the proposed method.

1. Introduction

Magnetically Suspended Control Sensitive Gyroscope (MSCSG) is a new type of actuator for spacecraft attitude control [1]. Unlike existing single-functional magnetic suspension control moment gyroscopes or magnetic suspension rate gyroscopes, the MSCSG has the outstanding advantage of simultaneous control and sensing and has great potential for high-accuracy control. However, there are challenges and difficulties in realizing high-precision control of MSCSG. Some of the key factors that affect the high-precision and high-bandwidth control of MSCSG are the problems of constant speed, suspension accuracy, and stability of the high-speed magnetic suspension rotor. The magnetic suspension rotor is a complex system with highly dynamic, nonlinear, and strongly coupled characteristics [2]. When subjected to external disturbances, the rotor will generate displacement, affecting the suspension accuracy of the rotor. Therefore, external disturbances must be suppressed. When controlling the high dynamic deflection of the rotor to output control moment, the real-time performance of the control system will affect the moment accuracy. There are currently various control methods for magnetically suspended rotor decoupling control, such as PID decoupling control [3], sliding mode control [4], and self-adaptive decoupling control [5]. In addition, there are decoupling control methods that combine traditional methods with neural networks [6].

Ren analyzed the effect of cross-coupling and feedforward channel delays on the stability of PID cross-feedback decoupling control [7] and proved that the cross-coupling channel delay is the main factor affecting stability. However, he did not propose an effective method of delayed compensation.

Xia proposed a feedforward internal model decoupling control method for magnetically suspended rotor [8]; however, the model’s accuracy limits the control accuracy at high bandwidths.

Wang proposed a control method for the magnetically suspended rotor using active disturbance rejection control (ADRC) [9], which achieved high-accuracy control of the deflection channel under external perturbation conditions, but the adjustment of the controller parameters was complicated. Yin proposed a state feedback self-adaptive disturbance rotor control method, but did not consider the decoupling accuracy problem under high-dynamic conditions. Reference [10] proposed an RBF neural network ADRC method, which achieved self-adaptive parameter adjustment through neural networks and improved the system’s robustness. However, all three methods adopted active disturbance rejection control (ADRC), which makes it difficult to adjust the parameters [11]. Moreover, the second-order extended state observer essentially belongs to an integral system [12,13], which will cause a lag effect on the system, which is inadvisable for high-dynamic disturbance observation and control.

Sliding mode control (SMC) can effectively address high-precision control under external disturbance conditions [14]. Dou proposed a rotor neural network sliding mode control method to improve system robustness [15]. Zheng proposed an SMC method for a satellite magnetically suspended rotor [16]. Wang proposed a terminal SMC method for magnetically suspended flywheels [17]. Some studies focus on improving the performance of the controller by using fractional-order theory [18,19]. Zhang proposed a fractional-order PD attitude control method for spacecraft with flexible attachments [20]. Yu proposed a model-free fractional-order sliding mode controller with a nonlinear disturbance observer that has good dynamic response and strong robustness [21]. These methods achieved convergence within a limited time; however, the problem of input jitter under high dynamic conditions remains [22].

Neural network control has potential in the field of nonlinear system control by general approximation of unknown functions. The Radial Basis Function Neural Network (RBF-NN) is a multi-layer feed-forward neural network with a simple structure that can approximate nonlinear functions with arbitrary accuracy and is widely used in the control of nonlinear systems [23,24]. However, the network structure and time complexity constraints unavoidably affect the approximation performance under high-dynamic disturbances [25]. Some scholars have improved the approximation accuracy and dynamic performance of neural networks by introducing the idea of quantum computing for optimizing network parameters and structures [26,27]. L. proposed a BP neural network based on universal quantum gates, which improved the convergence rate of the network [28]. Li proposed a quantum neural network model based on controllable Hadamard gates, which improved the approximation accuracy of the network [29]; Ye used quantum evolutionary algorithms for parameter tuning of neural network PID controllers, achieving certain effects [30]. As for the Quantum Radial Basis Function Neural Network (QRBF-NN), Liu proposed a method to improve RBF using quantum coding, and simulations showed that QRBF-NN outperforms RBF in image recognition [31]. Shao proposed two quantum algorithms to train RBF networks, which sped up the training [32]. However, these methods only improve the network performance based on traditional quantum gate circuit neural networks without improving the network structure, resulting in limited effects for high-bandwidth nonlinear systems. Due to the high dynamic characteristics of MSCSG rotors, the real-time performance of traditional neural networks further magnifies the impact on control accuracy.

In summary, the traditional MSCSG rotor neural network control method has the following problems: (1) High network time complexity, which affects the high-frequency deflection control accuracy of the rotor. (2) Controller design needs to be further optimized to speed up the convergence speed and reduce the input jitter. To solve these problems, in this paper, a decoupling control method for rotor deflection based on QRBF-NN and terminal sliding mode control is proposed. Firstly, the RBF neural network structure is optimized using the idea of quantum computing. Exploiting the parallel characteristic of quantum computing, the time complexity of the network is reduced, thereby enhancing the approximation accuracy under high-bandwidth conditions. Secondly, a fractional-order terminal sliding mode controller based on QRBF-NN is designed, incorporating a fractional-order sliding surface and fractional-order approaching law to reduce input jitter and improve control accuracy. Finally, the effectiveness and superiority of the proposed method are validated through semi-physical simulation.

The paper is organized as follows: Section 2 describes the modeling of MSCSG. Section 3 provides the QRBF-NN and controller design and two relevant theorems. Section 4 presents the simulations and comparisons. Section 5 draws a conclusion of the research.

To the best of the authors’ knowledge, the result presented in this paper is the first attempt in the literature to accomplish MSCSG rotor high-precision deflection decoupling control using QRBF-NN.

2. Dynamic Molding of In-Orbit MSCSG

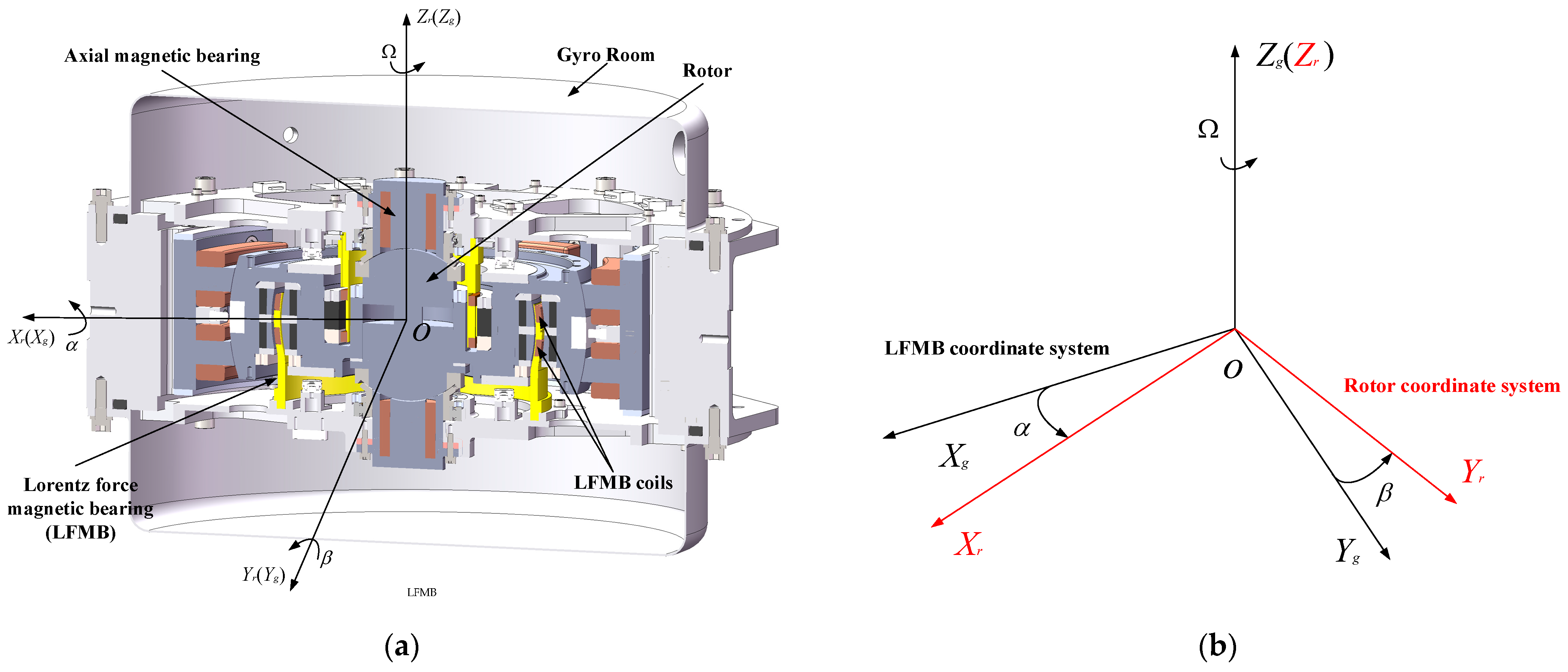

MSCSG utilizes a Lorentz force magnetic bearing (LFMB) as a moment actuator to achieve radial deflection of the rotor, and its principles of operation are shown in Figure 1. The LFMB coordinate system, defined by OX_gY_gZ_g, is fixed to the LFMB stator, and O is the centroid of the spherical rotor. The rotor coordinate system OX_rY_rZ_r is tied up with the magnetic suspension rotor, but cannot rotate around O_rZ_r. When the rotor does not deflect, each axis of O_rX_rY_rZ_r coincides with that of OX_gY_gZ_g. The rotor deflects at angles of α and β around OX_g and OY_g.

When the coil is perpendicular to the magnetic field and a current is passed through it, an amperometric force perpendicular to the direction of the coil and the magnetic field will be generated in the upper and lower parts of the coil, respectively. The magnitude of the force can be expressed as

$$f_m=\left(\begin{array}{c}{f}_x\\ f_y\end{array}\right)=\left(\begin{array}{c}2NBL(I_1+I_3)\\ 2NBL(I_2+I_4)\end{array}\right)=2NBL\left(\begin{array}{c}{I}_1+I_3\\ -(I_2+I_4)\end{array}\right),$$

(1)

where f_x, f_y are ampere forces in the X_g- and Y_g-axis directions, respectively. N is the number of turns in the coil of LFMB; B is the magnetic field strength; L is the length of the coil; I₁, I₂ are the coil driving currents in the positive and negative directions of the X_g-axis; respectively; and I₃, I₄ are the same currents of the Y_g-axis, respectively. Suppose that $I_1=I_3=I_{\alpha }, I_2=I_4=I_{\beta }$; when coils of opposite directions are fed with equal currents of opposite directions, the coils will produce equal and opposite ampere forces. It can be inferred that the LFMB provides deflection moments in the X and Y directions as follows:

$$\left\{\begin{array}{l}{T}_x=4NBL{l}_m{I}_{\alpha }\\ T_y=4NBL{l}_m{I}_{\beta }\end{array}\right.,$$

(2)

where l_m represents the stator radius of the LFMB.

Suppose that each axis of OX_gY_gZ_g coincides with that of the spacecraft coordinate system. The angular velocity of the LFMB coordinate system with respect to the inertial coordinate system is ${\mathit{\omega }}_g^i$, and the angular velocity of the rotor coordinate system with respect to the LFMB coordinate system is projected in the LFMB coordinate system as ${\mathit{\omega }}_r^g$. The projection of the angular velocity of the rotor relative to the inertial space in the rotor coordinate system can be expressed as

$${\mathit{\omega }}_{ir}^r=C_g^r\left({\mathit{\omega }}_r^g+{\mathit{\omega }}_g^i\right),$$

(3)

where ${\mathit{C}}_g^r$ represents the transformation matrices from the LFMB coordinate system to the rotor coordinate system. Since the angular velocity components of the rotor coordinate system around the stator coordinate system are $\dot{\alpha }$, $\dot{\beta }$ and 0, respectively, one has ${\mathit{\omega }}_r^g={\left[\begin{array}{ccc}\dot{\alpha }& \dot{\beta }& 0\end{array}\right]}^{\mathrm{T}}$. Suppose that ${\mathit{\omega }}_g^i={\left[\begin{array}{ccc}{\omega }_x& {\omega }_y& {\omega }_z\end{array}\right]}^{\mathrm{T}}$.

In actual engineering, α and β are less than 10⁻³ rad:

$${\mathit{C}}_g^r\approx \left[\begin{array}{ccc}1& 0& -\beta \\ 0& 1& \alpha \\ \beta & -\alpha & 1\end{array}\right]\approx \left[\begin{array}{ccc}1& 0& 0\\ 0& 1& 0\\ 0& 0& 1\end{array}\right].$$

(4)

One has

$${\mathit{\omega }}_{ir}^r=\left(\begin{array}{c}\dot{\alpha }+{\omega }_x\\ \dot{\beta }+{\omega }_y\\ {\omega }_z\end{array}\right).$$

(5)

I_r, I_z denote the rotor moment of inertia in the axial and radial directions around the stator, respectively. The rotor angular momentum is

$${\mathit{H}}^r=\left[\begin{array}{ccc}{I}_r& 0& 0\\ 0& I_r& 0\\ 0& 0& I_z\end{array}\right]\left(\mathbf{\Omega }+{\mathit{\omega }}_{ir}^r\right),$$

(6)

where $\mathbf{\Omega }={\left[\begin{array}{ccc}0& 0& \Omega \end{array}\right]}^T$, and Ω is the constant rotational speed of the rotor about the z-axis.

The dynamic equation of the magnetically suspended rotor in the rotor coordinate system can be expressed as

$${\mathit{M}}^r={\mathit{\omega }}_{ir}^r\times {\mathit{H}}^r+{\dot{\mathit{H}}}^r,$$

(7)

where M^r is the total external moment applied to the rotor. ${\dot{\mathit{H}}}^r$ is the rate of change in the rotor angular momentum.

The rotor angular momentum and its rate of change can be written as

$${\mathit{H}}^r=\left[\begin{array}{c}{I}_r\left(\dot{\alpha }+{\omega }_x\right)\\ I_r\left(\dot{\beta }+{\omega }_y\right)\\ I_z\left({\omega }_z+\Omega \right)\end{array}\right], {\dot{\mathit{H}}}^r=\left[\begin{array}{c}{I}_r\left(\ddot{\alpha }+{\dot{\omega }}_x\right)\\ I_r\left(\ddot{\beta }+{\dot{\omega }}_y\right)\\ I_z{\dot{\omega }}_z\hspace{1em}\hspace{1em} \end{array}\right].$$

(8)

According to Euler’s dynamics equation, the in-orbit MSCSG radial dynamics model can be expressed as

$$\left\{\begin{array}{l}{T}_x=\left(I_z-I_r\right)\left(\dot{\beta }+{\omega }_y\right){\omega }_z+I_z\Omega \left(\dot{\beta }+{\omega }_y\right)+I_r\left(\ddot{\alpha }+{\dot{\omega }}_x\right)+d_x\hfill \\ T_y=\left(I_z-I_r\right)\left(\dot{\alpha }+{\omega }_x\right){\omega }_z-I_z\Omega \left(\dot{\alpha }+{\omega }_x\right)+I_r\left(\ddot{\beta }+{\dot{\omega }}_y\right)+d_y\hfill \end{array}\right.,$$

(9)

where d_x and d_y represent the unknown disturbances in the X_g- and Y_g-axis directions, respectively.

3. Design of QRBF-NN and Controller

3.1. Quantum-Computing-Based Structure Optimization Method of RBF-NN

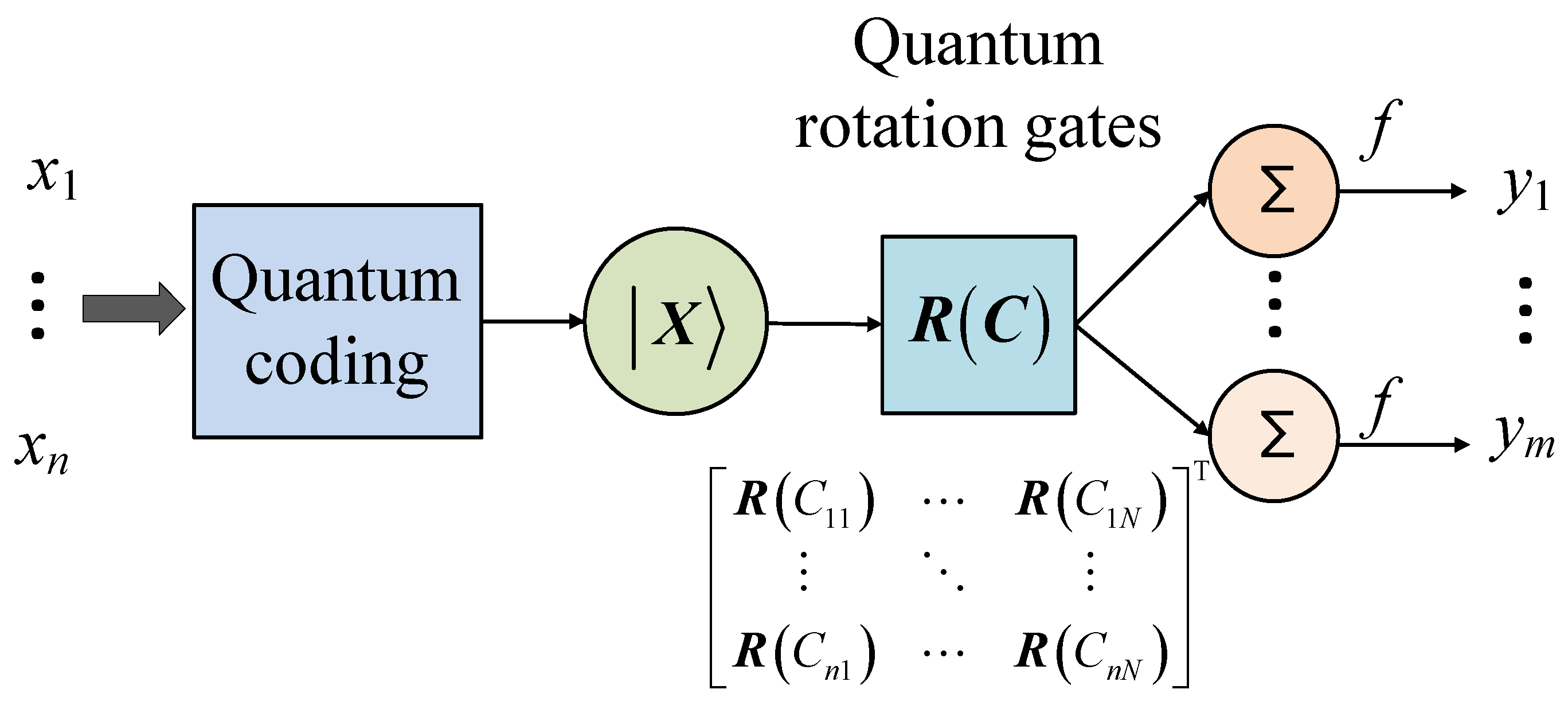

As shown in Figure 2, an n-dimensional input vector $\mathit{X}={\left[x_1,x_2,\cdots ,x_n\right]}^{\mathrm{T}}$ it can be transformed into a diagonal matrix $\left|\mathit{X}\right.〉$ in an n-dimensional Hilbert space.

$$\left|\mathit{X}\right.〉=\mathrm{diag}\left(\left|x_1\right.〉,\left|x_1\right.〉,\cdots ,\left|x_n\right.〉\right),$$

(10)

where

$$\left|x_i\right.〉=\cos \left(\frac{2\pi }{1+e^{-x_i}}\right)\left|0\right.〉+\sin \left(\frac{2\pi }{1+e^{-x_i}}\right)\left|1\right.〉,$$

(11)

where ${\xi }_i=\frac{2\pi }{1+e^{-x_i}}$ is the quantum phase angle for the i-th input.

For an RBF neural network with n inputs and N neurons, the hidden layer center can be expressed as

$$\mathit{c}=\left[\begin{array}{ccc}{c}_{11}& \cdots & c_{1N}\\ ⋮& \ddots & ⋮\\ c_{n1}& \cdots & c_{nN}\end{array}\right].$$

(12)

Through quantum coding, the hidden layer center can be rewritten as

$$\mathit{C}=\left[\begin{array}{ccc}{C}_{11}& \cdots & C_{1N}\\ ⋮& \ddots & ⋮\\ C_{n1}& \cdots & C_{nN}\end{array}\right],$$

(13)

where

$$C_{ij}=2k\pi \frac{c_{ij}-c_{1j}}{c_{nj}-c_{1j}} , i=1\cdots n, j=1\cdots N.$$

(14)

The quantum rotation gate is designed to replace the hidden layer center by introducing quantum computing concepts. The quantum rotation gate can be expressed as

$$\mathit{R}\left(\mathit{C}\right)={\left[\begin{array}{ccc}\mathit{R}\left(C_{11}\right)& \cdots & \mathit{R}\left(C_{1N}\right)\\ ⋮& \ddots & ⋮\\ \mathit{R}\left(C_{n1}\right)& \cdots & \mathit{R}\left(C_{nN}\right)\end{array}\right]}^{\mathrm{T}},$$

(15)

where

$$\mathit{R}\left(C_{ij}\right)=\left[\begin{array}{cc}\cos \left(2\pi \frac{c_{ij}-c_{1j}}{c_{nj}-c_{1j}}\right)& -\sin \left(2\pi \frac{c_{ij}-c_{1j}}{c_{nj}-c_{1j}}\right)\\ \sin \left(2\pi \frac{c_{ij}-c_{1j}}{c_{nj}-c_{1j}}\right)& \cos \left(2\pi \frac{c_{ij}-c_{1j}}{c_{nj}-c_{1j}}\right)\end{array}\right].$$

(16)

In a traditional RBF neural network, the role of the hidden layer is to map a vector from a low-dimensional m to a high-dimensional n, making linearly inseparable cases in low dimensions become linearly separable in high dimensions. The output of the hidden layer can be expressed as

$$h_i=\exp \left(-\frac{{‖\mathit{X}-{\mathit{C}}_i‖}^2}{2{\mathit{\sigma }}^2}\right), i=1,2,\dots ,m,$$

(17)

where $\mathit{X}={\left[x_1,x_2,\cdots ,x_n\right]}^T$ denotes the network input vector, n, m, respectively represents the number of nodes in the input layer and hidden layer, h_i represents the Gaussian basis function, and $\mathit{\sigma }=\left[{\sigma }_1,{\sigma }_2,\cdots ,{\sigma }_m\right]$ stands for the network product-width.

The input after undergoing quantum rotation gate transformation can be expressed as

$$\mathit{R}\left(\mathit{C}\right)\left|\mathit{X}\right.〉={\left[\begin{array}{ccc}\left|x_{11}\right.〉& \cdots & \left|x_{1N}\right.〉\\ ⋮& \ddots & ⋮\\ \left|x_{n1}\right.〉& \cdots & \left|x_{n1}\right.〉\end{array}\right]}^{\mathrm{T}},$$

(18)

where

$$\begin{array}{l}\left|x_{ij}\right.〉=\cos \left(\frac{2\pi }{1+e^{-x_i}}+2\pi \frac{c_{ij}-c_{1j}}{c_{nj}-c_{1j}}\right)\left|0\right.〉\\ +\sin \left(\frac{2\pi }{1+e^{-x_i}}+2\pi \frac{c_{ij}-c_{1j}}{c_{nj}-c_{1j}}\right)\left|1\right.〉\end{array}.$$

(19)

The sum of the probability amplitudes of $\left|1\right.〉$ is used as the neuron output. Define the output of the jth neurons as

$$f_j\left(\left|\mathit{X}\right.〉\right)={\displaystyle \sum _{i=1}^n\sin \left({\xi }_i+C_{ij}\right)}={\displaystyle \sum _{i=1}^n\sin \left(\frac{2\pi }{1+e^{-x_i}}+2\pi \frac{c_{ij}-c_{1j}}{c_{nj}-c_{1j}}\right)}.$$

(20)

The definition domain of $f_j\left(\left|\mathit{X}\right.〉\right)$ is [−n, n]. A non-linear mapping can be constructed:

$$g\left(x\right)=\cos \left(\frac{\pi }{2n}x\right).$$

(21)

The output of the hidden layer in QRBF-NN can be written as

$$F_j\left(\left|\mathit{X}\right.〉\right)=g\left(f_j\left(\left|\mathit{X}\right.〉\right)\right)=\cos \left(\frac{\pi }{2n}{\displaystyle \sum _{i=1}^n\sin \left({\xi }_i+C_{ij}\right)}\right).$$

(22)

The output of the QRBF-NN can be expressed as

$$y={\displaystyle \sum _{j=1}^N{k}_j{F}_j\left(\left|\mathit{X}\right.〉\right)}={\mathit{K}}^T\mathit{F}\left(\left|\mathit{X}\right.〉\right), j=1,2,\dots ,N.$$

(23)

The following proves that the input to output of QRBF-NN is a continuous mapping.

For a real-valued input, $\mathit{X}={\left[x_1,x_2,\cdots ,x_n\right]}^{\mathrm{T}}$ and ${\mathit{X}}^{\prime }={\left[x_1^{\prime },x_2^{\prime },\cdots ,x_n^{\prime }\right]}^{\mathrm{T}}$, since ${\xi }_i=\frac{2\pi }{1+e^{-x_i}}$ is a continuous mapping.

Theorem 1.

The QRBF-NN designed in this paper can approximate any continuous function uniformly on any compact set and any measurable function arbitrarily.

Definition 1.1.

K: $R^r\to R$is an integrable bounded function such that K is continuous and${\displaystyle {\int }_{R^r}K\left(x\right)} dx\ne 0$; the family S_k consists of functions g: $R^r\to R$represented by

$$g\left(x\right)={\displaystyle \sum _{i=1}^M{w}_{i}K\left(\frac{x-z_i}{\sigma }\right)},$$

(24)

where $M\in N,\sigma >0,w_i\in R,z_i\in R^r$ for $i=1\dots M$. $L\left(R^r\right)$ denotes the usual spaces of R-valued maps f defined on R^r.

Lemma 1.1.

Let μ be a finite measure on R^r, $f\in L\left(R^r\right)$, and the family S_k is dense in $C\left(R^r\right)$ with respect to the metric ρ_μ defined by [33]:

$${\rho }_{\mu }\left(f,g\right)=\inf \left\{\epsilon >0:\mu \left\{x\in R^r:\left|f\left(x\right)-g\left(x\right)\right|>\epsilon \right\}<\epsilon \right\}.$$

(25)

Lemma 1.1 establishes that under certain mild conditions on the kernel function, networks with one hidden layer and the same smoothing factor in each kernel are broad enough for universal approximation. We will use this lemma to prove that QRBF-NN has similar properties.

Proof of Theorem 1.

Firstly, we prove that the mapping from input to output of a QRBF-NN is a continuous function.

$\forall \epsilon >0$, $\exists \sigma >0$, $‖\mathit{X}-{\mathit{X}}^{\prime }‖<\sigma$, and one has $\left|{\xi }_i-{\xi }_i^{\prime }\right|<\epsilon$.

$$\begin{array}{l}\left|F_j\left(\left|\mathit{X}\right.〉\right)-F_j^{\prime }\left(\left|\mathit{X}\right.〉\right)\right|\\ =\left|\cos \left(\frac{\pi }{2n}{\displaystyle \sum _{i=1}^n\sin \left({\xi }_i+C_{ij}\right)}\right)-\cos \left(\frac{\pi }{2n}{\displaystyle \sum _{i=1}^n\sin \left({\xi }_i^{\prime }+C_{ij}\right)}\right)\right|\\ =\left|2\sin \left[\frac{\pi }{4n}\left({\displaystyle \sum _{i=1}^n\sin \left({\xi }_i+C_{ij}\right)+{\displaystyle \sum _{i=1}^n\sin \left({\xi }_i^{\prime }+C_{ij}\right)}}\right)\right]\sin \left[\frac{\pi }{4n}\left({\displaystyle \sum _{i=1}^n\sin \left({\xi }_i+C_{ij}\right)-{\displaystyle \sum _{i=1}^n\sin \left({\xi }_i^{\prime }+C_{ij}\right)}}\right)\right]\right|\\ \le \frac{{\pi }^2}{8n^2}\left|\left({\displaystyle \sum _{i=1}^n\sin \left({\xi }_i+C_{ij}\right)+{\displaystyle \sum _{i=1}^n\sin \left({\xi }_i^{\prime }+C_{ij}\right)}}\right)\left({\displaystyle \sum _{i=1}^n\sin \left({\xi }_i+C_{ij}\right)-{\displaystyle \sum _{i=1}^n\sin \left({\xi }_i^{\prime }+C_{ij}\right)}}\right)\right|\\ \le \frac{{\pi }^2}{4n}\left|{\displaystyle \sum _{i=1}^n\sin \left({\xi }_i+C_{ij}\right)-{\displaystyle \sum _{i=1}^n\sin \left({\xi }_i^{\prime }+C_{ij}\right)}}\right|\\ \le \frac{{\pi }^2}{4}\underset{1\le j\le N}{\max }\left|{\xi }_i-{\xi }_i^{\prime }\right|.\end{array}$$

(26)

$\forall {\epsilon }^{\prime }>0$, $\exists {\sigma }^{\prime }=\frac{4}{{\pi }^2}{\epsilon }^{\prime }>0$, and when $\left|{\xi }_i-{\xi }_i^{\prime }\right|<{\sigma }^{\prime }$, one has $\left|F-F^{\prime }\right|\le {\epsilon }^{\prime }$.

Since $y={\displaystyle \sum _{j=1}^N{k}_j{F}_j\left(\left|\mathit{X}\right.〉\right)}$, $\forall {\epsilon }^{″}>0$ and $\exists {\sigma }^{″}>0$; when $\left|F_j\left(\left|\mathit{X}\right.〉\right)-{F^{\prime }}_j\left(\left|\mathit{X}\right.〉\right)\right|\le {\sigma }^{″}$, one has $\left|y- y \prime \right|\le {\epsilon }^{″}$, which means the mapping from input to output of a QRBF-NN is a measurable continuous function from $R^r\to R$.

Secondly, we prove that $F\left(\left|\mathit{X}\right.〉\right)$ satisfies the conditions on K in Definition 1.1.

$$\begin{array}{l}{F}_j\left(\left|\mathit{X}\right.〉\right)=\cos \left(\frac{\pi }{2n}{\displaystyle \sum _{i=1}^n\sin \left({\xi }_i+C_{ij}\right)}\right)\\ =\cos \left(\frac{\pi }{2n}{\displaystyle \sum _{i=1}^n\sin \left(\frac{2\pi }{1+e^{-x_i}}+C_{ij}\right)}\right)\end{array}.$$

(27)

Let $\psi \left(x_i\right)=\left(\frac{2\pi }{1+e^{-x_i}}+C_{ij}\right)$, $\phi \left(\psi \left(x_i\right)\right)=\frac{\pi }{2n}{\displaystyle \sum _{i=1}^n\sin \left(\psi \left(x_i\right)\right)}$. It is clear that $\psi \left(x_i\right)$ is in the range [0,4π]; thus, $\phi \left(\psi \left(x_i\right)\right)$ is in the range $\left[-\frac{\pi }{2},\frac{\pi }{2}\right]$, which means ${\displaystyle {\int }_{R^r}{F}_j\left(\left|\mathit{X}\right.〉\right)} d{x}_i={\displaystyle {\int }_{R^r}\cos \left(\phi \left(\psi \left(x_i\right)\right)\right)} d{x}_i\ne 0$.

The proof is finished. □

Theorem 2.

The QRBF-NN designed in this paper outperforms RBF-NN in terms of time complexity when the neuron number N is large enough.

Proof of Theorem 2.

The kernel function of RBF-NN can be expressed as

$$f_{\mathrm{RBF}}=e^{-\frac{{\displaystyle \sum _{i=1}^n{\left(x_i-c_i\right)}^2}}{2{\sigma }^2}}.$$

(28)

The kernel function of RBF-NN can be expressed as

$$f_{\mathrm{QRBF}}=\cos \left(\frac{\pi }{2n}{\displaystyle \sum _{i=1}^n\sin \left(\frac{2\pi }{1+e^{-x_i}}+C_{ij}\right)}\right).$$

(29)

Suppose t₁ is one unit of CPU time for addition or subtraction, t₂ is one unit of CPU time for multiplication or division, t₃ is one unit of CPU time for exponentiation, and t₄ is one unit of CPU time for sine or cosine operation. Nested loops are avoided because QRBF-NN uses matrix operations. Then, the time complexity of one kernel operation of RBF-NN and QRBF-NN can be written as

$$O\left(f_{\mathrm{RBF}}\right)=\left(3n-1\right)t_1+\left(n+3\right)t_2+t_3,$$

(30)

$$O\left(f_{\mathrm{QRBF}}\right)=\left(3n-1\right)t_1+\left(n+1\right)t_2+n{t}_3+\left(n+1\right)t_4.$$

(31)

It seems that the time complexity of a kernel operation of QRBF-NN is larger than that of RBF-NN. However, due to the parallel nature of quantum computing, operations on N neurons in QRBF-NN are simultaneous while operations on N neurons in RBF-NN are cyclic. Thus, for an RBF-NN with N neurons, the time complexity is

$$O\left(N\cdot f_{\mathrm{RBF}}\right)=N\left(3n-1\right)t_1+N\left(n+3\right)t_2+N{t}_3,$$

(32)

while $O\left(N\cdot f_{\mathrm{QRBF}}\right)=O\left(f_{\mathrm{QRBF}}\right)$. One has

$$O\left(N\cdot f_{\mathrm{RBF}}\right)-O\left(N\cdot f_{\mathrm{QRBF}}\right)=\left(N-1\right)\left(3n-1\right)t_1+\left(Nn+3N-n-1\right)t_2+\left(N-n\right)t_3-\left(n+1\right)t_4.$$

(33)

$O\left(N\cdot f_{\mathrm{RBF}}\right)\ge O\left(N\cdot f_{\mathrm{QRBF}}\right)$ if and only if

$$\left(N-1\right)\left(3n-1\right)t_1+\left(Nn+3N-n-1\right)t_2+\left(N-n\right)t_3\ge \left(n+1\right)t_4,$$

(34)

which is easy to achieve when N is large enough.

The proof is finished. □

Moreover, since the definition domain of C_ij is [−0, 2π], which covers the whole range of rotation angles, C_ij does not have to be adjusted. The only parameter that needs to be adjusted in QBF-NN is K, while C_i, $\sigma$, and K are the parameters to be adjusted in RBF-NN.

It can be obtained that the QRBF-NN has a lower time complexity than RBF-NN, and as the number of network neurons increases, the gap will become more and more obvious.

3.2. Design of Fractional-Order Terminal Sliding Mode Controller Based on QRBF-NN

Aiming at the strong coupling, high dynamics, and nonlinearity of the magnetic suspended rotor system, based on the use of QRBF to approximate the system disturbances, we propose a terminal sliding mode controller based on the combination of a fractional-order sliding mode surface and a fractional-order convergence law in order to achieve system decoupling and to reduce the input jitter.

Combining the perturbation terms, one obtains

$$\left[\begin{array}{c}{T}_x\\ T_y\end{array}\right]=\left[\begin{array}{cc}{I}_{r}s& I_z\Omega \\ -I_z\Omega & I_{r}s\end{array}\right]\left[\begin{array}{c}\dot{\alpha }\\ \dot{\beta }\end{array}\right]+\left[\begin{array}{c}{I}_z\Omega {\omega }_y+\left(I_z-I_r\right)\left(\dot{\beta }+{\omega }_y\right){\omega }_z+I_r{\dot{\omega }}_x+d_x\\ -I_z\Omega {\omega }_x+\left(I_z-I_r\right)\left(\dot{\alpha }+{\omega }_x\right){\omega }_z+I_r{\dot{\omega }}_y+d_y\end{array}\right].$$

(35)

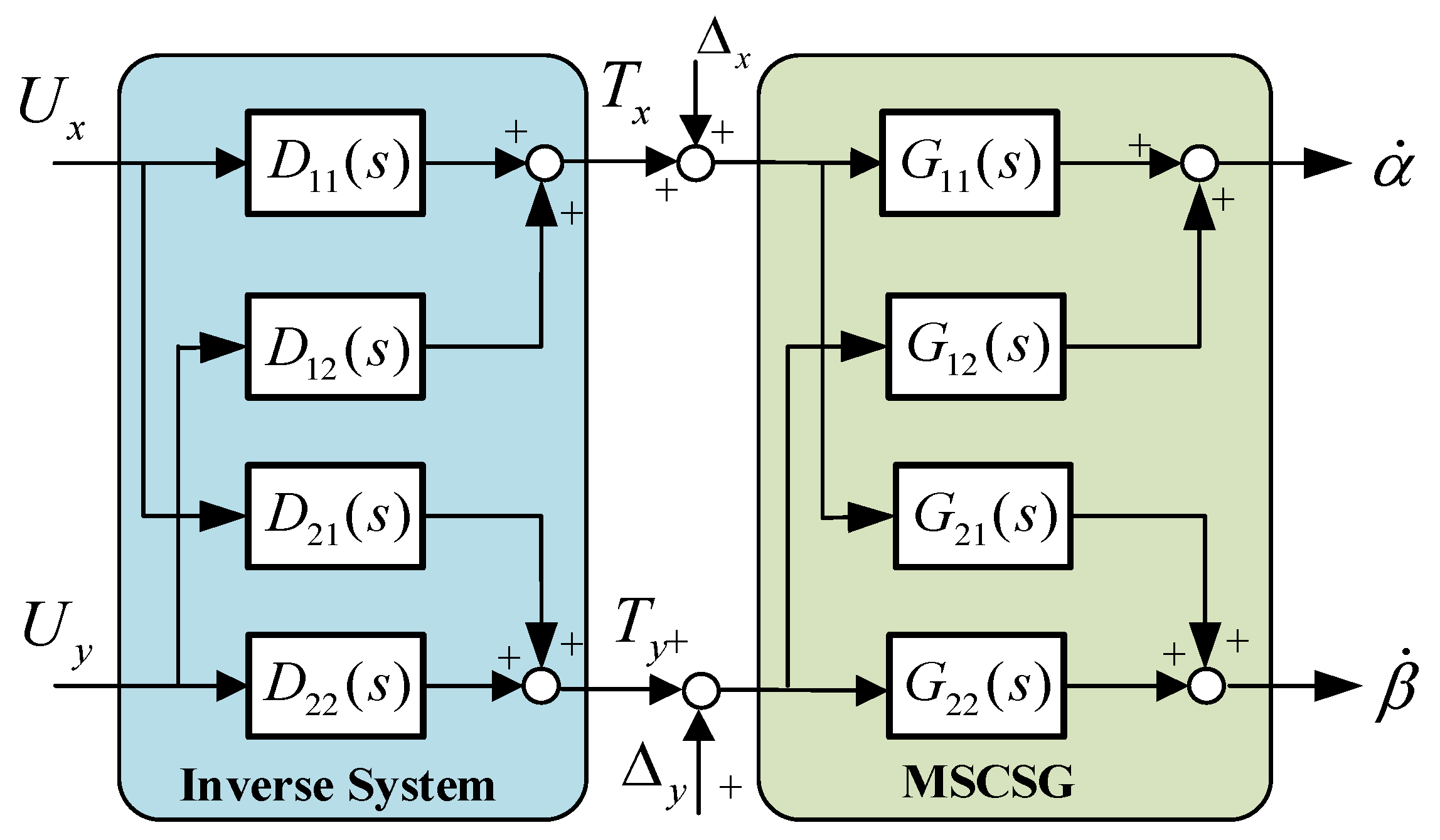

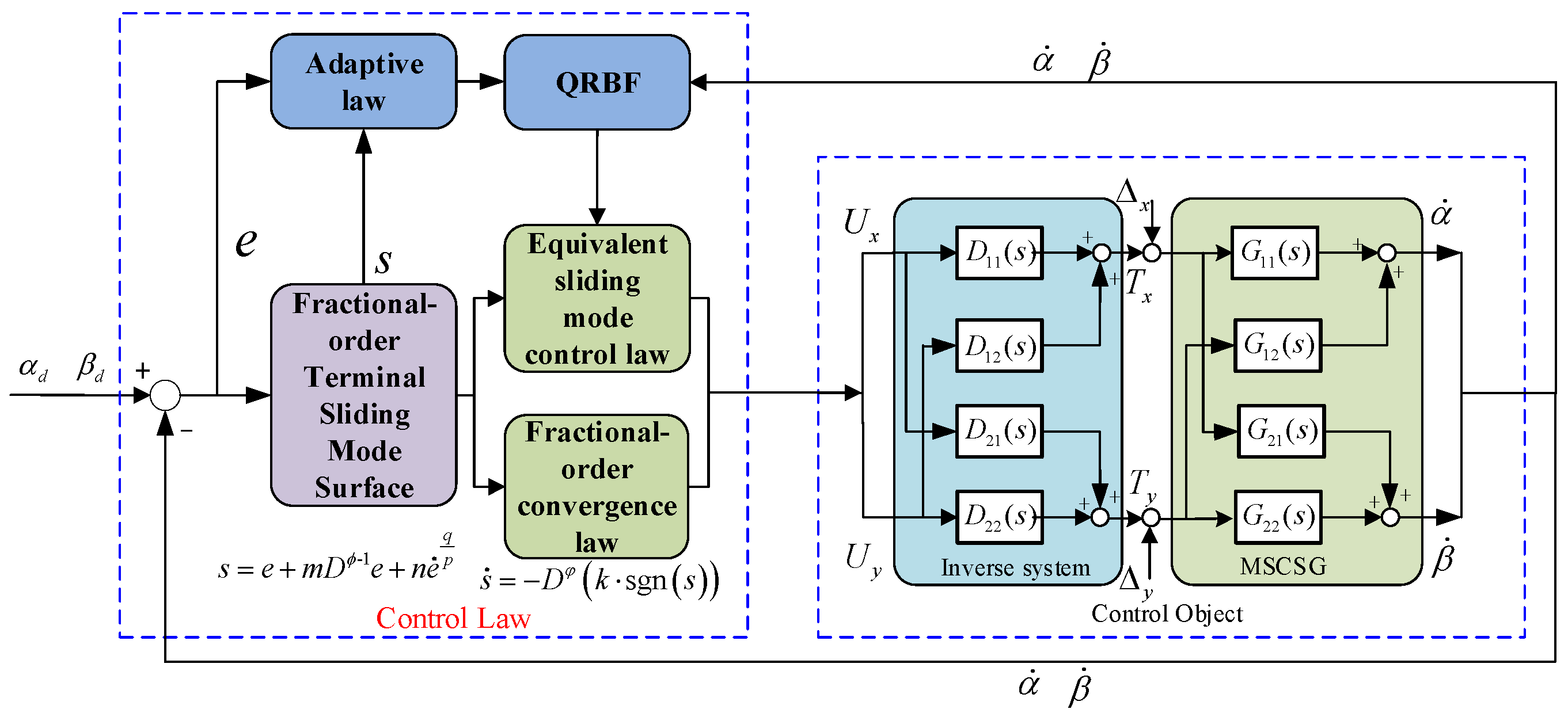

As shown in Figure 3, feedforward compensation is used to decouple the two degrees of freedom of rotor deflection. The control system diagram is shown Figure 4.

Here,

$$\left[\begin{array}{cc}{D}_{11}\left(s\right)& D_{12}\left(s\right)\\ D_{21}\left(s\right)& D_{22}\left(s\right)\end{array}\right]={\left[\begin{array}{cc}\frac{I_z\Omega }{s}& I_r\\ -I_r& \frac{I_z\Omega }{s}\end{array}\right]}^{-1}.$$

(36)

$$\left[\begin{array}{cc}{G}_{11}\left(s\right)& G_{12}\left(s\right)\\ G_{21}\left(s\right)& G_{22}\left(s\right)\end{array}\right]={\left[\begin{array}{cc}{I}_{r}s& I_z\Omega \\ -I_z\Omega & I_{r}s\end{array}\right]}^{-1}.$$

(37)

The decoupled system can be written as

$$\left[\begin{array}{c}{U}_x\\ U_y\end{array}\right]=\left[\begin{array}{cc}0& \frac{I_z^2{\Omega }^2}{s}+I_r^{2}s\\ -\frac{I_z^2{\Omega }^2}{s}-I_r^{2}s& 0\end{array}\right]\left[\begin{array}{c}\dot{\alpha }\\ \dot{\beta }\end{array}\right]+\left[\begin{array}{c}{\Delta }_x\\ {\Delta }_y\end{array}\right],$$

(38)

where Δ_x and Δ_y are the disturbances of the X_g-axis and Y_g-axis, respectively. QRBF-NN is used to approximate ${\left[\begin{array}{cc}{\Delta }_x& {\Delta }_y\end{array}\right]}^T$:

$$\left[\begin{array}{c}{\Delta }_x\\ {\Delta }_y\end{array}\right]=\left[\begin{array}{c}{\mathit{K}}_x^T\mathit{F}\left(\left|\mathit{X}\right.〉\right)\\ {\mathit{K}}_y^T\mathit{F}\left(\left|\mathit{Y}\right.〉\right)\end{array}\right]+\left[\begin{array}{c}{\epsilon }_x\\ {\epsilon }_y\end{array}\right].$$

(39)

Taking the example of deviation around the Y_g-axis,

$${\Delta }_x={\mathit{K}}_x^T\mathit{F}\left(\left|\mathit{X}\right.〉\right)+{\epsilon }_x,$$

(40)

where ε_x represents the network approximation error. Then, the output of the RBF network can be expressed as

$${\widehat{\Delta }}_x={\widehat{\mathit{K}}}_x^T\mathit{F}\left(\left|\mathit{X}\right.〉\right).$$

(41)

The ideal steering angle tracking command is β_b and the tracking error is defined as e = β_b − β. To achieve fast convergence of the system in finite time, the fractional-order terminal sliding mode surface is designed as

$$s=e+m{D}^{r-1}e+n{\dot{e}}^{\frac{q}{p}},$$

(42)

where p and q are odd numbers and p > q, m and n are the sliding mode surface parameters and m > 0 and n > 0, and r is the differential order and satisfies $r\in \left(0,1\right)$. According to the definition of RL fractional-order differentiation,

$${}_0{}^{RL}D_r^{t}f\left(t\right)=\frac{1}{\Gamma \left(r\right)}{\displaystyle {\int }_0^t{\left(t-\tau \right)}^{r-1}f\left(\tau \right)d}\tau .$$

(43)

One has

$$\begin{array}{l}\dot{s}=\dot{e}+m{D}^{r}e+\ddot{e}\frac{nq}{p}{\dot{e}}^{\frac{q}{p}-1}\\ =\dot{e}+m{D}^{r}e+\frac{nq}{p}{\dot{e}}^{\frac{q}{p}-1}\left({\ddot{\beta }}_b-\frac{U_x}{I_r^2}+\frac{I_z^2{\Omega }^2}{I_r^2}\beta +\frac{{\Delta }_x}{I_r^2}\right)\end{array}.$$

(44)

Assuming that s = 0, the equivalent control law can be obtained as follows:

$$U_{\mathit{xeq}}=I_r^2\left({\ddot{\beta }}_b+\frac{I_z^2{\Omega }^2}{I_r^2}\beta +\frac{p}{nq}{\dot{e}}^{1-\frac{q}{p}}\left(\dot{e}+m{D}^{\varphi }e\right)\right)+{\widehat{\Delta }}_x.$$

(45)

The fractional-order sliding mode reaching law is designed as follows:

$$\dot{s}=-D^t\left(k\cdot \mathrm{sgn}\left(s\right)\right),$$

(46)

where k is the reaching law parameter, and t is the differential order and satisfies $t\in \left(0,1\right)$. The control law can be expressed as

$$U_x=I_r^2\left({\ddot{\beta }}_b+\frac{I_z^2{\Omega }^2}{I_r^2}\beta +\frac{p}{nq}{\dot{e}}^{1-\frac{q}{p}}\left(\dot{e}+m{D}^{r}e\right)\right)+{\widehat{\Delta }}_x+D^t\left(k\cdot \mathrm{sgn}\left(s\right)\right),$$

(47)

where

$$-{\Delta }_x+{\widehat{\Delta }}_x={\mathit{K}}_x^T\mathit{F}\left(\left|\mathit{X}\right.〉\right)+\epsilon -{\widehat{\mathit{K}}}_x^T\mathit{F}\left(\left|\mathit{X}\right.〉\right)={\tilde{\mathit{K}}}_x^T\mathit{F}\left(\left|\mathit{X}\right.〉\right)+\epsilon .$$

(48)

$${\mathit{K}}_x^T\mathit{F}\left(\left|\mathit{X}\right.〉\right)-{\widehat{\mathit{K}}}_x^T\mathit{F}\left(\left|\mathit{X}\right.〉\right)={\tilde{\mathit{K}}}_x^T\mathit{F}\left(\left|\mathit{X}\right.〉\right).$$

(49)

Define the Lyapunov function as

$$L=\frac{1}{2}{s}^2+\frac{1}{2}\gamma {\tilde{\mathit{K}}}_x^T{\tilde{\mathit{K}}}_x,$$

(50)

where γ > 0.

Taking the derivative of Equation (49) yields

$$\begin{array}{l}\dot{L}=s\dot{s}+\gamma {\tilde{\mathit{K}}}_x^T{\dot{\tilde{\mathit{K}}}}_x\\ =s\frac{nq}{I_r^{2}p}{\dot{e}}^{\frac{q}{p}-1}\left(-{\tilde{\mathit{K}}}_x^T\mathit{F}\left(\left|\mathit{X}\right.〉\right)-\epsilon -D^t\left(k\mathrm{sgn}\left(s\right)\right)\right)+\gamma {\tilde{\mathit{K}}}_x^T{\dot{\tilde{\mathit{K}}}}_x\\ =-{\tilde{\mathit{K}}}_x^T\left(s\frac{nq}{I_r^{2}p}{\dot{e}}^{\frac{q}{p}-1}\mathit{F}\left(\left|\mathit{X}\right.〉\right)-\gamma {\dot{\widehat{\mathit{K}}}}_x\right)-\frac{nq}{I_r^{2}p}{\dot{e}}^{\frac{q}{p}-1}s\left(\epsilon +D^t\left(k\mathrm{sgn}\left(s\right)\right)\right)\\ =-{\tilde{\mathit{K}}}_x^T\left(s\frac{nq}{I_r^{2}p}{\dot{e}}^{\frac{q}{p}-1}\mathit{F}\left(\left|\mathit{X}\right.〉\right)-\gamma {\dot{\tilde{\mathit{K}}}}_x\right)+s\frac{nq}{I_r^{2}p}{\dot{e}}^{\frac{q}{p}-1}\left(-\epsilon -D^t\left(k\mathrm{sgn}\left(s\right)\right)\right)\end{array}.$$

(51)

Designing the adaptive law as

$${\dot{\tilde{\mathit{K}}}}_x=s\frac{nq}{\gamma I_r^{2}p}{\dot{e}}^{\frac{q}{p}-1}\mathit{F}\left(\left|\mathit{X}\right.〉\right),$$

(52)

one has

$$\begin{array}{l}\dot{L}=s\frac{nq}{I_r^{2}p}{\dot{e}}^{\frac{q}{p}-1}\left(-\epsilon -D^t\left(k\mathrm{sgn}\left(s\right)\right)\right)\\ \le \frac{nq}{I_r^{2}p}{\dot{e}}^{\frac{q}{p}-1}\left(-s\epsilon -D^{t}k\left|s\right|\right)\end{array}$$

(53)

Since $\frac{nq}{I_r^{2}p}{\dot{e}}^{\frac{q}{p}-1}\ge 0$, when $D^{t}k\ge \epsilon$, $\dot{L}\le 0$.

It can be seen that for unknown external disturbances d, the system can be stabilized as long as k is selected. There is no restriction on the bandwidth or derivative of d. The proposed method can take full advantage of the high-bandwidth moment output by MSCSG and the fast convergence property of the QRBF to suppress spacecraft micro-vibrations.

4. Semi-Physical Simulation

4.1. Simulation Analysis of QRBF-NN Approximation Performance

Firstly, simulations were conducted to compare the approximation accuracy and approximation speed of RBF and QRBF. The objective function was set as a sine function with an amplitude of 1 and frequencies of 1 Hz, 10 Hz, and 100 Hz. The training was conducted continuously for 20 iterations, with the root mean square error of approximation error used as the criterion. The results are shown in

Table 1. Approximation error of RBF-NN and QRBF-NN.

Bandwidth	Network Type	Min (s)	Mean (s)	RMSE
1 Hz	RBF	0.003261	0.003677	6.55 × 10−8
	QRBF	0.001778	0.001778	3.50 × 10−24
10 Hz	RBF	0.031547	0.043651	2.41 × 10−8
	QRBF	0.017781	0.017780	4.72 × 10−22
100 Hz	RBF	0.249943	0.299523	0.001202
	QRBF	0.178042	0.178041	7.52 × 10−20

and

Table 2. Time complexity of RBF-NN and QRBF-NN.

Bandwidth	Network Type	Min (s)	Mean (s)
1 Hz	RBF	2.1199415	2.212232405
	QRBF	0.9361242	1.034356325
10 Hz	RBF	2.1611742	2.28721176
	QRBF	0.9521237	1.03840404
100 Hz	RBF	2.1957421	2.385841465
	QRBF	0.9530300	1.03328098

.

It can be observed from Table 1 that as the bandwidth of the objective function increases, the approximation error of both neural networks also increases. However, when the bandwidth of the objective function is set at 1 Hz, 10 Hz, and 100 Hz, QRBF-NN consistently exhibits lower approximation errors compared to the traditional RBF-NN network.

It can be observed from Table 2 that when the bandwidth of the objective function is set at 1 Hz, 10 Hz, and 100 Hz, QRBF-NN consistently exhibits lower time complexity compared to the traditional RBF-NN.

Secondly, simulations were conducted to compare the robustness of RBF-NN and QRBF-NN. The objective function was defined as a sine function with an amplitude of 10 and a frequency of 1 Hz. At 1 s, a sine function with an amplitude of 20 and a frequency of 50 Hz was added. At 4 s, a sine function with an amplitude of 15 and a frequency of 100 Hz was added. At 8 s, a sine function with an amplitude of 30 and a frequency of 30 Hz was added. The results are shown in Figure 5 and Figure 6. The red line represents the true value and the blue line represents the approximation.

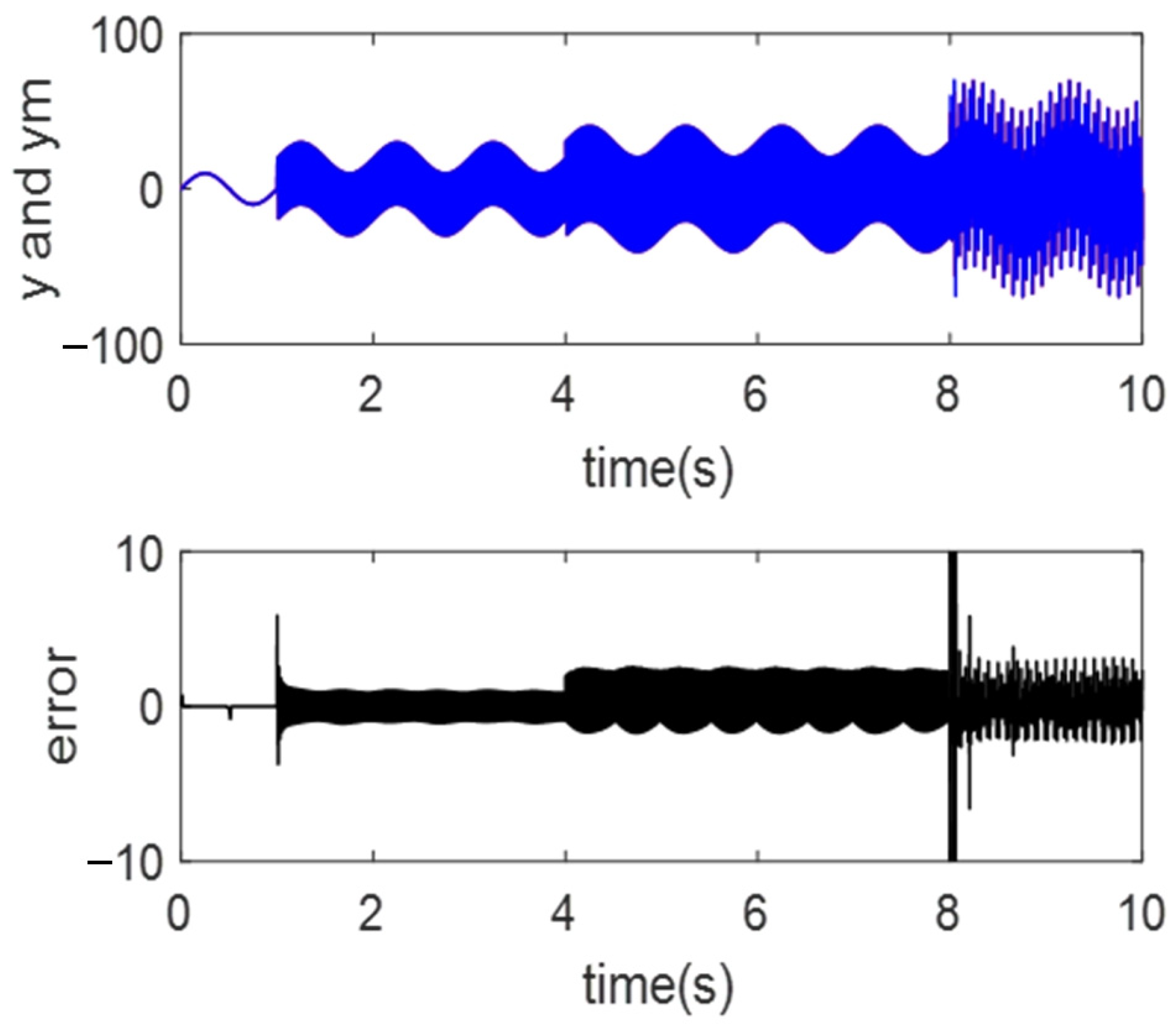

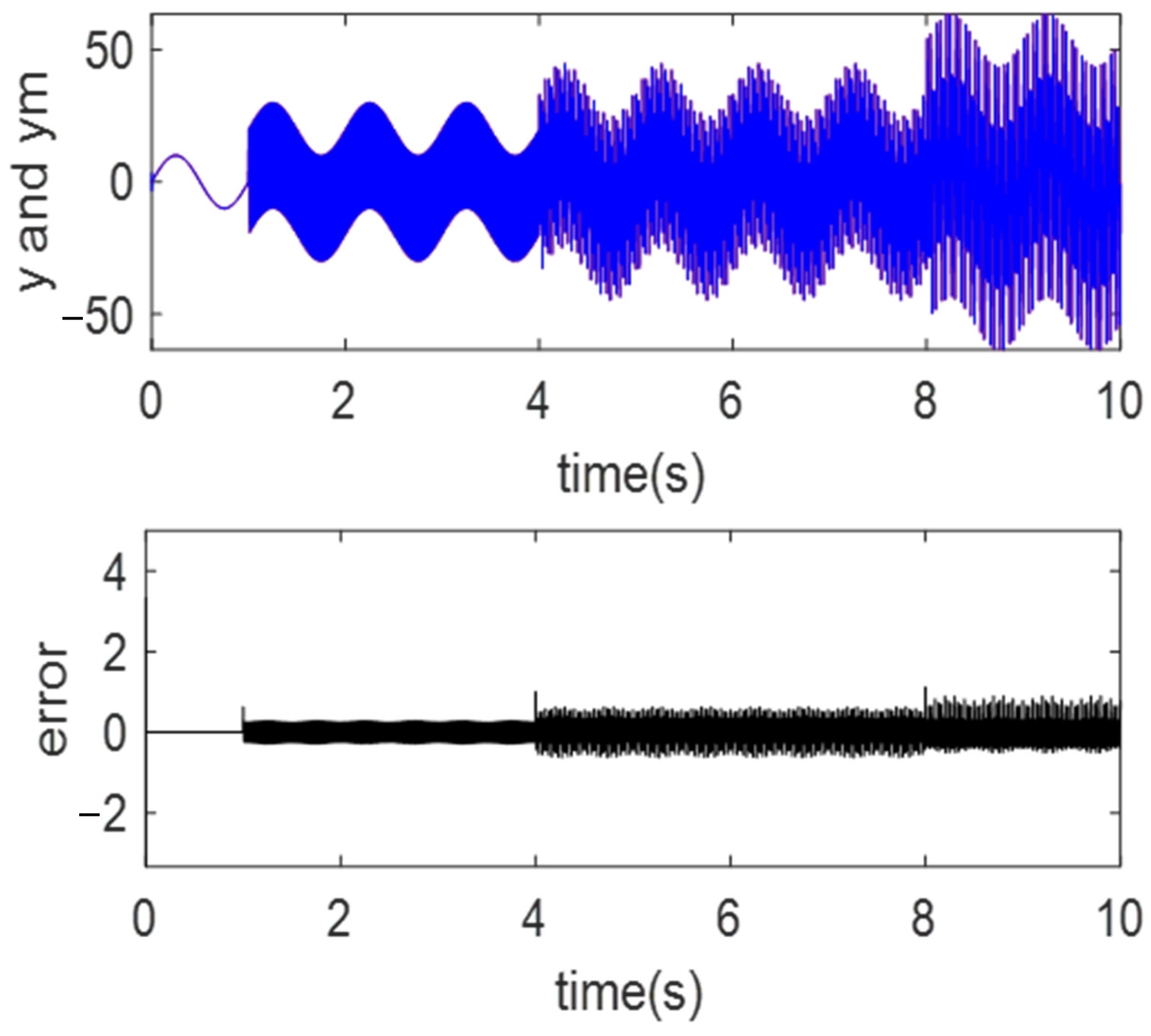

From Figure 5 and Figure 6, it can be observed that when the objective function undergoes a sudden change, the fluctuation in the approximation error of QRBF is smaller compared to RBF. And the approximation error of QRBF after stabilization is smaller than that of RBF.

4.2. Comparison of Control Performance for QRBF-NN and RBF-NN

The parameters of the MSCSG and controller are shown in

Table 3. MSCSG parameters.

Parameter	Value	Parameter	Value
Jx (kg·m2)	0.0097	Ω (r/min)	5000
Jy (kg·m2)	0.0097	m (kg)	8.95
Jz (kg·m2)	0.0166	k	1.2
m	0.3	n	0.5
p	13	q	9

.

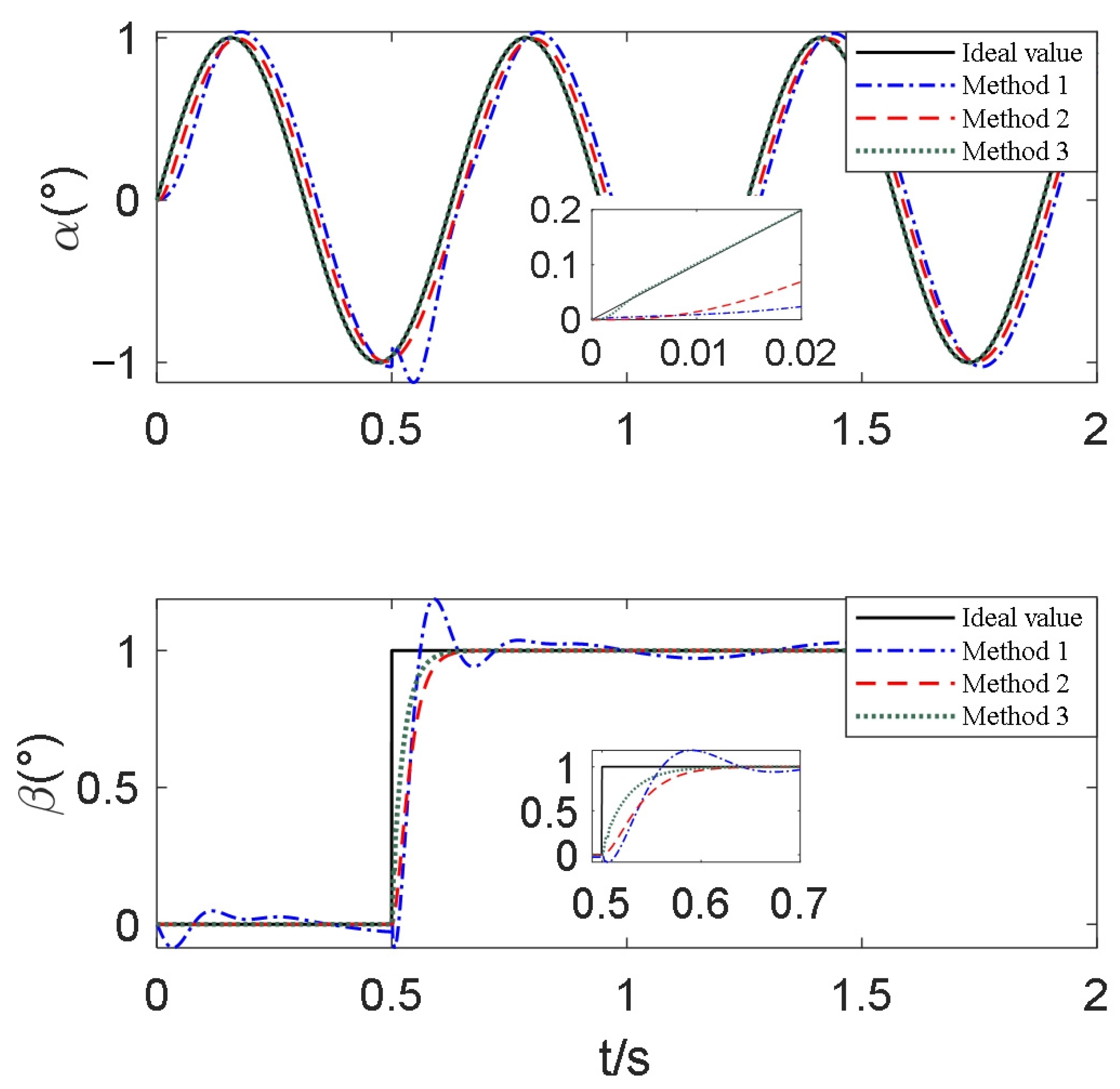

Simulations were conducted to compare the decoupling control performance of RBF-NN and QRBF-NN. The simulations were performed using the following three control methods.

Method 1: RBF-NN method in [10] (RBF-NN and ADRC);

Method 2: QRBF-NN combined with sliding mode control (QRBF-NN and SMC);

Method 3: QRBF-NN combined with fractional-order terminal sliding mode control (QRBF-NN and FOSMC).

Firstly, the decoupling performance of the three methods was verified. The rotor deflection command around the X_g-axis is a sinusoidal signal with an amplitude of 1° and a period of 0.75π. Additionally, at 0.5 s, the rotor deflection command around the Y_g-axis is a step signal with an amplitude of 1°.

From Figure 7, it can be observed that the rotor controlled by method 1 still exhibits coupling between the two degrees of freedom, while the rotor controlled by methods 2 and 3 does not exhibit coupling. The performance comparison of the three methods is shown in the

Table 4. Control performance comparison.

Method	Settling Time	Overshoot	Decoupling Performance
RBF-NN and ADRC	2.2 s	22%	Residual coupling
QRBF-NN and SMC	0. 63 s	None	Fully decoupled
QRBF-NN and FOSMC	0.59 s	None	Fully decoupled

.

As for the settling time, the rotor deflection angles controlled by method 1 continue to fluctuate in a small range, whereas the signal controlled by methods 2/3 stabilized by 0.7 s. Due to the faster convergence speed of the fractional-order sliding mode controller, method 3 tracks the reference signal faster than method 2 while also having a smaller phase difference. As for overshoot, the rotor deflection angle controlled by method 1 has 22% overshoot while methods 2 and 3 do not. Due to the better approximation performance of QRBF-NN compared to RBF-NN, method 2 achieves higher control accuracy than method 1.

Secondly, the control accuracy of the three methods was verified. The rotor deflection command was a sinusoidal signal with an amplitude of 0.5° and a frequency of 20 Hz around the X_g-axis. At 2 s, a sinusoidal signal with an amplitude of 1° and a frequency of 25 Hz was added. At 5 s, a sinusoidal signal with an amplitude of 0.5° and a frequency of 50 Hz was added. At the same time, the rotor was subjected to an external disturbance of which the amplitude was 0.02 N and the frequency was 40 Hz, and another external disturbance of which the amplitude was 0.03 N and the frequency was 75 Hz in the X_g-axis. The rotor deviation angles and errors controlled by three methods are shown in Figure 8, Figure 9 and Figure 10.

It can be seen from Figure 8 that the rotor controlled by method 1 tracked the reference signal at 0.1 s and had a stable deflection angle error of [−0.008, 0.012]°.

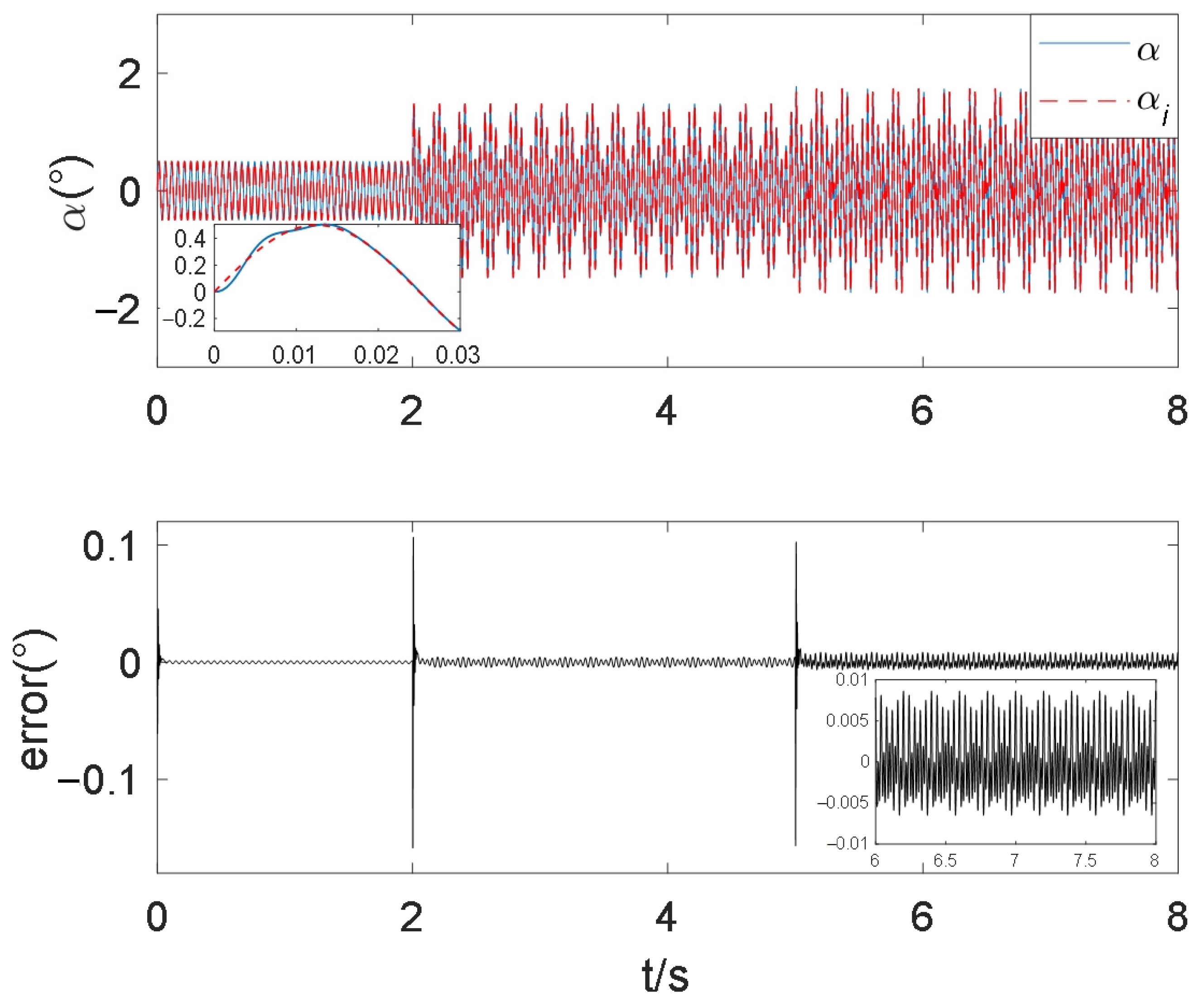

It can be seen from Figure 9 that the rotor controlled by method 2 tracked the reference signal at 0.02 s and had a stable deflection angle error of [−0.006, 0.009]°.

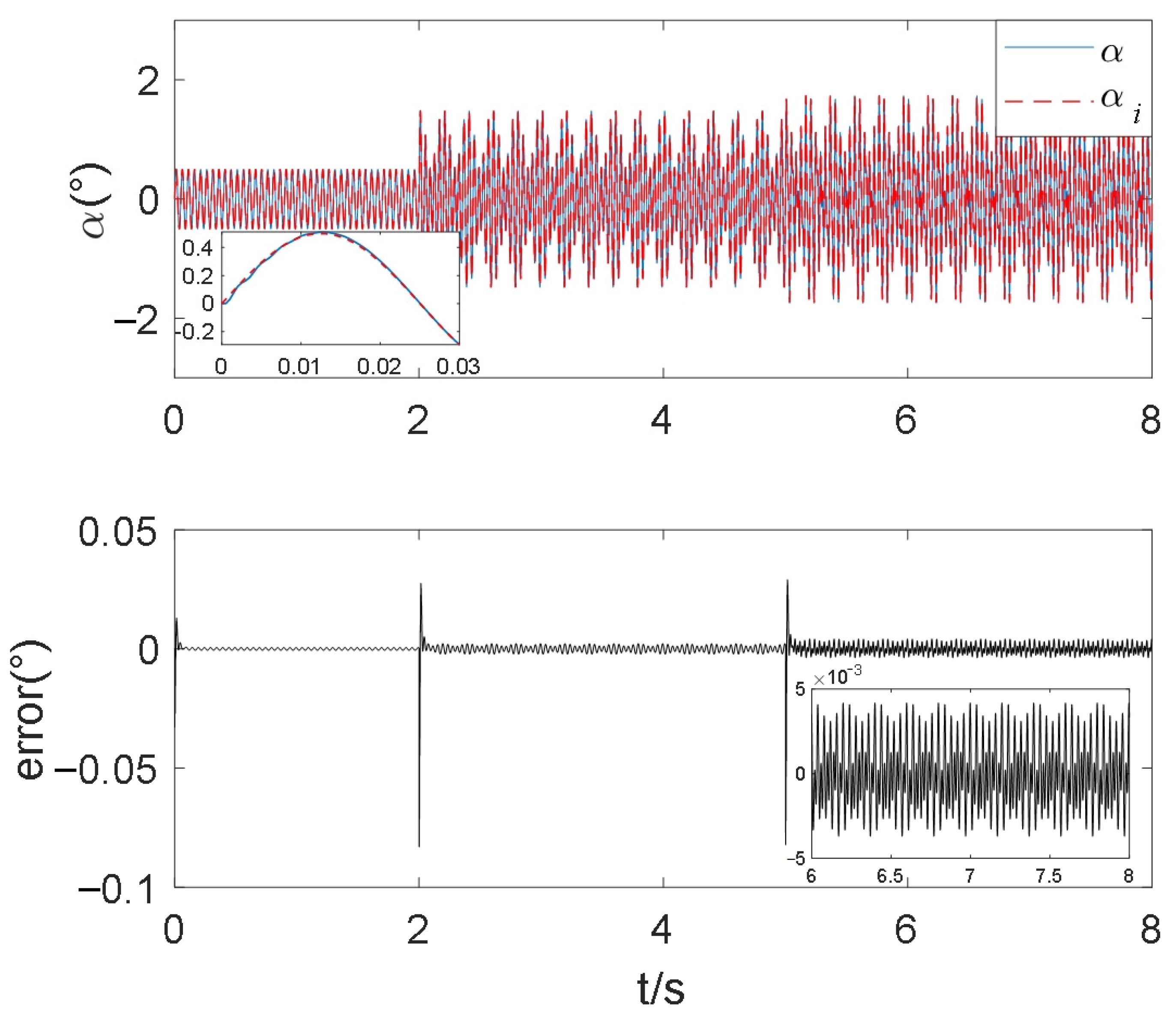

It can be seen from Figure 10 that the rotor controlled by method 3 tracked the reference signal at 0.01 s and had a stable deviation angle error of ±0.005°. Compared with method 1 and method 2, method 3 has advantages in terms of reference tracking speed and control accuracy. At the same time, the reference tracking speed and control accuracy of method 2 are higher compared to method 1, which proves the superiority of QRBF-NN.

4.3. Experimental Analysis of MSCSG

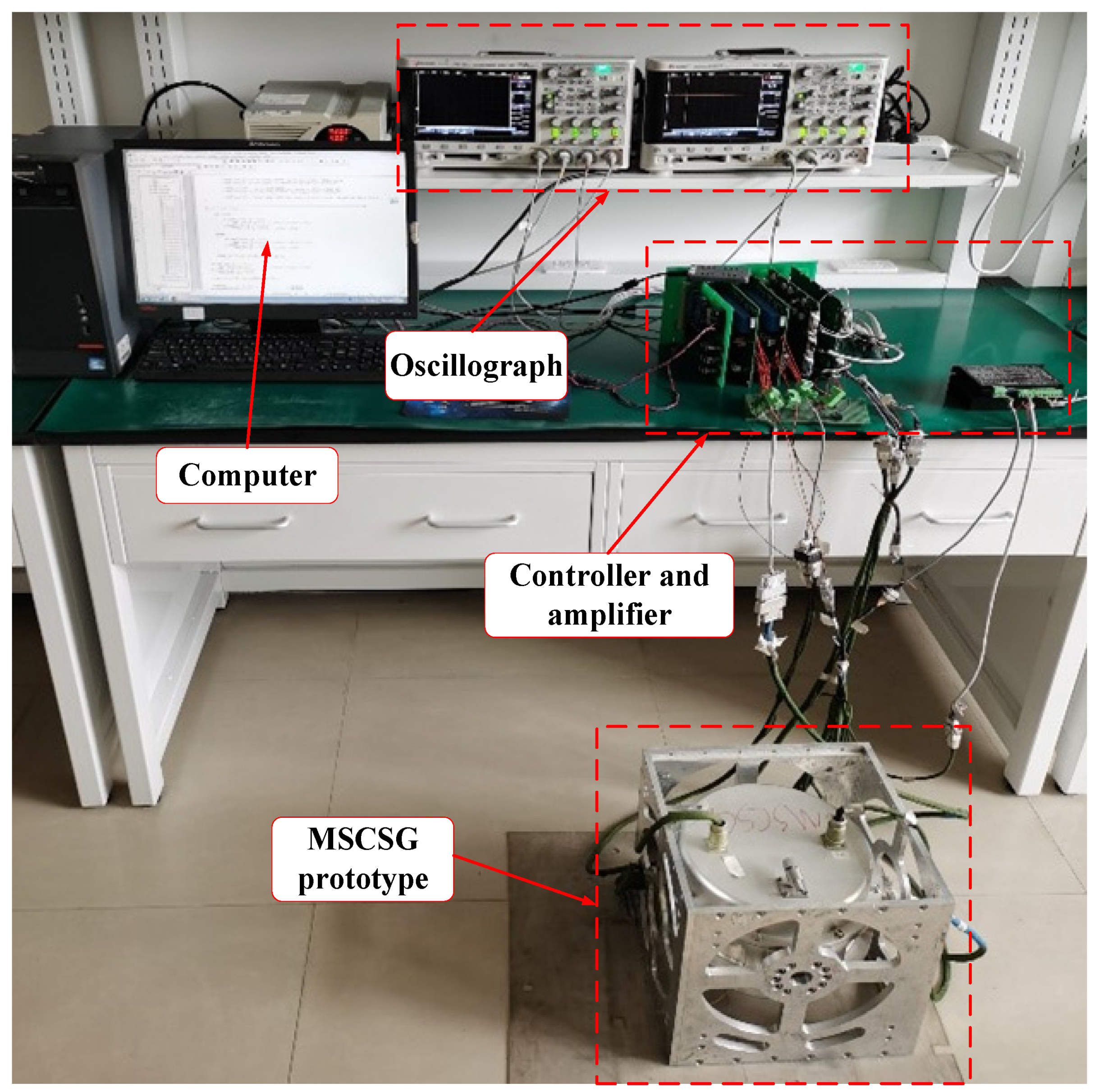

The MSCSG laboratory setup is shown in Figure 11. The rotor deflection command around the X_g-axis is a sinusoidal signal with a frequency of 120 Hz while remaining stationary around the Y_g-axis. We collected the rotor deflection signals for offline simulation experiments.

As can be seen from Figure 12, due to the coupling of the two degrees of freedom of rotor deflection, when the rotor is controlled to deflect along the Y_g-axis, the rotor will also deflect along the Y_g-axis, and the Y_g-axis phase is 90 degrees behind the x-axis. The Fourier transform of β shows that the amplitude of the deflection frequency of β is 0.12.

As can be seen from Figure 13, the two-degree-of-freedom coupling of the rotor deflection controlled by the new method is reduced. The Fourier transform of β shows that the amplitude of the deflection frequency of β is 0.05, which decreases by 58.3% compared to the traditional method. Meanwhile, the α controlled by the proposed method is smoother than that of the traditional method, proving that the proposed method is better than the traditional method in terms of control accuracy and decoupling performance.

5. Conclusions

In this paper, a decoupling control method for MSCSG rotor deflection based on QRBF-NN and fractional-order terminal sliding mode control is proposed.

A quantum-computing-based optimization method for the structure of the RBF-NN is proposed for the first time. The following two conclusions are drawn: (1) the QRBF-NN is able to approximate continuous functions with arbitrary accuracy; (2) the QRBF-NN outperforms the conventional RBF-NN in terms of time complexity.

Building upon this, a fractional-order terminal sliding mode control method based on QRBF-NN is proposed. The fractional-order sliding surfaces and approaching laws are designed. The simulation results show that (1) the QRBF-NN can accurately approximate perturbations while reducing latency; (2) the proposed method can realize high-precision decoupling control of MSCSG rotor.

In the future, we will further theoretically prove the generalization of QRBF-NN and the stability of the QRBF-NN fractional-order controller. And we will prove its effectiveness and advancement through more experiments to promote its application.
