Geopolymers as Alternative Sustainable Binders for Stabilisation of Clays—A Review

by
Jeremiah J. Jeremiah
*,
Samuel J. Abbey
,
Colin A. Booth
and
Anil Kashyap
Faculty of Environment and Technology, University of the West of England, Bristol BS16 1QY, UK
*
Author to whom correspondence should be addressed.
Geotechnics 2021, 1(2), 439-459; https://doi.org/10.3390/geotechnics1020021
Submission received: 20 September 2021 / Revised: 8 November 2021 / Accepted: 24 November 2021 / Published: 29 November 2021
(This article belongs to the Special Issue Emerging Trends in Sustainable Soil Stabilization Techniques)
Browse Figures
Versions Notes

Abstract

:
The need to transit to greener options in soil stabilisation has revamped research on the use of industrial and agricultural by-products in order to cut down on the current carbon footprint from the use of ordinary Portland cement (OPC) and lime related binders for the treatment of problematic soils. This study is a review on the use of geopolymers constituted by alkali activation of several industrial wastes such as pulverised fuel ash (PFA), ground granulated blast furnace slag (GGBS), metakaolin (MK), glass powder (GP), palm oil fuel ash (POFA), silica fume (SF), rice husk ash (RHA), volcanic ash (VA), and marble powder (MP) for the stabilisation of weak clays. The performance of stabilised clays as subgrade and subbase materials for road pavement construction was evaluated by comparing the 7 day UCS of the treated clays with the strength requirement for stabilised materials as outlined in BS EN 16907-4. The result of the study shows that geopolymers can be employed in improving the engineering properties of problematic clays to meet practical applications. Strength improvement was observed in the stabilised clays with increased precursor content, molarity of alkaline activator, and curing period.

1. Introduction

Engineering facilities such as road pavements, buildings, bridges, tunnels etc., will oftentimes be sited on geographical locations characterised by poor ground conditions. These weak soil behaviours lead to large volume instability when loaded. Under such circumstances, it becomes imperative to engineer the ground to meet design strength specifications. These procedures are generally referred to as ground improvement or soil stabilisation and maybe mechanical or chemical in methodology. Commonly encountered problems such as collapsible soils and expansive clays will often demand a chemical treatment method for which cement and lime have been successfully utilised with well documented results in various engineering applications [1]. Widely referenced engineering properties desirable in practice have been obtained using Ordinary Portland Cement (OPC) and various types of limes for hydration reaction and final precipitation of cementitious compounds such as calcium silicates hydrates (CSH) and calcium aluminate hydrates (CAH) [2,3,4,5,6,7,8,9,10,11,12,13,14]. However, despite the advantages and multifaceted utilisation of cement and lime, the recent quest for a reduction in the alarming rate of environmental pollution via continuous emission of CO2 has revamped the search for new sustainable cementitious additives [15] to lower the already heightened 8% contribution from cement and lime related binders [16,17]. Figure 1 shows significant increase in CO2 over the last 100 years from cement production.
Sequel to the foregoing, the use of by-product materials from agricultural and industrial processes have received increased attention in recent years, due to their combined low carbon footprint and alternative waste disposal advantage. Materials such as GGBS, PFA, MS, PSA, POFA, RHA, RGP etc., with rich aluminate-silicate content have generally been seen as partial replacement for Ordinary Portland Cement (OPC) for pozzolanic reaction. The continuous generation of these industrial and agricultural wastes still far exceed available options of recycling for useful purposes. However, with alkali activation, the possibility of 100% utilisation of these by-products as geopolymers have become a major research focus. Geopolymers are basically inorganic 3-dimensional long-chain minerals formed from substances rich in alumina (Al2O3) and silica (SiO2) by the dissociation of Al and Si in an aqueous solution commonly of sodium or potassium (NaOH or KOH). The dissociated Al and Si realign in a fast chemical reaction to form long-chain tetrahedrons of AlO4 and SiO4 such as polysialate (Si-O-Al-O-), polysialate-siloxo (Si-O-Al-O-Si-), polysialate-disiloxo (Si-O-Al-O-Si-O-) with crosslinks creating an array of rings of amorphous or semi-crystalline matrix held by strong ionic bonds as shown in Figure 2. The charge balance in the chemical structure is maintained by the presence of the alkali metals (Na+, K+ or Li+), usually common in the activator solution, creating a creating a stable 3-dimensional structure resembling that of zeolite, capable of increasing the strength of weak soils without the need for calcium [19].
One major advantage of geopolymers is that strengthening is achieved at room temperatures which makes it a practical method. An additional advantage is the ability to cement soils without necessarily requiring calcium, leading to a cut-down in CO2 emission. Geopolymers have been found suitable for several applications including thermal resistant coatings, ceramics manufacturing, storage and treatment containments of hazardous substances and highly reactive chemicals. Furthermore, the continuous generation of industrial by-products or waste materials rich in Al2O3 and SiO2 encourages the use of these materials as sources of alumina and silica for geopolymerisation and soil stabilisation. Table 1 highlights some major differences in the use of geopolymers and OPC.

2. Geopolymerisation

The synthesis of Si-O-Al-O monomers through geopolymerisation results in the formation of inorganic polymers with strong ionic bonds which can be generically represented as stated below.
MX[-(Si-O2)Y-Al-O] ×·zH2O
where M is the alkali, x is the degree of polymerisation, y is an integer defined as 1, 2, 3 and so on. Three basic components are required for geopolymerisation as shown in Figure 3. Depending on the temperatures at which the reaction occurs, the structure of geopolymers could be amorphous or semi-crystalline.
Geopolymerisation is a “green route” in production of resins, binders, and cements [22]. The synthesis of geopolymer involves a multi-step procedure which can be simplified into the dissociation of aluminium and silicon in an alkaline solution, followed by the realignment of free aluminium and silicon tetrahedra, before condensation, polymerisation, and hardening. The entire process may be considered as either dry or wet synthesis [23]. The authors have found the wet type of synthesis to be more commonly employed and involves the use of an alkali solution or combination of alkaline liquids which is then utilised in dissociating Al and Si in the precursor to form the fresh geopolymer paste. On the other hand, in the dry process, dry samples of the precursor and alkali activators are mixed thoroughly, and water is then added based on a predefined water-binder ratio to achieve target molarity. Figure 4 gives a breakdown of the synthesis of geopolymer.

2.1. Activator Liquid

Activator liquid are aqueous solutions utilised in dissociation or release of Al and Si from the original precursors for geopolymerisation. Common activators solution may be alkaline, or acid salt solutions as reported by [24]. However, the alkaline solutions are the most common activators used in research. For example, sodium hydroxide (NaOH) or potassium hydroxide (KOH) as single activators [25] or in combination with sodium silicate (Na2SiO3) or potassium silicate (K2SiO3) to expedite the reaction rate [26,27] for the formation of strength-giving compounds such as sodium-aluminosilicate hydrate (N-A-S-H). The type and amount of activator or mixture of activators utilised for geopolymerisation with Al-Si resource influences the porosity and bond strength of the resulting geopolymer [28,29]. A low workability has been reported when NaOH was used as a single activator due to high plasticity of the resulting geopolymer. Whereas an improved workability was seen upon addition of Na2SiO3. Some studies [30,31] showed that increasing Na2SiO3 in the presence of NaOH increased the compressive strength of the geopolymers while the absence of NaOH resulted in a reduction in the strength. However, this depends on the temperature as NaOH primarily aids the dissociation of the geopolymer precursor (Al-Si units) at lower temperatures. Upon increased temperatures say 80 °C, Na2SiO3 may be utilised as a single activator without reduction in strength as the increased temperature aids the breakdown of the existing bonds within the starting material for the dissociation of Al-Si units [32]. Since the hydroxide and silicate combination of the activator both contribute to the quality of the resulting geopolymer, it is logical to conclude that there is an optimum ratio of NaOH to Na2SiO3 for best performance [25]. Na2SiO3 has the added advantage of compensating for shortage in silicon in the precursor leading to increase in bond strength with a reduction in porosity. In terms of molarity of NaOH solution for geopolymerisation, reference [33] has reported a lower limit of 12 for adequate synthesis of geopolymers. Whereas [34] has reported a molarity of 20 as an upper limit for the activator. Furthermore, the cost effectiveness of alkali activator ingredients in terms of energy consumption has also been raised [35,36,37,38]. For example, it is reported that 39% and 49% energy consumption is associated with the production of NaOH and Na2SiO3 respectively, and also contributes to the overall cost of the geopolymer. To maintain low-cost energy requirements for these activators, an alternative waste solution that is rich in aluminosilicates can be sourced. One option is the Bayer’s solution as suggested in [38].

2.2. Geopolymer Precursors

Soil strength is a direct result of the bonds and interparticle connections—improving this bond is the major focus of any chemical method of ground improvement. Geopolymers are receiving more attention in stabilisation of clays due to their environmentally friendly nature. Several studies have explored different types of materials such as PKA, GGBS, RHA, PSA, PFA, etc., in obtaining the needed aluminosilicates for geopolymerisation and have proven geopolymers to be highly effective in improving the strength of various soils. However, according to [1,17,27,39], there still exists a huge lump-sidedness between theory and practical engineering applications. The authors believe this gap is largely from cost implications from large scale procurement of alkaline activator compounds, but also from an insufficient database upon which useful post-stabilisation behaviour could at least be inferred under practical conditions. For this reason, in this section, several studies are discussed, and major findings are presented. The major requirement of a geopolymer precursor is a sufficient amount of aluminium and silicon oxide. This requirement as already well-known, has been satisfied by many natural sources and waste materials or by-products from several industrial processes and agricultural activities including PFA, GGBS, PSA, RHA, POFA, MK, and VA to mention a few as shown in Table 2. Hence, the chemical and physical properties of the source material is a key influence on the mechanical properties of the final product after geopolymerisation.

2.2.1. Pulverised Fuel Ash-Based Geopolymers

PFA is perhaps the most used material for geopolymerisation. However, PFA is still underutilised as a geopolymer resource in terms of soil stabilisation [42]. The strength of geopolymer stabilised soils is influenced by several factors including the amount and type of the alkaline liquid and its molarity, the amount and type of the precursor used, the curing temperature, etc. In addition, the performance of PFA geopolymer treated clays will depend on important properties of the clay such as plasticity and cation exchange capacity. Moreover, for class C PFA geopolymers, high calcium content has been reported to influence the long-term strength of the stabilised soils by interfering with alumina-silicate chains during polymerisation. However, an advantage of high calcium PFA is a possibility of combined geopolymeric and pozzolanic products. In the study by [27], the performance of PFA in combination with calcium carbide residue in the treatment of a soft marine clay was evaluated. An important highlight of the study was the strength improvement in the stabilised soil by additional strength yielding compounds (CSH and CAH) from pozzolanic reactions. The UCS of the samples showed that the strength of the stabilised soils increased due to the presence of CSH and CAH in combination with N-A-S-H compounds which enhanced early development of bond strength of the treated soils. Furthermore, an optimum sodium silicate-sodium hydroxide ratio of 70% Na2SiO3 and 30% NaOH was reported. An appropriate Na2SiO3 and NaOH ratio would usually result in sufficient dissociation of Al-O and Si-O for synthesis and polycondensation. However, this would obviously lead to a much slower strength development due to the slow rate of geopolymerisation at room temperature.
In a separate study, reference [43] evaluated the effectiveness of high calcium PFA in improving the properties of marginal lateritic soils. A comparison of 7-day UCS of samples cured at room temperature for various ratios of Na2SiO3 and NaOH showed that samples treated with 90% Na2SiO3 and 10% NaOH had higher strength (7100 kPa). However, at 90 days curing, the strength of samples treated with Na2SiO3-NaOH ratio of 0.5 performed better with UCS exceeding kPa as expected. Furthermore, reference [44] studied the effects of PFA geopolymer on a soft clay using NaOH and Na2SiO3 alkaline activator. The UCS of treated samples increased up to kPa after 28 days curing. Although the rate of strength gain was slow with higher NaOH, the long-term strength gain was eventually higher when compared with OPC treated samples. Furthermore, reference [45] utilised a PFA-based geopolymer in stabilising a soft silty clay using a mixture of Na2SiO3 and NaOH as with previous studies. As expected, the strength of the treated samples increased with increasing activator-PFA ratio up to a maximum value before reducing. The optimum Na2SiO3-NaOH ratio was found at 0.7 with an activator liquid to PFA ratio of 0.6. A high plasticity clay was treated with PFA-GGBS geopolymer in the study by [46] using a combination of Na2SiO3 and NaOH. Compressibility tests on treated samples showed that the strain of the samples decreased with increasing binder content which shows increased interparticle bond strength. Moreover, it was observed that the strength and permeability of the clay was lowered due to increased cementation from the geopolymer gel.
The effect of PFA geopolymer on the volume stability of treated clays was also reported by [39]. Experimental studies on the use of PFA to improve the mechanical properties of kaolin clay showed the formation of new mineralogical structures with regards to aluminosilicate chains and crosslinks. One dimensional consolidation test on the treated samples indicated lower void ratios with increasing geopolymer content. Figure 5 shows the variation of void ratios with increasing vertical stresses from oedometer test for 7 days curing periods for samples treated with both PFA geopolymer and OPC.
PFA geopolymer treatment was effective in modifying the Atterberg properties of highly plastic clays as reported by [47]. A soft clay treated with PFA activated with calcium carbide residue (CCR) and Na2SiO3 showed that the consistency of the treated clays improved with reduction in LL, PL, and PI with increasing Na2SiO3 content. The compressive strength of the clay generally increased with increase in the geopolymer content and is in alignment with other studies. Similar improvement was observed in the experimental study by [48] which utilised a high calcium PFA based geopolymer in treating a kaolin clay. However, the formation of thenardite (Na2SO4) with amorphous silicate chains and intermittent calcium oxide was observed which lowered the strength development after 7 days. The large amount of calcium bearing compounds such as CaSO4, CaCO3, or Ca(OH)2, which may be in existence in an aqueous solution of a high calcium bearing precursor, were also reported to have affected the long term strength of the stabilised soil by altering the fabric of N-A-S-H binders with patches of CSH. This is one of the reasons for the more common application of Class F PFA in geopolymerisation over class C type. The experimental study by [41] compared the performance of RHA, MK, PFA, GGBS, SF, MP, and BA as geopolymer for deep mixing stabilisation of clays. From the study, it was observed that the UCS of GGBS and GGBS-PFA blended soil mixtures were very close to OPC treated samples. The strength of the samples also increased with increasing alkali activator to binder ratios as expected due to increasing availability of alumina and silica. An optimum alkali solution to binder ratio was also observed beyond which, the UCS decreased due to excessive moisture within the voids. Figure 6 shows the variation of UCS with precursor content for 0.85, 1.0, and 1.25 alkali solution to binder ratio. These findings are obviously appreciable steps towards establishing the usefulness of these by-products other than for landfill disposals.
Most tests on geopolymer stabilised clays are based on static conditions of loading to evaluate effectiveness of the treatment. However, in-situ conditions of highway subgrades are typically dynamic in loading. To evaluate the performance of geopolymer stabilised soils under dynamic conditions, reference [42] conducted an experimental study on the performance of clays stabilised with PFA-GGBS geopolymers under dynamic loading. Samples were subjected to consolidated undrained cyclic triaxial test using 100 kPa lateral cell pressure with a sinusoidal load function and predefined cyclic stress ratios (CSR) of 0.3, 0.5, and 0.7. The result showed delayed incremental strain for stabilised sample when compared with untreated specimens. In addition, reference [49] in a separate study have reported increased yield stress when PFA and GGBS based geopolymers were used in treating a kaolin clay and some natural clay soils. The addition of GGBS to the geopolymer mixture expedited strength gain at ambient temperatures and improved the yield stress of the soil with increasing geopolymer binder content, causing the stabilised soil to show a more brittle stress-strain pattern beyond the yield point. In addition, the effective shear strength parameters also improved as expected. Furthermore, in the study by [50], class F and C PFA were utilised in stabilisation of a clay soil by activation with a sodium hydroxide and sodium silicates solution. UCS tests at 7 days curing showed that samples treated with Class C PFA geopolymer were higher than Class F. This could be due to the additional early strength gain due to pozzolanic reaction from CSH and CAH compounds. However, the long-term performance showed that soil samples cured with Class F attained higher strengths. Moreover, the results show that the long-term strength gain from geopolymerisation exceeded that of the samples treated with equal ratio of OPC. This suggests that long term strength from geopolymer-based binders may compete favourably with those of more traditional binders such as OPC and lime and agrees with [51]. PFA geopolymers have also been used to stabilise gypseous soils and improved sulphate resistance. Perhaps, geopolymer binders may also be beneficial in reducing ettringite-induced heave and expansion of expansive clays with high sulphate content. The study by [52] reported reduced collapse potential and permeability with increase UCS of PFA geopolymer treated gypseous soils. In addition, treated samples showed more resistance to sulphate attack when immersed in MgSO4. It is worthwhile to note that samples treated with KOH activated PFA geopolymers had higher strength than NaOH activated samples. The higher strength of KOH geopolymers can be related to the larger cation size of the K+ compared to Na+ which decreases the surface charge density and increases the rate of geopolymerisation. The study by [16] also evaluated the effect various ratios of NaOH and Na2SiO3 and activator liquid content on the performance of PFA-based geopolymer treated clays using a high plasticity clay. The UCS results on cured clay samples showed increasing strength with increasing activator liquid and PFA content up to a maximum value before reducing with further increase in activator liquid content. Overall, the effectiveness of PFA geopolymers in stabilisation of clays is determined by appropriate selection of binder content, molarity, and alkaline activator contents for optimum strength development.

2.2.2. Metakaolin-Based Geopolymers

MK has been utilised as a geopolymer precursor to produce concrete and mortars. MK-based geopolymers have shown to have very high strength properties when cured at higher temperatures. However, for practical soil stabilisation applications, ambient temperature curing would be required. In the study by [53], a MK-based geopolymer activated with Na2SiO3 and NaOH was used for stabilising a weak clay. As with other studies, the UCS of the weak clay increased with binder to soil ratio due to increased bonding from the effects of geopolymerisation. Even though the immediate strength gain indicated by 7 days UCS showed lower values for sample stabilised with less than 15% binder to soil ratio when compared with samples treated with OPC using 5% by weight of soil, the 28-day UCS was higher than OPC treated samples. Again, the study by [54] considered the use of alkali activated OPC blended with MK for stabilisation of a high plasticity clay using a combination of NaOH and Na2SiO3. The treatment of the clay was carried out at the natural moisture content of the clay by partial replacement of the clay by MK-OPC blend by weight of dry clay. The MK content was varied to investigate the effects of MK content on the UCS while the ratio of activator solution to MK-OPC blended mixture was fixed at 0.6. The results of microscopic analysis showed that alkali activation of OPC led to formation of combined C-S-H and N-A-S-H compounds which increased the UCS of the stabilised clays with addition of metakaolin. The pore structure of the treated clays also showed signs of reduced pore volume with increasing metakaolin content. It was also observed that the addition of an alkaline activator to MK-OPC mixture led to a reduction in amount of OPC required for same strength. Furthermore, in a study by [55], the use of MK for the stabilisation of a high plasticity clay was investigated. For dissociation of the Al-Si units, a mixture of 4%, 10%, and 15% of MK by dry weight of clay activated by KOH and silica fume was used. The 28-day UCS results for samples treated with geopolymer mixture of 4% MK content was 100% higher in strength than untreated samples. The UCS increased with geopolymer content as expected. Furthermore, the volume-change of treated samples were compared with that of untreated samples from the swell and linear shrinkage tests. The tests showed that treated samples had lower volume change compared to the untreated samples. Moreover, reference [56] studied the performance of metakaolin activated with quicklime (CaO) and sodium bicarbonate (NaHCO3) as a geopolymer for stabilisation of a clay soil. The UCS results showed that the geopolymer-treated clays attained an optimum strength value before declining with further increase in activator liquid. The reduction in strength after optimum value was due to the excessive increase in pore fluid which resulted in weaker bonds and subsequent increase in shrinkage cracks with adverse effects on the long-term performance. Therefore, an optimum ratio of MK to activator liquid of 2:1 was reported, while the optimum ratio of the constituted geopolymer mixture to dry clay was found to be 12%.

2.2.3. GGBS and Glass Powder-Based Geopolymers

The use of GGBS in geopolymerisation for soil stabilisation has attracted the attention of many researchers. The study by [57] considered the performance of GGBS with the addition of phosphogypsum which is largely composed of CaO and SiO3, to increase synthesis of the geopolymer. Results of triaxial tests conducted on the stabilised clay samples showed over 100% shear strength gain over untreated samples. In a separate study, reference [41] in exploring the viability of several pozzolans for geopolymerisation, evaluated the use of GGBS as a binder for deep mixing improvement. The UCS results of GGBS geopolymer treated clay was reported to have improved with increasing binder content as expected and with increasing alkali liquid to GGBS ratio. The 28-days UCS results of the treated soil improved for GGBS and GGBS-blended samples up to an optimum alkali liquid to GGBS content of 1.05. An experimental study by [24] compared the performance of geopolymer treated clays using GGBS and Class F PFA. activated by NaOH and Na2SiO3 at 4 to 14.5 molarities. Results of the experiments showed that GGBS-based geopolymers resulted in higher UCS of the stabilised soils and can be linked with higher dissociation of Al-Si tetrahedral units from GGBS compared to the PFA. Overall, the UCS of the clays increased with increasing binder content. This is expected as more precursor increased formation of more cementitious gel which filled up the void spaces and increased interparticle bonds.
In the experimental study by [58] the suitability of recycled glass powder GP for geopolymerisation and stabilisation of a clay soil was evaluated. The UCS results of NaOH activated GP showed that increasing NaOH content of the mixture increased the UCS of the stabilised soils. Relatively higher NaOH content were reported to lower the UCS of the treated soils due to increased viscosity and subsequently reduced polymerisation. However, the treated soils performed better than the untreated soils. Although as expected, samples cured under increased temperature showed better strength gain, the improvement of ambient temperature-cured samples also showed the effectiveness of RGP geopolymer in practice. In addition, reference [59] applied GP to improve the mechanical properties of a clay using a solution of calcium carbide residue (CCR) in activating the Al-Si units. The UCS test on 7, 28, and 91 days cured samples showed that CCR activated RGP resulted in formation of geopolymeric binders which increased the compressive strength when compared with samples treated with 5% OPC. The effect of elevated curing temperatures was also observed with prolonged reactivity for increased cross-linking and higher strength for samples cured at 70 °C. The size of the glass particles can have significant impacts on the mechanical properties of GP-stabilised soils.
As is already well-known, smaller GP particles increase specific surface area which improves mixing and bonding. The study by [60] utilised 15.4µm sizes of GP particles blended with class F PFA for geopolymer treatment of road pavement base material and reported good reactivity. Experimental work on GP geopolymer mortars by [61] also investigated the effects of GP particle sizes on GP-geopolymer mortars by considering glass cullets with specific surface areas of 1000–4000 cm2/g. Their results show satisfactory performance with increasing fineness especially for 4000 cm2/g as shown in Figure 7. However, relatively higher GP contents can lead to deterioration in strength as reported by [60].

2.2.4. Palm Oil Fuel Ash and Volcanic Ash-Based Geopolymers

Palm oil fuel ash (POFA) a by-product of palm oil production, is generated through combustion of palm kernels, palm fibres, and empty bunches of palm fruits. These raw materials for the generation of POFA are abundant in many parts of the world where palm oil is in huge production. POFA has been reported as a viable pozzolan and a good geopolymer precursor [62]. A study by [63] utilised POFA geopolymer for soil stabilisation. The POFA was activated with K2SiO3 and KOH solution which has been reported to yield faster polycondensation with stronger bonding of soil grains at room temperature. As expected, UCS of treated samples were higher with increasing binder content and curing duration when compared to untreated samples. However, more significant effect of the geopolymer was seen at elevated curing temperatures due to release of more Si-Al units.
Volcanic ash (VA) is a naturally occurring rock mineral with rich Al-Si content from fragmented molten magmas. VA has also been explored by [40] as a soil binder through alkali activation using Na2SiO3 and NaOH. The effects of key parameters such as curing duration, molarity of activator solutions, activator-binder ratio, and volcanic ash to clay ratio were evaluated based on UCS tests on treated clays and compared with cement treated samples. From the results of UCS tests, on the treated soil samples, it was observed that the volcanic ash-based geopolymer binder improved the strength of the clays. However, wet curing at OMC and at 25 °C led to reduction in strength following reduction in pH due to the inability of residual water to evaporate which led to dilution and retardation in dissociation of the Al-Si units. It was observed that optimum performance of volcanic ash geopolymer in stabilisation can be obtained under dry conditions which increases the pH of the gel and facilitates dissociation and polycondensation. Table 3 is a summary of the key findings from the reviewed literature.

3. Discussions

3.1. UCS of Geopolymer Stabilised Clay

The suitability of a given soil for stabilisation with OPC will vary depending on if the soil is granular or clay. For granular materials, it is required that the soil be well graded. Gap graded and poorly graded soils have been reported to consume uneconomical amounts of OPC in order to fill up the pores in the soil mass and bond soil particles. On the other hand, for clays, the percentage and the plasticity of the fines portion are controlling factors. As stated in [65], cement treated clays with LL greater than 40% and plastic limits greater than 20% present difficulties in achieving good in-place mixing of the cement with the soils and may lead to uneven distribution of additives with subsequent non-uniform strength development. For geopolymer treatment, the high plasticity clays may result in uneconomical amounts of precursor and activator liquid required to improve the strength of the clays in practical applications. Field trials are imperative in this regard. Furthermore, the suitability of cement stabilised materials as pavement subgrade materials is dependent on meeting minimum strength values. Therefore, it is important to consider the effectiveness of geopolymer-stabilised clays based on their performance with reference to the requirement for stabilised materials for pavement applications. Here, a minimum 7-day UCS value for cylindrical soil samples specified by [65] and given in Table 4 is used. The UCS values are considered since it is deemed as a closer representative of the strength performance for stabilised materials [60].
The UCS results of geopolymer stabilised clays from some of the reviewed articles are plotted in Figure 8, Figure 9 and Figure 10. The stabilised soils are labelled to indicate the binder type and content and the molarity of the alkaline solution following the format reported in [66] and [67].
The stabilised soils have all been treated with sodium silicate and sodium hydroxide alkaline activator liquids. For example, the sample labelled C + 25% FAC + 3 M denotes clay stabilised with 25% class C PFA and a mixture of sodium silicate and sodium hydroxide with a molarity of 3. From Figure 8, Figure 9 and Figure 10, it can be seen that increasing the PFA content and molarity of the activator liquid improves the 7-day UCS. An important observation is that the samples treated with class F PFA like C + 25% FAF + 3 M, C + 35% FAF + 3 M, C + 25% FAF + 12 M, and C + 35% FAF + 12 M had lower 7-days UCS. The lower strength values can be related to the slow strength gain of the geopolymer binder at room temperature curing. The slow reaction is seen even with increased molarity of the activator. This because even though a high molarity of NaOH will dissociate more Al-Si units in solution, the process of gelation, realignment, and polycondensation at room temperature will take longer. Hence, short term strength is lower compared to the class C PFA geopolymers. Samples stabilised with more calcium content such as GGBS can easily meet 7-day UCS requirement compared with class F PFA geopolymers because of the calcium-based binders which precipitate and harden more rapidly than the N-A-S-H binders. For example, C + 5% FAF + 15% GGBS + 8 M and C + 20% GGBS + 8 M performed better in relation to the [65] than C + 10% FAF + 10% GGBS + 8 M with the same molarity. Moreover, class C PFA geopolymer due to increased calcium contents easily meet 7-days UCS requirements. The early strength requirements of PFA based geopolymers can be significantly improved using other sources with increased calcium content such as CCR. As seen in Figure 9, C + 30% FAC + 10% CCR + 5 M with 30% PFA and 10% CCR is observed to have higher strength than C + 30% FAC + 5 M. The combination of PFA and GGBS proves to be a better combination both for short-term (7-days) and long-term strength development. Furthermore, from Figure 8, RHA-GGBS blends showed good early strength gain which reinforces profitable use of the waste material. The strength of RHA-GGBS blends as in C + 4% RHA + 16% GGBS + 12 M is 5000 kPa which exceeds C + 2% RHA + 18% GGBS + 12 M at 4000 kPa for same molarity of alkaline activator. Moreover, from Figure 10, metakaolin blended geopolymer stabilised samples showed increased strength when blended with GGBS. However, comparing C + 2.5% MK + 17.5% GGBS + 12 M and C + 5% MK + 15% GGBS + 12 M, it is easily seen that 2.5% metakaolin content works better than 5% in terms of early strength gain. As expected, the highly reactive metakaolin with higher alumina and silica content will take longer to develop its optimum strength based on room temperature curing.
The stabilised clays showed promising use as subbase materials. However, the performance of GP geopolymers were below the minimum for subbase application. The low strength of GP geopolymers may be attributed to the lower alumina content which can affect the Al-Si chains. Comparing the strength of the treated soils to the average UCS for cement stabilised subgrade materials as specified by National Concrete Pavement Technology Centre, Iowa State University, it can be seen from Figure 8, Figure 9 and Figure 10 that most of the stabilised clays meet the minimum requirement to be utilised as subgrade material. Stabilised subgrade materials are useful in optimizing pavement thickness, increasing life span of concrete pavements, and improving the bearing capacity of the material under slabs and foundation elements [68]. Overall, geopolymers can be utilised as alternative binders for soil stabilisation for road subgrade and subbase applications due to their high strength, low carbon footprint and the alternative use of agricultural and industrial waste recycling they offer.

3.2. Effects of Alkali Activator Type on Microstructure and Strength of Geopolymers Binders

The alkali reagents play a major role in influencing the performance of geopolymer stabilised clays by affecting both the rate of the reaction and the type of cementitious products available to bind soil particles. This has a direct impact on the strength development and durability [69]. A study by [70] showed that water content and sodium silicate content both influenced the nature of the alkali solution and had significant effects on the compressive strength of fly ash-based geopolymer. The strength of the geopolymer increased with increasing water content and Na2SiO3 until an optimum value was attained. Na or K-based alkali solutions are reported to have distinct effects on the characteristics of the resulting geopolymers. In the study by [71], Na and K-based alkali activators were utilised with MK in geopolymerisation. The results of the study showed higher performance of the K-based solution over the Na-based alternative. This enhanced performance can be linked to the larger size of K-ion which in the geopolymer matrix results in increased electrochemical balance in the Si-Al chains with increasing Si/Al content of the precursor and was more profound between 1.4 ≤ Si/Al ≤ 1.9. As shown in the SEM results in Figure 11 below, higher density due to reduced porosity is observed for MK activated with K-based activator over Na-based alkali activated MK. This can be linked to the fact that during synthesis of the gel, more minute water molecules will be attracted to the sites of the cations forming a sort of nucleation point for crystallisation. As is already well-known, the formation of polymeric chains would also involve bonding with OH anions on the surface of undissolved waste particles in the precursor, which is also determined by the cations present.
As earlier mentioned, the larger K-ions can coordinate with more water molecules or OH groups which increases the amount of Si-Al at such nucleation points and supports further structural development [69,72]. Furthermore, a faster rate of geopolymerisation has been reported for Na-based activator and is reported to be linked to the smaller sized Na-cation with increased specific surface area over K-cation [72]. However, in the experimental work by [69], using PFA from various sources, it was observed that some of the fresh geopolymer pastes showed faster setting with NaOH while other showed faster setting rate with KOH. In terms of the amount of dissociated Al and Si available for polymerisation upon mixing with an activator, it has been reported that NaOH and KOH showed significant difference which directly influences the structure of the resulting geopolymer. In addition, the compressive strength of alkali activated by-product materials is significantly influenced by the type of alkali earth metal ions utilised in the mixture. Considering Na and K ions, it is observed that the use of K-based solution results in increased compressive strength due to the attraction of more Si-Al species and increased nucleation with improved structural development and performance over Na-based systems. Moreover, the presence of sodium silicates or potassium silicate in the system has additional impact on the structural performance and influences the compressive strength. Potassium silicate is reported to yield more stable structures than sodium silicates. This again is in line with previous findings by [73], that for a given fixed ration of M2O/SiO2 ratio (where M is the alkali metal), potassium silicate-based geopolymer structure showed a more strongly held composition of the aluminosilicate species than for sodium silicate-based configuration. Figure 12 compares the compressive strength of clay-PFA geopolymer mixtures constituted with a combination of different ratios of NaOH and KOH with sodium silicate and shows that the compressive strength of the geopolymers increased with increasing K2O/Na2O ratio. In addition, the addition of promoters such as MgO and CaO are known to expedite geopolymerisation rates and enhance compressive strength of resulting stabilised clays as reported in [74].
The microstructure of cement and lime stabilised soils are usually characterised with the flaky crystals of CSH from the formation of cementitious paste which coats and binds the soil particles, filling up voids and increasing bond strength as reported by [75] and shown in Figure 13a. However, with sulphate presence, cement and lime treated clays may also show expansive ettringite crystals within interparticle spaces which can induce expansion and increase porosity as shown in Figure 13b. Geopolymers, apart from their eco-friendliness, perhaps have the extra advantage of reduced ettringite formation due to lower calcium requirement and may be more effective in reducing sulphate induced expansion synonymous with cement-lime treated sulphate bearing clays. In terms of the morphology, geopolymer stabilised clays have been reported to show relatively dense matrixes which gives improved strength and their ability to immobilise heavy metals in wastes. SEM results of previous studies show that the workability of the geopolymer binders is influenced by the particle size and shape of the precursor which may also influence the performance of the binder. The study by [76] considered the morphology of two types of PFA geopolymers and reported that PFAs with more rounded particles showed improved workability at a lower activator liquid-PFA ratio due to the shape of the PFA grains. This cenospherical particle shape enhances the ball bearing effect which allows easy mixing of soils and may have resultant effect on the strength of the stabilised soils. In addition, the presence of alkaline liquid causes cracks and holes on the PFA particles, which in turn causes cementitious products to form within the spheres and further enhances the density and reduces porosity as reported in [27] and shown in Figure 13c. Microstructural characteristic of 7-days and 28-days cured PFA stabilised clays supports the premise that increasing geopolymer binder content and curing duration enhances the homogeneity of the fabric of stabilised soils. A comparison between untreated and geopolymer treated samples showed more profound interparticle connections resulting in a denser matrix. However, at higher precursor contents, unreacted waste particles may lead to higher porosity due to increased internal surface area.

3.3. Durability of Geopolymers Stabilised Clays

Apart from the strength performance of stabilised soils, durability is often a concern as stabilised materials may easily lose their cementation under rapid moisture and temperature variations which is characteristic of current climatic conditions. However, geopolymer stabilised clays have shown reasonably fair performance in this regard. Durability test performed on PFA-GGBS stabilised clays by [77] showed that the geopolymer content required for sustained stability under wet-dry cycles and freeze-thaw conditions is higher than that required to meet strength requirements. It was observed that increasing geopolymer content beyond strength requirement led to improved resistance to volume changes caused by wet-dry and freeze-thaw cycles as expected. Early age cured samples under wetting and drying cycles can suffer significant loss of bond due to the excess water within the clay-geopolymer mixture during wetting and may impede bond development leading to breakdown of the soil structure. On the other hand, higher temperatures during drying can lead to significant loss of vital moisture which can also slow down the geopolymerisation process and lead to weaker bonds with eventual collapse of the structure. Hence, sufficient binder content and curing are vital to the performance of the stabilised clays in order to catch up with cement stabilised counterparts. While this is feasible, the economic concern would need to be evaluated under site-specific circumstances. The capability of geopolymer stabilised clays to resist sulphate effects has been highlighted by [78] by measuring mass loss following soaking of lightweight GGBS geopolymer stabilised clays. From their conclusion, the geopolymer stabilised clays exhibited a high level of resistance to sulphate attack under various periods of soaking. In a separate study, reference [79] compared the performance of lithomarge-based geopolymers mortars and OPC mortars in resisting sodium sulphate and hydrochloric acid attacks. The results of the study showed that the geopolymer mortars were least affected by the sulphate and acid attack when compared to the OPC mortars. Whereas experimental OPC mortars show visible micro-cracks on soak samples, soaked geopolymer samples showed no sign of cracks after soaking for same duration. The results agree with [80] in which PFA geopolymers and OPC mortars were soaked in Mg2SO4 for up to 150 days to compare the performance of the geopolymer and OPC samples. It was observed that geopolymer samples showed no surface defects after the soaking period while OPC samples were observed to have deteriorated with visible surface cracks. The results of these studies are reference points in buttressing the effectiveness of geopolymer stabilised clays under aggressive environmental conditions.

4. Conclusions

Geopolymers can be reliably employed in the improvement of the engineering properties of weak clays with results comparable to traditional stabilisation methods involving the use of cement and lime. The advantage of low carbon emission and energy consumption—which are synonymous with the use of geopolymers—are undoubtedly desirable and put them ahead of cement and lime stabilisation in the face of the current heightened demand for greener methods. Activation of this Al-Si rich industrial waste has been accomplished with sodium hydroxide and sodium silicate mixtures and is found to be the most utilised solution for geopolymerisation. The molarity of the alkaline activator and the ratio of the activator to geopolymer precursor content are significant factors determining the strength of the stabilised clays. Although elevated curing of geopolymer stabilised soils increases the reaction rate and strength of the treated soils, The current findings also show promising use of the technique in practical applications such as subbase and subgrade materials for road pavement, slabs, and foundation elements. However, the use of geopolymer as a binder in soil stabilisation is still emerging and requires practical field application to evaluate the performance of stabilised clays under field conditions. For example, the performance of clays stabilised with geopolymers under cyclic loading conditions which is representative of actual response on highway subgrade material is yet to be adequately investigated. The need for geopolymer stabilised soils to be subjected to durability test simulated by wet-dry cycles to evaluate their viability under flooded conditions and also swell tests of geopolymer stabilised sulphate bearing expansive clays is required.

Author Contributions

Conceptualization, J.J.J. and S.J.A.; methodology, J.J.J. and S.J.A.; software, J.J.J. and S.J.A.; validation, J.J.J. and S.J.A.; formal analysis, J.J.J. and S.J.A.; investigation, J.J.J.; resources, S.J.A.; data curation, J.J.J.; writing—original draft preparation, J.J.J.; writing—review and editing, J.J.J., S.J.A., C.A.B., A.K.; visualization, S.J.A., C.A.B., A.K.; supervision, S.J.A., C.A.B., A.K.; project administration, S.J.A., C.A.B., A.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Some or all data that support the findings of this study are available from the corresponding author.

Acknowledgments

The lead author is thankful to the Ph.D. supervisory team for their enormous support during this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Abdullah, H.H.; Shahin, M.A.; Walske, M.L. Review of Fly-Ash-Based Geopolymers for Soil Stabilisation with Special Reference to Clay. Geosciences 2020, 10, 249. [Google Scholar] [CrossRef]
  2. Ayeldeen, M.; Hara, Y.; Kitazume, M.; Negm, A. Unconfined Compressive Strength of Compacted Disturbed Cement-Stabilized Soft Clay. Int. J. Geosynth. Ground Eng. 2016, 2, 28. [Google Scholar] [CrossRef] [Green Version]
  3. Pongsivasathit, S.; Horpibulsuk, S.; Piyaphipat, S. Assessment of mechanical properties of cement stabilized soils. Case Stud. Constr. Mater. 2019, 11, e00301. [Google Scholar] [CrossRef]
  4. Horpibulsuk, S.K.; Rachan, R.L.; Chinkulkijniwat, A.; Raksachon, Y.; Suddeepong, A. Analysis of strength development in cement-stabilized silty clay from microstructural considerations. Constr. Build. Mater. 2010, 24, 2011–2021. [Google Scholar] [CrossRef]
  5. Miyazaki, Y. A Study of Cement Treating Dredged Clay and under-Water Casting Method. Ph.D. Thesis, Kyushu University, Fukuoka, Japan, 2003. [Google Scholar]
  6. Journals, I.; Muhmed, A.; Wanatowski, D. Effect of Lime Stabilisation on the Strength and Microstructure of Clay. IOSR J. Mech. Civil Eng. (IOSR-JMCE) 2013, 6, 87–94. [Google Scholar]
  7. Baldovino, J.A.; Moreira, E.B.; Teixeira, W.; Izzo, R.L.; Rose, J.L. Effects of lime addition on geotechnical properties of sedimentary soil in Curitiba, Brazil. J. Rock Mech. Geotech. Eng. 2018, 10, 188–194. [Google Scholar] [CrossRef]
  8. Ghobadi, M.H.; Abdilor, Y.; Babazadeh, R. Stabilization of clay soils using lime and effect of pH variations on shear strength parameters. Bull. Int. Assoc. Eng. Geol. 2014, 73, 611–619. [Google Scholar] [CrossRef]
  9. Abbey, S.J.; Ngambi, S.; Coakley, E. Effect of cement and by-product material inclusion on plasticity of deep mixing im-proved soils. Int. J. Civil Eng. Technol. 2016, 7, 265–274. [Google Scholar]
  10. Abbey, S.J.; Ngambi, S.; Ganjian, E. Development of strength models for prediction of unconfined compressive strength of cement/by-product material improved soils. Geotech. Test J. 2017, 40, 928–935. [Google Scholar] [CrossRef]
  11. Abbey, S.J.; Eyo, E.U.; Oti, J.; Amakye, S.Y.; Ngambi, S. Mechanical Properties and Microstructure of Fibre-Reinforced Clay Blended with By-Product Cementitious Materials. Geosciences 2020, 10, 241. [Google Scholar] [CrossRef]
  12. Abbey, S.J.; Ngambi, S.; Olubanwo, A.O.; Tetteh, F.K. Strength and Hydraulic Conductivity of Cement and By–Product Cementitious Materials Improved Soil. Int. J. Appl. Eng. Res. 2018, 13, 8684–8694. [Google Scholar]
  13. Eyo, E.U.; Ng’Ambi, S.; Abbey, S.J. Performance of clay stabilized by cementitious materials and inclusion of zeo-lite/alkaline metals-based additive. Transp. Geotech. 2020, 23, 100330. [Google Scholar] [CrossRef]
  14. Jeremiah, J.J.; Abbey, S.J.; Booth, C.A.; Kashyap, A. Results of Application of Artificial Neural Networks in Predicting Geo-Mechanical Properties of Stabilised Clays—A Review. Geotechnics 2021, 1, 8. [Google Scholar] [CrossRef]
  15. Pourakbar, S.; Huat, B.K. A review of alternatives traditional cementitious binders for engineering improvement of soils. Int. J. Geotech. Eng. 2016, 11, 1–11. [Google Scholar] [CrossRef]
  16. Horpibulsuk, S.; Phetchuay, C.; Chinkulkijniwat, A.; Cholaphatsorn, A. Strength development in silty clay stabilized with calcium carbide residue and fly ash. Soils Found. 2013, 53, 477–486. [Google Scholar] [CrossRef] [Green Version]
  17. Wong, B.Y.F.; Wong, K.S.; Phang, I.R.K. A review on geopolymerisation in soil stabilization. IOP Conf. Series: Mater. Sci. Eng. 2019, 495, 012070. [Google Scholar] [CrossRef]
  18. Andrew, R.M. Global CO2 emissions from cement production, 1928–2018. Earth Syst. Sci. Data 2019, 11, 1675–1710. [Google Scholar] [CrossRef] [Green Version]
  19. Khale, D.; Chaudhary, R. Mechanism of geopolymerization and factors influencing its development: A review. J. Mater. Sci. 2007, 42, 729–746. [Google Scholar] [CrossRef]
  20. Davidovits, J. Solid phase synthesis of a mineral block polymer by low temperature polycondensation of alumino-silicate polymers. In Proceedings of the IUPAC International Symposium on Macromolecules, The Royal Institute of Technology, Stockholm, Sweden, 30 August–1 September 1976. Stockholm, Topic III, New Polymers of High Stability. [Google Scholar]
  21. Nergis, D.D.B.; Abdullah, M.M.A.B.; Vizureanu, P.; Tahir, M.F.M. Geopolymers and Their Uses: Review. IOP Conf. Series: Mater. Sci. Eng. 2018, 374, 012019. [Google Scholar] [CrossRef]
  22. Davidovits, J. Geopolymer Chemistry and Sustainable Development. The Poly(Sialate) Terminology: A Very Useful and Simple Model for the Promotion and Understanding of Green-Chemistry; Geopolymer Institute: Saint-Quentin, France, 2005. [Google Scholar]
  23. Bayuaji, R.; Yasin, A.K.; Susanto, T.E.; Darmawan, M.S. A review in geopolymer binder with dry mixing method (geopolymer cement). AIP Conf. Proc. 2017, 1887, 020022. [Google Scholar] [CrossRef] [Green Version]
  24. Mozumder, R.A.; Laskar, A.I. Prediction of unconfined compressive strength of geopolymer-stabilised clayey soils using artificial neural network. Comput. Geotech. 2015, 69, 291–300. [Google Scholar] [CrossRef]
  25. Lopes, A.V.; Lopes, S.M.R.; Pinto, I. Influence of the Composition of the Activator on Mechanical Characteristics of a Geopolymer. Appl. Sci. 2020, 10, 3349. [Google Scholar] [CrossRef]
  26. Van Deventer, J.; Provis, J.; Duxson, P.; Lukey, G. Reaction mechanisms in the geopolymeric conversion of inorganic waste to useful products. J. Hazard. Mater. 2007, 139, 506–513. [Google Scholar] [CrossRef] [PubMed]
  27. Phetchuay, C.; Horpibulsuk, S.; Arulrajah, A.; Suksiripattanapong, C.; Udomchai, A. Strength development in soft marine clay stabilized by fly ash and calcium carbide residue based geopolymer. Appl. Clay Sci. 2016, 127–128, 134–142. [Google Scholar] [CrossRef]
  28. Damilola, O.M. Syntheses, Characterization and Binding Strength of Geopolymers: A Review. Int. J. Mater. Sci. Appl. 2013, 2, 185. [Google Scholar] [CrossRef] [Green Version]
  29. Palomoa, A.; Grutzeck, M.W.; Blanco, M.T. Alkali-activated fly ashes: A cement for the future. Cem. Concr. Res. 1999, 29, 1323–1329. [Google Scholar] [CrossRef]
  30. Rees, C.; Lukey, G.C.; Van Deventer, J.S.J. The role of solid silicates on the formation of geopolymers derived from coal ash. In Proceedings of the International Symposium of Research Student on Material Science and Engineering, Chennai, India, 20–22 December 2004; pp. 1–13. [Google Scholar]
  31. Jae, E.O.; Paulo, J.M.; Monteiro, S.S.; Jun, S.C.; Simon, M.C. The Evolution of Strength and Crystalline Phases for Alkali-activated Ground Blast Furnace Slag and Fly Ash-based Geopolymers. Cem. Concr. Res. 2010, 40, 189–196. [Google Scholar]
  32. Altan, E.; Erdoğan, S.T. Alkali activation of a slag at ambient and elevated temperatures. Cem. Concr. Compos. 2012, 34, 131–139. [Google Scholar] [CrossRef]
  33. Granizo, M.L.; Blanco, M.T. Alkaline activation of metakaolin an isothermal conduction calorimetry study. J. Ther. Anal. 1998, 52, 957–965. [Google Scholar] [CrossRef]
  34. Davidovits, J. Chemistry of Geopolymeric Systems, Terminology. In Proceedings of the Second International Conference Geopolumère, Saint-Quentin, France, 30 June–2 July 1999; pp. 9–40. [Google Scholar]
  35. Habert, G.; Roussel, N. Study of two concrete mix-design strategies to reach carbon mitigation objectives. Cem. Concr. Compos. 2009, 31, 397–402. [Google Scholar] [CrossRef]
  36. Chungsangunsit, T.; Gheewala, S.H.; Patumsawad, S. Emission Assessment of Rice Husk Combustion for Power Production. World Acad. Sci. Eng. Technol. 2009, 29, 1064–1069. [Google Scholar]
  37. Turner, L.K.; Collins, F.G. Carbon dioxide equivalent (CO2-e) emissions: A comparison between geopolymer and OPC cement concrete. Constr. Build. Mater. 2013, 43, 125–130. [Google Scholar] [CrossRef]
  38. Azad, N.; Samarakoon, S. Utilization of Industrial By-Products/Waste to Manufacture Geopolymer Cement/Concrete. Sustainability 2021, 13, 873. [Google Scholar] [CrossRef]
  39. Vitale, E.; Russo, G.; Dell’Agli, G.; Ferone, C.; Bartolomeo, C. Mechanical Behaviour of Soil Improved by Alkali Activated Binders. Environments 2017, 4, 80. [Google Scholar] [CrossRef] [Green Version]
  40. Ghadir, P.; Ranjbar, N. Clayey soil stabilization using geopolymer and Portland cement. Constr. Build. Mater. 2018, 188, 361–371. [Google Scholar] [CrossRef]
  41. Canakci, H.; Güllü, H.; Alhashemy, A. Performances of Using Geopolymers Made with Various Stabilizers for Deep Mixing. Materials 2019, 12, 2542. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Abdullah, H.H.; Shahin, M.A.; Walske, M.L.; Karrech, A. Cyclic behaviour of clay stabilised with fly-ash based geopolymer incorporating ground granulated slag. Transp. Geotech. 2021, 26, 100430. [Google Scholar] [CrossRef]
  43. Phummiphan, I.; Horpibulsuk, S.; Sukmak, P.; Chinkulkijniwat, A.; Arulrajah, A.; Shen, S.-L. Stabilisation of marginal lateritic soil using high calcium fly ash-based geopolymer. Road Mater. Pavement Des. 2016, 17, 877–891. [Google Scholar] [CrossRef]
  44. Cristelo, N.; Glendinning, S.; Pinto, A.T. Deep soft soil improvement by alkaline activation. Proc. Inst. Civ. Eng.-Ground Improv. 2011, 164, 73–82. [Google Scholar] [CrossRef] [Green Version]
  45. Sukmak, P.; Horpibulsuk, S.; Shen, S.-L. Strength development in clay–fly ash geopolymer. Constr. Build. Mater. 2013, 40, 566–574. [Google Scholar] [CrossRef]
  46. Yaghoubi, M.; Arulrajah, A.; Disfani, M.M.; Horpibulsuk, S.; Leong, M. Compressibility and strength development of geopolymer stabilized columns cured under stress. Soils Found. 2020, 60, 1241–1250. [Google Scholar] [CrossRef]
  47. Phetchuay, C.; Horpibulsuk, S.; Suksiripattanapong, C.; Chinkulkijniwat, A.; Arulrajah, A.; Disfani, M.M. Calcium carbide residue: Alkaline activator for clay–fly ash geopolymer. Constr. Build. Mater. 2014, 69, 285–294. [Google Scholar] [CrossRef]
  48. Coudert, E.; Paris, M.; Deneele, D.; Russo, G.; Tarantino, A. Use of alkali activated high-calcium fly ash binder for kaolin clay soil stabilisation: Physicochemical evolution. Constr. Build. Mater. 2019, 201, 539–552. [Google Scholar] [CrossRef] [Green Version]
  49. Abdullah, H.H.; Shahin, M.A.; Walske, M.L. Geo-mechanical behavior of clay soils stabilized at ambient temperature with fly-ash geopolymer-incorporated granulated slag. Soils Found. 2019, 59, 1906–1920. [Google Scholar] [CrossRef]
  50. Cristelo, N.; Glendinning, S.; Fernandes, L.S.G.; Pinto, A.T. Effect of calcium content on soil stabilisation with alkaline activation. Constr. Build. Mater. 2012, 29, 167–174. [Google Scholar] [CrossRef]
  51. Araújo, N.; Corrêa-Silva, M.; Miranda, T.; Gomes, A.T.; Castro, F.; Teixeira, T.; Cristelo, N. Unsaturated Response of Clayey Soils Stabilised with Alkaline Cements. Molecules 2020, 25, 2533. [Google Scholar] [CrossRef]
  52. Alsafi, S.; Farzadnia, N.; Asadi, A.; Huat, B.K. Collapsibility potential of gypseous soil stabilized with fly ash geopolymer; characterization and assessment. Constr. Build. Mater. 2017, 137, 390–409. [Google Scholar] [CrossRef]
  53. Zhang, M.; Guo, H.; El-Korchi, T.; Zhang, G.; Tao, M. Experimental feasibility study of geopolymer as the next-generation soil stabilizer. Constr. Build. Mater. 2013, 47, 1468–1478. [Google Scholar] [CrossRef]
  54. Guo, Q.; Wei, M.; Wu, H.; Gu, Y. Strength and micro-mechanism of MK-blended alkaline cement treated high plasticity clay. Constr. Build. Mater. 2019, 236, 117567. [Google Scholar] [CrossRef]
  55. Samuel, R.; Puppala, A.; Radovic, M. Sustainability Benefits Assessment of Metakaolin-Based Geopolymer Treatment of High Plasticity Clay. Sustainability 2020, 12, 10495. [Google Scholar] [CrossRef]
  56. Wang, S.; Xue, Q.; Zhu, Y.; Li, G.; Wu, Z.; Zhao, K. Experimental study on material ratio and strength performance of geopolymer-improved soil. Constr. Build. Mater. 2021, 267, 120469. [Google Scholar] [CrossRef]
  57. Žiūrinkas, D.; Vaiciukyniene, D.; Stelmokaitis, G.; Dorosevas, V. Clayey Soil Strength Improvement by Using Alkali Activated Slag Reinforcing. Minerals 2020, 10, 1076. [Google Scholar] [CrossRef]
  58. Bilondi, M.P.; Toufigh, M.M.; Toufigh, V. Experimental investigation of using a recycled glass powder-based geopolymer to improve the mechanical behavior of clay soils. Constr. Build. Mater. 2018, 170, 302–313. [Google Scholar] [CrossRef]
  59. Bilondi, M.P.; Toufigh, M.M.; Toufigh, V. Using calcium carbide residue as an alkaline activator for glass powder–clay geopolymer. Constr. Build. Mater. 2018, 183, 417–428. [Google Scholar] [CrossRef]
  60. Xiao, R.; Polaczyk, P.; Zhang, M.; Jiang, X.; Zhang, Y.; Huang, B.; Hu, W. Evaluation of Glass Powder-Based Geopolymer Stabilized Road Bases Containing Recycled Waste Glass Aggregate. Natl. Acad. Sci. Transp. Res. Rec. 2020, 2674, 22–32. [Google Scholar] [CrossRef]
  61. Cyr, M.; Idir, R.; Poinot, T. Properties of inorganic polymer (geopolymer) mortars made of glass cullet. J. Mater. Sci. 2012, 47, 2782–2797. [Google Scholar] [CrossRef]
  62. Hamada, H.M.; Jokhio, G.A.; Yahaya, F.M.; Humada, A.M.; Gul, Y. The present state of the use of palm oil fuel ash (POFA) in concrete. Constr. Build. Mater. 2018, 175, 26–40. [Google Scholar] [CrossRef]
  63. Abdeldjouad, L. Effect of Curing Temperature on the Development of Hard Structure of Alkali-Activated Soil. Int. J. GEOMATE 2019, 17, 117–123. [Google Scholar] [CrossRef]
  64. Phummiphan, P.I.; Horpibulsuk, P.S.; Phoo-Ngernkham, T.; Arulrajah, P.A.; Shen, S.-L. Marginal Lateritic Soil Stabilized with Calcium Carbide Residue and Fly Ash Geopolymers as a Sustainable Pavement Base Material. J. Mater. Civ. Eng. 2017, 29, 04016195. [Google Scholar] [CrossRef]
  65. European Committee for Standardization (CEN). EN 16907-4:2018: Earthworks 2018 Soil Treatment with Lime And/or Hydraulic Binders; European Committee for Standardization (CEN): Brussels, Belgium, 2018. [Google Scholar]
  66. Eyo, E.; Ng’Ambi, S.; Abbey, S.J. Incorporation of a nanotechnology-based additive in cementitious products for clay stabilisation. J. Rock Mech. Geotech. Eng. 2020, 12, 1056–1069. [Google Scholar] [CrossRef]
  67. Abbey, S.J.; Eyo, E.U.; Okeke, C.A.; Ngambi, S. Experimental study on the use of RoadCem blended with by-product cementitious materials for stabilisation of clay soils. Constr. Build. Mater. 2021, 280, 122476. [Google Scholar] [CrossRef]
  68. Gross, J.; Adaska, W. Guide to Cement-Stabilized Subgrade Soils; Portland Cement Association: Washington, DC, USA; National Concrete Pavement Technology Center, Iowa State University: Ames, IA, USA, 2020. [Google Scholar]
  69. Van Jaarsveld, J.G.S.; van Deventer, J.S.J. Effect of the Alkali Metal Activator on the Properties of Fly Ash-Based Geopolymers. Ind. Eng. Chem. Res. 1999, 38, 3932–3941. [Google Scholar] [CrossRef]
  70. Bakri, A.M.M.A.; Kamarudin, H.; Omar, V.; Norazian, M.N.; Ruzaidi, C.M.; Rafiza, A.R. Effects of Alkali Activator Ratio on the Compressive Strength of Fly Ash-Based Geopolymers. Austrialian J. Basic Appl. Sci. 2011, 5, 1916–1922. [Google Scholar]
  71. Lizcano, M.; Kim, H.S.; Basu, S.; Radovic, M. Mechanical properties of sodium and potassium activated metakaolin-based geopolymers. J. Mater. Sci. 2012, 47, 2607–2616. [Google Scholar] [CrossRef]
  72. McCormick, A.V.; Bell, T. The Solution Chemistry of Zeolite Precursors. Catal. Rev. Sci. Eng. 1989, 31, 97–127. [Google Scholar] [CrossRef]
  73. Weldes, H.H.; Lange, K.R. Properties of Soluble Silicates. Ind. Eng. Chem. 1969, 61, 29–44. [Google Scholar] [CrossRef]
  74. Salimi, M.; Ghorbani, A. Mechanical and compressibility characteristics of a soft clay stabilized by slag-based mixtures and geopolymers. Appl. Clay Sci. 2020, 184, 105390. [Google Scholar] [CrossRef]
  75. Abbey, S.J.; Eyo, E.U.; Ng’Ambi, S. Swell and microstructural characteristics of high-plasticity clay blended with cement. Bull. Int. Assoc. Eng. Geol. 2019, 79, 2119–2130. [Google Scholar] [CrossRef] [Green Version]
  76. Leong, H.Y.; Ong, D.E.L.; Sanjayan, J.; Nazari, A. Suitability of Sarawak and Gladstone fly ash to produce geopolymers: A physical, chemical, mechanical, mineralogical and microstructural analysis. Ceram. Int. 2016, 42, 9613–9620. [Google Scholar] [CrossRef] [Green Version]
  77. Abdullah, H.H.; Shahin, M.A.; Sarker, P. Use of Fly-Ash Geopolymer Incorporating Ground Granulated Slag for Stabilisation of Kaolin Clay Cured at Ambient Temperature. Geotech. Geol. Eng. 2019, 37, 721–740. [Google Scholar] [CrossRef]
  78. Jiang, N.-J.; Du, Y.-J.; Liu, K. Durability of lightweight alkali-activated ground granulated blast furnace slag (GGBS) stabilized clayey soils subjected to sulfate attack. Appl. Clay Sci. 2018, 161, 70–75. [Google Scholar] [CrossRef]
  79. Kwasny, T.A.; Soutsos, A.M.N.; McIntosh, J.A.; Cleland, D.J. Sulfate and acid resistance of lithomarge-based geopolymer mortars. Constr. Build. Mater. 2018, 166, 537–553. [Google Scholar] [CrossRef] [Green Version]
  80. Bakharev, T. Durability of geopolymer materials in sodium and magnesium sulfate solutions. Cem. Concr. Res. 2005, 35, 1233–1246. [Google Scholar] [CrossRef]
Geotechnics 01 00021 g001 550

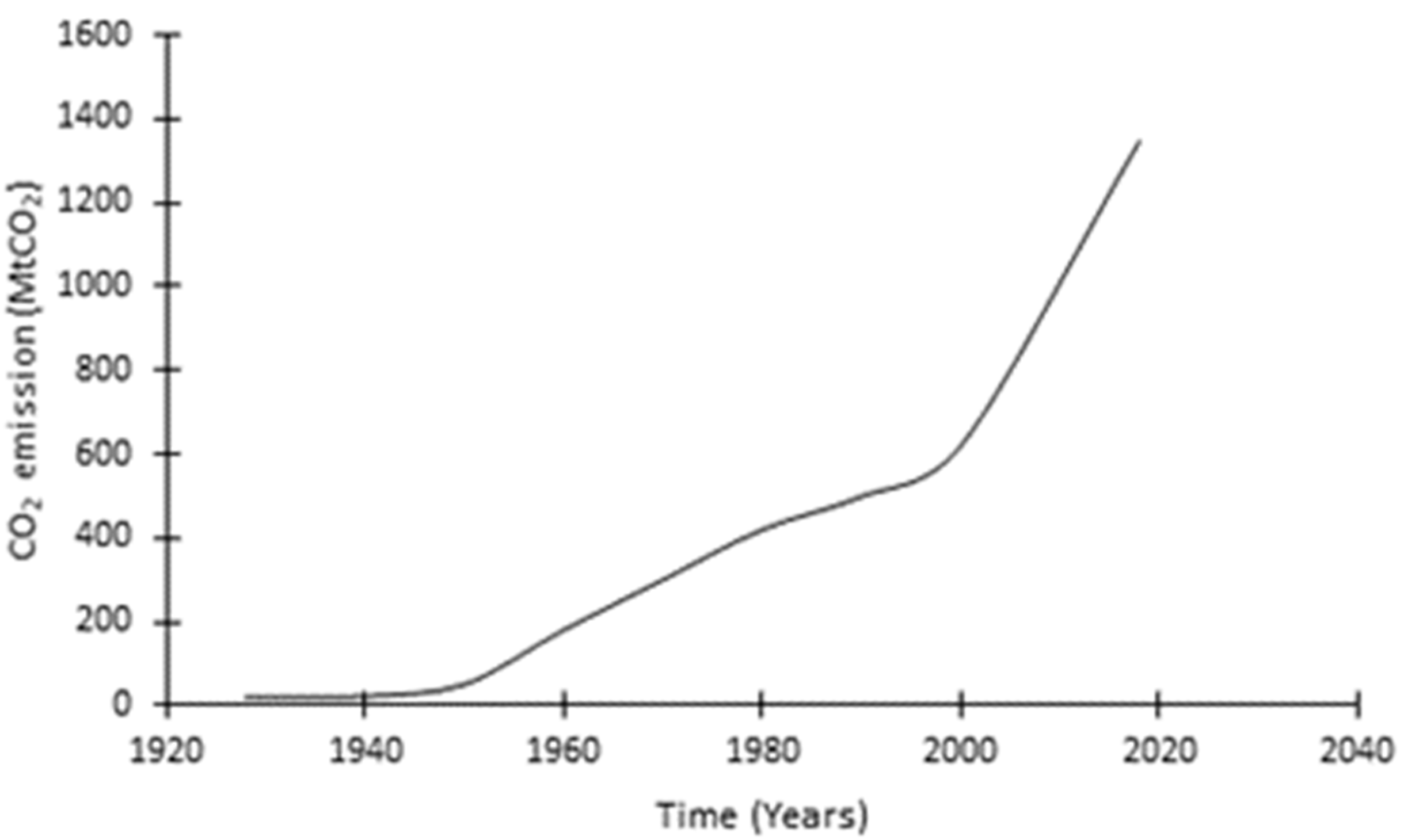

Figure 1. Global carbon emission from cement production from 1928–2018 [18].
Figure 1. Global carbon emission from cement production from 1928–2018 [18].
Geotechnics 01 00021 g001
Geotechnics 01 00021 g002 550

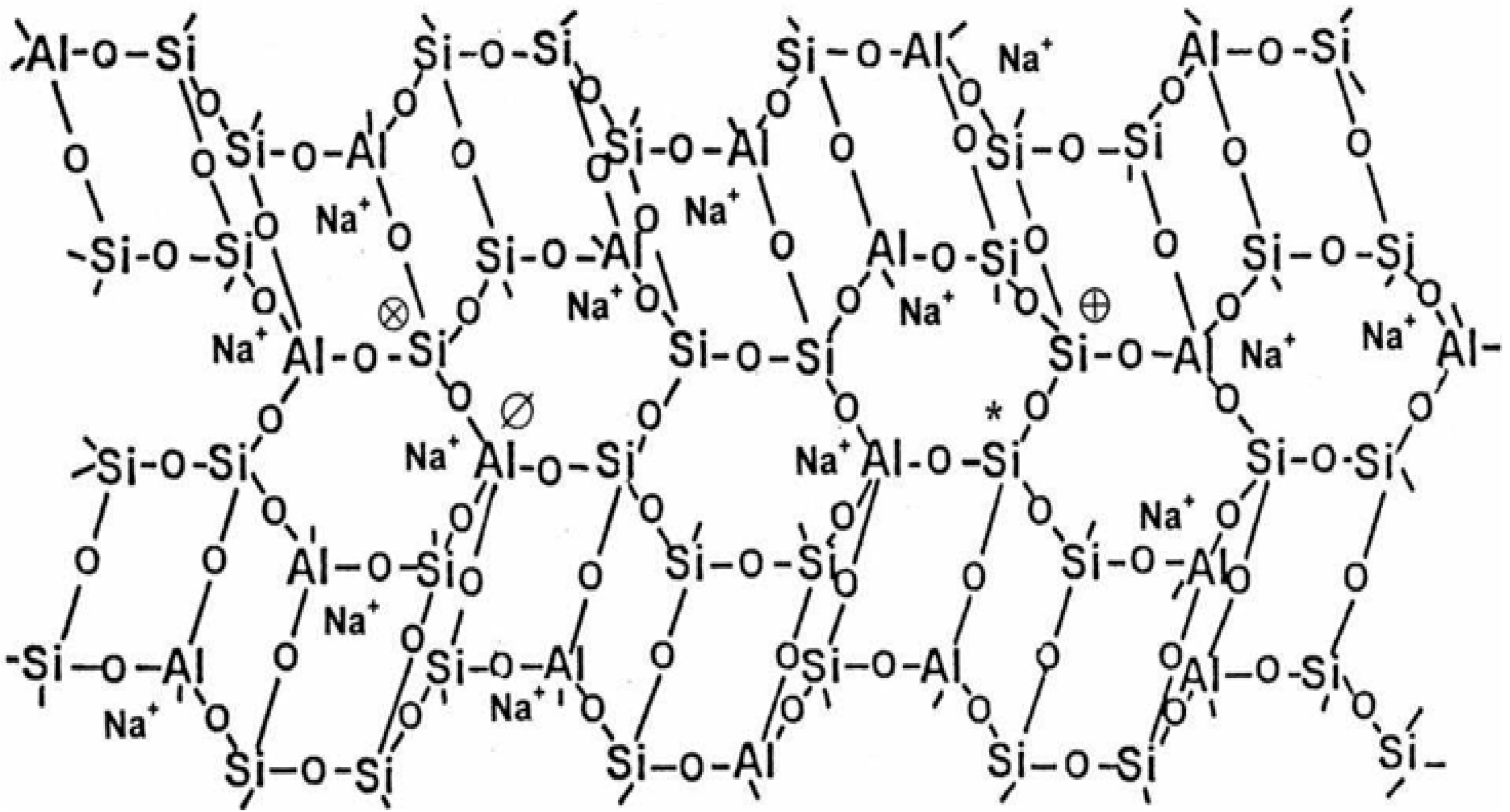

Figure 2. Chemical structure of a geopolymer [20].
Figure 2. Chemical structure of a geopolymer [20].
Geotechnics 01 00021 g002
Geotechnics 01 00021 g003 550

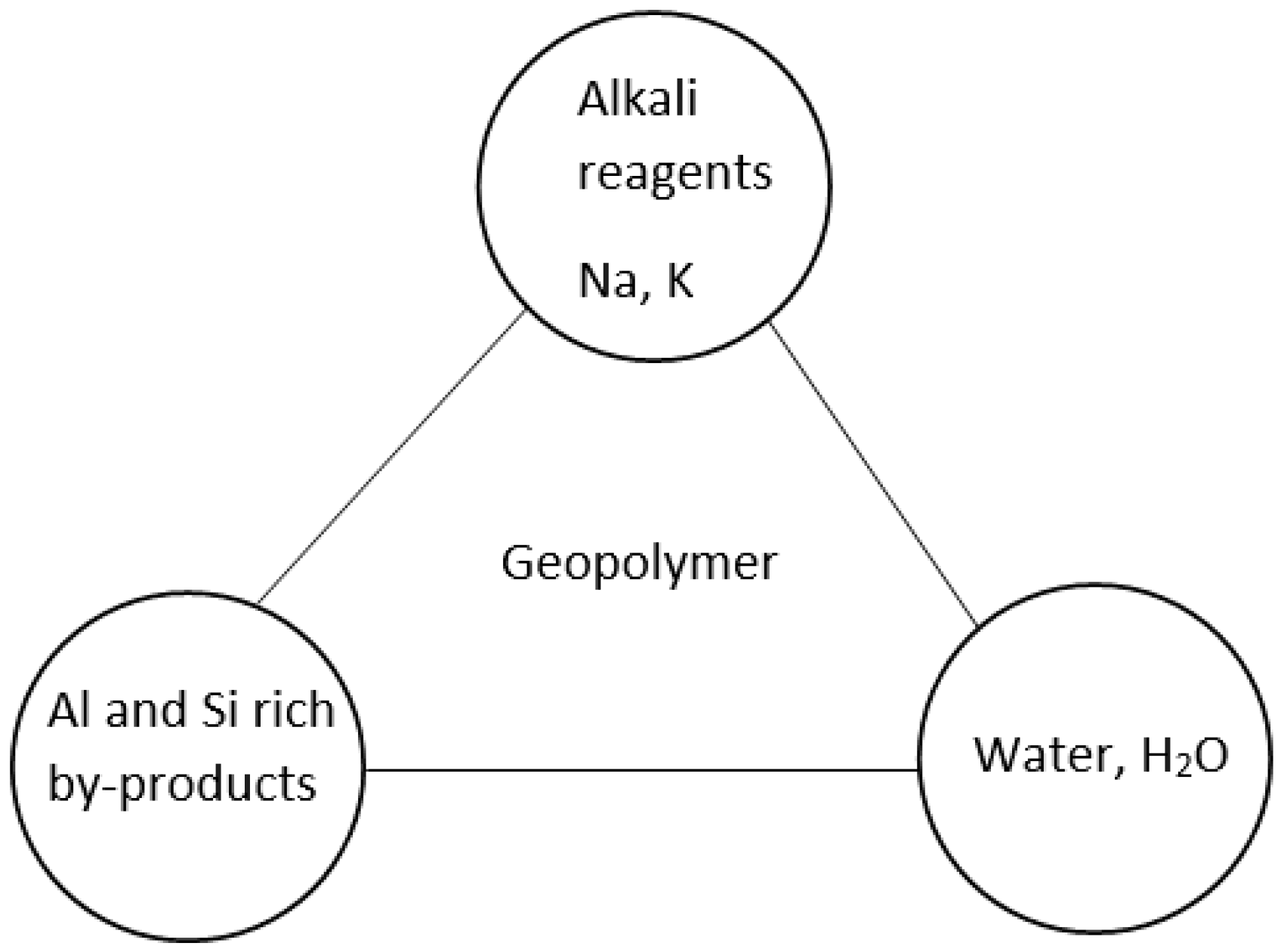

Figure 3. Constituent Materials for Geopolymer Production.
Figure 3. Constituent Materials for Geopolymer Production.
Geotechnics 01 00021 g003
Geotechnics 01 00021 g004 550
Figure 4. Steps in Geopolymer Synthesis [21].
Figure 4. Steps in Geopolymer Synthesis [21].
Geotechnics 01 00021 g004
Geotechnics 01 00021 g005 550

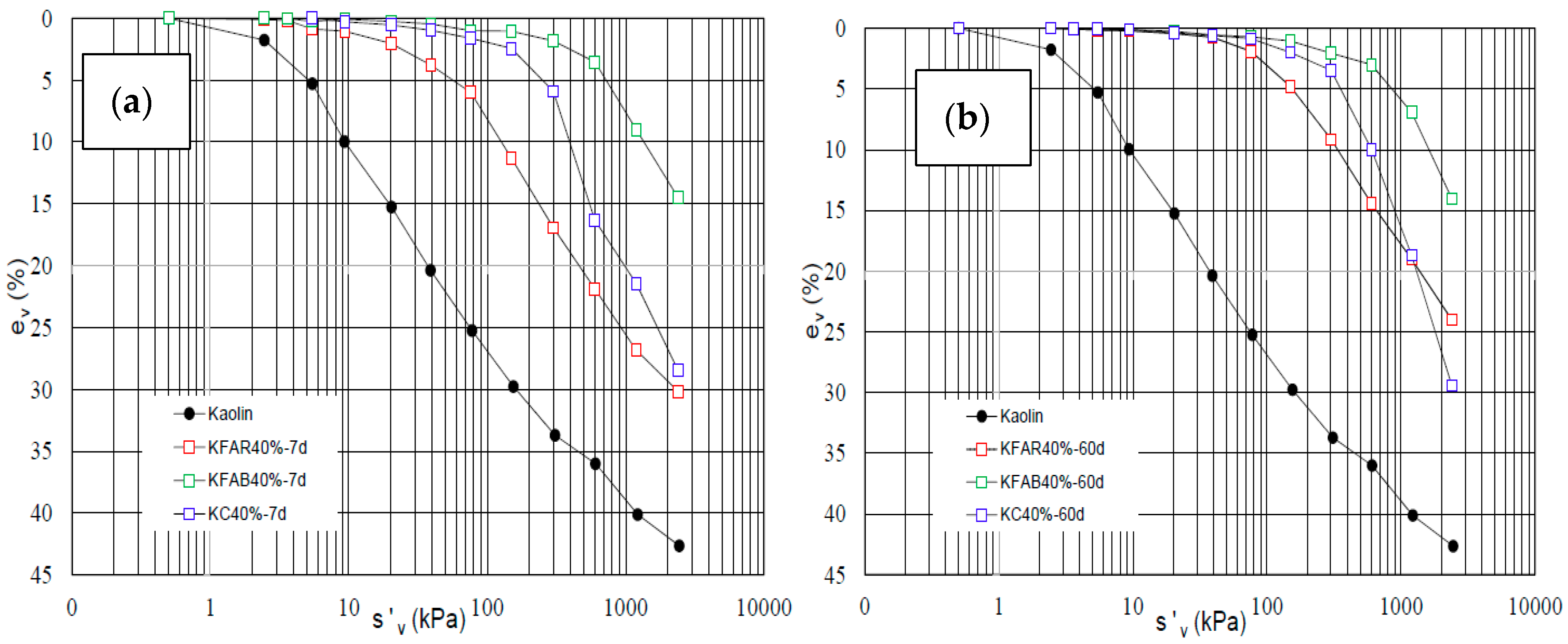

Figure 5. Consolidation Curves of Geopolymer and OPC Stabilised Clay (a) 7 days cured (b) 60 days cured [39].
Figure 5. Consolidation Curves of Geopolymer and OPC Stabilised Clay (a) 7 days cured (b) 60 days cured [39].
Geotechnics 01 00021 g005
Geotechnics 01 00021 g006 550

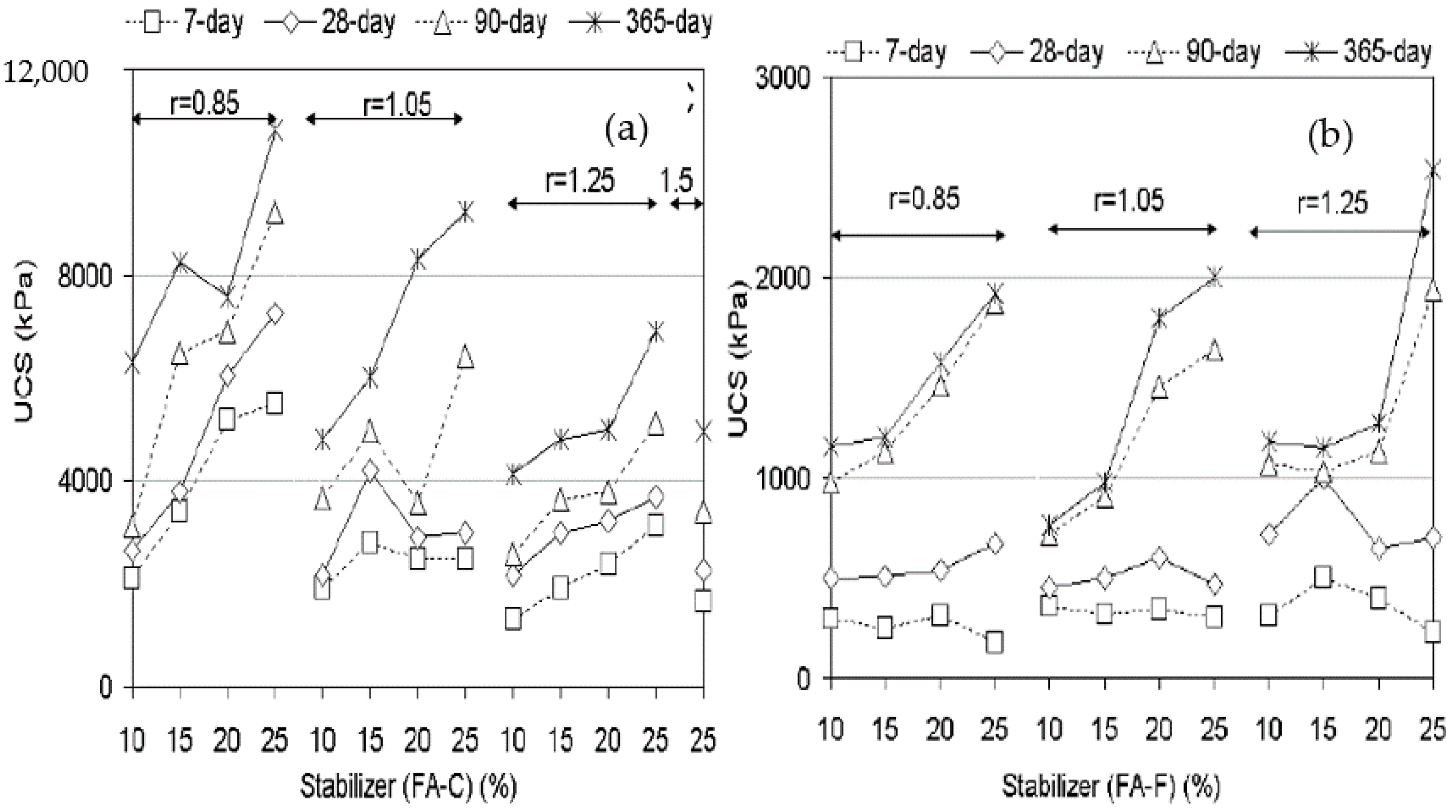

Figure 6. UCS versus binder content for PFA-based Geopolymer-stabilised Clays (a) Class C PFA (b) Class F PFA [41].
Figure 6. UCS versus binder content for PFA-based Geopolymer-stabilised Clays (a) Class C PFA (b) Class F PFA [41].
Geotechnics 01 00021 g006
Geotechnics 01 00021 g007 550

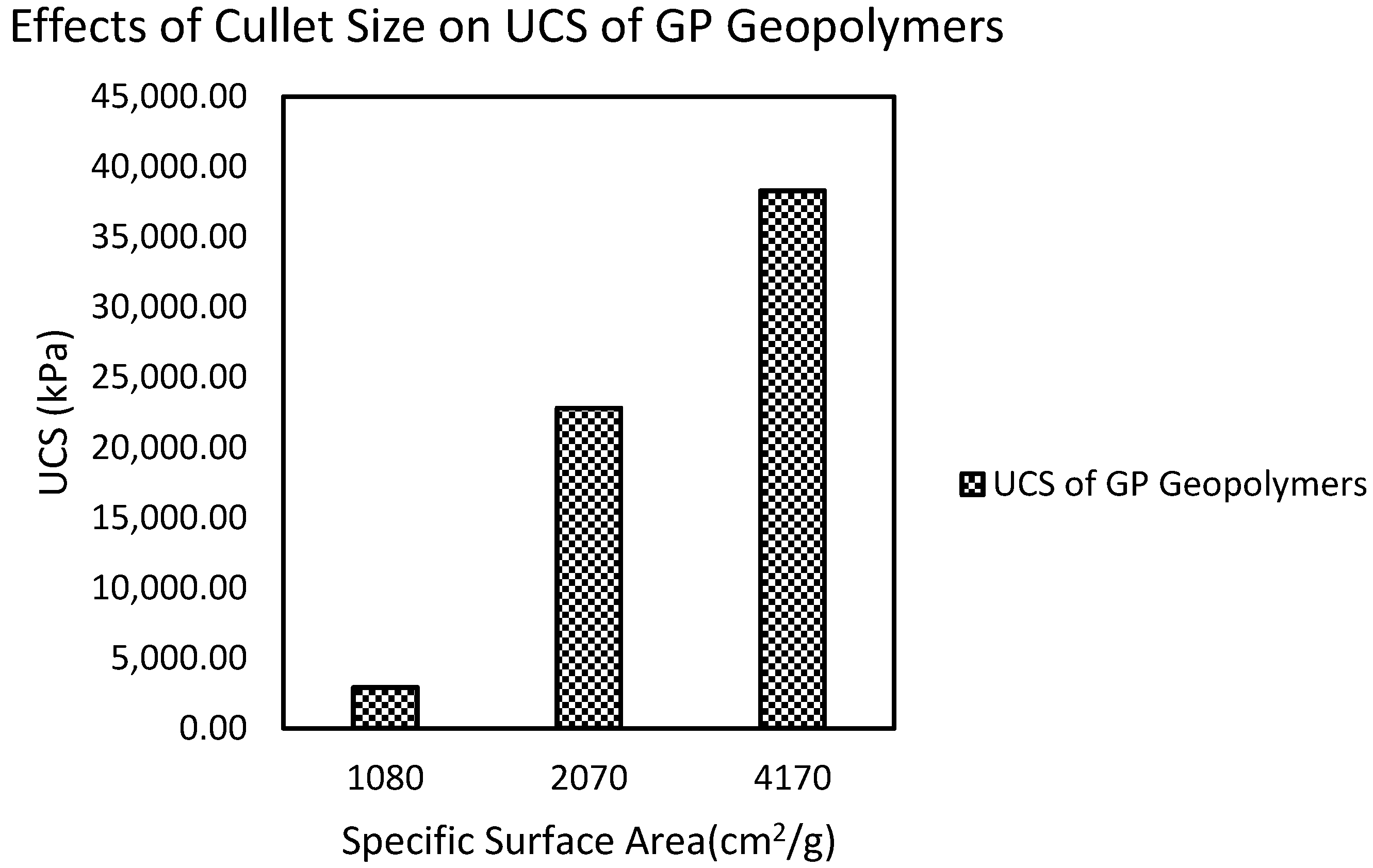

Figure 7. Effects of Cullet Sizes on UCS of GP Geopolymers [61].
Figure 7. Effects of Cullet Sizes on UCS of GP Geopolymers [61].
Geotechnics 01 00021 g007
Geotechnics 01 00021 g008 550
Figure 8. 7 days UCS of Geopolymer Stabilised Clays with Various Kinds of Geopolymers.
Figure 8. 7 days UCS of Geopolymer Stabilised Clays with Various Kinds of Geopolymers.
Geotechnics 01 00021 g008
Geotechnics 01 00021 g009 550

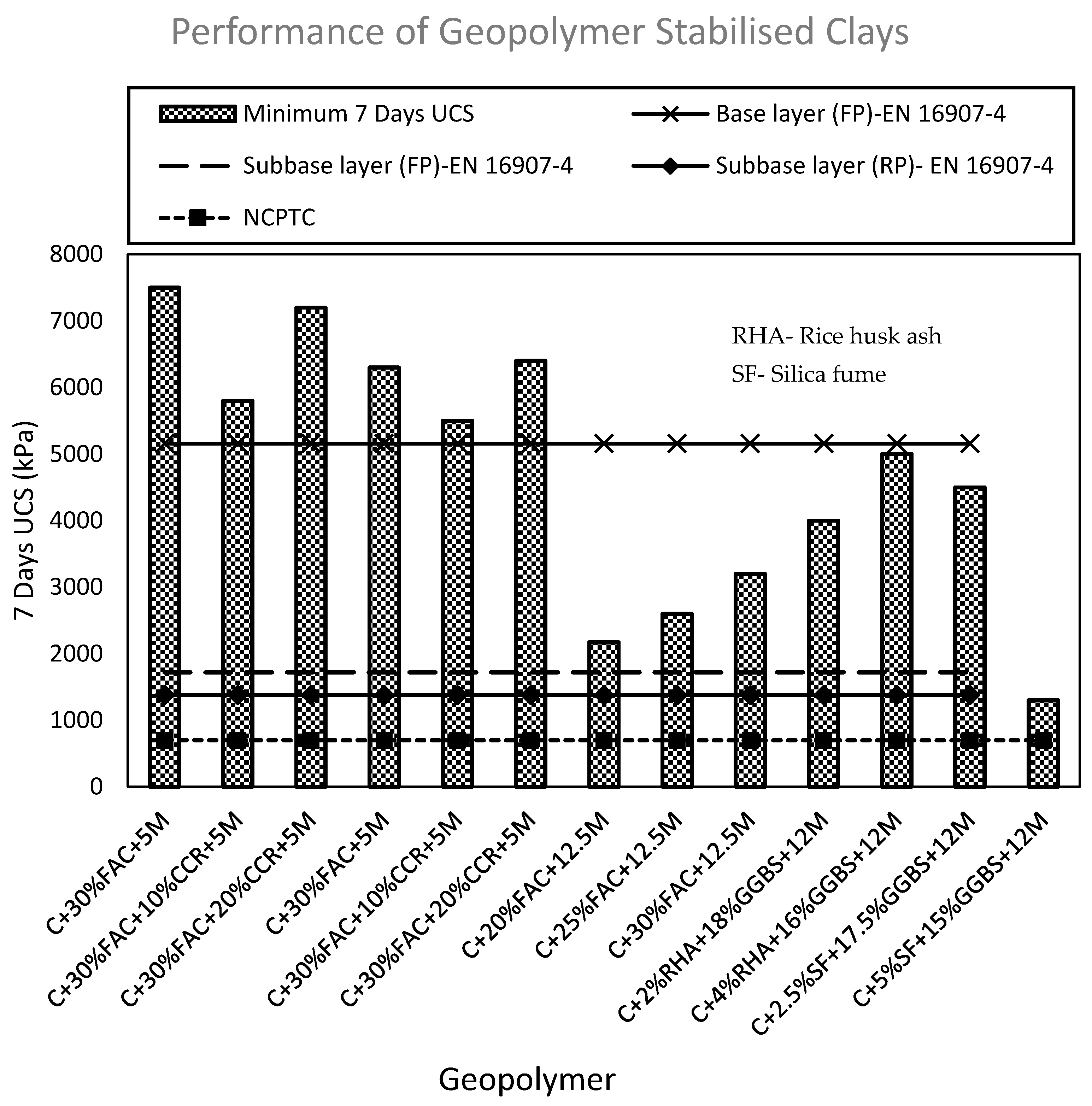

Figure 9. 7 days UCS of Geopolymer Stabilised Clays with Various Kinds of Geopolymers.
Figure 9. 7 days UCS of Geopolymer Stabilised Clays with Various Kinds of Geopolymers.
Geotechnics 01 00021 g009
Geotechnics 01 00021 g010 550

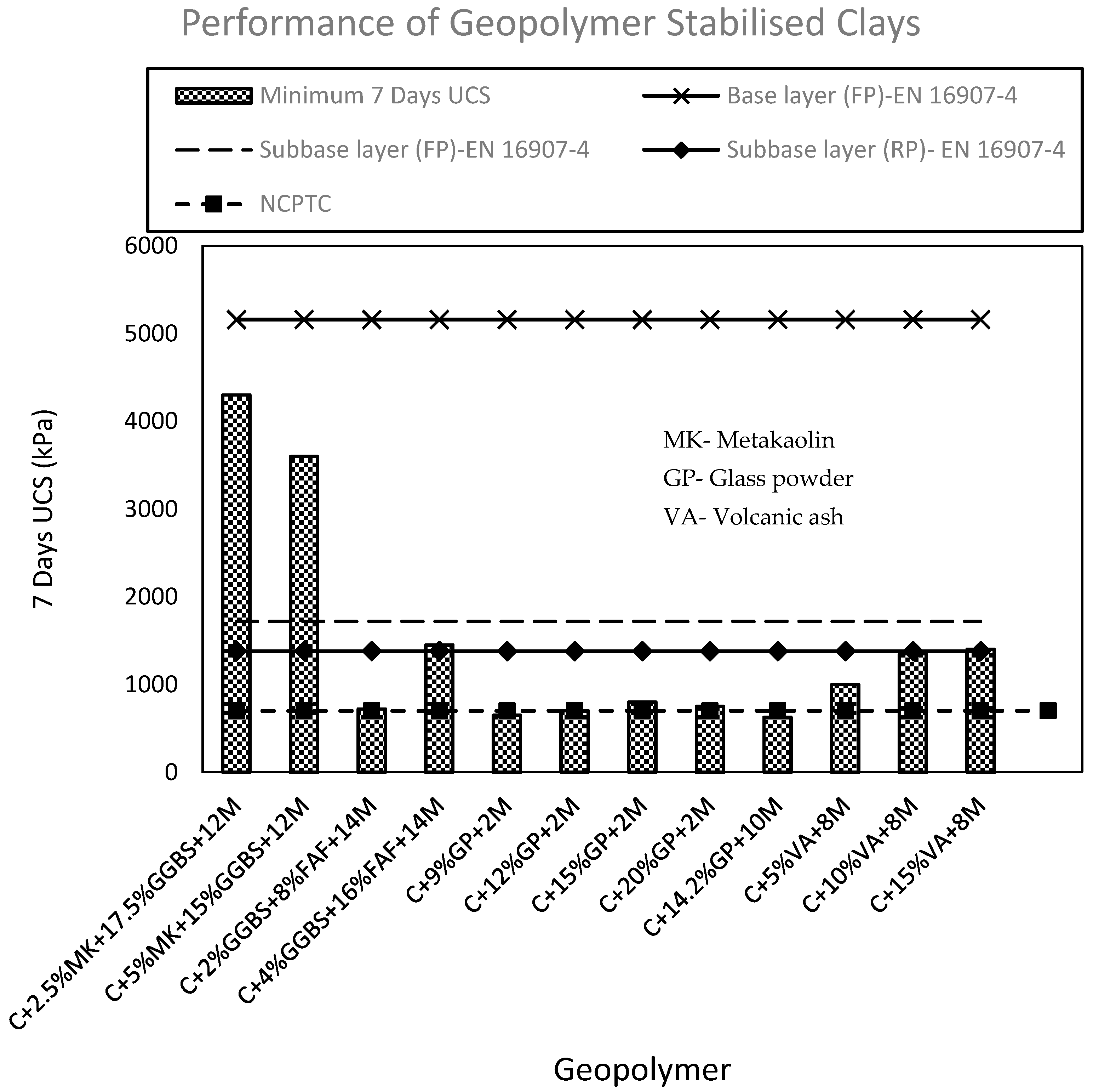

Figure 10. 7 days UCS of Geopolymer Stabilised Clays with Various Kinds of Geopolymers.
Figure 10. 7 days UCS of Geopolymer Stabilised Clays with Various Kinds of Geopolymers.
Geotechnics 01 00021 g010
Geotechnics 01 00021 g011 550

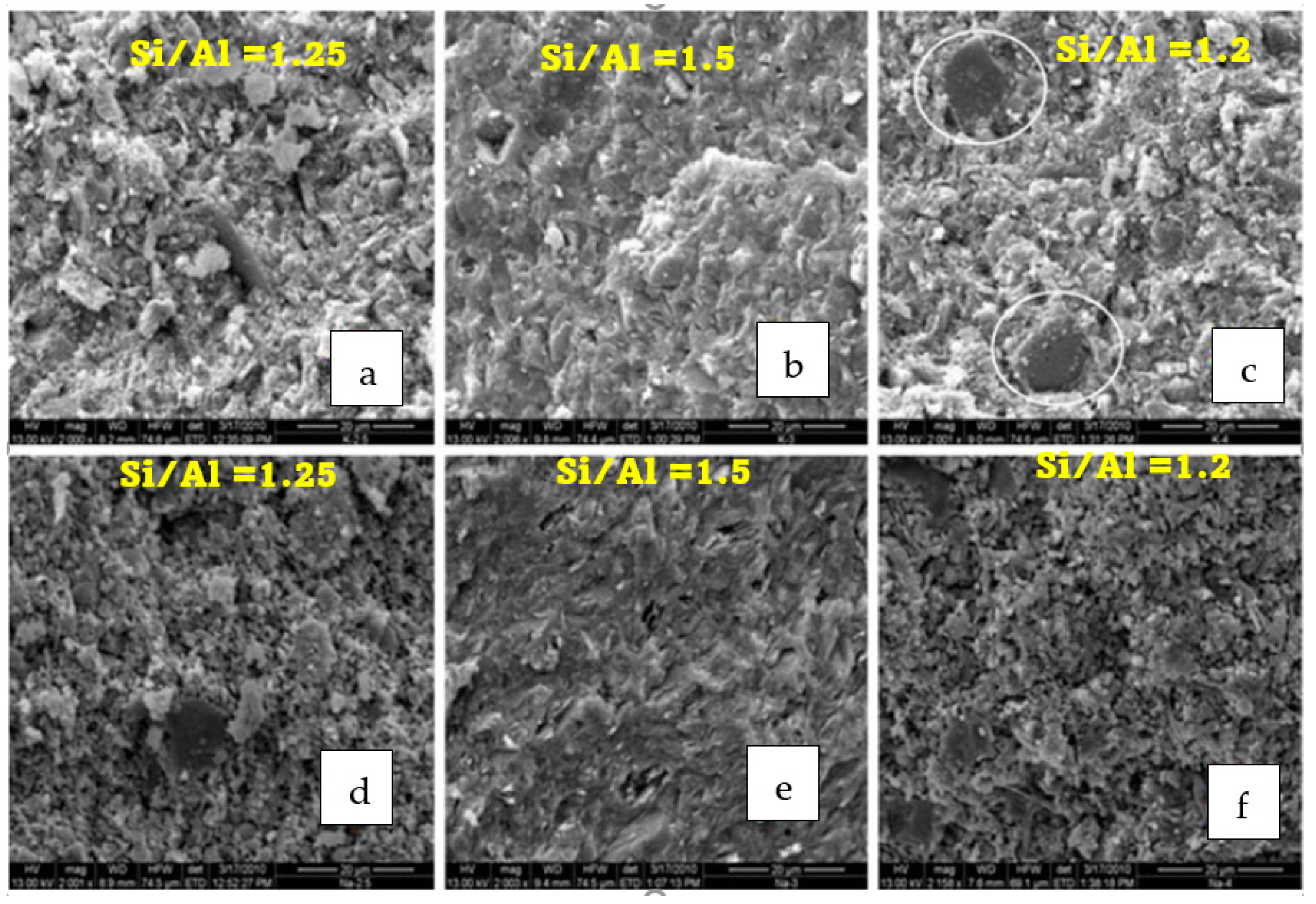

Figure 11. SEM results of K and Na Activated MK Geopolymers [71]. (a–c) K-activated MK (d–f) Na-activated MK.
Figure 11. SEM results of K and Na Activated MK Geopolymers [71]. (a–c) K-activated MK (d–f) Na-activated MK.
Geotechnics 01 00021 g011
Geotechnics 01 00021 g012 550

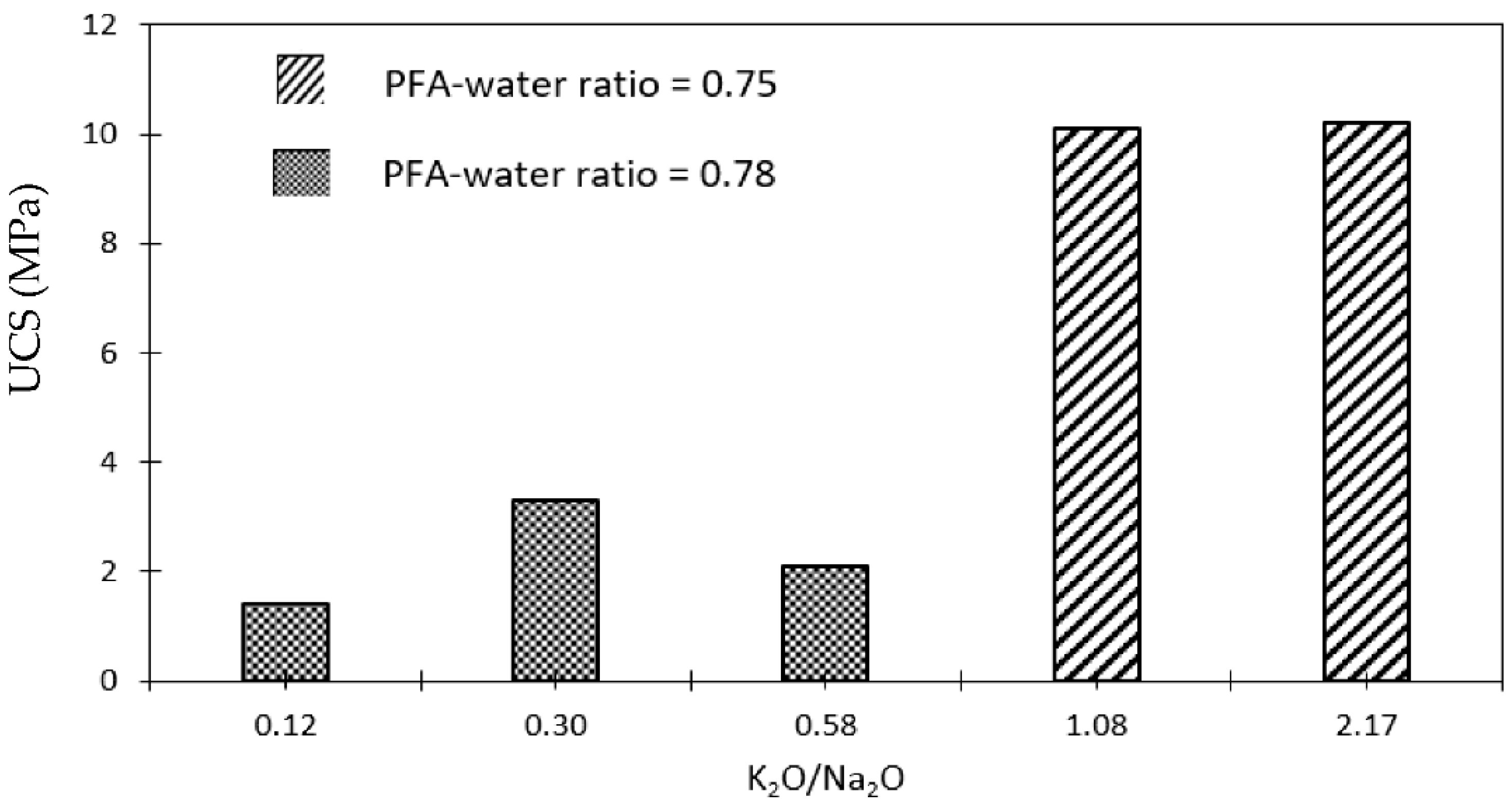

Figure 12. Effects of K2O/Na2O ratio of Alkali Activator on Compressive Strength of PFA-Clay Geopolymer Mixtures.
Figure 12. Effects of K2O/Na2O ratio of Alkali Activator on Compressive Strength of PFA-Clay Geopolymer Mixtures.
Geotechnics 01 00021 g012
Geotechnics 01 00021 g013 550
Figure 13. SEM of Stabilised Clays (a) 5% Cement-stabilised Clay (b) 5% Cement-stabilised Clays Showing Ettringite Crystals [75] (c) PFA Stabilised Clay [76].
Figure 13. SEM of Stabilised Clays (a) 5% Cement-stabilised Clay (b) 5% Cement-stabilised Clays Showing Ettringite Crystals [75] (c) PFA Stabilised Clay [76].
Geotechnics 01 00021 g013
Table
Table 1. Comparison of a Typical Geopolymer and OPC.
Table 1. Comparison of a Typical Geopolymer and OPC.
ParameterGeopolymerOPC
Energy consumption (calcination and crushing)990 × 106 J/ton *3430 × 106 J/ton **
Carbon emissionLow (169 kg CO2/m3) **High (306 kg CO2/m3) *
Environmental impactAlternative waste management solutionRelease of cement kiln dust (CKD)
Major raw materialIndustrial and agricultural wastes.Limestone, shale, rocks etc.
Thermal characteristicsHigher resistance to high temperaturesLower resistance to high temperatures
Chemical processGeopolymerisationHydration
Calcium requirementNot necessarilyRequired
Resultant cementing compoundSodium or potassium aluminate-silicate hydrates (Na, K, Li, Ca-A-S-H)Calcium silicate hydrate (C-S-H) and calcium aluminate hydrate (C-A-H)
Carbonation effectsResults in lowered pH (10–10.5) which still resists corrosion of steel reinforcement **Results in lower Ph (7–8) leading to increased rate of corrosion of steel reinforcement **
Alkali-aggregate reaction (AAR)No **Yes **
* [21], ** [22].
Table
Table 2. Percentage Chemical Composition of Common By-product Materials for Geopolymerisation [40,41].
Table 2. Percentage Chemical Composition of Common By-product Materials for Geopolymerisation [40,41].
Chemical CompoundOPCFA-FFA-CGGBSBARHAGPSFMPVA
CaO62.584.2423.936.426.131.148.211.3552.4519.1
Al2O35.3124.47.9710.634.30.541.000.390.3913.5
Fe2O34.047.15.341.28150.160.521.210.788.5
SO32.730.293.030.680.90.250.061.000.0760.3
MgO2.822.40.537.631.570.50.142.230.541.7
SiO220.2557.218.2740.439.487.27892.51.2946.8
K2O0.923.371.39NR1.191.940.090.080.114.3
NR—Not reported, OPC—ordinary Portland cement, FA-F—class F pulverised fuel ash, FA-C—class C pulverised fuel ash, RHA—rice husk ash, GGBS—ground granulated blast furnace slag, BA—bottom ash, GP—glass powder, SF—silica fume, MP—marble powder, VA—volcanic ash.
Table
Table 3. Key Parameters of Geopolymer Stabilised Clays from Reviewed Literatures.
Table 3. Key Parameters of Geopolymer Stabilised Clays from Reviewed Literatures.
Soil TypePrecursorPrecursor (wt.% of Soil)Alkali ActivatorMolarityCuring Temp. (°C)ReferenceRemarks
soft marine clayPFA (Class F)25–45NaOH and Na2SiO33–1825 and 40[27]Improvement UCS
SiltPFA (Class F) and GGBS20–30NaOH and Na2SiO38 [46]Improved permeability and UCS
Lateritic soilPFA (Class C)NRNaOH and Na2SiO34.5–5.8Ambient[64]Improved UCS
Lean clayMk3–15NaOH and Na2SiO3NRAmbient[53]Increased strength with no increase in MDD
soft soilPFA (Class F)20–50NaOH and Na2SiO310–15Ambient[44]Increased UCS
Silty clayPFA (Class F)30NaOH and Na2SiO31065, 75, and 85[45]Increased UCS
High plasticity clayGGBS and Phosphogypsum6–30NaOHNRAmbient[57]Increased shear strength
Kaolin clayPFA (Class C and F)20 and 40Na2OSiO2NRAmbient[39]Reduced volume compressibility
Silty clayPFA (Class C)0, 5, 10, 15, and 20Na2SiO3 and CCRNa2SiO3/water ratio (0.2, 0.6, 1 and 1.4) CCR of 7%Ambient[47]Reduced PI, increase in UCS
Kaolin clayPFA (Class C)100, 50, and 20Na2SiO3NRAmbient[48]Increased UCS. High calcium content reduced long-term strength
Low plasticity claysGGBS, PFA, MK, MP, GP, RHA, and SF10 to 20NaOH and Na2SiO38, 10, 14, 12, and 16Initially at ambient and later freeze dried[41]Increased UCS
Kaolin clayPFA (Class F) and GGBS10 and 20NaOH and Na2SiO314Ambient[42]Improved MDD, Improved yield strength under cyclic loading, higher durability.
high and low plasticity claysPFA (Class F) and GGBS10 and 20NaOH and Na2SiO3 Ambient[49]Improved yield strength.
ClayGP3–25%NaOH1–825–70[58]Improved UCS
ClayPOFA15–20%KOH10, 12Ambient, 50, and 100[63]Improved UCS. Higher UCS with increased temperature.
ClayGP3–20%CCR4–13% CCR by mass of dry soil25 °C and 70 °C[59]Increased UCS. UCS increased with temperatures.
ClayPFA (class C and F)10 and 20%NaOH and Na2SiO310Ambient[50]Improved UCS. Higher UCS values for Class F geopolymer treated samples
ClayVA0,5, 10, and 15NaOH4, 8, and 1240[40]
High Plasticity ClayMK and OPC30NaOH and Na2SiO31.9 and 3.2Ambient[54]Increased UCS. Reduced porosity
High Plasticity ClayMK4, 10, and 15KOH, Silica fume and H2O-Ambient, 22 °C[55]Increased UCS. Reduced compressibility, swell, and shrinkage
Low plasticity claysPFA (Class F)10, 20, and 30NaOH and KOH8, 10, and 12Ambient[52]Increased UCS. Reduced collapse potential, and permeability.
High plasticity clayGGBS and PFA (Class F)GGBS (4–50%) and PFA (4–20%)NaOH and Na2SiO34–14.5Under water curing[24]Increased UCS
ClayMK6–12CaO and NaHCO33–115[56]Improved UCS. Strength reduction after optimum activator content
High plasticity clayClass F PFA0.3NaOH and Na2SiO31027–75[16]
Table
Table 4. 7-days Minimum UCS for Practical Application [65].
Table 4. 7-days Minimum UCS for Practical Application [65].
ApplicationUCS (kPa)
Base layer (FP)5160
Subbase layer (FP)1720
Subbase layer (RP)1380
Lower layers in high embankments (FP)500
Lower layers in high embankments (RP)1000
FP—flexible pavement, RP—rigid pavement.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Jeremiah, J.J.; Abbey, S.J.; Booth, C.A.; Kashyap, A. Geopolymers as Alternative Sustainable Binders for Stabilisation of Clays—A Review. Geotechnics 2021, 1, 439-459. https://doi.org/10.3390/geotechnics1020021

AMA Style

Jeremiah JJ, Abbey SJ, Booth CA, Kashyap A. Geopolymers as Alternative Sustainable Binders for Stabilisation of Clays—A Review. Geotechnics. 2021; 1(2):439-459. https://doi.org/10.3390/geotechnics1020021

Chicago/Turabian Style

Jeremiah, Jeremiah J., Samuel J. Abbey, Colin A. Booth, and Anil Kashyap. 2021. "Geopolymers as Alternative Sustainable Binders for Stabilisation of Clays—A Review" Geotechnics 1, no. 2: 439-459. https://doi.org/10.3390/geotechnics1020021

APA Style

Jeremiah, J. J., Abbey, S. J., Booth, C. A., & Kashyap, A. (2021). Geopolymers as Alternative Sustainable Binders for Stabilisation of Clays—A Review. Geotechnics, 1(2), 439-459. https://doi.org/10.3390/geotechnics1020021

Article Metrics

Back to TopTop
