Search Results (6)

Fiber-reinforced cementitious matrix (FRCM) composites have been largely used to strengthen existing concrete and masonry structures in the last decade. To design FRCM-strengthened members, the provisions of the Italian CNR-DT 215 (2018) or the American ACI 549.4R and 6R (2020) guidelines can be adopted. According to the former, the FRCM effective strain, i.e., the composite strain associated with the loss of composite action, can be obtained by combining the results of direct shear tests on FRCM–substrate joints and of tensile tests on the bare reinforcing textile. According to the latter, the effective strain can be obtained by testing FRCM coupons in tension, using the so-called clevis-grip test set-up. However, the complex bond behavior of the FRCM cannot be fully captured by considering only the effective strain. Thus, a cohesive approach has been used to describe the stress transfer between the composite and the substrate and cohesive material laws (CMLs) with different shapes have been proposed. The determination of the CML associated with a specific FRCM–substrate joint is fundamental to capture the behavior of the FRCM-strengthened member and should be determined based on the results of experimental bond tests. In this paper, a procedure previously proposed by the authors to calibrate the CML from the load response obtained by direct shear tests of FRCM–substrate joints is applied to different FRCM composites. Namely, carbon, AR glass, and PBO FRCMs are considered. The results obtained prove that the procedure allows to estimate the CML and to associate the idealized load response of a specific type of FRCM to the corresponding CML. The estimated CML can be used to determine the onset of debonding in FRCM–substrate joints, the crack number and spacing in FRCM coupons, and the locations where debonding occurs in FRCM-strengthened members. Full article

FRCM is a strengthening system based on composite material made of a cementitious matrix and fabrics. This strengthening system has been studied and researched, obtaining analytical predictive models where it is common to assume full composite action between components. Through using non-typical materials for these composites, it has been seen that, in some cases, the previous assumption cannot be taken. In this situation, traditional analytical models such as ACK or tri-linear ones do not offer a reasonable prediction. This work researches the behavior of synthetic and naturally coated vegetal-FRCM with partial interaction through the characterization of the materials through tensile tests. Yarns, meshes and different FRCM coupons were manufactured and mechanically tested using different types of coatings and fabrics. The use of colophony and Arabic gum as natural coatings provided similar mechanical properties to the cotton and hemp yarns and meshes conformed. Partial interaction was found when using epoxy as a natural resin to coat the reinforcement while maintaining the mechanical properties in the same order of magnitude. A new two-stage model is proposed to fit stress–strain mechanical test, and it is reliable and accurate for cotton specimens. Full article

The tensile properties of fabric-reinforced cementitious matrix (FRCM) composites are experimentally investigated through clevis-grip tensile tests (according to AC434 provisions) on FRCM coupons realized with customized (ad hoc developed in this paper) cement-based matrices. The tested FRCM coupons are reinforced with basalt, carbon, or steel fabrics, and are prepared with three different matrices: one-component mortar incorporating dispersible copolymer powders of vinyl acetate and ethylene (matrices A and B) and two-component mortar with carboxylated styrene–butadiene copolymer liquid resin (matrix C). This has made it possible to investigate the mechanical compatibility between different mortar matrices and fabrics and the resulting tensile properties of FRCM composites in the uncracked, cracking, and fully cracked phases. Experimental results are critically analyzed in terms of stress–strain curves and failure mechanisms comparatively for the analyzed FRCM systems. It has been shown that the matrix B exhibits a good compatibility with the basalt pre-impregnated fabric, while the matrix C appears to be the most suitable candidate to optimize the interfacial stress transfer at the fiber–matrix interface for all fabrics, thus exalting the mechanical performances in terms of tensile strength and ultimate strain. The results of this experimental program can be useful for designing optimized mortar mixes aimed at realizing novel FRCM composites or at improving existing FRCM systems by suitably accounting for compatibility behavior and slippage at the fabric–matrix interface. Full article

This paper describes methods, procedures, and results of cyclic loading tensile tests of a PBO FRCM composite. The main objective of the research is the evaluation of the effect of low- and high-cycle fatigue on the composite tensile properties, namely the tensile strength, ultimate tensile strain, and slope of the stress–strain curve. To this end, low- and high-cycle fatigue tests and post-fatigue tests were performed to study the composite behavior when subjected to cyclic loading and after being subjected to a different number of cycles. The results showed that the mean stress and amplitude of fatigue cycles affect the specimen behavior and mode of failure. In high-cycle fatigue tests, failure occurred due to progressive fiber filaments rupture. In low-cycle fatigue, the stress–strain response and failure mode were similar to those observed in quasi-static tensile tests. The results obtained provide important information on the fatigue behavior of PBO FRCM coupons, showing the need for further studies to better understand the behavior of existing concrete and masonry members strengthened with FRCM composites and subjected to cyclic loading. Full article

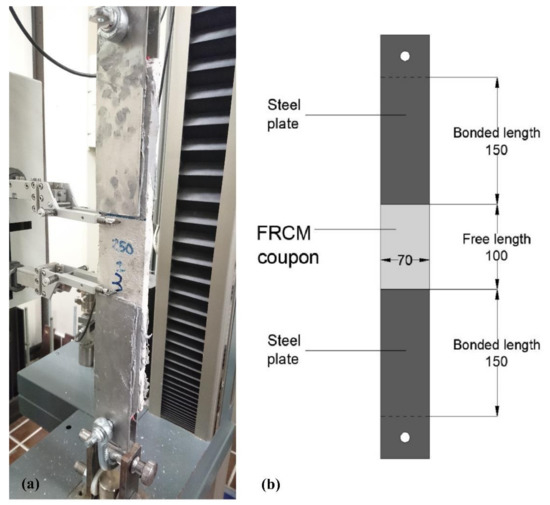

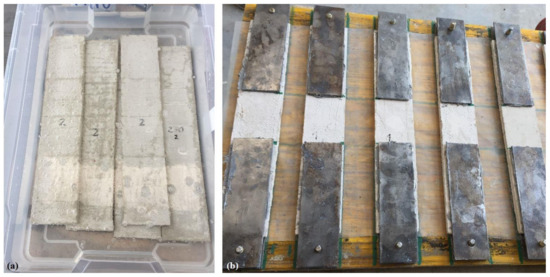

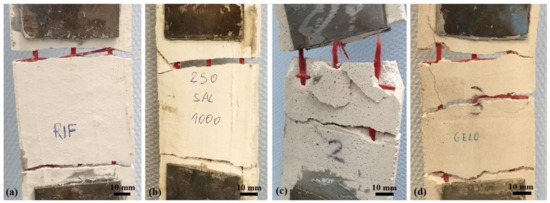

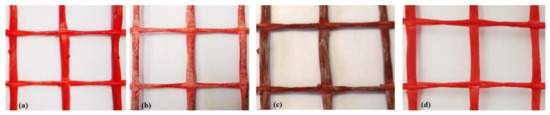

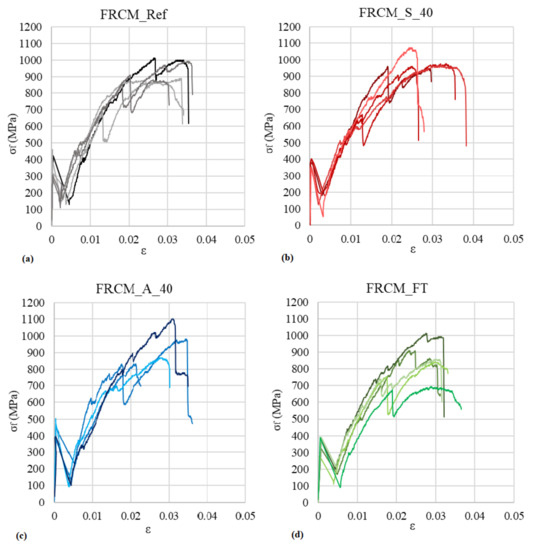

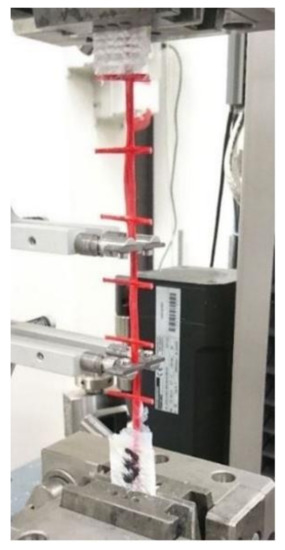

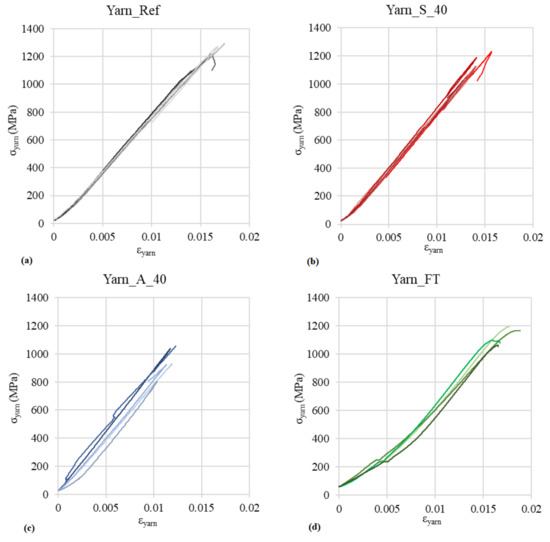

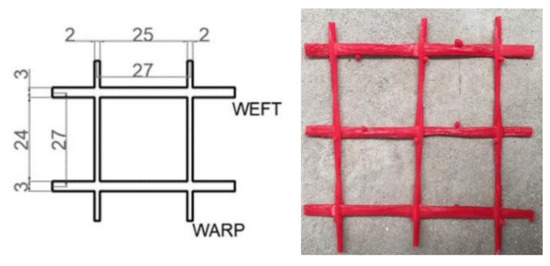

The use of Fabric-Reinforced Cementitious Matrix (FRCM) systems as externally bonded reinforcement for concrete or masonry structures is, nowadays, a common practice in civil engineering. However, FRCM durability against aggressive environmental conditions is still an open issue. In this paper, the mechanical behavior of a glass FRCM system, after being subjected to saline, alkaline and freeze–thaw cycles, has been investigated. The experimental campaign includes tensile tests on the fabric yarns, compression and flexural tests on the matrix and tensile tests (according to AC434) on FRCM prismatic coupons. The effects of the different environmental exposures on the mechanical properties of both the constituent materials and the composite system have been investigated and discussed. Ion chromatography analysis has also been performed to better understand the damage mechanisms induced by environmental exposures and to evaluate the ions’ penetration within the inorganic matrix. Alkaline exposure was shown to be the most detrimental for Alkali-Resistant (AR) glass fiber yarns, causing a reduction in tensile strength of about 25%. However, mechanical properties of the FRCM composite seemed not to be particularly affected by any of the artificial aging environments. Full article

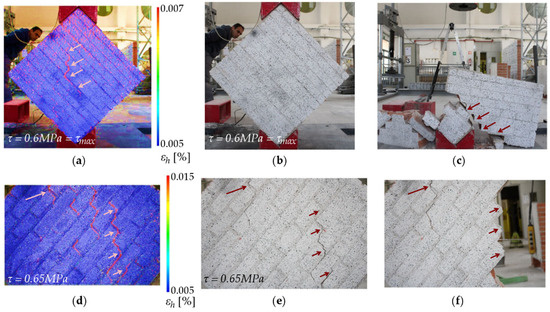

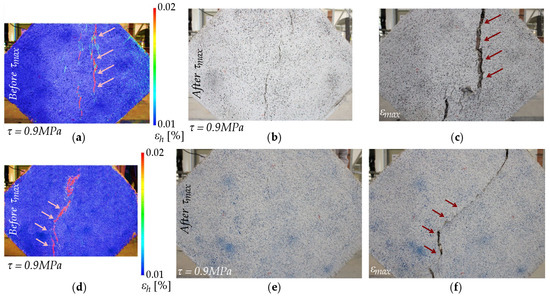

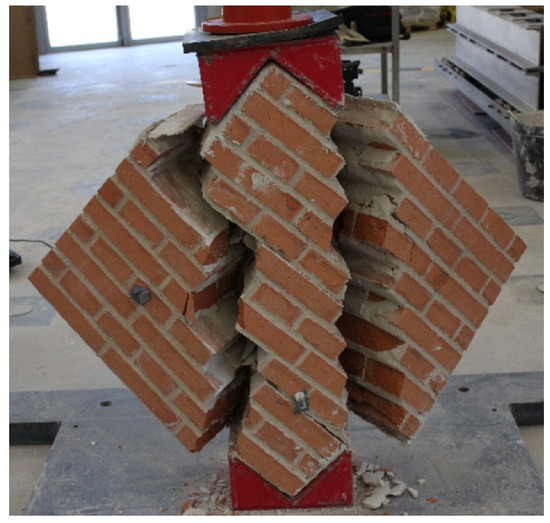

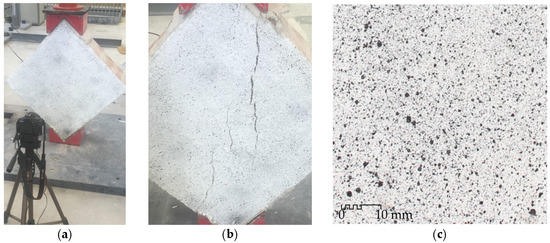

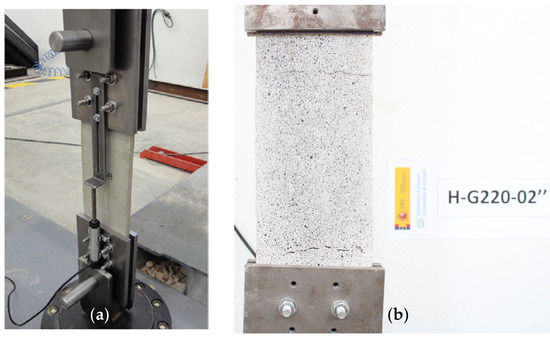

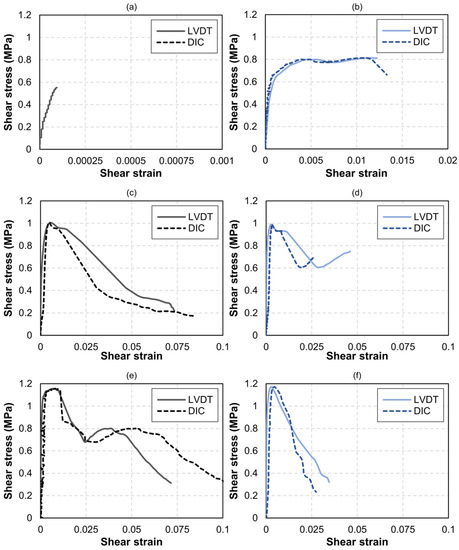

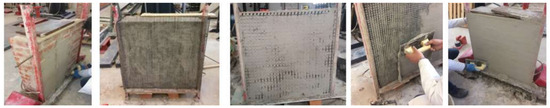

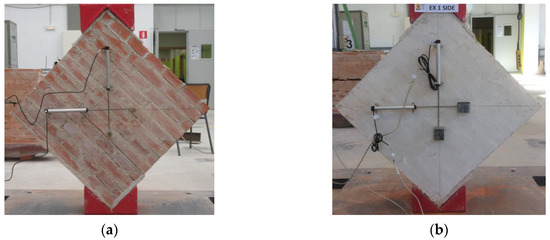

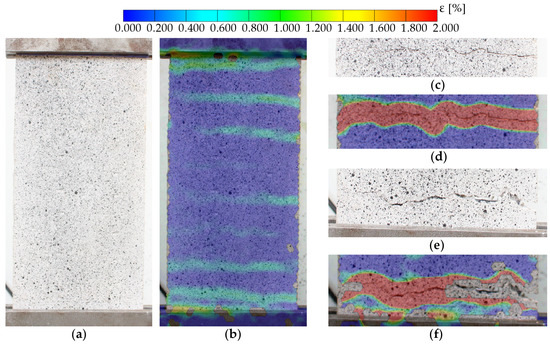

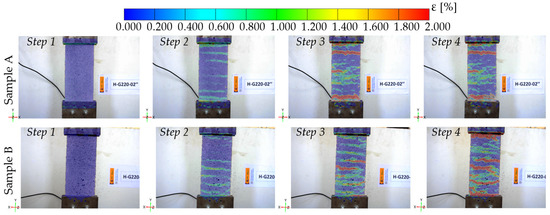

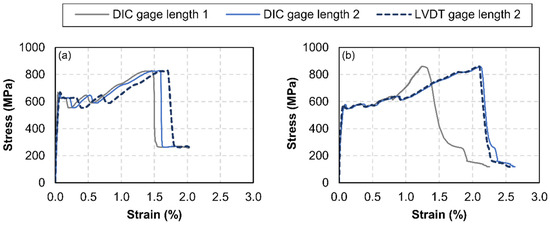

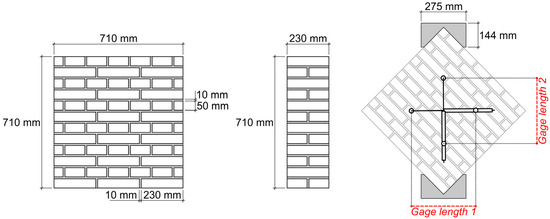

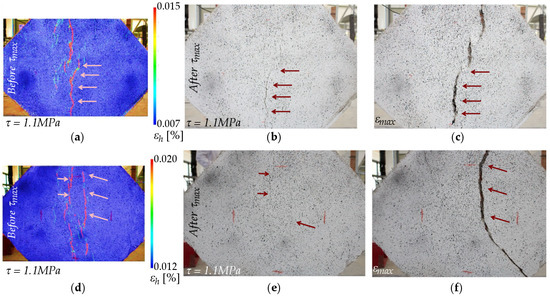

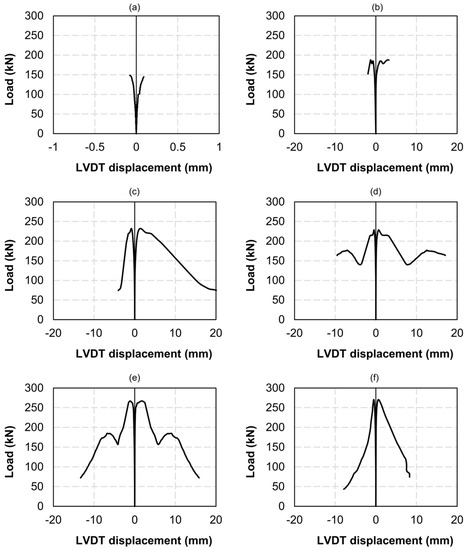

Architectural heritage is usually built with masonry structures, which present problems under lateral in-plane loading conditions, such as wind pressure or earthquakes. In order to improve the shear behavior of masonry, the use of a fabric-reinforced cementitious matrix (FRCM) has become an interesting solution because of its synergy of mechanical properties and compatibility with masonry substrates. For a proper structural evaluation, the mechanical behavior of reinforced masonry and the FRCM itself needs to be characterized. Hence, a numerical model to evaluate the FRCM reinforcement requires some mechanical parameters that may be difficult to obtain. In this sense, the shear behavior of masonry can be evaluated by means of diagonal tension tests on small specimens (71 × 71 cm). In this work, a digital image correlation (DIC) monitoring system was used to control displacements and cracking patterns of masonry specimens under shear stress (induced by diagonal tension with FRCM layers) applied to one or two sides. In addition, the mechanical behavior of FRCM coupons under uniaxial tensile tests was also registered with DIC. The displacement measurements obtained by DIC were validated with the measurements registered with LVDT. Unlike LVDT-based techniques, DIC monitoring allowed us to measure deformations in masonry during the full test, detecting crack initiation even before it was visible to the eye. Full article
