Graphitic Carbon Nitride Nanosheets Decorated with Zinc-Cadmium Sulfide for Type-II Heterojunctions for Photocatalytic Hydrogen Production

1
Center for Advanced Materials, Qatar University, Doha P.O. Box 2713, Qatar
2
Hefei National Laboratory for Physical Sciences at Microscale, University of Science and Technology of China, Hefei 230026, China
3
Interdisciplinary Graduate School of Science and Technology, Shinshu University, Ueda 386-8567, Japan
4
Department of Chemistry, National Science College, Satellite Town, Gujranwala 52250, Pakistan
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Nanomaterials 2023, 13(18), 2609; https://doi.org/10.3390/nano13182609
Submission received: 11 August 2023 / Revised: 3 September 2023 / Accepted: 19 September 2023 / Published: 21 September 2023
(This article belongs to the Special Issue Degradation and Photocatalytic Properties of Nanocomposites)

Abstract

:
In this study, we fabricated graphitic carbon nitride (g-C3N4) nanosheets with embedded ZnCdS nanoparticles to form a type II heterojunction using a facile synthesis approach, and we used them for photocatalytic H2 production. The morphologies, chemical structure, and optical properties of the obtained g-C3N4–ZnCdS samples were characterized by a battery of techniques, such as TEM, XRD, XPS, and UV-Vis DRS. The as-synthesized g-C3N4–ZnCdS photocatalyst exhibited the highest hydrogen production rate of 108.9 μmol·g−1·h−1 compared to the individual components (g-C3N4: 13.5 μmol·g−1·h−1, ZnCdS: 45.3 μmol·g−1·h−1). The improvement of its photocatalytic activity can mainly be attributed to the heterojunction formation and resulting synergistic effect, which provided more channels for charge carrier migration and reduced the recombination of photogenerated electrons and holes. Meanwhile, the g-C3N4–ZnCdS heterojunction catalyst also showed a higher stability over a number of repeated cycles. Our work provides insight into using g-C3N4 and metal sulfide in combination so as to develop low-cost, efficient, visible-light-active hydrogen production photocatalysts.

1. Introduction

The demand for energy is rising steadily as the global population grows and living standards improve. Hydrogen is considered a clean, plentiful, and secure energy source for addressing this need [1]. The tremendous energy output of hydrogen combustion, which is far higher than that of gasoline or any other fossil fuel, makes it a better and more efficient alternate fuel. As no toxic byproducts are produced during hydrogen combustion, it is also considered ecologically safe [2]. However, carbon dioxide is usually produced during the steam reforming of hydrocarbons and coal for hydrogen production. To avoid producing greenhouse gases, finding workable alternatives is essential. One viable solution to the present energy and environmental dilemma is using solar energy to produce hydrogen from water on the surface of a catalyst [3,4]. Since their first use on the surface of TiO2, semiconductor photocatalysts have been widely utilized for the photolysis of water [5]. To maximize the use of solar power, various attempts have been made to find renewable, efficient photocatalysts with an excellent visible-light response [6,7].
Carbon nitride (g-C3N4) graphitic material has been used as a C-related and potential candidate, with the characteristics of a metal-free photocatalyst in terms of hydrogen evolution and organic degradation due to its suitable band gap (ca. 2.7 eV) [8]. Moreover, graphitic carbon-nitride materials with a similar chemistry to that of graphene (though more exceptional with regards to specific chemical characteristics (i.e., electronic and optical properties) compared to those of previously studied 2D-materials) are a prestigious choice for energy applications. Additionally, the electronic structure of the triazine units in g-C3N4 forms conjugated graphitic planes, which are very stable and responsive to visible light. However, its photocatalytic performance is severely impacted by both the negligible absorption or lack of absorption under the visible portion of light irradiation (beyond 460 nm) and the fast recombination for photo-induced charge carriers species [9]. To enhance the catalytic performance and promote the separation of photo-generated holes and electrons, a number of strategies have been adopted, such as developing heterojunctions, and another semiconductor is usually coupled with g-C3N4, such as g-C3N4/CdS, g-C3N4/TiO2, g-C3N4/MoO3, g-C3N4/BiVO4, and g-C3N4/InVO4 [10,11,12,13,14]. However, the complex preparation process and catalyst deterioration over a few cycles make it harder to use it on a broader industrial scale.
Among other alternatives, solid sulfide solutions, such as ZnIn2S4, CdIn2S4, ZnCdS, and MnxCd1-xS, have been used in photocatalytic hydrogen production because of their appropriate band gap, high visible-light response, and tunable structure [15,16,17,18]. The easily tunable band structure and superior reducing ability of ZnCdS mean that it stands out among solid sulfide solutions [19]. However, it does have several drawbacks, including an inadequate photo-generated carrier transmission efficiency, low solar energy consumption, and rapid electron-hole pair recombination, which severely restricts its photocatalytic efficacy [20,21]. The charge recombination efficiency and energy output can be improved by combining ZnCdS with another photocatalyst, offering more active sites and reaction sites to promote oxidation and reduction processes.
Herein, we demonstrated a simple strategy to fabricate g-C3N4 with ZnCdS to form a type II heterojunction. The conjugated graphitic planes of g-C3N4 nanosheets provided a large surface area for ZnCdS, which acted efficiently so as to use the charge carrier and enhance H2 production.

2. Materials and Methods

2.1. Chemicals

Melamine (C3H6N6), sodium hydroxide (NaOH), zinc acetate [Zn(OAc)2], cadmium acetate [Cd(OAc)2], sodium sulfide nonahydrate [Na2S·9H2O], and sodium sulfite (Na2SO3) of analytical-grade purity were purchased from Sigma-Aldrich and used as received without further purification.

2.2. Characterization

The nanosized structure and morphology of the as-synthesized samples were determined by transmission electron microscope (TEM, JEM-2100F, JEOL, Tokio, Japan), an accelerating voltage of 200 kV was used, and the sample was deposited on microscopical grids for analysis. The diffraction characteristics, such as the crystal phase of the samples, was analyzed by powder X-ray diffraction (XRD) measurements with a Philips X’Pert Pro Super diffractometer with Cu-Kα radiation (λ = 1.54178 Å) at an operating voltage of 40 kV and current of 200 mA. The elemental composition of the prepared catalyst was determined using X-ray photoelectron spectroscopy (XPS) analysis (the measurements were carried out using SPeCS system (PHOIBOS 150, Berlin, Germany) with Al Kα radiation (hʋ¼ 1486.6 eV). The spectra were acquired in the constant analyzer energy mode with a pass energy of 100 eV, 10 kV, and 10 mA emission current for the survey. The individual high-resolution scans were carried out with a pass energy of 10 eV, 15 kV, and 15 mA emission current. Spectral calibration was determined using the automated calibration routine and the internal C 1s standard. The surface compositions (in atomic %) were determined by considering the integrated peak areas of detected atoms and the respective sensitivity factors. The UV−vis diffuse reflectance spectra (DRS) for the band-gap calculation and absorption behavior of the samples were recorded with a Shimadzu spectrophotometer (2501 PC model) in the 200 to 800 nm region. Photoelectrochemical tests were performed with a CHI-660B potentiostat (Chenhua Instrument Co., Shanghai, China) with a three-electrode setup (modified Ti foil as the working electrode, Ag/AgCl as the reference electrode, and Pt wire as the counter electrode) in 0.1 M Na2SO4 solution. The Fourier transform infrared (FTIR) spectra were performed on a spectrometer (Nicolet iS50, Thermo Scientific, Waltham, MA, USA) to attain the spectra in the middle infrared region (4000–600 cm–1), applying a ZnSe crystal permitting ~1.7 µm penetration depth and using an average of 64 scans with a resolution of 1 cm–1. Suitable contact between the analyzed samples and the FTIR crystal was guaranteed by means of a pressure clamp, permitting one to attain a high spectral quality. The electrochemical impedance spectroscopy (EIS) was recorded with −0.6 V bias, and the frequency ranged from 1 Hz to 100 kHz with an alternating current signal amplitude of 5 mV.

2.3. Synthesis of g-C3N4 Nanosheets

The preparation of g-C3N4 was performed in an alumina crucible with a cover, which could form a semi-closed atmosphere to prevent the sublimation of precursors. Melamine powder (3 g) was placed into the crucible and heated to a temperature of 530 °C in a tube furnace with N2 atmosphere. Then, the sample was naturally cooled to room temperature, collected, and stored for further use.

2.4. Synthesis of g-C3N4–ZnCdS Heterojunction

The fabrication of g-C3N4 nanosheets with ZnCdS was achieved following our previous protocol, described previously in reference [22]: first, g-C3N4 nanosheets were dispersed in 100 mL of DI water, and then the proper quantity of cadmium acetate and zinc acetate was slowly poured into the dispersion to achieve 10wt% of ZnCdS on the g-C3N4 nanosheets. The mixture’s pH was adjusted to 7.0 with dilute aqueous sodium hydroxide. Subsequently, aqueous Na2S solution was added dropwise. The samples were stirred at room temperature for 12 h and extracted using centrifugation, washed with ethanol and water, and then dried overnight at 60 °C in a vacuum oven. Finally, the obtained powders were calcined for 2 h at 400 °C under nitrogen flow with a heating rate of 5 °C/min.

2.5. Photo and Electrochemical Measurements

Measurement for photocatalytic hydrogen production was performed under visible light over as-synthesized samples by means of a vacuum-closed cell circulation system and catalyst powder [22]. A 300 W Xe lamp was used as a light source with a filter (λ ≥ 420 nm) to block UV light. The experiment was performed by dispersing 100 mg of catalyst in 100 mL aqueous solution containing 0.1 M Na2S and 0.1 M Na2SO3 as sacrificial agents. Gas chromatography (Agilent (Santa Clara, CA, USA), 6820, TCD detector, N2 carrier) was used to determine the amount of H2 produced.
Electrochemical and photoelectrochemical measurements were carried out in a setup of three electrode quartz cells and 0.1 M Na2SO4 solution with Ag/AgCl and Pt wire as a reference and counter electrode, respectively, while the catalyst film on Ti foil was used as a working electrode. The catalyst films for electrochemical measurements were prepared by applying an appropriate amount of catalyst suspension onto Ti foil. For the measurements, the electrodes were pressed against the round shape of an electrochemical cell with a working area of 4.0 cm2. Photo-electrochemical test systems were composed of a CHI 660B electrochemistry potentiostat (Shanghai Chenhua Limited, Shanghai, China). The amperometric photocurrents were observed by an on/off switch with a bias voltage of 0.5 V under visible light. The electrochemical impedance spectroscopy (EIS) was recorded with −0.6 V bias, and the frequency ranged from 1 Hz to 100 kHz with an alternating current signal amplitude of 5 mV.

3. Results

The morphologies of the as-prepared samples were determined by transmission electron microscope (TEM). As can be seen in Figure 1 and Figure S1, g-C3N4 exhibited a planar nanosheet structure. ZnCdSs were small, irregularly shaped nanoparticles distributed onto the nanosheets (yellow circles in Figure 1a). The high-resolution TEM image shows clear lattice dispersing of g-C3N4 and ZnCdS, with values of 0.321 nm and 0.332 nm corresponding to a (002) plane distance (Figure 1b).
The XRD results of g-C3N4, ZnCdS, and g-C3N4–ZnCdS heterojunctions are depicted in Figure 2. As shown in the case of pristine g-C3N4, the peak at 27.9° for the (002) diffraction plane was derived from interplanar stacking peaks of conjugated aromatic systems of C3N4. The peak was well matched with JCPDS #87-1526 of g-C3N4 [23]. The XRD results of ZnCdS showed peaks indexed at 27.34°, 45.32°, and 53.66° corresponding to the (111), (220), and (311) planes of the cubic phase of the Zinc blend related to ICSD #80-0020. In the g-C3N4–ZnCdS heterojunction, there were no clear diffraction peaks of ZnCdS because of its relatively low levels and smaller size compared to g-C3N4 [22]. The lower amount of ZnCdS was also confirmed by XPS and ICP analysis, which showed values of 7.3wt% and 8.4wt%, respectively, close to the experimentally adjusted value of 10wt%.
Fourier transform infrared spectroscopy (FTIR) was further conducted to specifically verify the existence of characteristic functional groups related to g-C3N4 and those associated with the coupled second part ZnCdS, and their proportions. Figure S2 shows the Fourier transform infrared (FTIR) spectra of g-C3N4 and g-C3N4-ZnCdS samples. The g-C3N4 spectrum shows that the broad band at 3161 cm−1 is mainly attributed to the N-H stretching vibration of g-C3N4. The peaks at 1242, 1320, 1408, 1459, 1572 and 1636 cm−1 can be ascribed to the stretching vibration modes of C–N heterocycles and that the peak at 809 cm−1 is related to the vibration modes of the s-triazine rings. These distinct peaks further confirm the successful preparation of the g-C3N4 structure [24,25]. The FTIR spectra of the g-C3N4-ZnCdS heterostructure exhibit the main characteristic peaks of pure g-C3N4. This result verified that the g-C3N4 structure was well retained after the heterostructure’s formation.
X-ray photoelectron spectroscopic (XPS) analysis was applied to determine the elemental composition of the prepared catalyst and chemical state of particular elements. The survey spectrum of the g-C3N4–ZnCdS heterojunctions, shown in Figure S3, indicates that the sample primarily comprised C, N, Zn, Cd, and S elements. For a further illustration of the elemental signals, high-resolution XPS spectra are provided in Figure 3. In the high-resolution XPS spectra of C1s shown in Figure 3a, the peak positioned at 284.8 eV can be related to sp2 carbon atoms (C-C and N-C=N bonding) originating from the surface exotic C in the instrument. The second peak located at 288.3 eV can be attributed to sp2 hybridized C bonded to nitrogen [C-(N)3 of g-C3N4]. The high-resolution XPS spectrum of N1s shows a large peak centered at 398.8 eV, which can be ascribed to a nitrogen atom bonded to carbon [C-N=C], while the shoulder peak at 401.1 eV can readily be ascribed to N-(C)3 and N-H [26,27] (Figure 3b). The high-resolution XPS spectrum of Cd3d shows two spin-orbit components centered at 405.2 eV and 411.9 eV, which correspond to Cd3d5/2 and Cd3d3/2, respectively (Figure 3b). Similarly, the Zn2p region also shows components indexed at 1022 eV and 1045 eV, ascribed to Zn2p3/2 and Zn2p1/2, respectively (Figure 3c). Figure 3d denotes the high-resolution spectra of S2p, which exhibit a peak centered at 161.87 eV, which is attributed to the S2− valent state of S in the ZnCdS segment. All the peaks are well-matched with the values reported previously for ZnCdS [28].
The optical properties of pure g-C3N4 nanosheets, ZnCdS nanoparticles, and g-C3N4–ZnCdS heterojunctions were measured with UV-vis DRS. As shown in Figure 4, the characteristic absorption peak of pure g-C3N4 nanosheets was about 400 nm, arising from the intrinsic band gap of g-C3N4 at about 2.7 eV, which itself has low visible-light absorption characteristics. On the other hand, ZnCdS showed strong absorption towards the visible region, and the absorption edge extended towards 500 nm. After introducing ZnCdS nanoparticles into g-C3N4 nanosheets, heterojunction formation showed an increased absorption intensity compared to bare g-C3N4 nanosheets, and the absorption edge also moved towards the visible region. Figures S4 and S5 display the related Tauc plots for the evaluation of band-gap energies. Band-gap energies were obtained from analysis of the plot and the intercept of the tangent of the curve (αhν)2 and (αhν)1/2 vs. (hν), as previously reported [29].The value of the exponent in αhν (2 and ½) depends on the transition in a semiconductor: 1/2 for a direct transition and 2 for an indirect transition. The indirect band gap of g-C3N4 and the g-C3N4-ZnCdS heterostructure was determined by plotting the value of (αhν)1/2 vs. (Figure S4). On the other hand, ZnCdS has a direct transition; hence, the band gap of ZnCdS was calculated by plotting the value of (αhν)2 vs. (Figure S5). The calculated band-gap energies for g-C3N4 nanosheet, ZnCdS nanoparticle, and g-C3N4–ZnCdS heterojunction samples were determined from the Tauc plot as being 2.67 eV, 2.25 eV, and 2.46 eV, respectively. After the introduction of ZnCdS nanoparticles, the large band gap of g-C3N4 nanosheets decreased, which supports their photocatalytic performance.
The photocatalytic hydrogen evolution ability of bare g-C3N4 nanosheets, ZnCdS nanoparticles, and g-C3N4–ZnCdS heterojunctions was evaluated under visible-light irradiation, as shown in Figure 5a. The H2 production rate forg-C3N4 was observed at 13.5 μmol·g−1·h−1. In comparison, ZnCdS was 45.3 μmol·g−1·h−1. Compared to bare samples, the g-C3N4–ZnCdS heterojunction showed an increase in photocatalytic H2 production (108.9 μmol·g−1·h−1). This was about eight times higher than g-C3N4 and 2.4 times higher than ZnCdS. The increase in the H2 production rate indicated that a heterojunction formed between the individual components, which facilitated the mobility of the charge carrier and enhanced the photocatalytic performance. Another issue to consider in the applicability of photocatalysts is their performance in reusability. Therefore, reusability experiments were performed for the g-C3N4–ZnCdS heterojunctions, and after each run, the catalyst was recovered by centrifugation, washed with water and ethanol, and reused. As displayed in Figure 5b, the hydrogen generation rate was remarkably stable over five cycles (94% retention rate with a value decrease from 108.9 to 102.3 μmol·g−1·h−1), indicating the excellent stability and sustainable utilization of the photocatalyst.
In order to explore how the g-C3N4–ZnCdS heterojunction shows a better photocatalytic performance compared to individual components, the electron transfer mechanism was revealed, as shown in Figure 6. The conduction and valence band potentials of photocatalyst g-C3N4 nanosheets and ZnCdS nanoparticles were determined by a Mott−Schottky plot to gain insight into the photocatalysis mechanism (Figures S6 and S7). The conduction band (CB) edge potentials of g-C3N4 nanosheets and ZnCdS nanoparticles were determined to be −1.17 V and −0.48 V, respectively. Based on the band-gap positions, the valence band (VB) edge potentials of g-C3N4 nanosheets and ZnCdS nanoparticles were calculated to be 1.50 V and 1.77 V, respectively. The corresponding band structure diagram can thus be schemed and is shown in Figure 6. Both the valence and conduction bands for ZnCdS were lower compared to g-C3N4, which facilitated the formation of type II heterojunctions. Upon visible-light irradiation, both ZnCdS and g-C3N4 can be excited, and then electrons from the CB of g-C3N4 can be transferred into the CB of ZnCdS, then reacting with H+ for H2 production. At the same time, the photo-induced holes of g-C3N4 and ZnCdS can be used by oxidizing agents [30,31].
The photocatalytic conjecture was further verified by transient photocurrent response. It was recorded for g-C3N4, ZnCdS, and g-C3N4–ZnCdS heterojunctions. Figure 7a shows I-t curves for as-synthesized electrode films with five ON-OFF intermittent visible-light irradiation consecutive cycles [32]. The responses of the photocurrent appeared in all the electrodes instantly as the light was turned on and then rapidly declined to (nearly) zero as the light was off, which was reproducible and stable in five consecutive cycles. Under similar conditions as for irradiation, the photo-current value of the ZnCdS electrode was about twice that of bare g-C3N4, suggesting that there was a low recombination and fast migration of photogenerated electrons on the g-C3N4 nanosheets. Additionally, after heterojunction formation between individual components, g-C3N4–ZnCdS showed a much higher photocurrent value by about 2.6 times, confirming that the photogenerated electrons from the g-C3N4 were taking part in the electron transfer process and shifted to the CB of ZnCdS efficiently.
EIS is another efficient technique to observe the charge transfer efficiency and the interface reaction ability, which explains charge transfer resistance [33]. Figure 7b shows the Nyquist plots of g-C3N4, ZnCdS, and g-C3N4–ZnCdS heterojunctions. The smaller diameter implied a low impedance and fast interface charge transfer. The g-C3N4–ZnCdS heterojunction had the smallest diameter compared to bare samples, and it also showed less charge transfer resistance and coincided well with photocurrent response results. Overall, our results showed that the heterojunction formation between g-C3N4 and ZnCdS enabled less recombination and faster photogenerated electron migration, resulting in a higher photocatalytic performance and enhanced durability.

4. Conclusions

In summary, we successfully synthesized g-C3N4–ZnCdS heterojunctions via a facile physical mixture and calcination method. The as-synthesized material was characterized using a battery of techniques, such as TEM, XRD, XPS, and UV−vis DRS. The catalysts were used for photocatalytic H2 production, and among all synthesized materials, g-C3N4–ZnCdS revealed an enhanced UV−vis-induced photocatalytic performance. Hydrogen production for the g-C3N4–ZnCdS sample was 108.9 μmol·g−1·h−1 under visible light, which was significantly higher compared to individual components. The photocatalysts also possessed excellent repeatability over five consecutive cycles, with a mere 6% decrease in photocatalytic activity. The higher and modified photocatalytic performance mainly depended on heterojunction formation among the components and heterojunction formation. The transient photocurrent responses and EIS further supported the enhanced performance due to decreased electron-hole recombination and low charge transfer resistance. The facile synthetic approach and better performance of g-C3N4–ZnCdS provides new opportunities for the further study of the photocatalytic process of coupled semiconductors for hydrogen production.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano13182609/s1, Figure S1: Low-resolution TEM image of the g-C3N4–ZnCdS catalyst; Figure S2. Fourier transform infrared (FTIR) spectra of g-C3N4 and g-C3N4–ZnCdS samples. Figure S3: XPS full scan survey for the g-C3N4–ZnCdS catalyst. Figure S4: Tauc plot for g-C3N4 and g-C3N4-ZnCdS heterostructure. Figure S5: Tauc plot for ZnCdS nanoparticles. Figure S6: Mott−Schottky plot collected for g-C3N4. Figure S7: Mott−Schottky plot collected for ZnCdS nanoparticles.

Author Contributions

Conceptualization and methodology, A.B.Y. and M.I.; formal analysis, investigation, resources and data curation, all authors; writing—original draft preparation, A.B.Y. and M.I.; writing—review and editing, P.K.; visualization, all authors; supervision, M.F. and P.K.; project administration P.K. and M.F.; funding acquisition, P.K. All authors have read and agreed to the published version of the manuscript.

Funding

The publication was jointly supported by Qatar University grant # QUCG-CAM-22/23-504. The findings obtained herein are solely the responsibility of the authors.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding authors.

Acknowledgments

The authors would like to thank the Center for Advanced Materials, Qatar University, for facilities support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Christoforidis, K.C.; Fornasiero, P. Photocatalytic Hydrogen Production: A Rift into the Future Energy Supply. ChemCatChem 2017, 9, 1523–1544. [Google Scholar] [CrossRef]
  2. Corredor, J.; Rivero, M.J.; Rangel, C.M.; Gloaguen, F.; Ortiz, I. Comprehensive Review and Future Perspectives on the Photocatalytic Hydrogen Production. J. Chem. Technol. Biotechnol. 2019, 94, 3049–3063. [Google Scholar] [CrossRef]
  3. Teets, T.S.; Nocera, D.G. Photocatalytic Hydrogen Production. Chem. Commun. 2011, 47, 9268–9274. [Google Scholar] [CrossRef]
  4. Yukesh Kannah, R.; Kavitha, S.; Preethi; Parthiba Karthikeyan, O.; Kumar, G.; Dai-Viet, N.V.; Rajesh Banu, J. Techno-Economic Assessment of Various Hydrogen Production Methods—A Review. Bioresour. Technol. 2021, 319, 124175. [Google Scholar] [CrossRef] [PubMed]
  5. Fujishima, A.; Honda, K. Electrochemical Photolysis of Water at a Semiconductor Electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef]
  6. Hisatomi, T.; Kubota, J.; Domen, K. Recent Advances in Semiconductors for Photocatalytic and Photoelectrochemical Water Splitting. Chem. Soc. Rev. 2014, 43, 7520–7535. [Google Scholar] [CrossRef]
  7. Chen, X.; Shen, S.; Guo, L.; Mao, S.S. Semiconductor-Based Photocatalytic Hydrogen Generation. Chem. Rev. 2010, 110, 6503–6570. [Google Scholar] [CrossRef]
  8. Ong, W.J.; Tan, L.L.; Ng, Y.H.; Yong, S.T.; Chai, S.P. Graphitic Carbon Nitride (g-C3N4)-Based Photocatalysts for Artificial Photosynthesis and Environmental Remediation: Are We a Step Closer to Achieving Sustainability? Chem. Rev. 2016, 116, 7159–7329. [Google Scholar] [CrossRef]
  9. Thomas, A.; Fischer, A.; Goettmann, F.; Antonietti, M.; Müller, J.O.; Schlögl, R.; Carlsson, J.M. Graphitic Carbon Nitride Materials: Variation of Structure and Morphology and Their Use as Metal-Free Catalysts. J. Mater. Chem. 2008, 18, 4893–4908. [Google Scholar] [CrossRef]
  10. Acharya, R.; Parida, K. A Review on TiO2/g-C3N4 Visible-Light-Responsive Photocatalysts for Sustainable Energy Generation and Environmental Remediation. J. Environ. Chem. Eng. 2020, 8, 103896. [Google Scholar] [CrossRef]
  11. Vu, N.N.; Kaliaguine, S.; Do, T.O. Synthesis of the g-C3N4/CdS Nanocomposite with a Chemically Bonded Interface for Enhanced Sunlight-Driven CO2 Photoreduction. ACS Appl. Energy Mater. 2020, 3, 6422–6433. [Google Scholar] [CrossRef]
  12. Huang, L.; Xu, H.; Zhang, R.; Cheng, X.; Xia, J.; Xu, Y.; Li, H. Synthesis and Characterization of g-C3N4/MoO3 Photocatalyst with Improved Visible-Light Photoactivity. Appl. Surf. Sci. 2013, 283, 25–32. [Google Scholar] [CrossRef]
  13. Li, Y.Y.; Qin, T.; Chen, W.; Huang, M.; Xu, J.; Lv, J. Construction of a Switchable g-C3N4/BiVO4 Heterojunction from the Z-Scheme to the Type II by Incorporation of Pyromellitic Diimide. Cryst. Growth Des. 2022, 22, 1645–1653. [Google Scholar] [CrossRef]
  14. Hu, B.; Cai, F.; Chen, T.; Fan, M.; Song, C.; Yan, X.; Shi, W. Hydrothermal Synthesis G-C3N4/Nano-InVO4 Nanocomposites and Enhanced Photocatalytic Activity for Hydrogen Production under Visible Light Irradiation. ACS Appl. Mater. Interfaces 2015, 7, 18247–18256. [Google Scholar] [CrossRef] [PubMed]
  15. Peng, H.; Du, Y.; Zheng, X.; Wen, J. High-Temperature Sulfurized Synthesis of MnxCd1-XS Composites for Enhancing Solar-Light Driven H2 Evolution. Int. J. Hydrog. Energy 2022, 47, 9925–9933. [Google Scholar] [CrossRef]
  16. Chen, J.; Chen, J.; Li, Y. Hollow ZnCdS Dodecahedral Cages for Highly Efficient Visible-Light-Driven Hydrogen Generation. J. Mater. Chem. A 2017, 5, 24116–24125. [Google Scholar] [CrossRef]
  17. He, J.; Li, B.; Yu, J.; Qiao, L.; Li, S.; Zu, X.; Xiang, X. Ultra-Thin CdIn2S4 Nanosheets with Nanoholes for Efficient Photocatalytic Hydrogen Evolution. Opt. Mater. 2020, 108, 2–6. [Google Scholar] [CrossRef]
  18. Shi, X.; Dai, C.; Wang, X.; Hu, J.; Zhang, J.; Zheng, L.; Mao, L.; Zheng, H.; Zhu, M. Protruding Pt Single-Sites on Hexagonal ZnIn2S4 to Accelerate Photocatalytic Hydrogen Evolution. Nat. Commun. 2022, 13, 1287. [Google Scholar] [CrossRef]
  19. Li, Q.; Meng, H.; Zhou, P.; Zheng, Y.; Wang, J.; Yu, J.; Gong, J. Zn1-XCdxS Solid Solutions with Controlled Bandgap and Enhanced Visible-Light Photocatalytic H2-Production Activity. ACS Catal. 2013, 3, 882–889. [Google Scholar] [CrossRef]
  20. Chen, R.; Li, K.; Zhu, X.S.; Xie, S.L.; Dong, L.Z.; Li, S.L.; Lan, Y.Q. In Situ Synthesis of Porous ZnO-Embedded Zn1-XCdxS/CdS Heterostructures for Enhanced Photocatalytic Activity. CrystEngComm 2016, 18, 1446–1452. [Google Scholar] [CrossRef]
  21. Li, K.; Chen, R.; Li, S.L.; Xie, S.L.; Dong, L.Z.; Kang, Z.H.; Bao, J.C.; Lan, Y.Q. Engineering Zn1-XCdxS/CdS Heterostructures with Enhanced Photocatalytic Activity. ACS Appl. Mater. Interfaces 2016, 8, 14535–14541. [Google Scholar] [CrossRef] [PubMed]
  22. Imran, M.; Yousaf, A.B.; Kasak, P.; Zeb, A.; Zaidi, S.J. Highly Efficient Sustainable Photocatalytic Z-Scheme Hydrogen Production from an A-Fe2O3 Engineered ZnCdS Heterostructure. J. Catal. 2017, 353, 81–88. [Google Scholar] [CrossRef]
  23. Vijayan, M.; Manikandan, V.; Rajkumar, C.; Hatamleh, A.A.; Alnafisi, B.K.; Easwaran, G.; Liu, X.; Sivakumar, K.; Kim, H. Constructing Z-Scheme g-C3N4/TiO2 Heterostructure for Promoting Degradation of the Hazardous Dye Pollutants. Chemosphere 2023, 311, 136928. [Google Scholar] [CrossRef]
  24. Liu, B.; Bie, C.; Zhang, Y.; Wang, L.; Li, Y.; Yu, J. Hierarchically Porous ZnO/g-C3N4 S-Scheme Heterojunction Photocatalyst for Efficient H2O2production. Langmuir 2021, 37, 14114–14124. [Google Scholar] [CrossRef]
  25. Safaei-Ghomi, J.; Akbarzadeh, Z.; Teymuri, R. ZnS Nanoparticles Immobilized on Graphitic Carbon Nitride as a Recyclable and Environmentally Friendly Catalyst for Synthesis of 3-Cinnamoyl Coumarins. Res. Chem. Intermed. 2019, 45, 3425–3439. [Google Scholar] [CrossRef]
  26. Ding, J.; Sun, X.; Wang, Q.; Li, D.S.; Li, X.; Li, X.; Chen, L.; Zhang, X.; Tian, X.; Ostrikov, K.K. Plasma Synthesis of Pt/g-C3N4 Photocatalysts with Enhanced Photocatalytic Hydrogen Generation. J. Alloys Compd. 2021, 873, 159871. [Google Scholar] [CrossRef]
  27. Tan, L.; Xu, J.; Zhang, X.; Hang, Z.; Jia, Y.; Wang, S. Synthesis of g-C3N4/CeO2 Nanocomposites with Improved Catalytic Activity on the Thermal Decomposition of Ammonium Perchlorate. Appl. Surf. Sci. 2015, 356, 447–453. [Google Scholar] [CrossRef]
  28. Hao, X.; Xiang, D.; Jin, Z. Zn-Vacancy Engineered S-Scheme ZnCdS/ZnS Photocatalyst for Highly Efficient Photocatalytic H2 Evolution. ChemCatChem 2021, 13, 4738–4750. [Google Scholar] [CrossRef]
  29. Yang, Q.; Yu, L.; Zhao, X.; Wang, Y.; Zhu, H.; Zhang, Y. Highly Stable γ-NiOOH/ZnCdS Photocatalyst for Efficient Hydrogen Evolution. Int. J. Hydrog. Energy 2022, 47, 27516–27526. [Google Scholar] [CrossRef]
  30. Ge, F.; Li, X.; Wu, M.; Ding, H.; Li, X. A Type II Heterojunction α-Fe2O3/g-C3N4 for the Heterogeneous Photo-Fenton Degradation of Phenol. RSC Adv. 2022, 12, 8300–8309. [Google Scholar] [CrossRef]
  31. Wang, Y.; Fiaz, M.; Kim, J.; Carl, N.; Kim, Y.K. Kinetic Evidence for Type-II Heterojunction and Z-Scheme Interactions in g-C3N4/TiO2Nanotube-Based Photocatalysts in Photocatalytic Hydrogen Evolution. ACS Appl. Energy Mater. 2023, 6, 5197–5206. [Google Scholar] [CrossRef]
  32. Serafin, J.; Ouzzine, M.; Sreńscek-Nazzal, J.; Llorca, J. Photocatalytic Hydrogen Production from Alcohol Aqueous Solutions over TiO2-Activated Carbon Composites Decorated with Au and Pt. J. Photochem. Photobiol. A Chem. 2022, 425. [Google Scholar] [CrossRef]
  33. Dong, Z.; Wu, Y.; Thirugnanam, N.; Li, G. Double Z-Scheme ZnO/ZnS/g-C3N4 Ternary Structure for Efficient Photocatalytic H2 Production. Appl. Surf. Sci. 2018, 430, 293–300. [Google Scholar] [CrossRef]
Figure 1. Transmission electron microscopy (TEM) images for as-prepared g-C3N4–ZnCdS samples: (a) lower magnifications and (b) higher magnifications.
Figure 1. Transmission electron microscopy (TEM) images for as-prepared g-C3N4–ZnCdS samples: (a) lower magnifications and (b) higher magnifications.
Nanomaterials 13 02609 g001

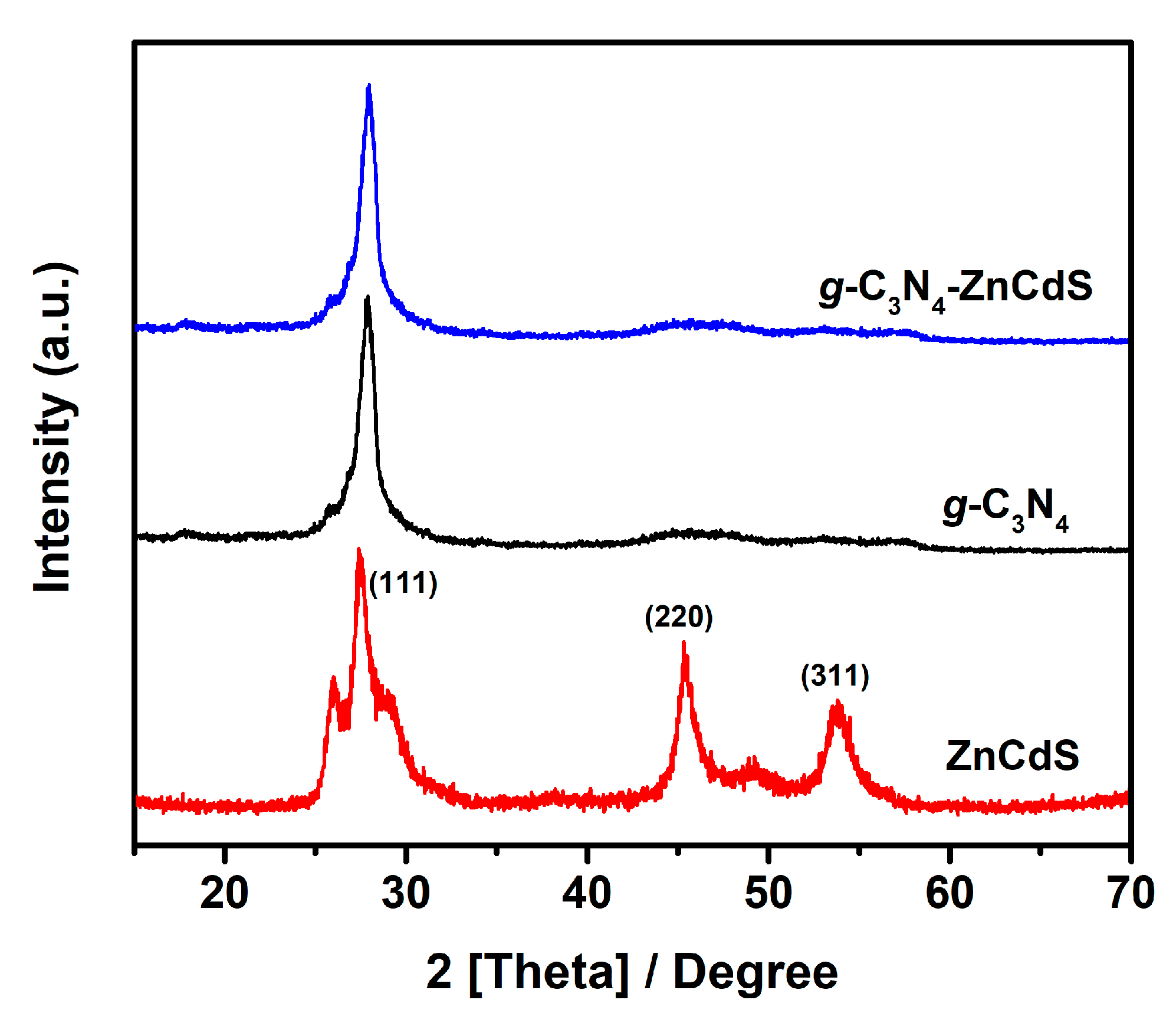

Figure 2. XRD spectrum of g-C3N4 (black line), ZnCdS (red line), and g-C3N4–ZnCdS (blue line) samples.
Figure 2. XRD spectrum of g-C3N4 (black line), ZnCdS (red line), and g-C3N4–ZnCdS (blue line) samples.
Nanomaterials 13 02609 g002

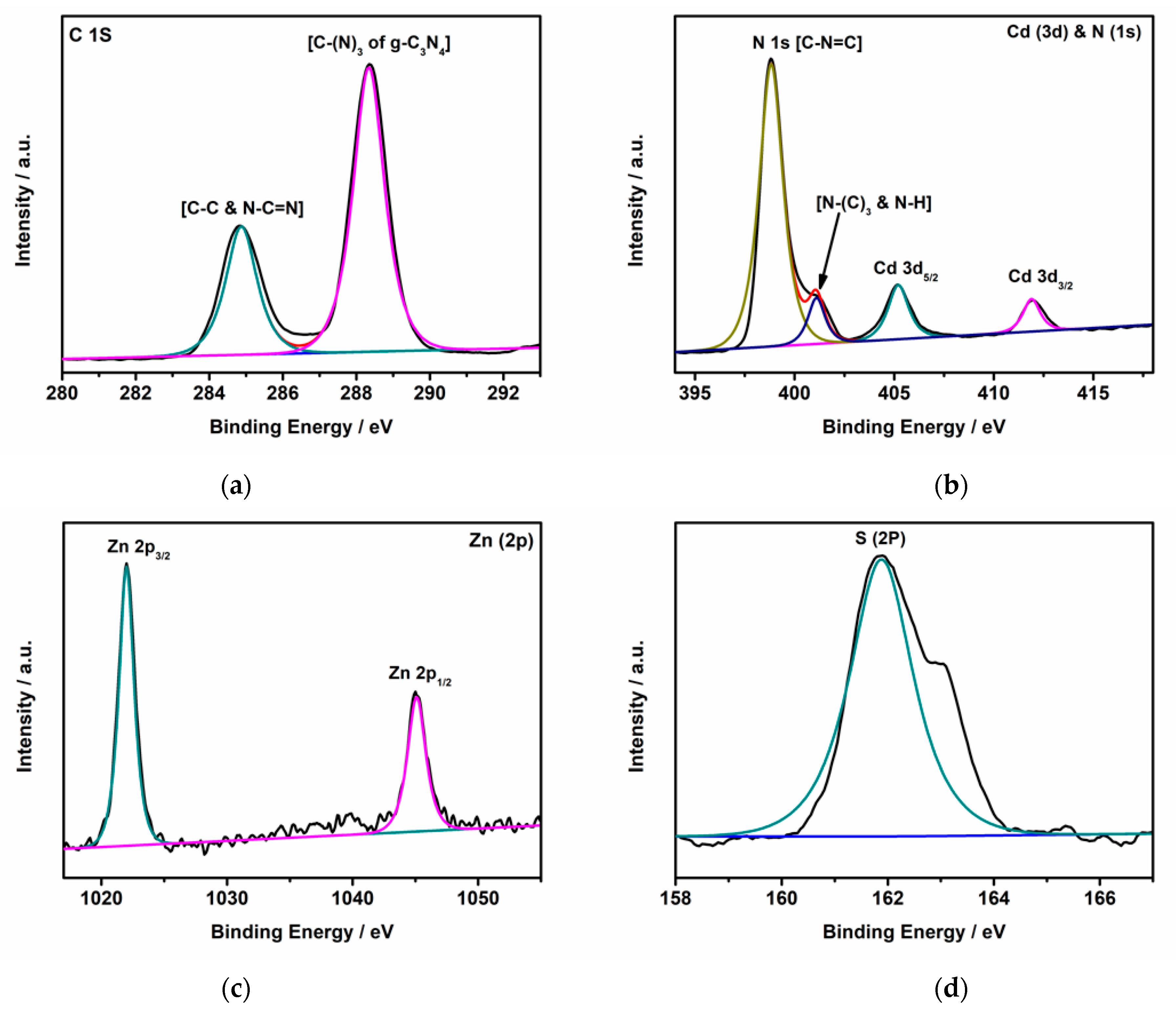

Figure 3. High-resolution XPS spectrum for a g-C3N4–ZnCdS sample. Scans for (a) C1s, (b) Cd3d and N1s, (c) Zn2p, and (d) S2p regions.
Figure 3. High-resolution XPS spectrum for a g-C3N4–ZnCdS sample. Scans for (a) C1s, (b) Cd3d and N1s, (c) Zn2p, and (d) S2p regions.
Nanomaterials 13 02609 g003

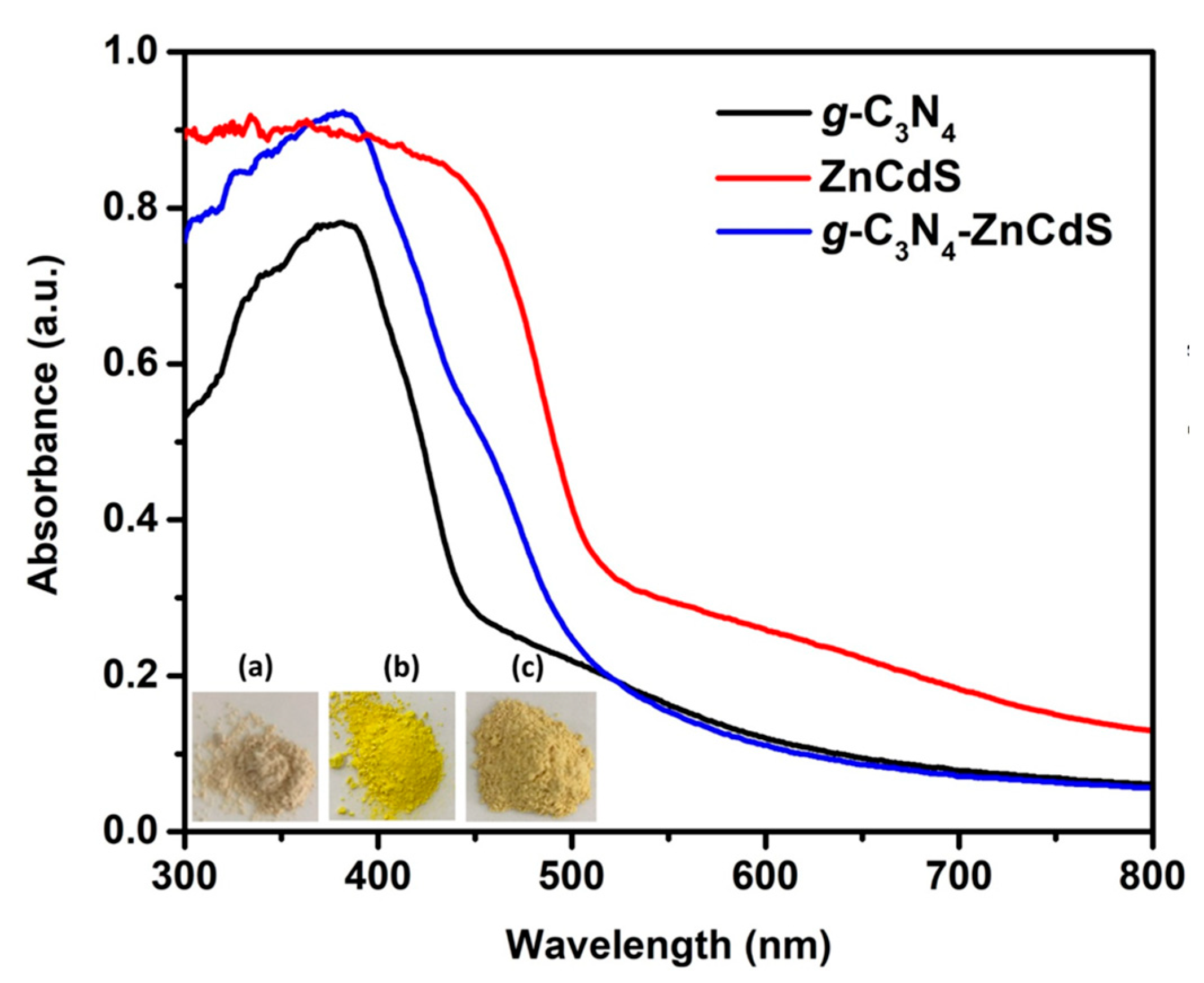

Figure 4. UV–visible diffuse reflectance spectra (DRS), and the insets show images of the (a) g-C3N4, (b) ZnCdS, and (c) g-C3N4–ZnCdS samples.
Figure 4. UV–visible diffuse reflectance spectra (DRS), and the insets show images of the (a) g-C3N4, (b) ZnCdS, and (c) g-C3N4–ZnCdS samples.
Nanomaterials 13 02609 g004

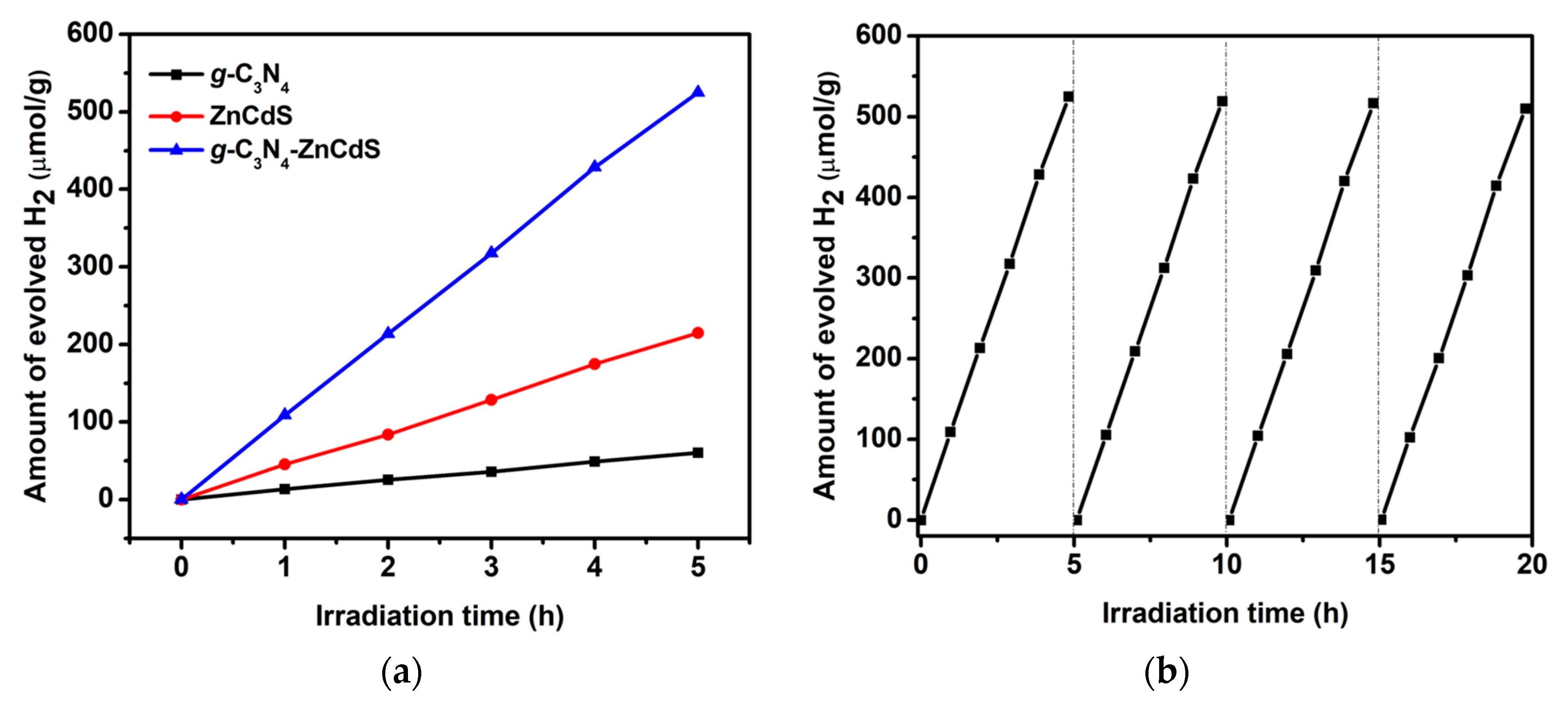

Figure 5. (a) Photocatalytic H2 evolution activities from water splitting on samples from g-C3N4 nanosheets, ZnCdS nanoparticles, and g-C3N4–ZnCdS under visible-light illumination (λ  ≥  420 nm) over 5 h. (b) Cyclic tests for photocatalytic H2 evolution activities from water solution on g-C3N4–ZnCdS for four consecutive cycles.
Figure 5. (a) Photocatalytic H2 evolution activities from water splitting on samples from g-C3N4 nanosheets, ZnCdS nanoparticles, and g-C3N4–ZnCdS under visible-light illumination (λ  ≥  420 nm) over 5 h. (b) Cyclic tests for photocatalytic H2 evolution activities from water solution on g-C3N4–ZnCdS for four consecutive cycles.
Nanomaterials 13 02609 g005

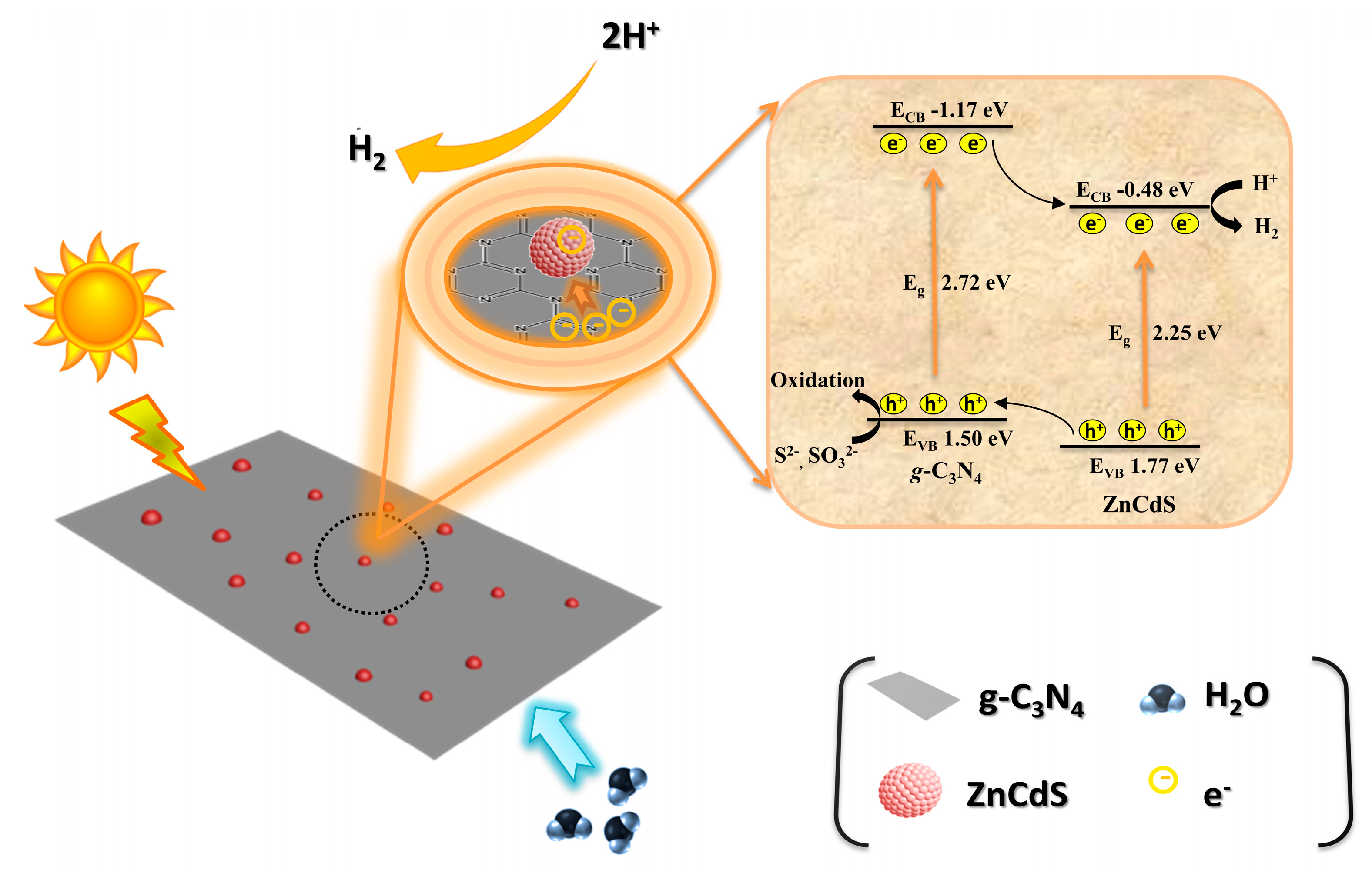

Figure 6. A schematic representation showing the photocatalytic process, band positions, and charge transfer process for g-C3N4–ZnCdS catalyst.
Figure 6. A schematic representation showing the photocatalytic process, band positions, and charge transfer process for g-C3N4–ZnCdS catalyst.
Nanomaterials 13 02609 g006

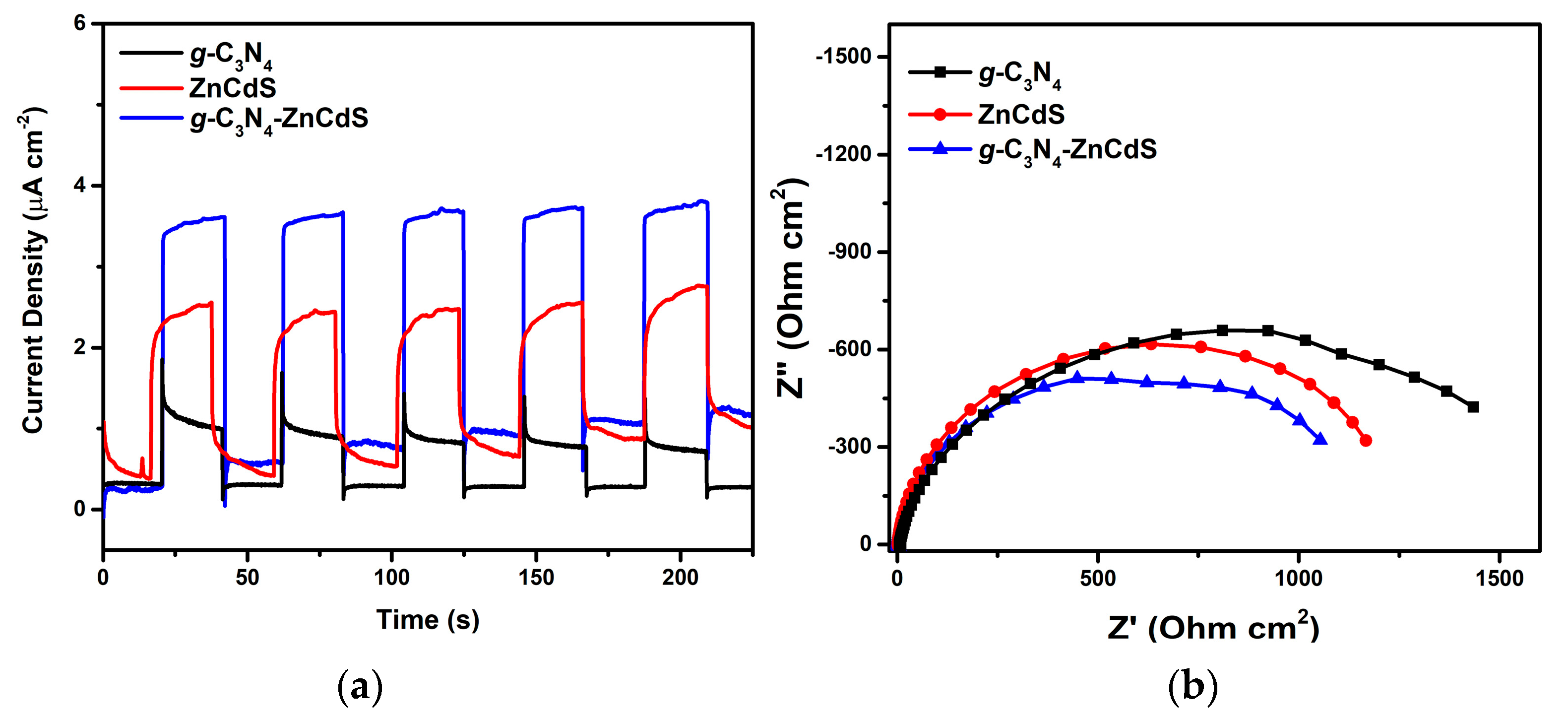

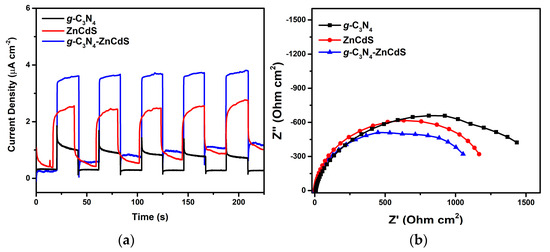

Figure 7. (a) Cyclic performance of the response of the current from as-synthetized photocatalysts vs. time for g-C3N4, ZnCdS, and g-C3N4–ZnCdS (irradiated at λ ≥ 420 nm). (b) Nyquist plots from EIS measurement of g-C3N4, ZnCdS, and g-C3N4–ZnCdS.
Figure 7. (a) Cyclic performance of the response of the current from as-synthetized photocatalysts vs. time for g-C3N4, ZnCdS, and g-C3N4–ZnCdS (irradiated at λ ≥ 420 nm). (b) Nyquist plots from EIS measurement of g-C3N4, ZnCdS, and g-C3N4–ZnCdS.
Nanomaterials 13 02609 g007
