Correlation of Plastic Strain Energy and Acoustic Emission Energy in Reinforced Concrete Structures

Abstract

This paper presents a comparison of the acoustic emission (AE) energy and the plastic strain energy released by some reinforced concrete (RC) specimens subjected to cyclic or seismic loadings. AE energy is calculated, after proper filtering procedures, using the signals recorded by several AE low frequency sensors (25–100 kHz) attached on the specimens. Plastic strain energy is obtained by integrating the load displacement curves drawn from the measurements recorded during the test. Presented are the results obtained for: (i) two beams (with and without an artificial notch) and a beam-column connection subjected to several cycles of imposed flexural deformations; (ii) a reinforced concrete slab supported by four steel columns, and a reinforced concrete frame structure, both of the latter are subjected to seismic simulations with a uniaxial shaking table. The main contribution of this paper, which is a review of some papers previously published by the authors, is to highlight that, in all cases, a very good correlation is found between AE energy and plastic strain energy, until the onset of yielding in the reinforcing steel. After yielding, the AE energy is consistently lower than the plastic strain energy. The reason is that the plastic strain energy is the sum of the contribution of concrete and steel, while the AE energy acquired with thresholds higher than 35 dB_AE captures only the contribution of the concrete cracking, not the steel plastic deformation. This good correlation between the two energies before the yielding point also lends credibility to the use of AE energy as a parameter for concrete damage evaluation in the context of structural health monitoring.

1. Introduction

Reinforced concrete (RC) structural elements develop several damage mechanisms when subjected to static/dynamic, monotonic/cyclic loadings. Before the onset of yielding of the reinforcing steel, concrete damage is associated with: (i) the opening of new cracks or the extension of existing ones when the tension stress exceeds the tensile strength of the concrete; (ii) the friction between the planes of fracture after cracking; or (iii) the concrete cracking under compressive stress. When cyclic loading is caused for example by earthquakes, concrete degradation due to cracking eventually results in cumulative damage (low-cycle fatigue damage) to the structural RC components and leads to a state in which repair becomes necessary. One serious consequence of concrete degradation under cyclic loading is the slip between the reinforcing steel bars and the surrounding concrete.

Evaluating this damage in concrete is not easy because RC structures are commonly covered up by non-structural elements (brick veneers, casings, cement plasters, stuccos, etc.). Such elements make simple visual inspection complicated. Moreover, visual inspection provides only qualitative information on the “apparent” damage, but no information on the “cumulative” damage resulting from numerous cycles of imposed deformations. It is here where non-destructive techniques play an important role. Among them, the measurement, recording and analysis of Acoustic Emission (AE) signals prove very effective [1,2,3,4]. When applying AE techniques to damage evaluation, it is of paramount importance [5,6,7,8,9,10,11]: (i) to discriminate relevant signals from spurious AE records; and (ii) to correlate AE with a well-established index of mechanical damage. The AE may be characterized in terms of the so-called MARSE (Mean Measured Area under the Rectified Signal Envelope) energy [2]. Meanwhile, the energy dissipated by a structure through plastic strain deformations (irreversible deformations) is commonly recognized as a good indicator of damage. This paper summarizes several research initiatives that prove there is a very good correlation between AE energy calculated from the AE signals, and the plastic strain energy dissipated by concrete. Based on this correlation, the level of damage in an RC structure can be assessed from the AE records. The correlation is demonstrated under relatively simple loading conditions, i.e., static and monotonic loadings [12,13], yet also under extremely cumbersome loads such as random dynamic cyclic loading caused by earthquakes [13,14,15,16,17,18,19]. The AE signals recorded during a seismic event are extraordinarily complex; and unveiling their relation with the damage accumulated on the structure requires considerable post-processing work [13,16,18,19,20].

2. Cyclic Loading

2.1. RC Beams

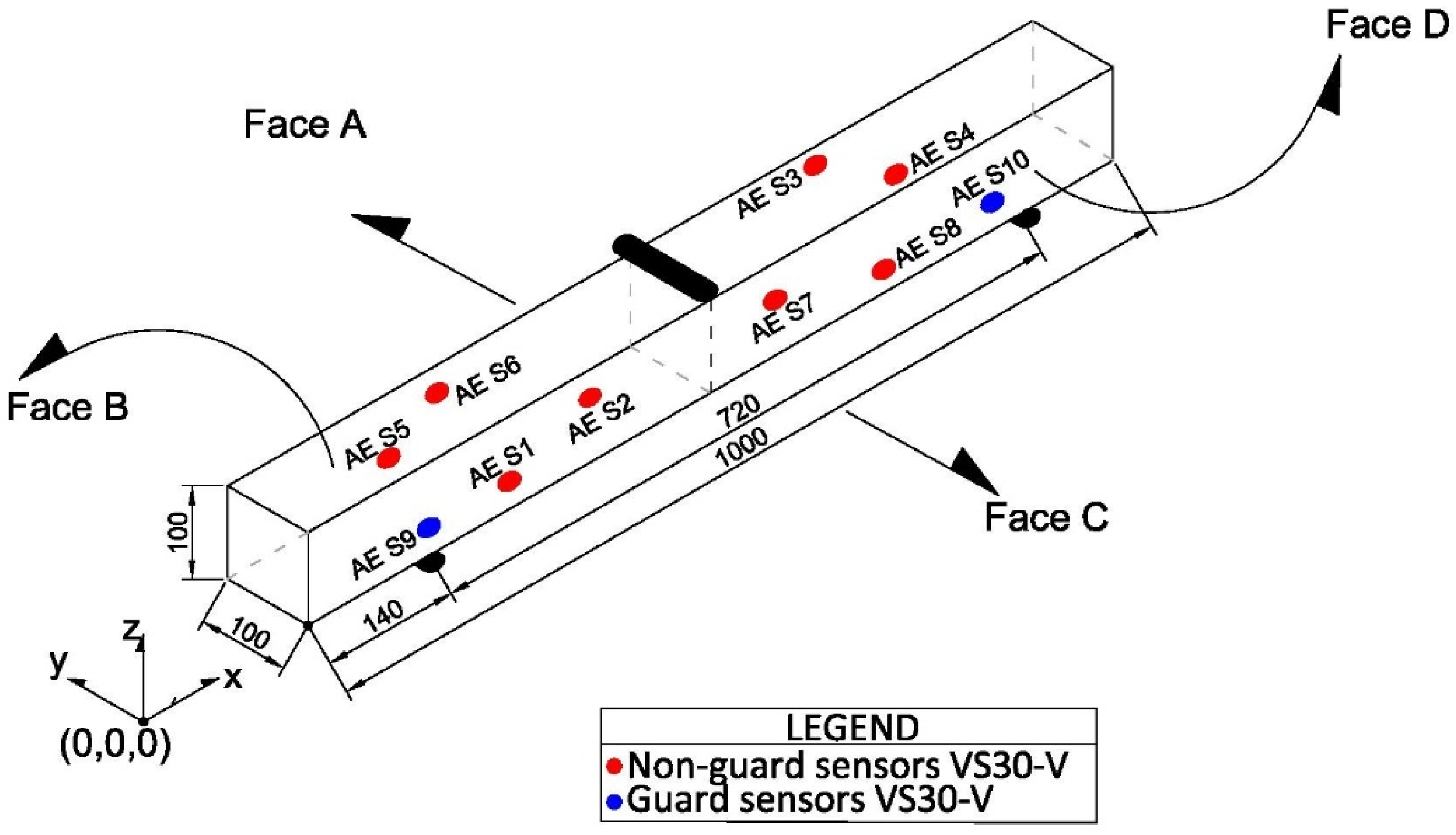

Firstly, a 100 × 100 × 1000 mm³ RC beam (Figure 1) was built and subjected to three-point bending tests [13]. Concrete compressive strength was 25 MPa. Reinforcement consisted of four longitudinal bars of 4 mm thickness and 76 × 76 mm² square stirrups. Reinforcement steel yield strength was 500 MPa.

Applied force, Q, and the corresponding vertical displacement, $\delta$, were measured with a load cell and a displacement transducer. AE signals were acquired with ten channels of AMSY-5 equipment using ten VS30-V sensors (Vallen Systeme, Icking, Germany) with an almost flat bandwidth response in low frequency (25–100 kHz). Sampling frequency was set at 5 MHz, and the number of samples per signal was 4096. The threshold used was 35.1 dB_AE. Sensors S9 and S10 were configured as guard sensors to eliminate noise generated by friction at the supports. After recording, only signals passing the guard sensors and a filter based on the Root Mean Square (RMS) (explained in more detail in [13]) were taken into account during the analysis.

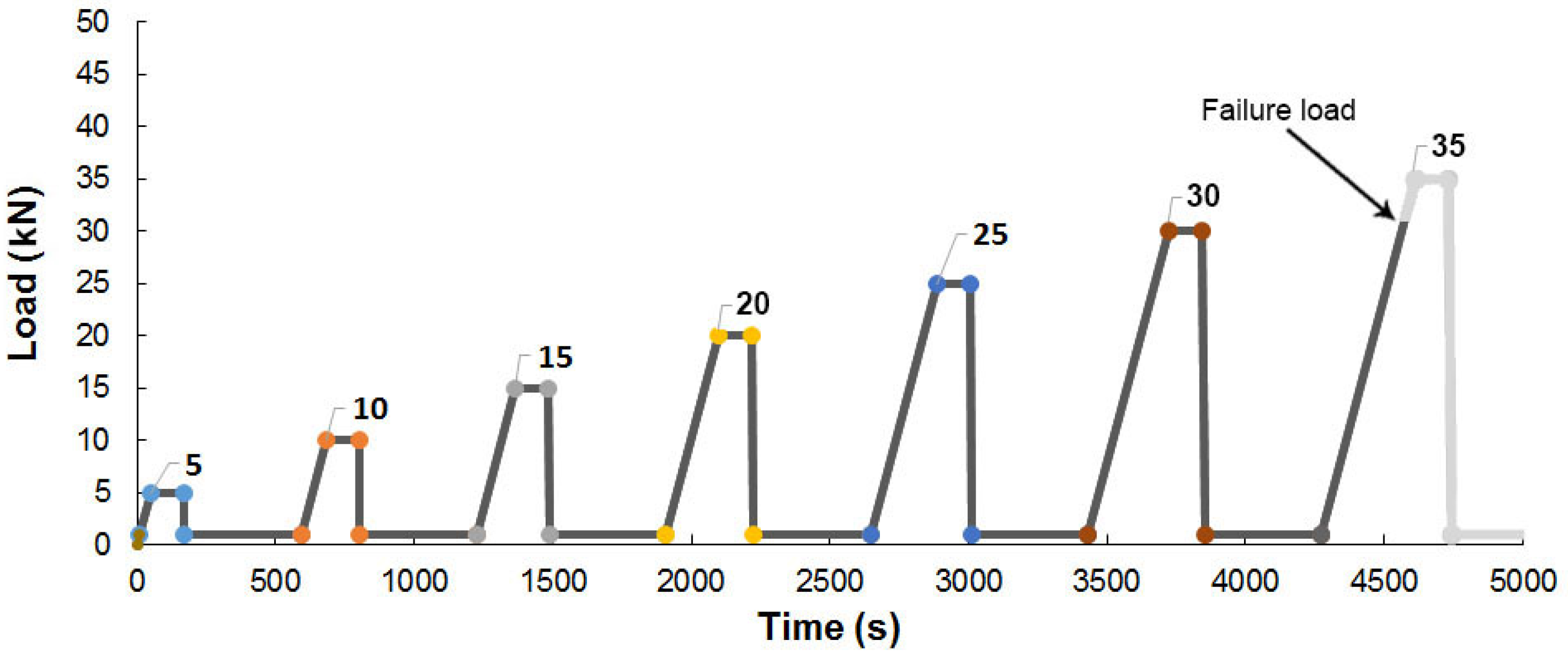

The bending test was carried out by applying a history of incremental load cycles controlled by force (Figure 2). Each cycle comprises three branches: loading, holding load and unloading, which are represented in Figure 2 by sets of three consecutive segments separated by a segment of null load.

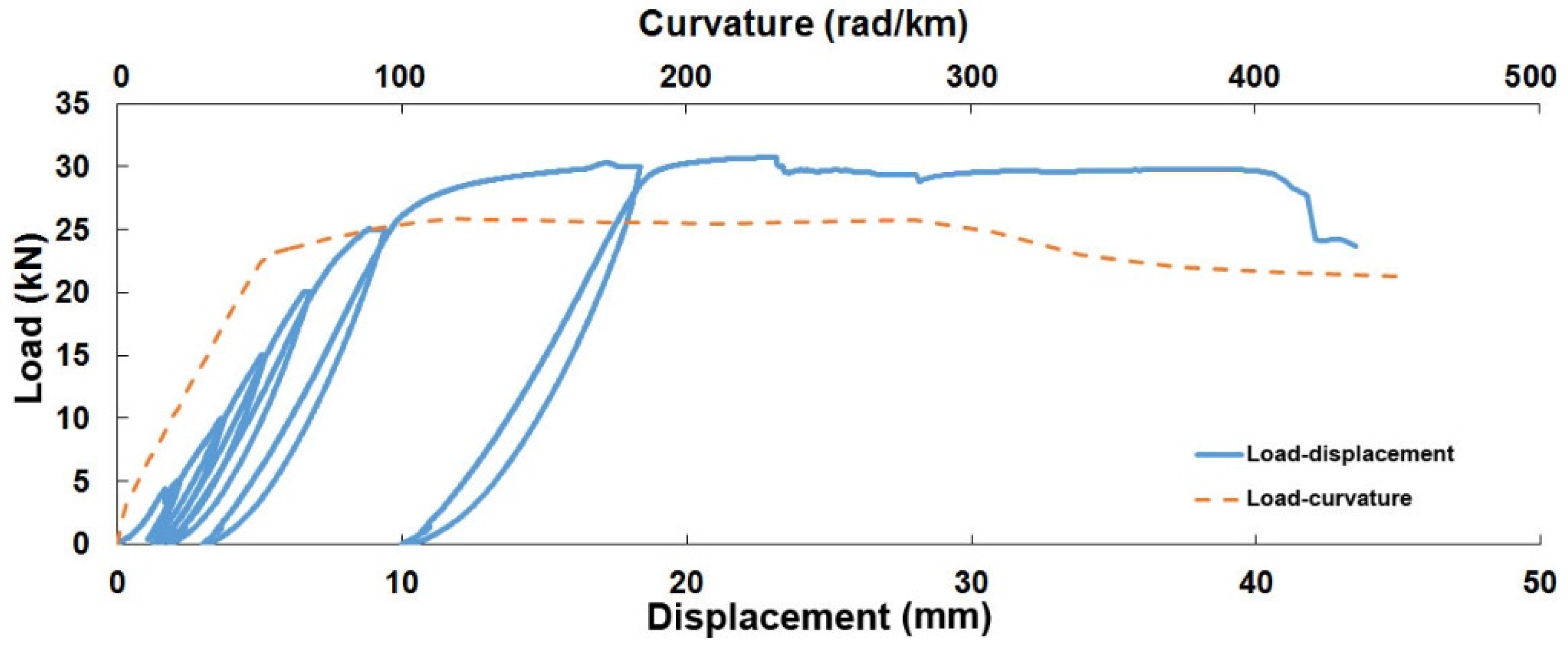

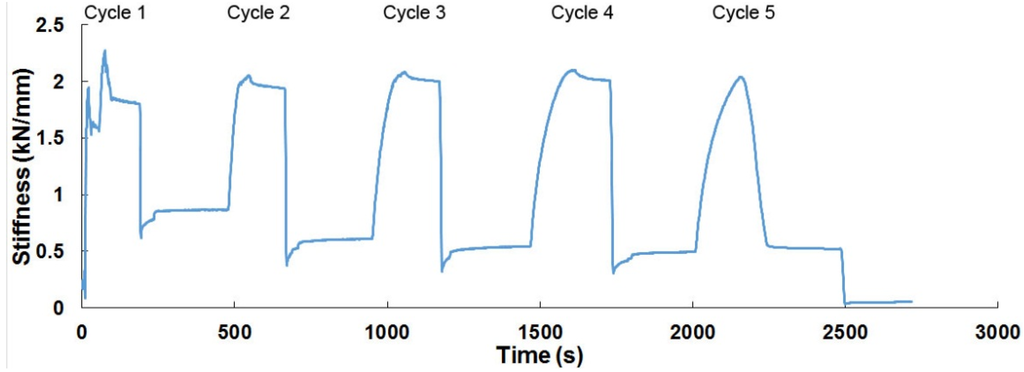

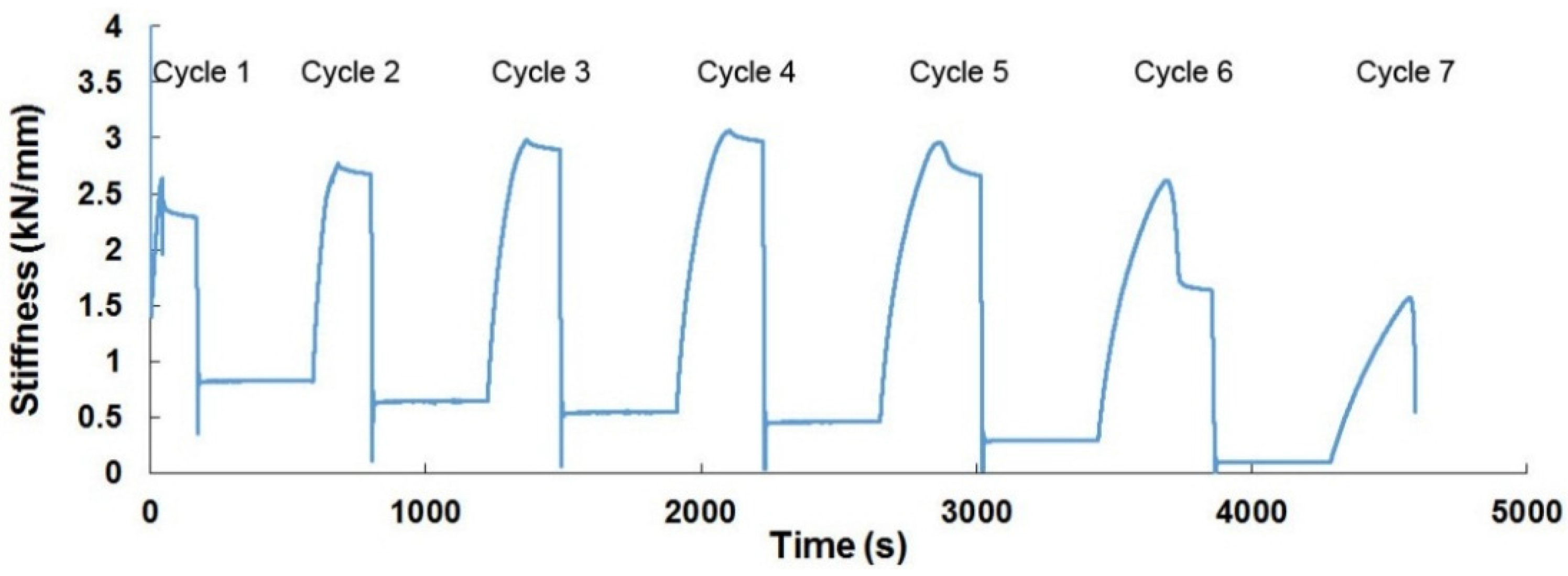

Final failure occurred at Q = 30.72 kN. Figure 3 shows the load-displacement and load-curvature diagrams. Residual plastic deformations are clearly observed from the initial cycles, indicating that damage took place even in the earlier cycles. This damage likewise results in a degradation of stiffness (Figure 4). This figure shows that for cycles 1, 2 and 3, the variation of stiffness between the loading and unloading branches was not significant. However, from cycle 4 onward, this variation becomes more noticeable. Thus, from Figure 3 and Figure 4, it follows that the reinforcement steel began to plastify during cycle 4. The stiffness degradation became more pronounced as the load increased from cycle 5 onward.

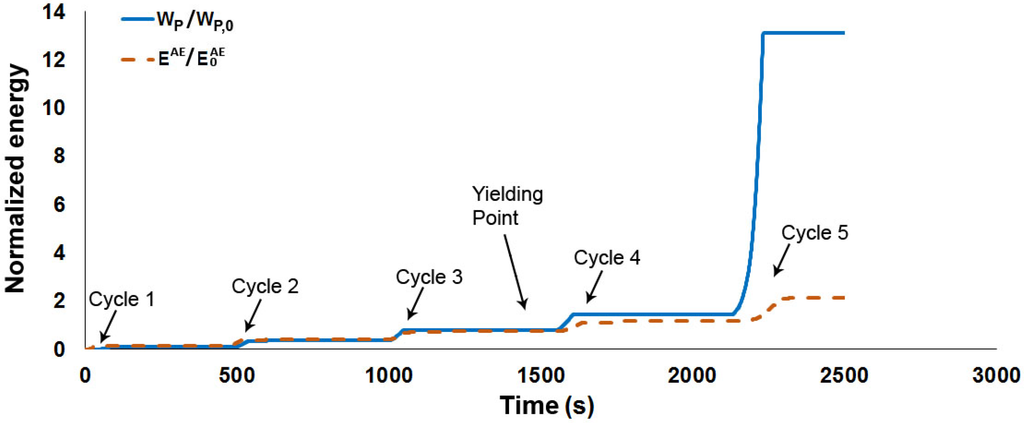

Accumulated AE MARSE energy, E^AE, was calculated for the first hit of the events constructed with sensors S1–S8 [13] (Figure 5). In this figure, the plastic strain energy W_P dissipated by the specimen is also included. Both E^AE and W_P were normalized by their respective values $E_0^{AE}$ and W_P,0 at the onset of yielding in the steel reinforcement, referred to hereafter as t₀. W_P was obtained by integrating the load-displacement curve (Q-δ). W_P is the sum of the energy dissipated by the concrete, W_PC, and the energy dissipated by the steel, W_PS, as

$$\begin{gathered} W_P=W_{Pc}ift<t_0 \\ {W}_P=W_{Pc}+W_{Ps}ift\ge t_{0.} \end{gathered}$$

(1)

AE energy is also a double contribution of concrete and steel. However, with the AE threshold used (35.1 dB) during acquisition, the very low amplitude AE proceeding from the plastic strain of steel cannot be recorded, i.e.,

$$E^{AE}=E_c^{AE}+E_s^{AE}\cong E_c^{AE}.$$

(2)

As observed in Figure 5, before the yielding point, a very good correlation exists between $E^{AE}/E_0^{AE}$ and W_P/W_P,0. However, after this point, $E^{AE}$ is always lower than W_P. Moreover, the decreasing of AE energy—and thus its separation from the plastic strain energy—is in good agreement with the results reported in [21], i.e., AE energy decreases as the energy absorbed by the reinforcement through plastic deformations increases. This result also supports the increase of the b-value at the onset of yielding in the steel reinforcement [13]. In sum, it is held that

$$\begin{gathered} W_P~E^{AE}ift<t_0 \\ {W}_P>E^{AE}ift\ge t_0, \end{gathered}$$

(3)

which is in very good agreement with Equations (1) and (2).

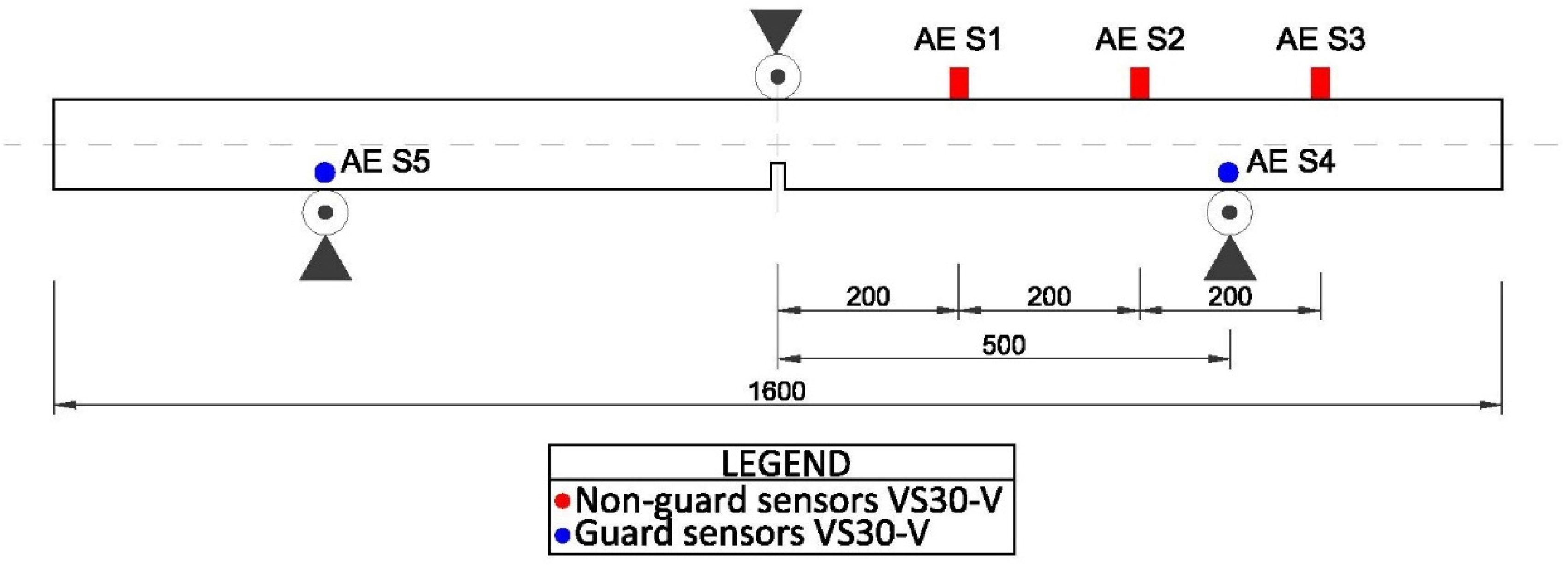

Secondly, a 100 × 100 × 1600 mm³ beam with an artificial notch in the middle was built and subjected to a three-point bending test (see Figure 6) [13]. Concrete, steel and reinforcement were similar to those of the previous beam. The 5 × 10 mm² notch was made according to [22]. Three VS30-V AE sensors were placed at distances of 20, 40 and 60 cm from the middle of the notch. Sensors 4 and 5 were configured as guards and only signals that passed the RMS filter were taken into account during analysis [13].

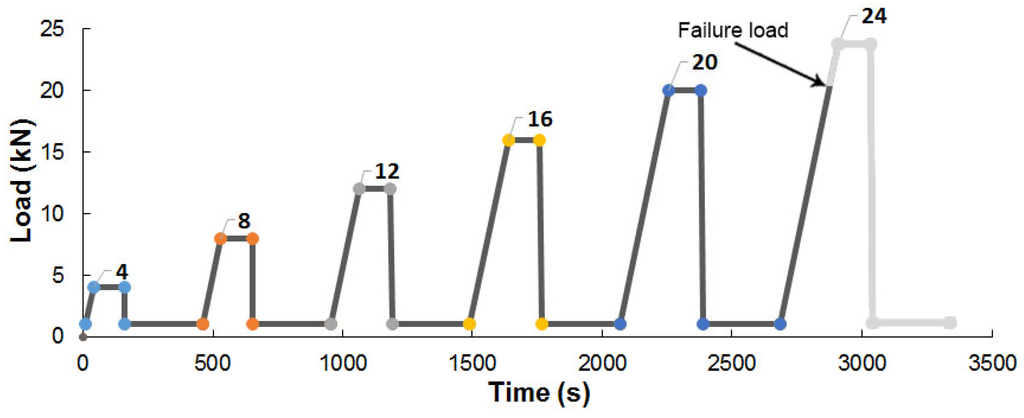

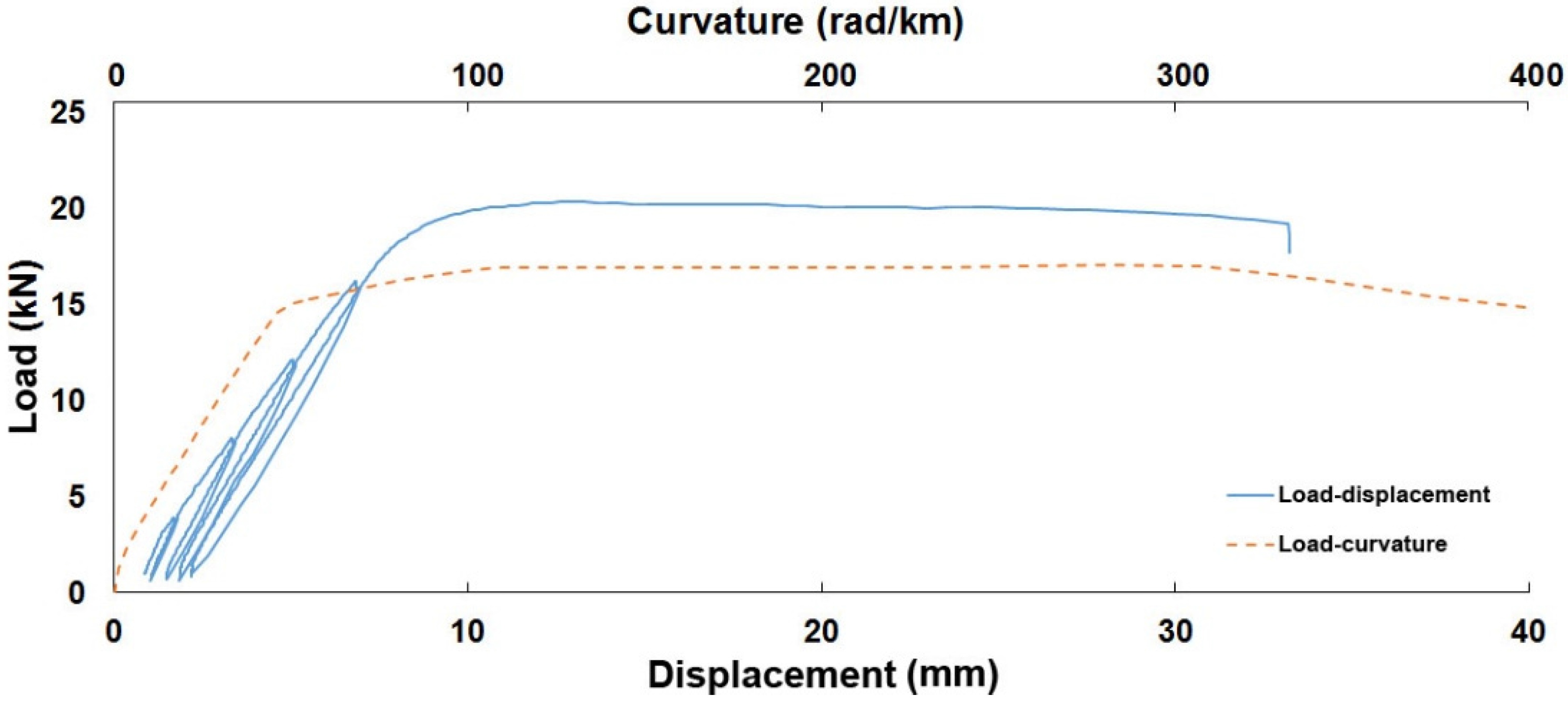

The bending test entailed applying incremental load cycles by force control. Cycles were proportional to each other, with a variation of the maximum load of 4 kN per cycle (see Figure 7). Final failure occurred at Q = 20.3 kN. Figure 8 shows the load-displacement and load-curvature diagrams, while degradation of stiffness in each cycle is plotted in Figure 9. Figure 8 and Figure 9 suggest that the yielding point (t₀) was probably reached near the end of cycle 3.

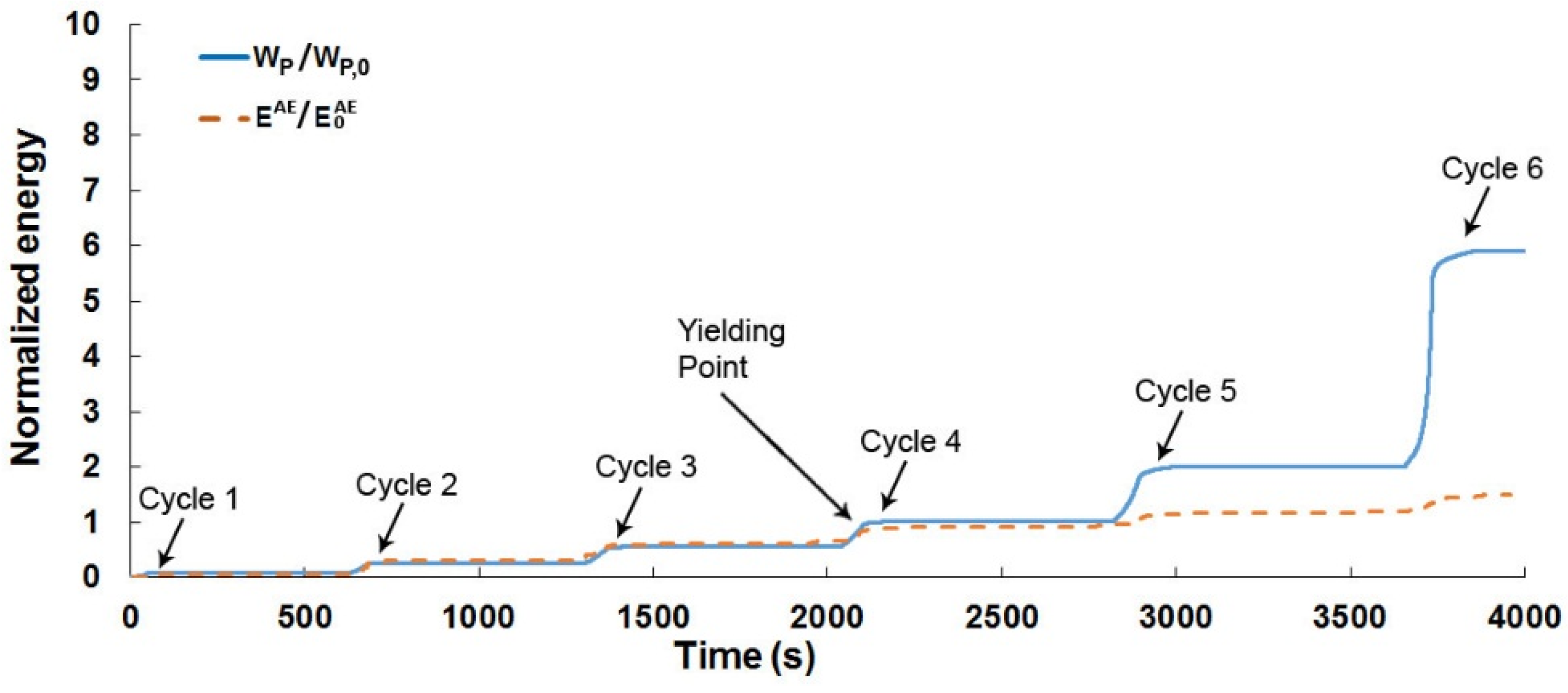

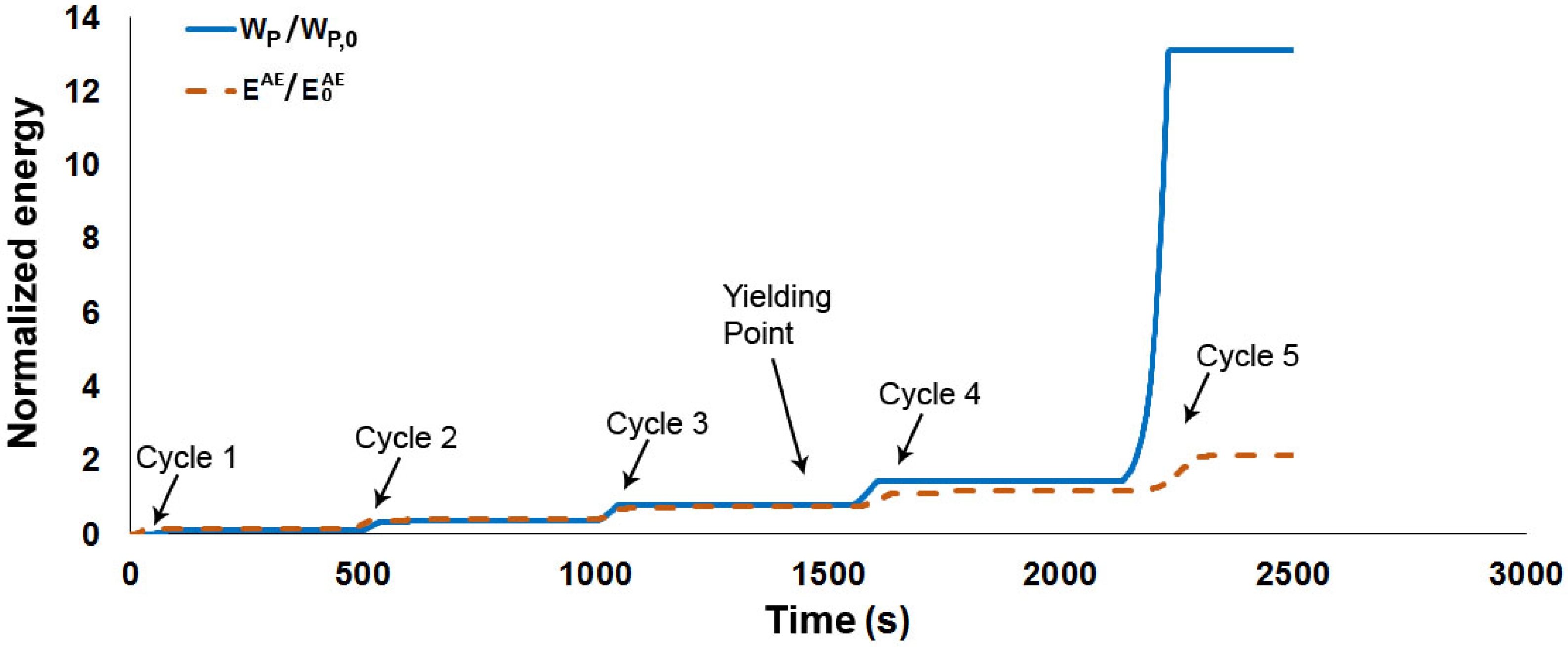

Accumulated AE MARSE energy, E^AE, was also calculated for the first-hit of the events constructed with sensors S1 to S3 [13]. Figure 10 shows both energies, E^AE and W_P, normalized by their respective values $E_0^{AE}$ and W_P,0 at the onset of yielding of the steel reinforcement, t₀. The result observed coincides with that of the unnotched beam, i.e., there is a very good correlation between E^AE and W_P until t₀ and a divergence of the two energies after this point.

2.2. Beam-Column Connection

A 3/5 scale specimen was constructed to represent an exterior wide beam-column connection in a prototype RC moment-resisting frame with six stories and four bays. The prototype building was designed assuming a location in the earthquake-prone southern part of Spain. The specimen corresponds to the second story of the building. The steel yield stress was 404 MPa, and the concrete compressive strength 24.9 MPa [12]. The test model was installed in the loading machine shown in Figure 11, reproducing the actual boundary conditions of the subassemblage within the RC frame under lateral loads. Gravity loading was simulated by the combination of wide beam self-weight and sand bags of total weight 40 kN placed on the beam, plus an axial force applied to the column of 214 kN by means of two post-tensioned rods.

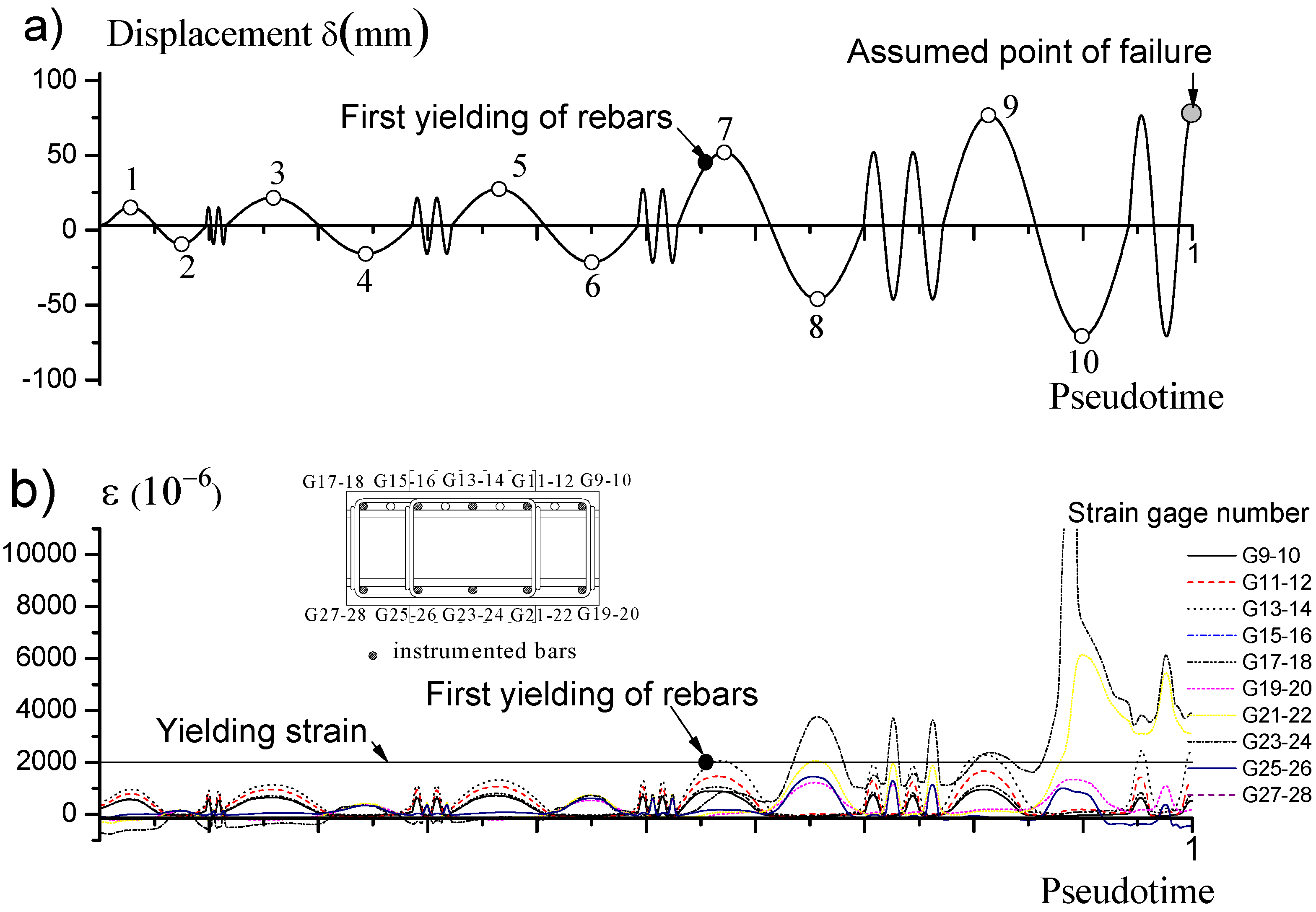

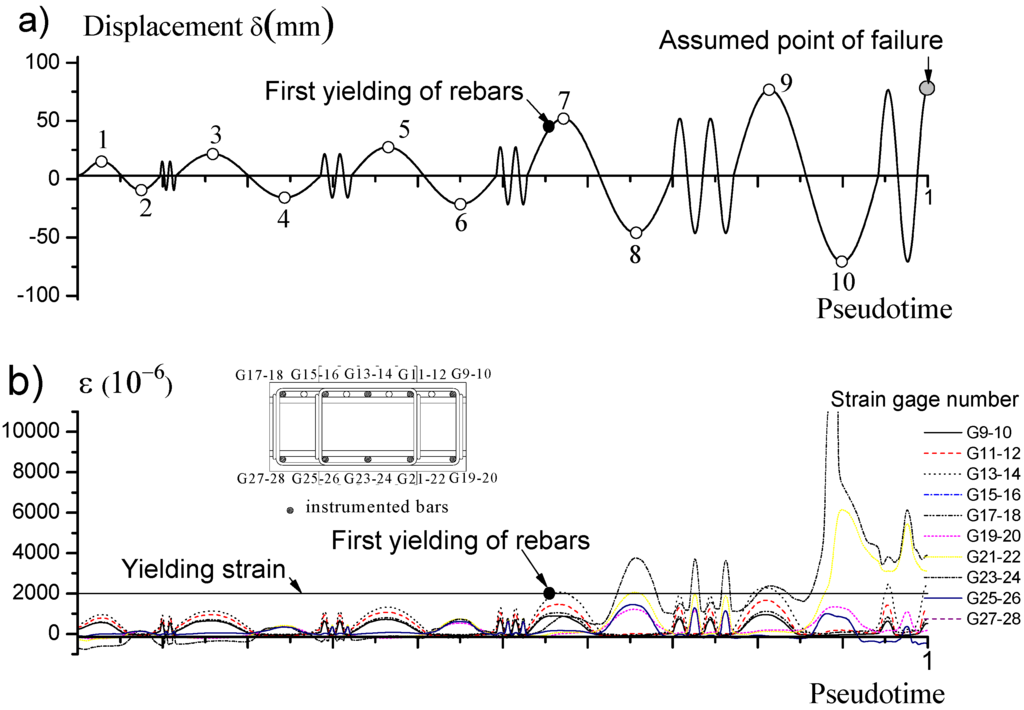

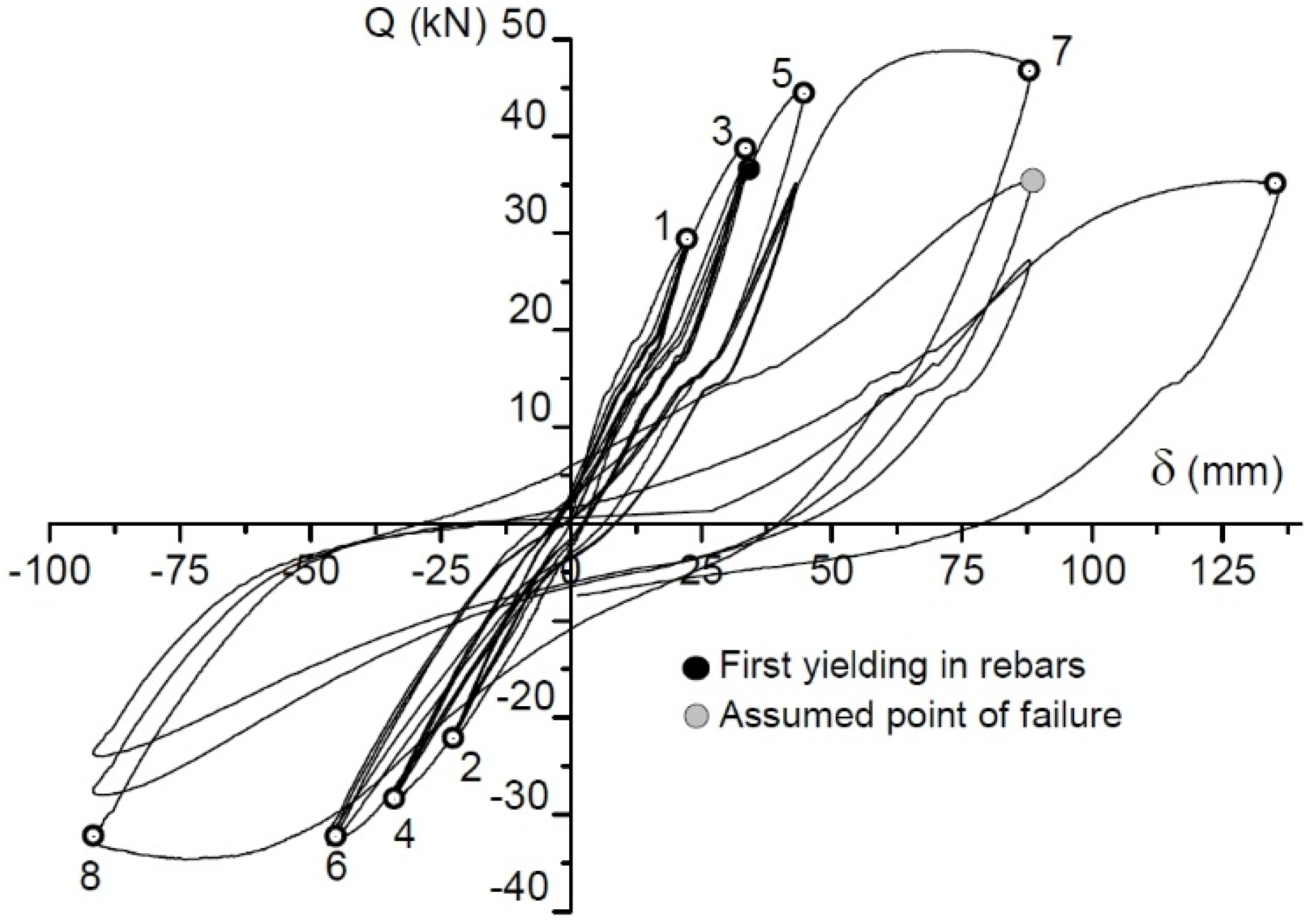

Subsequently, cyclic horizontal forced displacements were applied automatically by the actuator following the scheme shown in Figure 12a, which is based on the ATC-24 loading protocol [23], until failure. The amplitude of the cycles was made constant within each set, but it increased with every consecutive set of cycles, following the sequence 0.5Δy, 0.75Δy, 1.0Δy, 2Δy, 3Δy, 4Δy and so on, where Δy is the quotient between the predicted lateral displacement at the first yielding of the reinforcing steel and the total height of the column (180 cm) expressed as a percentage (drift-ratio).

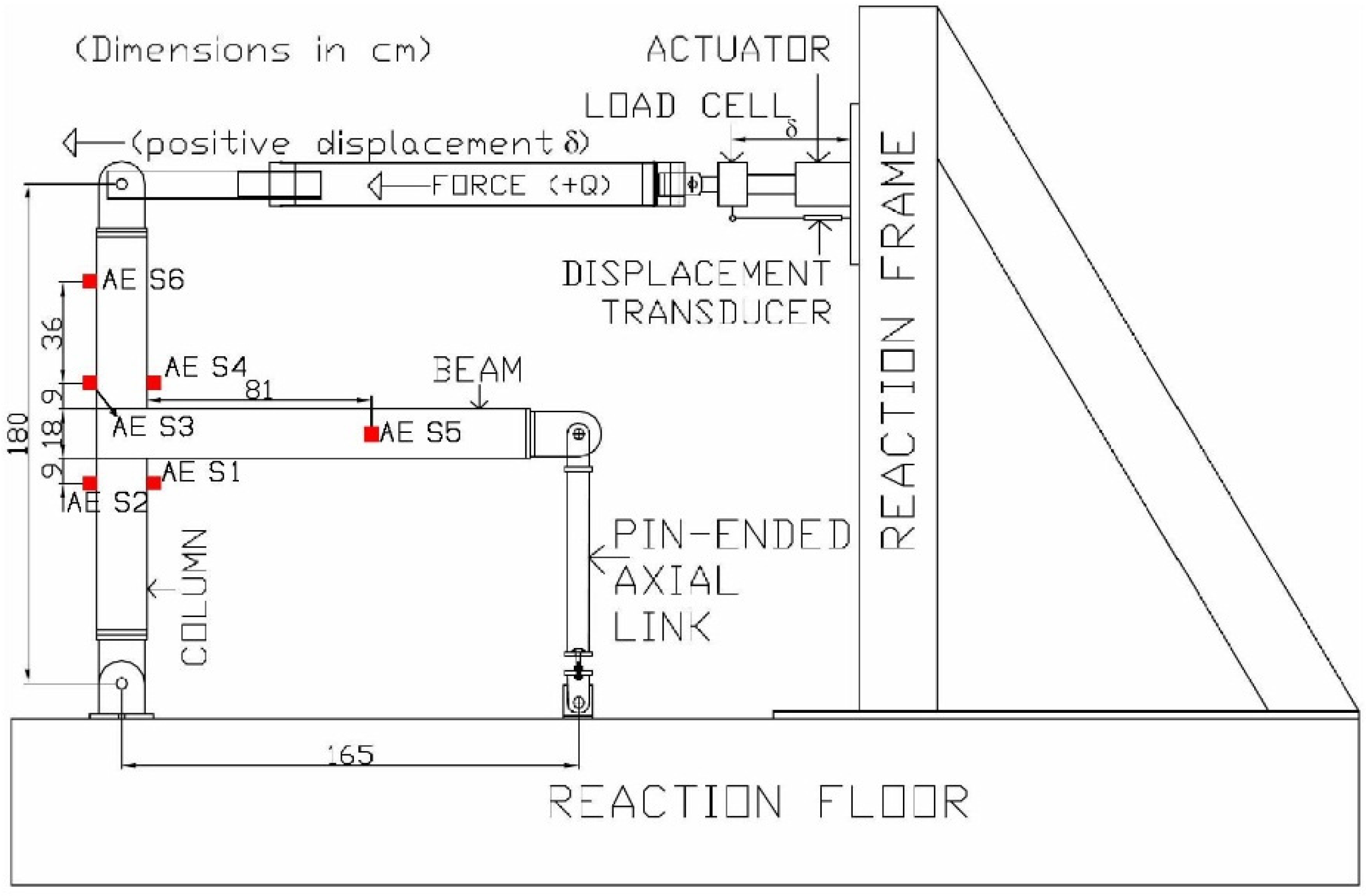

A load cell and a displacement transducer installed on the actuator measured the overall horizontal force, Q, and the corresponding horizontal displacement, $\mathsf{\delta }$, while strain gauges attached to the reinforcing steel measured the corresponding strains (Figure 12b). Six AE low-frequency VS30-V sensors (Figure 11) were placed on each specimen. In all the channels, 25–180 kHz pass filters were used; signals were preamplified 34 dB_AE, and 40 dB_AE was set as the acquisition threshold.

Figure 12b shows the strains recorded by the gauges fixed to the longitudinal reinforcing bars of the beam at the column face (i.e., at the section of maximum bending moment of the beam). The solid horizontal line indicates the strain corresponding to yielding. It is observed that the steel reinforcement remained elastic (i.e., undamaged) during the first two sets of cycles. Figure 13 shows the curves of overall load-displacement, Q-δ, obtained from the tests. The solid circle indicates the onset of plastic deformations in the longitudinal reinforcement, which occurred before the maximum lateral strength was attained. Failure was assumed to occur when the load reached at the peak displacement of a given cycle was lesser than 75% of the maximum load attained by the specimen in previous cycles. This percentage may be considered as the limit of the “usable” capacity of the member [24].

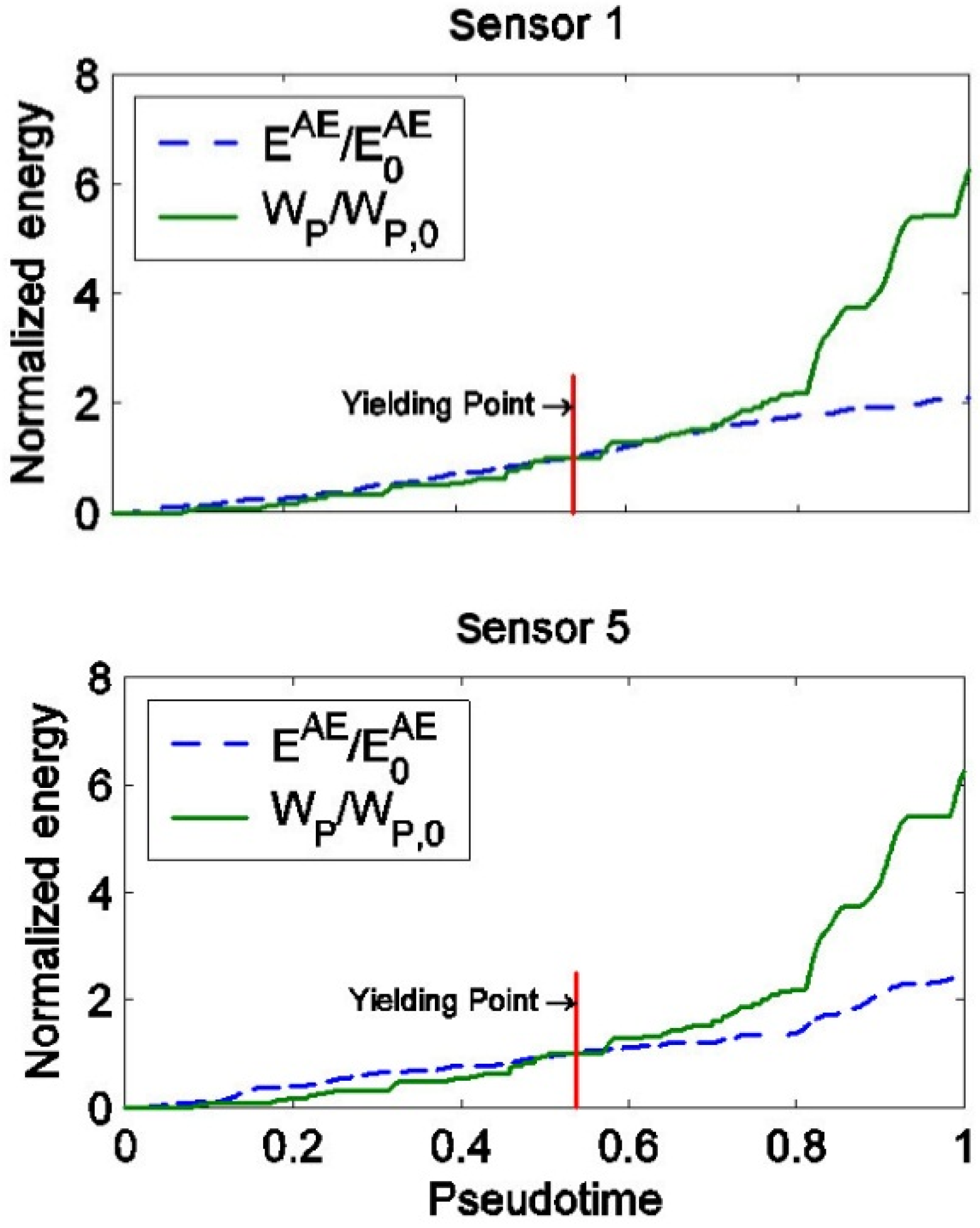

The accumulated AE MARSE energy, E^AE, was calculated for all sensors. Figure 14 displays with dashed lines the E^AE calculated from the signals recorded by sensors one (on the column) and five (on the beam) [12]. As seen in this figure, the overall plastic strain energy W_P dissipated is superimposed by solid lines. Both E^AE and W_P were normalized by their respective values $E_0^{AE}$ and W_P,0 at the onset of yielding in the steel reinforcement, timed at t₀. Once again, there is a very good correlation between $E^{AE}$ and W_P until t₀. After this point, however, E^AE is always lower than W_P, which is again in very good agreement with Equations (1) and (2).

Since, in specimens subjected to cyclic loadings, the load was applied quasi-statically, the low speed of loading made it possible to follow (in most cases by the naked eye) the evolution of different cracking modes. Initially, microcracking started to develop in the tensile side of beams and columns, followed by macroscopic cracks that formed when the tensile strength of concrete was reached. Both flexural and shear cracks were identified, and the former type predominated over the latter during the loading process. In the case of the RC beams reported in Subsection 2.1, flexural cracks (perpendicular to the axis of the member) started at the midspan of the beam. These cracks enlarged as the level of applied force increased and new flexural cracks appeared, extending progressively to both ends. Shear cracks (inclined approximately 45 degrees) were also observed near the points where the load or the reaction forces were applied. In the case of the beam-column connection, flexural cracks developed at the tension sides of beam and columns, and shear cracks were visible in the region where beam and column intersect (commonly known as beam-column joint).

3. Seismic Loading

3.1. RC Slab

A prototype one-story, one-bay structure (2.8 m high and 4.8 m long) consisting of an RC slab supported on four box-type steel columns was designed following current Spanish codes NCSE-02 and EHE-08. From this prototype structure, the corresponding test model was derived by applying the similarity laws described in [15]. The depth of the slab was 125 mm. It was reinforced with steel meshes: one on the top made with 6 mm diameter bars spaced 100 mm, and another on the bottom consisting of 10 mm diameter bars spaced 75 mm. The average yield stress of the reinforcing steel was 467 MPa, and the average concrete strength was 23.5 MPa. The model was tested with a uniaxial MTS 3 × 3 m² shaking table as shown in Figure 15.

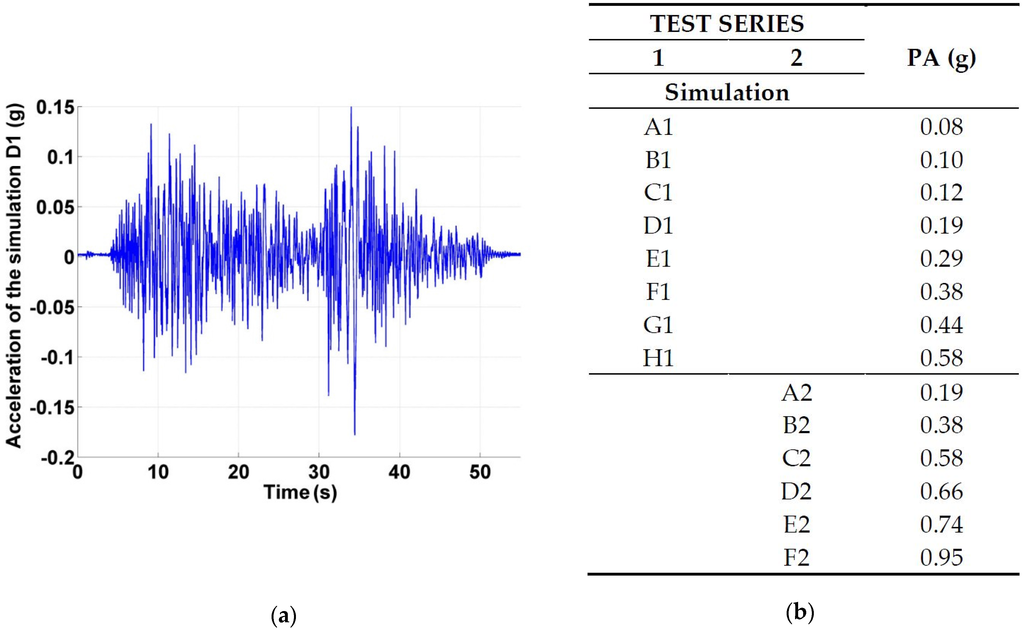

The acceleration record used for the tests reproduced the North-South (NS) component of the 1980 Campano-Lucano earthquake recorded at Calitri (Italy). Two series of seismic simulations were applied to the test model. The same accelerogram was used in all simulations, the scaling factor of the peak accelerations (PA) being the only difference (Figure 16). Displacements, strains and accelerations were acquired simultaneously during each seismic simulation.

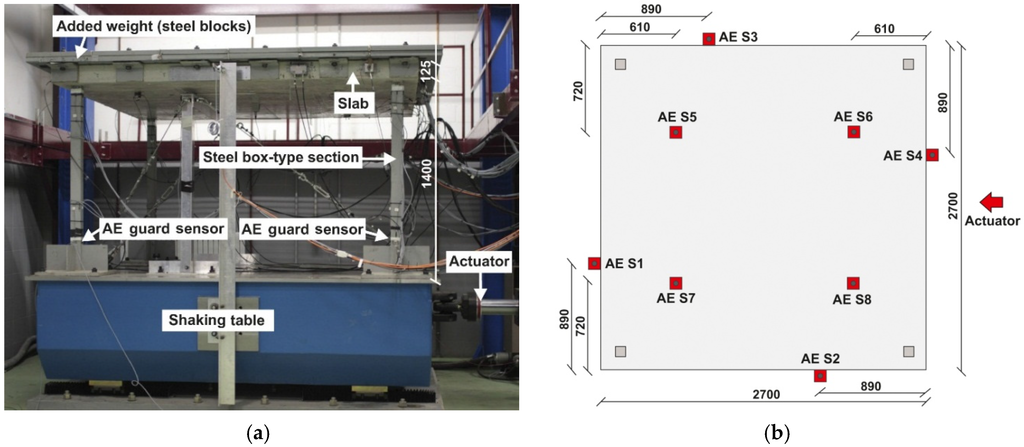

Eight VS30-V AE sensors were placed on the specimen at the eight positions indicated in Figure 15. AE signal acquisition was carried out using a sampling period of 1.6 μs, 45 dB_AE as the detection threshold and amplifiers of 34 dB_AE. An AE signal discrimination procedure was applied to prevent spurious and friction sources using guard sensors and an RMS filter [18]. The accumulated AE MARSE energy, E^AE, was calculated for the first-hit of the events constructed with the eight channels [15]. As an example, Figure 17 shows E^AE with dashed lines for simulations D1 (before the sliding point of the reinforcement steel inside the concrete) and D2 (after sliding point). In this figure, the overall plastic strain energy W_P dissipated is superimposed by solid lines. Both E^AE and W_P were normalized by their values at the end of each simulation. As seen in Figure 17, for simulation D1, the two energy curves are very well correlated. However, in simulation D2, this correlation is not maintained, the accumulated AE energy being consistently lower than the cumulative strain energy.

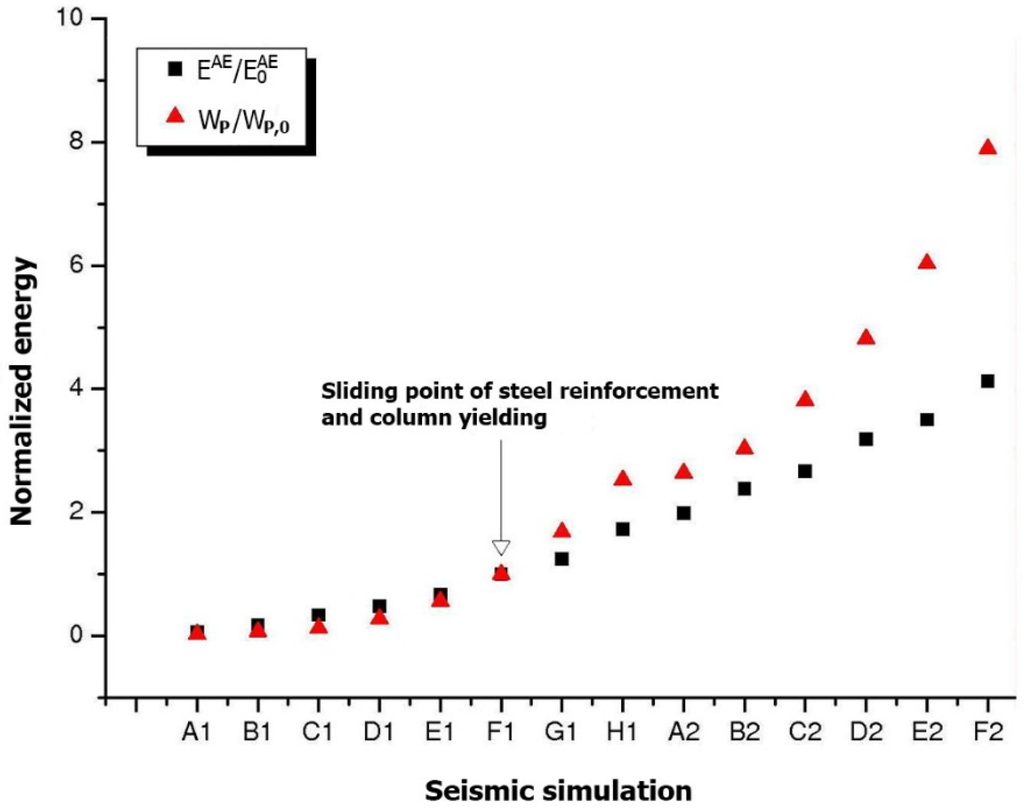

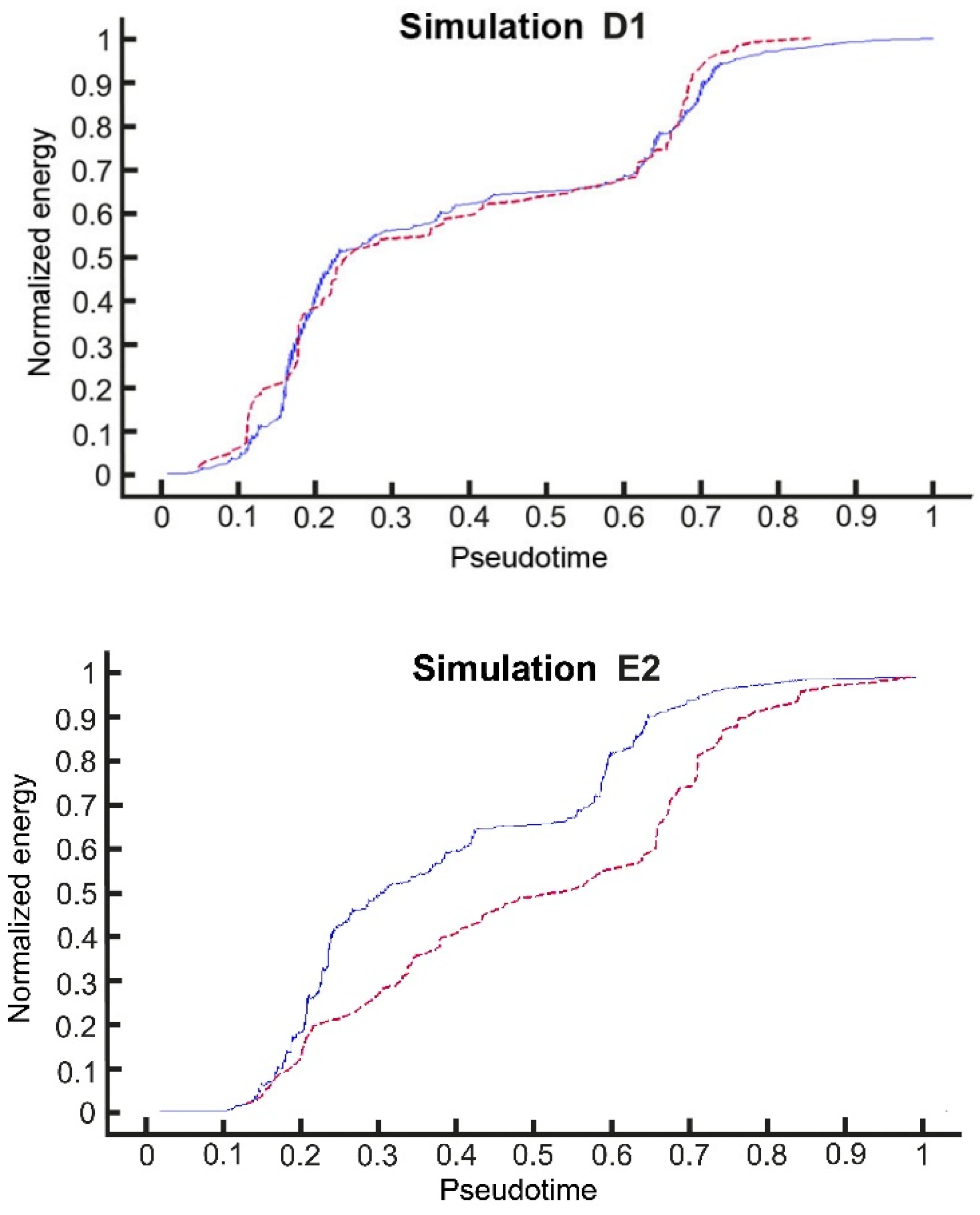

Figure 18 represents the final values of both energies obtained in each simulation, normalized by their respective values $E_0^{AE}$ and W_P,0 at the onset of the sliding point of the steel reinforcement, timed at t₀. At that moment, the steel columns also began to yield. The AE threshold used (45 dB_AE) during acquisition could not record the very low amplitude AE proceeding from the plastic strain of steel. This fact justifies the very good correlation between $E^{AE}$ and W_P up to t₀ and the deviation of the two energies after this point, again in very good agreement with Equations (1) and (2).

3.2. RC Frame

A prototype RC building was designed following the current Spanish seismic code NCSE-02, assuming that it was located in Granada (Spain), the most earthquake-prone region in all of Spain. From this prototype, and by applying scale factors, the test model displayed in Figure 19 was projected and constructed [14,19,20]. Basically, the test specimen consisted of four RC columns connected by RC beams (Figure 19).

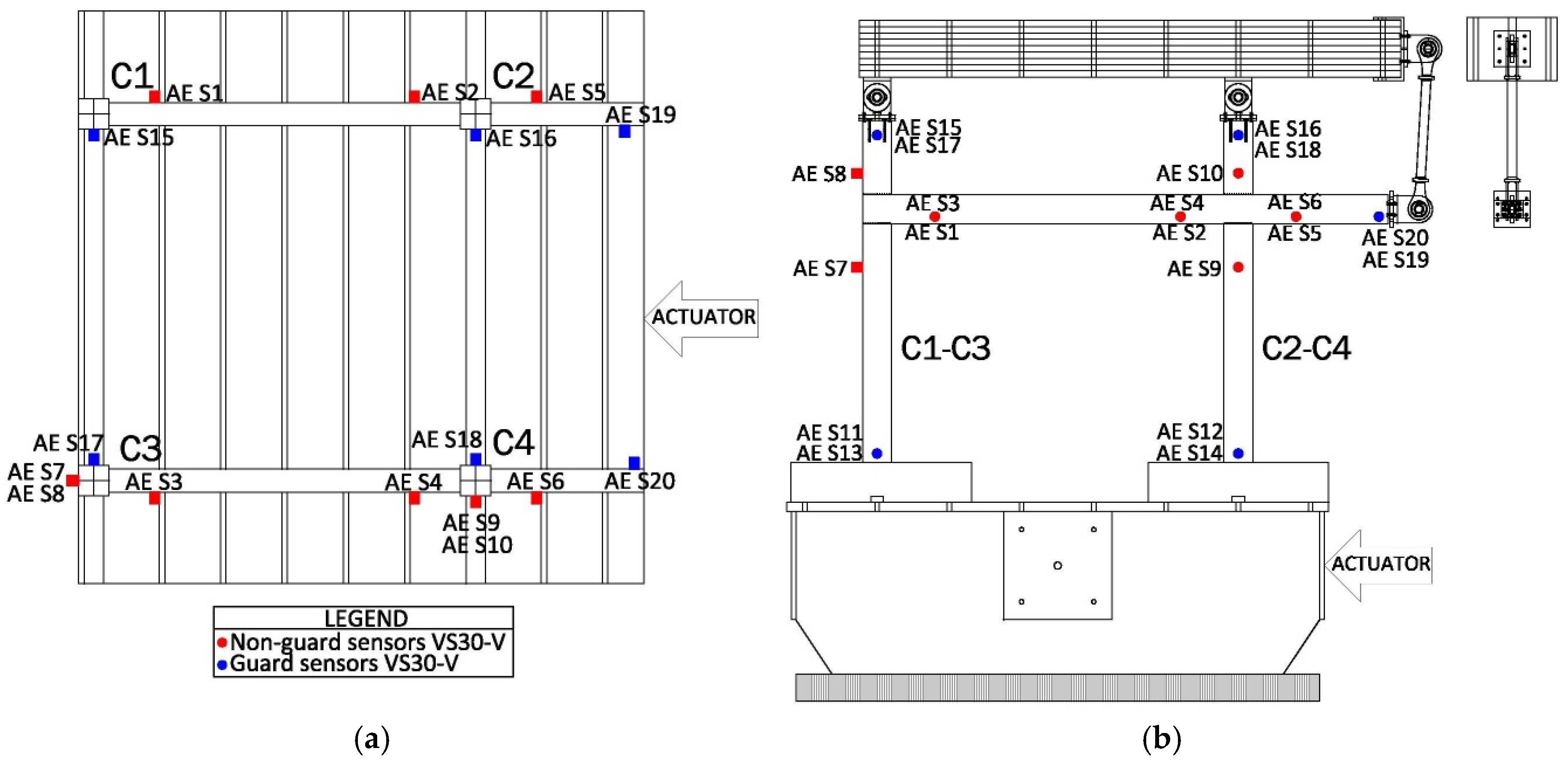

AE signals were acquired with twenty VS30-V AE sensors (Figure 19), recording the waveform with a sampling frequency of 2.5 MHz and a detection threshold of 50 dB_AE and preamplifiers of 34 dB_AE. In addition, the steel reinforcement was instrumented with 192 strain gauges and 10 uniaxial accelerometers, and nine displacement transducers were installed on the RC specimen in order to measure the in-plane translations and the inter-story drifts in the direction of the seismic loading.

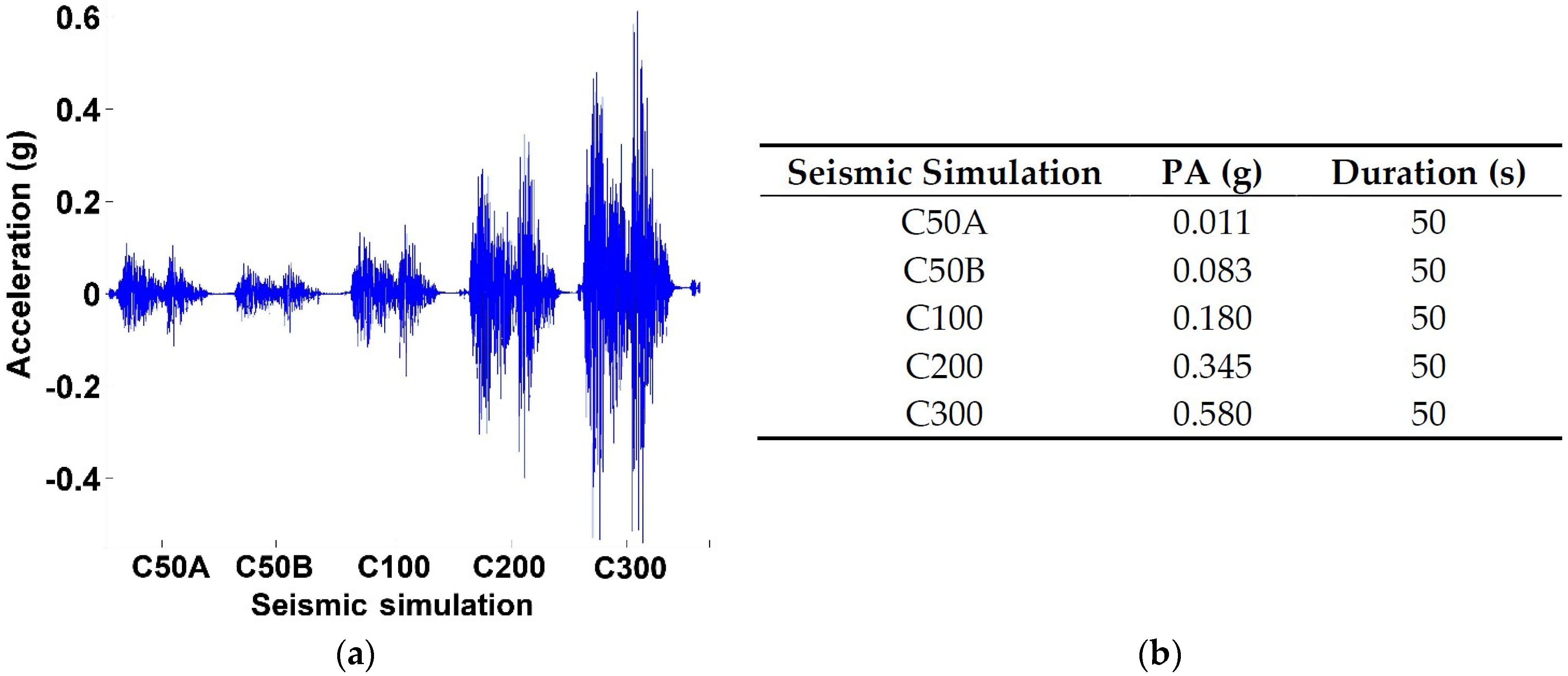

The RC frame was subjected to the same earthquake pattern as the RC slab. In this case, five seismic uniaxial tests were consecutively applied to the specimen with steadily increasing values of PA, i.e., 50%, 50%; 100%; 200% and 300%. Figure 20 shows the corresponding accelerograms.

A local damage study in the C3 and C4 beam-column connections was based on the AE energy generated at the zones around these connections, which are, in fact, the most critical points of the specimen. For interior connection C4, the sensors S2, S6, S9 and S10 were configured to construct the AE events, and the rest were considered as guard sensors. Likewise, for the exterior column-beam connection C3, only the sensors S3, S7 and S8 were configured to construct the AE events, the rest being considered as guards [19].

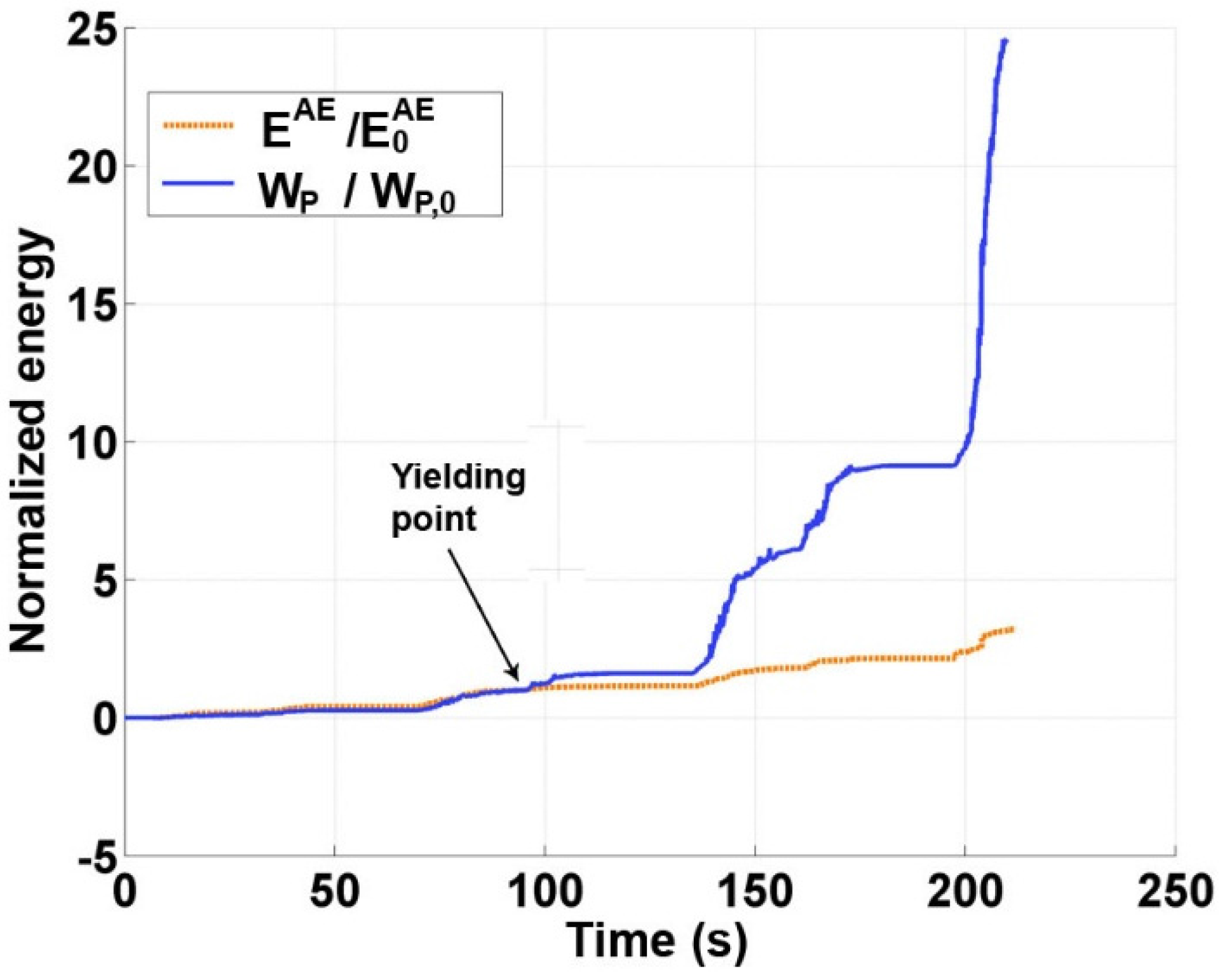

The Morlet Continuous Wavelet Transform (CWT) was applied in order to reconstruct AE signals using only scales 18 to 20, which correspond to the 45–64 kHz frequency band, tentatively assigned to the concrete cracking [16,17]. The accumulated AE MARSE energy, E^AE, was calculated for the reconstructed AE signals corresponding to the first-hit of events. Results are shown in Figure 21 along with the overall plastic strain energy (W_P) dissipated by the specimen [13,14]. Both E^AE and W_P were normalized by their respective values $E_0^{AE}$ and W_P,0 at the onset of yielding of the steel reinforcement. Figure 21 reflects the same result as in previous tests, namely a very good correlation between $E^{AE}$ and W_P until t₀, and a divergence of the energies after this point, in very good agreement with Equations (1) and (2). It is worth noting that, besides the good correlation between $E_0^{AE}$ and W_P,0, it is consistently observed that the development of cracks in concrete reduces the fundamental frequency of vibration of the specimen and increments the fraction of damping [14,25,26]. The reduction of the fundamental frequency is due to the decrease of stiffness. The increase of damping is associated with the energy dissipated through friction between the planes of fracture after cracking. Moreover, the accumulated damage (in terms of plastic strain energy) always increases monotonically over time, and the rate of this increase tends to augment with the amplitude of the applied load.

This satisfactory correlation is consistent with the results of other researchers [27,28,29,30]. Since in the specimens subjected to seismic loading, the forces were applied dynamically in successive seismic simulations, only macroscopic cracks were observed at the end of each one. These cracks were evident after the first seismic simulation. In subsequent simulations, macroscopic cracks extended and new ones developed. In the case of the RC slab, all the cracks identified were of the flexural type. As for the RC frame, flexural cracks developed at beam and column ends (i.e., near the beam-column joint), and shear cracks were visible only within the beam-column joint.

4. Conclusions

The Acoustic Emission (AE) technique was used to assess damage in several reinforced concrete (RC) elements and structures subjected to different types of loading. Simple beams, beam-column subassemblages, flat-slab structures supported on steel columns, and RC frame structures were tested. The RC elements and structures were subjected to static cyclic loads and randomly applied dynamic loadings. During each test, the AE was recorded by several low-frequency sensors. In addition, forces, accelerations and displacements were measured with load cells, accelerometers and displacement transducers. Analysis of the AE signals served to calculate the AE MARSE energy accumulated throughout the test. By integrating the load-displacement curves, the energy dissipated through plastic deformations was calculated. Plastic strain energy is commonly recognized as a good indicator of damage; and it was found that there is a good correlation between the AE MARSE energy calculated with the AE measurements and the cumulative damage on the concrete measured in terms of plastic strain energy. Such a correlation points to the utility of AE signals for developing damage indices based on AE MARSE energy, as they are capable of assessing the damage in RC structures subjected to different types of loadings. An example of the damage index based on the correlation of the strain and acoustic energies is the Sentry function, proposed in [31], in terms of the logarithmic ratio of both energies. The reason why AE MARSE energy can be utilized for the establishment of damage indices in reinforced concrete (RC) elements is that the failure of RC structural elements is typically due to the degradation (damage) of concrete, not of the reinforcing steel. That is, what typically limits the ultimate capacity of a RC element is the amount of plastic strain energy accumulated in the concrete, not in the reinforcing steel. It is also worth noting that, in a real experiment or in a real structure, calculating the damage index in terms of AE MARSE energy requires an estimation of the final value of the AE MARSE energy (i.e., the value associated with failure). Past research [15,32] ascertained that this estimation can be made on the basis of the information collected from previous experiments and the volume of concrete of the specimen or of the real structure. A change in specimen size does not have appreciable effects on damage patterns, but the volume V of damaged concrete affects the number of AE events as well as the AE MARSE energy; simple relationships that relate AE MARSE energy with V have been proposed [33,34,35,36].
