Thermal Optimization of Horizontal Tubes with Tilted Rectangular Fins under Free Convection for the Cooling of Electronic Devices

Abstract

In the present work, the horizontal tubes with tilted rectangular fins under free convection are experimentally investigated for the cooling of electronic devices. The temperature differences of horizontal tubes with tilted rectangular fins are measured for several heat inputs, tilt angles, and numbers of fins. Using the measurement results, a correlation for the prediction of the Nusselt number is suggested. This correlation is suitable for the situation for Rayleigh numbers of 200,000–1,100,000, tilt angles of 0°–90°, and numbers of fins of 9–36. On the basis of the correlation, the cooling performances are presented for various numbers of fins and thicknesses of fins, and the value of the optimal cooling performance is found. Finally, the optimal cooling performances of tubes with tilted rectangular fins and conventional radial rectangular fins are compared. The comparison results show that the optimal cooling performance of the tube with tilted fins is 6% greater than that of the tube with radial rectangular fins.

1. Introduction

Continuous miniaturization and performance enhancement of electronic devices have resulted in a rapid increase in the amount of heat generated in electronic devices [1,2,3,4]. Without proper thermal management, high rates of heat generation cause excessively high junction temperatures, which degrade the performance and reliability of devices. For example, in the case of light-emitting diodes (LEDs), the light output decreases as the temperature rises, because the quantum efficiency decreases at higher temperatures due to an increase in non-radiative recombinations through defect states [5,6,7,8]. The long-term stability and lifetime of LEDs also decrease with the increasing junction temperature [9,10]. Therefore, thermal management is essential for the maintenance of the performance and the durability of electronic devices [11,12]. Among several cooling techniques suggested for thermal management, natural convective heat sinks are the most widely used because of their high reliability, low cost, zero acoustic noise, and zero power consumption [5,13].

There has been a great deal of research work on the heat sinks under free convection [14,15]. In particular, finned horizontal tubes under free convection have been investigated by many previous researchers. This is mainly because finned horizontal tubes are very widely used in various heat exchangers [16]. In the case of the gas-to-liquid heat exchanger, thermal resistance of the gas side is much greater than that of the liquid side, if there are no fins on the gas side [16]. As a result, finned horizontal tubes are commonly used to reduce thermal resistance of the gas side to improve overall thermal performance of the heat exchanger. Heat exchangers with finned horizontal tubes are widely used in many engineering applications, including refrigerators, air conditioners, and heat pumps. Square vertical fins mounted on horizontal tubes under free convection were studied by Chen and Chou, and Sparrow and Bahrami [17,18]. Annular fins of horizontal finned tube were investigated experimentally, and Nusselt number correlations were developed by Hahne and Zhu, and Yildiz and Yüncü [19,20]. Rectangular fins of radial heat sinks under free convection were investigated experimentally and numerically by Yu et al. [21,22]. Tubes with radial rectangular fins, as shown in Figure 1, are some of the most widely used heat sinks for the cooling of LED lighting. These finned tubes were investigated experimentally and Nusselt number correlations were developed by the present authors [23,24].

Considerable efforts have been aimed at investigating heat transfer through tilted fins. For example, the thermal performances of tilted pin fins in rectangular ducts were investigated by Takeishi et al. [25]. They concluded that tilted pin fins dissipate heat more effectively compared to normal pin fins because of the greater surface area of the tilted pin fins. Experimental and numerical investigation on tilted rectangular fins mounted on vertical plates under free convection was conducted by Hagote and Dahake [26]. They showed that tilted rectangular fins have higher thermal performances compared to normal rectangular fins when the tilt angle is 60°. Recently, the present authors conducted an investigation to compare the thermal performances of tilted rectangular fins mounted on vertical tubes under free convection to those of conventional radial rectangular fins [27]. It was shown that the cooling performance of a vertical tube with rectangular fins can be enhanced by as much as 30% by tilting the rectangular fins. Therefore, it is expected that the cooling performance of radial rectangular fins mounted on horizontal tubes, shown in Figure 1, under free convection can be enhanced by tilting fins, as shown in Figure 2. However, to the best of our knowledge, tilted rectangular fins mounted on horizontal tubes under free convection have not been investigated experimentally yet. As a result, in the case of horizontal configuration, the degree of cooling enhancement of rectangular fins on horizontal tubes by tilting fins and the conditions under which this enhancement is maximized are not clear, because free convection is strongly orientation-dependent.

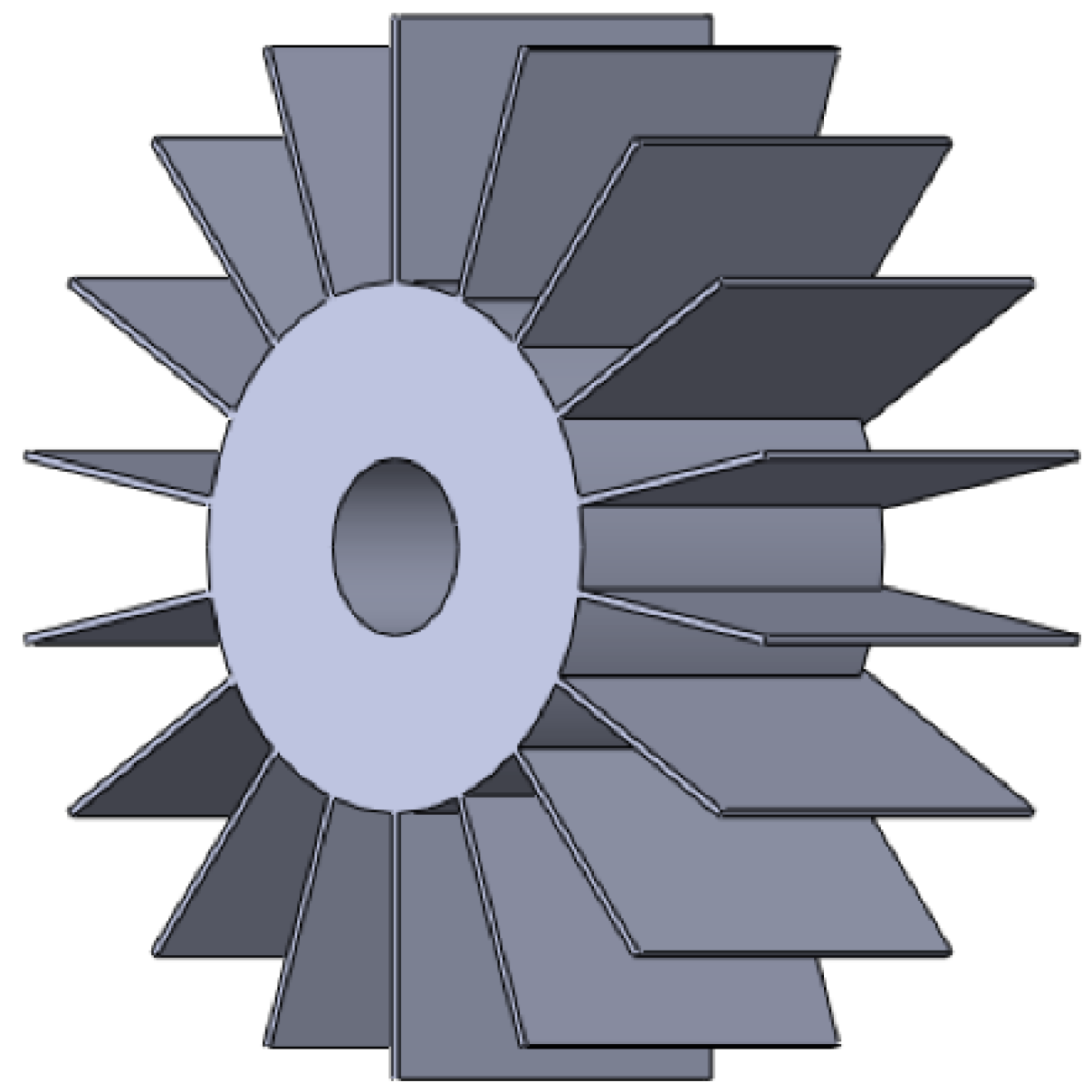

Therefore, in the present study, the horizontal tubes with tilted rectangular fins under free convection are investigated experimentally for the cooling of electronic devices, as an extension of our previous work on the vertical tubes [27]. The temperature differences of horizontal tubes with tilted rectangular fins are measured for several heat inputs, tilt angles, and numbers of fins. Using the measurement results, a correlation for the prediction of the Nusselt number is suggested. On the basis of the correlation, the cooling performances are presented for various numbers of fins and thicknesses of fins, and the value of the optimal cooling performance is found. Finally, the optimal cooling performances of tubes with tilted rectangular fins and conventional radial rectangular fins are compared.

2. Experimental Investigation

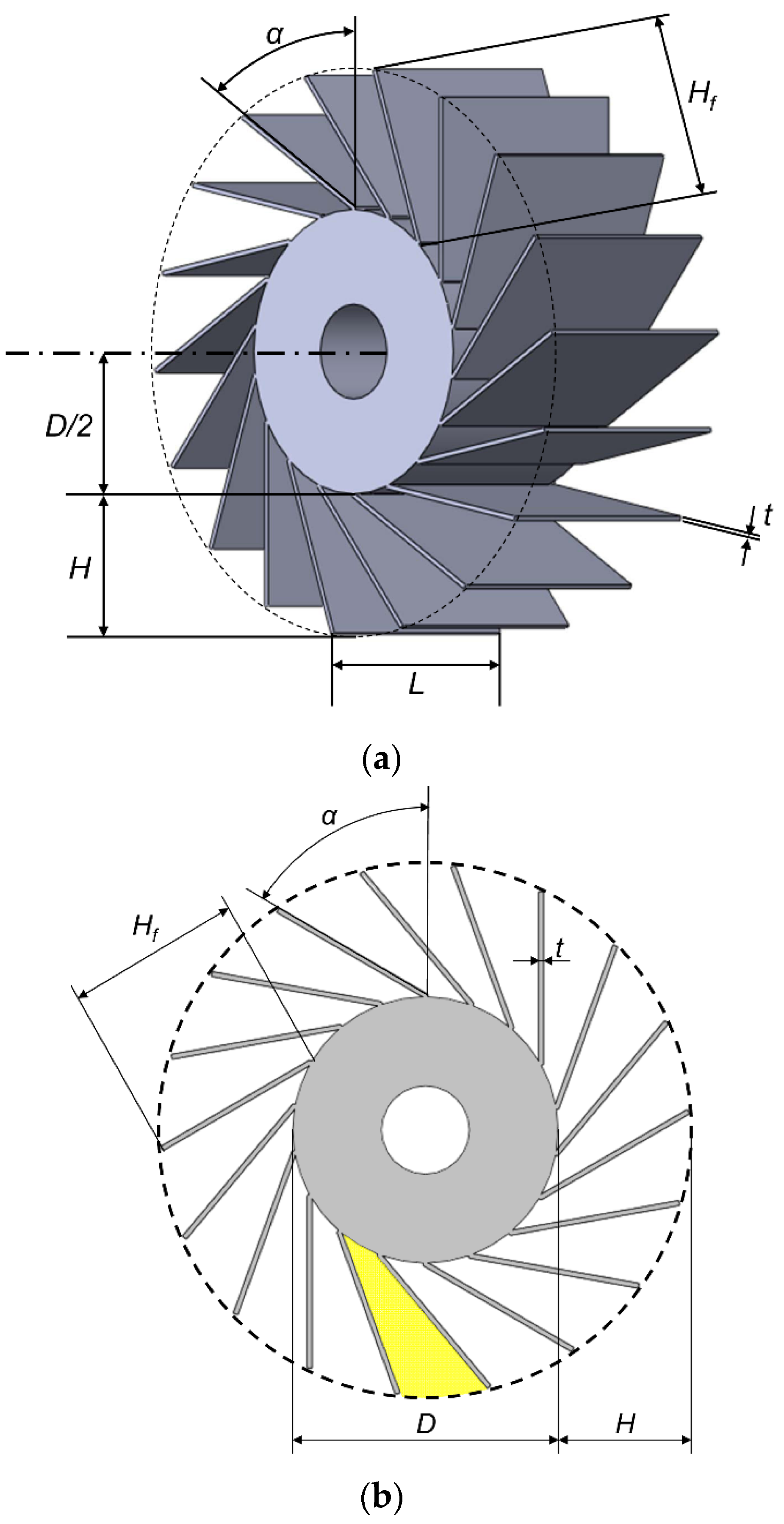

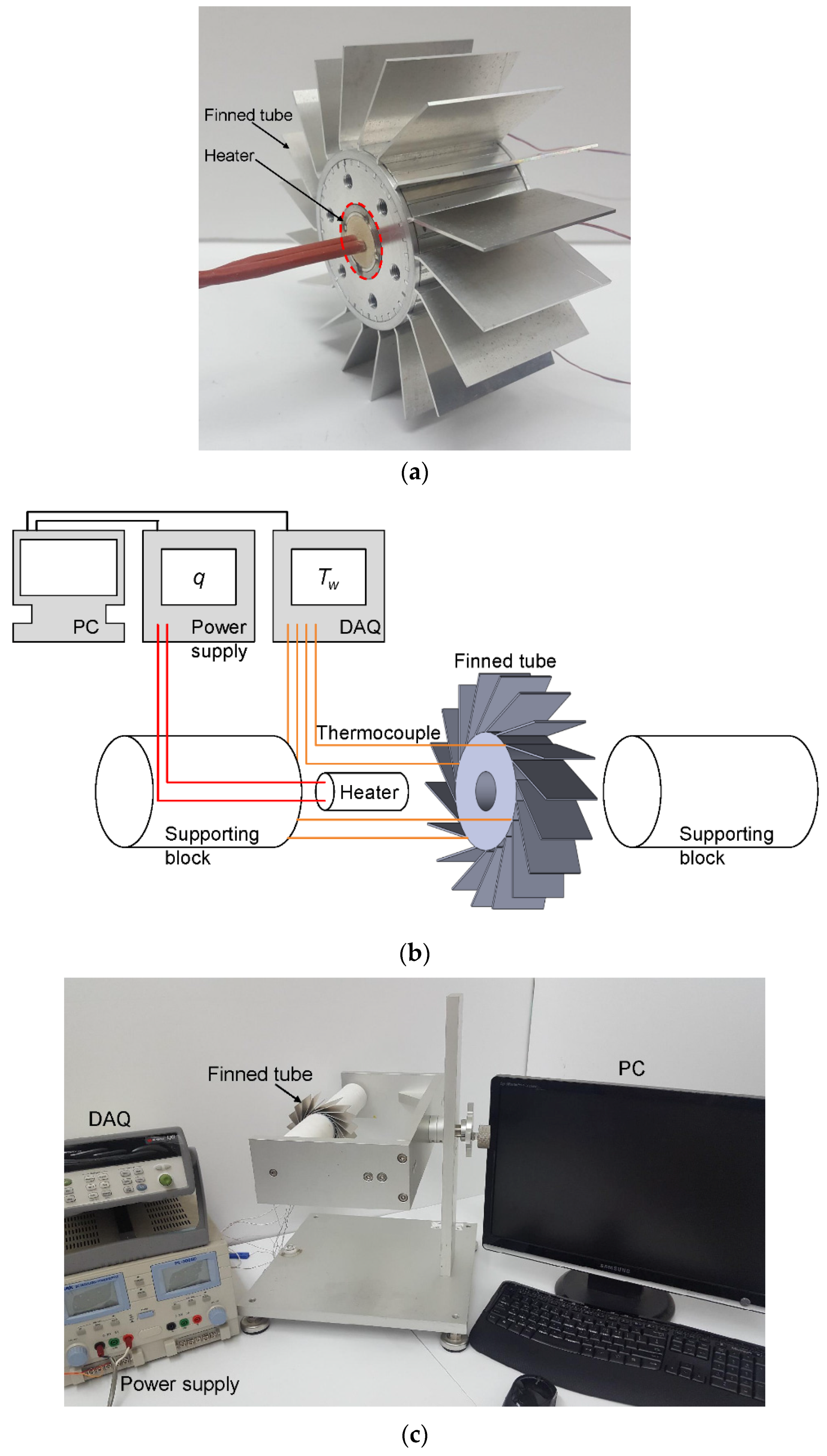

The temperature differences of tubes with tilted rectangular fins under free convection were measured with respect to several heat inputs, tilt angles, and numbers of fins. Schematic drawings of the tube with tilted fins are shown in Figure 2, and the dimensions are listed in

Table 1. Dimensions of tested tubes with tilted fins.

No.	N	α	L	D	H	t
1	9	90°	50 mm	60 mm	30 mm	1.0 mm
2	12
3	18
4	9	60°
5	12
6	18
7	36
8	9	30°
9	12
10	18
11	36

. Eleven different tilted finned tubes with various numbers of fins and tilt angles were tested. However, the case with large tilt angle (α = 90°) and large number of fins (N = 36) was excluded in the test, because the fin spacing was excessively small, and adjacent fins touch and bend each other. An aluminum alloy tube and a cylindrical heater were assembled first (Figure 3a). The cylindrical heater used in the present study was a cartridge heater. The electrical resistance of the heater was 15 Ω and the maximum heating capacity was 60W. For the proper assembly, a thermal interface material was applied between the tube and the heater to enhance the contact between the tube and the heater. The thermal interface material used in the present study was a TC-5080 thermally conductive compound from Dow Corning. The thermal conductivity of this compound is 1 W/m·K and the resulting contact resistance was 0.0022 K/W. Then, aluminum alloy fins were attached on the tube via interference fitting. The Teflon cylinders were used to support the tube and to insulate the left and right sides of the tube (Figure 3b,c). The heater in the tube was powered by a DC power supply (E3633A; Agilent Technology, Santa Clara, CA, USA). Power of 2–38 W was applied to the heater. Four T-type thermocouples were circumferentially attached to the outer surface of tube to measure the tube temperatures. For temperature data acquisition from thermocouples, an acquisition unit (34970A DAQ; Agilent Technology, Santa Clara, CA, USA) was used. The temperatures were recorded when the fluctuations of the temperatures were smaller than ±0.1 °C for two minutes. The experiments were conducted in a quiescent and isolated place. The uncertainty analysis was conducted after finishing the experiments (Appendix A).

3. Results and Discussion

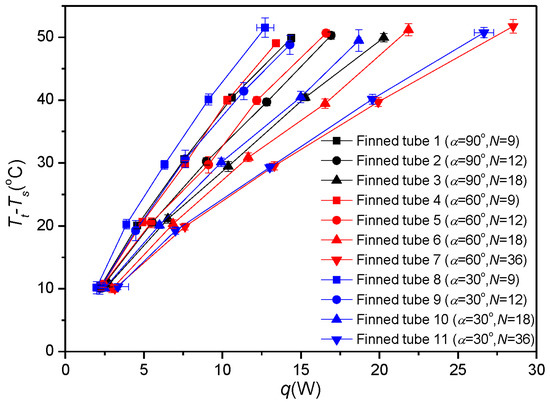

The measurement results on the temperature differences between the tube and the surroundings (T_t − T_s) for several tilt angles (α), numbers of fins (N), and heat inputs (q) are shown in

Table 2. Cooling performances and Nusselt numbers calculated from measurement results.

No.	α	N	Tt − Ts [°C]	q [W]	1/Rth [W/°C]	NuD
1	90°	9	10.4 ± 0.5	2.24 ± 0.01	0.216 ± 0.011	8.71 ± 0.44
			20 ± 0.5	4.58 ± 0.02	0.228 ± 0.006	9.23 ± 0.25
			30.6 ± 0.5	7.57 ± 0.01	0.247 ± 0.004	9.99 ± 0.17
			40.4 ± 0.6	10.61 ± 0.02	0.263 ± 0.004	10.61 ± 0.15
			49.9 ± 0.6	14.39 ± 0.02	0.289 ± 0.003	11.66 ± 0.14
2	90°	12	10.1 ± 0.5	2.27 ± 0	0.226 ± 0.011	7.14 ± 0.36
			20.5 ± 0.5	5.53 ± 0.01	0.269 ± 0.007	8.51 ± 0.22
			30.3 ± 0.6	8.99 ± 0.02	0.297 ± 0.006	9.39 ± 0.18
			39.7 ± 0.5	12.83 ± 0.02	0.323 ± 0.004	10.22 ± 0.14
			50.3 ± 0.6	16.91 ± 0.02	0.336 ± 0.004	10.63 ± 0.12
3	90°	18	10.8 ± 0.5	2.79 ± 0.01	0.26 ± 0.012	5.71 ± 0.27
			21.1 ± 0.7	6.53 ± 0.04	0.309 ± 0.01	6.81 ± 0.22
			29.5 ± 0.8	10.37 ± 0.05	0.352 ± 0.01	7.75 ± 0.21
			40.4 ± 0.5	15.28 ± 0.01	0.378 ± 0.005	8.32 ± 0.11
			49.9 ± 0.6	20.28 ± 0.03	0.406 ± 0.005	8.94 ± 0.12
4	60°	9	10.3 ± 0.5	2.29 ± 0.02	0.221 ± 0.011	11.28 ± 0.59
			20.6 ± 0.6	4.92 ± 0.03	0.239 ± 0.007	12.16 ± 0.36
			29.9 ± 0.5	7.63 ± 0.02	0.255 ± 0.005	13.01 ± 0.24
			40 ± 0.6	10.31 ± 0.03	0.258 ± 0.004	13.14 ± 0.21
			49 ± 0.5	13.42 ± 0.02	0.274 ± 0.003	13.95 ± 0.15
5	60°	12	10.7 ± 0.5	2.42 ± 0	0.226 ± 0.011	9.11 ± 0.43
			20.5 ± 0.8	5.47 ± 0.05	0.267 ± 0.011	10.74 ± 0.44
			29.7 ± 1.3	9.11 ± 0.1	0.306 ± 0.014	12.35 ± 0.56
			39.9 ± 0.6	12.19 ± 0.03	0.305 ± 0.005	12.3 ± 0.2
			50.6 ± 0.5	16.61 ± 0.02	0.328 ± 0.004	13.21 ± 0.14
6	60°	18	10 ± 0.7	2.98 ± 0.04	0.297 ± 0.02	8.44 ± 0.56
			20.3 ± 0.7	6.86 ± 0.04	0.338 ± 0.012	9.6 ± 0.33
			30.9 ± 0.7	11.66 ± 0.04	0.377 ± 0.009	10.73 ± 0.24
			39.4 ± 0.7	16.54 ± 0.05	0.419 ± 0.008	11.92 ± 0.23
			51.2 ± 1	21.85 ± 0.07	0.427 ± 0.008	12.13 ± 0.23
7	60°	36	10 ± 0.6	3.16 ± 0.02	0.315 ± 0.018	4.76 ± 0.28
			19.9 ± 0.5	7.62 ± 0.01	0.383 ± 0.01	5.78 ± 0.15
			29.6 ± 0.7	13.32 ± 0.04	0.451 ± 0.01	6.8 ± 0.16
			39.7 ± 0.7	19.93 ± 0.05	0.502 ± 0.009	7.57 ± 0.14
			51.7 ± 1.1	28.51 ± 0.08	0.551 ± 0.011	8.31 ± 0.17
8	30°	9	10.2 ± 1	1.99 ± 0.07	0.195 ± 0.02	11.55 ± 1.17
			20.2 ± 0.8	3.89 ± 0.03	0.192 ± 0.007	11.4 ± 0.44
			29.7 ± 0.7	6.31 ± 0.13	0.212 ± 0.007	12.59 ± 0.39
			40.1 ± 0.9	9.12 ± 0.2	0.227 ± 0.007	13.49 ± 0.42
			51.5 ± 1.6	12.72 ± 0.55	0.247 ± 0.013	14.65 ± 0.77
9	30°	12	10 ± 0.9	2.19 ± 0.06	0.219 ± 0.021	10.36 ± 0.99
			19.2 ± 1.6	4.48 ± 0.13	0.233 ± 0.021	11.02 ± 0.97
			30.6 ± 1.4	7.64 ± 0.11	0.249 ± 0.012	11.81 ± 0.56
			41.4 ± 1.4	11.37 ± 0.11	0.274 ± 0.009	12.99 ± 0.45
			48.8 ± 1.5	14.3 ± 0.12	0.293 ± 0.009	13.88 ± 0.44
10	30°	18	10.1 ± 0.5	2.51 ± 0.01	0.248 ± 0.012	8.35 ± 0.42
			20.1 ± 0.5	5.99 ± 0.01	0.298 ± 0.008	10.05 ± 0.26
			30.1 ± 0.7	9.93 ± 0.04	0.33 ± 0.007	11.12 ± 0.25
			40.5 ± 0.9	14.99 ± 0.07	0.37 ± 0.009	12.49 ± 0.29
			49.5 ± 1.7	18.69 ± 0.14	0.378 ± 0.013	12.75 ± 0.45
11	30°	36	10.3 ± 0.5	3.34 ± 0.67	0.324 ± 0.067	5.87 ± 1.22
			19.2 ± 0.6	7.01 ± 0.05	0.364 ± 0.011	6.6 ± 0.2
			29.3 ± 0.6	13.02 ± 0.11	0.444 ± 0.01	8.05 ± 0.17
			40.2 ± 0.8	19.55 ± 0.22	0.487 ± 0.011	8.82 ± 0.2
			50.8 ± 0.8	26.65 ± 0.62	0.525 ± 0.015	9.52 ± 0.27

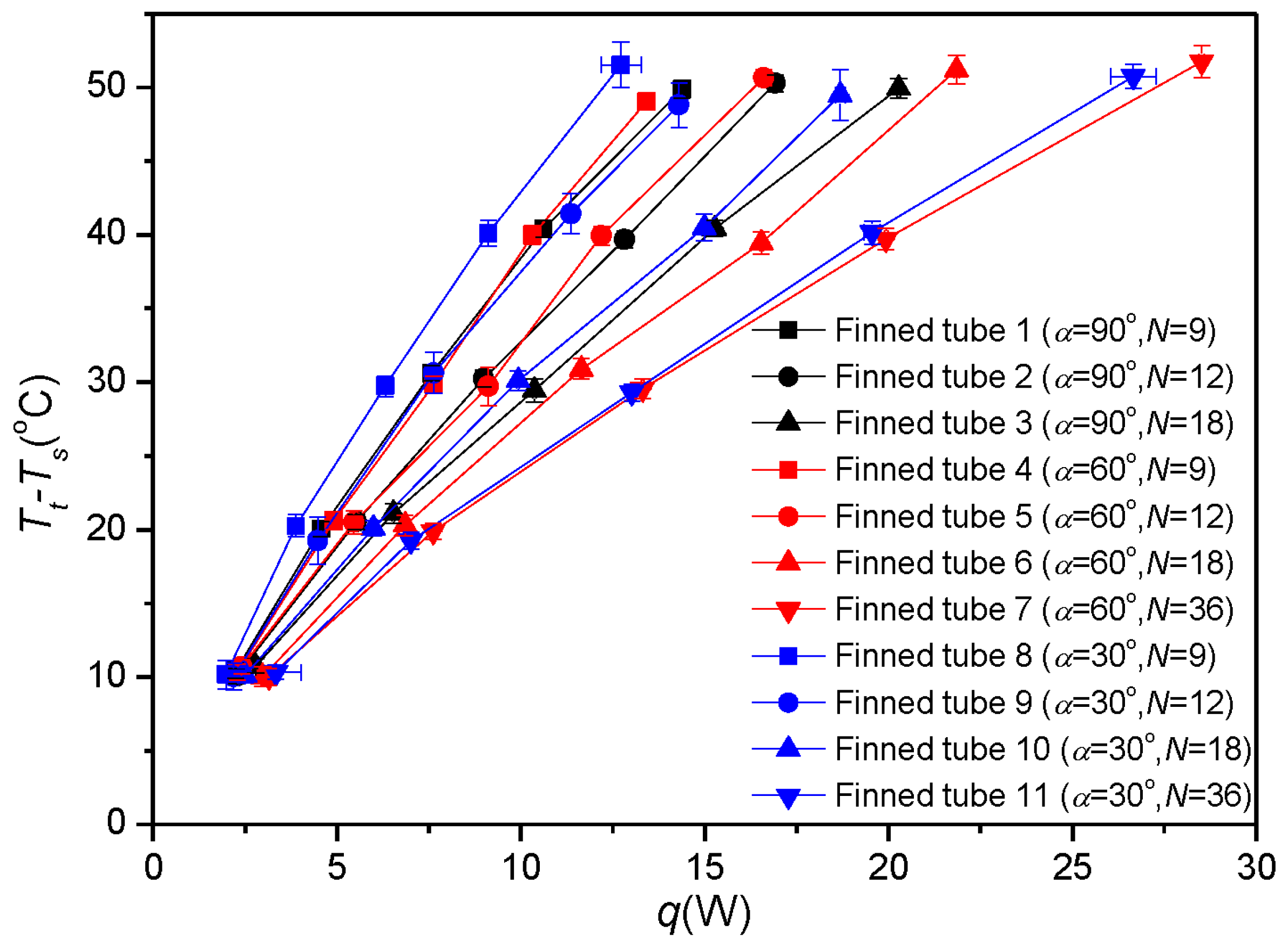

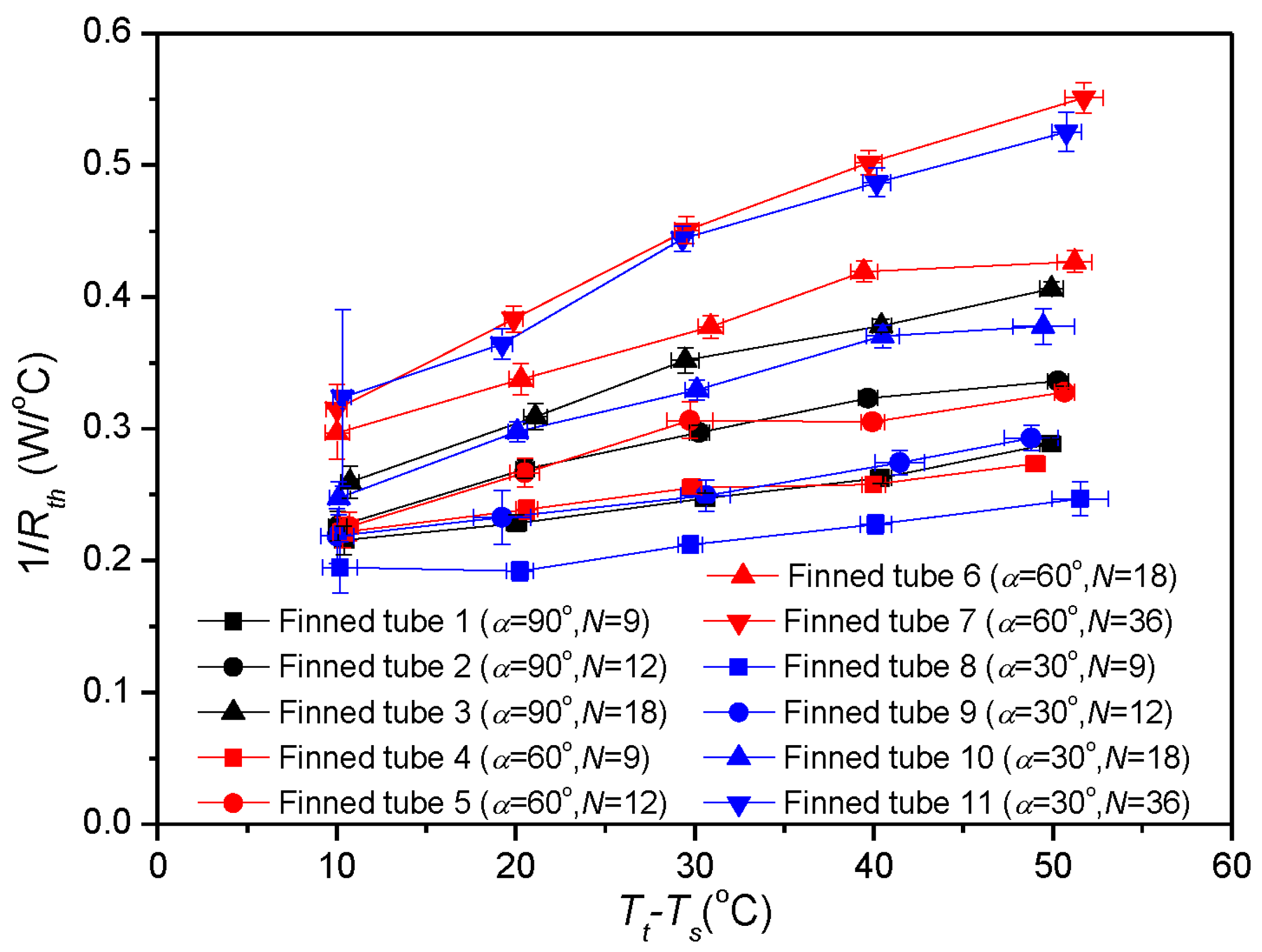

and Figure 4. From the measurement results, the cooling performances of tilted finned tubes are calculated and presented in Table 2 and Figure 5. In the present study, the thermal conductance, which is a reciprocal of the thermal resistance R_th, is used as an index of cooling performance. The thermal conductance 1/R_th can be defined as:

$$\frac{1}{R_{th}}\equiv \frac{q}{T_t-T_s}$$

(1)

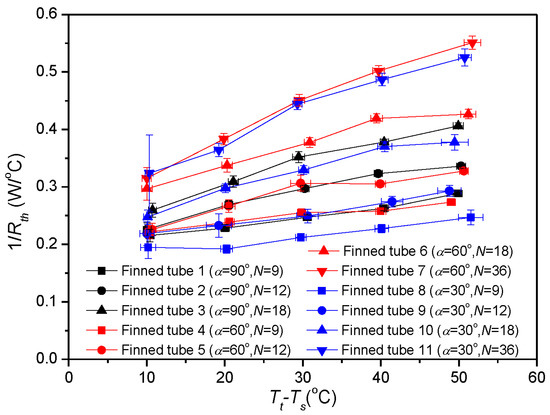

The thermal conductance 1/R_th is the heat dissipation rate per unit temperature difference between the tube and the surroundings. As shown in Figure 5, the cooling performance of the horizontal tube with tilted rectangular fins is maximized when α = 60° and N = 36. According to Figure 4 in [27], in the case of vertical configuration, the cooling performance is also maximized when α = 60° and N = 36. Therefore, among eleven tested finned tubes, the tilted finned tube with α = 60° and N = 36 is the best, regardless of configuration.

The thermal conductance 1/R_th can be expressed as a function of the effective surface area A_eff, the unfinned surface area A_b, the fin surface area A_f, the heat transfer coefficient h, and the fin efficiency η:

$$\frac{1}{R_{th}}=h{A}_{eff}=h(A_b+\eta N{A}_f)$$

(2)

where

$$A_b=\pi DL-NLt$$

(3)

$$A_f=Lt+2H_{f}t+2H_{f}L$$

(4)

$$h=N{u}_D{k}_f/D$$

(5)

$$\eta =\frac{\sqrt{hp{k}_s{A}_c}}{h{A}_f}\frac{\left(h/\sqrt{\frac{hp}{k_s{A}_c}}{k}_s\right)+tanh\left(\sqrt{\frac{hp}{k_s{A}_c}}{H}_f\right)}{\left(h/\sqrt{\frac{hp}{k_s{A}_c}}{k}_s\right)tanh\left(\sqrt{\frac{hp}{k_s{A}_c}}{H}_f\right)+1}$$

(6)

Here, k_f and k_s are the thermal conductivities of the fluid and the solid, respectively. In Equation (6), the convection heat transfer from the fin tip is considered. The fin height H_f, the fin perimeter p, and the fin cross-sectional area A_c are given as:

$$H_f=\sqrt{HD+H^2+D^2{\cos }^2\alpha /4}-D\cos \alpha /2$$

(7)

$$p=2t+2L$$

(8)

$$A_c=Lt$$

(9)

The Nusselt numbers Nu_D in Equation (5) are calculated from measured temperature differences and heat inputs by using Equations (1)–(9), and are tabulated in Table 2. In addition, the hydraulic diameter D_h of the yellow region in Figure 2b, i.e., the channel between two adjacent fins, is given as:

$$D_h=\frac{\pi {(D+2H)}^2/N-\pi D^2/N-4H_{f}t}{2\pi R/N+2H_f-t}$$

(10)

Therefore, the dimensionless hydraulic diameter D_h* can be defined as:

$$D_h^{*}=\frac{D_h}{D}$$

(11)

In the present study, the Nusselt number correlation for the horizontal tubes with tilted rectangular fins that best matches the measurement results is developed. The functional form of the Nusselt number correlation is proposed by modifying that for the horizontal tube without fins as follows:

$$N{u}_D=f\cdot N{u}_{D,cyl}$$

(12)

Nu_D,cyl is the Nusselt number for the horizontal tube without fins, and is given as the following equation [28]:

$$N{u}_{D,cyl}={\left(0.60+\frac{0.387R{a}_D^{1/6}}{{\left(1+{\left(0.559/\mathrm{Pr}\right)}^{9/16}\right)}^{8/27}}\right)}^2$$

(13)

In Equation (13), the Rayleigh number Ra_D is defined as Equation (14) in terms of the thermal diffusivity of the fluid α_f, the kinematic viscosity of the fluid ν_f, the volume expansion coefficient of the fluid β_f, and the gravitational acceleration g:

$$R{a}_D=\frac{g{\beta }_f(T_w-T_{amb})D^3}{{\nu }_f{\alpha }_f}$$

(14)

The function f in Equation (12) is related to the influence of the tilted fins on the heat dissipation. Function f should monotonically decrease as the hydraulic diameter D_h decreases. This decrease occurs because the heat dissipation from a fin is suppressed by adjacent fins owing to the overlap of the thermal boundary layers developing on the surfaces of the fins. As the hydraulic diameter D_h decreases, the fin-by-fin spacing decreases, and the overlap of the thermal boundary layers and the suppression of the heat dissipation from the fins increases. Several functional forms for function f that satisfy this condition are tested by using a least-squares fit on the measurement results, and it is found that the functional form:

$$f=C_1-C_2\exp (-C_3{D}_h^{*})$$

(15)

best matches with the measurement results when the coefficients are given as:

$$C_1=1.08,C_2=1.17,C_3=5.02$$

(16)

The coefficient C₁ is the ratio of Nusselt numbers of the tubes with and without fins in the case when the hydraulic diameter of the space between two adjacent fins is much greater than the diameter of the tube. Therefore, the heat transfer coefficient of the tube with tilted fins is 1.08 times greater than that of the tube without tilted fins, when the hydraulic diameter is much greater than the tube diameter.

Finally, the Nusselt number correlation for the horizontal tubes with tilted rectangular fins under free convection is given as:

$$N{u}_D=\left(1.08-1.17\exp (-5.02D_h^{*})\right){\left(0.60+\frac{0.387R{a}_D^{1/6}}{{\left(1+{\left(0.559/\mathrm{Pr}\right)}^{9/16}\right)}^{8/27}}\right)}^2$$

(17)

When the fin length is zero (H = 0, D_h* = 0), the Nusselt number should be reduced to that for the horizontal tube without fins. To satisfy this limiting conduction, the correlation can be modified as follows:

$$N{u}_D=\left(\left(2.17-2.18\frac{H}{D}\right)-1.17\exp (-5.02D_h^{*})\right){\left(0.60+\frac{0.387R{a}_D^{1/6}}{{\left(1+{\left(0.559/\mathrm{Pr}\right)}^{9/16}\right)}^{8/27}}\right)}^2$$

(18)

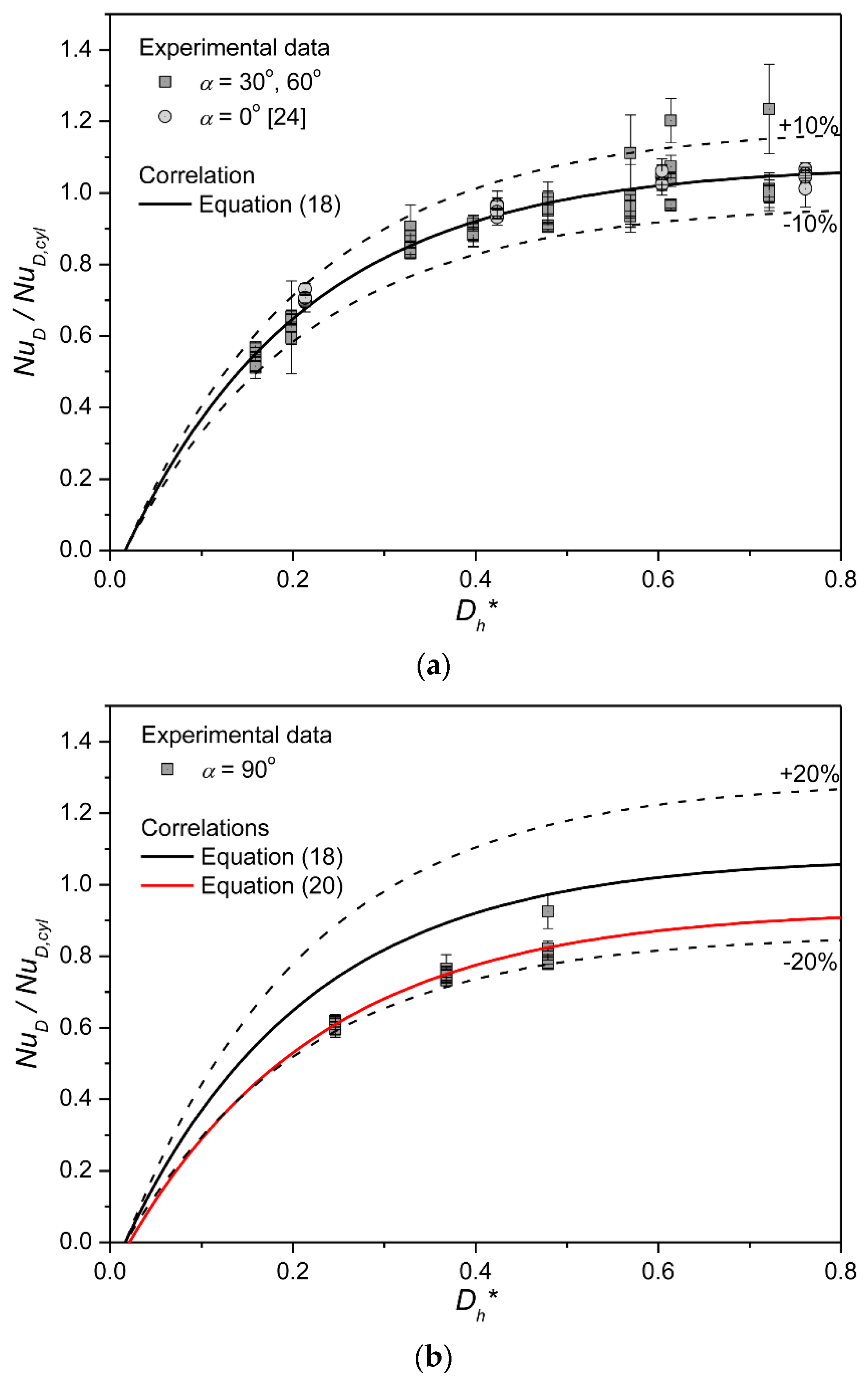

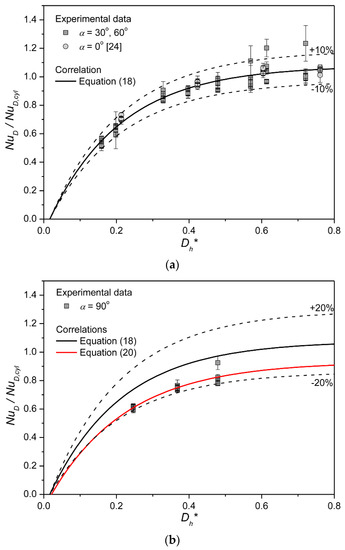

Equations (17) and (18) are identical when H/D is 0.5. In Figure 6a, the Nusselt numbers obtained from the measurement results for the tilt angles of 30° and 60° and those calculated from Equation (18) are presented as functions of the dimensionless hydraulic diameter. Figure 6a indicates that the Nusselt number is strongly dependent on the hydraulic diameter, and that the Nusselt number correlation is in good agreement with the measurement results within a ±10% error. The Nusselt numbers obtained from the measurement results for the tubes with radial rectangular fins (α = 0) presented in [24] are also compared with those calculated from Equation (18). The correlation can predict the Nusselt numbers of the tubes with radial rectangular fins within a ±10% error, in spite of the fact that the correlation is developed for the tubes with tilted fins. In Figure 6b, the Nusselt numbers obtained from the measurement results for the tilt angle of 90° are compared with those calculated from Equation (18). In this case, Equation (18) can predict the Nusselt number within a ±20% error. In addition, another correlation for the Nusselt number is developed to improve the prediction regarding only the tilt angle of 90°, as in the following:

$$N{u}_D=\left(0.932-1.03\exp (-4.71D_h^{*})\right){\left(0.60+\frac{0.387R{a}_D^{1/6}}{{\left(1+{\left(0.559/\mathrm{Pr}\right)}^{9/16}\right)}^{8/27}}\right)}^2$$

(19)

When the fin length is zero (H = 0, D_h* = 0), the Nusselt number should be reduced to that for the horizontal tube without fins. To satisfy this limiting conduction, Equation (19) can be modified as follows:

$$N{u}_D=\left(\left(2.03-2.196\frac{H}{D}\right)-1.03\exp (-4.71D_h^{*})\right){\left(0.60+\frac{0.387R{a}_D^{1/6}}{{\left(1+{\left(0.559/\mathrm{Pr}\right)}^{9/16}\right)}^{8/27}}\right)}^2$$

(20)

The functional forms of Equations (18) and (20) are identical; however, the values of the coefficients for function f are slightly different. As shown in Figure 6b, Equation (20) can predict the Nusselt number within a ±10% error.

As shown in Figure 6a,b, the ratio of the Nusselt number of the tube with tilted rectangular fins (Nu_D) to the Nusselt number of the tube without fins (Nu_D,cyl) is less than 1. However, that does not mean that the tube without fins has better cooling performance compared to the tube with tilted rectangular fins. To compare the resistances of the tubes with and without tilted rectangular fins, it is useful to consider the ratio of the thermal resistance of the tube without fins (R_th,cyl) to the thermal resistance of the tube with tilted rectangular fins (R_th). This ratio satisfies the following equation:

$$\frac{R_{th,cyl}}{R_{th}}=\frac{h{A}_{eff}}{h_{cyl}{A}_{cyl}}=\frac{N{u}_D}{N{u}_{D,cyl}}\frac{A_{eff}}{A_{cyl}}$$

(21)

In this equation, h_cyl is the heat transfer coefficient of the tube without fins and A_cyl is the surface area of the tube without fins. This ratio of the thermal resistances is above 1 when the tube with tilted rectangular fins is better. On the other hand, this ratio is below 1 when the tube without fins is better. The effective surface area of the tube with tilted rectangular fins (A_eff) is much greater compared to the surface area of the tube without fins(A_cyl), because a lot of additional surface area is provided by the fins in the case of the tube with tilted rectangular fins. As a result, A_eff/A_cyl is much greater than 1. Consequently, according to Equation (21), the ratio of the thermal resistances R_th,cyl/R_th is greater than 1, because A_eff/A_cyl is much greater than 1 even though Nu_D/Nu_D,cyl is less than 1. The tube with tilted rectangular fins has much better cooling performance compared to the tube without fins in general.

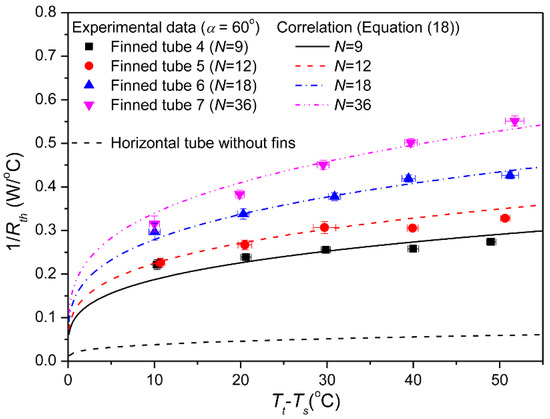

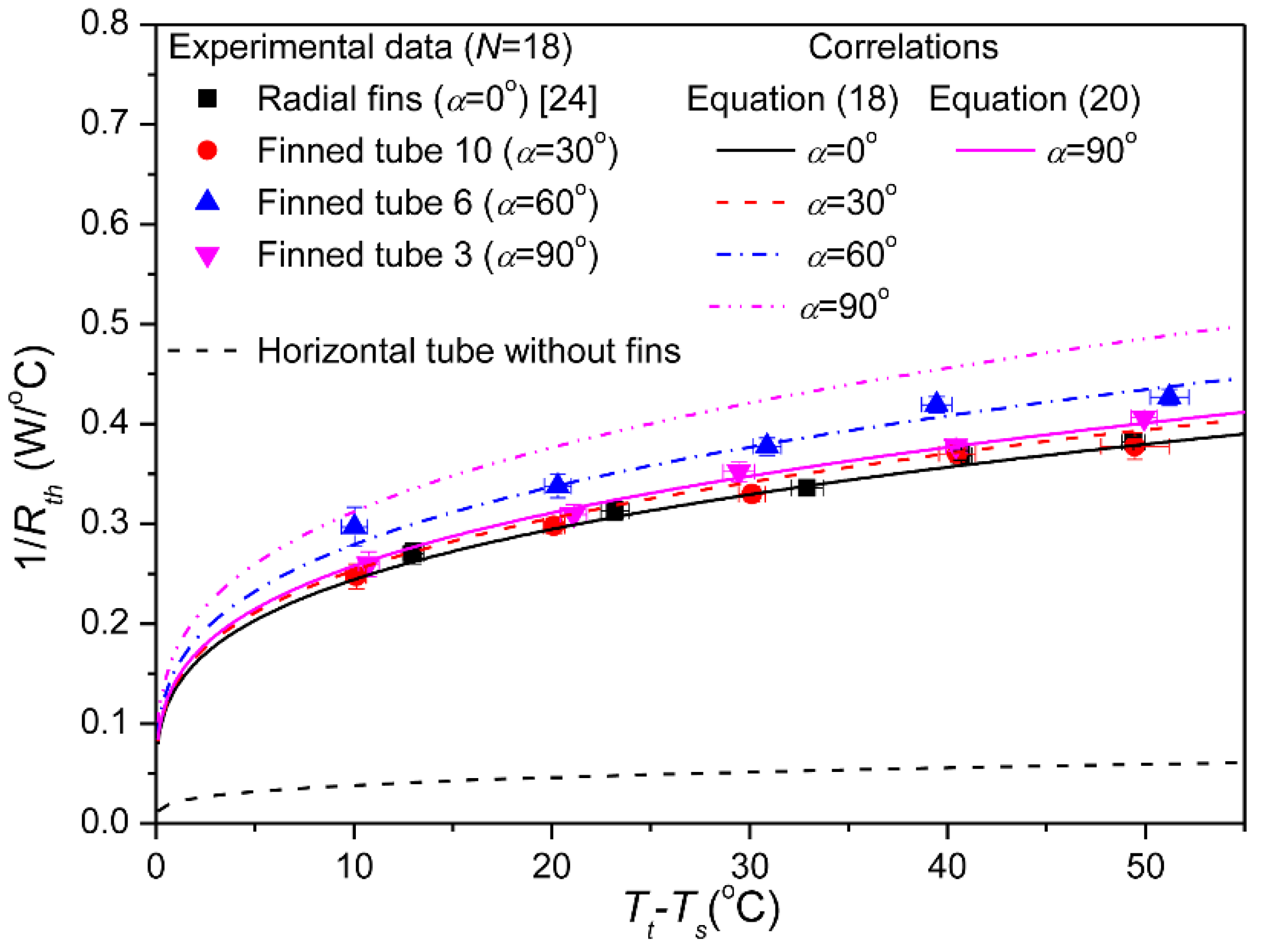

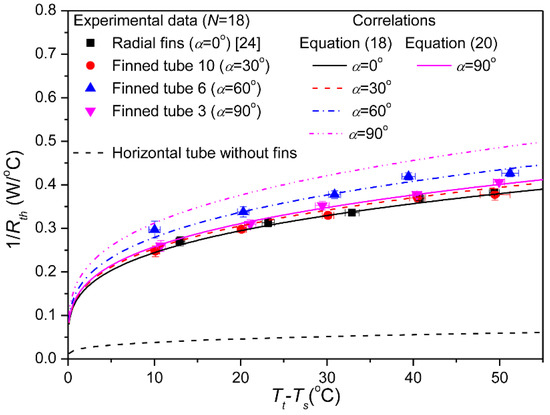

Figure 7 and Figure 8 show the cooling performances for several numbers of fins and tilt angles, respectively. In Figure 7, the cooling performance increases as the number of fins increases. This increase occurs mainly because the fin surface area increases as the number of fins increases. The cooling performance also increases as the temperature difference increases because free convection is driven by the buoyancy force, which increases as the temperature difference increases. In Figure 8, the cooling performance increases as the tilt angle increases from 0° to 60°, after which it decreases for α > 60°. Therefore, there exists a specific tilt angle (α = 60°) for which the thermal resistance is maximized. The reason is that even though the effective surface area ηNA_f + A_b increases as the tilt angle increases, the heat transfer coefficient h decreases because of the boundary layer overlap that resulted from the excessive decrease in fin spacing. In addition, the cooling performance of the tube without fins is also shown in Figure 7 and Figure 8. As explained earlier, the cooling performance of the tube with tilted rectangular fins is much greater compared to that of the tube without fins.

Next, by using the proposed correlation, thermal optimization of horizontal tubes with tilted rectangular fins under free convection is conducted. The constraints and the properties used for thermal optimization are listed in

Table 3. Constraints and properties for thermal optimization.

Constraints		Properties
Tt−Ts	50 °C	αf	2.23 × 10−5 m2/s
L	50 mm	βf	0.0033/K
D	60 mm	νf	1.6 × 10−5 m2/s
H	30 mm	kf	0.026 W/m·K
N	9–36	ks	220 W/m·K
α	60°	-	-

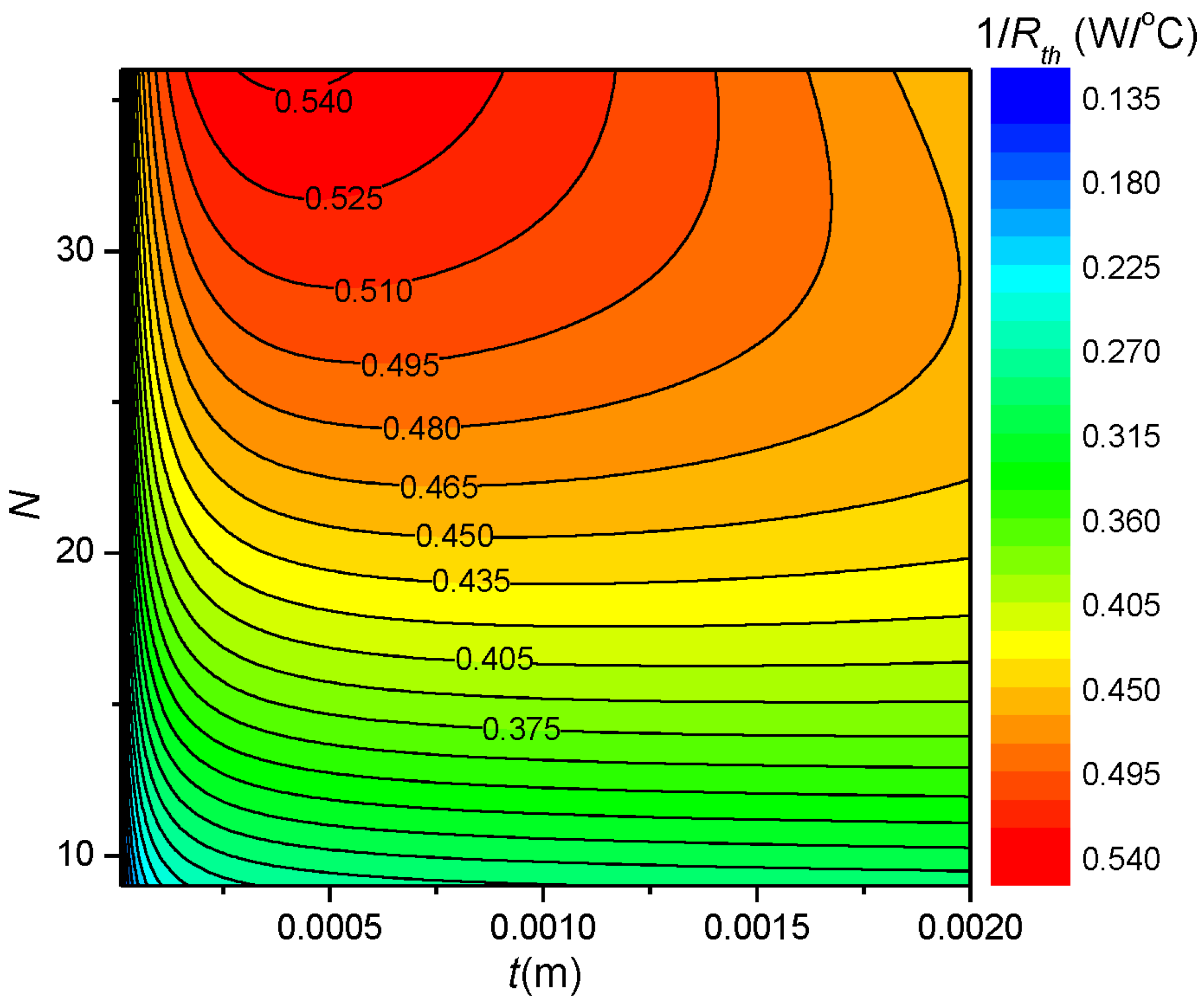

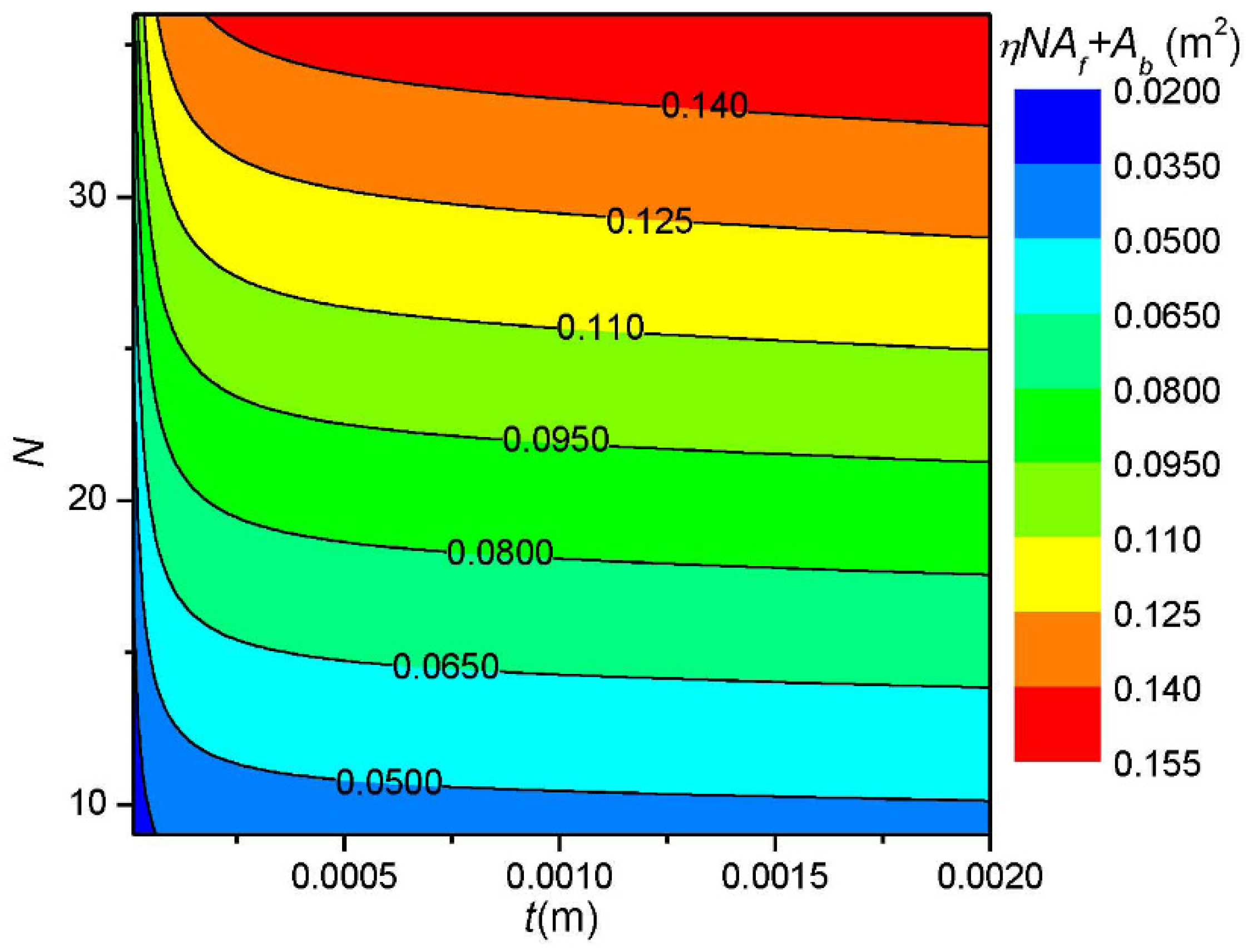

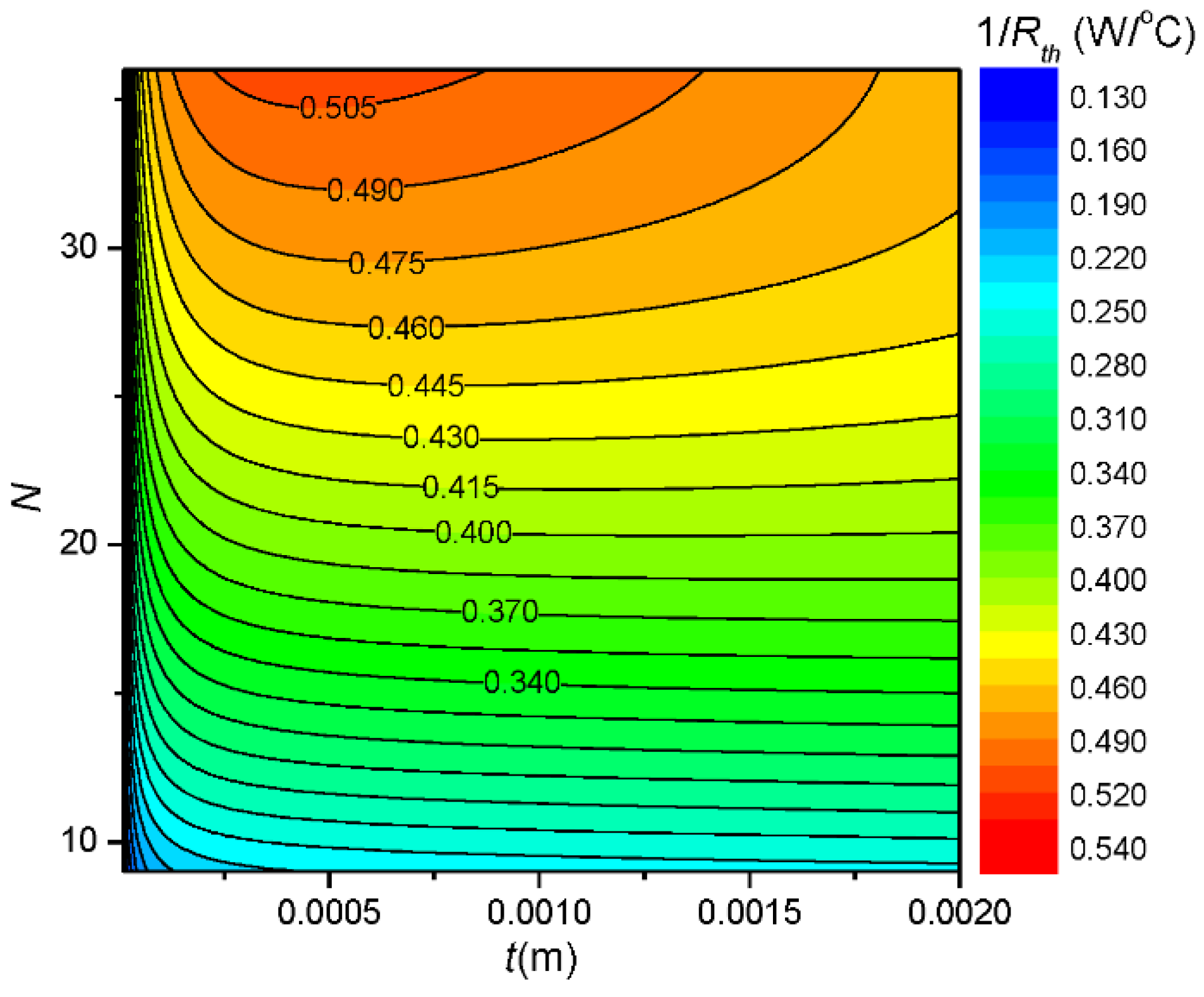

. In Figure 9, a contour plot for the cooling performance is presented for various thicknesses and numbers of fins. In this figure, as the number of fins increases, the cooling performance rises. This occurs because the effective surface area rapidly increases as the number of fins increases, as shown in Figure 10. For the fixed number of fins, as the thickness of fins increases, the effective surface area increases due to an increase in the fin efficiency (Figure 10).

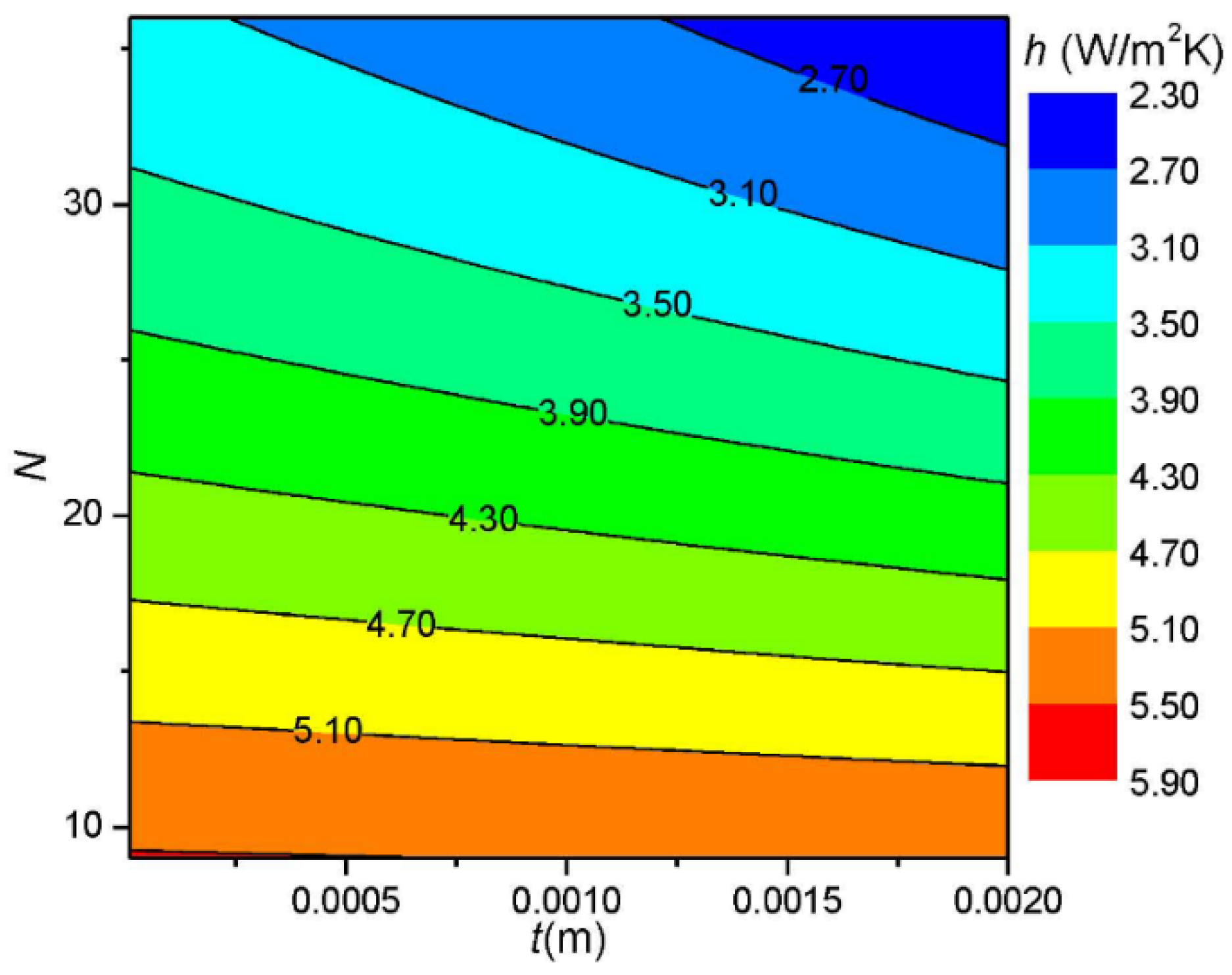

However, as the thickness of fins increases, the heat transfer coefficient decreases due to a decrease in fin-by-fin spacing (Figure 11). As a result, for the fixed number of fins, there exists a specific thickness of fins for which the cooling performance is maximized in Figure 9. Finally, Figure 9 shows that the optimal cooling performance of the tube with tilted rectangular fins is 0.543 W/K. For comparison, the cooling performances of the tubes with conventional radial rectangular fins are presented for various thicknesses and numbers of fins in Figure 12. The optimal cooling performance of the tube with conventional radial rectangular fins is 0.513 W/K. Finally, Figure 13 shows the comparison of the optimal cooling performances of tubes with tilted rectangular fins and conventional radial rectangular fins. As shown in the figure, the optimal cooling performance of the tilted finned tube with a tilt angle of 60° is 6% greater than that of the radial finned tube. Therefore, the tube with tilted rectangular fins can have better cooling performance compared to the tube with radial rectangular fins, if properly designed. In addition, the cooling performance of the tube without fins is also shown in Figure 13. The optimal cooling performance of the tilted finned tube with a tilt angle of 60° is 9.2 times greater than that of the tube without fins.

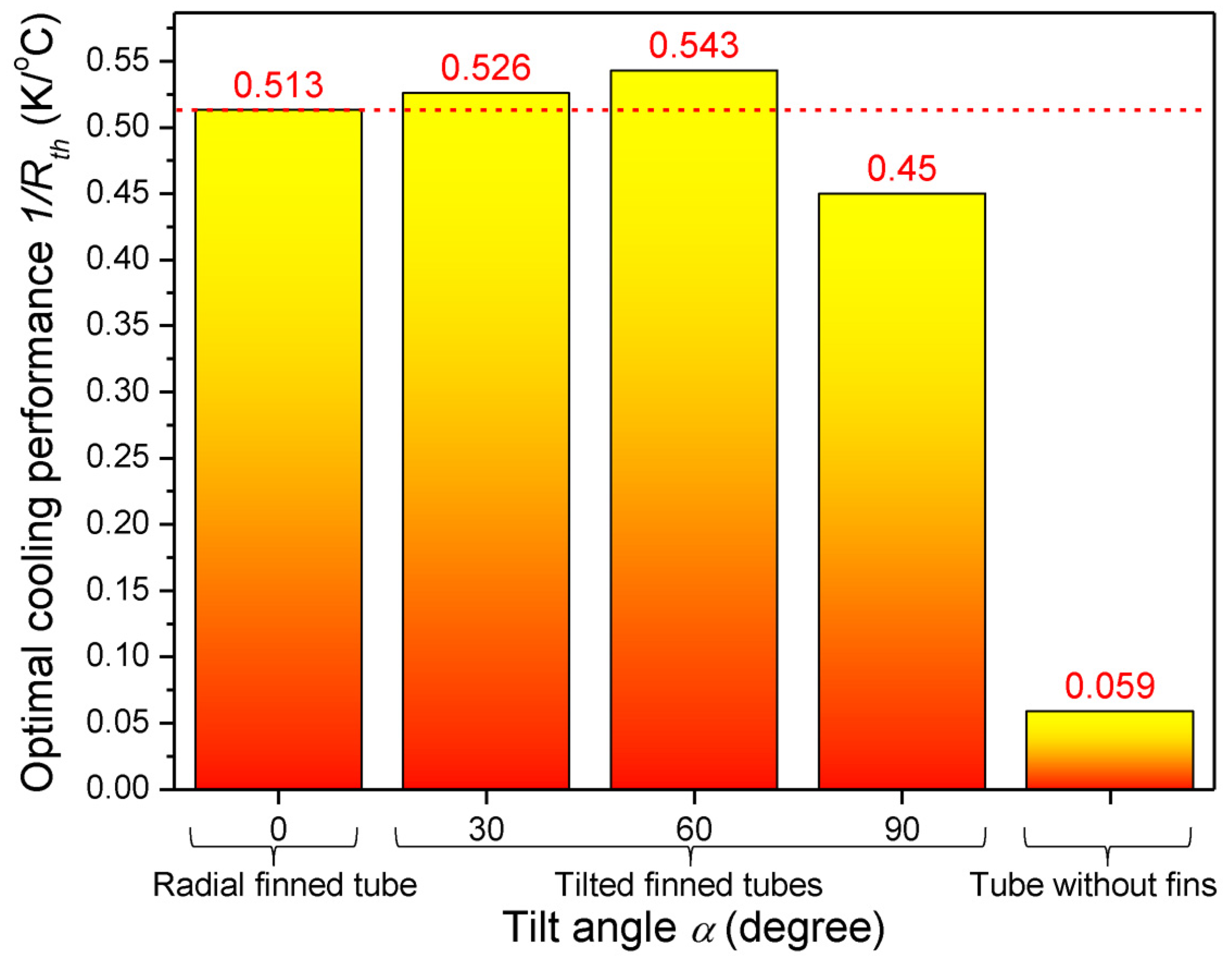

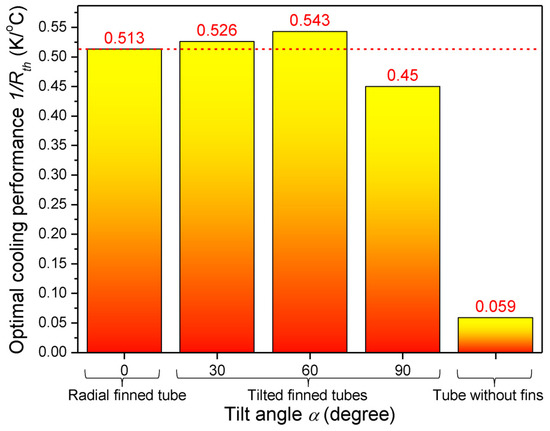

Last of all, the optimal dimensions and optimal cooling performances of the tube with tilted fins in the horizontal and vertical configuration are listed in

Table 4. Optimal dimensions and optimal cooling performances of tubes with tilted fins.

Configuration	N	t [mm]	1/Rth [W/K]
Horizontal	36	0.4	0.543
Vertical [27]	36	0.62	0.943

. The table shows that the optimal cooling performance varies significantly, depending on the orientation. Therefore, orientation dependence should be considered carefully if the orientation of the tube with tilted fins is not always fixed, and may need to be adjusted for the cooling of electronic devices, such as retrofit LED bulbs [5].

4. Conclusions

In the present study, the horizontal tubes with tilted rectangular fins under free convection have been experimentally investigated. The temperature differences of horizontal tubes with tilted rectangular fins were measured for several heat inputs, tilt angles, and numbers of fins. Using the measurement results, a correlation for the prediction of the Nusselt number was suggested. The correlation is suitable for the ranges of Rayleigh numbers of 200,000–1,100,000, tilt angles of 0–90°, and numbers of fins of 9–36, in which the experimental data were obtained. On the basis of the suggested correlation, the cooling performances were presented for various numbers of fins and thicknesses of fins, and the value of the optimal cooling performance was found. Then, the optimal cooling performances of tubes with tilted rectangular fins and conventional radial rectangular fins were compared. Finally, the comparison results showed that the optimal cooling performance of the tilted finned tube with a tilt angle of 60° is 6% greater than that of the tube with radial rectangular fins. In addition, the optimal cooling performance of the tilted finned tube is 9.2 times greater than that of the tube without fins. Therefore, tilted rectangular fins may potentially be used for the cooling of various electronic devices.
