Use of Chitosan as Copper Binder in the Continuous Electrochemical Reduction of CO2 to Ethylene in Alkaline Medium

by
Aitor Marcos-Madrazo
1,
Clara Casado-Coterillo
1,*,
Jesús Iniesta
2 and
Angel Irabien
1
1
Department of Chemical and Biomolecular Engineering, Universidad de Cantabria, Av. Los Castros s/n, 39005 Santander, Spain
2
Department of Physical Chemistry, Institute of Electrochemistry, Universidad de Alicante, Av. Raspeig s/n, 03080 Alicante, Spain
*
Author to whom correspondence should be addressed.
Membranes 2022, 12(8), 783; https://doi.org/10.3390/membranes12080783
Submission received: 8 July 2022 / Revised: 4 August 2022 / Accepted: 8 August 2022 / Published: 15 August 2022
(This article belongs to the Special Issue Electrochemical Membranes: Materials, Characterization, Testing, and Cleaning)
Browse Figures
Versions Notes

Abstract

This work explores the potential of novel renewable materials in electrode fabrication for the electrochemical conversion of carbon dioxide (CO2) to ethylene in alkaline media. In this regard, the use of the renewable chitosan (CS) biopolymer as ion-exchange binder of the copper (Cu) electrocatalyst nanoparticles (NPs) is compared with commercial anion-exchange binders Sustainion and Fumion on the fabrication of gas diffusion electrodes (GDEs) for the electrochemical reduction of carbon dioxide (CO2R) in an alkaline medium. They were tested in membrane electrode assemblies (MEAs), where selectivity to ethylene (C2H4) increased when using the Cu:CS GDE compared to the Cu:Sustainion and Cu:Fumion GDEs, respectively, with a Faradaic efficiency (FE) of 93.7% at 10 mA cm−2 and a cell potential of −1.9 V, with a C2H4 production rate of 420 µmol m−2 s−1 for the Cu:CS GDE. Upon increasing current density to 90 mA cm−2, however, the production rate of the Cu:CS GDE rose to 509 µmol/m2s but the FE dropped to 69% due to increasing hydrogen evolution reaction (HER) competition. The control of mass transport limitations by tuning up the membrane overlayer properties in membrane coated electrodes (MCE) prepared by coating a CS-based membrane over the Cu:CS GDE enhanced its selectivity to C2H4 to a FE of 98% at 10 mA cm−2 with negligible competing HER. The concentration of carbon monoxide was below the experimental detection limit irrespective of the current density, with no CO2 crossover to the anodic compartment. This study suggests there may be potential in sustainable alernatives to fossil-based or perfluorinated materials in ion-exchange membrane and electrode fabrication, which constitute a step forward towards decarbonization in the circular economy perspective.

1. Introduction

Innovative alternatives based on CO2 utilization constitute a key factor to attain the decarbonization of chemical industries [1,2]. The market price of C2H4, among other hydrocarbons, mostly compensates for the investment cost of electrochemical conversion of CO2 by implementation at a larger scale production [3]. The possibilities to tackle the conversion budget of CO2 in the energy and fossil fuel dependency timeframe have been recently surveyed [4].
The development of renewable electricity-CO2 derived products (RE-CO2DP) as a viable alternative relies on three main approaches: (i) electrocatalyst design [5]; (ii) electrode configuration; and (iii) reactor cell design and performance [6,7]. The gap between cell design and electrode configurations that must be filled before industrial production of C2+ hydrocarbons is efficient enough to be implemented at an industrial scale has been recently reviewed [8]. Copper-based electrocatalysts are the only metals known to reduce CO2 to C2-C3 hydrocarbons with acceptable selectivity [9,10,11]. Attempts to tune up the selectivity towards one specific hydrocarbon, i.e., C2H4 or the liquid counterpart, ethanol [12], have been undertaken by changing the surface morphology [13,14,15] and shape [16,17], reducing the particle size [18,19], directing the atomic and electronic structure of Cu [20,21,22], functionalizing nanoparticles [23,24,25,26,27,28], or supporting them into different structures such as graphene or carbon nanotubes [29,30]. Another approach focuses on coating the catalytic layer with an ion-conductive polymeric layer, such as polypyrrole (PPy), to create multifaceted Cu2O:PPy catalysts that reduce competitive H2 and CO formation in the aqueous medium [31] and modifying the functional groups attached to the Cu NPs using anionic or cationic ionomers [32] and hydrophobic or hydrophilic polymer binders [33].
The preferred electrode configuration is that of the GDEs in membrane electrode assemblies (MEAs). The basic role of the membrane in these MEAs is as a solid polyelectrolyte or ion-exchange membrane (IEM) separating the cathodic and the anodic compartments, where the electrolyte flowing through both, one, or none of the compartments leads to different types of electrochemical membrane reactors [34], usually classified as: gas–liquid (G-L) and liquid–liquid (L-L). In G-L or liquid-free type cathode configuration, the pH and the transport of species is regulated by the solid polymer electrolyte IEM separator, which has to overcome the current densities limitations posed by ion, water, and CO2 transport in alkaline aqueous electrolytes and the solid polyelectrolyte IEM.
Electrolytic flow reactor configurations have recently been of interest to a significant number of researchers [35,36,37]. Until recently, the most referenced divided polyelectrolyte membrane electrochemical reactors (PEMERs) focused on cation-exchange membranes (CEMs), whose benchmark were those of the Nafion® family (Dupont, Wilmington, DE, USA). The outcome of commercial anion-exchange membranes (AEMs) for alkaline fuel cells opened the way to newer works claiming that AEMs allowed increasing the working pH of the alkaline electrolyte, from 1 M to 5, 7, or even 10 M [38,39,40,41]. The electrolyte media studied in the CO2 electroreduction to hydrocarbons on Cu surfaces is usually neutral to slightly acidic when using KHCO3 in aqueous media, but alkaline conditions have been observed to promote C-C bindings that, thus, shifted the selectivity to C2+ hydrocarbons and alcohols instead of HCOOH or CO [42], reducing the competition of hydrogen evolution reaction (HER) with carbon dioxide electroreduction (CO2R), and increasing the energy efficiency and selectivity [40,43]. Despite the risk of carbonate formation in the presence of CO2 flows [44,45], alkaline commercial membranes have been increasingly reported in CO2R, for instance FAA-3-based (Fumatech GmbH, Sankt Ingbert, Germany) [46], A201 (Tokuyama, Chiyoda City, Tokyo) [47], Selemion AMV [29,48,49], Sustainion (Dioxide Materials, Boca Raton, FL, USA) [48,49] or Aemion membranes [50] and new developments towards a higher alkaline stability are being undertaken [51].
The trade-off between HER and CO2R can also be tuned up by changing the composition of the ionomer binding the catalyst particles together in the catalyst layer of the gas diffusion electrode (GDE). Nwabara et al. observed that the perfluoronic acid (PFSA) ionomer content of Nafion increased the performance of GDEs as much as the metal catalyst loading, but carbonate formation was reduced by blending the Nafion ionomer with polytetrafluoroethylene (PTFE) [39]. The substitution of these cation-exchange binders by an anion-exchange Sustainion ionomer binder led to further carbonate reduction and a more stable electrode performance and lifetime [52]. Koshy et al. observed that varying imidazolium groups composition enabled the ionomer binder to control the pH of the polymer electrolyte binder to direct the CO2R of Ag-based electrode surfaces to H2 or CO [53,54]. Even though the influence of ionomer composition is mostly focused on Ag-based GDEs, recent results revealed that organic additives and ionomer types can influence the electrocatalytic activity of copper [22,28,31,50] and the selectivity of Cu-GDEs [32]. The functional groups of hydrophilic or hydrophobic polymer binders direct the electrocatalytic CO2R at Cu nanoparticles (NPs) towards formic acid or methane [33]. The membrane coated electrocatalysts (MCECs) approach was reviewed as a means of controlling mass transport limitations in continuous electrochemical flow reactor performances, as well as improving catalyst stability [55,56], CO2 permeability, and the water and ion transport limitations of the GDEs can also be overcome by coating the catalyst layer of the GDE with an ionic membrane overlayer. Coating Ag-GDEs with a Sustainion anion-exchange layer decreased the degradation of PTFE GDE by 5% [52], and modification of the electrode surface through coating with conductive polymers reduced the catalyst degradation, promoting the production of the main C product, compared to HER [57,58]. The coating of Cu-GDE with a fluorinated ethylene propylene (FEP) hydrophobic polymer binder has been reported to enhance the selectivity of C2+ hydrocarbons up to 52% in a H-reactor and 77% in a flow reactor, at −0.76 V vs. RHE [59]. The type of polymer coating can either double the Faradaic efficiency (FE) of C2H4 while maintaining the current density below 67 mA cm−2, or triple the current density while inhibiting CO2R, respectively [60]. The usual ionomer or polymer binder reported so far are based in fossil-fuel chemicals and energy intensive fabrication. Thus, a new approach is the replacing of the binder and membrane materials with more sustainable alternatives from renewable or low-cost sources with adequate ion conductivity, chemical resistance, and crossover properties.

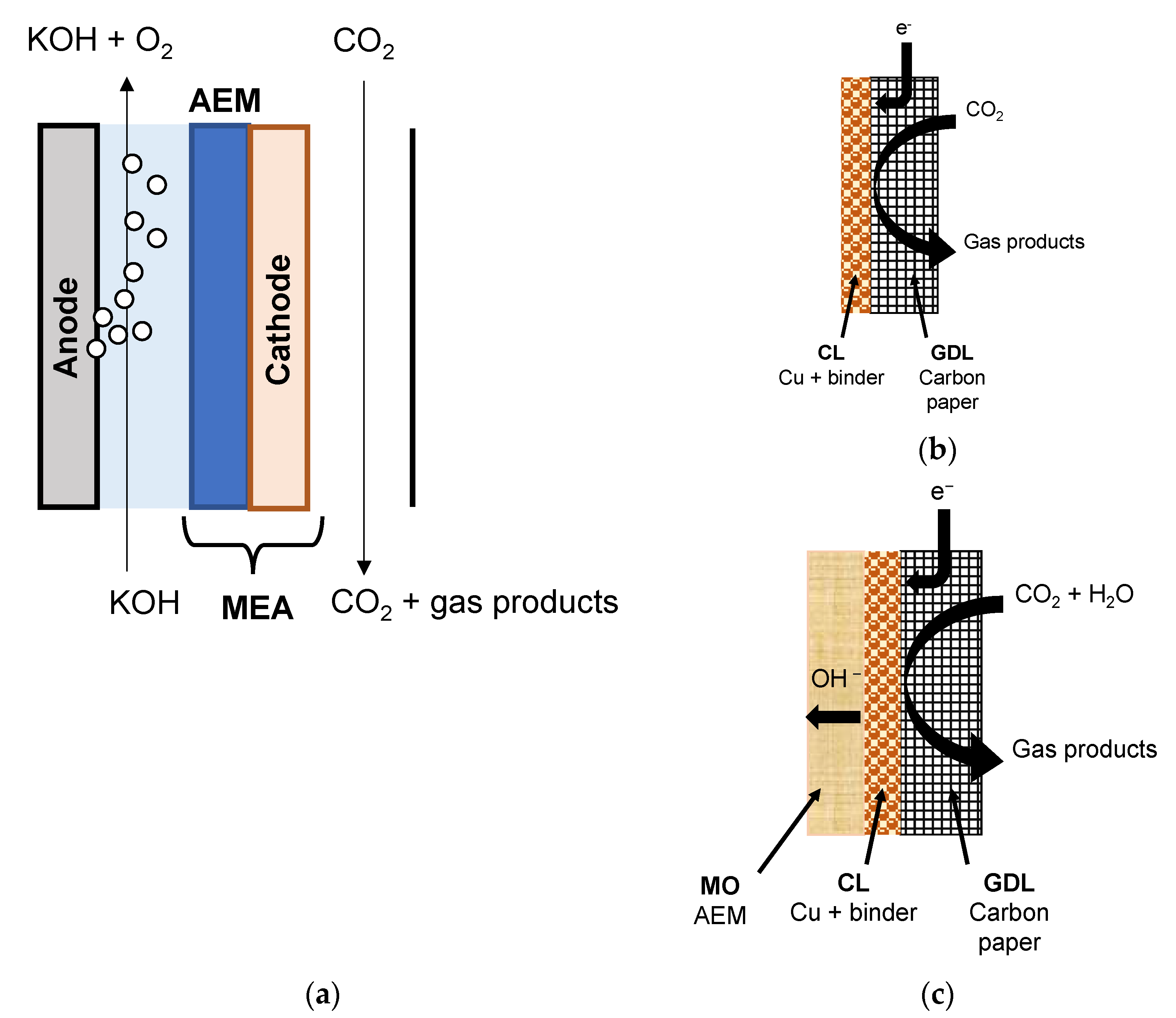

The schematic representation of the MEA configuration of the continuous flow membrane reactor, where the aqueous alkaline catholyte in the cathode compartment is replaced by a continuous humidified CO2 gas stream, and the solid polymer electrolyte AEM is depicted in Figure 1a, while the different architectures of the prepared GDE and membrane coated electrodes (MCE) are shown in Figure 1b,c, respectively. The difference is the effect of the membrane overlayer of the MCE on the performance of the CO2 reduction process to C2H4, which is also addressed in this work.
The chitosan (CS) biopolymer has been long explored as a membrane and binder material in the development of other electrochemical devices because of its renewable origin and tunable poly-anion/cation-nature [61,62,63,64]. Poly(vinyl) alcohol (PVA) is a hydrophilic, low-cost, and biodegradable polymer that has been proposed as substitute to Nafion [65] and its blending with CS is able to impart the necessary mechanical resistance without adversely affecting the ion-exchange capacity or anion conductivity [66], as well as tuning hydrophilic, ion conductivity, water transport, and ion-exchange properties [67]. In a previous work, these materials as Cu binder and membrane overlayers enabled a high FE conversion from CO2R to methanol in KOH 1–2 M electrolyte media [68].
In this work, the continuous CO2 electroreduction performance of Cu-based GDE prepared using a CS 1 wt.% solution as a binder has been compared with that of GDE prepared with commercial anion-exchange Fumion and Sustainion ionomers, for reference with the state-of-the-art. MCE and CS:PVA-based membranes whose physicochemical and electrocatalytic activity was evaluated in previous works [67,68] were introduced to study the role of the membrane overlayer. The FE and production rate of C2H4, as well as the energy efficiency, are assessed as a function of current density by using a MEA-based electrochemical continuous flow reactor.

2. Materials and Methods

2.1. Electrode Preparation

Cu-based GDEs were prepared by air-brushing using three different solutions loaded with 10 mg Cu NPs (60–80 nm, Aldrich, Madrid, Spain) in a 30:70 w/w(%) ratio in the catalyst layer, over a carbon paper sheet (Toray Carbon Paper, PTFE treated, TGP-H-60) with a thickness of 200 µm. The procedure followed is detailed in the Supplementary Materials. The GDEs were denoted as Cu:Fumion, Cu:Sustainion, and Cu:CS, as a function of the type of ionomer used, respectively. The effective geometric surface area of the GDEs was 10 cm2, with a catalyst loading of 1 mg cm−2.
The membrane coated electrodes (MCEs) were prepared by solution-casting an additional CS:PVA mixed matrix membrane layer over the Cu:CS GDE. The procedure was detailed in a previous work [68]; for specific details please go to the Supplementary Materials of the present manuscript. The membrane overlayer was composed of a polymeric blend of the CS and polyvinyl alcohol (PVA, powder, 99+% hydrolyzed, Aldrich, Spain) and a Cu-exchanged layered UZAR-S3 stannosilicate and Cu-exchanged zeolite Y, as the optimal materials for electrocatalytic reduction of CO2 in alkaline media tested in a prior work. The filler loading was 10 wt.% with respect to the membrane overlayer polymer volume, as the composition providing the best physicochemical and electrocatalytic results in an alkaline medium, as established in our prior works [67,68]. Please consult the Supplementary Materials for more details on the preparation and chemical and morphological characterization.

2.2. CO2R Experiments in Filter-Press Cell

The CO2R experiments were performed in a continuous filter-press electrochemical reactor cell (Micro Flow Cell, ElectroCell Europe A/S, Tarm, Denmark), whose flow diagram can be found in Figure S1 (Supplementary Materials). An MEA zero-gap configuration was used in the cathode chamber, as depicted before in Figure 1a. CO2 in a gas phase was fed directly to the cathodic compartment and reached the catalyst via the gas diffusion layer (GDL) of the electrode. A vapor delivery module (VDM) (SW-200, Bronkhorst, The Netherlands) was used to control the gas flowrate, which was established at 100 mL min−1, and the humidity at 1 g H2O h−1; the ratio of both reactants in the reactor was 4.8 mol CO2 mol−1 H2O.
The anode chamber was composed of a platinum plate as the anode, with a 1 M KOH aqueous solution as the electrolyte (KOH pellets, Panreac, Spain) flowing at a flowrate of 5.7 mL/min. An AgCl/Ag electrode was placed in the anode compartment as the reference electrode to record the anode potential. Both the anolyte and the cathode were separated by an alkaline anion exchange membrane (AAEM) previously activated in 1 M KOH. Two commercial membranes were tested: Sustainion X-37 50 grade and FAA-3, with their respective GDEs, and two CS:PVA-based membranes: a pure polymeric blend and a mixed matrix membrane (MMM) filled with Cu exchanged stannosilicate UZAR-S3 and zeolite Y, in 5 wt.% each to amount for the total 10 wt.% filler loading relative to the polymer content that led to the best physicochemical properties, as studied elsewhere [67].
The current intensity was supplied to the system using a potentiostat (MSTAT4, Arbin Instruments, College Station, TX, USA). Experiments were conducted at a fixed current intensity, settled at 100, 500, and 900 mA, respectively. The gas phase outlet at the cathode and anode compartment were carried to a micro-gas chromatograph (Inficon 3000, Agilent Technologies, Madrid, Spain). More details on the analytical procedures can be found in the Supplementary Materials.
The GDEs and MCEs were prepared from compatible ionomer, polymer, and inorganic materials, as mentioned above and detailed in the Supplementary Materials. Table 1 describes the various electrodes prepared for evaluation in this work to study the effect of the CS ion-exchange binder and the CS:PVA-based membrane overlayer upon the reaction performance. For comparison with other Cu-based electrodes reported in the literature for the electrochemical conversion of CO2 to C2H4 in different alkaline anolytes, please refer to Table S2 in the Supplementary Materials. The ion-exchange binder concentration and the Cu NPs loading selected in our work are in the same order of magnitude as those reported in the literature under similar conditions. The pH of the aqueous anolyte (KOH 1 M) was measured through the whole experiment and kept constant at a value close to 14.
The concentration of each product at all the current densities was averaged over three measurements. The average concentration thus obtained was applied for the calculation of the Faraday efficiency (FE) by
FE [ % ] = Z   F   n q = z   F   ( c   Q / M w ) i ,
where Z is the number of electrons exchanged in each product reaction, F is the Faraday constant (96,485 C mol−1), c is the average concentration of product generated (mg L−1), Q is the volumetric flow at the outlet of the reactor (L s−1), Mw is the molecular weight (g mol−1), and i is the total current applied to the system (A).
The production rates were calculated as [69,70]
r [ μ mol / m 2 s ] = c   Q   / M w A ,
where A is the cathode geometric area (10 cm2).
The energy efficiency for the generation of each product i (EEi) was defined as the ratio between the chemical energy stored in the product i and the applied electrical potential, as [71]
EE i   ( % ) = E 0   cell · FE E cell ,
where E0,cell is the standard potential of the generation of product i (V vs. RHE), accounting for the standard potentials at the cathode (CO2R) and anode (OER), FE is the Faraday efficiency (%) and Ecell, the experimental cell potential (V).

3. Results and Discussion

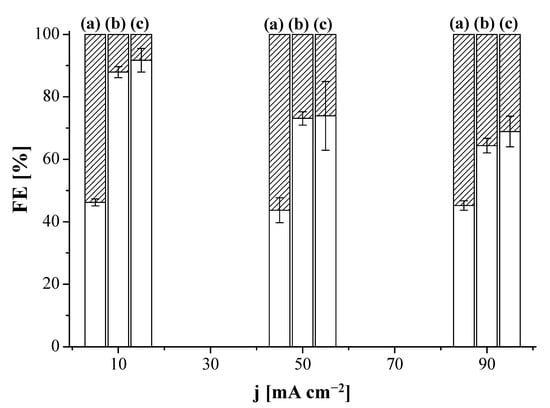

We first explored the influence of the AEM on the performance of the CO2R by using the MEA configuration in Figure 1a, to address the FE values of different products coming from the electrolysis. The performance results of CO2R at Cu:Sustainion GDE and Cu:Fumion GDE revealed the only products formed were C2H4 and H2, irrespective of the current density. Figure 2 shows the FE of C2H4 and H2, where the MEA configuration using the Sustainion AEM as a compartment separator outperformed the results obtained with the FAA-3 AEM. The FE for C2H4 was 87.9 ± 1.8% at 10 mA cm−2 and 64.4 ± 2.2% at 90 mA cm−2, for the CO2R performed at the Sustainion MEA (Sustainion AEM and Cu:Sustainion GDE), whereas for the Fumatech MEA (FAA-3 AEM and Cu:Fumion GDE), the FE was almost independent of the applied current density, being about 45% for C2H4 and 55% for H2. The superior OH− conductivity of the Sustainion membrane (65 mS cm−1) [72] compared to the FAA-3 AEM (2.92 mS cm−1) [66] probably reduced the ohmic losses through the cell and generated a lower total cell potential. Figure S3 in the Supplementary Materials represents the overall cell potential generated at the applied current densities using the MEAs with the commercial FAA-3 and Fumion binder and the Sustainion membrane and binder, respectively. Due to the better performance of the use of Sustainion AEM, this membrane was selected in a first installment as compartment separator to build the MEA with the new Cu:CS GDE. As presented in Figure 2, the Cu:CS GDE achieved the highest selectivity to C2H4 in terms of FE. At 10 mA cm−2, a value of FE (C2H4) of 93.7% was attained, which monotonically decreased FE to 68.9% at 90 mA cm−2 due to the concomitant completion of the HER.

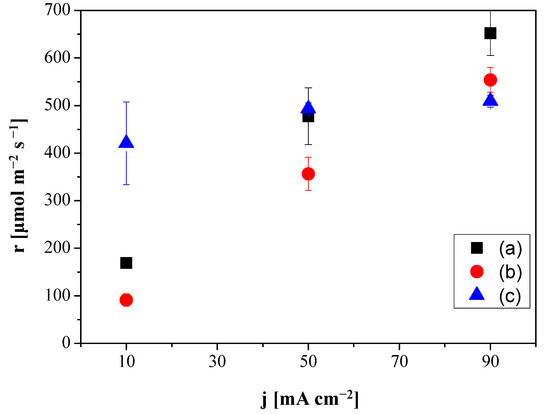

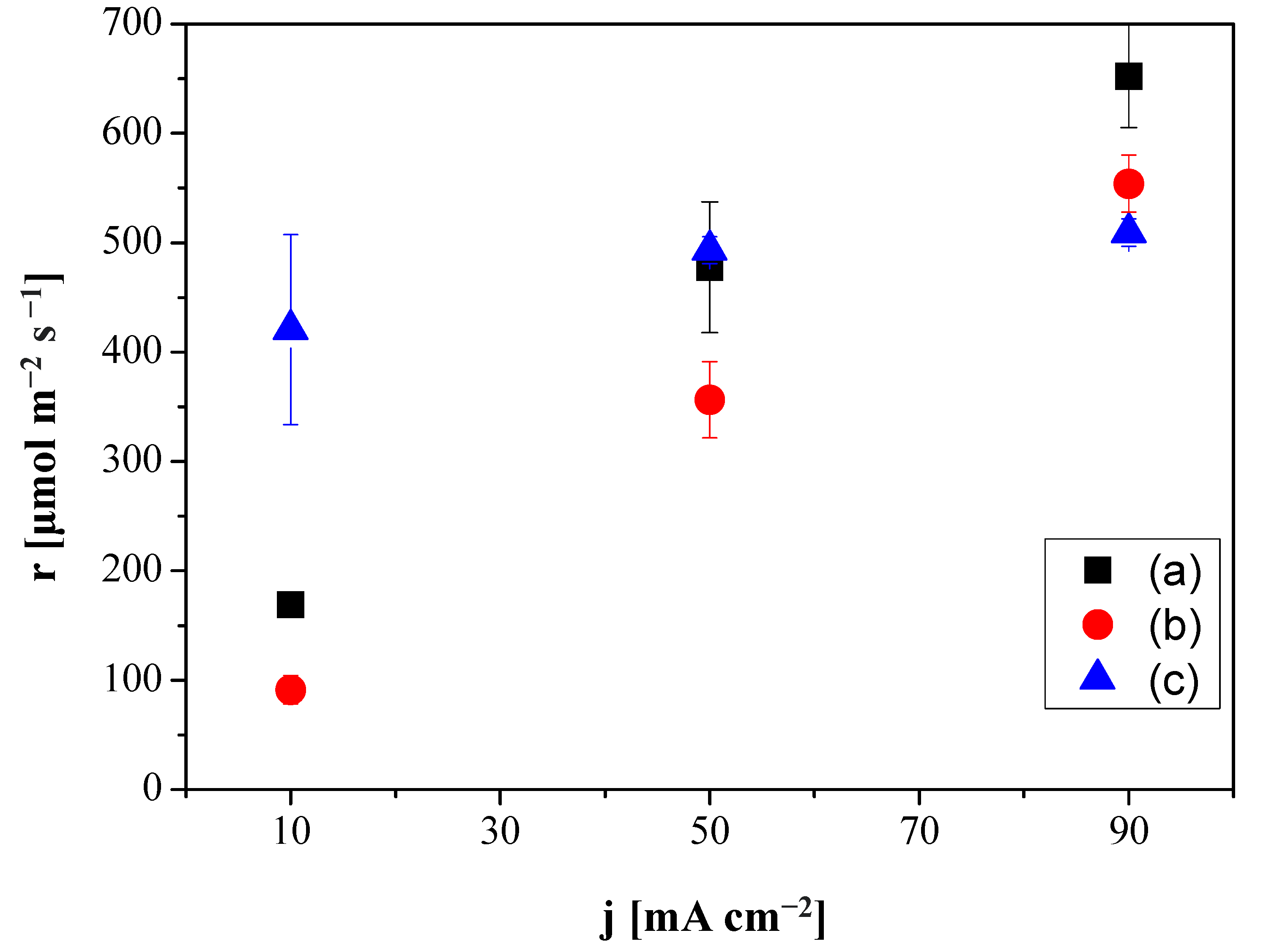

Figure 3 depicts the production rate of C2H4 as a function of current density for the CO2R performed at the electrodes Cu:Fumion GDE, Cu: Sustainion GDE and Cu:CS GDE, respectively. With the Sustainion MEA, the production of C2H4 ranged from 169 ± 10.3 to 652 ± 40 µmol m−2 s−1 with increasing current density from 10 to 90 mA cm−2, while the FAA-3 MEA generated 91.3 ± 1.3 µmol C2H4 m−2 s−1 at 10 mA cm−2 and 553 ± 26 mol m−2 s−1 at 90 mA cm−2. The reduction of HER vs. CO2R was less relevant with the Sustainion MEA. Nevertheless, it is worthwhile to note that the production rate of C2H4 at the Cu:CS GDE with a molar rate of 420 µmol/m2 s improved that of the commercial GDEs at the lowest current density (10 mA cm−2). Furthermore, with increasing absolute values of the current density, the production rate increase was still lower than that observed with the commercial anion-exchange MEAs but the FE(C2H4) of the latter decreased with current density and the C2H4 production rate increased monotonically, while the substitution of the alkaline commercial ionomers by CS solution led to a practically constant behavior of FE with increasing current density, as observed in Figure 2. These results agree with the recent observations made when coating the Cu NPs by hydrophilic or hydrophobic membranes [33] and the control of HER and CO2R by modifying the type of ionomer and alkaline conditions in Ag-GDEs [52,54].
According to the analysis of the gas phase at the cathodic compartment the main reactions expected at the cathode in this work are:
2 CO 2   ( g ) + 8 H 2 O ( l ) + 12 e − → C 2 H 4   ( g ) + 12 OH − ,   E 0 = 0.08 V   vs .   RHE
2 H 2 O ( l ) + 2 e − → H 2   ( g ) + 2 OH − ,   E 0 = 0.00 V   vs .   RHE
In addition, the gas phase coming out of the anodic compartment was analyzed and only O2 was identified, which agrees well with the high pH along the whole experimental run indicating no significant carbonation of the electrolyte or appreciable carbonate crossover through the AEM barrier or CO2 crossover to the anode compartment, as observed by O’Brien et al. [73]. Thus, the only reaction occurring in the anode in this work is
4 OH − → O 2   ( g ) + 2 H 2 O ( l ) + 4 e − ,   E 0 = 1.23 V   vs .   RHE
Table 2 compiles the cell potential and energy efficiencies as a function of applied current density for the Cu-based gas diffusion electrodes. For comparison with other Cu-based GDE in MEA tests reported in the literature, please refer to Table S3 in the Supplementary Materials.
The energy efficiency (EE) was calculated by Equation (3) using the theorical cell standard potential of −1.15 V vs. RHE, accounting for the standard potential of the cathodic and anodic reactions, 0.08–1.23 V vs. RHE, according to reactions (4)–(6).
The largest cathode energy efficiencies reported so far for Cu-based electrodes in the electroreduction of CO2 to C2H4 are those presented by García-de-Alquer et al. [39], which are surpassed in our work only at 10 mA/cm2, for the MEA system combining the Cu:CS GDE and the Sustainion membrane. This is probably due to the negligible CO bulk formation observed in this work, which increases the selectivity towards C2H4 in the gas-phase. In fact, in our work, the analysis of the gas stream revealed CO2, C2H4, and H2 as the main products, while traces of CH4 and CO were detected in several experiments, but only at negligible concentrations (<<1 ppmv). CO and C2H4 were measured in different columns so overlapping of CO and C2H4 in the chromatographic analyses can be discarded. Although the conversion of CO2 (see Table S4 in the Supplementary Materials) was below 5%, in agreement with the literature at similar CO2 feed flow rates [40], the absence of CO observed in this work is relevant to minimizing further purification stages of the C2H4 stream. The CO absence is possibly due to the interplay of intermediates tuned-up by the mixed effects of the hydrophilicity [33] of the CS biopolymer binder and the influence on the metallic adsorptive properties [74] of the catalyst NPs, as well as the CO2 permeability towards those active sites and the resistance in alkaline media where intermediates are directed to C-H bonding [75]. The mechanism reported in hydrophilic polymer and ionomer binders leads, usually, to the CO reduction to HCOOH [33,76] and the reduction in hydrophilic character attempts to increase the selectivity of ethanol/ethylene in alkaline media [42,77,78]. For instance, coating a thin dense hydrophilic polyethylene glycol (PEG) layer decreased the formation of by-products, increasing the FE of the main product, HCOOH, up to 98%, although the production rate was as low as 0.27 µmol cm2 s−1 [79]. Although the CO2 flowrates were higher for the latter work, they were in the same order of magnitude as those obtained in the present work, i.e., 200–400 mL/min, and the current densities were also lower at the coated than the uncoated electrode. Thus, the introduction of tunable CS solution as binder in the preparation of Cu-based GDEs opens opportunities for improving the sustainability of the process by the substitution of toxic, fossil-based compounds by an economic and renewable alternative for the C2H4 production and selectivity of commercial anion-exchange ionomers in alkaline media.
The first report on the experimental comparison of a conventional L-L cell and a G-L half-cell achieved a total cell potential of 5 V in 0.5 M KHCO3 (pH 6.8), while lower than 4.2 V in 1 M KOH alkaline electrolyte. The FE towards C2H4 increased slightly (from 40–42% to 43–47% when removing the liquid KOH electrolyte from the cathode, without increasing the cell potential, at 150 mA cm−2 [40]. In the gas phase, though, those authors observed that CO was still produced alongside C2H4. In fact, a C2H4 selectivity peak was observed after which HER reduction was favored once more [24].
In our case, no CO was detected in the product stream and the use of Cu:CS GDE did not show an increase in the production rate of C2H4, as observed with the commercial anion-exchange GDE previously. The thickness of the ionomer layer coated on Cu catalysts has been reported to overcome the limited gas diffusion productivity, enhancing the cathode energy efficiency of alkaline conversion to C2H4 to values as high as 45% [39]. A correlation between the mass transfer boundary layer of the same order of magnitude as the membrane overlayer thickness in our work has been reported to pose an effect on the local CO2 concentration and pH near the catalyst surface [77]. Mass transport diffusion to the catalyst layer surface of the electrode is controlled by providing an OH- solid interface that may eventually enhance the stability of the electrode [68,79]. For this reason, the MCEs prepared by coating the Cu:CS GDE with a pristine polymer CS:PVA or mixed matrix membrane (MMM) of tunable hydrophilic, ion-exchange, and conductive properties [67] over porous PTFE supports (the preparation conditions are included in Table 1). The FE results of these MCE together with the Cu:CS GDE commented above, using the Sustainion AEM as separator, are shown in Figure 4 towards C2H4. Table 3 compiles the cell potentials and energy efficiencies for the CO2R at the Cu-based MCE.

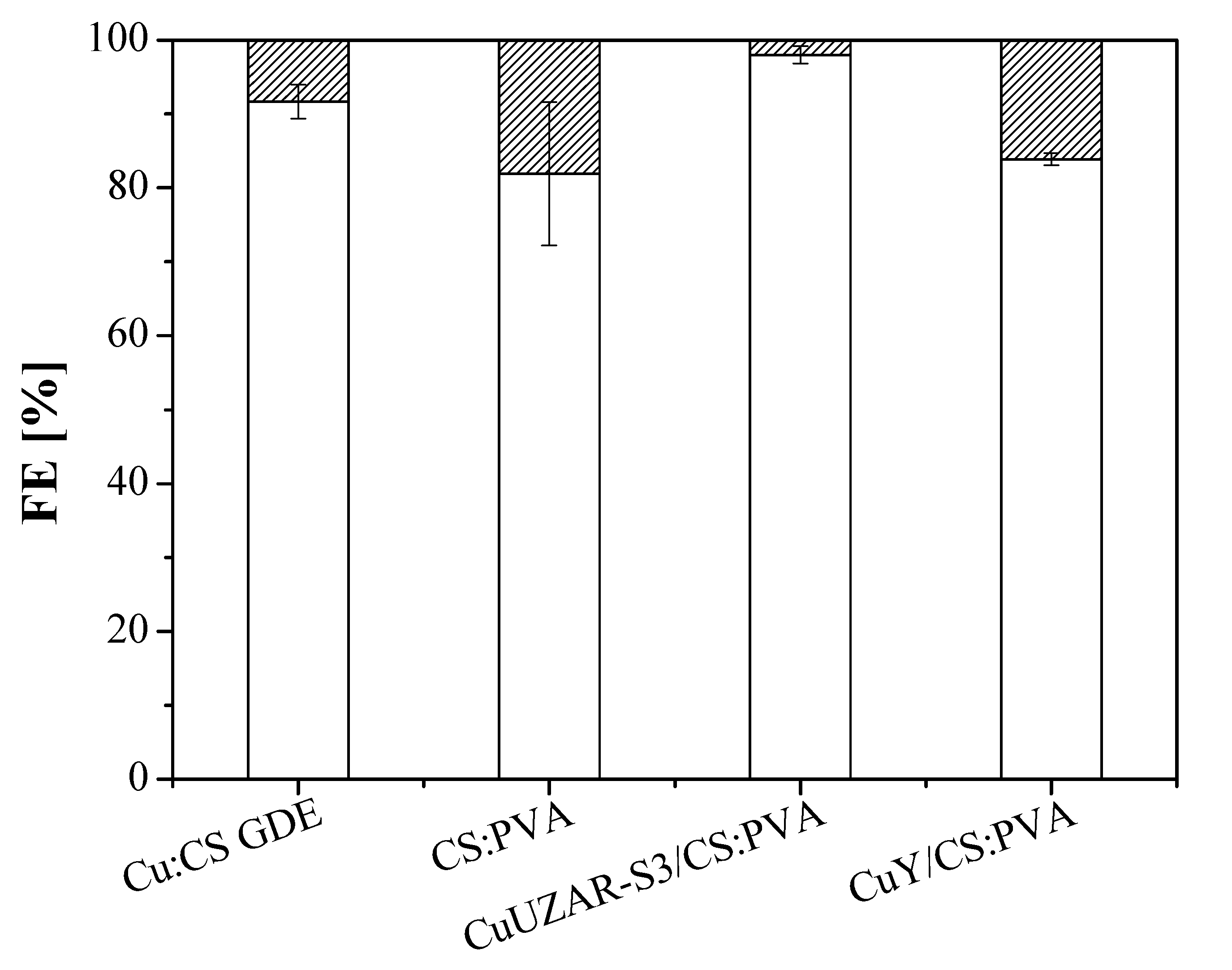

FE (C2H4) values were over 80% with an exceptional 97.98% for the electrode CuUZAR-S3CS:PVA/Cu/C MCE, which is superior to those shown by the Cu-based GDE electrodes at the same current density of 10 mA cm−2, and production rates for C2H4 were 270.9 ± 24.1, 284.4 ± 71. and 237.9 ± 8.5 for the electrodes CS:PVA/Cu/C MCE, CuUZAR-S3CS:PVA/Cu/C MCE, and CuYCS:PVA/Cu/C MCE, respectively. Interestingly, the production rates of C2H4 surpassed also those obtained at the Cu:Fumion GDE and Cu:Sustainion GDEs, respectively, but below the one obtained for the Cu:CS GDE with the Sustainion AEM separator.
Observing the summary of the Cu-based MCE results in Table 3, only at the lowest current density tested, 10 mA cm−2, the cathode potentials are comparable to those obtained with the uncoated GDEs in Table 2. This is attributed to the additional resistance provided by the membrane overlayer, whose thickness after removal from the reactor was measured at an average value of 50 µm for all three MCEs studied. This value of thickness is in the order of magnitude for similar polymer layers reported in literature (Table S2 in the Supplementary Materials), such as the 20 µm-thick Sustainion ionomer layer reported by Nwabara et al. [52] over an Ag-GDE for conversion of CO2 to CO, but higher than the 5.7 µm thick PFSA-based ionomer binder layer reported by Garcia-de-Alquer et al. [39], which attained one of the highest current densities of C2H4 in alkaline media reported so far. Dutta et al. [57] reported that the pore size of copper oxide electrodeposited thick films had more influence than the thickness of the film, observing that the FE decreased greatly at pore sizes below 50 µm. On the other hand, PEG electrodeposited layers of a few nm thickness, Jeong et al. [79] reached current densities lower than the uncoated electrodes, but still lower than those obtained in the present work. Most recently, Kim et al. observed for 40 nm thick Nafion and Sustainion ionomer layer on Cu-GDE that neither CO2 nor ion transport limitations phenomena occur at 10 mA cm−2 [32]. The embedding of the Cu catalyst in a conductive ionomer [39] or polymer [31] has been observed to increase the CO2 electroreduction performance of Cu catalyst in aqueous media, as well as improve the adhesion with the electrode substrate for the preparation of electrodes and the stability of the MEA. Consequently, in our work, ohmic losses (Figure S4 in the Supplementary Materials) for MCE are expected to occur, hindering the comprehension of the role of the membrane overlayer [56]. Thus, although the application of MCEs is promising in terms of transport facilities increasing the selectivity towards C2H4, further research is needed to improve their fabrication, especially reducing the thickness of the overlayer and limiting the ohmic losses [78], in order to apply advanced techniques as density functional theory to discern all the roles of the membrane within the reactor [33].
In addition to the membrane overlayer thickness, a certain degree of material incompatibility between the CS:PVA-based membrane overlayer in the MEA composed of the prepared MCE together with the commercial Sustainion AEM as compartment separator may be the cause of additional mass transport limitations, thereby hindering the performance at high current densities. In order to verify this, we carried out several experiments replacing the Sustainion AEM in the MEA by a composite CS:PVA-based membrane, prepared by dip-coating the CS:PVA based solution onto a porous PTFE support. The cathode chosen was the Cu:CS GDE. Two composite AEMs were prepared by coating: (i) a pristine CS:PVA equimolar blend and (ii) a 5 wt.% CuUZAR-S3 and 5 wt.% CuY MMM (inorganic filler loading calculated with respect to the total polymer amount in the casting solution); it is worthwhile to note that both CuY and CuUZAR-S3 fillers provided the best synergic ion-exchange capacity, conductivity, and water transport properties to the CS:PVA based MMMs in our previous works [67,68]. The FE(C2H4) and molar production rates of the CS-based MEAs are represented in Figure 5 and Figure 6, respectively, as a function of applied current density. FE (C2H4) values were close for both MEA configurations with FE circa 60% and it is difficult to unveil a clear effect of current density on the FE (C2H4).

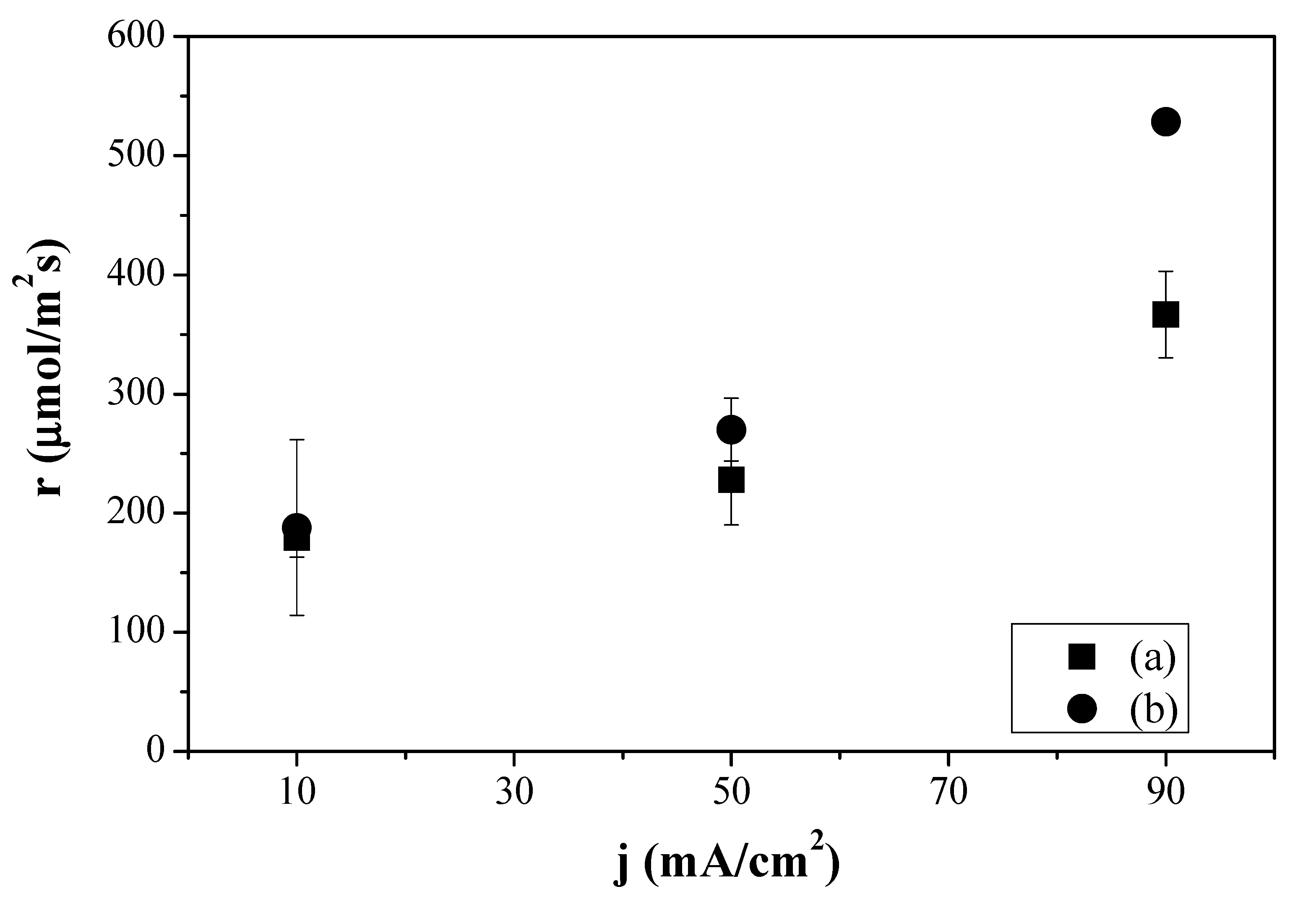

Figure 6 depicts how the C2H4 production rate highly increased with increasing current density similarly to what happened with the commercial Fumatech MEA (FAA-3 AEM and Cu:Fumion GDE) in Figure 3. Moreover, the C2H4 production rate obtained using the MEA formed by the CS:PVA composite membrane and Cu:CS GDE reached a value of 528 µmol m−2 s−1 at 90 mA cm−2, above even the one obtained with the MEA composed by the same Cu:CS GDE and the commercial Sustainion AEM. This indeed reveals that the compatibility of the GDE components and membrane materials, mentioned earlier, is having an effect on the overall CO2R efficiency.
The above results agree with some of the latest literature works reporting how substituting the conventional Nafion binder to Nafion-PTFE and Sustainion ionomer binders hindered carbonate formation in Ag- or Cu-GDE electroreduction and how the steric effects of the ionomer character alter the interaction between the ionomer ion-exchange properties and the other components of the MEA and thus facilitated diffusion to the catalyst sites [54,59]. In this work, the HER gained relevance when the Sustainion membrane (Figure 5) was replaced by a CS:PVA composite membrane (Figure 6), which was translated to lower FE(C2H4) values at all the applied current densities. This is attributed to the lower ion-exchange capacity and ionic conductivity of the CS:PVA membranes, and higher CO2 permeability than the Sustainion AEM [32,67]. This leads to higher cell potential along the experiment’s duration (5.01 V at 90 mA cm−2 for the CS:PVA based membranes, which was not attained with the Sustainion membrane, as plotted in Figure S3 of the Supplementary Materials), in agreement with Gabardo et al. [40], although the latter authors did not observe the same decrease in FE as they were working in neutral media.
A reason for the lower FE(C2H4) values may be attributed to the fact the usual two-step conversion mechanism of CO2 to C2H4 involving a first step conversion to CO, is not seen in this work, since no CO is observed in the gas stream, regardless the membrane or the MEA system in the reactor. The high CO2 permeability [80] and hydrophilicity [81] of the CS layer used as catalyst binder and polymer matrix in the MMM overlayer may account for this. Wang et al. [82] also observed that alkaline conditions increased the energy efficiency of CO and CO2R to C-C coupled products in Cu-based electrodes when the cathode reactions are coupled to the oxygen evolution reaction in the anode. The influence of ion transport limitations and water management constitute a key area of research in AEM since water arrives both from the aqueous anolyte, as well as the humidified CO2 at the cathode [83]. Because of the CO2 permeability and water content of the CS-based layers in GDE and MCE, we can expect that the CO2 and derived anions are accumulated in the anion-exchange and water swollen membrane overlayer and diffused to the active catalyst sites as reaction proceeds. The energy efficiency of the conversion of CO2 to C2H4 has been observed to increase with increasing pH of the reaction medium [41]. These authors also reported the lowest values of cell potential in alkaline media, as far as we know in these conditions, i.e., 2.02 V, obtained by depositing a thin polyamine layer on a Cu plate electrode, but they observed an increased CO formation diminishing product selectivity. This is supported by the calculation of the CO2 conversion in the same order of magnitude as other works in literature (see Table S4 in the Supplementary Materials). The only exception of a CO2 conversion higher than 5% reported obtained however at lower CO2 flow rates than this work [73]. The unreacted CO2 from the cell is the dominant fraction in the rest of the cases, with a small amount of carbonate crystallization in the end (see Figure S5 in the Supplementary Materials for the post-mortem SEM images of the electrodes studied in this work), which was apparently reduced by the coating of a membrane overlayer.
Although the combination of CS:PVA-coated MCEs and compatible AEMs tested in this work may show potential in the CO2R to C2H4, they may not become viable until other factors (membrane thickness, components interaction, compatibility, mass transport, and cathode energy efficiency) are further correlated so the internal resistance of the MCEs is reduced to the level of that of GDEs (see the electrochemical impedance spectroscopy, EIS, section and Figures S6–S8 in the Supplementary Materials).

4. Conclusions

Renewable materials for commercial anion-exchange binders based on oil derivatives have been explored in the preparation of electrodes for the electrochemical production of ethylene from CO2 at room temperature using chitosan (CS) bound copper electrodes.
The CO2R performance of the Cu:CS Gas Diffusion Electrode (GDE) was tested in a continuous flow cell reactor. Cu:CS GDE improved Faradaic Efficiency (FE) to ethylene compared with those obtained by the Cu:Sustainion and Cu:Fumion prepared GDEs in all the applied current ranges. In this regard, at low current density, the CO2R resulted in an ethylene production rate of 420 µmol/m2s, a FE of 93.7% with a cell potential of 1.9 V; at 90 mA cm−2, the production rate rose to 509 µmol m−2 s−1 and the cell potential reached 2.4 V, but the FE to ethylene dropped to 69%, due to the increase in HER.
Moreover, when the Cu:CS GDE was coated by a CuUZAR-S3/CS:PVA MMM overlayer, the selectivity of the CO2R to ethylene was increased further over that observed for the uncoated Cu-based GDE, up to a value of 98% at 10 mA cm−2 and a cell potential of 2.9 V, with an ethylene production rate of 284 µmol/m2s. The CO2R revealed the formation of ethylene and hydrogen as the only products, with significantly negligible formation of CO as intermediate.
The compatibility between the membrane and the electrode components in the Membrane Electrode Assembly (MEA) seemed to have a lesser effect on the overall reactor performance than the thickness of the membrane overlayer when the GDE is replaced by a Membrane Coated Electrode (MCE). The optimization of the electrode materials, together with the replacement and lifetime of binders and membranes is a major issue to be considered in a future work. This work opens the way to explore the potential of novel sustainable materials in membranes and electrodes for the development of ethylene production from CO2 in alkaline media.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/membranes12080783/s1, including experimental details on preparation and characterization and: Figure S1: graphical abstract; Table S1: list of acronyms and symbols used throughout the text; Table S2: Cu-based GDEs and MCEs as a function of binder in the catalytic layer reported in literature prior to our work, and the membrane overlayer composition and thickness, when available. Unless otherwise stated, the references included for comparison are those related to Cu-based electrodes for C2H4 in KOH alkaline media PEM half-cells; Table S3: CO2R electrochemical conversion to C2H4 in MEA with Cu-based gas diffusion and membrane coated electrodes in alkaline media reported previously in literature; Figure S2: process flow diagram of the CO2R experimental setup; Figure S3: cell potential vs. the applied current density applied to the continuous electrochemical reactor using the Fumatech MEA (FAA-3 membrane and Cu:Fumion GDE), the Sustainion MEA (Sustainion membrane and Cu:Sustainion GDE), as schematized in Figure 1a. Results obtained with Cu:CS GDE with the Sustainion membrane as the AEM compartment separator are also included for comparison; Figure S4: cell potential vs. the applied current density applied using the MCEs and the Sustainion AEM. Error bars represent the deviation observed for the three experimental measurements along the experiments; Table S4: comparison of the CO2 conversions with literature values, as a function of current densities and CO2 flow rates. Unless otherwise stated, the membrane barrier used in our results shown in this table is the Sustainion AEM; Figure S5: SEM images of Cu:Fumion GDE (a); Cu:Sustainion GDE (b); Cu:CS GDE (c); CuUZAR-S3CS:PVA/Cu:CS MCE (d); and CuYCS:PVA/Cu:CS MCE (e) after all the experimental runs; Figure S6: Nyquist plots of commercial Cu:Fumion GDE and Cu:Sustainion GDE, measured in Ar at a working electrode potential of −300 mV in 1 M KOH. The inset shows a zoom of the Nyquist plots at higher frequencies. Measurements were performed in triplicate; Figure S7: Nyquist plots of Toray carbon paper plate and CS:PVA-based membrane coated electrodes (MCE) measured after being saturated in Ar, at a working electrode potential of −300 mV in 1 M KOH. The inset shows a zoom of the Nyquist plots at higher frequencies. Measurements were performed in triplicate; Figure S8: partial current density of C2H4 achieved with the following MEA configurations: CS:PVA membrane + Cu:CS GDE and CuY@CuUZAR-S3/CS:PVA + Cu:CS GDE. Error bars represent the standard deviation of the FE towards C2H4 of the measurements during each experimental run. References [10,14,24,32,33,39,40,41,42,57,59,60,68,73,84,85,86,87,88,89,90,91,92,93,94] are cited in the Supplementary Materials.

Author Contributions

Conceptualization, C.C.-C. and A.I.; methodology, A.M.-M., C.C.-C. and A.I.; formal analysis, all; investigation, all; resources, A.I. and J.I.; data curation, A.M.-M.; writing—original draft preparation, A.M.-M. and C.C.-C.; writing—review and editing, all; visualization, all; supervision, A.I.; project administration, A.I. and J.I.; funding acquisition, A.I., J.I. and C.C.-C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Spanish Ministry for Science and Innovation, grant numbers PID2019-108136RB-C31, PID2019-108136RB-C32, PID2020-112845RB-I00 and EIN2020-112319. A.M.M. also acknowledges the Ministry for the Early Stage researcher contract (FPI grant no. BES-2017-080795).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Ioannou, I.; D’Angelo, S.C.; Martín, A.J.; Pérez-Ramírez, J.; Guillén-Gosálbez, G. Hybridization of Fossil- and CO2-Based Routes for Ethylene Production Using Renewable Energy. ChemSusChem 2020, 13, 6370–6380. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  2. Rumayor, M.; Dominguez-Ramos, A.; Irabien, A. Environmental and Economic Assessment of the Formic Acid Electrochemical Manufacture Using Carbon Dioxide: Influence of the Electrode Lifetime. Sustain. Prod. Consum. 2019, 18, 72–82. [Google Scholar] [CrossRef] [Scilit]
  3. Pappijn, C.A.R.; Ruitenbeek, M.; Reyniers, M.F.; Van Geem, K.M. Challenges and Opportunities of Carbon Capture and Utilization: Electrochemical Conversion of CO2 to Ethylene. Front. Earth Sci. 2020, 8, 557466. [Google Scholar] [CrossRef] [Scilit]
  4. Aresta, M.; Dibenedetto, A. Carbon Recycling Through CO2-Conversion for Stepping toward a Cyclic-C Economy. A Perspective. Front. Energy Res. 2020, 8, 159. [Google Scholar] [CrossRef] [Scilit]
  5. Fan, Q.; Zhang, M.; Jia, M.; Liu, S.; Qiu, J.; Sun, Z. Electrochemical CO2 Reduction to C2+ Species: Heterogeneous Electrocatalysts, Reaction Pathways, and Optimization Strategies. Mater. Today Energy 2018, 10, 280–301. [Google Scholar] [CrossRef] [Scilit]
  6. Pătru, A.; Binninger, T.; Pribyl, B.; Schmidt, T.J. Design Principles of Bipolar Electrochemical Co-Electrolysis Cells for Efficient Reduction of Carbon Dioxide from Gas Phase at Low Temperature. J. Electrochem. Soc. 2019, 166, F34–F43. [Google Scholar] [CrossRef] [Scilit]
  7. Nitopi, S.; Bertheussen, E.; Scott, S.B.; Liu, X.; Engstfeld, A.K.; Horch, S.; Seger, B.; Stephens, I.E.L.; Chan, K.; Hahn, C.; et al. Progress and Perspectives of Electrochemical CO2 Reduction on Copper in Aqueous Electrolyte. Chem. Rev. 2019, 119, 7610–7672. [Google Scholar] [CrossRef] [Scilit]
  8. Tufa, R.A.; Chanda, D.; Ma, M.; Aili, D.; Demissie, T.B.; Vaes, J.; Li, Q.; Liu, S.; Pant, D. Towards Highly Efficient Electrochemical CO2 Reduction: Cell Designs, Membranes and Electrocatalysts. Appl. Energy 2020, 277, 115557. [Google Scholar] [CrossRef] [Scilit]
  9. Hori, Y. Electrochemical CO2 Reduction on Metal Electrodes. In Modern Aspects of Electrochemistry; Vayenas, C., Ed.; Springer: New York, NY, USA, 2008; pp. 89–189. [Google Scholar]
  10. Ma, S.; Sadakiyo, M.; Luo, R.; Heima, M.; Yamauchi, M.; Kenis, P.J.A. One-Step Electrosynthesis of Ethylene and Ethanol from CO2 in an Alkaline Electrolyzer. J. Power Sources 2016, 301, 219–228. [Google Scholar] [CrossRef] [Scilit]
  11. Aeshala, L.M.; Rahman, S.U.; Verma, A. Effect of Solid Polymer Electrolyte on Electrochemical Reduction of CO2. Sep. Purif. Technol. 2012, 94, 131–137. [Google Scholar] [CrossRef] [Scilit]
  12. Ren, D.; Deng, Y.; Handoko, A.D.; Chen, C.S.; Malkhandi, S.; Yeo, B.S. Selective Electrochemical Reduction of Carbon Dioxide to Ethylene and Ethanol on Copper(I) Oxide Catalysts. ACS Catal. 2015, 5, 2814–2821. [Google Scholar] [CrossRef] [Scilit]
  13. De Luna, P.; Quintero-Bermudez, R.; DInh, C.T.; Ross, M.B.; Bushuyev, O.S.; Todorović, P.; Regier, T.; Kelley, S.O.; Yang, P.; Sargent, E.H. Catalyst Electro-Redeposition Controls Morphology and Oxidation State for Selective Carbon Dioxide Reduction. Nat. Catal. 2018, 1, 103–110. [Google Scholar] [CrossRef] [Scilit]
  14. Lv, J.J.; Jouny, M.; Luc, W.; Zhu, W.; Zhu, J.J.; Jiao, F. A Highly Porous Copper Electrocatalyst for Carbon Dioxide Reduction. Adv. Mater. 2018, 30, 1803111. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  15. Min, S.; Yang, X.; Lu, A.Y.; Tseng, C.C.; Hedhili, M.N.; Li, L.J.; Huang, K.W. Low Overpotential and High Current CO2 Reduction with Surface Reconstructed Cu Foam Electrodes. Nano Energy 2016, 27, 121–129. [Google Scholar] [CrossRef] [Scilit]
  16. Wang, Y.; Shen, H.; Livi, K.J.T.; Raciti, D.; Zong, H.; Gregg, J.; Onadeko, M.; Wan, Y.; Watson, A.; Wang, C. Copper Nanocubes for CO2 Reduction in Gas Diffusion Electrodes. Nano Lett. 2019, 19, 8461–8468. [Google Scholar] [CrossRef] [Scilit]
  17. Reller, C.; Krause, R.; Volkova, E.; Schmid, B.; Neubauer, S.; Rucki, A.; Schuster, M.; Schmid, G. Selective Electroreduction of CO2 toward Ethylene on Nano Dendritic Copper Catalysts at High Current Density. Adv. Energy Mater. 2017, 7, 1602114. [Google Scholar] [CrossRef] [Scilit]
  18. Merino-Garcia, I.; Albo, J.; Irabien, A. Tailoring Gas-Phase CO2 Electroreduction Selectivity to Hydrocarbons at Cu Nanoparticles. Nanotechnology 2018, 29, 014001. [Google Scholar] [CrossRef] [Scilit]
  19. Marepally, B.C.; Ampelli, C.; Genovese, C.; Tavella, F.; Veyre, L.; Quadrelli, E.A.; Perathoner, S.; Centi, G. Role of Small Cu Nanoparticles in the Behaviour of Nanocarbon-Based Electrodes for the Electrocatalytic Reduction of CO2. J. CO2 Util. 2017, 21, 534–542. [Google Scholar] [CrossRef] [Scilit]
  20. Gutiérrez-Guerra, N.; Moreno-López, L.; Serrano-Ruiz, J.C.; Valverde, J.L.; de Lucas-Consuegra, A. Gas Phase Electrocatalytic Conversion of CO2 to Syn-Fuels on Cu Based Catalysts-Electrodes. Appl. Catal. B Environ. 2016, 188, 272–282. [Google Scholar] [CrossRef] [Scilit]
  21. Shang, L.; Lv, X.; Shen, H.; Shao, Z.; Zheng, G. Selective Carbon Dioxide Electroreduction to Ethylene and Ethanol by Core-Shell Copper/Cuprous Oxide. J. Colloid Interface Sci. 2019, 552, 426–431. [Google Scholar] [CrossRef] [Scilit]
  22. Han, Z.; Kortlever, R.; Chen, H.Y.; Peters, J.C.; Agapie, T. CO2 Reduction Selective for C≥2 Products on Polycrystalline Copper with N-Substituted Pyridinium Additives. ACS Cent. Sci. 2017, 3, 853–859. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  23. Todoroki, N.; Yokota, N.; Nakahata, S.; Nakamura, H.; Wadayama, T. Electrochemical Reduction of CO2 on Ni- and Pt-Epitaxially Grown Cu(111) Surfaces. Electrocatalysis 2016, 7, 97–103. [Google Scholar] [CrossRef] [Scilit]
  24. Hoang, T.T.H.; Verma, S.; Ma, S.; Fister, T.T.; Timoshenko, J.; Frenkel, A.I.; Kenis, P.J.A.; Gewirth, A.A. Nanoporous Copper-Silver Alloys by Additive-Controlled Electrodeposition for the Selective Electroreduction of CO2 to Ethylene and Ethanol. J. Am. Chem. Soc. 2018, 140, 5791–5797. [Google Scholar] [CrossRef] [Scilit]
  25. Huo, S.; Weng, Z.; Wu, Z.; Zhong, Y.; Wu, Y.; Fang, J.; Wang, H. Coupled Metal/Oxide Catalysts with Tunable Product Selectivity for Electrocatalytic CO2 Reduction. ACS Appl. Mater. Interfaces 2017, 9, 28519–28526. [Google Scholar] [CrossRef] [Scilit]
  26. Merino-Garcia, I.; Albo, J.; Solla-Gullón, J.; Montiel, V.; Irabien, A. Cu Oxide/ZnO-Based Surfaces for a Selective Ethylene Production from Gas-Phase CO2 Electroconversion. J. CO2 Util. 2019, 31, 135–142. [Google Scholar] [CrossRef] [Scilit]
  27. Huang, Y.; Deng, Y.; Handoko, A.D.; Goh, G.K.L.; Yeo, B.S. Rational Design of Sulfur-Doped Copper Catalysts for the Selective Electroreduction of Carbon Dioxide to Formate. ChemSusChem 2018, 11, 320–326. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  28. Birdja, Y.Y.; Shen, J.; Koper, M.T.M. Influence of the Metal Center of Metalloprotoporphyrins on the Electrocatalytic CO2 Reduction to Formic Acid. Catal. Today 2017, 288, 37–47. [Google Scholar] [CrossRef] [Scilit]
  29. Komatsu, S.; Tanaka, M.; Okumura, A.; Kungi, A. Preparation of Cu-Solid Polymer Electrolyte Composite Electrodes and Application to Gas-Phase Electrochemical Reduction of CO2. Electrochim. Acta 1995, 40, 745–753. [Google Scholar] [CrossRef] [Scilit]
  30. Song, Y.; Peng, R.; Hensley, D.K.; Bonnesen, P.V.; Liang, L.; Wu, Z.; Meyer, H.M.; Chi, M.; Ma, C.; Sumpter, B.G.; et al. High-Selectivity Electrochemical Conversion of CO2 to Ethanol Using a Copper Nanoparticle/N-Doped Graphene Electrode. ChemistrySelect 2016, 1, 6055–6061. [Google Scholar] [CrossRef] [Scilit]
  31. Periasamy, A.P.; Ravindranath, R.; Senthil Kumar, S.M.; Wu, W.P.; Jian, T.R.; Chang, H.T. Facet- and Structure-Dependent Catalytic Activity of Cuprous Oxide/Polypyrrole Particles towards the Efficient Reduction of Carbon Dioxide to Methanol. Nanoscale 2018, 10, 11869–11880. [Google Scholar] [CrossRef] [Scilit]
  32. Kim, C.; Bui, J.C.; Luo, X.; Cooper, J.K.; Kusoglu, A.; Weber, A.Z.; Bell, A.T. Tailored Catalyst Microenvironments for CO2 Electroreduction to Multicarbon Products on Copper Using Bilayer Ionomer Coatings. Nat. Energy 2021, 6, 1026–1034. [Google Scholar] [CrossRef] [Scilit]
  33. Chang, Q.; Lee, J.H.; Liu, Y.; Xie, Z.; Hwang, S.; Marinkovic, N.S.; Park, A.-H.A.; Kattel, S.; Chen, J.G. Electrochemical CO2 Reduction Reaction over Cu Nanoparticles with Tunable Activity and Selectivity Mediated by Functional Groups in Polymeric Binder. JACS Au 2022, 2, 214–222. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  34. Vennekötter, J.B.; Scheuermann, T.; Sengpiel, R.; Wessling, M. The Electrolyte Matters: Stable Systems for High Rate Electrochemical CO2 Reduction. J. CO2 Util. 2019, 32, 202–213. [Google Scholar] [CrossRef] [Scilit]
  35. Weekes, D.M.; Salvatore, D.A.; Reyes, A.; Huang, A.; Berlinguette, C.P. Electrolytic CO2 Reduction in a Flow Cell. Acc. Chem. Res. 2018, 51, 910–918. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  36. Higgins, D.; Hahn, C.; Xiang, C.; Jaramillo, T.F.; Weber, A.Z. Gas-Diffusion Electrodes for Carbon Dioxide Reduction: A New Paradigm. ACS Energy Lett. 2019, 4, 317–324. [Google Scholar] [CrossRef] [Scilit]
  37. Merino-Garcia, I.; Alvarez-Guerra, E.; Albo, J.; Irabien, A. Electrochemical Membrane Reactors for the Utilisation of Carbon Dioxide. Chem. Eng. J. 2016, 305, 104–120. [Google Scholar] [CrossRef] [Scilit]
  38. Gabardo, C.M.; Seifitokaldani, A.; Edwards, J.P.; Dinh, C.T.; Burdyny, T.; Kibria, M.G.; O’Brien, C.P.; Sargent, E.H.; Sinton, D. Combined High Alkalinity and Pressurization Enable Efficient CO2 Electroreduction to CO. Energy Environ. Sci. 2018, 11, 2531–2539. [Google Scholar] [CrossRef] [Scilit]
  39. García de Arquer, F.P.; Dinh, C.T.; Ozden, A.; Wicks, J.; McCallum, C.; Kirmani, A.R.; Nam, D.H.; Gabardo, C.; Seifitokaldani, A.; Wang, X.; et al. CO2 Electrolysis to Multicarbon Products at Activities Greater than 1 A cm−2. Science 2020, 367, 661–666. [Google Scholar] [CrossRef] [Scilit]
  40. Gabardo, C.M.; O’Brien, C.P.; Edwards, J.P.; McCallum, C.; Xu, Y.; Dinh, C.T.; Li, J.; Sargent, E.H.; Sinton, D. Continuous Carbon Dioxide Electroreduction to Concentrated Multi-Carbon Products Using a Membrane Electrode Assembly. Joule 2019, 3, 2777–2791. [Google Scholar] [CrossRef] [Scilit]
  41. Chen, X.; Chen, J.; Alghoraibi, N.M.; Henckel, D.A.; Zhang, R.; Nwabara, U.O.; Madsen, K.E.; Kenis, P.J.A.; Zimmerman, S.C.; Gewirth, A.A. Electrochemical CO2-to-Ethylene Conversion on Polyamine-Incorporated Cu Electrodes. Nat. Catal. 2021, 4, 20–27. [Google Scholar] [CrossRef] [Scilit]
  42. Zhuang, T.T.; Liang, Z.Q.; Seifitokaldani, A.; Li, Y.; De Luna, P.; Burdyny, T.; Che, F.; Meng, F.; Min, Y.; Quintero-Bermudez, R.; et al. Steering Post-C-C Coupling Selectivity Enables High Efficiency Electroreduction of Carbon Dioxide to Multi-Carbon Alcohols. Nat. Catal. 2018, 1, 421–428. [Google Scholar] [CrossRef] [Scilit]
  43. Ozden, A.; Wang, Y.; Li, F.; Luo, M.; Sisler, J.; Thevenon, A.; Rosas-Hernández, A.; Burdyny, T.; Lum, Y.; Yadegari, H.; et al. Cascade CO2 Electroreduction Enables Efficient Carbonate-Free Production of Ethylene. Joule 2021, 5, 706–719. [Google Scholar] [CrossRef] [Scilit]
  44. Müller, J.; Zhegur, A.; Krewer, U.; Varcoe, J.R.; Dekel, D.R. Practical Ex-Situ Technique to Measure the Chemical Stability of Anion-Exchange Membranes under Conditions Simulating the Fuel Cell Environment. ACS Mater. Lett. 2020, 2, 168–173. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  45. Yang, K.; Kas, R.; Smith, W.A. In Situ Infrared Spectroscopy Reveals Persistent Alkalinity near Electrode Surfaces during CO2 Electroreduction. J. Am. Chem. Soc. 2019, 141, 15891–15900. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  46. Aeshala, L.M.; Uppaluri, R.G.; Verma, A. Effect of Cationic and Anionic Solid Polymer Electrolyte on Direct Electrochemical Reduction of Gaseous CO2 to Fuel. J. CO2 Util. 2013, 3–4, 49–55. [Google Scholar] [CrossRef] [Scilit]
  47. Gunasekara, I.; Lee, M.; Abbott, D.; Mukerjee, S. Mass Transport and Oxygen Reduction Kinetics at an Anion Exchange Membrane Interface: Microelectrode Studies on Effect of Carbonate Exchange. ECS Electrochem. Lett. 2012, 1, 24–27. [Google Scholar] [CrossRef] [Scilit]
  48. Kutz, R.B.; Chen, Q.; Yang, H.; Sajjad, S.D.; Liu, Z.; Masel, I.R. Sustainion Imidazolium-Functionalized Polymers for Carbon Dioxide Electrolysis. Energy Technol. 2017, 5, 929–936. [Google Scholar] [CrossRef] [Scilit]
  49. Yin, Z.; Peng, H.; Wei, X.; Zhou, H.; Gong, J.; Huai, M.; Xiao, L.; Wang, G.; Lu, J.; Zhuang, L. An Alkaline Polymer Electrolyte CO2 Electrolyzer Operated with Pure Water. Energy Environ. Sci. 2019, 12, 2455–2462. [Google Scholar] [CrossRef] [Scilit]
  50. Novalin, T.; Pan, D.; Lindbergh, G.; Lagergren, C.; Jannasch, P.; Lindström, R.W. Electrochemical Performance of Poly(Arylene Piperidinium) Membranes and Ionomers in Anion Exchange Membrane Fuel Cells. J. Power Sources 2021, 507, 230287. [Google Scholar] [CrossRef] [Scilit]
  51. Chu, J.Y.; Lee, K.H.; Kim, A.R.; Yoo, D.J. Graphene-Mediated Organic-Inorganic Composites with Improved Hydroxide Conductivity and Outstanding Alkaline Stability for Anion Exchange Membranes. Compos. Part B Eng. 2019, 164, 324–332. [Google Scholar] [CrossRef] [Scilit]
  52. Nwabara, U.O.; Hernandez, A.D.; Henckel, D.A.; Chen, X.; Cofell, E.R.; De-Heer, M.P.; Verma, S.; Gewirth, A.A.; Kenis, P.J.A. Binder-Focused Approaches to Improve the Stability of Cathodes for CO2 Electroreduction. ACS Appl. Energy Mater. 2021, 4, 5175–5186. [Google Scholar] [CrossRef] [Scilit]
  53. Liu, Z.; Masel, R.I.; Chen, Q.; Kutz, R.; Yang, H.; Lewinski, K.; Kaplun, M.; Luopa, S.; Lutz, D.R. Electrochemical Generation of Syngas from Water and Carbon Dioxide at Industrially Important Rates. J. CO2 Util. 2016, 15, 50–56. [Google Scholar] [CrossRef] [Scilit]
  54. Koshy, D.M.; Akhade, S.A.; Shugar, A.; Abiose, K.; Shi, J.; Liang, S.; Oakdale, J.S.; Weitzner, S.E.; Varley, J.B.; Duoss, E.B.; et al. Chemical Modifications of Ag Catalyst Surfaces with Imidazolium Ionomers Modulate H2 Evolution Rates during Electrochemical CO2 Reduction. J. Am. Chem. Soc. 2021, 143, 14712–14725. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  55. Esposito, D.V. Membrane-Coated Electrocatalysts—An Alternative Approach to Achieving Stable and Tunable Electrocatalysis. ACS Catal. 2018, 8, 457–465. [Google Scholar] [CrossRef] [Scilit]
  56. Liu, Y.; Leung, K.Y.; Michaud, S.E.; Soucy, T.L.; McCrory, C.C.L. Controlled Substrate Transport to Electrocatalyst Active Sites for Enhanced Selectivity in the Carbon Dioxide Reduction Reaction. Comments Inorg. Chem. 2019, 39, 242–269. [Google Scholar] [CrossRef] [Scilit]
  57. Dutta, A.; Rahaman, M.; Luedi, N.C.; Mohos, M.; Broekmann, P. Morphology Matters: Tuning the Product Distribution of CO2 Electroreduction on Oxide-Derived Cu Foam Catalysts. ACS Catal. 2016, 6, 3804–3814. [Google Scholar] [CrossRef] [Scilit]
  58. Berggren, M.; Malliaras, G.G. How Conducting Polymer Electrodes Operate. Science 2019, 364, 233–234. [Google Scholar] [CrossRef] [Scilit]
  59. Pham, T.H.M.; Zhang, J.; Li, M.; Shen, T.H.; Ko, Y.; Tileli, V.; Luo, W.; Züttel, A. Enhanced Electrocatalytic CO2 Reduction to C2+ Products by Adjusting the Local Reaction Environment with Polymer Binders. Adv. Energy Mater. 2022, 12, 2103663. [Google Scholar] [CrossRef] [Scilit]
  60. Ahn, S.; Klyukin, K.; Wakeham, R.J.; Rudd, J.A.; Lewis, A.R.; Alexander, S.; Carla, F.; Alexandrov, V.; Andreoli, E. Poly-Amide Modified Copper Foam Electrodes for Enhanced Electrochemical Reduction of Carbon Dioxide. ACS Catal. 2018, 8, 4132–4142. [Google Scholar] [CrossRef] [Scilit]
  61. Ma, J.; Sahai, Y. Chitosan Biopolymer for Fuel Cell Applications. Carbohydr. Polym. 2013, 92, 955–975. [Google Scholar] [CrossRef] [Scilit]
  62. Wang, J.; Zhao, Y.; Hou, W.; Geng, J.; Xiao, L.; Wu, H.; Jiang, Z. Simultaneously Enhanced Methanol Barrier and Proton Conductive Properties of Phosphorylated Titanate Nanotubes Embedded Nanocomposite Membranes. J. Power Sources 2010, 195, 1015–1023. [Google Scholar] [CrossRef] [Scilit]
  63. García-Cruz, L.; Casado-Coterillo, C.; Irabien, Á.; Montiel, V.; Iniesta, J. Performance Assessment of a Polymer Electrolyte Membrane Electrochemical Reactor under Alkaline Conditions—A Case Study with the Electrooxidation of Alcohols. Electrochim. Acta 2016, 206, 165–175. [Google Scholar] [CrossRef] [Scilit]
  64. Vaghari, H.; Jafarizadeh-Malmiri, H.; Berenjian, A.; Anarjan, N. Recent Advances in Application of Chitosan in Fuel Cells. Sustain. Chem. Process. 2013, 1, 16. [Google Scholar] [CrossRef] [Scilit]
  65. Maiti, J.; Kakati, N.; Lee, S.H.; Jee, S.H.; Viswanathan, B.; Yoon, Y.S. Where Do Poly(Vinyl Alcohol) Based Membranes Stand in Relation to Nafion® for Direct Methanol Fuel Cell Applications? J. Power Sources 2012, 216, 48–66. [Google Scholar] [CrossRef] [Scilit]
  66. García-Cruz, L.; Casado-Coterillo, C.; Iniesta, J.; Montiel, V.; Irabien, Á. Chitosan: Poly (Vinyl) Alcohol Composite Alkaline Membrane Incorporating Organic Ionomers and Layered Silicate Materials into a PEM Electrochemical Reactor. J. Memb. Sci. 2016, 498, 395–407. [Google Scholar] [CrossRef] [Scilit]
  67. Marcos-Madrazo, A.; Casado-Coterillo, C.; García-Cruz, L.; Iniesta, J.; Simonelli, L.; Sebastián, V.; Encabo-Berzosa, M.d.M.; Arruebo, M.; Irabien, Á. Preparation and Identification of Optimal Synthesis Conditions for a Novel Alkaline Anion-Exchange Membrane. Polymers 2018, 10, 913. [Google Scholar] [CrossRef] [Scilit]
  68. Marcos-Madrazo, A.; Casado-Coterillo, C.; Irabien, Á. Sustainable Membrane-Coated Electrodes for CO2 Electroreduction to Methanol in Alkaline Media. ChemElectroChem 2019, 6, 5273–5282. [Google Scholar] [CrossRef] [Scilit]
  69. Larrazábal, G.O.; Martín, A.J.; Pérez-Ramírez, J. Building Blocks for High Performance in Electrocatalytic CO2 Reduction: Materials, Optimization Strategies, and Device Engineering. J. Phys. Chem. Lett. 2017, 8, 3933–3944. [Google Scholar] [CrossRef] [Scilit]
  70. Lv, W.; Zhou, J.; Bei, J.; Zhang, R.; Wang, L.; Xu, Q.; Wang, W. Electrodeposition of Nano-Sized Bismuth on Copper Foil as Electrocatalyst for Reduction of CO2 to Formate. Appl. Surf. Sci. 2017, 393, 191–196. [Google Scholar] [CrossRef] [Scilit]
  71. Díaz-Sainz, G.; Alvarez-Guerra, M.; Solla-Gullón, J.; García-Cruz, L.; Montiel, V.; Irabien, A. CO2 Electroreduction to Formate: Continuous Single-Pass Operation in a Filter-Press Reactor at High Current Densities Using Bi Gas Diffusion Electrodes. J. CO2 Util. 2019, 34, 12–19. [Google Scholar] [CrossRef] [Scilit]
  72. Yang, H.; Kaczur, J.J.; Sajjad, S.D.; Masel, R.I. Electrochemical Conversion of CO2 to Formic Acid Utilizing SustainionTM Membranes. J. CO2 Util. 2017, 20, 208–217. [Google Scholar] [CrossRef] [Scilit]
  73. O’Brien, C.P.; Miao, R.K.; Liu, S.; Xu, Y.; Lee, G.; Robb, A.; Huang, J.E.; Xie, K.; Bertens, K.; Gabardo, C.M.; et al. Single Pass CO2 Conversion Exceeding 85% in the Electrosynthesis of Multicarbon Products via Local CO2 Regeneration. ACS Energy Lett. 2021, 6, 2952–2959. [Google Scholar] [CrossRef] [Scilit]
  74. Wang, Y.; Shen, Z.; Li, Y.; Niu, J. Electrochemical Properties of the Erbium-Chitosan-Fluorine-Modified PbO2 Electrode for the Degradation of 2,4-Dichlorophenol in Aqueous Solution. Chemosphere 2010, 79, 987–996. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  75. de Sousa, L.; Harmoko, C.; Benes, N.; Mul, G. Optimizing the Ink Formulation for Preparation of Cu-Based Gas Diffusion Electrodes Yielding Ethylene in Electroreduction of CO2. ACS ES&T Eng. 2021, 1, 1649–1658. [Google Scholar] [CrossRef] [Scilit]
  76. Li, J.; Chang, K.; Zhang, H.; He, M.; Goddard, W.A.; Chen, J.G.; Cheng, M.J.; Lu, Q. Effectively Increased Efficiency for Electroreduction of Carbon Monoxide Using Supported Polycrystalline Copper Powder Electrocatalysts. ACS Catal. 2019, 9, 4709–4718. [Google Scholar] [CrossRef] [Scilit]
  77. Bui, J.C.; Kim, C.; Weber, A.Z.; Bell, A.T. Dynamic boundary layer simulation of pulsed CO2 electrolysis on a copper catalyst. ACS Energy Lett. 2021, 6, 1181–1188. [Google Scholar] [CrossRef] [Scilit]
  78. Tatin, A.; Comminges, C.; Kokoh, B.; Costentin, C.; Robert, M.; Savéant, J.M. Efficient Electrolyzer for CO2 Splitting in Neutral Water Using Earth-Abundant Materials. Proc. Natl. Acad. Sci. USA 2016, 113, 5526–5529. [Google Scholar] [CrossRef] [Scilit]
  79. Jeong, S.; Ohto, T.; Nishiuchi, T.; Nagata, Y.; Fujita, J.; Ito, Y. Polyethylene Glycol Covered Sn Catalysts Accelerate the Formation Rate of Formate by Carbon Dioxide Reduction. ACS Catal. 2021, 11, 9962–9969. [Google Scholar] [CrossRef] [Scilit]
  80. Casado-Coterillo, C.; Fernández-Barquín, A.; Zornoza, B.; Téllez, C.; Coronas, J.; Irabien, Á. Synthesis and Characterisation of MOF/Ionic Liquid/Chitosan Mixed Matrix Membranes for CO2/N2 Separation. RSC Adv. 2015, 5, 102350–102361. [Google Scholar] [CrossRef] [Scilit]
  81. Casado-Coterillo, C.; Garea, A.; Irabien, Á. Effect of Water and Organic Pollutant in CO2/CH4 Separation Using Hydrophilic and Hydrophobic Composite Membranes. Membranes 2020, 10, 405. [Google Scholar] [CrossRef] [Scilit]
  82. Wang, L.; Nitopi, S.A.; Bertheussen, E.; Orazov, M.; Morales-Guio, C.G.; Liu, X.; Higgins, D.C.; Chan, K.; Nørskov, J.K.; Hahn, C.; et al. Electrochemical Carbon Monoxide Reduction on Polycrystalline Copper: Effects of Potential, Pressure, and PH on Selectivity toward Multicarbon and Oxygenated Products. ACS Catal. 2018, 8, 7445–7454. [Google Scholar] [CrossRef] [Scilit]
  83. Choi, W.; Park, S.; Jung, W.; Won, D.H.; Na, J.; Hwang, Y.J. Origin of Hydrogen Incorporated into Ethylene during Electrochemical CO2 Reduction in Membrane Electrode Assembly. ACS Energy Lett. 2022, 7, 939–945. [Google Scholar] [CrossRef] [Scilit]
  84. Hoang, T.T.H.; Ma, S.; Gold, J.I.; Kenis, P.J.A.; Gewirth, A.A. Nanoporous Copper Films by Additive-Controlled Electrodeposition: CO2 Reduction Catalysis. ACS Catal. 2017, 7, 3313–3321. [Google Scholar] [CrossRef] [Scilit]
  85. Wang, Y.; Wang, Z.; Dinh, C.T.; Li, J.; Ozden, A.; Golam Kibria, M.; Seifitokaldani, A.; Tan, C.S.; Gabardo, C.M.; Luo, M.; et al. Catalyst synthesis under CO2 electroreduction favours faceting and promotes renewable fuels electrosynthesis. Nat. Catal. 2020, 3, 98–106. [Google Scholar] [CrossRef] [Scilit]
  86. Li, Y.C.; Wang, Z.; Yuan, T.; Nam, D.H.; Luo, M.; Wicks, J.; Chen, B.; Li, J.; Li, F.; De Arquer, F.P.G.; et al. Binding Site Diversity Promotes CO2 Electroreduction to Ethanol. J. Am. Chem. Soc. 2019, 141, 8584–8591. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  87. Dinh, C.T.; Burdyny, T.; Kibria, G.; Seifitokaldani, A.; Gabardo, C.M.; Pelayo García De Arquer, F.; Kiani, A.; Edwards, J.P.; De Luna, P.; Bushuyev, O.S.; et al. CO2 electroreduction to ethylene via hydroxide-mediated copper catalysis at an abrupt interface. Science 2018, 360, 783–787. [Google Scholar] [CrossRef] [Scilit]
  88. Ma, S.; Sadakiyo, M.; Heim, M.; Luo, R.; Haasch, R.T.; Gold, J.I.; Yamauchi, M.; Kenis, P.J.A. Electroreduction of carbon dioxide to hydrocarbons using bimetallic Cu-Pd catalysts with different mixing patterns. J. Am. Chem. Soc. 2017, 139, 47–50. [Google Scholar] [CrossRef] [Scilit]
  89. Zhi, W.Y.; Liu, Y.T.; Shan, S.L.; Jiang, C.J.; Wang, H.; Lu, J.X. Efficient electroreduction of CO2 to C2-C3products on Cu/Cu2O@N-doped graphene. J. CO2 Util. 2021, 50, 101594. [Google Scholar] [CrossRef] [Scilit]
  90. Li, J.; Ozden, A.; Wan, M.; Hu, Y.; Li, F.; Wang, Y.; Zamani, R.R.; Ren, D.; Wang, Z.; Xu, Y.; et al. Silica-copper catalyst interfaces enable carbon-carbon coupling towards ethylene electrosynthesis. Nat. Commun. 2021, 12, 2808. [Google Scholar] [CrossRef] [Scilit]
  91. Luo, M.; Wang, Z.; Li, Y.C.; Li, J.; Li, F.; Lum, Y.; Nam, D.H.; Chen, B.; Wicks, J.; Xu, A.; et al. Hydroxide promotes carbon dioxide electroreduction to ethanol on copper via tuning of adsorbed hydrogen. Nat. Commun. 2019, 10, 5814. [Google Scholar] [CrossRef] [Scilit]
  92. Ma, W.; Xie, S.; Liu, T.; Fan, Q.; Ye, J.; Sun, F.; Jiang, Z.; Zhang, Q.; Cheng, J.; Wang, Y. Electrocatalytic reduction of CO2 to ethylene and ethanol through hydrogen-assisted C–C coupling over fluorine-modified copper. Nat. Catal. 2020, 3, 478–487. [Google Scholar] [CrossRef] [Scilit]
  93. Brée, L.C.; Wessling, M.; Mitsos, A. Modular modeling of electrochemical reactors: Comparison of CO2-electolyzers. Comput. Chem. Eng. 2020, 139, 106890. [Google Scholar] [CrossRef] [Scilit]
  94. Yano, H.; Tanaka, T.; Nakayama, M.; Ogura, K. Selective electrochemical reduction of CO2 to ethylene at a three-phase interface on copper(I) halide-confined Cu-mesh electrodes in acidic solutions of potassium halides. J. Electroanal. Chem. 2004, 565, 287–293. [Google Scholar] [CrossRef] [Scilit]
Membranes 12 00783 g001
Figure 1. Schematic of the membrane electrode assembly configuration (MEA) for the continuous flow electrochemical cell configuration for the CO2R experiments (a), where the cathode is either of GDE architecture, with only a catalyst layer on the porous carbon support (b) or MCE architecture, with a membrane overlayer covering the catalyst layer (c), respectively. GDL: gas-diffusion layer carbon support; CL: catalyst layer; MO: membrane overlayer.
Figure 1. Schematic of the membrane electrode assembly configuration (MEA) for the continuous flow electrochemical cell configuration for the CO2R experiments (a), where the cathode is either of GDE architecture, with only a catalyst layer on the porous carbon support (b) or MCE architecture, with a membrane overlayer covering the catalyst layer (c), respectively. GDL: gas-diffusion layer carbon support; CL: catalyst layer; MO: membrane overlayer.
Membranes 12 00783 g001
Membranes 12 00783 g002

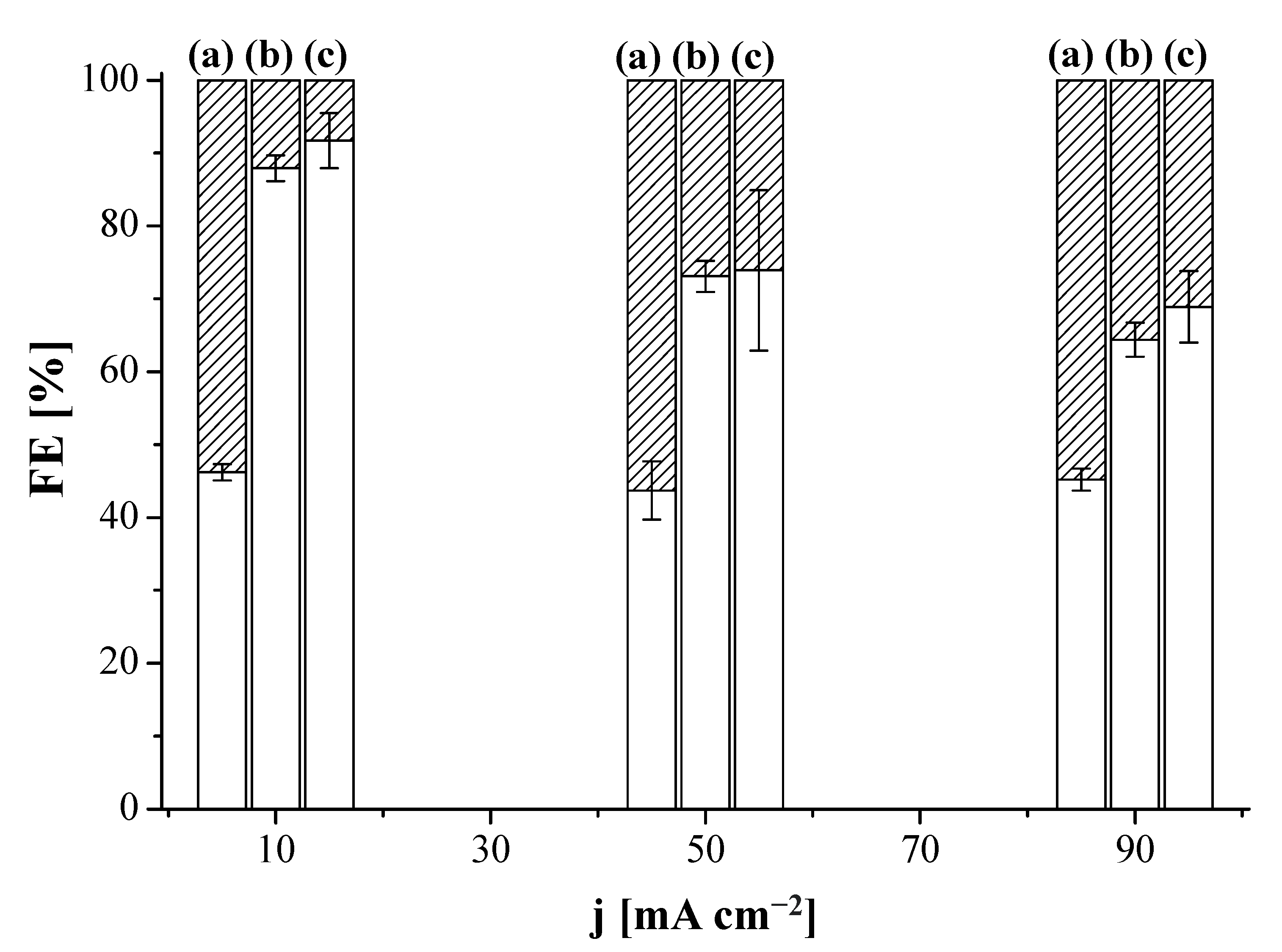

Figure 2. Faradaic efficiency (FE) of ethylene (blank) and hydrogen (striped) as a function of applied current density for the Fumatech MEA (FAA-3 AEM and Cu:Fumion GDE) (a), Sustainion MEA (Sustainion membrane and Cu:Sustainion GDE) (b) and the MEA composed by the Sustainion membrane and the Cu:CS GDE (c).
Figure 2. Faradaic efficiency (FE) of ethylene (blank) and hydrogen (striped) as a function of applied current density for the Fumatech MEA (FAA-3 AEM and Cu:Fumion GDE) (a), Sustainion MEA (Sustainion membrane and Cu:Sustainion GDE) (b) and the MEA composed by the Sustainion membrane and the Cu:CS GDE (c).
Membranes 12 00783 g002
Membranes 12 00783 g003
Figure 3. Production molar rates of ethylene generation as a function of applied current density for the Fumatech MEA (FAA-3 AEM and Cu:Fumion GDE) (a), the Sustainion MEA (Sustainion AEM and Cu:Sustainion GDE) (b) and the MEA composed by the Sustainion AEM and the Cu:CS GDE (c).
Figure 3. Production molar rates of ethylene generation as a function of applied current density for the Fumatech MEA (FAA-3 AEM and Cu:Fumion GDE) (a), the Sustainion MEA (Sustainion AEM and Cu:Sustainion GDE) (b) and the MEA composed by the Sustainion AEM and the Cu:CS GDE (c).
Membranes 12 00783 g003
Membranes 12 00783 g004
Figure 4. FE of ethylene (blank) and hydrogen (striped) obtained at 10 mA cm−2 with the three MCEs proposed in this study. The results obtained with the uncoated Cu:CS GDE are also shown for comparison. The Sustainion AEM was the compartment separator.
Figure 4. FE of ethylene (blank) and hydrogen (striped) obtained at 10 mA cm−2 with the three MCEs proposed in this study. The results obtained with the uncoated Cu:CS GDE are also shown for comparison. The Sustainion AEM was the compartment separator.
Membranes 12 00783 g004
Membranes 12 00783 g005

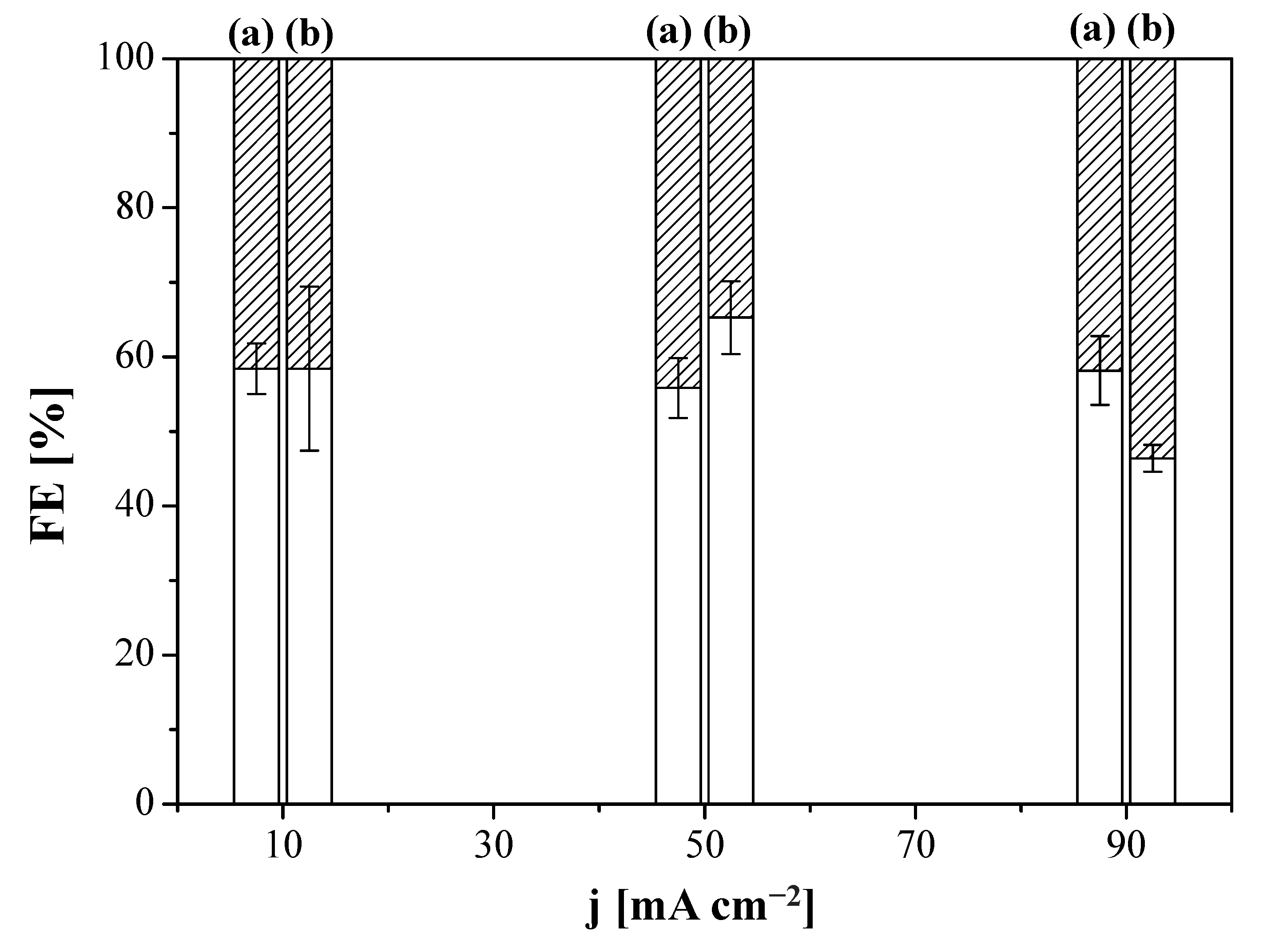

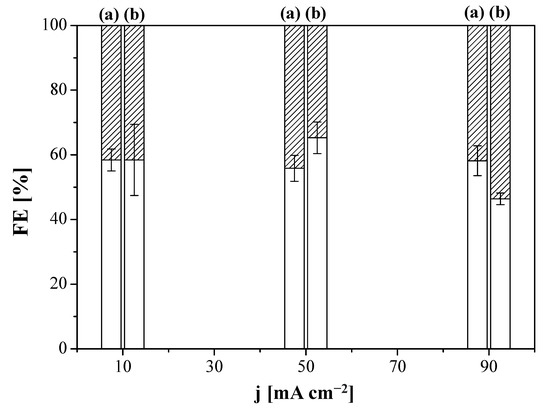

Figure 5. Faradaic efficiency (FE) of H2 (striped) and C2H4 (blank) obtained for the system with purely CS-based MEAs using the CS:PVA composite membrane (a) or the CuUZAR-S3@CuY/CS:PVA composite membrane (b) as compartment separator, as a function of applied current density. The electrode used in both cases was the Cu:CS GDE.
Figure 5. Faradaic efficiency (FE) of H2 (striped) and C2H4 (blank) obtained for the system with purely CS-based MEAs using the CS:PVA composite membrane (a) or the CuUZAR-S3@CuY/CS:PVA composite membrane (b) as compartment separator, as a function of applied current density. The electrode used in both cases was the Cu:CS GDE.
Membranes 12 00783 g005
Membranes 12 00783 g006
Figure 6. Production molar rates of ethylene obtained for the CS-based MEAs prepared in the laboratory, combining the Cu:CS GDE and the CS:PVA (a) and the CuY@CuUZAR-S3/CS:PVA MMM composite membrane (b) as a function of the applied current density.
Figure 6. Production molar rates of ethylene obtained for the CS-based MEAs prepared in the laboratory, combining the Cu:CS GDE and the CS:PVA (a) and the CuY@CuUZAR-S3/CS:PVA MMM composite membrane (b) as a function of the applied current density.
Membranes 12 00783 g006
Table 1. Cu-based GDEs and MCEs for the production of C2H4 in KOH alkaline media prepared in our laboratory as a function of binder in the catalytic layer and the membrane overlayer composition and thickness. A 200 µm thick Toray carbon paper served as the supporting of the Cu-based electrocatalysts. References in literature in this regard are collected in Table S2 in the Supplementary Materials.
Table 1. Cu-based GDEs and MCEs for the production of C2H4 in KOH alkaline media prepared in our laboratory as a function of binder in the catalytic layer and the membrane overlayer composition and thickness. A 200 µm thick Toray carbon paper served as the supporting of the Cu-based electrocatalysts. References in literature in this regard are collected in Table S2 in the Supplementary Materials.
Catalyst/Cathode Type(Ionic) Binding TypeCatalyst Loading (mg/cm2)Membrane OverlayerReference
Material CompositionThickness (µm)
Cu NP:CS/CCS (1 wt.% in acetic acid/H2O)1.0--[68]
CS:PVA/Cu NP/CCS (1 wt.% in acetic acid/H2O)1.0CS:PVA52 ± 1.67[68]
CuUZAR-S3/CS:PVA/Cu-NP/CCS (1 wt.% in acetic acid/H2O)1.0CuUZAR-S3/CS:PVA46 ± 0.51[68]
CuY/CS:PVA/Cu-NP/CCS (1 wt.% in acetic acid/H2O)1.0CuY/CS:PVA47 ± 1.98[68]
Cu NP:S/CSustainion XA-9 (5 wt.% in ethanol)1.0--This work
Cu NP:F/CFumion FAA-3 (10 wt.% in NMP)1.0--This work
Table 2. Experimental results of the CO2R conversion to C2H4 in MEA configuration with Cu-based gas diffusion electrodes in 1 M KOH.
Table 2. Experimental results of the CO2R conversion to C2H4 in MEA configuration with Cu-based gas diffusion electrodes in 1 M KOH.
MEA ComponentsAnolytej (mA/cm2)Ecat
(V vs. RHE)		EE (C2H4)
(%)
ElectrodeMembrane
Cu:Fumion GDEFumatech FAA-3 (AEM)1 M KOH100.5727.2 ± 0.7
500.8320.4 ± 1.9
900.9218.6 ± 0.6
Cu:Sustainion 1 GDESustainion X37 (AEM)1 M KOH100.4855.2 ± 1.1
500.5142.0 ± 1.2
900.6233.0 ± 1.2
Cu:CS GDESustainion X37 (AEM)1 M KOH100.5356.4 ± 2.3
500.5541.0 ± 6.1
900.7433.5 ± 2.4
Cu:CS GDECS:PVA (AEM)1 M KOH100.9410.7 ± 6.1
501.9612.0 ± 1.0
902.4310.3 ± 1.0
Cu:CS GDECuY@CuUZAR-S3/ CS:PVA (AEM)1 M KOH101.3223.4 ± 4.8
502.0517.9 ± 1.3
902.788.90 ± 0.3
1 The term Sustainion in the first column denotes the ionomer and the second column, the solid polyelectrolyte membrane.
Table 3. Experimental results of the CO2R conversion to C2H4 in MEA configuration with Cu-based membrane coated electrodes (MCEs) in 1 M KOH.
Table 3. Experimental results of the CO2R conversion to C2H4 in MEA configuration with Cu-based membrane coated electrodes (MCEs) in 1 M KOH.
MEA ComponentsAnolyteJ
(mA cm−2)		Ecat
(V vs. RHE)		EE (C2H4)
(%)
ElectrodeMembrane
CS:PVA/Cu/C MCESustainion (AEM)1 M KOH101.2627.8 ± 3.4
CuUZAR-S3CS:PVA/Cu/C MCESustainion (AEM)1 M KOH100.8737.8 ± 0.4
CuYCS:PVA/Cu/C MCESustainion (AEM)1 M KOH100.9613.3 ± 0.3
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Marcos-Madrazo, A.; Casado-Coterillo, C.; Iniesta, J.; Irabien, A. Use of Chitosan as Copper Binder in the Continuous Electrochemical Reduction of CO2 to Ethylene in Alkaline Medium. Membranes 2022, 12, 783. https://doi.org/10.3390/membranes12080783

AMA Style

Marcos-Madrazo A, Casado-Coterillo C, Iniesta J, Irabien A. Use of Chitosan as Copper Binder in the Continuous Electrochemical Reduction of CO2 to Ethylene in Alkaline Medium. Membranes. 2022; 12(8):783. https://doi.org/10.3390/membranes12080783

Chicago/Turabian Style

Marcos-Madrazo, Aitor, Clara Casado-Coterillo, Jesús Iniesta, and Angel Irabien. 2022. "Use of Chitosan as Copper Binder in the Continuous Electrochemical Reduction of CO2 to Ethylene in Alkaline Medium" Membranes 12, no. 8: 783. https://doi.org/10.3390/membranes12080783

APA Style

Marcos-Madrazo, A., Casado-Coterillo, C., Iniesta, J., & Irabien, A. (2022). Use of Chitosan as Copper Binder in the Continuous Electrochemical Reduction of CO2 to Ethylene in Alkaline Medium. Membranes, 12(8), 783. https://doi.org/10.3390/membranes12080783

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
