Review

Multimodal Imaging-Based Potential Visualization of the Tumor Microenvironment in Bone Metastasis

by
Jang Bae Moon
1,†,
Su Woong Yoo
1,†,
Changho Lee
1,
Dong-Yeon Kim
2,
Ayoung Pyo
3 and
Seong Young Kwon
1,*
1
Department of Nuclear Medicine, Chonnam National University Medical School and Hwasun Hospital, Hwasun-gun 58128, Korea
2
College of Pharmacy and Research Institute of Pharmaceutical Science, Gyeongsang National University, Jinju 52828, Korea
3
Accelerator & RI Development Team, Korea Atomic Energy Research Institute, Daejeon 56212, Korea
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Cells 2021, 10(11), 2877; https://doi.org/10.3390/cells10112877
Submission received: 27 August 2021 / Revised: 11 October 2021 / Accepted: 22 October 2021 / Published: 25 October 2021
(This article belongs to the Special Issue Cellular and Molecular Mechanisms of Bone Metastases)
Browse Figures
Versions Notes

Abstract

:
Bone metastasis (BM) is the most common malignant bone tumor and a significant cause of morbidity and mortality for patients with cancer. Compared to other metastatic organs, bone has unique characteristics in terms of the tumor microenvironment (TME). Precise assessments of the TME in BM could be an important step for developing an optimized management plan for patient care. Imaging approaches for BM have several advantages, such as biopsy not being required, multiple site evaluation, and serial assessment in the same sites. Owing to the developments of new imaging tracers or imaging modalities, bone TME could be visualized using multimodal imaging techniques. In this review, we describe the BM pathophysiology, diagnostic principles of major imaging modalities, and clinically available imaging modalities to visualize the TME in BM. We also discuss how the interactions between various factors affecting the TME could be visualized using multimodal imaging techniques.

1. Introduction

Bone is one of the major target sites for metastasis. Bone metastasis (BM) is the most common malignant bone tumor and a significant cause of morbidity and mortality for patients with cancer. BM often causes critical skeletal-related events (SREs), including pain, fractures, hypercalcemia, and spinal cord compression, which contribute to reduced quality of life and decreased survival [1,2,3].
For the management of BM, variable therapeutic or management tools, such as surgery, radiotherapy, systemic therapy, and bone-targeted agents (bisphosphonate and denosumab), are available worldwide to minimize SREs and improve quality of life [4,5,6,7,8]. However, their reliability and effectiveness remain unclear. This could be owing to the lack of understanding of the tumor microenvironment (TME) comprising tumor cells, stromal cells, and bone matrix [9,10]. Compared with other metastatic organs, bone has unique characteristics for the TME [11,12]. Precise assessments of the TME in BM could be important to develop an optimized management process for patient care.
Medical imaging has been used for identifying metastatic sites, guiding biopsy sites, and evaluating the therapeutic responses, thus permitting further management plans to be drawn for patients with BM [13]. Owing to the developments of new imaging tracers or imaging modalities, several studies have been performed for visualization of the TME [14,15,16,17]. Compared to conventional methods to assess the TME, imaging approaches have several advantages, such as biopsy not being required, evaluation of multiple sites, and serial assessment at the same sites.
In this review, we describe the BM pathophysiology and diagnostic principles of major imaging modalities. Then, we classify factors related to the TME in BM into two categories (primary tumor and bone tissues) and introduce multimodal imaging patterns according to each category.

2. Imaging-Based Understanding of BM Pathophysiology

2.1. Pathophysiologic Factors Related to Bone Metastasis

The process of BM includes multiple steps, namely neoangiogenesis, intravasation, and extravasation [18]. Angiogenesis is necessary to provide nutritional support to the tumor cells, thus enabling their migration. Before migration, tumor cells may undergo epithelial-to-mesenchymal transition (EMT), which is a reversible switch from an epithelial to a mesenchymal cellular phenotype [19]. EMT occurs in variable pathological conditions, such as chronic inflammation, wound healing, tumor progression, and metastases. This functional modification, which includes the change from a polarized tight junction type to a flat, spindled, and motile type, enables the tumor cells to drive the invasion of the basement membrane (intravasation), enter the blood vessels, and migrate to distant sites [19]. On reaching the bone tissue, tumor cells adhere to the vessel endothelium, extravasate, and bind to bone stromal cells and bone matrix through specific cell adhesion molecules [20]. Bone is a large repository for growth factors (insulin-like growth factor, platelet-derived growth factor, and fibroblast growth factor), which are released during bone resorption and promote bone homing, colonization, and subsequent tumor cell proliferation [21]. Additionally, tumor cells may proliferate as an effect of mesenchymal-to-epithelial transition [22].
Bone maintains a dynamic balance between osteoblastic (bone-forming) and osteoclastic (resorptive) activity, which undergoes bone modifications within the physiological process of bone remodeling in normal conditions [13,23,24]. This complex process is regulated by resident bone cells and other cell types, including lymphocytes, macrophages, hematopoietic cells, and endocrine signaling molecules, in bone tissues [25]. When tumor cells proliferate in bone tissues, osteoblastic and osteoclastic changes occur simultaneously [26]. The simultaneous presence of both cell types elucidates the reason why BMs could show osteolytic, osteosclerotic (osteoblastic), or mixed lesions [27]. Osteolytic metastases involve osteoclast-mediated bone resorption and are frequently observed in thyroid, lung, and renal carcinomas [13]. In osteolytic metastases, the interaction between the receptor activator of nuclear factor kappa B (RANK) and its ligand (RANKL) plays a consistent role [28]. RANKL levels lead to hyperactivation of osteoclastogenesis and bone resorption, permitting metastatic clones to invade the bone tissues. Liver specimens of hepatocellular carcinoma (HCC) patients with BM express high RANKL levels, suggesting a potential role of the RANK/RANKL axis in the formation of osteolytic BM [29]. Activated osteoclasts reabsorb the bone by producing hydrochloric acid and metalloproteases, which dissolve the mineral in bone and cause breakdown of the collagenous matrix [30]. Osteoblastic metastases involve the formation of pathologic new bone, particularly in prostate cancer [13]. The osteoblastic component of a lytic metastasis represents the reaction of normal bone to the metastatic process [23]. Breast cancer is one of the solid tumors with mixed patterns in BM.

2.2. Diagnostic Principle for Imaging Modalities

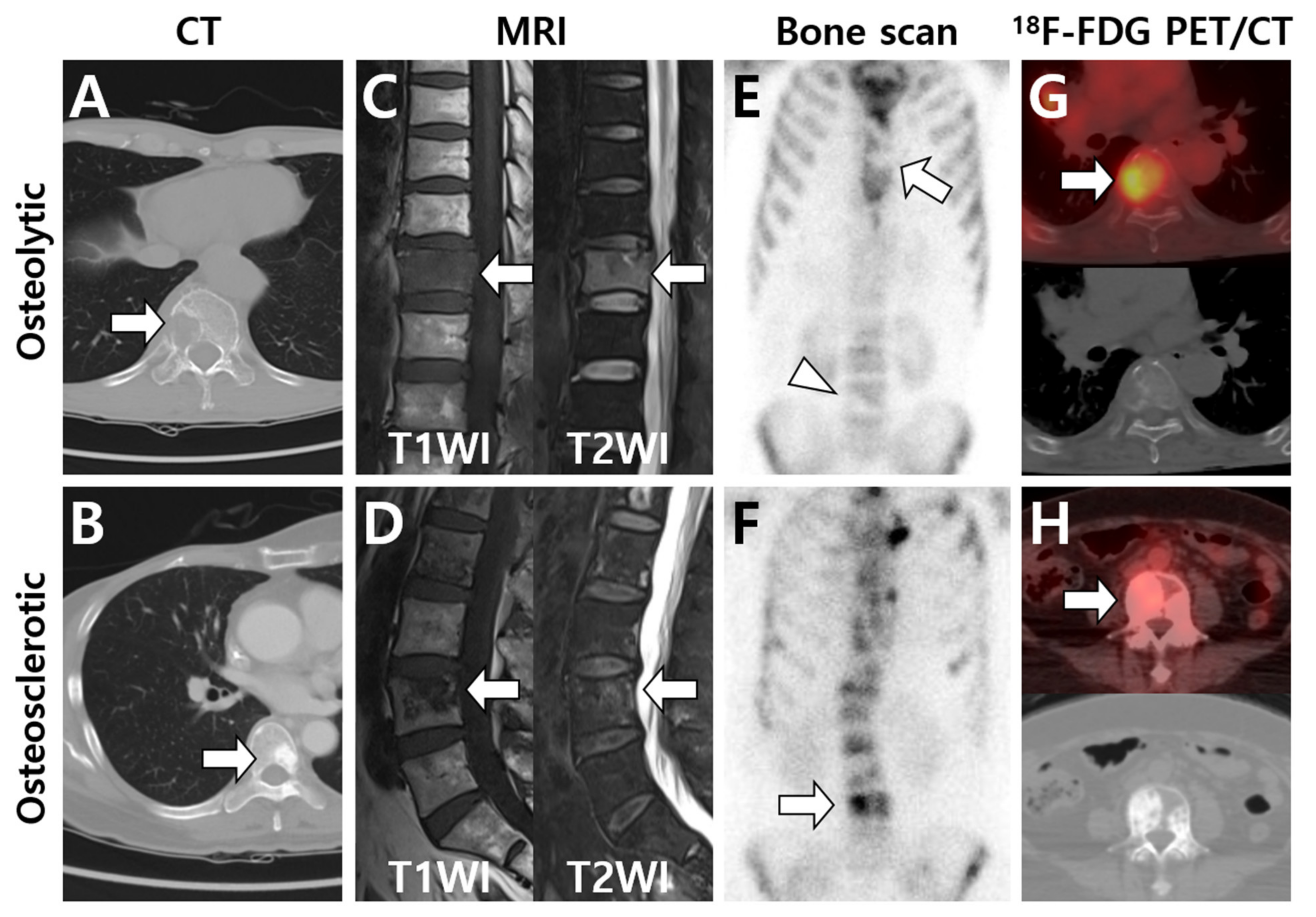

In clinical aspects, BM imaging methods can be generally divided into two categories based on detection mechanisms, namely bone-marrow- or tumor-specific methods and osteoblastic-activity-related methods [31]. Bone-marrow- or tumor-specific methods include 18F-fluorodeoxyglucose (18F-FDG) positron emission tomography (PET) and magnetic resonance imaging (MRI). Imaging modalities that reflect osteoblastic activity include radiography, computed tomography (CT), and bone scintigraphy (or bone scan) [32]. The combination of nuclear imaging modalities using either bone- or tumor-specific radiotracers with CT or MRI has been actively used in the clinic, namely single-photon emission computed tomography (SPECT)/CT, PET/CT, or PET/MRI [31,32]. Typical imaging patterns among four major modalities are illustrated in Figure 1.
CT can show the detailed characteristics of bone tissue and detect metastases within the bone marrow before bone destruction occurs [27]. In particular, CT is useful in visualizing the bone cortical integrity, permitting an easy characterization of the lesions as osteolytic or osteosclerotic [20]. The lesion on CT can be visualized as an increased attenuation of the normal fatty bone marrow. The lesion is abnormal when an attenuation difference between the right and left extremities is more than 20 Hounsfield units (HU) [33]. Nevertheless, the CT appearance of the lesion could be variable, depending on the balance between bone-forming and resorptive processes. Dual-energy CT can improve the diagnostic performance for the detection of BM through better characterization of different matter components, especially for medullary bone lesions [34,35]. CT also has advantages compared with radiography and bone scintigraphy in that it may be used to identify lesions in the spine and calvarium and to perform an image-guided biopsy. Through the clinical application of hybrid scanners, such as PET/CT or SPECT/CT, CT information about morphologic characteristics has contributed to improving the differential diagnosis and response evaluation after therapy [31].
Bone scintigraphy (or bone scan) with 99mTc-labeled diphosphonate is the most widely used method of detecting BM. 99mTc-methylene diphosphonate (99mTc-MDP) is the most commonly used tracer. This radiotracer shows rapid clearance from blood and soft tissues, which results in good image contrast as early as 2 h after injection [36]. It accumulates in areas of increased osteoblastic activity and increased blood flow and has an advantage for detecting osteoblastic metastases, particularly in breast or prostate cancers [23]. In contrast, bone scintigraphy is less sensitive for detecting BM that has little osteoblastic reaction or aggressive lesions with osteolysis (osteolytic metastases), which can show decreased radiotracer uptake [23]. Osteolytic metastases with little osteoblastic reaction are frequently overlooked in specific types of cancers, such as thyroid cancer or HCC. Tracer uptake of the BM lesion could also be variable according to the balance between bone-forming and resorptive processes, particularly in breast cancer. However, the diagnostic performance can be limited as radiotracer uptake can occur in any area of high bone turnover related to trauma, infection, or inflammation [37]. To evaluate false-positive findings, correlative imaging modalities with CT, MRI, or PET/CT should be considered [13]. While bone scan appears as planar images, SPECT acquires images in a cross-sectional method after administration of the same radiotracer, which can provide improved anatomic localization and diagnostic accuracy [27]. SPECT/CT can be useful for the differential diagnosis of indeterminate findings on a bone scan [13,27].
MRI shows high sensitivity for BM detection as it can provide detailed information of marrow abnormalities [38]. Normal bone marrow contains a high percentage of fat tissues, which can be shown as high signal intensity (SI) on T1-weighted images (T1WIs) [13]. In BM, normal marrow fat cells are replaced with tumor cells, showing low SI on T1WIs. On T2-weighted images (T2WIs), the SI is generally higher in BM than in the normal bone marrow owing to high water content [37,39]. MRI is also highly helpful for the assessment of epidural, nerve, and spinal cord involvement through superior soft-tissue contrast [40,41], permitting differential diagnosis between benign and malignant vertebral compression fractures and evaluation of spinal cord compression [20]. In contrast, MRI has a drawback for the evaluation of cortical bone destruction as the cortical bone is demonstrated as a dark signal on both T1- and T2-weighted images [27,37]. MRI with diffusion-weighted imaging (DWI) is a promising imaging technique in the evaluation of BM from other solid tumors [42]. Through the combination of functional information from DWI with morphological MR sequences, differences between the cellularity of BM and normal marrow can be evaluated. MRI with dynamic contrast enhancement (DCE) has recently been investigated for the diagnosis of spinal BM, showing the ability to detect vertebral body infiltration and tumor vascularity [43]. The latter characteristic could permit MRI with DCE to contribute to evaluation of the response to antiangiogenic therapies [20]. DWI and DCE parameters of BM changed significantly in patients with HCC after radiation therapy (RT) [44]. In addition, the percent change in apparent diffusion coefficient (ADC) was related to therapeutic responses and local tumor progression after RT in BM.
18F-FDG PET/CT showed good diagnostic performance for the detection of BM [38]. 18F-FDG is a glucose analog that is taken up by tumor cells and phosphorylated and becomes trapped within the tumor cells. Tumor or inflammatory cells, which have a high glucose consumption, show high FDG uptake through increased expression of glucose transporter 1 (Glut1) and hexokinase concentration [13]. 18F-FDG PET/CT can detect the primary or metastatic tumor tissues with high glucose uptake [45]. Although 18F-FDG PET/CT has been reported to detect osteolytic, osteoblastic, and mixed lesions, it showed high sensitivity for detecting lytic metastases compared with bone-seeking radiotracers, such as 99mTc-labeled diphosphonate and 18F-sodium fluoride [13,31]. 18F-FDG PET/CT is also more sensitive in evaluating bone marrow involvement and early BM lesions. In particular, 18F-FDG PET/CT is useful to identify the primary tumor and biopsy sites in patients with suspicious BM from unknown primary sites [46]. In contrast, its specificity can be low for the differential diagnosis between BM and active inflammatory lesions, such as infectious spondylitis or recent traumatic fracture, as 18F-FDG can be taken up by inflammatory as well as tumor cells.

3. Imaging Patterns Based on Primary Tumor Characteristics

Although the clinically available imaging modalities described above have limitations in precisely understanding the TME, clinical values must be derived by combining the conventional imaging modalities with new molecular imaging technologies. In the next two sections, we introduce multimodal imaging techniques to visualize the TME in BM according to two factors, namely primary lesion and bone microenvironment.

3.1. Multimodal Imaging According to the Primary Tumor Site and Histologic Type

Because the BM characteristics can be affected by the primary tumor, the BM lesion may have various image patterns depending on the primary cancer [31]. Major imaging findings in BM are summarized in Table 1. When the primary lesion is located in the thyroid, lung, liver, or kidney, osteoclast activation and its interaction with the bone stroma lead to an osteolytic pattern on CT [47,48,49,50] and low SI in T1WI on MRI [51,52,53,54]. 18F-FDG PET/CT generally depicts high FDG uptake in BM lesions from the lung [45,55,56], whereas those from the liver or kidney show low FDG uptake [57,58], which is related to FDG avidity of the primary lesion to some extent. In BM from breast, osteoblastic activity dominates during the early stages of BM before the initiation of the osteolytic phase, and a mixed pattern is shown on CT according to the balance work between osteoblast and osteoclast activation [59]. On MRI, BM from breast shows low SI in T1WI and various SI in T2WI [38]. In bone scan, radiotracer uptake is generally increased by osteoblastic activity and secondary bone changes [60,61]. There is generally high FDG uptake in BM lesions from the breast due to cancer and bone stromal cells interacting with the cancer cells [62,63]. BM lesions from prostate cancer generally demonstrate osteosclerotic patterns with high HU on CT due to the osteoblastic-dominated response [64] and are more sensitive on the bone scan than on 18F-FDG PET/CT [65,66].
Even if the primary tumor originates from the same organ, the metabolic phenotype of the primary tumor can be different depending on the histologic subtype, which may affect the imaging pattern of BM lesions on 18F-FDG PET/CT. Among the histologic subtypes of lung cancer, FDG uptake in tumor cells is generally higher in lung squamous cell carcinoma than in lung adenocarcinoma as Glut1 is highly expressed mainly in the squamous cell membrane, whereas Glut1 expression in lung adenocarcinoma is distributed in the cytosol [85]. Clinically, the diagnostic performance of 18F-FDG PET/CT for BM detection could be limited in lung adenocarcinoma with low FDG avidity. Among the histologic subtypes of breast cancer, there is a difference in FDG uptake between invasive ductal and invasive lobular carcinomas, and this difference could affect the metabolic phenotype in BM lesions and sensitivity in PET/CT between the subtypes [86].

3.2. Multimodal Imaging According to the Differentiation Status of the Primary Tumor

Even if the primary tumor has the same histologic type, the imaging patterns in BM could vary depending on the differentiation status or metabolic phenotype of the primary tumor. Multimodal imaging modalities using different radiotracers can potentially visualize the TME in BM, reflecting the differentiation status.
HCC is one of the highly heterogeneous cancers, which has several implications in evaluating the TME of metastatic lesions. Even in the same tumor mass of a single patient, the imaging pattern can be heterogeneous depending on the degree of tumor differentiation. There is a relationship between the degree of tumor differentiation and DCE patterns on MRI [87,88,89]. In well-differentiated HCC, MRI shows a relatively hypoenhanced pattern on arterial phase and high SI on hepatobiliary phase. In contrast, in HCC with poor differentiation, a hyperenhancement pattern on arterial phase and low SI on hepatobiliary phase are observed. When the tumor mass in HCC comprises tumor cells with various degrees of differentiation, the enhancement patterns also varies in each phase [88,90]. Many studies have been reported using 11C-acetate PET/CT, which reflects lipid metabolism, as well as 18F-FDG PET/CT in diagnosing primary HCC and metastatic tumors [91,92]. These two radiotracers are mutually complementary owing to different radiotracer avidities according to tumor differentiation, with high 11C-acetate and FDG uptake found in well-differentiated and poorly differentiated tumors, respectively [92]. Moreover, metastatic tumors could also reflect the characteristics of the primary tumor to some extent; therefore, the tracer avidity of metastatic tumors, including BM, also changes depending on that of the primary tumor (Figure 2).

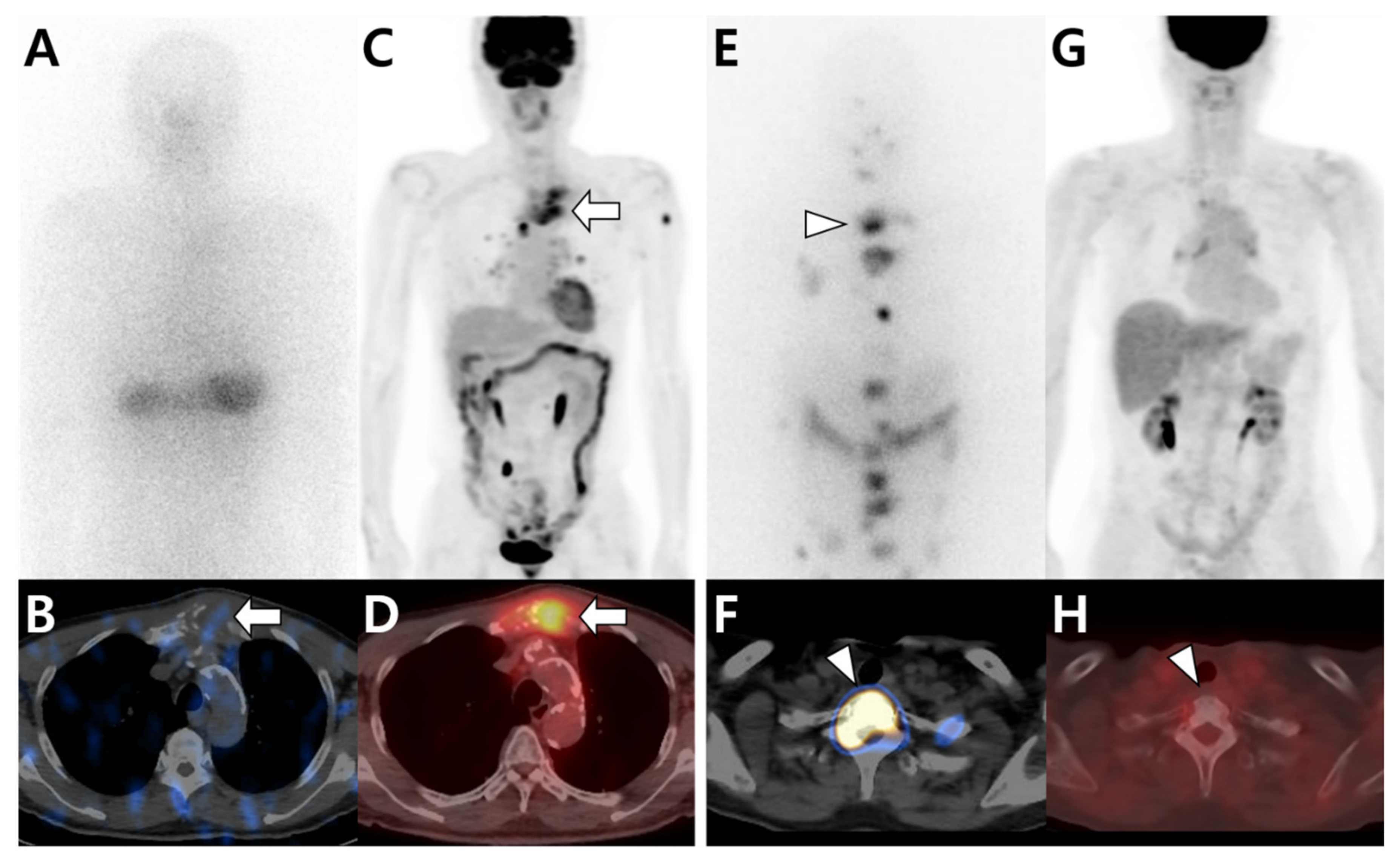

Although differentiated thyroid cancer (DTC), such as papillary or follicular cancer, has an excellent prognosis, the prognosis deteriorates rapidly when distant metastasis occurs [20]. Bone is the second most common site of distant metastasis in DTC [70]. Sodium–iodide symporter (NIS) expressed on the cell membrane is an important tool for the diagnosis (123I) and therapy (131I) of DTC. NIS expression in tumor cells is maintained in the early phase of distant metastasis, where 131I therapy contributes to patient outcomes [93]. However, when the degree of differentiation is poor, the expression level of NIS and iodine uptake decreases. Conversely, glucose metabolism, which is visualized as FDG uptake on 18F-FDG PET/CT, increases (Figure 3) [94]. This flip-flop phenomenon is important for further management plans for patients with distant metastasis, including BM, as 131I therapy is highly limited in DTC patients with poor differentiation.

4. Imaging Patterns Based on the Bone Microenvironment

When tumor cells metastasize to bone, they affect the TME in various ways through interaction among tumor cells, stromal cells, and bone matrix [95]. Molecular imaging is applied to visualize the TME using radiotracers for specific targets, such as tumor metabolism, receptor expression, and stromal cell activation, in BM (Table 2). Additionally, multimodal imaging techniques using these radiotracers can provide an opportunity to noninvasively assess how tumor cells interact with various stromal cells or bone matrices affecting the TME.
Compared to other organs, bones have unique characteristics with respect to the TME [18]. In particular, adipocytes, one of the stromal cells, are rich in bone marrow, which has more chances to interact with tumor cells. Adipocytes in bone tissue release fatty acids used for energy production by metastatic cells, which lead to high expression of specific proteins, such as the fatty-acid-binding protein [129]. Alternatively, the metabolic phenotype of BM changes from glucose-avid to lipid-avid TME. Through this metabolic remodeling process, BM lesions tend to show high acetate uptake but low FDG uptake on dual-tracer PET/CT compared to metastatic lesions in other sites (Figure 4) [79].
Additionally, the image patterns using the same radiotracer can be different according to involved sites of BM or the presence of soft tissue involvement (Figure 5). 18F-FDG PET/CT showed higher FDG uptake in BM with bone destruction and soft tissue formation than in BM without soft tissue formation [77]. Metabolic assessments of BM using PET/CT have the potential value to predict or to determine the presence of BM-associated soft tissue formation, which can cause pain, spinal cord compression, and paralysis [130].

5. Conclusions

We reviewed well-used imaging tools for BM diagnosis and clinically available imaging modalities to visualize the bone TME. Additionally, we discussed how interactions between various factors affecting the TME were visualized using multimodal imaging techniques, focusing on BMs originating from thyroid and liver cancers.
The molecular imaging techniques to visualize the TME in BM are anticipated to expand their role to determine further therapeutic or management plans. Further research is necessary to assess multimodal imaging patterns to examine the TME with newly developed therapeutic targets (including cancer-associated fibroblasts [131] and neovasculature in tumor tissues [132]) in patients with BM from various types of cancers. In particular, multidisciplinary approaches are required for the optimization of management based on imaging-aided TME assessment for each metastatic lesion, even in the same patient. Through these efforts, multimodal imaging techniques are anticipated to prevent SREs and improve a patient’s quality of life and prognosis.

Author Contributions

Conceptualization, S.Y.K.; methodology, J.B.M. and S.W.Y.; writing—original draft preparation, J.B.M. and S.W.Y.; writing—review and editing, C.L., D.-Y.K., A.P. and S.Y.K.; supervision, S.Y.K.; funding acquisition, S.W.Y. and S.Y.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korean government (MSIT) (NRF-2021R1F1A1056599) to S.Y.K. In addition, this research was supported by the Bio and Medical Technology Development Program of NRF funded by the Korean government (MSIT) (NRF-2019M3E5D1A02067958) to S.W.Y.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kinnane, N. Burden of bone disease. Eur. J. Oncol. Nurs. 2007, 11 (Suppl. S2), S28–S31. [Google Scholar] [CrossRef]
  2. Baek, Y.H.; Jeon, H.L.; Oh, I.S.; Yang, H.; Park, J.; Shin, J.Y. Incidence of skeletal-related events in patients with breast or prostate cancer-induced bone metastasis or multiple myeloma: A 12-year longitudinal nationwide healthcare database study. Cancer Epidemiol. 2019, 61, 104–110. [Google Scholar] [CrossRef]
  3. Hong, S.; Youk, T.; Lee, S.J.; Kim, K.M.; Vajdic, C.M. Bone metastasis and skeletal-related events in patients with solid cancer: A Korean nationwide health insurance database study. PLoS ONE 2020, 15, e0234927. [Google Scholar] [CrossRef] [PubMed]
  4. Laufer, I.; Rubin, D.G.; Lis, E.; Cox, B.W.; Stubblefield, M.D.; Yamada, Y.; Bilsky, M.H. The NOMS framework: Approach to the treatment of spinal metastatic tumors. Oncologist 2013, 18, 744–751. [Google Scholar] [CrossRef] [Green Version]
  5. Choi, D.; Fox, Z.; Albert, T.; Arts, M.; Balabaud, L.; Bunger, C.; Buchowski, J.M.; Coppes, M.H.; Depreitere, B.; Fehlings, M.G.; et al. Rapid improvements in pain and quality of life are sustained after surgery for spinal metastases in a large prospective cohort. Br. J. Neurosurg. 2016, 30, 337–344. [Google Scholar] [CrossRef] [PubMed]
  6. Kumar, N.; Malhotra, R.; Zaw, A.S.; Maharajan, K.; Naresh, N.; Kumar, A.; Vellayappan, B. Evolution in treatment strategy for metastatic spine disease: Presently evolving modalities. Eur. J. Surg. Oncol. 2017, 43, 1784–1801. [Google Scholar] [CrossRef] [PubMed]
  7. Nasser, S.M.; Sahal, A.; Hamad, A.; Elazzazy, S. Effect of denosumab versus zoledronic acid on calcium levels in cancer patients with bone metastasis: A retrospective cohort study. J. Oncol. Pharm. Pract. 2019, 25, 1846–1852. [Google Scholar] [CrossRef]
  8. Al Farii, H.; Frazer, A.; Farahdel, L.; Alfayez, S.; Weber, M. Zoledronic Acid Versus Denosumab for Prevention of Spinal Cord Compression in Advanced Cancers With Spine Metastasis: A Meta-Analysis of Randomized Controlled Trials. Glob. Spine J. 2020, 10, 784–789. [Google Scholar] [CrossRef] [PubMed]
  9. Park, C.C.; Bissell, M.J.; Barcellos-Hoff, M.H. The influence of the microenvironment on the malignant phenotype. Mol. Med. Today 2000, 6, 324–329. [Google Scholar] [CrossRef]
  10. Glunde, K.; Bhujwalla, Z.M.; Ronen, S.M. Choline metabolism in malignant transformation. Nat. Rev. Cancer 2011, 11, 835–848. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Hiraga, T. Bone metastasis: Interaction between cancer cells and bone microenvironment. J. Oral Biosci. 2019, 61, 95–98. [Google Scholar] [CrossRef] [PubMed]
  12. Kolb, A.D.; Shupp, A.B.; Mukhopadhyay, D.; Marini, F.C.; Bussard, K.M. Osteoblasts are “educated” by crosstalk with metastatic breast cancer cells in the bone tumor microenvironment. Breast Cancer Res. 2019, 21, 31. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Choi, J.; Raghavan, M. Diagnostic imaging and image-guided therapy of skeletal metastases. Cancer Control 2012, 19, 102–112. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Youn, H.; Hong, K.J. In vivo non invasive molecular imaging for immune cell tracking in small animals. Immune Netw. 2012, 12, 223–229. [Google Scholar] [CrossRef]
  15. Fang, M.; Peng, C.W.; Yuan, J.P.; Zhang, Z.L.; Pang, D.W.; Li, Y. Coevolution of the tumor microenvironment revealed by quantum dot-based multiplexed imaging of hepatocellular carcinoma. Future Oncol. 2013, 9, 1029–1037. [Google Scholar] [CrossRef]
  16. Narunsky, L.; Oren, R.; Bochner, F.; Neeman, M. Imaging aspects of the tumor stroma with therapeutic implications. Pharmacol. Ther. 2014, 141, 192–208. [Google Scholar] [CrossRef] [Green Version]
  17. LeBleu, V.S. Imaging the Tumor Microenvironment. Cancer J. 2015, 21, 174–178. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Longo, V.; Brunetti, O.; D’Oronzo, S.; Ostuni, C.; Gatti, P.; Silvestris, F. Bone metastases in hepatocellular carcinoma: An emerging issue. Cancer Metastasis Rev. 2014, 33, 333–342. [Google Scholar] [CrossRef] [PubMed]
  19. Meng, F.; Wu, G. The rejuvenated scenario of epithelial-mesenchymal transition (EMT) and cancer metastasis. Cancer Metastasis Rev. 2012, 31, 455–467. [Google Scholar] [CrossRef] [PubMed]
  20. Nervo, A.; Ragni, A.; Retta, F.; Gallo, M.; Piovesan, A.; Liberini, V.; Gatti, M.; Ricardi, U.; Deandreis, D.; Arvat, E. Bone metastases from differentiated thyroid carcinoma: Current knowledge and open issues. J. Endocrinol. Investig. 2021, 44, 403–419. [Google Scholar] [CrossRef]
  21. Pal, P.; Singh, B.; Kane, S.; Chaturvedi, P. Bone Metastases in Follicular Carcinoma of Thyroid. Indian J. Otolaryngol. Head Neck Surg. 2018, 70, 10–14. [Google Scholar] [CrossRef] [PubMed]
  22. Ishay-Ronen, D.; Diepenbruck, M.; Kalathur, R.K.R.; Sugiyama, N.; Tiede, S.; Ivanek, R.; Bantug, G.; Morini, M.F.; Wang, J.; Hess, C.; et al. Gain Fat-Lose Metastasis: Converting Invasive Breast Cancer Cells into Adipocytes Inhibits Cancer Metastasis. Cancer Cell 2019, 35, 17–32.e16. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Even-Sapir, E. Imaging of malignant bone involvement by morphologic, scintigraphic, and hybrid modalities. J. Nucl. Med. 2005, 46, 1356–1367. [Google Scholar] [PubMed]
  24. Rucci, N. Molecular biology of bone remodelling. Clin. Cases Miner. Bone Metab. 2008, 5, 49–56. [Google Scholar] [PubMed]
  25. Chen, K.; Jiao, Y.; Liu, L.; Huang, M.; He, C.; He, W.; Hou, J.; Yang, M.; Luo, X.; Li, C. Communications between Bone Marrow Macrophages and Bone Cells in Bone Remodeling. Front. Cell Dev. Biol. 2020, 8, 598263. [Google Scholar] [CrossRef]
  26. Ottewell, P.D. The role of osteoblasts in bone metastasis. J. Bone Oncol. 2016, 5, 124–127. [Google Scholar] [CrossRef] [Green Version]
  27. Rosenthal, D.I. Radiologic diagnosis of bone metastases. Cancer 1997, 80, 1595–1607. [Google Scholar] [CrossRef]
  28. Guise, T.A.; Mohammad, K.S.; Clines, G.; Stebbins, E.G.; Wong, D.H.; Higgins, L.S.; Vessella, R.; Corey, E.; Padalecki, S.; Suva, L.; et al. Basic mechanisms responsible for osteolytic and osteoblastic bone metastases. Clin. Cancer Res. 2006, 12, 6213s–6216s. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Sasaki, A.; Ishikawa, K.; Haraguchi, N.; Inoue, H.; Ishio, T.; Shibata, K.; Ohta, M.; Kitano, S.; Mori, M. Receptor activator of nuclear factor-kappaB ligand (RANKL) expression in hepatocellular carcinoma with bone metastasis. Ann. Surg. Oncol. 2007, 14, 1191–1199. [Google Scholar] [CrossRef] [PubMed]
  30. Maurizi, A.; Rucci, N. The Osteoclast in Bone Metastasis: Player and Target. Cancers 2018, 10, 218. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Cook, G.J.R.; Goh, V. Molecular Imaging of Bone Metastases and Their Response to Therapy. J. Nucl. Med. 2020, 61, 799–806. [Google Scholar] [CrossRef] [Green Version]
  32. O’Sullivan, G.J.; Carty, F.L.; Cronin, C.G. Imaging of bone metastasis: An update. World J. Radiol. 2015, 7, 202–211. [Google Scholar] [CrossRef] [PubMed]
  33. Helms, C.A.; Cann, C.E.; Brunelle, F.O.; Gilula, L.A.; Chafetz, N.; Genant, H.K. Detection of bone-marrow metastases using quantitative computed tomography. Radiology 1981, 140, 745–750. [Google Scholar] [CrossRef] [PubMed]
  34. Dong, Y.; Zheng, S.; Machida, H.; Wang, B.; Liu, A.; Liu, Y.; Zhang, X. Differential diagnosis of osteoblastic metastases from bone islands in patients with lung cancer by single-source dual-energy CT: Advantages of spectral CT imaging. Eur. J. Radiol. 2015, 84, 901–907. [Google Scholar] [CrossRef] [PubMed]
  35. Issa, G.; Davis, D.; Mulligan, M.E. The Ability of Dual-Energy Computed Tomography to Distinguish Normal Bone Marrow from Metastases Using Bone Marrow Color Maps. J. Comput. Assist. Tomogr. 2018, 42, 552–558. [Google Scholar] [CrossRef] [PubMed]
  36. Subramanian, G.; McAfee, J.G.; Blair, R.J.; Kallfelz, F.A.; Thomas, F.D. Technetium-99m-methylene diphosphonate—A superior agent for skeletal imaging: Comparison with other technetium complexes. J. Nucl. Med. 1975, 16, 744–755. [Google Scholar]
  37. Rybak, L.D.; Rosenthal, D.I. Radiological imaging for the diagnosis of bone metastases. Q. J. Nucl. Med. 2001, 45, 53–64. [Google Scholar] [PubMed]
  38. Hamaoka, T.; Madewell, J.E.; Podoloff, D.A.; Hortobagyi, G.N.; Ueno, N.T. Bone imaging in metastatic breast cancer. J. Clin. Oncol. 2004, 22, 2942–2953. [Google Scholar] [CrossRef]
  39. Costelloe, C.M.; Rohren, E.M.; Madewell, J.E.; Hamaoka, T.; Theriault, R.L.; Yu, T.K.; Lewis, V.O.; Ma, J.; Stafford, R.J.; Tari, A.M.; et al. Imaging bone metastases in breast cancer: Techniques and recommendations for diagnosis. Lancet Oncol. 2009, 10, 606–614. [Google Scholar] [CrossRef]
  40. Jehn, C.F.; Diel, I.J.; Overkamp, F.; Kurth, A.; Schaefer, R.; Miller, K.; Luftner, D. Management of Metastatic Bone Disease Algorithms for Diagnostics and Treatment. Anticancer Res. 2016, 36, 2631–2637. [Google Scholar] [PubMed]
  41. Soliman, M.; Taunk, N.K.; Simons, R.E.; Osborne, J.R.; Kim, M.M.; Szerlip, N.J.; Spratt, D.E. Anatomic and functional imaging in the diagnosis of spine metastases and response assessment after spine radiosurgery. Neurosurg. Focus 2017, 42, E5. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Stecco, A.; Trisoglio, A.; Soligo, E.; Berardo, S.; Sukhovei, L.; Carriero, A. Whole-Body MRI with Diffusion-Weighted Imaging in Bone Metastases: A Narrative Review. Diagnostics 2018, 8, 45. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Mossa-Basha, M.; Gerszten, P.C.; Myrehaug, S.; Mayr, N.A.; Yuh, W.T.; Jabehdar Maralani, P.; Sahgal, A.; Lo, S.S. Spinal metastasis: Diagnosis, management and follow-up. Br. J. Radiol. 2019, 92, 20190211. [Google Scholar] [CrossRef]
  44. Lee, J.H.; Yoo, G.S.; Yoon, Y.C.; Park, H.C.; Kim, H.S. Diffusion-weighted and dynamic contrast-enhanced magnetic resonance imaging after radiation therapy for bone metastases in patients with hepatocellular carcinoma. Sci. Rep. 2021, 11, 10459. [Google Scholar] [CrossRef] [PubMed]
  45. Qu, X.; Huang, X.; Yan, W.; Wu, L.; Dai, K. A meta-analysis of ¹⁸FDG-PET-CT, ¹⁸FDG-PET, MRI and bone scintigraphy for diagnosis of bone metastases in patients with lung cancer. Eur. J. Radiol. 2012, 81, 1007–1015. [Google Scholar] [CrossRef] [PubMed]
  46. Yoo, S.W.; Chowdhury, M.S.A.; Jeon, S.; Kang, S.R.; Lee, C.; Jabin, Z.; Kim, J.; Cho, S.G.; Song, H.C.; Bom, H.S.; et al. Clinical Impact of F-18 FDG PET-CT on Biopsy Site Selection in Patients with Suspected Bone Metastasis of Unknown Primary Site. Nucl. Med. Mol. Imaging 2020, 54, 192–198. [Google Scholar] [CrossRef]
  47. Suva, L.J.; Washam, C.; Nicholas, R.W.; Griffin, R.J. Bone metastasis: Mechanisms and therapeutic opportunities. Nat. Rev. Endocrinol. 2011, 7, 208–218. [Google Scholar] [CrossRef]
  48. Chen, H.Y.; Ma, X.M.; Bai, Y.R. Radiographic characteristics of bone metastases from hepatocellular carcinoma. Contemp. Oncol. 2012, 16, 424–431. [Google Scholar] [CrossRef] [Green Version]
  49. Umer, M.; Mohib, Y.; Atif, M.; Nazim, M. Skeletal metastasis in renal cell carcinoma: A review. Ann. Med. Surg. 2018, 27, 9–16. [Google Scholar] [CrossRef]
  50. Zhu, T.; Bao, X.; Chen, M.; Lin, R.; Zhuyan, J.; Zhen, T.; Xing, K.; Zhou, W.; Zhu, S. Mechanisms and Future of Non-Small Cell Lung Cancer Metastasis. Front. Oncol. 2020, 10, 585284. [Google Scholar] [CrossRef] [PubMed]
  51. Sohaib, S.A.; Cook, G.; Allen, S.D.; Hughes, M.; Eisen, T.; Gore, M. Comparison of whole-body MRI and bone scintigraphy in the detection of bone metastases in renal cancer. Br. J. Radiol. 2009, 82, 632–639. [Google Scholar] [CrossRef]
  52. Takenaka, D.; Ohno, Y.; Matsumoto, K.; Aoyama, N.; Onishi, Y.; Koyama, H.; Nogami, M.; Yoshikawa, T.; Matsumoto, S.; Sugimura, K. Detection of bone metastases in non-small cell lung cancer patients: Comparison of whole-body diffusion-weighted imaging (DWI), whole-body MR imaging without and with DWI, whole-body FDG-PET/CT, and bone scintigraphy. J. Magn. Reson. Imaging 2009, 30, 298–308. [Google Scholar] [CrossRef] [PubMed]
  53. Velloni, F.; Ramalho, M.; AlObaidy, M.; Matos, A.P.; Altun, E.; Semelka, R.C. Bone Metastases of Hepatocellular Carcinoma: Appearance on MRI Using a Standard Abdominal Protocol. AJR Am. J. Roentgenol. 2016, 206, 1003–1012. [Google Scholar] [CrossRef] [PubMed]
  54. Iñiguez-Ariza, N.M.; Bible, K.C.; Clarke, B.L. Bone metastases in thyroid cancer. J. Bone Oncol. 2020, 21, 100282. [Google Scholar] [CrossRef] [PubMed]
  55. Min, J.W.; Um, S.W.; Yim, J.J.; Yoo, C.G.; Han, S.K.; Shim, Y.S.; Kim, Y.W. The role of whole-body FDG PET/CT, Tc 99m MDP bone scintigraphy, and serum alkaline phosphatase in detecting bone metastasis in patients with newly diagnosed lung cancer. J. Korean Med. Sci. 2009, 24, 275–280. [Google Scholar] [CrossRef] [PubMed]
  56. Liu, N.; Ma, L.; Zhou, W.; Pang, Q.; Hu, M.; Shi, F.; Fu, Z.; Li, M.; Yang, G.; Yu, J. Bone metastasis in patients with non-small cell lung cancer: The diagnostic role of F-18 FDG PET/CT. Eur. J. Radiol. 2010, 74, 231–235. [Google Scholar] [CrossRef] [PubMed]
  57. Griffin, N.; Gore, M.E.; Sohaib, S.A. Imaging in metastatic renal cell carcinoma. AJR Am. J. Roentgenol. 2007, 189, 360–370. [Google Scholar] [CrossRef]
  58. Seo, H.J.; Kim, G.M.; Kim, J.H.; Kang, W.J.; Choi, H.J. ¹⁸F-FDG PET/CT in hepatocellular carcinoma: Detection of bone metastasis and prediction of prognosis. Nucl. Med. Commun. 2015, 36, 226–233. [Google Scholar] [CrossRef] [PubMed]
  59. Haider, M.T.; Smit, D.J.; Taipaleenmäki, H. The Endosteal Niche in Breast Cancer Bone Metastasis. Front. Oncol. 2020, 10, 335. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Pesapane, F.; Downey, K.; Rotili, A.; Cassano, E.; Koh, D.M. Imaging diagnosis of metastatic breast cancer. Insights Imaging 2020, 11, 79. [Google Scholar] [CrossRef] [PubMed]
  61. Abe, K.; Sasaki, M.; Kuwabara, Y.; Koga, H.; Baba, S.; Hayashi, K.; Takahashi, N.; Honda, H. Comparison of 18FDG-PET with 99mTc-HMDP scintigraphy for the detection of bone metastases in patients with breast cancer. Ann. Nucl. Med. 2005, 19, 573–579. [Google Scholar] [CrossRef] [PubMed]
  62. Cook, G.J.; Houston, S.; Rubens, R.; Maisey, M.N.; Fogelman, I. Detection of bone metastases in breast cancer by 18FDG PET: Differing metabolic activity in osteoblastic and osteolytic lesions. J. Clin. Oncol. 1998, 16, 3375–3379. [Google Scholar] [CrossRef] [PubMed]
  63. Shie, P.; Cardarelli, R.; Brandon, D.; Erdman, W.; Abdulrahim, N. Meta-analysis: Comparison of F-18 Fluorodeoxyglucose-positron emission tomography and bone scintigraphy in the detection of bone metastases in patients with breast cancer. Clin. Nucl. Med. 2008, 33, 97–101. [Google Scholar] [CrossRef] [PubMed]
  64. Berish, R.B.; Ali, A.N.; Telmer, P.G.; Ronald, J.A.; Leong, H.S. Translational models of prostate cancer bone metastasis. Nat. Rev. Urol. 2018, 15, 403–421. [Google Scholar] [CrossRef] [PubMed]
  65. Öztürk, H.; Karapolat, I. (18)F-fluorodeoxyglucose PET/CT for detection of disease in patients with prostate-specific antigen relapse following radical treatment of a local-stage prostate cancer. Oncol. Lett. 2016, 11, 316–322. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Turpin, A.; Girard, E.; Baillet, C.; Pasquier, D.; Olivier, J.; Villers, A.; Puech, P.; Penel, N. Imaging for Metastasis in Prostate Cancer: A Review of the Literature. Front. Oncol. 2020, 10, 55. [Google Scholar] [CrossRef]
  67. Ito, S.; Kato, K.; Ikeda, M.; Iwano, S.; Makino, N.; Tadokoro, M.; Abe, S.; Nakano, S.; Nishino, M.; Ishigaki, T.; et al. Comparison of 18F-FDG PET and bone scintigraphy in detection of bone metastases of thyroid cancer. J. Nucl. Med. 2007, 48, 889–895. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Phan, H.T.; Jager, P.L.; Plukker, J.T.; Wolffenbuttel, B.H.; Dierckx, R.A.; Links, T.P. Detection of bone metastases in thyroid cancer patients: Bone scintigraphy or 18F-FDG PET? Nucl. Med. Commun. 2007, 28, 597–602. [Google Scholar] [CrossRef] [PubMed]
  69. Qiu, Z.L.; Xue, Y.L.; Song, H.J.; Luo, Q.Y. Comparison of the diagnostic and prognostic values of 99mTc-MDP-planar bone scintigraphy, 131I-SPECT/CT and 18F-FDG-PET/CT for the detection of bone metastases from differentiated thyroid cancer. Nucl. Med. Commun. 2012, 33, 1232–1242. [Google Scholar] [CrossRef]
  70. Muresan, M.M.; Olivier, P.; Leclère, J.; Sirveaux, F.; Brunaud, L.; Klein, M.; Zarnegar, R.; Weryha, G. Bone metastases from differentiated thyroid carcinoma. Endocr. Relat. Cancer 2008, 15, 37–49. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  71. Wexler, J.A. Approach to the thyroid cancer patient with bone metastases. J. Clin. Endocrinol. Metab. 2011, 96, 2296–2307. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Cook, G.J.; Fogelman, I. Skeletal metastases from breast cancer: Imaging with nuclear medicine. Semin. Nucl. Med. 1999, 29, 69–79. [Google Scholar] [CrossRef]
  73. Rong, J.; Wang, S.; Ding, Q.; Yun, M.; Zheng, Z.; Ye, S. Comparison of 18 FDG PET-CT and bone scintigraphy for detection of bone metastases in breast cancer patients. A meta-analysis. Surg. Oncol. 2013, 22, 86–91. [Google Scholar] [CrossRef]
  74. Song, J.W.; Oh, Y.M.; Shim, T.S.; Kim, W.S.; Ryu, J.S.; Choi, C.M. Efficacy comparison between (18)F-FDG PET/CT and bone scintigraphy in detecting bony metastases of non-small-cell lung cancer. Lung Cancer 2009, 65, 333–338. [Google Scholar] [CrossRef] [PubMed]
  75. Cheran, S.K.; Herndon, J.E., 2nd; Patz, E.F., Jr. Comparison of whole-body FDG-PET to bone scan for detection of bone metastases in patients with a new diagnosis of lung cancer. Lung Cancer 2004, 44, 317–325. [Google Scholar] [CrossRef] [PubMed]
  76. Chen, C.Y.; Wu, K.; Lin, W.H.; Lan, T.Y.; Wang, S.Y.; Sun, J.S.; Weng, P.W.; Yen, R.F.; Yang, R.S. High false negative rate of Tc-99m MDP whole-body bone scintigraphy in detecting skeletal metastases for patients with hepatoma. J. Formos. Med. Assoc. 2012, 111, 140–146. [Google Scholar] [CrossRef] [PubMed]
  77. Seo, H.J.; Choi, Y.J.; Kim, H.J.; Jeong, Y.H.; Cho, A.; Lee, J.H.; Yun, M.; Choi, H.J.; Lee, J.D.; Kang, W.J. Evaluation of Bone Metastasis from Hepatocellular Carcinoma Using (18)F-FDG PET/CT and (99m)Tc-HDP Bone Scintigraphy: Characteristics of Soft Tissue Formation. Nucl. Med. Mol. Imaging 2011, 45, 203–211. [Google Scholar] [CrossRef] [Green Version]
  78. Ho, C.L.; Chen, S.; Cheng, T.K.; Leung, Y.L. PET/CT characteristics of isolated bone metastases in hepatocellular carcinoma. Radiology 2011, 258, 515–523. [Google Scholar] [CrossRef] [PubMed]
  79. Yoo, S.W.; Kim, D.Y.; Pyo, A.; Jeon, S.; Kim, J.; Kang, S.R.; Cho, S.G.; Lee, C.; Kim, G.J.; Song, H.C.; et al. Differences in diagnostic impact of dual-tracer PET/computed tomography according to the extrahepatic metastatic site in patients with hepatocellular carcinoma. Nucl. Med. Commun. 2021, 42, 685–693. [Google Scholar] [CrossRef] [PubMed]
  80. Liu, Y. The Place of FDG PET/CT in Renal Cell Carcinoma: Value and Limitations. Front. Oncol. 2016, 6, 201. [Google Scholar] [CrossRef] [Green Version]
  81. Revannasiddaiah, S.; Sood, A.; Thakur, P.; Sharma, M. Skeletal metastases from renal cell carcinoma: Diagnostic uncertainty with molecular imaging. BMJ Case Rep. 2012, 2012, bcr0220125910. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  82. Vargas, H.A.; Schor-Bardach, R.; Long, N.; Kirzner, A.N.; Cunningham, J.D.; Goldman, D.A.; Moskowitz, C.S.; Sosa, R.E.; Sala, E.; Panicek, D.M.; et al. Prostate cancer bone metastases on staging prostate MRI: Prevalence and clinical features associated with their diagnosis. Abdom. Radiol. 2017, 42, 271–277. [Google Scholar] [CrossRef]
  83. Kitajima, K.; Murphy, R.C.; Nathan, M.A.; Sugimura, K. Update on positron emission tomography for imaging of prostate cancer. Int. J. Urol. 2014, 21, 12–23. [Google Scholar] [CrossRef]
  84. Jadvar, H. Prostate cancer: PET with 18F-FDG, 18F- or 11C-acetate, and 18F- or 11C-choline. J. Nucl. Med. 2011, 52, 81–89. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  85. Ambrosini, V.; Nicolini, S.; Caroli, P.; Nanni, C.; Massaro, A.; Marzola, M.C.; Rubello, D.; Fanti, S. PET/CT imaging in different types of lung cancer: An overview. Eur. J. Radiol. 2012, 81, 988–1001. [Google Scholar] [CrossRef] [PubMed]
  86. Dashevsky, B.Z.; Goldman, D.A.; Parsons, M.; Gonen, M.; Corben, A.D.; Jochelson, M.S.; Hudis, C.A.; Morrow, M.; Ulaner, G.A. Appearance of untreated bone metastases from breast cancer on FDG PET/CT: Importance of histologic subtype. Eur. J. Nucl. Med. Mol. Imaging 2015, 42, 1666–1673. [Google Scholar] [CrossRef] [Green Version]
  87. Ueda, K.; Matsui, O.; Kitao, A.; Kobayashi, S.; Nakayama, J.; Miyagawa, S.; Kadoya, M. Tumor Hemodynamics and Hepatocarcinogenesis: Radio-Pathological Correlations and Outcomes of Carcinogenic Hepatocyte Nodules. ISRN Hepatol. 2014, 2014, 607628. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  88. Choi, J.Y.; Lee, J.M.; Sirlin, C.B. CT and MR imaging diagnosis and staging of hepatocellular carcinoma: Part I. Development, growth, and spread: Key pathologic and imaging aspects. Radiology 2014, 272, 635–654. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  89. Yoneda, N.; Matsui, O.; Kobayashi, S.; Kitao, A.; Kozaka, K.; Inoue, D.; Yoshida, K.; Minami, T.; Koda, W.; Gabata, T. Current status of imaging biomarkers predicting the biological nature of hepatocellular carcinoma. Jpn. J. Radiol. 2019, 37, 191–208. [Google Scholar] [CrossRef] [PubMed]
  90. Choi, J.Y.; Lee, J.M.; Sirlin, C.B. CT and MR imaging diagnosis and staging of hepatocellular carcinoma: Part II. Extracellular agents, hepatobiliary agents, and ancillary imaging features. Radiology 2014, 273, 30–50. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  91. Ho, C.L.; Yu, S.C.; Yeung, D.W. 11C-acetate PET imaging in hepatocellular carcinoma and other liver masses. J. Nucl. Med. 2003, 44, 213–221. [Google Scholar] [PubMed]
  92. Park, J.W.; Kim, J.H.; Kim, S.K.; Kang, K.W.; Park, K.W.; Choi, J.I.; Lee, W.J.; Kim, C.M.; Nam, B.H. A prospective evaluation of 18F-FDG and 11C-acetate PET/CT for detection of primary and metastatic hepatocellular carcinoma. J. Nucl. Med. 2008, 49, 1912–1921. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  93. Mazziotti, G.; Formenti, A.M.; Panarotto, M.B.; Arvat, E.; Chiti, A.; Cuocolo, A.; Dottorini, M.E.; Durante, C.; Agate, L.; Filetti, S.; et al. Real-life management and outcome of thyroid carcinoma-related bone metastases: Results from a nationwide multicenter experience. Endocrine 2018, 59, 90–101. [Google Scholar] [CrossRef]
  94. Oh, J.R.; Byun, B.H.; Hong, S.P.; Chong, A.; Kim, J.; Yoo, S.W.; Kang, S.R.; Kim, D.Y.; Song, H.C.; Bom, H.S.; et al. Comparison of 131I whole-body imaging, 131I SPECT/CT, and 18F-FDG PET/CT in the detection of metastatic thyroid cancer. Eur. J. Nucl. Med. Mol. Imaging 2011, 38, 1459–1468. [Google Scholar] [CrossRef] [PubMed]
  95. Wexler, J.A.; Sharretts, J. Thyroid and bone. Endocrinol. Metab. Clin. N. Am. 2007, 36, 673–705. [Google Scholar] [CrossRef]
  96. Warburg, O.; Wind, F.; Negelein, E. The metabolism of tumors in the body. J. Gen. Physiol. 1927, 8, 519–530. [Google Scholar] [CrossRef] [Green Version]
  97. Cheng, X.; Li, Y.; Xu, Z.; Bao, L.; Li, D.; Wang, J. Comparison of 18F-FDG PET/CT with bone scintigraphy for detection of bone metastasis: A meta-analysis. Acta Radiol. 2011, 52, 779–787. [Google Scholar] [CrossRef] [PubMed]
  98. Grassi, I.; Nanni, C.; Allegri, V.; Morigi, J.J.; Montini, G.C.; Castellucci, P.; Fanti, S. The clinical use of PET with (11)C-acetate. Am. J. Nucl. Med. Mol. Imaging 2012, 2, 33–47. [Google Scholar]
  99. Ho, C.L.; Chen, S.; Yeung, D.W.; Cheng, T.K. Dual-tracer PET/CT imaging in evaluation of metastatic hepatocellular carcinoma. J. Nucl. Med. 2007, 48, 902–909. [Google Scholar] [CrossRef] [Green Version]
  100. Spick, C.; Polanec, S.H.; Mitterhauser, M.; Wadsak, W.; Anner, P.; Reiterits, B.; Haug, A.R.; Hacker, M.; Beheshti, M.; Karanikas, G. Detection of Bone Metastases Using 11C-Acetate PET in Patients with Prostate Cancer with Biochemical Recurrence. Anticancer Res. 2015, 35, 6787–6791. [Google Scholar]
  101. Salskov, A.; Tammisetti, V.S.; Grierson, J.; Vesselle, H. FLT: Measuring tumor cell proliferation in vivo with positron emission tomography and 3’-deoxy-3’-[18F]fluorothymidine. Semin. Nucl. Med. 2007, 37, 429–439. [Google Scholar] [CrossRef] [Green Version]
  102. Everitt, S.J.; Ball, D.L.; Hicks, R.J.; Callahan, J.; Plumridge, N.; Collins, M.; Herschtal, A.; Binns, D.; Kron, T.; Schneider, M.; et al. Differential (18)F-FDG and (18)F-FLT Uptake on Serial PET/CT Imaging Before and During Definitive Chemoradiation for Non-Small Cell Lung Cancer. J. Nucl. Med. 2014, 55, 1069–1074. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  103. Dittmann, H.; Dohmen, B.M.; Paulsen, F.; Eichhorn, K.; Eschmann, S.M.; Horger, M.; Wehrmann, M.; Machulla, H.J.; Bares, R. [18F]FLT PET for diagnosis and staging of thoracic tumours. Eur. J. Nucl. Med. Mol. Imaging 2003, 30, 1407–1412. [Google Scholar] [CrossRef]
  104. Ceci, F.; Castellucci, P.; Graziani, T.; Schiavina, R.; Chondrogiannis, S.; Bonfiglioli, R.; Costa, S.; Virgolini, I.J.; Rubello, D.; Fanti, S.; et al. 11C-choline PET/CT identifies osteoblastic and osteolytic lesions in patients with metastatic prostate cancer. Clin. Nucl. Med. 2015, 40, e265–e270. [Google Scholar] [CrossRef]
  105. Wondergem, M.; van der Zant, F.M.; van der Ploeg, T.; Knol, R.J. A literature review of 18F-fluoride PET/CT and 18F-choline or 11C-choline PET/CT for detection of bone metastases in patients with prostate cancer. Nucl. Med. Commun. 2013, 34, 935–945. [Google Scholar] [CrossRef] [PubMed]
  106. Picchio, M.; Spinapolice, E.G.; Fallanca, F.; Crivellaro, C.; Giovacchini, G.; Gianolli, L.; Messa, C. [11C]Choline PET/CT detection of bone metastases in patients with PSA progression after primary treatment for prostate cancer: Comparison with bone scintigraphy. Eur. J. Nucl. Med. Mol. Imaging 2012, 39, 13–26. [Google Scholar] [CrossRef] [PubMed]
  107. Beheshti, M.; Vali, R.; Waldenberger, P.; Fitz, F.; Nader, M.; Loidl, W.; Broinger, G.; Stoiber, F.; Foglman, I.; Langsteger, W. Detection of bone metastases in patients with prostate cancer by 18F fluorocholine and 18F fluoride PET-CT: A comparative study. Eur. J. Nucl. Med. Mol. Imaging 2008, 35, 1766–1774. [Google Scholar] [CrossRef]
  108. Beheshti, M.; Vali, R.; Waldenberger, P.; Fitz, F.; Nader, M.; Hammer, J.; Loidl, W.; Pirich, C.; Fogelman, I.; Langsteger, W. The use of F-18 choline PET in the assessment of bone metastases in prostate cancer: Correlation with morphological changes on CT. Mol. Imaging Biol. 2010, 12, 98–107. [Google Scholar] [CrossRef]
  109. Glaudemans, A.W.; Enting, R.H.; Heesters, M.A.; Dierckx, R.A.; van Rheenen, R.W.; Walenkamp, A.M.; Slart, R.H. Value of 11C-methionine PET in imaging brain tumours and metastases. Eur. J. Nucl. Med. Mol. Imaging 2013, 40, 615–635. [Google Scholar] [CrossRef] [PubMed]
  110. Hotta, M.; Minamimoto, R.; Miwa, K. 11C-methionine-PET for differentiating recurrent brain tumor from radiation necrosis: Radiomics approach with random forest classifier. Sci. Rep. 2019, 9, 15666. [Google Scholar] [CrossRef]
  111. Padhani, A.R.; Gogbashian, A. Bony metastases: Assessing response to therapy with whole-body diffusion MRI. Cancer Imaging 2011, 11, S129–S145. [Google Scholar] [CrossRef] [PubMed]
  112. Padhani, A.R.; Makris, A.; Gall, P.; Collins, D.J.; Tunariu, N.; de Bono, J.S. Therapy monitoring of skeletal metastases with whole-body diffusion MRI. J. Magn. Reson. Imaging 2014, 39, 1049–1078. [Google Scholar] [CrossRef]
  113. Schwarzenboeck, S.M.; Rauscher, I.; Bluemel, C.; Fendler, W.P.; Rowe, S.P.; Pomper, M.G.; Afshar-Oromieh, A.; Herrmann, K.; Eiber, M. PSMA Ligands for PET Imaging of Prostate Cancer. J. Nucl. Med. 2017, 58, 1545–1552. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  114. Afshar-Oromieh, A.; Zechmann, C.M.; Malcher, A.; Eder, M.; Eisenhut, M.; Linhart, H.G.; Holland-Letz, T.; Hadaschik, B.A.; Giesel, F.L.; Debus, J.; et al. Comparison of PET imaging with a (68)Ga-labelled PSMA ligand and (18)F-choline-based PET/CT for the diagnosis of recurrent prostate cancer. Eur. J. Nucl. Med. Mol. Imaging 2014, 41, 11–20. [Google Scholar] [CrossRef] [Green Version]
  115. Zacho, H.D.; Ravn, S.; Afshar-Oromieh, A.; Fledelius, J.; Ejlersen, J.A.; Petersen, L.J. Added value of (68)Ga-PSMA PET/CT for the detection of bone metastases in patients with newly diagnosed prostate cancer and a previous (99m)Tc bone scintigraphy. EJNMMI Res. 2020, 10, 31. [Google Scholar] [CrossRef] [PubMed]
  116. Heitkötter, B.; Steinestel, K.; Trautmann, M.; Grünewald, I.; Barth, P.; Gevensleben, H.; Bögemann, M.; Wardelmann, E.; Hartmann, W.; Rahbar, K.; et al. Neovascular PSMA expression is a common feature in malignant neoplasms of the thyroid. Oncotarget 2018, 9, 9867–9874. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  117. Lamberts, S.W.; Bakker, W.H.; Reubi, J.C.; Krenning, E.P. Somatostatin-receptor imaging in the localization of endocrine tumors. N. Engl. J. Med. 1990, 323, 1246–1249. [Google Scholar] [CrossRef]
  118. Lebtahi, R.; Cadiot, G.; Delahaye, N.; Genin, R.; Daou, D.; Peker, M.C.; Chosidow, D.; Faraggi, M.; Mignon, M.; Le Guludec, D. Detection of bone metastases in patients with endocrine gastroenteropancreatic tumors: Bone scintigraphy compared with somatostatin receptor scintigraphy. J. Nucl. Med. 1999, 40, 1602–1608. [Google Scholar]
  119. Tavares, C.; Coelho, M.J.; Eloy, C.; Melo, M.; da Rocha, A.G.; Pestana, A.; Batista, R.; Ferreira, L.B.; Rios, E.; Selmi-Ruby, S.; et al. NIS expression in thyroid tumors, relation with prognosis clinicopathological and molecular features. Endocr. Connect. 2018, 7, 78–90. [Google Scholar] [CrossRef]
  120. Smith, V.E.; Read, M.L.; Turnell, A.S.; Watkins, R.J.; Watkinson, J.C.; Lewy, G.D.; Fong, J.C.; James, S.R.; Eggo, M.C.; Boelaert, K.; et al. A novel mechanism of sodium iodide symporter repression in differentiated thyroid cancer. J. Cell Sci. 2009, 122, 3393–3402. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  121. Loktev, A.; Lindner, T.; Mier, W.; Debus, J.; Altmann, A.; Jäger, D.; Giesel, F.; Kratochwil, C.; Barthe, P.; Roumestand, C.; et al. A Tumor-Imaging Method Targeting Cancer-Associated Fibroblasts. J. Nucl. Med. 2018, 59, 1423–1429. [Google Scholar] [CrossRef] [PubMed]
  122. Lindner, T.; Loktev, A.; Altmann, A.; Giesel, F.; Kratochwil, C.; Debus, J.; Jäger, D.; Mier, W.; Haberkorn, U. Development of Quinoline-Based Theranostic Ligands for the Targeting of Fibroblast Activation Protein. J. Nucl. Med. 2018, 59, 1415–1422. [Google Scholar] [CrossRef] [Green Version]
  123. Puré, E.; Blomberg, R. Pro-tumorigenic roles of fibroblast activation protein in cancer: Back to the basics. Oncogene 2018, 37, 4343–4357. [Google Scholar] [CrossRef] [PubMed]
  124. Derlin, T.; Kreipe, H.H.; Schumacher, U.; Soudah, B. PSMA Expression in Tumor Neovasculature Endothelial Cells of Follicular Thyroid Adenoma as Identified by Molecular Imaging Using 68Ga-PSMA Ligand PET/CT. Clin. Nucl. Med. 2017, 42, e173–e174. [Google Scholar] [CrossRef] [PubMed]
  125. Chen, W.; Lee, Z.; Awadallah, A.; Zhou, L.; Xin, W. Peritumoral/vascular expression of PSMA as a diagnostic marker in hepatic lesions. Diagn. Pathol. 2020, 15, 92. [Google Scholar] [CrossRef]
  126. Bychkov, A.; Vutrapongwatana, U.; Tepmongkol, S.; Keelawat, S. PSMA expression by microvasculature of thyroid tumors—Potential implications for PSMA theranostics. Sci. Rep. 2017, 7, 5202. [Google Scholar] [CrossRef]
  127. Hwang, S.; Panicek, D.M. Magnetic resonance imaging of bone marrow in oncology, Part 1. Skeletal Radiol. 2007, 36, 913–920. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  128. Hwang, S.; Panicek, D.M. Magnetic resonance imaging of bone marrow in oncology, Part 2. Skeletal Radiol. 2007, 36, 1017–1027. [Google Scholar] [CrossRef] [Green Version]
  129. Baenke, F.; Peck, B.; Miess, H.; Schulze, A. Hooked on fat: The role of lipid synthesis in cancer metabolism and tumour development. Dis. Model. Mech. 2013, 6, 1353–1363. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  130. Doval, D.C.; Bhatia, K.; Vaid, A.K.; Pavithran, K.; Sharma, J.B.; Hazarika, D.; Jena, A. Spinal cord compression secondary to bone metastases from hepatocellular carcinoma. World J. Gastroenterol. 2006, 12, 5247–5252. [Google Scholar] [CrossRef]
  131. Ferdinandus, J.; Fragoso Costa, P.; Kessler, L.; Weber, M.; Hirmas, N.; Kostbade, K.; Bauer, S.; Schuler, M.; Ahrens, M.; Schildhaus, H.U.; et al. Initial clinical experience with (90)Y-FAPI-46 radioligand therapy for advanced stage solid tumors: A case series of nine patients. J. Nucl. Med. 2021. [Google Scholar] [CrossRef] [PubMed]
  132. Uijen, M.J.M.; Derks, Y.H.W.; Merkx, R.I.J.; Schilham, M.G.M.; Roosen, J.; Prive, B.M.; van Lith, S.A.M.; van Herpen, C.M.L.; Gotthardt, M.; Heskamp, S.; et al. PSMA radioligand therapy for solid tumors other than prostate cancer: Background, opportunities, challenges, and first clinical reports. Eur. J. Nucl. Med. Mol. Imaging 2021, 1–19. [Google Scholar] [CrossRef] [PubMed]
Cells 10 02877 g001 550
Figure 1. Typical imaging patterns of bone metastases observed on major imaging modalities. According to computed tomography (CT) findings, osteolytic or osteosclerotic metastases are initially placed in the upper and lower rows, and imaging findings are shown for each device. (A) Osteolytic metastasis destructs cortex and cancellous bone structures and is observed as a radiolucent lesion on CT (arrow). (B) Osteosclerotic metastasis forms new bone in the marrow space and is observed as a radiopaque lesion on CT (arrow). (C,D) On T1-weighted MRI, the signal intensity (SI) is low in both osteolytic (C) and osteosclerotic (D) metastases (arrows) as the normal bone marrow is replaced with tumor cells. In contrast, T2-weighted MRI shows high SI in osteolytic metastasis (C) and heterogeneous SI in osteosclerotic metastasis (D) (arrows). (E) Osteolytic metastasis appears as decreased radiotracer uptake on bone scan (arrow and arrowhead). (F) Osteosclerotic metastasis shows increased radiotracer uptake on bone scan (arrow). (G) 18F-FDG PET/CT generally shows increased FDG uptake in osteolytic metastasis (arrow), although FDG uptake could also be affected by histologic subtypes of the primary tumor. (H) In contrast, osteosclerotic metastasis is depicted as a relatively low FDG-avid lesion (arrow) on 18F-FDG PET/CT. (A,C,E: hepatocellular carcinoma; B,D,F,H: intraductal breast carcinoma; G: lung adenocarcinoma).
Figure 1. Typical imaging patterns of bone metastases observed on major imaging modalities. According to computed tomography (CT) findings, osteolytic or osteosclerotic metastases are initially placed in the upper and lower rows, and imaging findings are shown for each device. (A) Osteolytic metastasis destructs cortex and cancellous bone structures and is observed as a radiolucent lesion on CT (arrow). (B) Osteosclerotic metastasis forms new bone in the marrow space and is observed as a radiopaque lesion on CT (arrow). (C,D) On T1-weighted MRI, the signal intensity (SI) is low in both osteolytic (C) and osteosclerotic (D) metastases (arrows) as the normal bone marrow is replaced with tumor cells. In contrast, T2-weighted MRI shows high SI in osteolytic metastasis (C) and heterogeneous SI in osteosclerotic metastasis (D) (arrows). (E) Osteolytic metastasis appears as decreased radiotracer uptake on bone scan (arrow and arrowhead). (F) Osteosclerotic metastasis shows increased radiotracer uptake on bone scan (arrow). (G) 18F-FDG PET/CT generally shows increased FDG uptake in osteolytic metastasis (arrow), although FDG uptake could also be affected by histologic subtypes of the primary tumor. (H) In contrast, osteosclerotic metastasis is depicted as a relatively low FDG-avid lesion (arrow) on 18F-FDG PET/CT. (A,C,E: hepatocellular carcinoma; B,D,F,H: intraductal breast carcinoma; G: lung adenocarcinoma).
Cells 10 02877 g001
Cells 10 02877 g002 550
Figure 2. Different tracer avidities of primary and metastatic sites in patients with hepatocellular carcinoma (HCC). (A–F) A 77-year-old male patient with well-differentiated HCC. 11C-acetate positron emission tomography (PET)/computed tomography (CT) (A–C) shows high acetate uptake in a primary hepatic tumor (arrow in A,B) and metastatic bone lesion in the left third rib (arrowhead in A,C). However, 18F-fluorodeoxyglucose (18F-FDG) PET/CT (D–F) shows no significant uptake in the related sites. (G–L) A 43-year-old male patient with poorly differentiated HCC. 11C-acetate PET/CT (G–I) shows mild uptake or isometabolism in the hepatic tumor (H) and metastatic bone lesion (I). In contrast, 18F-FDG PET/CT (J–L) shows intense FDG uptake in hepatic tumors (arrow in J,K) and multiple metastatic lesions in the lymph nodes and bones (arrowhead in J,L).
Figure 2. Different tracer avidities of primary and metastatic sites in patients with hepatocellular carcinoma (HCC). (A–F) A 77-year-old male patient with well-differentiated HCC. 11C-acetate positron emission tomography (PET)/computed tomography (CT) (A–C) shows high acetate uptake in a primary hepatic tumor (arrow in A,B) and metastatic bone lesion in the left third rib (arrowhead in A,C). However, 18F-fluorodeoxyglucose (18F-FDG) PET/CT (D–F) shows no significant uptake in the related sites. (G–L) A 43-year-old male patient with poorly differentiated HCC. 11C-acetate PET/CT (G–I) shows mild uptake or isometabolism in the hepatic tumor (H) and metastatic bone lesion (I). In contrast, 18F-FDG PET/CT (J–L) shows intense FDG uptake in hepatic tumors (arrow in J,K) and multiple metastatic lesions in the lymph nodes and bones (arrowhead in J,L).
Cells 10 02877 g002
Cells 10 02877 g003 550
Figure 3. Different tracer avidities in bone metastases from papillary thyroid carcinoma (PTC) according to differentiation status. (A–D) A 79-year-old male patient with PTC. 131I whole-body scan (A) and single-photon emission computed tomography (SPECT)/computed tomography (CT) (B) show little iodine uptake in metastatic lesions located in the sternum (arrow). In contrast, 18F-fluorodeoxyglucose (18F-FDG) positron emission tomography (PET)/CT (C,D) shows intense FDG uptake in the sternum (arrow). (E–H) A 66-year-old female patient with PTC. 131I whole-body scan (E) and SPECT/CT (F) show multiple iodine uptake in metastatic bone lesions, including those in the T1 vertebra (arrowhead). However, 18F-FDG PET/CT (G,H) shows no significant uptake at the same site.
Figure 3. Different tracer avidities in bone metastases from papillary thyroid carcinoma (PTC) according to differentiation status. (A–D) A 79-year-old male patient with PTC. 131I whole-body scan (A) and single-photon emission computed tomography (SPECT)/computed tomography (CT) (B) show little iodine uptake in metastatic lesions located in the sternum (arrow). In contrast, 18F-fluorodeoxyglucose (18F-FDG) positron emission tomography (PET)/CT (C,D) shows intense FDG uptake in the sternum (arrow). (E–H) A 66-year-old female patient with PTC. 131I whole-body scan (E) and SPECT/CT (F) show multiple iodine uptake in metastatic bone lesions, including those in the T1 vertebra (arrowhead). However, 18F-FDG PET/CT (G,H) shows no significant uptake at the same site.
Cells 10 02877 g003
Cells 10 02877 g004 550
Figure 4. Different tracer avidity according to the metastatic organ in the same patient with hepatocellular carcinoma before therapy. 11C-acetate positron emission tomography (PET)/computed tomography (CT) (A–E) shows mild uptake in the primary hepatic tumor (white arrow in A,B). The metastatic bone lesion in the left first rib shows intense acetate uptake (white arrowhead in A,C) but less acetate uptake in metastatic lymph nodes of the left supraclavicular (black arrow in A,D) and common hepatic (black arrowhead in A,E) areas. 18F-fluorodeoxyglucose (18F-FDG) PET/CT (F–J) shows intense uptake in primary hepatic tumors (white arrow in F,G). There is no significant FDG uptake in the left first rib (white arrowhead in F,H) but intense uptake in the left supraclavicular (black arrow in F,I) and common hepatic (black arrowhead in F,J) lymph nodes.
Figure 4. Different tracer avidity according to the metastatic organ in the same patient with hepatocellular carcinoma before therapy. 11C-acetate positron emission tomography (PET)/computed tomography (CT) (A–E) shows mild uptake in the primary hepatic tumor (white arrow in A,B). The metastatic bone lesion in the left first rib shows intense acetate uptake (white arrowhead in A,C) but less acetate uptake in metastatic lymph nodes of the left supraclavicular (black arrow in A,D) and common hepatic (black arrowhead in A,E) areas. 18F-fluorodeoxyglucose (18F-FDG) PET/CT (F–J) shows intense uptake in primary hepatic tumors (white arrow in F,G). There is no significant FDG uptake in the left first rib (white arrowhead in F,H) but intense uptake in the left supraclavicular (black arrow in F,I) and common hepatic (black arrowhead in F,J) lymph nodes.
Cells 10 02877 g004
Cells 10 02877 g005 550

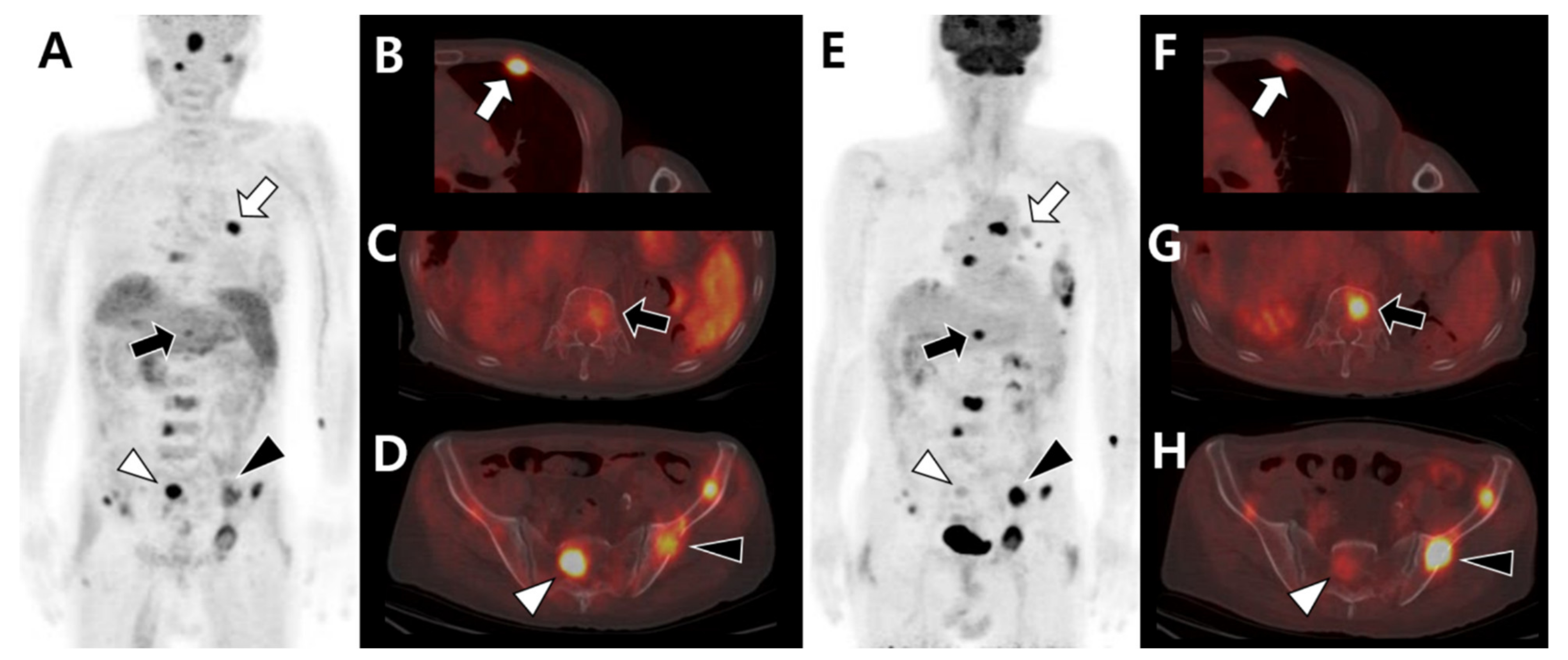

Figure 5. Different tracer avidities according to involved sites of bone metastases in the same patient with hepatocellular carcinoma before therapy. 11C-acetate positron emission tomography (PET)/computed tomography (CT) (A–D) shows intense acetate uptake in metastatic lesions of the left third rib (white arrow in A,B) and sacrum (white arrowhead in A,D) but mild acetate uptake in the T12 vertebra (black arrow in A,C) and left iliac bone (black arrowhead in A,D). 18F-fluorodeoxyglucose (18F-FDG) PET/CT (E–H) shows mild FDG uptake in the left third rib (white arrow in E,F) and sacrum (white arrowhead in E,H) but intense FDG uptake in the T12 vertebra (black arrow in E,G) and left iliac bone (black arrowhead in E,H).
Figure 5. Different tracer avidities according to involved sites of bone metastases in the same patient with hepatocellular carcinoma before therapy. 11C-acetate positron emission tomography (PET)/computed tomography (CT) (A–D) shows intense acetate uptake in metastatic lesions of the left third rib (white arrow in A,B) and sacrum (white arrowhead in A,D) but mild acetate uptake in the T12 vertebra (black arrow in A,C) and left iliac bone (black arrowhead in A,D). 18F-fluorodeoxyglucose (18F-FDG) PET/CT (E–H) shows mild FDG uptake in the left third rib (white arrow in E,F) and sacrum (white arrowhead in E,H) but intense FDG uptake in the T12 vertebra (black arrow in E,G) and left iliac bone (black arrowhead in E,H).
Cells 10 02877 g005
Table
Table 1. Major imaging patterns of bone metastasis according to the primary tumor.
Table 1. Major imaging patterns of bone metastasis according to the primary tumor.
Primary TumorImage Findings of Bone Metastasis
CTMRIBone Scan18F-FDG PET/CT
Thyroid
  • Osteoclastic activation [47]
  • Osteolytic
  • Low SI in T1WI, high SI in T2WI [54]
  • Limited uptake in osteolytic predominant type [20,67,68]
  • Low FDG avidity in well-differentiated subtype [69]
  • Hypermetabolic in poorly differentiated subtype [70,71]
Breast
  • Both osteoblast and osteoclast activation [59]
  • Mixed
  • Low SI in T1WI, various SI in T2WI [38]
  • Increased uptake due to osteoblastic reaction [60,61]
  • Hypermetabolic in osteolytic predominant type [62,63,72,73]
Lung
  • Osteoclastic activation [50]
  • Osteolytic
  • Low SI in T1WI, high SI in T2WI
  • High SI on STIR image [52]
  • Increased uptake due to osteoblastic reaction [74]
  • Limited uptake in osteolytic predominant type
  • Hypermetabolic in osteolytic predominant type [45,55,56,75]
Liver
  • Osteoclastic activation [48]
  • Osteolytic
  • Low SI in T1WI, high SI in T2WI [53]
  • Limited uptake in osteolytic predominant type [76,77]
  • Low FDG avidity in well-differentiated type [58,78]
  • Hypermetabolic in poorly differentiated type [77,79]
Kidney
  • Osteoclastic activation [49]
  • Osteolytic
  • Low SI in T1WI, high SI in T2WI [51]
  • High SI on STIR image [57]
  • Limited uptake in osteolytic predominant type [49,51]
  • Increased uptake in compensatory osteoblastic activation [49]
  • Discernible FDG uptake in osteolytic type [80]
  • Low FDG avidity in osteoblastic reaction [81]
Prostate
  • Osteoblastic activation [64]
  • Osteosclerotic
  • Low SI in T1WI, various SI in T2WI [82]
  • Increased uptake due to osteoblastic reaction [66]
  • Low FDG avidity in osteosclerotic type [65,83,84]
CT: computed tomography; MRI: magnetic resonance imaging; 18F-FDG: 18F-fluorodeoxyglucose; PET: positron emission tomography; SI: signal intensity; T1WI: T1 weighted images; T2WI: T2 weighted images; STIR: short tau inversion recovery.
Table
Table 2. Imaging modalities based on tumor microenvironment related factors.
Table 2. Imaging modalities based on tumor microenvironment related factors.
TME-Related FactorsImaging MechanismImaging ModalityReferences
Tumor Metabolism
Glucose High expression of glucose transporters
High glycolytic activity		18F-FDG PET/CT[96,97]
Lipid Increased lipid synthesis 11C/18F-acetate PET/CT[98,99,100]
NucleotideIncreased cellular proliferation and tyrosine kinases-1 activity 18F-fluorothymidine PET/CT[101,102,103]
Cellular membrane Increased choline transporters and choline kinase activity (cellular membrane turnover) 11C/18F-choline PET/CT[104,105,106,107,108]
Amino acidHigh expression of amino acid transporter and protein synthesis11C-methionine PET/CT[109,110]
Cellular densityAltered cellular densityMRI[111,112]
Receptor expression
Prostate-specific membrane antigen (PSMA)High expression of PSMA in tumor68Ga-PSMA PET/CT[113,114,115,116]
Somatostatin receptor (SSTR)High expression of SSTRs 111In-octreotide scintigraphy[117,118]
Sodium iodide symporter (NIS)High expression in differentiated thyroid cancer123I/131I whole-body scintigraphy[94,119,120]
Stromal cell activation
Cancer-associated fibroblasts High expression of fibroblast activation protein (FAP)68Ga-FAPI PET/CT[121,122,123]
Tumor-associated neovasculatureHigh expression of PSMA in the endothelium68Ga-PSMA PET/CT[116,124,125,126]
Bone marrow compositionAltered bone marrow compositionMRI[127,128]
Abbreviations: TME: tumor microenvironment.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Moon, J.B.; Yoo, S.W.; Lee, C.; Kim, D.-Y.; Pyo, A.; Kwon, S.Y. Multimodal Imaging-Based Potential Visualization of the Tumor Microenvironment in Bone Metastasis. Cells 2021, 10, 2877. https://doi.org/10.3390/cells10112877

AMA Style

Moon JB, Yoo SW, Lee C, Kim D-Y, Pyo A, Kwon SY. Multimodal Imaging-Based Potential Visualization of the Tumor Microenvironment in Bone Metastasis. Cells. 2021; 10(11):2877. https://doi.org/10.3390/cells10112877

Chicago/Turabian Style

Moon, Jang Bae, Su Woong Yoo, Changho Lee, Dong-Yeon Kim, Ayoung Pyo, and Seong Young Kwon. 2021. "Multimodal Imaging-Based Potential Visualization of the Tumor Microenvironment in Bone Metastasis" Cells 10, no. 11: 2877. https://doi.org/10.3390/cells10112877

APA Style

Moon, J. B., Yoo, S. W., Lee, C., Kim, D.-Y., Pyo, A., & Kwon, S. Y. (2021). Multimodal Imaging-Based Potential Visualization of the Tumor Microenvironment in Bone Metastasis. Cells, 10(11), 2877. https://doi.org/10.3390/cells10112877

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
