A Novel Solid State Non-Dispersive Infrared CO2 Gas Sensor Compatible with Wireless and Portable Deployment

Gas Sensing Solutions Ltd, 60 Grayshill Road, Westfield North Courtyard, Glasgow G68 9HQ, UK
*
Author to whom correspondence should be addressed.
Sensors 2013, 13(6), 7079-7103; https://doi.org/10.3390/s130607079
Submission received: 8 April 2013 / Revised: 14 May 2013 / Accepted: 17 May 2013 / Published: 29 May 2013
(This article belongs to the Special Issue State-of-the-Art Sensors Technology in the UK 2013)

Abstract

: This paper describes development of a novel mid-infrared light emitting diode (LED) and photodiode (PD) light source/detector combination and use within a non-dispersive infrared (NDIR) carbon dioxide gas sensor. The LED/PD based NDIR sensor provides fast stabilisation time (time required to turn on the sensor from cold, warm up, take and report a measurement, and power down again ≈1 second), longevity (>15 years), low power consumption and low cost. Described performance is compatible with “fit and forget” wireless deployed sensors in applications such as indoor air quality monitoring/control & energy conservation in buildings, transport systems, horticultural greenhouses and portable deployment for safety, industrial and medical applications. Fast stabilisation time, low intrinsic power consumption and cycled operation offer typical energy consumption per measurement of mJ's, providing extended operation using battery and/or energy harvesting strategies (measurement interval of ≈ 2 minutes provides >10 years operation from one AA battery). Specific performance data is provided in relation to measurement accuracy and noise, temperature performance, cross sensitivity, measurement range (two pathlength variants are described covering ambient through to 100% gas concentration), comparison with NDIR utilizing thermal source/pyroelectric light source/detector combination and compatibility with energy harvesting. Semiconductor based LED/PD processing together with injection moulded reflective optics and simple assembly provide a route to low cost high volume manufacturing.

1. Introduction

There is a growing need [1] for low power consumption, fast stabilizing (minimal time required to turn on the sensor from cold, warm up, take and report a measurement, and power down) wireless compatible carbon dioxide (CO2) gas sensors, driven by current and incoming legislation requirements [2,3] for CO2 gas monitoring/control within building and transport environments. Such autonomous CO2 sensors, powered from extended battery life/energy harvesting sources, provide a lower cost route to flexible deployment compared with hard wiring of CO2 sensors into building or transport systems infrastructures.

A primary need for CO2 sensors is for optimal control of indoor air quality (IAQ) [4,5] and use to reduce energy usage in heating, ventilating & air conditioning (HVAC) systems [6,7]. CO2 gas is safe in low concentrations (typically <1,000 ppm), however prolonged exposure at moderate levels (>5,000 ppm) can lead to a range of health related problems such as sick building syndrome [8,9] causing fatigue like symptoms. Use of CO2 concentration monitoring/control provides a means of providing IAQ which can be set to suit level of people occupancy through demand control ventilation (DCV) [6,7]—human exhaled air is rich in carbon dioxide gas, waste product of cellular respiration, and CO2 gas concentration monitoring provides an accurate means of determining people occupancy in a known volume.

In DCV, CO2 sensors, normally integrated with temperature and humidity sensing, allow the HVAC system to adjust the amount of outside air coming in based on the levels of CO2 in the building or transport system.

From an energy-efficiency standpoint, control should bring in as little outdoor air as possible. DCV with CO2 sensors provides a means of adjusting ventilation rate to suit the changing needs of the space and thus saving energy costs during times of lower occupancy levels. Reviews of the research literature on DCV [6,7], indicates a significant potential for energy savings, particularly in buildings or spaces with a high and variable occupancy. DCV benefits [6] in term of energy efficiency have demonstrated up to 25% of energy savings in buildings can be achieved with proper ventilation monitoring and control whilst achieving IAQ levels suited to occupant comfort and productivity.

As commercial buildings are responsible for at least 40% of the world's total energy consumption [10], with 96% of existing building stock currently with limited or no effective building energy management systems in place [10], use of DCV with CO2 sensing provides a route to achieving significant global energy savings.

Current deployment and powering of carbon dioxide sensors into building and transport environments for IAQ and/or DCV is normally through wired connection to the building/transport system electrical supply. However, use of autonomous wireless CO2 sensors is growing by typically four times that of wired sensors [1], on the basis of install flexibility and lower installation cost.

Moreover, use of wireless sensor networks (WSNs) is also increasing, enabling simultaneous, real time, high-speed sensing and data acquisition from multiple sensors located in various parts of the building for zoned control of CO2/humidity/temperature. Consequently, WSN implementation is also driving the need for low cost flexible deployment of CO2 sensors.

Deployment of autonomous CO2 sensors is also growing in horticultural applications, specifically within greenhouses. In particular deliberate introduction of CO2 into greenhouse environments is a well-known method to accelerate plant growth by as much as 25 to 40% [11] and high level exposure [typically 1%] is also used as a means of eliminating pests such as whiteflies and spider mites [12]. Temperature and humidity control are also required to provide optimal conditions for plant growth.

In addition to IAQ and DCV in buildings, transport and horticulture, other applications require monitoring of CO2 concentration level, such as industrial, automotive (IAQ/DCV as a route to anti-drowziness monitoring) [13] and medical/recreational sports (capnography for breath rate monitoring, respiratory condition monitoring/diagnostics and assessment of metabolic rate/energy usage) [14].

In industrial environments where process generated CO2 dominates, for example in breweries, soft drinks, packaging industry, freezer storage etc., the maximum permitted CO2 concentration according to most standards can be as high as 5,000 ppm during an 8-hour working period. CO2 gas monitoring in this case is required to ensure air quality monitoring/control and compliance with industrial health and safety requirements.

These markets in addition to IAQ and DCV are creating high volume demand for low cost autonomous CO2 gas sensors. Moreover, usage within WSN platforms is also placing emphasis on cycled powering/intermittent use of sensors as a route to reducing power consumption, requiring fast stabilization times for sensors powered from cold, warm up, take and report a measurement, and power down. Primary aim is to achieve sensor power consumption/operating methodology at levels compatible with extended battery life operation and ultimately power scavenging/self-powering. Moreover, sensor portability required in many industrial safety and medical applications is also driving the need for autonomous low power consumption/extended battery operation.

Currently there are primarily two types of commonly available gas sensors for monitoring CO2 concentrations in air, i.e., non-dispersive infrared (NDIR) [15] and solid electrolyte sensor [16] types. NDIR sensors have performance advantages in terms of long-term stability, accuracy, and power consumption for CO2 measurement. Hence, NDIR sensors are the most widely used for the real-time measurement of carbon dioxide. Solid electrolyte types have cost advantages, but the product performance is not good enough to allow their use in any but the least demanding applications.

The NDIR method is an optical method of detecting gases, relying on the fact that many gases absorb specific wavelengths of infra-red light [17,18]. It is possible to calculate the gas concentration, by passing light through a defined length and measuring how much light is absorbed at the specific wavelength absorbed by the gas. For CO2, the commonly used wavelength is 4.26 μm, which is not absorbed at all by other commonly found gases or by water vapour.

Current NDIR CO2 gas sensors utilise thermal sources (typically a tungsten filament lamp) and pyroelectric or thermopile light source/detector combination. Thermal sources have restrictions for use in wireless IAQ, DCV and portable applications due to high power consumption, incompatible with extended battery operation and/or energy harvesting. Moreover, cycled power/intermittent use operation increases power consumption due to extended stabilisation time (typically 1 to 10 minutes). Consequently thermal source-based NDIR CO2 sensors usually require hard wired installation or offer short battery life, which is costly and at odds with legislatively driven requirements [1,2].

Previous work published in 1997 [19], provides a comparison of gas sensor performance using mid-infrared light emitting diodes (LED) with thermal sources. Whilst the work described in [19] demonstrated the clear advantages using the LED light source, problems with early LED devices in relation to power output, temperature stability, lifetime and cost resulted in marginal performance improvements compared to thermal sources.

This paper describes an all solid state, low power consumption, reliable and low cost NDIR CO2 gas sensor, incorporating LED light sources and photodiode (PD) detectors [20,21], combined with state of the art signal processing matched to use of LED/PD's. LED/PD offer the advantage of low power consumption, high source emittance, fast modulation rates, room temperature operation, fast stabilisation time and brings with it the cost benefits of semiconductor manufacturing techniques [22].

2. Experimental

2.1. Sensor Configuration

The NDIR sensor described in this paper comprises a narrow bandgap III-V LED light source and photodiode detector. Mid-infrared radiation is launched into an optical structure which defines the lightpath and a chamber into which gas diffuses, causing a reduction in light transmission at the sensing wavelength. Electronics and intrinsic firmware control LED/PD drive current/voltage, pulsing and signal processing. Output parameter is CO2 gas concentration, stabilised over the sensor operating temperature range. Sensitivity is determined by the optical pathlength.

Typical mid-infrared absorption spectra [17,18] for a range of commercially relevant gases are shown in Figure 1 (note Figure 1 does not provide actual absorption cross-section data. However, indicated spectral position is representative of actual absorption bands).

It is possible to calculate the gas concentration by passing light through a defined length and measuring how much light is absorbed at the specific wavelength absorbed by the gas.

NDIR sensors are spectroscopic devices that can be applied to gas analysis. Typically, the main components of NDIR are infrared sources (lamps), sample chambers (or light tubes), wavelength filters, and infrared detectors. The gas is pumped (or diffused) into the sample chamber, and the concentration of target gas is measured electro-optically by its absorption of a specific wavelength in the infrared (IR) range. The IR light is directed through the sample chamber towards the detector.

An optical filter is normally placed in front of the detector, eliminating all light except the wavelength of the selected gas molecules. The NDIR sensor described in this paper utilises a mid-infrared LED/PD combination, providing the wavelength selection necessary to prevent cross sensitivity without need for an optical filter. Sensor constituent parts and assembly are described in the sections that follow.

2.1.1. LED/PD Combination

Photonics technology has been used [20,21,23] for producing LED sources and PD detectors operating at mid-infrared wavelengths of interest in gas detection. The technology is based on a pentanary AlGaInAsSb narrow bandgap III-V material combination. In the case of pentanary alloys, many compositions with identical band gaps and lattice parameters exist [23], providing scope to change alloy bandgap by changing composition, thereby providing a means to tune output wavelength [23]. Moreover, the existence of the additional degree of freedom for the control of material electro-physical properties by changing its chemical composition becomes a significant advantage. This offers a new approach [23,24] to control optical confinement and carrier leakage as compared to previously reported work [1721], offering advantages in lifetime and stability compared to previous LED/PD structures [19,22].

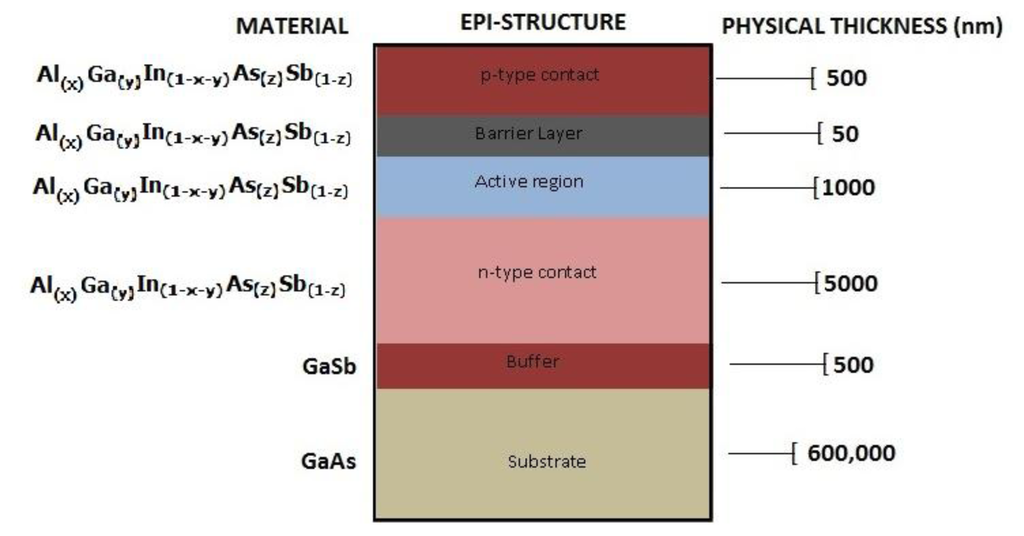

Schematic of the generic epi-structure is shown in Figure 2. Epi-multilayer structure comprises a buffer layer to transition from substrate to epitaxial structure and an active region (light emission layer) with p and n contacts: p-type layers were doped with Be (1 × 1018 cm−3) and n-type layers were doped with Te (4 × 1017 cm−3). A barrier layer is introduced between active region and top p-type contact to further confine carriers. Photodiode structure is similar with an added absorption layer to increase detectivity.

Narrow bandgap III-V epitaxial growth of the LED and PD structures are produced using epitaxial growth under ultra-high vacuum from separate material sources, independently controlled to achieve the required material stochiometry. Shuttering of the sources and wafers being coated enable accurate layer thickness control of the LED and PD multilayer. Epitaxial growth process is fully automated and carried out in production scale equipment, providing required reproducibility and 4″ wafer throughput.

Previous work describing the usage of LEDs for gas sensors [19,22], evaluated early stage LED devices from research sources with shortfalls in device reliability. Gas Sensing Solutions (GSS) Ltd (Glasgow, Scotland, UK) has implemented robust high volume throughput manufacturing process & device design with standard commercial semi-conductor processing techniques. Specifically, Gas Sensing Solutions Ltd device processing addresses passivation within device manufacture (critical to long term stable performance and lifetime). GSS devices also utilise low temperature (<100 °C) sputter deposited high-permittivity (k) nitrides and/or oxides and the resulting mid-infrared LED/PD devices require no burn-in prior to use in sensors.

Accelerated lifetime testing has been carried out [25,26], providing device lifetimes >15 years. The accelerated life testing is based on testing of twenty four sensors powered continuously at 60 °C. LED/PD automated production processing is based on 4″ wafers, yielding circa 2,500 devices per wafer, providing LED/PD device costs compatible with use in gas sensors.

Spectral characteristics of both LED and PD can be tuned by altering the ratio of the III-V material stoichiometry, enabling LED/PD spectral output to be matched to the specific gas absorption spectra shown in Figure 1. As such the LED and PD devices are designed with specific wavelengths as shown in Figures 3 and 4 respectively.

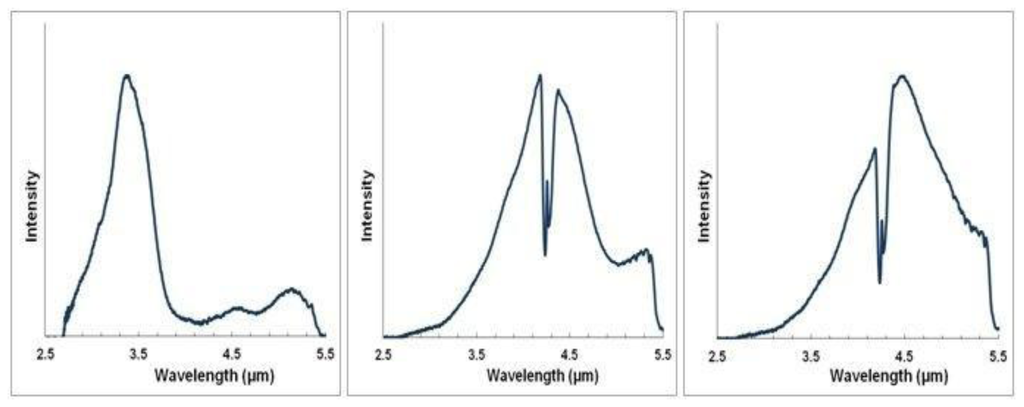

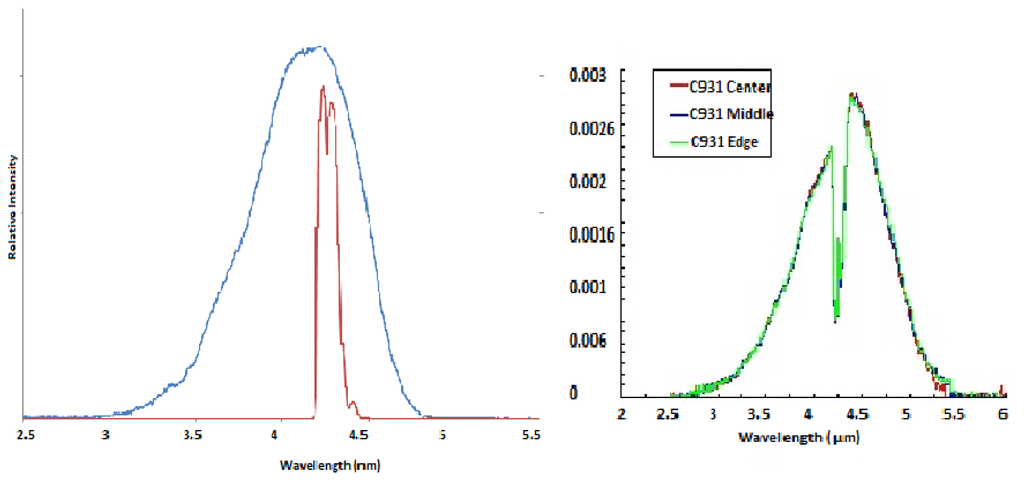

Figure 3(a–c) show measured LED tuned outputs to wavelengths overlapping gas absorption features in the mid infrared—3.3 (methane), 4.3 (CO2) and 4.5 μm (carbon monoxide), respectively [the absorption features exhibited in Figure 3(b,c) are due to CO2 gas within the measurement system]. Figure 4 shows PD spectral response.

This technology produces LED and PD's tuned to a relatively narrow bandwidth. Used as a pair the bandwidth of the combined system is narrower still, as shown in Figure 5(a). This narrow bandwidth allows the LED and PD to be used without additional optical filtering, further reducing cost and simplifying the optical design. Figure 5(b) shows measured LED spectral emission characteristic from centre, mid and edge positions on a processed wafer, illustrating the high degree of control in the fabrication process across the wafer area [note the dip in measured emission in Figure 5(b) due to ambient CO2 in the measurement system].

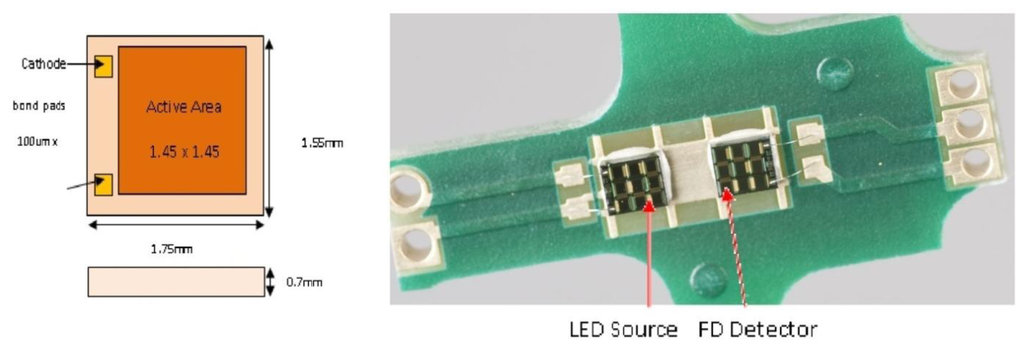

Figure 6(a) shows LED and PD structures and (b) LED/PD mounted on a bridgeboard.

LED and PD detector operating voltages are reduced to 2.5 to 3.3 V by enhanced impedance matching of the LEDs and PDs to the drive circuitry through segmentation of the LED and PD active areas [27,28]. Operating voltage at 2.5 V is well suited to interface with 5 V and 3.3 V electronics and powering from batteries and/or energy harvesting such as photovoltaics.

Previously reported results for LED usage within NDIR CO2 sensor [19], employed drive/signal processing electronics suited to thermal sources, consequently LED impedence matching to the electronics was not optimised. This paper focuses on LED/PD's tuned for sensing CO2 gas. Typical measured data for the mid infrared LED is provided in Table 1.

Typical PD detectivity (D*) is 2.0.108 cm√Hz/W at room temperature. Work is underway within Gas Sensing Solutions Ltd to develop a methane sensor based on a LED/PD light source/detector.

2.1.2. Optics and Signal Processing Optics

Detailed optical modelling of sensor sensitivity and noise has been carried out to identify necessary optical pathlength for CO2 gas sensor, covering the required concentration ranges (ambient to 100%), accuracies and data processing.

For a strictly monochromatic parallel light beam passing through an absorbing gas the absorption follows the Beer-Lambert equation:

I T = Ioe lac
where IT = Transmitted intensity, Io =Incident intensity; l = path length, a = absorption coefficient, c = gas concentration. Parameters IT, IO, and a are wavelength dependent. IT, IO are temperature dependent and a pressure dependent.

Measured transmission (=IT/Io) is convolution of incident intensity [Figure 5(a)—LED spectral output × PD spectral output] and CO2 gas spectral absorption (provided from HITRAN database [29]). Transmission is shown in Figure 6 for two pathlengths (20 and 70 mm) as a function of CO2 gas concentration.

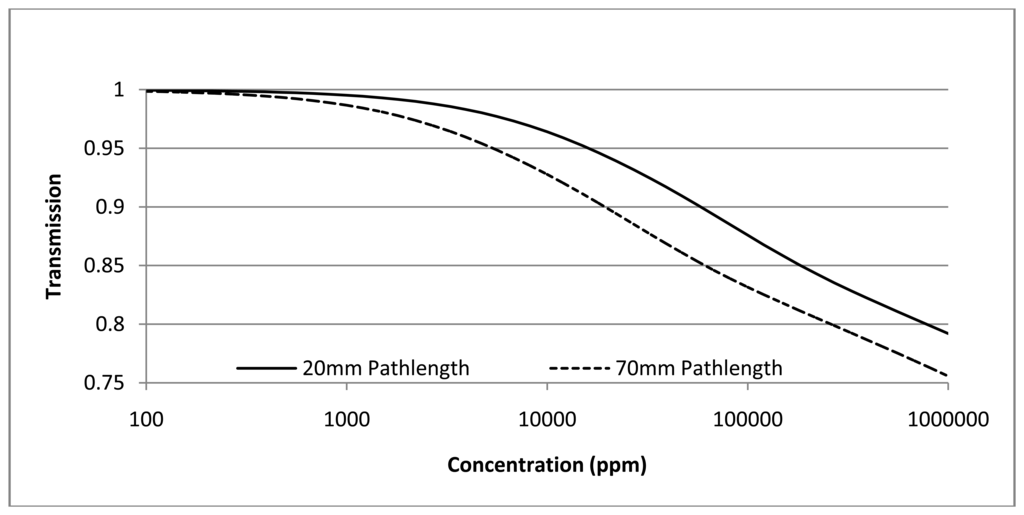

Modeled data shown in Figure 7 includes convoluted spectral output of the measured LED/PD and CO2 gas spectral absorption [29]. Modelling shown in Figure 7 is for room temperature. Measured performance with temperature is described in Section 2.1.3. LED/PD spectral position is selected to ensure spectral temperature shift is accommodated over the sensor operating temperature range (extended operating temperature range is −25 °C to +50 °C).

Modelled relative noise (Noise [pathlength 70 mm]/Noise [pathlength 20 mm]) is shown in Figure 8. Figures 7 and 8 show two pathlengths, 20 and 70 mm, are required to provide accurate measurement over ambient to 100% CO2 gas concentration. 20 mm pathlength is suited to concentration levels from 0.5 to 100% whilst 70 mm pathlength provides complementary required accuracy from 400 ppm to 0.5%.

Typical applications and required CO2 gas concentration measurement range provided in Table 2.

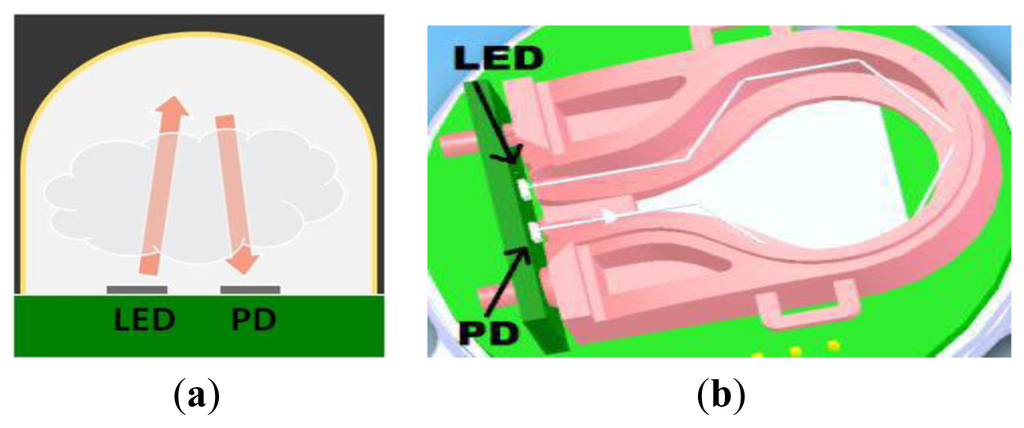

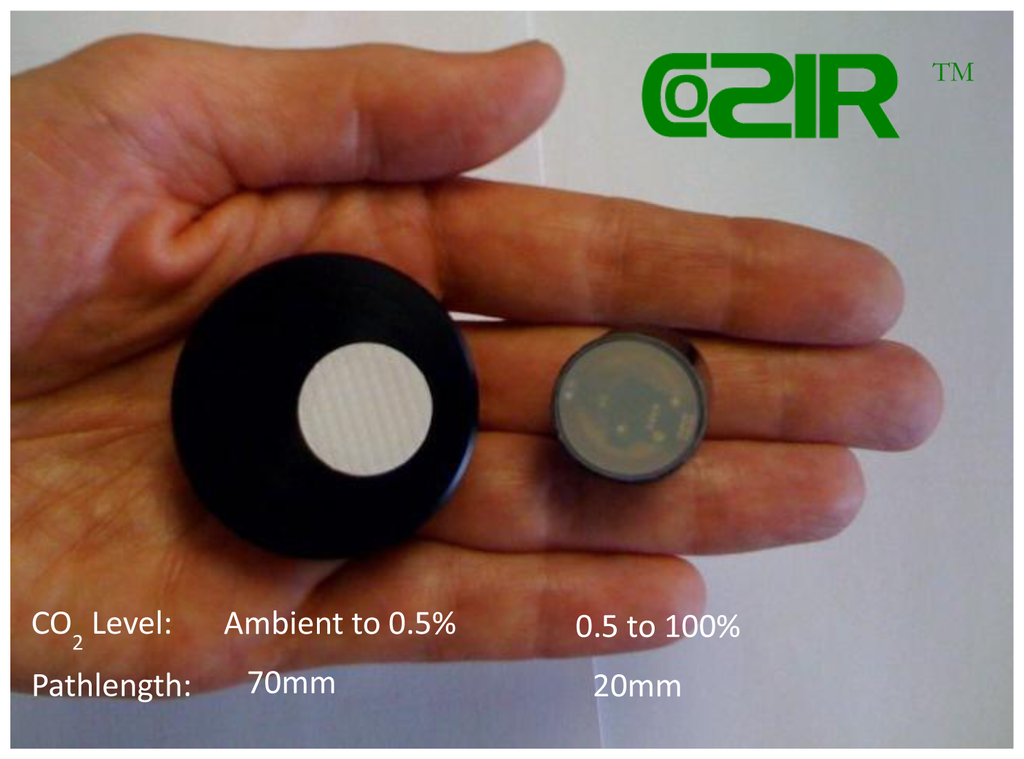

Figure 9 shows schematics of an optical configuration providing (a) 20 mm and (b) 70 mm pathlengths.

As Shown in Figure 9(a) 20 mm pathlength is a dome geometry with a single reflection, whilst 70 mm pathlength (Figure 9(b)) is achieved with a folded optic and multiple reflections between LED and PD. Both optical configurations are produced using injection moulded optics, reflective surfaces subsequently coated with a gold layer or protected aluminum to maximise mid-infrared optical throughput. No need for a separate optical filter greatly simplifies the optical design, with no subsequent requirement for collimated light. Figure 10 shows production version ambient and wide range sensors (trademarked as COZIR™).

Assembly requires no active alignment of LED/PD bridgeboard and uses low cost plastic optics.

Electronics & Signal Processing

Previous work describing use of LED's [19] for gas sensors, utilised signal processing designed for use with thermal sources and not optimised for use with significantly reduced LED power output. Work described in this paper utilises low cost compact signal processing techniques/available hardware, enabling successful measurements to be made using lower power output from LED and PD. Described signal processing provides sufficient processing speed and capacity for real time compensation of LED/PD wavelength and intensity change with temperature.

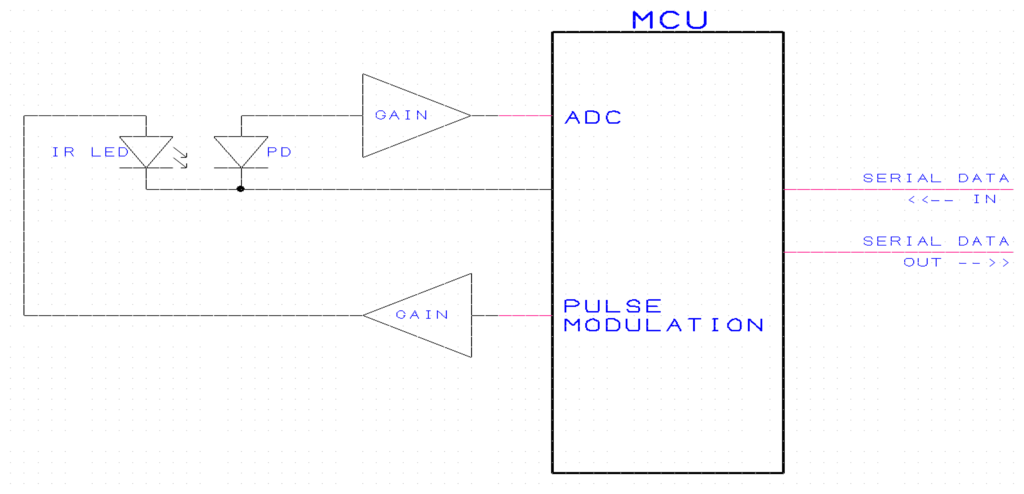

Figure 11 shows the signal processing scheme developed by Gas Sensing Solutions Ltd specifically designed for use with LED/PD devices. The Micro Controller Unit (MCU) periodically sends a very fast pulse train to the LED via a GAIN stage. The modulated mid-infrared light pulses fall on the PD detector.

Mid-infrared light level is detected by the PD and is amplified by a GAIN stage before being captured by the MCU's Analogue to Digital Convertor (ADC) thus making a digital version available for processing. The digital version of the IR light level is processed by the MCU which then provides a serial data output indicating the CO2 concentration present between the mid-infrared LED and the PD.

Figure 12 shows the assembly of production version (a) wide range (pathlength 20 mm) and (b) ambient (pathlength 70 mm) sensors.

2.1.3. Calibration, Temperature, Noise & Cross Sensitivity Performance

Calibration and Temperature Compensation

LED/PD spectral characteristic is dependent on temperature. Temperature effects are compensated for through factory based calibration and real time compensation using signal processing. The sensor requires a two-point calibration, both carried out at the factory prior to dispatch. First, the sensor must be zeroed. This is performed by flowing a gas without carbon dioxide through the analyser and adjusting the zero on the analyser. Second, the span needs to be adjusted. A span gas containing an amount of carbon dioxide close to the concentration of carbon dioxide found in the sample gas should be used to span the analyser. The span gas is a known CO2 gas concentration.

As the LED/PD spectral characteristic changes with temperature, calibration also includes a procedure stepping through required temperature range and repeating zero/span CO2 gas concentration with temperature variation. Logged two-point gas concentration and temperature variation data is subsequently downloaded into the signal processing scheme shown in Figure 11.

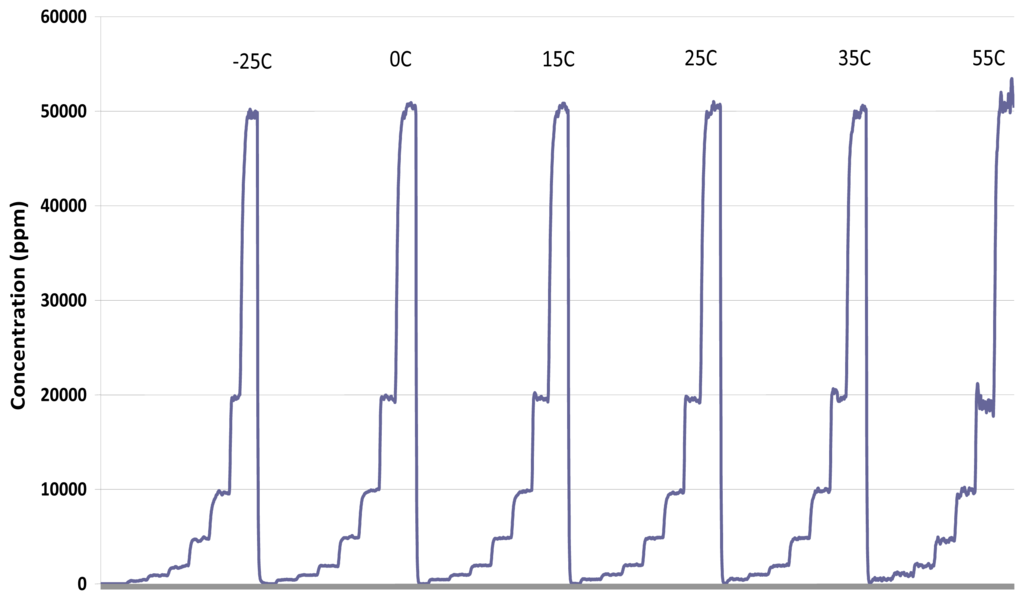

Figure 13 shows temperature invariant performance over six temperatures (−25, 0, 15, 25, 35, 55 °C) with sensor stepped through seven CO2 concentration levels (500 ppm, 1,000 ppm, 2,000 ppm, 5,000 ppm, 1%, 2%, 5%) for an ambient sensor:

Calibration process within Gas Sensing Solutions Ltd is fully productionised and automated, capable of processing high volume sensor throughput.

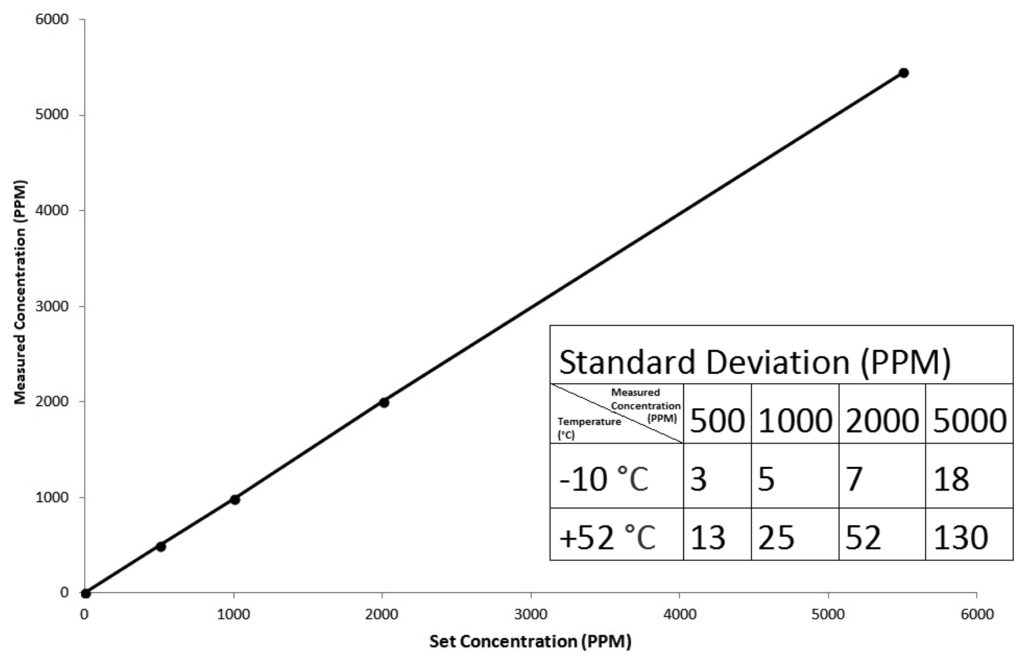

Linearised signal output shown in Figure 14 with CO2 concentration is provided as either analogue or digital (UART RX…TX) output. Measured standard deviation at each set gas concentration for extremes in temperature (−10 to 52 °C) are shown in Figure 14 for linearized signal output. Figure 14 shows measured sensor gas concentration output (ambient) at five temperatures (−10, 8, 23, 33 and 52 °C) as a function of set CO2 concentration level delivered from a known gas concentration.

Noise Performance

Figure 15 shows measured standard deviation with set CO2 gas concentration for temperatures −7, 25 and 55 °C: wide range (pathlength 20 mm) configuration. Photodiode based detector comprises Johnson, dark current, quantisation and shot noise [30]. Modelled noise is shown in Figure 15.

Measured noise is also shown in Figure 15. Dominant noise contribution for temperature <20 °C is Johnson noise and temperature >20 °C dark current noise. Figure 15 shows noise increases with temperature, dominated by dark current noise with increasing temperature.

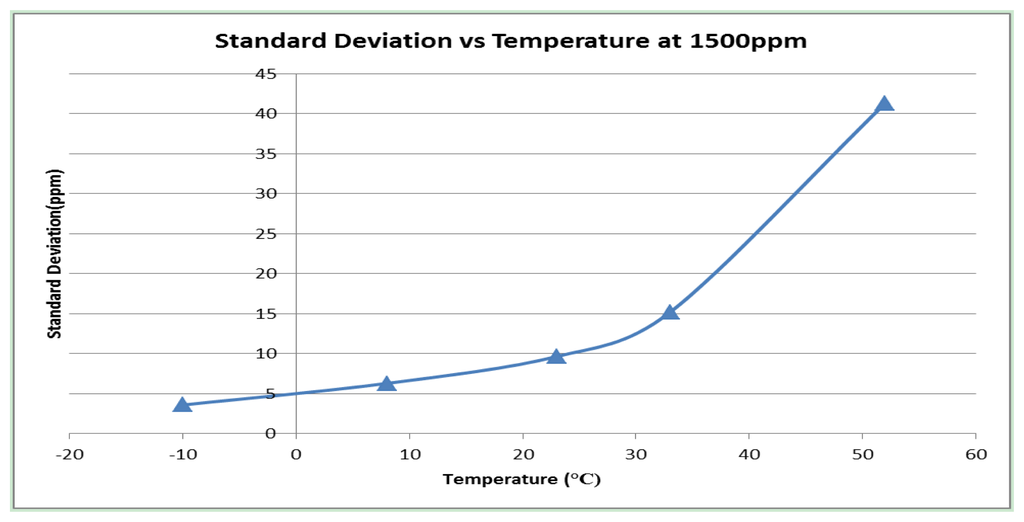

Figure 16 provides measured standard deviation (of output gas concentration) for the ambient (pathlength 70 mm) configuration at 1,500 ppm for temperatures −10 to +55 °C.

Influence of noise with temperature can be reduced by increased measured signal averaging with time. Data shown in Figures 15 and 16 correspond to standard signal output from wide range and ambient configurations, based on averaged two measurements per second. Noise contributions and variation with temperature for ambient and wide range sensor configurations are similar as same LED/PD combination is used for in both types.

Table 3 shows ambient (pathlength 70 mm) variation in measured standard deviation (of measured gas concentration level) for three set concentration levels: standard operating condition for COZIR sensors, ie continuous power operation (result indicated for two averaged measurements taken over one second).

Pyroelectric detectors as used in standard thermal source/pyroelectric based NDIR sensors have three types of noise: thermal, dielectric and amplifier noise [30] with significant temperature dependency [31,32]. Overall noise and temperature dependency is comparable for the LED/PD configuration described in this paper and pyroelectric detectors [30].

Cross Sensitivity

Discrimination of the COZIR™ sensor has been evaluated for cross sensitivity to water vapour (absorption feature at 2.8 μm), methane (CH4−3.3 μm) and carbon monoxide (CO−4.6 μm). Figure 17 shows real time monitoring of a set CO2 level (590 ppm) at 25 °C as the humidity level is cycled from 30 to 90% over an 11.5 hour period—each change in humidity is allowed to settle over a ten minute period before humidity is subsequently step changed. Temperature/humidity combinations were chosen to ensure non-condensing conditions.

Cross sensitivity of COZIR™ ambient to CH4 and CO measured at 10,000 and 2,500 ppm respectively (values well in excess of trace amounts expected in air [33]), at 25 °C, show no variation with expected standard deviation. Nitrous oxide (4.5 μm–N2O) has not been tested, however minimal cross sensitivity is expected on the basis of peak absorption upshifted from CO2 [29], reduced absorption cross section compared with CO2, reduced LED/PD response at N2O absorption feature. Moreover, like CH4 and CO, trace amounts of N2O are expected in air [33].

3. Results and Discussion

3.1. LED/PD CO2 Sensor Performance

Performance of the two pathlength configurations is provided in Table 4.

Detailed specifications for COZIR™ ambient and wide range sensors are provided in references [34] and [35], respectively.

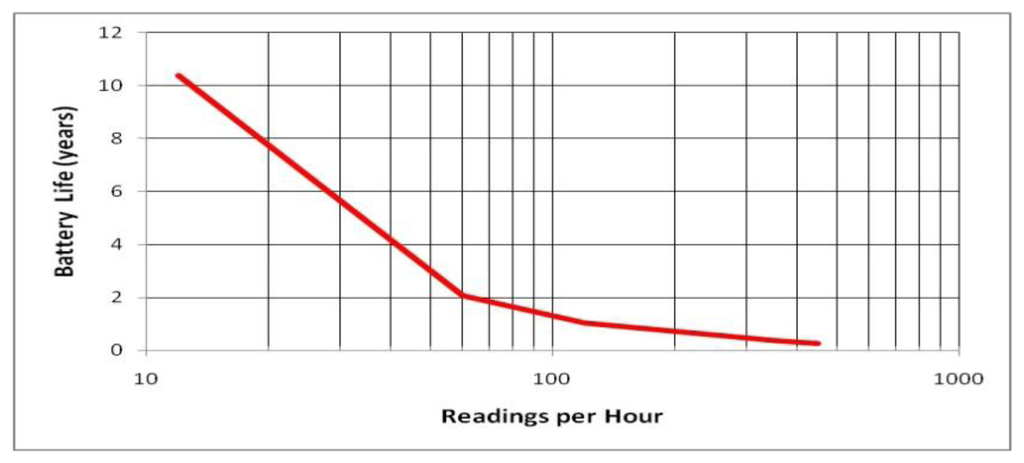

Performance shown in Figure 18 indicates > 10 year battery life at ≤ 10 measurements per hour, well within measurement frequency requirements for wireless deployment in building control applications and portable application in industrial safety and medical applications. Figure 18 accounts for energy required for one discrete measurement—the energy required to turn on the sensor from cold, warm up, take and report a measurement, and power down again.

3.2. Self-Powering Operation & Compatibility with Energy Harvesting

Self-powered operation with wireless data transmission has also been demonstrated with a 67 × 28 mm silicon solar cell with 200 lux light level [36]—configuration shown in Figure 19(a). Self-powered operation enables the sensor to operate at one reading every 3 minutes.

To reduce and ultimately remove dependence on battery operation and increase time between battery changes (typically > 10 years), there is a developing need for cost effective energy harvesting solutions. Worldwide some 15 billion primary batteries are thrown away every year, all of which end up in landfill sites [37]. With the emergence of new low power sensor solutions the network communications landscape is rapidly changing from wired to wireless whereby all devices are to becoming connected, interoperable and require rapid deployment.

Evolution of energy per measurement (an important parameter in determining battery life/energy harvesting requirements) performance with development/production time for the COZIR™ LED/PD CO2 sensor is shown in Figure 19(b) [energy per measurement performance shown in Figure 19(b) incorporates humidity and temperature sensors, providing CO2/temperature/humidity in the one sensor platform—note that CO2 sensor energy per measurement dominates total energy per measurement shown in Figure 19(b)]. Less than 10 mJ per measurement is the upper limit for potential use of energy harvesting, based on performance assessment of initial prototypes based on silicon based photovoltaics [36], as shown in Figure 19(b).

3.3. Ultra-low Power Sensor Development with Schneider Electric Industries

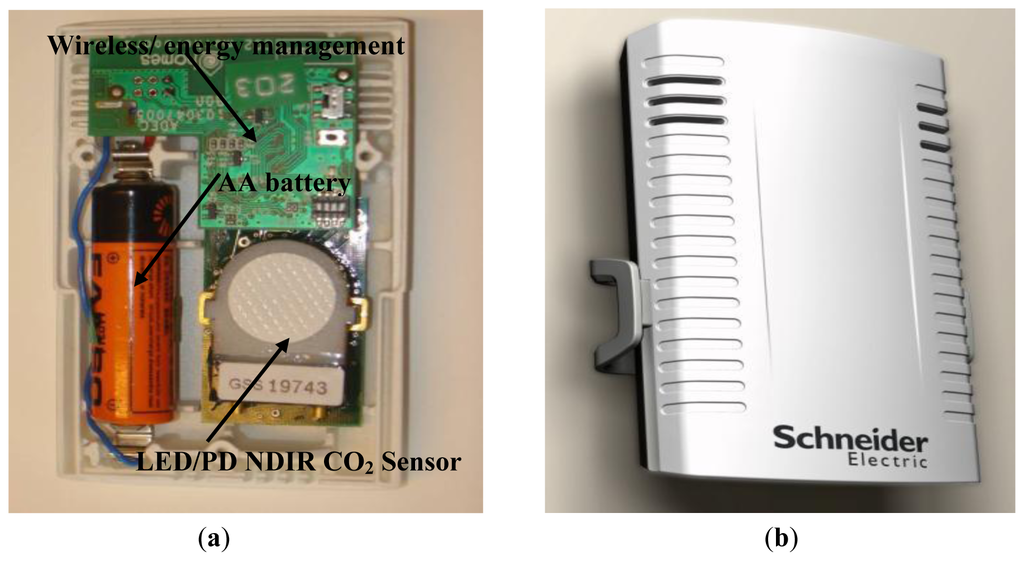

Figure 20(a,b) shows an ultra low power (ULP) wireless sensor module which contains a modified version of the sensor described in Section 2, a co-development with Schneider Electric Industries (SEI, Grenoble, France) [38]. The ULP CO2 sensor is combined with humidity and temperature sensors for use in indoor air quality monitoring and control within building applications.

This application uses the standard Gas Sensing Solutions (GSS) ambient sensor comprising LED, PD and optical chamber described in Section 2. However the drive electronics and signal processing have been optimized to minimize the energy required to power on for one measurement. The optimization focused on three main elements: reduction of start-up time, reduction of power wastage, and improvement in signal/noise (S/N) performance in the signal processing chain.

The start-up time was reduced to 5 ms by running startup processes in parallel, and by reducing the overall sensor capacitance. Reduction in the measurement cycle, the time when the LED is powered, had the dual effect of reducing the overall power requirements to the LED, and also reduced the time to first measurement.

Power wastage was minimized by intelligent switching of circuit elements so that resources such as amplifiers were powered only during the measurement cycle phase when they were required. The removal of capacitance from the sensor reduced energy lost between measurements, though placing greater demands on the external power management circuit to deliver the peak currents required by the sensor.

There is a trade-off between energy used and the S/N ratio—higher S/N can be used to provide a more stable reading, or to reduce the power consumption. The S/N ratio for this implementation was improved by increasing the operating frequency to reduce 1/f noise, by sharing the first stage amplification between two op amp, and by increasing the LED drive current, while reducing the pulse width to achive an overall reduction in energy per pulse.

Table 5 provides measured standard deviation (GSS/Schneider co-developed ultralow power ambient sensor configuration) for three set CO2 gas concentrations in cycled power mode for two energy per measurement values (1 and 3 mJ).

Expected improvement in standard deviation with increasing energy per measurement is observed at 900 and 1,500 ppm. No improvement is observed at 450 ppm [≈ambient], most probably due to variation in background actual ambient levels.

The SEI/GSS co-developed CO2/temperature/humidity ultra-low power sensor operates with two minutes between measurements, >ten year battery life (based on single AA battery), ±10 ppm resolution at 1,000 ppm, range ambient to 3,000 ppm, input voltage 3.6 V and compliant with solar cell powering [36].

3.4. LED/PD & Thermal Source/Pyroelectric CO2 Sensor Performance Comparison

Other NDIR sensors utilize thermal sources (tunsten lamps) and either pyroelectric or thermopile detectors. A disadvantage of thermal source-based NDIR sensors is that the sensor needs a significant time to warm-up to operating temperature following lamp switch-on due to the heat generated by the lamp warming up the entire sensor. There is a trade-off between lamp operating voltage, noise, lamp lifetime, warm-up time and operating power [39,40]. Optimum performance in relation to NDIR CO2 sensor [40] is to minimize lamp operating voltage, lower limit typically 2 V, with operating current of 38 mA and resulting average power consumption of 38 mW (50% duty cycle). Warm-up time is typically < 10 minutes to achieve temperature stability and hence signal equilibrium [40]—data based on an Alphasense Ltd IRC-A1 NDIR CO2 sensor relating to low voltage powered thermal source [40,41].

Table 6 provides a comparison of NDIR CO2 sensor performance (single channel devices with comparable accuracies as measured at standard temperature & temperature STP*) from a range of suppliers, mid infrared LED/PD (COZIR™: Gas Sensing Solutions Ltd; ULP: co-development Gas Sensing Solutions Ltd/ Schneider Electric Industries) and thermal source/pyro or thermopile detectors (Senseair, Sensecube, OptoSense, ELT, Teleaire). Note information provided in Table 6 is based on available public domain sensor performance data.

As explained in the introduction, applications in IAQ, DCV and portable CO2 measurement require low power consumption for continuous usage and/or minimal energy per measurement for cycled power/intermittent usage with consequent extended battery life and compatibility with energy harvesting strategies.

For continuous sensor operation difference in NDIR CO2 sensor power consumption between LED/PD and thermal source/pyroelectric is typically a factor of between ten to one hundred depending on specific NDIR (thermal source) sensor comparison.

Power cycled/intermittent usage requires sensor to be turn on from cold, warm up, take and report a measurement, and power down again in as short an interval as possible. For thermal source this is typically between one to ten minutes to achieve warm-up/stabilization [39], implying energy per measurement of typically 2,000 to 9,000 mJ (based on 40 mW to 150 mW power consumption and 1 minute stabilization time).

The COZIR™ mid-infrared LED/PD light source time power-up/measurement time is typically one second—dominated by electronic initialization, with operating voltage of 3.3V, average current 1.1 mA and power consumption 3.5 mW. Ultra-low power consumption LED/PD NDIR CO2 sensor co-developed with Schneider Electric Industries (described in Section 3.3) time is 50 ms. This implies energy per measurement of 1.0 mJ.

The improvement factor between LED/PD and thermal source NDIR CO2 sensor energy per measurement performance is typically 600 to 2,000.

As detailed in Section 3.2, this combination provides an energy per measurement enabling extended powering from batteries and compatibility with energy harvesting methods such as photovoltaics.

Whilst reported longevity is similar for thermal sources and LED's (typically > 15 years based on accelerated lifetime testing [25,26]), LED/PD combination is not prone to microphony and helium ingress, both of which can shorten incandescent bulb lifetime through filament degradation [41].

Standard NDIR CO2 sensors also require an optical filter to provide wavelength discrimination, increasing material cost, assembly complexity and requires collimated light for optimum optical filter operation. Tuneable LED/PD intrinsic wavelength selectivity for CO2 gas sensing dispenses with the need for optical filters. Moreover, LED/PD higher frequency pulsing performance and pulse shaping provides a basis for more effective signal processing schemes to maximise signal to noise ratio [42,43].

4. Conclusions/Outlook

A novel NDIR CO2 sensor based on use of mid-infrared light emitting diode/photodiode light source/detector devices is demonstrated. NDIR CO2 sensors incorporating the LED/PD light source detector devices provide less than 3.3 mW power consumption in continuous operation and for the ULP configuration ≈ 1 mJ measurement in pulsed mode—the energy required to turn on the sensor from cold, warm up, take and report a measurement, and power down again. Cycled powering performance is compatible with extended battery life and/or energy harvesting.

Work is underway to further improve the efficiencies of all components of the optical bench. A further reduction in power consumption by a factor of two is anticipated through improvements in LED and PD device design and optimization of the epitaxy. Further work is focused on improving optical coupling and on signal to noise improvements in the detection circuit LED/PD efficiencies, signal processing and optical throughput, thereby offering potential for further reduction in energy per measurement. Further reductions in energy per measurement will lead to increased usage of energy harvesting regimes such as dye sensitized [44] and organic photovoltaics [45], resulting in reduced dependency on battery operation.

Energy consumption levels in pulsed mode enable self-powered operation and wireless data communication using a silicon based solar cell [36]. Future work will investigate other photovoltaic power generation methods as silicon is not a viable energy harvesting route for building control as efficiencies are dramatically reduced under indoor lighting [typically 200 lux] conditions. Other energy harvesting strategies will include dye sensitized solar cells [44] and organic photovoltaics [45], offering higher efficiencies in lower diffuse lighting conditions and lower cost with potential for photovoltaic performance on flexible substrates.

The LED/PD approach also offers scope to enhance real time measurement of CO2 gas temporal characteristic through increased frequency cycled power operation. A version of the LED/PD NDIR CO2 sensor described in Section 2 is now in production (tradename SPRINTIR™) which offers twenty measurements per second [46]. Further developments of the SPRINTIR™ CO2 sensor are underway to align performance with emerging requirements in medical applications such as capnography and metabolic rate assessment [47].

The LED/PD approach can be extended to provide sensing of other gases such as methane, carbon monoxide and nitrous oxide. Development work is currently underway to extend the LED/PD approach to an NDIR methane gas sensor.

Acknowledgments

The authors acknowledge investment from TriCapital Renaissance Investment (Melrose, Scotland) and Scottish Investment Bank, enabling research, development and productionisation of the LED/PD NDIR sensor platform. Also Gilles Chabanis, Smart Sensors Manager, Schneider Electric Industries, for permission to utilize material shown in Figure 20 and Section 3.3 within this publication. The authors also acknowledge input from Matt Steer, Knowledge Transfer Partnership (KTP) associate and KTP academic supervisor Iain Thayne, Glasgow University (Scotland, UK). The authors acknowledge with thanks and appreciation input from Gas Sensing Solutions Ltd employees.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rhodes, W. The EMEA and Americas Markets for Building Automation Controllers, Software and Sensors Market Research Report; IMS Research: Wellingborough, UK; May; 2011. [Google Scholar]
  2. California Energy Commission, Building Energy Efficiency Standard, Title 24 legislation; CEC-Reference 400-2008-001-CMF; December; 2008.
  3. Directive 2002/91/EC of the European Parliament and of the Council. Energy Performance of Buildings; 16; December; 2002. [Google Scholar]
  4. Ferng, S.F.; Lee, L.W. Indoor air quality assessment of daycare facilities with carbon dioxide, temperature, and humidity as indicators. J. Environ. Health 2002, 65, 14–18. [Google Scholar]
  5. Daisey, J.M.; Angell, W.J.; Apte, M.G. Indoor air quality, ventilation and health symptoms in schools: An analysis of existing information. Indoor Air 2003, 13, 53–64. [Google Scholar]
  6. Sand, J.R. Demand-Controlled Ventilation Using CO2Sensors; United States Department of Energy, Energy Efficiency and Renewable Energy, Federal Energy Management Program DOE/EE-0293. , March 2004. Available online: http://www1.eere.energy.gov/femp/pdfs/fta_co2.pdf (accessed on 27 May 2013).
  7. Apte, M.G. A Review of Demand Controlled Ventilation. Proceedings of Healthy Buildings 2006, Universidade de Porto, Portugal, 16–19 April 2006; pp. 371–376.
  8. Gupta, S.; Khare, M.; Goyal, R. Sick building syndrome—A case study in a multistory centrally air-conditioned building in Delhi City. Build. Environ. 2007, 42, 2797–2809. [Google Scholar]
  9. Jennings, P.R.; Fahringer, D.; Collins, T. Sick building syndrome. Indoor air quality and your patients' health. JAAPA 2000, 39, 34–36. [Google Scholar]
  10. US Dept of Energy. Energy Review 2009; DOE/ IEA/-0384; August; 2010. [Google Scholar]
  11. Poorter, H. Interspecific variation in the growth response to an elevated and ambient CO2concentration. J. Vegetation 1993, 104/105, 77–97. [Google Scholar]
  12. Stafford, N. Future crops: The other greenhouse effect. Nature 2007, 448, 14–18. [Google Scholar]
  13. Frodle, R.; Tille, T. A high precision NDIR CO2 gas sensor for automotive applications. IEEE Sens. J. 2006, 6, 1697–1705. [Google Scholar]
  14. Radwan, L. Infrared CO2 analysis in expired air as a test of the pulmonary function. I. Evaluation of the capnographic curve. Pol. Med. J. 1967, 6, 403–411. [Google Scholar]
  15. Wong, J.Y. NDIR Gas Sensor U.S. Patent No. 5,444,249, 22 August 1995.
  16. Sashida, T.; Saitou, T.; Egawa, M. Development of a Carbon Dioxide Concentration Meter Using a Solid Electrolyte Sensor. Proceedings of the 41st SICE Annual Conference, SICE 2002, Osaka, Japan, 5–7 August 2002; pp. 5–7.
  17. Stuart, B.H. Infrared Spectroscopy: Fundamentals and Applications (Analytical Techniques in the Sciences (AnTs); John Wiley and Sons: Hoboken NJ, USA, 2004. [Google Scholar]
  18. Miller, L.J. Principles of Infrared Technology: A Practical Guide to the State of the Art; Springer: New York, NY, USA, 2001. [Google Scholar]
  19. Smith, S.D.; Vass, A.; Bramley, P.; Wang, C.H. Comparison of IR LED gas sensors with thermal source products. IEE Proc. Optoelectron. 1997, 144, 266–270. [Google Scholar]
  20. Krier, A.; Stone, M.; Zhuang, Q.D.; Liu, P.W.; Tsai, G.; Lin, H.H. Mid-infrared electroluminescence at room temperature from InAsSb multi-quantum-well light-emitting diodes. Appl. Phys. Lett. 2006, 89, 54–58. [Google Scholar]
  21. Haigh, M.K.; Nash, G.R.; Smith, S.J.; Buckle, L.; Emeny, M.T.; Ashley, T. Mid-infrared AlxIn1-xSb light-emitting diodes. Appl. Phys. Lett. 2007, 90, 47–52. [Google Scholar]
  22. Smith, S.D.; Vass, A.; Karpushko, F.; Hardaway, H.; Crowder, J.G. The prospects of LEDs, diode detectors and negative luminescence in infrared sensing of gases and spectroscopy. Phil. Trans. R. Soc. Lond. A 2001, 359, 621–634. [Google Scholar]
  23. Krier, A.; Yin, M.; Smirnov, V.; Batty, P.; Carrington, P.J.; Solovev, V.; Sherstnev, V. The development of room temperature LEDs and lasers for the mid-infrared spectral range. Phys. Stat. Sol. 2008, 205, 129–143. [Google Scholar]
  24. Grau, M.; Lin, C.; Dier, O.; Lauer, C.; Amann, M.C. Room-temperature operation of 3.26 μm GaSb-based type-I lasers with quinternary AlGaInAsSb barriers. Appl. Phys. Lett. 2005, 87, 104–110. [Google Scholar]
  25. He, W.; Guo, W.; Gao, W. Test method of life-time and reliability evaluation for LED. Appl. Opt. 2008, 29, 533–536. [Google Scholar]
  26. Wang, X.; Guo, W.; Tian, Y. The reliability of tunnel junction regenerated light emitting diodes[C]. Proc. SPIE 2005, 6020, 81–88. [Google Scholar]
  27. Hardaway, H.R.; Ashley, T.; Buckle, L.; Emeny, M.T.; Masterton, G.; Pryce, G. Optimising indium aluminum antimonide LEDs and photodiodes for gas sensing applications. Proc. SPIE 2004, 5564, 105–112. [Google Scholar]
  28. Krier, A., Ed.; Mid-infrared Semiconductor Optoelectronics; Springer-Verlag: New York, NY, USA, 2006.
  29. HITRAN (High-resolution Transmission Molecular Absorption Database). Available online: http://www.cfa.harvard.edu/hitran/ (accessed on 27 May 2013).
  30. Beerman, P.H. The pyroelectric detector of infrared radiation. IEEE Trans. Electron. Dev. 1969, 16, 554–557. [Google Scholar]
  31. Henini, M., Razeghi, M., Eds.; Handbook of Infrared Detection Technologies; Elsevier Advanced Technology: London, UK, 2002.
  32. Ciupa, R.; Rogalski, A. Performance limitations of photon and thermal infrared detectors. Opt. Electr. Rev. 1997, 5, 257–265. [Google Scholar]
  33. Lide, D.R. CRC Handbook of Chemistry and Physics; CRC Press LLC: New York, NY, USA, 2005. [Google Scholar]
  34. Gas Sensing Solutions Ltd. COZIR™ Ambient Carbon Dioxide Sensor. Specification Note, Rev H. Available online: http://www.gassensing.co.uk/wp-content/uploads/2013/04//COZIR_Ambient_Datasheet_GSS.pdf (accessed on 27 May 2013).
  35. Gas Sensing Solutions Ltd. COZIR™ Wide Range Carbon Dioxide Sensor. Specification Note, Rev F, August 2012. Available online: http://www.gassensing.co.uk/wp-content/uploads/2013/02/COZIR_-WideRange_-Datasheet_GSS.pdf (accessed on 27 May 2013).
  36. EnOcean GmbH. Application Note AN313. CO2Sensor—Design concept for solar- powered CO2sensor. June 2011. Available online: http://www.enocean.com/en/application-notes/AN313 (accessed on 27 May 2013). [Google Scholar]
  37. Buchmann, I. Battery Statistics. Battery University, August 2008. Available online: http://batteryuniversity.com/learn/article/sharing_battery_knowledge (accessed on 27 May 2013). [Google Scholar]
  38. Communication from Dr Gilles Chabanis; Schneider Electric Industries: Grenoble, France.
  39. Gilway Technical Lamp Engineering Catalogue 169. April 2012. Available online: www.gilway.com/169 (accessed on 27 May 2013).
  40. Alphasense Ltd Application Note AAN 205-02. NDIR: Running the IRC-A1 at reduced lamp voltages. March 2009. Available online: http://www.alphasense.com/environmental-sensors/pdf/NDIR/AAN_205-02.pdf (accessed on 27 May 2013). [Google Scholar]
  41. Horacsek, O. Properties and failure modes of incandescent tungsten filaments. IEE Proc A 1980, 127, 134–141. [Google Scholar]
  42. Dixon, P.K.; Wu, L. Broadband digital lock-in amplifier techniques. Rev. Sci. Instrum. (AIP) 1989, 60, 27–34. [Google Scholar]
  43. Scofield, J.H. Frequency-domain description of a lock-in amplifier. Am. J. Phys. (AAPT) 1994. 1994, 62, 129–133. [Google Scholar]
  44. O'Regan, B.; Grätzel, M. A low-cost, high-efficiency solar cell based on dye-sensitized colloidal TiO2 films. Nature 1991, 353, 737–740. [Google Scholar]
  45. Halls, J.J.M.; Friend, R.H. Clean Electricity from Photovoltaics; Archer, M.D., Hill, R.D., Eds.; Imperial College Press: London, UK, 2001; pp. 377–445. [Google Scholar]
  46. Gas Sensing Solutions Ltd. SprintIR™ High Speed Carbon Dioxide Sensor. Specification Note, September 2012. Available online: http://www.gassensing.co.uk/product/sprintir/ (accessed on 27 May 2013).
  47. Valez, M. Capnographic Testing of SprintIR CO2Sensor. CO2Meter Inc. Application Note, Rev 1, 19 February 2013. Available online: http://www.co2meters.com/Documentation/AppNotes/AN129-COZIR-High-Speed-Sensor.pdf (accessed on 27 May 2013).

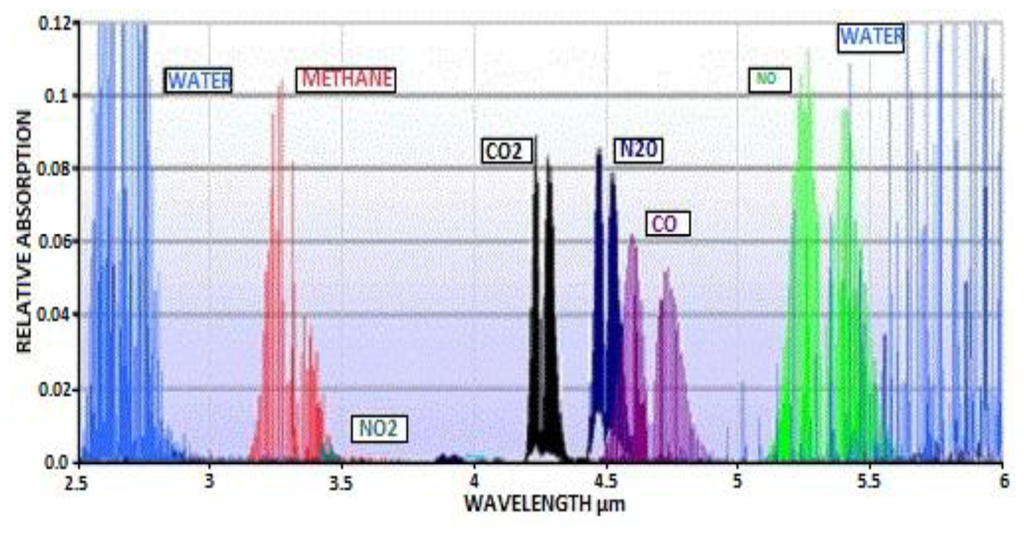

Figure 1. Absorption spectra for commercially relevant gases.
Figure 1. Absorption spectra for commercially relevant gases.
Sensors 13 07079f1 1024
Figure 2. Schematic of narrow bandgap III-V AlGaInAsSb epi-grown structure.
Figure 2. Schematic of narrow bandgap III-V AlGaInAsSb epi-grown structure.
Sensors 13 07079f2 1024
Figure 3. Tuned LED inputs to (a) 3.3 μm (methane); (b) 4.3 μm (CO2) and (c) 4.6 μm (CO).
Figure 3. Tuned LED inputs to (a) 3.3 μm (methane); (b) 4.3 μm (CO2) and (c) 4.6 μm (CO).
Sensors 13 07079f3 1024
Figure 4. PD spectral response (feature at 2.8 μm is an artifact of water vapour in the measurement system).
Figure 4. PD spectral response (feature at 2.8 μm is an artifact of water vapour in the measurement system).
Sensors 13 07079f4 1024
Figure 5. (a) Spectral profile for LED/PD combination (blue) and CO2 gas spectral absorption (red curve); (b) measured LED spectral output from centre/mid/edge wafer positions.
Figure 5. (a) Spectral profile for LED/PD combination (blue) and CO2 gas spectral absorption (red curve); (b) measured LED spectral output from centre/mid/edge wafer positions.
Sensors 13 07079f5 1024
Figure 6. (a) LED and PD detector structure and (b) LED and PD detector mounted on Bridgeboard.
Figure 6. (a) LED and PD detector structure and (b) LED and PD detector mounted on Bridgeboard.
Sensors 13 07079f6 1024
Figure 7. Modelled transmission as a function of gas concentration for two pathlengths.
Figure 7. Modelled transmission as a function of gas concentration for two pathlengths.
Sensors 13 07079f7 1024
Figure 8. Modelled relative noise for two pathlengths [70 mm and 20 mm] as a function of CO2 gas concentration.
Figure 8. Modelled relative noise for two pathlengths [70 mm and 20 mm] as a function of CO2 gas concentration.
Sensors 13 07079f8 1024
Figure 9. (a) 20 mm and (b) 70 mm optical configurations.
Figure 9. (a) 20 mm and (b) 70 mm optical configurations.
Sensors 13 07079f9 1024
Figure 10. Production version of 70 (ambient) and 20 mm (wide range) pathlength LED/PD sensors—trademarked as COZIR™.
Figure 10. Production version of 70 (ambient) and 20 mm (wide range) pathlength LED/PD sensors—trademarked as COZIR™.
Sensors 13 07079f10 1024
Figure 11. Signal processing configuration.
Figure 11. Signal processing configuration.
Sensors 13 07079f11 1024
Figure 12. Assembled (a) wide range (actual size 20 mm diameter, 25 mm length including electronics) and (b) ambient sensors (note ambient is shown without protective cover. Size with cover 42 mm diameter, 15 mm thickness including electronics).
Figure 12. Assembled (a) wide range (actual size 20 mm diameter, 25 mm length including electronics) and (b) ambient sensors (note ambient is shown without protective cover. Size with cover 42 mm diameter, 15 mm thickness including electronics).
Sensors 13 07079f12 1024
Figure 13. Temperature stability at 500 ppm, 1,000 ppm, 2,000 ppm, 5,000 ppm, 1%, 2%, 5% over temperatures −25, 0, 15, 25, 35, 55 °C.
Figure 13. Temperature stability at 500 ppm, 1,000 ppm, 2,000 ppm, 5,000 ppm, 1%, 2%, 5% over temperatures −25, 0, 15, 25, 35, 55 °C.
Sensors 13 07079f13 1024
Figure 14. Linearised output (measured against set CO2 gas concentration) over temperatures −10, 8, 23, 33 and 52 °C for ambient sensor configuration. Measured standard deviation indicated.
Figure 14. Linearised output (measured against set CO2 gas concentration) over temperatures −10, 8, 23, 33 and 52 °C for ambient sensor configuration. Measured standard deviation indicated.
Sensors 13 07079f14 1024
Figure 15. Measured standard deviation for three temperatures (−7, 25 and 55 °C) as a function of set concentration for wide range (pathlength 20 mm) sensor configuration. Modelled noise included.
Figure 15. Measured standard deviation for three temperatures (−7, 25 and 55 °C) as a function of set concentration for wide range (pathlength 20 mm) sensor configuration. Modelled noise included.
Sensors 13 07079f15 1024
Figure 16. Measured standard deviation (of measured gas concentration output @ set gas concentration of 1,500 ppm) for ambient (pathlength 70 mm) with temperature (−10 to 55 °C).
Figure 16. Measured standard deviation (of measured gas concentration output @ set gas concentration of 1,500 ppm) for ambient (pathlength 70 mm) with temperature (−10 to 55 °C).
Sensors 13 07079f16 1024

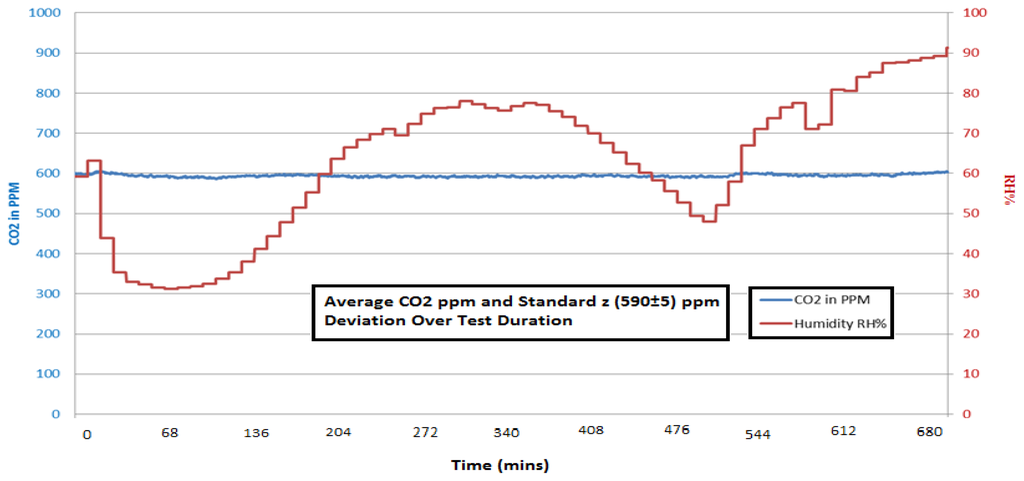

Figure 17. COZIR™ Ambient sensitivity assessment to water vapour for relative humidity (RH) variation from 30 to 90% at 25 °C.
Figure 17. COZIR™ Ambient sensitivity assessment to water vapour for relative humidity (RH) variation from 30 to 90% at 25 °C.
Sensors 13 07079f17 1024
Figure 18. Battery life (AA sized battery) as a function of number of measurements per hour.
Figure 18. Battery life (AA sized battery) as a function of number of measurements per hour.
Sensors 13 07079f18 1024
Figure 19. (a) Wireless self-powering LED/PD based CO2 COZIR™ ambient sensor; (b) Evolution of energy per measurement performance for the LED/PD CO2 and comparison with standard sensor and energy harvesting region.
Figure 19. (a) Wireless self-powering LED/PD based CO2 COZIR™ ambient sensor; (b) Evolution of energy per measurement performance for the LED/PD CO2 and comparison with standard sensor and energy harvesting region.
Sensors 13 07079f19 1024
Figure 20. ULP LED/PD ambient sensor deployed in a Schneider Electric Industries single AA battery operated wireless CO2/ temperature/ humidity sensor platform for use in building control applications, (a) sensor platform showing integration of CO2 sensor (b) sensor in (a) with cover.
Figure 20. ULP LED/PD ambient sensor deployed in a Schneider Electric Industries single AA battery operated wireless CO2/ temperature/ humidity sensor platform for use in building control applications, (a) sensor platform showing integration of CO2 sensor (b) sensor in (a) with cover.
Sensors 13 07079f20 1024
Table 1. LED parameters and typical measurements.
Table 1. LED parameters and typical measurements.
ParameterTypical Measurement
Peak Wavelength λ4.3 μm+/−0.15 μm1
Bandwidth (50% points)1 μm
Temperature Sensitivity of Peak wavelength6.3 nm/°C
Drive voltage at 100 mA2.0V +/−0.2V
Size1.65 mm × 1.55 mm × 0.7 mm
Bond Pads100 micron square Gold
Active Area1.35 mm × 1.35 mm
Far Field Radiation PatternLambertian
Optical PowerApprox 8 mW/cm2 at 25 °C, 50% duty cycle
Table 2. Applications and typical CO2 gas concentration levels.
Table 2. Applications and typical CO2 gas concentration levels.
ApplicationTypical CO2 Gas Concentration Range
Indoor Air QualityAmbient to 5,000 ppm
SafetyAmbient to 5%
HorticultureAmbient to 5,000 ppm
CombustionAmbient–18%
Process controlAmbient–100%
AutomotiveAmbient to 5,000 ppm
MedicalAmbient–5%
Table 3. Measured standard deviation for ambient sensor configuration for three set CO2 concentration levels (@ 28 °C). Continuous power mode with averaged two measurements over one second.
Table 3. Measured standard deviation for ambient sensor configuration for three set CO2 concentration levels (@ 28 °C). Continuous power mode with averaged two measurements over one second.
Set Concentration (ppm)Continuous Power (3.5 mW)

St Dev (ppm (±%))
4506 (±0.7%)
9009 (±0.5%)
150012 (±0.4%)
Table 4. Performance parameters (at STP) for COZIR™ wide range (20 mm) and ambient (70 mm).
Table 4. Performance parameters (at STP) for COZIR™ wide range (20 mm) and ambient (70 mm).
ParameterWide Range 20 mm PathlengthAmbient 70 mm Pathlength
Power (continuous)≈ 3.5 mW
Energy per measurement (pulsed)12 mJ
Power up stabilisation time≈ 1 s
Peak current33 mA
Average current1.1 mA
Input voltage3.3 V
Accuracy±3 % (of reading)
Standard CO2 gas concentration ranges0 to 5, 20, 65 and 100%0 to 2,000 ppm, 1 and 2%
T904 secs30 secs
Operating temperature range (°C)Standard: 0 to 50 °C; extended −25 °C to +50 °C
Storage temperature (°C)−30 to +70 °C
Relative humidity0 to 95% RH non-condensing
Dimensions20 mm × 25 mm43 mm × 15 mm
Weight (grams)1020
Table 5. Measured standard deviation for ultralow power ambient sensor configuration for three set CO2 concentrations at 1 and 3 mJ per measurement.
Table 5. Measured standard deviation for ultralow power ambient sensor configuration for three set CO2 concentrations at 1 and 3 mJ per measurement.
Set Concentration (ppm)Energy per Measurement (mJ)

13

St Dev (ppm (±%))
45018 (±2.0%)18 (±2.0%)
90040 (±2.2%)25 (±1.4%)
150078 (±2.6%)32 (±1.1%)
Table 6. Comparison of performance data for similar accuracy single channel NDIR CO2 sensors.
Table 6. Comparison of performance data for similar accuracy single channel NDIR CO2 sensors.
SensorManufacturerMeasurement RangeAccuracy (STP)*Power Supply Voltage (V)Power ** Cons mWCurrent Cons mA (Avg)Warm-up Time
LED/PD
COZIR AmbientGSSAmbient–5,000 ppm±50 ppm +/−3% of reading3.2 to 5 V3.3<1.51.2 s (1st Reading)
COZIR Wide RangeGSS0.5–100%±70 ppm +/−5% of reading3.2 to 5 V3.3<1.51.2 s (1st Reading)
ULP***GSS/SEIAmbient to 3,000 ppm±50 ppm +/−3% of reading3.6 V0.07<0.0255 ms
Thermal Source/Pyro or Thermopile Detector
CO2 Engine K30 FRSenseAirAmbient–5,000 ppm±70 ppm +/−5% of reading4.5 to 14 V3157060 s
KCD-AN 100xSenseCubeAmb–10,000 ppm±4% FS +3% of reading8 to 14 V56070Undisclosed
OS IAQ Sensor VSOptoSense ASAmbient–2,000 ppm±<50 ppm16 to 38 V50030<60 s
S-100TCC ELTAmbient–10,000 ppm±30 ppm +/−5% of reading5 V10020Undisclosed
S8SenseAirAmbient–10,000 ppm±70 ppm +/−3% of reading4.5 to 5.25 V13530Undisclosed
Telaire 6613GE TelaireAmbient–2,000 ppm±30 ppm +/−5% of reading5 V16519<120 s (1st Reading)

*Standard Temperature & Pressure (STP);**care has to be taken when interpreting power consumption on the basis of used duty cycle.***Cycled/ intermittent operation. as per Section 3.3.

Share and Cite

MDPI and ACS Style

Gibson, D.; MacGregor, C. A Novel Solid State Non-Dispersive Infrared CO2 Gas Sensor Compatible with Wireless and Portable Deployment. Sensors 2013, 13, 7079-7103. https://doi.org/10.3390/s130607079

AMA Style

Gibson D, MacGregor C. A Novel Solid State Non-Dispersive Infrared CO2 Gas Sensor Compatible with Wireless and Portable Deployment. Sensors. 2013; 13(6):7079-7103. https://doi.org/10.3390/s130607079

Chicago/Turabian Style

Gibson, Desmond, and Calum MacGregor. 2013. "A Novel Solid State Non-Dispersive Infrared CO2 Gas Sensor Compatible with Wireless and Portable Deployment" Sensors 13, no. 6: 7079-7103. https://doi.org/10.3390/s130607079

Article Metrics

Back to TopTop
