Proton Radiation Effects on Dark Signal Distribution of PPD CMOS Image Sensors: Both TID and DDD Effects

State Key Laboratory of Intense Pulsed Irradiation Simulation and Effect, Northwest Institute of Nuclear Technology, Xi’an 710024, China
*
Authors to whom correspondence should be addressed.
Sensors 2017, 17(12), 2781; https://doi.org/10.3390/s17122781
Submission received: 27 September 2017 / Revised: 20 November 2017 / Accepted: 24 November 2017 / Published: 30 November 2017
(This article belongs to the Special Issue Image Sensors)

Abstract

:
Four-transistor (T) pinned photodiode (PPD) CMOS image sensors (CISs) with four-megapixel resolution using 11µm pitch high dynamic range pixel were radiated with 3 MeV and 10MeV protons. The dark signal was measured pre- and post-radiation, with the dark signal post irradiation showing a remarkable increase. A theoretical method of dark signal distribution pre- and post-radiation is used to analyze the degradation mechanisms of the dark signal distribution. The theoretical results are in good agreement with experimental results. This research would provide a good understanding of the proton radiation effects on the CIS and make it possible to predict the dark signal distribution of the CIS under the complex proton radiation environments.

1. Introduction

Thanks to their low power consumption, high levels of integration, low noise, low cost, etc., pinned photodiode (PPD) CMOS image sensors (CISs) are widely used many scientific fields, such as star tracking, space remote sensing and medical imaging [1,2,3]. However, when applied in these applications, they would be seriously damaged by particles or rays, leading to image quality degradation or even functional failure. The dark signal distribution is one of the most important parameters of the CIS. The proton radiation would have great effects on the dark signal distribution of the CIS in space radiation environments. In depth analysis of the proton radiation effects on dark signal distribution of PPD CMOS image sensors is very important.
Many studies have been dedicated to the proton radiation effects on the dark signal distribution of the CIS. Beaumel et al. [4] have done some experiments to investigate the Cobalt-60, proton and electron radiation effects on the dark signal distribution of the CIS. However, the total ionizing dose (TID) and displacement damage dose (DDD) effects were presented separately. Inguimbert [5] and Raine et al. [6] have used Greant4 to simulate the proton radiation effects on the dark signal distribution of the CIS, but the TID effects were not considered. Gilard [7] and Zheng et al. [8] have reported a method to predict the dark signal distribution of the CIS after proton radiation based on the empirical fitting of experiments data. However, the device structures were not considered which make it difficult to analyze the physical mechanisms of the degradation. Virmontois et al. [9,10,11] have done many works to investigate the proton and neutron radiation effects on the dark signal distribution of the CIS with different structures. The model, based on experimental data, was established to analyze the physical mechanisms. However, the TID effects on the dark signal distribution were often neglected. Sometimes, the TID effects can be neglected, especially when proton energy is higher. However, when the proton energy is lower, the TID effects cannot be neglected. For example, the TID of 3 MeV proton is more than 200 krad(Si) [12] when the fluence is about 1 × 1011 p/cm2. In order to analyze the mechanisms of dark signal distribution induced by the proton radiation and provide basis of theories and experimental techniques of the CIS radiation damage evaluation, proton radiation effects on dark signal distribution of CIS are studied.
In this paper, the proton radiation effects on the dark signal distribution of 4T PPD CISs are investigated with experimental and theoretical methods. Both TID and DDD effects are considered. Two CISs (with the same code) were irradiated by 3 MeV and 10 MeV protons at the EN Tandem Van De Graaff accelerator, Peking University, Beijing, China. The dark signal distributions are measured pre- and post- radiation. The theoretical methods of dark signal distribution pre- and post-radiation are presented. The theoretical results are in good agreement with experimental results. The degradation mechanisms of the CISs induced by TID and DDD effects are analyzed.

2. Experimental Details

The two image sensors tested in experiments are 4T-PPD CIS using 11 µm pitch high dynamic range pixels with the same code. They are manufactured in the standard 0.18-µm CIS technology and the image array consists of 2048 × 2048 pixels. The sensor operates in electronic rolling shutter and features an extremely low temporal noise of 1.47e. The CIS have on-chip 12-bit column-parallel analog to digital converter. The thickness of the glass windows is about 1.1 mm. High sensitivity combined with very low noise and low dark current makes it perfect for scientific applications.
The proton radiation experiments were carried out at the EN Tandem Van De Graaff accelerator in the state key laboratory of nuclear physics and technology, Peking University, Beijing, China. Experimental setup for the CIS proton radiation test is shown in Figure 1. The proton radiation experiment conditions and samples are presented in Table 1. The samples are unbiased with all pins grounded during proton irradiation. Device #1 was exposed to 3 MeV protons and device #2 was exposed to 10 MeV protons. The CISs are measured at the accumulated fluence of 1 × 1010, 5 × 1010, and 1 × 1011 p/cm2 within 2 h after each irradiation step. The glass windows of samples are taken off before proton radiation to void most proton energy being absorbed by glass windows. The proton radiation experiments are performed at room temperature. Air-conditioning is used to keep the test chamber at room temperature during measuring and irradiating.

3. Experimental Results

During the proton radiation, the devices suffer both ionizing and non-ionizing damage, leading to the degradation of image quality. The TID effects lead to the dark signal of many pixels increasing. DDD effects lead to the dark signal of some pixels increasing and the appearance of dark signal spikes. Dark signal distribution is the histogram of dark signal of each pixel of the CIS. It is one of the most important parameters to evaluate the degradation degree of the CIS after proton radiation.
Figure 2 shows the 3-D surface plot of the dark images from CIS (#1) after 3 MeV proton radiation (integration time: 61.56 ms). Figure 3 shows 3-D surface plot of dark images from CIS (#2) after 10 MeV proton radiation (integration time: 61.56 ms). In Figure 2 and Figure 3, one can see that the dark signal of CISs is extremely damaged after proton radiation. The damage degree of dark images increases with increasing of proton fluence. At the same fluence, the damage degree of the dark images radiated by 3 MeV proton is higher than those radiated by 10 MeV proton. Moreover, many “hot pixels”, which are also called dark signal spikes, appear after proton radiation. These spikes are induced by the DDD effects of the proton. DDD effects would induce bulk defects in space charge region (SCR) of the CIS. These defects can become the generation and recombination of electron–hole pairs, the carrier trapping, the compensation of donors or acceptors, and the tunneling of carriers which would induce dark signal spikes [13]. Dark signal spikes lead to the image quality degradation or even functional failure.
Figure 4 shows the mean dark signal versus proton fluence at different integration times and Figure 5 shows the dark signal non-uniformity (DSNU) versus proton fluence at different integration times. In Figure 4, one can see that the mean dark signal increases with increasing of proton fluence. When the integration time is higher, the tendency of the dark signal increase is decreasing. In Figure 5, one can see that the DSNU decreases with increasing of the proton fluence when the integration time is higher. Both phenomena are because some of the pixels, which are damaged by protons, have reached saturation.
Figure 6 shows dark signal distribution of CISs after proton radiation: (a) proton energy of 3 MeV; and (b) proton energy of 10 MeV. In Figure 6, one can see that some of the pixels are not affected by proton when the fluence is lower. With increasing of proton fluence, most of the pixels are influenced and dark signal increases remarkably.

4. Theoretical Results

Dark signal stands for the output signal when the CIS is not exposed to light. It is one of the most important parameters for the CIS. For an ideal CIS, no dark signal can be detected because the free charge carrier generation is zero. However, dark current generation can also be dependent on the silicon used, thus devices from different batches can exhibit different dark current, and can lead to signal being detected even without light.
After proton radiation, many interface traps and bulk defects are generated in the CIS (show in the Figure 7), which lead to the dark current increase. The interface traps, which are generated in the shallow trench isolation (STI), pre-metal dielectric (PMD), and transfer gate (TG) produce surface leakage current. The bulk defects, which are generated in SCR, produce bulk current [13,14]. Moreover, some minority carriers can be diffused through SCR and then collected and readout. It is known as the bulk diffusion current. Compared with bulk current and surface leakage current, the bulk diffusion current can be neglected. Therefore, after proton radiation, the dark current increase mainly includes the bulk current (which is produced by DDD effects) and surface leakage current (which is produced by TID effects). According to the relationship between the dark current and dark signal, we can get that the degradation mechanism of dark signal is the same as dark current.
The nuclear elastic, nuclear inelastic and nuclear Coulombic scattering induce displacement damage. The TID is induced by ionizing interaction. The nuclear elastic and nuclear inelastic lead to a dark signal distribution that looks like a Gamma distribution. The TID and nuclear Coulombic scattering can lead to a dark signal distribution that looks like a Gaussian distribution [15]. It is dependent on the pixel size, depleted volume, cross section of interaction and the fluence of particles. Therefore, the dark signal distribution of the CIS after proton radiation is equal to the convolution of these two distributions.
Figure 8 shows the dark signal distribution of the CIS after gamma radiation. The radiation dose rate is about 50 rad(Si)/s. The CIS was unbiased during irradiation. In Figure 8, one can see that the mean dark signal and DSNU increase with increasing of the TID. In addition, the dark signal distribution looks like a Gaussian distribution. After gamma rays radiation, mostly of the pixels are affected because of the cross section of gamma rays in Si is high. Therefore, the dark signal distribution looks like a Gaussian distribution. Gaussian function is used to fit the dark signal distribution, and the goodness-of-fits are, respectively, R2 = 0.997, R2 = 0.962, R2 = 0.981, R2 = 0.989 and R2 = 0.994 for the CIS after radiated by γ rays with TID 0, 50, 100, 150 and 200 krad(Si).
Figure 9 shows the mean dark signal and DSNU of the CIS versus TID. In Figure 9, one can see that there is a threshold of the TID effects (TIDth) on dark signal and DSNU of the CIS: When the TID greater than TIDth, the mean dark signal and DSNU increase appears proportional to the TID. Line fitting of the TID and the dark signal and DSNU are performed and the goodness-of-fits are about R2 = 0.993 (for the mean dark signal) and R2 = 0.994 (for the DSNU). The TIDth of the dark signal is about 44.0 krad(Si) and the TIDth of DSNU is about 45.6 krad(Si). Therefore, at a given TID, we can calculate the dark signal and DSNU of this kind of CIS, which stands for the expectation and the standard deviation of dark signal distribution. For example, if the TID is 30 krad(Si), the TID radiation effects on the CIS can be neglected; if the TID is 120 krad(Si), the dark signal and DSNU of the CIS would become 339.7 DN and 23.25 DN.
The Gamma distribution has two parameters: shape parameter and scale parameter. Combined with the physical progress, we can find than shape parameter is the same as the effective interactions per pixel and the scale parameter is the same as the mean dark signal induced by one interaction. At a given fluence and energy, interactions per pixel µ0 are given as:
μ 0 = σ N at V dep φ
where σ is the mean interaction cross-section; Nat is the silicon atomic density; Vdep is the depleted volume in the pixel; and φ is the fluence per cm2. When the proton energy is different, while µ0 is the same, the mean dark signal induced by the one interaction is different. To make it the same, the effective interactions per pixel µ1 are carried out and given as:
μ 1 = μ 0 × D D D 1 D D D 0
where µ0 is the interactions per pixel when the energy is E0; DDD1 is the displacement damage dose when the energy is E1; and DDD0 is the displacement damage dose when the energy is E0.
A 3D Monte Carlo code, Geant4 [16], is used to calculate the TID and DDD of the proton in CIS. The geometry of the CIS has great effects on the calculated results. In this work, the simulation model is built according to the real pixel geometry, material and doping concentration. The radiation dose of 3 MeV and 10 MeV proton at different fluence in the STI of the CIS are calculated. The effective interactions per pixel are calculated according to Equation (2). The calculated results are shown in the Table 2. In Table 2, one can see that the effective interactions per pixel is about 1 when the CIS is radiated by10 MeV proton with fluence of 1 × 1011 p/cm2. The dark signal induced by protons can be separated into two signals [17]:
Δ μ dark = Δ μ dark , TID + Δ μ dark , DDD
where ∆µdark is the dark signal increase; ∆µdark,TID is the dark signal increase induced by TID effects; and ∆µdark,TID is the dark signal increase induced by DDD effects. The synergistic effects of TID and DDD are not considered at this time. Combined with the TID experimental results, we can get the ∆µdark,DDD of the CIS after radiated by 10 MeV proton with fluence of 1 × 1011 p/cm2 which is scale parameter of the Gamma distribution. Therefore, we can get the dark signal distribution of the CIS induced by TID and DDD. Combining these two distributions, we can get the distribution of CIS after proton radiation. Figure 10 shows the experimental (point) and calculated (lines) distributions for CISs after proton radiation. In Figure 10, one can see that the experimental results are in good agreement with theoretical results. Therefore, we can use this way to predict the dark signal distribution of the CIS under the complex radiation environments.

5. Conclusions

Dark signal distribution in the PPD CIS affected by proton with different fluence and energy are investigated. The CIS is manufactured in the standard 0.18-µm CIS technology and the image array consists of 2048 × 2048 pixels. The experiments were carried out using 3 MeV and 10 MeV protons at the EN Tandem Van De Graff accelerator. The proton flux is about 3.7 × 107 (p/cm2·s) and the accumulated fluence are 1 × 1010, 5 × 1010, and 1 × 1011 p/cm2. To analyze the TID effects of the proton on CISs, Colbalt-60 gamma-ray radiation experiments were also carried out. The dose rate is about 50 rad(Si)/s with the same condition as proton radiation experiments. The dark signal distribution of the CIS is measured pre- and post-radiation.
The theoretical methods of proton radiation induced dark signal distribution degradation are established according to the real interaction of the proton. Proton radiation effects include TID and DDD effects, and both lead to the dark signal distribution degradation, which makes it difficult to analyze the degradation mechanisms. TID effects would influence nearly all of the pixels of CISs and lead to a dark signal distribution increase that looks like a Gaussian distribution. The expectation and standard deviation of this distribution can be calculated according to the Colbalt-60 gamma-ray radiation experiments. DDD effects lead to a dark signal distribution increase that looks like a Gamma distribution, and the shape parameter and scale parameter can be calculated according to the proton radiation experiments and Geant4 simulation. After proton radiation, the dark signal distribution increase could be calculated by convolution of these two distributions. The experimental results are in good agreement with calculated results.

Acknowledgments

This work was supported by the National Science Foundation of China (Grant Nos. 11235008 and 11305126) and the Foundation of State Key Laboratory of China (Grant No. SKLIPR1211).

Author Contributions

Y.X., Z.W., W.C., J.S. and Z.Y. conceived and designed the experiments; Y.X., M.L., W.M., G.D. and J.J. performed the experiments; Z.W., B.H. and J.S. analyzed the data; W.C., Z.Y., G.D. and J.J. contributed reagents/materials/analysis tools; Y.X., W.C. and Z.W. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kim, D.; Song, M.; Choe, B.; Kim, S.Y. A multi-resolution mode CMOS image sensor with a novel two-step single-slope ADC for intelligent surveillance systems. Sensors 2017, 17, 1497. [Google Scholar] [CrossRef] [PubMed]
  2. Lee, M.S.; Park, S.W.; Kang, M.G. Denoising algorithm for CFA image sensors considering inter-channel correlation. Sensors 2017, 17, 1236. [Google Scholar] [CrossRef] [PubMed]
  3. Wu, K.T.; Hwang, S.J.; Lee, H.H. Finite element analysis of film stack architecture for complementary metal-oxide-semiconductor image sensors. Sensors 2017, 17, 1004. [Google Scholar] [CrossRef] [PubMed]
  4. Beaumel, M.; Herve, D.; Aken, D.V. Cobalt-60, proton and electron irradiation of a radiation-hardened active pixel sensor. IEEE Trans. Nucl. Sci. 2010, 57, 2056–2065. [Google Scholar] [CrossRef]
  5. Inguimbert, C.; Nuns, T.; Ursule, M.C.; Falguere, D.; Herve, D.; Beaumel, M.; Poizat, M. Modeling the dark current non-uniformity of image sensors with GEANT4. IEEE Trans. Nucl. Sci. 2014, 61, 3323–3330. [Google Scholar] [CrossRef]
  6. Raine, M.; Goiffon, V.; Girard, S.; Rousseau, A.; Gaillardin, M.; Paillet, P.; Duhamel, O.; Virmontois, C. Modeling approach for the prediction of transient and permanent degradations of image sensors in complex radiation environments. IEEE Trans. Nucl. Sci. 2013, 60, 4297–4304. [Google Scholar] [CrossRef] [Green Version]
  7. Gilard, O.; Boutillier, M.; Quadri, G.; Rolland, G.; Germanicus, R. New Approach for the prediction of CCD dark current distribution in a space radiation environment. IEEE Trans. Nucl. Sci. 2008, 55, 3626–3632. [Google Scholar] [CrossRef]
  8. Zheng, R.; Hui, X.L.; Wang, J.; Zhao, R.G.; Wei, X.M.; Hu, Y.C. Methods for predicting dark-current distribution of CMOS image sensor in radiation environment. In Proceedings of the 2016IEEE International Conference on Signal Processing, Communications and Computing (ICSPCC), Hong Kong, China, 5–8 August 2010; pp. 1–5. [Google Scholar]
  9. Virmontois, C.; Goiffon, V.; Corbiere, F.; Magnan, P.; Girard, S.; Bardoux, A. Displacement damage effects in pinned photodiode CMOS image sensors. IEEE Trans. Nucl. Sci. 2012, 59, 2872–2877. [Google Scholar] [CrossRef] [Green Version]
  10. Virmontois, C.; Toulemont, A.; Rolland, G.; Materne, A.; Lalucaa, V.; Goiffon, V.; Codreanu, C.; Durnez, C.; Bardoux, A. Radiation-induced dose and single event effects in digital CMOS image sensors. IEEE Trans. Nucl. Sci. 2014, 61, 3331–3340. [Google Scholar] [CrossRef]
  11. Belloir, J.M.; Goiffon, V.; Virmontois, C.; Raine, M.; Paillet, P.; Duhamel, O.; Gaillardin, M.; Molina, R.; Magnan, P.; Gilard, O. Pixel pitch and particle energy influence on the dark current distribution of neutron irradiated CMOS image sensors. Opt. Express 2016, 24, 4299–4315. [Google Scholar] [CrossRef] [PubMed]
  12. Wang, Z.J.; Xue, Y.Y.; Jing, L.; Chen, W.; Ma, W.Y.; He, B.P.; Yao, Z.B.; Sheng, J.K. Analysis of image lag degradation in PPD CISs induced by total ionizing dose and displacement radiation damage. In Proceedings of the 2017 Radiation Effects on Components and System, Geneva, Switzerland, 2–6 October 2017. [Google Scholar]
  13. Wang, Z.J.; Huang, S.Y.; Liu, M.B.; Xiao, Z.G.; He, B.P.; Yao, Z.B.; Sheng, J.K. Displacement damage effects on CMOS APS image sensors induced by neutron irradiation from nuclear reactor. AIP Adv. 2014, 4, 077108. [Google Scholar] [CrossRef]
  14. Wang, Z.J.; Ma, W.Y.; Jing, L.; Xue, Y.Y.; He, B.P.; Yao, Z.B.; Huang, S.Y.; Liu, M.B.; Sheng, J.K. Degradation of annealing studies on gamma rays irradiated COTS PPD CISs at different dose rates. Nucl. Instrum. Methods A 2016, 820, 89–94. [Google Scholar] [CrossRef]
  15. Virmontois, C.; Goiffon, V.; Magnan, P.; Girard, S.; Saint-Pe, O.; Rolland, G; Bardoux, A. Similarities between proton and neutron induced dark current distribution in CMOS image sensors. IEEE Trans. Nucl. Sci. 2012, 59, 927–936. [Google Scholar] [CrossRef] [Green Version]
  16. Agostinelli, S.; Allison, J.; Amako, K.A.; Apostolakis, J.; Araujo, H.; Arce, P.; Asai, M.; Axen, D.; Banerjee, S.; Barrand, G.; et al. Geant4-a simulation toolkit. Nucl. Instrum. Methods A 2013, 506, 270–278. [Google Scholar] [CrossRef]
  17. Virmontois, C.; Goiffon, V.; Magnan, P.; Girard, S.; Inguimbert, C.; Petit, S.; Rolland, G.; Saint-Pe, O. Displacement damage effects due to neutron and proton irradiations on CMOS image sensors manufactured in deep submicron technology. IEEE Trans. Nucl. Sci. 2010, 57, 3101–3108. [Google Scholar] [CrossRef] [Green Version]
Figure 1. Experimental setup for the CIS proton radiation test: (a) schematic diagram of the experiment; and (b) photo of the irradiation chamber.
Figure 1. Experimental setup for the CIS proton radiation test: (a) schematic diagram of the experiment; and (b) photo of the irradiation chamber.
Sensors 17 02781 g001

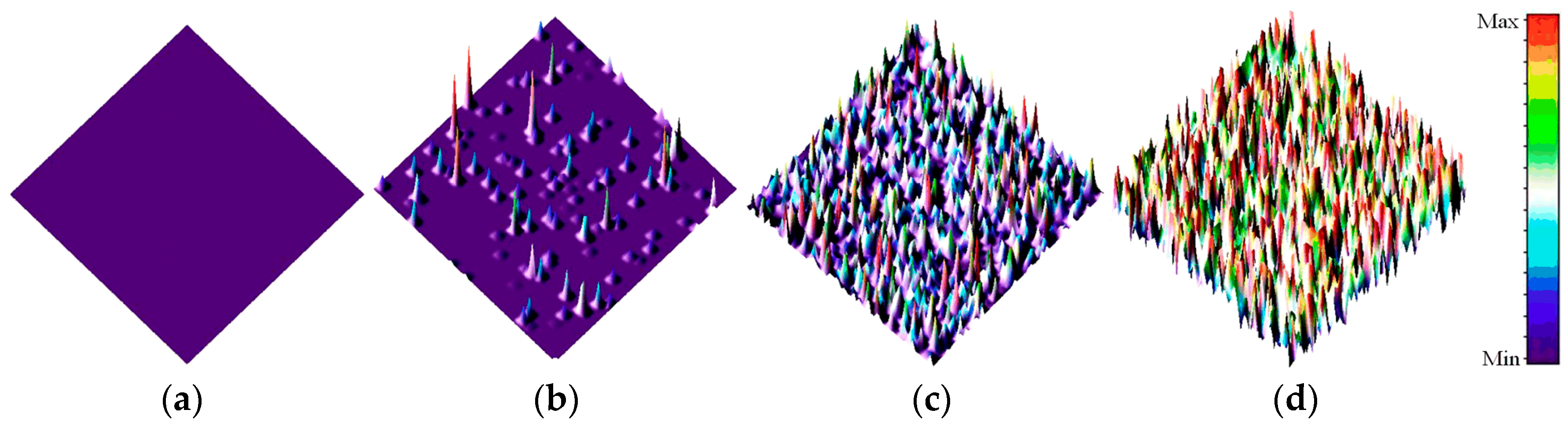

Figure 2. 3-D surface plot of dark images from CIS (#1) After 3 MeV proton radiation (integration time: 61.56 ms): (a) before radiation; (b) proton fluence: 1 × 1010 p/cm2; (c) proton fluence: 5 × 1010 p/cm2; and (d) proton fluence: 1 × 1011 p/cm2.
Figure 2. 3-D surface plot of dark images from CIS (#1) After 3 MeV proton radiation (integration time: 61.56 ms): (a) before radiation; (b) proton fluence: 1 × 1010 p/cm2; (c) proton fluence: 5 × 1010 p/cm2; and (d) proton fluence: 1 × 1011 p/cm2.
Sensors 17 02781 g002

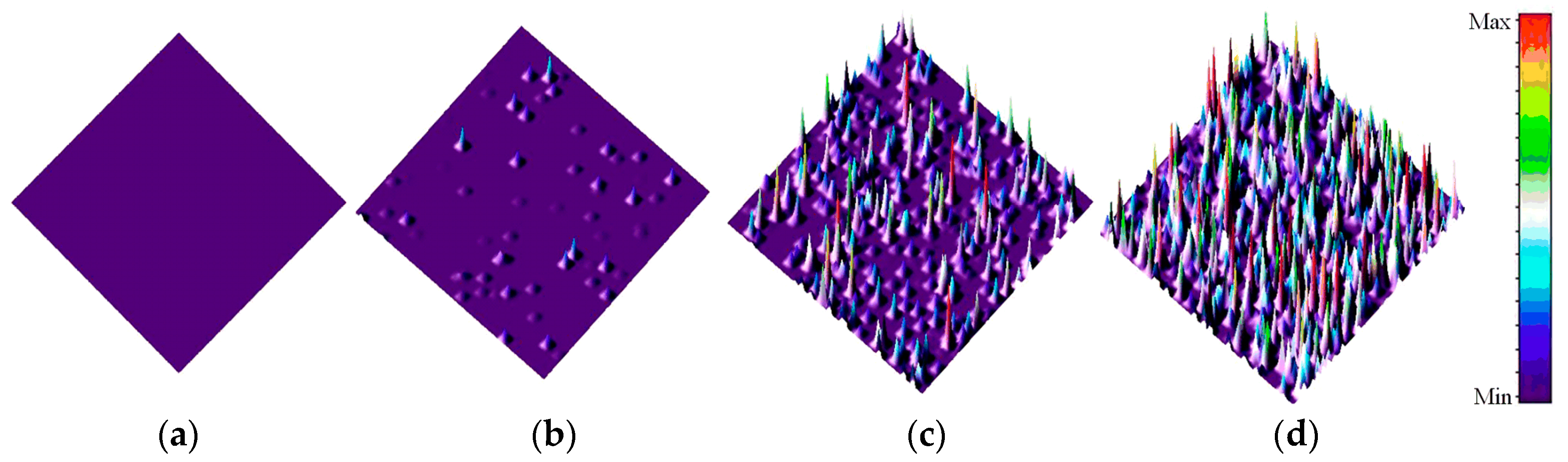

Figure 3. 3-D surface plot of dark images from CIS (#1) After 10 MeV proton radiation (integration time: 61.56 ms): (a) before radiation; (b) proton fluence: 1 × 1010 p/cm2; (c) proton fluence: 5 × 1010 p/cm2; and (d) proton fluence: 1 × 1011 p/cm2.
Figure 3. 3-D surface plot of dark images from CIS (#1) After 10 MeV proton radiation (integration time: 61.56 ms): (a) before radiation; (b) proton fluence: 1 × 1010 p/cm2; (c) proton fluence: 5 × 1010 p/cm2; and (d) proton fluence: 1 × 1011 p/cm2.
Sensors 17 02781 g003
Figure 4. Mean dark signal versus proton fluence at different integration time: (a) proton energy: 3 MeV; and (b) proton energy: 10 MeV.
Figure 4. Mean dark signal versus proton fluence at different integration time: (a) proton energy: 3 MeV; and (b) proton energy: 10 MeV.
Sensors 17 02781 g004
Figure 5. DSNU versus proton fluence at different integration time: (a) proton energy: 3 MeV; and (b) proton energy: 10 MeV.
Figure 5. DSNU versus proton fluence at different integration time: (a) proton energy: 3 MeV; and (b) proton energy: 10 MeV.
Sensors 17 02781 g005

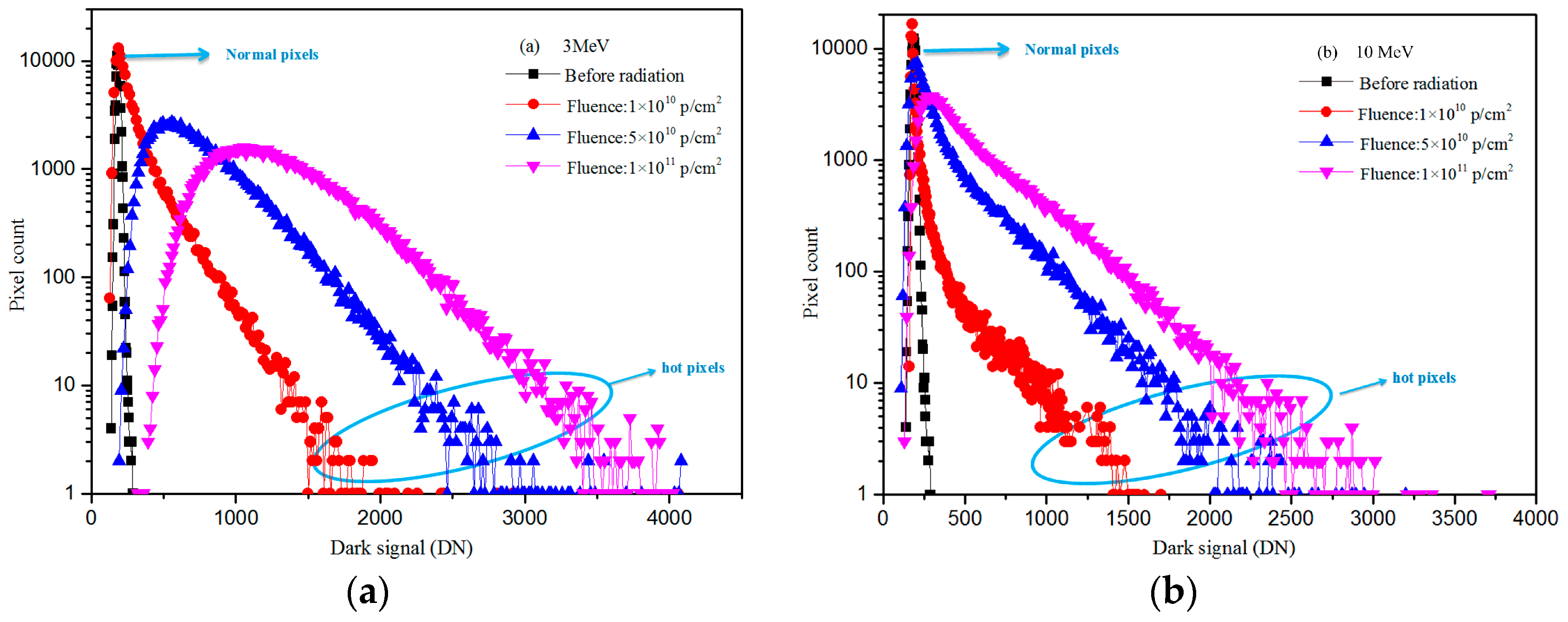

Figure 6. Dark signal distributions of CISs after proton irradiation: (a) proton energy: 3 MeV; and (b) proton energy: 10 MeV.
Figure 6. Dark signal distributions of CISs after proton irradiation: (a) proton energy: 3 MeV; and (b) proton energy: 10 MeV.
Sensors 17 02781 g006
Figure 7. Main defects leading to dark current increase after proton radiation.
Figure 7. Main defects leading to dark current increase after proton radiation.
Sensors 17 02781 g007

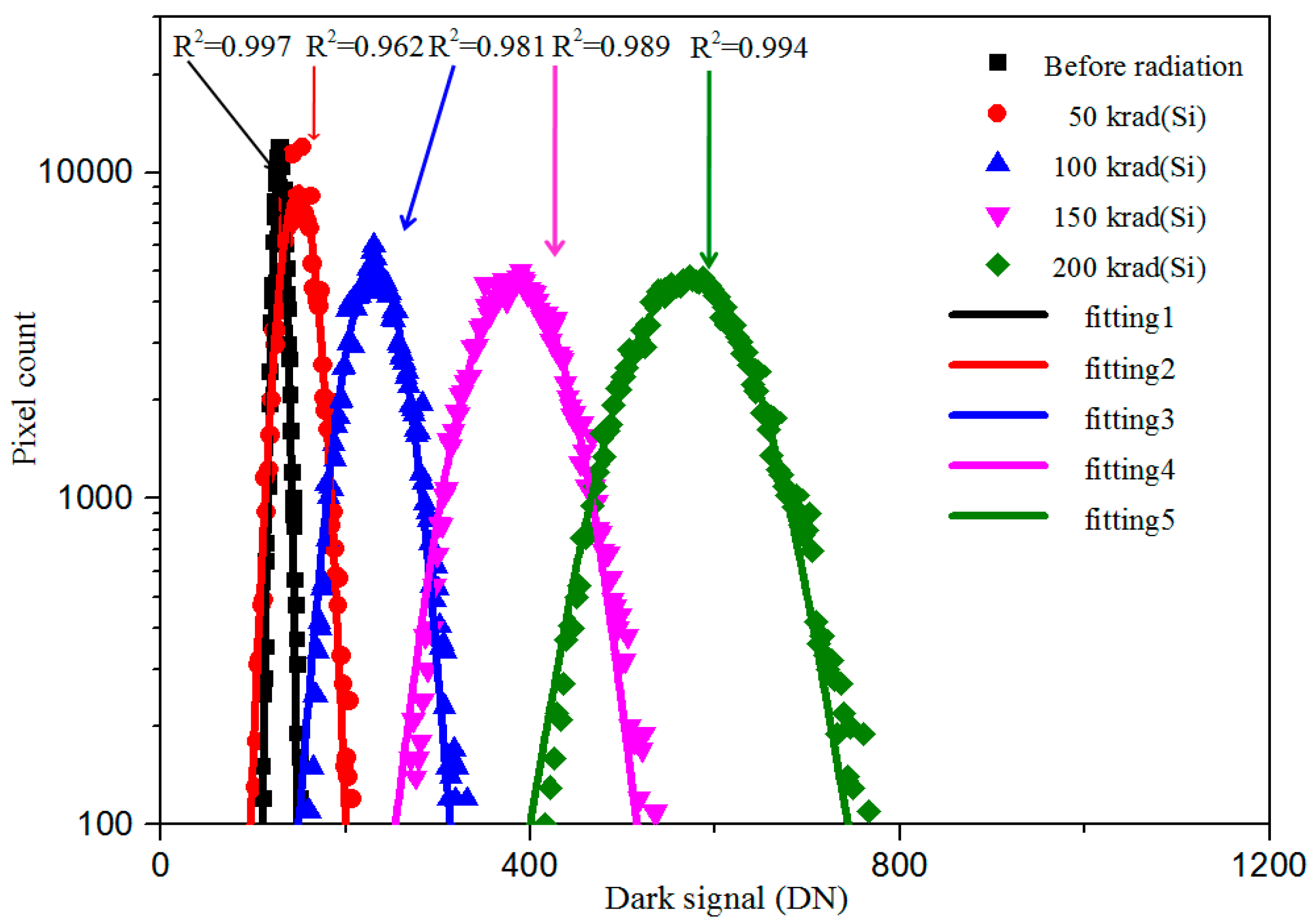

Figure 8. Dark signal distribution of the CIS after gamma radiation.
Figure 8. Dark signal distribution of the CIS after gamma radiation.
Sensors 17 02781 g008
Figure 9. Mean dark signal and DSNU of CIS verse TID: (a) mean dark signal; and (b) DSNU.
Figure 9. Mean dark signal and DSNU of CIS verse TID: (a) mean dark signal; and (b) DSNU.
Sensors 17 02781 g009

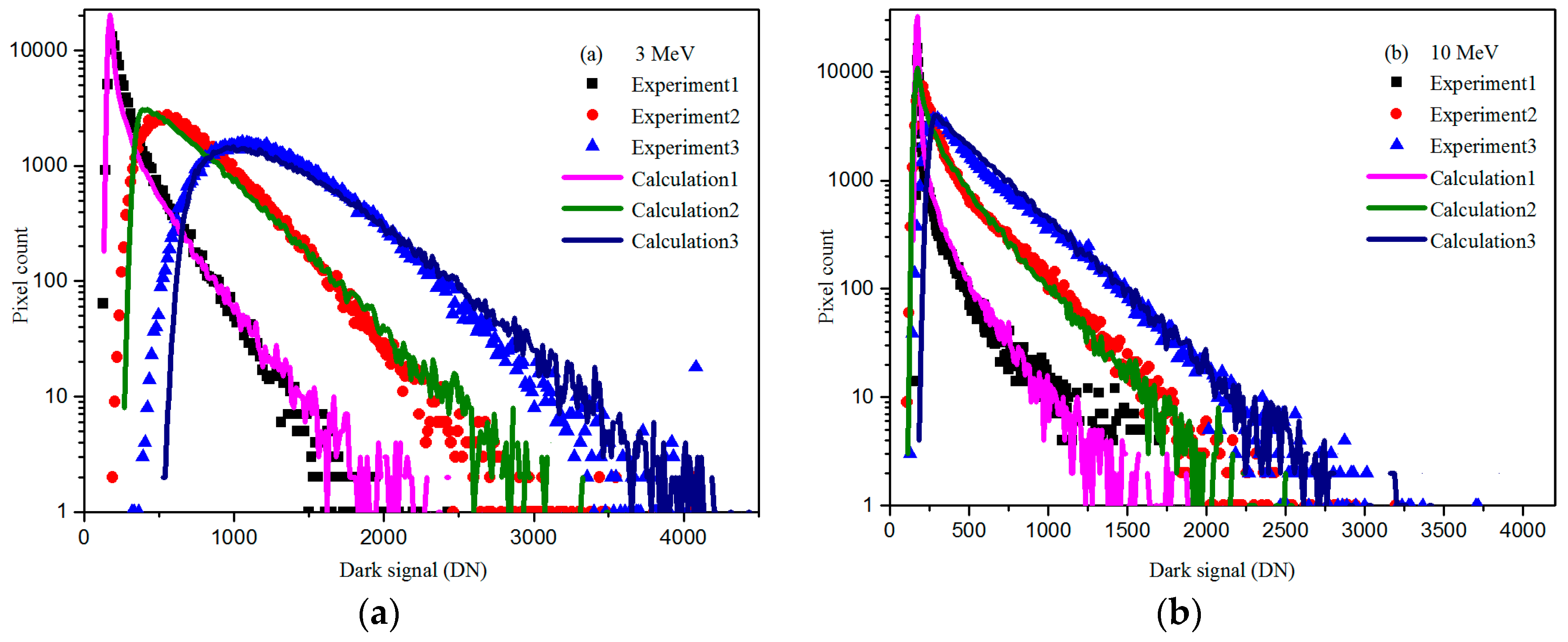

Figure 10. Experimental (point) and calculated (lines) distributions for CISs after proton radiation: (a) 3 MeV; and (b) 10 MeV.
Figure 10. Experimental (point) and calculated (lines) distributions for CISs after proton radiation: (a) 3 MeV; and (b) 10 MeV.
Sensors 17 02781 g010
Table 1. Proton radiation experiment conditions and samples.
Table 1. Proton radiation experiment conditions and samples.
CIS NumberBias ConditionProton Energy (MeV)Proton Flux (p/cm2/s)Proton Fluence (1010p/cm2)
1#Unbiased33.75 × 1071,5,10
2#Unbiased101,5,10
Table 2. Calculated parameters.
Table 2. Calculated parameters.
Proton Energy (MeV)Proton Fluence (1010p/cm2)TID (krad(Si))Effective Interactions per Pixel
3123.50.24
35117.51.2
310235.02.4
1019.60.1
10547.90.5
101095.81.0
