Supramolecular Recognition of Escherichia coli Bacteria by Fluorescent Oligo(Phenyleneethynylene)s with Mannopyranoside Termini Groups

by
Enrique Arias
1,
Maria Teresa Méndez
1,
Eduardo Arias
1,*,
Ivana Moggio
1,*,
Antonio Ledezma
1,
Jorge Romero
1,
Giancarlo Margheri
2 and
Emilia Giorgetti
2
1
Centro de Investigación en Química Aplicada (CIQA), Blvd. Enrique Reyna 140, Saltillo 25294, Mexico
2
Istituto dei Sistemi Complessi Via Madonna del Piano 10, Sesto Fiorentino 50019, Italy
*
Authors to whom correspondence should be addressed.
Sensors 2017, 17(5), 1025; https://doi.org/10.3390/s17051025
Submission received: 24 January 2017 / Revised: 15 March 2017 / Accepted: 11 April 2017 / Published: 4 May 2017
(This article belongs to the Special Issue Sensors for Toxic and Pathogen Detection)
Browse Figures
Versions Notes

Abstract

:
Escherichia coli is one the most common bacteria responsible of uropathogenic diseases, which motives the search for rapid and easy methods of detection. By taking advantage of the specific interactions between mannose and type 1 fimbriae, in this work two fluorescent phenyleneethynylene (PE) trimers bearing one or two 4-aminophenyl-α-D-mannopyranoside termini groups were synthesized for the detection of E. coli. Three bacterial strains: ORN 178 (fimbriae I expression), ORN 208 (mutant serotype with no fimbriae expression) and one obtained from a local hospital (SS3) were used. Laser Scanning Confocal Microscopy (LSCM) and Surface Plasmon Resonance (SPR) were applied for the interaction studies following two different approaches: (1) mixing the oligomer solutions with the bacterial suspension, which permitted the observation of stained bacteria and by (2) biosensing as thin films, where bacteria adhered on the surface-functionalized substrate. LSCM allows one to easily visualize that two mannose groups are necessary to have a specific interaction with the fimbriae 1. The sensitivity of SPR assays to E. coli was 104 colony forming unit (CFU)/mL at 50 µL/min flow rate. The combination of PE units with two mannose groups results in a novel molecule that can be used as a specific fluorescent marker as well as a transducer for the detection of E. coli.

Graphical Abstract

1. Introduction

Escherichia coli is one of the most common bacteria responsible for urinary tract infections (UTIs). Uropathogenic E. coli uses type 1 fimbriae for adhering and colonizing the host [1] through specific binding of their top adhesin (FimH) to a high-weight mannose glycoprotein, uroplakin Ia, which is present in the differentiated uroepithelial cells [2,3,4]. Increasing resistance of Escherichia coli UTIs has motivated the research of a detection method that could be quicker and easier with respect to classical clinical studies through bacterial growth. Optical biosensors have been proposed using as recognition mechanism this specific interaction and fluorescence or Surface Plasmon Resonance (SPR) spectroscopy as transducing techniques, due to their low limit of detection (LOD).
With respect to fluorescence detection of Escherichia coli, conjugated polymers such as poly(phenylene)s [5], poly(fluorene)s [6], poly(phenyleneethynylene)s (PE) [7,8,9,10,11], poly(thiophene)s [12], poly(phenylenevinylidene)s [13] functionalized with mannose or other carbohydrates were reported. All of these works demonstrate the specificity of the molecules to uropathogenic Escherichia coli compared to other bacteria or even other E. coli strains that do not express type 1 fimbriae. Disney and Bunz [7] also obtained the detection limit of the bacteria by fluorescence microscopy. Despite these excellent results as markers, a real biosensing, i.e., the quantification of a signal towards E. coli concentration is not feasible by fluorescence techniques. First, fluorescence intensity depends on the experimental conditions (instrument, excitation wavelength, temperature) and thus a standard and/or a calibration curve should be employed for each specific device. Moreover, the turbidity of a bacteria suspension can affect the determination (vide infra). Indeed in the previous works, sensing by fluorescence spectroscopy is limited to a model protein (concanavalin A), or, when E. coli bacteria is used, only the quenching of the fluorescence intensity of the conjugated polymer in presence of a certain bacterial number, typically 107–108 CFU/mL equal to O.D. at 600 nm of 0.05–1) is reported.
Surface Plasmon Resonance (SPR) is an alternative technique that is widely used in sensing and biosensing due to the high sensitivity and specificity of detection [14,15]. Escherichia coli has been sensed by SPR through different approaches. For example, Waswa et al. [16] modified a SPR gold sensor with biotinylated antibody of E. coli achieving a specific detection with a sensitivity of 102–103 CFU/mL for E. coli O157:H7 that is an important food contaminant enteric pathogen. Other authors used carbohydrate-modified SPR chips; for instance Finne et al. detected P-fimbriated uropathogenic E. coli by SPR modifying a sensor chip with galabiose-BSA conjugate and investigated the inhibition of this adhesion with multivalent galabiose derivatives [17]. J. Bouckaert reported the functionalization of gold sensors with aminoheptyl α-D-mannopyranoside for uropathogenic E. coli detection by SPR [18]. Aromatic α-D-mannosides have been demonstrated to present improved binding properties with respect to aliphatic ones because the aromatic group interacts with the hydrophobic binding region that is located at FimH binding domain [19]. Following this strategy, fullerene adducts bearing 12 peripheral mannose groups were also studied by SPR (and other techniques) as inhibitors of FimH [20].
Based on this background, we report in this paper the synthesis of two phenyleneethynylene oligomers bearing one or two mannose termini groups that could allow the specific detection of uropathogenic Escherichia coli by fluorescence microscopy and its biosensing by Surface Plasmon Resonance showing a LOD of 104 CFU/mL of E. coli at a flow rate of 50 µL/min. The results herein reported reveal that the combination of the PE unit with mannose groups affords fluorescent molecules that can be used as both specific markers and transducers for biosensing of type 1 fimbriated E. coli by supramolecular interaction, and can be fruitfully exploited to engineer an optimized biosensing chip for its specific recognition.

2. Experimental Details

2.1. Materials and Methods

All the reagents were purchased from Sigma-Aldrich (Sigma-Aldrich Química, Toluca, Mexico). UV-Vis and fluorescence spectroscopy were carried out on a 2401 PC (Shimadzu Scientific Instruments Inc, Columbia, MD, USA) or a LS50B (Perkin Elmer, Mexico City, Mexico) instrument, respectively. For fluorescence spectra, excitation wavelength was chosen at 10 nm under the absorption lower energy peak and the experiments were carried out at 25.0 ± 0.5 °C with a water circulating bath. The quantum yield was obtained according to [21]. Quinine sulfate in 0.1 M H2SO4 was used as standard. Five repetitions were realized and the average value is reported in the corresponding table.

2.2. Synthesis

Experimental procedures, chemical and physicochemical characterization of each compound are given in the Electronic Supplementary Information (ESI) section.

2.3. Bacteria Microscopic Characterization and Agglutination Assays

Experimental details on the bacteria growth, microscopic characterization and agglutination assays are reported in the ESI.

2.4. Recognition Assays By LSCM

Laser Scanning Confocal Microscopy was carried out with a Pascal 5 instrument from Carl Zeiss (Mexico City, Mexico), in a two channel (fluorescence and reflection) mode. The excitation was obtained with an Ar laser (480 nm, 200 mW). 3 mL of distilled water were added to 100 μL of the E. coli suspension prepared as mentioned and the bacterial suspension was verified under an optical microscope. Then, 100 μL of 1 g/L NMP solution of the PE oligomers were added and the mixture was shaken and then incubated for 40 min at 37 °C and 120 rpm. After that, two centrifugation cycles with water and then with NMP were applied in order to eliminate any residual oligomer that did not interact. Finally 10 μL of the suspension were placed on a microscope slide with a platinum handle and left to dry at room temperature in a sterile laminar flow hood.

2.5. SPR Tests

The sensing platforms were SF4 glass slides, with laser-grade polished surfaces, covered with an aluminum layer that was deposited with a high vacuum, electron-gun assisted facility (evaporation rate: 0.1 nm/s), with no pretreatment of the glass surfaces.
The sensor chip was characterized with a previously described homemade SPR spectrometer [22], working in the classical Kretschmann configuration, operating at the wavelength of 633 nm. Briefly, the instrument can measure the reflectivity of the chip vs the rotation angle, obtaining the so called SPR angular spectrum or, alternatively, measure the reflectivity at a fixed incidence angle, to obtain a time varying signal that resembles the so called sensorgram of the binding process.
The functionalization of the sensing surface was carried out by drop casting the oligomer on the metallized glass from a 1 g/L solution in DMF: THF (95:5 v/v) and then left in a freeze dryer system (Labconco Corporation, Kansas City, MI, USA). The functionalization was verified by LSCM and by measuring the SPR spectra of the covered sample. The experimental SPR spectra of the bare and functionalized chips have been fitted with Winspall 2.0 software (Res-tech, Framersheim, Germany) in order to get the thickness and refractive index of the layer (s).
The sensing performances were tested in two steps, first by monitoring the ability to bind the type 1 fimbriae, a mandatory prerequisite for the bacteria recognition, and, subsequently, by checking the capability to recognize the ORN 178 E. coli strain. A negative control test was finally performed using ORN 208 non fimbriated bacteria. The biological samples were prepared as mentioned in the ESI.
The first step, namely the capture of fimbriae, was carried out with the homemade instrument, while the tests on bacteria were performed by recording sensorgrams with a commercial SPR instrument (Reichert 7000, Depew, NY, USA) that utilizes 633 nm wavelength laser light as excitation source, in dynamic conditions under a constant flow of 50 μL/min. 250 μL of the ORN 178 E. coli suspension prepared as previously described were injected at three cells concentrations (104, 105, 106 CFU/mL), with water rinsing in between each injection. The control test was performed using a dispersion of ORN 208 with concentration of 105 CFU/mL.

3. Results and Discussion

3.1. Synthesis and Characterization of the α-D-Mannosides Substituted Phenyleneethynylenes

Two α-D-mannoside-substituted phenyleneethynylene trimers were synthesized: one bearing a glycol and a mannopyranoside group at each extremity, and the other one with two mannopyranoside groups at both extremities. In both oligomers, two dodecanoxy chains were introduced in the central phenyl ring to promote solubility. The pathway for their synthesis is depicted in Scheme 1 and Scheme 2.
In most of the works related with oligomers or polymers substituted with mannose [23,24,25], the OH groups of the carbohydrate must be previously protected by acetylation, and subsequently subjected to deacetylation with the tedious work up to isolate the different percentage of deacetylated products. Furthermore, the presence of other functional groups in the molecule susceptible to the hydrolysis conditions must be taken into account. Here, we first prepared step-by-step oligomers having three phenyleneethynylene units and terminated with one (9, Scheme 1) or two (14, Scheme 2) benzyl-protected carboxylic acids by Pd/Cu cross-coupling [26] of monomer 5 [27] with one or two equivalents of 6 to give the bromo-terminated dimer 7 [28] that was then Pd/Cu cross-coupled with 4 (Scheme S1) to give the carboxylic acid benzyl-protected trimer 8 or the symmetric benzyl-protected terminated oligomer 13 (Scheme 2). After evaluating different methods and conditions to cleave the benzyl group and to carry out the amidation reactions (ESI), the acid groups were deprotected by using KOH and toluene under nitrogen atmosphere in yields higher than 85% and without the detection of any traces of oxidized ethynylene groups. The carboxylic acids were then activated for the amidation reaction with (2,3-dihydro-2-thioxo-3-benzoxazolyl)-phosphonate (DTBP, 10), which is a good leaving group after the nucleophilic attack of the amine of the 4-aminophenyl-α-D-mannopyranoside. By this amidation method, neither the primary nor the secondary alcohols have to be protected and remain unperturbed.
The more characteristic signals that confirm the amidation in both compounds are: (i) the resonance peaks of the -NH- group that appear at 10.27 ppm, (ii) those belonging to the anomeric proton at 5.33 ppm and (iii) those of the neighbors to the anomeric at 3.82 ppm. The oligomers are soluble only in very polar solvents such as DMSO, NMP and DMF, solvents that are miscible with water where staining assay can be performed.
Figure 1 shows the 1H-NMR spectra of 12 and 15 in d6-DMSO.

3.2. Optical Properties in DMF

In Figure 2, the UV-Vis and fluorescence spectra in DMF of the mannose substituted trimers 12 and 15 as well as their carboxylic acid (9 and 14) precursors are reported. All of the optical data of these oligomers are collected in Table 1, together with those of the benzyl-protected oligomers 8 and 13 for sake of comparison.
The electronic absorption spectra are characterized by two peaks at around 320 and 380 nm. According to previous studies on hexyloxy-substituted phenyleneethynylenes [29], the peak at 320 nm can be associated with the HOMO-1→LUMO electronic transition, while the lower energy peak is associated with the HOMO→LUMO electronic transition. The maxima of these peaks do not change significantly from one trimer to the other as the differences in the chemical structures of the four are just the termini groups and not the main conjugated backbone. Accordingly, the emission maximum is almost at the same wavelength, around 430 nm. The fluorescence quantum yield (φ) is, however, markedly affected by the termini groups. The acid oligomers present higher φ than the mannose substituted ones, which can be ascribed to the presence of quenching groups (OH and NH) of the aminophenylmannopyranoside.

3.3. E. coli Propagation and Fimbriae I Characterization

In this work we obtained an uropathogenic E. coli serotype from a local hospital, which we named SS3. As controls, we worked with two bacterial strains [30] kindly donated by Prof. Orndorff, (College of Veterinary Medicine at North Carolina State University); the ORN178 is a positive phenotype for the type 1 fimbriae expression, and the ORN208 that does not express fimbriae 1 as negative control. After following the propagation protocol, and thanks to the fact that fimbriae 1 of E. coli bacteria have been largely characterized by AFM and TEM microscopy, it was thus easy to identify them on SS3 by TEM microscopy, Figure 3, while all of the appendages could be clearly seen by SEM microscopy (Figure S1). The fimbriae 1 in SS3, Figure 3b–d, are in the range of 7.0 nm diameter as stated in other works [31,32,33].
The presence of fimbriae 1 on the E. coli stains was also corroborated by agglutination tests with S. cerevisiae. It was found that both the SS3 and the ORN178 agglutinated the yeast after grown under all conditions (Figure S2) and the agglutinations could be inhibited with 4-aminophenyl-α-D-mannopyranoside 11, Figure S3. In contrast, ORN 208 did not agglutinate, as expected (Figure S3).

3.4. Recognition Assays by LSCM

The fluorescence quantum yield φ is too low to permit E. coli biosensing by fluorescence, however, it is sufficient to use the two mannose-functionalized oligomers as markers to recognize the E. coli Fim H by LSCM.
Figure 4 shows the LSCM images of E. coli cells of different serotypes (SS3, ORN178 and ORN208) after adding oligomers 12 and 15. Each image is the combination obtained directly from the instrument software between the fluorescence (colored image) and the reflection (gray image) detection. Fluorescence comes from the oligomer so that the colored part of the image corresponds to the cells that have been stained. The fluorescence color was selected as red in the palette available of the software, just for enhancing the contrast between the stained and not stained sample even if the emission color of the PEs is blue.
The presence of the E. coli typical cells can be observed in all of the figures without any apparent cell damage as a consequence of the preparation. The two oligomers efficiently stain both SS3 and ORN178 E. coli bacteria, which likely indicates that the mannose is specific for the fimbriae 1 of these strains. However, 12 also stains the mutant ORN208, which does not express these fimbriae. As a further control, a PE trimer bearing glycols as lateral substituents of the phenyls (3BEgly-H, [34]) was also investigated giving the same results: the three strains were stained (ESI). As all the samples were washed several times in order to rinse any residual oligomer that could just be physically absorbed on the bacteria, this result means that even if the mannose group of 12 could interact with fimbriae 1, the glycol moiety likely promotes the interaction with other flagella or to the bacteria membrane, so that the recognition of this trimer is not specific for uropathogenic E. coli. On the contrary, oligomer 15 that has the two mannose groups, does not stain the mutant ORN208 as is evident from Figure 4f where bacteria are not fluorescent. As a further confirmation, it is important to notice that at lower magnification, together with the isolated bacterial cells, we found that both SS3 and ORN178 E. coli agglutinate in numerous small packages of cells only with the two mannoses terminated oligomer 15, Figure 5a. From all these results, we can conclude that the oligomer 15 is specific for fimbriated 1 E. coli thanks to the supramolecular recognition between the two mannose groups and the FimH, while oligomer 12 just stains the cells as sketched in Figure 5b,c, respectively. Oligomer 15 was thus selected for uropathogenic E. coli biosensing.

3.5. SPR Assays

Although we obtained visual evidence of the oligomer 15-E. coli selective interaction by LSCM, a quantitative evaluation using the oligomer’s fluorescence was hampered by two main bottlenecks: (i) the quantum yield of 15 is very low, as previously discussed and (ii) the suspension of E. coli is turbid and acts as an optical barrier for the excitation light and fluorescence output as well. Surface Plasmon Resonance [35,36,37] was thus advanced as an alternative spectroscopic technique to develop an optical biosensor aimed at getting quantitative data about the bacteria recognition, primarily the limit of detection (LOD) of their concentration. As planned, our sensing chips have been fabricated by using aluminum as plasmon-supporting metal instead of the most commonly used gold [38,39] because of the higher affinity of 15 to this substrate. Considerations about the chip preparation conditions are reported in ESI.
In the following steps, we characterized via SPR a typical metallized sample using air as substrate (Figure 6a), its functionalization with oligomer 15 (Figure 6b) and, finally, the binding process of type 1 fimbriae on its surface (Figure 6c).
The experimental plot of the reflectivity of Figure 6a (full circles) has a minimum Rmin = 0.43 at an angular position ƟP,air = 29.23°, which fits well only by modeling the experimental points distribution with the reflectivity of a bilayer composed by aluminum (25 nm, refractive index of 1.37 [40]) and alumina (4.5 nm, refractive index of 1.77 [41]). Although the typical value of the alumina layer after an air exposure of 30 min is around 3 nm, nevertheless values up to 4 nm (close to our value) have been reported by Cairns et al. [42] after prolonged exposures. It is worth to notice that the minimum reflectivity, recorded at ƟP,air, 0.43, indicates a non-optimal thickness of the metal. Indeed, our simulations show that a smaller thickness of 16 nm would be necessary to optimize the coupling efficiency and the figure of merit (FOM, for its definition see for instance [43]) of the sensor. This thickness reduction would allow a 2-fold enhancement of the sensing resolution.
After functionalization of the sensor surface with oligomer 15, the SPR curve (Figure 6b) in DMF (open circles), shows a resonance angle ƟP,DMF of 67.55°, that shifts to 67.96° after the oligomer deposition and rinsing (squares). The increase of 0.41°corresponds to the formation of an oligomer layer whose average thickness is 2.8 nm. It is worth to notice that, in particular in the lower part of the traces, the spectrum of the coated Al/alumina bilayer is wider than that one before functionalization, an effect attributable to the non-uniform surface coverage [44] as observed via LSCM (Figure S6). No significant changes are produced in the spectrum by the second washing (triangles), revealing a good stability of the receptors layer.
Subsequently, the SPR monitoring of type 1 fimbriae adsorption was carried out, with the measurement sequences reported in Figure 6c. As a first step, we put in contact the sensor surface with the sole liquid environment in which fimbriae 1 are suspended, namely pure water/Ringer liquid mixture (crosses). We observed a resonance angle of 57.70°, lower than that recorded with DMF because of the decrease in the refractive index of the medium. Then, the sensor was exposed to a suspension of fimbriae 1 in water/Ringer solution. After 15 h incubation, the resonance angle shifts to 58.90° (stars) and remains stable even after six washing cycles, indicating a true and effective binding of fimbriae to oligomer 15, a necessary prerequisite for a successful recognition of the bacterium. The inset of the same panel shows the increase of the reflected signal recorded at an incidence angle corresponding to the flex point of the decreasing flank of the spectrum (56.90°), as a consequence of its right shift. SPR biosensing was then performed with ORN 178 E. coli with CFU/mL between 104 and 106 (Figure 7).
In the three kinetic curves of Figure 7, the presence of steady signals obtained after the rinsing cycles indicates effective mass increases atop the sensor, as result of a stable binding of the bacteria onto the surface. Experiments performed with bacteria concentrations lower than 104 CFU/mL did not give appreciable response. This latter concentration was thus established as the LOD of our sensing equipment. This value is satisfactorily comparable to those reported by other authors [45,46]. For instance, in [45] a value of 104 CFU/mL is reported for lysed samples, while this value increases to 105 CFU/mL for heat killed samples and even to 106 for untreated samples. In [46], a detection limit for E. coli of 1.2 × 104 CFU/mL was found, while in [47], a LOD of 103 CFU/mL is reported using a detection area functionalized with T4 bacteriophages. In this latter case, however, the better LOD was obtained at expenses of a complex amplification stage of the T4 phages. Even if the LOD of our sensor is comparable with the best results reported, there is still room to manoeuver for its enhancement. For instance, the aforementioned adjustment of the metal thickness can determine a 2-fold increase of the sensitivity, while a proper choice of the radiation wavelength in the blue-UV region can allow the exploitation of more appropriate refractive indices of aluminum. Moreover, the fluorescent emission of the new oligomers could also be fruitfully used in synergy with the enhanced plasmonic field in a surface plasmon enhanced fluorescence configuration, with considerable rise in the sensitivity [48]). The sensor response can be further increased by exploiting more favorable working conditions, as reported in the case of injection flow rate [19] that can significantly influence the binding of E. coli to SPR sensors. It is worth mentioning that the SPR assay with the wide strain SS3 (Figure S7) presents a LOD of 106 CFU/mL. This discrepancy can be explained considering that: (a) as SS3 is a wild type strain, the amount of fimbriae structures per bacterium are in a minor proportion; (b) the affinity of Fim H to the α-mannopyranoside oligomer in ORN 178 strain could be much higher than that of the SS3 strain.
As far as selectivity is concerned, a control test has been performed by incubating non-fimbriated bacteria ORN 208 for 400 s with a functionalized sensing chip and recording the kinetics during the incubation and after rinsing. After rinsing, no significant response was obtained, as shown by the inset kinetic curve of Figure 7. In comparison, the incubation of ORN178 bacteria at the same concentration produced a signal that, after rinsing, settled down to ~0.4 RIU, suggesting a good selectivity of the sensor for fimbriated bacteria.

4. Conclusions

In this work we reported on the synthesis of two novel phenylenethynylene trimers bearing one or two 4-aminophenyl-α-D-mannopyranoside termini groups for the detection of E. coli bacteria. Despite the low fluorescence quantum yield, Laser Scanning Confocal Microscopy allowed to demonstrate that both trimers stain E. coli, but only the oligomer that bears two mannose groups can discriminate between uropathogenic (type 1 fimbriae generating strain) and the non-uropathogenic E. coli mutant strain. Thanks to the good affinity of this trimer to bind stably to the external surface of oxidized aluminum, SPR biosensing of uropathogenic E. coli was then performed by fabricating aluminum-based biochips coated with this trimer achieving a LOD of 104 CFU/mL. This study demonstrated a novel SPR E. coli bacteria sensing tool that exhibits good performances in LOD and selectivity, together with a noticeable robustness. Considering the number of ways still exploitable to enhance its performance, we think that our findings can pave the way to the realization of a new family of sensitive and selective biochips to detect E. coli, whose optimization will be the object of dedicated future works.

Supplementary Materials

The following are available online at https://www.mdpi.com/1424-8220/17/5/1025/s1, Experimental synthetic procedures, E. coli microscopic characterization, agglutination tests and additional LSCM images. SPR chip preparation and additional SPR curves.

Acknowledgments

CONACyT-SEP for the financial support through the projects CB-2015: 256716 and 256709.

Author Contributions

Enrique Arias and Maria Teresa Méndez performed the experiments. Eduardo Arias supervised the synthetic part; Ivana Moggio supervised the photophysical and LSCM characterization. Eduardo Arias and Ivana Moggio also analyzed the data in the whole and wrote the paper. Antonio Ledezma and Jorge Romero supervised the microbiological tests. Giancarlo Margheri and Emilia Giorgetti supervised and analyzed SPR results.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Remaut, H.; Waksman, G. Structural biology of bacterial pathogenesis. Curr. Opin. Struct. Biol. 2004, 14, 161–170. [Google Scholar] [CrossRef] [PubMed]
  2. Mulvey, M.A.; Lopez-Boado, Y.S.; Wilson, C.L.; Roth, R.; Parks, W.C.; Heuser, J.; Hultgren, S.J. Induction and evasion of host defenses by type 1-piliated uropathogenic Escherichia coli. Science 1998, 282, 1494–1497. [Google Scholar] [CrossRef] [PubMed]
  3. Ronald, A.R.; Nicolle, L.E.; Stamm, E.; Krieger, J.; Warren, J.; Schaeffer, A.; Naber, K.G.; Hooton, T.M.; Johnson, J.; Chambers, S.; et al. Urinary tract infection in adults: Research priorities and strategies. Int. J. Antimicrob. Agents 2001, 17, 343–348. [Google Scholar] [CrossRef]
  4. Bouckaert, J.; Berglund, J.; Schembri, M.; De Genst, E.; Cools, L.; Wuhrer, M.; Hung, C.-S.; Pinkner, J.; Slättegård, R.; Zavialov, A.; et al. Receptor binding studies disclose a novel class of high-affinity inhibitors of the Escherichia coli FimH adhesion. Mol. Microbiol. 2005, 55, 441–455. [Google Scholar]
  5. Xue, C.; Jog, S.P.; Murthy, P.; Liu, H. Synthesis of Highly Water-Soluble Fluorescent Conjugated Glycopoly(p-phenylene)s for Lectin and Escherichia coli. Biomacromolecules 2006, 7, 2470–2474. [Google Scholar] [CrossRef] [PubMed]
  6. Xue, C.; Velayudham, S.; Johnson, S.; Saha, R.; Smith, A.; Brewer, W.; Murthy, P.; Bagley, S.T.; Liu, H. Highly Water-Soluble, Fluorescent, Conjugated Fluorene-Based Glycopolymers with Poly(ethylene glycol)-Tethered Spacers for Sensitive Detection of Escherichia coli. Chem. Eur. J. 2009, 15, 2289–2295. [Google Scholar] [CrossRef] [PubMed]
  7. Disney, M.D.; Zheng, J.; Swager, T.M.; Seeberger, P.H. Detection of Bacteria with Carbohydrate-Functionalized Fluorescent Polymers. J. Am. Chem. Soc. 2004, 126, 13343–13346. [Google Scholar] [CrossRef] [PubMed]
  8. Phillips, R.L.; Kim, I.-B.; Carson, B.L.; Tidbeck, B.; Bai, Y.; Lowary, T.L.; Tolbert, L.M.; Bunz, U.H.F. Sugar-Substituted Poly(p-phenyleneethynylene)s: Sensitivity Enhancement toward Lectins and Bacteria. Macromolecules 2008, 41, 7316–7320. [Google Scholar] [CrossRef]
  9. Phillips, R.L.; Kim, I.-B.; Tolbert, L.M.; Bunz, U.H.F. Fluorescence Self-Quenching of a Mannosylated Poly (p-phenyleneethynylene) Induced by Concanavalin A. J. Am. Chem. Soc. 2008, 130, 6952–6954. [Google Scholar] [CrossRef] [PubMed]
  10. Phillips, R.L.; Miranda, O.R.; You, C.-C.; Rotello, V.M.; Bunz, U.H.F. Rapid and Efficient Identification of Bacteria Using Gold-Nanoparticle—Poly (para-phenyleneethynylene) constructs. Angew. Chem. Int. Ed. 2008, 47, 2590–2594. [Google Scholar] [CrossRef] [PubMed]
  11. Kelly, T.L.; Lam, M.C.W.; Wolf, M.O. Carbohydrate-Labeled Fluorescent Microparticles and Their Binding to Lectins. Bioconjugate Chem. 2006, 17, 575–578. [Google Scholar] [CrossRef] [PubMed]
  12. Xue, C.; Luo, F.-T.; Liu, H. Post-Polymerization Functionalization Approach for Highly Water-Soluble Well-Defined Regioregular Head-to-Tail Glycopolythiophenes. Macromolecules 2007, 40, 6863–6870. [Google Scholar] [CrossRef]
  13. Takasu, A.; Iso, K.; Dohmae, T.; Hirabayashi, T. Synthesis of Sugar-Substituted Poly (phenylenevinylene)s. Biomacromolecules 2006, 7, 411–414. [Google Scholar] [CrossRef] [PubMed]
  14. Homola, J. Surface Plasmon sensors for Detection of Chemical and Biological Species. Chem. Rev. 2008, 108, 462–493. [Google Scholar] [CrossRef] [PubMed]
  15. Xiaowei, G.J. Surface plasmon resonance based biosensor technique: A review. Biophotonics 2012, 1–19. [Google Scholar] [CrossRef]
  16. Waswa, J.; Irudayaraj, J.; DebRoy, C. Direct detection of E. Coli O157:H7 in selected food systems by a surface plasmon resonance biosensor. LWT 2007, 40, 187–192. [Google Scholar] [CrossRef]
  17. Salminen, A.; Loimaranta, V.; Joosten, J.A.F.; Salam Khan, A.; Hacker, J.; Pieters, R.J.; Finne, J. Inhibition of P-fimbriated Escherichia coli adhesion by multivalent galabiose derivatives studied by a live-bacteria application of surface plasmon resonance. J. Antimicrob. Chemother. 2007, 60, 495–501. [Google Scholar] [CrossRef] [PubMed]
  18. Zagorodko, O.; Bouckaert, J.; Dumych, T.; Bilyy, R.; Larroulet, I.; Yanguas Serrano, A.; Alvarez Dorta, D.; Gouin, S.G.; Dima Florin Oancea, S.-O.; Boukherroub, R.; et al. Surface Plasmon Resonance (SPR) for the Evaluation of Shear-Force-Dependent Bacterial Adhesion. Biosensors 2015, 5, 276–287. [Google Scholar] [CrossRef] [PubMed]
  19. Touaibia, M.; Wellens, A.; Shiao, T.C.; Wang, Q.; Sirois, S.; Bouckaert, J.; Roy, R. Mannosylated G(0) dendrimers with nanomolar affinities to Escherichia coli FimH. Chem. Med. Chem. 2007, 2, 1190–1201. [Google Scholar] [CrossRef] [PubMed]
  20. Durka, M.; Buffet, K.; Iehl, J.; Holler, M.; Nierengarten, J.-F.; Taganna, J.; Bouckaert, J.; Vincent, S.P. The functional valency of dodecamannosylated fullerenes with Escherichia coli FimH—Towards novel bacterial antiadhesives. Chem. Commun. 2011, 47, 1321–1323. [Google Scholar] [CrossRef] [PubMed]
  21. Williams, A.T.R.; Winfield, S.A.; Miller, J.N. Relative Fluorescence Quantum Yields Using a Computer-controlled Luminescence Spectrometer. Analyst 1983, 108, 1067–1071. [Google Scholar] [CrossRef]
  22. Sacconi, A.; Moncelli, M.R.; Margheri, G.; Tadini-Buoninsegni, F. Enhanced Adsorption of Ca-ATPase Containing Vesicles on a Negatively Charged Solid-Supported-Membrane for the Investigation of Membrane Transporters. Langmuir 2013, 29, 13883–13889. [Google Scholar] [CrossRef] [PubMed]
  23. Dondoni, A.; Marra, A.; Zampolli, M.G. Synthesis of All Carbon Linked Glycoside Clusters Round Benzene Scaffold via Sonogashira-Heck-Cassar Cross-Coupling of Iodobenzenes with Ethynyl C-Glycosides. Synlett 2002, 11, 1850–1854. [Google Scholar] [CrossRef]
  24. Ratner, D.M.; Plante, O.J.; Seeberger, P.H. A Linear Synthesis of Branched High-Mannose Oligosaccharides from the HIV-1 Viral Surface Envelope Glycoprotein gp120. Eur. J. Org. Chem. 2002, 5, 826–833. [Google Scholar] [CrossRef]
  25. Alzeer, J.; Vasella, A. Oligosaccharide Analogues of Polysaccharides. Part 2. Regioselective deprotection of monosaccharide-derived monomers and dimers. Helv. Chim. Acta 1995, 78, 177–193. [Google Scholar] [CrossRef]
  26. Ziener, U.; Godt, A. Synthesis and Characterization of Monodisperse Oligo (phenyleneethynylene)s. J. Org. Chem. 1997, 62, 6137–6141. [Google Scholar]
  27. Castruita, G.; Arias, E.; Moggio, I.; Pérez, F.; Medellin, D.; Torres, R.; Ziolo, R.; Olivas, A.; Giorgetti, E.; Muniz-Miranda, M. Synthesis, optical properties and supramolecular order of p-conjugated 2, 5-di (alcoxy) phenyleneethynylene oligomers. J. Mol. Struct. 2009, 936, 177–186. [Google Scholar] [CrossRef]
  28. García, L.A.; Arias, E.; Moggio, I.; Romero, J.; Ledezma, A.; Ponce, A.; Pérez, O. Fluorescent core-sheath fibers by electrospinning of a phenyleneethynylene/poly(styrene-co-maleimide) blend. Polymer 2011, 52, 5326–5334. [Google Scholar] [CrossRef]
  29. Sudeep, P.K.; James, P.V.; Thomas, K.G.; Kamat, P.V. Singlet and Triplet Excited-State Interactions and Photochemical Reactivity of Phenyleneethynylene Oligomers. J. Phys. Chem. A 2006, 110, 5642–5649. [Google Scholar] [CrossRef] [PubMed]
  30. Harris, S.L.; Spears, P.A.; Havell, E.A.; Hamrick, T.S.; Horton, J.R.; Orndorff, P.E. Characterization of Escherichia coli type 1 pilus mutants with altered binding specificities. J. Bacteriol. 2001, 183, 4099–4102. [Google Scholar] [CrossRef] [PubMed]
  31. Krogfelt, K.A.; Bergmans, H.; Klemm, P. Direct Evidence that the FimH Protein is the Mannose-Specific Adhesin of Escherichia coli Type 1 Fimbriae. Infect. Immun. 1990, 58, 1995–1998. [Google Scholar] [PubMed]
  32. Salit, I.E.; Gotschlich, E.C. Hemagglutination by purified type I Escherichia coli pili. J. Exp. Med. 1977, 146, 1169–1181. [Google Scholar] [CrossRef] [PubMed]
  33. Eshdat, Y.; Speth, V.; Jann, K. Participation of Pili and Cell Wall Adhesin in the Yeast Agglutination Activity of Escherichia coli. Infect. Immun. 1981, 34, 980–986. [Google Scholar] [PubMed]
  34. Meza, D.; Arias, E.; Moggio, I.; Romero, J.; Mata, J.M.; Jiménez-Barrera, R.M.; Ziolo, R.; Rodríguez, O.; Ottonelli, M. Synthesis and photophysical and supramolecular study of π-conjugated (diethylene glycol methyl ether) benzoateethynylene oligomers and polymers. Polym. Chem. 2015, 6, 1639–1648. [Google Scholar] [CrossRef]
  35. Pitarke, J.M.; Silkin, V.M.; Chulkov, E.V.; Echenique, P.M. Theory of surface plasmons and surface -plasmon polaritons. Rep. Prog. Phys. 2007, 70, 1–87. [Google Scholar] [CrossRef]
  36. Homola, J.; Yee, S.S.; Myszka, D. Surface plasmon resonance. In Optical Biosensors: Present and Future; Ligler, F.S., Taitt, C.A.R., Eds.; Gulf Professional Publishing: Washington, DC, USA, 2002; pp. 207–251. [Google Scholar]
  37. Guo, X. Surface plasmon resonance based biosensor technique: A review. J. Biophotonics 2012, 5, 483–501. [Google Scholar] [CrossRef] [PubMed]
  38. Samanta, D.; Sarkar, A. Immobilization of bio-macromolecules on self-assembled monolayers: Methods and sensor applications. Chem. Soc. Rev. 2011, 40, 2567–2592. [Google Scholar] [CrossRef] [PubMed]
  39. Agoston, R.; Emad, L.I.; Sivanesan, A.; Lott, W.B.; Sillence, M.; Steel, R. Rapid isolation and detection of erythropoietin in blood plasma by magnetic core gold nanoparticles and portable Raman spectroscopy. Nanomed. NBM 2016, 12, 633–641. [Google Scholar] [CrossRef] [PubMed]
  40. Rakic, A.D. Algorithm for the determination of intrinsic optical constants of metal films: application to aluminum. Appl. Opt. 1995, 34, 4755–4767. [Google Scholar] [CrossRef] [PubMed]
  41. Malitson, I.H.; Dodge, M.J. Refractive Index and Birefringence of Synthetic Sapphire. J. Opt. Soc. Am. 1972, 62, 1405A. [Google Scholar]
  42. Cairns, G.F.; McNeill, D.A.; Dawson, P. Application of surface plasmon polaritons in the laser ablation and characterisation of thin aluminum films. Surf. Sci. 1999, 429, 117–126. [Google Scholar] [CrossRef]
  43. Tabassum, R.; Gupta, B.D. SPR based fiber-optic sensor with enhanced electric field intensity and figure of merit using different single and bimetallic configurations. Opt. Commun. 2016, 367, 23–34. [Google Scholar] [CrossRef]
  44. Flanagan, M.T.; Pantell, R.H. Surface Plasmon Resonance and immunosensors. Elect. Lett. 1984, 20, 968–970. [Google Scholar] [CrossRef]
  45. Taylor, A.D.; Yu, Q.M.; Chen, S.F.; Homola, J.; Jiang, S.Y. Comparison of E. coli O157:H7 preparation methods used for detection with surface plasmon resonance sensor. Sens. Actuators B Chem. 2005, 107, 202–208. [Google Scholar] [CrossRef]
  46. Taylor, A.D.; Ladd, J.; Yu, Q.M.; Chen, S.F.; Homola, J.; Jiang, S.Y. Quantitative and simultaneous detection of four foodborne bacterial pathogens with a multi-channel SPR sensor. Biosens. Bioelectron. 2006, 22, 752–758. [Google Scholar] [CrossRef] [PubMed]
  47. Tawil, N.; Sacher, E.; Mandeville, R.; Meunier, M. Surface Plasmon resonance detection of E. coli and methicillin-resistant S. aureus using bacteriophages. Biosens. Bioelectron. 2012, 37, 24–29. [Google Scholar]
  48. Yu, F.; Persson, B.; Lofås, S.; Knoll, S. Attomolar Sensitivity in Bioassays Based on Surface Plasmon Fluorescence Spectroscopy. J. Am. Chem. Soc. 2004, 126, 8902–8903. [Google Scholar] [CrossRef] [PubMed]
Sensors 17 01025 sch001 550

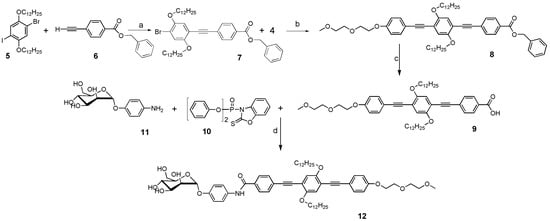

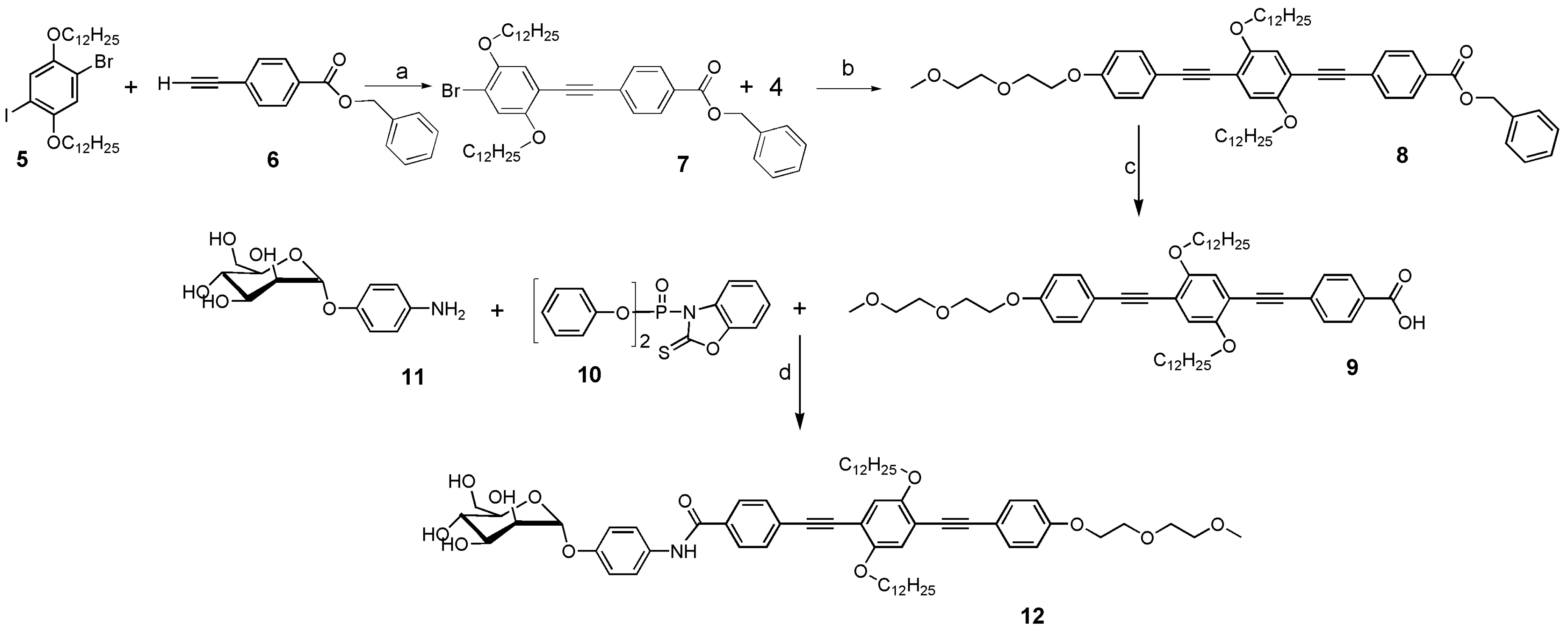

Scheme 1. Reagents and conditions: (a) [(C6H5)3P]2PdCl2 (2.5 % mol), CuI (1.5 % mol), Et3N, 0 °C -to-rt, 18 h, (65%); (b) [(C6H5)3P]2PdCl2 (2.5 % mol), CuI (1.5 % mol), Et3N, 60 °C, 1 h, (70%); (c) KOH, toluene, N2, 110 °C, 2 h (87%); (d) 1-methyl-2-pyrrolidone , Et3N, rt, 96 h, (75%).
Scheme 1. Reagents and conditions: (a) [(C6H5)3P]2PdCl2 (2.5 % mol), CuI (1.5 % mol), Et3N, 0 °C -to-rt, 18 h, (65%); (b) [(C6H5)3P]2PdCl2 (2.5 % mol), CuI (1.5 % mol), Et3N, 60 °C, 1 h, (70%); (c) KOH, toluene, N2, 110 °C, 2 h (87%); (d) 1-methyl-2-pyrrolidone , Et3N, rt, 96 h, (75%).
Sensors 17 01025 sch001
Sensors 17 01025 sch002 550

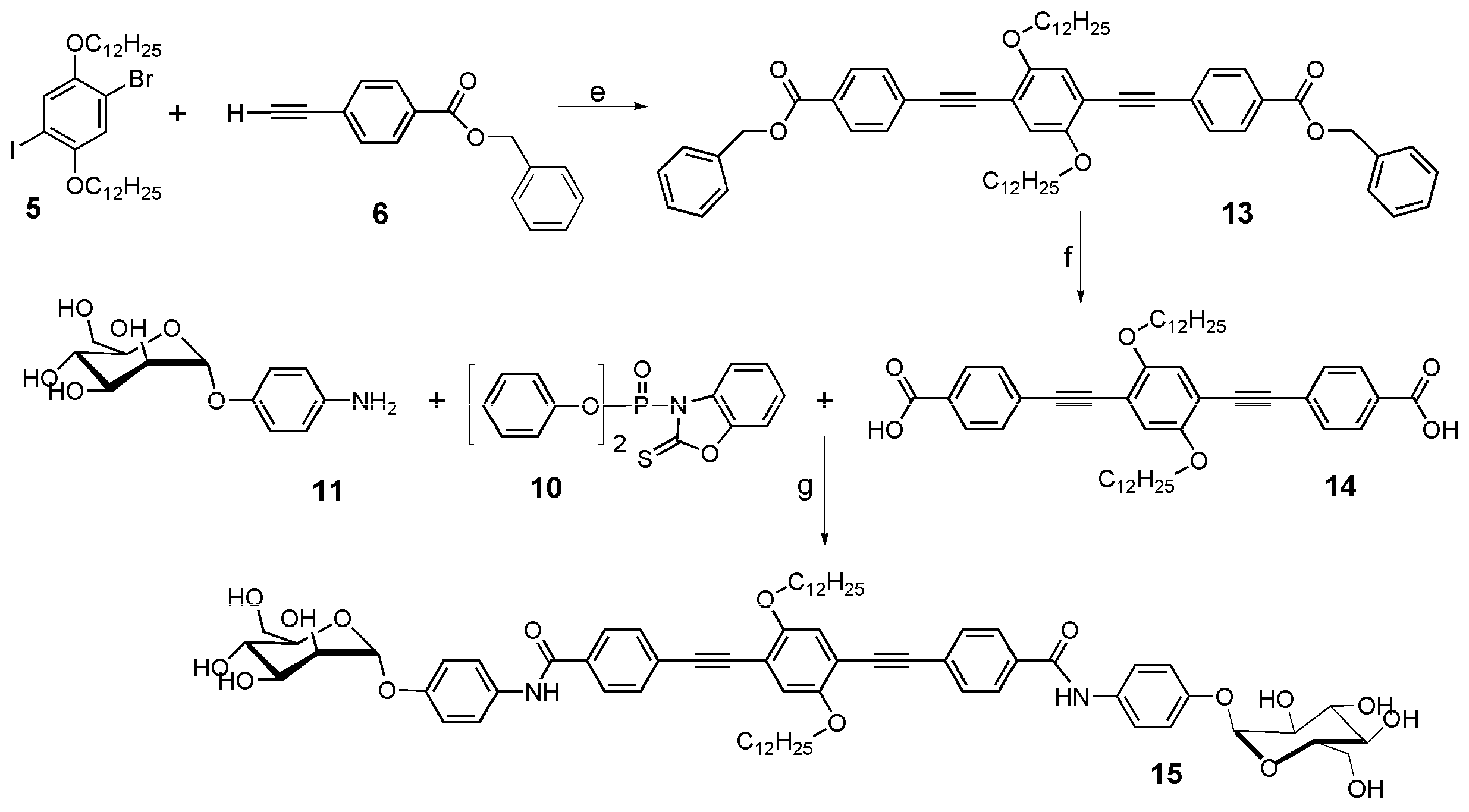

Scheme 2. Reagents and conditions: (e) [(C6H5)3P]2PdCl2 (2.5 % mol), CuI (1.5 % mol), Et3N, 60 °C, 18 h, (87%); (f) KOH, toluene, N2, 110 °C, 2 h (90%); (g) 1-methyl-2-pyrrolidone , Et3N, rt, 96 h, (77%).
Scheme 2. Reagents and conditions: (e) [(C6H5)3P]2PdCl2 (2.5 % mol), CuI (1.5 % mol), Et3N, 60 °C, 18 h, (87%); (f) KOH, toluene, N2, 110 °C, 2 h (90%); (g) 1-methyl-2-pyrrolidone , Et3N, rt, 96 h, (77%).
Sensors 17 01025 sch002
Sensors 17 01025 g001 550

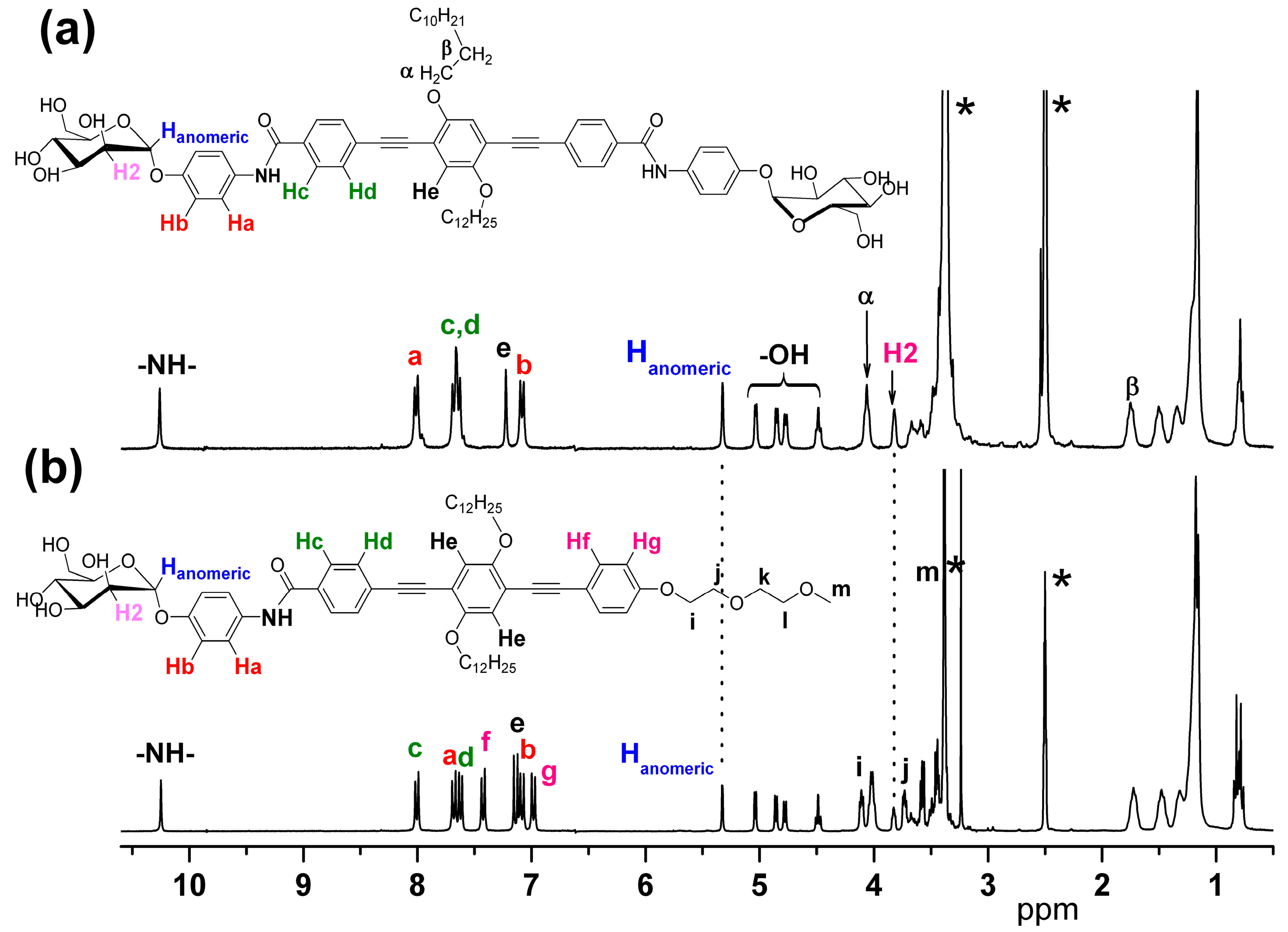

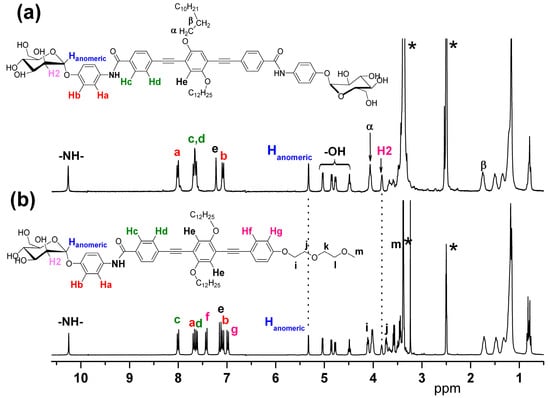

Figure 1. 1H-NMR spectra in d6-DMSO of α-D-mannopyranoside terminated trimers: (a) 15 and (b) 12. The multiplicity assignation is addressed to the more representative resonant peaks (asterisks denote d5- DMSO and H2O in the samples).
Figure 1. 1H-NMR spectra in d6-DMSO of α-D-mannopyranoside terminated trimers: (a) 15 and (b) 12. The multiplicity assignation is addressed to the more representative resonant peaks (asterisks denote d5- DMSO and H2O in the samples).
Sensors 17 01025 g001
Sensors 17 01025 g002 550

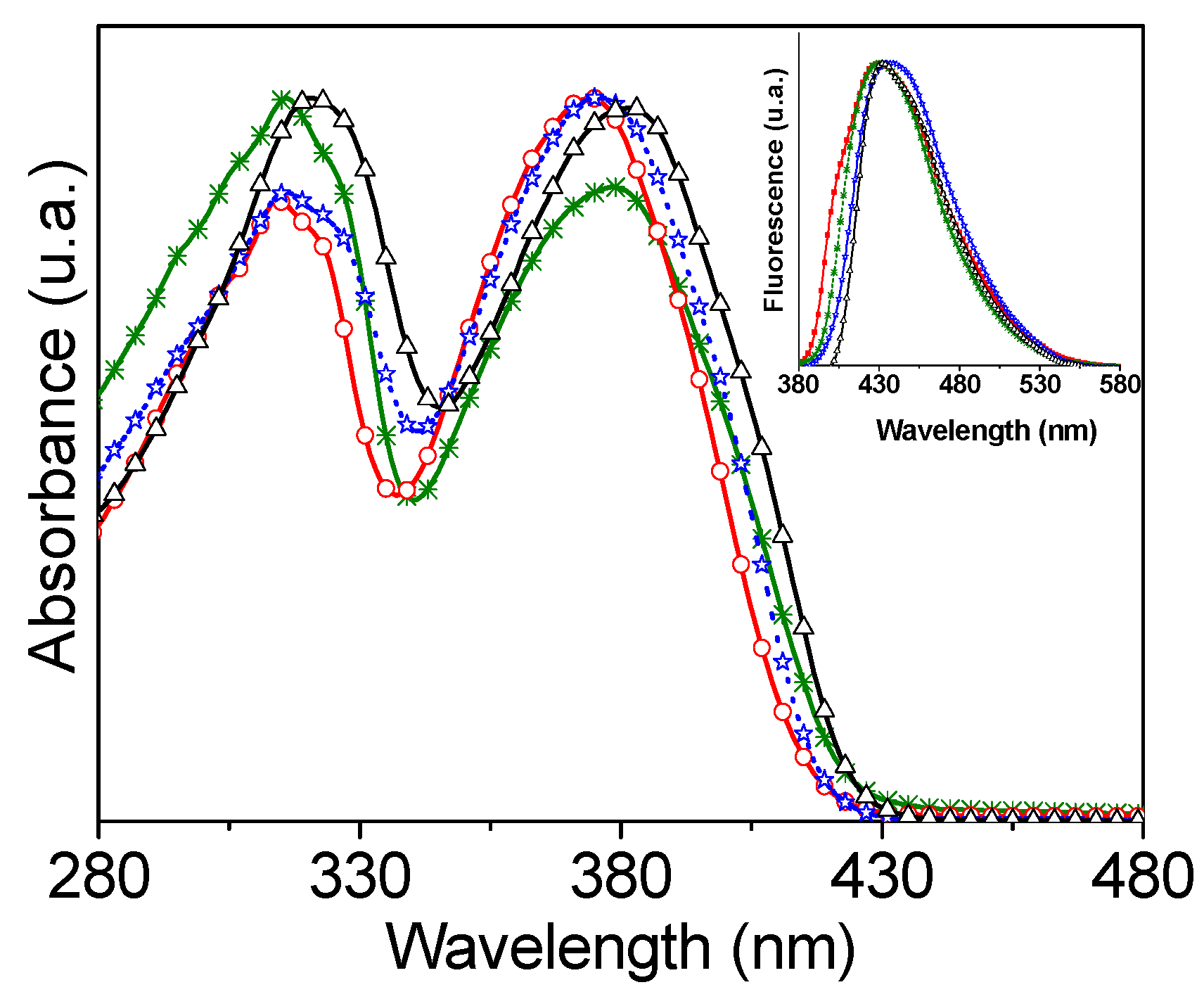

Figure 2. UV-Vis and (inserted) fluorescence spectra of 9 (triangles), 12 ( stars ), 14 ( asterisks ), and 15 ( circles ) in DMF.
Figure 2. UV-Vis and (inserted) fluorescence spectra of 9 (triangles), 12 ( stars ), 14 ( asterisks ), and 15 ( circles ) in DMF.
Sensors 17 01025 g002
Sensors 17 01025 g003 550
Figure 3. TEM images of the SS3 E. coli from a local hospital. Image (a) shows the appendages of the bacteria, while images (b–d) show the fimbriae 1 (red circles).
Figure 3. TEM images of the SS3 E. coli from a local hospital. Image (a) shows the appendages of the bacteria, while images (b–d) show the fimbriae 1 (red circles).
Sensors 17 01025 g003
Sensors 17 01025 g004 550
Figure 4. LSCM images of mannose-functionalized oligomers with E. coli cells of different serotypes: (a) 12 + SS3; (b) 12 + ORN178; (c) 12 + ORN208; (d) 15 + SS3; (e) 15 + ORN178; (f) 15 + ORN208. Scale bar corresponds to 5 µm.
Figure 4. LSCM images of mannose-functionalized oligomers with E. coli cells of different serotypes: (a) 12 + SS3; (b) 12 + ORN178; (c) 12 + ORN208; (d) 15 + SS3; (e) 15 + ORN178; (f) 15 + ORN208. Scale bar corresponds to 5 µm.
Sensors 17 01025 g004
Sensors 17 01025 g005 550

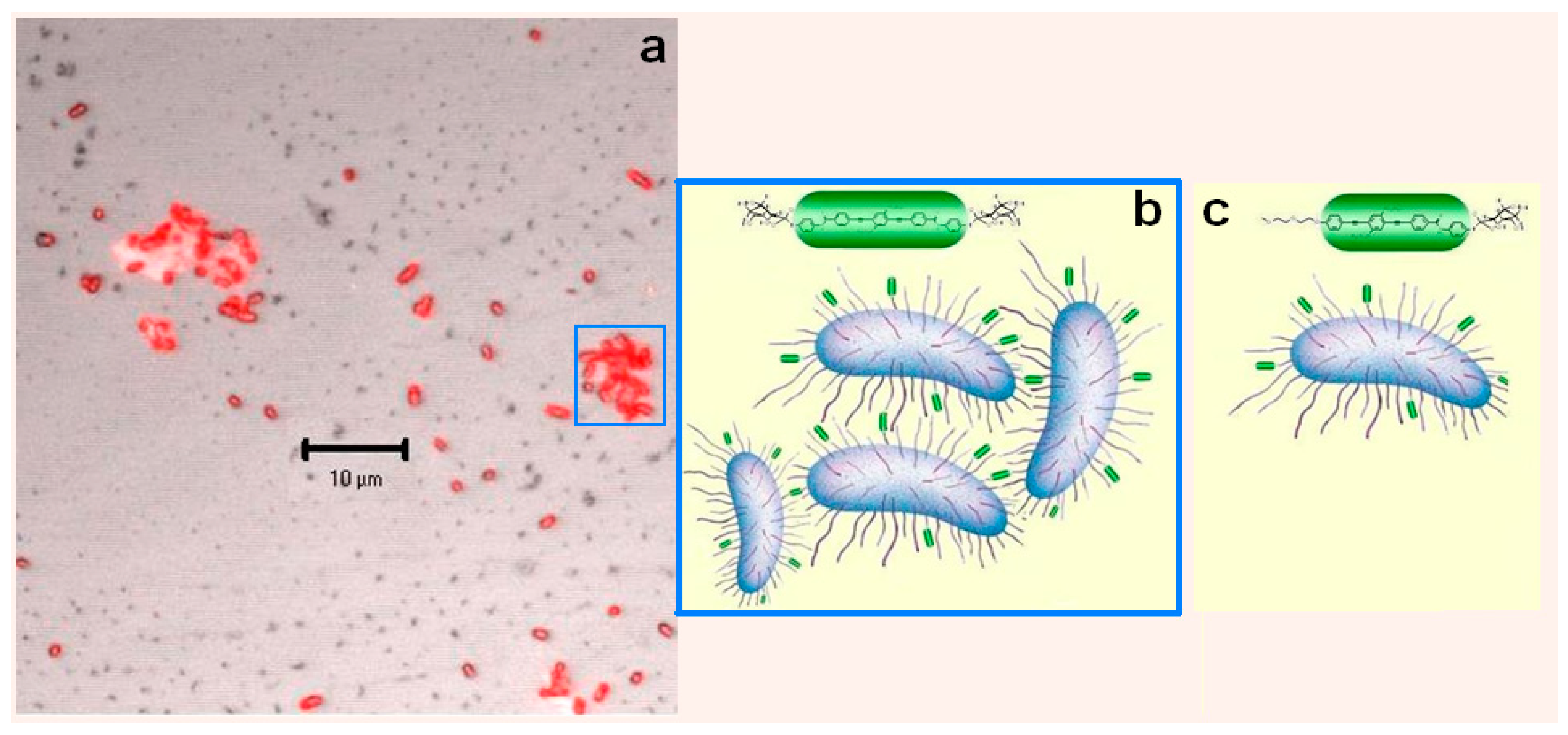

Figure 5. (a) LSCM image of a positive agglutination test of E. coli SS3 with the oligomer bearing two mannoses 15; (b) sketch of the possible supramolecular recognition: E. coli-oligomer 15; and (c) sketch of the E. coli bacteria staining with oligomer 12.
Figure 5. (a) LSCM image of a positive agglutination test of E. coli SS3 with the oligomer bearing two mannoses 15; (b) sketch of the possible supramolecular recognition: E. coli-oligomer 15; and (c) sketch of the E. coli bacteria staining with oligomer 12.
Sensors 17 01025 g005
Sensors 17 01025 g006 550

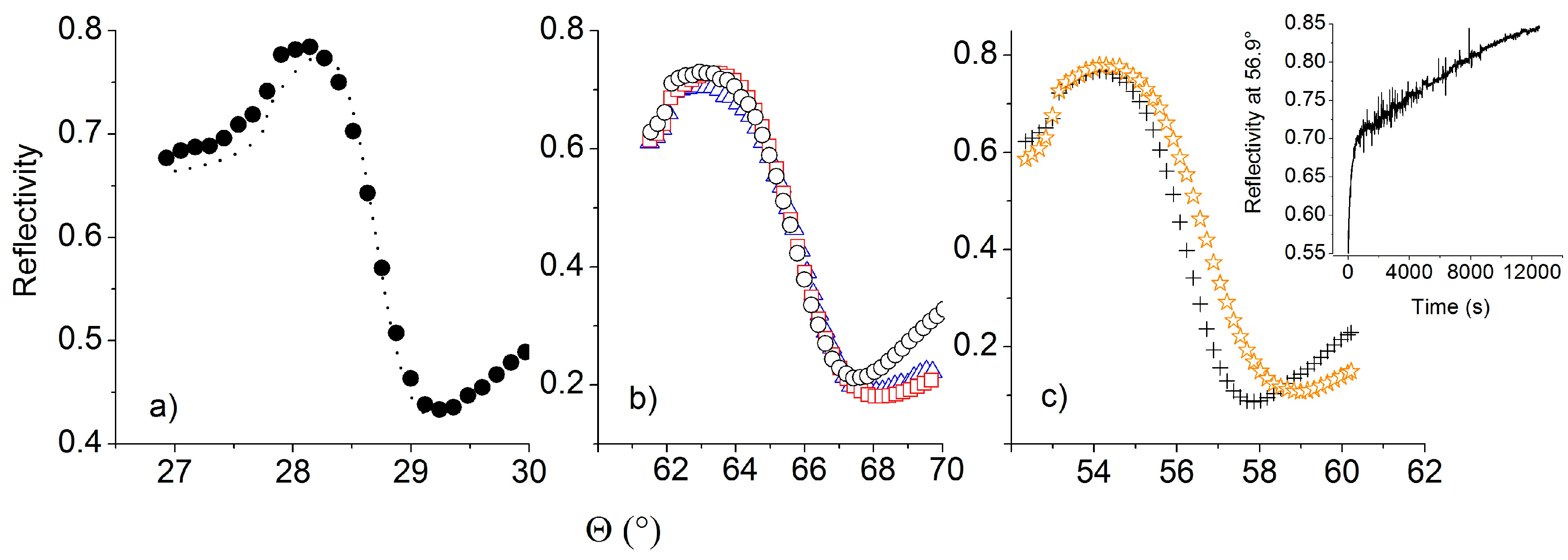

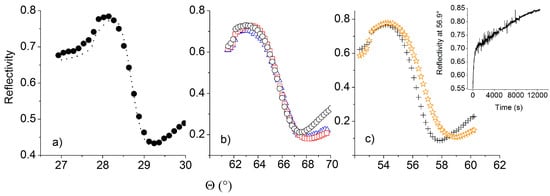

Figure 6. Evolution of SPR curves during the E. coli assay. (a) Al deposition: experimental values (full circles) and fitted curve (dotted line); (b) Oligomer deposition and stability: Al in DMF (open circles), oligomer deposition as prepared (squares) and after 2 washings with DMF (triangles); (c) Fimbriae I detection: Al/15 film before (crosses) and after (stars) 15 h of contact with fimbriae I of E. coli. Inserted figure: kinetic curve of the interaction between fimbriae 1 of E. coli and 15 coated Al sensor.
Figure 6. Evolution of SPR curves during the E. coli assay. (a) Al deposition: experimental values (full circles) and fitted curve (dotted line); (b) Oligomer deposition and stability: Al in DMF (open circles), oligomer deposition as prepared (squares) and after 2 washings with DMF (triangles); (c) Fimbriae I detection: Al/15 film before (crosses) and after (stars) 15 h of contact with fimbriae I of E. coli. Inserted figure: kinetic curve of the interaction between fimbriae 1 of E. coli and 15 coated Al sensor.
Sensors 17 01025 g006
Sensors 17 01025 g007 550

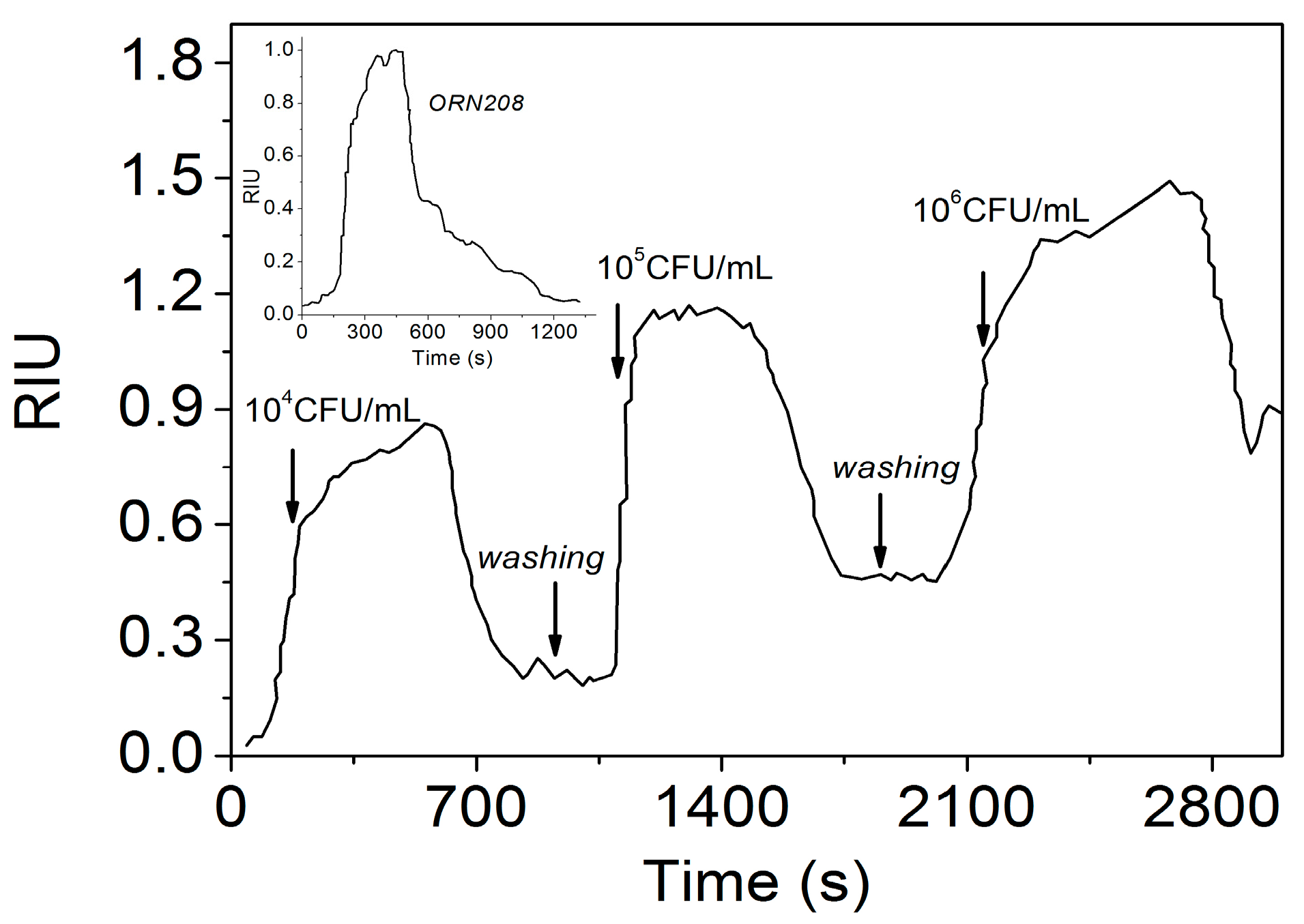

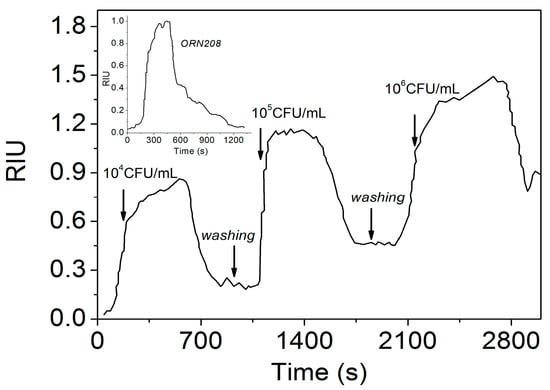

Figure 7. SPR response of 15 coated Al sensor to E. coli ORN 178 with different CFU/mL concentrations. Inserted figure: control experiment: SPR response to E. coli ORN 208 (105 CFU/mL).
Figure 7. SPR response of 15 coated Al sensor to E. coli ORN 178 with different CFU/mL concentrations. Inserted figure: control experiment: SPR response to E. coli ORN 208 (105 CFU/mL).
Sensors 17 01025 g007
Table
Table 1. Optical data of the phenyleneethynylenes (PEs) studied in this work in DMF.
Table 1. Optical data of the phenyleneethynylenes (PEs) studied in this work in DMF.
PEsλabs (nm)ε 104 (M−1 cm—1)λemiss (nm)φ
83807.924570.89
9314,3742.654300.94
12316,3762.144380.05
133854.984501.00
14316,3781.844300.67
15321,3819.124320.02
