Automatic Railway Traffic Object Detection System Using Feature Fusion Refine Neural Network under Shunting Mode
Abstract

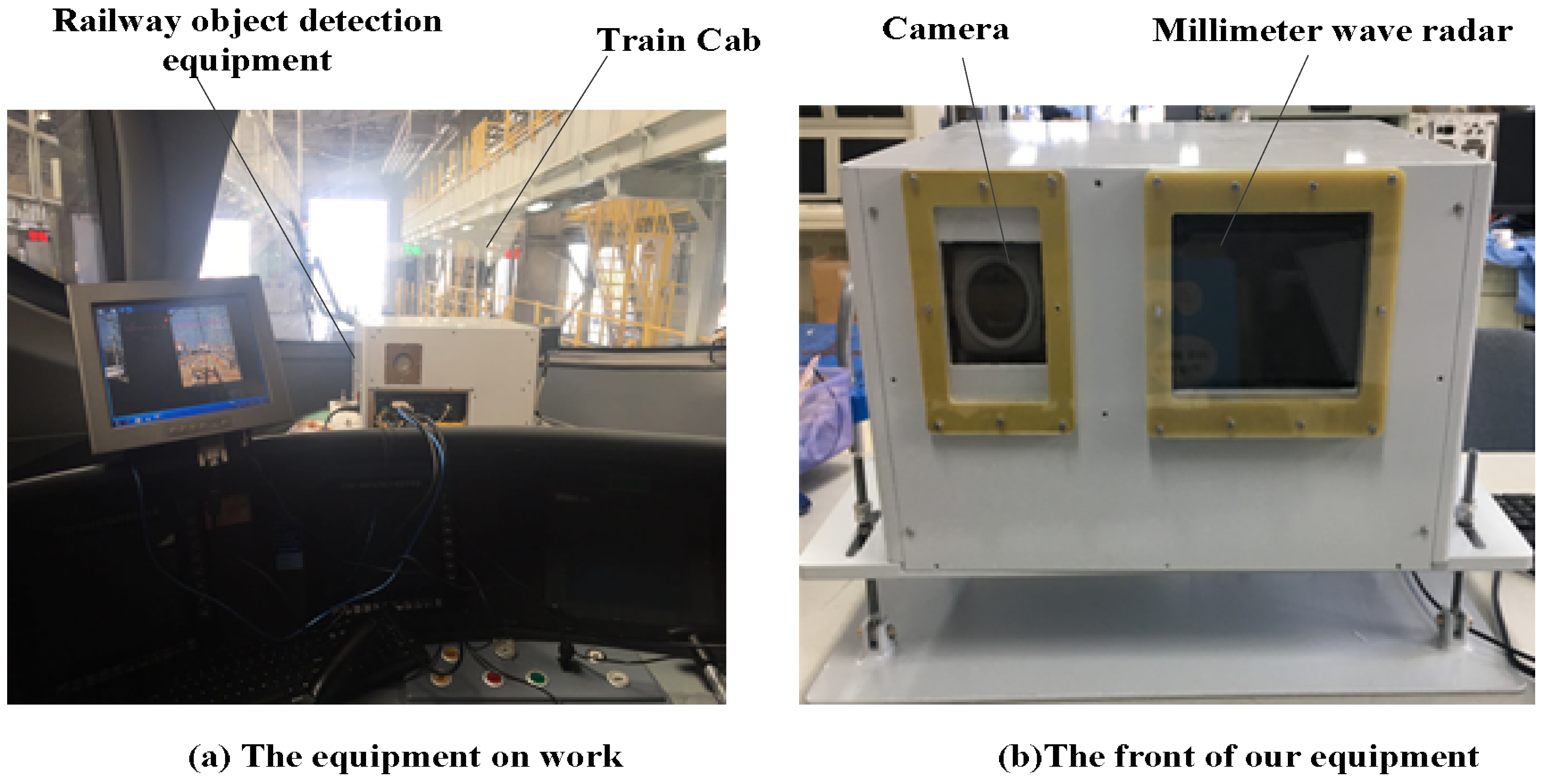

:1. Introduction
- To account for effectiveness and efficiency, three novel parts were introduced in FR-Net, including depthwise convolution, the coarse detection module, and the object detection module. The coarse object detection module provided prior anchors for the object detection module. Taking the prior anchor boxes as the input, the object detection module obtained sufficient feature information using two submodules (i.e., the feature map fusion module and feature fusion module) for object detection. Depthwise convolution was used for efficiency, whereas the other two modules were responsible for effectiveness.
- With input sizes of test images, FR-Net achieves 0.89 mAP with performance of 72.3 frames per second (FPS). The experimental results show that FR-Net balances effectiveness and real-time performance well. The robustness experimental results show that the proposed model can conduct all-weather detection effectively in railway traffic situations. Moreover, the proposed method yields superiority over the SSD for small-object detection.
2. Related Work
2.1. Railway Obstacle Detection Systems
2.2. Object Detection with CNNs
3. Proposes Method

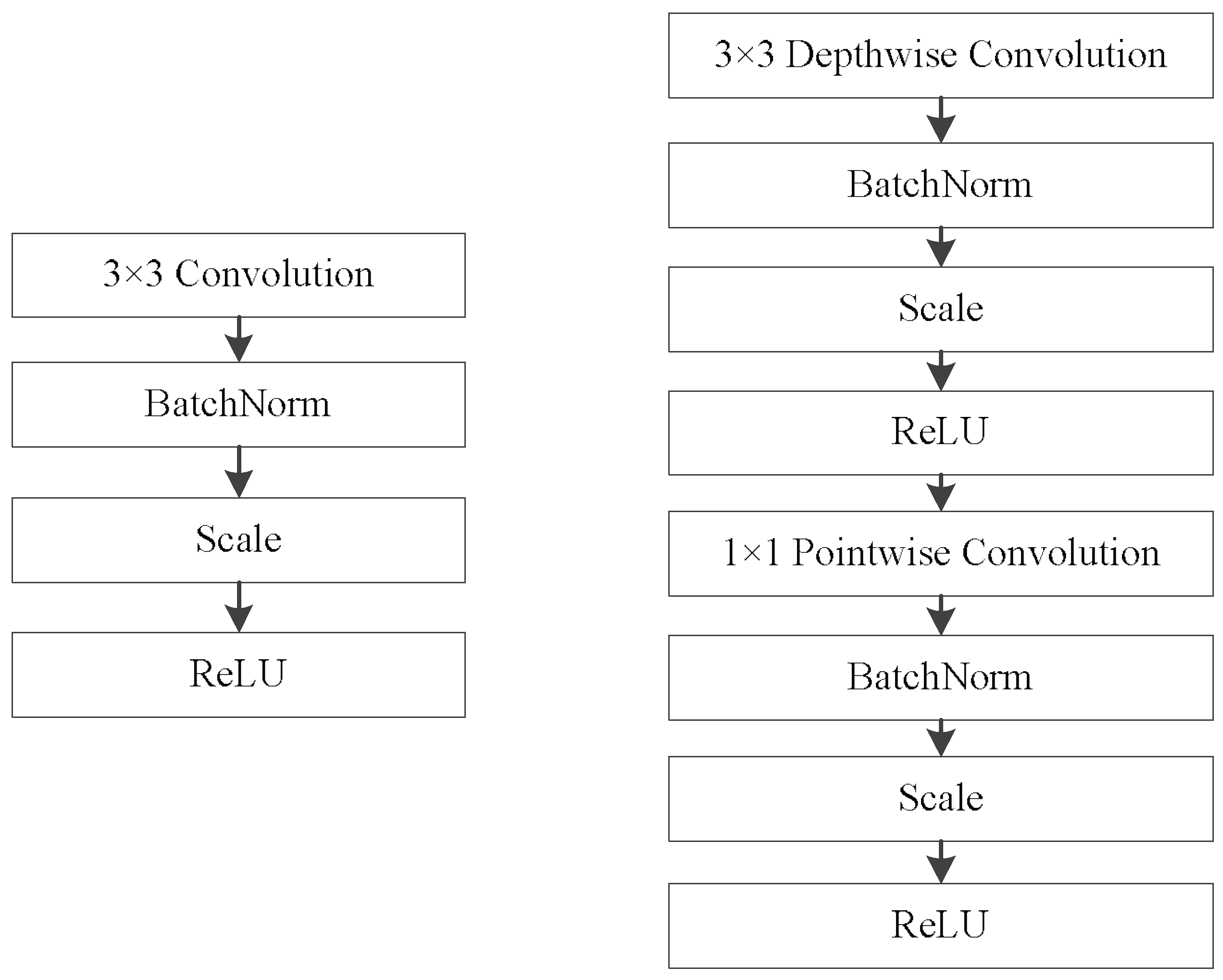

3.1. Depthwise–Pointwise Convolution

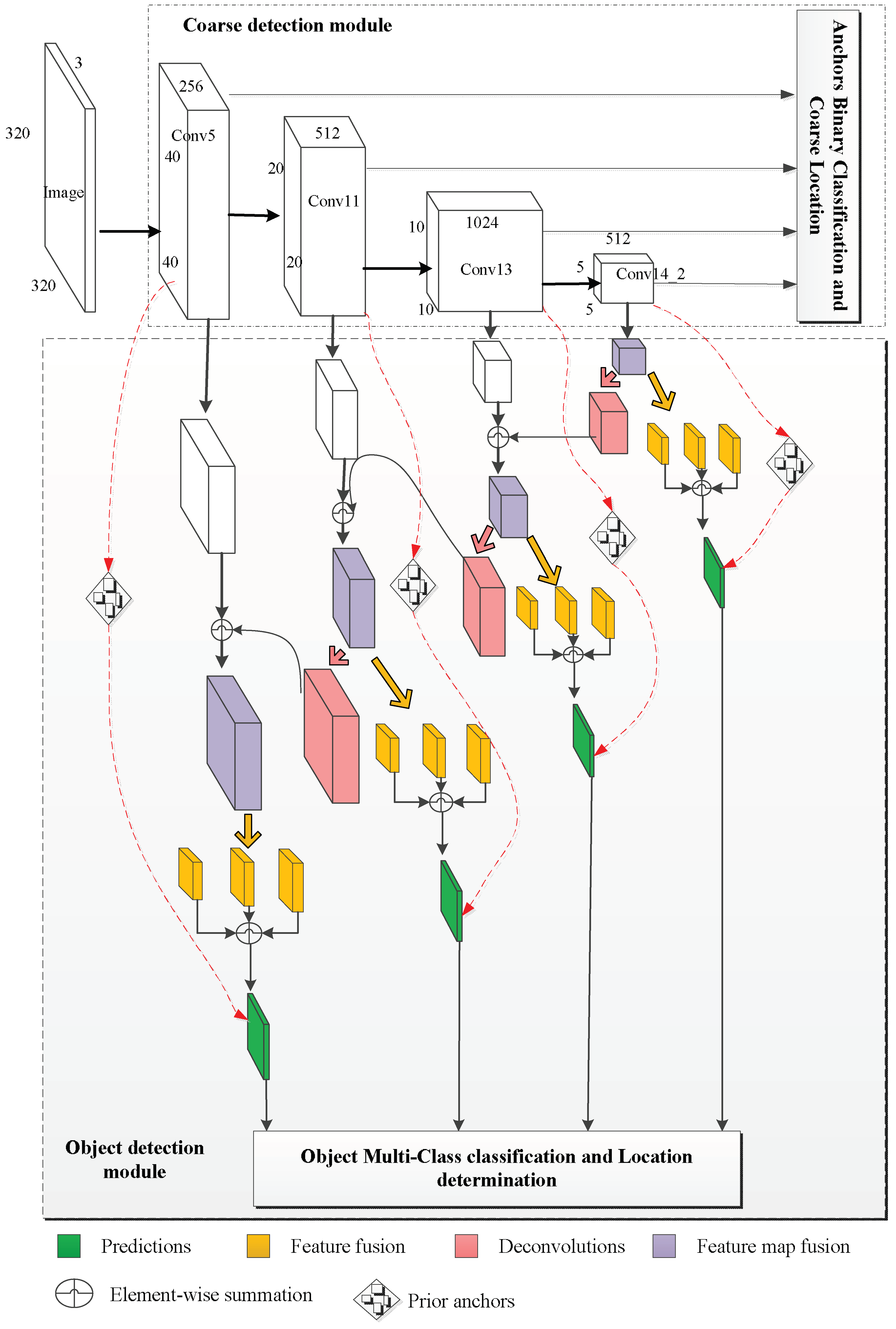

3.2. Coarse Detection Module

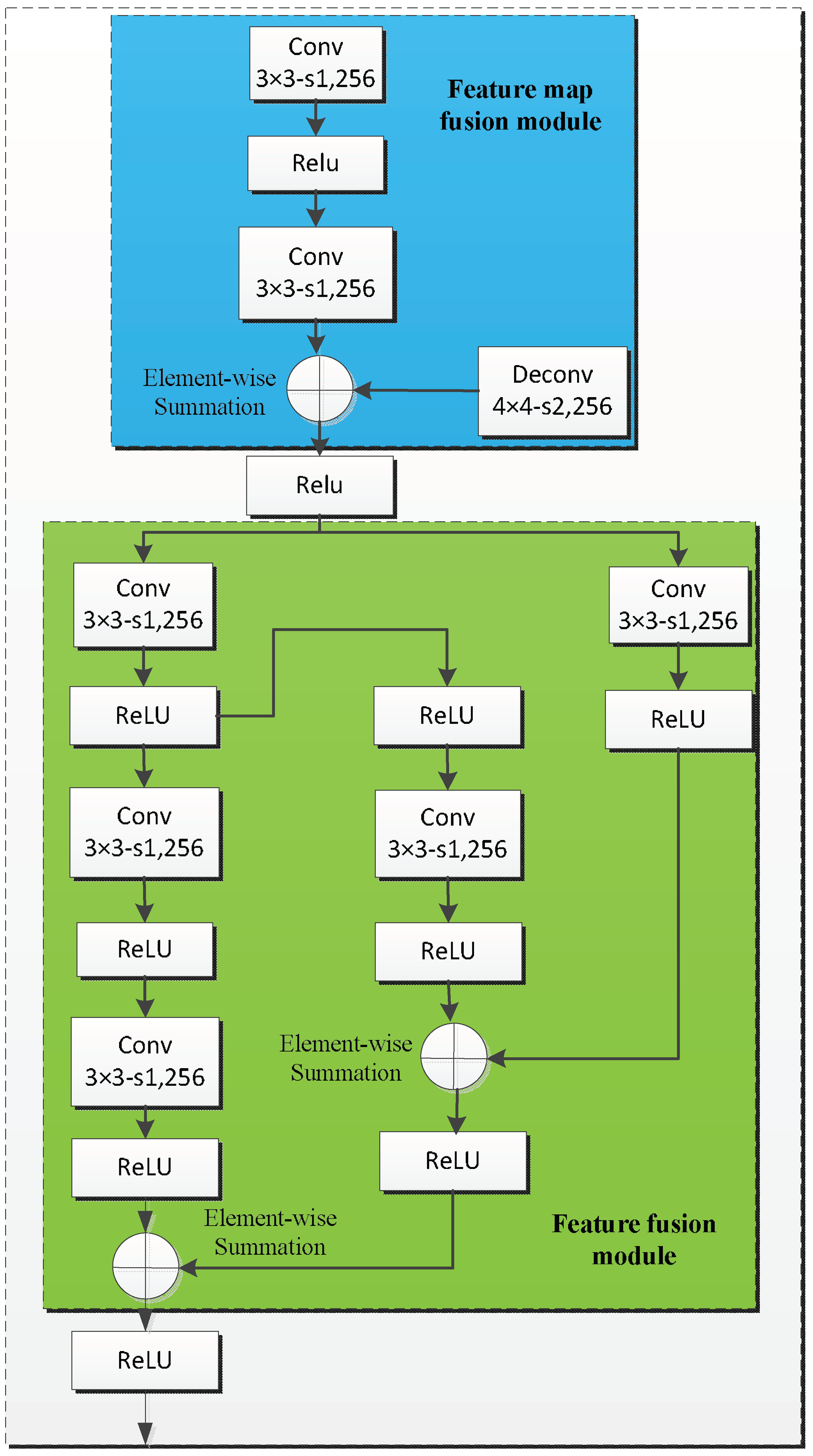

3.3. Object Detection Module
4. Training
5. Experiment and Results
5.1. Datasets
5.2. Effectiveness Performance
Comparison with State-of-Art
5.3. Runtime Performance
5.4. Visual Results of Small-Object Detection
5.5. Robustness Test
5.6. Ablation Study
5.6.1. Comparison of Various Designs

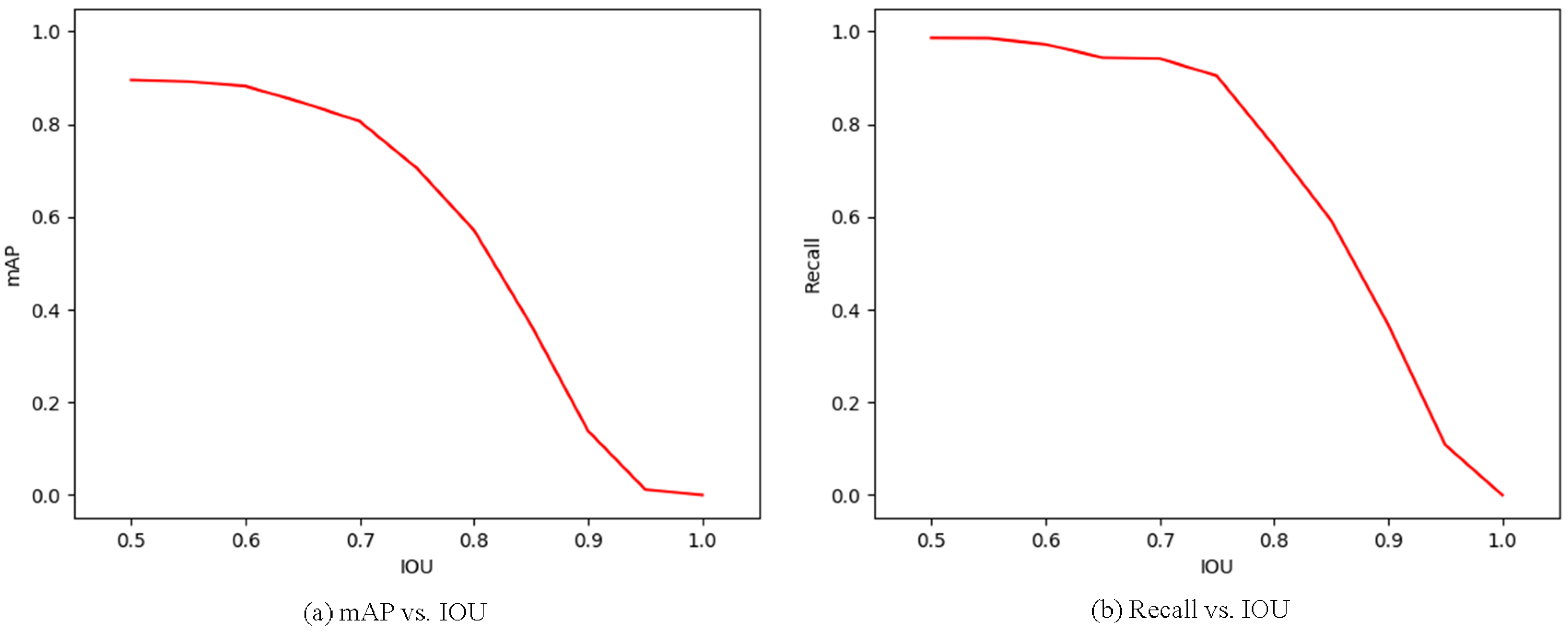

5.6.2. Analysis of mAP and Recall vs. IOU
5.6.3. Performance with Respect to Different Input Sizes
6. Conclusions
Author Contributions
Funding
Acknowledgments
