2.1. Visual Descriptors for Scene Recognition
One of the key aspects to achieve a good performance in scene recognition is the selection of good image descriptors, hence we decided to investigate the performance of classifiers when working with different representations. A good visual descriptor must possess discriminant power to characterize different semantic categories, while remaining stable in the presence of inter and intra-class variations caused by photometric and geometric image distortions [
3]. There are many visual descriptors which are well known in the field of scene recognition [
3,
11]; the most common traditional options are either local or global features, with which impressive results have been achieved. Nevertheless, during recent years a new powerful image-representation extractor based on CNN has appeared which offers the best state-of-the-art performance in scene recognition [
1,
12,
13]. CNNs are inspired by the discoveries of Hubel and Wiesel regarding the receptive fields in the mammal visual cortex. The CNNs are based on three key architectural ideas [
3]: (1) local receptive fields for extracting local features; (2) weight-sharing for reducing network complexity; (3) sub-sampling for handling local distortions and reducing feature dimensions. Therefore, a CNN is a feed-forward architecture with three main types of layers used to map raw pixels to image categories: (1) 2-D convolution layers which implements adjustable 2-D filters—the output of each filter is called a feature map; (2) sub-sampling or down-sampling layers which reduce the dimensional of each feature map but retains the most important information; and (3) output layers to perform the labeling of the image. Recent studies show that general features extracted by CNNs can be transferable and generalized to other visual-recognition tasks [
1,
14], in fact, since designing and training a CNN are computation-intensive tasks, one common option to take advantage of the power the new deep-learning techniques is to use a pre-trained CNN without the last fully connected layers, as feature extractor. In [
15] the authors propose using visual saliency to enhance relevant information and the deep features (using a pre-trained model) from multiple layers of the CNNs for classifying scene images. The authors in [
8] propose a model that combines several CNN architectures with a multi-binary classifier. As opposed to these methods, where CNNs are merely used as feature extractors, in [
16] a Naïve Bayes Nearest Neighbor (NBNN) is integrated with a CNN framework in a deep network that is end-to-end trainable.
The experimental results section will describe the performance of a classifier when using the traditional global and local descriptors, as well as the combination of both, and deep-learning-based ones.
Regarding the first option (local descriptors), the most usual approach consists of selecting some salient points in the image (using SURF, SIFT or similar strategies) [
11,
17], and then building a description from this unstructured set of points using a bag-of-visual-words [
18]. This process works on three stages: (i) Detection of the local salient points together with their descriptors—each salient point has an associated feature vector; (ii) determination of the clusters into which the descriptors are projected: the clusters are called
visual words, therefore the projection of a feature vector corresponding to a salient point into a cluster is equivalent to saying that the image contains a specific word; (iii) description of the image as a collection of words: the image is represented by the histogram of the visual words that it contains.
With respect to global descriptors, they summarize the whole image in a single vector, thus reducing the dependence on image-specific details. The first global descriptor we have considered is the combination of Local Difference Sign Binary Patterns (LSBP) and Local Difference Magnitude Binary Patterns (LMBP) [
19]. The LSBP is non-parametric local transform based on the comparison among the intensity value of each pixel of the image with its eight neighboring pixels. However, in the case of the LMBP, this comparison is based on a threshold, i.e., whether the intensity differences between each pixel and all its neighbors are higher than a certain threshold. After this, we also applied
spatial pyramids [
20], which in this case means partitioning the image into increasingly fine sub-regions and then computing the combination of LSBP and LMBP inside each region. The representations obtained for all regions are concatenated to form an overall feature vector. To avoid very high-dimensional descriptors, we used principal component analysis (PCA) to reduce the size of the LSBP+LMBP combinations. Therefore, using LSBP+LMBP+PCA+
we end up with a 2480-dimensional feature vector for each image: We will call this representation LDBP (local difference binary pattern).
Another global representation that we have considered is the gist of scene [
21], which divides the image into a
grid, filtering each cell using a bank of Gabor filters, and then averaging the responses of these filters in each cell.
Finally, regarding the deep-learning-based techniques, we have used pre-trained CNNs, without the last fully connected layers as feature extractor. Here we used two different architectures from the scene recognition state of the art: VGG-16 [
22] and ResNet152 [
23]. The output feature vectors are 4096- and 2048-dimensional, respectively. These two CNNs were trained using a combination of ImageNet [
24] and Places-365 [
25] datasets, resulting in a total of
million images (1.2 + 8).
2.2. Detection of Meaningful Images
As pointed out in the introduction, there is an important remark to be considered when working with scene recognition, and that is related to the dependency of the view used to capture the images. This problem is even worse in the specific case of mobile robots where the use of constant and predefined frame rates might cause the acquisition of meaningless images, not to mention the poor-quality images (blurred, occluded, or images taken under difficult illumination conditions) and which are either consequence of the movement of the robot and/or the use of a constant frame-rate. We know that some observations are more suitable than others to identify the scene [
26,
27]; in fact studies of large photo databases led Simon et al. to discover that different photographers tend to select the same view when taking photos of the same location, thus suggesting that there is a good agreement on the “best” views of scenes [
28], so that recognition performance is better for experienced views than novel views. In particular, Mou and McNamara [
29] suggest that people use intrinsic frames of reference to specify locations of objects in memory. More specifically, the spatial reference directions which are established to represent locations of objects are not egocentric but intrinsic to the layout of the objects.
To improve the performance in scene recognition for the particular case of mobile robots, we have opted for the development of a metric able to determine when an image is “rich” enough, i.e., it contains enough information to identify the scene. This metric will be used to filter out meaningless or noisy frames, retaining only the relevant images. This proposal is somehow equivalent to limiting the number of views that are valid to perform the recognition of the scene. Our metric is inspired in the concept of canonical views [
27,
28,
30,
31,
32], in particular in one of the three characteristics that these images are supposed to fulfill: coverage. Our metric will try to rank the images according to their content of information and particularly based on the distribution of key points across the image. Our metric prioritizes those images that contain relevant key points scattered all over it. If there are few objects the saliency points will be concentrated in a small region (

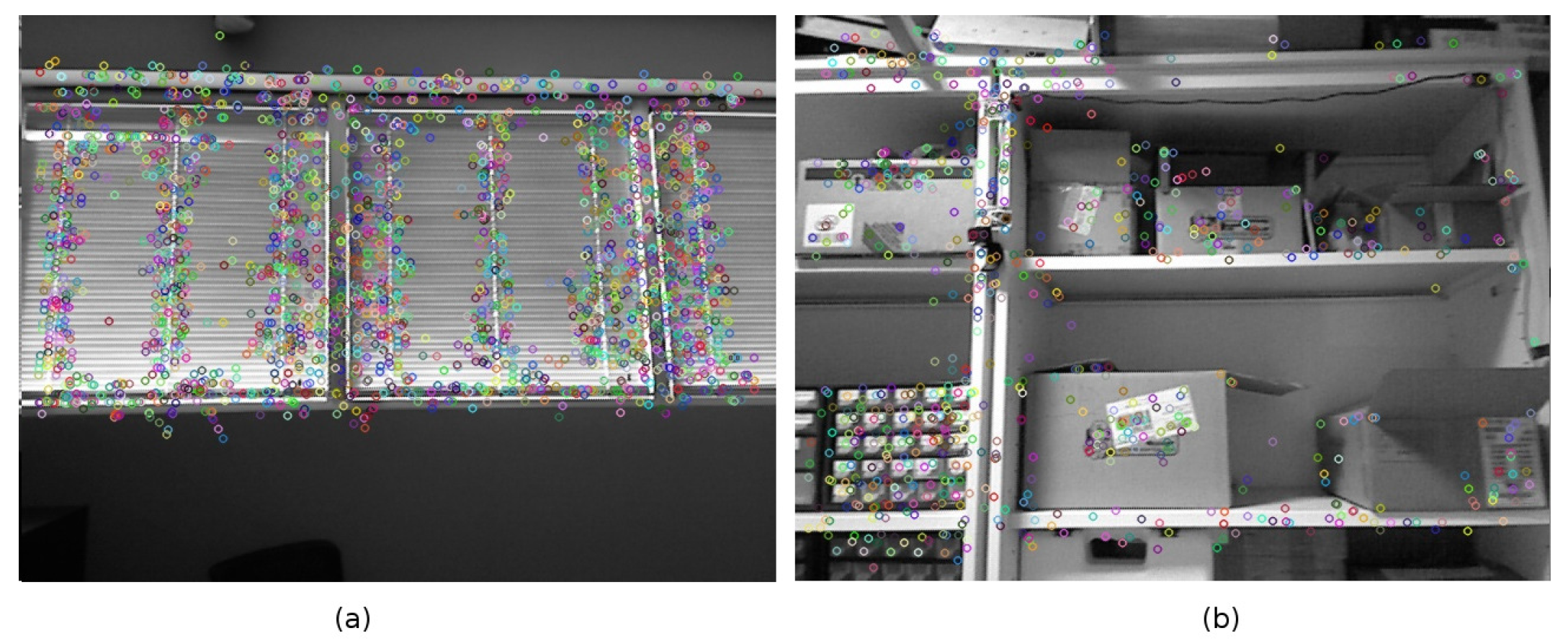

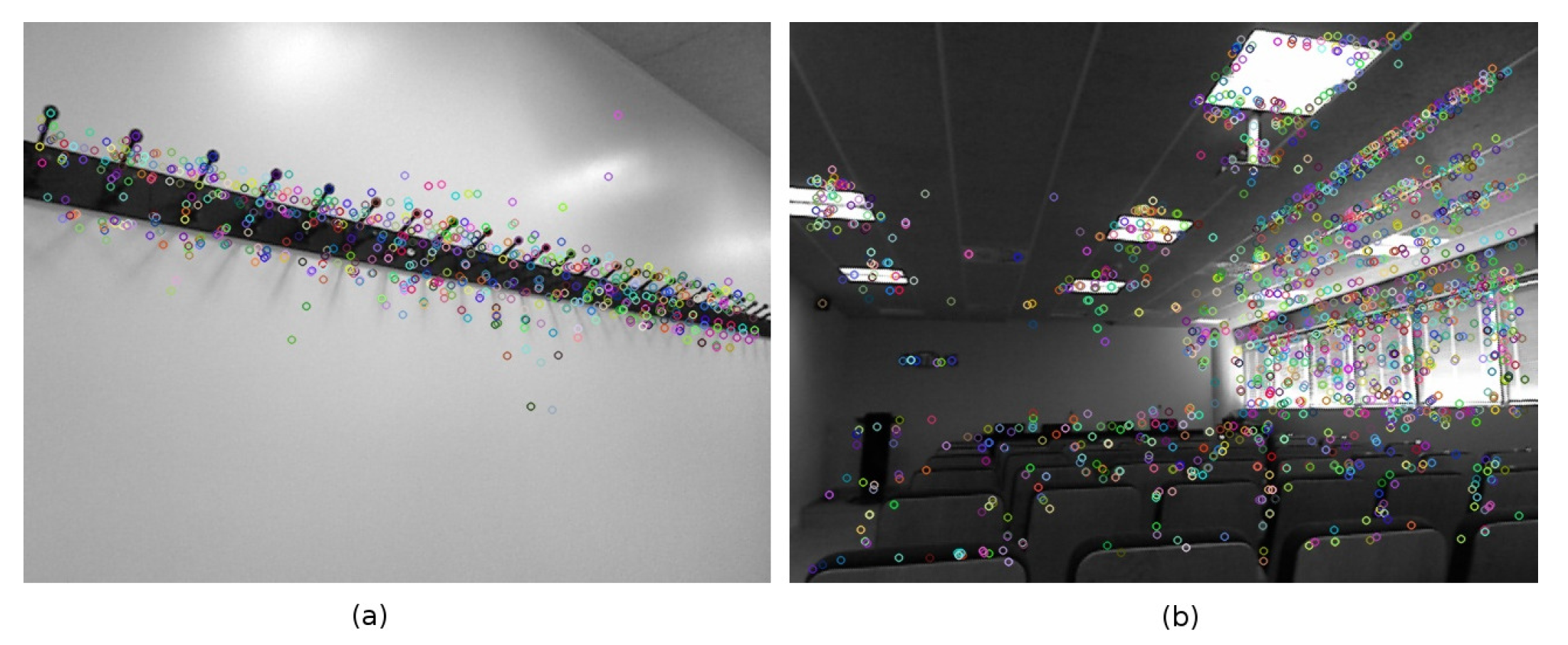

Figure 1a); however, extensive views tend to include more objects and get a high scattering of key points (
Figure 1b). Unfortunately, high scattering of saliency points does not necessarily mean far or extensive views; therefore, the metric also must prioritize the presence of far objects (
Figure 2). RGB-D sensors provide valuable distance information which complements the one provided by intensity features.
Since we need to deal with distances, we will assume that we will work with the information provided by an RGB-D sensor (such as the Kinect or the Asus Xtion Pro Live). Therefore, in addition to an RGB image we also get a depth map which provides, for every pixel, information about the distance from the sensor. Therefore, not only do we have an image of the scene but also a point cloud in the 3D space. This is the reason we have used a key point detector specifically designed for 3D meshes: Harris 3D [
33]. We are aware that other options such as NARF [
34], or even different deep-learning architectures for saliency [
35,
36], can be used. Nevertheless, we assume that more important than the method applied to determine saliency is how these salient points or regions are scattered in the image, which principally helps to determine when the image is representative of the scene.
Considering all this, we designed a heuristic metric to determine the relevance, coverage, or
representativeness of an image, made up of two terms:
where
M is the number of grid regions
in which each RGB-D image is divided,
is the function which returns the number of Harris 3D key points detected in
,
T is a threshold,
is the Heavised step function,
is the depth of key point
j in
, and
and
are normalizing parameters, the number of pixels in each grid region and the maximum grid depth, respectively. The first term of the equation favors images with a big number of scattered key points, while the second term favors images with a high proportion of distant key points. As a whole, this metric favors images with a good coverage of a scene, as explained in detail hereafter.

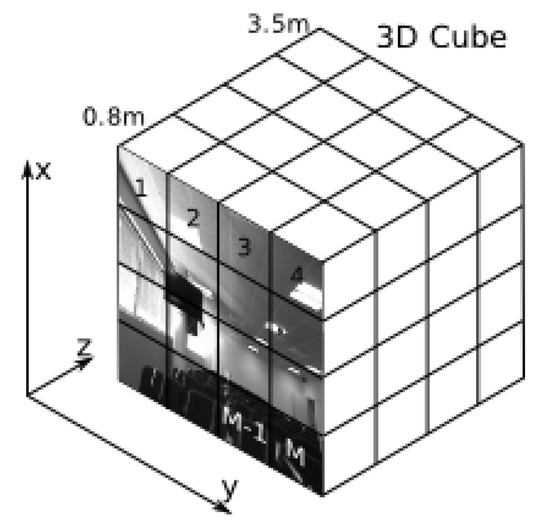

When Harris 3D or NARF 3D are applied to detect the interest points in the image, the use of our metric involves dealing with the image as a cube instead of a 2D surface (
Figure 3), in which the Z-axis represents the distances at which the different points can be detected (in our case from 0.8 m to 3.5 m). The first term of our metric reflects up to what extent the key points are scattered all over the image. Thus, if we divide the XY plane (i.e., the image,
Figure 3) into a set of M-regions, the value of this first term, within the interval
, determines how many of these small regions contain more than T key points;
represents the number of key points detected in the
ith quadrant of the XY plane, while
is the Heavised step function:
The second term of our metric tries to point out those images that contain far objects in the scene. In this second term represents the distance to the interest point j in quadrant i. This second term considers the percentage of pixels in each one of the M-regions of the image that are distant salient points, i.e., key points that are detected far from the sensor (in the Z-axis). On the other hand, this second term tries to give priority to those regions which contain a high percentage of key points.
Regarding the parameters of this metric, a grid search procedure will be enough to set the number of regions M in which each RGB-D image is divided, and the threshold T. It is enough to build a very small validation set in which images are sorted in two groups, relevant or noisy. Next the values of M and T are searched so that the images with a high score according to the coverage metric (among the 33% best-valued) should tend to be the same as the ones labeled as relevant in the validation set, and on the contrary, the images labeled as noisy should have a low value according to the coverage metric. In our case, the size of the images we work with is 640 × 480 pixels, the value of M is 84 (3 × 4 × 7), and the threshold T is 3.
2.3. Design of a Classifier Able to Incorporate Information about Image Relevance/Coverage
Now we will describe how we can use the coverage metric described in the previous section to limit the number of viewpoints from which we try to recognize the scene. We need a strategy able to set automatically when the camera has just acquired one of these valid views, in the sense that it contains enough information and hence it is possible to proceed with scene recognition.
First, during the
training stage, all images included in the
training set are evaluated according to our metric. Thus, we sort and subdivide the training images belonging to the same class in three categories—
,
, and
—where
contains all images of the training set belonging to the same class and which are among the
best-valued, while
and
represent the second and third thirds (and this is done for every class). After this, we compute the Minimum Spanning Tree (MST) [
37], which connects all the images (nodes) of the training set, making up a graph without cycles which verifies that the sum of the distances among the connected nodes is the minimum among all possible trees that can be formed from the same set of nodes. The fact that there are no cycles means that there is only one path among any two nodes in the tree (

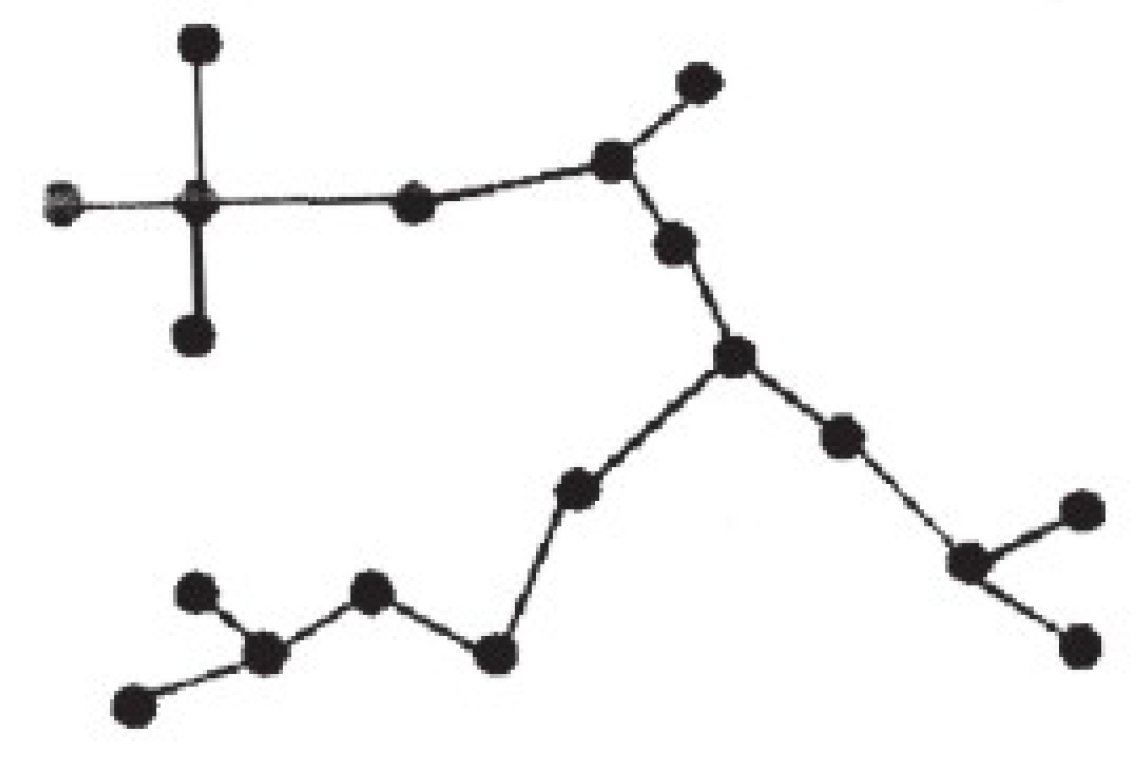

Figure 4).
Every node of the MST stores three pieces of information: the descriptor of the image (a 3080-dimensional descriptor concatenating LDBP and SURF vector features), the coverage value (according to our metric), and finally, whether the represented image belongs to or not. Nodes are connected by edges while weights are the distances between them. This distance is defined as the absolute value of the dot product of the image descriptors of the pair of edge-connected nodes.
Once a classifier has been trained and the MST created, for any new image we will look for the edge of the MST that is closest to this new image [
38]. If the two nodes of the nearest edge are relevant (i.e., within
), plus their coverage values are lower than the coverage value of the new image, we conclude that the new image is valid to identify the scene (this only means that this image will be passed through the classifier). This new image will be also accepted for classification when only one of the two nodes of the MST’s closest edge belongs to
, but its coverage value is lower than the coverage value of the new image. Finally, if none of the two nodes of the MST’s closest edge belong to
, the new image is automatically discarded for labeling. In the experimental results we analyzed the performance of this criterion, but we also considered another alternative which is a bit more flexible; when both nodes connected by the MST’s closest edge are relevant, i.e., belong to
, the new image is automatically accepted for its classification.
