Dissolved Carbon Dioxide Sensing Platform for Freshwater and Saline Water Applications: Characterization and Validation in Aquaculture Environments

Abstract

A sensing configuration for the real-time monitoring, detection, and quantification of dissolved carbon dioxide (dCO₂) was developed for aquaculture and other applications in freshwater and saline water. A chemical sensing membrane, based on a colorimetric indicator, is combined with multimode optical fiber and a dual wavelength light-emitting diode (LED) to measure the dCO₂-induced absorbance changes in a self-referenced ratiometric scheme. The detection and processing were achieved with an embeded solution having a mini spectrometer and microcontroller. For optrode calibration, chemical standard solutions using sodium carbonate in acid media were used. Preliminary results in a laboratory environment showed sensitivity for small added amounts of CO₂ (0.25 mg·L⁻¹). Accuracy and response time were not affected by the type of solution, while precision was affected by salinity. Calibration in freshwater showed a limit of detection (LOD) and a limit of quantification (LOQ) of 1.23 and 1.87 mg·L⁻¹, respectively. Results in saline water (2.5%) showed a LOD and LOQ of 1.05 and 1.16 mg·L⁻¹, respectively. Generally, performance was improved when moving from fresh to saline water. Studies on the dynamics of dissolved CO₂ in a recirculating shallow raceway system (SRS+RAS) prototype showed higher precision than the tested commercial sensor. The new sensor is a compact and robust device, and unlike other sensors used in aquaculture, stirring is not required for correct and fast detection. Tests performed showed that this new sensor has a fast accurate detection as well as a strong potential for assessing dCO₂ dynamics in aquaculture applications.

1. Introduction

Dissolved carbon dioxide (herein noted as dCO₂) is a very important parameter in many different fields, e.g., monitoring oceans, rivers, streams, and lakes, food industry (including aquaculture), and clinical analysis [1,2,3,4,5,6,7,8]. Besides the actual concern with ocean acidification due to the increasing atmospheric carbon dioxide (CO₂) levels [9,10], dCO₂ evaluation and control is particularly vital in aquaculture, as cultivated species are highly sensitive to the excess of this gas [11]. A detailed knowledge on short-time dCO₂ variations in intensive fish production systems (as are recirculating aquaculture systems, RAS) has been hindered, among other factors, by the long response time of the commercial sensors that are in use, as they do not allow highly frequent measurements. Moreover, this parameter can change rapidly with normal fish farm operations (e.g., feeding events, which increased fish and bacterial metabolism and thus dCO₂ production), or with performance changes of the recirculated water treatment components, such as the biofilter, gassing (O₂), or degassing (CO₂) units, which are more pronounced in seawater [12]. So, sensors are needed with fast response time to obtain more dCO₂ data per unit of time, which is crucial in studies of dynamic systems, as are the recirculating aquaculture systems [13]. Besides fast response time, high sensitivity is another aspect of interest in intensive aquaculture, not only to assess irregularities in system functioning, but also to monitor dCO₂ concentrations in the very low range (e.g., 1 mg·L⁻¹), which are expected, for example, in hatchery and nursery production facilities [13]. Nevertheless, dissolved CO₂ detection is difficult because when CO₂ dissolves in water, physical and chemical equilibria occur, and different products are generated [8]. Moreover, commercial sensors for dCO₂ detection and evaluation in aquaculture environments are scarce, and adequate sensors for more demanding operations, such as real-time monitoring or low operation ranges, are missing [14]. So far, known methods for dCO₂ measurements in an aqueous medium, include gas chromatography [8,15], colorimetric sensors (fluorescence) [8,16], amperometry [17], potentiometry [4,18,19], UV/Vis spectrophotometry [20,21], and IR spectrometry [8,22]. However, it is reported that evaluating dCO₂ using some of the techniques referred above is difficult or not adequate for field work, and other analytical techniques are preferred [8]. In aquaculture, the utilization of commercial dCO₂ analyzer (such as OxyGuard, model Portable CO₂ Analyzer, Denmark) has been thoroughly studied and described based on dCO₂ partial pressure detection via IR absorption, needing a certain flow under the probe membrane for best performance [12,14,23]. More recently, optical sensors gained strength in the sensing area and for a wide variety of analytes, with no exception for dissolved carbon dioxide. These sensors can be more robust, compact, fast responding, and cheaper [8,24]. Usually, these optical devices are fluorescence-based (light emission) or colorimetric-based (light absorbance) sensors [8]. An example of the first method utilization is referred by Atamanchuk et al., who used an optrode for measuring the partial pressure of dCO₂ in natural waters. The sensor is based on pH changes originated by CO₂ diffusion and fluorescence signal response [25]. Contreras-Gutierrez et al. also developed a dCO₂ fiber optic sensor using a polymer matrix directly combining a fluorescent dye with the polymer molecule [26]. More recently, Thomas et al. added a second dye to extend the fluorescence lifetime from nanoseconds to microseconds, which reduced the cost of the interrogation system used to interrogate only the fluorescence of the first dye [27]. Normally, these are called “wet sensors” [8]. These kind of sensors require the use of an aqueous solution phase, which can be seen as a disadvantage [25]. Its response can be affected if the osmotic pressure of the tested system is significantly different from that of the sensor [8,28]. On the other hand, it is possible to detect and evaluate dCO₂ using also the so-called “dry sensors” [8]. This type of sensors use a solid-state system that itself uses a quaternary ammonium, QA⁺OH, as a transfer agent (TA) to detect dissolved carbon dioxide, and these form a very popular system these days [8]. However, it is crucial to choose a suitable material according to the required applications. For example, Mills and Yusufu (2016) [1] reported a promising colorimetric-based dry sensor using a pH-sensitive dye, thymol blue. Nevertheless, the thymol blue membrane decreases its sensibility in water, which can be a problem for applications requiring high sensitivity. Therefore, a material is required that keeps its sensing properties in different application environments. In the present work, a new sensing device was developed, combining a solid-state membrane based on a colorimetric indicator, poly p-nitrophenol (pNPh), with multimode fiber optic patch cords and a dual wavelength LED. This sensing platform works with a ratiometric detection scheme to measure the absorbance changes caused by the dCO₂ interactions with the chemical membrane. The sensing chemistry comprises a thin layer formed by a colorimetric indicator/solvent/TA/plasticizer generated by spin-coating on the top of a Mylar foil (as substrate). The resultant layer contains a sensitive dye in its deprotonated anionic form, which is subsequently covered by a hydrophobic silicone layer fixed in a proper support specially designed for the purpose. The sensor was tested for low dissolved carbon dioxide concentrations (needed for adequate water quality monitoring and control) with the goal of studying its viability for aquaculture applications.

2. Materials and Methods

2.1. Chemical Reagents and Other Materials

The sensing membrane was obtained through complex cocktails developed with the following chemicals: p-nitrophenol (Sigma-Aldrich ReagentPlus^®, ≥99%, St. Louis, MO, USA) as a colorimetric monomer for poly pNPh synthesis; tetraoctylammonium hydroxide solution (TOA-OH, Sigma-Aldrich, 20% in methanol) as a quaternary ammonium, and hydrogel D4 solution (AdvanceSource Biochemicals, 10% in Ethanol, 96%; Lawrenceville, NJ, USA). Sylgard 184 (Dow Corning, 10:1; Midland, MI, USA) was used as a permeable silicone to cover the sensing membrane. Dry nitrogen (N₂) was supplied from a 50 L bottle (Linde, ≥99.99%; Dublin, Ireland) and CO₂ was supplied from a 30 L bottle (Linde, ≥99.99%). For chemical calibrations, citric acid (C₆H₈O₇, Merck^®; Darmestadt, Germany) and sodium carbonate (Na₂CO_3, Sigma-Aldrich, >99.5%; St. Louis, MO, USA) were used.

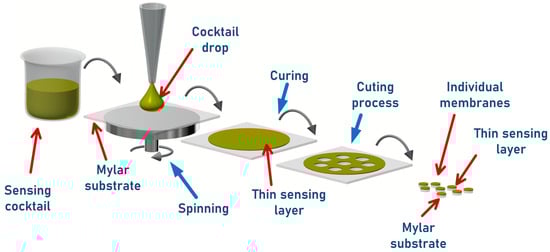

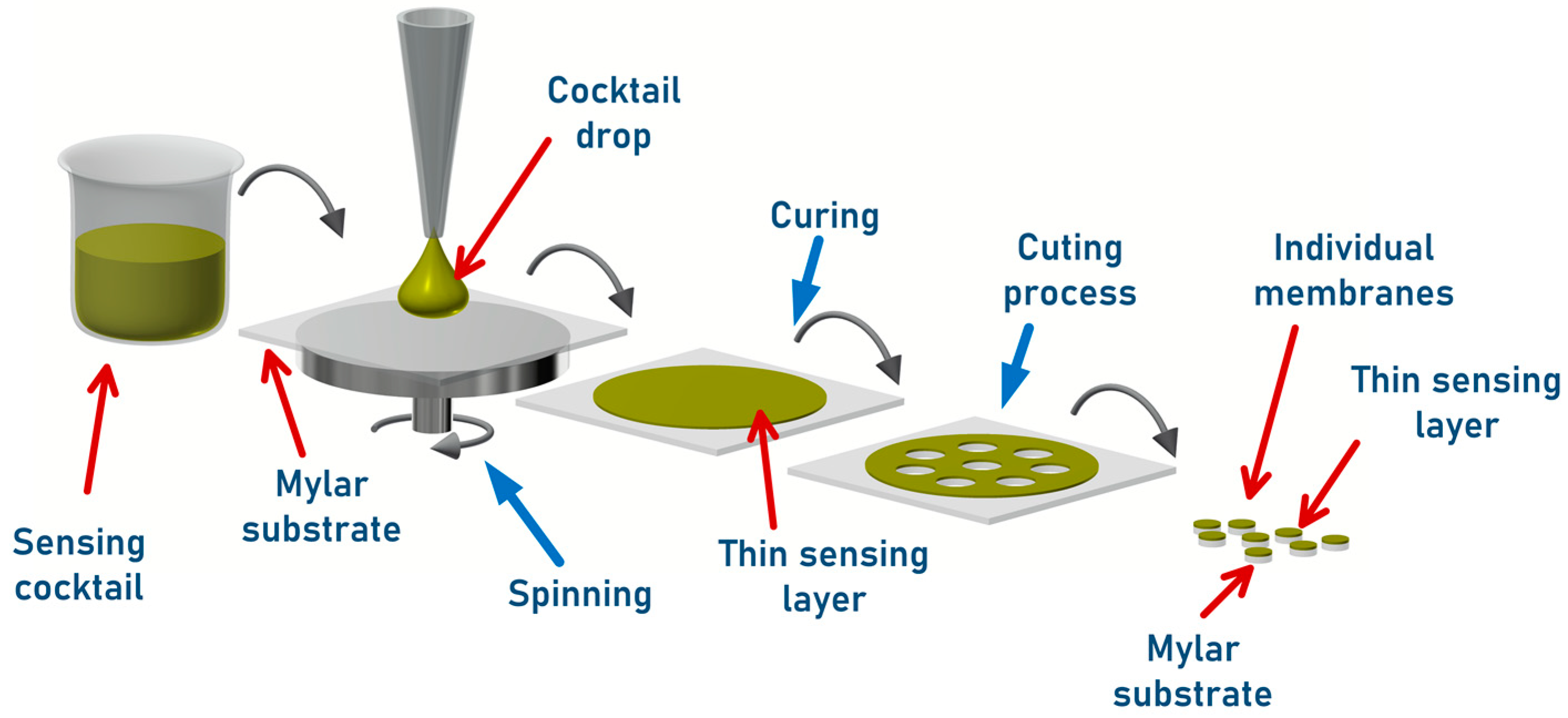

2.2. Sensing Layer Preparation and Sensing Chemistry

The sensing layers were attained by the dissolution of 2.00 mg·L⁻¹ of poly pNPh in 0.05 mL of a MeOH:H₂O solution (1.5:1) and 0.50 mL of 0.50 M TOA-OH solution. After total dissolution, 0.10 mL of a 10% hydrogel D₄ solution was added to ensure the formation of a network chain of a single polymer molecule to form one big molecule on the macroscopic scale. The resulting cocktail was spread on a Mylar foil by spin-coating (900 rpm for 60 s) and allowed to dry for 2 h. The resulting sensing membranes should be stored at 4 ºC until the encapsulation process. The sensing chemistry comprises a sensitive dye in its deprotonated anionic form, resulting from the ion pair formation, QA⁺pNPh⁻. The formed ion pair is normally associated with a few molecules of water, QA⁺pNPh⁻.xH₂O, which can explain its interaction with the dissolved CO₂ (Equation (1) adapted from reference [8]). Figure 1 shows the preparation process of the sensing membrane.

$$Q{A}^{+}pNP{h}^{-}·x{H}_{2}O+C{O}_2\leftrightarrows Q{A}^{+}HC{O}_3^{-}·\left(x-1\right)H_{2}O·HpNPh$$

(1)

2.3. Dissolved CO₂ Optrode Configuration

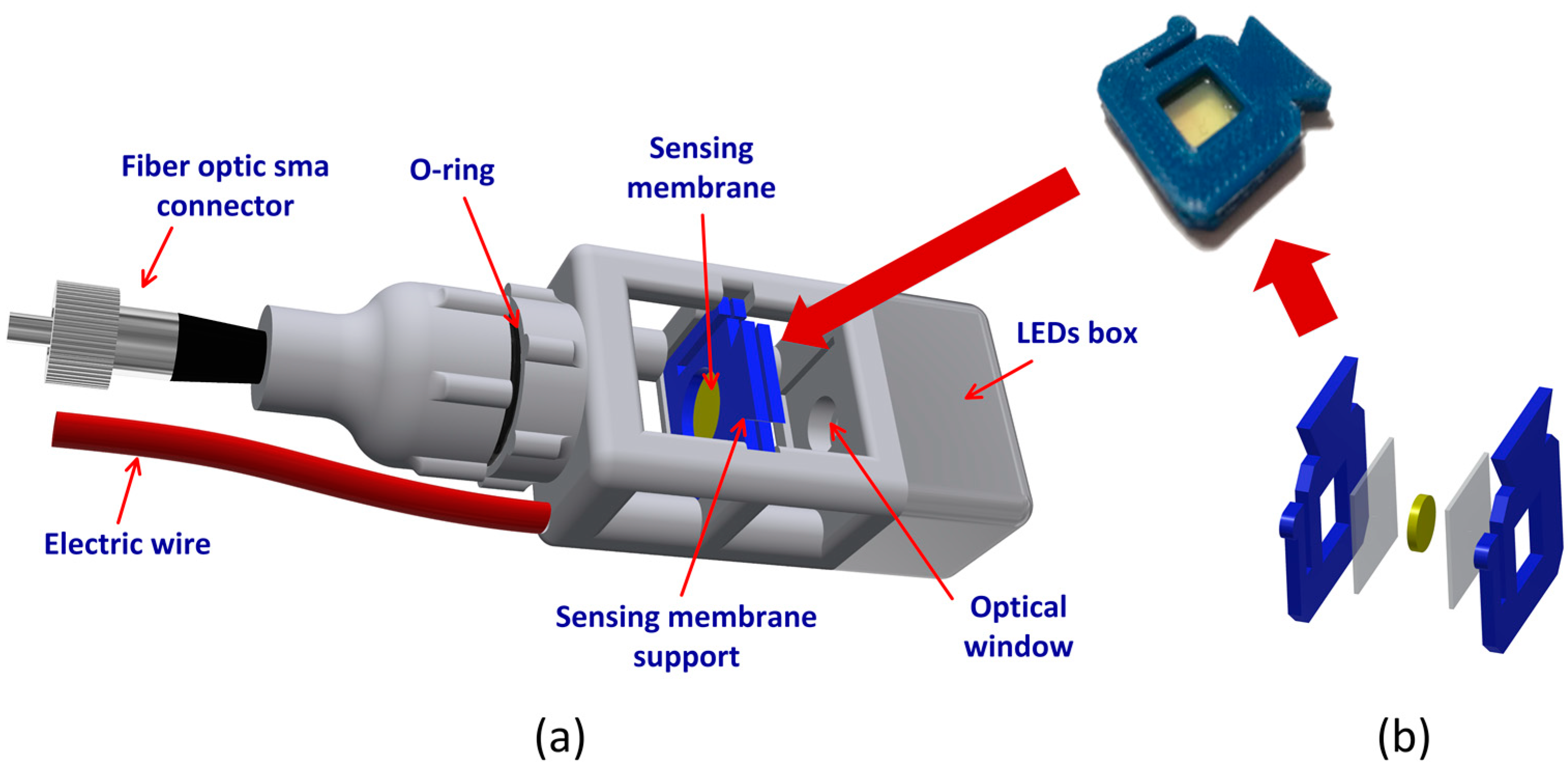

The sensing device is based on a transmission colorimetric setup combining a sensing layer placed between a dual wavelength LED and a large core optical fiber (Figure 2a).

As mentioned before, the sensing layer needs to be encapsulated between two protective membranes, allowing it to be dipped in water. For this process, two plastic supports covered by a thin film (approximately 90 µm) of Sylgard 184 (base:curing agent, 10:1; Dow Corning, Midland, MI, USA ), previously cured, were used. The sensing membrane was placed between the plastic parts that were sealed with fresh silicone and allowed to dry overnight at 25 °C. The sensing membrane support (Figure 2b) and the sensing head structure (Figure 2a) were 3D printed (Zortax M2000; material: Z-Ultra T; Olsztyn, Poland). As shown in Figure 2a, the sensing head is composed by a light-emitting diode (LED) box containing an additive color model in which red, green, and blue light are added together in various ways to reproduce a broad array of colors (a.k.a. RGB LED; Kingbrigth Europe, Lindenau, Issum, Germany), powered by an electric wire, working in two specific wavelengths: 460 nm for blue light (detection band) and 645 nm for red light (reference signal). A fiber optic connector was placed in the other extreme to attach a fiber optic cable to guide the light to a mini spectrometer (Hamamatsu C12880MA, Shizuoka, Japan) in the UV-Vis band incorporated into an electronic platform specially designed for this purpose. Both sides of the sensing head are separated from the external medium by an optical window (glass) that also contains two plastic lenses (Roithner LaserTechnik GmbH, Wien, Austria) inside to collimate the beam, which improves the collected signal. This configuration allows a great proximity (approximately 100 µm distance) between the aqueous medium and the sensing surface, which measures without stirring (similarly to potentiometric electrochemical sensors and some optrodes). The use of fiber optic cables allows for potentially real time, multipoint, and continuous measurements as well as the construction of a miniaturized sensing platform [14,29]. As the mini spectrometer needs to be connected to a PC, the data acquisition is possible at a larger scale. For data acquisition and real-time data observation, homemade LabView interactive software was designed to process the optical signals.

2.4. Assessment of the dCO₂ Optrode Performance

2.4.1. Experimental Setup and Conditions for Laboratory Assays

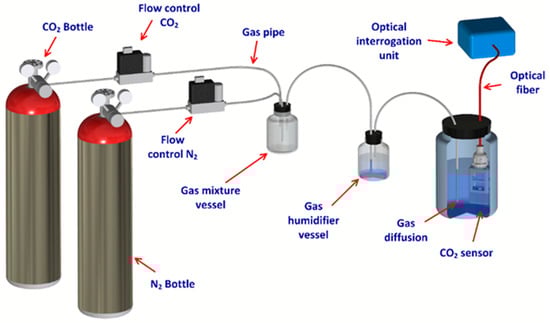

A set of tests was performed to evaluate the optrode performance in different laboratory situations. Initially, the sensor was tested with a humidified gas mixture composed by CO₂ and N₂ supplied by gas bottles. The percentage of the gases in the mixture was varied using high-resolution mass-flow controllers (Brooks, SLA5800 Series; Hatfield, PA, USA)). The gases were mixed in a vessel before humidification. These types of tests were performed to confirm that the chemical membrane was sensitive to gaseous CO₂ variations. Further laboratory assays were conducted using the same gas mixing bottle with 200 mL of deionized water (Wasserlab, Micromatic-Type II Analytical Grade Water; Barbatáin (Navarra), Spain). The same concentrations of gases were injected to test the sensor behavior to dCO₂ variations. Both tests were made without stirring. Figure 3 shows the general scheme of the laboratory setup.

2.4.2. Optrode Calibration

The sensor was calibrated using deionized water and saline solution (at 2.5%) for a range of dCO₂ concentrations from 1.00 to 20.00 mg·L⁻¹. The maximum value tested was the maximum recommended value for fish farming [30]. The calibration tests were made using a standard Na₂CO₃ solution (0.300 ± 0.001 g dissolved in 50.00 ± 0.05 mL of ultra-pure water) with well-known dCO₂ concentrations in deionized water and in saline aqueous solution (2.5%), which were previously acidified with citric acid (pH ≈ 3; V = 200 mL). The formation of carbon dioxide results from the stoichiometric reaction of sodium carbonate in an aqueous citric acid solution, as shown in Equation (2). This procedure was adopted in order to compare the results with calibration procedures implemented by commercial CO₂ analyzers (namely OxyGuard).

$$3C{O}_3^{2-}+2C_6{H}_8{O}_7\to 2N{a}_3{(C_6{H}_5{O}_7)}^{3-}+3H_{2}O+3C{O}_2$$

(2)

Through the calibration curve it was possible to determine the sensor limit of detection (LOD) and the limit of quantification (LOQ) using the “calibration curve parameters method” [31]. The mathematical Equations (3) and (4) were used for LOD calculation, where Y_LD is the instrumental signal of the LOD, a₀ is the zero intercept value, t is the unilateral critical value for a 90% confidence interval for (n-p) degrees of freedom (n is the number of points of the calibration curve; p is the number of parameters), SDa₀ is the standard deviation of the zero intercept value, X_LD is the concentration corresponding to the LOD instrumental signal, and b is the slope of the calibration curve. Equations (5) and (6) were used for LOQ, where Y_LQ is the instrumental signal of the LOQ, and X_LQ is the concentration corresponding to the LOQ instrumental signal (adapted from reference 30). All the other symbols for Equations (5) and (6) are described in the description of Equations (3) and (4).

$$y_{LD}=a_0+2\times t_{0.10\left(n-p\right)}^u\times S{D}_{a_0}$$

(3)

$$x_{LD}=\frac{y_{LD}-a_0}{b}$$

(4)

$$y_{LQ}=a_0+3\times 2\times t_{0.10\left(n-p\right)}^u\times S{D}_{a_0}$$

(5)

$$x_{LQ}=\frac{y_{LQ}-a_0}{b}$$

(6)

2.4.3. Optrode Precision, Accuracy, Sensitivity and Response Time in Deionized Water and Saline Water (2.5%)

The calibration procedure was followed by sequential tests to evaluate precision (in the form of coefficient of variation; CV, % = standard deviation (SD)/mean × 100), accuracy ((real value − experimental value)/real value), and response time (signal time stabilization to 95% of equilibrium response, t_95%) in the following water conditions: deionized water and saline water (2.5%). Different dCO₂ concentrations were tested in the range from 1.00 to 20.00 mg·L⁻¹. Three independent runs were done for each concentration, and the data acquisition was made every 100 milliseconds. As the response time, it was considered the time taken by the sensor to reach a new concentration starting from the immediately preceding concentration (cumulative time). With the goal of comparing the new sensor response time with the response time of a commercial sensor recommended for aquaculture (OxyGuard CO₂ Analyzer^® with data logging; OxyGuard, Farum, Denmark), tests using the two different devices were made in deionized water. Optrode sensitivity (ability to detect small variations) in a very low dCO₂ range was also tested in the same water conditions. Known dCO₂ concentrations were varied by the incremental addition of 0.25 mg·L⁻¹ between 1.00 and 2.00 mg·L⁻¹ until total signal stabilization. For this study, standard solutions were used as described in Section 2.4.2.

2.4.4. Agitation Conditions

All the tests performed with the new sensor using gas injection were made without agitation, including the dissolved CO₂ dynamics studies. However, some agitation was required for the calibration curve measurements to promote the reaction between the known amount of solid Na₂CO₃ added to the acid media and produce the expected amounts of dCO₂. Laboratory tests using the OxyGuard analyzer were always performed with stirring.

2.5. Dissolved CO₂ Dynamics in a Recirculating Shallow Raceway System (SRS+RAS) Prototype: Performance Comparison between New dCO₂ Optrode and Oxyguard CO₂ Analyzer^®

2.5.1. Prototype Characteristics

One of the aims of this work was to contribute to a solution for the dCO₂ monitoring needs of the aquaculture industry. Nevertheless, when working in real aquaculture facilities, several uncontrolled events occur, which need to be avoided to guarantee consistent testing and the monitoring of dCO₂ in water. This can only be achieved in controlled laboratory conditions. Therefore, to be able to simulate diverse intensive aquaculture situations, a laboratory prototype was needed. So, a shallow raceway tank (SRS) was used with 0.4 m² of area and 7 cm of water height, as reported by Borges et al., which was linked to a water treatment loop (with sump, mechanical filter, and aerated biological filter), representing a total working volume of 100 L [14]. The whole system mimicked a recirculating aquaculture system (RAS) working at >95% water recycling.

2.5.2. Dissolved CO₂ Dynamics Studies in the SRS+RAS Prototype

Gas injection was done using a special cylindrical diffuser (Dupla CO₂ reactor 400), which was connected to an Eheim Hj-731, 550 L·h⁻¹ pump. Carbon dioxide was delivered by an aquarium-type compressed CO₂ system (Dupla CO₂ Set Delta 400). The injection device was placed near the bottom of the tank, after the inlet pipe. The continuous monitoring of dCO₂ was made using the new dCO₂ optrode as well as the OxyGuard CO₂ Analyzer^® with logging capabilities. Both devices were placed near of the prototype tank outlet. Two independent runs were done, injecting gaseous CO₂ for 1 h and 15 min with a flow rate of approximately 10 mL·min⁻¹. The next run was carried out after complete CO₂ degassing, as indicated by zero readings in the sensors. In both tests, trout food was introduced into the water, and after some time, the excess was removed to simulate the fish feeding process and study the behavior of the new sensor under these conditions. The experiments were performed in a controlled temperature room at 15 °C, using dechlorinated tap water.

2.6. Continuous dCO₂ Monitoring in an Experimental Fish Culture System with Water Recirculation

Short-time monitoring of a fish culture system was performed in a laboratory fish culture system using water recirculation in order to evaluate the behavior of the sensor under in situ conditions and continuous dissolved CO₂ monitoring. The aquaculture recirculation system consisted of two fish tanks of 300 L each and contained a mechanical filter, a sump tank with a trickling filter, and a third tank equipped with a moving bed biofilter (MBBR). The system, with a total volume of 1000 L of freshwater, was operated at 80% RAS. Cultivated fish were rainbow trout (Oncorhynchus mykiss), with 110 g average weight and a density of 10.6 kg.m⁻³. Sampling points comprehended one fish tank and the tank containing the MBBR biofilter. The new dCO₂ optrode and the commercial sensor Oxyguard CO₂ Analyzer^® were used simultaneously for dCO₂ evaluation.

3. Results

3.1. Experimental Laboratory Results: Gaseous CO₂ and dCO₂ Measurements

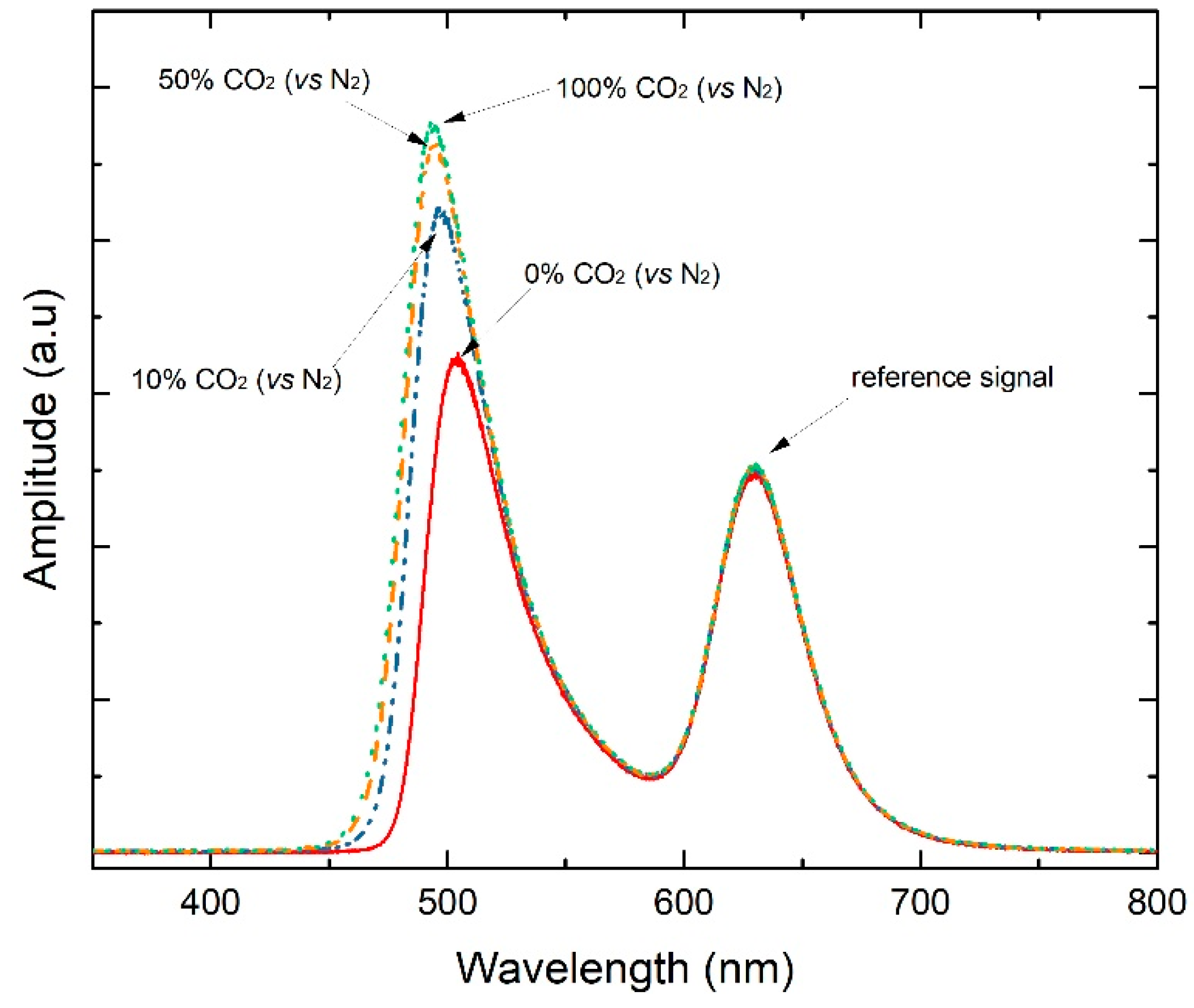

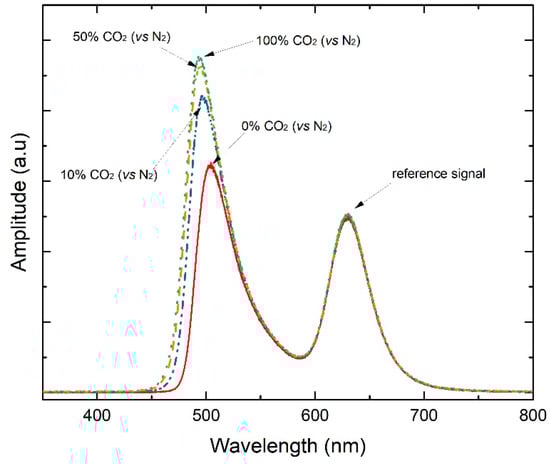

The sensing membrane response was evaluated in a closed container with a controlled gas mixture of CO₂ and N₂ to simulate different concentrations of CO₂. Some of the obtained spectra are shown in Figure 4. As expected, the obtained signal for red light did not change its amplitude, while the blue LED signal enhanced its amplitude with the CO₂ increase. This signal enhancement is associated to a color intensity decrease by the membrane due to its reaction with CO₂. Comparing the relative change of the intensity peaks at each gaseous CO₂ concentrations, it was demonstrated that the new sensor has higher sensitivity for the lower CO₂ concentrations tested.

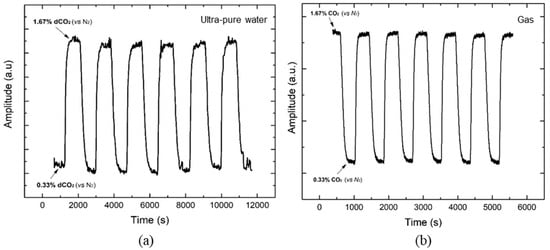

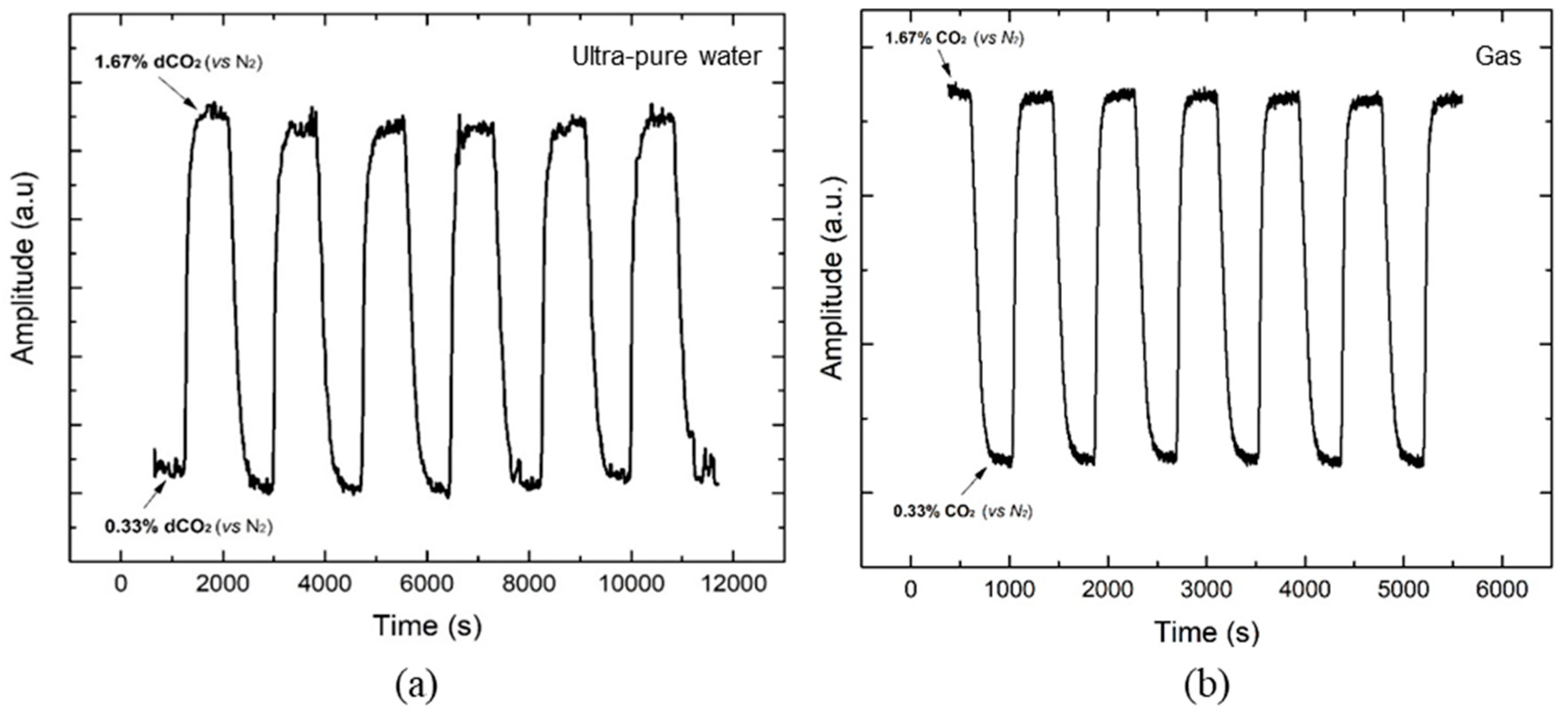

At this point, it was notorious that the sensing membrane is sensible to CO₂ variations and the sensor was ready to be tested in aqueous media. Thus, it was required for the membrane to be waterproof. This was a difficult and lengthy process, and several approaches were tried to encapsulate the sensing membrane. The first method attempted consisted of spin coating the used silicone directly on the top of the sensing membrane [32]. However, some reactions between the sensing layer and the silicone were observed, which affected the silicone-curing process. A second attempt used the “knife technique”. At this phase, the silicone was spread on the top of the sensing layer using a spatula, controlling the silicone layer thickness using mechanical guides with known height. As the problems reported before were also verified, a new approach was needed. So, the solution was spin coating the silicone on the top of a substrate (Mylar foil) and forming a cured silicone porous membrane that was later on attached onto the sensing membrane using specially designed 3D-printed supports. To study the sensor stability in water, a glass container with 200 mL of deionized water was used where different dCO₂ concentrations (in percentage versus N₂) were bubbled. Several cycles were done between 0.33% and 1.67% of dCO₂ (always keeping the same flow rate)_, during more than 3 h. A timeline graph was plotted, which is shown in Figure 5a. The stability of the sensor was confirmed. However, some fluctuations are visible when the sensor achieves the target concentration. These variations can be explained by the turbulence produced by the bubbles of gas in water. To compare the behavior of the sensor in the two environments (dCO₂ versus CO₂), a test in gas atmosphere, using humidified air, was performed. The resultant timeline can be seen in Figure 5b. A total of six complete cycles were done in each experiment, and it is possible to see that in air, the six cycles were completed in 1 h and 40 min against the 3 h and 20 min of the test in water. This increase in the signal response time is expected due to the time that the gases take to dissolve in water. The resistance offered by the water to the degassing from the membrane also contributes to the increase in the signal response time. As the CO₂ in the system was gas injected in this test, the time observed cannot be measured as the sensor response time and should be considered the setup response time. Moreover, the sensor response time was estimated using a supersaturated standard solution in Section 3.3.

3.2. Optrode Calibration Curves and Associated Data

The sensor was calibrated for an operation range between 1.00 and 20.00 mg·L⁻¹dCO₂ in different aqueous solutions (deionized water and saline water at 2.5%). As referred before, this is the relevant concentration range for aquaculture operations. Calibration curves and calibration data can be found in Figure 6 and

Table 1. Calibration data obtained for the new optrode chemical calibration and the respective limit of detection (LOD) and limit of quantification (LOQ).

Calibration y = a + bx	Intercept (a)	Slope (b)	Pearson’s	R-Square	Adj. R-Square	LOD (mg·L−1)	LOQ (mg·L−1)
Deionized water	0.666 ± 0.008	0.271 ± 0.009	0.996	0.992	0.991	1.225	1.843
Saline water (2.5%)	0.501 ± 0.013	0.405 ± 0.014	0.996	0.992	0.991	1.048	1.154

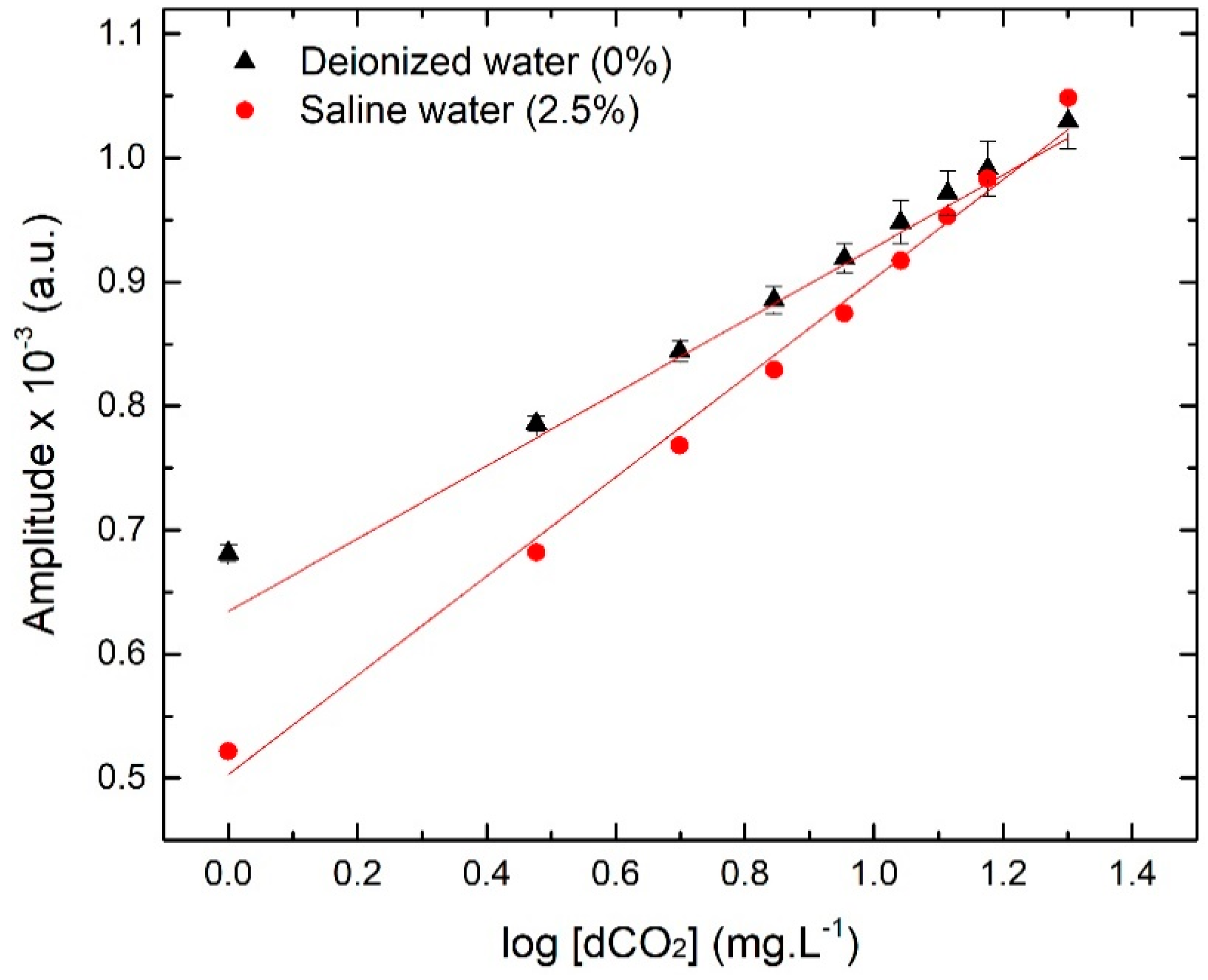

, respectively. The sensor response to the successive standard dCO₂ solutions is logarithmic, so the data were plotted as a function of dCO₂ logarithmic concentration to attain linearity. The results show a different sensor response for fresh and saline water. This interfering process resulted in unexpected results obtained for the calibration curve in saline water, which should run in the complete concentration range above the curve for deionized water [33]. Eventually, the presence of salt is affecting the silicone membrane permeability and interfering with the calibration process. The understanding of this process needs more extensive study.

The LODs and LOQs (Table 1) are also different for the different aqueous solutions. Nevertheless, these results suggest that the sensor is suitable to work in the concentration range found in aquaculture for both types of water [34].

3.3. Optrode Precision, Accuracy, and Response Time in Deionized Water and Saline Water (2.5%)

The new dCO₂ optrode performance data for a range of concentrations between 1.00 and 19.8 mg·L⁻¹ in different aqueous solutions can be found in

Table 2. Optrode performance (mean ± standard deviation; n = 3) in different aqueous solutions at different dCO₂ concentrations. CV: coefficient of variation.

[dCO2] (mg·L−1)	Deionized Water (0%)			Saline Water (2.5%)
	M.C. 1 (mg·L−1)	P 2 (CV%)	|Acc| 3 (mg·L−1)	M.C. (mg·L−1)	P (CV%)	|Acc| (mg·L−1)
1.00	1.14 ± 0.10	5.87	0.14 ± 0.07	1.13 ± 0.01	1.19	0.13 ± 0.01
2.99	2.77 ± 0.14	5.15	0.08 ± 0.05	2.81 ± 0.03	1.00	0.06 ± 0.01
4.99	4.56 ± 0.34	7.52	0.09 ± 0.07	4.58 ± 0.07	1.50	0.08 ± 0.01
6.98	6.47 ± 0.62	9.56	0.09 ± 0.06	6.49 ± 0.09	1.51	0.07 ± 0.01
8.97	8.61 ± 0.88	10.2	0.09 ± 0.03	8.41 ± 0.11	1.31	0.06 ± 0.01
10.9	11.1 ± 1.7	15.1	0.11 ± 0.10	10.7 ± 0.2	2.70	0.02 ± 0.02
12.9	13.5 ± 2.2	15.9	0.11 ± 0.11	13.1 ± 0.2	1.51	0.02 ± 0.01
14.9	16.1 ± 3.2	19.8	0.11 ± 0.11	15.6 ± 0.4	2.62	0.05 ± 0.03
19.8	22.2 ± 4.2	19.1	0.14 ± 0.19	22.6 ± 0.3	1.43	0.14 ± 0.02

¹ measured concentration; ² precision; ³ accuracy (absolute values).

. There are different ranges for precision in the different aqueous solutions. For deionized water, the range of precision is from 5.87% to 19.1%, while for saline water (2.5%), the range of precision is from 1.19% to 1.43%. These results show that the new sensor is more precise for measurements in saline water. It is possible to see that the precision in both cases is better in the range from 1.00 to 8.97 mg·L⁻¹, which is the less dangerous range to fish life and that which is normally is found in aquaculture waters. The accuracy changed from the extreme concentrations (1.00 and 19.8 mg·L⁻¹) to the intermediate concentrations: 2.99 to 12.9 mg·L⁻¹ for deionized water and 2.99 to 14.9 mg·L⁻¹ for saline water (2.5%).

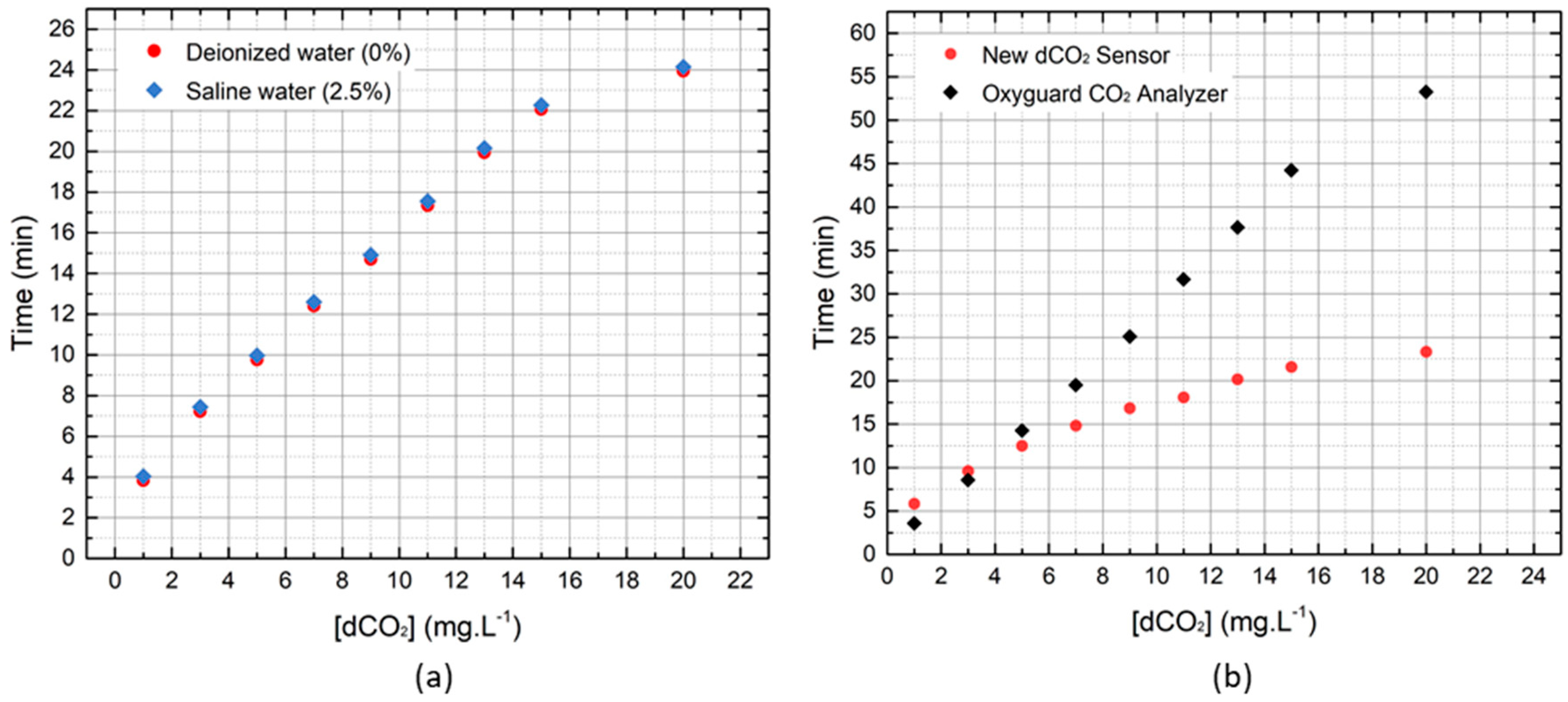

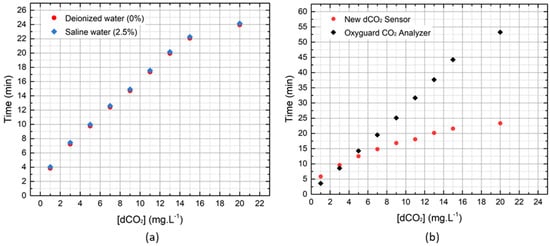

The response time (t_95%) of the sensor is almost the same in both types of water, with a slight increase for saline water (2.5%) (Figure 7a). The degassing time (t_g) recorded was about twice as long as the response time observed in the reaction to CO₂ increase (t_g = 2t_95%). Comparing the dCO₂ optrode and the commercial sensor behavior, in Figure 7b, it is possible to see that the time the new sensor takes to respond to concentration increments of 1.00 mg·L⁻¹ and 2.00 mg·L⁻¹ decreases with increasing concentration, but it is on average around t_95% ≈ 3 min. On the other hand, the response time of the commercial sensor increases along the experiment. With this test, it is concluded that the dCO₂ optrode is faster than the tested commercial sensor in the range of 2.99 to 19.8 mg·L⁻¹.

3.4. Optrode Sensitivity

The new optrode showed a suitable sensitivity response to small increments of dCO₂ concentrations in deionized water, as displayed in

Table 3. Sensitivity of the new dCO₂ sensor to 0.25 mg·L⁻¹ increments (starting from 1.00 mg·L⁻¹) until signal time stabilization to 95% of equilibrium response (t_95%) in deionized water.

[dCO2]final (mg·L−1)	M.C. 1 (mg·L−1)	|Acc| 2 (mg·L−1)	Response Time (s)
1.25	1.39	0.56	103
1.50	1.55	0.11	152
2.75	1.76	0.01	137

¹ measured concentration; ² accuracy (absolute values).

. The accuracy increased with increasing dCO₂ concentrations. The response time in this range is similar to the results observed in higher concentrations.

3.5. Dissolved CO₂ Dynamics in a SRS+RAS Prototype

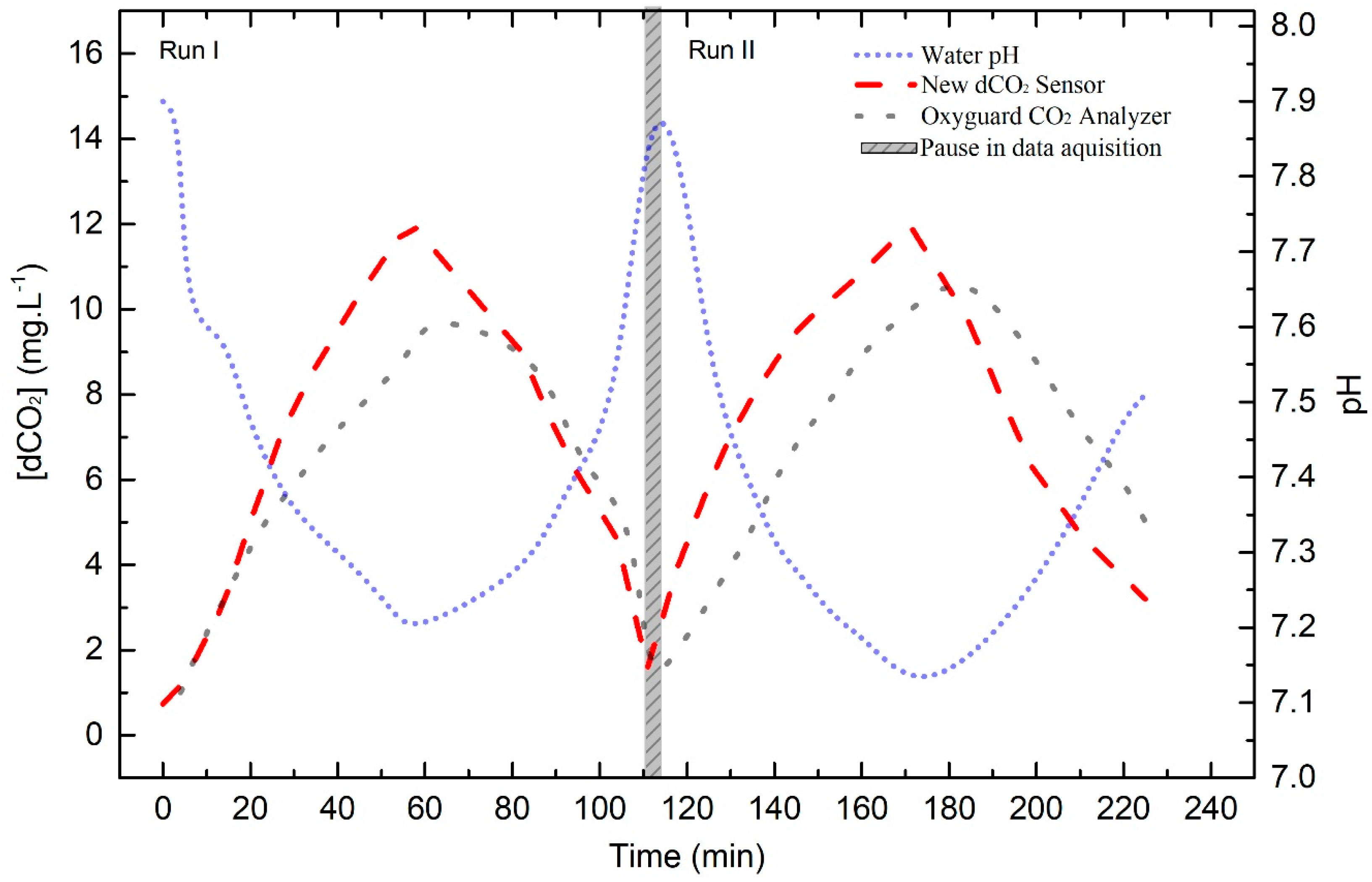

The goal of this experiment was to simulate the conditions present in fish farms after the feeding events, where it was supposed to have the hardest conditions for monitoring. The results of a monitoring experiment with a duration of 4 h and 15 min (with two complete cycles of gassing and degassing) can be seen in Figure 8. It is visible that both sensors showed the pre-existence of some dissolved CO₂ in the system water before the gaseous CO₂ injection. The new sensor showed a starting concentration around 0.75 mg·L⁻¹, and OxyGuard showed a dCO₂ concentration around 1.00 mg·L⁻¹ (but the displayed value varied successively between 1.00 and 2.00 mg·L⁻¹ before the gas bottle opening). In run 1, after 10 min of CO₂ injection, the commercial sensor showed a concentration around 3.75 mg·L⁻¹, while the dCO₂ optrode only detected 2.00 mg·L⁻¹. This can be explained by the higher initial value displayed by the OxyGuard sensor. However, after 20 min, the values given by both sensors were the same (around 5.00 mg·L⁻¹), and from this point on, the new optrode was able to reach the next concentration in a shorter period of time. Furthermore, the discrepancy between both sensors at the same instant should be related to the different response time. The same was observed in the monitoring of the degassing process after the CO₂ supply was cut (around 60 min).

In run 2 (1 h 50 min after the first one), the dCO₂ optrode showed a starting concentration of 1.58 mg·L⁻¹, and the OxyGuard sensor showed again variations between 1.00 and 2.00 mg·L⁻¹. When the CO₂ supply bottle was opened, the new sensor response was always faster than the used commercial sensor, achieving 4.00 mg·L⁻¹ in 10 min, while the Oxyguard sensor only displayed 2.00 mg·L⁻¹. Even in the degassing period (started at 170 min), the dCO₂ optrode showed around 6.00 mg·L⁻¹ after 30 min, while the OxyGuard sensor showed 9.00 mg·L⁻¹. The two sensors showed again different maximum concentrations. Nevertheless, the dCO₂ optrode showed the same maximum concentration 1 h after injection in both assays, registering 12.00 mg·L⁻¹, while the commercial sensor registered 10.00 and 11.00 mg·L⁻¹, respectively. Looking for these results, we can say that the dCO₂ optrode has shown a better performance than the used commercial sensor, mainly considering the response time. The pH was also monitored, and 10 min after the first CO₂ injection, it decreased from 7.90 to 7.60, reaching 7.19 in the maximum CO₂ registered concentration. In run 2, the water pH also started around 7.90 and attained 7.12 in the same time period, which is a result that can be considered a match between both runs. The experimental error for tests performed using the new sensor was around [dCO₂] ± 0.50 mg·L⁻¹. The error was calculated using Equation (7), where S_y/x is the standard error of the estimate, (y_i − y_i′) is the deviation of each measurement, and n is the number of points of the calibration curve; and Equation (8), where S_x0 is the x error, y₀ is the experimental signal of the instrument for which x₀ is to be determined, and m is the number of repetitions [31]. The OxyGuard Analyzer experimental error was given by the manufacturers in the data sheet of the equipment.

$$S_{y/x}=\sqrt{\frac{{{\displaystyle \sum }}_i{\left(y_i-{y_i}^{\prime }\right)}^2}{n-2}}$$

(7)

$$S_{x0}=\pm \frac{S_{y/x}}{b}\times \left(\sqrt{\frac{1}{m}+\frac{1}{n}+\frac{{\left(y_0-\overline{y}\right)}^2}{b^2{{\displaystyle \sum }}_i{\left(x_i-{\overline{x}}_i\right)}^2}}\right)$$

(8)

3.6. Laboratory Fish Culture System dCO₂ Evaluation

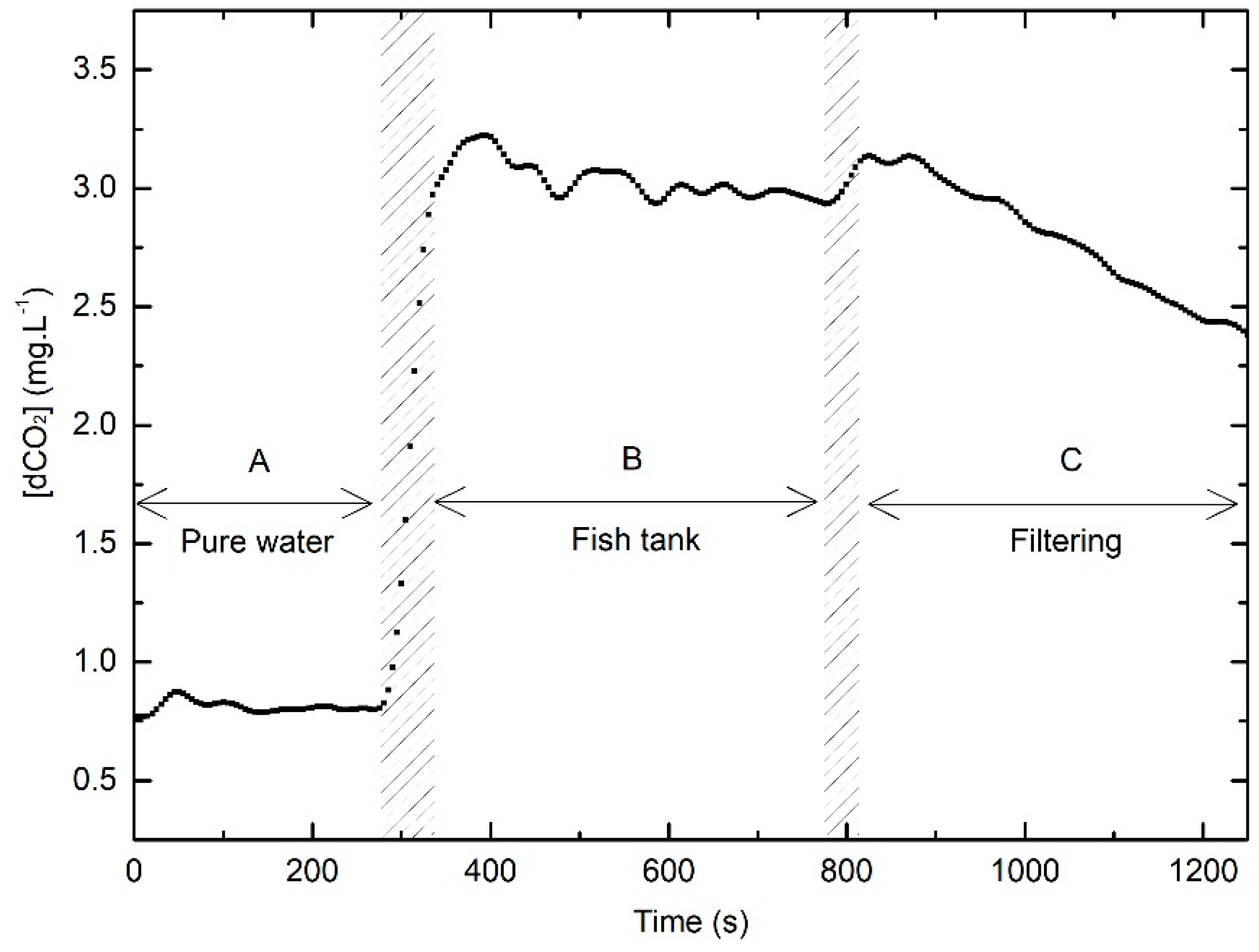

In this test, it was planned to study the performance of the dCO₂ optrode in a real aquaculture situation with fish in the system and CO₂ produced by fish respiration. The resultant data are shown in Figure 9. The dissolved CO₂ optrode and Oxyguard CO₂ Analyzer^® were placed close to each other in the sampling locations, and the samples were taken at the same time. The data logging results showed that the optrode was sensitive to small amounts of dissolved CO₂ and the readings took around 2 min and 30 s to stabilize, reaching 3.00 mg·L⁻¹ (Figure 9B). Simultaneous commercial sensor readings did not change from 1.00 mg·L⁻¹ during the experiment. After about 10 min of reading, the sampling point was changed, as the sensors were placed in the biofilter tank (logging was stopped during this switch). As expected, the dCO₂ optrode showed a decrease in the dissolved gas concentration, reaching 2.35 mg·L⁻¹ (Figure 9C). Theoretically, these are acceptable values for dCO₂ concentrations in those situations, as some degassing occurs in the sump, prior to the biofilter. The commercial sensor maintained the 1.00 mg·L⁻¹ reading. Although there was some curiosity of the fish by the new sensor presence (when it is on, a light is seen), no noticeable behavioral changes were observed.

4. Discussion

The response of the new dCO₂ optrode was studied with promising results for real-time monitoring applications. Using the reaction of the sodium carbonate in acid media [32], it was possible to produce known and precise amounts of dissolved carbon dioxide to calibrate the new optrode in the required range of operation. Moreover, the sensor could work in a larger range of dCO₂ levels with the respective calibration. This method shows that this sensor is capable of operating in environments where the pH is quite low (pH ≤ 3) in contrast with most other naked optical CO₂ sensors [1].

This type of calibration was also used by Fritzsche et al. (2018) [35] to calibrate a sensor for marine applications. However, at low CO₂ concentrations, the sensor had a response time of over 30 min. which is not suitable for applications in aquaculture, in contrast with the new optrode (response in the range of ≈120 s for a small variation of concentration ≈0.25 mg·L⁻¹). Sensitivity studies showed that the new optrode is capable of detecting and evaluating small dCO₂ variations, not just in a low range but also in higher dCO₂ concentrations. Furthermore, the sensitivity of the membrane is not affected by changing the work environment. In other works [1], the change from air to water causes a decrease in the CO₂ sensitivity, which is not observable in the results presented for the new optrode. The precision of the new optrode was also attested, showing a better performance in saline water (2.5%), especially for higher concentrations (>10 mg·L⁻¹). Although the precision reported by Borges et al. [14] for the commercial sensor in saline water is similar, the new dCO₂ optrode shows superior accuracy in the experimental tests. In addition, in what concerns shelf life, the sensing film can be stored in a sodium carbonate solution [36] at low temperatures (2 < T < 10 °C) for at least 6 months, and can be used after a new calibration. As stirring is not needed, the sensor is suitable to be used for continuous dissolved CO₂ monitoring, contrary to the systems used by other authors [14,37].

Although the sensor body is 3D printed, it was proved that this material resulted in a robust enough apparatus that can be used in real aquaculture environment, as SRS+RAS systems. In addition, its size is appropriate to be used in such working conditions. The electronic part needs to be connected to a PC, which acts as an energy supplier and also allows interaction with the specially designed control software, which processes and stores the data in the memory with a minimum acquisition time of 100 ms. Overall, it was demonstrated a compact portable solution that could be used to realize multipoint readings in different parts of the recirculating system. In future embodiments, this configuration can become even more compact and robust using more durable materials and a micro-controlled electronics module with wireless capabilities.

5. Conclusions

A new dissolved carbon dioxide sensing platform was demonstrated and validated, showing its suitability and precision for continuous direct measurements of dissolved CO₂ concentrations in different aqueous solutions. In general, the best performance was found in saline solutions following by the deionized water solutions. Sensor validation in the SRS+RAS prototype and in the laboratory fish culture showed its versatility and appropriateness to be used in aquaculture systems as well as in a larger field of applications.
