Review

Label-Free Electrochemical Biosensors for the Determination of Flaviviruses: Dengue, Zika, and Japanese Encephalitis

by
Ekaterina Khristunova
1,2,3,
Elena Dorozhko
1,
Elena Korotkova
1,
Bohumil Kratochvil
1,3,
Vlastimil Vyskocil
2 and
Jiri Barek
1,2,*
1
School of Earth Sciences and Engineering, Department of Chemical Engineering, National Research Tomsk Polytechnic University, Lenin Avenue 30, 634050 Tomsk, Russia
2
UNESCO Laboratory of Environmental Electrochemistry, Department of Analytical Chemistry, Faculty of Science, Charles University, Albertov 6, 12843 Prague 2, Czech Republic
3
Department of Solid State Chemistry, University of Chemistry and Technology, Prague, Technicka 5, 16628 Prague 6, Czech Republic
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(16), 4600; https://doi.org/10.3390/s20164600
Submission received: 8 July 2020 / Revised: 11 August 2020 / Accepted: 13 August 2020 / Published: 16 August 2020
(This article belongs to the Section Biosensors)
Browse Figures
Versions Notes

Abstract

:
A highly effective way to improve prognosis of viral infectious diseases and to determine the outcome of infection is early, fast, simple, and efficient diagnosis of viral pathogens in biological fluids. Among a wide range of viral pathogens, Flaviviruses attract a special attention. Flavivirus genus includes more than 70 viruses, the most familiar being dengue virus (DENV), Zika virus (ZIKV), and Japanese encephalitis virus (JEV). Haemorrhagic and encephalitis diseases are the most common severe consequences of flaviviral infection. Currently, increasing attention is being paid to the development of electrochemical immunological methods for the determination of Flaviviruses. This review critically compares and evaluates recent research progress in electrochemical biosensing of DENV, ZIKV, and JEV without labelling. Specific attention is paid to comparison of detection strategies, electrode materials, and analytical characteristics. The potential of so far developed biosensors is discussed together with an outlook for further development in this field.

1. Introduction

The Flavivirus genus related to the family Flaviviridae includes more than 70 different viruses [1]. The genetic material of flaviviruses is represented by single-stranded RNA. Flavivirus is transmitted to people through the bites of infected ticks or mosquitoes [2]. Humans are usually considered as the dead-end hosts of these flaviviruses. The most frequent flavivirus infections from mosquitoes are caused by dengue virus (DENV), Zika virus (ZIKV), and Japanese encephalitis virus (JEV) [3]. This is probably the reason why most label-free biosensors introduced so far were focused on these flaviviruses, and the reason for their selection into this review. Importantly, there are significant variations in epidemiology or clinical aspects between these viruses. Nevertheless, all pathogens are closely related genetically; the variation of amino acid sequences between individual subtypes is 5–6%. Therefore, in countries where a variety of different flaviviruses co-exist, cross-reactivity between them may occur, and accurate diagnosis become a challenging task [4]. Infection with any flavivirus subtype causes serious damage to human health. Haemorrhagic and encephalitis diseases are the most common severe consequences of flaviviral infection [5]. The immunization of people is the most effective protection against the serious consequences of these diseases, but despite the availability of vaccines [6,7,8], the number of cases of flaviviral infection have been increasing over the past two decades [9]. The growth in the incidence rate is the result of a complex interconnection of socio-economic factors [10] and of the fact that vaccine coverage is insufficient for many risk groups. Other significant factors in the growth of flaviviral diseases are global climate change [11], deforestation [12], population growth [13], and even mutations in the sequence during pre- to post-epidemic transition (alanine-to-valine, in ZIKV-NS1 protein) [14], which lead to an increase of viruses epidemic transmission.
After flaviviral infection, specific viral proteins, viral nucleic acids, intact viral particles, and antibodies are generated as an immune response [15]. Among them, non-structural proteins (NS1–NS5) are important molecules in immunosensing and molecular research for the diagnostic of flaviviruses [16]. It is interesting that in the acute phase of Dengue infection, NS1 concentration has been estimated in 0.04–2 µg/mL for primary infection, but only 0.01–2 µg/mL for secondary infection [17]. Therefore, biosensors can be used to discriminate between primary and secondary infection [18]. Nowadays, reverse transcriptase polymerase chain reaction (RT-PCR), enzyme-linked immunosorbent assay (ELISA), and plaque reduction neutralization test (PRNT) are the most common methods for detection of these specific analytes [19,20,21]. However, traditional techniques require relatively expensive equipment, and often are not suitable for rapid on-site analysis because of limited resources [22,23]. For instance, RT-PCR technique requires performing steps before polymerase chain reaction (PCR), which basically includes the reverse transcription, creating DNA from viral RNA [24]. The development of progressive diagnostic tools applicable for the determination of specific pathogenic flaviviruses in biological fluids is a very promising direction. In the last few decades, the researchers have shown particular interest in the development of electrochemical biosensors for the diagnosis of DENV, ZIKV, and JEV [25,26,27]. Electrochemical biosensors measure the intensity of the electrical signal provided by a special interaction with a target analyte and proportional to its concentration. Electrochemical biosensors are of special interest due to their high sensitivity, selectivity, relatively low equipment acquisition costs, and suitability for miniaturization. Considering these circumstances, several scientific groups have developed new electrochemical biosensor systems for the quantification of flaviviruses [28,29,30,31,32,33,34,35,36].
Label-free biosensors represent a special class of electrochemical biosensors for the determination of flaviviruses [37,38,39], where the quantification of analytes of interest is based on techniques such as electrochemical impedance spectroscopy (EIS), voltammetry, or amperometry without the need of any signal label (e.g., enzymes, metal nanoparticles, etc.). The presence of the label can affect the kinetics and the specific binding of analytes resulting in a systematic error in the measurement [40]. Direct detection eliminates the marking steps, thus reducing the time and cost of analysis. Label-free biosensors discover new horizons in designing portable lab-on-a-chip biosensors for detection of different pathogens. Different types of recognition elements and electrode materials are used for developing such highly sensitive label-free sensors, which are highly specific for the detection of target molecule and determine the possibilities and limitations of the biosensor used.
In this review, we have focused on recent advanced applications of electrochemical label-free biosensors in diagnostics of flaviviruses. Specific attention is paid to comparison of detection strategies, electrode materials, and analytical characteristics. The potential of so far developed biosensors is overviewed together with an outlook for further development in this field. The article is basically organized by different flaviviruses and, in the chapters devoted to individual flaviviruses, sensing principles were used as second classification criterion.

2. Electrochemical Detection Methods

Label-free electrochemical biosensors transform information related to electrochemical and specific biochemical reactions into an appropriate signal, which can be used both for qualitative and quantitative purposes [41]. Different electrochemical detection methods were designed and applied to convert the electric signal into analytically useful information related to flaviviral infection: potentiometry (measuring the potential of an indicator electrode) [42,43], conductometry (measuring the conductivity or resistance) [44], amperometry/voltammetry (current measurement as a function of imposed potential) [28,45,46,47], and EIS (measuring the impedance of a system) [48,49,50]. The majority of publications over the past decades focus on voltammetric and EIS techniques to obtain label-free biosensors with a high sensitivity and, therefore, low limit of detection (LOD), which are the main figures of merit of biosensors. The sensitivity is defined as the slope of the analytical calibration curve, and an analytical method is sensitive when a small change in analyte concentration causes a large change in the response [51]. The LOD is the concentration or the quantity derived from the smallest signal that can be detected with acceptable degree of certainty for a given analytical procedure [51,52]. Commonly, the limit of detection is calculated as LOD = 3s/b (where s is the standard deviation of the signal of blank sample, and b is the slope of the straight section of the calibration curve) [53]. Another variant for LOD estimation is calculation from the signal-to-noise ratio (S/N = 3) [54]. In any case, the choice of analytical method can significantly affect the measurement result.

2.1. Electrochemical Impedance Spectroscopy and Conductometry

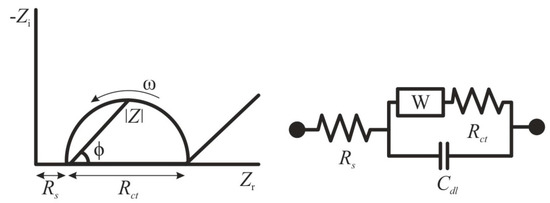

In recent years, many researchers have applied EIS for the determination of specific pathogenic flaviviruses [55,56,57]. This method stands out among other electrochemical methods, since the analysis proceeds without irreversible changes in the electrode material, and does not require a high consumption of chemical reagents [58]. EIS is based on the detection of changes in resistance on electrode before and after modification by a biological material [48]. The impedance Z of a system is generally measured by applying a voltage perturbation with a small amplitude and detecting the current response. The impedance is a complex value, since the current can differ not only in terms of the amplitude, but it can also show a phase shift ϕ compared to the voltage–time function. Thus, the value can be described either by the modulus |Z| and the phase shift φ or alternatively by the real part Zr and the imaginary part Zi of the impedance (Figure 1) [58]. The registration of the EIS spectra is carried out in the presence of a redox probe—a substance capable of rapid reversible single-electron redox transformation [59]. Ferri/ferrocyanide systems or ruthenium complexes are usually used as such redox markers [60,61]. Typically, the obtained impedance spectra are fitted to an equivalent circuit using a Nyquist plot for illustration, and the change in charge transfer resistance is correlated to the target biological material concentration [62]. For the situation of an electrode in contact with an electrolyte, the so-called Randles circuit is used (Figure 1), comprising the double-layer capacitance Cdl, the solution resistance Rs, the charge transfer resistance Rct, and the Warburg impedance W.
By taking measurements with surface-modified sensing electrodes, the presence of redox probe results in a well-defined charge transfer resistance Rct. If the redox probe is omitted or a blocking layer is applied to the electrode, rather capacitive impedance behavior will be detected (since Rct will become extremely large). Therefore, a binding effect at the electrode can be observed by following the change in Rct [58]. EIS is characterized by extremely high detection sensitivity of analytes (LOD reaches subnanomolar concentrations); however, the accuracy of determination highly depends on the quality of the electrode surface preparation. Moreover, EIS requires controlling false positive analyses which are associated with the dynamics of the sensing interface and have inherently low signal-to-noise ratio. Control of the stability of the signal-to-noise ratio, which controls the dynamics of the sensing interface, should be the first planned requirement rather than the detection of signal changes on the electrode surface [63].
In addition to EIS, conductometry was used as successful example for different viruses detection [44]. Conductometry determines the interactions between target and capture by calculating the conductance of various ionic spices [64]. The intrinsic negative charge of biomolecules can have a large effect on both ionic and electronic conductivity of a system and has been studied to develop label-free biosensors by measuring the electrical signal of the system [44]. For instance, field-effect transistor (FET) uses the system electronic conductivity for the determination of biomolecules where the current passing between a source and a drain is controlled by the potential connected to a gate [65].

2.2. Voltammetry, Amperometry

Cyclic voltammetry (CV), differential pulse voltammetry (DPV), and square-wave voltammetry (SWV) are most popular voltammetric techniques that allow for the determination of low concentrations of flaviviruses, which is attractive for biomedical and biological research [66,67,68]. These methods are successfully used in the creation of label-free biosensors for the determination of viral analytes. Various mechanisms of the redox reaction, the state of the microenvironment of the double electric layer in biosensors, the estimation of the constants of binding of the analyte to the receptor layer on the electrode, and the diffusion limitations of biological analytes can be estimated using these methods. The majority of publications are devoted to registration of the resultant current of the redox probe corresponding to changing electrode potential. Ferri/ferrocyanide, ferrocene, ferrocenethanol systems, and ruthenium complexes are the most frequently used redox probes [50,69,70]. The electrochemical behavior of redox probes depends on the receptor layer and the biosensor operating principle. In most studies, when a complex is formed between the molecules of the receptor layer and the analyte target, the recorded current of the redox probe decreases.
In addition to voltammetry, amperometry is one of the important techniques that was used for developing biosensors [45,71,72,73]. The amperometric response is mainly based on the reduction–oxidation of ferri/ferrocyanide probe on the electrode surface proportional to the concentration of target analyte in the sample.
It can be summarized that the main advantage of voltammetric techniques is easily available instrumentation, low running and investment costs, and user friendliness. They are most frequently used in practical laboratories, which makes them most popular in flaviviruses monitoring. The main advantage of amperometry is its compatibility with measurements in flowing system, resulting in shorter times of analysis and increased productivity with comparable sensitivity and LOD.

3. Electrochemical Biosensors for DENV Diagnostic

Label-free electrochemical biosensors, in which the mechanism of signal transduction is based on the measurement of current as a result of oxidation/reduction of a probe or a modulation of electrochemical impedance on electrode surface during bioconjugation process, offer sensitive and rapid way to diagnose DENV. Depending on the nature of the bio-recognition components on the receptor layer of label-free electrochemical biosensors, three groups can be distinguished for determining DENV: (i) DNA/RNA biosensors, (ii) immunosensors, (iii) peptide-based biosensors. There are four different antigenic compositions of DENV serotypes: DENV1, DENV2, DENV3, and DENV4 [74]. DENV virion consists of three structural proteins plus the lipoprotein membrane and seven non-structural proteins. One of non-structural dengue proteins NS1 has diagnostic and pathological significance, because it is prevalent in all four serotypes of DENV [75]. Infection with any one serotype provides lifelong immunity to this specific serotype; however, cross-immunity to other serotypes lasts only a few months. Significant genetic variation occurs in each serotype of the virus, as a result of which phylogenetically different genotypes are formed [76]. It is relevant to create the system capable to detect all DENV serotypes. Therefore, specific attention in the development of biosensors was paid to the design and surface properties of the electrodes that are used for immobilization of various biological molecules. The electrode surface should have a large electroactive area, maintain a high activity of immobilized biomolecules, have a uniform distribution of active binding sites over the entire electrode area, have physical and chemical resistance of the coating in contact with liquid, and be capable of repeated use of the surface.
In developing label-free biosensors for complex matrix samples (e.g., blood, serum), important issue is the fouling of the working electrode resulting in the deceased signal [77]. Researchers paid attention to overcome this problem for flaviviruses detection, for example, by the designing of disposable chips [78,79]. Further advantages of this approach are connected with the fact that, in outbreaks of infections, the importance of using affordable and easy-to-handle devices is essential in order to avoid cross-contamination and, thus, false positive results.

3.1. DNA and RNA Biosensors for DENV Diagnostic

Some of DNA/RNA biosensors are based on the phenomenon of hybridization with oligonucleotides of various DENV serotypes. The two strategies are used. In the first case, hybridizing solution mixture is immobilized on the electrode surface and a direct electrochemical response from the hybrid duplex is recorded [66]. In the second case, a DNA probe is immobilized on the surface of the sensor, which is complementary to the target DNA in the analyzed solution, and electrochemical signal from redox/capture probes is recorded by voltammetric methods before and after hybridization [80].
The immobilization technique of a capture probe can influence biosensor efficiency. For instance, several studies are devoted to the development of DNA/RNA biosensor platforms modified with metals or their oxides to increase the electroactive surface of the sensor, which provides stable and sensitive electrochemical detection of the DENV of various serotypes [66,81]. The presence of metals or their oxides on the electrode surface contributes to the biocompatibility and target specificity with DNA molecules [82]. A successful example with nanostructured gold electrode (AuE) surfaces for DENV determination is the paper of Tripathy et al. [80]. The authors made a miniature electrochemical sensor as a promising point-of-care platform for determining the DENV specific consensus primer at the subfemtomolar concentration level (LOD 9.7 × 10−16 mol/L). The development stages of the platform included the production of nanostructured gold on a titanium working electrode by electrodeposition, gold nanoparticles (AuNPs) being excellent material for immobilization of thiolated DNA probes with the formation of self-assembled monolayers [83] of the receptor layer, for the hybridization of a complementary target DNA (Figure 2a). Moreover, the authors included micro-USB-based electrical interface on the miniaturized platform for presumptive diagnosis of DENV at the point of care (Figure 2b). Upon successful hybridization, the decreased oxidation current from a redox pair [Fe(CN)6]3−/4− was registered by DPV (Figure 2c), including the influence of selected interferents (Figure 2d).

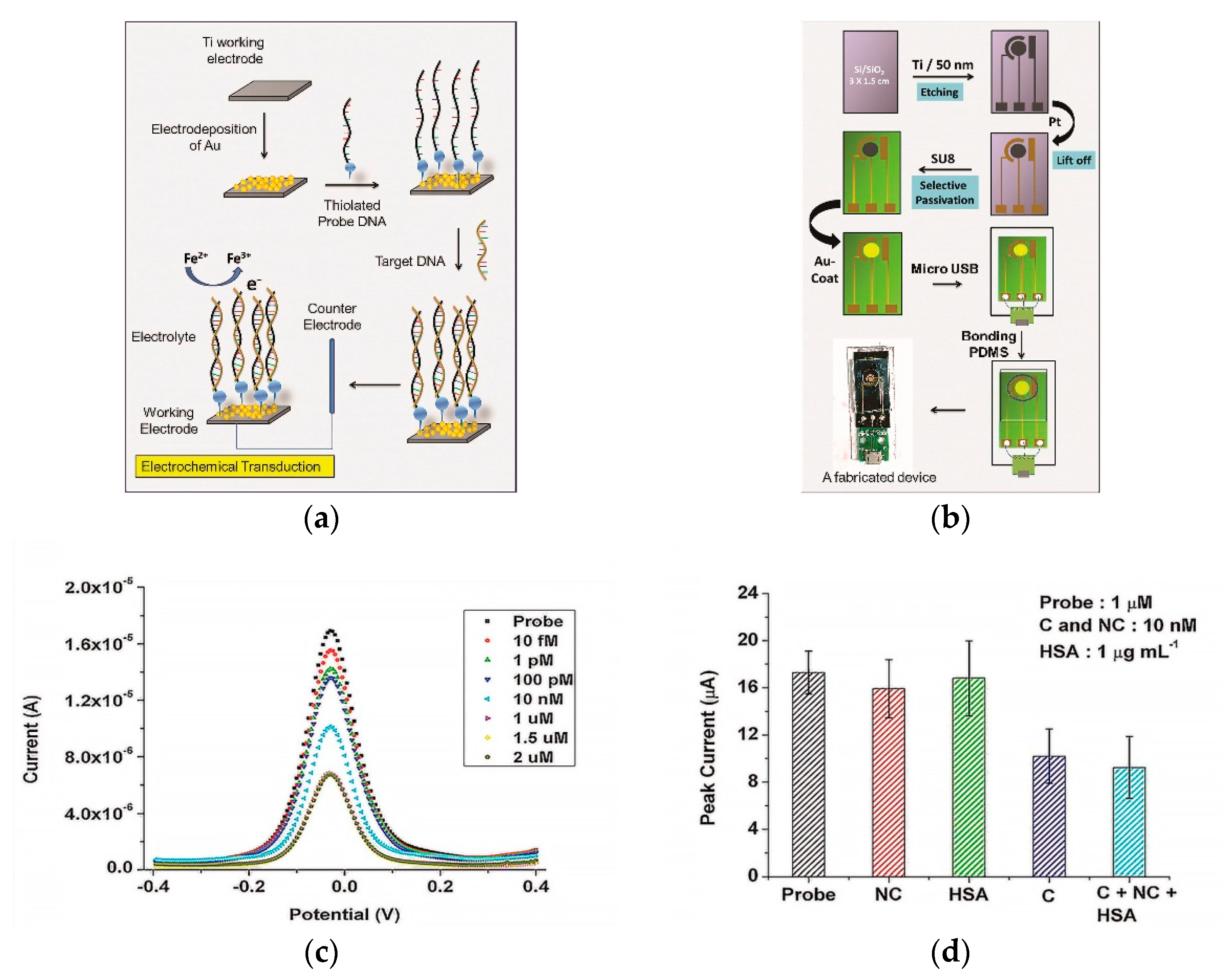

Electrospun semi-conducting manganese(III) oxide (Mn2O3) nanofibers were also used as substrate elements of electrochemical platforms for detecting DNA hybridization of the DENV [81]. Tripathy et al. developed a label-free biosensor for detection of a consensus DENV primer by using various electrochemical methods (CV, DPV, EIS) with a redox pair [Fe(CN)6]3−/4− at the zeptomolar concentration level (LOD 1.2 × 10−19 mol/L). Another significant approach to improve the properties of the electrode surface for the sensitive determination of DENV is a biosensor based on nanoporous membrane-like structures. Rai et al. created a sensitive DNA biosensor based on a nanoporous alumina membrane constructed using 59-aminated DNA probes immobilized on the walls of an alumina channel [84]. This biosensor used [Fe(CN)6]3−/4− to generate DPV sensing signal, with LOD of DENV1 ≈ 10−5 mol/L.
The intrinsic negative charge of DNA/RNA molecules can have a deep effect on both ionic and electronic conductivity of a system. This phenomenon has been explored to develop label-free biosensors by measuring the electrical signal of the system due to molecules hybridization [85]. One such example is the FET that uses the electronic conductivity of the system for the detection of DNA molecules [44]. Zhang et al. investigated platform based on peptide nucleic acid (PNA)–DNA hybridization for DENV detection on a n-type FET nanowire sensor [86]. Change in charge upon hybridization further induces an increase in resistance which constitutes the basis of this detector sensing mechanism. Percentage change in resistance was calculated using the following formula: [(resistance after hybridization−resistance before hybridization/resistance before hybridization)] × 100. This assay is very fast (30 min), with LOD of 1.0 × 10−14 mol/L.
Conductometry has also found applications for the detection of DENV, where conductance with an ion current signature was used for quantification of hybridized nucleic acids. For instance, Senapati et al. demonstrated a platform for detection of DENV based on an ionic diode feature of an anion exchange nanoporous membrane [44]. This biosensor gave LOD 1.0 × 10−12 mol/L and 15 min assay time in analysis of nucleic acid in real samples. Moreover, this platform allows to differentiate two serotypes DENV2 and DENV3.

3.2. Immunosensors for DENV Diagnostic

In the development of immunosensors, presence of antibodies plays a crucial role; they can act as detectable compounds or recognition molecules. Generally, antibodies as a recognition element immobilized on the surface of biosensor for the determination of DENV are used. For instance, Cheng et al. developed a sensitive membrane electrochemical immunosensor for the label-free detection of DENV2, where anti-DENV2 monoclonal antibody is used as the bio-recognition element [87]. The authors proposed a method for measuring electrode’s Faradaic current response to redox probe ferrocenethanol by DPV, which decreased as the result of the formation of immune complexes in alumina nanochannels between specific monoclonal antibodies and DENV2, with LOD of 1 pfu/mL (plaque-forming units per millilitre). Some other works following the same strategy (using nanoporous membranes) were published [35,54]. In both membrane immunosensors, the receptor layer of antibodies was immobilized within the thin alumina layer for identification of DENV, and these studies provided opportunity for DENV detection in clinical diagnosis by the EIS technique.
Several recent approaches have taken advantage of the functionalization with anti-DENV NS1 antibodies on the metal electrode surfaces. For example, Darwish et al. suggested to use indium tin oxide (ITO) electrode in combination with AuNPs [88]. Wasik et al. utilized a network of self-assembled single-walled carbon nanotubes (SWNT) on lithographically patterned interdigitated gold microelectrodes [89]. Cecchetto et al. employed a mixed self-assembled monolayer consisting of 11-mercaptoundecanoic acid (MUA) and 6-mercaptohexanol (6COH) prepared on a AuE [37]. All described immunosensors were developed for the label-free detection of the unstructured DENV protein NS1 in actual serum from patients infected with DENV by the EIS technique with LOD of 5 ng/mL [88], in adulterated artificial human saliva with LOD of 1 ng/mL [89], and in neat serum with LOD of 30 ng/mL [37]. In the same line, Cecchetto and coworkers recently proposed an original approach for detection of DENV protein NS1 on the surface of AuE modified with recognition element (anti-DENV NS1 antibody) attached to the ferrocene-tagged peptide structure [90]. The response of the interaction between antibody-antigen was monitored by EIS.

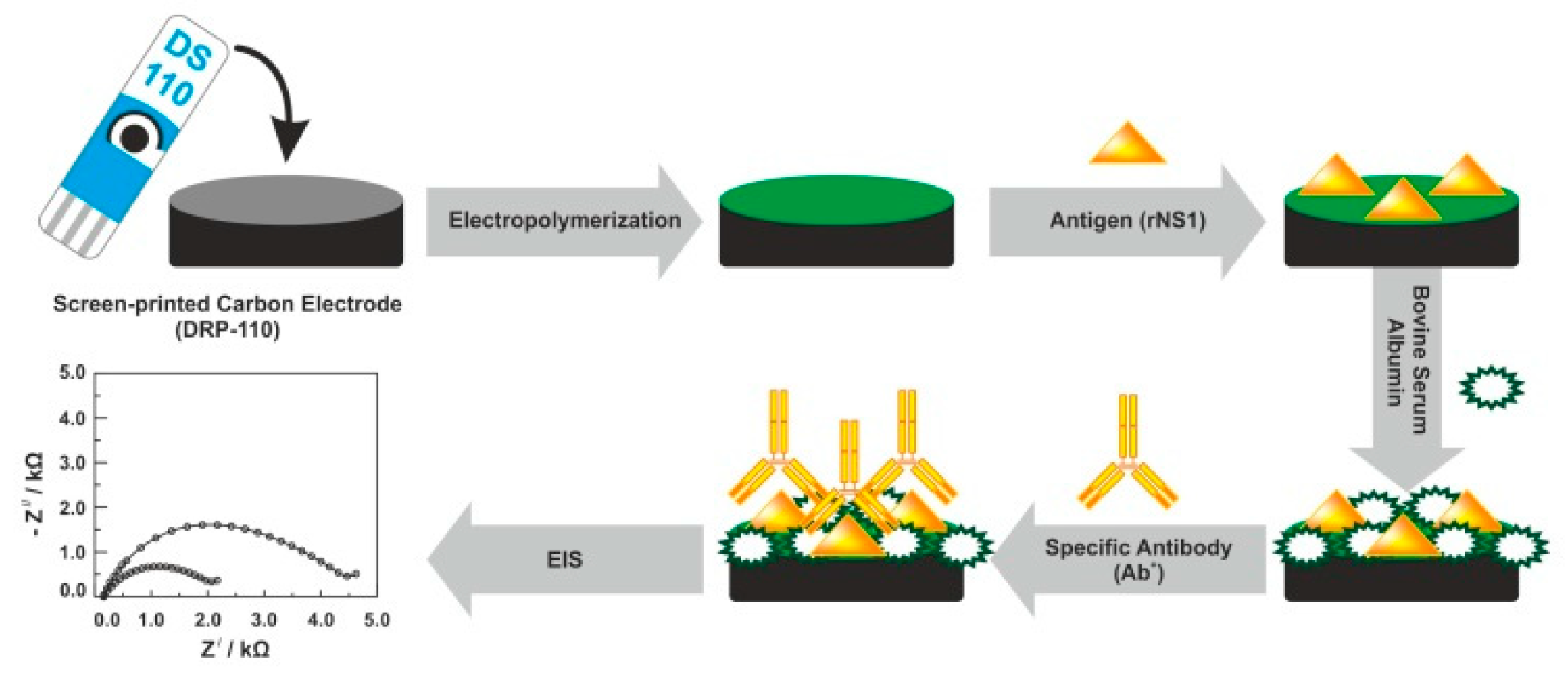

In addition to antibodies, NS1 antigens were used as the receptor electrode layer of biosensors for label-free detection of DENV antibodies. For instance, Santos et al. demonstrated a new tool for detecting anti-DENV NS1 antibodies in real serum samples on a screen-printed carbon electrode (SPCE) by the EIS technique (Figure 3) [91], where results obtained by the electrochemical method were verified using a standard ELISA method. An original approach of particular interest is the recognition element (anti-NS1 antibody) attached to the ferrocene-tagged peptide structure using standard EDC (1-ethyl-3-(3-dimethylaminopropyl)carbodiimide)/NHS—(N-hydroxysuccinimide) protocol [92].
Another interesting approach, described by Santos et al., is based on the immobilization of PEG (poly(ethylene glycol)-thiol (with low fouling features) at the AuE surface for detecting of anti- DENV NS1 antibodies [51]. A low fouling component (PEG) was used in order to avoid non-specific interactions. In the same line, to prevent nonspecific binding (fouling), Darwish et al. modified the bare ITO electrode with 4-sulfophenyl, 4-trimethylammoniophenyl, and 1,4-phenylenediamine [88]. These antifouling molecules with charged terminal groups can counter the non-specific adsorption of the various proteins naturally found in human sera [94].
Recent trend in DENV detection methods using label-free biosensors is the application of molecularly-imprinted polymers (MIPs) [95,96]. MIP-based biosensors attract attention due to simplicity, easy mass production, improved shelf-life, and low costs of sensor. For instance, Arshad et al. developed the MIP-based biosensor for detection of DENV protein NS1 in real human serum samples on the surface of SPCE modified with electrically conductive polysulfone nanofibers and dopamine. In MIP sensing, the selective recognition of target analyte is based on its chemical as well as geometrical fitting into imprinted cavities of polymer matrix [97]. The self-polymerization of dopamine at room temperature helps to maintain the precise structure of template (NS1), which results in generating geometrically fit imprinted sites for further target analyte detection. A proposed MIP-based biosensor can selectively detect NS1 concentrations as low as 0.3 ng/mL.
The concept of FET has been also found application in the development of immunosensors for the detection of DENV [98]. Viera and coworkers proposed an original approach for the label-free recognition of DENV NS1 using the metal-oxide-semiconductor FET as a platform for detection of protein interactions [98]. The detection principle is based on the change in the charge distribution when a target DENV NS1 was recognized by immobilized anti-DENV NS1 antibodies on the FET surface. The authors noted that only the charge change due to antigen–antibody interactions that occurs within the Debye length can be measured by using a FET immunosensor [65]. Therefore, AuE was used as a material able to detect antigen–antibody interactions in FET immunosensors, due to exhibition of non-Nernstian behavior (pH sensitivity < 59.15 mV/pH). This immunosensor has LOD of DENV NS1 of 0.25 μg/mL.

3.3. Peptide-Based Biosensors for DENV Diagnostic

Just a few of DENV-specific peptide sensors have been reported [33,44]. Linearity, unique small size, cost efficiency, and biocompatibility of peptides makes them more perspective as a bio-recognition element than antibodies. Peptides can easily bind to the electrode surfaces of various materials, such as metal nanoparticles (NPs) or carbon nanotubes (CNTs), for bioassays. Recently, an effective label-free electrochemical immunosensors based on binding affinities of five synthetic affinity peptides for the detection of non-structural protein NS1 (Figure 4) were developed [68]. Relative binding affinities of these synthetic peptides were determined by SWV and EIS.

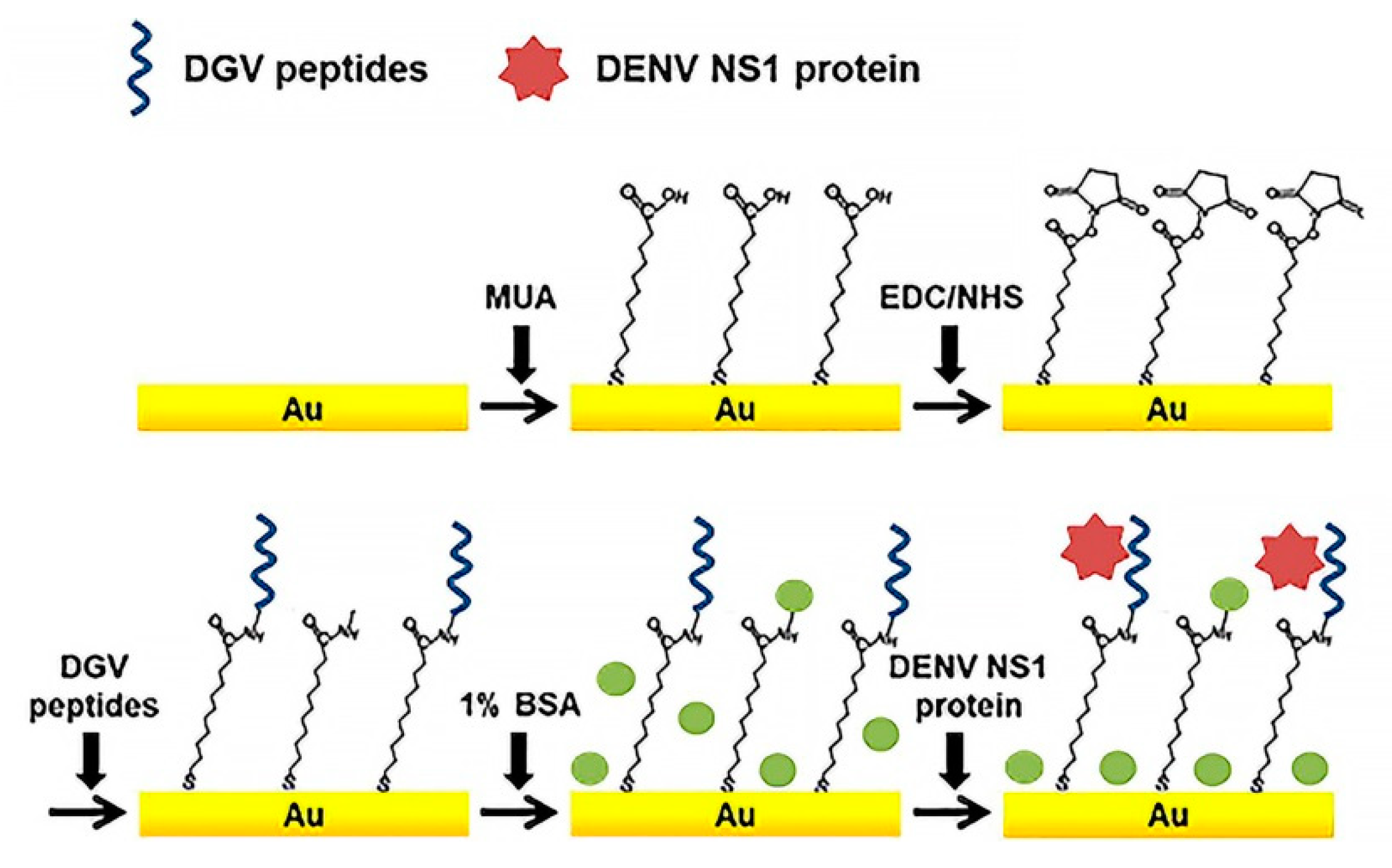

As noted in introduction section, NS1 is a specific and sensitive biomarker for diagnosis of DENV. Five synthetic peptides (DGV BP1–BP5) with different amino acid sequences were chemically synthesized for testing as candidates for affinity binding to SN1. For instance, to examine the binding affinity of a peptide with flexibility and a non-fouling nature, the DGV BP4 peptide was synthesized by incorporating the non-fouling peptide. The sensor performance for DENV NS1 determination was monitored by SWV and EIS using a redox pair [Fe(CN)6]3−/4−. DGV BP1 (EHDRMHAYYLTRGGGGSC) was selected as a promising recognition peptide, with LOD of SN1 ≈ 1.49 μg/mL. Lim and coauthors also used CV, SWV, and EIS for monitoring interaction between a peptide and DENV2 protein NS1 [55].
In summary, the technical approaches for implementing the DENV detection method determine the basic principle to differentiate these described DNA/RNA and peptide biosensors and immunosensors for the determination of DENV. Table 1 summarizes types of electrodes, methods, targets, and bio-recognition layers applied for DENV determination. As a result of different samples and approaches used, the units used for LOD are different and cannot be converted to the unified ones. The same holds for Table 2 and Table 3.
It can be concluded that present electrochemical biosensors showed practical applicability of detection of different DENV serotypes. However, none of the commercial rapid tests distinguishes the DENV serotypes [106]. The main advantage of using commercial test strips is the fact that it is possible to detect dengue virus using both dengue NS1 antigen and anti-dengue antibodies (IgM/IgG) with one device. The same holds for ZIKV commercial test strips (Table 2).

4. Electrochemical Biosensors for ZIKV Diagnostic

ZIKV is relatively new virus discovered in the middle of the 20th century [107]. Therefore, studies in the development of label-free electrochemical biosensors for its detection are limited. ZIKV can cause serious sequelae such as fetal microcephaly or Guillain-Barré syndrome [108]. Epidemiological monitoring of infection has significant role for the diagnosis of ZIKV. Considering that most of the cases of ZIKV infection are in countries with limited resources, there is an intensive search focused on the development of efficient, low-cost label-free biosensors for selective and rapid determination of ZIKV in real samples at epidemic areas.
For the determination of ZIKV, a wide range of bio-recognition components on the receptor layer of label-free electrochemical biosensors was so far used (Table 2). Specific attention is paid to the exclusion of cross-reactivity with other flaviviruses, in particular DENV. For instance, several studies are devoted to the development of biosensor steps aimed at eliminating cross-reactivity with DENV [109,110]. The biosensors used a non-structural protein 1 (NS1) as an important molecule for the selective detection of ZIKV. Studies have shown that NS1 has the potential for the selective diagnosing of ZIKV without cross-reactivity with another flaviviruses [111,112]. Faria et al. introduced a new platform based on ZnO nanostructures immobilized with ZIKV NS1 antibody on a printed circuit board (PCB) followed by CV evaluation [109]. Their findings suggest a high selectivity to ZIKV (LOD 1 pg/mL), without cross-reactivity with DENV. Another group has proposed the use of two recognition elements: recombinant forms of ZIKV NS1 and the domain III of the envelope protein (EDIII) [110], where the recognition elements were immobilized on a SPCE modified with p-phenylenediamine. The combination of EDIII and NS1 enables to detect anti-ZIKV antibodies in human serum samples without cross-reactivity to DENV by different electrochemical techniques (SWV, CV, EIS), with LOD of 57 fg/mL of monoclonal antibodies (mAb) and 17 fg/mL of mAb for EDIII and NS1, respectively. Afsahi and coworkers used PEG as an effective block against non-specific interactions at the graphene chip [113]. Biosensor chips were developed for the label-free detection of ZIKV NS1 antigen in a simulated human serum, with LOD of 4.5 × 10−10 mol/L. Similar works were carried out for determination of the DENV and described in chapter [68,88].

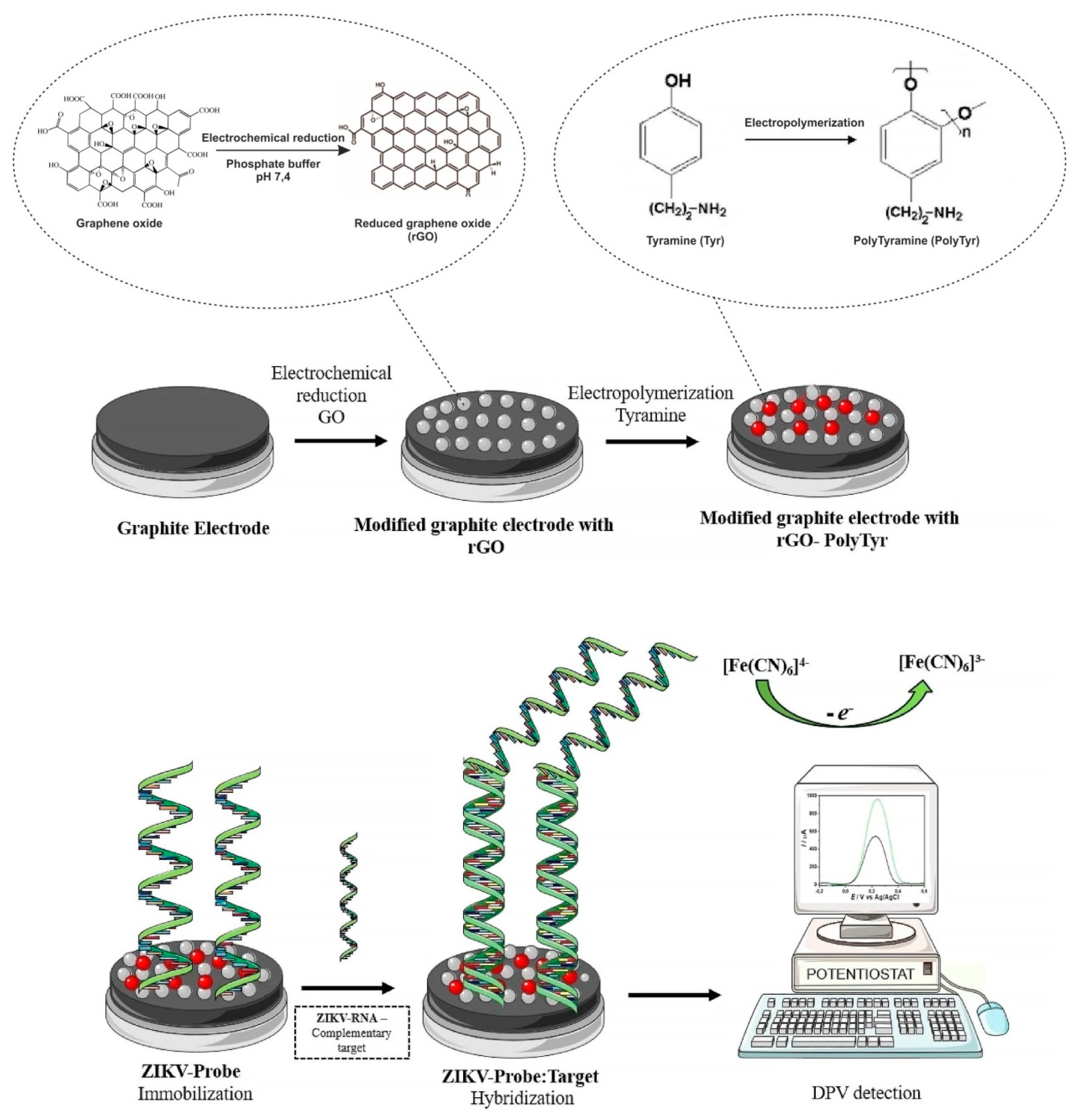

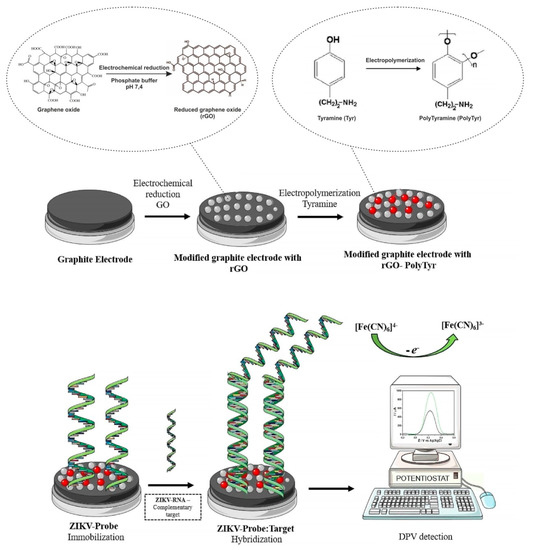

Different materials can improve conductive properties of biosensors and thus increase their sensitivity. Various research groups reported the possibility of functionalization of electrode surfaces by polymeric materials or used them as platforms for ZIKV detection [26,48,56]. Polymeric films are also perfect materials for the conjugation with biomolecules, since they can be chemically functionalized [114]. For instance, polytyramine-conducting polymer with electrochemically reduced graphene oxide (rGO) has been used for the development of new platform for detection of genomic RNA of ZIKV in human serum samples [26]. In this work, ZIKV was quantified via DPV, with LOD down to 0.1 fg/mL, showing good stability and great potential for further practical diagnostic of ZIKV (Figure 5).
Based on the same principles, Alves and co-workers described the formation of a polymeric film derived from 3-amino-4-hydroxybenzoic acid (3-4-AHBA) on the surface of a pencil carbon graphite electrode (PCGE) for quantitative monitoring of ZIKV [56]. A proposed platform can differentiate cross-responses between DENV and ZIKV in enriched human serum. The developed material was used for the immobilization of the ssDNA ZIKV oligonucleotide and the differentiation was estimated by detection of an oligonucleotide of the genome-specific sequence of an amine-modified ZIKV. The effect of hybridization was based on current differences (ΔIp) between the probe and the complementary total ZIKV target RNA, the total RNA of DENV2, and the total RNA of DENV3. Concentration of target analyte was monitored using EIS and SWV, with LOD of 2.54 × 10−11 mol/L. Alternatively, Faria et al. demonstrated a platform for detection of ZIKV NS5 protein, where disposable AuEs were fabricated on polyethylene terephthalate (PET) substrate. [48]. The biosensor promised the differentiation between samples with ZIKV and DENV NS5 protein. In this system, EIS measurements showed LOD of 2.5 × 10−8 mol/L. Another interesting approach with polymeric materials was described by Tancharoen et al. [115]. It is based on the immobilization of surface imprinted polymers (SIPs) and GO composites at the AuE surface for detecting of ZIKV antigen. In general, SIPs have very high electrical resistance, but by adding nanocarbon materials into these SIPs an electrochemically sensitive layer is formed. In this system, CV measurements showed LOD of 2 × 10−4 pfu/mL in phosphate-buffered saline.
The types of electrodes, targets, and bio-recognition layers applied for the development of label-free electrochemical biosensors ZIKV described above are summarized in Table 2.
It can be concluded that authors tried to develop specific, cost-effective biosensors for ZIKV detection without cross-reaction with other flaviviruses. Present electrochemical biosensors showed practical applicability of different electrode materials for successful diagnosis of ZIKV, mostly by the EIS technique with the ferri/ferrocyanide redox probe. Commercially available ELISA tests focused on the determination of immune status ratio by dividing the optical density of the patient sample reacted with the ZIKV recombinant envelop (E) glycoprotein by the optical density of the patient sample reacted with a cross-reactive control antigen, which requires additional calculations and complicates the analysis procedure. The same holds for JEV commercial ELISA tests (Table 3).

5. Electrochemical Biosensors for JEV Diagnostic

JEV is endemic mostly in a large area of Asia and—as with other flaviviruses—affects the human brain membrane and causes serious damage to human health. The most significant medicine to resist the Japanese encephalitis is the use of the special vaccine. Therefore, it is important to monitor immunological products containing antigen to JEV which are used as a prevention of developing severe forms of the disease. Since most of the JEV incidents happen in countries with limited possibility to conduct diagnostic tests, it is required to develop alternative simple, user-friendly, fast, and inexpensive diagnostic tools applicable for rapid on-site analysis to eliminate the need for more expensive and labor-intensive conventional methods (ELISA, PCR) requiring more qualified personnel. Therefore, researchers have been trying to develop electrochemical biosensors as an attractive option for JEV detection in human serum or in vaccine.
In most publications, a sample containing antibodies to JEV as a bio-recognition component immobilized on the receptor layer of label-free electrochemical biosensors was investigated. For instance, Yuan and co-workers reported two studies for fast assay of JEV vaccine by the use of platinum electrode (PtE), where antiserum of JEV is used as the bio-recognition element [45,119]. In both works, bilayer of o-phenylenediamine (o-PDA) was electropolymerized on the surface of the PtE for the conjugation with antibodies to JEV. Such a modification layer has made it possible to determine JEV in vaccine amperometrically, with an LOD of 6 × 10−9 pfu/mL. These studies are devoted to the development of methods to control JEV vaccine [42,45,119].
The immobilization of biomolecules plays an important role in the development of sensitive biosensors. Several studies paid attention to the application of nanomaterials for conjugation with a bio-recognition element. For example, Zhang et al. immobilized AuNPs and [Co(bpy)3]3+ in differently charged states on the AuE modified by l-cysteine and, afterwards, they immersed thus modified electrode into solution with the bio-recognition element (antiserum of JEV) [42]. The detection principle of JEV is based on the variation of potentiometric response before and after immunoreaction, with LOD of 3.5 × 10−8 pfu/mL. Another interesting approach is based on the deposition of polyaniline (PANI) nanowires at the PtE surface for immobilization of anti-JEV IgG [38]. The developed PANI nanowires electrochemical biosensor detects JEV by EIS, with LOD below 10 ng/mL. Carbon nanoparticles (CNPs) are also frequently exploited in JEV electrochemical biosensors. They are characterized by excellent electrochemical properties, low cost, and good deformational stability [120]. Chin and co-workers successfully applied CNPs for conjugation with JEV antibody and detection of JEV in human serum samples on a SPCE, with LOD of 2 ng/mL [121]. Another research group also modified a SPCE by CNPs for rapid and sensitive detection of JEV in human serum, with an LOD of 0.36 ng/mL [70]. Figure 6 depicts the preparation of the electrochemical biosensor for the detection of JEV with using CNPs as an immobilization platform for the JEV antibody [70].

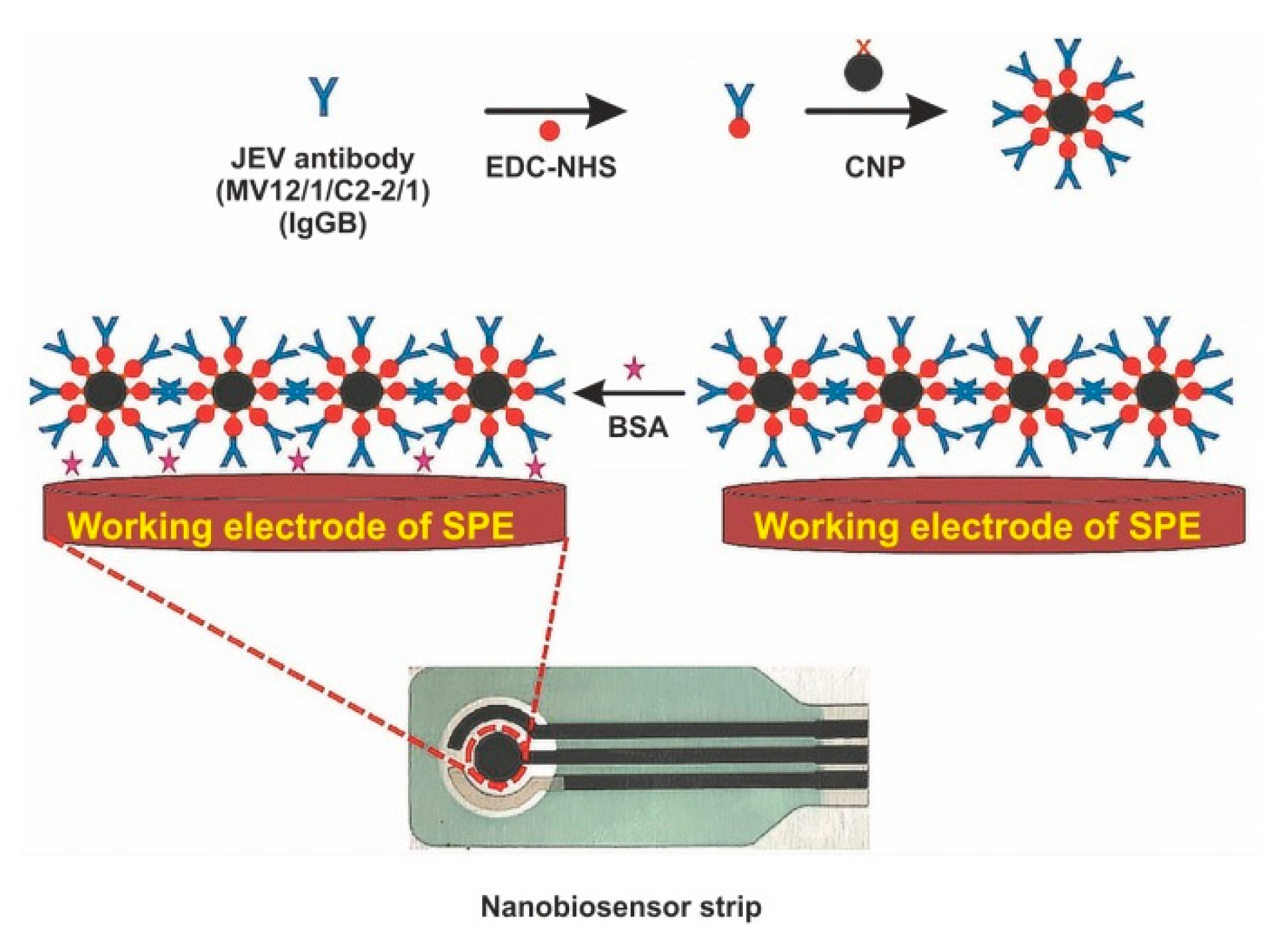

The application of CNPs resulted in higher sensitivity in combination with EIS and CV. However, in most of these works, the possibility of cross-reactivity between flaviviruses was not discussed. Moreover, the specificity of each assay needs to be considered, because JEV is closely related to West Nile virus which frequently circulates in the same area (e.g., in India).
Table 3 summarizes types of electrodes, methods, targets, and bio-recognition layers applied for JEV determination.
It is clear that the immobilization of biomolecules with certain nanoparticles can effectively decrease LOD of JEV. EIS is most frequently used for the detection of JEV by monitoring the impedance changes of specific binding between bio-recognition element and samples containing JEV antigen. The described label-free biosensors are applicable for determination of JEV in human serum and biological products, thus paving the path for a novel method for monitoring JEV. In contrast, presented commercially available tests focused on detection of antibodies to JEV and had lower sensitivity (17–53%) in comparison with DENV and ZIKV commercial assays. In these commercial kits, false JEV IgM positive results are caused by cross-reactivity with DENV and West Nile virus.

6. Conclusions and Future Perspectives of Biosensors

Flaviviruses (DENV, ZIKV, and JEV) cause diseases of varying severity, from asymptomatic to the development of life-threatening haemorrhagic fever and encephalitis. Therefore, the rapid identification of flaviviruses has important clinical, economic, and epidemiological relevance. Traditional methods for diagnosing these viruses are ELISA, PCR, and PRNT, which are time-consuming, expensive, and have high requirements for trained personnel. In this sense, electrochemical biosensors become useful tools in clinical diagnosis of flaviviruses, due to the fact that determinations are fast, simple, selective, and sensitive.
The present review describes recent advances in determination of DENV, ZIKV, and JEV by label-free electrochemical biosensors (mainly voltammetric, impedimetric, and amperometric) and critically compares their possibilities and limitations in detecting flaviviruses. DNA biosensors and immunosensors measuring the electrochemical signal in the presence of redox markers, such as ferri/ferrocyanide systems and ruthenium complexes, are most frequently used. The main interest in this field is focused on increasing the selectivity of determination of flaviviruses by the modification of the biosensor’s electrode surface with natural bio-recognizing compounds (DNA and RNA, antigens, antibodies). In this field, more reliable results were obtained by using non-structural protein (NS1), which is a clinical indicator in immunosensing and molecular research for diagnostic of flaviviruses, as a bio-recognition element or an object for assays in various samples. In addition to natural bio-molecules, their synthetic analogues—synthetic proteins (polymers with molecular fingerprints that are imitators of antibodies or antigens) are used to reduce the costs of analysis. Necessary density and binding efficiency of bio-recognition elements for sensitive determination of flaviviruses was achieved by various modifications of electrode surface with graphene oxide, metal NPs, metal oxides, carbon nanotubes, polymer films, and conductive MIPs. In particular, the polymer films have a great advantage, because they allow receptor molecules to maintain their native conformation and binding activity.
The major challenge in this area is the development of a specific biosensor for differential diagnostics of flaviviruses without cross-reactivity with viruses that have similar genomes and similar antigenic structure. This factor could limit the application of biosensors, and, thus, considerable research is still necessary in this field. Fortunately, much has been learned over the past decade about flaviviruses, and investigators suggested some optimizations followed by successful results for the identification of the specific virus serotype. However, in many papers, the proposed electrochemical label-free biosensors are fabricated by relatively labor-intensive ways, without information about the stability, storage conditions, and shelf-life of the biosensors. So far, no label-free sensors for tick-borne encephalitis virus were introduced, so that research in this field could be interesting.
Despite still existing limitations in the widespread usage of label-free electrochemical biosensors for the detection of flaviviruses in medical diagnostics, their potential with high sensitivity, low consumption of analyzed objects, low matrix influence, relatively low investment and running costs, and suitability for miniaturization has not only reached, but exceeded the potential of other analytical methods available for these purposes.
The most prospective pathways for future research in the field of flaviviruses sensors is probably the label-free approach based on novel nanomaterials, which is a prevailing trend in most fields of electroanalytical chemistry. However, further effort should be given to introducing novel method into practical laboratories, and we hope that this review can be a small contribution in this important effort.

Author Contributions

E.K. (Ekaterina Khristunova), E.D., and E.K. (Elena Korotkova) designed this review article and contributed to the writing and formatting of the manuscript. E.K. (Elena Korotkova), J.B., V.V., and B.K. contributed to editing, schematic design, and co-wrote this paper. All authors have read and agreed to the published version of the manuscript.

Funding

The reported study was funded by the Russian Foundation for Basic Research (project RFBR 19-53-26001) and by the Czech Science Foundation (project GACR 20-01417J). This work was supported from the grant of Specific university research of the University of Chemistry and Technology, Prague—Grant No. A2_FCHT_2020_016.

Conflicts of Interest

The authors declare that there is no conflict of interest.

References

  1. Aleyas, A.G.; George, J.A.; Han, Y.W.; Kim, H.K.; Kim, S.J.; Yoon, H.A.; Eo, S.K. Flaviviruses Induce Pro-inflammatory and Anti-inflammatory Cytokines from Murine Dendritic Cells through MyD88-dependent Pathway. Immune Netw. 2007, 7, 66. [Google Scholar] [CrossRef] [Green Version]
  2. Chong, H.Y.; Leow, C.Y.; Abdul Majeed, A.B.; Leow, C.H. Flavivirus infection—A review of immunopathogenesis, immunological response, and immunodiagnosis. Virus Res. 2019, 274, 197770. [Google Scholar] [CrossRef]
  3. Nazmi, A.; Dutta, K.; Hazra, B.; Basu, A. Role of pattern recognition receptors in flavivirus infections. Virus Res. 2014, 185, 32–40. [Google Scholar] [CrossRef] [PubMed]
  4. Charrel, R.N. Diagnosis of arboviral infections-A quagmire of cross reactions and complexities. Travel Med. Infect. Dis. 2016, 14, 11–12. [Google Scholar] [CrossRef] [PubMed]
  5. Daep, C.A.; Muñoz-Jordán, J.L.; Eugenin, E.A. Flaviviruses, an expanding threat in public health: Focus on dengue, West Nile, and Japanese encephalitis virus. J. Neurovirol. 2014, 20, 539–560. [Google Scholar] [CrossRef] [Green Version]
  6. Li, X.F.; Dong, H.L.; Wang, H.J.; Huang, X.Y.; Qiu, Y.F.; Ji, X.; Ye, Q.; Li, C.; Liu, Y.; Deng, Y.Q.; et al. Development of a chimeric Zika vaccine using a licensed live-attenuated flavivirus vaccine as backbone. Nat. Commun. 2018, 9, 1–11. [Google Scholar] [CrossRef] [Green Version]
  7. Guy, B.; Jackson, N. Dengue vaccine: Hypotheses to understand CYD-TDV-induced protection. Nat. Rev. Microbiol. 2015, 14, 45–54. [Google Scholar] [CrossRef]
  8. Chokephaibulkit, K.; Houillon, G.; Feroldi, E.; Bouckenooghe, A. Safety and immunogenicity of a live attenuated Japanese encephalitis chimeric virus vaccine (IMOJEV®) in children. Expert Rev. Vaccines 2016, 15, 153–166. [Google Scholar] [CrossRef]
  9. Heinz, F.X.; Stiasny, K. Flaviviruses and flavivirus vaccines. Vaccine 2012, 30, 4301–4306. [Google Scholar] [CrossRef]
  10. Wang, D.; Zheng, Y.; Kang, X.; Zhang, X.; Hao, H.; Chen, W.; Liu, L.; Li, X.; Li, L.; Yuan, Q.; et al. A multiplex ELISA-based protein array for screening diagnostic antigens and diagnosis of Flaviviridae infection. Eur. J. Clin. Microbiol. Infect. Dis. 2015, 34, 1327–1336. [Google Scholar] [CrossRef] [PubMed]
  11. Tabachnick, W.J. Climate Change and the Arboviruses: Lessons from the Evolution of the Dengue and Yellow Fever Viruses. Annu. Rev. Virol. 2016, 3, 125–145. [Google Scholar] [CrossRef] [PubMed]
  12. Pierson, T.C.; Diamond, M.S. The continued threat of emerging flaviviruses. Nat. Microbiol. 2020, 5, 796–812. [Google Scholar] [CrossRef] [PubMed]
  13. Ali, S.; Gugliemini, O.; Harber, S.; Harrison, A.; Houle, L.; Ivory, J.; Kersten, S.; Khan, R.; Kim, J.; LeBoa, C.; et al. Environmental and Social Change Drive the Explosive Emergence of Zika Virus in the Americas. PLoS Negl. Trop. Dis. 2017, 11, e0005135. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, Y.; Liu, J.; Du, S.; Shan, C.; Nie, K.; Zhang, R.; Li, X.F.; Zhang, R.; Wang, T.; Qin, C.F.; et al. Evolutionary enhancement of Zika virus infectivity in Aedes aegypti mosquitoes. Nature 2017, 545, 482–486. [Google Scholar] [CrossRef] [Green Version]
  15. Baronti, C.; Sire, J.; de Lamballerie, X.; Quérat, G. Nonstructural NS1 proteins of several mosquito-borne Flavivirus do not inhibit TLR3 signaling. Virology 2010, 404, 319–330. [Google Scholar] [CrossRef]
  16. Lindenbach, B.D.; Rice, C.M. Molecular biology of flaviviruses. Adv. Virus Res. 2003, 59, 23–61. [Google Scholar]
  17. Young, P.R.; Hilditch, P.A.; Bletchly, C.; Halloran, W. An antigen capture enzyme-linked immunosorbent assay reveals high levels of the dengue virus protein NS1 in the sera of infected patients. J. Clin. Microbiol. 2000, 38, 1053–1057. [Google Scholar] [CrossRef] [Green Version]
  18. Alcon, S.; Talarmin, A.; Debruyne, M.; Falconar, A.; Deubel, V.; Flamand, M. Enzyme-linked immunosorbent assay specific to dengue virus type 1 nonstructural protein NS1 reveals circulation of the antigen in the blood during the acute phase of disease in patients experiencing primary or secondary infections. J. Clin. Microbiol. 2002, 40, 376–381. [Google Scholar] [CrossRef] [Green Version]
  19. Herrada, C.A.; Kabir, M.A.; Altamirano, R.; Asghar, W. Advances in Diagnostic Methods for Zika Virus Infection. J. Med. Dev. 2018, 12, 0408021–04080211. [Google Scholar] [CrossRef]
  20. Wellinghausen, N.; Abele-Horn, M.; Donoso Mantke, O.; Enders, M.; Fingerle, V.; Gärtner, B.; Hagedorn, J.; Rabenau, H.F.; Reiter-Owona, I.; Tintelnot, K.; et al. Immunological Methods for the Detection of Infectious Diseases; Dustri-Verlag Dr. Karl Feistle: Oberhaching, Germany, 2017. [Google Scholar]
  21. Parkash, O.; Shueb, R.H. Diagnosis of dengue infection using conventional and biosensor based techniques. Viruses 2015, 7, 5410–5427. [Google Scholar] [CrossRef]
  22. Zainuddin, A.A.; Nordin, A.N.; Rahim, R.A. Recent trends in dengue detection methods using biosensors. IIUM Eng. J. 2018, 19, 134–153. [Google Scholar] [CrossRef]
  23. Alzate, D.; Cajigas, S.; Robledo, S.; Muskus, C.; Orozco, J. Genosensors for differential detection of Zika virus. Talanta 2020, 210, 120648. [Google Scholar] [CrossRef] [PubMed]
  24. Ohan, N.W.; Heikkila, J.J. Reverse transcription-polymerase chain reaction: An overview of the technique and its applications. Biotechnol. Adv. 1993, 11, 13–29. [Google Scholar] [CrossRef]
  25. Sinawang, P.D.; Rai, V.; Ionescu, R.E.; Marks, R.S. Electrochemical lateral flow immunosensor for detection and quantification of dengue NS1 protein. Biosens Bioelectron. 2016, 77, 400–408. [Google Scholar] [CrossRef]
  26. Moço, A.C.R.; Guedes, P.H.; Flauzino, J.M.R.; da Silva, H.S.; Vieira, J.G.; Castro, A.C.H.; Gomes, É.V.R.; Tolentino, F.M.; Soares, M.M.C.N.; Madurro, J.M.; et al. Electrochemical Detection of Zika Virus in Biological Samples: A Step for Diagnosis Point-of-care. Electroanalysis 2019, 31, 1580–1587. [Google Scholar] [CrossRef]
  27. Hien, H.T.; Giang, H.T.; Trung, T.; Van Tuan, C. Enhancement of biosensing performance using a polyaniline/multiwalled carbon nanotubes nanocomposite. J. Mater. Sci. 2017, 52, 1694–1703. [Google Scholar] [CrossRef]
  28. Singhal, C.; Pundir, C.S.; Narang, J. A genosensor for detection of consensus DNA sequence of Dengue virus using ZnO/Pt-Pd nanocomposites. Biosens. Bioelectron. 2017, 97, 75–82. [Google Scholar] [CrossRef]
  29. Khristunova, Y.; Korotkova, E.; Kratochvil, B.; Barek, J.; Dorozhko, E.; Vyskocil, V.; Plotnikov, E.; Voronova, O.; Sidelnikov, V. Preparation and Investigation of Silver Nanoparticle–Antibody Bioconjugates for. Sensors 2019, 19, 2103. [Google Scholar] [CrossRef] [Green Version]
  30. Darwish, N.T.; Alias, Y.B.; Khor, S.M. An introduction to dengue-disease diagnostics. TrAC-Trends Anal. Chem. 2015, 67, 45–55. [Google Scholar] [CrossRef]
  31. Cecchetto, J.; Fernandes, F.C.B.; Lopes, R.; Bueno, P.R. The capacitive sensing of NS1 Flavivirus biomarker. Biosens. Bioelectron. 2017, 87, 949–956. [Google Scholar] [CrossRef] [Green Version]
  32. Silva, M.M.S.; Dias, A.C.M.S.; Cordeiro, M.T.; Marques, E.; Goulart, M.O.F.; Dutra, R.F. A thiophene-modified screen printed electrode for detection of dengue virus NS1 protein. Talanta 2014, 128, 505–510. [Google Scholar] [CrossRef] [PubMed]
  33. Fang, X.; Tan, O.K.; Tse, M.S.; Ooi, E.E. A label-free immunosensor for diagnosis of dengue infection with simple electrical measurements. Biosens. Bioelectron. 2010, 25, 1137–1142. [Google Scholar] [CrossRef] [PubMed]
  34. Kaushik, A.; Tiwari, S.; Jayant, R.D.; Vashist, A.; Nikkhah-Moshaie, R.; El-Hage, N.; Nair, M. Electrochemical Biosensors for Early Stage Zika Diagnostics. Trends Biotechnol. 2017, 35, 308–317. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Ricotta, V.; Yu, Y.; Clayton, N.; Chuang, Y.C.; Wang, Y.; Mueller, S.; Levon, K.; Simon, M.; Rafailovich, M. A chip-based potentiometric sensor for a Zika virus diagnostic using 3D surface molecular imprinting. Analyst 2019, 144, 4266–4280. [Google Scholar] [CrossRef] [PubMed]
  36. Ozer, T.; Geiss, B.J.; Henry, C.S. Review—Chemical and Biological Sensors for Viral Detection. J. Electrochem. Soc. 2020, 167, 037523. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Cecchetto, J.; Carvalho, F.C.; Santos, A.; Fernandes, F.C.B.; Bueno, P.R. An impedimetric biosensor to test neat serum for dengue diagnosis. Sens. Actuators B Chem. 2015, 213, 150–154. [Google Scholar] [CrossRef]
  38. van Tuan, C.; Huy, T.Q.; Van Hieu, N.; Tuan, M.A.; Trung, T. Polyaniline Nanowires-Based Electrochemical Immunosensor for Label Free Detection of Japanese Encephalitis Virus. Anal. Lett. 2013, 46, 1229–1240. [Google Scholar] [CrossRef]
  39. Channon, R.B.; Yang, Y.; Feibelman, K.M.; Geiss, B.J.; Dandy, D.S.; Henry, C.S. Development of an Electrochemical Paper-Based Analytical Device for Trace Detection of Virus Particles. Anal. Chem. 2018, 90, 7777–7783. [Google Scholar] [CrossRef]
  40. Syahir, A.; Usui, K.; Tomizaki, K.; Kajikawa, K.; Mihara, H. Label and Label-Free Detection Techniques for Protein Microarrays. Microarrays 2015, 4, 228–244. [Google Scholar] [CrossRef] [Green Version]
  41. Sang, S.; Wang, Y.; Feng, Q.; Wei, Y.; Ji, J.; Zhang, W. Progress of new label-free techniques for biosensors: A review. Crit. Rev. Biotechnol. 2015, 36, 1–17. [Google Scholar] [CrossRef]
  42. Zhang, L.; Yuan, R.; Chai, Y.; Chen, S.; Wang, N.; Zhu, Q. Layer-by-layer self-assembly of films of nano-Au and Co(bpy)33+ for the determination of Japanese B encephalitis vaccine. Biochem. Eng. J. 2006, 28, 231–236. [Google Scholar] [CrossRef]
  43. Figueiredo, A.; Vieira, N.C.S.; Dos Santos, J.F.; Janegitz, B.C.; Aoki, S.M.; Junior, P.P.; Lovato, R.L.; Nogueira, M.L.; Zucolotto, V.; Guimarães, F.E.G. Electrical detection of dengue biomarker using egg yolk immunoglobulin as the biological recognition element. Sci. Rep. 2015, 5, 7865. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Senapati, S.; Slouka, Z.; Shah, S.S.; Behura, S.K.; Shi, Z.; Stack, M.S.; Severson, D.W.; Chang, H.C. An ion-exchange nanomembrane sensor for detection of nucleic acids using a surface charge inversion phenomenon. Biosens. Bioelectron. 2014, 60, 92–100. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Yuan, R.; Zhang, L.; Li, Q.; Chai, Y.; Cao, S. A label-free amperometric immunosenor based on multi-layer assembly of polymerized o-phenylenediamine and gold nanoparticles for determination of Japanese B encephalitis vaccine. Anal. Chim. Acta 2005, 531, 1–5. [Google Scholar] [CrossRef]
  46. Silva, M.M.S.; Dias, A.C.M.S.; Silva, B.V.M.; Gomes-Filho, S.L.R.; Kubota, L.T.; Goulart, M.O.F.; Dutra, R.F. Electrochemical detection of dengue virus NS1 protein with a poly(allylamine)/carbon nanotube layered immunoelectrode. J. Chem. Technol. Biotechnol. 2015, 90, 194–200. [Google Scholar] [CrossRef]
  47. Rashid, J.I.A.; Yusof, N.A.; Abdullah, J.; Hashim, U.; Hajian, R. The utilization of SiNWs/AuNPs-modified indium tin oxide (ITO) in fabrication of electrochemical DNA sensor. Mater. Sci. Eng. C 2014, 45, 270–276. [Google Scholar] [CrossRef]
  48. Faria, H.A.M.; Zucolotto, V. Label-free electrochemical DNA biosensor for zika virus identification. Biosens. Bioelectron. 2019, 131, 149–155. [Google Scholar] [CrossRef]
  49. Kaushik, A.; Yndart, A.; Kumar, S.; Jayant, R.D.; Vashist, A.; Brown, A.N.; Li, C.Z.; Nair, M. A sensitive electrochemical immunosensor for label-free detection of Zika-virus protein. Sci. Rep. 2018, 8, 9700. [Google Scholar] [CrossRef] [Green Version]
  50. Santos, A.; Bueno, P.R.; Davis, J.J. A dual marker label free electrochemical assay for Flavivirus dengue diagnosis. Biosens. Bioelectron. 2018, 100, 519–525. [Google Scholar] [CrossRef] [Green Version]
  51. Justino, C.I.L.; Rocha-Santos, T.A.; Duarte, A.C. Review of analytical figures of merit of sensors and biosensors in clinical applications. TrAC-Trends Anal. Chem. 2010, 29, 1172–1183. [Google Scholar] [CrossRef]
  52. Armbruster, D.A.; Pry, T. Limit of blank, limit of detection and limit of quantitation. Clin. Biochem. Rev. 2008, 29, S49–S52. [Google Scholar] [PubMed]
  53. Long, G.L.; Winefordner, J.D. Limit of Detection. Anal. Chem. 1983, 55, 712A–724A. [Google Scholar]
  54. Shrivastava, A.; Gupta, V. Methods for the determination of limit of detection and limit of quantitation of the analytical methods. Chron. Young Sci. 2011, 2, 21. [Google Scholar] [CrossRef]
  55. Lim, J.M.; Kim, J.H.; Ryu, M.Y.; Cho, C.H.; Park, T.J.; Park, J.P. An electrochemical peptide sensor for detection of dengue fever biomarker NS1. Anal. Chim. Acta 2018, 1026, 109–116. [Google Scholar] [CrossRef]
  56. Alves, F.; Leoni, D.; Tenório, M.; Marques, E.; Júnior, D.O.; Amalia, R.; Dutra, F.; Del, M.; Taboada, P. Novel electrochemical genosensor for Zika virus based on a poly- (3-amino- 4-hydroxybenzoic acid) -modified pencil carbon graphite electrode. Sens. Actuators B. Chem. 2019, 296, 126681. [Google Scholar] [CrossRef]
  57. Peh, A.E.K.; Li, S.F.Y. Dengue virus detection using impedance measured across nanoporous alumina membrane. Biosens. Bioelectron. 2013, 42, 391–396. [Google Scholar] [CrossRef]
  58. Lisdat, F.; Schäfer, D. The use of electrochemical impedance spectroscopy for biosensing. Anal. Bioanal. Chem. 2008, 391, 1555–1567. [Google Scholar] [CrossRef]
  59. Kafka, J.; Pänke, O.; Abendroth, B.; Lisdat, F. A label-free DNA sensor based on impedance spectroscopy. Electrochim. Acta 2008, 53, 7467–7474. [Google Scholar] [CrossRef]
  60. Gan, T.; Shi, Z.; Sun, J.; Liu, Y. Simple and novel electrochemical sensor for the determination of tetracycline based on iron/zinc cations-exchanged montmorillonite catalyst. Talanta 2014, 121, 187–193. [Google Scholar] [CrossRef]
  61. Randviir, E.P.; Banks, C.E. Electrochemical impedance spectroscopy: An overview of bioanalytical applications. Anal. Methods 2013, 5, 1098–1115. [Google Scholar] [CrossRef]
  62. George, A.; Amrutha, M.S.; Srinivasan, R.; Srivastava, P.; Sai, V.V.R.; Sunil, S. Label-Free Detection of Chikungunya Non-Structural Protein 3 Using Electrochemical Impedance Spectroscopy. J. Electrochem. Soc. 2019, 166, 1356–1363. [Google Scholar] [CrossRef]
  63. Garrote, B.L.; Santos, A.; Bueno, P.R. Perspectives on and Precautions for the Uses of Electric Spectroscopic Methods in Label-free Biosensing Applications. ACS Sens. 2019, 4, 2216–2227. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Forzani, E.S.; Li, X.; Tao, N. Hybrid amperometric and conductometric chemical sensor based on conducting polymer nanojunctions. Anal. Chem. 2007, 79, 5217–5224. [Google Scholar] [CrossRef]
  65. Poghossian, A.; Schöning, M.J. Label-Free Sensing of Biomolecules with Field-Effect Devices for Clinical Applications. Electroanalysis 2014, 26, 1197–1213. [Google Scholar] [CrossRef]
  66. Cui, J.; Gao, L.; Chen, S.; Huang, Z.; Wang, X. Electrochemical voltammetric behaviors of synthetic dengue virus RNAs at ITO sensing electrode. J. Electroanal. Chem. 2019, 851, 113463. [Google Scholar] [CrossRef]
  67. Brainina, K.; Kozitsina, A.; Beikin, J. Electrochemical immunosensor for Forest-Spring encephalitis based on protein a labeled with colloidal gold. Anal. Bioanal. Chem. 2003, 376, 481–485. [Google Scholar] [CrossRef] [PubMed]
  68. Kim, J.H.; Cho, C.H.; Ryu, M.Y.; Kim, J.G.; Lee, S.J.; Park, T.J.; Park, J.P. Development of peptide biosensor for the detection of dengue fever biomarker, nonstructural 1. PLoS ONE 2019, 14, e0222144. [Google Scholar] [CrossRef]
  69. Abdul Rashid, J.I.; Yusof, N.A.; Abdullah, J.; Hashim, U.; Hajian, R. Surface modifications to boost sensitivities of electrochemical biosensors using gold nanoparticles/silicon nanowires and response surface methodology approach. J. Mater. Sci. 2016, 51, 1083–1097. [Google Scholar] [CrossRef]
  70. Lai, H.C.; Chin, S.F.; Pang, S.C.; Henry Sum, M.S.; Perera, D. Carbon Nanoparticles Based Electrochemical Biosensor Strip for Detection of Japanese Encephalitis Virus. J. Nanomater. 2017, 2017, 1–7. [Google Scholar] [CrossRef]
  71. Khristunova, E.; Barek, J.; Kratochvíl, B.; Korotkova, E.; Dorozhko, E.; Vyskočil, V. Comparison of Two Immunoanalytical Methods for Determination of Antibodies to Tick-Borne Encephalitis Virus. Chem. Listy 2020, 114. in press. [Google Scholar]
  72. Lu, L.; Liu, B.; Liu, C.; Xie, G. Amperometric immunosensor for myeloperoxidase in human serum based on a multi-wall carbon nanotubes-ionic liquid-cerium dioxide film-modified electrode. Bull. Korean Chem. Soc. 2010, 31, 3259–3264. [Google Scholar] [CrossRef] [Green Version]
  73. Oliveira, M.D.L.; Nogueira, M.L.; Correia, M.T.S.; Coelho, L.C.B.B.; Andrade, C.A.S. Detection of dengue virus serotypes on the surface of gold electrode based on Cratylia mollis lectin affinity. Sens. Actuators B Chem. 2011, 155, 789–795. [Google Scholar] [CrossRef]
  74. Balmaseda, A.; Hammond, S.N.; Pérez, L.; Tellez, Y.; Saborío, I.; Mercado, J.C.; Cuadra, R.; Rocha, J.; Pérez, M.A.; Silva, S.; et al. Serotype-specific differences in clinical manifestations of dengue. Am. J. Trop. Med. Hyg. 2006, 74, 449–456. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Anusha, J.R.; Kim, B.C.; Yu, K.H.; Raj, C.J. Electrochemical biosensing of mosquito-borne viral disease, dengue: A review. Biosens. Bioelectron. 2019, 142, 111511. [Google Scholar] [CrossRef] [PubMed]
  76. Dejnirattisai, W.; Wongwiwat, W.; Supasa, S.; Zhang, X.; Dai, X.; Rouvinsky, A.; Jumnainsong, A.; Edwards, C.; Quyen, N.T.H.; Duangchinda, T.; et al. A new class of highly potent, broadly neutralizing antibodies isolated from viremic patients infected with dengue virus. Nat. Immunol. 2015, 16, 170–177. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Jiang, C.; Wang, G.; Hein, R.; Liu, N.; Luo, X.; Davis, J.J. Antifouling Strategies for Selective in Vitro and in Vivo Sensing. Chem. Rev. 2020, 120, 3852–3889. [Google Scholar] [CrossRef]
  78. Nawaz, M.H.; Hayat, A.; Catanante, G.; Latif, U.; Marty, J.L. Development of a portable and disposable NS1 based electrochemical immunosensor for early diagnosis of dengue virus. Anal. Chim. Acta 2018, 1026, 1–7. [Google Scholar] [CrossRef]
  79. Dincer, C.; Bruch, R.; Costa-Rama, E.; Fernández-Abedul, M.T.; Merkoçi, A.; Manz, A.; Urban, G.A.; Güder, F. Disposable Sensors in Diagnostics, Food, and Environmental Monitoring. Adv. Mater. 2019, 31, 1806739. [Google Scholar] [CrossRef]
  80. Tripathy, S.; Joseph, J.; Pothuneedi, S.; Das, D.; Vanjari, S.R.K.; Rao, A.V.S.S.N.; Singh, S.G. A miniaturized electrochemical platform with an integrated PDMS reservoir for label-free DNA hybridization detection using nanostructured Au electrodes. Analyst 2019, 144, 6953–6961. [Google Scholar] [CrossRef]
  81. Tripathy, S.; Krishna Vanjari, S.R.; Singh, V.; Swaminathan, S.; Singh, S.G. Electrospun manganese (III) oxide nanofiber based electrochemical DNA-nanobiosensor for zeptomolar detection of dengue consensus primer. Biosens. Bioelectron. 2017, 90, 378–387. [Google Scholar] [CrossRef]
  82. Doria, G.; Conde, J.; Veigas, B.; Giestas, L.; Almeida, C.; Assunção, M.; Rosa, J.; Baptista, P.V. Noble metal nanoparticles for biosensing applications. Sensors 2012, 12, 1657–1687. [Google Scholar] [CrossRef] [PubMed]
  83. Love, J.C.; Estroff, L.A.; Kriebel, J.K.; Nuzzo, R.G.; Whitesides, G.M. Self-assembled monolayers of thiolates on metals as a form of nanotechnology. Chem. Rev. 2005, 105, 1103–1169. [Google Scholar] [CrossRef] [PubMed]
  84. Rai, V.; Hapuarachchi, H.C.; Ng, L.C.; Soh, S.H.; Leo, Y.S.; Toh, C.S. Ultrasensitive cDNA detection of dengue virus RNA using electrochemical nanoporous membrane-based biosensor. PLoS ONE 2012, 7, e42346. [Google Scholar] [CrossRef] [PubMed]
  85. Fritz, J.; Cooper, E.B.; Gaudet, S.; Sorger, P.K.; Manalis, S.R. Electronic detection of DNA by its intrinsic molecular charge. Proc. Natl. Acad. Sci. USA 2002, 99, 14142–14146. [Google Scholar] [CrossRef] [Green Version]
  86. Zhang, G.J.; Zhang, L.; Huang, M.J.; Luo, Z.H.H.; Tay, G.K.I.; Lim, E.J.A.; Kang, T.G.; Chen, Y. Silicon nanowire biosensor for highly sensitive and rapid detection of Dengue virus. Sens. Actuators B Chem. 2010, 146, 138–144. [Google Scholar] [CrossRef]
  87. Cheng, M.S.; Ho, J.S.; Tan, C.H.; Wong, J.P.S.; Ng, L.C.; Toh, C.S. Development of an electrochemical membrane-based nanobiosensor for ultrasensitive detection of dengue virus. Anal. Chim. Acta 2012, 725, 74–80. [Google Scholar] [CrossRef]
  88. Darwish, N.T.; Alrawi, A.H.; Sekaran, S.D.; Alias, Y.; Khor, S.M. Electrochemical Immunosensor Based on Antibody-Nanoparticle Hybrid for Specific Detection of the Dengue Virus NS1 Biomarker. J. Electrochem. Soc. 2016, 163, B19–B25. [Google Scholar] [CrossRef] [Green Version]
  89. Wasik, D.; Mulchandani, A.; Yates, M. Salivary Detection of Dengue Virus NS1 Protein with a Label-Free Immunosensor for Early Dengue Diagnosis. Sensors 2018, 18, 2641. [Google Scholar] [CrossRef] [Green Version]
  90. Cecchetto, J.; Santos, A.; Mondini, A.; Cilli, E.M.; Bueno, P.R. Serological point-of-care and label-free capacitive diagnosis of dengue virus infection. Biosens. Bioelectron. 2020, 151, 111972. [Google Scholar] [CrossRef]
  91. da Cruz Santos, C.; Santos, P.C.M.; Rocha, K.L.S.; Thomasini, R.L.; de Oliveira, D.B.; Franco, D.L.; Ferreira, L.F. A new tool for dengue virus diagnosis: Optimization and detection of anti-NS1 antibodies in serum samples by impedimetric transducers. Microchem. J. 2020, 154, 104544. [Google Scholar] [CrossRef]
  92. Fischer, M.J.E. Amine coupling through EDC/NHS: A practical approach. Methods Mol. Biol. 2010, 627, 55–73. [Google Scholar] [PubMed]
  93. Nguyen, B.T.T.; Peh, A.E.K.; Chee, C.Y.L.; Fink, K.; Chow, V.T.K.; Ng, M.M.L.; Toh, C.S. Electrochemical impedance spectroscopy characterization of nanoporous alumina dengue virus biosensor. Bioelectrochemistry 2012, 88, 15–21. [Google Scholar] [CrossRef] [PubMed]
  94. Darwish, N.T.; Alias, Y.; Khor, S.M. Indium tin oxide with zwitterionic interfacial design for biosensing applications in complex matrices. Appl. Surf. Sci. 2015, 325, 91–99. [Google Scholar] [CrossRef]
  95. Arshad, R.; Rhouati, A.; Hayat, A.; Nawaz, M.H.; Yameen, M.A.; Mujahid, A.; Latif, U. MIP-Based Impedimetric Sensor for Detecting Dengue Fever Biomarker. Appl. Biochem. Biotechnol. 2020. [Google Scholar] [CrossRef] [PubMed]
  96. Uzun, L.; Turner, A.P.F. Molecularly-imprinted polymer sensors: Realising their potential. Biosens. Bioelectron. 2016, 76, 131–144. [Google Scholar] [CrossRef]
  97. Cieplak, M.; Kutner, W. Artificial Biosensors: How Can Molecular Imprinting Mimic Biorecognition? Trends Biotechnol. 2016, 34, 922–941. [Google Scholar] [CrossRef]
  98. Vieira, N.C.S.; Figueiredo, A.; Dos Santos, J.F.; Aoki, S.M.; Guimarães, F.E.G.; Zucolotto, V. Label-free electrical recognition of a dengue virus protein using the SEGFET simplified measurement system. Anal. Methods 2014, 6, 8882–8885. [Google Scholar] [CrossRef]
  99. Luna, D.M.N.; Avelino, K.Y.P.S.; Cordeiro, M.T.; Andrade, C.A.S.; Oliveira, M.D.L. Electrochemical immunosensor for dengue virus serotypes based on 4-mercaptobenzoic acid modified gold nanoparticles on self-assembled cysteine monolayers. Sens. Actuators B Chem. 2015, 220, 565–572. [Google Scholar] [CrossRef]
  100. Navakul, K.; Warakulwit, C.; Yenchitsomanus, P.T.; Panya, A.; Lieberzeit, P.A.; Sangma, C. A novel method for dengue virus detection and antibody screening using a graphene-polymer based electrochemical biosensor. Nanomed. Nanotechnol. Biol. Med. 2017, 13, 549–557. [Google Scholar] [CrossRef]
  101. Wang, S.M.; Sekaran, S.D. Early diagnosis of dengue infection using a commercial dengue duo rapid test kit for the detection of NS1, IGM, and IGG. Am. J. Trop. Med. Hyg. 2010, 83, 690–695. [Google Scholar] [CrossRef] [Green Version]
  102. Alere SD Product Catalogo. 2016. Available online: https://www.globalpointofcare.abbott/en/product-details/sd-bioline-dengue-duo-ns1-ag---ab-combo.html (accessed on 3 May 2018).
  103. Andries, A.-C.; Duong, V.; Ong, S.; Ros, S.; Sakuntabhai, A.; Horwood, P.; Dussart, P.; Buchy, P. Evaluation of the performances of six commercial kits designed for dengue NS1 and anti-dengue IgM, IgG and IgA detection in urine and saliva clinical specimens. BMC Infect. Dis. 2016, 16, 201. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  104. Human Membrane Attack Complex(MAC) ELISA Kit. Cat No. MBS268481. pp. 1–8. Available online: https://www.mybiosource.com/human-elisa-kits/membrane-attack-complex-mac/268481 (accessed on 24 April 2016).
  105. World Health Organization. Dengue: Guidelines for Diagnosis, Treatment, Prevention and Control: New Edition; World Health Organization: Geneva, Switzerland, 2009. [Google Scholar]
  106. Bosch, I.; De Puig, H.; Hiley, M.; Carré-Camps, M.; Perdomo-Celis, F.; Narváez, C.F.; Salgado, D.M.; Senthoor, D.; Grady, M.O.; Phillips, E.; et al. Rapid antigen tests for dengue virus serotypes and zika virus in patient serum. Sci. Transl. Med. 2017, 9, eaan1589. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  107. Sikka, V.; Chattu, V.K.; Popli, R.K.; Galwankar, S.C.; Kelkar, D.; Sawicki, S.G.; Stawicki, S.P.; Papadimos, T.J. The emergence of zika virus as a global health security threat: A review and a consensus statement of the INDUSEM Joint working Group (JWG). J. Glob. Infect. Dis. 2016, 8, 3–15. [Google Scholar] [PubMed]
  108. Cao-Lormeau, V.M.; Blake, A.; Mons, S.; Lastère, S.; Roche, C.; Vanhomwegen, J.; Dub, T.; Baudouin, L.; Teissier, A.; Larre, P.; et al. Guillain-Barré Syndrome outbreak associated with Zika virus infection in French Polynesia: A case-control study. Lancet 2016, 387, 1531–1539. [Google Scholar] [CrossRef] [Green Version]
  109. Faria, A.M.; Mazon, T. Early diagnosis of Zika infection using a ZnO nanostructures-based rapid electrochemical biosensor. Talanta 2019, 203, 153–160. [Google Scholar] [CrossRef]
  110. Cabral-miranda, G.; Cardoso, A.R.; Ferreira, C.S.; Sales, M.G.F.; Martin, F. Biosensor-based selective detection of Zika virus specific antibodies in infected individuals. Biosens. Bioelectron. 2018, 113, 101–107. [Google Scholar] [CrossRef]
  111. Song, H.; Qi, J.; Haywood, J.; Shi, Y.; Gao, G.F. Zika virus NS1 structure reveals diversity of electrostatic surfaces among flaviviruses. Nat. Struct. Mol. Biol. 2016, 23, 456–458. [Google Scholar] [CrossRef]
  112. Xu, X.; Song, H.; Qi, J.; Liu, Y.; Wang, H.; Su, C.; Shi, Y.; Gao, G.F. Contribution of intertwined loop to membrane association revealed by Zika virus full-length NS 1 structure. EMBO J. 2016, 35, 2170–2178. [Google Scholar] [CrossRef] [Green Version]
  113. Afsahi, S.; Lerner, M.B.; Goldstein, J.M.; Lee, J.; Tang, X.; Bagarozzi, D.A.; Pan, D.; Locascio, L.; Walker, A.; Barron, F.; et al. Novel graphene-based biosensor for early detection of Zika virus infection. Biosens. Bioelectron. 2018, 100, 85–88. [Google Scholar] [CrossRef]
  114. da Fonseca Alves, R.; da Silva, A.G.; Ferreira, L.F.; Franco, D.L. Synthesis and characterization of a material derived from 4-mercaptobenzoic acid: A novel platform for oligonucleotide immobilization. Talanta 2017, 165, 69–75. [Google Scholar] [CrossRef]
  115. Tancharoen, C.; Sukjee, W.; Thepparit, C.; Jaimipuk, T.; Auewarakul, P.; Thitithanyanont, A.; Sangma, C. Electrochemical Biosensor Based on Surface Imprinting for Zika Virus Detection in Serum. ACS Sens. 2019, 4, 69–75. [Google Scholar] [CrossRef] [PubMed]
  116. Limitations, P.U.S.E. Rx ONLY ZIKV DetectTM IgM Capture ELISA Instructions for Use For Use Under an Emergency Use Authorization Only. 2018; pp. 1–18. Available online: https://www.fda.gov/media/99521/download (accessed on 21 May 2018).
  117. Granger, D.; Hilgart, H.; Misner, L.; Christensen, J.; Bistodeau, S.; Palm, J.; Strain, A.K.; Konstantinovski, M.; Liu, D.; Tran, A.; et al. Serologic testing for zika virus: Comparison of three zika virus IgM screening enzyme-linked immunosorbent assays and initial laboratory experiences. J. Clin. Microbiol. 2017, 55, 2127–2136. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  118. Anti-Zika Virus ELISA (IgG) First Specifi c Serological Test Worldwide for the Detection of Antibodies Against Zika Virus. 2015, pp. 1–2. Available online: https://www.euroimmun.com/documents/Indications/Infections/Zika-virus/EI_2668_D_UK_B.pdf (accessed on 9 July 2017).
  119. Zhang, L.; Yuan, R.; Huang, X.; Chai, Y.; Cao, S. Potentiometric immunosensor based on antiserum of Japanese B encephalitis immobilized in nano-Au/polymerized o-phenylenediamine film. Electrochem. Commun. 2004, 6, 1222–1226. [Google Scholar] [CrossRef]
  120. Pasinszki, T.; Krebsz, M.; Tung, T.T.; Losic, D. Carbon Nanomaterial Based Biosensors for Non-Invasive Detection of Cancer and Disease Biomarkers for Clinical Diagnosis. Sensors 2017, 17, 1919. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  121. Chin, S.F.; Lim, L.S.; Pang, S.C.; Sia, M.; Sum, H. Carbon nanoparticle modified screen printed carbon electrode as a disposable electrochemical immunosensor strip for the detection of Japanese encephalitis virus. Microchim. Acta 2016, 491–497. [Google Scholar] [CrossRef]
  122. Huy, T.Q.; Hanh, N.T.H.; Thuy, N.T.; Van Chung, P.; Nga, P.T.; Tuan, M.A. A novel biosensor based on serum antibody immobilization for rapid detection of viral antigens. Talanta 2011, 86, 271–277. [Google Scholar] [CrossRef]
  123. JE DetectTM IgM ANTIBODY CAPTURE ELISA (MAC-ELISA). Available online: https://inbios.com/je-detect-igm-antibody-capture-elisa-for-japanese-encephalitis-intl-2/ (accessed on 8 July 2018).
  124. Robinson, J.S.; Featherstone, D.; Vasanthapuram, R.; Biggerstaff, B.J.; Desai, A.; Ramamurty, N.; Chowdhury, A.H.; Sandhu, H.S.; Cavallaro, K.F.; Johnson, B.W. Evaluation of three commercially available Japanese encephalitis virus IgM enzyme-linked immunosorbent assays. Am. J. Trop. Med. Hyg. 2010, 83, 1146–1155. [Google Scholar] [CrossRef] [Green Version]
Sensors 20 04600 g001 550
Figure 1. Randles equivalent circuit of an electrochemical cell. Zi—imaginary impedance, Zr—real impedance, Rs—solution resistance, Rct—charge transfer resistance, W—Warburg impedance, Cdl—double-layer capacitance, ϕ—phase angle, ω—angular frequency.
Figure 1. Randles equivalent circuit of an electrochemical cell. Zi—imaginary impedance, Zr—real impedance, Rs—solution resistance, Rct—charge transfer resistance, W—Warburg impedance, Cdl—double-layer capacitance, ϕ—phase angle, ω—angular frequency.
Sensors 20 04600 g001
Sensors 20 04600 g002 550
Figure 2. (a) Schematic representation of the gold nanostructure-based working electrode fabrication and the subsequent DNA immobilization protocol; (b) schematic representation of the process flow for the miniaturized electrochemical biosensor platform fabrication. SU8—Epoxy-based negative photoresist, PDMS—poly(dimethylsiloxane); (c) differential pulse voltammetry (DPV) recordings for Ti/Au/probe electrodes at different target DNA concentrations; (d) influence of interferents (NC—non-complementary DNA, C—complementary DNA, HSA—human serum albumin) as non-complementary targets at probe concentration 1 µM. Adapted with permission from [50].
Figure 2. (a) Schematic representation of the gold nanostructure-based working electrode fabrication and the subsequent DNA immobilization protocol; (b) schematic representation of the process flow for the miniaturized electrochemical biosensor platform fabrication. SU8—Epoxy-based negative photoresist, PDMS—poly(dimethylsiloxane); (c) differential pulse voltammetry (DPV) recordings for Ti/Au/probe electrodes at different target DNA concentrations; (d) influence of interferents (NC—non-complementary DNA, C—complementary DNA, HSA—human serum albumin) as non-complementary targets at probe concentration 1 µM. Adapted with permission from [50].
Sensors 20 04600 g002
Sensors 20 04600 g003 550
Figure 3. Fabrication protocol of the impedimetric immunosensor. DRP-110—carbon model of screen-printed electrodes, rNS1—non-structural recombinant protein 1, EIS—electrochemical impedance spectroscopy. Adapted with permission from [93].
Figure 3. Fabrication protocol of the impedimetric immunosensor. DRP-110—carbon model of screen-printed electrodes, rNS1—non-structural recombinant protein 1, EIS—electrochemical impedance spectroscopy. Adapted with permission from [93].
Sensors 20 04600 g003
Sensors 20 04600 g004 550
Figure 4. Schematic illustration of the peptide-decorated electrochemical sensor for the detection of dengue fever biomarker, NS1. DGV peptides—synthetic phage-displayed peptides, specific for NS1, MUA—11-mercaptoundecanoic acid, EDC—1-ethyl-3-(3-dimethylaminopropyl)carbodiimide, NHS—N-hydroxysuccinimide, BSA—bovine serum albumin. Adapted with permission from [44].
Figure 4. Schematic illustration of the peptide-decorated electrochemical sensor for the detection of dengue fever biomarker, NS1. DGV peptides—synthetic phage-displayed peptides, specific for NS1, MUA—11-mercaptoundecanoic acid, EDC—1-ethyl-3-(3-dimethylaminopropyl)carbodiimide, NHS—N-hydroxysuccinimide, BSA—bovine serum albumin. Adapted with permission from [44].
Sensors 20 04600 g004
Sensors 20 04600 g005 550
Figure 5. Schematic illustration of the electrochemical biosensor construction and Zika virus (ZIKV) detection. rGO—reduced graphene oxide, PTyr—polytyramine, ZIKV-Probe—ZIKV DNA probe, gRNA—genomic RNA, DPV—differential pulse voltammetry. Adapted with permission from [26].
Figure 5. Schematic illustration of the electrochemical biosensor construction and Zika virus (ZIKV) detection. rGO—reduced graphene oxide, PTyr—polytyramine, ZIKV-Probe—ZIKV DNA probe, gRNA—genomic RNA, DPV—differential pulse voltammetry. Adapted with permission from [26].
Sensors 20 04600 g005
Sensors 20 04600 g006 550
Figure 6. Schematic diagram of screen-printed carbon electrode (SPCE) modification for fabrication of electrochemical biosensor for the detection of Japanese encephalitis virus (JEV). EDC—1-ethyl-3-(3-dimethylaminopropyl)carbodiimide, NHS—N-hydroxysuccinimide, NP—carbon nanoparticle, BSA—bovine serum albumin. Adapted with permission from [46].
Figure 6. Schematic diagram of screen-printed carbon electrode (SPCE) modification for fabrication of electrochemical biosensor for the detection of Japanese encephalitis virus (JEV). EDC—1-ethyl-3-(3-dimethylaminopropyl)carbodiimide, NHS—N-hydroxysuccinimide, NP—carbon nanoparticle, BSA—bovine serum albumin. Adapted with permission from [46].
Sensors 20 04600 g006
Table
Table 1. Survey of electrochemical label-free biosensors and commercially available assays for dengue diagnostic.
Table 1. Survey of electrochemical label-free biosensors and commercially available assays for dengue diagnostic.
Electrochemical Label-Free Biosensors
Electrode/Platform
Material		MethodBio-Recognition LayerTargetLimit of DetectionPossible Cross-ReactivityAdv.Dis.Ref.
A nanoporous alumina membrane/PtDPV, CVMouse anti-DENV2 monoclonal antibodyDENV21 pfu/mLChikungunya virus, West Nile virus, DENV3a, fb, d, e[87]
A nanoporous alumina membrane/PtDPV, CVDENV probe ssDNADENV1 9.55 × 10−12 mol/LDENV3 e, fb, d, e[81]
Mn2O3/GCEDPVDENV probe ssDNADENV comple-
mentary DNA		1.2 × 10−19 mol/LDENV non-complementary DNAd, e, fc, e[81]
Nafion/ITOSWVDENV probe ssDNADENV2 RNA2 × 10−18 mol/LRNAs (DENV1, −3, −4)a, eb, e, f[66]
Au nanostructures/TiDPV, CVDENV thiolated probe ssDNADENV comple-
mentary DNA		9.7 × 10−16 mol/LDENV non-comple- mentary DNA, human
serum albumin		b, c, ee[80]
AuESWV, EISSynthetic peptides (DGV BP1–BP5)DENV
NS1antigen		1.49 μg/mLBovine
serum albumin		a, fb, e[68]
MUA/6COH/AuEEISAnti-DENV NS1 antibodyDENV
NS1
antigen		30 ng/mL–b, e, f,c, e[37]
A nanoporous alumina electrodeEISAnti-DENV2 antibodyDENV21 pfu/mLChikungunya virus, West Nile virusa, fb, d, e[93]
Pt film/alumina membraneEISAnti-DENV2 antibodyDENV2
DENV3		0.23 and0.71 pfu/mLChikungunya virusa, b, ec, d, e, f[57]
4-mercaptobenzoic acid/AuNPs/AuEEISAnti-DENV antibodyDENV1–4––a, b,c, e[99]
AuNPs/1,4-phenylenediamine/ITOEISAnti-DENV NS1 antibody DENV
NS1antigen		5 ng/mLMalaria-infected serab, d, e, fa, c, f[88]
1-pyrenebutyric acid/SWNT/Au microelectrodeEISAnti-DENV NS1 antibody DENV
NS1
antigen		1 ng/mLArtificial human salivaa, b, eb, c, d, e[89]
11-(ferrocenyl)undecanethiol/PEG (poly(ethylene glycol)-
thiol/AuE		EISAnti-DENV NS1 antibody,
DENV
NS1
antigen 		DENV
NS1
antigen,
anti-DENV NS1 antibody		1.2 ng/mL,
6.1 ng/mL		–b, d, ea, c, d, e, f[50]
Ferrocene-tagged peptide/AuEEISAnti-DENV NS1 antibodyDENV
NS1
antigen		––b, d c, d, e, f[90]
Poly(4-aminobenzoic acid)/screen-printed electrodeEISDENV
NS1
antigen		Anti-DENV NS1 antibody –Uric acid, glucose, water, HBS-EP bufferb, c, d, f c[91]
Copolymers + graphene oxide/AuEEISDENV
antigen		DENV2 antibody0.12 pfu/mLInfluenza A virusb, ec, d, e, f[100]
Dopamine/polysulfone nanofibers/SPCEEISImprinted NS1
protein		DENV
NS1
antigen		0.3 ng/mLFetal bovine serum, lysozymeb, c, d, e, fc, d, e[95]
PVB (polyvinyl formal chloroform solution)—Fe3O4/AuEEIS, CVCramoLL (lectin and fetuin isolated from Cratylia mollis seeds)Glycoproteins of DENV2, DENV3 ––fb, c, d, e[73]
PNA/SiNW (silicon nanowire) Electronic conductivityDENV comple- mentary fragmentDENV21.0 × 10−14 mol/L–b, c, fb, c, d, e[86]
AuEElectronic conductivityAnti-DENV NS1 antibodyDENV
NS1antigen		0.25 μg/mL– [98]
Anion exchange nanoporous membraneConducto-metryNegatively charged DNA oligoprobesDENV2, DENV3 RNA1.0 × 10−12 mol/L–b, d, fe[44]
Commercially Available Assays
Platform/Com-panyMethodBio-Recognition MoleculesTargetDetection RatesPossible Cross-ReactivityAdv.Dis.Ref.
Test Strips/Abbott SD BIOLINE Dengue DuoIn-vitro immunochromatogra-phicDENV envelope proteins—Au
colloidal		DENV NS1
antigen, DENV
Ig M, Ig G Antibodies		92.4%RNAs (DENV1, −3, −4) and other flavivirusesb, d, e, fa, c[101,102]
Microtiter plate/Panbio Dengue Ig MMembrane attack complex—ELISAAnti-DENV human-IgM antibody, DENV
NS1
antigen, antibody-HRP conjugates 		DENV
Ig M antibodies 		81%RNAs (DENV1, −3, −4) and other flavivirusesd, fa, c[103,104]
Microtiter plate/Abbott SD ELISA DengueIndirect ELISAAnti-DENV human-IgM antibody, DENV
NS1antigen, antibody-HRP conjugates		DENV
Ig M antibodies		69.2%RNAs (DENV1, −3, −4) and other flavivirusesd, fa, c[103,105]
Advantages: a—lower cost of analysis; b—rapid response time; c—portability; d—opportunity to quantify biomolecules in biological liquids; e—high sensitivity; f—representative information about reproducibility and stability. Disadvantages: a—higher cost of analysis; b—suitable only for primary screening and require confirmation of positive results by independent methods; c—complex electrode/platform fabrication; d—limited or unknown sensor stability; e—limited or unknown shelf-life of the sensor; f—limited sensor reproducibility.
Table
Table 2. Survey of electrochemical label-free biosensors for Zika diagnostic.
Table 2. Survey of electrochemical label-free biosensors for Zika diagnostic.
Electrode
Material		MethodBio-Recognition LayerTargetLimit of DetectionPossible Cross-ReactivityAdv.Dis.Ref.
DTSP (dithiobis(succi-nimidyl propionate))/IDE (interdigitated micro-Au electrode)EIS ZIKV envelope protein antibody (Zev-Abs)ZIKV antigen1 × 10−11 mol/L Chikungunya virus, West Nile virus, DENVc, e, fb, c[49]
p-Phenylenediamine/SPCEEIS, CV, SWVZIKV EDIII and NS1ZIKV antibodies17 fg/mL DENVd, ea, c[110]
PEG/Ti-Pt leads on SiO2/graphene chipCapacitan-ce measure-mentMouse anti- ZIKV monoclonal antibodyZIKV NS1 antigen4.5 × 10−10 mol/LJEVb, ca, c, e [113]
SIPs-GO composites/AuEDPVZIKV imprinted to the polymerZIKV antigen2 × 10−4 pfu/mLDENV2da, c, d[115]
3-4-AHBA/ PCGESWV, EIS ZIKV aminated ssDNA ZIKV antigen2.54 × 10−11 mol/LDENV2, −3fb, c, e[56]
ZnO nanostructures/PCBCV Anti-ZIKV NS1 antibodyZIKV NS1 antigen1 pg/mLDENV NS1 antigene, fa, c, e[109]
Disposable AuE/PETEIS, DPV, CVZIKV thiolated probe ssDNAZIKV NS5 antigen2.5 × 10−8 mol/LDENV NS5 proteina, cb, e[48]
Poly-tyramine/ rGO/graphite electrodeDPVZIKV oligonucleotideZIKV genomic RNA0.1 fg/mL –d, ff[26]
Commercially Available Assays
Platform/CompanyMethodBio-Recognition MoleculesTargetDetection RatesPossible Cross-ReactivityAdv.Dis.Ref.
Test Strips/Abbott SD BIOLINE Zika Ig MIn-vitro immunochromatographicZIKV
envelope proteins—Aucolloidal		ZIKV
NS1
antigen, DENV
Ig M, Ig G antibodies		95.6%RNAs (DENV1, −3, −4) and other flavivirusesb, d, e, fa, c[101]
Microtiter plate/InBios ZIKV Detect™ Membrane attack complex—ELISAAnti-DENV human-IgM antibody, DENV NS1antigen, antibody-HRP conjugatesDENV
Ig M antibodies 		96.5%Yellow Fever virus, Chikungunya virusd, e, fa, c[116,117]
Microtiter plate precoated with ZIKV NS1/ Euroimmun anti-ZIKV IgM Indirect ELISAAntibody-HRP conjugatesDENV
Ig M antibodies		56%West Nile virus d, fa, c[118,117]
Advantages: a—lower consumption of chemical reagents; b—rapid response time; c—portability; d—opportunity to quantify biomolecules in human serum; e—high sensitivity; f—representative information about reproducibility and stability. Disadvantages: a—higher consumption of chemical reagents; b—suitable only for primary screening and require confirmation of positive results by independent methods; c—complex electrode/platform fabrication; d—limited or unknown sensor stability; e—limited or unknown shelf-life of the sensor; f—limited sensor reproducibility.
Table
Table 3. Survey of electrochemical label-free biosensors for Japanese encephalitis diagnostic.
Table 3. Survey of electrochemical label-free biosensors for Japanese encephalitis diagnostic.
Electrode
Material		MethodBio-Recognition LayerTargetLimit of DetectionAdv.Dis.Ref.
Nano-Au/o-PDA polymer film/PtE AmperometryAntiserum of JEVJEV
antigen		6 × 10−9 pfu/mLb, fc, b[119]
Nano-Au/o-PDA polymer film with deposited Prussian blue/PtEAmperometryAntiserum of JEVJEV
antigen		6 × 10−9 pfu/mLb, fa, b, c[45]
l-cysteine + nano-Au and [Co(bpy)3]3+/AuEPotentiometry Antiserum of JEVJEV
antigen		3.5 × 10−8 pfu/mLba, b, c[42]
Silanized surface with protein A/screen-printed electrodeEISSerum containing antibodies to JEV JEV
antigen		0.75 µg/mLa, b c, dd, e, f[122]
PANI nanowires/PtEEISAnti-JEV antibodies JEV
antigen		10 ng/mLec, d, e, f,[38]
CNPs/3-aminopropyl triethoxysilane/SPCEEIS, CVJEV antibodyJEV
antigen		2 ng/mLb, dc, d, e, f,[121]
PANI/multiwalled carbon nanotubes/PtEEISAnti-JEV antibodiesJEV
antigen		–a, b d, e, f[27]
CNPs/chitosan/SPCEEIS, CVJEV antibodyJEV
antigen		0.36 ng/mLb, d, ca, c, d, e, f[70]
Commercially Available Assays
Platform/CompanyMethodBio-Recognition MoleculesTargetDetection RatesAdv.Adv.Ref.
Microtiter plate/InBios JEV Detect™ Membrane attack complex—ELISAAnti-JEV human-IgM antibody, JEV
NS1
antigen, antibody-HRP conjugates		JEV
Ig M
antibodies 		56%d, fa, c[123,124]
Microtiter plate/XCyton JEV Chex Membrane attack complex—ELISAAnti-JEV human-IgM antibody, JEV
NS1
antigen, antibody-HRP conjugates		JEV
Ig M
antibodies 		19%d, fa, c[124]
Advantages: a—lower consumption of chemical reagents; b—rapid response time; c—portability; d—opportunity to quantify biomolecules in human serum; e—high sensitivity; f—representative information about reproducibility and stability. Disadvantages: a—higher consumption of chemical reagents; b—suitable only for primary screening and require confirmation of positive results by independent methods; c—complex electrode/platform fabrication; d—limited or unknown sensor stability; e—limited or unknown shelf-life of the sensor; f—limited sensor reproducibility.

Share and Cite

MDPI and ACS Style

Khristunova, E.; Dorozhko, E.; Korotkova, E.; Kratochvil, B.; Vyskocil, V.; Barek, J. Label-Free Electrochemical Biosensors for the Determination of Flaviviruses: Dengue, Zika, and Japanese Encephalitis. Sensors 2020, 20, 4600. https://doi.org/10.3390/s20164600

AMA Style

Khristunova E, Dorozhko E, Korotkova E, Kratochvil B, Vyskocil V, Barek J. Label-Free Electrochemical Biosensors for the Determination of Flaviviruses: Dengue, Zika, and Japanese Encephalitis. Sensors. 2020; 20(16):4600. https://doi.org/10.3390/s20164600

Chicago/Turabian Style

Khristunova, Ekaterina, Elena Dorozhko, Elena Korotkova, Bohumil Kratochvil, Vlastimil Vyskocil, and Jiri Barek. 2020. "Label-Free Electrochemical Biosensors for the Determination of Flaviviruses: Dengue, Zika, and Japanese Encephalitis" Sensors 20, no. 16: 4600. https://doi.org/10.3390/s20164600

APA Style

Khristunova, E., Dorozhko, E., Korotkova, E., Kratochvil, B., Vyskocil, V., & Barek, J. (2020). Label-Free Electrochemical Biosensors for the Determination of Flaviviruses: Dengue, Zika, and Japanese Encephalitis. Sensors, 20(16), 4600. https://doi.org/10.3390/s20164600

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
