Wearable Inertial Sensors for Gait Analysis in Adults with Osteoarthritis—A Scoping Review

by
Dylan Kobsar
1,*,
Zaryan Masood
1,
Heba Khan
1,
Noha Khalil
1,
Marium Yossri Kiwan
1,
Sarah Ridd
2 and
Matthew Tobis
1
1
Department of Kinesiology, Faculty of Science, McMaster University, Hamilton, ON L8S 4L8, Canada
2
Department of Psychology, Neuroscience, and Behaviour, Faculty of Science, McMaster University, Hamilton, ON L8S 4L8, Canada
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(24), 7143; https://doi.org/10.3390/s20247143
Submission received: 5 November 2020 / Revised: 1 December 2020 / Accepted: 9 December 2020 / Published: 13 December 2020
(This article belongs to the Section Wearables)
Browse Figures
Versions Notes

Abstract

:
Our objective was to conduct a scoping review which summarizes the growing body of literature using wearable inertial sensors for gait analysis in lower limb osteoarthritis. We searched six databases using predetermined search terms which highlighted the broad areas of inertial sensors, gait, and osteoarthritis. Two authors independently conducted title and abstract reviews, followed by two authors independently completing full-text screenings. Study quality was also assessed by two independent raters and data were extracted by one reviewer in areas such as study design, osteoarthritis sample, protocols, and inertial sensor outcomes. A total of 72 articles were included, which studied the gait of 2159 adults with osteoarthritis (OA) using inertial sensors. The most common location of OA studied was the knee (n = 46), followed by the hip (n = 22), and the ankle (n = 7). The back (n = 41) and the shank (n = 40) were the most common placements for inertial sensors. The three most prevalent biomechanical outcomes studied were: mean spatiotemporal parameters (n = 45), segment or joint angles (n = 33), and linear acceleration magnitudes (n = 22). Our findings demonstrate exceptional growth in this field in the last 5 years. Nevertheless, there remains a need for more longitudinal study designs, patient-specific models, free-living assessments, and a push for “Code Reuse” to maximize the unique capabilities of these devices and ultimately improve how we diagnose and treat this debilitating disease.

1. Introduction

Osteoarthritis (OA) is a degenerative joint disease characterized by the loss of cartilage and changes in bone, resulting in pain, disability, and reduced quality of life. It is the most prevalent musculoskeletal disease, with conservative estimates suggesting that it affects approximately 20% of adults [1,2]. Moreover, it is one of the leading causes of physical disability in the world and given our aging population, its global burden is expected to continue expanding [3].
While there is no cure for OA, lower limb biomechanical data collected during walking can provide valuable information on the etiology, progression, and treatment of this disease [4,5,6,7]. Specifically, joint kinetics offer a proxy to the loading environment within the hip [8] or knee [9]. Most notably, an increased knee adduction moment (KAM) has been linked to the structural progression of knee OA [10,11,12]. In addition to joint kinetics, spatiotemporal (ST) parameters (e.g., stride times, cadence, etc.) and joint kinematics (e.g., joint angles, joint range of motion, etc.) are also commonly used to study OA [9]. Unfortunately, these biomechanical outcomes often require a gait analysis laboratory which utilizes optical motion capture cameras and force plate systems. While such systems offer exceptional accuracy and reliability, they are expensive and time-consuming which makes them inaccessible to many clinicians. Furthermore, the protocols required for these gait analyses can make them a poor representation of real-world gait patterns [13].
Fortunately, the advent of wearable inertial sensors has provided an accessible and affordable alternative to conventional optical gait analysis systems [14]. Wearable inertial sensors, or inertial measurement units, measure motion (e.g., linear accelerations, angular velocities) using one or more individual sensors (e.g., accelerometer, gyroscope, magnetometer). By securely attaching inertial sensors to various segments of the body, a variety of biomechanical outcomes can be obtained with similar validity and reliability to optical systems [15]. Furthermore, inertial sensor data collections are not tethered to conventional gait analysis laboratories. Therefore, it is not surprising that the use of inertial sensors to study OA biomechanics has exploded in popularity. This growth was highlighted in a scoping review by Small et al., 2019 [16], which examined the use of inertial sensors to assess the outcomes following knee arthroplasty. While this was an important summary of all inertial sensor research related to knee arthroplasty (e.g., gait analysis, functional assessments, physical activity measures, etc.), there remains a large body of fragmented literature utilizing inertial sensors across the entire field of OA gait biomechanics research.
Therefore, in conducting this scoping review, we aimed to summarize the growing body of literature using wearable inertial sensors for gait analysis in OA. Specifically, our objective was to identify biomechanical outcomes and applications of wearable inertial sensors for assessing walking gait in adults diagnosed with lower limb OA. We aimed to highlight the quality and types of research prominent in this field, with a focus on biomechanical outcomes and important gaps to be addressed in future research.

2. Methods

Our scoping review was conducted following the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines. This format was used to provide a broader perspective on the use of inertial sensors across the field of OA gait biomechanics and to identify important gaps in the literature [17]. In doing so, we provide an update on the use of inertial sensors for gait biomechanics research in OA surgical interventions previously examined by Small et al. [16]. More importantly however, we expand this review into all other areas of OA gait research previously unexamined in any review.

2.1. Eligibility Criteria

Studies were included within this scoping review if they used inertial sensors (i.e., accelerometers, gyroscopes, and/or magnetometers) for walking gait analysis in adults diagnosed with lower limb OA (e.g., hip, knee, or ankle). We considered any analysis of walking patterns which involved (i) ST parameters (e.g., step time, step length, stride time, etc.), (ii) kinematics (e.g., segment orientations or joint angles), (iii) kinetics (e.g., joint moments), or (iv) other inertial sensor measures (e.g., frequency analysis, impact accelerations, waveform analysis, etc.). However, other measures that do not provide an assessment of walking gait patterns (e.g., daily step count, physical activity, energy expenditure, etc.) were not considered. Therefore, any study only examining such outcomes were not eligible. Additionally, conference abstracts, systematic reviews, and meta-analyses were also excluded. A complete list of the inclusion and exclusion screening criteria can be found in Appendix A.

2.2. Search Strategy and Screening

We conducted our literature search using the following six databases: MEDLINE, EMBASE, CINAHL, SPORTDiscus, Web of Science Core Collection, and Engineering Village. An individualized search strategy was developed for each database to optimize the search scope using the three broad topics of inertial sensors, gait, and OA. The full search strategy syntax for each database can be found in Appendix B.
Our search was conducted on 9 June 2020 and all studies identified were imported to Covidence systematic review software for screening. Duplicates were automatically identified by Covidence and manually verified by a reviewer (D.K.) before their removal. Title and abstract screening were conducted by two independent reviewers (M.Y.K. and S.R.) through the Covidence software based on the screening criteria (Appendix A). Any conflicts were resolved through discussion between the two reviewers, with a third reviewer (D.K.) to resolve discrepancies when a consensus could not be reached. Full-text screening was subsequently carried out by two independent reviewers (M.Y.K. and M.T.) to determine the final review inclusion. Discrepancies regarding any decision to include or reason to exclude were discussed between reviewers, with a third reviewer (D.K.) to consult if an agreement could not be reached.

2.3. Methodological Quality

A quality assessment for each study was conducted independently by two raters (N.K. and S.R.) using a modified version of the Critical Appraisal of Study Design for Psychometric Articles [18]. This guide comprised of twelve questions to be assessed in five areas related to the study question, study design, measurements, analyses, and recommendations (See Appendix C). Each item was scored from 0 to 2, with “0” being unsatisfied, “1” being adequately satisfied, and “2” being completely satisfied. Thus, a total score out of 24 could be awarded and converted to a percentage. The two raters independently evaluated the study quality in blocks of 10, before virtually meeting to determine a consolidated score for each study. Based on this consolidated score, studies were classified as high quality (>85%), moderate quality (70–84.9%), low quality (50–69.9%), and very low quality (<50%). An intraclass correlation coefficient (ICC 3, k) was calculated to determine the inter-rater reliability of pre-consensus scores. Overall, this quality assessment scoring was conducted to provide an overview of the methodological quality in this area of research and support our recommendations from individual studies.

2.4. Data Extraction

Following the full-text screening and inclusion of studies, data were extracted by a primary reviewer (H.K.) and verified for accuracy by two additional reviewers (N.K. and Z.M.). Data extraction occurred in two broad areas: study characteristics and inertial sensor protocol. The study characteristics consisted of the OA sample, study design, and additional characteristics relating to the publication itself (e.g., open access, supplementary data, etc.). The inertial sensor protocol extracted consisted of sensor models, specifications, placement, data collection setting (e.g., in-lab, out-of-lab, free-living), walk length, and biomechanical outcomes. Lastly, we identified studies using machine learning algorithms in their analysis as those consisting of training data for model development and testing data for model validation (e.g., leave-one-out, cross-validation, test set, etc.). These criteria were determined to minimize ambiguity in objectively defining machine learning amidst the wide range of possible algorithms and statistical analyses in this area.

3. Results

3.1. Search Results and Screening

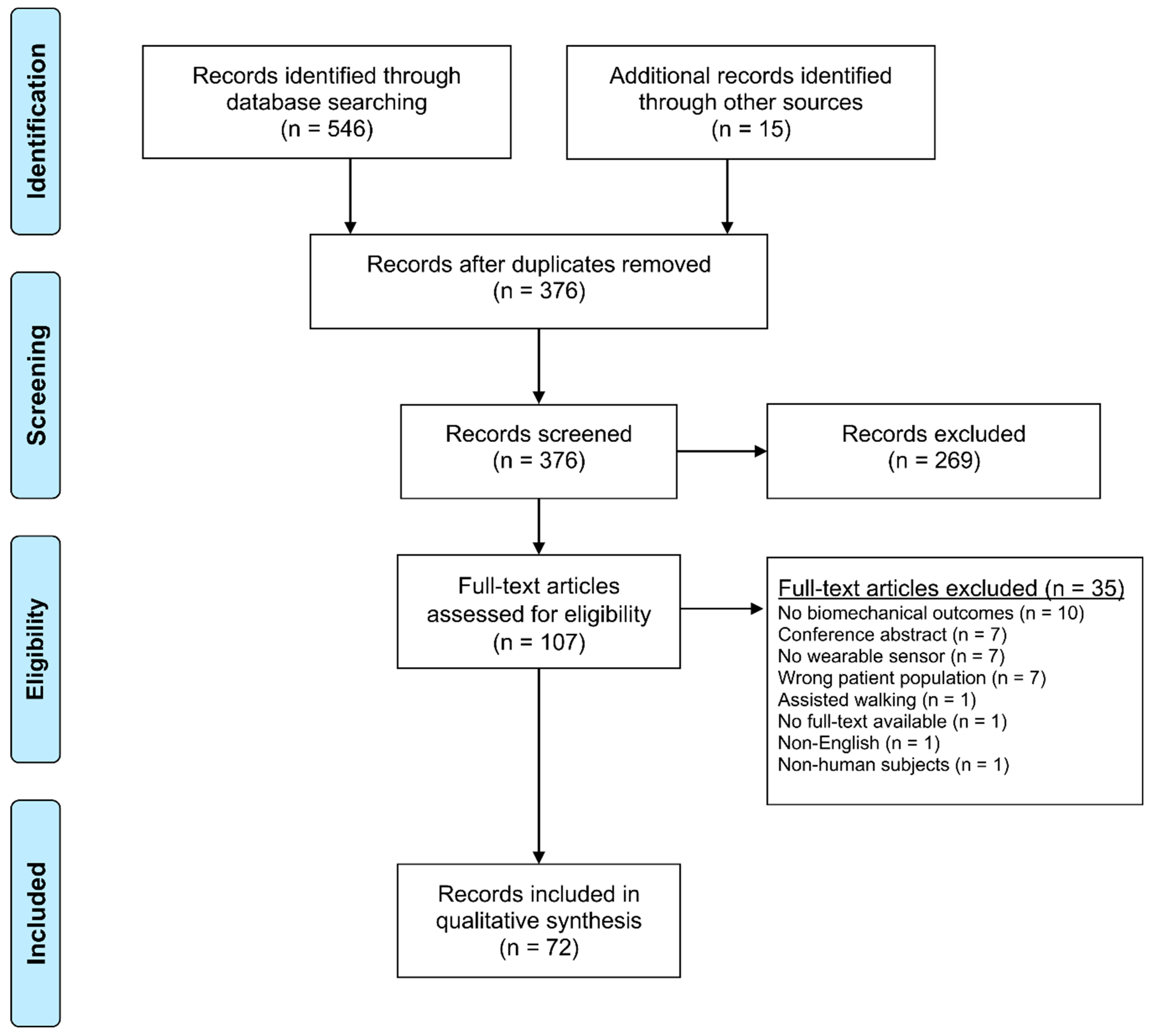

Our search strategy identified a total of 561 articles. The duplicate removal rendered 376 articles, which were screened at the title/abstract level. A full-text screening process of 107 articles resulted in 72 articles, and these 72 articles were included in our scoping review [19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90]. The PRISMA flow diagram presented in Figure 1 documents all exclusions at the full-text level. The most common reason for exclusion at the full-text level was “No biomechanical outcomes”, which was generally the result of studies measuring only physical activity or step count data.

3.2. Quality Assessment

Our quality assessment did not find any studies which were rated as high quality, but rather identified most studies as low (n = 43) or moderate quality (n = 24). Articles generally scored the highest on the background and research question (Q1) and sensor information (Q7), but the lowest on the sample size justification (Q5). Agreement between raters was found to be moderate with an ICC (3, k) of 0.74 (95% CI 0.58–0.84). Consolidated quality rating for all included studies can be found in Table 1.

3.3. Osteoarthritis Sample Demographics

The gait of 2159 adults with OA were examined using wearable technology across the 72 studies. The most common location of OA studied was the knee (n = 46), followed by the hip (n = 22), and the ankle (n = 7). Additional healthy controls were present for comparison in 67% of these studies. The weighted average for the age, body mass index (BMI), and percentage of females in the OA cohorts was 66 (range: 44–74) years old, 27 (range: 22–33) kg/m2, and 57% (range: 0–100) female, respectively. See Table 2 and Supplementary Table S1 for a list of sample demographics.

3.4. Study Designs

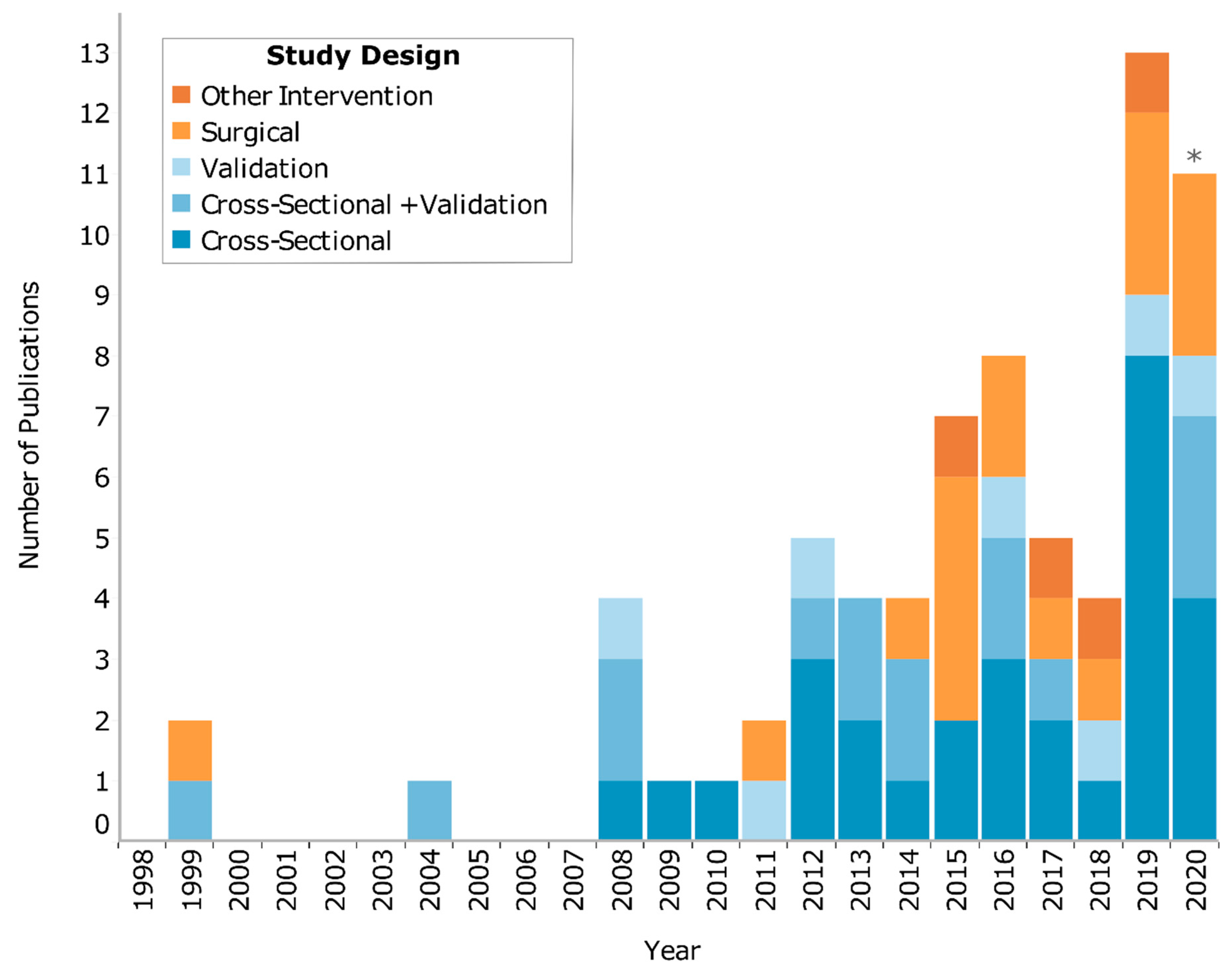

Study designs were grouped into longitudinal, cross-sectional, and validity/reliability. The most common study design was found to be cross-sectional (n = 44), with most examining the differences in gait between OA and controls (n = 34). There were 21 studies that utilized some type of longitudinal design, with most examining the effect of surgery (n = 17) and four examining other interventions (e.g., exercise, gait retraining). See Figure 2 for a visualization of the study designs by year. Additionally, 44% of publications were open access, and 11% provided supplementary data, but none provided a supplementary code. See Supplementary Table S1 for additional study characteristics.

3.5. Sensor Specifications and Protocols

The sampling rate was reported in 88% of the studies, with the most common rate being 100 (range: 32–2000) Hz. The dynamic range of the inertial sensors was poorly reported and presented in only 32% of the studies. The most common placement of sensors was the back/pelvis/torso (n = 41), followed closely by the shank (n = 40), foot (n = 31), thigh (n = 27), and head/neck (n = 5). Data were collected most often in-lab (n = 47), followed by controlled out-of-lab/clinic (n = 28), all with highly variable walk lengths. See Table 2 and Supplementary Table S2 for additional inertial sensor and protocol details.

3.6. Gait Outcomes

Mean ST parameters were the most common outcome as they were presented in 45 studies. The variability and symmetry of ST parameters were each presented in 14 studies. The second most common outcome was segment orientation or joint angles measured in 33 studies. Linear acceleration magnitudes were the third most common and appeared in 22 studies, with estimates of variability or symmetry components surrounding these outcomes present in 10 studies. Lastly, machine learning analyses were utilized in 12 studies. See Figure 3 for a visual representation of gait outcomes by locations, as well as Supplementary Table S2 for additional details.

4. Discussion

Wearable inertial sensors provide an accessible and affordable tool to support our understanding and treatment of OA through gait analyses. We identified 72 studies that utilized wearable inertial sensors to assess OA gait. Overall, these studies measured a wide range of outcomes from mean ST parameters to KAM and more. Similarly, the patient populations, study designs, and sensor protocols varied greatly between the studies. Two-thirds of these studies were published in the past five years (Figure 2) and we predict that 2019 may be an inflection point whereafter remarkable growth will occur in this area for years to come. Our hope is that this scoping review will support this growth by summarizing the current body of literature, with a focus on gait biomechanical outcomes (Section 4.1, Section 4.2, Section 4.3, Section 4.4, Section 4.5, ; Figure 3) and trends for future research (Section 4.6).

4.1. Mean Spatiotemporal Parameters

Mean ST parameters were identified in approximately two-thirds of the studies, making them the most common outcome in this scoping review. Not only do ST parameters happen to be some of the most tangible biomechanical outcomes for end-users, but they can be highly effective in comparing disease severities [9,91]. Specifically, a review by Mills et al. (2013 [9]) found that stride time was the strongest and most consistent biomechanical deviation in adults with severe knee OA, as compared to healthy controls. Similarly, numerous studies in this scoping review found that mean ST parameters displayed significant differences between healthy controls and adults with OA [20,21,28,31,35,40,75,80]. However, these studies were generally comparing adults with severe OA or post-total joint arthroplasty (TJA) to healthy controls. Therefore, these findings support the results of Mills et al. (2013 [9]) and highlight the importance of mean ST parameters in more severe OA cohorts.
Given the large number of studies utilizing these mean ST parameters as outcomes, it comes as no surprise that the protocols were highly variable. While a single sensor at the back was the most common placement, numerous studies utilized multiple sensors at a variety of locations. Nevertheless, a recent meta-analysis [15] found that inertial sensors displayed moderate to excellent validity and reliability for mean ST parameters across a range of placements in healthy adult walking. These findings were supported by the current review, as numerous studies found a high level of validity and reliability in these parameters for adults with OA [19,30,37,54,57,67,77]. Only Item-Glatthorn et al. (2012 [47]) cautioned against the use of certain parameters such as double support, walking speed, and step length. However, these results were based on proprietary algorithms sampling bi-axial accelerometers at 32 Hz, well below the recommended rate of 100 Hz [92]. Moreover, the lack of additional sensors (e.g., gyroscope, magnetometer) may have limited the accuracy in detecting toe-off for double support and would have certainly limited the accuracy of spatial measurements such as step length and gait speed. Nevertheless, when using published and appropriately validated algorithms, mean ST parameters obtained from inertial sensors at various locations provide a trustworthy and effective method to assess the gait of adults with OA, especially those in more severe stages of the disease.

4.2. Spatiotemporal Parameter Variability

While less commonly assessed than mean ST parameters, the variability of ST parameters represents an important factor to consider in OA gait. Variability outcomes are calculated as the standard deviation or coefficient of variation for a given ST parameter. They are often used as measures of health status, mobility, function, or fall risk, as they are thought to be more sensitive to neurological and/or musculoskeletal changes than mean ST parameters [93,94]. We found that ST parameter variability was examined in 14 studies [21,24,25,26,27,28,35,38,42,63,66,74,79,85] and a variety of applications in OA.
First, ST parameter variability was measured before and after TJA in seven studies [25,26,27,38,42,74,85]. In nearly all instances, ST parameter variability was not the primary focus of the analysis, but rather part of a larger set of outcomes seeking to quantify changes in gait and function with surgery. Fransen et al. (2019 [38]) provides an excellent example of this, as they conducted a factor analysis to summarize a variety of gait measures taken before and after TJA. They found a composite measure of gait quality, dominated by variability outcomes, to be an objective and sensitive measure of functional improvements 1 year following surgery. Alternatively, Hiyama et al. (2018 [42]) was the only study whose primary purpose was to examine changes in ST parameter variability following surgery. However, their purpose was more specifically to examine the immediate changes in stride time variability upon discharge. This was assessed as an indicator of fall risk in the days following total knee arthroplasty (TKA) surgery, rather than a positive outcome of the surgery itself. Therefore, the data were collected only 5 days post surgery and while the authors found knee ROM and gait speed were reduced, gait variability remained unchanged. This finding was contrary to their hypothesis but the lack of regression in this measure even immediately following surgery suggests the potential for further benefits following recovery, similar to Wada et al. (2019 [85]).
Cross-sectional studies also utilized ST parameter variability to compare the gait of asymptomatic controls and adults with OA. While three studies identified differences in these outcomes between healthy and OA cohorts [21,24,28], two studies did not [35,79]. Studies that did not identify a difference in OA and healthy gait tended to examine less severe cohorts, and did so in smaller sample sizes (i.e., <20 OA). Additionally, the walk length used to obtain these measures varied greatly between the studies (20 m [24,28], 60 s [21], 600 s [35,79]), making it difficult to draw any strong conclusions from these findings.
While measures of ST parameter variability may offer a more sensitive assessment of gait health than mean values alone, the lack of consistency in the protocols and processing techniques remains a limiting factor. Lord et al. (2011 [93]) identified this lack of consistency and detailed reporting of protocols for measures of variability nearly 10 years ago and highlighted the need for information such as: walking distance, number of steps, and processing details/rationale for variability outcomes. In general, the reporting of details and protocols may have improved in these studies, but a lack of consistency remains. Furthermore, given that measures of ST parameter variability are based on the fluctuations of individual steps or strides, they are more susceptible to random measurement error [15]. Therefore, future research should seek to evaluate these study protocols in detail to determine the most valid and reliable, as well as practical, protocol and processing techniques for ST parameter variability.

4.3. Knee Joint Angles

The knee is the most common joint for OA diagnosis [95] and as such, the knee continues to dominate the literature around OA gait kinematics. A total of 10 studies measured knee angles during gait in adults with OA [20,29,39,40,46,58,64,78,81,90], as compared to eight measuring ankle angles [31,32,33,39,46,64,70,71] and only four measuring hip angles [39,46,80,90]. Not surprisingly, examining differences in sagittal plane knee angles between OA and the control was the most common application [20,39,40,58,64,78]. Unfortunately, the quality of these studies was highly variable (e.g., 36–75%) and only two recruited more than 20 adults with OA [58,64]. One such example, Rahman et al. (2015 [64]), cross-sectionally examined the gait of 74 individuals with knee OA at different stages of surgery and recovery as compared to healthy controls. They found an inertial sensor-derived sagittal knee joint range of motion was reduced in the OA populations as compared to healthy controls. Furthermore, patients one-year post surgery had an improved range of motion compared to those pre-surgery, but they remained below their healthy counterparts. Alternatively, Calliess et al. (2014 [29]) was the only study to directly examine sagittal knee joint angles before and after surgery in a prospective manner. Unfortunately, this was an initial evaluation on only six patients and the authors were unable to identify a significant change in peak knee flexion with surgery.
Given the limited number of studies examining knee joint angles with wearable sensors in OA, there is lack of consensus on the system and processing. The 10 studies identified in this area used a variety of sensor systems, some involving proprietary algorithms in clinically-focused sensors [39,46,58,64,90] and others involving raw inertial sensor data from research-focused sensors [20,29,40,78,81]. While the exact algorithms to process these data vary greatly between studies, the procedures generally involved some type of attitude correction and/or sensor alignment, segment orientation estimation, knee joint angle calculation, and discrete parameter extraction (i.e., peak angle, range of motion, etc.). Interestingly, no study reported using machine learning algorithms, Kalman filters, or complementary filters in the estimation of the sagittal knee joint angle, however, most utilized a short-range drift correction to account for the errors in angular velocity estimation [29,40,78]. Although a variety of methods existed, studies examining the validity of these outcomes [20,40,90] came to similar conclusions as in previous work. Specifically, sagittal knee joint angles display excellent agreement with gold-standard motion capture systems [15,96,97]. While there is still a need for greater consistency in the systems and methodology, the current body of literature supports the use of these outcomes in larger prospective studies.

4.4. Joint Moments

Estimating the loading environment of an osteoarthritic joint has been a primary focus of gait biomechanics. Specifically, in knee OA, KAM remains a strong predictor of structural progression [10,11,12] and a key outcome examined for gait retraining [98,99] and surgical interventions [100]. Previous research has demonstrated the ability of inertial sensors to estimate joint moments, but this has most often occurred in healthy populations [101,102,103]. Alternatively, we identified three studies which examined KAM [41,83,86], as well as one examining joint contact forces [36] and one examining ankle joint moments [70]. The first proof of principle study was conducted by van den Noort et al. (2013 [83]), which used eight inertial sensors on the lower limbs, in combination with instrumented force shoes, to estimate KAM. While successful at the group level, significant errors remained on an individual level which related to the estimation of joint centres, sensory orientation/alignment, and inaccuracies in force measurements. More recently, Wang et al. (2020 [86]) and He and Liu (2019 [41]) evaluated the use of patient-specific inertial sensor systems which involved only one sensor per ankle to estimate KAM in real-time. The inertial sensor applications required a short calibration using data from a conventional system before a patient-specific model could be created to track real-time changes in KAM using only inertial sensors. While these are interesting interim approaches to track patient-specific changes in KAM with inertial sensors, they are not independent systems. Overall, this remains an exciting new area of study that requires further advancements before inertial sensor-based joint moment outcomes can be effectively measured in a clinically viable manner.

4.5. Acceleration Magnitudes

In addition to the more conventional biomechanical outcomes already discussed, inertial sensors offer the ability to measure several unique impact-related outcomes. Specifically, impact accelerations were found to be among the most common biomechanical outcomes, following ST parameters and joint/segment kinematics. Segmental accelerations can be examined using a variety of methods, such as the overall amount of multi-axis accelerations (e.g., root mean square [23,30,56,63,72,82] or mean [30,88]), impacts peaks [21,25,28,34,45,48,56,59,60,81,82,87], or waveform analyses [50,51,52]. These outcomes have been shown to be reliable in healthy adults [15] and adults with knee OA [52,56,82], and can be measured at a variety of placements including the lower back [21,23,25,28,50,51,52,63,72], thigh [50,51,52,81,82], shank [34,45,48,50,51,52,56,59,60,81,82,87], and foot [23,30]. While for most of the studies we identified examined cross-sectional differences between OA and healthy gait, these outcomes may provide important and objective information that can supplement the clinical outcomes of TKA [25,34,51,72,88].
Lastly, the regularity and symmetry of acceleration patterns have been increasingly examined to measure dynamic stability in OA gait. These measures utilize either an autocorrelation procedure to examine waveform similarity between steps or strides [104] or a frequency analysis to examine asymmetrical harmonics [105]. The popularity of such metrics continues to grow given their ease of use and sensitivity to changes in gait patterns following interventions [38,43,65]. Nevertheless, while these outcomes have demonstrated moderate to good reliability in healthy adults, we did not identify any assessments of reliability in adults with OA. Therefore, there is a need to standardize the testing protocol and processing techniques, as well as better understand the underlying biomechanical relevance, before wearable sensor regularity and symmetry outcomes can be used effectively in a clinical setting.

4.6. Trends for Future Research

Our scoping review has demonstrated the immense growth and success of inertial sensors in assessing the gait of adults with OA. As the burden of this disease continues to grow [3], so must our efforts to offset it. Wearable inertial sensors offer a unique opportunity to support this endeavor but will require advancements in several key areas.
Longitudinal designs—There is a breadth of cross-sectional research demonstrating the validity, reliability, and sensitivity of many inertial sensor-derived gait outcomes in OA. While the more recent integration of inertial sensors in surgical intervention studies is promising, the majority of these studies have focused only on mean ST parameters as outcomes. Given the body of literature presented in this review, we are confident that inertial sensors can effectively examine additional biomechanical outcomes (e.g., sagittal knee joint angle, impact accelerations, etc.) in these studies. Nevertheless, an even more glaring gap in the literature is a lack of studies utilizing inertial sensors to examine gait in relation to disease progression. Consequently, to truly strengthen the quality of evidence surrounding inertial sensor biomechanical outcomes in OA, future research must utilize more longitudinal study designs that can highlight change and progression over time.
Patient-specific applications—In addition to tracking group-level changes in gait, inertial sensors offer an exciting opportunity to develop personalized treatment plans through monitoring patient-specific changes [106]. For instance, both Kwasnicki et al. (2015 [53]) and Kobsar et al. (2018 [50]) demonstrated the utility of tracking gait outcomes as they relate to a patient’s response to a surgical or exercise intervention, respectively. Tracking patient-specific changes in gait, assessed by a variety of outcomes collected over multiple days, can provide sensitive, objective, and clinically relevant outcomes for OA. Nevertheless, there is a need to better understand the normal day-to-day fluctuations in natural, free-living gait patterns which can support our understanding of what clinically meaningful levels of change are.
Free-living assessments—Wearable sensors are already expanding our capability to assess OA gait, as 63% of studies involved some out-of-lab component. However, in accordance with a previous review on wearable sensors in out-of-lab settings [92], these collections still rarely support natural or free-living walking. In other words, even those gait assessments done at home or in a clinical setting still involve predetermined walking paths or walk lengths that may poorly represent a patient’s normal gait pattern, and as such misrepresent the typical loading environment experienced by their joints. Unfortunately, free-living assessments require the integration of robust activity classification and event detection algorithms, which are often studied independently but rarely implemented together in a single computational pipeline or system [13,107]. The development of robust pipelines such as these could expand the use of inertial sensors to track changes in free-living gait patterns related to acute flares, interventions, and even progression.
Push for “Code Reuse”. Both open access publishing and open source software repositories present important models which can support the growth, replication, consistency, and inclusivity across clinical research [108,109]. We found that 44% of the studies identified in this review were open access, which is well above the 28% average [108]. Unfortunately, there were no studies that provided any open source software to accompany their articles. Publishing software to promote “Code Reuse” enables cost-effective replication and advancement software for clinical research [108]. While limited examples do exist in the broad field of wearable technology [107,110], a concerted effort to make the code more accessible to other researchers will be one of the most important trends in advancing wearable inertial sensor applications to gait biomechanics.

5. Conclusions

Wearable inertial sensor research is growing at an exceptional rate and expanding how biomechanical analyses can be used for patients with lower limb OA. While mean ST parameters remain the most assessed outcomes in OA, recent work has highlighted the ability of inertial sensors to measure more advanced outcomes such as knee joint angles, KAM, and impact accelerations, as well as a variability and symmetry measures. Nevertheless, there remains a need for more longitudinal study designs, patient-specific models, free-living assessments, and a push for “Code Reuse” to maximize the unique capabilities of these devices and ultimately improve how we diagnose and treat this debilitating disease.

Supplementary Materials

The following are available online at https://www.mdpi.com/1424-8220/20/24/7143/s1, Table S1: Additional details on study designs and samples for all 72 included studies, Table S2: Additional details on inertial sensors, protocols, and biomechanical variables for all 72 included studies.

Author Contributions

The concept of the review was contributed by D.K. and Z.M. The search was conducted by D.K. Abstract screening was conducted by M.Y.K. and S.R., with full-text screening conducted by M.Y.K. and M.T., S.R. and N.K. conducted the quality assessment. H.K. extracted data, with support from N.K. and Z.M. D.K. wrote most of the manuscript, with support, edits, revisions, and final approval by all other authors. All authors have read and agreed to the published version of the manuscript.

Funding

Operational funding was provided, in part, by the Natural Sciences and Engineering Research Council of Canada (NSERC), the Banting Research Foundation, and the Canadian Statistical Sciences Institute (CANSSI) Ontario. Salary support was also provided for Z.M. by the McMaster Institute for Research on Aging (MIRA) and the NSERC Collaborative Research and Training Experience Program (CREATE) for Smart Mobility for the Aging Population.

Conflicts of Interest

The authors declare no conflict of interest and no funding sources had any role in this research.

Abbreviations

The following abbreviations are used in the manuscript:
OAOsteoarthritis
KAMKnee Adduction Moment
STSpatiotemporal
PRISMAPreferred Reporting Items for Systematic Reviews and Meta-Analyses
BMIBody Mass Index
TJATotal Joint Arthroplasty
TKATotal Knee Arthroplasty

Appendix A

Complete inclusion and exclusion criteria.
Inclusion Criteria:
(i)
Studies include the use of a wearable inertial sensor (e.g., accelerometers, gyroscopes, and/or magnetometers) for gait analyses;
(ii)
Studies involve unassisted, walking gait analyses on patients with lower limb osteoarthritis (e.g., hip, knee, or ankle);
(iii)
Studies are published in English.
Exclusion Criteria:
(i)
Conference abstracts;
(ii)
Systematic reviews;
(iii)
Published study protocols;
(iv)
Osteoarthritis was not diagnosed either radiographically or clinically by a health professional;
(v)
Population-based cohorts with a mixed sample of clinical conditions (i.e., not clearly separating osteoarthritis patients from other conditions);
(vi)
Daily step count, physical activity, or energy expenditure assessments only;
(vii)
Activity classification or pedestrian navigation only;
(viii)
Non-human subjects.

Appendix B

Complete search strategy.
Search strategy individually optimized for each database based on the three broad topics of inertial sensors, gait, and osteoarthritis joined using the AND search command/function.
Medline/Embase:
Inertial Sensors: (wearable sensor* or wearable technology or motion sensor* or inertial sensor* or inertial motion capture or inertial measurement unit* or body sensor network* or body worn sensor* or sensor fusion or smartphone* or IMU or MEMS*or acceleromet* or gyroscop* or magnetomet*).mp. or exp accelerometer/
Gait: ((speed* or time* or length* or width or cadence* or spatiotemporal or analys* or kinematic* or kinetic* or biomechanic* or angle* or acceleration*) adj5 (step or stride or gait* or walk* or segment* or joint* or hip* or knee* or ankle* or torso* or center of mass or centre of mass or center of gravity or centre of gravity)).mp. or exp biomechanics/
Osteoarthritis: (osteoarthritis or degenerative arthritis or degenerative joint disease).mp. or hip osteoarthritis/ or osteoarthritis/ or knee osteoarthritis/
Cinahl/SPORTDiscus:
Inertial Sensors: (wearable sensor* or wearable technology or motion sensor* or inertial sensor* or inertial motion capture or inertial measurement unit* or body sensor network* or body worn sensor* or sensor fusion or smartphone* or IMU or MEMS*or acceleromet* or gyroscop* or magnetomet*)
Gait: ((speed* or time* or length* or width or cadence* or spatiotemporal or analys* or kinematic* or kinetic* or biomechanic* or angle* or acceleration*) N5 (step or stride or gait* or walk* or ambulat* or segment* or joint* or hip* or knee* or ankle* or torso* or “cent* of mass” or “cent* of gravity))
Osteoarthritis: (osteoarthritis or degenerative arthritis or degenerative joint disease)
Web of Science core collection:
Inertial Sensors: TS = (wearable sensor* or wearable technology or motion sensor* or inertial sensor* or inertial motion capture or inertial measurement unit* or body sensor network* or body worn sensor* or sensor fusion or smartphone* or IMU or MEMS*or acceleromet* or gyroscop* or magnetomet*)
Gait: TS = ((speed or step time* or stride time* or step length* or stride length* or step width* or spatiotemporal or kinematic* or kinetic* or biomechanic* or analys* or (joint near/5 angle*) or (segment near/5 angle*) or (hip near/5 angle*) or (knee near/5 angle*) or (ankle near/5 angle*) or (foot near/5 angle*) or (acceleration* near/5 segment*) or (acceleration* near/5 torso*) or (acceleration* near/5 {centre of mass}) or (acceleration* near/5 {center of mass})) and (gait or walk* or ambulat*))
Osteoarthritis: TS = (osteoarthritis or degenerative arthritis or degenerative joint disease)
Engineering Village:
Inertial Sensors: (({wearable sensor*} or {wearable technology} or {motion sensor*} or {inertial sensor*} or {inertial motion capture} or {inertial measurement unit*} or {body sensor network*} or {body worn sensor*} or {sensor fusion} or {smartphone*} or IMU or MEMS*or acceleromet* or gyroscop* or magnetomet*) WN KY)
Gait: ((gait or walk* or ambulat* or speed or step time* or stride time* or step length* or stride length* or step width* or spatiotemporal or kinematic* or kinetic* or biomechanic* or (joint near/5 angle*) or (segment near/5 angle*) or (hip near/5 angle*) or (knee near/5 angle*) or (ankle near/5 angle*) or (foot near/5 angle*) or (acceleration* near/5 segment*) or (acceleration* near/5 torso*) or (acceleration* near/5 {centre of mass}) or (acceleration* near/5 {center of mass})) WN KY)
Osteoarthritis: (osteoarthritis or degenerative arthritis or degenerative joint disease) WN KY
Note: The variant term “spatio-temporal” (vs. “spatiotemporal”) was not included in the search strategy, as it did not result in any additional studies identified in our complete search strategy. Nevertheless, this may not be the case in other searches/topics, and as such it may still be necessary to include spatio-temporal” in other search strategies.

Appendix C

Critical appraisal of study design.
Interpretation Guide
To decide which score to provide for each item on a quality checklist, read the following descriptors. Pick the descriptor that sounds most like the study being evaluated with respect to a given item. If there is no documentation of an action, treat it as not done.
Adapted from: Law, MacDermid. Evidence-based rehabilitation: A guide to practice, 2nd edition; Slack Inc.: Thorofare, NJ, USA, 2008.
Table
QuestionScoreDescriptors
Study Question
1
Background and Research Question		2The authors:
1. Performed a thorough literature review, indicating what is currently known about the area from previous research studies;
2. Presented a critical and unbiased view of the current state of knowledge;
3. Indicated how the current research question or objective evolves from a gap in the current knowledge base.
1All of the above criteria were not fulfilled (little reference to previous research and present gaps in knowledge), but a clear rationale was provided for the research question or objective.
0A foundation for the current research question or objective was not clear, and the rationale was not founded on previous literature.
Study Design
2
Subjects		2Appropriate characteristics of the participants are described in the inclusion/exclusion criteria and reported in the data (i.e., they clearly describe the characteristics of the sample they are looking to recruit).
1Appropriate characteristics of the participants are poorly described in the inclusion/exclusion criteria but reported in the data (i.e., they do not clearly describe the characteristics of the sample they are looking to recruit, but they do outline important characteristics after the fact—age, height, weight, BMI, severity, additional conditions).
0Appropriate characteristics of the participants are poorly described in the inclusion/exclusion criteria AND poorly reported in the data.
3
Objective/
Hypothesis		2Authors clearly identified main objectives/hypotheses of the study.
1Authors broadly identified main objectives/hypotheses of the study.
0Authors did not identify a main objective of the study.
4
Scope/
Design		2The overall design of the study is clearly described and appropriately linked to addressing the objective/research question.
1The overall design of the study is identifiable and adequately addresses the objective/research question.
0The design of the study is unclear and/or poorly addresses the purpose of the study.
5
Sample		2Authors performed a sample size calculation and obtained their recruitment targets.
1The authors provided a rationale for the number of subjects included in the study but did not present specific sample size calculations. Alternatively, sample is greater than 100, but has no justification for sample size.
0Size of the sample was not rationalized or is clearly underpowered.
6
Retention (if Applicable)		2Ninety percent or more of the patients enrolled for study were re-evaluated.
1More than 70% of the patients eligible for study were re-evaluated or not directly stated (e.g., sampling from a database).
0Less than 70% of the patients eligible for study were re-evaluated.
Measurements
7
Sensor		2The authors provided detailed information that outlines the measurement device (i.e., inertial sensor) and specific procedures for data collections. This information needs to consist of: (i) name, manufacturer of sensor, and sampling rate, (ii) specifics on placement, and (iii) sensor calibration procedures.
1Device is referenced with moderate description/information (2 complete categories out of 3).
0Minimal description of device is provided and without appropriate references (0 or 1 categories out of 3).
8
Protocol		2The authors provided detailed information on the exact protocol of the study which would allow for excellent replication of the study.
1The authors provided adequate information on the protocol of the study that would allow for a replication of the study but may miss some specific details.
0The authors poorly describe the exact protocol of the study and it would be difficult to replicate the study.
Analyses
9
Organization		2Authors clearly defined which analyses were conducted for each of the stated specific research questions/hypotheses of the study. Data were clearly organized and presented for each objective/hypothesis in the results.
1Data were presented for each specific objective/hypothesis, but authors did not clearly link these analyses to the defined objective/hypothesis.
0Data were not presented for each objective/hypothesis outlined in the purposes or methods.
10
Statistical Analyses		2Statistical tests used to assess outcomes were clearly described and appropriate (e.g., more than just means (SDs) and significance levels; confidence intervals (CIs) and effect sizes reported).
1Statistical tests used to assess outcomes were adequately describe and appear appropriate (e.g., only present means (SDs) and significance levels).
0Statistical tests to assess outcomes were poorly described or not appropriate (e.g., missing important information such as means (SDs) or significance levels)
11
Confounding Effects		2Authors clearly discussed and effectively addressed/acknowledged most confounding effects to the outcomes.
1Some potential confounding effects were briefly discussed or minimized.
0Confounding effects appear to be prevalent in the results and not discussed or acknowledged.
Recommendations
12
Conclusion/
Recommendations		2Authors made specific conclusions (based on results) and clinical recommendations that were clearly related to the specific objectives/hypotheses stated at the beginning of the study and supported by the data presented.
1Authors made conclusions and clinical recommendations that were general, but basically supported by the study data, OR authors made conclusions and clinical recommendations for only some of the study objective/hypotheses.
0Authors made vague conclusions without any clinical recommendations, and conclusions OR recommendations contradicted the actual data presented.

References

  1. Bombardier, C.; Hawker, G.; Mosher, D. The Impact of Arthritis in Canada: Today and Over the Next 30 Years. Arthritis Alliance of Canada: Toronto, ON, Canada, 2011. [Google Scholar]
  2. Jafarzadeh, S.R.; Felson, D.T. Updated estimates suggest a much higher prevalence of arthritis in united states adults than previous ones. Arthritis Rheumatol. 2018, 70, 185–192. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Cross, M.; Smith, E.; Hoy, D.; Nolte, S.; Ackerman, I.; Fransen, M.; Bridgett, L.; Williams, S.; Guillemin, F.; Hill, C.L.; et al. The global burden of hip and knee osteoarthritis: Estimates from the Global Burden of Disease 2010 study. Ann. Rheum. Dis. 2014, 73, 1323–1330. [Google Scholar] [CrossRef] [PubMed]
  4. Birmingham, T.B.; Moyer, R.; Leitch, K.; Chesworth, B.; Bryant, D.; Willits, K.; Litchfield, R.; Fowler, P.J.; Giffin, J.R. Changes in biomechanical risk factors for knee osteoarthritis and their association with 5-year clinically important improvement after limb realignment surgery. Osteoarthr. Cartil. 2017, 25, 1999–2006. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Chang, A.H.; Moisio, K.C.; Chmiel, J.S.; Eckstein, F.; Guermazi, A.; Prasad, P.V.; Zhang, Y.; Almagor, O.; Belisle, L.; Hayes, K.; et al. External knee adduction and flexion moments during gait and medial tibiofemoral disease progression in knee osteoarthritis. Osteoarthr. Cartil. 2015, 23, 1099–1106. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Naili, J.E.; Broström, E.W.; Clausen, B.; Holsgaard-Larsen, A. Measures of knee and gait function and radiographic severity of knee osteoarthritis—A cross-sectional study. Gait Posture 2019, 74, 20–26. [Google Scholar] [CrossRef] [PubMed]
  7. Kumar, D.; Manal, K.T.; Rudolph, K.S. Knee joint loading during gait in healthy controls and individuals with knee osteoarthritis. Osteoarthr. Cartil. 2013, 21, 298–305. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Diamond, L.E.; Allison, K.; Dobson, F.; Hall, M. Hip joint moments during walking in people with hip osteoarthritis: A systematic review and meta-analysis. Osteoarthr. Cartil. 2018, 26, 1415–1424. [Google Scholar] [CrossRef] [Green Version]
  9. Mills, K.; Hunt, M.A.; Ferber, R. Biomechanical deviations during level walking associated with knee osteoarthritis: A systematic review and meta-analysis. Arthritis Care Res. (Hoboken) 2013, 65, 1643–1665. [Google Scholar] [CrossRef] [Green Version]
  10. Chehab, E.F.; Favre, J.; Erhart-Hledik, J.C.; Andriacchi, T.P. Baseline knee adduction and flexion moments during walking are both associated with 5 year cartilage changes in patients with medial knee osteoarthritis. Osteoarthr. Cartil. 2014, 22, 1833–1839. [Google Scholar] [CrossRef] [Green Version]
  11. Hatfield, G.L.; Stanish, W.D.; Hubley-Kozey, C.L. Three-dimensional biomechanical gait characteristics at baseline are associated with progression to total knee arthroplasty. Arthritis Care Res. 2015, 67, 1004–1014. [Google Scholar] [CrossRef] [Green Version]
  12. Erhart-Hledik, J.C.; Favre, J.; Andriacchi, T.P. New insight in the relationship between regional patterns of knee cartilage thickness, osteoarthritis disease severity, and gait mechanics. J. Biomech. 2015, 48, 3868–3875. [Google Scholar] [CrossRef] [PubMed]
  13. Hillel, I.; Gazit, E.; Nieuwboer, A.; Avanzino, L.; Rochester, L.; Cereatti, A.; Croce, U.D.; Rikkert, M.O.; Bloem, B.R.; Pelosin, E.; et al. Is every-day walking in older adults more analogous to dual-task walking or to usual walking? Elucidating the gaps between gait performance in the lab and during 24/7 monitoring. Eur. Rev. Aging Phys. Act. 2019, 16, 6. [Google Scholar] [CrossRef] [PubMed]
  14. Shull, P.B.; Jirattigalachote, W.; Hunt, M.A.; Cutkosky, M.R.; Delp, S.L. Quantified self and human movement: A review on the clinical impact of wearable sensing and feedback for gait analysis and intervention. Gait Posture 2014, 40, 11–19. [Google Scholar] [CrossRef] [PubMed]
  15. Kobsar, D.; Charlton, J.M.; Tse, C.T.F.; Esculier, J.-F.; Graffos, A.; Krowchuk, N.M.; Thatcher, D.; Hunt, M.A. Validity and reliability of wearable inertial sensors in healthy adult walking: A systematic review and meta-analysis. J. Neuroeng. Rehabil. 2020, 17, 62. [Google Scholar] [CrossRef] [PubMed]
  16. Small, S.R.; Bullock, G.S.; Khalid, S.; Barker, K.; Trivella, M.; Price, A.J. Current clinical utilisation of wearable motion sensors for the assessment of outcome following knee arthroplasty: A scoping review. BMJ Open 2019, 9, e033832. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Munn, Z.; Peters, M.D.J.; Stern, C.; Tufanaru, C.; McArthur, A.; Aromataris, E. Systematic review or scoping review? Guidance for authors when choosing between a systematic or scoping review approach. BMC Med. Res. Methodol. 2018, 18, 143. [Google Scholar] [CrossRef] [PubMed]
  18. Law, M.; MacDermid, J. Evidence-Based Rehabilitation: A Guide to Practice, 2nd ed.; Slack Inc.: Thorofare, NJ, USA, 2008. [Google Scholar]
  19. Aminian, K.; Rezakhanlou, K.; De Andres, E.; Fritsch, C.; Leyvraz, P.F.; Robert, P. Temporal feature estimation during walking using miniature accelerometers: An analysis of gait improvement after hip arthroplasty. Med. Biol. Eng. Comput. 1999, 37, 686–691. [Google Scholar] [CrossRef] [Green Version]
  20. Aminian, K.; Trevisan, C.; Najafi, B.; Dejnabadi, H.; Frigo, C.; Pavan, E.; Telonio, A.; Cerati, F.; Marinoni, E.; Robert, P.; et al. Evaluation of an ambulatory system for gait analysis in hip osteoarthritis and after total hip replacement. Gait Posture 2004, 20, 102–107. [Google Scholar] [CrossRef]
  21. Andrade, A.O.; Ferreira, L.C.V.; Rabelo, A.G.; Vieira, M.F.; Campos, A.R.; Gonçalves, B.F.; Pereira, A.A. Pelvic movement variability of healthy and unilateral hip joint involvement individuals. Biomed. Signal Process. Control 2017, 32, 10–19. [Google Scholar] [CrossRef]
  22. Auvinet, B.; Chaleil, D.; Barrey, E. Accelerometric gait analysis for use in hospital outpatients. Rev. Rhum. 1999, 66, 389–397. [Google Scholar]
  23. Barrois, R.; Gregory, T.; Oudre, L.; Moreau, T.; Truong, C.; Aram Pulini, A.; Vienne, A.; Labourdette, C.; Vayatis, N.; Buffat, S.; et al. An automated recording method in clinical consultation to rate the limp in lower limb osteoarthritis. PLoS ONE 2016, 11, e0164975. [Google Scholar] [CrossRef] [PubMed]
  24. Bolink, S.A.A.N.; Brunton, L.R.; van Laarhoven, S.; Lipperts, M.; Heyligers, I.C.; Blom, A.W.; Grimm, B. Frontal plane pelvic motion during gait captures hip osteoarthritis related disability. HIP Int. 2015, 25, 413–419. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Bolink, S.A.A.N.; Grimm, B.; Heyligers, I.C. Patient-reported outcome measures versus inertial performance-based outcome measures: A prospective study in patients undergoing primary total knee arthroplasty. Knee 2015, 22, 618–623. [Google Scholar] [CrossRef] [PubMed]
  26. Bolink, S.A.A.N.; Lenguerrand, E.; Brunton, L.R.; Wylde, V.; Gooberman-Hill, R.; Heyligers, I.C.; Blom, A.W.; Grimm, B. Assessment of physical function following total hip arthroplasty: Inertial sensor based gait analysis is supplementary to patient-reported outcome measures. Clin. Biomech. 2016, 32, 171–179. [Google Scholar] [CrossRef] [Green Version]
  27. Bolink, S.A.A.N.; Lenguerrand, E.; Brunton, L.R.; Hinds, N.; Wylde, V.; Heyligers, I.C.; Blom, A.W.; Whitehouse, M.R.; Grimm, B. The association of leg length and offset reconstruction after total hip arthroplasty with clinical outcomes. Clin. Biomech. 2019, 68, 89–95. [Google Scholar] [CrossRef] [PubMed]
  28. Bolink, S.A.A.N.; van Laarhoven, S.N.; Lipperts, M.; Heyligers, I.C.; Grimm, B. Inertial sensor motion analysis of gait, sit–stand transfers and step-up transfers: Differentiating knee patients from healthy controls. Physiol. Meas. 2012, 33, 1947–1958. [Google Scholar] [CrossRef]
  29. Calliess, T.; Bocklage, R.; Karkosch, R.; Marschollek, M.; Windhagen, H.; Schulze, M. Clinical evaluation of a mobile sensor-based gait analysis method for outcome measurement after knee arthroplasty. Sensors 2014, 14, 15953–15964. [Google Scholar] [CrossRef]
  30. Chen, W.; Xu, Y.; Wang, J.; Zhang, J. Kinematic analysis of human gait based on wearable sensor system for gait rehabilitation. J. Med. Biol. Eng. 2016, 36, 843–856. [Google Scholar] [CrossRef]
  31. Chopra, S.; Crevoisier, X. Preoperative gait asymmetry in end-stage unilateral ankle osteoarthrosis patients. Foot Ankle Surg. 2019, 25, 298–302. [Google Scholar] [CrossRef]
  32. Chopra, S.; Favre, J.; Crevoisier, X. Qualitative analysis of foot intersegment coordination in the sagittal plane following surgery for end-stage ankle osteoarthrosis. J. Orthop. Res. 2017, 35, 1304–1310. [Google Scholar] [CrossRef] [Green Version]
  33. Chopra, S.; Rouhani, H.; Assal, M.; Aminian, K.; Crevoisier, X. Outcome of unilateral ankle arthrodesis and total ankle replacement in terms of bilateral gait mechanics. J. Orthop. Res. 2014, 32, 377–384. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Christiansen, C.L.; Bade, M.J.; Paxton, R.J.; Stevens-Lapsley, J.E. Measuring movement symmetry using tibial-mounted accelerometers for people recovering from total knee arthroplasty. Clin. Biomech. 2015, 30, 732–737. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Clermont, C.A.; Barden, J.M. Accelerometer-based determination of gait variability in older adults with knee osteoarthritis. Gait Posture 2016, 50, 126–130. [Google Scholar] [CrossRef] [PubMed]
  36. De Brabandere, A.; Emmerzaal, J.; Timmermans, A.; Jonkers, I.; Vanwanseele, B.; Davis, J. A machine learning approach to estimate hip and knee joint loading using a mobile phone-embedded IMU. Front. Bioeng. Biotechnol. 2020, 8. [Google Scholar] [CrossRef] [Green Version]
  37. De Vroey, H.; Staes, F.; Weygers, I.; Vereecke, E.; Vanrenterghem, J.; Deklerck, J.; Van Damme, G.; Hallez, H.; Claeys, K. The implementation of inertial sensors for the assessment of temporal parameters of gait in the knee arthroplasty population. Clin. Biomech. 2018, 54, 22–27. [Google Scholar] [CrossRef]
  38. Fransen, B.L.; Mathijssen, N.M.C.; Slot, K.; de Esch, N.H.H.; Verburg, H.; Temmerman, O.P.P.; Hoozemans, M.J.M.; van Dieën, J.H. Gait quality assessed by trunk accelerometry after total knee arthroplasty and its association with patient related outcome measures. Clin. Biomech. 2019, 70, 192–196. [Google Scholar] [CrossRef] [Green Version]
  39. Grip, H.; Nilsson, K.G.; Häger, C.K.; Lundström, R.; Öhberg, F. Does the femoral head size in hip arthroplasty influence lower body movements during squats, gait and stair walking? A clinical pilot study based on wearable motion sensors. Sensors 2019, 19, 3240. [Google Scholar] [CrossRef] [Green Version]
  40. Hafer, J.F.; Provenzano, S.G.; Kern, K.L.; Agresta, C.E.; Grant, J.A.; Zernicke, R.F. Measuring markers of aging and knee osteoarthritis gait using inertial measurement units. J. Biomech. 2020, 99, 109567. [Google Scholar] [CrossRef]
  41. He, Z.; Liu, T.; Yi, J. A wearable sensing and training system: Towards gait rehabilitation for elderly patients with knee osteoarthritis. IEEE Sens. J. 2019, 19, 5936–5945. [Google Scholar] [CrossRef]
  42. Hiyama, Y.; Asai, T.; Wada, O.; Maruno, H.; Nitta, S.; Mizuno, K.; Iwasaki, Y.; Okada, S. Gait variability before surgery and at discharge in patients who undergo total knee arthroplasty: A cohort study. PLoS ONE 2015, 10, e0117683. [Google Scholar] [CrossRef]
  43. Hiyama, Y.; Asai, T.; Wada, O. Effect of improvement in quadriceps strength asymmetry on trunk movement asymmetry after total knee arthroplasty. Gait Posture 2020, 79, 21–25. [Google Scholar] [CrossRef] [PubMed]
  44. Iijima, H.; Eguchi, R.; Aoyama, T.; Takahashi, M. Trunk movement asymmetry associated with pain, disability, and quadriceps strength asymmetry in individuals with knee osteoarthritis: A cross-sectional study. Osteoarthr. Cartil. 2019, 27, 248–256. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Ishii, Y.; Ishikawa, M.; Kurumadani, H.; Hayashi, S.; Nakamae, A.; Nakasa, T.; Sumida, Y.; Tsuyuguchi, Y.; Kanemitsu, M.; Deie, M.; et al. Increase in medial meniscal extrusion in the weight-bearing position observed on ultrasonography correlates with lateral thrust in early-stage knee osteoarthritis. J. Orthop. Sci. 2020, 25, 640–646. [Google Scholar] [CrossRef] [PubMed]
  46. Ismailidis, P.; Egloff, C.; Hegglin, L.; Pagenstert, G.; Kernen, R.; Eckardt, A.; Ilchmann, T.; Mündermann, A.; Nüesch, C. Kinematic changes in patients with severe knee osteoarthritis are a result of reduced walking speed rather than disease severity. Gait Posture 2020, 79, 256–261. [Google Scholar] [CrossRef]
  47. Item-Glatthorn, J.F.; Casartelli, N.C.; Petrich-Munzinger, J.; Munzinger, U.K.; Maffiuletti, N.A. Validity of the Intelligent Device for Energy Expenditure and Activity Accelerometry System for quantitative gait analysis in patients with hip osteoarthritis. Arch. Phys. Med. Rehabil. 2012, 93, 2090–2093. [Google Scholar] [CrossRef]
  48. Khan, H.; Walker, P.S.; Zuckerman, J.D.; Slover, J.; Jaffe, F.; Karia, R.J.; Kim, J.H. The potential of accelerometers in the evaluation of stability of total knee arthroplasty. J. Arthroplasty 2013, 28, 459–462. [Google Scholar] [CrossRef]
  49. Kluge, F.; Hannink, J.; Pasluosta, C.; Klucken, J.; Gaßner, H.; Gelse, K.; Eskofier, B.M.; Krinner, S. Pre-operative sensor-based gait parameters predict functional outcome after total knee arthroplasty. Gait Posture 2018, 66, 194–200. [Google Scholar] [CrossRef]
  50. Kobsar, D.; Ferber, R. Wearable sensor data to track subject-specific movement patterns related to clinical outcomes using a machine learning approach. Sensors 2018, 18, 2828. [Google Scholar] [CrossRef] [Green Version]
  51. Kobsar, D.; Osis, S.T.; Boyd, J.E.; Hettinga, B.A.; Ferber, R. Wearable sensors to predict improvement following an exercise intervention in patients with knee osteoarthritis. J. Neuroeng. Rehabil. 2017, 14, 94. [Google Scholar] [CrossRef] [Green Version]
  52. Kobsar, D.; Osis, S.T.; Phinyomark, A.; Boyd, J.E.; Ferber, R. Reliability of gait analysis using wearable sensors in patients with knee osteoarthritis. J. Biomech. 2016, 49, 3977–3982. [Google Scholar] [CrossRef]
  53. Kwasnicki, R.M.; Ali, R.; Jordan, S.J.; Atallah, L.; Leong, J.J.H.; Jones, G.G.; Cobb, J.; Yang, G.Z.; Darzi, A. A wearable mobility assessment device for total knee replacement: A longitudinal feasibility study. Int. J. Surg. 2015, 18, 14–20. [Google Scholar] [CrossRef] [PubMed]
  54. L’Hermette, M.; Savatier, X.; Baudry, L.; Tourny-Chollet, C.; Dujardin, F. A new portable device for assessing locomotor performance. Int. J. Sports Med. 2008, 29, 322–326. [Google Scholar] [CrossRef] [PubMed]
  55. Liikavainio, T.; Bragge, T.; Hakkarainen, M.; Karjalainen, P.A.; Arokoski, J.P. Gait and muscle activation changes in men with knee osteoarthritis. Knee 2010, 17, 69–76. [Google Scholar] [CrossRef] [PubMed]
  56. Lyytinen, T.; Bragge, T.; Hakkarainen, M.; Liikavainio, T.; Karjalainen, P.A.; Arokoski, J.P. Repeatability of knee impulsive loading measurements with skin-mounted accelerometers and lower limb surface electromyographic recordings during gait in knee osteoarthritic and asymptomatic individuals. J. Musculoskelet. Neuronal Interact. 2016, 16, 63–74. [Google Scholar]
  57. Mariani, B.; Rouhani, H.; Crevoisier, X.; Aminian, K. Quantitative estimation of foot-flat and stance phase of gait using foot-worn inertial sensors. Gait Posture 2013, 37, 229–234. [Google Scholar] [CrossRef]
  58. McCarthy, I.; Hodgins, D.; Mor, A.; Elbaz, A.; Segal, G. Analysis of knee flexion characteristics and how they alter with the onset of knee osteoarthritis: A case control study. BMC Musculoskelet Disord. 2013, 14, 169. [Google Scholar] [CrossRef] [Green Version]
  59. Na, A.; Buchanan, T.S. Self-reported walking difficulty and knee osteoarthritis influences limb dynamics and muscle co-contraction during gait. Hum. Mov. Sci. 2019, 64, 409–419. [Google Scholar] [CrossRef]
  60. Na, A.; Buchanan, T.S. Validating wearable sensors using self-reported instability among patients with knee osteoarthritis. PM&R 2020, pmrj.12393. [Google Scholar] [CrossRef]
  61. Nelms, N.J.; Birch, C.E.; Halsey, D.H.; Blankstein, M.; McGinnis, R.S.; Beynnon, B.D. Assessment of early gait recovery after anterior approach compared to posterior approach total hip rthroplasty: A smartphone accelerometer–based study. J. Arthroplasty 2020, 35, 465–470. [Google Scholar] [CrossRef]
  62. Odonkor, C.; Kuwabara, A.; Tomkins-Lane, C.; Zhang, W.; Muaremi, A.; Leutheuser, H.; Sun, R.; Smuck, M. Gait features for discriminating between mobility-limiting musculoskeletal disorders: Lumbar spinal stenosis and knee osteoarthritis. Gait Posture 2020, 80, 96–100. [Google Scholar] [CrossRef]
  63. Oka, T.; Asai, T.; Kubo, H.; Fukumoto, Y. Association of fear of falling with acceleration-derived gait indices in older adults with knee osteoarthritis. Aging Clin. Exp. Res. 2019, 31, 645–651. [Google Scholar] [CrossRef] [PubMed]
  64. Rahman, J.; Tang, Q.; Monda, M.; Miles, J.; McCarthy, I. Gait assessment as a functional outcome measure in total knee arthroplasty: A cross-sectional study. BMC Musculoskelet. Disord. 2015, 16, 66. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Rapp, W.; Brauner, T.; Weber, L.; Grau, S.; Mündermann, A.; Horstmann, T. Improvement of walking speed and gait symmetry in older patients after hip arthroplasty: A prospective cohort study. BMC Musculoskelet. Disord. 2015, 16, 291. [Google Scholar] [CrossRef] [Green Version]
  66. Reh, J.; Hwang, T.-H.; Schmitz, G.; Effenberg, A. Dual mode gait sonification for rehabilitation after unilateral hip arthroplasty. Brain Sci. 2019, 9, 66. [Google Scholar] [CrossRef] [Green Version]
  67. Reininga, I.H.F.; Stevens, M.; Wagenmakers, R.; Boerboom, A.L.; Groothoff, J.W.; Bulstra, S.K.; Zijlstra, W. Compensatory trunk movements in patients with hip osteoarthritis. Am. J. Phys. Med. Rehabil. 2011, 90, 681–687. [Google Scholar] [CrossRef] [PubMed]
  68. Reininga, I.H.F.; Stevens, M.; Wagenmakers, R.; Bulstra, S.K.; Groothoff, J.W.; Zijlstra, W. Subjects with hip osteoarthritis show distinctive patterns of trunk movements during gait-a body-fixed-sensor based analysis. J. Neuroeng. Rehabil. 2012, 9, 3. [Google Scholar] [CrossRef] [Green Version]
  69. Rouhani, H.; Favre, J.; Aminian, K.; Crevoisier, X. Multi-segment foot kinematics after total ankle replacement and ankle arthrodesis during relatively long-distance gait. Gait Posture 2012, 36, 561–566. [Google Scholar] [CrossRef]
  70. Rouhani, H.; Favre, J.; Crevoisier, X.; Aminian, K. A wearable system for multi-segment foot kinetics measurement. J. Biomech. 2014, 47, 1704–1711. [Google Scholar] [CrossRef]
  71. Rouhani, H.; Favre, J.; Crevoisier, X.; Aminian, K. Measurement of multi-segment foot joint angles during gait using a wearable system. J. Biomech. Eng. 2012, 134. [Google Scholar] [CrossRef]
  72. Saida, T.; Kawada, M.; Kuroki, D.; Nakai, Y.; Miyazaki, T.; Kiyama, R.; Tsuneyoshi, Y. Accelerometer measurement of trunk lateral fluctuation during walking following total knee arthroplasty in patients With osteoarthritis. J. Aging Phys. Act. 2020, 28, 669–674. [Google Scholar] [CrossRef]
  73. Samani, A.; Andersen, R.E.; Arendt-Nielsen, L.; Madeleine, P. Discrimination of knee osteoarthritis patients from asymptomatic individuals based on pain sensitivity and knee vibroarthrographic recordings. Physiol. Meas. 2020, 41, 055002. [Google Scholar] [CrossRef] [PubMed]
  74. Senden, R.; Grimm, B.; Meijer, K.; Savelberg, H.; Heyligers, I.C. The importance to including objective functional outcomes in the clinical follow up of total knee arthroplasty patients. Knee 2011, 18, 306–311. [Google Scholar] [CrossRef] [PubMed]
  75. Staab, W.; Hottowitz, R.; Sohns, C.; Sohns, J.M.; Gilbert, F.; Menke, J.; Niklas, A.; Lotz, J. Accelerometer and gyroscope based gait analysis using spectral analysis of patients with osteoarthritis of the knee. J. Phys. Ther. Sci. 2014, 26, 997–1002. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Suh, M.J.; Kim, B.R.; Kim, S.R.; Han, E.Y.; Nam, K.W.; Lee, S.Y.; Park, Y.G.; Kim, W. Bin Bilateral quadriceps muscle strength and pain correlate with gait speed and gait endurance early after unilateral total knee arthroplasty. Am. J. Phys. Med. Rehabil. 2019, 98, 897–905. [Google Scholar] [CrossRef] [PubMed]
  77. Sun, J.; Liu, Y.; Yan, S.; Cao, G.; Wang, S.; Lester, D.K.; Zhang, K. Clinical gait evaluation of patients with knee osteoarthritis. Gait Posture 2017, 58, 319–324. [Google Scholar] [CrossRef] [PubMed]
  78. Tadano, S.; Takeda, R.; Sasaki, K.; Fujisawa, T.; Tohyama, H. Gait characterization for osteoarthritis patients using wearable gait sensors (H-Gait systems). J. Biomech. 2016, 49, 684–690. [Google Scholar] [CrossRef] [PubMed]
  79. Tanimoto, K.; Takahashi, M.; Tokuda, K.; Sawada, T.; Anan, M.; Shinkoda, K. Lower limb kinematics during the swing phase in patients with knee osteoarthritis measured using an inertial sensor. Gait Posture 2017, 57, 236–240. [Google Scholar] [CrossRef] [Green Version]
  80. Teufl, W.; Taetz, B.; Miezal, M.; Lorenz, M.; Pietschmann, J.; Jöllenbeck, T.; Fröhlich, M.; Bleser, G. Towards an inertial sensor-based wearable feedback system for patients after total hip arthroplasty: Validity and applicability for gait classification with gait kinematics-based features. Sensors 2019, 19, 5006. [Google Scholar] [CrossRef] [Green Version]
  81. Turcot, K.; Aissaoui, R.; Boivin, K.; Pelletier, M.; Hagemeister, N.; de Guise, J.A. New accelerometric method to discriminate between asymptomatic subjects and patients with medial knee osteoarthritis during 3-D gait. IEEE Trans. Biomed. Eng. 2008, 55, 1415–1422. [Google Scholar] [CrossRef]
  82. Turcot, K.; Aissaoui, R.; Boivin, K.; Hagemeister, N.; Pelletier, M.; de Guise, J.A. Test-retest reliability and minimal clinical change determination for 3-dimensional tibial and femoral accelerations during treadmill walking in knee osteoarthritis patients. Arch. Phys. Med. Rehabil. 2008, 89, 732–737. [Google Scholar] [CrossRef]
  83. van den Noort, J.; van der Esch, M.; Steultjens, M.P.M.; Dekker, J.; Schepers, M.; Veltink, P.H.; Harlaar, J. Ambulatory measurement of the knee adduction moment in patients with osteoarthritis of the knee. J. Biomech. 2013, 46, 43–49. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. van Hemert, W.L.W.; Senden, R.; Grimm, B.; Kester, A.D.M.; van der Linde, M.J.A.; Heyligers, I.C. Patella retention versus replacement in total knee arthroplasty; functional and clinimetric aspects. Arch. Orthop. Trauma Surg. 2009, 129, 259–265. [Google Scholar] [CrossRef] [PubMed]
  85. Wada, O.; Asai, T.; Hiyama, Y.; Nitta, S.; Mizuno, K. Gait Variability in Women With Hip Osteoarthritis Before and After Total Hip Replacement. Am. J. Phys. Med. Rehabil. 2019, 98, 866–871. [Google Scholar] [CrossRef] [PubMed]
  86. Wang, C.; Chan, P.P.K.; Lam, B.M.F.; Wang, S.; Zhang, J.H.; Chan, Z.Y.S.; Chan, R.H.M.; Ho, K.K.W.; Cheung, R.T.H. Real-time estimation of knee adduction moment for gait retraining in patients with knee osteoarthritis. IEEE Trans. Neural Syst. Rehabil. Eng. 2020, 28, 888–894. [Google Scholar] [CrossRef] [PubMed]
  87. Youn, I.-H.; Youn, J.-H.; Zeni, J.; Knarr, B. Biomechanical gait variable estimation using wearable sensors after unilateral total knee arthroplasty. Sensors 2018, 18, 1577. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  88. Zhang, H.; Yan, S.; Fang, C.; Guo, X.; Zhang, K. Clinical evaluation and gait characteristics before and after total knee arthroplasty based on a portable gait analyzer. Orthop. Surg. 2016, 8, 360–366. [Google Scholar] [CrossRef] [PubMed]
  89. Zijlstra, A.; Goosen, J.H.M.; Verheyen, C.C.P.M.; Zijlstra, W. A body-fixed-sensor based analysis of compensatory trunk movements during unconstrained walking. Gait Posture 2008, 27, 164–167. [Google Scholar] [CrossRef]
  90. Zügner, R.; Tranberg, R.; Timperley, J.; Hodgins, D.; Mohaddes, M.; Kärrholm, J. Validation of inertial measurement units with optical tracking system in patients operated with Total hip arthroplasty. BMC Musculoskelet. Disord. 2019, 20, 52. [Google Scholar] [CrossRef] [Green Version]
  91. Elbaz, A.; Mor, A.; Segal, G.; Debi, R.; Shazar, N.; Herman, A. Novel classification of knee osteoarthritis severity based on spatiotemporal gait analysis. Osteoarthr. Cartil. 2014, 22, 457–463. [Google Scholar] [CrossRef] [Green Version]
  92. Benson, L.C.; Clermont, C.A.; Bošnjak, E.; Ferber, R. The use of wearable devices for walking and running gait analysis outside of the lab: A systematic review. Gait Posture 2018, 63, 124–138. [Google Scholar] [CrossRef]
  93. Lord, S.; Howe, T.; Greenland, J.; Simpson, L.; Rochester, L. Gait variability in older adults: A structured review of testing protocol and clinimetric properties. Gait Posture 2011, 34, 443–450. [Google Scholar] [CrossRef] [PubMed]
  94. Herssens, N.; Verbecque, E.; Hallemans, A.; Vereeck, L.; Van Rompaey, V.; Saeys, W. Do spatiotemporal parameters and gait variability differ across the lifespan of healthy adults? A systematic review. Gait Posture 2018, 64, 181–190. [Google Scholar] [CrossRef] [PubMed]
  95. Turkiewicz, A.; Petersson, I.F.; Björk, J.; Hawker, G.; Dahlberg, L.E.; Lohmander, L.S.; Englund, M. Current and future impact of osteoarthritis on health care: A population-based study with projections to year 2032. Osteoarthr. Cartil. 2014, 22, 1826–1832. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  96. Poitras, I.; Dupuis, F.; Bielmann, M.; Campeau-Lecours, A.; Mercier, C.; Bouyer, L.; Roy, J.-S. Validity and reliability of wearable sensors for joint angle estimation: A systematic review. Sensors 2019, 19, 1555. [Google Scholar] [CrossRef] [Green Version]
  97. van der Straaten, R.; De Baets, L.; Jonkers, I.; Timmermans, A. Mobile assessment of the lower limb kinematics in healthy persons and in persons with degenerative knee disorders: A systematic review. Gait Posture 2018, 59, 229–241. [Google Scholar] [CrossRef]
  98. Shull, P.B.; Silder, A.; Shultz, R.; Dragoo, J.L.; Besier, T.F.; Delp, S.L.; Cutkosky, M.R. Six-week gait retraining program reduces knee adduction moment, reduces pain, and improves function for individuals with medial compartment knee osteoarthritis. J. Orthop. Res. 2013, 31, 1020–1025. [Google Scholar] [CrossRef]
  99. Hunt, M.A.; Simic, M.; Hinman, R.S.; Bennell, K.L.; Wrigley, T.V. Feasibility of a gait retraining strategy for reducing knee joint loading: Increased trunk lean guided by real-time biofeedback. J. Biomech. 2011, 44, 943–947. [Google Scholar] [CrossRef]
  100. Hatfield, G.L.; Hubley-Kozey, C.L.; Astephen Wilson, J.L.; Dunbar, M.J. The effect of total knee arthroplasty on knee joint kinematics and kinetics during gait. J. Arthroplasty 2011, 26, 309–318. [Google Scholar] [CrossRef]
  101. Karatsidis, A.; Jung, M.; Schepers, H.M.; Bellusci, G.; de Zee, M.; Veltink, P.H.; Andersen, M.S. Musculoskeletal model-based inverse dynamic analysis under ambulatory conditions using inertial motion capture. Med. Eng. Phys. 2019, 65, 68–77. [Google Scholar] [CrossRef] [Green Version]
  102. Konrath, J.M.; Karatsidis, A.; Martin Schepers, H.; Bellusci, G.; de Zee, M.; Andersen, M.S. Estimation of the knee adduction moment and joint contact force during daily living activities using inertial motion capture. Sensors 2019, 19, 1681. [Google Scholar] [CrossRef] [Green Version]
  103. Stetter, B.J.; Krafft, F.C.; Ringhof, S.; Stein, T.; Sell, S. A Machine learning and wearable sensor based approach to estimate external knee flexion and adduction moments during various locomotion tasks. Front. Bioeng. Biotechnol. 2020, 8. [Google Scholar] [CrossRef] [PubMed]
  104. Moe-Nilssen, R.; Helbostad, J.L. Estimation of gait cycle characteristics by trunk accelerometry. J. Biomech. 2004, 37, 121–126. [Google Scholar] [CrossRef]
  105. Yack, H.J.; Berger, R.C. Dynamic stability in the elderly: Identifying a possible measure. J. Gerontol. 1993, 48, M225–M230. [Google Scholar] [CrossRef] [PubMed]
  106. Emery, C.A.; Whittaker, J.L.; Mahmoudian, A.; Lohmander, L.S.; Roos, E.M.; Bennell, K.L.; Toomey, C.M.; Reimer, R.A.; Thompson, D.; Ronsky, J.L.; et al. Establishing outcome measures in early knee osteoarthritis. Nat. Rev. Rheumatol. 2019, 15, 438–448. [Google Scholar] [CrossRef] [PubMed]
  107. Gurchiek, R.D.; Choquette, R.H.; Beynnon, B.D.; Slauterbeck, J.R.; Tourville, T.W.; Toth, M.J.; McGinnis, R.S. Open-source remote gait analysis: A post-surgery patient monitoring application. Sci. Rep. 2019, 9, 1–10. [Google Scholar] [CrossRef] [PubMed]
  108. Piwowar, H.; Priem, J.; Larivière, V.; Alperin, J.P.; Matthias, L.; Norlander, B.; Farley, A.; West, J.; Haustein, S. The state of OA: A large-scale analysis of the prevalence and impact of Open Access articles. PeerJ 2018, 2018, 1–23. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  109. Shen, Z.; Spruit, M. A systematic review of open source clinical software on GitHub for improving software reuse in smart healthcare. Appl. Sci. 2019, 9, 150. [Google Scholar] [CrossRef] [Green Version]
  110. Benson, L.C.; Ahamed, N.U.; Kobsar, D.; Ferber, R. New considerations for collecting biomechanical data using wearable sensors: Number of level runs to define a stable running pattern with a single IMU. J. Biomech. 2019, 85, 187–192. [Google Scholar] [CrossRef]
Sensors 20 07143 g001 550
Figure 1. Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) flow diagram.
Figure 1. Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) flow diagram.
Sensors 20 07143 g001
Sensors 20 07143 g002 550
Figure 2. Number of included studies published each year, grouped by study (* up to June 2020). An interactive version of this figure which highlights the referenced studies can be found at: https://public.tableau.com/profile/dylan.kobsar#!/vizhome/WearableOAReview_Story/Fig2_Fig3_Story.
Figure 2. Number of included studies published each year, grouped by study (* up to June 2020). An interactive version of this figure which highlights the referenced studies can be found at: https://public.tableau.com/profile/dylan.kobsar#!/vizhome/WearableOAReview_Story/Fig2_Fig3_Story.
Sensors 20 07143 g002
Sensors 20 07143 g003 550
Figure 3. The most reported gait biomechanical outcomes for patients with osteoarthritis, as measured by inertial sensors. Color bands discriminate the sensor placement to obtain spatiotemporal (ST) and accelerometer magnitude measures, whereas the joint angle, segment angle, and joint moment color bands represent the segment or joint of interest. An interactive version of this figure which highlights the referenced studies can be found at: https://public.tableau.com/profile/dylan.kobsar#!/vizhome/WearableOAReview_Story/Fig2_Fig3_Story.
Figure 3. The most reported gait biomechanical outcomes for patients with osteoarthritis, as measured by inertial sensors. Color bands discriminate the sensor placement to obtain spatiotemporal (ST) and accelerometer magnitude measures, whereas the joint angle, segment angle, and joint moment color bands represent the segment or joint of interest. An interactive version of this figure which highlights the referenced studies can be found at: https://public.tableau.com/profile/dylan.kobsar#!/vizhome/WearableOAReview_Story/Fig2_Fig3_Story.
Sensors 20 07143 g003
Table
Table 1. Quality assessment scoring of all 72 included studies.
Table 1. Quality assessment scoring of all 72 included studies.
Study InformationStudy QuesStudy DesignMeasurementAnalysesRecScore
RefAuthorYearQ1Q2Q3Q4Q5Q6Q7Q8Q9Q10Q11Q12/24%Rating
[19]Aminian19992111022111111458Low
[20]Aminian200411100NA201011836.4 *V. Low
[21]Andrade201722110NA1112121463.6 *Low
[22]Auvinet199911000NA1211211045.5 *V. Low
[23]Barrois201622100NA2211221568.2 *Low
[24]Bolink201521200NA2121121463.6 *Low
[25]Bolink20152121022112221875Mod
[26]Bolink20162122012112111666.7Low
[27]Bolink20192111021121211562.5Low
[28]Bolink201220200NA2111121254.5 *Low
[29]Calliess20142221022211211875Mod
[30]Chen201621100NA1221111254.5 *Low
[31]Chopra201921210NA1111111254.5 *Low
[32]Chopra201721110NA2221121568.2 *Low
[33]Chopra201411210NA1221211463.6 *Low
[34]Christiansen20152222001211211666.7Low
[35]Clermont201622210NA2111221672.7 *Mod
[36]De Brabandere202021210NA1121111359.1 *Low
[37]De Vroey201822210NA2212221875.0 *Mod
[38]Fransen20192211212221211979.2Mod
[39]Grip201922210NA2221111672.7 *Mod
[40]Hafer202011210NA2111111254.5 *Low
[41]He201921210NA1121121463.6 *Low
[42]Hiyama20151212012121221770.8Mod
[43]Hiyama20201221022222211979.2Mod
[44]Iijima201922212NA1122111777.3 *Mod
[45]Ishii202022210NA2122211777.3 *Mod
[46]Ismailidis202012102NA1112111359.1 *Low
[47]Item-Glatthorn201211120NA1112111254.5 *Low
[48]Khan201311210NA2211011250Low
[49]Kluge20182121011112221666.7Low
[50]Kobsar201822210NA2221211777.3 *Mod
[51]Kobsar20172221021122221979.2Mod
[52]Kobsar20162221012222111875Mod
[53]Kwasnicki20151112022221111666.7Low
[54]L’Hermette200811110NA2211111254.5 *Low
[55]Liikavainio201012210NA1121221568.2 *Low
[56]Lyytinen201621210NA2221221777.3 *Mod
[57]Mariani201311010NA2221021254.5 *Low
[58]McCarthy201322210NA2211211672.7 *Mod
[59]Na201922210NA2222211881.8 *Mod
[60]Na202021120NA2110211359.1 *Low
[61]Nelms20202221011112111562.5Low
[62]Odonkor202022210NA2212011568.2 *Low
[63]Oka201912110NA2221211568.2 *Low
[64]Rahman201522210NA1111121463.6 *Low
[65]Rapp20152122012211221875Mod
[66]Reh20192111011111221458.3Low
[67]Reininga201121210NA2112021463.6 *Low
[68]Reininga201221210NA2222121777.3 *Mod
[69]Rouhani201221211NA2121221777.3 *Mod
[70]Rouhani201411210NA1121211359.1 *Low
[71]Rouhani201211010NA211101940.9 *V. Low
[72]Saida202021210NA1212221875.0 *Mod
[73]Samani202021210NA2211111463.6 *Low
[74]Senden20112122012221011666.7Low
[75]Staab201411110NA2111011045.5 *V. Low
[76]Suh201922121NA0121211568.2 *Low
[77]Sun201710210NA2211101150.0 *Low
[78]Tadano201611110NA2121111254.5 *Low
[79]Tanimoto201711210NA2211211463.6 *Low
[80]Teufl201921110NA2122221672.7 *Mod
[81]Turcot200822110NA2121111463.6 *Low
[82]Turcot200821220NA1222011568.2 *Low
[83]van den Noort201321210NA2211211568.2 *Low
[84]van Hemert200921200NA1121221458.3 *Low
[85]Wada20191222022122222083.3Mod
[86]Wang202022012NA2221211777.3 *Mod
[87]Youn201811110NA2221111359.1 *Low
[88]Zhang20162111021221111562.5Low
[89]Zijlstar200801110NA2121011041.7 *V. Low
[90]Zugner201921210NA2212211672.7 *Mod
* percentage calculated out of 22 as studies did not involve repeated measures.
Table
Table 2. Summary of the samples and protocols for all 72 included studies. Additional information can be found in Supplementary Tables S1 and S2.
Table 2. Summary of the samples and protocols for all 72 included studies. Additional information can be found in Supplementary Tables S1 and S2.
StudySampleSensorsProtocol
RefAuthorYearn%FAgeBMIRange (±g)Frequency (Hz)# SensorsPlacementSettingWalk Length
[19]Aminian199912H3364.6 (8.6)27.9 (2)±5602(b)TIL70 m
[20]Aminian200419H 63.8 (6.9)26.5 2004(b)TSIL10 m
[21]Andrade201724H 65 (8.5) ±16502(b)BIL60 s
[22]Auvinet199942HK4767.4 (7.3)27.1 501(u)BOL40 m
[23]Barrois201648HK 70.5 (12.2)27.5 (5.6)±161004(b)HBFOL20 m
[24]Bolink201540HK5364.7 (8.9)28.7 (6.1) 1001(u)BOL20 m
[25]Bolink201520K6567.4 (7.7) 1001(u)BOL20 m
[26]Bolink201636H5063.9 (9.8)26.3 (3.5)±51001(u)BOL20 m
[27]Bolink201977H5265 (11)27 (5)±51001(u)BIL20 m
[28]Bolink201220H6567.4 (7.7) ±51001(u)BOL20 m
[29]Calliess20146K5060.226.1 3(u)BTSIL100 m
[30]Chen201614H7957.225 502(b)FIL15 m
[31]Chopra201910A 65.8 (8.9)27.6 (3) 2005SFOL50 m
[32]Chopra201724A 2006(b)SFOL50 m
[33]Chopra201424A4664.6 (9)27.7 (4.7) 5SFOL50 m
[34]Christiansen201524K5465.2 (9.2)28.9± 1010002(b)SFOL6 m
[35]Clermont201615K 64.6 (6.8)30.6 (4) 1001(u)BOL600 s
[36]De Brabandere202020H 501(u)TIL
[37]De Vroey201816K 64.1 (7.5)32.2 1002(u)SFOL6 m
[38]Fransen201965K546530±61001(u)BOL50 m
[39]Grip201915H051.8 (9)27.4 (3.2)±101285(b)BTSOL9 m
[40]Hafer20209K4469.2 (4.5)26.2±161284(u)BTSFIL10 m
[41]He20196K10060.8 (1.1)27.4 (0.6) 2001(u)FIL10 m
[42]Hiyama201543K8172 (6.6)25.9 (3.3) 5001(u)FIL10 m
[43]Hiyama202027K8571 (6)25.9 (3) 5002(u)BFIL10 m
[44]Iijima2019131K7274.2 (5.8)21.7 (2.5) 2001(u)BIL20 m
[45]Ishii202044K5068.9 (9.3)25.1 (3.1) 1002(u)SFIL20 m
[46]Ismailidis202023K4866.1 (8.9)28.1 (3.8) 7(b)BTSFIL20 m
[47]Item-Glatthorn201226H054 (9)27.1 325BTSFIL
[48]Khan201338K42 ± 21001(u)SFIL
[49]Kluge201824K6764 (11)31.3 (6.8)±8102.42(b)FIL40 m
[50]Kobsar20188K5058 (5)25.3 (4.8)±161004(u)BTSFIL150 s
[51]Kobsar201739K 59 (8)26.6 (3.8)±161004(u)BTSFIL60 s
[52]Kobsar201610K4057 (8)26 (4.5)±161004(u)BTSFIL60 s
[53]Kwasnicki201514K5769.3 (4.6)29.2 (2.8)±3501(u)HOL
[54]L’Hermette20085H072.3 (9.5) 1001(u)BIL50 m
[55]Liikavainio201054K059 (5.3)29.7 (4.7)±1010003TSIL/OL10 m
[56]Lyytinen20169K062.7 (5.1)27 (4.2) 10001(u)SOL15 m
[57]Mariani201334A2463.8 (17)28.1 2001(u)FOL50 m
[58]Mccarthy201323K6165.1 (7.7)28.7 (3.7) 102.44(b)TSOL20 m
[59]Na201926K6266 (6.1)30.6 (5.6) 1005(b)BTSIL50 m
[60]Na202026K6265.9 (6.1)30.5 (5.6) 5(b)BTSIL10 m
[61]Nelms202069H4761.2 (8.1)26.8 (4.9) 1(u)BIL14 m
[62]Odonkor202010K6063.9 (8.1)33.2 (8.4) 102.42(b)FIL6 m
[63]Oka201941K10072.3 (7.1)26 (3.9) 2002(b)HBIL20 m
[64]Rahman201545K5766.9 (10.7)29.9 (4.7) 5(b)TSOL20 m
[65]Rapp201529H4867.8 (6.3)24.9 (4.9) 1001(u)BIL20.3 m
[66]Reh201920H2063 (8.6)27.5 607(u)BTSFIL20 min
[67]Reininga201115H 61 (9)25.6 1002(b)HBIL/OL33 m
[68]Reininga201260H7559.7 (8.7)26.6 1002(u)HBOL25 m
[69]Rouhani201235A2663.5 (18.6)28.1 2004(u)SFOL50 m
[70]Rouhani201412A3358 (13)28.4 2004(u)SFOL100 m
[71]Rouhani201215A2653.328 2003SFOL100 m
[72]Saida202018K6772 (9)25.9 (2) 1003(u)BSIL10 m
[73]Samani202019K4766.2 (5.2)28.1 (2.7) 20008(u)TSIL40 m
[74]Senden201124K5470 (8)27.3 (4) 1001(u)BOL20 m
[75]Staab201412K1744.4 (7.6)26.9 (3.2)±210003(b)BSIL500 m
[76]Suh2019195K8472.6 (6.1)26 (3.1) 1(u)BOL8 m
[77]Sun201723K 69.9 (6.6)26.6 (3) 327(b)BTSFIL/OL16 m
[78]Tadano201610K 68.7 (4.1)23.5 (2.5)±41007(b)BTSFIL7 m
[79]Tanimoto201712K837323.4 (2.5)±21001(u)SIL600 s
[80]Teufl201920H6556.9 (8.2)27.4 605(b)BTSFIL7 m/600 s
[81]Turcot20089K6763.4 (4.6)32.2±51204(b)TSIL
[82]Turcot200825K7663.9 (7.6)31.6± 51204(b)TSIL
[83]van den Noort201314K7961 (9.2)30.4 508(b)TSFIL10 m
[84]van Hemert200953K 71.9 (8.3)28.3 (3.9) 6(u)BTSIL20 m
[85]Wada201923H10061 (7.1)23 (3.2) 5002(u)BFIL10 m
[86]Wang202078K5759.7 (7.1)23 (3.8)±41002(b)SIL20 m
[87]Youn201818K5066.5 (7.7)29.5 (4.9) 2002(b)SIL6 m
[88]Zhang201612K5865.3 (8)26.6 (3.5) 7(b)BTFIL40 m
[89]Zijlstra20084K50 1002(u)BIL30 m
[90]Zügner201949H497328.7 102.46(b)BTSIL
Abbreviations—(i) sample: H = hip, K = knee, A = ankle, %F = percent female; (ii) placement: H = head, B = back/pelvis/torso, T = thigh, S = shank, F = foot; (iii) setting: IL = in laboratory, OL = outside laboratory. “# Sensors” refers to “Number of Sensors”.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kobsar, D.; Masood, Z.; Khan, H.; Khalil, N.; Kiwan, M.Y.; Ridd, S.; Tobis, M. Wearable Inertial Sensors for Gait Analysis in Adults with Osteoarthritis—A Scoping Review. Sensors 2020, 20, 7143. https://doi.org/10.3390/s20247143

AMA Style

Kobsar D, Masood Z, Khan H, Khalil N, Kiwan MY, Ridd S, Tobis M. Wearable Inertial Sensors for Gait Analysis in Adults with Osteoarthritis—A Scoping Review. Sensors. 2020; 20(24):7143. https://doi.org/10.3390/s20247143

Chicago/Turabian Style

Kobsar, Dylan, Zaryan Masood, Heba Khan, Noha Khalil, Marium Yossri Kiwan, Sarah Ridd, and Matthew Tobis. 2020. "Wearable Inertial Sensors for Gait Analysis in Adults with Osteoarthritis—A Scoping Review" Sensors 20, no. 24: 7143. https://doi.org/10.3390/s20247143

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
