Design of a Broadband Array Pattern of Underwater Cymbal Transducers

Abstract

Cymbal transducers are frequently used as an array rather than a single element because of their high quality factor and low energy conversion efficiency. When used as an array, cymbal transducers are likely to have a big change in their frequency characteristics due to the interaction with neighboring elements. In this study, we designed an array pattern of cymbal transducers to achieve a wide frequency bandwidth using this property. First, cymbal transducers with specific center frequencies were designed. Next, a 2 × 2 planar array was constructed with the designed transducers, where dielectric polarity directions of the transducers were divided into two cases (i.e., same and different). For the array, the effect of the difference in the center frequencies and the spacing between the transducers on the acoustic characteristics of the entire array was analyzed. Based on the results, the structural pattern of the array was optimized to have the maximum fractional bandwidth while maintaining the transmitting voltage response over a given requirement. The design validity was verified by making cymbal array prototypes, followed by measuring their performances and comparing them with that of the design.

1. Introduction

Many studies are being conducted to develop the technology for underwater sensor networks (UWSN) using multiple sensor nodes. A representative example of this technology is Seaweb, which consists of sensor and intermediate nodes and gateways [1]. Acoustic transducers used as the sensor nodes in a UWSN system are the key factors in determining the system performance [2]. For high-speed communication and large-capacity data transmission, in particular, an acoustic sensor with wideband frequency characteristics is essential [3].

This study investigates a cymbal transducer used as an underwater acoustic sensor that satisfies the abovementioned conditions. Developed by Newnham et al., this transducer is a miniaturized version of the Class V flextensional transducer [4]. It has a piezoceramic disk sandwiched between cymbal-shaped metal caps that acts as a mechanical transformer. In comparison with other types of underwater transducers, they are easy to manufacture and have advantages such as high power, small weight, and low resonant frequency considering their small volume [5]. In addition, the cymbal transducer can be easily integrated into various array forms due to its small size, which is suitable for large-area and restricted-volume arrays [6]. When cymbal transducers are used in an array, they cannot only achieve high power output, but also yield broadband characteristics caused by their interaction with the neighboring elements in the array [7]. However, cymbal transducers generally exhibit a high quality factor and a low energy conversion efficiency, which require a careful and accurate design of their array structure [8].

Many studies on the cymbal array have been conducted. For instance, Zhang et al. analyzed the cymbal array characteristics by combining the finite element method (FEM) with integral equations and compared the analysis results with the measured performance of a prototype array [9]. Tressler et al. designed an underwater projector by arranging cymbal transducers in series, parallel, or a combination of both [10]. Luis et al. designed and fabricated a 3 × 3 circular cymbal array and a 3 × 1 rectangular cymbal array [11]. Maione et al. compared the performance of a basic cymbal array composed of four parallel transducers with that of a stack array, in which piezoelectric discs are connected mechanically in series and electrically in parallel [12]. A comparative evaluation of receiving sensitivity and directivity characteristics of flat cymbal arrays for hydrophones was also conducted [13,14]. Some studies were conducted to widen the bandwidth. Tressler et al. showed that the bandwidth could be controlled by the metal cap material and the presence or absence of potting [15]. Meanwhile, Zhang et al. analyzed the difference in array performance according to the array interaction [6]. Newnham et al. compared the transmitting voltage response (TVR) by fabricating two types of arrays, i.e., 3 × 3 and 5 × 20 arrays, which showed that the bandwidth could become broader as the number of transducers increased [16].

The abovementioned studies focused on the development and characterization of an array consisting only of cymbal transducers with an identical structure and a uniform planar array pattern. These previous works have shown several structural parameters that can be utilized to control the cymbal array bandwidth, such as different center frequencies and dielectric polarity directions of the constituent cymbals, and the inter-element spacing between the cymbal transducers. These parameters have noticeable effects on the frequency characteristics of the array. Hence, the cymbal array bandwidth can be broadened through a systematic process to incorporate the effects of all parameters in the array structure design, which has not yet been conducted thus far.

Shim and Roh worked on the design of individual cymbal transducers [17]. In this study, we work on the design of the array pattern of cymbal transducers to achieve a broadband frequency response. For this purpose, we first analyze the effect of the structural parameters on the acoustic characteristics of the array that is composed of the cymbal transducers designed by the method in [18]. Based on the results, we design the cymbal array pattern to have the maximum fractional bandwidth (FBW) while satisfying a specific output performance through an optimization process. Subsequently, we fabricate experimental prototypes of the cymbal array to have the optimized array pattern and measure their performance. The validity of the new array pattern is verified by comparing the measured performance with the design.

2. Configuration of a 2 × 2 Cymbal Array

We selected a 2 × 2 array as a representative structure of a cymbal array. It is the simplest of all the possible array structures, but we expected that the effects of structural parameters observed in a 2 × 2 array would be the same as those in higher-dimension arrays, which we confirmed in our preliminary analysis. As a result, the analysis with a 2 × 2 array could be more time-saving and efficient.

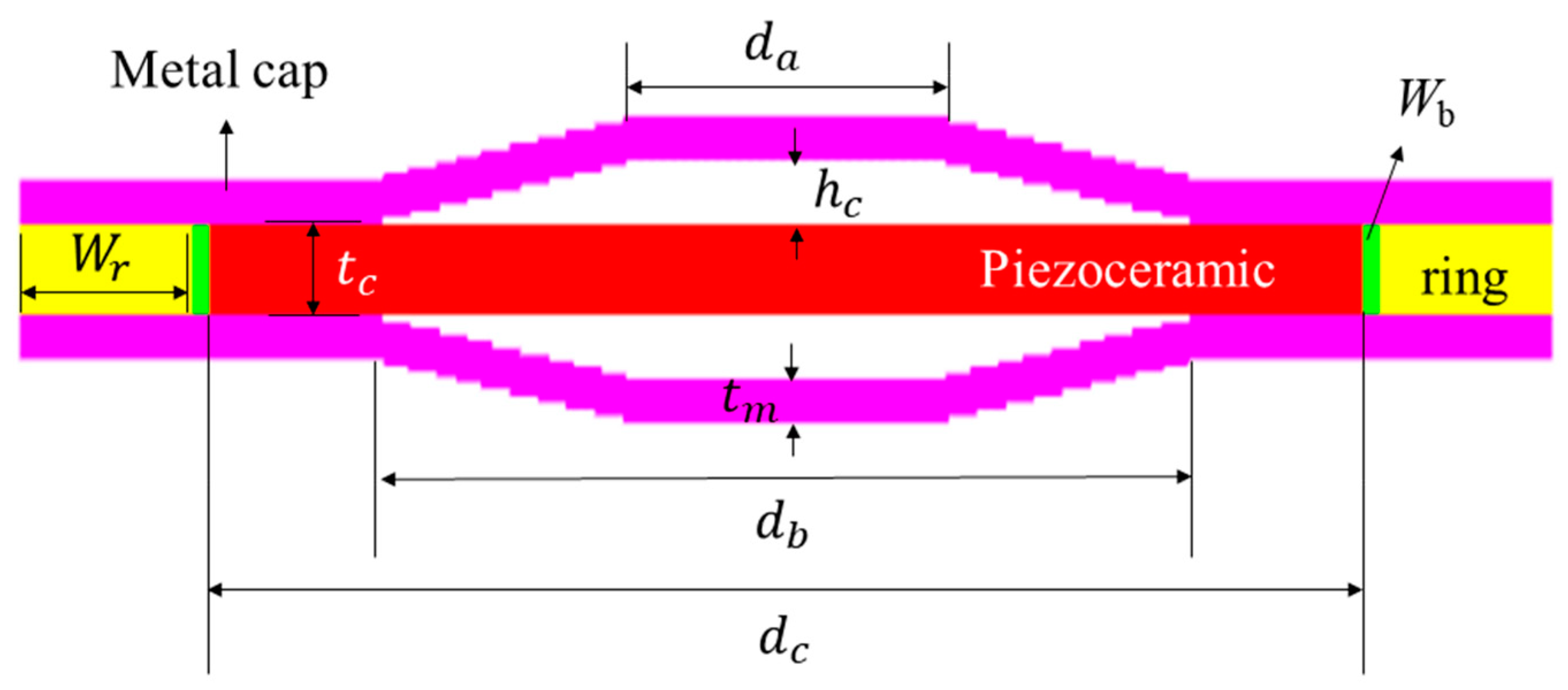

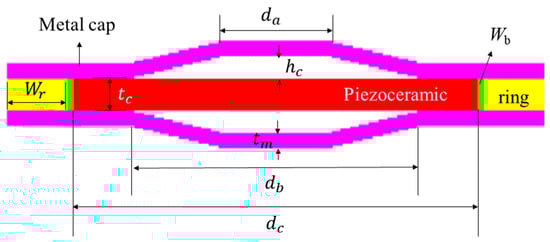

Prior to designing a 2 × 2 array, we first constructed a finite element analysis (FEA) model of the cymbal transducer using a commercial FEA program, PZFlex^®, and analyzed the model’s acoustic characteristics. Figure 1 depicts the FEA model showing the structure of a single cymbal transducer, where d_a, d_b, and d_c are the apex, base, and ceramic disk diameters, respectively, and h_c, t_m, W_r, and W_b are the cavity height, cap thickness, ring width, and bond width, respectively. For the cymbal transducer structure, the metal caps were bonded to the top and bottom surfaces of the piezoceramic disk. The materials for the piezoceramic, metal cap, and ring were PZT-5A, brass, and polyether ether ketone, respectively. The material properties were taken from [18]. The thickness of the bonding layer was controlled to be less than 10 μm so that its effect could be negligible [19].

The cymbal transducers constituting the 2 × 2 array were designed with specific center frequencies and TVR levels [17]. First, the structure of a cymbal transducer (Tx₁) with a center frequency of f₁ was designed.

Table 1. Dimensions of the designed Tx₁ transducer.

Parameter	Symbol	Dimension (mm)
Apex diameter	da	5.1
Base diameter	db	14.4
Piezoceramic disk diameter	dc	20.0
Ring width	Wr	3.0
Bond width	Wb	0.3
Cavity height	hc	0.7
Piezoceramic disk thickness	tc	1.0
Metal cap thickness	tm	0.5

presents Tx_1′s dimensions. Tx₁ was used as a reference transducer. Next, another cymbal transducer (Tx₂) was designed to have f₂ as the center frequency, to compose the array in combination with Tx₁. f₂ was set with values that were 20% higher or lower than f₁. Figure 2 shows the TVR spectra of the designed Tx₁ and two Tx₂s.

Table 2. Acoustic characteristics of the designed Tx₁ and two Tx₂ transducers.

	Center Frequency	Maximum TVR Level (dB)	Fractional Bandwidth (%)
Tx1	f1	130.9	15.9
Tx2 of 0.8 f1	0.8 f1	130.7	17.3
Tx2 of 1.2 f1	1.2 f1	130.9	16.0

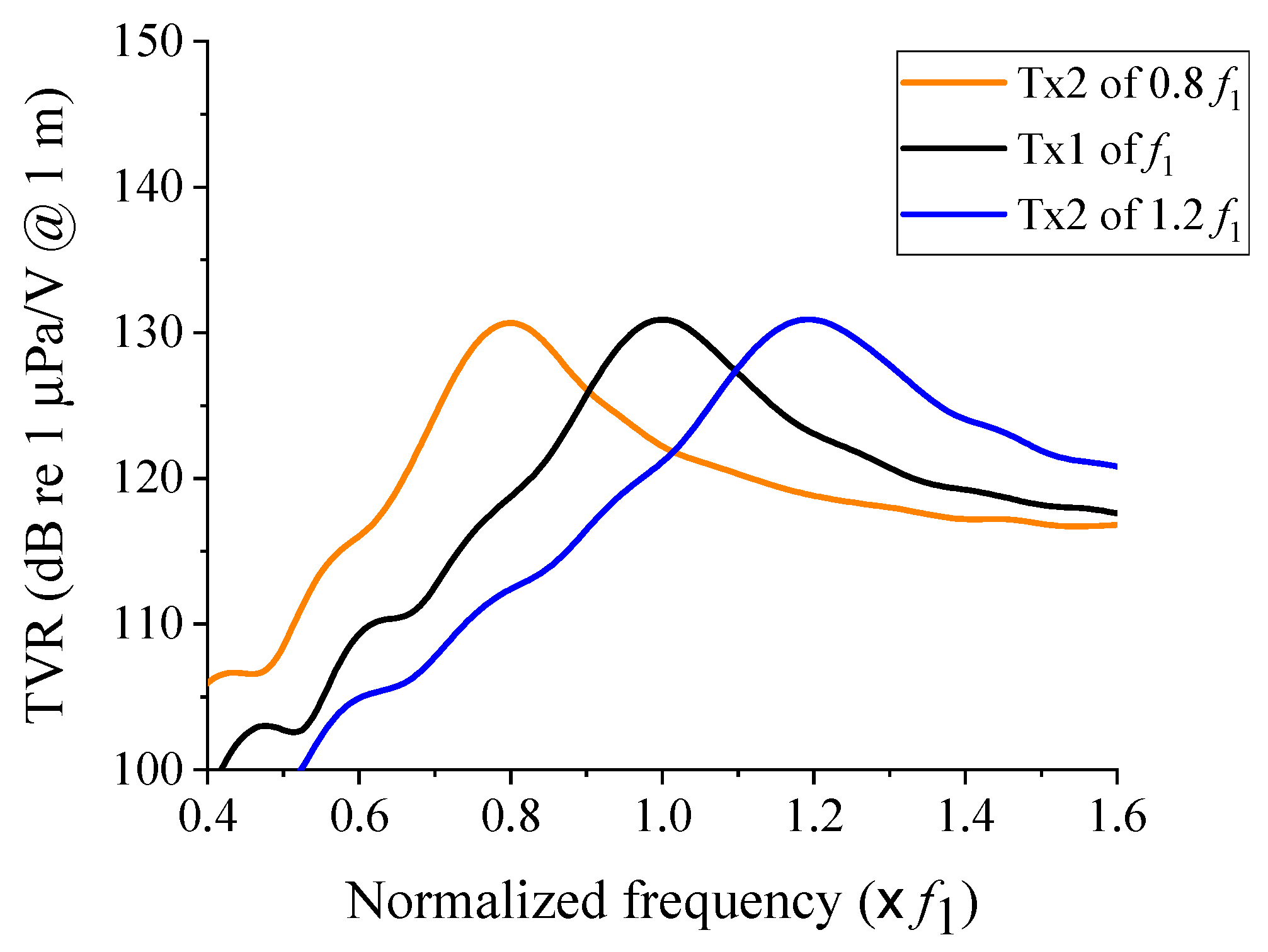

presents a comparison of the quantitative acoustic characteristics of each transducer. All frequencies were normalized to the center frequency f₁ of Tx₁. The fractional bandwidth was calculated by dividing the −3 dB bandwidth with the center frequency of each transducer.

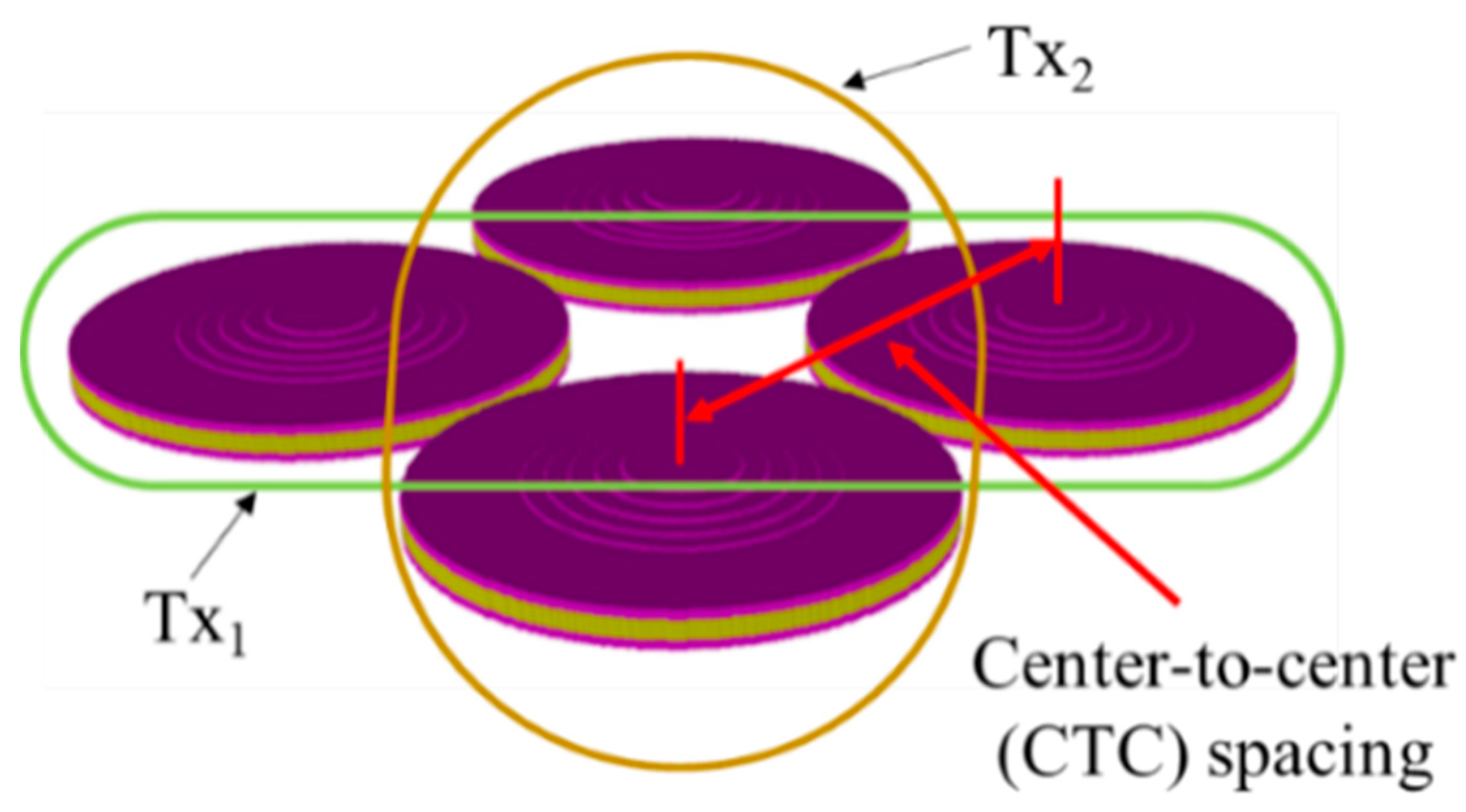

A planar arrangement was constructed (Figure 3) using the designed Tx₁ and Tx₂ transducers. The transducers that diagonally face each other were Tx₁ and Tx₂. The Tx₂ pair can have a center frequency of either 0.8 f₁ or 1.2 f₁.

With PZFlex^®, a three-dimensional FEA model of the array immersed in water was constructed to simulate the TVR. A sufficiently large amount of water was set outside the array to preserve the underwater transmission characteristics of the planar array. The array pattern had two orthogonal symmetric planes, so only a quarter model was analyzed to save calculation time. The element size in the FEA model was 0.15 mm. The whole model consisted of 127 million elements and 128 million nodes. Absorption boundary conditions were enforced onto the outer edges of the water domain such that sound reflection would not occur at the edges. The sound pressure emitted from the array was calculated at a far-field point in the vertical direction from the upper cap.

3. Effect of the Structural Parameters on the 2 × 2 Cymbal Array Performance

This study aimed to design an array pattern that can achieve the widest bandwidth. Accordingly, the influence of the structural parameters on the cymbal array performance was analyzed by using the FEM. The structural parameters considered herein were the dielectric polarity direction of the piezoceramic disks in Tx₁ and Tx₂, the center frequency of Tx₂ relative to that of Tx₁, and the spacing between the centers of Tx₁ and Tx₂.

We observed the effect of the dielectric polarity direction of a piezoceramic disk by analyzing cases where the PZT disks in Tx₁ and Tx₂ had the same polarity direction or opposite directions. To assess the effect of the difference in transducer center frequencies, the center frequency of Tx₁ was fixed to the reference frequency f₁, while that of Tx₂ (f₂) was changed to 0.8 f₁, 1.0 f₁, and 1.2 f₁, in sequence. The fractional bandwidth of each cymbal transducer was less than 20%; hence, the amount of the center frequency change was set to a maximum of 20% of f₁. Regarding the effect of the center-to-center (CTC) spacing, the spacing was changed from 0.3 λ to 0.36 λ and 0.42 λ, where λ is the wavelength of the sound wave in water at f₁. The minimum CTC spacing was set to 0.3 λ considering the cymbal transducer radius. The spacing was increased by 20% intervals. Cymbal transducers are reciprocal transducers and their TVR spectra were analyzed to evaluate the performance [20].

Figure 4 shows the TVR spectra of the cymbal array according to the change of f₂ and the CTC spacing when Tx₁ and Tx₂ had the same dielectric polarity direction. For all cases, the −3 dB bandwidth increased, while the maximum TVR decreased as the CTC spacing became shorter. The fractional bandwidth was the widest when the CTC spacing was 0.30 λ for all f₂s. This was 29.9% when f₂ = 0.8 f₁, 37.1% when f₂ = f₁, and 26.4% when f₂ = 1.2 f₁. For all cases, the array bandwidth was significantly wider than that of the individual transducers illustrated in Figure 2. In Figure 4a,c, a notch was observed in the frequency range between f₁ and f₂, which was caused by the acoustic impedances of Tx₁ and Tx₂ being out of phase with each other in that range.

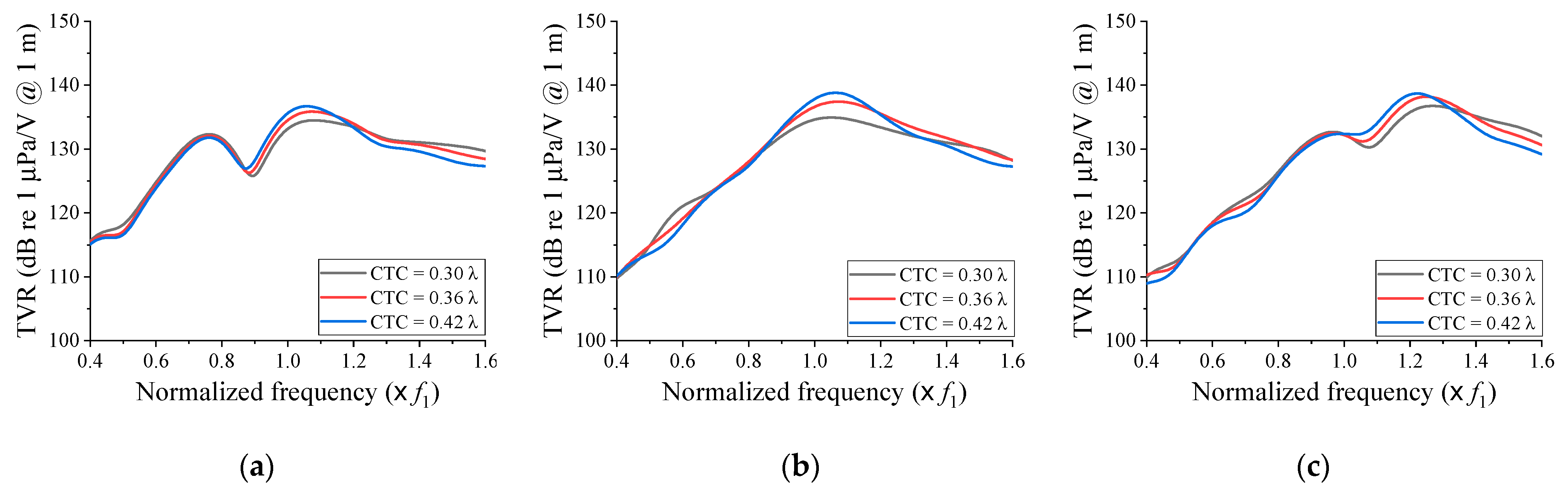

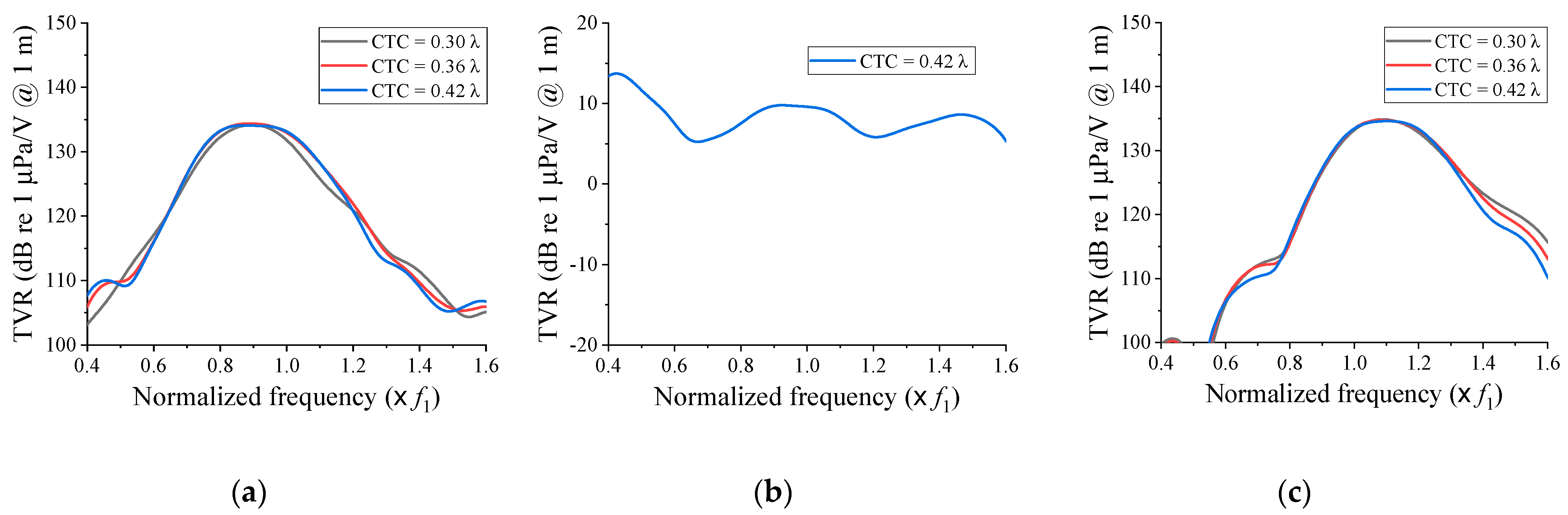

Figure 5 shows the variations of the TVR spectrum of the cymbal array according to the change of f₂ and the CTC spacing when the dielectric polarity directions of Tx₁ and Tx₂ were opposite to each other. Contrary to that in Figure 4, the bandwidth increased, while the TVR level decreased as the CTC spacing became longer. In Figure 5a,c, the fractional bandwidth was the widest when the CTC spacing was 0.42 λ. This was 33.0% when f₂ = 0.8 f₁ and 25.6% when f₂ = 1.2 f₁. In Figure 5b, the TVR level was almost zero because the sound waves transmitted from the two cymbal transducers were exactly out of phase, thereby canceling each other.

Comparing the results in Figure 4b and Figure 5a,c, where the notch did not occur, the fractional bandwidths were much larger when the cymbal transducers in the array had the same dielectric polarity direction than when they had opposite polarity directions. Thus, the further design of the broadband cymbal array in this work considered only the case where the dielectric polarity directions of Tx₁ and Tx₂ were the same.

4. Design of the Wideband 2 × 2 Cymbal Array Pattern

Based on the results presented in Section 3, we designed the structure of the 2 × 2 cymbal array to have the widest fractional bandwidth. The design variables were the center frequency f₂ of Tx₂ and the CTC spacing. The center frequency of Tx₁ was fixed to f₁ in the same manner as in Section 3.

For a more accurate design of the array structure, the f₂ variation was further subdivided within the range of 0.8 f₁ to 1.0 f₁ by 0.05 f₁ intervals. The variation range of the CTC spacing was also narrowed to the range of 0.30 λ to 0.36 λ. The dimensions of the cymbal transducers with the center frequencies of 0.85 f₁, 0.90 f₁, and 0.95 f₁ were derived in the same manner as that in Section 2 [17]. Figure 6 and Figure 7 summarize the variations of the acoustic characteristics of the cymbal array according to the change of design variables. The extracted performance values were the center frequency, maximum TVR level, and −3 dB bandwidth.

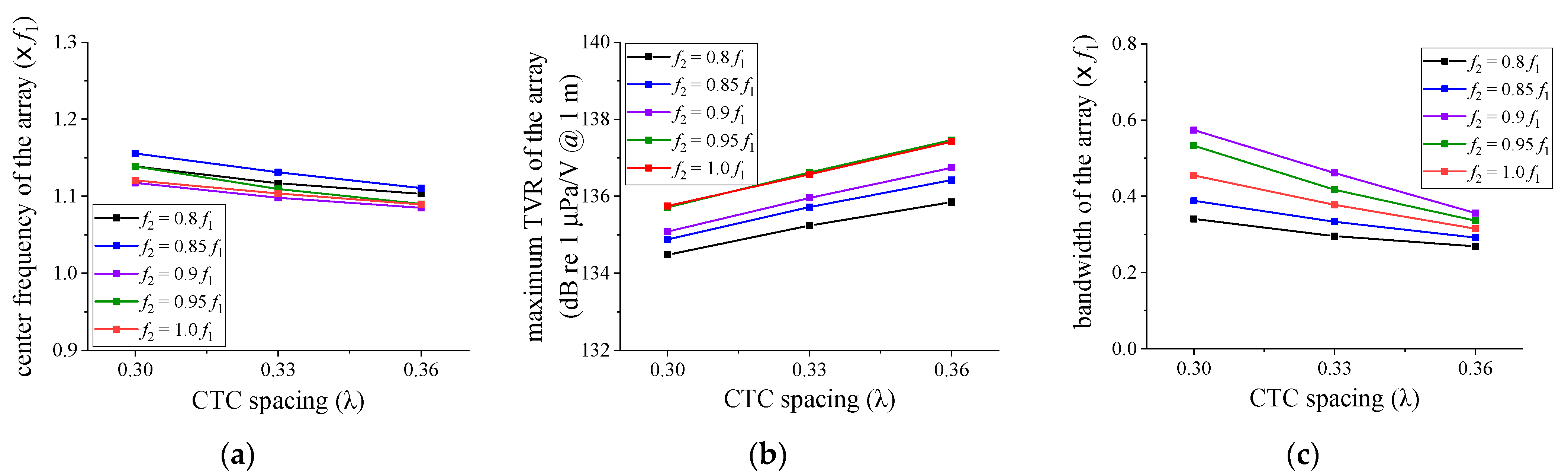

In Figure 6, the center frequency of the array was not significantly affected by the change of f₂. The maximum TVR level of the array increased as f₂ increased for all the CTCs. The array bandwidth showed a maximum at a specific f₂. In Figure 7, the center frequency and the bandwidth of the array decreased as the CTC spacing increased. On the contrary, the maximum TVR level increased, regardless of f₂. These results indicate that the smaller the distance between cymbal transducers, the stronger the interaction between neighboring transducers, which results in an increasing bandwidth, but a decreasing TVR level of the array. The interaction herein refers to the acoustic crosstalk between neighboring transducers in which the sound waves from each transducer are influenced by the interference of its neighboring transducers [17,21]. The results implied that for a wider bandwidth, we had to set f₂ to have a specific ratio to the center frequency f₁ of Tx₁ and make the CTC spacing smaller. The data on Figure 6 and Figure 7 are representative samples of the analysis results, to illustrate the relationship between the structural parameters (i.e., center frequency f₂ with respect to f₁ and CTC spacing). To achieve the widest array bandwidth, a more general optimal design of the array structure must be made by reflecting on the effects of all the structural parameters.

The effects of the structural parameters in Figure 6 and Figure 7 were not independent, but rather cross-coupled with each other. Hence, a regression analysis was conducted on the data to derive a general relationship between the structural parameters and the array performance, such as the −3 dB fractional bandwidth (FBW₀) and the maximum TVR level (TVR_c) of the array within the variation ranges of the parameters [22]. A regression analysis was performed to find a model that best fits the relationship between design variables, by using the least mean square method [23]. Equations (1) and (2) present the FBW₀ and the TVR_c, respectively, formulated in terms of design variables x₁ and x₂, where x₁ is the center frequency f₂ as a ratio to f₁, and x₂ is the CTC spacing between the Tx₁ and Tx₂ transducers. The effects of these variables are nonlinear; thus, Equations (1) and (2) are expressed as quadratic polynomial functions.

$$\begin{array}{ll}FB{W}_0=& \left(3.0844\times 10\right)+\left(7.3349\times {10}^{-1}\right)x_1^2{x}_2^2+4.9171x_1^2{x}_2^1-4.2763x_1^2\\ & +1.8285x_1^1{x}_2^2+8.3924x_1^1{x}_2^1-6.2635x_1^1+1.1865x_2^2-5.6047x_2^1\end{array}$$

(1)

$$\begin{array}{ll}TV{R}_C=& \left(1.3746\times {10}^2\right)+\left(7.3500\times {10}^{-3}\right)x_1^2{x}_2^2-\left(2.3820\times {10}^{-2}\right)x_1^2{x}_2^1\\ & +\left(1.9497\times {10}^{-1}\right)x_1^2+\left(2.9850\times {10}^{-3}\right)x_1^1{x}_2^2+\left(4.1135\times {10}^{-2}\right)x_1^1{x}_2^1\\ & +\left(9.1186\times {10}^{-1}\right)x_1^1-\left(3.1495\times {10}^{-2}\right)x_2^2+\left(8.1128\times {10}^{-1}\right)x_2^1\end{array}$$

(2)

This work aimed to design the pattern of a 2 × 2 cymbal array with the widest possible bandwidth. The structure was derived by applying an optimization algorithm (i.e., OptQuest Nonlinear Program (OQNLP) algorithm) to Equations (1) and (2) [24]. The OQNLP algorithm is a multi-start heuristic algorithm specializing in finding global optimizations for pure- and mixed-integer nonlinear problems with many constraints and variables [25]. Equation (3) presents the objective function of the optimization, which is to maximize the array’s fractional bandwidth. As a limiting condition, the maximum TVR level of the array was set higher than or equal to the maximum TVR level of the reference model comprising only Tx₁ transducers. The optimization process was conducted to determine f₂ and the CTC spacing that could maximize the fractional bandwidth while satisfying the constraint on the TVR level.

Objective: maximize the fractional bandwidth
Constraint: TVR ≥ 130.9 dB

(3)

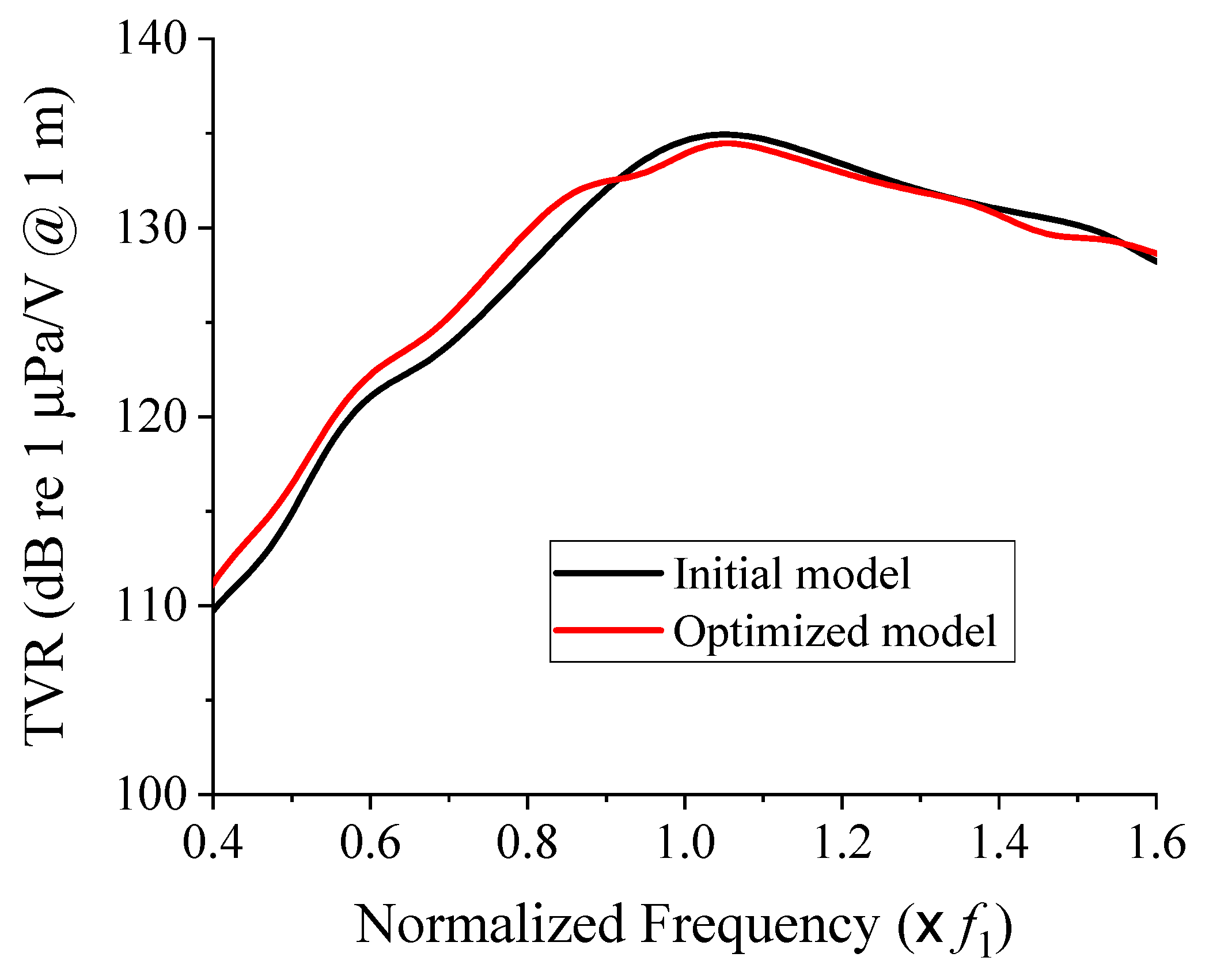

The optimization result showed that f₂ should be 0.92 f₁, while the CTC spacing should be 0.30 λ. Figure 8 illustrates the performance of the optimized structure in comparison with that of the initial model. Here, the initial model was a cymbal array composed of Tx₁ transducers only.

Table 3. Quantitative comparison of the acoustic characteristics of the initial and optimized cymbal arrays.

	Center Frequency	Maximum TVR (dB)	Fractional Bandwidth (%)
Initial model	1.1 f1	134.9	37.1
Optimized model	1.1 f1	134.5	45.9

summarizes a quantitative comparison of the performances. The maximum TVR level of the optimized cymbal array was 134.5 dB, which satisfied the constraint. The fractional bandwidth was increased by 23.7% in comparison with that of the initial model. Even though the same number of transducers was used, the fractional bandwidth could be dramatically increased by optimizing the ratio of the center frequency of Tx₂ to that of Tx₁ and the CTC spacing. Meanwhile, the TVR level was maintained above a given requirement, which confirmed the efficacy of the design scheme in this work.

5. Fabrication and Characterization of the 2 × 2 Cymbal Array

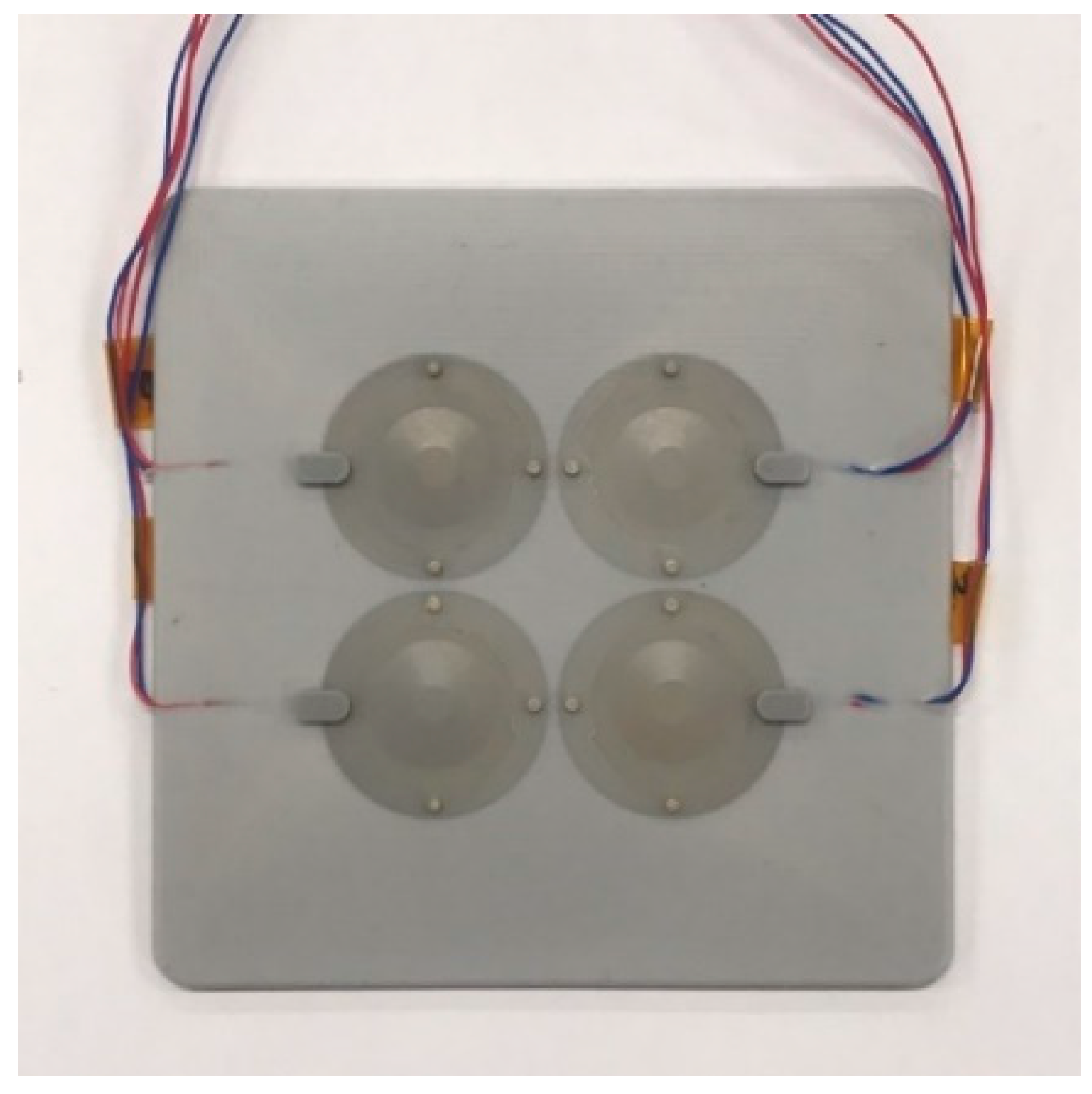

To verify the design validity, we fabricated cymbal array prototypes following the design and measured their acoustic characteristics. Both the initial and the optimized models in Section 4 were fabricated to have the same dimensions and materials as those in the FEA models. The metal cap, piezoceramic, and ring were bonded together using epoxy (EB-106, EpoxySet, Inc., RI). The cap and the ring were fastened again with plastic bolts to improve the transducer robustness. The cymbal transducer was coated with RTV-3460 (Elkem, Oslo, Norway) for electrical insulation. This first coating was 0.3 mm thick. After four cymbal transducers were arranged to have the pattern designed in Section 4, the 2 × 2 array was then re-coated with RTV-3460 (Figure 9). The second coating did not cover the metal caps, but filled the gap between the transducers and the edges of the array pattern. The underwater TVR of the cymbal array was measured in the environment illustrated in Figure 10 using the method similar to that in [17].

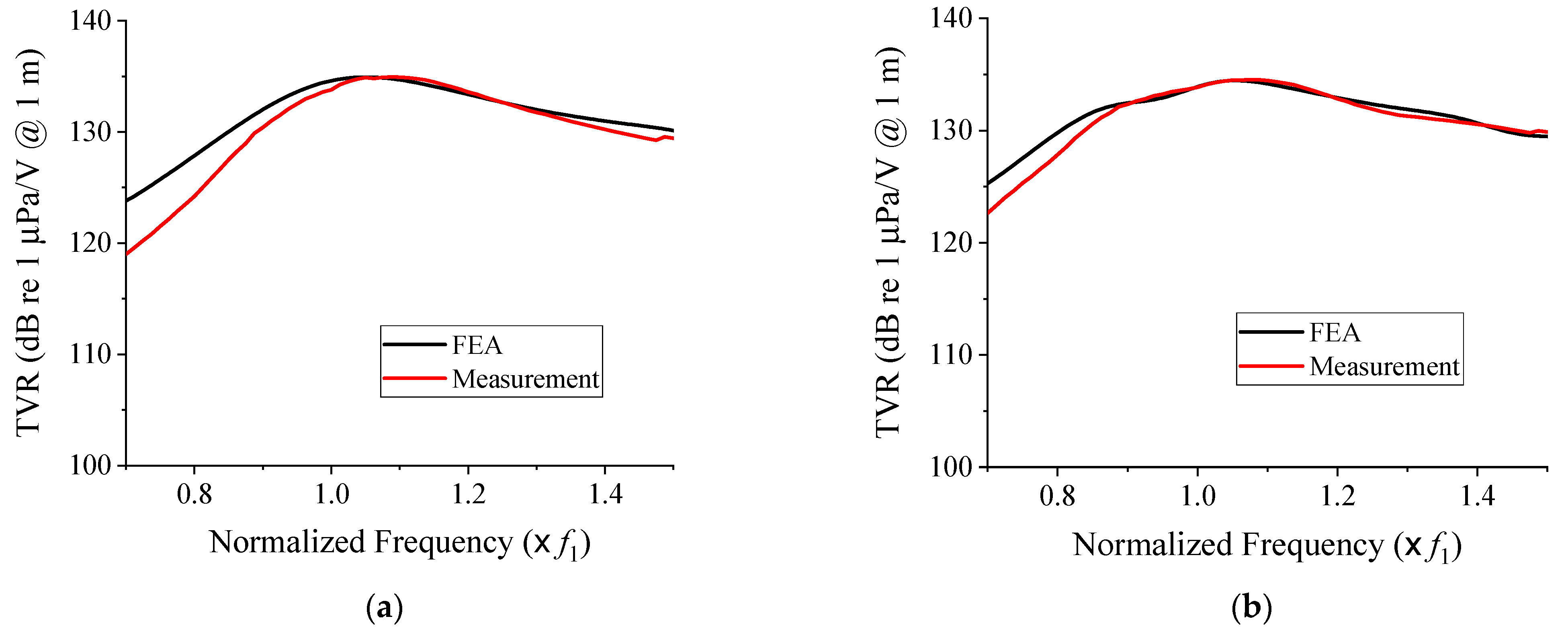

Figure 11 shows the measured underwater TVR spectra of the cymbal arrays compared with those from the FEA for both the initial and optimized models. Overall, we found a good agreement between the simulated and measured results.

Table 4. Quantitative comparison of the simulated and measured acoustic characteristics of the prototype cymbal arrays: (a) initial; (b) optimized models.

(a)
	Center Frequency	Maximum TVR (dB)	Fractional Bandwidth (%)
FEA	1.1 f1	134.9	37.1
Measurement	1.1 f1	134.9	31.7
(b)
	Center Frequency	Maximum TVR (dB)	Fractional Bandwidth (%)
FEA	1.1 f1	134.5	45.9
Measurement	1.1 f1	133.7	37.2

summarizes the quantitative comparison of the FEA and the measured data. The center frequencies and the maximum TVR levels from the measurement coincided well with those from the FEA for both the initial and optimized structures. However, the fractional bandwidth showed some discrepancy, which was considered to be partly caused by the tolerance in the fabricated cap dimension. The dimensional tolerance during the mechanical machining process of the caps was in the order of 100 µm. The mechanical tolerance caused some variations in the acoustical characteristics of individual cymbal transducer prototypes, which was responsible for the discrepancy in the array bandwidth performance.

As for the FEA results, the maximum TVR level of the optimized cymbal array satisfied the constraint at 133.7 dB in the measured results. The simulated and measured fractional bandwidths increased by 23.7% and 17.4%, respectively, after the optimization, indicating that the design scheme was effective in widening the bandwidth. This result confirmed the scheme’s efficacy for designing a broadband array pattern of cymbal transducers.

6. Conclusions

Cymbal transducers are suitable for constructing a large sensor network because of their structural peculiarity. Previous works on the development and characterization of a cymbal array employed only cymbal transducers with an identical structure and a uniform planar array pattern. This work was the first to conduct a systematic analysis of the effects of the structural parameters of a cymbal array on the array’s acoustic characteristics and to design a broadband array structure by incorporating the effects of the parameters.

The structural parameters considered in this work were the dielectric polarity direction of the piezoceramic disks, the center frequency of each cymbal–transducer pair, and the CTC spacing between the transducers. Using an optimization technique, we derived the ratio of the center frequencies to the CTC spacing between the constituent transducers that could maximize the array bandwidth. The design validity was verified by fabricating and evaluating prototype cymbal arrays and comparing their performances with that of the design. The comparison confirmed the design scheme efficacy for developing a broadband underwater cymbal array.

In this study, we analyzed a 2 × 2 array for the sake of calculation efficiency in the analysis. However, a 2 × 2 array is the simplest form of all the possible array structures and therefore has clear limitations in acoustic power, bandwidth, radiating surface area, and so on, which may restrict the scope of its practical application. As a future work, we will extend the dimension of the array to 3 × 3 and 4 × 4 arrays, and then generalize the design scheme to a cymbal array of an arbitrary dimension.
