Terahertz Imaging for Breast Cancer Detection

by
Lulu Wang
1,2
1
Biomedical Device Innovation Center, Shenzhen Technology University, Shenzhen 518118, China
2
Institute of Biomedical Technologies, Auckland University of Technology, Auckland 1010, New Zealand
Sensors 2021, 21(19), 6465; https://doi.org/10.3390/s21196465
Submission received: 6 August 2021 / Revised: 19 September 2021 / Accepted: 26 September 2021 / Published: 28 September 2021
(This article belongs to the Section Sensing and Imaging)
Browse Figures
Versions Notes

Abstract

:
Terahertz (THz) imaging has the potential to detect breast tumors during breast-conserving surgery accurately. Over the past decade, many research groups have extensively studied THz imaging and spectroscopy techniques for identifying breast tumors. This manuscript presents the recent development of THz imaging techniques for breast cancer detection. The dielectric properties of breast tissues in the THz range, THz imaging and spectroscopy systems, THz radiation sources, and THz breast imaging studies are discussed. In addition, numerous chemometrics methods applied to improve THz image resolution and data collection processing are summarized. Finally, challenges and future research directions of THz breast imaging are presented.

1. Introduction

Breast cancer is the leading cause of female cancer death in the United States [1]. Early breast cancer detection with treatment would significantly reduce associated mortality [2]. Approximately 70% of breast cancer patients undergo breast conservation surgery (BCS) [3], and about 15–20% of BCS requires recurrence [4]. Accurately diagnosing tumors is essential for complete resection and minimizing surgeries. Physical examination, X-ray mammography, ultrasound imaging, magnetic resonance imaging (MRI), and positron emission tomography (PET) are the most commonly available clinical modalities for breast tumor detection [5]. Although X-ray mammography is the current standard breast imaging method, it produces harmful ionizing radiation and high false-negative rates and is unsuitable for dense breasts or young women [6]. Ultrasound imaging can produce real-time breast images without cause ionizing radiation but has relatively low image resolution [7]. MRI employs strong magnetic fields and radiofrequency waves to create a picture of internal organs. The image resolution depends highly on magnetic field induction, which defines the main drawback of MRI systems related to expensive magnets [8]. PET detects low ionizing radiation produced by the small number of radioactive materials injected into a patient [9]. Developing a new noninvasive imaging technique to detect breast tumors accurately is urgently needed.
Terahertz (THz) waves (0.1–10 THz) have various features, such as producing low power levels [10], being nonionizing [11], offering good penetration capabilities and resolution [12], and having sensitivity to water molecules [13]. Based on these unique features, THz radiation has potential applications in biology [14], security [15], data communication [16], biomedical imaging [17,18], and food and agriculture [19]. Over the past two decades, THz imaging and spectroscopy have been investigated for biomedical applications [20,21], including diagnosis of liver cirrhosis [22], burn wounds [23], breast cancer [24], colon tumor [25], brain tumor [26], skin cancer [27], and other diseases [28,29,30].
Over the past decade, many research groups worldwide have extensively studied THz imaging and spectroscopy techniques for identifying breast tumors. For rapid imaging, a portable THz pulsed imaging (TPI) system has been applied to analyze basal cell carcinoma (BCC) ex vivo and in vivo [31], and it has been studied for imaging breast tumors [32]. Ashworth et al. employed THz pulsed spectroscopy to study freshly excised human breast cancer tissues [33]. Bowman et al. conducted a comparison study of THz transmission and THz reflection imaging for analyzing the characterization of excised breast carcinomas [34]. The results showed clear differentiation between cancer, collagen, and fat tissues. They also studied the feasibility of using THz imaging to identify three-dimensional dehydrated breast cancer [35] and freshly excised murine tumors [36]. Grootendorst et al. investigated the feasibility of using a handheld TPI system to differentiate benign and malignant breast tissue [37]. Recently, Cassar et al. conducted a pilot study of freshly excised breast tissue using a TPI system over the frequency range from 300 to 600 GHz [38]. THz imaging has the potential to detect tumors in breast-conserving surgery (BCS) accurately.
Numerous chemometrics approaches have been developed for THz applications to produce a good correlation with pathology counterparts. Liu et al. proposed several classifiers, including support vector machine (SVM), k-nearest neighbor, and ensemble learning, to identify breast invasive ductal carcinoma (IDC) using a transmission THz system [39,40,41]. Artificial neural network (ANN) [42], deep convolutional neural network [43], and other approaches [44,45,46,47,48,49] have been proposed and applied in THz imaging and THz-TDS to analyze and enhance THz signals.
This paper summarizes the recent development of THz imaging for breast cancer detection. This article also presents numerous chemometrics methods applied to improve THz image resolution and data collection processing. The research findings demonstrated that THz technologies have the potential to diagnose breast cancer.

2. Dielectric Properties of Breast Tissue

The dielectric properties (relative permittivity, conductivity) of biological tissue are highly dependent on frequency [50]. Increasing frequency leads to a decrease in relative permittivity but an increase in conductivity. The single-Debye model demonstrates the complex permittivity of human tissue in a very low frequency range [51]. The dielectric model can characterize the complex permittivity of tissues, which reflects the interaction between molecules and THz radiation [52]. For example, the double-Debye model could demonstrate the complex permittivity of human skin in the THz regime [53]. The Debye model is not suitable for describing tissues that contain less water than skin [54]. The two Debye dispersion relations could accurately predict the dielectric responses of human skin with 70% of water [55]. Dielectric properties of biological tissues with low water content and more complicated structure and composition exhibit broader dispersion that may involve the superposition of several relaxation processes or non-first-order kinematics of molecular structure. The Cole–Cole model could describe the dielectric properties of human tissues [56].
Breast tissue contains fat cells and proteins. Fat tissue contains low water that plays a substantial role in regulating dielectric responses of breast tissue. The permittivity of breast tissue increases at lower frequencies and poses a fairly flat response over the higher frequency range. Truong et al. proposed a sum of squared error algorithm to present complex permittivity of breast tissue by combining non-Debye and Debye relaxation processes [57]. Figure 1 shows real and imaginary parts of the complex permittivity of the tumor, fibrous tissue, and fat tissue. Figure 2 shows the normalized percentage difference in the average complex permittivity between fibrous, fat, and breast tumor tissues. Refractive indices and absorption coefficients are measured to calculate the complex permittivity of breast tissues. Pathologists determine the percentage of fat, fibrous, and breast cancer tissues for each sample.

3. THz Imaging and Spectroscopy

In 1976, Hartwick et al. investigated far-infrared images using an optically pumped molecular THz laser [58]. Almost 20 years later, in 1995, Hu et al. developed a new chemical imaging system based on optoelectronic THz time-domain spectroscopy [59]. In this study, THz time-domain waveforms were downconverted from THz to kHz frequency range, and the waveform for each pixel was frequency analyzed in real time with a digital signal processor to extract compositional information at that point. The experimental results demonstrated that this system could image biological objects.
Compared to traditional imaging modalities, THz imaging has higher spatial resolution and penetration, which is helpful to identify and analyze nontransparent materials and realize the nondestructive testing of samples. THz imaging systems can be classified as continuous wave (CW) THz imaging and THz pulsed imaging (TPI) based on the THz waveform. CW THz imaging works at a single frequency, while TPI works at a broadband frequency. Detectors in the TPI system can convert THz signals into electrical signals, transform them into an image through the image processing unit, and integrate this information to produce a two-dimensional image.
The CW THz imaging systems can be classified as transmission imaging and reflection imaging. The CW THz transmission imaging system is more suitable to map thin tissue samples with weak absorption of THz radiation. As shown in Figure 3, the leaf sample is placed at the focal position of the incident beam and scanned pixel by pixel by moving it along the X–Y plane [60]. It is suitable for verifying the effectiveness of the CW THz transmission imaging system as the leaf can be considered as a 2D thin sample. A few new imaging technologies, such as near-field THz imaging and computer-aided THz tomography, have been proposed for biomedical applications. Table 1 compares the CW THz imaging system with the TPI system [61].

4. THz Radiation Sources

THz radiation sources include incoherent thermal THz sources, CW THz sources, and pulsed THz sources (see Figure 4). CW THz sources can be further divided into four types: photonic sources, nonlinear optical sources, photomixing in biased semiconductors, and electronic sources. Pulsed THz sources can be classified as photoconductive antennas (PCAs), optical rectification (OR), and pulsed photomixing. PCAs use the transient current due to high-speed photoconductors across the radiating antenna. Table 2 compares CW THz radiation source with pulsed THz radiation source [61]. The generation of CW THz radiation depends on the laser. Finding a cost-effective medium that can pump more resourcefully with high gain and power plays a crucial role in developing THz lasers. For example, nonlinear optical material can act as a THz radiation source. High-speed electronic devices can be applied to generate low-power CW THz sources. For instance, complex impedance bridges can be used in the CW THz system to characterize the dielectric property of thin films over the frequency range of 30 GHz to 1 THz. Several mechanisms and techniques, such as photocarriers’ acceleration in PCAs [62], nonlinear optical (NLO) crystals [63], plasma oscillations [64], and nonlinear electronic transmission lines [65], have been investigated to generate pulsed THz radiation.

5. THz Imaging for Breast Cancer Detection

THz cancer imaging aims to distinguish cancerous and peritumoral tissue from normal tissue with clear boundaries. The penetration depth of THz waves in human tissue is limited to the water absorption depth. Existing THz breast cancer imaging techniques focus on imaging excised tissue or using a reflection imaging system to study the surface layer of tissue. THz imaging techniques are developed based on water content differences, which can be considered a reference instead of specific identification. Table 3 demonstrates various THz imaging techniques for breast cancer detection.
In 2003, Berry et al. investigated the optical properties of human tissue at THz frequencies using a TPI system over the frequency range from 0.5 to 2.5 THz [66]. The authors studied various tissues, including skin, adipose tissue, striated muscle, artery, vein, nerve following vascular surgery, and blood samples from volunteers. Results suggested that THz imaging has potential for biomedical applications.
In 2004, Wallace et al. studied the possibility of TPI for discriminating basal cell carcinoma (BCC) and healthy tissue in vivo and ex vivo [31]. In their study, the authors used the TPI scanner (TeraView, see Figure 5) to image 18 BCCs ex vivo and 5 in vivo. The dielectric properties of BCC at THz regions are different from those of healthy tissue. Areas of disease identified in the THz image correlated well with histology. Compared to existing medical imaging approaches, TPI could identify skin cancer and the extent of the neoplasm invasion into the skin with a depth of 250 um. TPI could determine the size of BCC in vivo and delineate cancerous tissues. The research results demonstrated that TPI could help delineate cancerous tissues before surgery. However, further clinical evaluations are required.
In 2006, Fitzgerald et al. studied the feasibility of using TPI to image margins of human breast tumors from 22 nonconsecutive female patients with an average age of 59 years [32]. The authors used the TPI scanner (TeraView Ltd., Cambridge, UK) to map breast specimens. This system uses photoconductive approaches to generate and measure THz pulses in reflection mode. The THz optics (dashed box in Figure 6) focus the beam on the quartz window. The THz optics and the THz beam were rasters scanned in the X–Y plane to record an image set. Two image parameters were investigated: the minimum of the THz impulse function (Emin) and the ratio of the minimum to the maximum of the THz impulse function (Emin/Emax). The correlation coefficient of tumor regions on THz images was comparable with that on photomicrograph. TPI could depict invasive breast carcinoma and ductal carcinoma in situ (DCIS) under control conditions.
In 2009, Ashworth et al. studied characteristics of freshly excised breast specimens from 20 nonconsecutive female patients using a portable THz pulsed transmission spectrometer with an operating frequency of 0.15–2.0 THz [33]. The research results indicated that the THz pulsed spectrometer could identify cancer from fatty and fibrous tissue. In 2011, Chen et al. demonstrated in vivo THz breast cancer imaging in a subcutaneous xenograft mouse study using a compact THz transmission imaging system at room temperature [67]. The THz transmission imaging could distinguish cancer from susceptible surrounding fatty tissue. The detection limit for cancerous tissue is 0.05 mm3. Their study is broadly encouraging, and further investigations on early cancer detection using the THz imaging system are required. In the same year, Chen et al. used the CW THz transmission imaging system to investigate 46 different breast cancer specimens and sections without tumors. The absorption coefficients of breast cancer specimens were higher than 9 mm−1, and the absorption coefficients of areas without breast tumors were all under 9 mm−1 [68]. Results indicated that the CW THz transmission imaging system could distinguish breast tumors from normal tissues but could not identify different types of breast cancer.
In 2013, Peter et al. applied the reflective THz raster scanning imaging on the breast cancer tissue samples with thicknesses greater than 3–5 mm [70]. They located cancerous areas in excised human breast tissue samples at 1.89 THz and obtained the absolute refractive index values of the breast cancer. In 2015, Bowman et al. investigated the capability of pulsed THz imaging technology for imaging and analysis of heterogeneous breast cancer tissue [71]. The specimens were obtained from breast tumors diagnosed as triple-negative IDC. All flat tissue sections were fixed in formalin, embedded in paraffin, and cut into sections with three thicknesses: 10, 20, and 30 µm. These tissues were classified into three samples. Figure 7 displays images of sample 1, 10 µm thickness tissue obtained from a 40-year-old Caucasian female via mastectomy. Figure 7a shows the macroscopic low-power histopathology image, which denotes the general regions of the tissue types observed in this sample using the stained slide. Figure 8 shows images of sample 2, 10 µm thickness tissue obtained from a 46-year-old Caucasian female via mastectomy. Figure 8a shows a low-power pathology image of the H&E-stained slide. This image further defines regions of IDC and fibrous tissue identified by the pathologist. Figure 8b shows the time-domain image with a color bar scale of the deconvolved electric field amplitude ranging from 0.02 to 0.027. Figure 8c,d display frequency domain images at 1.5 and 1.75 THz, respectively. The results demonstrated that THz reflection imaging could distinguish between the heterogeneous regions in the tumor. Figure 9 shows THz images of sample 3, 20 and 30 µm thickness tissues obtained from a 54-year-old Black woman diagnosed with IDC.
In 2016, Bowman et al. conducted a comparison study of THz transmission and reflection imaging for imaging excised breast carcinomas [34]. Figure 10 shows images of IDC at 1 THz, where cancerous areas exhibited lower transmission and higher reflection than the adjacent healthy areas of fibrous and fatty tissues. The contrast is attributed to higher water content in cancerous areas, which resulted in higher absorption, reflection, or refractive index with THz waves. Compared to transmission imaging, the THz reflection imaging provides higher resolution and more apparent margins between cancerous and fibrous tissue, cancerous and fat tissue, and fibrous and fat tissue regions.
In 2017, Grootendorst et al. investigated the feasibility of using TPI for detecting breast cancer from benign breast tissue in ex vivo [37]. A total of 257 pixels measured from 46 breast tissue samples were imaged using a handheld THz pulsed imaging system for analysis. The images were classified using two data analysis and classification methods. The first method was based on heuristic parameters with the SVM, and the second was based on Gaussian wavelet deconvolution with Bayesian classification. The obtained results indicated that the probe could distinguish invasive breast cancer from benign tissue.
In 2018, Cassar et al. investigated the potential of THz imaging for freshly excised breast tissue [38]. Sixteen freshly excised breast tissue samples were collected and analyzed directly after excision. The principal component analysis (PCA) approach was applied to classify tissue automatically. The research findings demonstrated that the dielectric response could contrast breast tissue recognition over 300–600 GHz. In that same year, Bao et al. proposed two concentration analysis methods, namely the effective medium theory (EMT) model and empirical EMT model, to analyze phantoms mimicking breast tissue [74]. The double-Debye model was applied to describe the dielectric properties of breast phantoms. The EMT with the proposed optimization method helped determine the two-component breast tissue phantoms, including intralipid and water–gelatin emulsions. However, this approach is unsuitable for three-dimensional phantoms because it fails to estimate component concentrations of low-water-content tissues. Research findings confirmed that the proposed method has the potential for quantifying breast tissue pathology. However, more experimental evaluation studies are required in the future.
Recently, some new technologies have been introduced for THz biomedical applications. Serita et al. proposed a nonlinear optical crystal-based THz microfluidic chip for ultratrace and quantitative measurements of liquid solutions [78]. This chip consists of a THz radiation source, a single microchannel, and a few split-ring resonators arrays. The proposed THz microfluidic chip opens a new door for developing lab-on-chip devices. The proposed sensor can detect cancer and diabetes using a small body fluid and reduce pain during diagnosis. Balbekin et al. applied the THz pulse time-domain holography to map breast tissue samples [79]. The experimental measurement involved measuring the diffraction pattern of THz pulse wave distribution at some distance behind the object in the time domain, allowing reconstruction of amplitude and phase at the object plane for the wavefront in the spectral domain. A breast biopsy sample containing cancer tissues was applied in the experiment. The authors performed simulations based on experimental setups to validate the image reconstruction method. Zhang et al. developed a THz microfluidic chip to obtain the THz absorption signatures of a linear single-stranded DNA with 60 nucleotides [80]. This research provided a new way to obtain THz spectra of biomolecules in solution.

6. Chemometrics Methods in THz Imaging

Recently, numerous chemometrics methods, such as principal component analysis (PCA), partial least square method (PLS), linear discriminant analysis (LDA), decision tree (DT), genetic algorithm (GA), cluster analysis (CA), random forest (RF), partial least squares discrimination analysis (PLS-DA), ANN, and SVM, have been applied in THz imaging to improve THz data collection speed and accuracy. In addition, machine learning techniques have been used to enhance the visualization of THz images [81,82,83,84,85,86,87].
In 2012, Fitzgerald et al. applied the efficacy of data reduction and SVM techniques in TPI images to classify tumor and normal breast tissue [88]. When using 10 components, the best classification accuracy came from using the principal components on the pulses and prominent features on the parameter, with an accuracy of 92%. The results indicated that data reduction and SVM classifier could provide tissue classification accurately.
In 2015, Qi et al. investigated the feasibility of using THz-TDS with SVM and PLS-DA for fast detection of cervical carcinoma [89]. The authors applied several preprocessing methods, including multiplicative scatter correction (MSC), Savitzky Golay (SG) smoothing and first derivative, principal component orthogonal signal correction (PC-OSC), and emphatic orthogonal signal correction (EOSC) for PLS-DA and SVM models. The SVM and PLS-DA combined with SG first derivative and PC-OSC based on THz-TDS tissue could provide a better method for diagnosing cervical carcinoma.
In 2017, Zhang et al. used THz spectroscopy with chemometrics for discriminating traditional herbal medicines in the frequency range of 0.2–1.2 THz [90]. Four classifiers (PCA, SVM, DT, and RF) were studied to differentiate herbal medicines. Experimental results indicated that PCA with RF could quickly distinguish three types of herbal medicines with an accuracy of 99%. The SVM could improve the accuracy of noninvasive detection of breast cancer using THz imaging technology.
In 2020, Liu et al. studied an automatic recognition strategy for THz pulsed signals of breast IDC based on a wavelet entropy feature extraction and a machine learning classifier [91]. The authors proposed the index of energy to Shannon entropy ratio for distinguishing different tissues. The PCA method and three machine learning classifiers (ensemble, kNN, and SVM) were applied to classify THz signals from breast IDC. Results showed that the ensemble classifier has the best breast IDC identification performance with a precision of 92.85%, which offers an effective automatic recognition strategy for THz biomedical applications.
In 2021, Cassar et al. studied the combination of the refractive index and morphological dilation to improve performances towards breast tumor margin delineation during breast-conserving surgeries [92]. In this study, morphological dilation combined with the refractive index approach was applied for tissue classification. Compared to other configurations, incorporating a wide structuring element and a high refractive index improved the correctness of tissue classification. The research results indicated that combining optical properties of tissues denoted by refractive index with morphological dilation may provide a new way to define supporting procedures during breast-conserving surgeries.

7. Conclusions

This paper presented the feasibility of using THz imaging techniques for diagnosing breast disease. The dielectric properties of breast tissue, THz imaging and spectroscopy techniques, THz radiation sources, and THz imaging for breast cancer detection were discussed. This paper also discussed the feasibility of using machine learning classifiers to improve THz image resolution. THz imaging has been proposed as the potential for imaging breast tumors during surgeries. However, to date, THz imaging techniques are still not mature. There are some challenges in THz imaging of breast tumors: (1) a standard medical imaging tool is required to provide comparison results; (2) excess fluid around or under tissue will cause inaccurate detection results; (3) shape changes in tissue occur during the histopathology process between THz and pathology; (4) shape changes can be solved using margin marking ink on tissue.
Further developments of THz techniques are required before they can be practically applied for breast cancer detection. Future research should focus on the following areas: (1) investigating the impact of THz radiation on biological tissues; (2) developing a compact, sensitive, and cost-effective THz imaging system that is more suitable for clinical trials; (3) conducting clinical trial studies of THz imaging for human breast; (4) developing more effective drying techniques to reduce excess fluid around or under the tissue; (5) combining THz imaging with THz spectral fingerprinting of biomarkers to realize qualitative identification and quantitative analysis simultaneously; (6) establishing a THz fingerprint database to improve the recognition efficiency and accuracy of THz imaging techniques.

Funding

This research was funded by the National Natural Science Foundation of China (Grant No. 61701159) and the International Science and Technology Cooperation Project of the Shenzhen Science and Technology Commission (GJHZ20200731095804014).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Siegel, R.L.; Miller, K.D.; Fuchs, H.E.; Jemal, A. Cancer statistics 2021. CA A Cancer J. Clin. 2021, 71, 7–33. [Google Scholar] [CrossRef]
  2. Yang, Y.; Yin, X.; Sheng, L.; Xu, S.; Dong, L.; Liu, L. Perioperative chemotherapy more of a benefit for overall survival than adjuvant chemotherapy for operable gastric cancer: An updated meta-analysis. Sci. Rep. 2015, 5, 12850. [Google Scholar] [CrossRef] [Green Version]
  3. Pleijhuisc, R.G.; Bsc, M.G.; Vries, J.D.; Bart, J.; Jong, J.S.D.; Dam, G.M.V. Obtaining adequate surgical margins in breast-conserving therapy for patients with early-stage breast cancer: Current modalities and future directions. Ann. Surg. Oncol. 2009, 16, 2717–2730. [Google Scholar] [CrossRef] [Green Version]
  4. Ashworth, P.C.; O’Kelly, P.; Purushotham, A.D.; Pinder, S.E.; Kontos, M.; Pepper, M.; Wallace, V.P. An intra-operative THz probe for use during the surgical removal of breast tumors. In Proceedings of the 2008 33rd International Conference on Infrared, Millimeter and Terahertz Waves, Pasadena, CA, USA, 15–19 September 2008; pp. 1–3. [Google Scholar] [CrossRef]
  5. Wang, L. Microwave Sensors for Breast Cancer Detection. Sensors 2018, 18, 655. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Hellquist, B.N.; Czene, K.; Hjälm, A.; Nyström, L.; Jonsson, H. Effectiveness of population-based service screening with mammography for women ages 40 to 49 years with a high or low risk of breast cancer: Socioeconomic status, parity, and age at birth of first child. Cancer 2012, 118, 1170–1171. [Google Scholar] [CrossRef]
  7. Drukker, K.; Sennett, C.A.; Giger, M.L. Computerized detection of breast cancer on automated breast ultrasound imaging of women with dense breasts. Med. Phys. 2014, 41, 012901-1–012901-9. [Google Scholar] [CrossRef] [Green Version]
  8. Morrow, M.; Waters, J.; Morris, E. MRI for breast cancer screening, diagnosis, and treatment. Lancet 2011, 378, 1804–1811. [Google Scholar] [CrossRef]
  9. Jones, E.F.; Ray, K.M.; Li, W.; Seo, Y.; Franc, B.L.; Chien, A.J.; Esserman, L.J.; Pampaloni, M.H.; Joe, B.N.; Hylton, N.M. Dedicated breast positron emission tomography for the evaluation of early response to neoadjuvant chemotherapy in breast cancer. Clin. Breast Cancer 2017, 17, e155. [Google Scholar] [CrossRef]
  10. Berry, E.; Walker, G.C.; Fitzgerald, A.J.; Zinov’Ev, N.N.; Chamberlain, M.; Smye, S.W.; Smith, M.A. Do in vivo terahertz imaging systems comply with safety guidelines? J. Laser Appl. 2003, 15, 192–198. [Google Scholar] [CrossRef]
  11. Zaytsev, I.; Dolganova, I.N.; Chernomyrdin, N.V.; Katyba, G.M.; Gavdush, A.A.; Cherkasova, O.P.; Komandin, G.A.; Shchedrina, M.A.; Khodan, A.N.; Ponomarev, D.S.; et al. The progress and perspectives of terahertz technology for diagnosis of neoplasms: A review. J. Opt. 2020, 22, 013001. [Google Scholar] [CrossRef]
  12. Yang, X.; Zhao, X.; Yang, K.; Liu, Y.; Liu, Y.; Fu, W.; Luo, Y. Biomedical Applications of Terahertz Spectroscopy and Imaging. Trends Biotechnol. 2016, 34, 810–824. [Google Scholar] [CrossRef]
  13. Rønne, C.; Keiding, S.R. Low frequency spectroscopy of liquid water using THz-time domain spectroscopy. J. Mol. Liq. 2002, 101, 199–218. [Google Scholar] [CrossRef]
  14. Orlando, A.R.; Gallerano, G.P. Terahertz radiation effects and biological applications. J. Infrared Millim. Terahertz Waves 2009, 30, 1308–1318. [Google Scholar] [CrossRef]
  15. Qian, S.; Zhao, Y.; Redo-Sanchez, A.; Zhang, C.; Liu, X. Fast continuous terahertz wave imaging system for security. Opt. Commun. 2009, 282, 2019–2022. [Google Scholar]
  16. Tohmé, L.; Blin, S.; Ducournau, G.; Nouvel, P.; Lampin, J.F. Terahertz wireless communication using gaas transistors as detectors. Electron. Lett. 2014, 50, 323–325. [Google Scholar] [CrossRef]
  17. Malhotra, I.; Jha, K.R.; Singh, G. Analysis of highly directive photoconductive dipole antenna at terahertz frequency for sensing and imaging applications. Opt. Commun. 2017, 397, 129–139. [Google Scholar] [CrossRef]
  18. Kawano, Y. Terahertz sensing and imaging based on nanostructured semiconductors and carbon materials. Laser Photonics Rev. 2012, 6, 246–257. [Google Scholar] [CrossRef]
  19. Mathanker, S.K.; Weckler, P.R.; Wang, N. Terahertz (THz) applications in food and agriculture: A review. Trans. Am. Soc. Agric. Biol. Eng. 2013, 56, 1213–1226. [Google Scholar]
  20. Son, J.H.; Oh, S.J.; Cheon, H. Potential clinical applications of terahertz radiation. J. Appl. Phys. 2019, 125, 190901. [Google Scholar] [CrossRef]
  21. Tunnacliffe, A.; Zeitler, J.A.; Lin, H.; Dennis, A.R.; Chau, D. Determination of water content in dehydrated mammalian cells using terahertz pulsed imaging: A feasibility study. Curr. Pharm. Biotechnol. 2015, 17, 200–207. [Google Scholar]
  22. Sy, S.; Huang, S.Y.; Xiang, Y. Terahertz spectroscopy of liver cirrhosis: Investigating the origin of contrast. Phys. Med. Biol. 2010, 55, 7587–7596. [Google Scholar] [CrossRef] [PubMed]
  23. Baughman, W.E.; Yokus, H.; Balci, S.; Wilbert, D.S. Observation of hydrofluoric acid burns on osseous tissues by means of terahertz spectroscopic imaging. IEEE J. Biomed. Health Inform. 2013, 3, 387–394. [Google Scholar]
  24. Mavarani, L.; Hillger, P.; Buecher, T.; Grzyb, J.; Pfeiffer, U.R.; Cassar, Q.; Al-Ibadi, A.; Zimmer, T.; Guillet, J.-P.; Mounaix, P.; et al. Nearsense- advances towards a silicon-based terahertz near-field imaging sensor for ex vivo breast tumour identification. Frequenz 2018, 72, 93–99. [Google Scholar] [CrossRef]
  25. Doradla, P.; Joseph, C.; Giles, R.H. Terahertz endoscopic imaging for colorectal cancer detection: Current status and future perspectives. World J. Gastrointest. Endosc. 2017, 8, 346–358. [Google Scholar] [CrossRef] [PubMed]
  26. Lee, S.H.; Shin, S.; Roh, Y.; Oh, S.J.; Seo, M. Label-free brain tissue imaging using large-area terahertz metamaterials. Biosens. Bioelectron. 2020, 170, 112663. [Google Scholar] [CrossRef] [PubMed]
  27. Lindley-Hatcher, H.; Stantchev, R.I.; Chen, X.; Hernandez-Serrano, A.I.; Pickwell-Macpherson, E. Real time THz imaging—opportunities and challenges for skin cancer detection. Appl. Phys. Lett. 2021, 118, 230501. [Google Scholar] [CrossRef]
  28. Hua, Y.; Nackaerts, O.; Duyck, J.; Maes, F.; Jacobs, R. Bone quality assessment based on cone beam computed tomography imaging. Clin. Oral Implant. Res. 2010, 20, 767–771. [Google Scholar] [CrossRef]
  29. Kolesnikov, A.S.; Kolesnikova, E.A.; Popov, A.P.; Nazarov, M.M.; Shkurinov, A.P.; Tuchin, V.V. In vitro terahertz monitoring of muscle tissue dehydration under the action of hyperosmotic agents. Quantum Electron. 2014, 44, 633. [Google Scholar] [CrossRef]
  30. Peng, Y.; Shi, C.J.; Wu, X.; Yiming Zhu, Y.M.; Zhuang, S.L. Terahertz Imaging and Spectroscopy in Cancer Diagnostics: A Technical Review. BME Front. 2020, 2020, 2547609. [Google Scholar] [CrossRef]
  31. Wallace, V.P.; Fitzgerald, A.J.; Shankar, S.; Flanagan, N.; Pye, R.; Cluff, J.; Arnone, D.D. Dermatological Surgery and Lasers: Terahertz Pulsed Imaging of Basal Cell Carcinoma Ex Vivo and in Vivo. Br. J. Dermatol. 2004, 151, 424–432. [Google Scholar] [CrossRef]
  32. Fitzgerald, A.J.; Wallace, V.P.; Jimenez-Linan, M.; Bobrow, L.; Pye, R.J.; Purushotham, A.D.; Arnone, D.D. Terahertz Pulsed Imaging of human breast tumors. Radiology 2006, 239, 533–540. [Google Scholar] [CrossRef] [PubMed]
  33. Ashworth, P.C.; Pickwell-Macpherson, E.; Provenzano, E.; Pinder, S.E.; Wallace, V.P. Terahertz pulsed spectroscopy of freshly excised human breast cancer. Opt. Express 2009, 17, 12444–12454. [Google Scholar] [CrossRef] [PubMed]
  34. Bowman, T.; El-Shenawee, M.; Campbell, L.K. Terahertz transmission vs reflection imaging and model-based characterization for excised breast carcinomas. Biomed. Opt. Express 2016, 7, 3756–3783. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Bowman, T.; Wu, Y.; Gauch, J.; Campbell, L.K.; El-Shenawee, M. Terahertz imaging of three-dimensional dehydrated breast cancer tumors. J. Infrared Millim. Terahertz Waves 2017, 38, 766–786. [Google Scholar] [CrossRef]
  36. Bowman, T.; Chavez, T.; Khan, K.; Wu, J.; El-Shenawee, M. Pulsed terahertz imaging of breast cancer in freshly excised murine tumors. J. Biomed. Opt. 2018, 23, 026004. [Google Scholar] [CrossRef] [Green Version]
  37. Grootendorst, M.R.; Fitzgerald, A.J.; Koning, S.; Santaolalla, A.; Purushotham, A. Use of a handheld terahertz pulsed imaging device to differentiate benign and malignant breast tissue. Biomed. Opt. Express 2017, 8, 2932. [Google Scholar] [CrossRef] [Green Version]
  38. Cassar, Q.; Alibadi, A.; Macgrogan, G.; Grzyb, J.; Guillet, J.P.; Mavarani, L.; Mounaix, P. Pilot study of freshly excised breast tissue response in the 300–600 GHz range. Biomed. Opt. Express 2018, 9, 2930–2942. [Google Scholar] [CrossRef]
  39. Ahi, K.; Asadizanjani, N.; Shahbazmohamadi, S.; Tehranipoor, M.; Anwar, M. Terahertz characterization of electronic components and comparison of terahertz imaging with x-ray imaging techniques. Terahertz Phys. Devices Syst. IX Adv. Appl. Ind. Def. 2015, 94830, 94830K. [Google Scholar]
  40. Motlak, H.J.; Hakeem, S.I. Detection and classification of breast cancer based-on terahertz imaging technique using artificial neural network & K-nearest neighbor algorithm. Int. J. Appl. Eng. Res. 2017, 12, 10661–10668. [Google Scholar]
  41. Yin, X.; Ng, W.H.; Fischer, B.M.; Ferguson, B.; Abbott, D. Support vector machine applications in terahertz pulsed signals feature sets. IEEE Sens. J. 2007, 7, 1597–1608. [Google Scholar] [CrossRef] [Green Version]
  42. Bandyopadhyay, A.; Sengupta, A.; Sinyukov, A.M.; Barat, R.B.; Gary, D.E.; Michalopoulou, Z.-H.; Federici, J. Artificial neural network analysis in interferometric THz imaging for detection of lethal agents. Int. J. Infrared Millim. Waves 2006, 27, 1145–1158. [Google Scholar] [CrossRef]
  43. Long, Z.Y.; Wang, T.Y.; Wu, C.; You, C.; Yang, Z.; Wang, K.; Liu, J. Terahertz image super-resolution based on a deep convolutional neural network. Appl. Opt. 2019, 58, 2731–2735. [Google Scholar] [CrossRef] [PubMed]
  44. Yin, X.X.; Hadjiloucas, S.; Zhang, Y. Complex extreme learning machine applications in terahertz pulsed signals feature sets. Comput. Methods Programs Biomed. 2014, 117, 387–403. [Google Scholar] [CrossRef] [PubMed]
  45. Ayech, M.W.; Ziou, D. Segmentation of terahertz imaging using k-means clustering based on ranked set sampling. Expert Syst. Appl. 2015, 42, 2959–2974. [Google Scholar] [CrossRef]
  46. Huang, J.; Liu, J.; Wang, K.; Yang, Z.; Liu, X. Classification and identification of molecules through factor analysis method based on terahertz spectroscopy. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2018, 198, 198–203. [Google Scholar] [CrossRef]
  47. Stephani, H.; Herrmann, M.; Wiesauer, K.; Katletz, S.; Heise, B. Enhancing the interpretability of terahertz data through unsupervised classification. In Proceedings of the XIX IMEKO World Congress Fundamental and Applied Metrology, Lisbon, Portugal, 6–11 September 2009; Volume 1, pp. 2329–2334. [Google Scholar]
  48. Sinyukov, A.; Zorych, I.; Michalopoulou, Z.H.; Gary, D.; Barat, R.; Federici, J.F. Detection of explosives by terahertz synthetic aperture imaging—focusing and spectral classification. Comptes Rendus Phys. 2008, 9, 248–261. [Google Scholar] [CrossRef]
  49. Shi, J.; Wang, Y.; Chen, T.; Xu, D.; Zhao, H.; Chen, L.Y.; Yan, C.; Tang, L.H.; He, Y.X.; Feng, H.; et al. Automatic evaluation of traumatic brain injury based on terahertz imaging with machine learning. Opt. Express 2018, 26, 6371–6381. [Google Scholar] [CrossRef]
  50. Smye, S.W.; Chamberlain, J.M.; Fitzgerald, A.J.; Berry, E. The interaction between terahertz radiation and biological tissue. Phys. Med. Biol. 2001, 46, R101. [Google Scholar] [CrossRef] [PubMed]
  51. Pickwell, E.; Cole, B.E.; Fitzgerald, A.J.; Wallace, V.P.; Pepper, M. Simulation of terahertz pulse propagation in biological systems. Appl. Phys. Lett. 2004, 84, 2190–2192. [Google Scholar] [CrossRef]
  52. Liebe, H.J.; Hufford, G.A.; Manabe, T. A model for the complex permittivity of water at frequencies below 1 THz. Int. J. Infrared Millim. Waves 1991, 12, 659–675. [Google Scholar] [CrossRef]
  53. Reid, C.B.; Pickwell-Macpherson, E.; Laufer, J.G.; Gibson, A.P.; Hebden, J.C.; Wallace, V.P. Accuracy and resolution of THz reflection spectroscopy for medical imaging. Phys. Med. Biol. 2010, 55, 4825. [Google Scholar] [CrossRef] [Green Version]
  54. Truong, B.C.Q.; Tuan, H.D.; Kha, H.H.; Nguyen, H.T. Debye parameter extraction for characterizing interaction of terahertz radiation with human skin tissue. IEEE Trans. Biomed. Eng. 2013, 60, 1528–1537. [Google Scholar] [CrossRef]
  55. Hurt, W.D. Multiterm Debye dispersion relations for permittivity of muscle. IEEE Trans. Biomed. Eng. 1985, 32, 60–64. [Google Scholar] [CrossRef] [PubMed]
  56. Gabriel, S.; Lau, R.W.; Gabriel, C. The dielectric properties of biological tissues: Iii. parametric models for the dielectric spectrum of tissues. Phys. Med. Biol. 1996, 41, 2271–2293. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Truong, B.; Tuan, H.D.; Fitzgerald, A.J.; Wallace, V.P.; Nguyen, H.T. A dielectric model of human breast tissue in terahertz regime. IEEE Trans. Biomed. Eng. 2015, 62, 699–707. [Google Scholar] [CrossRef] [PubMed]
  58. Hartwick, T.S.; Hodges, D.T.; Barker, D.H.; Foote, F.B. Far infrared imagery. Appl. Opt. 1976, 15, 1919–1922. [Google Scholar] [CrossRef]
  59. Hu, B.B.; Nuss, M.C. Imaging with terahertz waves. Opt. Lett. 1995, 20, 1716–1718. [Google Scholar] [CrossRef]
  60. Zhang, Y.; Wang, C.; Huai, B.; Wang, S.; Zheng, Y. Continuous-wave THz imaging for biomedical samples. Appl. Sci. 2020, 11, 71. [Google Scholar] [CrossRef]
  61. Malhotra, I.; Singh, G. Terahertz Antenna Technology for Imaging and Sensing Applications; Springer: Berlin/Heidelberg, Germany, 2021; ISBN 978-3-030-68959-9. [Google Scholar]
  62. Sun, C.; Zhang, A. Efficient terahertz generation from lightly ion-beam-treated semi-insulating gas photoconductive antennas. Appl. Phys. Express 2017, 10, 102202. [Google Scholar] [CrossRef]
  63. Takeya, K.; Okimura, K.; Oota, K.; Kawase, K.; Uchida, H. Pump wavelength-independent broadband terahertz generation from a nonlinear optical crystal. Opt. Lett. 2018, 43, 4100. [Google Scholar] [CrossRef]
  64. Gildenburg, V.B.; Vvedenskii, N.V. Optical-to-THz wave conversion via excitation of plasma oscillations in the tunneling-ionization process. Phys. Rev. Lett. 2007, 98, 245002.1–245002.4. [Google Scholar] [CrossRef] [PubMed]
  65. Li, X.; Feng, W.; Zhu, H. Design and characterization of CMOS transmission lines in sub-THz region. Electromagnetics 2017, 37, 331–344. [Google Scholar] [CrossRef]
  66. Berry, E.; Fitzgerald, A.J.; Zinov’Ev, N.N.; Walker, G.C.; Smith, M.A. Optical properties of tissue measured using terahertz-pulsed imaging. Proc. SPIE -Int. Soc. Opt. Eng. 2003, 5030, 459–470. [Google Scholar]
  67. Chen, H.; Lee, W.J.; Chiu, C.M.; Tsai, Y.F.; Tseng, T.F.; Lu, J.T.; Lai, W.L.; Sun, C.K. Performance of THz fiber-scanning near-field microscopy to diagnose breast tumors. Opt. Express 2011, 19, 19523–19531. [Google Scholar] [CrossRef]
  68. Chen, H.; Chen, T.H.; Fu, S.C.; Lee, W.J.; Sun, C.K. In vivo THz fiber-scanning mammography of early breast cancer in mice. In Proceedings of the 2011 International Conference on Infrared, Millimeter, and Terahertz Waves, Houston, TX, USA, 2–7 October 2011; pp. 1–3. [Google Scholar] [CrossRef]
  69. Joseph, C.; Yaroslavsky, A.; Neel, V.; Goyette, T.; Giles, R. Dual Frequency Continuous Wave Terahertz Transmission Imaging of Nonmelanoma Skin Cancers. Laser. Surg. Med. 2011, 43, 457–462. [Google Scholar] [CrossRef]
  70. Peter, B.; Yngvesson, S.; Siqueira, P.; Kelly, P.; Khan, A.; Glick, S.; Karellas, A. Development and Testing of a Single Frequency Terahertz Imaging System for Breast Cancer Detection. IEEE Trans. Terahertz Sci. Technol. 2013, 3, 374–386. [Google Scholar] [CrossRef] [Green Version]
  71. Bowman, T.C.; El-Shenawee, M.; Campbell, L.K. Terahertz imaging of excised breast tumor tissue on paraffin sections. IEEE Trans. Antennas Propag. 2015, 63, 2088–2097. [Google Scholar] [CrossRef]
  72. Bowman, T.C.; El-Shenawee, M.; Bailey, K. Challenges in Terahertz Imaging of Freshly Excised Human Breast Tumors. In Proceedings of the 2018 IEEE International Symposium on Antennas and Propagation & USNC/URSI National Radio Science Meeting, Boston, MA, USA, 8–13 July 2018; pp. 13–14. [Google Scholar] [CrossRef]
  73. Chernomyrdin, N.; Zhelnov, V.; Kucheryavenko, A.; Dolganova, I.; Katyba, G.; Karasik, V.; Reshetov, I.; Zaytsev, K. Numerical analysis and experimental study of terahertz solid immersion microscopy. Opt. Eng. 2019, 59, 61605. [Google Scholar] [CrossRef]
  74. Bao, C.; Fitzgerald, A.J.; Fan, S.; Wallace, V.P. Concentration analysis of breast tissue phantoms with terahertz spectroscopy. Biomed. Opt. Express 2018, 9, 1334. [Google Scholar]
  75. Vohra, N.; Bowman, T.; Diaz, P.M.; Rajaram, N.; Bailey, K.; El-Shenawee, M. Pulsed terahertz reflection imaging of tumors in a spontaneous model of breast cancer. Biomed. Phys. Eng. Express 2018, 4, 065025. [Google Scholar] [CrossRef]
  76. Okada, K.; Serita, K.; Zang, Z.; Murakami, H.; Kawayama, I.; Cassar, Q.; Macgrogan, G.; Guillet, J.P.; Mounaix, P.; Tonouchi, M. Scanning laser terahertz near-field reflection imaging system. Appl. Phys. Express 2019, 12, 122005. [Google Scholar] [CrossRef]
  77. Bowman, T.; Vohra, N.; Bailey, K.; El-Shenawee, M. Terahertz tomographic imaging of freshly excised human breast tissues. J. Med. Imaging 2019, 6, 023501. [Google Scholar]
  78. Serita, K.; Matsuda, E.; Okada, K.; Murakami, H.; Kawayama, I.; Tonouchi, M. Terahertz microfluidic chips sensitivity-enhanced with a few arrays of meta-atoms. APL Photonics 2018, 3, 051603. [Google Scholar] [CrossRef] [Green Version]
  79. Balbekin, N.S.; Cassar, Q.; Smolyanskaya, O.A.; Macgrogan, G.; Petrov, N.V. The terahertz pulse time-domain holography method for phase imaging of breast tissue sample. In Proceedings of the Digital Holography and Three-Dimensional Imaging, Bordeaux, France, 19–23 May 2019; p. Th4B.6. [Google Scholar] [CrossRef]
  80. Zhang, M.; Yang, Z.; Tang, M.; Wang, D.; Wang, H.; Yan, S.; Wei, D.; Cui, H.-L. Terahertz spectroscopic signatures of microcystin aptamer solution probed with a microfluidic chip. Sensors 2019, 19, 534. [Google Scholar] [CrossRef] [Green Version]
  81. Park, H.; Son, J.H. Machine learning techniques for THz imaging and time-domain spectroscopy. Sensors 2021, 21, 1186. [Google Scholar] [CrossRef]
  82. Zhang, R.; He, Y.Z.; Liu, K.; Zhang, L.L.; Zhang, S.J.; Pickwell-MacPherson, E.; Zhao, Y.J.; Cunlin Zhang, C.L. Composite multiscale entropy analysis of reflective terahertz signals for biological tissues. Opt. Express 2017, 25, 23669–23676. [Google Scholar] [CrossRef]
  83. Huang, P.J.; Cao, Y.Q.; Chen, J.N.; Ge, W.T.; Hou, D.B.; Zhang, G.X. Analysis and inspection techniques for mouse liver injury based on terahertz spectroscopy. Opt. Express 2019, 27, 26014–26026. [Google Scholar] [CrossRef]
  84. Yin, X.X.; Hadjiloucas, S.; Zhang, Y.; Su, M.Y.; Miao, Y.; Abbott, D. Pattern identification of biomedical images with time series: Contrasting THz pulse imaging with DCE-MRIs. Artif. Intell. Med. 2016, 67, 1–23. [Google Scholar] [CrossRef] [Green Version]
  85. Guneser, M. An artificial intelligence solution to extract the dielectric properties of materials at sub-thz frequencies. IET Sci. Meas. Technol. 2019, 13, 523–528. [Google Scholar] [CrossRef]
  86. Murate, K.; Kanai, H.; Kawase, K. Application of machine learning to terahertz spectroscopic imaging of reagents hidden by thick shielding materials. IEEE Trans. Terahertz Sci. Technol. 2021. [Google Scholar] [CrossRef]
  87. Liao, D.; Chan, K.F.; Chan, C.H.; Zhang, Q.; Wang, H.G. All-optical diffractive neural networked terahertz hologram. Opt. Lett. 2020, 45, 2906–2909. [Google Scholar] [CrossRef] [PubMed]
  88. Fitzgerald, A.J.; Pinder, S.; Purushotham, A.D.; O’Kelly, P.; Ashworth, P.C.; Wallace, V.P. Classification of terahertz-pulsed imaging data from excised breast tissue. J. Biomed. Opt. 2012, 17, 016005. [Google Scholar] [CrossRef]
  89. Qi, N.; Zhang, Z.Y.; Xiang, Y.H.; Yang, Y.P.; Liang, X.; Harrington, P.B. Terahertz time-domain spectroscopy combined with support vector machines and partial least squares-discriminant analysis applied for the diagnosis of cervical carcinoma. Anal. Methods 2015, 7, 2333–2338. [Google Scholar] [CrossRef]
  90. Zhang, H.; Li, Z.; Chen, T.; Liu, J. Discrimination of traditional herbal medicines based on terahertz spectroscopy. Optik 2017, 138, 95–102. [Google Scholar] [CrossRef]
  91. Liu, W.; Zhang, R.; Ling, Y.; She, R.; Tang, H. Automatic recognition of breast cancer based on terahertz spectroscopy with wavelet packet transform and machine learning. Biomed. Opt. Express 2020, 11, 971–981. [Google Scholar] [CrossRef]
  92. Cassar, Q.; Caravera, S.; MacGrogan, G.; Bücher, T.; Hillger, P.; Pfeiffer, U.; Zimmer, T.; Guillet, J.P.; Mounaix, P. Terahertz refractive index-based morphological dilation for breast carcinoma delineation. Sci. Rep. 2021, 11, 6457. [Google Scholar] [CrossRef] [PubMed]
Sensors 21 06465 g001 550

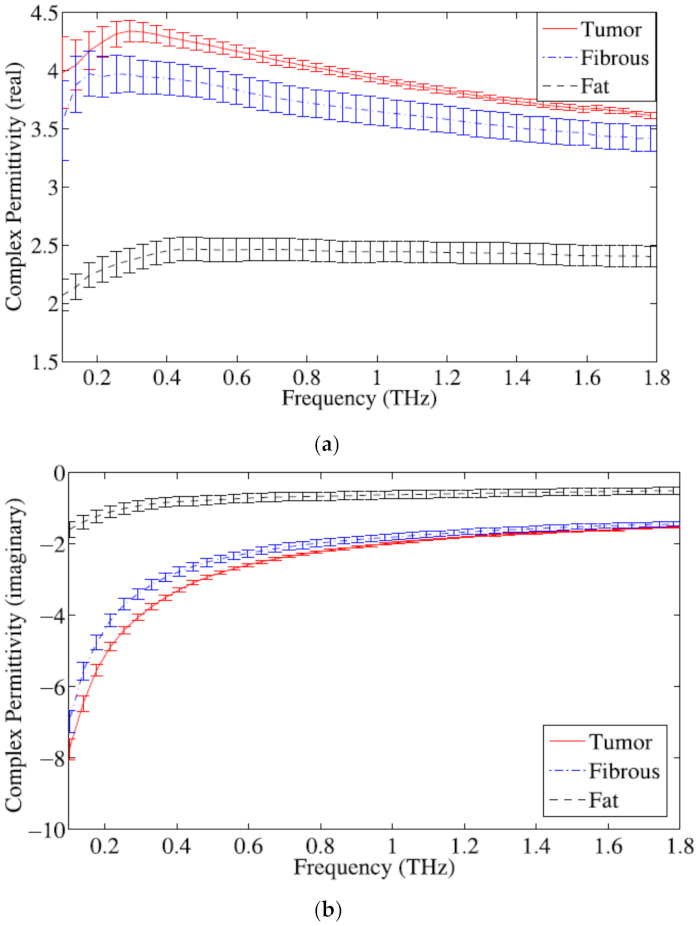

Figure 1. Complex permittivity of breast tissues: (a) real part; (b) imaginary part [57].
Figure 1. Complex permittivity of breast tissues: (a) real part; (b) imaginary part [57].
Sensors 21 06465 g001
Sensors 21 06465 g002 550

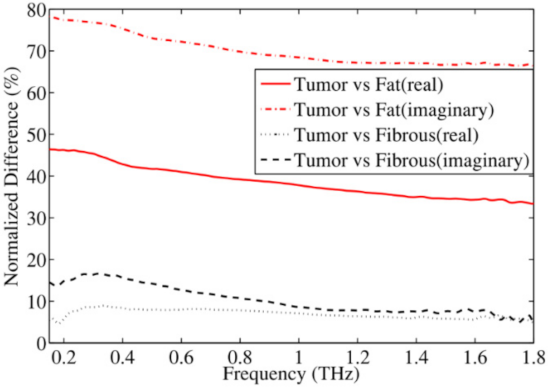

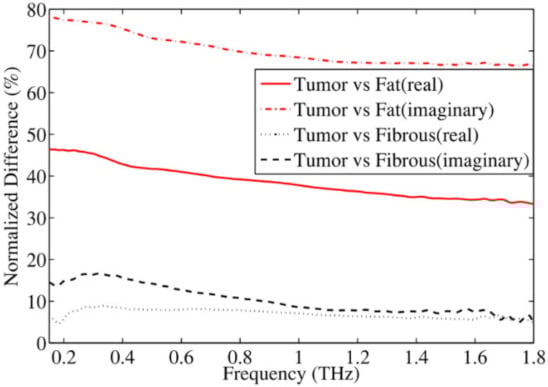

Figure 2. Normalized percentage difference in the average complex permittivity between two breast tissue groups (fibrous and fat) and tumor [57].
Figure 2. Normalized percentage difference in the average complex permittivity between two breast tissue groups (fibrous and fat) and tumor [57].
Sensors 21 06465 g002
Sensors 21 06465 g003 550

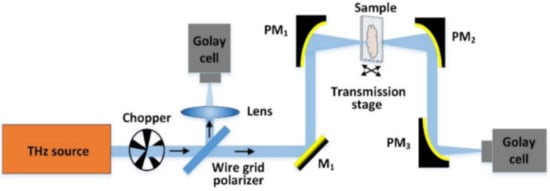

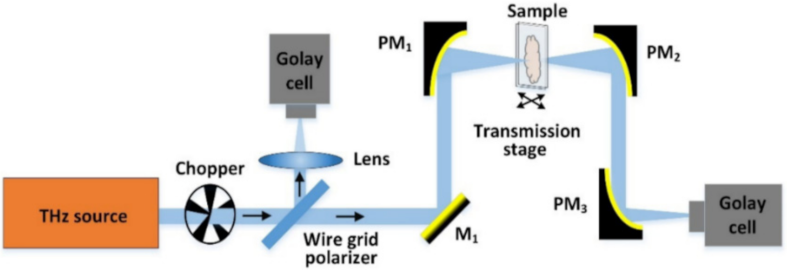

Figure 3. An example of the CWI system [60].
Figure 3. An example of the CWI system [60].
Sensors 21 06465 g003
Sensors 21 06465 g004 550

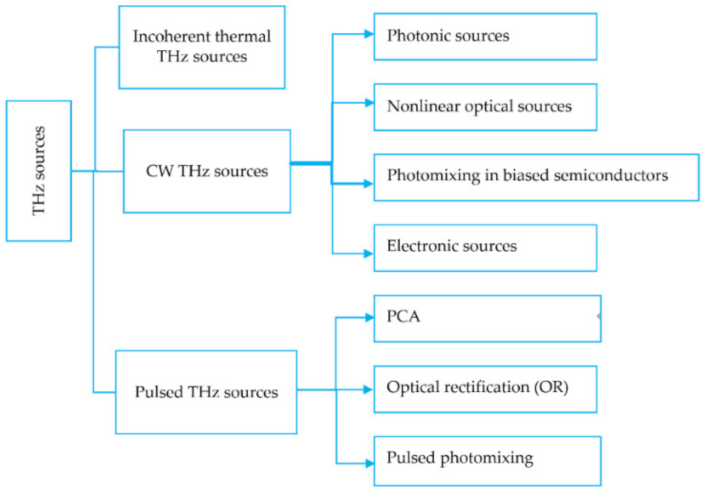

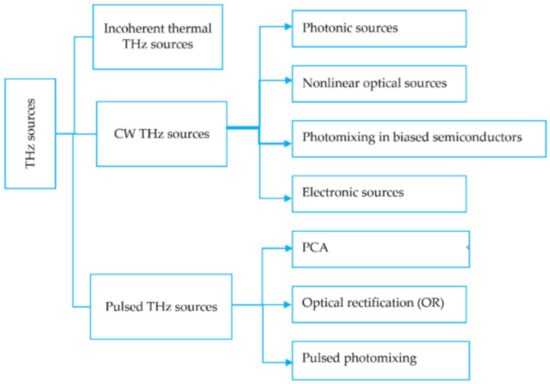

Figure 4. THz sources.
Figure 4. THz sources.
Sensors 21 06465 g004
Sensors 21 06465 g005 550

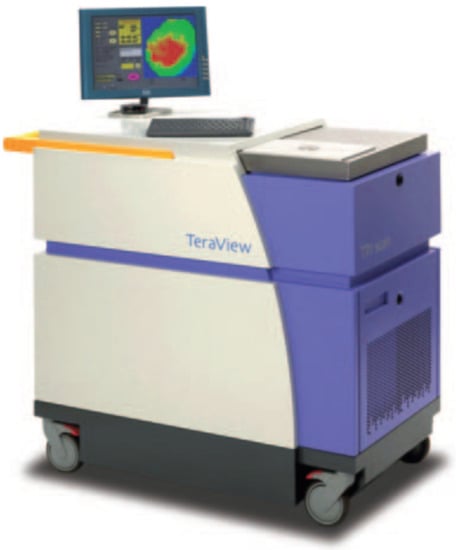

Figure 5. A photograph of the TPI system (TeraView Ltd., Cambridge, UK) [31].
Figure 5. A photograph of the TPI system (TeraView Ltd., Cambridge, UK) [31].
Sensors 21 06465 g005
Sensors 21 06465 g006 550

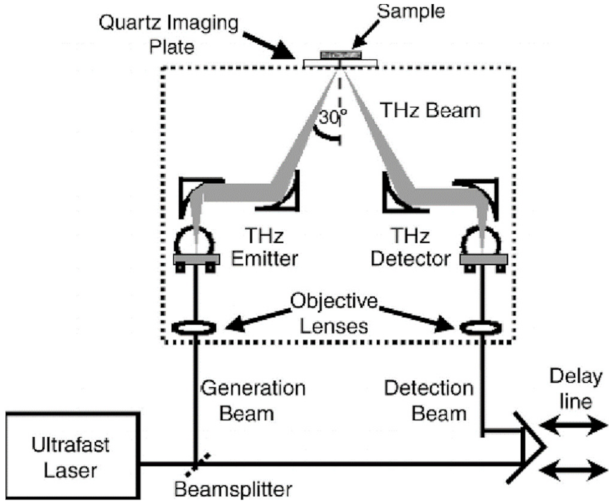

Figure 6. Schematic illustration of a TPI system for imaging breast tissue [32].
Figure 6. Schematic illustration of a TPI system for imaging breast tissue [32].
Sensors 21 06465 g006
Sensors 21 06465 g007 550

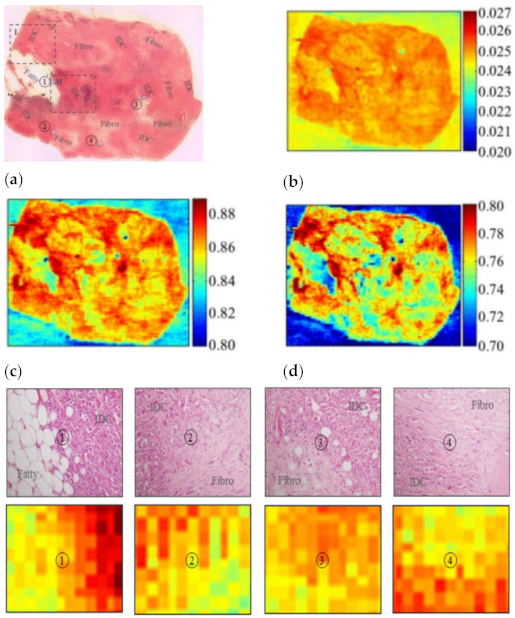

Figure 7. (a) Low-power pathology image, ①: regions between fatty and IDC; ②, ③, ④: regions between IDC and fibro. (b) THz time-domain image. (c) THz frequency-domain photo at 1.5 THz. (d) THz frequency-domain shot at 2.0 THz [71].
Figure 7. (a) Low-power pathology image, ①: regions between fatty and IDC; ②, ③, ④: regions between IDC and fibro. (b) THz time-domain image. (c) THz frequency-domain photo at 1.5 THz. (d) THz frequency-domain shot at 2.0 THz [71].
Sensors 21 06465 g007
Sensors 21 06465 g008 550

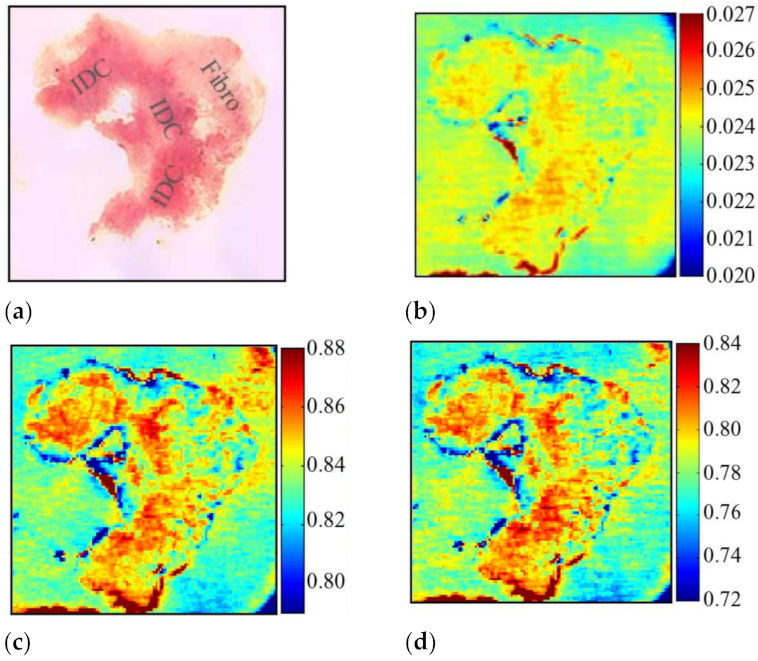

Figure 8. Images of sample 2: (a) low-power pathology image used for correlation; (b) THz time-domain image; (c) frequency-domain image at 1.5 THz; (d) frequency-domain image at 1.75 THz [71].
Figure 8. Images of sample 2: (a) low-power pathology image used for correlation; (b) THz time-domain image; (c) frequency-domain image at 1.5 THz; (d) frequency-domain image at 1.75 THz [71].
Sensors 21 06465 g008
Sensors 21 06465 g009 550

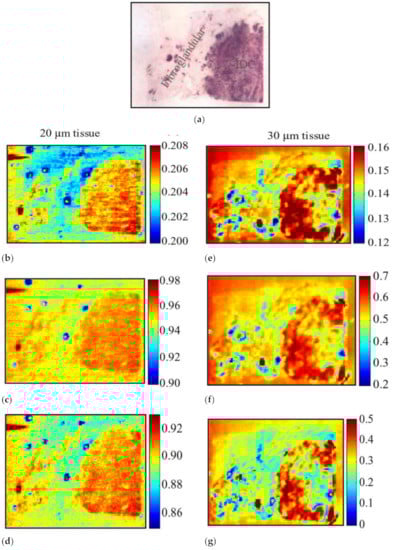

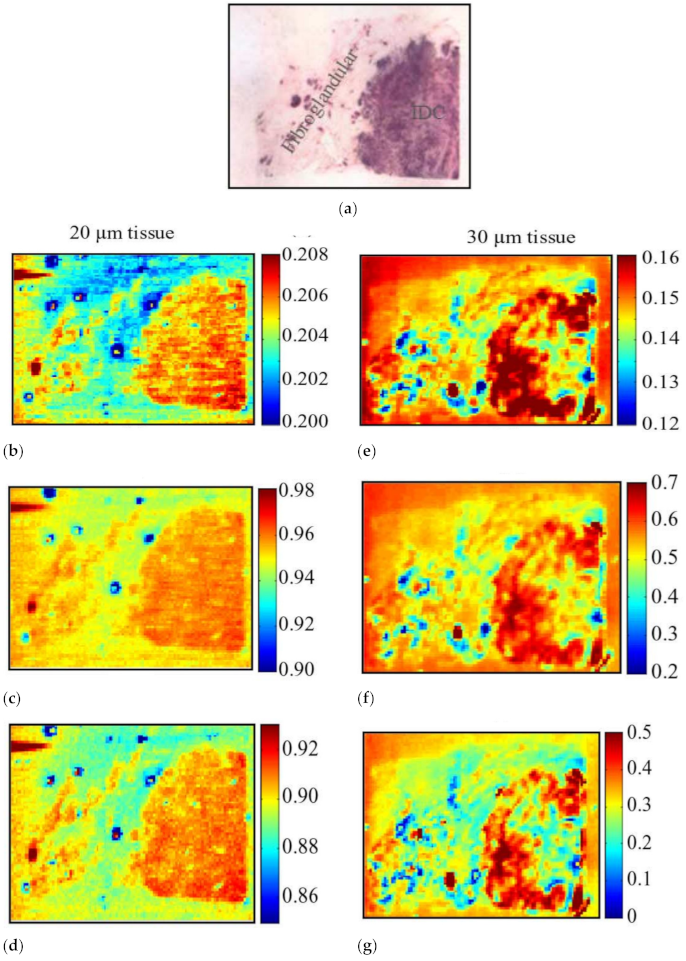

Figure 9. THz image of sample 3. (a) Low-power H&E pathology image used for correlation. THz images for 20 µm: (b) time-domain image; (c) frequency-domain image at 1 THz; (d) frequency-domain image at 1.25 THz. THz images for 30 µm: (e) time-domain image; (f) frequency-domain image at 1 THz; (g) frequency-domain image at 1.25 THz [71].
Figure 9. THz image of sample 3. (a) Low-power H&E pathology image used for correlation. THz images for 20 µm: (b) time-domain image; (c) frequency-domain image at 1 THz; (d) frequency-domain image at 1.25 THz. THz images for 30 µm: (e) time-domain image; (f) frequency-domain image at 1 THz; (g) frequency-domain image at 1.25 THz [71].
Sensors 21 06465 g009
Sensors 21 06465 g010 550

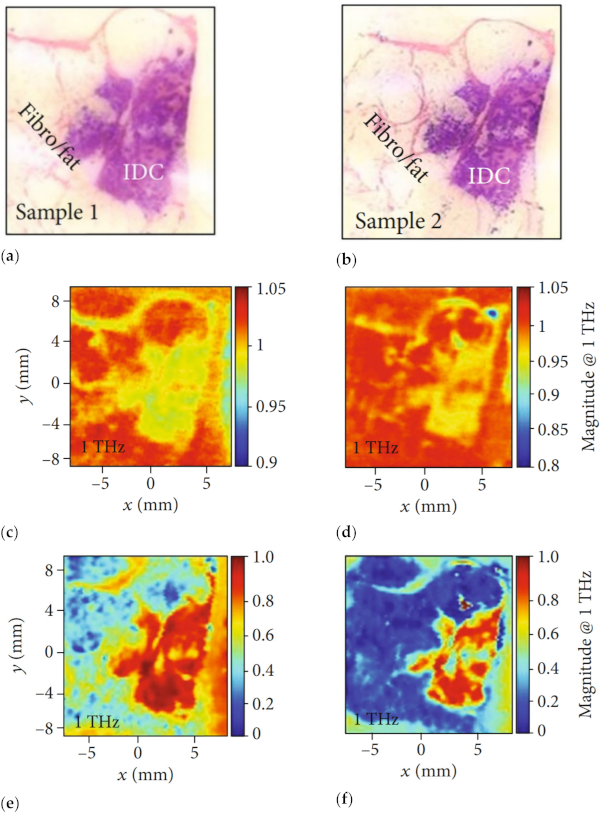

Figure 10. Images of IDC. Pathology of (a) sample 1 and (b) sample 2. Transmission magnitude images at 1 THz of (c) sample 1 and (d) sample 2. Reflection magnitude images at 1 THz of (e) sample 1 and (f) sample 2 [34].
Figure 10. Images of IDC. Pathology of (a) sample 1 and (b) sample 2. Transmission magnitude images at 1 THz of (c) sample 1 and (d) sample 2. Reflection magnitude images at 1 THz of (e) sample 1 and (f) sample 2 [34].
Sensors 21 06465 g010
Table
Table 1. Comparison between CW THz imaging system and TPI system [61].
Table 1. Comparison between CW THz imaging system and TPI system [61].
ParameterCW THz Imaging SystemTPI System
CostUSD 50,000–150,000USD 300,000–1,000,000
System complexityDataData
Data complexityLowHigh
Weight About 2 kgAbout 300 kg
Information Transmitted energyMagnitude information;
Phase information;
Shape of pulse;
Transmission time;
Absorption spectrum;
Depth
Speed0.005 s per point 1 mm step size 20–0.05 s per waveform
Table
Table 2. Generation of CW and pulsed THz radiations [61].
Table 2. Generation of CW and pulsed THz radiations [61].
CW THz RadiationPulsed THz Radiation
Generation approachMediumGeneration approachMedium
Photomixing Power cable switchTransient photoconductive switchingPCAs
Difference frequency generation using parametric oscillationNonlinear crystalOR Dielectrics, semiconductors, organic materials
Rotational transitionsFar-infrared gas lasersEmission from a periodically undulated electron beamElectron accelerators
Streaming motion and population inversionSemiconductor laserSurge currentSemiconductor
Frequency multiplication of microwavesSchottky barrier diodeTunneling of electron wave packet Quantum semiconductor structures
Transitions in superlatticeQuantum cascade lasersCoherent longitudinal optical phononsSemiconductors, semimetals, superconductors
Electron interactive with a traveling electromagnetic wave Backward wave oscillatorOptically short-circuiting the switchHigh-temperature superconductor bridge
Relativistic electron interaction with transverse magnetic fieldFree-electron lasersNonlinear transmission lineElectronic circuits consisting of NLTL
Table
Table 3. Current THz breast imaging studies.
Table 3. Current THz breast imaging studies.
Year FrequencyTHz SystemTargetResults
Berry et al., 2003 [66]0.5–2.5 THzTPI systemVarious human tissuesObserved significant differences between broadband refractive indices of several tissues
Wallace et al., 2004 [31]0.1–3.0 THzTPI scanner
(Teraview Ltd., Cambridge, UK)		BCC and healthy tissueCould identify the extent of BCC in vivo and delineate tumor margins
Fitzgerald et al., 2006 [32]0.1–3.0 THzTPI scanner
(Teraview Ltd., Cambridge, UK)		Freshly excised human breast tissues Could depict invasive breast carcinoma and ductal carcinoma
Ashworth et al., 2009 [33]0.15–2.0 THzA portable THz pulsed transmission spectrometerFreshly excised human breast specimens THz pulsed spectroscopy and TPI could distinguish healthy adipose breast tissue, healthy fibrous breast tissue, and breast cancer
Chen et al., 2011 [67]320 GHzCW THz near-field microscopy transmission imaging Frozen sliced breast tumors Breast tumor could be distinguished from normal tissue without H&E staining with a resolution of 240 μm
Chen et al., 2011 [68]108 GHzFiber-scanning transmission THz imaging Subcutaneous xenograft mouse Detection limit for tumor size reached 0.05 mm3
Joseph et al., 2011 [69]1.39 and 1.63 THzCW THz transmission imaging BCCObserved good contrast between cancer and normal tissues with a spatial resolution of 390 μm at 1.4 THz and 490 μm at 1.6 THz
Peter et al., 2013 [70]1.89 THzCW THz imaging mode Human breast cancer tissueObserved absolute refractive index values of samples
Bowman et al., 2015 [71]0.1–4.0 THzTPS Spectra 3000 modelParaffin-made breast phantomsCould detect heterogeneous sample with a thickness of 10 μm
Bowman et al., 2016 [34]0.1–4.0 THzTPS Spectra 3000 systemExcised breast carcinomasProvided higher resolution and more apparent margins between cancerous and fibro, cancerous and fat, fibro and fat
Bowman et. al., 2017 [35]0.1–4.0 THzTPS Spectra 3000 systemIDC and lobular carcinoma embedded in paraffin blocksTumor detection is accurate to depths over 1 mm.
Bowman et al., 2018 [72]0.5–1.0 THzTHz reflection modeFreshly excised breast tumorsAchieved good agreement between THz and pathology images
Grootendorst et al., 2017 [37]0.1–1.8 THzTPI handheld probe system (Teraview Ltd., Cambridge, UK)Freshly excised breast cancer samplesCould discriminate breast cancer from benign tissue with an encouraging degree of accuracy
Chernomyred et al., 2018 [73]10.6 THzCW THz SI microscopy reflectivity imaging system Human breast specimenObserved a fragment of the stroma of breast ex vivo
Cassar et al., 2018 [36]300–600 GHzTPI and spectroscopy Freshly excised murine xenograft breast cancer tumorsCancerous identification accuracy of 80%
Bao et al., 2018 [74]0.06–4.0 THzTeraPulse 4000 system (Teraview Ltd., Cambridge, UK)Freshly excised breast tissueSpatial resolution reached 1 mm
Vohra et al., 2018 [75]0.1–4.0 THzTPI system with a reflection mode
(Teraview Ltd., Cambridge, UK)		Freshly excised and formalin/paraffin-fixed breast tumor tissues from a mouse modelCancerous areas exhibited the highest reflection and agreed with the pathology results
Okada et al., 2019 [76]~~A scanning laser THz near-field reflection imaging systemParaffin-embedded human breast Spatial resolution reached 20 μm
Bowman et al., 2019 [77]0.5–1.0 THzTPS Spectra 3000 pulsed THz imaging and spectroscopy system (Teraview Ltd., Cambridge, UK)Freshly excised breast cancer tumorsCancerous areas exhibited higher absorption coefficients and refractive indexes than normal tissues, and the resolution reached 200 μm
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wang, L. Terahertz Imaging for Breast Cancer Detection. Sensors 2021, 21, 6465. https://doi.org/10.3390/s21196465

AMA Style

Wang L. Terahertz Imaging for Breast Cancer Detection. Sensors. 2021; 21(19):6465. https://doi.org/10.3390/s21196465

Chicago/Turabian Style

Wang, Lulu. 2021. "Terahertz Imaging for Breast Cancer Detection" Sensors 21, no. 19: 6465. https://doi.org/10.3390/s21196465

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
