Assessment of Dynamic Properties of Variable Area Flowmeters

by
Mateusz Turkowski
1,
Artur Szczecki
1,
Maciej Szudarek
1,* and
Krzysztof Janiszowski
2
1
Faculty of Mechatronics, Institute of Metrology and Biomedical Engineering, Warsaw University of Technology, 02-525 Warszawa, Poland
2
Faculty of Mechatronics, Institute of Automatics and Robotics, Warsaw University of Technology, 02-525 Warszawa, Poland
*
Author to whom correspondence should be addressed.
Sensors 2021, 21(9), 2917; https://doi.org/10.3390/s21092917
Submission received: 1 March 2021 / Revised: 28 March 2021 / Accepted: 12 April 2021 / Published: 21 April 2021
(This article belongs to the Special Issue Special Applications of Microsensors)

Abstract

:
In previous works, a non-linear equation describing variable area (VA) flowmeters in transient was presented. The use of a full nonlinear equation, despite giving accurate results, can be difficult and time-consuming and it requires having specific software and knowledge at one’s disposal. The goal of this paper was to simplify the existing model so that it could be used in applications where ease of use and ease of implementation are more important than accuracy. The existing model was linearized and simple formulae describing natural frequency and damping coefficients were derived. With these parameters, it is possible to assess the dynamic properties of a variable area flowmeter. The step response form can be identified and natural frequency and settling time can be estimated. The linearized model and the experiment were in reasonable agreement. The step response type was captured correctly for each of the six VA meter types. The error in the undamped natural frequency was not larger than 15%, which means that the VA meter sensor’s dynamic properties can be predicted at the design stage with sufficient precision.

1. Introduction

The rapid development of Industry 4.0 and the Internet of Things (IoT) has caused an increased demand for various kinds of sensors. Newman [1] projects that there will be more than 41 billion IoT devices by 2027, up from about 8 billion in 2019. Most of such devices include one or more sensors that collect data and information from the surrounding environment. These sensors measure or detect such quantities as temperature, pressure, humidity, moisture, sound, light, motion, acceleration, magnetic fields, gases or objects in proximity. One of the essential quantities is flow rate [2]. Considering the number of devices that rely on flow rate, one can expect that simple, rugged and cheap sensors will be of great interest for these purposes.
Therefore, the right solution for the measurement of flow rate could be a variable area (VA) flowmeter (commonly called a rotameter) equipped with a device that converts the position of a float into any standardized signal. In [3,4], a simple remote readout method is proposed that consists of a linear variable differential transformer. Other sources mention the application of Hall sensors [5,6], magneto-resistive sensor matrices parallel to the tube [7] or capacitance transmitters [8].
The VA flowmeter is a rugged and economical flow measurement device that is widely used for both low and medium flow rates in various industries [9,10,11]. IoT applications require a simple sensor construction and suitable operational properties, as well as decent metrological properties. VA flowmeters are characterized by moderate accuracy at best. However, similarly to process control and automation systems, in IoT applications, dynamic properties can be just as or even more important than static performance. Another advantage for IoT devices is the low and nearly constant pressure drop across VA meters.
In [12], such parameters as settling time, nature of step response (periodic or aperiodic) and overshoot of VA meters were studied and optimization procedures were presented. An analytical model describing VA meter dynamics was developed and validated experimentally. However, the application of such a model is time-consuming and, during the optimization process, nonlinear equations must be solved hundreds of times or more. Moreover, it requires appropriate software.
The main goal of this work is to simplify the existing formulae for applications where ease of use and ease of implementation are more important than accuracy. It was achieved by transforming the transient equation for VA meters into a linear form. With the linearized equation, the dynamic properties of the VA meter, such as undamped natural frequency and damping coefficient, can be obtained with a simple calculator. With such information, the dynamic performance of a variable area flowmeter can be easily assessed. It can determine if the response of the flowmeter will be oscillatory or aperiodic. In the case of oscillatory response, one can check whether the natural frequency would interfere with possible flow pulsations, which could cause resonance and uncontrolled bouncing of the float. Moreover, the linearized equations can be used for guidance on which parameters should be modified to obtain desirable behavior from the meter. Knowledge of natural frequency and damping can aid in tuning the flow control loop in process control applications.
The presented mathematical model can facilitate the development of new, miniaturized versions of VA meters, particularly useful for IoT applications. The model can also be used for diagnostics, where the registered flowmeter response to step change is compared against the linearized model.

2. Materials and Methods

2.1. Basic Theory of VA Meters

This subchapter recalls the basic theory of VA meter operation and introduces the terminology used throughout the article. For more information on complete derivations, see [12].
A simple VA meter’s crucial components are a conical tube and a float (Figure 1). Floats can be centrally guided, which may introduce friction effects or unguided, offering more repeatable results [13].
The pressure difference across the float results in an upthrust force balanced with the float’s immersed weight. Analysis of the force balance makes it possible to develop the steady-state equation of the VA flowmeter [12] in the form:
Q = C R e A 2 g V f ρ f ρ ρ A f
where A h = π h d f t a n γ + h 2 t a n 2 γ is the area of the annular slot between the float and the tube, df is the float diameter, h is the elevation of the float in the tube, γ is half of the tube’s tapering angle, g is the acceleration due to gravity, Vf is the float volume, ρf is the float density, ρ is the fluid density and A f = π d f 2 / 4 is the area of the perpendicular section of the float.
During the derivation of (1), numerous simplifying assumptions were made. The contraction effect is present, so the narrowest annular stream section, the “vena contracta”, is located at some point downstream of the float. Moreover, velocity profiles are not uniform and viscous effects together with dynamic drag take place. The secondary flows, usually appearing downstream bends or rectangular ducts [14], will also appear downstream of the float. The impact of all of these factors can be determined experimentally as a function of Reynolds number and introduced to Equation (1) in the form of the flow coefficient C(Re).
If volumetric flow rate changes over time, additional terms are present. The equation describing float movement for incompressible gas during transience was derived in [12] and it takes the following form:
m d 2 h d t 2 = ρ A f Q t C R e A h d h d t A f d h d t 2 2 C R e A h 2 g m
where m is the mass of the float.
As the differential Equation (2) is nonlinear, it requires numerical methods to approximate its solution.

2.2. Transformation of the Equation of VA Meter into Linear Form

In [12], the optimization of the VA meter with the use of Equation (2) is presented. The use of a full nonlinear equation, although giving accurate results, was proven to be difficult, time-consuming and requiring specific software and knowledge at one’s disposal. During the optimization process, the equation must be solved hundreds of times or more.
From a practical point of view, it would, therefore, be advantageous to have simple formulae that allow quick computation of the natural frequency and damping of the VA flowmeter. In the case of a linear differential equation in the form:
A 2 d 2 h d t 2 + A 1 d h d t + A 0 h = B Q
it is possible to transform it using the Laplace transform into an algebraic equation:
G s = Y s U s = k ω 0 2 s 2 + 2 ζ ω 0 s + ω 0 2
where k is the static gain, ω 0 is the natural frequency, s is a complex variable and ζ is the damping coefficient. Then, the natural frequency equals:
ω 0 = A 0 A 2
The damping coefficient ζ equals:
ζ = A 1 2 A 0 A 2
and the damped natural frequency ω equals:
ω = ω 0 1 ζ 2
Formulae (5) and (6) may be the basis for optimization of the VA meter in terms of its dynamic performance (e.g., minimization of the settling time). The linearized version of Equation (2) is derived in Appendix A. The approach used assumes continuity of the function in Equation (3). Then, a Taylor series expansion in a stable operating point can be applied. This expansion is limited to first-order terms, as in [15]. The steady-state position of the float was chosen as the operating point.
The damping coefficient ζ and undamped natural frequency ω 0 take the form:
ω 0 = ρ A f Q 0 2 π d f t a n γ + 2 π t a n 2 γ h 0 C R e A 3 h 0 m
ζ = ρ A f C R e A h 0 + A f Q 0 2 ω 0 C R e A 2 h 0 m
where h0 and Q0 are the position of the float in steady state and volumetric flow rate in steady state, respectively.
Then, the damped natural frequency ω can be calculated from Equation (7) and the height of the float in the VA meter can be calculated from:
h t = k Q 0 1 1 1 ζ 2 e ω 0 ζ t s i n ω 0 1 ζ 2 t + a r c t g 1 ζ 2 ζ
where k = h 0 / Q 0 and t is time, counting from the flow rate step input.

2.3. Experimental Setup

Six VA flowmeters with two float shapes (plumb bob and sphere) were investigated. Meters were calibrated with the use of a bell prover and flow coefficient C was determined experimentally as a function of the Reynolds number. There was a question of the appropriate approximating function, which would allow the calculation of a flow coefficient for any Reynolds number. Various approximating functions were verified: first-, second- and third-order polynomials, exponential functions and logarithmic functions. The residual sum of squares was calculated to estimate the goodness of fit. The best fit was obtained with the use of a logarithmic function:
C R e = D l n E R e t + 1
Coefficients D and E are listed for each VA meter in Table 1. The averaged values of D and E coefficients for a plumb bob float can be used for the initial, rough approximation of the flow coefficient at the design stage, when the real experimental data are not yet known.
The experimental study concerning the dynamic performance of VA meters was conducted with a methodology fully developed by the authors, which is described in detail in [12].
The test stand is shown in Figure 2. The step change in the flow rate was generated by opening a fast spring-operated valve. The volumetric flow rate step input was not ideal. Therefore, it was registered using a hot wire anemometer and later approximated by a function in the form of
Q t = Q 0 1 e 90 t
This formula was used in the nonlinear equation solution. In the case of the linearized equation, ideal step input was assumed.
The step response of the meter was registered with an analog 8 mm camera with a framerate of 50 frames per second. The position of the float was then measured on the screen of a film previewer.

2.4. Uncertainty Evaluation

Uncertainty analysis for steady state was developed in [12] under the assumption that the results will be comparable to the transient. As the experimental setup remains the same. the previously assessed uncertainty values apply to the present study as well.
The uncertainty of computing the steady-state position of the float varied from meter to meter. The largest uncertainty concerned the 3–30 dm3/h VA meter, where the expanded uncertainty was equal to U95(h) = 18.02 mm. The uncertainties were smaller for larger VA meters and were in the range of 2–4.5 mm.
The experimental uncertainty was assessed to be in the range of 0.4–2.6 mm.

3. Results and Discussion

There is a question of how such a massive simplification as linearization influences results. In this chapter, the linearized equation results are presented alongside the experimental data and the full nonlinear equation solutions.
The comparison of experimental data with the results obtained from the nonlinear Equation (2) and linearized Equation (10) is presented in Figure 3, Figure 4, Figure 5, Figure 6, Figure 7 and Figure 8. Figure 9, Figure 10 and Figure 11 present selected images of a step response captured by camera for various step values. In [12], more images are present for other response forms. The experimental data match the solutions of the nonlinear equation very well. The differences between experimentally captured step responses and nonlinear equation solutions are discussed in detail in [12].
The analysis of the calculated values of natural damped frequency ω and damping coefficient ζ presented in Figure 3, Figure 4, Figure 5, Figure 6, Figure 7 and Figure 8 can be used to understand VA meter behavior.
The oscillation frequency was higher for a lower step value in Figure 3, Figure 4 and Figure 5. Moreover, oscillation fragments below steady-state value were shorter than the upper parts in Figure 3, Figure 4, Figure 5 and Figure 6. This is easy to explain if we notice that natural frequency also increased as step value decreased.
The settling time decreased with the step value in both aperiodic and oscillatory responses. This is also evident as the damping coefficient increased at lower step values. The overshoot in the oscillatory response was smaller for the linearized model and the settling time during the aperiodic response was longer.
Comparing parameters such as damping ratio is not possible, because in the experiment and the nonlinear model, the response of the system was significantly different from a linear response. To assess the differences between both models and experiments, parameters such as damped natural frequency, overshoot and rise time were calculated.
The mean absolute error of calculating the damped natural frequency with the linear model in comparison to the experiment was equal to 6%, with the largest errors not exceeding 15%.
Overshoot was compared for oscillatory responses. In the case of plumb bob floats, the linear model always underestimated the overshoot, on average by 32%. The full nonlinear model either under- or overestimated the overshoot with a mean absolute error of 23%. In the case of the spherical float, both models overestimated the overshoot—the linear model by 18% and the nonlinear model by 11%.
Rise time was compared for aperiodic responses. The mean absolute error was equal to 35% in the case of the linear model and 7% in the case of the nonlinear model.
The linearized model captured the step response type correctly for each of the studied cases. The accuracy of the linearized model was worse than that of the full nonlinear model. The largest discrepancies are seen in the Figure 3, especially in the initial stage of the float movement. This came from the fact that the linearization was based on one specific operating point—the steady-state position of the float. In the initial stage the float position was significantly different and the accuracy of the linearized model was reduced. The approximating function C(Re) was another reason for the discrepancies. Firstly, the flow coefficient itself is a simplification that considers float shape. The agreement between experiments and numerical simulations was better for the simple ball shape than for the more complicated plumb bob shape. Secondly, the approximating function C(Re) was obtained by means of best fit of experimental data. Moreover, there was the uncertainty of the experimental data and uncertainty related to the inputs to the model, such as the shape of the float and the tube, the form of the step function, etc. Another factor that influenced results was that the plumb bob float rotates which requires some energy from the flow. This fact was included by neither the nonlinear nor the linearized model.
Although the damping coefficient was overestimated by the linearized equation, it correctly represented the behavior of the VA meter during transience. If calculated for several flow values over the meter flow rate range, it could deliver valuable information regarding its dynamic properties.

4. Conclusions

The primary mathematical model [12] describing the VA meter float during transience in the form of a nonlinear equation was the basis of the work presented in this paper. The simplified model presented here could be applied in scenarios where ease of use and ease of implementation are more important than accuracy. It was successfully validated during laboratory experiments with air as the test medium, showing good agreement between the model and experimental results.
After linearization, simple and well-known parameters were determined, namely, the natural frequency ω and damping coefficient ζ of the meter. They allowed the identification of the form of the step response (oscillatory or aperiodic) and assessment of the settling time. Such a form is much more convenient for a system engineer or meter designer.
The accuracy of the linearized model was inevitably worse than the accuracy of the full, nonlinear model. For the plumb bob float shape, the mean absolute error in computed overshoot with the linear model was 32%, whereas, in the case of the nonlinear model, it was 23%. In the case of the spherical float, both models overestimated the overshoot, the linear model by 18% and the nonlinear model by 11%.
The rise time during aperiodic response was longer for the simplified model. The mean absolute error was equal to 35% in the case of the linear model and 7% in the case of the nonlinear model.
The natural frequencies calculated from the linearized model differed from the real values obtained from experiments by over 12%. However, both models reflected good agreement with the actual step response characteristics. The accuracy of data derived from the linearized model will, in most cases, be sufficient to predict the dynamic properties of the VA meter sensor at the design stage.
Further research directions could cover the dynamics of VA meters for liquids and other types of VA meters, such as orifice VA meters. The present paper is limited to plumb bob and sphere floats; the research scope could be extended to other float shapes in future.

Author Contributions

Conceptualization, M.T.; data curation, M.T., A.S. and M.S.; formal analysis, M.T., A.S. and M.S. and K.J.; funding acquisition, M.T.; methodology. M.T. and K.J.; project administration, M.T.; resources, M.T.; software, M.T., A.S. and M.S.; supervision, M.T. and A.S.; validation, M.T., A.S. and M.S.; visualization, M.T., A.S. and M.S.; writing—original draft, M.T. and A.S.; writing—review and editing, M.T., A.S. and M.S. and K.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was fully funded by the statutory funds of Warsaw University of Technology, Faculty of Mechatronics.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

A = π (d2df2)/4 (m2)Area of the annulus between tube and float
A0. A1. A2. BCoefficients of the differential equation
Af = πdf2/4 (m2)Area of the float
C (-)Flow coefficient
d (m)Tube diameter corresponding to the current float position
df (m)Float diameter
dlow (m)Tube diameter at the height corresponding to the lower flow rate limit Qmin
dhigh (m)Tube diameter at the height corresponding to the upper flow rate limit Qhigh
D, E (-)Coefficients of a curve approximating C(Re)
g (m/s2)Acceleration due to gravity
h (m)Position of the float related to the zero level
h0 (m)Position of the float in a steady state
hlow (m)Height corresponding to the lower flow rate limit Qmin
hhigh (m)Height corresponding to the upper flow rate limit Qmax
k (m2/s)Gain
m (kg)Float mass
Q (m3/h)Volumetric flow rate
Qmax (m3/h)Upper flow limit
Qmin (m3/h)Lower flow limit
Q0 (m3/h)Volumetric flow rate in steady state
Re (-)Reynolds number
s (-)Complex variable
t (s)Time
U (m/s)Average fluid velocity
U95 (-)Expanded uncertainty at 95% confidence level
Vf (m3)Float volume
Δh (m)Distance between dlow and dhigh
ν (Pa·s)Kinematic viscosity of the fluid
ρ (kg/m3)Fluid density
ρf (kg/m3)Float density
γ (rad)Tapering angle
ζ (-)Damping ratio
ω (1/s)Damped natural frequency
ω0 (1/s)Undamped natural frequency

Appendix A

The known [12] transient differential equation of the VA meter (2) can be rewritten as
2 [ C R e A h ] 2 m d 2 d t 2 h + ρ A f { 2 Q t C R e A h + A f [ 2 C R e A h A f + [ C R e A h ] 2 + A f 2 ] d d t h } d d t h + 2 [ C R e A h ] 2 g m = ρ A f Q ( t ) 2
with
A h = π h d f t a n γ + h 2 t a n 2 γ
Let us denote for convenience that c = C R e β 1 = π d f t a n γ and β 2 = π t a n 2 γ . Then,
A h = β 1 h + β 2 h 2
An introduction of space representation for this problem yields the following form:
x 1 t = h t x 2 t = d d t h t
which allows representing the relation (A1) in the form
2 [ c A x 1 ] 2 m d d t x 2 + ρ A f { 2 Q t [ c A x 1 + A f ] [ 2 c A x 1 A f + [ c A x 1 ] 2 + A f 2 ] x 2 } x 2 + 2 [ c A x 1 ] 2 g m = ρ A f Q ( t ) 2
After basic transformations. we obtain a state space representation:
d d t x 1 = x 2 d d t x 2 = f x 1 , x 2 , Q = ρ A f c A x 1 + A f [ c A x 1 ] 2 m Q t x 2 + 2 ρ A f { c A x 1 A f + [ c A x 1 ] 2 + A f 2 } 2 [ c A x 1 ] 2 m x 2 2 g + ρ A f Q ( t ) 2 2 [ c A x 1 ] 2 m
where X = [x1(t) x2(t)]T is a vector of states and Q(t) is an input vector. A linearization of nonlinear dynamic system (A6) in a considered state X0 yields a linear dynamic representation in the form:
d d t X = A X + B u       u = Q t Y = C X       y t = x 1 t = h t
where
A = 0 1 α 1 α 2       B = 0 λ       C = 1 0 α 1 = d d x 1 f x 1 , x 2 , Q X 0       α 2 = d d x 2 f x 1 , x 2 , Q X 0       λ = d d Q f x 1 , x 2 , Q X 0
A transformation of (A7) into a transfer function form yields a compact representation of dynamics,
Y s = C [ s 1 A ] 1 B U s x 1 s = λ s 2 α 2 s α 1 u s
that contains all of the basic information about the dynamic response of Δh(t) in respect to flow ΔQ(t) changes:
H s = β s 2 + 2 ζ ω 0 s + ω 0 2 Q s
where β is the gain in steady state. ω0 is the eigen-frequency value. and ζ is the damping factor. This representation must be developed for the steady state, when h(t) is constant and equal to h0. hence, x2.0 = 0.
The derivation of coefficients α1, α2 and λ for (A9) yields the following formula:
α 1 = d d x 1 f ( x 1 , x 2 , Q ) | X 0 = d d x 1 ρ A f c A x 1 + A f c 2 A ( x 1 ) 2 m Q t x 2 X 0 + d d x 1 { 2 ρ A f c [ A x 1 A f + [ c A x 1 ] 2 + A f 2 ] 2 c 2 A ( x 1 ) 2 m x 2 2 } | X 0 + d d x 1 g + ρ A f Q ( t ) 2 2 c 2 A ( x 1 ) 2 m X 0
In the considered steady state x2.0 = 0; hence, it is not necessary to consider the first two terms of (A11) and in effect we obtain:
α 1 = d d x 1 f ( x 1 , x 2 , Q ) | X 0 = d d x 1 g + ρ A f Q ( t ) 2 2 c 2 A ( x 1 ) 2 m X 0 = ρ A f Q ( t ) 2 β 1 + 2 β 2 x 1 c 2 A ( x 1 ) 3 m X 0 = ρ A f Q 0 2 β 1 + 2 β 2 h 0 c 2 A ( h 0 ) 3 m
In the case of the second coefficient α2, we can derive a similar formula, considering that terms with x2(t) will vanish at steady state:
α 2 = d d x 2 f ( x 1 , x 2 , Q ) | X 0 = d d x 2 ρ A f c A x 1 + A f c 2 A ( x 1 ) 2 m Q t x 2 | X 0 + d d x 2 2 ρ A f c A x 1 A f + c A x 1 ] 2 + A f 2 ] 2 c 2 A ( x 1 ) 2 m x 2 2 | X 0 + d d x 2 g + ρ A f Q ( t ) 2 2 c 2 A ( x 1 ) 2 m | X 0 = ρ A f c A x 1 + A f c 2 A ( x 1 ) 2 m Q t | X 0 = ρ A f c A h 0 + A f c 2 A ( h 0 ) 2 m Q 0
The coefficient λ representing a static gain (A9) is determined by a relation derived like others:
λ = d d Q f x 1 , x 2 , Q X 0 = d d Q ρ A f c A x 1 + A f c 2 A ( x 1 ) 2 m Q t x 2 X 0 + d d Q 2 ρ A f c A x 1 A f + [ c A x 1 ] 2 + A f 2 2 c 2 A ( x 1 ) 2 m x 2 2 X 0 + d d Q g + ρ A f Q ( t ) 2 2 c 2 A ( x 1 ) 2 m X 0 = 2 ρ A f Q t 2 c 2 A ( x 1 ) 2 m X 0 = ρ A f Q 0 c 2 A ( h 0 ) 2 m
Introducing values for steady-state point h0 and Q0, one can obtain the following results:
ω 0 = α 1 = ρ A f Q 0 2 β 1 + 2 β 2 h 0 c 2 A ( h 0 ) 3 m = ρ A f Q 0 2 π d f t a n γ + 2 π t a n 2 γ h 0 c 2 A ( h 0 ) 3 m
ζ = α 2 2 ω 0 = ρ A f c A h 0 + A f 2 ω 0 c 2 A ( h 0 ) 2 m Q 0
k = λ ω 0 2 h 0 Q o

References

  1. Newman, P. The Internet of Things 2020: Here’s what over 400 IoT Decision-Makers Say about the Future of Enterprise Connectivity and How IoT Companies Can Use It to Grow Revenue. 2020. Available online: https://www.businessinsider.com/internet-of-things-report (accessed on 1 January 2021).
  2. He, W.; Yi, J.; Ma, Y.; Zhang, W.; Chen, S.; Min, J.; Yan, S.; Chen, B.; He, L. Development of Flowmeter with IoT Function. In IOP Conference Series: Materials Science and Engineering; IOP Publishing: Bristol, UK, 2020; Volume 782. [Google Scholar] [CrossRef]
  3. Mandal, N.; Kumar, B.; Sarkar, R.; Bera, S.C. Design of a flow transmitter using an improved inductance bridge network and rotameter as sensor. IEEE Trans. Instrum. Meas. 2014, 63, 3127–3136. [Google Scholar] [CrossRef]
  4. Mandal, N.; Rajita, G. An accurate technique of measurement of flow rate using rotameter as a primary sensor and an improved op-amp based network. Flow Meas. Instrum. 2017, 58, 38–45. [Google Scholar] [CrossRef]
  5. Ahn, H.J.; Kim, K.R. 2D Hall sensor array for measuring the position of a magnet matrix. Int. J. Precis. Eng. Manuf. Green Technol. 2014, 1, 125–129. [Google Scholar] [CrossRef] [Green Version]
  6. García-Diego, F.J.; Sánchez-Quinche, A.; Merello, P.; Beltrán, P.; Peris, C. Array of hall effect sensors for linear positioning of a magnet independently of its strength variation. A case study: Monitoring milk yield during milking in goats. Sensors 2013, 13, 8000–8012. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Mo, B.; Jiang, F.Y.; Zhang, H.X. The Electronic part of the metal tube rotameter. In Applied Mechanics and Materials; Trans Tech Publications Ltd: Baech, Switzerland, 2013; Volume 419, pp. 661–666. [Google Scholar] [CrossRef]
  8. Liu, C.Y.; Lua, A.C.; Chan, W.K.; Wong, Y.W. Theoretical and experimental investigations of a capacitance variable area flowmeter. Trans. Inst. Meas. Control 1995, 17, 84–89. [Google Scholar] [CrossRef]
  9. Baker, R.C.; Sorbie, I. A review of the impact of component variation in the manufacturing process on variable area (VA) flowmeter performance. Flow Meas. Instrum. 2001, 12, 101–112. [Google Scholar] [CrossRef]
  10. Jiang, W.; Zhang, T.; Xu, Y.; Wang, H.; Guo, X.; Lei, J.; Sang, P. The effects of fluid viscosity on the orifice rotameter. Meas. Sci. Rev. 2016, 16, 87–95. [Google Scholar] [CrossRef] [Green Version]
  11. Baker, R.C. The impact of component variation in the manufacturing process on variable area (VA) flowmeter performance. Flow Meas. Instrum. 2004, 15, 207–213. [Google Scholar] [CrossRef]
  12. Turkowski, M.; Szczecki, A.; Szudarek, M. Minimization of the settling time of variable area flowmeters. Sensors 2019, 19, 530. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Baker, R.C. Flow Measurement Handbook: Industrial Designs, Operating Principles, Performance and Applications; Cambridge University Press: Cambridge, UK, 2016. [Google Scholar]
  14. Vinuesa, R.; Schlatter, P.; Nagib, H.M. Secondary flow in turbulent ducts with increasing aspect ratio. Phys. Rev. Fluids 2018, 3, 54606. [Google Scholar] [CrossRef]
  15. Aström, K.J.; Albertos, P.; Blanke, M.; Isidori, A.; Schaufelberger, W.; Sanz, R. Control of Complex Systems; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2011. [Google Scholar]

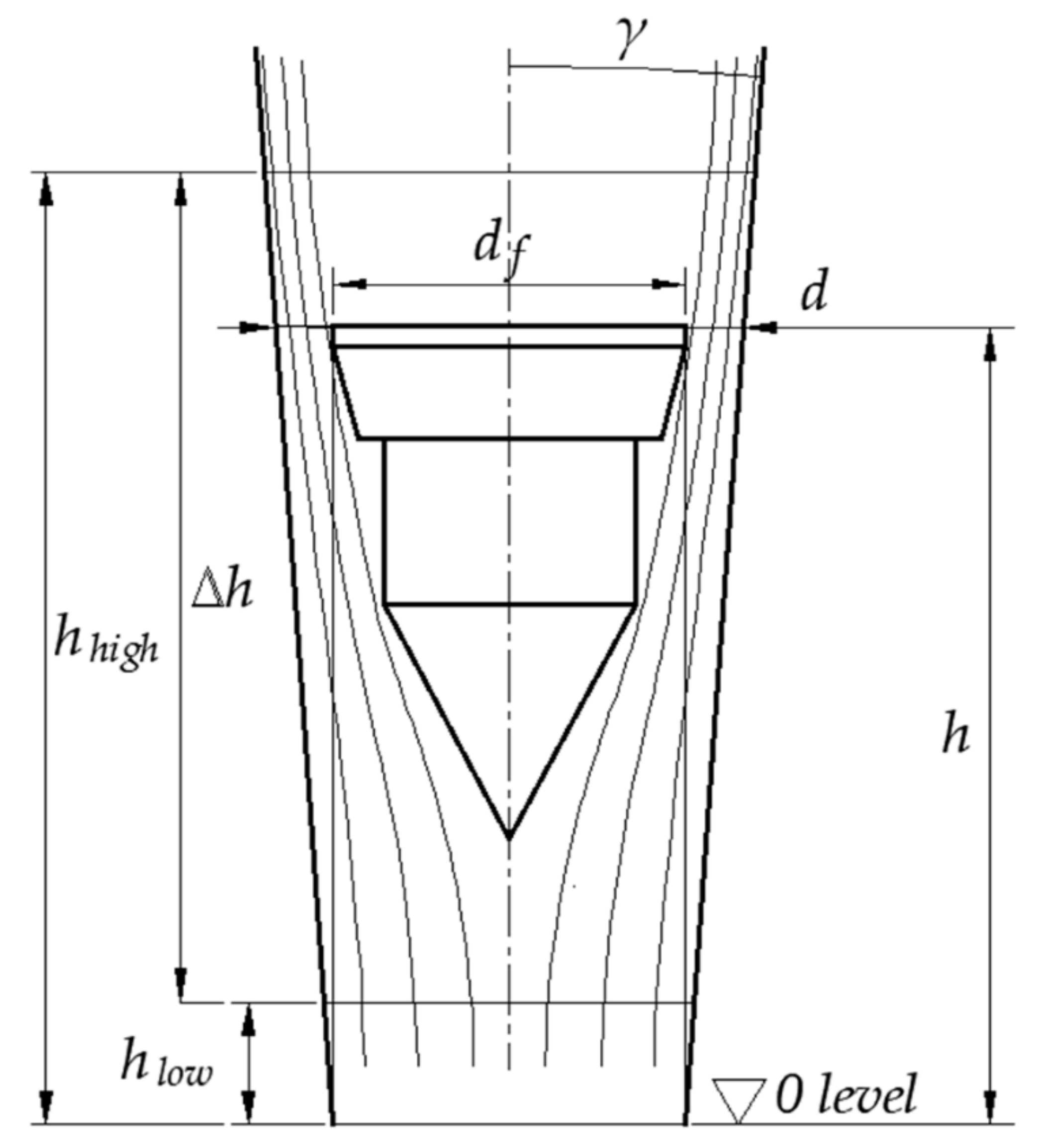

Figure 1. Simplified geometry of a variable area flowmeter and the streamlines across it (not to scale).
Figure 1. Simplified geometry of a variable area flowmeter and the streamlines across it (not to scale).
Sensors 21 02917 g001

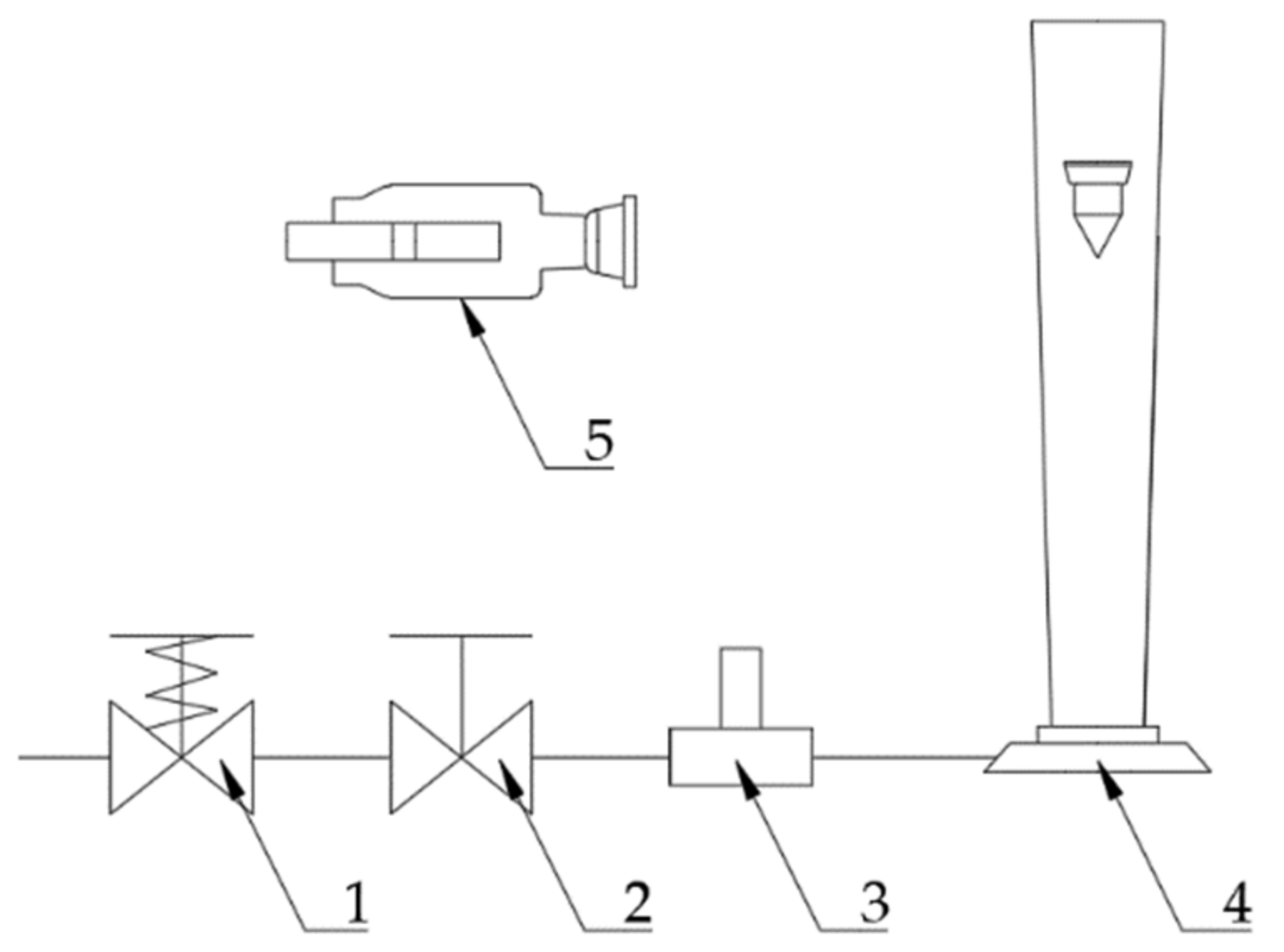

Figure 2. Test stand for the study of the VA meter’s dynamic performance. 1—fast-opening valve; 2—flow control valve; 3—constant-temperature anemometer with data acquisition system; 4—VA meter; 5—camera.
Figure 2. Test stand for the study of the VA meter’s dynamic performance. 1—fast-opening valve; 2—flow control valve; 3—constant-temperature anemometer with data acquisition system; 4—VA meter; 5—camera.
Sensors 21 02917 g002

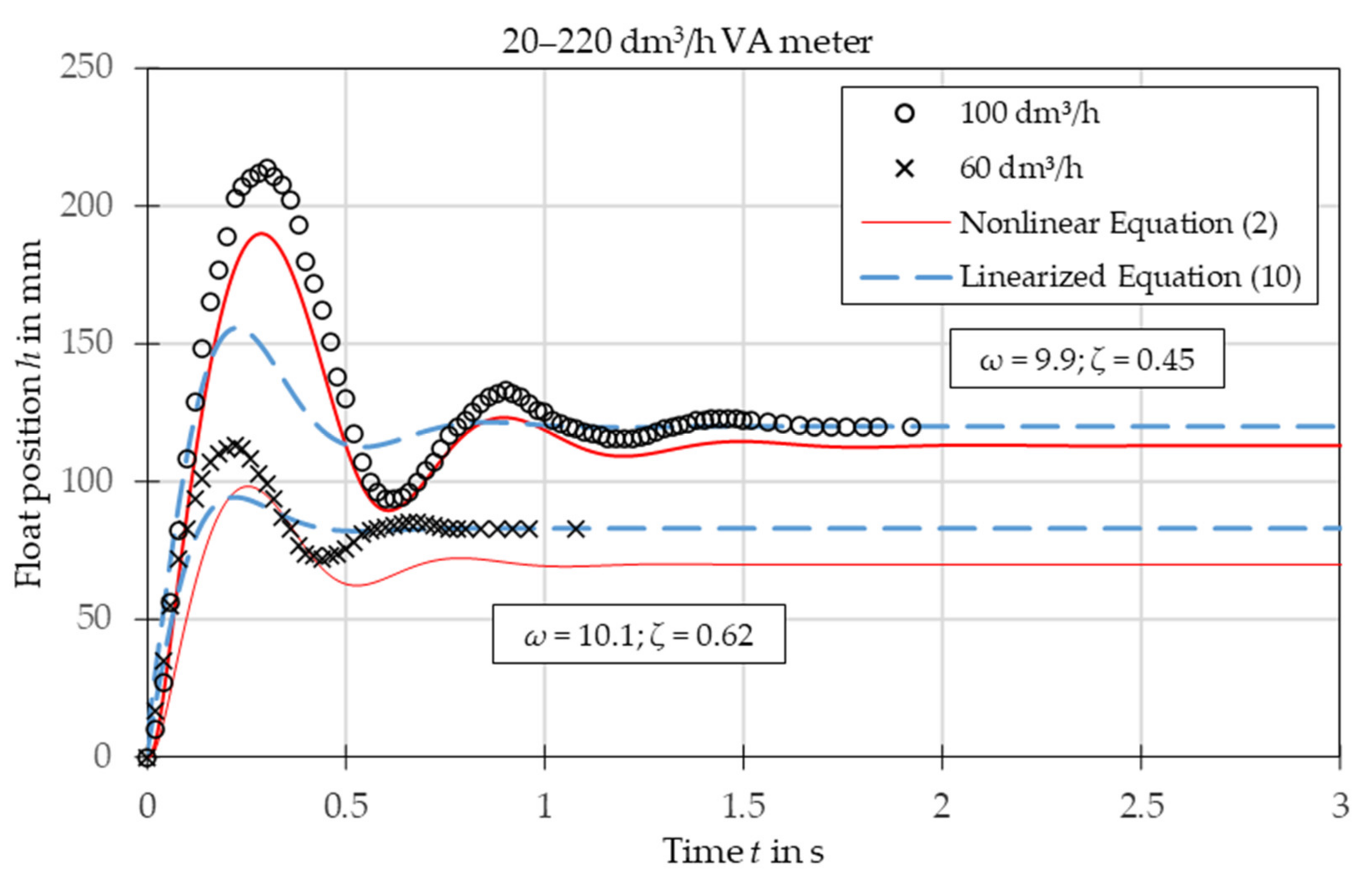

Figure 3. Step response for VA meter no. 2 for tested flow rates 60 dm3/h and 100 dm3/h. Damped natural frequency ω and damping ratio ζ refer to linearized equation solutions.
Figure 3. Step response for VA meter no. 2 for tested flow rates 60 dm3/h and 100 dm3/h. Damped natural frequency ω and damping ratio ζ refer to linearized equation solutions.
Sensors 21 02917 g003

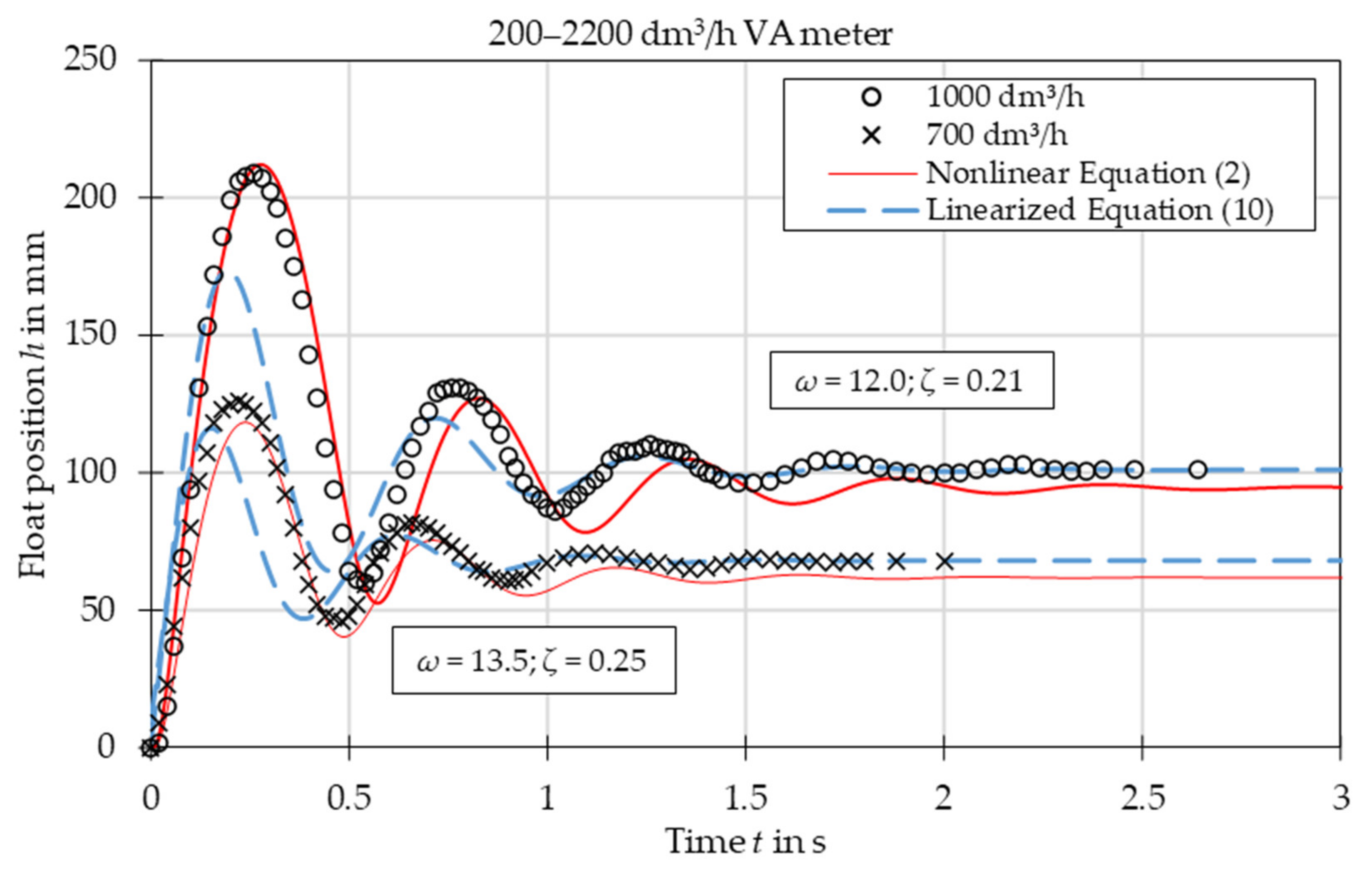

Figure 4. Step response for VA meter no. 4 for tested flow rates 700 dm3/h and 1000 dm3/h. Damped natural frequency ω and damping ratio ζ refer to linearized equation solutions.
Figure 4. Step response for VA meter no. 4 for tested flow rates 700 dm3/h and 1000 dm3/h. Damped natural frequency ω and damping ratio ζ refer to linearized equation solutions.
Sensors 21 02917 g004

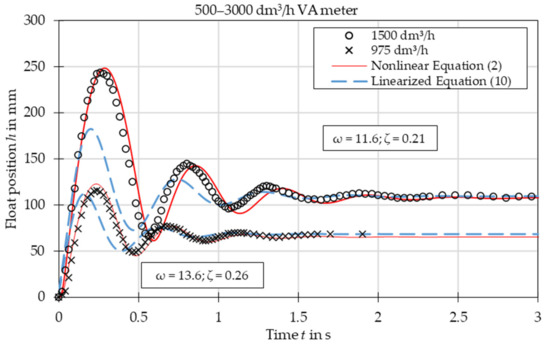

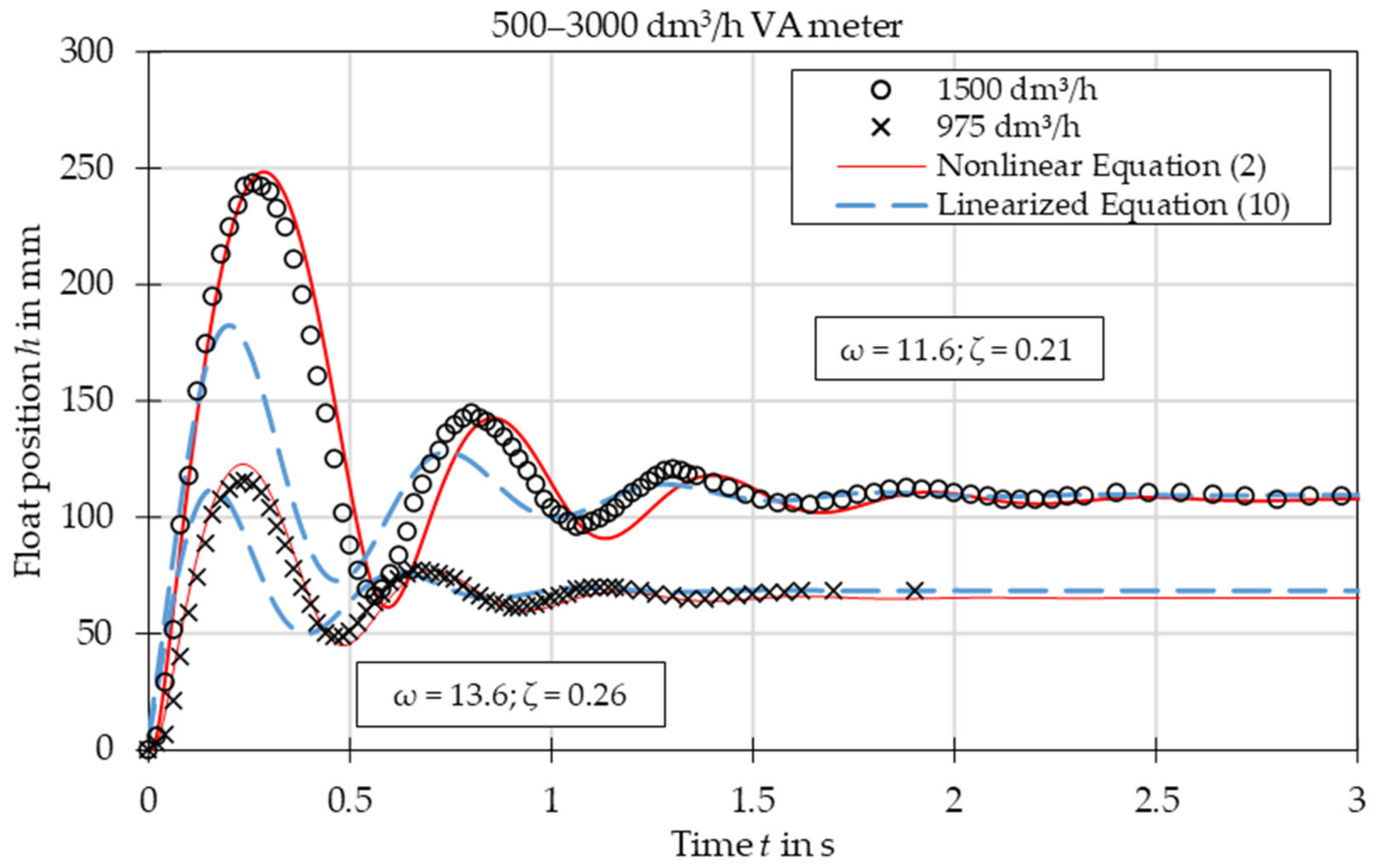

Figure 5. Step response for VA meter no. 5 for tested flow rates 975 dm3/h and 1500 dm3/h. Damped natural frequency ω and damping ratio ζ refer to linearized equation solutions.
Figure 5. Step response for VA meter no. 5 for tested flow rates 975 dm3/h and 1500 dm3/h. Damped natural frequency ω and damping ratio ζ refer to linearized equation solutions.
Sensors 21 02917 g005

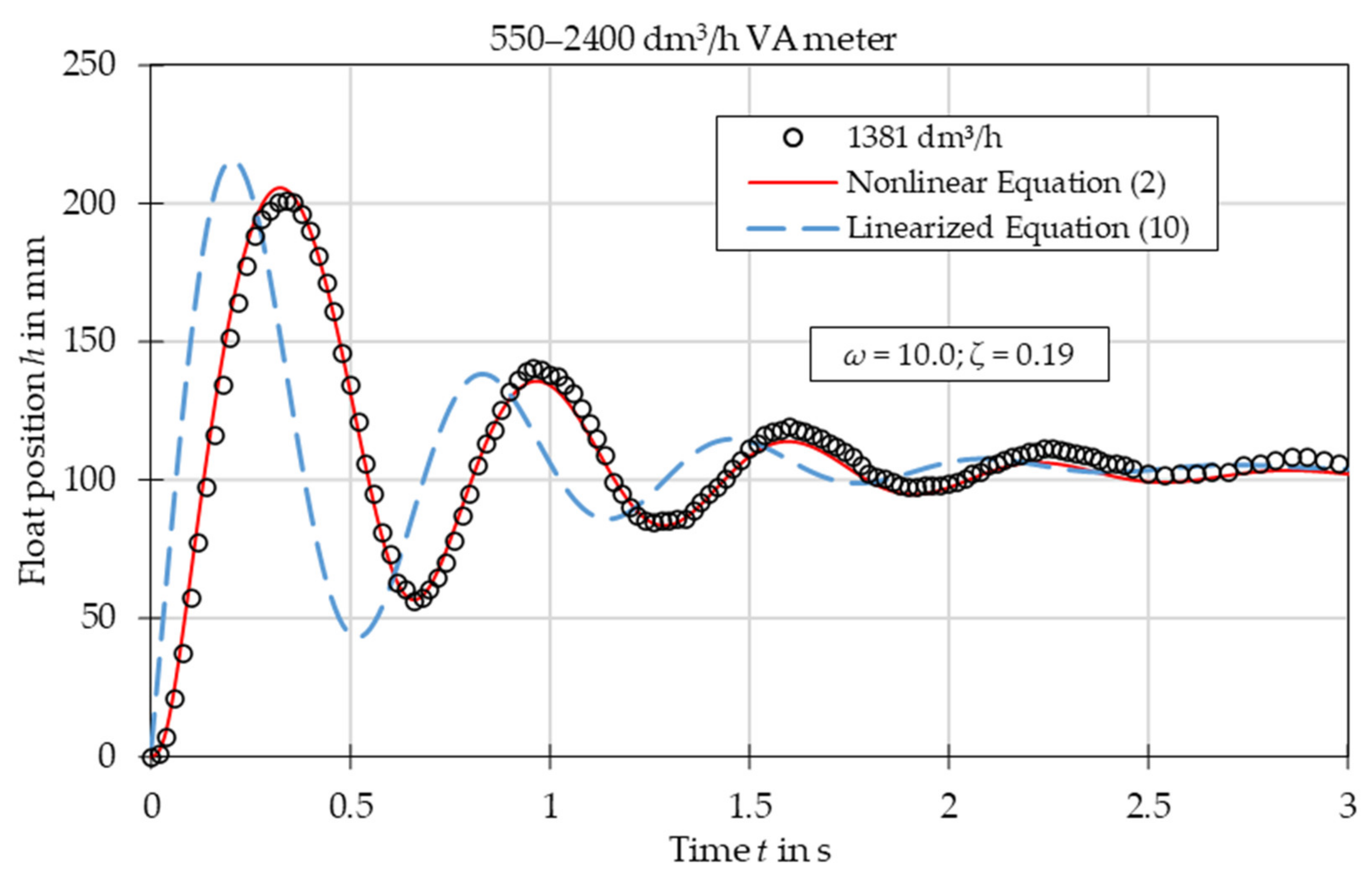

Figure 6. Step response for VA meter no. 6 for tested flow rate 1381 dm3/h. Damped natural frequency ω and damping ratio ζ refer to linearized equation solution.
Figure 6. Step response for VA meter no. 6 for tested flow rate 1381 dm3/h. Damped natural frequency ω and damping ratio ζ refer to linearized equation solution.
Sensors 21 02917 g006

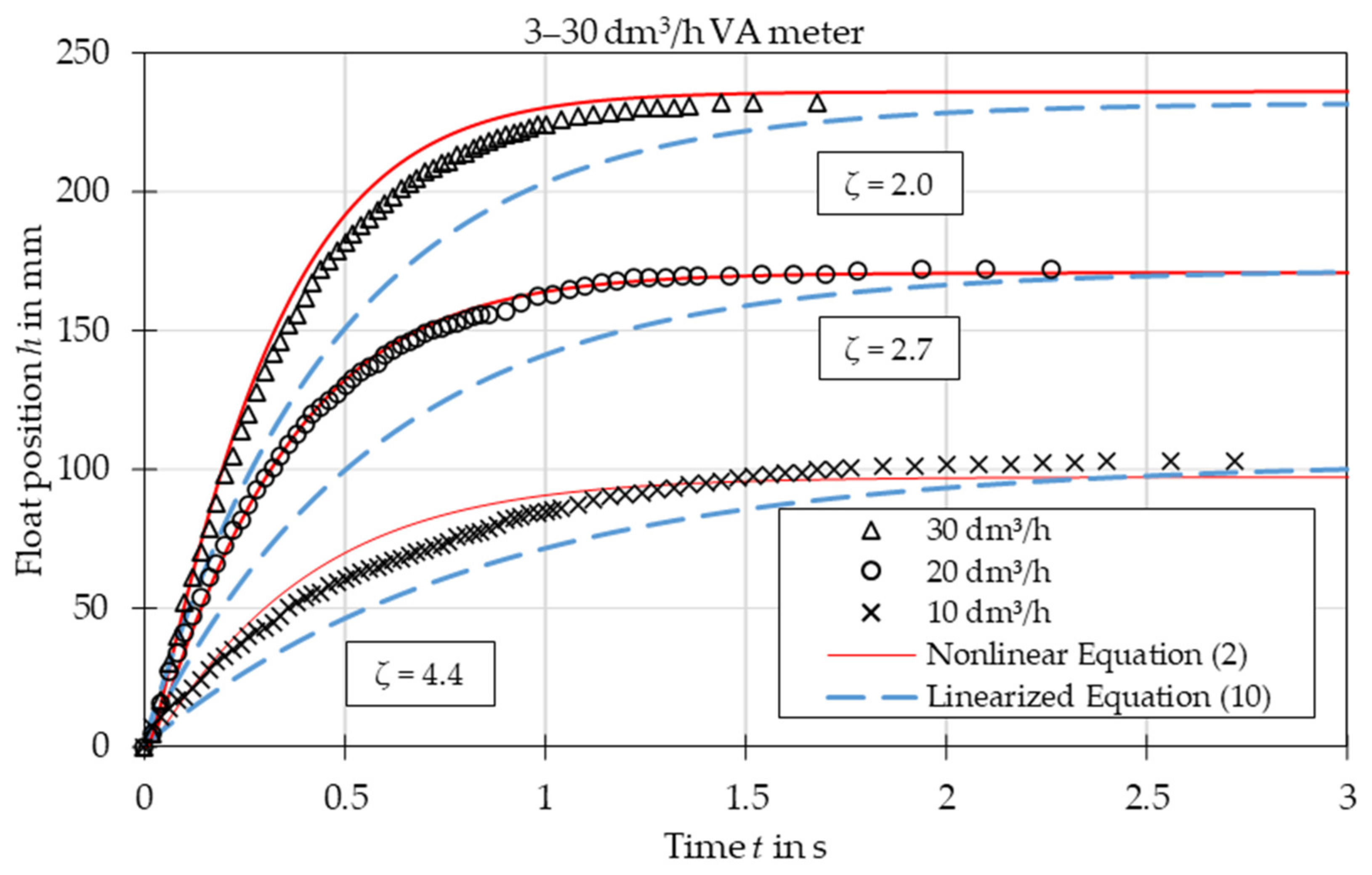

Figure 7. Step response for VA meter no. 1 for tested flow rates 10 dm3/h, 20 dm3/h and 30 dm3/h. Damping ratio ζ refers to linearized equation solutions.
Figure 7. Step response for VA meter no. 1 for tested flow rates 10 dm3/h, 20 dm3/h and 30 dm3/h. Damping ratio ζ refers to linearized equation solutions.
Sensors 21 02917 g007

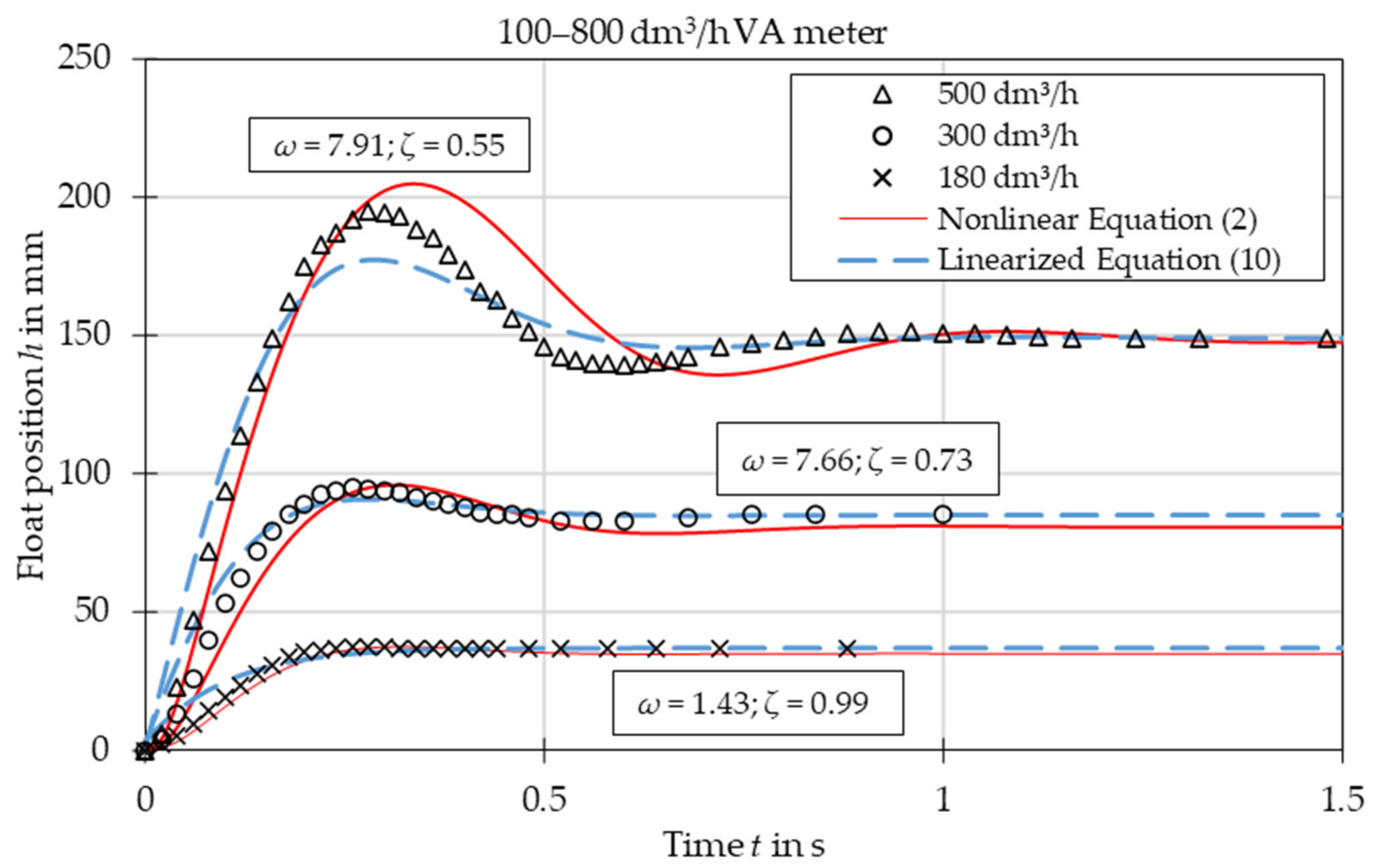

Figure 8. Step response for VA meter no. 3 for tested flow rates 180 dm3/h, 300 dm3/h and 500 dm3/h. Damped natural frequency ω and damping ratio ζ refer to linearized equation solutions.

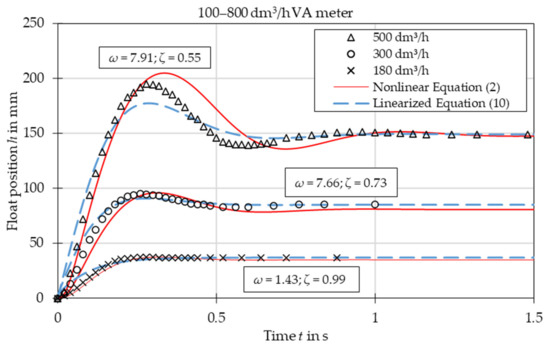

Figure 8. Step response for VA meter no. 3 for tested flow rates 180 dm3/h, 300 dm3/h and 500 dm3/h. Damped natural frequency ω and damping ratio ζ refer to linearized equation solutions.
Sensors 21 02917 g008

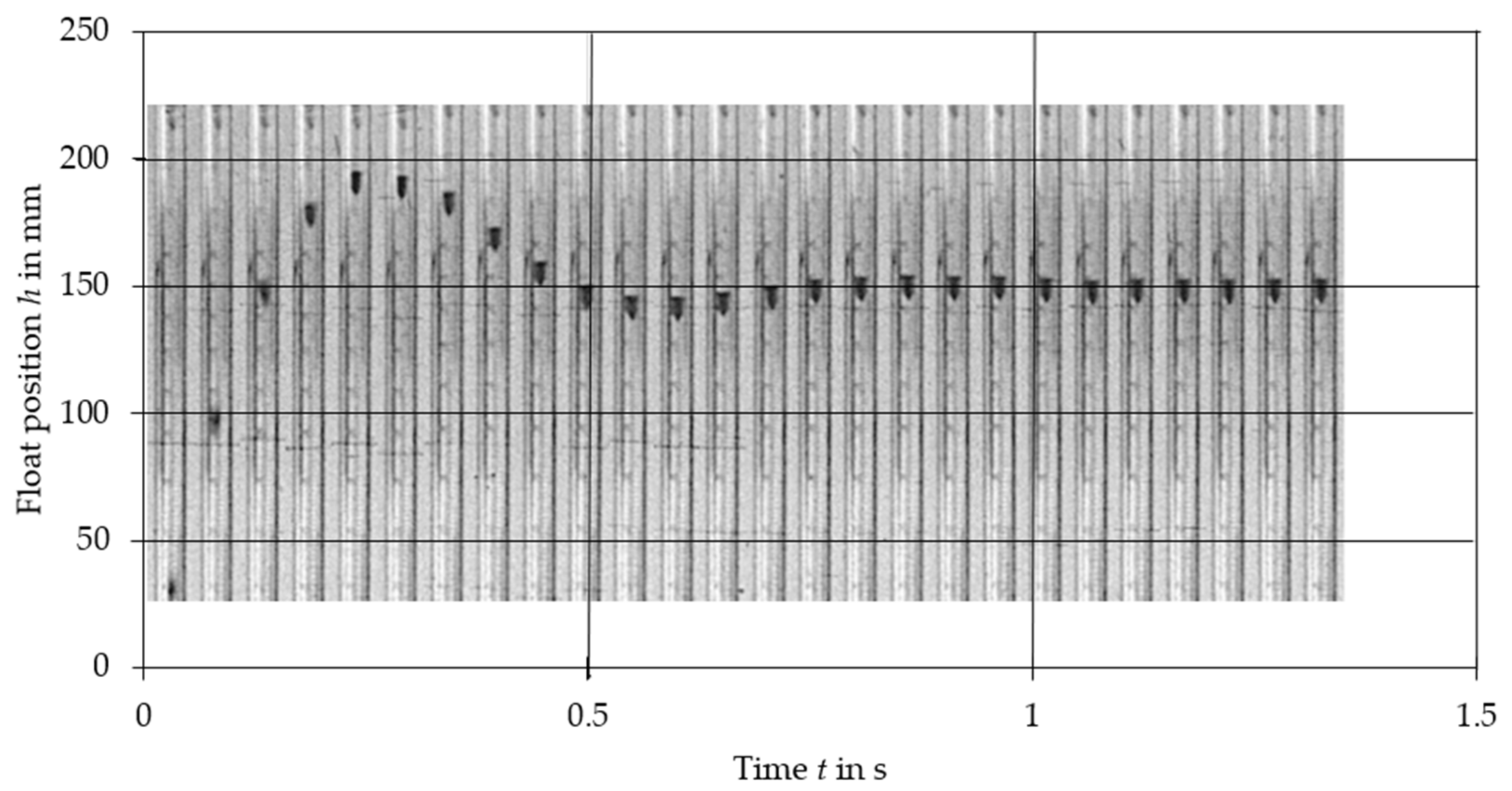

Figure 9. Selected frames from the 500 dm3/h step response of VA meter no. 3.
Figure 9. Selected frames from the 500 dm3/h step response of VA meter no. 3.
Sensors 21 02917 g009

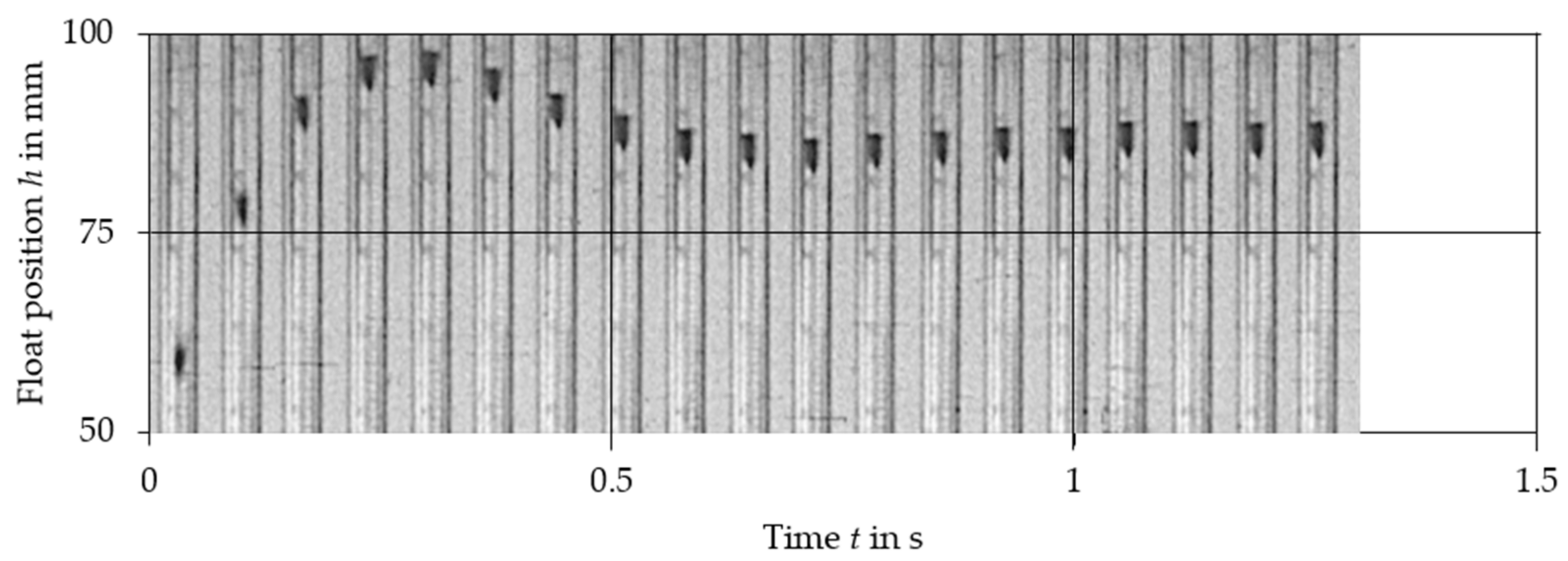

Figure 10. Selected frames from the 300 dm3/h step response of VA meter no. 3.
Figure 10. Selected frames from the 300 dm3/h step response of VA meter no. 3.
Sensors 21 02917 g010

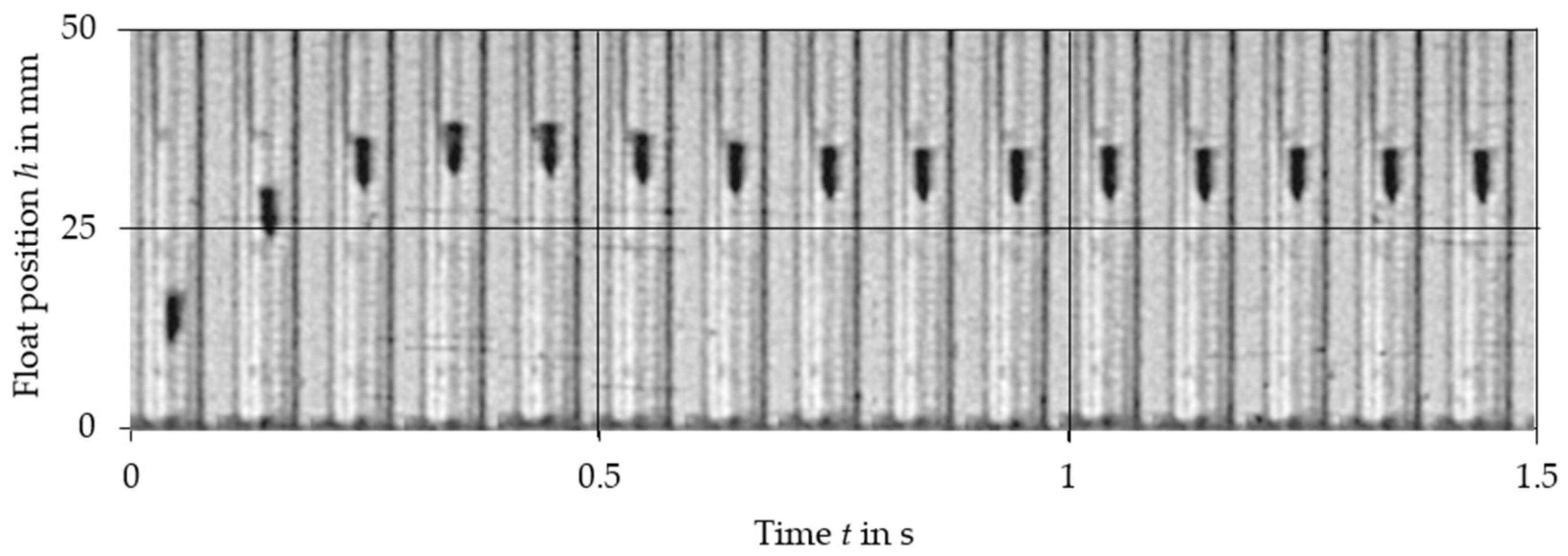

Figure 11. Selected frames from the 180 dm3/h step response of VA meter no. 3.
Figure 11. Selected frames from the 180 dm3/h step response of VA meter no. 3.
Sensors 21 02917 g011
Table 1. List of investigated variable area (VA) flowmeters and their most important parameters.
Table 1. List of investigated variable area (VA) flowmeters and their most important parameters.
VA No.Nominal Range in dm3/hFloat Shapedf
in mm
dlow
in mm
dhigh
in mm
Δh
in mm
m
in g
DE
13–30Plumb bob3.9904.0804.3102360.0530.23690.0815
220–220Plumb bob4.0304.1304.5602230.3810.24850.0388
3100–800Plumb bob8.9109.30710.3602160.5950.21320.0502
4200–2200Plumb bob9.0209.23710.3542154.0550.17890.0929
5500–3000Plumb bob11.03011.2212.4852367.2980.14440.297
Averaged for plumb bob0.204380.11208
6550–2400Sphere8.7319.23710.35421527.90.16800.1654
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Turkowski, M.; Szczecki, A.; Szudarek, M.; Janiszowski, K. Assessment of Dynamic Properties of Variable Area Flowmeters. Sensors 2021, 21, 2917. https://doi.org/10.3390/s21092917

AMA Style

Turkowski M, Szczecki A, Szudarek M, Janiszowski K. Assessment of Dynamic Properties of Variable Area Flowmeters. Sensors. 2021; 21(9):2917. https://doi.org/10.3390/s21092917

Chicago/Turabian Style

Turkowski, Mateusz, Artur Szczecki, Maciej Szudarek, and Krzysztof Janiszowski. 2021. "Assessment of Dynamic Properties of Variable Area Flowmeters" Sensors 21, no. 9: 2917. https://doi.org/10.3390/s21092917

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
