A Sensitive Capacitive Biosensor for Protein a Detection Using Human IgG Immobilized on an Electrode Using Layer-by-Layer Applied Gold Nanoparticles

by
Kosin Teeparuksapun
1,2,
Martin Hedström
2 and
Bo Mattiasson
2,*
1
Science Program, Department of General Education, Faculty of Liberal Arts, Rajamangala University of Technology Srivijaya, Songkhla 90000, Thailand
2
Division of Biotechnology, Lund University, P.O. Box 124, 221 00 Lund, Sweden
*
Author to whom correspondence should be addressed.
Sensors 2022, 22(1), 99; https://doi.org/10.3390/s22010099
Submission received: 24 October 2021 / Revised: 20 November 2021 / Accepted: 23 November 2021 / Published: 24 December 2021
(This article belongs to the Special Issue Capacitive and Impedance-Based Biosensors)
Browse Figures
Review Reports Versions Notes

Abstract

:
A capacitive biosensor for the detection of protein A was developed. Gold electrodes were fabricated by thermal evaporation and patterned by photoresist photolithography. A layer-by-layer (LbL) assembly of thiourea (TU) and HAuCl4 and chemical reduction was utilized to prepare a probe with a different number of layers of TU and gold nanoparticles (AuNPs). The LbL-modified electrodes were used for the immobilization of human IgG. The binding interaction between human IgG and protein A was detected as a decrease in capacitance signal, and that change was used to investigate the correlation between the height of the LbL probe and the sensitivity of the capacitive measurement. The results showed that the initial increase in length of the LbL probe can enhance the amount of immobilized human IgG, leading to a more sensitive assay. However, with thicker LbL layers, a reduction of the sensitivity of the measurement was registered. The performance of the developed system under optimum set-up showed a linearity in response from 1 × 10−16 to 1 × 10−13 M, with the limit detection of 9.1 × 10−17 M, which could be interesting for the detection of trace amounts of protein A from affinity isolation of therapeutic monoclonal antibodies.

Graphical Abstract

1. Introduction

The recent expansion of biopharmaceutical processes has created a large demand for rapid and sensitive analytical techniques for the detection of trace concentrations of impurities [1]. Previously, it was sufficient to state the percentage of the pure product; however, recent concerns have arisen about the identity and quantification of the remaining impurities. Host-cell proteins [2,3], endotoxins [4], nucleic acids, and viruses [5] constitute such impurities, together with reagents from the downstream processing. Contamination of monoclonal antibody preparations by protein A (PA) leaching from the affinity adsorbent is such an example [6,7]. Products contaminated with PA can cause immunogenic [8] and mitogenic effects [9,10]. Hence, the high purity of immunoglobulin for clinical applications is required [6].
Quantification of PA, which might be present at very low concentrations, is usually a tedious and cumbersome process [11]. To be able to detect the trace amounts of PA, a pre-enrichment step, for example, the use of another affinity step aimed at capturing the leaking ligands, might be required before the analysis [12]. Although the affinity sensor with immobilized IgG is readily available for the detection of leaking PA from the affinity column used for the isolation of monoclonal antibodies, an assay set-up might nevertheless remain complicated, even if the analytical sensitivity is high enough to detect PA at low concentrations [1]. Enzyme-Linked Immunosorbent Assay (ELISA) is a method often used for the analysis of protein A [11,12]. Unfortunately, this method requires labeling of primary antibodies and highly trained personal, and it is time consuming and sub-optimal for measuring at low concentrations.
Capacitive biosensors may overcome these problems. This technique is highly sensitive [1,13,14,15]. The assaying principle is simple and does not require the use of labeled reagents. The development and applications of capacitive biosensors have been widely reported [1,16,17,18,19]. As in other kinds of immunosensors, the analytical sensitivity of the sensor depends on the binding of target molecules to the antibodies immobilized on the transducer surface. As a consequence, immobilization strategies of the antibody are of great importance, and the sensitivity is believed to be dependent on the orientation and amount of antibody immobilized on an electrode surface [13,14,20,21,22,23].
Self-assembled monolayers (SAMs) of alkanethiols are often employed for the immobilization of antibodies in capacitive biosensors [15,16,17,18,24,25]. However, the preparation is time consuming, as the complete formation of a monolayer requires several hours. Application of gold nanoparticles (AuNPs) in biosensor development is of technological importance, since they have played an increasingly important role for improving the performance of the sensors [13,14,26,27,28]. The AuNPs can be applied directly for increasing the available surface area for immobilization, which could enhance the immobilization yield of biomolecules such as antibodies [13,14,23], or it can be pre-functionalized to enhance the immobilization of biomolecules [28,29]. With the use of AuNPs, one of the advantages is that biomolecules still remain active when they adsorb on AuNPs [30,31].
The application of AuNPs for immobilization of biomolecules can be done in several ways. The simplest strategy is the direct coupling of AuNPs to the transducer surface on which functional groups such as -NH2 [13,14,32] or -SH [33,34,35] were first introduced. The AuNPs can bind to such functional groups via a chemisorption process [13]. Several studies have reported that the use of AuNPs can enhance the immobilization of antibodies and thus increase the sensitivity of the sensor [13,14,36]. However, finding a suitable application of AuNPs for the immobilization method is still a challenge, especially for the development of highly sensitive assays. An alternative is to create a preparation of immobilized biomolecules via a layer-by-layer (LbL) assembly technique. This approach has attracted attention and has been demonstrated to offer suitable model surfaces for antibody immobilization [37,38,39]. The technique of applying nanoparticles using the LbL concept opens great opportunities to obtain a surface with several advantages, such as a wide choice of materials, simplicity, and precise control of thickness and layer composition [40,41,42,43], and it has been proven to be a promising technique for the immobilization of biomolecules [33,41,42,44,45].
In this paper, a layer-by-layer (LbL) assembly of TU and AuNPs was prepared using self-assembled monolayer (SAM) techniques and a chemical reduction method. The LbL layers were used for the immobilization of human IgG as a specific probe for the detection of protein A in a flow injection capacitive biosensor system.
The number of LbL layers (LbLn) and their sensitivities for protein A detection were investigated and compared to those obtained from a conventional self-assembled monolayer (SAM) of TU with glutaraldehyde cross-linking. The effect on analytical performance of capacitive immunosensors as a function of the number of layers was investigated and discussed.

2. Materials and Methods

2.1. Material

Silicon wafers (Ø = 3″, resistivity 1.0–10 Ω/cm2, thickness 320–370 µm) from Addison Engineering (San Jose, CA, USA) were used as the substrate for fabrication of gold electrodes. Chloroauric acid (HAuCl4) and thiourea (TU; NH2CSNH2) were purchased from Sigma-Aldrich® (Steinheim, Germany). Human gamma immunoglobulin (human-IgG) was purchased from Octapharma AB (Stockholm, Sweden). Protein A was a kind gift from Novozymes Biopharma (Lund, Sweden). All other chemicals were of analytical grade. Buffers were prepared with water treated with a de-ionizing system and processed by a reverse osmosis step with a Milli-Q system from Millipore (Bedford, MA, USA). This water is called Milli-Q water in the following text. Prior to use, all buffers were filtered through a Millipore filter (pore size 0.22 µm) and degassed for 1 h.

2.2. Methods

2.2.1. Fabrication of Gold Electrode

Gold electrodes were fabricated by thin film deposition using thermal evaporation and patterned by photoresist lithography and a wet etching. The electrodes were fabricated by coating thin layers of first 50 nm of chromium and then 200 nm of gold on a silicon wafer surface using a thermal evaporator E306 (Edwards, Sussex, UK). The Cr layer was applied to enhance the adhesion of Au. The pattern of electrodes was made via photoresist lithography [46]. First, the Cr-Au coated on the silicon wafer surface was coated with positive photoresist by holding a wafer on a spinner chuck under vacuum; the photoresist was coated to uniform thickness by spin coating at 3900 rpm for 60 s. Solvents from the photoresist coating were removed by soft baking at 80 °C for 20 min. Thereafter, a photo mask was aligned with the Cr-Au-photoresist coated wafer, and the photoresist was exposed through the pattern on the mask with a high intensity of ultraviolet (UV) light. The chemical structure of the photoresist exposed to the UV light was changed and could be removed by the developer (MicropositTM 351 developer 1: 4 Milli-Q water). The Au and Cr layers were then etched by gold and Cr etching solution, respectively. This step resulted in a pattern of Au electrode on the silicon surface; the silicon plate was then cut to a dimension of 7 × 23 mm with a dicing saw. In this case, the photoresist remained coated on the surface to protect the Au layer from the dust from the cutting step. Finally, the photoresist was removed by soaking in acetone and subsequently ethanol. It was then dried with pressurized air and kept in a desiccator at 4 °C.
Surface properties of the fabricated electrodes were characterized using Atomic Force Microscopy (AFM) from NTEGRA (Zelenograd, Russia). The image was taken in tapping mode using a silicon cantilever of the type NT-MDT (Molecular Device and Tools for Technology (NT-MDT)) from NTEGRA.

2.2.2. Preparation of Layer-by-Layer (LbL) of TU and AuNPs and Human IgG Immobilization

Layer-by-layer (LbL) of self-assembled TU and AuNPs was created on the surface of the Au electrode and used as a platform for the immobilization of human IgG. The electrode surface was first cleaned with freshly prepared Piranha solution (3:1 mixture of concentrated H2SO4 and 30% w/w H2O2) through sonication for 15 min in order to remove dust or any possible residuals from the fabrication process. The electrodes were then rinsed several times with Milli-Q water, dried with nitrogen gas, and placed in a plasma chamber for 20 min (Model PDC-3XG, Harrich, NY, USA) to remove possible remaining impurities and contaminants from surfaces. The preparation of LbL of AuNPs on the assembly of TU was modified from Tang et al., 2008 [33]; this is described in Figure 1a–e. For one layer (LbL1) (Figure 1a), the preparation consisted of three steps. First, cleaned Au electrodes were immersed in 250 mM TU solution at room temperature for 2 h (Figure 1a(1)). In this step, self-assembled TU monolayer had formed on the Au surface (Au-TU). After rinsing with Milli-Q water, electrodes were immersed in 100 mM HAuCl4 solution in the dark for 2 h with gentle mixing (Au-TU1-Au1). During this step, the [AuCl4]− ions formed a complex to the NH2 groups of self-assembled TU on the electrode (Figure 1a(2)). Afterwards, the electrode with [AuCl4]−-NH2 complexes was immersed in 100 mM NaBH4 containing 300 mM NaOH under gentle mixing of the solution (Figure 1a(3)). This step led to the reduction of Au3+ to neutral AuNPs, and the change of color from yellow to light red was observed at the electrode surfaces.
To obtain more layers (Figure 1b–e), an electrode with [AuCl4]−-NH2 complex (Au-TU1-AU1) was then again immersed in TU (step 1) after exposure to HAuCl4 (step 2) solution. The process was repeated for the assembly of TU and [AuCl4]− ions to obtain the desired number of layers. At the end, the electrodes were immersed in NaBH4, similar to the case of one layer (LbL1), and these electrodes were named as LbLn, where n is the number of layers.
The TU-AuNPs-LbLn modified electrodes were then rinsed intensively with 100 mM sodium phosphate buffer, pH 7.2, and dried with pure nitrogen gas. Then, 20 µL of 1.65 mg/mL human IgG was dropped on the electrode surface and left overnight at 4 °C. The antibodies bound randomly to the AuNPs surface through chemisorption. The electrode with immobilized human IgG was kept at 4 °C until further use. The number of layer-by-layer assemblies were varied, and their analytical characteristics for the detection of protein A were evaluated.
Immobilization of human IgG was also studied with conventional self-assembled thiourea [47] in order to evaluate the performance of the LbL assembly for the enhancement of antibody immobilization and the resulting sensitivity. Briefly, the cleaned gold electrodes were immersed in 250 mM TU solution for 2 and 24 h. The TU modified electrodes were then treated with (5% v/v) glutaraldehyde in 10 mM sodium phosphate buffer at pH 7.2 for 20 min to introduce aldehyde groups on the electrode surface. Human IgG (1.65 mg/mL) was then immobilized on the activated surface. Prior to use, all aldehyde groups that did not couple with human IgG were treated with 0.1 M ethanolamine at pH 8.00 for 30 min. Before the analysis, prior to placement into the detection flow cell of the capacitive measuring system, the electrodes were immersed in 10 mM 1-dode canethiol ethanolic solution for 20 min to cover bare parts of the Au surface, resulting in a completely insulated surface. The sensitivities of electrodes prepared by LbL and conventional SAM techniques were evaluated, and the electrode that gave the best performance was used for further study of analytical performances, linearity, and detection limits.

2.2.3. Characterization of LbL Modified Electrodes by Cyclic Voltammetry

The cyclic voltammograms of electrodes after modification with layer-by-layer TU and AuNPs can give useful information. This experiment was conducted to prove if the AuNPs were successfully reduced at the last step of the preparation. In theory, the electrode modified with AuNPs will enhance the electron transfer, and this will result in higher redox peaks of cyclic voltammogram of the redox couple, e.g., potassium ferricyanide. Thus, the more layers, the higher the redox peaks. The cyclic voltammetry measurement was performed using a potentiostat/galvanostat/Autolab (PGSTAT 12, The Netherlands) equipped with GPES 4.8 software. Electrochemical measurements involved three electrodes: an Au electrode, either unmodified or covered by different layers, as working electrode; and a custom-made silver-silver chloride (Ag/AgCl) and a platinum wire, serving as reference and auxiliary electrode, respectively. All cyclic voltammograms were recorded in 50 mM potassium ferricyanide K3[Fe(CN6)] containing 0.1 M KCl by sweeping the potential range between −300 and +800 mV at a sweep rate of 100 mV/S.

2.2.4. Quantification of Immobilized Human IgG

The amounts of human IgG immobilized on electrodes prepared with different numbers of layer-by-layer (LbL1-LbL4) and typical SAMs were calculated after the human IgG was immobilized on the electrodes. The electrode surfaces were washed with 10 mM sodium phosphate buffer at pH 7.2. The washing volume was collected and used for the quantification of human IgG. The immobilized amount was calculated by subtracting the amount of human IgG found in the washing fraction from the initial loading amount. The concentrations of human IgG in washing fractions were quantified by Bicinchoninic acid (BCA) Protein Assay. Ten microliters of BSA protein standards (0.20, 0.40, 0.60, 0.80, and 1.0 mg/mL) and samples were added with 200 µL of BCA working reagent (Bicinchoninic Acid Protein Assay kit, BCA-1, Sigma) (1:50 ratio of CuSO4 to BCA) in a 96-well plate. After incubation at 37 °C for 30 min, the absorbance at 562 nm of each solution was recorded. Human IgG concentration in each sample was determined by comparing the absorbance of samples to the standard curve and multiplying with the dilution factors.

2.2.5. Capacitance Measurement

An electrode with immobilized human IgG was inserted as the working electrode in a specially constructed flow cell equipped with four electrodes and a dead volume of 10 µL [10]. A platinum foil and platinum wire served as auxiliary and reference electrodes, respectively. An external reference electrode (Ag/AgCl) was placed in the outlet stream. A fast data acquisition unit (575 measurement and control system, Keitley Instrument, Cleveland, OH, USA) was connected between the potentiostat and a personal computer. The carrier buffer was pumped by a peristaltic pump (M-312 Gilson, France) at a controlled flow rate of 100 µL/min. Protein A was injected into the flow stream via a 250 µL sample loop, and the sensor was regenerated with pre-optimized regeneration buffer (25 mM glycine-HCl, pH 2.4). The capacitance measurement, which is based on potentiostatic step, was performed in the same way as described in previous reports [11,12,13,14].

2.2.6. Regeneration of the Electrode

In order to obtain a reproducible capacitive measurement, a complete regeneration of the surface between the injections of PA must be obtained. The efficiency of regeneration was studied by repeated injections of a standard PA at the same concentration (1.0 × 10−14 M) followed, after reading the capacitance change, by a pulse of 25 mM glycine-HCl at pH 2.4 as regeneration solution. The study was done over 2 days (20 injections of PA and regeneration solution/day). To test the performance of the regeneration solution, the percentage residual activity was calculated (Equation (1)) from the capacitance change (∆C) as a consequence of the binding between PA and human IgG before (∆C1) and after regeneration (∆C2) [9,10,42].
%   residual   activity = ( Δ C 2 × 100 Δ C 1 )

2.2.7. Reproducibility of Electrode Preparation

The reproducibility of the electrode preparation was studied using the optimum condition obtained from Section 2.2.2. Four electrodes were prepared, and their performances were investigated and compared using capacitive measurement.

3. Results

3.1. AFM Images

Atomic Force Microscopy was used to image the surface of the electrode. The two-dimensional AFM image of the Au electrode fabricated by the thermal evaporation technique and patterned with photoresist lithography is shown in Figure 2a. The image exhibits a uniform pattern, corresponding to a spherical gold cluster, with a diameter of approximately 50 nanometers (nm). The three-dimensional AFM image of the Au electrode is shown in Figure 2b. This image was used for the calculation of surface roughness of the electrode, and it was found to be 2.8 nm.

3.2. Cyclic Voltammetry

Theoretically, the attachment of AuNPs on the electrode surface can enhance the ability of the electron transfer due to the large surface area of AuNPs. In this work, the electrodes were modified with AuNPs via an LbL assembly of TU and AuNPs. It is expected that the electrode modified with more layers of LBL will have more AuNPs and thus better electron transfer. This hypothesis was tested by cyclic voltammetry in ferricyanide solution. For a bare Au electrode, when the potential was swept from −300 to +800 mV, the anodic peak due to the oxidation of [Fe2+(CN6)]4− to [Fe3+(CN6)]3− was observed. Once the potential was swept back, the cathodic peak of the reduction of [Fe3+(CN6)]3− to [Fe2+(CN6)]4− was observed. The redox peak of the bare Au electrode is shown in Figure 3a.
For the electrode modified with TU and AuNPs, after treating with NaBH4, the electrodes modified with LbL1–4 were recorded for their cyclic voltammograms. As expected, all cyclic voltammograms of LbL-modified electrodes gave higher redox peak currents as compared to what was observed for the bare Au (Figure 3b–e). This may be due to the fact that AuNPs attached on electrode surface can enhance the electron transfer mechanism between the redox species and electrode surface. The redox peak current is slightly increased when the LbL is increased from one (LbL1) to two (LbL2) layers. The increase is further seen for three layers (LbL3) and just slightly further increase in the case of (LbL4). For these electrodes, after the human IgG was immobilized, the redox peaks were again decreased. Finally, the surfaces of electrodes were completely insulated after being immersed in 10 mM 1-dodecanethiol (data not shown).
The cyclic voltammogram for the immobilization of human IgG using SAM TU and glutaraldehyde treatment was also investigated. As expected, the redox peak of the bare Au electrode was decreased after the SAM formation of TU formed on the electrode surface. The electrode treated with TU for 24 h showed a higher degree of insulation as compared to the one that had been treated for only 2 h, indicating a more complete formation of SAM, with longer assembly time. However, the redox peaks of these electrodes were decreased when treated with glutaraldehyde and further decreased after human IgG was coupled. As in LbL-modified electrodes, the electrodes prepared with SAM of TU were completely insulated when treated with 1-dodecanethiol. The electrochemical results demonstrated that the modified electrode was highly insulated and could be further employed for the detection of protein A in a capacitive flow injection system.

3.3. Amount of Immobilized Human IgG

The amount of immobilized human IgG was determined for the electrodes modified with different numbers of layer-by-layer of TU and AuNPs and those prepared by conventional SAM of TU, with glutaraldehyde as cross-linked agent. Among the electrodes prepared by LbL techniques, the amount of human IgG immobilized on electrode surfaces prepared by a different number of layers was 0.84 ± 0.02, 0.90 ± 0.02, 0.95 ± 0.01, and 0.99 ± 0.01 mg/mL for LbL1, LbL2, LbL3, and LbL4 modified electrodes, respectively. These results support the fact that the more layers, the more gold nanoparticles attached to the electrode surface, which will increase the immobilization yield due to the increased surface area of AuNPs provided for the chemisorption of human IgG. The immobilized amount of human IgG for electrodes prepared with SAM was 0.73 ± 0.01 mg/mL (2 h SAM) and 0.80 ± 0.06 mg/mL (24 h SAM), which is lower than for the electrodes modified with the LbL assembly.

3.4. Capacitive Measurement with Human IgG Modified Electrode

Capacitive measurement is based on the theory of electrical double layer. The human IgG modified electrode resembles a capacitor when placed in an electrolyte solution. The capacitance of the modified electrode is composed of a series of capacitances, as schematically presented in Figure 4a for an electrode modified with LbL1.
A total capacitance (CTOT) has three components: (1) the capacitance of the insulating layer (CINS), (2) the capacitance of the human IgG layer (CIgG), and (3) the capacitance of the Gouy-Chapman diffuse layer (CGC). In this scenario, the lowest capacitance dominates the value of total capacitance; therefore, CINS and CGC should be made as large as possible so that the change of CIgG caused by the binding of protein A can be detectable.
Capacitance is evaluated by perturbing the system with a potential step. A potentiostatic step with an amplitude of 50 mV was applied every minute, recording the current transients evoked by the potential step at a frequency of 50 kHz according to Equation (2).
i ( t ) = u R s exp [ − t R s C T O T ]
where i(t) is the current in the circuit as a function of time, u is the applied potential, Rs is the dynamic resistance of the recognition layer of human IgG, t is the time elapsed after the potential step was applied, and CTOT is the total capacitance measured at the electrode/solution interface. Taking the logarithm of Equation (1) initially results in an almost linear curve between the logarithm of current (ln i) and t. Using linear least-square fitting, the CTOT and Rs can be obtained from the slope and intercept of the linear curve [13,14,15].
The time course diagram showing the decrease in capacitance after injection of the PA standard is depicted in Figure 4b. Prior to the analysis, the regeneration solution was injected into the system to remove any human IgG that bound weakly to AuNPs. After the stable baseline was achieved, an average value of the last five capacitance reading (5 min), just before the loading of protein A, was calculated and considered as original baseline (C1). After 2–3 min of PA injection, the PA started to bind to the Fc part of the human IgG, and this resulted in the decrease of capacitance. After the capacitance was registered for 15 min, the last five readings were averaged and considered as a baseline after binding occurred (C2). The change in capacitance ∆C was then calculated as C1-C2 and registered for each concentration of PA. The ∆C was then calculated per surface area of working electrode and reported as −nF/cm2. Regeneration solution was injected after each assay to break the interaction between human IgG and protein A, resulting in a reusable surface.

3.5. Sensitivity of the Biosensor Electrodes

The sensitivity of the biosensor electrodes was investigated by the injection of standard solutions of PA at concentrations ranging from 1.0 × 10−17 to 1.0 × 10−11 M. The capacitance change (−nF/cm2) obtained from each electrode was plotted against the logarithm of concentration (log M) to evaluate the linearity. The sensitivity (−nF/cm2/log M), the slope of the linear range, was then calculated as shown in Table 1.
As can be seen in Table 1, the electrode modified with SAM of TU for 2 h and with antibodies immobilized via cross-linking using glutaraldehyde has lowest sensitivity (2.31 ± 0.23 −nF/cm2/log M). This result is correlated to the amount of the immobilized antibodies, which is the lowest among the studied electrodes. For an electrode prepared with SAM for 24 h, the sensitivity increased to 5.11 ± 0.23 −nF/cm2/ log M. This sensitivity is equal to that of the electrode prepared with LbL1 (5.48 ± 0.31 −nF cm2/log M). However, the preparation time of LbL1 is only 5 h, which is much shorter than in the case of SAM, which required at least 24 h. When the number of layers was increased to two layers (LbL2), the sensitivity also increased to 7.71 ± 0.30 −nF/cm2/log M. However, the sensitivity did not increase when the number of layers was increased to three layers (LbL3): the sensitivity of LbL3 was 7.66 ± 0.43 −nF/cm2/log M. No significant change was observed when the number of layers was increased to four layers (LbL4) (7.69 ± 0.37 −nF/cm2/log M). When the layers were increased to five (LbL5), the sensitivity decreased to 7.69 ± 0.37 −nF/cm2/log M.

3.6. Analytical Characteristics

3.6.1. Linear Range and Limit of Detection

The electrode prepared by LbL2 was chosen as optimum and used to evaluate the analytical performance of the sensor. A linear relationship between 1.0 × 10−16 and 1.0 × 10−13 M was observed (Figure 5), with a limit of detection of 9.1 × 10−17 M based on IUPAC Recommendation 1994 [48].

3.6.2. Regeneration of Electrodes

It is desirable to regenerate the surface of the sensor and be able to use the sensor for several cycles of analysis. The regeneration is thus a critical step, as it might affect the activity of the biological sensing element and thus result in loss of sensor sensitivity. In this work, the regeneration was evaluated after dissociating the binding of PA to human IgG using glycine-HCl buffer (25 mM, pH 2.4). The capacitance change (−nF/cm2) from the injection of the same concentration of standard PA was investigated over a period of 2 days (20 injections per day). The regeneration procedure allowed the dissociation of the PA-human IgG interaction, evidenced by the returning of the capacitance baseline. The capacitance change was registered and calculated as percentage residual activity by comparing to the first injection. The electrode can be reused up to 30 times, with an average residual activity of 96 ± 2% according to Figure 5-insert. The storage stability of electrodes was also investigated. Electrodes were kept at 4 °C in a closed Petri dish filled with nitrogen gas, and the sensitivities were tested after 14 days. The results showed that the sensitivity of the electrode decreased by only 1.52 ± 0.90%. Thus, the prepared electrode provided good storage stability.

3.6.3. Reproducibility of Electrode Preparation

The reproducibility between four different electrodes prepared with LbL2 was investigated. The sensitivities (slope) of the calibration curves of four electrodes were investigated and found to be 7.71 ± 0.47, 7.69 ± 0.50, 7.62 ± 0.31, and 7.79 ± 0.34 −nF/cm2/log M. These results show that the preparation of electrodes using layer-by-layer of TU and AuNPs provides an immobilization strategy with good reproducibility.

4. Discussion

The production of monoclonal antibodies is important for biopharmaceutical industries. Protein A affinity chromatography is widely used for commercial purification of monoclonal antibodies due to high selectivity, capacity, and product purity. Leaching of this ligand from the affinity resin into the elution pool of a monoclonal antibody is a major problem in biopharmaceutical production, especially for therapeutic antibodies, since PA can cause health problems. Thus, it is a regulatory expectation that leached PA should be cleared during the purification of antibodies for human use. PA impurities might present in trace amounts. Thus, it is essential to have a method that can accurately quantify the amount of PA leakage.
In this study, we developed a capacitive biosensor for the detection of PA. The experiment focused on the enhancement of sensitivity of the sensor by increasing the amount of immobilized biomolecules (human IgG). The immobilization of human IgG was carried out using a layer-by-layer assembly of thiourea (TU) and chloroauric acid (HAuCl4), followed by chemical reduction with sodium borohydride (NaBH4). The human IgG was randomly adsorbed on the AuNPs via chemisorption interaction, providing a probe with some Fc parts of human IgG available for protein A detection. The lengths of the layer-by-layer probe were varied by a controlled number of cycles for TU and HAuCl4 assemblies. As shown in the results, the increase in the number of layers (LbL1, LbL2) can enhance the concentration of immobilized human IgG and thus enhance the sensitivity for PA detection. This phenomenon can be explained by the increased PA binding sites, with increased concentration of immobilized human IgG with LbL of TU and AuNPs. The dramatic increase in sensitivity may be explained by nano-environmental effects at the sensor surface. It is reported that the binding efficiency between antibodies (Abs) and antigens (Ags) is influenced by the nanoenvironment around them. The concentration of Abs on a sensor surface achieves a high concentration of these biomolecules in close vicinity to the sensor surface. Theoretically, the concentration of the Ab localized at the electrode surface could be calculated. The assumption that Ab is a cube with 40 Å of each side would give 0.6 × 1014 molecules per cm2. Therefore, an Ab layer with a thickness of 40 Å would translate into a volume per cm2 of 4 × 10−7 cm3, ultimately giving a local concentration of approximately 25 mM. This high local concentration of antibodies provides firm binding [49].
It is clearly seen in this work that the ultrasensivity of the capacitive sensor was achieved by using AuNPs. The nanoparticles considerably improve sensitivity by increasing the amount of human IgG immobilized on the electrode surface. Table 2 shows the comparison of the detection range and limit of detection (LOD) of the present study with related works focused on layer-by-layer immobilization techniques.
Although the use of AuNPs added layer-by-layer contributes to the higher sensitivity of capacitive sensor, the lengths of the probe play a key role in capacitance signal. Since capacitive assays are based on registering the capacitance between the biosensor electrode and the layer of counter ions that will become displaced when Ab-Ag interaction takes place, this means that a decrease in capacitance depends on the amount of bound material that will displace the counter ions.
The experimental results reveal that at a certain distance from the electrode surface, the sensitivity of the capacitive sensor starts to decrease, and it is not possible to detect any further decrease in signal if one has passed out of the layer that is suitable for the measurements. This phenomenon was observed in this work when human IgG was immobilized with four and five layers of TU-AuNPs probes. The explanation of the observed characteristics might be a limitation of the capacitive sensor when the distance of the diffuse layer is too far from the sensor surface. The theoretical background of the capacitive measurement is based on the theory of electrical double layer (EDL). The electrode with immobilized antibodies behaves like a capacitor composed of two metal sheets separated by a dielectric material when it is brought into contact with the electrolyte solution. Theoretically, the modified electrode used in the capacitive biosensor needs to be thin and insulated. The structure of EDL depends on the interactions between the charged electrode and solvated ions, which are governed by electrostatic force, and is independent from chemical properties. Therefore, when modifying electrodes, if the modified and/or insulating layer is too thick, this will result in a weak electrostatic interaction and formation of a poor electrical double layer. This behavior might influence the capacitive measurement, as the electrode does not behave as a capacitor, and therefore the use of the RC circuit for measuring the capacitance might not be valid. Therefore, the sensitivity of the measurement might be decreased, as can be seen in the studies of LbL-modified electrodes presented in this work (LbL4 and LbL5). Therefore, it is important in capacitive biosensor construction that the electrode be insulated and the modified layer be designed as thin as possible.
The ultrasensitivity of the capacitive sensor obtained in this work made it possible to perform analyses of trace amounts of PA. Furthermore, since the sensitivity is high, it is possible to dilute the sample several orders of magnitude before analysis, thus eliminating the matrix interferences.

5. Conclusions

In conclusion, the present work demonstrates the development of capacitive biosensors aiming for a detection of protein A. The study was focused on a layer-by-layer assembly of TU and HAuCl4, with subsequent immobilization of human IgG. The results show that the use of the LbL strategy can enhance the immobilization efficiency of human IgG and thus increase sensitivity of the measurement. There are arguments surrounding the extreme sensitivity of the capacitive biosensor, and the results in this experiment support the fact that one parameter that provides ultra-sensitivity is the amount of the immobilized ligand (e.g., human IgG in this case). However, there are also limitations of the capacitive measurement; the measurement of capacitance over the electrode surface is effective only for a certain distance between the electrode and bulk solution. If the biosensor electrode were constructed in a way that the diffuse layer is too far from the sensor surface, the sensitivity of the measurement would be reduced. The analytical performance of the electrode under optimum conditions (LbL2) provides three orders of magnitude from 1.0 × 10−16 to 1.0 × 10−13 M, with a highly sensitive limit of detection (9.1 × 10−17 M). Moreover, the electrode can be reused up to 30 times with good reproducibly of the electrode preparation.

Author Contributions

Conceptualization, K.T., M.H. and B.M.; methodology, K.T., M.H. and B.M.; data analysis, K.T., M.H. and B.M.; writing—original draft preparation, K.T.; writing—review and editing, M.H. and B.M.; supervision, M.H. and B.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Swedish Research Council.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors thank Martin Bengtsson, Department of Electrical Measurements, Lund Institute of Technology, Lund University, Sweden for his assistance in electrode fabrication. We also thank Maria Yakovleva, Department of Biochemistry and Structural Biology, Lund University, Sweden, for her help in AFM measurement.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mattiasson, B.; Teeparuksapun, K.; Hedström, M. Immunochemical binding assays for detection and quantification of trace impurities in biotechnological production. Trends Biotechnol. 2010, 28, 20–27. [Google Scholar] [CrossRef]
  2. Gilgunn, S.; El-Sabbahy, H.; Albrecht, S.; Gaikwad, M.; Corrigan, K.; Deakin, L.; Jellum, G.; Bones, J. Identification and tracking of problematic host cell proteins removed by a synthetic, highly functionalized nonwoven media in downstream bioprocessing of monoclonal antibodies. J. Chromatogr. A 2019, 1595, 28–38. [Google Scholar] [CrossRef]
  3. Levy, N.E.; Valente, K.N.; Lee, K.H.; Lenhoff, A.M. Host cell protein impurities in chromatographic polishing steps for monoclonal antibody purification. Biotechnol. Bioeng. 2015, 113, 1260–1272. [Google Scholar] [CrossRef]
  4. Schenauer, M.; Flynn, G.; Goetze, M. Identification and quantification of host cell protein impurities in biotherapeutics using mass spectrometry. Anal. Biochem. 2012, 428, 150–157. [Google Scholar] [CrossRef]
  5. Shen, W.; Lai, Y.; Lai, C.; Rakoczy, P. Impurity of recombinant adeno-associated virus type 2 affects the transduction characteristics following subretinal injection in the rat. Vis. Res. 2004, 44, 339–348. [Google Scholar] [CrossRef] [Green Version]
  6. Zhu-Shimonji, J.; Gunawan, F.; Thomas, A.; Vanderlaan, M.; Stults, J. Trace level analysis of leached protein A in bioprocess samples without interference from the large excess of rhMAb IgG. Immunol. Methods 2009, 341, 59–67. [Google Scholar] [CrossRef] [PubMed]
  7. Rey, G.; Wendeler, M.W. Full automation and validation of a flexible ELISA platform for host cell protein and protein a impurity detection in biopharmaceuticals. J. Pharm. Biomed. 2012, 70, 580–586. [Google Scholar] [CrossRef] [PubMed]
  8. Gomez, M.I.; Lee, A.; Reddy, B.; Muir, A.; Soong, G.; Pitt, A. Staphylococcus aureus protein A induces airway epithelial inflammatory responses by activating TNFR1. Nat. Med. 2004, 10, 842–848. [Google Scholar] [CrossRef] [PubMed]
  9. Bensinger, W.I.; Buckner, C.D.; Clift, R.A.; Thomas, E.D. Clinical-trials with staphylococcal protein-A. J. Biol. Response Mod. 1984, 3, 347–351. [Google Scholar] [PubMed]
  10. Bertram, J.H.; Grunberg, S.M.; Shulman, I.; Apuzzo, M.L.J.; Boquiren, D.; Kunkel, L. Staphylococcal protein-A column—Correlation of mitogenicity of perfused plasma with clinical-response. Cancer Res. 1985, 45, 4486–4494. [Google Scholar]
  11. Luo, Y.; Matejic, T.; Ng, C.K.; Nunnally, B.; Porter, T.; Raso, S.; Rouse, J.; Shang, T.; Steckert, J. Characterization and analysis of biopharmaceutical proteins. Sep. Sci. Technol. 2011, 10, 283–359. [Google Scholar]
  12. Stewart, D.J.; Purvis, D.R.; Pitts, J.M.; Lowe, C.R. Development of an enzyme-linked immunosorbent assay for C.I. Reactive Blue 2 and its application to a comparison of the stability and performance of a perfluorocarbon support with other immobilised C.I. Reactive Blue 2 affinity adsorbents. J. Chromatogr. A 1992, 623, 1–14. [Google Scholar] [CrossRef]
  13. Loyprasert, S.; Hedström, M.; Thavarungkul, P.; Kanatharana, P.; Mattiasson, B. Sub-attomolar detection of cholera toxin using a label-free capacitive immunosensor. Biosens. Bioelectron. 2010, 25, 1977–1983. [Google Scholar] [CrossRef] [PubMed]
  14. Teeparuksapun, K.; Hedström, M.; Wong, E.Y.; Tang, S.; Hewlett, I.K.; Mattiasson, B. Ultrasensitive detection of HIV-1 p24 antigen using nanofunctionalized surfaces in a capacitive immunosensor. Anal. Chem. 2010, 82, 8406–8411. [Google Scholar] [CrossRef] [PubMed]
  15. Teeparuksapun, K.; Hedström, M.; Kanatharana, P.; Thavarungkul, P.; Mattiasson, B. Capacitive immunosensor for the detection of host cell proteins. J. Biotechnol. 2012, 157, 207–213. [Google Scholar] [CrossRef]
  16. Berggren, C.; Bjarnason, B.; Johansson, G. Instrumentation for direct capacitive biosensors. Instrum. Sci. Technol. 1999, 27, 131–139. [Google Scholar] [CrossRef]
  17. Berggren, C.; Bjarnason, B.; Johansson, G. Capacitive biosensors. Electroanalysis 2001, 13, 173–180. [Google Scholar] [CrossRef]
  18. Berggren, C.; Johansson, G. Capacitance measurements of antibody−antigen interactions in a flow system. Anal. Chem. 1997, 69, 3651–3657. [Google Scholar] [CrossRef]
  19. Niyomdecha, S.; Limbut, W.; Numnuam, A.; Kanatharana, P.; Charlermroj, R.; Karoonuthaisiri, N.; Thavarungkul, P. Phage-based capacitive biosensor for Salmonella detection. Talanta 2018, 188, 658–664. [Google Scholar] [CrossRef] [PubMed]
  20. Valat, C.; Limoges, B.; Huet, D.; Romette, J.L. A disposable protein A-based immunosensor for flow-injection assay with electrochemical detection. Anal. Chim. Acta 2000, 404, 187–194. [Google Scholar] [CrossRef]
  21. Brogan, K.L.; Wolfe, K.N.; Jones, P.A.; Schoenfisch, M.H. Direct oriented immobilization of F(ab′) antibody fragments on gold. Anal. Chim. Acta 2003, 496, 73–80. [Google Scholar] [CrossRef]
  22. Kang, J.H.; Choi, H.J.; Hwang, S.Y.; Han, S.H.; Jeon, J.Y.; Lee, E.K. Improving immunobinding using oriented immobilization of an oxidized antibody. J. Chromatogr. A 2007, 1161, 9–14. [Google Scholar] [CrossRef]
  23. Dawan, S.; Kanatharana, P.; Wongkittisuksa, B.; Limbut, W.; Numnuam, A.; Limsakul, C. Label-free capacitive immunosensors for ultra-trace detection based on the increase of immobilized antibodies on silver nanoparticles. Anal. Chim. Acta 2011, 699, 232–241. [Google Scholar] [CrossRef] [PubMed]
  24. Hedström, M.; Galaev, I.Y.; Mattiasson, B. Continuous measurements of a binding reaction using a capacitive biosensor. Biosens. Bioelectron. 2005, 21, 41–48. [Google Scholar] [CrossRef] [PubMed]
  25. Labib, M.; Hedström, M.; Amin, M.; Mattiasson, B. A capacitive immunosensor for detection of cholera toxin. Anal. Chim. Acta 2009, 634, 255–261. [Google Scholar] [CrossRef]
  26. Li, Y.; Schluesenerb, H.J.; Xua, S. Gold nanoparticle-based biosensors. Gold Bull. 2010, 43, 29–41. [Google Scholar] [CrossRef] [Green Version]
  27. Narayanan, R. Nanoparticles of different shapes for biosensor applications. ACS Symp. Ser. Am. Chem. Soc. 2012, 1112, 281–292. [Google Scholar]
  28. Hamdy, M.E.; Del Carlo, M.; Hussein, H.A.; Salah, T.A.; El-Deeb, A.H.; Emara, M.M.; Pezzoni, G.; Campagnone, D. Development of gold nanoparticles biosensor for ultrasensitive diagnosis of foot and mouth disease virus. J. Nanobiotechnol. 2018, 16, 48. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Zeng, S.; Yong, K.T.; Roy, I.; Dinh, X.Q.; Yu, X.; Luan, F. A Review on functionalized gold nanoparticles for biosensing applications. Plasmonics 2011, 6, 491–506. [Google Scholar] [CrossRef]
  30. Feng, J.J.; Zhao, G.; Xu, J.J.; Chen, H.Y. Direct electrochemistry and electrocatalysis of heme proteins immobilized on gold nanoparticles stabilized by chitosan. Anal. Biochem. 2005, 342, 280–286. [Google Scholar] [CrossRef]
  31. Fu, Y.; Yuan, R.; Tang, D.; Chai, Y.; Xu, L. Study on the immobilization of anti-IgG on Au-colloid modified gold electrode via potentiometric immunosensor, cyclic voltammetry, and electrochemical impedance techniques. Colloids Surf. B Biointerfaces 2005, 40, 61–66. [Google Scholar] [CrossRef] [PubMed]
  32. Chai, R.; Yuan, R.; Chai, Y.; Ou, C.; Cao, S.; Li, X. Amperometric immunosensors based on layer-by-layer assembly of gold nanoparticles and methylene blue on thiourea modified glassy carbon electrode for determination of human chorionic gonadotrophin. Talanta 2008, 74, 1330–1336. [Google Scholar] [CrossRef] [PubMed]
  33. Tang, D.; Yuan, R.; Chai, Y. Quartz crystal microbalance immunoassay for carcinoma antigen 125 based on gold nanowire-functionalized biomimetic interface. Analyst 2008, 133, 933–938. [Google Scholar] [CrossRef]
  34. Wu, B.Y.; Hou, S.H.; Yin, F.; Li, J.; Zhao, Z.X.; Huang, J.D.; Chen, Q. Amperometric glucose biosensor based on layer-by-layer assembly of multilayer films composed of chitosan, gold nanoparticles and glucose oxidase modified Pt electrode. Biosens. Bioelectron. 2007, 22, 838–844. [Google Scholar] [CrossRef]
  35. Pichugina, D.A.; Shestakov, A.F.; Kuz’menko, N.E. A theoretical study of the activation of methane by Gold (III) homoleptic complexes. Russ. J. Phys. Chem. 2007, 81, 883–894. [Google Scholar] [CrossRef]
  36. Feng, Y.; Yang, T.; Zhang, W.; Jiang, C.; Jiao, K. Enhanced sensitivity for deoxyribonucleic acid electrochemical impedance sensor: Gold nanoparticle/polyaniline nanotube membranes. Anal. Chim. Acta 2008, 616, 144–151. [Google Scholar] [CrossRef]
  37. Masereel, B.; Dinguizli, M.; Bouzin, C.; Moniotte, N.; Feron, O.; Gallez, B.; Borght, T.V.; Michiels, C.; Lucas, S. Antibody immobilization on gold nanoparticles coated layer-by-layer with polyelectrolytes. J. Nanopart. Res. 2010, 13, 1573–1580. [Google Scholar] [CrossRef]
  38. Chen, S.H.; Chuang, Y.C.; Lu, Y.C.; Lin, H.C.; Yang, Y.L.; Lin, C.S. A method of layer-by-layer gold nanoparticle hybridization in a quartz crystal microbalance DNA sensing system used to detect dengue virus. Nanotechnology 2009, 20, 215501. [Google Scholar] [CrossRef] [Green Version]
  39. Machado, G.; Feil, A.F.; Migowski, P.; Rossi, L.; Giovanela, M.; Crespo, J.S. Structural control of gold nanoparticles self-assemblies by layer-by-layer process. Nanoscale 2011, 3, 1717–1723. [Google Scholar] [CrossRef]
  40. Gupta, S.; Jain, U.; Murti, B.T.; Putri, A.D.; Tiwari, A.; Chauhan, N. Nanohybrid-based immunosensor prepared for Helicobacter pylori BabA antigen detection through immobilized antibody assembly with @ Pdnano/rGO/PEDOT sensing platform. Sci. Rep. 2020, 10, 21217. [Google Scholar] [CrossRef]
  41. Liu, Y.; Geng, T.M.; Gao, J. Layer-by-layer immobilization of horseradish peroxidase on a gold electrode modified with colloidal gold nanoparticles. Microchim. Acta 2008, 161, 241–248. [Google Scholar] [CrossRef]
  42. Lvov, Y.; Decher, G.; Sukhorukov, G. Assembly of thin-films by means of successive deposition of alternate layers of DNA and poly (Allylamine). Macromolecules 1993, 26, 5396–5399. [Google Scholar] [CrossRef]
  43. Lvov, Y.; Ariga, K.; Ichinose, I.; Kunitake, T. Assembly of multicomponent protein films by means of electrostatic layer-by-layer adsorption. J. Am. Chem. Soc. 1995, 117, 6117–6123. [Google Scholar] [CrossRef]
  44. Wu, H.; Liu, Z.; Wang, X.; Zhao, B.; Zhang, J.; Li, C. Preparation of hollow capsule-stabilized gold nanoparticles through the encapsulation of the dendrimer. J. Colloid Interface Sci. 2006, 302, 142–148. [Google Scholar] [CrossRef]
  45. Ma, H.Y.; Zhang, L.P.; Pan, Y.; Zhang, K.Y.; Zhang, Y.Z. A novel electrochemical DNA biosensor fabricated with layer-by-layer covalent attachment of multiwalled carbon nanotubes and gold nanoparticles. Electroanalysis 2008, 20, 1220–1226. [Google Scholar] [CrossRef]
  46. Wang, Y.; Byrne, J.D.; Napier, M.E.; DeSimone, J.M. Engineering nanomedicines using stimuli-responsive biomaterials. Adv. Drug Deliv. Rev. 2012, 64, 1021–1030. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Limbut, W.; Kanatharana, P.; Mattiasson, B.; Asawatreratanakul, P.; Thavarungkul, P. A reusable capacitive immunosensor for carcinoembryonic antigen (CEA) detection using thiourea modified gold electrode. Anal. Chim. Acta 2006, 561, 55–61. [Google Scholar] [CrossRef]
  48. Buck, R.P.; Lindner, E. Recommendations for nomenclature of ion-selective electrodes (IUPAC Recommendations 1994). Pure Appl. Chem. 1994, 66, 2527–2536. [Google Scholar] [CrossRef]
  49. Mattiasson, B.; Teeparuksapun, K.; Lebogang, L.; Hedström, M. Nanoenvironmental effects dramatically influence the sensitivity of immunoassays. Trends Biotechnol. 2017, 35, 1021–1024. [Google Scholar] [CrossRef]
Sensors 22 00099 g001 550

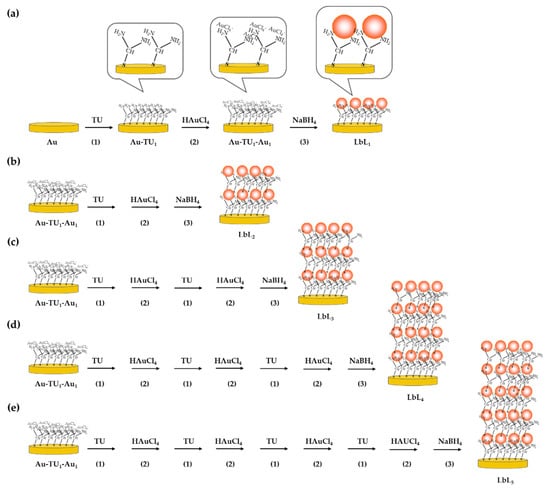

Figure 1. Preparation of layer-by-layer self-assembly of TU and HAuCl4 on the electrode surface (a) preparation of 1 layer and (b–e) preparation of 2, 3, 4, and 5 layers, respectively.
Figure 1. Preparation of layer-by-layer self-assembly of TU and HAuCl4 on the electrode surface (a) preparation of 1 layer and (b–e) preparation of 2, 3, 4, and 5 layers, respectively.
Sensors 22 00099 g001
Sensors 22 00099 g002 550

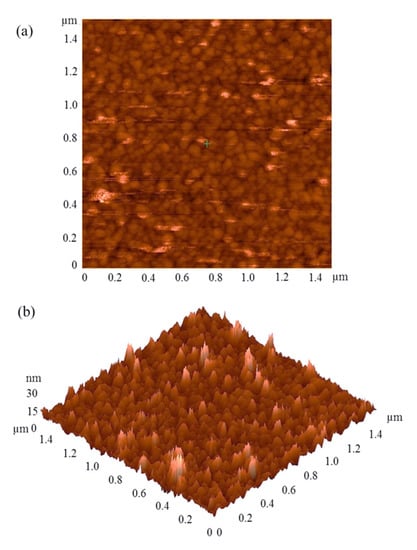

Figure 2. (a) Two- and (b) three-dimensional AFM images of the electrode fabricated by thermal evaporation technique.
Figure 2. (a) Two- and (b) three-dimensional AFM images of the electrode fabricated by thermal evaporation technique.
Sensors 22 00099 g002
Sensors 22 00099 g003 550

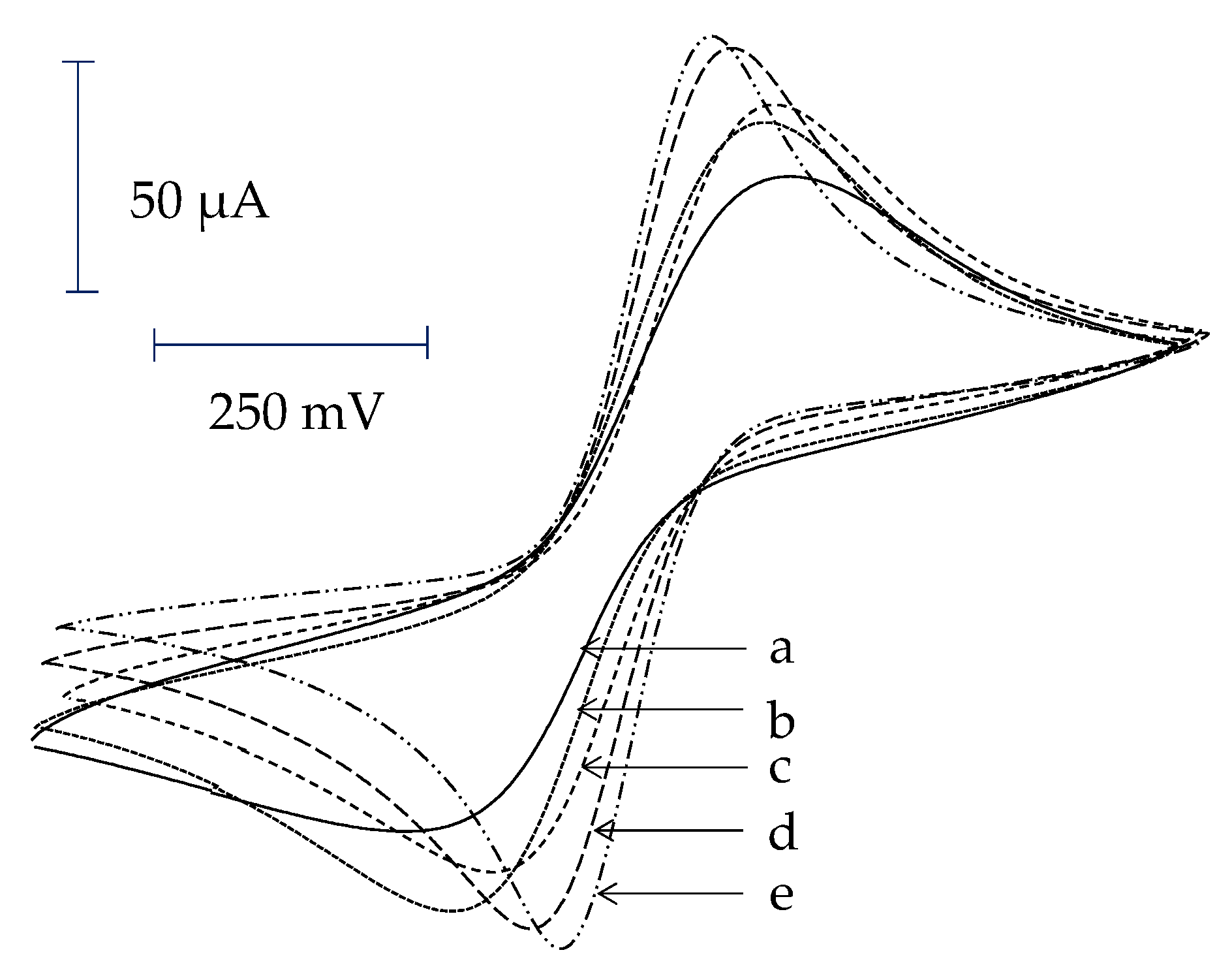

Figure 3. Cyclic voltammograms of electrodes modified with different number of layers (a) bare gold electrode, (b) LbL1, (c) LbL2, (d) LbL3, and (e) LbL4.
Figure 3. Cyclic voltammograms of electrodes modified with different number of layers (a) bare gold electrode, (b) LbL1, (c) LbL2, (d) LbL3, and (e) LbL4.
Sensors 22 00099 g003
Sensors 22 00099 g004 550

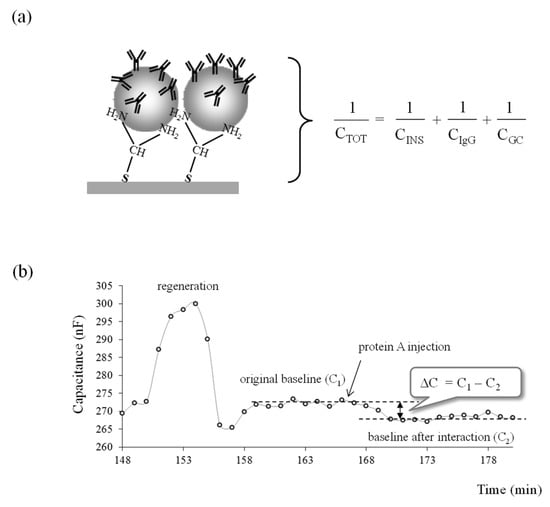

Figure 4. (a) Schematic representation of an assay cycle with a capacitive biosensor, where the total capacitance is described by several capacitors in series. A total capacitance (CTOT) has three components: (1) the capacitance of the insulating layer (CINS), (2) the capacitance of the human IgG layer (CIgG), and (3) the capacitance of the Gouy-Chapman diffuse layer (CGC); (b) capacitance registration from PA-human IgG binding interaction.
Figure 4. (a) Schematic representation of an assay cycle with a capacitive biosensor, where the total capacitance is described by several capacitors in series. A total capacitance (CTOT) has three components: (1) the capacitance of the insulating layer (CINS), (2) the capacitance of the human IgG layer (CIgG), and (3) the capacitance of the Gouy-Chapman diffuse layer (CGC); (b) capacitance registration from PA-human IgG binding interaction.
Sensors 22 00099 g004
Sensors 22 00099 g005 550

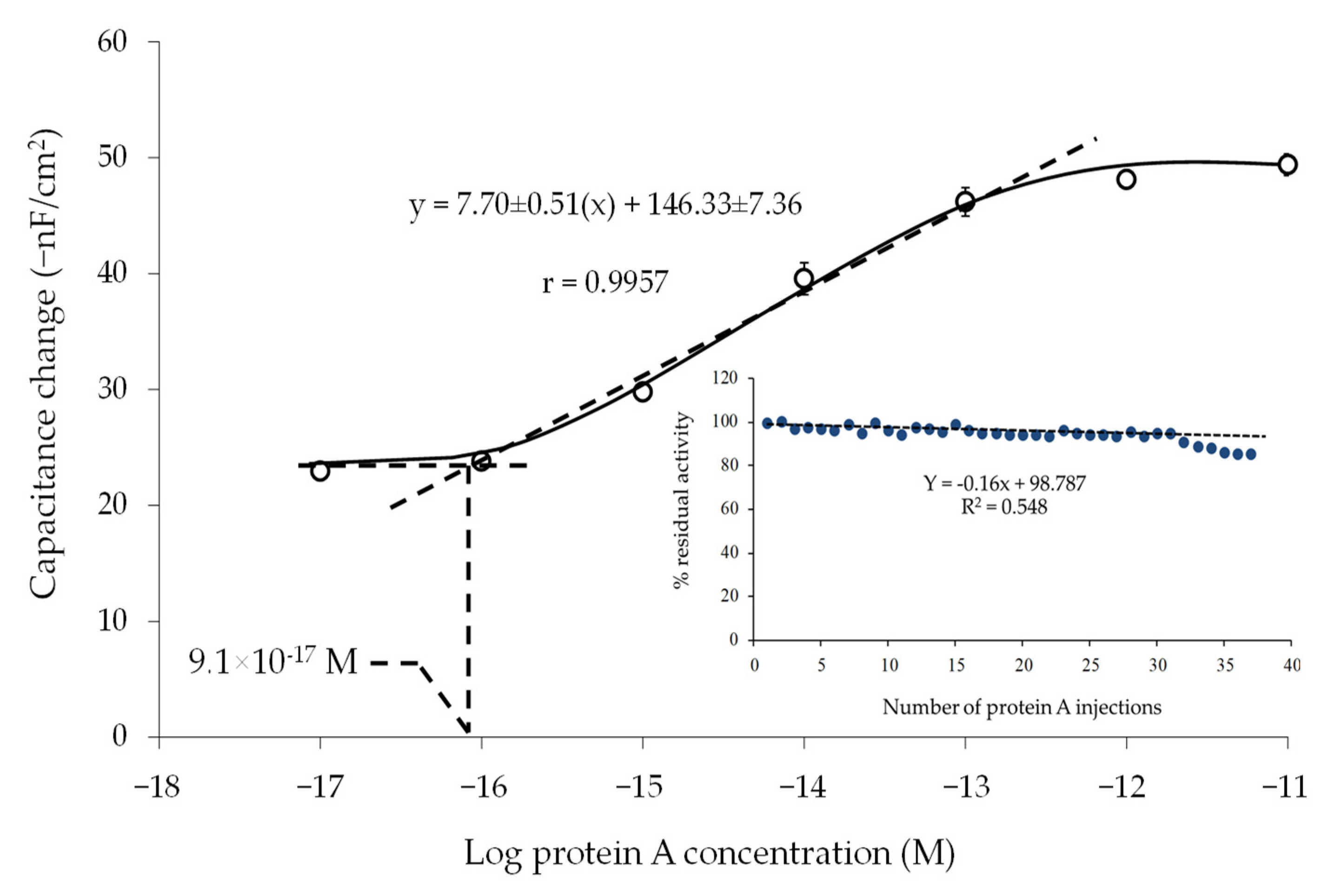

Figure 5. Capacitance change vs. logarithm of PA concentration; insert shows percentage residual activity of the electrode after regeneration.
Figure 5. Capacitance change vs. logarithm of PA concentration; insert shows percentage residual activity of the electrode after regeneration.
Sensors 22 00099 g005
Table
Table 1. Sensitivity of electrodes modified with SAM of TU and layer-by-layer of TU and AuNPs.
Table 1. Sensitivity of electrodes modified with SAM of TU and layer-by-layer of TU and AuNPs.
Electrode ModificationsSensitivity (−nF/cm2/log M)
SAM 2 h2.31 ± 0.23
SAM 24 h5.11 ± 0.23
LbL15.48 ± 0.31
LbL27.71 ± 0.30
LbL37.66 ± 0.43
LbL47.69 ± 0.37
LbL56.64 ± 0.42
Table
Table 2. Comparison of the present study with related works focused on layer-by-layer immobilization techniques.
Table 2. Comparison of the present study with related works focused on layer-by-layer immobilization techniques.
AnalyteDetection MethodDetection RangeLODReferences
carcinoma antigen 125quartz crystal microbalance1.5–180 U ml−10.5 mL−1[33]
glucoseamperometric0.5–16 mM7.0 µM[34]
DNAimpedance1.0 × 10−12 to 1.0 × 10−6 M3.1 × 10−13 M[36]
virusquartz crystal microbalance2 × 100 to 2 × 106 PFU mL−12 PFU mL−1[38]
protein Acapacitive1 × 10−16 to 1 × 10−13 M9 × 10−17 MThis work
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Teeparuksapun, K.; Hedström, M.; Mattiasson, B. A Sensitive Capacitive Biosensor for Protein a Detection Using Human IgG Immobilized on an Electrode Using Layer-by-Layer Applied Gold Nanoparticles. Sensors 2022, 22, 99. https://doi.org/10.3390/s22010099

AMA Style

Teeparuksapun K, Hedström M, Mattiasson B. A Sensitive Capacitive Biosensor for Protein a Detection Using Human IgG Immobilized on an Electrode Using Layer-by-Layer Applied Gold Nanoparticles. Sensors. 2022; 22(1):99. https://doi.org/10.3390/s22010099

Chicago/Turabian Style

Teeparuksapun, Kosin, Martin Hedström, and Bo Mattiasson. 2022. "A Sensitive Capacitive Biosensor for Protein a Detection Using Human IgG Immobilized on an Electrode Using Layer-by-Layer Applied Gold Nanoparticles" Sensors 22, no. 1: 99. https://doi.org/10.3390/s22010099

APA Style

Teeparuksapun, K., Hedström, M., & Mattiasson, B. (2022). A Sensitive Capacitive Biosensor for Protein a Detection Using Human IgG Immobilized on an Electrode Using Layer-by-Layer Applied Gold Nanoparticles. Sensors, 22(1), 99. https://doi.org/10.3390/s22010099

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
