Article

One-Step Co-Electrodeposition of Copper Nanoparticles-Chitosan Film-Carbon Nanoparticles-Multiwalled Carbon Nanotubes Composite for Electroanalysis of Indole-3-Acetic Acid and Salicylic Acid

by
Yiwen Kuang
1,
Mengxue Li
2,
Shiyu Hu
2,
Lu Yang
2,
Zhanning Liang
2,
Jiaqi Wang
2,
Hongmei Jiang
2,
Xiaoyun Zhou
1,* and
Zhaohong Su
2,*
1
College of Bioscience and Biotechnology, Hunan Agricultural University, Changsha 410128, China
2
College of Chemistry and Materials Science, Hunan Agricultural University, Changsha 410128, China
*
Authors to whom correspondence should be addressed.
Sensors 2022, 22(12), 4476; https://doi.org/10.3390/s22124476
Submission received: 26 April 2022 / Revised: 7 June 2022 / Accepted: 10 June 2022 / Published: 13 June 2022
(This article belongs to the Topic Advanced Nanomaterials for Sensing Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
A sensitive simultaneous electroanalysis of phytohormones indole-3-acetic acid (IAA) and salicylic acid (SA) based on a novel copper nanoparticles-chitosan film-carbon nanoparticles-multiwalled carbon nanotubes (CuNPs-CSF-CNPs-MWCNTs) composite was reported. CNPs were prepared by hydrothermal reaction of chitosan. Then the CuNPs-CSF-CNPs-MWCNTs composite was facilely prepared by one-step co-electrodeposition of CuNPs and CNPs fixed chitosan residues on modified electrode. Scanning electron microscope (SEM), transmission electron microscopy (TEM), selected area electron diffraction (SAED), energy dispersive spectroscopy (EDS), X-ray diffraction (XRD), Fourier transform infrared spectroscopy (FT-IR), cyclic voltammetry (CV), electrochemical impedance spectroscopy (EIS), and linear sweep voltammetry (LSV) were used to characterize the properties of the composite. Under optimal conditions, the composite modified electrode had a good linear relationship with IAA in the range of 0.01–50 μM, and a good linear relationship with SA in the range of 4–30 μM. The detection limits were 0.0086 μM and 0.7 μM (S/N = 3), respectively. In addition, the sensor could also be used for the simultaneous detection of IAA and SA in real leaf samples with satisfactory recovery.

1. Introduction

Phytohormones are small molecular substances synthesized by plants themselves. Indole acetic acid (IAA) and its derivatives are important plant growth hormones. They are involved in the regulation of various biological processes such as plant cell elongation and reproduction, leaf and flower withering, and plant vascular tissue decomposition. They have different important functions in various stages of plant growth and development. Salicylic acid (SA), another phytohormone, is involved in the regulation of many physiological processes, such as flowering, heat production, senescence, and autophagy, and also plays an important role in abiotic stresses such as low temperature, high temperature, and salt [1]. The content of IAA and SA in plants fluctuates, and the concentration of IAA is about 40–160 ng/g [2,3]. The concentration of SA is about 100~200 ng/g [4], which can complete normal growth and development. External factors (salt, water, temperature, etc.) can lead to abnormal levels of IAA and SA in plants, which can be regulated by applying exogenous phytohormones to improve plant growth. Therefore, it is necessary to establish a method for the determination of IAA and SA with high selectivity and sensitivity. The current detection methods include liquid chromatography-mass spectrometry [5,6], molecular imprinting method [7,8], capillary electrophoresis [9], fluorescence spectroscopy [10] and electrochemical method [11]. Among them, electrochemical method is favored for its advantages of simple operation, high sensitivity, and fast analysis compared with other methods.
Chitosan (CS) [12] is a green material with biological activity, low toxicity, biocompatibility, and biodegradability. It is an amino polysaccharide derived from chitin. When pH < pKa (pKa = 6.3), most of the amino groups are protonated, making chitosan a water-soluble cationic polyelectrolyte. When pH > pKa, the amino group of chitosan is deprotonated and becomes insoluble in water. According to this characteristic, chitosan films can be formed by electrodeposition [13,14]. In recent years, CS derivatives, CS composite films [15], and CS-based nanoparticles [16] have also been widely studied. Among them, CS-based nanoparticles are the research focus in recent years. Compared with CS, CS-based nanoparticles have the advantages of volume effect, surface effect, quantum size effect, and dielectric confinement effect of nanomaterials, which have attracted wide attention due to their large specific surface area [17]. CS-based nanoparticles are widely used in food and agriculture [18]. At present, no one uses CS-based nanoparticles fixed chitosan residues to prepare polymer film by electrochemical method for electroanalysis application.
Multiwalled carbon nanotubes (MWCNTs) have been widely used in sensors due to their large surface area, good conductivity, and chemical stability. The solubility of MWCNTs in an aqueous solution is not good [19], considering the dispersion of MWCNTs, other materials are used to composite with them [20,21]. In recent years, electrochemical sensors based on carbon nanotube composites (carboxymethyl cellulose-montmorillonite-single-walled carbon nanotubes [1], MWCNTs-carbon black composites [22], MWCNTs-CS [23]) for detection of IAA and SA. Herein, we combine carbon nanoparticles with MWCNTs, which can not only improve the dispersion of materials, but also improve their electronic transmission capacity. In addition, compared with other metal materials, such as copper nanoparticles (CuNPs) [24] are cheap, which are conducive to large quantities of actual detection, and can make the material on the electrode surface not easy to fall off.
In this paper, using CS as the carbon source, carbon nanoparticles (CNPs) were prepared by a hydrothermal method. Then the CNPs were ultrasonically mixed with MWCNTs and drip-dry on the surface of a glassy carbon electrode (GCE) to obtain CNPs-MWCNTs/GCE. It was then placed in CuSO4 solution and electrodeposited at −0.4 V to obtain CuNPs. At the same time, due to the electrolysis of water at the same potential, there is a relatively high pH region near the electrode, so that CNPs fixed chitosan residues form a chitosan film (Scheme 1) by electro-deprotonation. Finally, a new CuNPs-CSF-CNPs-MWCNTs composite was prepared for the simultaneous electroanalysis of IAA and SA.

2. Experimental

2.1. Reagents and Apparatus

Chitosan (CS), CH3COOH, C2H5OH, CuSO4, NaH2PO4·2H2O, Na2HPO4·12H2O, HCl, NaOH, and KCl were purchased from Sinopharm Chemical Reagent Co., Ltd., Shanghai, China, Multiwalled carbon nanotubes (MWCNTs) were purchased from Macleans Biochemical Technology Co., Ltd. Indole-3-acetic acid (IAA) and salicylic acid (SA) were purchased from Aladdin (Shanghai, China). All chemicals are analytical grade and can be used directly without further purification. Phosphate buffer saline (PBS) of 0.1 M was prepared by mixing 0.1 M NaH2PO4 and 0.1 M Na2HPO4, and the pH was adjusted by HCl or NaOH. Deionized water was used in all experiments.
CHI660E electrochemical workstation with conventional three electrode system (Shanghai Chenhua Instrument Co., Ltd., Shanghai, China,) was used for all the electrochemical experiments. Glassy carbon electrode (GCE, diameter of 3.0 mm), platinum wire (diameter of 0.2 mm) and KCl saturated calomel electrode (SCE) were used as working electrode, counter electrode, and reference electrode, respectively. Hydrothermal reaction kettle (Beijing Kewei Yongxing Instrument Co., Ltd., Beijing, China) was used for the synthesis of CNPs. FT-IR spectra was conducted on Fourier Transform Infrared Spectrometer (Bruker Company, Ettlingen, Germany). SEM images and were collected from Zeiss sigma 300 field emission scanning electron microscope equipped (Jena, Germany). TEM images, SAED images and EDX spectrum were collected from Transmission Electron Microscope (Jeol, Tokyo, Japan).

2.2. Procedures

Purification of MWCNTs [25] and pretreatment of GCE [26] were according to the previous report.
Preparation of CNPs was according to previous reports [27]. Briefly, CS was dissolved in a 1% CH3COOH solution with vigorous stirring, and the resulting solution was placed in a reaction kettle, which was then heated in an oven at 160 °C for 11 h. After cooling the samples to room temperature, the samples were taken out and dialyzed with a 3500D dialysis bag for 24 h to obtain the CNPs dispersion.
Preparation of CuNPs-CSF-CNPs-MWCNTs composite modified electrode (Scheme 1). A total of 5 mg/mL CNPs were mixed with 5 mg/mL MWCNTs by sonication to obtain CNPs-MWCNTs composite dispersion. Then 6 μL CNPs-MWCNTs composite dispersion was drip-dry on the bare GCE surface to obtain CNPs-MWCNTs/GCE. Finally, the CNPs-MWCNTs/GCEs were placed in a solution of 0.04 M H2SO4 + 0.11 M CuSO4 at −0.4 V for 10 s, so that CuNPs were deposited on the surface of the modified electrode, while the CNPs were immobilized by deprotonation, in the modified electrode, on the surface of the electrode A thin layer of CSF was electrodeposited to prepare CuNPs-CSF-CNPs-MWCNTs/GCE. The CNPs/GCEs were placed in a −0.4 V H2SO4 solution for 10 s to obtain CSF-CNPs/GCE. The CNPs/GCE were placed in a −0.4 V H2SO4 + CuSO4 solution for 10 s to obtain CuNPs-CSF-CNPs/GCE.
Optimize experimental conditions. Simultaneous detection of IAA and SA at CuNPs-CSF-CNPs-MWCNTs/GCE using linear stripping voltammetry (LSV) in 0.1 M PBS (pH = 7.0). In order to make the detection effect better, the detection conditions were optimized, including CuSO4 concentration, deposition potential, deposition time, CNPs concentration, hydrothermal time, hydrothermal temperature, MWCNTs concentration, PBS pH, and preconcentration time.
Determination of IAA and SA in real leaf samples. CuNPs-CSF-CNPs-MWCNTs/GCE was used to detect IAA and SA in rape leaves and broad tea leaves with standard addition method. The leaf samples were dried, ground, and soaked in methanol for 48 h, and then centrifuged to obtain a solution containing IAA and SA for detection and analysis [28].

3. Results and Discussion

3.1. Characterization of CuNPs-CSF-CNPs-MWCNTs Composite

SEM was used to characterize CNPs-MWCNTs/GCE (Figure 1A) and CuNPs-CSF-CNPs-MWCNTs/GCE (Figure 1B). CNPs-MWCNTs/GCE (as can be seen from Figure S1, CNPs-MWCNTs were successfully prepared) were placed in CuSO4 + H2SO4 solution and deposited at −0.4 V for 10 s to obtain CuNPs-CSF-CNPs-MWCNTs/GCE. Comparison of Figure 1A and Figure 1B, it can be seen that a thin film is formed on the surface of CuNPs-CSF-CNPs-MWCNTs, which was obtained due to the electrodeposition of CSF by electropolymerization of CNPs fixed chitosan residues (Scheme 1).
Figure 2 shows the TEM images of CNPs (Figure 2A), CSF-CNPs (Figure 2B), CuNPs-CSF-CNPs (Figure 2C) and CuNPs-CSF-CNPs-MWCNTs (Figure 2D). Figure 2A shows that the average particle size of CNPs synthesized by CS hydrothermal reaction is 74 nm. In the TEM images of CSF-CNPs (Figure 2B) and CuNPs-CSF-CNPs (Figure 2C), it can be seen that a thin film is formed, indicating that CNPs can form CSF through electrodeposition (Scheme 1), and the CuNPs are attached to the film surface. It can also be seen from Figure 2D that some CNPs can form CSF by co-electrodeposition; at the same time, CuNPs (Figure 2E,F) are attached to the surface of the composite, indicating that the CuNPs-CSF-CNPs-MWCNTs composite is successfully prepared. The composite also proved to be successfully prepared by FI-IR (Figure S2).
As shown in Figure 3, the composite was characterized by XRD. Figure 3 shows that CNPs, MWCNTs, CNPs-MWCNTs and CuNPs-CSF-CNPs-MWCNTs have a carbon diffraction peaks (002) plane of carbon structure at about 2θ = 26°. CuNPs and CuNPs-CSF-CNPs-MWCNTs have a characteristic peak of Cu (111) at about 2θ = 43° [29]. The peak corresponding to CuNPs-CSF-CNPs-MWCNTs at around 36° is Cu2O (111), because the nanoparticle characterization process was carried out in the presence of normal atmosphere, that is, in the presence of O2 [30]. At about 2θ = 42° The left and right peaks are characteristic peaks of MWCNTs (110). This gives the idea that the surface of the CuNPs-CSF-CNPs-MWCNTs composite contains CuNPs.
Figure 4 shows CV and EIS of six different modified electrodes in 5.0 mM [Fe(CN)6]3−/4− + 0.5 M KCl solution. The peak current of CV (Figure 4A) of the modified electrodes are in the order of CuNPs-CSF-CNPs-MWCNTs/GCE > MWCNTs/GCE > CNPs-MWCNTs/GCE > CuNPs/GCE > GCE > CNPs/GCE, and the order of EIS (Figure 4B and Table 1) of the modified electrodes are CuNPs-CSF-CNPs-MWCNTs/GCE < MWCNTs/GCE < CNPs-MWCNTs/GCE < CuNPs/GCE < GCE < CNPs/GCE, where the peak current of CNPs/GCE is the smallest and the resistance was the largest, indicating the conductivity of CNPs is poor. With the formation of MWCNTs, CuNPs and chitosan films, the charge transfer resistance of the composites decreased (Table 1).

3.2. Optimization of Experimental Conditions

In order to improve the detection performance, some experimental conditions that may affect the detection effect were selected and optimized. Herein, effects of CuSO4 concentration (Figure 5A), deposition potential (Figure 5B), deposition time (Figure 5C), concentration of CNPs (Figure 5D), hydrothermal time (Figure 5E), hydrothermal temperature (Figure 5F), concentration of MWCNTs (Figure 5G) and the preconcentration time (Figure 5H) were optimized at CuNPs-CSF-CNPs-MWCNTs/GCE in 0.1 M PBS (pH = 7) containing 50 μM IAA and 50 μM SA. It was reported in the literature that when pH ≥ 5, there is a composite oxidation peak for IAA oxidation. This is because when the solution pH > pKa (pKa = 4.8), IAA is oxidized, resulting in the second oxidation peak [31]. Since the sensitivity of the first oxidation peak is larger than that of the second oxidation peak (Figure S4), the first oxidation peak was selected as the research object. As shown in Figure 5A, with the increase of CuSO4 concentration, more CuNPs adsorb on the electrode surface, the concentration is too low, resulting in too few CuNPs on the electrode surface; the concentration is too high, resulting in too much CuNPs, and the electrode surface material may easily fall off. Therefore, 0.11 M CuSO4 is chosen. Figure 5B shows the optimization of deposition potential, as different deposition potential may affect the morphology and size of the composite on the electrode surface [32], which in turn affects the response of the modified electrode to IAA and SA. The result shows that the oxidation peak current of IAA and SA increases with the decrease of deposition potential, and reaches the maximum at −0.4 V. When the deposition potential decreases further, the oxidation peak current decreases, so −0.4 V was selected as the optimal deposition potential. Figure 5C shows the optimization of deposition time. With the increase of deposition time, the response of composite to IAA and SA reaches the maximum at 10 s. This is because as the deposition time increases, the thickness of the electrode surface material also increases, which in turn affects the electron transport ability of the electrode, resulting in a decrease in the electrochemical signals of IAA and SA. Figure 5D is the optimization of CNPs concentration. As the concentration of CNPs increased, the response of the composite to IAA and SA reachs a maximum at 5 mg/mL. Because the concentration of CNPs will effect the thickness of CSF. The optimal hydrothermal time of CNPs in Figure 5E was 11 h. With the increase of reaction time, the number of CNPs also increases. However, with the increase of time, some CNPs are over-carbonized due to continuous heating, resulting in the destruction of their structures. Figure 5F is the optimization of hydrothermal temperature of CNPs, this is due to the low temperature, which makes insufficient reaction and less CNPs production. High temperature leads to excessive carbonization of CNPs and structural damage, so the response to IAA and SA is poor. Figure 5G shows the optimization of the concentration of MWCNTs, and the maximum response is 5 mg/mL. This may be that the higher the concentration of MWCNTs, the larger the adsorption reaction interface, the greater the electron transfer and the greater the response. However, with the accumulation of materials, the excessive thickness of materials will affect the electron transfer rate and the stability of materials loaded on the electrode surface. Therefore, 5 mg/mL MWCNTs are selected as the optimal conditions. Figure 5H shows optimization of preconcentration time, the response is maximum at 90 s. This may be due to the adsorption of IAA and SA onto the electrode surface with the increase of preconcentration time, reaching the maximum at 90 s. As the preconcentration time continued to increase, the active sites on the electrode surface gradually decreased, which affected the adsorption of IAA and SA, resulting in a decrease in their peak current responses.
Figure 5I shows the LSV responses of different modified electrodes to 50 μM IAA and 50 μM SA, respectively. It can be seen from Figure 5I that the response of CuNPs-CSF-CNPs-MWCNTs/GCE modified electrode to IAA and SA is greater than that of CuNPs/GCE, CNPs/GCE, MWCNTs/GCE, CSF-CNPs-MWCNTs/GCE and CNPs-MWCNTs/GCE modified electrode. This exhits that CuNPs, CNPs, MWCNTs and CSF increase the electroactive surface area of the composites (Figure S3), thereby enhancing its sensing performance. Therefore, the CuNPs-CSF-CNPs-MWCNTs modified electrode is selected for subsequent experiments.

3.3. Kinetic Behavior of IAA and SA Detection

The kinetic behavior of IAA and SA detection at CuNPs-CSF-CNPs-MWCNTs/GCE was examined, as shown in Figure 6 and Figure 7. When the scanning rate varies from 20 mV/s to 140 mV/s, the oxidation peak potential of IAA and SA shifts positively (Figure 6A), and the peak current of IAA and SA increases with the increase of scanning rate. Figure 6B,C shows that the oxidation peak current of IAA and SA has a good linear relationship with the scanning rate. The linear regression equations are Ipa (IAA1) = 0.2424ν (mV/s) + 5.1711 (R2 = 0.9988), Ipa (IAA2) = 0.1174ν (mV/s) + 3.699 (R2 = 0.9832) and Ipa (SA) = 0.0549ν (mV/s) + 3.336 (R2 = 0.9913), indicating that IAA and SA detection are typical adsorption controlled processes on modified electrode. According to the theoretical formula of Bard, A.J. and Faulkner, L.R. [33] (2022): Ipa = n2F2νAΓ*/4RT = nFQν/4RT (R = 8.314, F = 96,480, T = 298.15, ν = 100 mV/s), Q (IAA1) = 1.430 × 10−5 C, Q (IAA2) = 5.7 × 10−6 C, Q (SA) = 3.796 × 10−6 C, Ipa (IAA1) = 29.36 μA, Ipa (IAA2) = 16.09 μA, Ipa (SA) = 8.85 μA, The transfer electron number n for IAA1 and SA are both about 2. The transfer electron number n for IAA2 is about 3.
Figure 7A shows the LSV curves of CuNPs-CSF-CNPs-MWCNTs/GCE at different pH values in PBS solution containing 50 μM IAA and 50 μM SA. It can be seen from Figure 7 that with the increase of pH, the peak current of IAA and SA first increases and then decreases. When pH = 7, the maximum response current is obtained. As can be seen from Figure 7A, with the increase of pH, the peak current of the two phytohormones show a negative shift, indicating the peak position of IAA and SA are closely related to pH, which may be related to the transfer of H+ in the solution. Figure 7B,C shows that the oxidation peak potential (Epa) of IAA1, IAA2 and SA decrease linearly with the increase of solution pH. The linear regression equations are Epa(V) = −0.0411pH + 0.9004 (R2 = 0.9967), Epa(V) = −0.0462pH + 1.0435 (R2 = 0.9910) and Epa(V) = −0.052pH + 1.255 (R2 = 0.9929), indicating that the redox process of IAA1, IAA2 and SA are accompanied with proton migration. According to Laviron’s (1974) [34] theoretical formula, dEp/dpH = −2.303mRT/nF, where R = 8.314, F = 96,480, T = 298.15, According to the formula in pH, m is the number of protons involved in the electrochemical reaction, and the m/n of IAA1, IAA2 and SA is 0.695, 0.781 and 0.879, respectively. The m values of IAA1, IAA2 and SA are calculated to be 1, 2, 2, respectively. The above results indicate that the electrochemical oxidation of IAA1 involves two-electron and a proton processes, while the electrochemical oxidation of IAA2 involves three-electron and two-proton processes. The electrochemical oxidation process of SA is a two-electron and two-proton process. (Figure 8), which was consistent with previous reports [1,35,36,37].

3.4. Detection of IAA and SA

Figure S4 (Supplementary Material) shows the individual detection results of IAA (Figure S4A,B) and SA (Figure S4C,D) at CuNPs-CSF-CNPs-MWCNTs/GCE under the optimal experimental conditions. Figure S4A shows the LSV responses of different concentrations of modified electrodes to IAA. Figure S4B shows the linear relationship between the peak current and the concentrations of IAA1 and IAA2. A good linear relationship is found for IAA1 and IAA2 from 0.01 to 60 μM. The linear regression equations are Ip(μA) = 1.1455c (μmol/L) + 1.4115 (R2 = 0.9968) and Ip (μA) = 0.5618c (μmol/L) + 0.9798 (R2 = 0.9901), respectively, and the detection limit was 0.0078 μM and 0.0091 (S/N = 3), respectively. Figure S4C shows the LSV responses of the modified electrodes at different concentrations to SA. Figure S4D is the linear relationship between peak current and SA concentration. In the 2–45 μM range, there is a good linear relationship between peak current and SA concentration: Ip(μA) = 2.012c (μmol/L) −2.476, (R2 = 0.9978) and Ip(μA) = 0.9450c (μmol/L) +11.3310, (R2 = 0.9986). The detection limit was 0.24 μM (S/N = 3). Figure 9A shows the LSV responses of modified electrodes with different concentrations (fixed 20 μM SA) to IAA. Figure 9B shows the linear relationship between peak current and IAA concentration. A good linear relationship was found for IAA from 0.01 to 60 μM. The linear regression equation was Ip(μA) = 1.1324c(μmol/L) + 1.0042 (R2 = 0.9960), and the detection limit was 0.0079 μM (S/N = 3). Figure 9C shows the LSV responses of modified electrodes with different concentrations (fixed 20 μM IAA) to SA. Figure 9D is a linear relationship between peak current and SA concentration. There is a good linear relationship between peak current and SA concentration in the range of 2–35 μM (Ip(μA) = 1.0431c (μmol/L) −0.1571, R2 = 0.9986). The detection limit is 0.46 μM (S/N = 3).
Figure 10 shows the simultaneous detection of IAA and SA at CuNPs-CSF-CNPs-MWCNTs/GCE under the optimal experimental conditions. Figure 10A shows the LSV responses of modified electrodes to IAA and SA at different concentrations. Figure 10B shows the linear relationship of peak current to IAA and SA concentrations. The linear relationship of IAA in the range of 0.01–50 μM is Ip(μA) = 1.0450c(μmol/L) + 0.8980 (R2 = 0.9957), and the detection limit (S/N = 3) was 0.0086 μM. The linear relationship of SA in the range of 4–30 μM was Ip(μA) = 0.2366c(μmol/L) − 0.2492 (R2 = 0.9959), and the detection limit was 0.7 μM (S/N = 3). As shown in Table 2. The detection limit is superior to the simultaneous detection of IAA and SA at typical modified electrodes.
In order to investigate the anti-interference ability of CuNPs-CSF-CNPs-MWCNTs/GCE for IAA and SA detection, 0.1 M PBS (pH = 7.0) containing 50 μM IAA and 50 μM SA was added, and small molecular substances (ascorbic acid, cysteine, citric acid, arginine, glucose) and inorganic ions (Zn2+, K+) that may interfere with the experiment were added. As shown in Figure 11, there was no obvious interference compared with the peak current of IAA and SA, indicating that CuNPs-CSF-CNPs-MWCNTs/GCE has good selectivity. Figure 11 also shows the reproducibility (Figure 11B) and stability (Figure 11C) of CuNPs-CSF-CNPs-MWCNTs/GCE for IAA and SA detection. In Figure 11B, five polished electrodes were modified with the same composite and the corresponding currents were recorded. The results show that the modified electrode has good reproducibility. In Figure 11C, the modified electrodes were placed in a 4 °C refrigerator for 10 days and tested in the same solution. The results show that the current responses of the modified electrode to IAA and SA remain around 87.92% and 91.90%, respectively, indicating that the modified electrode has good long-term stability.
In order to further understand the practical value of the sensor, IAA and SA in rape leaves and tea leaves were detected by standard addition method with CuNPs-CSF-CNPs-MWCNTs/GCE. According to Table 3, the recovery rate is stable at 91.1–109%, and the RSD is 1.27–2.98%, indicating that the sensor can be applied to the detection of actual samples.

4. Conclusions

In this work, a novel CuNPs-CSF-CNPs-MWCNTs composite was prepared by one-step co-electrodeposition method. CuNPs-CSF-CNPs-MWCNTs can significantly improve the conductivity and electroactive surface area of the composites explained by CV and EIS, thereby improving the performance of the sensor. The sensor is used for simultaneous detection of IAA and SA with a wide linear range and low LOD. It also has an ideal recovery rate in the detection of actual samples, so it has potential application value in the detection of IAA and SA. In addition, the proposed co-electrodeposition method can be extended to facilitate the preparation of many other composites using other CNPs fixed residue as a monomer for wide applications.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/s22124476/s1, Figure S1: SEM images of MWCNTs/GCE (A) and CNPs-MWCNTs/GCE (C). EDX spectrum of MWCNTs (B) and CNPs-MWCNTs (D). Figure S2: FT-IR spectra of CuNPs, CS, CNPs, MWCNTs, CNPs-MWCNTs, and CuNPs-CSF-CNPs-MWCNTs, respectively. Figure S3: CVs of bare GCE (A), MWCNTs/GCE (B), CNPs-MWCNT/GCE (C), CSF-CNPs-MWCNT/GCE (D), and CuNPs-CSF-CNPs-MWCNTs/GCE (E) measured at different scan rates in 5.0 mM [Fe(CN)6]3−/4− + 0.5 M KCl. (F) Linear relationship between peak current (Ip) and square root of scan rate (ν1/2) for different modified electrodes (a–e: GCE, MWCNTs/GCE, CNPs-MWCNT/GCE, CSF-CNPs-MWCNT/GCE, CuNPs-CSF-CNPs-MWCNTs/GCE). Figure S4: LSV curve of CuNPs-CSF-CNPs-MWCNTs/GCE in 0.1 M PBS (pH = 7.0) containing different concentrations of IAA (A) and SA (C), respectively. Linear correlation curve between peak current and concentrations of IAA1 (B), IAA2 (B), and SA (D), respectively. References [44,45,46] are cited in the supplementary materials.

Author Contributions

Conceptualization, Y.K. and Z.S.; methodology, Y.K. and M.L.; validation, Y.K., M.L. and S.H.; formal analysis, Y.K., M.L. and S.H.; investigation, Y.K., M.L., S.H., L.Y., Z.L., J.W., H.J., X.Z. and Z.S.; resources, Y.K. and Z.S.; data curation, Y.K. and M.L.; writing—original draft preparation, Y.K. and M.L.; writing—review and editing, Y.K. and M.L and Z.S.; visualization, Z.S.; supervision, X.Z. and Z.S.; project administration, Z.S.; funding acquisition, X.Z. and Z.S.; contributed equally to this work, Y.K. and M.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Natural Science Foundation of Hunan Province (2020JJ4346), the Foundation of Department of Education of Hunan Province (20K063), Degree & Postgraduate Education Reform Project of Hunan Province (2019JGYB130). Foundation of Yunnan Key Laboratory of Tobacco Chemistry, R&D Center of China Tobacco Yunnan Industrial Co., Ltd.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The study did not report any data.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lu, S.; Bai, L.; Wen, Y.; Li, M.; Yan, D.; Zhang, R.; Chen, K. Water-dispersed carboxymethyl cellulose-montmorillonite-single walled carbon nanotube composite with enhanced sensing performance for simultaneous voltammetric determination of two trace phytohormones. J. Solid State Electrochem. 2015, 19, 2023–2037. [Google Scholar] [CrossRef]
  2. Zhang, Y.; Li, Y.; Hassan, M.J.; Li, Z.; Peng, Y. Indole-3-acetic acid improves drought tolerance of white clover via activating auxin, abscisic acid and jasmonic acid related genes and inhibiting senescence genes. BMC Plant Biol. 2020, 20, 1–12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Zhang, S.; Dai, J.; Ge, Q. Responses of autumn phenology to climate change and the correlations of plant hormone regulation. Sci. Rep. 2020, 10, 9039. [Google Scholar] [CrossRef] [PubMed]
  4. Arif, Y.; Sami, F.; Siddiqui, H.; Bajguz, A.; Hayat, S. Salicylic acid in relation to other phytohormones in plant: A study towards physiology and signal transduction under challenging environment. Environ. Exp. Bot. 2020, 175, 104040–104059. [Google Scholar] [CrossRef]
  5. Qi, B.; Wu, C.; Liang, H.; Cui, K.; Fahad, S.; Wang, M.; Liu, B.; Nie, L.; Huang, J.; Tang, H. Optimized High-Performance Liquid Chromatography Method for Determining Nine Cytokinins, Indole-3-acetic Acid and Abscisic Acid. Sustainability 2021, 13, 6889. [Google Scholar] [CrossRef]
  6. Liang, Y.; Zhu, X.; Wu, T.; Zhao, M.; Liu, H. Rapid and sensitive detection of auxins and flavonoids in plant samples by high-performance liquid chromatography coupled with tandem mass spectrometry. J. Sep. Sci. 2015, 35, 2559–2566. [Google Scholar] [CrossRef]
  7. Wei, C.; Zhou, H.; Chen, C.; Li, Z.; Zhou, J. On-Line Monitoring 1H-Indole-3-Acetic Acid in Plant Tissues Using Molecular Imprinting Monolayer Techniques on a Surface Plasmon Resonance Sensor. Anal. Lett. 2011, 44, 2911–2921. [Google Scholar] [CrossRef]
  8. Cao, J.; Wang, M.; Han, D.; Qiao, F.; Yan, H. Attapulgite/hydrophilic molecularly imprinted monolithic resin composite for the selective recognition and sensitive determination of plant growth regulators in cucumbers. Food Chem. 2019, 297, 124974–124981. [Google Scholar] [CrossRef]
  9. Chen, Y.; Wu, X.; Li, Y.; Yang, Y.; Yang, D.; Yin, S.; Liu, L.; Sun, C. Simultaneous determination of seven plant growth regulators in melons and fruits by modified QuEChERS coupled with capillary electrophoresis. Food Anal. Methods 2018, 11, 2788–2798. [Google Scholar] [CrossRef]
  10. Zheng, Y.Y.; Sun, N.; Xu, M.H.; Lu, Y.-J.; Qiu, B.; Cheng, M.-J.; Wong, W.-L.; Chow, C.-F. Molecular Interaction Kinetics and Mechanism Study of Phytohormones and Plant Protein with Fluorescence and Synchronous Fluorescence Techniques. ChemistrySelect 2017, 2, 3993–4000. [Google Scholar] [CrossRef]
  11. Su, Z.; Xu, X.; Cheng, Y.; Tan, Y.; Xiao, L.; Tang, D.; Jiang, H.; Qin, X.; Wang, H. Chemical pre-reduction and electro-reduction guided preparation of a porous graphene bionanocomposite for indole-3-acetic acid detection. Nanoscale 2019, 11, 962–967. [Google Scholar] [CrossRef]
  12. Kumar-Krishnan, S.; Chakaravarthy, S.; Hernandez-Rangel, A.; Prokhorov, E.; Luna-Bárcenas, G.; Esparza, R.; Meyyappan, M. Chitosan supported silver nanowires as a platform for direct electrochemistry and highly sensitive electrochemical glucose biosensing. RSC Adv. 2016, 6, 20102–20108. [Google Scholar] [CrossRef]
  13. Zhou, Q.; Xie, Q.; Fu, Y.; Su, Z.; Jia, A.X.; Yao, S. Electrodeposition of Carbon Nanotubes− Chitosan− Glucose Oxidase Biosensing Composite Films Triggered by Reduction of p-Benzoquinone or H2O2. J. Phys. Chem. B 2007, 111, 11276–11284. [Google Scholar] [CrossRef]
  14. Wu, L.-Q.; Gadre, A.P.; Yi, H.; Kastantin, M.J.; Rubloff, G.W.; Bentley, W.E.; Payne, G.F.; Ghodssi, R. Voltage-dependent assembly of the polysaccharide chitosan onto an electrode surface. Langmuir 2002, 18, 8620–8625. [Google Scholar] [CrossRef]
  15. Uranga, J.; Puertas, A.; Etxabide, A.; Dueñas, M.T.; Guerrero, P.; De La Caba, K. Citric acid-incorporated fish gelatin/chitosan composite films. Food Hydrocoll. 2019, 86, 95–103. [Google Scholar] [CrossRef]
  16. Yu, S.; Xu, X.; Feng, J.; Liu, M.; Hu, K. Chitosan and Chitosan Coating Nanoparticles for the Treatment of Brain Disease. Int. J. Pharm. 2019, 560, 282–293. [Google Scholar] [CrossRef]
  17. Divya, K.; Jisha, M. Chitosan nanoparticles preparation and applications. Environ. Chem. Lett. 2018, 16, 101–112. [Google Scholar] [CrossRef]
  18. Perera, K.Y.; Jaiswal, S.; Jaiswal, A.K. A review on nanomaterials and nanohybrids based bio-nanocomposites for food packaging. Food Chem. 2022, 376, 131912–131927. [Google Scholar] [CrossRef]
  19. Ou, Y.; Tsen, W.C.; Gong, C.; Wang, J.; Liu, H.; Zheng, G.; Qin, C.; Wen, S. Chitosan-based composite membranes containing chitosan-coated carbon nanotubes for polymer electrolyte membranes. Polym. Adv. Technol. 2018, 29, 612–622. [Google Scholar] [CrossRef]
  20. Luo, Y.; Li, Z. A sensitive electrochemical sensor manufactured from multi-wall carbon nanotubes-polyethylenimine nanocomposite for malachite green detection. J. Alloys Compd. 2022, 897, 163216–163226. [Google Scholar] [CrossRef]
  21. Alawady, A.R.; Alshahrani, A.A.; Aouak, T.A.; Alandis, N.M. Polysulfone membranes with CNTs/Chitosan biopolymer nanocomposite as selective layer for remarkable heavy metal ions rejection capacity. Chem. Eng. J. 2020, 388, 124267–124276. [Google Scholar] [CrossRef]
  22. Hu, Y.; Wang, X.; Wang, C.; Hou, P.; Dong, H.; Luo, B.; Li, A. A multifunctional ratiometric electrochemical sensor for combined determination of indole-3-acetic acid and salicylic acid. RSC Adv. 2020, 10, 3115–3121. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Sun, L.; Liu, X.; Gao, L.; Lu, Y.; Li, Y.; Pan, Z.; Bao, N.; Gu, H. Simultaneous electrochemical determination of indole-3-acetic acid and salicylic acid in pea roots using a multiwalled carbon nanotube modified electrode. Anal. Lett. 2015, 48, 1578–1592. [Google Scholar] [CrossRef]
  24. Wang, L.; Gopinath, S.C.; Anbu, P.; Rajapaksha, A.; Velusamy, P.; Pandian, K.; Arshad, M.K.; Lakshmipriya, T.; Lee, C.-G. Photovoltaic and antimicrobial potentials of electrodeposited copper nanoparticle. Biochem. Eng. J. 2019, 142, 115590–115598. [Google Scholar] [CrossRef]
  25. Chen, Y.; Li, Z.; Zhao, Y. Purification and dispersibility of multi-walled carbon nanotubes in aqueous solution. Russ. J. Phys. Chem. A 2016, 90, 2619–2624. [Google Scholar] [CrossRef]
  26. Hu, S.; Chen, H.; Zhan, X.; Qin, X.; Kuang, Y.; Li, M.; Liang, Z.; Yang, J.; Su, Z. One-pot electrodeposition of metal organic frameworks composites accelerated by electroreduced graphene oxide and gold nanoparticles for rutin electroanalysis. J. Electroanal. Chem. 2021, 897, 115590–115598. [Google Scholar] [CrossRef]
  27. Yang, Y.; Cui, J.; Zheng, M.; Hu, C.; Tan, S.; Xiao, Y.; Yang, Q.; Liu, Y. One-step synthesis of amino-functionalized fluorescent carbon nanoparticles by hydrothermal carbonization of chitosan. Chem. Commun. 2012, 48, 380–382. [Google Scholar] [CrossRef]
  28. Liu, Y.; Fang, X.; Chen, G.; Ye, Y.; Xu, J.; Ouyang, G.; Zhu, F. Recent development in sample preparation techniques for plant hormone analysis. TrAC Trends Anal. Chem. 2019, 113, 224–233. [Google Scholar] [CrossRef]
  29. Shao, W.; Sun, Y.; Zangari, G. Electrodeposition of Cu-Ag Alloy Films at n-Si (001) and Polycrystalline Ru Substrates. Coatings 2021, 11, 1563. [Google Scholar] [CrossRef]
  30. Sooraj, M.; Nair, A.S.; Pillai, S.C.; Hinder, S.J.; Mathew, B. CuNPs decorated molecular imprinted polymer on MWCNT for the electrochemical detection of L-DOPA. Arab. J. Chem. 2020, 13, 2483–2495. [Google Scholar] [CrossRef]
  31. Gan, T.; Hu, C.; Chen, Z.; Hu, S. A disposable electrochemical sensor for the determination of indole-3-acetic acid based on poly(safranine T)-reduced graphene oxide nanocomposite. Talanta 2011, 85, 310–316. [Google Scholar] [CrossRef]
  32. Shang, W.; Shi, X.; Zhang, X.; Ma, C.; Wang, C. Growth and characterization of electro-deposited Cu2O and Cu thin films by amperometric I–T method on ITO/glass substrate. Appl. Phys. A 2007, 87, 129–135. [Google Scholar] [CrossRef]
  33. Bard, A.J.; Faulkner, L.R.; White, H.S. Electrochemical Methods: Fundamentals and Applications; John Wiley & Sons: Hoboken, NJ, USA, 2022. [Google Scholar]
  34. Laviron, E. Surface linear potential sweep voltammetry: Equation of the peaks for a reversible reaction when interactions between the adsorbed molecules are taken into account. J. Electroanal. Chem. Interfacial Electrochem. 1974, 52, 395–402. [Google Scholar] [CrossRef]
  35. Yardım, Y.; Erez, M.E. Electrochemical behavior and electroanalytical determination of indole-3-acetic acid phytohormone on a boron-doped diamond electrode. Electroanalysis 2011, 23, 667–673. [Google Scholar] [CrossRef]
  36. Zhu, Y.; Guan, X.; Ji, H. Electrochemical solid phase micro-extraction and determination of salicylic acid from blood samples by cyclic voltammetry and differential pulse voltammetry. J. Solid State Electrochem. 2009, 13, 1417–1423. [Google Scholar] [CrossRef]
  37. Tao, H.; Dryhurst, G. Electrochemical and peroxidase O2-mediated oxidation of indole-3-acetic acid at physiological pH. J. Electroanal. Chem. 1997, 432, 7–18. [Google Scholar]
  38. Cao, X.D.; Zhu, X.T.; He, S.D.; Xu, X.; Ye, Y. Electro-Oxidation and Simultaneous Determination of Indole-3-Acetic Acid and Salicylic Acid on Graphene Hydrogel Modified Electrode. Sensors 2019, 19, 5483. [Google Scholar] [CrossRef] [Green Version]
  39. Cao, X.; Zhu, X.; He, S.; Xu, X.; Ye, Y. Gold nanoparticle-doped three-dimensional reduced graphene hydrogel modified electrodes for amperometric determination of indole-3-acetic acid and salicylic acid. Nanoscale 2019, 11, 10247–10256. [Google Scholar] [CrossRef]
  40. Sun, L.J.; Zhou, J.J.; Pan, J.L.; Liang, Y.-Y.; Fang, Z.-J.; Xie, Y.; Yang, H.; Gu, H.-Y.; Bao, N. Electrochemical mapping of indole-3-acetic acid and salicylic acid in whole pea seedlings under normal conditions and salinity. Sens. Actuators B-Chem. 2018, 276, 545–551. [Google Scholar] [CrossRef]
  41. Huo, X.L.; Zhu, C.C.; Jiang, H.; Yuan, Q.; Wang, J.-J.; Wang, J.-Y.; Pan, Z.-Q.; Chen, C.-L.; Wu, Z.-Q.; Bao, N. Rapid profiling of IAA and SA in tomato fruit during ripening using low-cost paper-based electroanalytical devices. Postharvest Biol. Technol. 2021, 180, 11635–11642. [Google Scholar] [CrossRef]
  42. Wang, Q.; Li, X.; Tang, L.; Fei, Y.; Pan, Y.; Sun, L. Paper-based electroanalytical devices for in situ determination of free 3-indoleacetic acid and salicylic acid in living Pyropia haitanensis thallus under various environmental stresses. J. Appl. Phycol. 2019, 32, 485–497. [Google Scholar] [CrossRef]
  43. Li, M.; Kuang, Y.; Fan, Z.; Qin, X.; Hu, S.; Liang, Z.; Liu, Q.; Zhang, W.; Wang, B.; Su, Z. Simultaneous Electrochemical Sensing of Indole-3-Acetic Acid and Salicylic Acid on Poly (L-Proline) Nanoparticles–Carbon Dots–Multiwalled Carbon Nanotubes Composite-Modified Electrode. Sensors 2022, 22, 2222. [Google Scholar] [CrossRef] [PubMed]
  44. Ma, B.; Li, X.; Qin, A.; He, C. A comparative study on the chitosan membranes prepared from glycine hydrochloride and acetic acid. Carbohydr. Polym. 2013, 91, 477–482. [Google Scholar] [CrossRef] [PubMed]
  45. Ning, J.; Wei, J.; Huang, S.; Wang, F.; Luo, X.; Sun, C.; Chen, D.; Wei, R.; Sha, L.; Liu, Y. A high performance Pb (ii) electrochemical sensor based on spherical CuS nanoparticle anchored gC3N4. Anal. Methods 2021, 13, 5617–5627. [Google Scholar] [CrossRef] [PubMed]
  46. Jahan, M.; Liu, Z.; Loh, K.P. A Graphene oxide and copper-centered metal organic framework composite as a tri-functional catalyst for HER, OER, and ORR. Adv. Funct. Mater. 2013, 23, 5363–5372. [Google Scholar] [CrossRef]
Sensors 22 04476 sch001 550

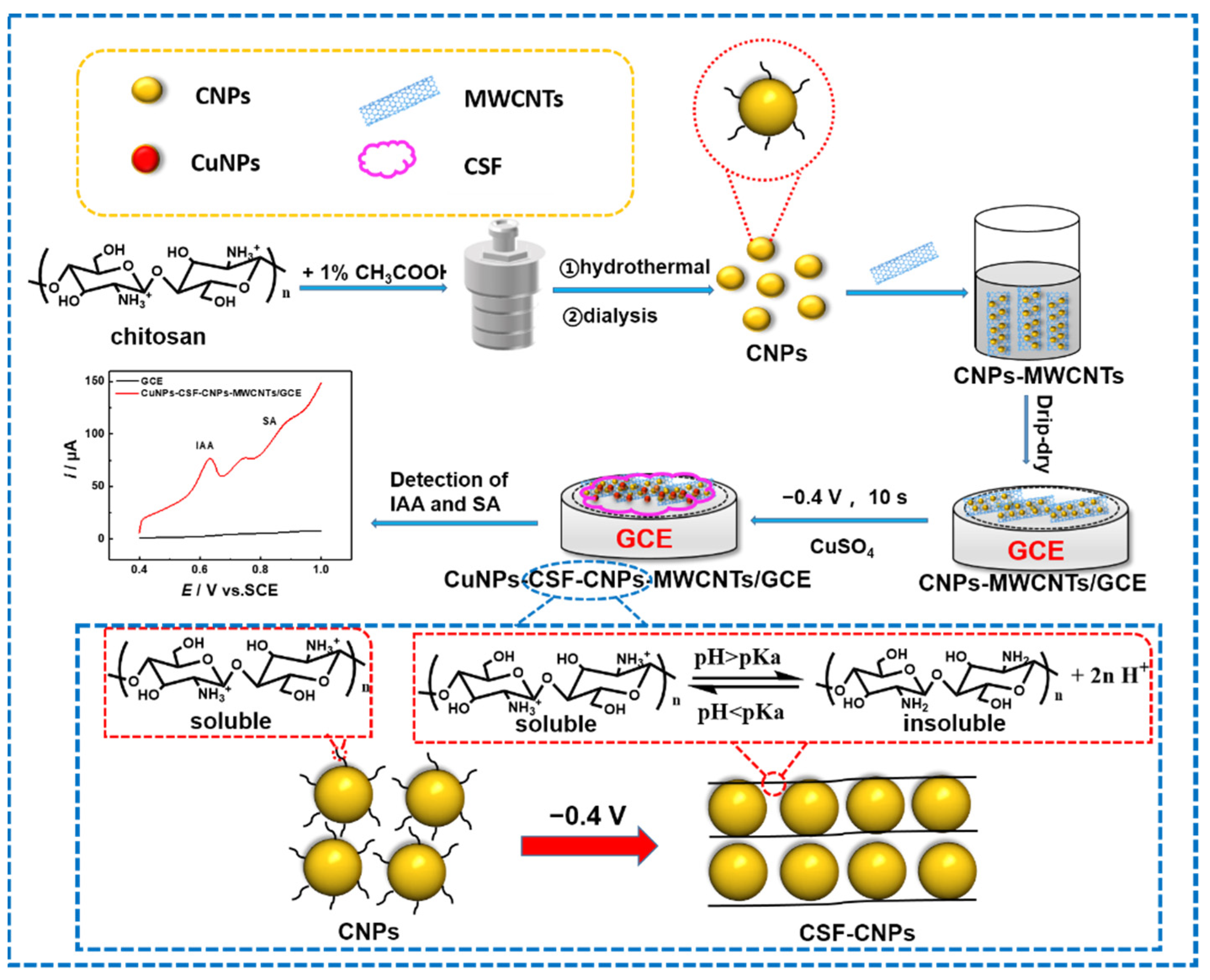

Scheme 1. Schematic illustration of the preparation of CuNPs-CSF-CNPs-MWCNTs/GCE for electroanalysis of IAA and SA, as well as a possible mechanism for the electrodeposition of CSF-CNPs [13].
Scheme 1. Schematic illustration of the preparation of CuNPs-CSF-CNPs-MWCNTs/GCE for electroanalysis of IAA and SA, as well as a possible mechanism for the electrodeposition of CSF-CNPs [13].
Sensors 22 04476 sch001
Sensors 22 04476 g001 550
Figure 1. SEM images of CNPs-MWCNTs/GCE (A) and CuNPs-CSF-CNPs-MWCNTs/GCE (B), respectively. Electrodeposition potential: −0.4 V. Electrodeposition time: 10 s.
Figure 1. SEM images of CNPs-MWCNTs/GCE (A) and CuNPs-CSF-CNPs-MWCNTs/GCE (B), respectively. Electrodeposition potential: −0.4 V. Electrodeposition time: 10 s.
Sensors 22 04476 g001
Sensors 22 04476 g002 550
Figure 2. TEM images of CNPs (A), CSF-CNPs (B), CuNPs-CSF-CNPs (C) and CuNPs-CSF-CNPs-MWCNTs (D). HRTEM (E) and SAED image of CuNPs in CuNPs-CSF-CNPs-MWCNTs (F).
Figure 2. TEM images of CNPs (A), CSF-CNPs (B), CuNPs-CSF-CNPs (C) and CuNPs-CSF-CNPs-MWCNTs (D). HRTEM (E) and SAED image of CuNPs in CuNPs-CSF-CNPs-MWCNTs (F).
Sensors 22 04476 g002
Sensors 22 04476 g003 550
Figure 3. XRD patterns of ITO, CuNPs, CNPs, MWCNTs, CNPs-MWCNTs and CuNPs-CSF-CNPs-MWCNTs, respectively.
Figure 3. XRD patterns of ITO, CuNPs, CNPs, MWCNTs, CNPs-MWCNTs and CuNPs-CSF-CNPs-MWCNTs, respectively.
Sensors 22 04476 g003
Sensors 22 04476 g004 550
Figure 4. CV (A) and EIS (B) of GCE (a), CuNPs/GCE (b), CNPs/GCE (c), MWCNTs/GCE (d), CNPs-MWCNTs/GCE (e) and CuNPs-CSF-CNPs-MWCNTs/GCE (f) in 5.0 mM [Fe(CN)6]3−/4− + 0.5 M KCl solution, respectively. Scan rate of 100 mV/s. EIS parameters: 100 kHz~5 mHz, 5 mV rms, 0.19 V vs. SCE.
Figure 4. CV (A) and EIS (B) of GCE (a), CuNPs/GCE (b), CNPs/GCE (c), MWCNTs/GCE (d), CNPs-MWCNTs/GCE (e) and CuNPs-CSF-CNPs-MWCNTs/GCE (f) in 5.0 mM [Fe(CN)6]3−/4− + 0.5 M KCl solution, respectively. Scan rate of 100 mV/s. EIS parameters: 100 kHz~5 mHz, 5 mV rms, 0.19 V vs. SCE.
Sensors 22 04476 g004
Sensors 22 04476 g005 550
Figure 5. Effects of CuSO4 concentration (A), deposition potential (B), deposition time (C), concentration of CNPs (D), hydrothermal time (E), hydrothermal temperature (F), concentration of MWCNTs (G) and the preconcentration time (H) on LSV peak current of CuNPs-CSF-CNPS-MWCNTs/GCE in 0.1 M PBS (pH = 7) containing 50 μM IAA and 50 μM SA. LSV (I) of GCE, CuNPs/GCE, CNPs/GCE, MWCNTs/GCE, CNPs-MWCNTs/GCE, CSF-CNPs-MWCNTs/GCE and CuNPs-CSF-CNPs-MWCNTs/GCE modified electrodes in 0.1 M PBS (pH = 7) containing 50 μM IAA and 50 μM SA. Scan rate of 100 mV/s.
Figure 5. Effects of CuSO4 concentration (A), deposition potential (B), deposition time (C), concentration of CNPs (D), hydrothermal time (E), hydrothermal temperature (F), concentration of MWCNTs (G) and the preconcentration time (H) on LSV peak current of CuNPs-CSF-CNPS-MWCNTs/GCE in 0.1 M PBS (pH = 7) containing 50 μM IAA and 50 μM SA. LSV (I) of GCE, CuNPs/GCE, CNPs/GCE, MWCNTs/GCE, CNPs-MWCNTs/GCE, CSF-CNPs-MWCNTs/GCE and CuNPs-CSF-CNPs-MWCNTs/GCE modified electrodes in 0.1 M PBS (pH = 7) containing 50 μM IAA and 50 μM SA. Scan rate of 100 mV/s.
Sensors 22 04476 g005
Sensors 22 04476 g006 550
Figure 6. (A) LSV curves of CuNPs-CSF-CNPs-MWCNTs/GCE in PBS (pH = 7) containing 50 μM IAA and 50 μM SA at different scan rates. (B) The linear correlation curve of peak current of IAA1 and IAA2 vs. the scan rates, respectively. (C) The linear correlation curve of peak current of SA vs. the scan rates.
Figure 6. (A) LSV curves of CuNPs-CSF-CNPs-MWCNTs/GCE in PBS (pH = 7) containing 50 μM IAA and 50 μM SA at different scan rates. (B) The linear correlation curve of peak current of IAA1 and IAA2 vs. the scan rates, respectively. (C) The linear correlation curve of peak current of SA vs. the scan rates.
Sensors 22 04476 g006
Sensors 22 04476 g007 550
Figure 7. (A) LSV curves of CuNPs-CSF-CNPs-MWCNTs/GCE in PBS containing 50 μM IAA and 50 μM SA at different pH values. Scan rate is 100 mV/s. (B) the linear correlation curve of Epa of IAA1 and IAA2 vs. pH. (C) The linear correlation curve of Epa of SA vs. pH.
Figure 7. (A) LSV curves of CuNPs-CSF-CNPs-MWCNTs/GCE in PBS containing 50 μM IAA and 50 μM SA at different pH values. Scan rate is 100 mV/s. (B) the linear correlation curve of Epa of IAA1 and IAA2 vs. pH. (C) The linear correlation curve of Epa of SA vs. pH.
Sensors 22 04476 g007
Sensors 22 04476 g008 550
Figure 8. Possible electrochemical oxidation reactions of IAA (A) and SA (B).
Figure 8. Possible electrochemical oxidation reactions of IAA (A) and SA (B).
Sensors 22 04476 g008
Sensors 22 04476 g009 550

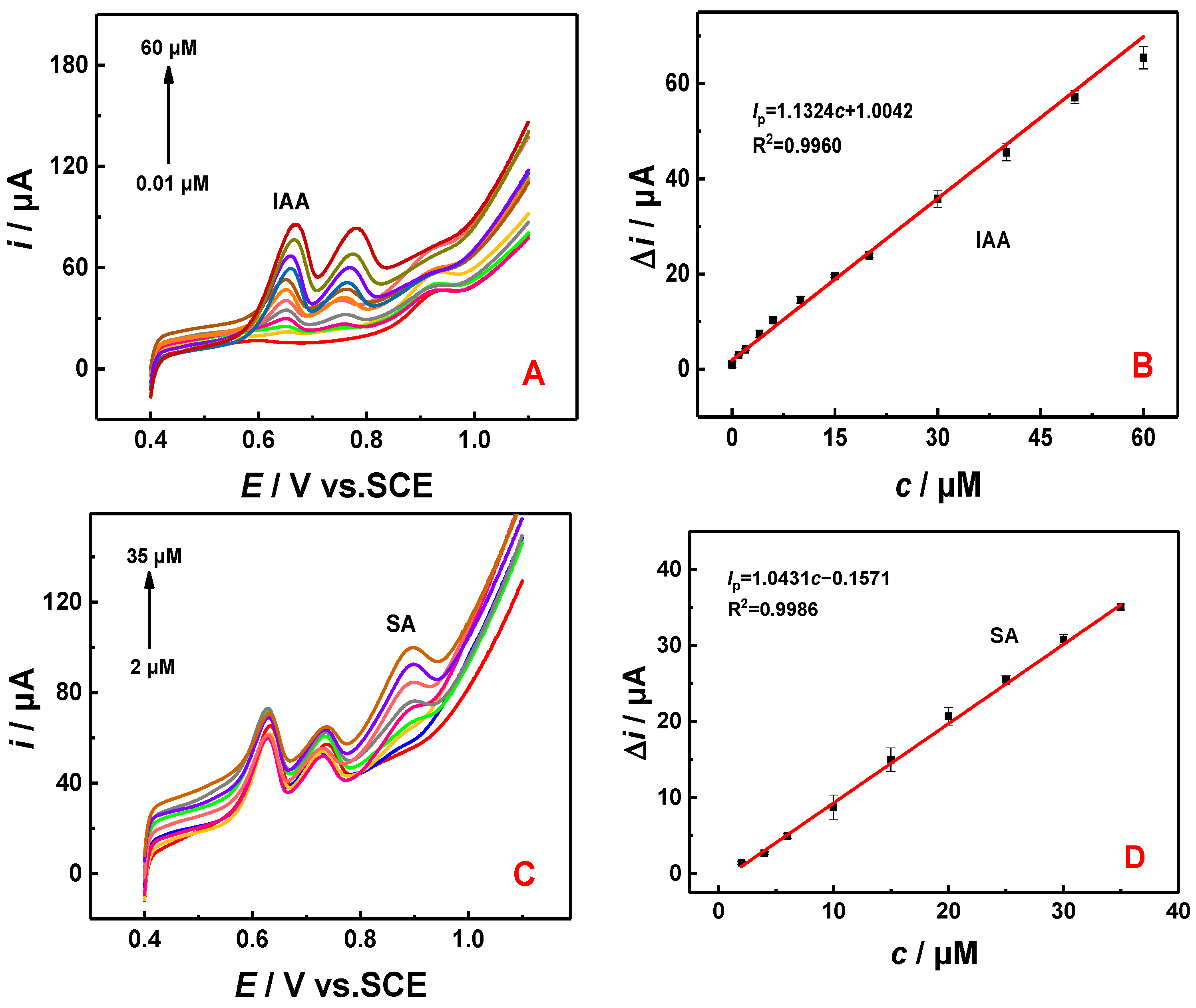

Figure 9. LSV curve of CuNPs-CSF-CNPs-MWCNTs/GCE in 0.1 M PBS (pH = 7.0) containing different concentrations of IAA (0.01, 1, 2, 4, 6, 10, 15, 20, 30, 40, 50, 60 μM) (A) and SA (2, 4, 6, 10, 15, 20, 25, 30, 35 μM) (C), respectively. Linear correlation curve between peak current and concentrations of IAA (B) and SA (D), respectively.
Figure 9. LSV curve of CuNPs-CSF-CNPs-MWCNTs/GCE in 0.1 M PBS (pH = 7.0) containing different concentrations of IAA (0.01, 1, 2, 4, 6, 10, 15, 20, 30, 40, 50, 60 μM) (A) and SA (2, 4, 6, 10, 15, 20, 25, 30, 35 μM) (C), respectively. Linear correlation curve between peak current and concentrations of IAA (B) and SA (D), respectively.
Sensors 22 04476 g009
Sensors 22 04476 g010 550
Figure 10. LSV (A) curve of CuNPs-CSF-CNPs-MWCNTs/GCE in 0.1 M PBS (pH = 7.0) containing different concentrations of IAA (0.01, 0.1, 5, 10, 20, 30, 40, 50 μM) and SA (4, 6, 10, 14, 18, 22, 26, 30 μM). Linear correlation curve between peak current and concentrations of IAA and SA (B), respectively.
Figure 10. LSV (A) curve of CuNPs-CSF-CNPs-MWCNTs/GCE in 0.1 M PBS (pH = 7.0) containing different concentrations of IAA (0.01, 0.1, 5, 10, 20, 30, 40, 50 μM) and SA (4, 6, 10, 14, 18, 22, 26, 30 μM). Linear correlation curve between peak current and concentrations of IAA and SA (B), respectively.
Sensors 22 04476 g010
Sensors 22 04476 g011 550

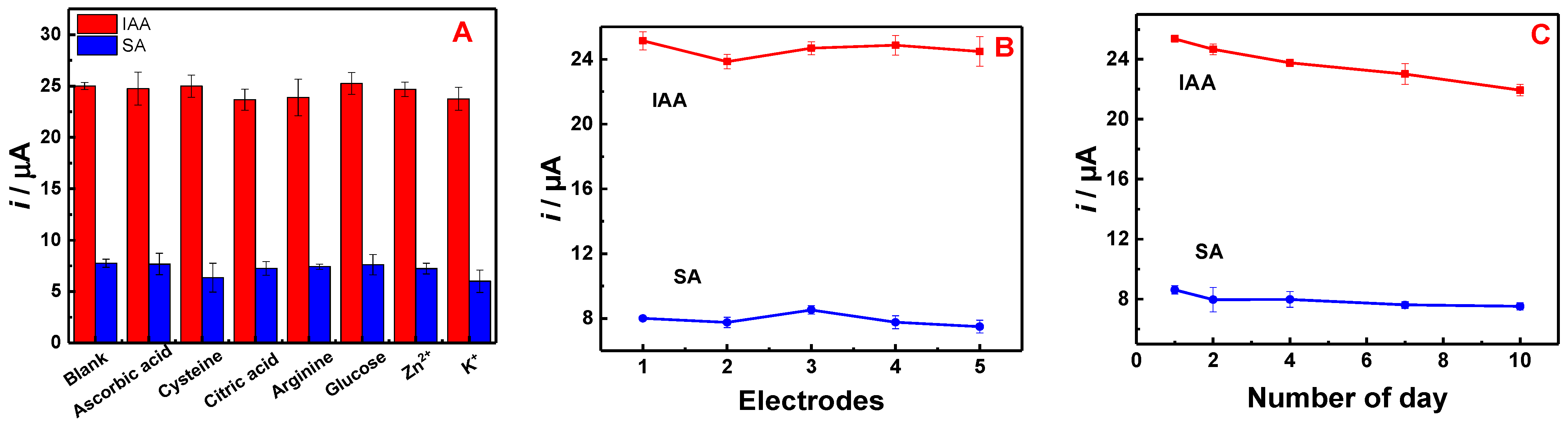

Figure 11. (A) LSV anodic current responses of CuNPs-CSF-CNPs-MWCNTs/GCE in 0.1 M PBS (pH = 7) containing 50 μM IAA and 50 μM SA in the presence of different interfering substances, respectively. (B) LSV anodic current response of five CuNPs-CSF-CNPs-MWCNTs/GCE electrodes in 0.1 M PBS (pH = 7) containing 50 μM IAA and 50 μM SA. (C) LSV anodic current responses of CuNPs-CSF-CNPs-MWCNTs/GCE in 0.1 M PBS (pH = 7) containing 50 μM IAA and 50 μM SA from 1 day to 10 days. Scanning rate: 0.1 V/s.
Figure 11. (A) LSV anodic current responses of CuNPs-CSF-CNPs-MWCNTs/GCE in 0.1 M PBS (pH = 7) containing 50 μM IAA and 50 μM SA in the presence of different interfering substances, respectively. (B) LSV anodic current response of five CuNPs-CSF-CNPs-MWCNTs/GCE electrodes in 0.1 M PBS (pH = 7) containing 50 μM IAA and 50 μM SA. (C) LSV anodic current responses of CuNPs-CSF-CNPs-MWCNTs/GCE in 0.1 M PBS (pH = 7) containing 50 μM IAA and 50 μM SA from 1 day to 10 days. Scanning rate: 0.1 V/s.
Sensors 22 04476 g011
Table
Table 1. The values of EIS equivalent circuit elements for each electrode.
Table 1. The values of EIS equivalent circuit elements for each electrode.
ElectrodesRs/ΩRct/ΩC/FW/J
GCE183.2137.53.881 × 10−70.000624
CuNPs/GCE141.252.662.363 × 10−70.000230
CNPs/GCE145.7602.96.489 × 10−70.000544
MWCNTs/GCE123.929.242.321 × 10−70.003243
CNPs-MWCNTs/GCE124.431.591.268 × 10−70.003287
CuNPs-CSF-CNPs-MWCNTs/GCE126.628.861.766 × 10−70.001516
Table
Table 2. Comparison of some typical modified electrodes for determination of IAA and SA.
Table 2. Comparison of some typical modified electrodes for determination of IAA and SA.
Electrodes *Detection MethodDetection
Substance		Linear Range/μMDetection
Limit/μM		Ref.
GH/GCELSVIAA
SA		0.6–10, 4–200
0.6–10, 4–200		1.42
2.8		[38]
CB-MWCNT-Nafion/Fc/GCEDPVIAA
SA		25–1000
25–1000		1.99
3.3		[22]
MWCNTs-CS/GCEDPVIAA
SA		0.67–48.82
0.67–48.82		0.1
0.1		[23]
CMC-MMT-SWCNT/GCELSVIAA
SA		0.005–0.3, 0.3–70
0.01–300		0.002
0.0063		[1]
AuNPs-GH/GCEi-tIAA
SA		0.8–4, 4–128
0.8–8.4, 8.4–188		0.21
0.22		[39]
CTDPVIAA
SA		1–100
1–100		0.1
0.1		[40]
CCC/ITODPVIAA
SA		10–100
10–100		3
2		[41]
PADsDPVIAA
SA		1–60
1–60		0.1
0.1		[42]
PPRONPs-CDs-MWCNTs/GCELSVIAA
SA		0.05–25
0.2–40		0.007
0.1		[43]
CuNPs-CSF-CNPs-MWCNTs/GCELSVIAA
SA		0.01–50
4–30		0.0086
0.7		This work
* GH: Graphene Hydrogel, CB: Carbon black, MWCNT: Multiwall carbon nanotubes, Fc: Ferrocene, CS: Chitosan, CMC: Carboxymethyl cellulose, MMT: Montmorillonite, SWCNT: Single-walled carbon nanotube, AuNPs: Gold nanoparticle, CT: Carbon tape, CCC: Conductive carbon cement. PADs: Paper-based electroanalytical devices.
Table
Table 3. Determination of IAA and SA levels at the CuNPs-CSF-CNPs-MWCNTs/GCE in 0.1 M PBS (pH 7.0) containing real samples.
Table 3. Determination of IAA and SA levels at the CuNPs-CSF-CNPs-MWCNTs/GCE in 0.1 M PBS (pH 7.0) containing real samples.
SampleAnalyteJoin (μM)Detection (μM)Recovery (%)RSD (%)
Rape leavesIAA
SA		10
5		9.20
5.45		92
109		2.43
2.98
Tea leavesIAA
SA		10
10		9.11
9.53		91.1
95.3		2.03
1.27
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kuang, Y.; Li, M.; Hu, S.; Yang, L.; Liang, Z.; Wang, J.; Jiang, H.; Zhou, X.; Su, Z. One-Step Co-Electrodeposition of Copper Nanoparticles-Chitosan Film-Carbon Nanoparticles-Multiwalled Carbon Nanotubes Composite for Electroanalysis of Indole-3-Acetic Acid and Salicylic Acid. Sensors 2022, 22, 4476. https://doi.org/10.3390/s22124476

AMA Style

Kuang Y, Li M, Hu S, Yang L, Liang Z, Wang J, Jiang H, Zhou X, Su Z. One-Step Co-Electrodeposition of Copper Nanoparticles-Chitosan Film-Carbon Nanoparticles-Multiwalled Carbon Nanotubes Composite for Electroanalysis of Indole-3-Acetic Acid and Salicylic Acid. Sensors. 2022; 22(12):4476. https://doi.org/10.3390/s22124476

Chicago/Turabian Style

Kuang, Yiwen, Mengxue Li, Shiyu Hu, Lu Yang, Zhanning Liang, Jiaqi Wang, Hongmei Jiang, Xiaoyun Zhou, and Zhaohong Su. 2022. "One-Step Co-Electrodeposition of Copper Nanoparticles-Chitosan Film-Carbon Nanoparticles-Multiwalled Carbon Nanotubes Composite for Electroanalysis of Indole-3-Acetic Acid and Salicylic Acid" Sensors 22, no. 12: 4476. https://doi.org/10.3390/s22124476

APA Style

Kuang, Y., Li, M., Hu, S., Yang, L., Liang, Z., Wang, J., Jiang, H., Zhou, X., & Su, Z. (2022). One-Step Co-Electrodeposition of Copper Nanoparticles-Chitosan Film-Carbon Nanoparticles-Multiwalled Carbon Nanotubes Composite for Electroanalysis of Indole-3-Acetic Acid and Salicylic Acid. Sensors, 22(12), 4476. https://doi.org/10.3390/s22124476

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
