Article

2D SLAM Algorithms Characterization, Calibration, and Comparison Considering Pose Error, Map Accuracy as Well as CPU and Memory Usage †

Control Engineering Research Laboratory (CERLab), Electrical Engineering School, Engineering Faculty, University of Costa Rica (UCR), San Pedro, San José 11501-2060, Costa Rica
*
Authors to whom correspondence should be addressed.
The statistical methods for characterization, calibration, and algorithms comparison, besides the metrics algorithms, the ground truth map generation, and the rosnodes for pose recording and automated execution, were developed by Kevin Trejos, under the supervision of Leonardo Marín. Nevertheless, the algorithms’ test execution was distributed equally.
Sensors 2022, 22(18), 6903; https://doi.org/10.3390/s22186903
Submission received: 1 April 2022 / Revised: 2 May 2022 / Accepted: 12 May 2022 / Published: 13 September 2022
(This article belongs to the Special Issue Best Practice in Simultaneous Localization and Mapping (SLAM))

Abstract

:
The present work proposes a method to characterize, calibrate, and compare, any 2D SLAM algorithm, providing strong statistical evidence, based on descriptive and inferential statistics to bring confidence levels about overall behavior of the algorithms and their comparisons. This work focuses on characterize, calibrate, and compare Cartographer, Gmapping, HECTOR-SLAM, KARTO-SLAM, and RTAB-Map SLAM algorithms. There were four metrics in place: pose error, map accuracy, CPU usage, and memory usage; from these four metrics, to characterize them, Plackett–Burman and factorial experiments were performed, and enhancement after characterization and calibration was granted using hypothesis tests, in addition to the central limit theorem.

1. Introduction

SLAM algorithms are complex methods that allow a robot, without any external system other than its own sensors, to create a map of the environment and locate itself into this map. There are a large amount of non-linearities and imperfections in the mobile robot system (e.g., robot drifts, sensor noise, irregular environment) that could lead the SLAM algorithms to a bad representation of the environment, getting lost on this representation, or spending a considerable amount of computational resources [1,2]. Therefore, since these are the main difficulties a robot with a SLAM algorithm must overcome, this work focuses on characterizing, calibrating, and comparing five different 2D SLAM algorithms towards creating a good map, having a good track of its pose (position and orientation), but also spending the less possible CPU and memory while doing so.
For longer than two decades, SLAM has been in the spotlight of many robotics researchers, due its many possible applications such as autonomous driving [3,4], search and rescue [5], autonomous underwater vehicles [6,7], and collaborative robotics [8], which is why, nowadays, there are many different approaches trying to solve the same problem [9]. Below are shown the most frequent SLAM algorithms approaches.
A first approach to solve the SLAM problem was based on the extended Kalman filters (EKF) [1]. Kalman filters [10] are based in the implementation of observers, which are mathematical models of the linearized system that help estimate the behavior of the real system, and in the utilization of an optimal state estimator, that considers white noise in the measurements of the system [11]. For the SLAM problem, the EKF first predict the robot state (pose and a map represented by a series of landmarks or features) [1,12] using a mathematical model of the robot movement and the environment, and then uses the sensor data to correct the prediction. The sensor normally used in this approach is a LiDAR, but there are solutions using sonars or monocular cameras [3].
Another strategy in the SLAM solution was made by using particle filters. This is a modern approach, but its conceptualization is not since its origins are approximately around 1949 with the Monte Carlo method [13]. The main methodology difference towards Kalman filters is the data distribution type that this method can deal with. Kalman filters are intended to deal with linear Gaussian distributions [10,14], while particle filters can deal with arbitrary non-Gaussian distributions and non-linear process models [1]. Particle filters in SLAM use a set of particles, each being a concrete guess of the robot state (pose and map) [9]. As the robot moves into the environment and uses information from the sensors, the filter removes erroneous particles (with low probability of occurrence) and adds new particles close to those with the best probability of occurrence [15]. After a certain time, the erroneous particles will have been eliminated while the correct ones will be similar between them (similar pose and map estimates) [16]. The sensor normally used in this approach is a LiDAR [9]. The algorithms Gmapping [17] and HECTOR-SLAM [18] are modern examples of the SLAM particle filter solution.
A more recent approach considers using graph-based methodologies. This proposes to use a graph [3] whose nodes correspond to the robot’s poses at different points in time and whose edges represent restrictions between the poses. The graph is obtained from observations of the environment or movement actions conducted by the robot. When this graph is assembled, the map can be calculated by finding the spatial configuration of the nodes that is most consistent with the measurements modeled by the edges [19,20], this solution is usually obtained with standard optimization methods (e.g., Gauss-Newton, Levenberg–Marquardt) [19] or with nonlinear sparse optimization [9]. The sensor normally used in this approach is a LiDAR, but there are solutions using some time-of-flight cameras (also known as RGB-Dept cameras) such as the Microsoft’s Kinect [9]. The algorithms Cartographer [21], KARTO-SLAM [22] and the original RTAB-Map [23] are modern examples of the graph-based SLAM solution.
There are also modern methods that can be used for 3D SLAM, which can use different sensor types, such as Visual SLAM (vSLAM) that use low-cost cameras (e.g., monocular, stereo, and RGB-Dept cameras) to capture the environment data as the robot navigates, and then extract the relevant information to solve the SLAM problem using the EKF, the particle filter or the graph-based approach [24]. For example, the latest version of the RTAB-Map SLAM algorithm also supports visual slam [23]. There is also the Visual-inertial simultaneous localization and mapping (VI-SLAM) algorithm that fuses the information obtained from the camera with the data obtained from an Inertial Measurement Unit (IMU), such as the orientation and the change in the pose, to improve the accuracy of the SLAM solution, that is obtained using a filter or an optimization approach [25,26]. Additionally, direct 3D Slam methods exists, that use more modern 3D LiDAR systems, which are applied to improve the SLAM algorithm performance in challenging environments (e.g., smoke in the surroundings, fog or rainy situations) [27,28]. Finally, there are methods that combine the vision and LiDAR approaches in order to improve the SLAM performance in cases of aggressive motion, lack of light, or lack of visual features. These algorithms employ 2D or 3D LiDAR sensors and the EKF or the graph-based methodologies to obtain the SLAM solution [27].
In this paper we focus on the comparison of 2D Slam algorithms with similar pose and map representation. These are based on the previously described SLAM solution approaches, but with different capabilities and strategies to obtain the best possible map and pose adjustment, or even better resources usage optimization. These capabilities are important when dealing with different environments, such as robots with limited resources, which might require an algorithm with the highest resources usage optimization possible, while cases with robots dealing with complex environments might better select an algorithm that has deeply optimized the pose and map calculations. In the subsequent sections the selected algorithms will be described with deeper emphasis.
In this work, four metrics are used for the comparison of 2D Slam algorithms, they were created and processed in MATLAB, and are explained in the following paragraphs.
The map accuracy was measured using k-nearest neighbor method [29], by measuring the euclidean distance from each of the ground truth points to the nearest map point generated by the SLAM algorithm under test. A mathematical representation of the metric can be found in Equation (1), where N is the amount of points to sample, x 2 i x 1 i and y 2 i y 1 i represent the x-coordinate and y-coordinate difference between the ground truth point and the nearest map point generated by the algorithm, respectively. The measurement units used for this metric are centimeters.
Pose tracking accuracy was developed by a set of iterative loops calculating the euclidean distance between the ground-truth pose and the estimated pose [30]. It can also be represented by equation (1), but with a modified interpretation of the variables. For this metric N is the number of poses to sample, x 2 i x 1 i and y 2 i y 1 i represent the x-coordinate and y-coordinate difference between the ground truth pose and the estimated pose generated by the algorithm, respectively. The measurement units used for this metric are meters.
d E = 1 N i = 1 N ( x 2 i x 1 i ) 2 + ( y 2 i y 1 i ) 2
Finally, CPU and memory usage were recorded using Python psutil library [31]. These both metrics are mathematically represented by averaging the whole measurements taken during the test run, and their units are percentage of for CPU usage, where a number beyond 100% means it is using more than a single core, and MB for memory usage.
Lastly, there are many SLAM comparison investigations done previously, such as Ref. [32], which focuses on the algorithms processing time; Ref. [29] which evaluates map accuracy, and CPU usage; Ref. [20] which evaluates map accuracy, CPU and memory usage; Ref. [33] which only measures pose and map accuracy, and Ref. [34] which analyzes map accuracy and CPU usage.
Based on the reviewed works, there are two differentiating factors of the method proposed in this paper, which puts our investigation a step ahead:
  • The existing works focus only on map accuracy, pose accuracy, memory or CPU usage, but none of them considers all of them together. Our investigation considers all of them, giving a wider point of view to better characterize, calibrate, and compare the SLAM algorithms.
  • None of the current methods takes a statistical approach to provide confidence levels on the results obtained. With our investigation we can guarantee with 90% confidence that each condition will happen when the populations are considered. In addition with 95% confidence level that the characterization and calibration of the parameters is the best fit for the ranges tested.

2. Materials and Methods

2.1. Generalities

For all these experiments, since the trials and algorithms were simulated, the only equipment needed was a computer running Ubuntu 18 with ROS Melodic, the computer was a server with an Intel Xeon Silver 4114 2.2 GHz. To simulate the environment, a software called GAZEBO 11.0.0 release was used to simulate the test environment, while a robot named TurtleBot 3 Burger was the one selected to be simulated in this work, because of its 2D LiDAR sensor and its differential driving mode, but other configurations can be used, such as a mecanum omnidirectional robot [35].

2.2. Simulation Needs

Regarding the ROS nodes, there are some nodes that were tailored for our needs, other than simulated robot that can be easily implemented based on the TurtleBot 3 wiki [36]. The first of them is the so-called Robot Pose Publisher, which basically reads the data published by GAZEBO and stores every convenient time (20 times per second in this case) the actual pose of the robot [37], second, a node that monitors the CPU and memory usage by the SLAM algorithm [38], and last but not least, a node that makes the robot follow a fixed path, to guarantee that all the samples were performed under the same conditions [39].

2.3. Data Processing Needs

Next, MATLAB 2020B was used to convert the data provided through rosbags in a manner that can be easily analyzed and synthesized, the scripts used are Ground Truth Generator, which takes the environment created through GAZEBO and builds a high resolution 2D version of it [40]. This well-known Ground truth plot is then compared to the SLAM algorithm result by using a script that takes advantage of knn-search method provided by MATLAB [41], its output is the descriptive statistics of the whole comparison.
There are two other important scripts, in the first it is compared the real pose towards the estimated pose of the robot, and returns some meaningful descriptive statistics about the comparison [42], and a script that analyzes the CPU and memory usage by the algorithm [43].

2.4. Data Analysis Needs

The data analysis software used to provide sufficient statistical evidence of the results provided, was Minitab statistical tool version 2018.

2.5. SLAM Algorithms Used

There are five algorithms used, all of them as a 2D algorithm because of the robot sensor limitation wanted, these are described in the following subsections.

2.5.1. Cartographer

Cartographer was created by Google and released for free worldwide access since October 2016 [21]. The main idea with this algorithm was to improve the efficiency, by optimizing the way to process the data from particle filters. So, instead of creating a big map, it divides them by shorter sub-maps, which then are inserted on the way, besides a pose optimization, concluding in an error reduction that is carried over from robot pose [44].
This algorithm is based in the combination of two separated 2D SLAM, one of them working locally, and the other working globally, both using a LiDAR sensor and optimized independently. Local SLAM is based in the collection and creation of sub-maps, one of them is the recollection and alignment of multiple scans with respect to initial position. Sub-maps are created like a dot net with an specific resolution, and with a probability associated that one of its dots is blocked. This probability depends if it was measured previously and if it is kept while more sub-maps are created. Once sub-map is created, it is passed by an algorithm to find the optimal position to match with the rest of the sub-maps, and then extrapolate the rest of them [45].
The second part of the algorithm, the global SLAM, is focused in the sub-maps feedback. Once these sub-maps are created, all of them have robot poses associated. which are used to improve the maps, making a reduction of the accumulated SLAM error. This is well-known as loop closure [45].
By using the well-known optimization called Spare Pose Adjusment (SPA), every time a sub-map is generated, a map-scanner is executed to close the loop and insert the just-created sub-map into the graphic. Below are shown two formulas that determine if a cell is saved as busy, empty, or empty into a map cell [46].
M n e w ( c e l l ) = P 1 ( P ( M l a s t ( c e l l ) P ˙ ( p h i t ) ) )
where:
  • M l a s t ( c e l l ) is the error likelyhood.
  • p h i t is the probability that a map cell is busy.
  • P = P 1 P
The intention is to minimize the functional cost of updating the cells value that compose the map.
arg min ξ k = 1 K ( 1 M s o f t e n e d ( T ξ h k ) ) 2
where:
  • M s o f t e n e d ( x ) is the cell value x, softened by the neighbor values.
  • h k is the laser reading related to cell.
  • T ξ is the matrix transformation that displaces the point h k to ξ .
  • ξ is the posture vector ( ξ x , ξ y , ξ θ ) .
This model is configured based on different parameters of the algorithm. Below, in the Table 1 are shown the main parameters that have incidence in the functionality of the algorithm [47].

2.5.2. Gmapping

This algorithm is based in the principles described in the particle filter with Rao-Blackwellization, which makes the math to get the actual posture of the robot, right from the probability given by the information collected in the past; with the help of this posture and the past maps made. It also has the capability of correcting estimations by the odometry and the calculation of the weights and the map [17].
This is one of the most studied types of SLAM algorithms, it came right after many years of investigation around particle filters, using the Rao-Blackwellized particle filter approach [48] to solve more efficiently the SLAM algorithm, reducing the number of particles required for the estimation [48]. In addition, the robot pose uncertainty is greatly decreased in this algorithm. However, it has a higher computational resource requirement, as it usually has an elevated processing time and memory consumption when compared to the EKF filter approach.
The main parameters responsible of the functionality of the algorithm are listed in the Table 2, according to [49].

2.5.3. HECTOR-SLAM

This algorithm is named because of its development team, which is Heterogeneous Cooperating Team Of Robots, an as it is explained in [18], it was developed because of the necessity of an algorithm for Urban Search and Rescue scenarios (USAR).
HECTOR-SLAM was developed from a 2D SLAM using a LiDAR sensor that had attached an IMU, this sensor provides the measurements for the navigation filter, and also gives the capability to perform 3D mapping. This is the reason why HECTOR-SLAM can be used into either 2D or 3D strategies.
As shown in [18], the algorithm uses an occupation grid map. Since LiDAR has 6 degrees of freedom, the scanned points must be transformed to a local coordinates framework using the estimated behavior from the LiDAR. Reason why, using the estimated pose, the scanned points are converted in a point cloud. With this point cloud, it is performed a pre-processing of the data, HECTOR-SLAM uses a z axis filtering of the final point, with this only the final points of the ( x , y ) plane are considered.
Regarding the list of parameters of HECTOR-SLAM, these are defined in the Table 3, they were taken from [50].

2.5.4. KARTO-SLAM

KARTO-SLAM is an optimized SLAM algorithm, it was developed by SRI International’s Karto Robotics with a ROS extension, as an open source code. Its working base lies in the decomposition of Cholesky matrices to minimize the error, giving an optimized robot pose and trajectory [22].
KARTO-SLAM builds the map by using nodes that save the location points of the robot trajectory and the dataset of sensor measurements. Graph borders are represented by transformations or trajectories between two consecutive poses in the space. when a new node is added, the map will be reprocessed and updated according to the border restriction in the space. These restrictions will be linearized as an scatter graph [51,52].
A loop closure condition can be shown if the robot revisits the same point twice or more times in the same run. In other words, a border that connects two nodes with the same world perception is made. Aligning these perceptions produces a virtual transformation. Based on this information it is determined if the algorithm can adjust its estimations and represents the environment with a good enough confidence level [53].
An optimization is used to calculate the most likely pose from the nodes collected, to get the most probable graph. To use the optimization methods, it is necessary to define an error function between the measurements obtained. Assuming x = ( x 1 , x 2 , , X T ) T is the nodes vector in the graph, and z i , j the odometry between nodes x i and x j . A border z i ^ , j is produced, with an error expression that meets the Equation (3).
e i , j ( x i , x j ) = z i , j ^ z i , j
Together with the inverse covariation matrix ω i , j , an error function is established, given by the Equation (4).
F ( x 1 , T ) = < i , j > ϵ G ( z i , j ^ z i , j ) T ω i , j ( z i , j ^ z i , j )
The goal is to compute a posture x, in a way that the Equation (4) goes to its minimum, in a way that Equation (5) is accomplished.
x ¯ 1 , T = a r g m i n x F ( x )
At this point it is necessary to describe the algorithm parameters, these are shown in the Table 4 and were taken from [54].

2.5.5. RTAB-Map

RTAB-Map comes from Real-Time Appearance-Based Mapping, it is a graph-based SLAM algorithm, composed by a C++ library and a ROS package. This library is an open source library, and has been improved and extended since its beginning in a way that the closed loop algorithm implements a memory management strategy [23].
Its processing requires some distributed storage systems, these are short-term memory, work memory, and long-term memory. These all together optimize the localization and mapping for long periods or in wide spaces, because they limit the size of the space processed, so that the loop closure can be executed in a short time lapse [55,56].
RTAB-Map implementation is based in a simultaneous processing. For graph-based SLAM, as the map grows, the processing, optimization, assembly, and CPU load also grows. Reason why, RTAB-Map stablishes a maximum response time at SLAM output, once it has received the sensors data [23,57]. As the latest version of the algorithm admits 2D and 3D LiDAR sensors and is capable of performing visual SLAM, the RTAB-Map 2D LiDAR based SLAM option [23] was used for the tests performed in this work.
The list of parameters of RTAB-Map are shown in the Table 5, they were taken from [58].

2.6. Arenas Used

Three different arenas simulated through GAZEBO were created to test the SLAM algorithms. The differences between them are mainly based on the number of irregularities per area that they have, and also, by the kind of path that they force the robot to follow.

2.6.1. Common Environments Arena

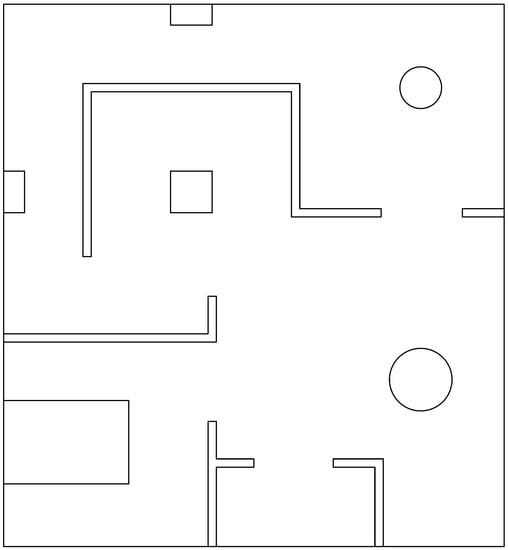

This arena simulates an apartment with a set of rooms and regular geometry objects on it, in every single place there is a quite good number of irregularities, so that the robot can easily handle the SLAM task, see Figure 1 for reference.

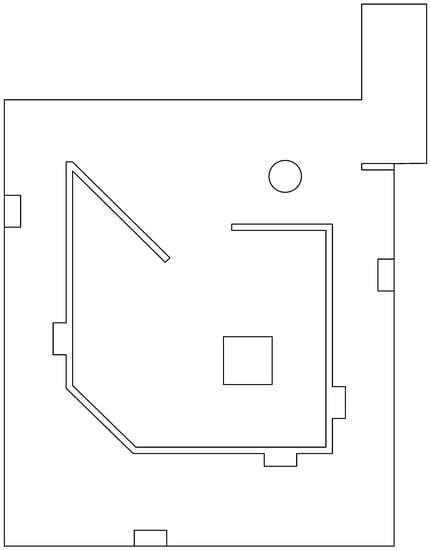

2.6.2. Training Arena

This arena is used for algorithms characterization and calibration, but also for the comparison trials. It is shown in Figure 2. It can be considered as a middle point between Common Environments Arena and Labyrinth Arena, since it has regular figures as Common environments Arena does, but also has long corridors around the zero coordinate of the arena, as Labyrinth Arena does. These are the reasons why it is used for characterization and calibration of the algorithms.
The arena tries to challenge the algorithms with some sort of general asymmetry, and with angled obstacles to see how good it is dealing with this kind of obstacles, the arena itself is nothing but a corridor with a center room containing a single obstacle, however, something that can slip past is that the number of irregularities per area is a bit lower than with Common Environments Arena, but higher than Labyrinth Arena.
This arena is also considered for comparison trials, to reflect how good the characterization and calibration was.

2.6.3. Labyrinth Arena

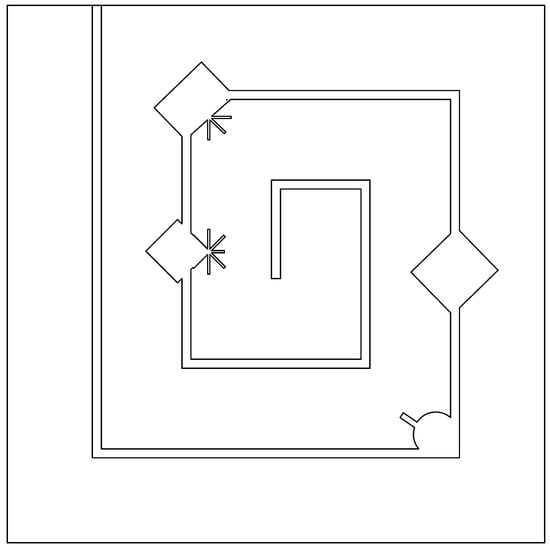

This arena is the hardest of the three for the SLAM algorithms, at glance it shows a labyrinth easy to follow, however, it is a very difficult environment to map by any SLAM algorithm, as this arena challenges the algorithms with more complex obstacles and with long corridors, without any irregularity that could help the algorithms to easily locate themselves and recreate the environment map. These two reasons make this arena the hardest for the test performed in the algorithm comparison. For reference see Figure 3.

2.7. Trajectories Used

There were fifteen trajectories used, six for Common environments Arena, six for Training Arena, and three for Labyrinth Arena. The main objective of the trajectories is to make the robot follow the arenas in diverse ways, first starting from coordinate zero (geometric center of the arenas), then starting from a non-zero coordinate, and finally following twice the trajectory starting from coordinate zero. All these three trajectories are followed in the forward direction and then in reverse, except for the Labyrinth Arena, in which reverse trajectories are the same than the forward direction, so only three trajectories were used in this arena. The match between observations and scenario is shown in the Table 6.

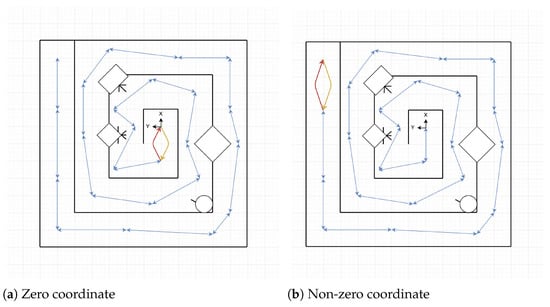

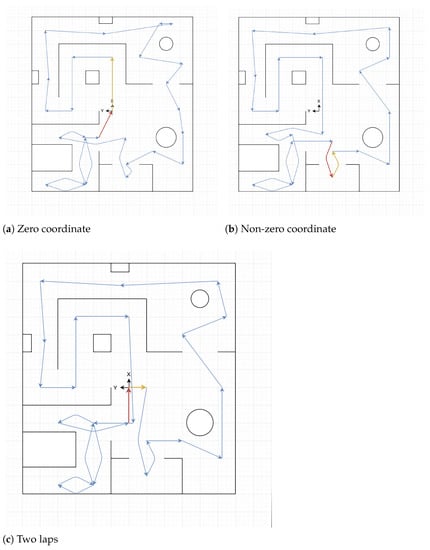

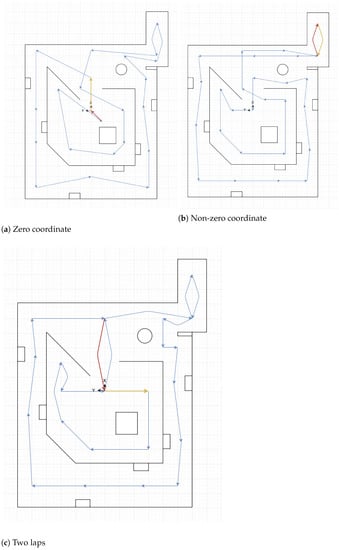

All these trajectories are shown in a simplified version of each arena in the Figure 4a–c for Training Arena, in the Figure 5a–c for Common Environments Arena, and in Figure 6a,b for Labyrinth Arena. In these figures, the yellow arrow indicates the starting point and direction of the forward trajectory, and the tip of the red arrow indicates the finishing point of this path.

2.8. Characterization and Calibration Methods Used

To characterize each of the algorithms, a statistical approach was taken, it is not sensible to the type of SLAM algorithm or sensors used, it is only sensible to the data provided by each of the metrics for the trials, so that even SLAM approaches using sensors other than LiDAR can be calibrated following this method, as long as the map representation is compatible with the application of the knn-search metric, and the robot pose is obtained in matching measurement units. However, a 2D LiDAR sensor approach was taken to match the analysis with actual equipment available, and because these are the most common sensor for the 2D SLAM approach, and especially applicable to low-cost robotic platforms.
The methodology focuses on finding statistical evidence of the effects of the algorithms parameters on the output means of Pose Accuracy, Map Accuracy, CPU usage, and Memory usage, it is important to highlight that this paper have used mean measurements for characterization and calibration, but other descriptive statistical values can be used if wanted.
There are three different stages for calibration, these are described below.
The first stage is only used when the algorithm has a large amount of parameters that must be tuned, here comes into play the first statistical tool, which is a Plackett–Burman experiment, which is a kind of Design of Experiments with a reduced amount of samples, but with the weakness that only takes into account main effects, since main effects are aliased with 2-way interactions (only the effect of each variable by itself can be obtained). With this tool it can be ensured with some confidence level defined when analyzing the experiment results, that a variable has an effect over an output.
Next, the second stage is when calibration comes into play. This part of the process considers only the variables that demonstrated that, by themselves, have an effect over at least one of the four outputs we are measuring, a full-factorial Design of Experiments is used, it makes the combination of all the parameters in the ranges defined by the user, and returns a Pareto chart and an equation, with these both we can determine which is the best combination that reduces the error of the localization and mapping, or reduces the resources usage, also with some confidence level defined when analyzing the experiment results.
Finally, to compare the algorithms, since the data obtained from each run not necessarily shapes a Gaussian’s curve, the central limit theorem is used, population data are considered the whole different tests that can be performed on these arenas with this robot and with each algorithm, so that, calculating the mean of the means we can then compare this value between the values obtained from other algorithms (for a full-data comparison), using the statistical tools that can be used with Gaussian-behaving samples, in this case using hypothesis tests for the mean and the standard deviation of the means (Two-Sample T for the mean, and Two-Sample Standard Deviation for the standard deviation of the means).

3. Results

There are three main stages considered along this work, Characterization, Calibration, and Comparison, these are explained in the following sections.

3.1. Characterization and Calibration

Since the algorithms were already working and providing acceptable results to consider them functional with the default parameters, a soft tuning with short modifications to these parameters was performed, to enhance the performance for the training arena and the simulated robot.
There were two statistical experiments and a set of hypothesis tests performed to tune each algorithm. First, with a Plackett–Burman experiment, filter which parameters main effects over each metric had enough statistical significance for the ranges of variation per variable, next, with a full factorial experiment, tune these parameters to give the best output for the metrics considered, and finally, confirm that the new parameters tune gives better results than default parameters tuning with a set of hypothesis tests for the mean and/or the standard deviation. This confirmation was performed with more than two trials, to be able to take advantage of the central limit theorem and get valid hypothesis conclusions.
As disclaimer, Gmapping was not soft tuned for these trials, since it was already fully tuned by a previous work [59].

3.1.1. Cartographer

For Cartographer, its output had the problem that default parameters did not give a good map accuracy, for this reason the soft tuning was focused on enhancing the map accuracy. There were identified ten different parameters that could be more significant for the general algorithm outputs, these are shown in the Table 7.
After Plackett–Burman and Full Factorial designs only three of the listed parameters were modified from their defaults, those can be seen in the final values of Table 7. For the improvement confirmation trials, there were five runs executed with default and improved parameters, with 95% of confidence we can tell that map accuracy and pose accuracy means were improved with the new parameters (given the Figure 7), by performing a set of 2-Sample T tests, but at cost of memory usage degradation from default parameters.

3.1.2. HECTOR-SLAM

At the very beginning, with default parameters this algorithm showed up an adequate performance for all the metrics, based on Figure 8, so the experiment was focused on really short variations to see if there might be an enhancement on the outputs. For that reason, the parameters identified for the experiment were the ones shown in Table 8.
After all the experiments it was identified that none of the parameters had enough statistical evidence to demonstrate any direct effect on the outputs. Furthermore, it was evidenced that the best scenario for the four metrics was the default scenario, since all the different variations have a worsened behavior from the default values.

3.1.3. KARTO-SLAM

For KARTO-SLAM, eighteen parameters were considered in the soft tuning stage, these are shown in the Table 9. After completing Plackett–Burman experiment only three parameters surpassed the statistical limit to be considered relevant for CPU usage. A full factorial experiment was executed over these parameters with the same variation ranges used in Plackett–Burman experiment.
After completing the factorial experiment, it was obtained a scenario that improved the output for each of the metrics, demonstrated through hypothesis tests over the mean and standard deviation, using five runs with default versus new parameters. The improved map is showed in Figure 9.

3.1.4. RTAB-Map

Since RTAB-Map has a boosted capabilities than others, its model was coupled to deal only with 2D SLAM problem. With this, the relevant parameters were selected to tune, those are shown in Table 10.
From filtering stage, there were identified 3 parameters with enough statistical relevance for pose and map accuracy those were detectionRate for pose error, and timeThreshold and LoopThreshold for map accuracy. A full factorial experiment was performed with these parameters, obtaining a total of nine experiments to perform. With this factorial experiment the parameters were tuned for the best scenario; their final values are shown in Table 10.
After soft tuning, with six extra trials with the new parameters versus default parameters, it was demonstrated with 90% of confidence that all the metrics perform better with these new parameters configuration. Figure 10 is presented as proof of the improvement.

3.2. Individual Results

3.2.1. Cartographer

Results for Cartographer in terms of pose accuracy were quite stable throughout all the different scenarios executed, excepting when executing labyrinth arena starting at non-zero coordinate (observation 14 in Figure 11), this is a special case where the robot starts in a corridor without irregularities or landmarks to reference itself, making it accumulate the error quickly, and it is unable to take it back to near zero.

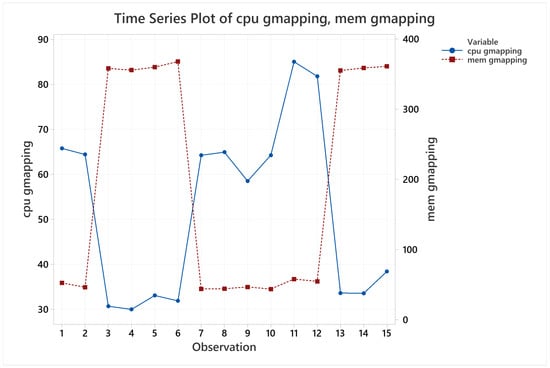

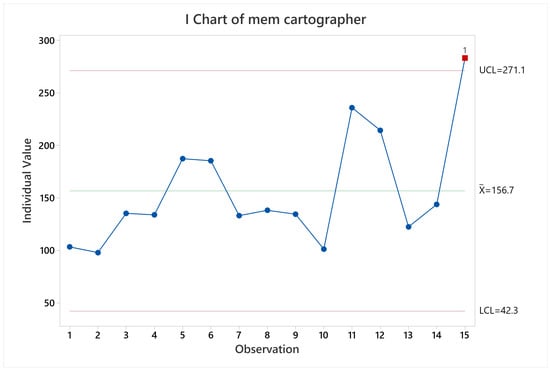

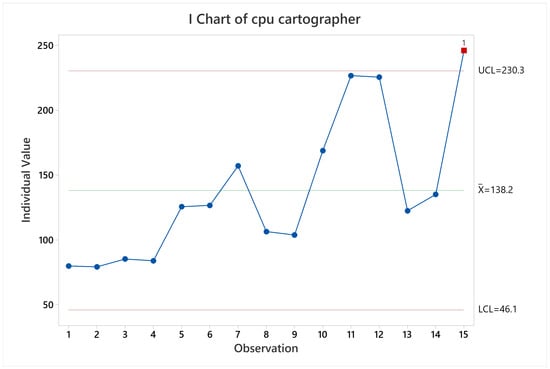

In terms of CPU and memory usage, it can be noticeable that the longer the test the higher the usage, since observations related to two laps show a higher CPU and memory usage, as can be seen in Figure 12 for CPU usage behavior, and Figure 13 for memory usage behavior.

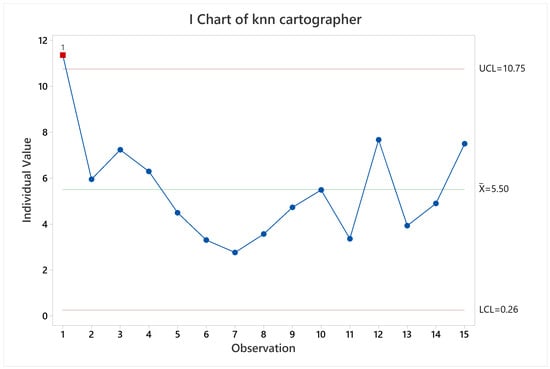

In regards of map accuracy there are no trends by visually inspecting the results, as there is no noticeable correlation to either arena type, trajectory type, or robot direction. See Figure 14 for reference.

3.2.2. Gmapping

In regards of pose accuracy behavior it is the same behavior obtained with Cartographer, Figure 15 shows the time evolution of the pose error. The quick error increase at the beginning of the test of the observation 14 (labyrinth arena starting at non-zero coordinate) is quite visible, which is an expectable behavior because of the SLAM algorithms nature, as was explained before in the Cartographer results. These overall results considering all the tests for Gmapping can be found in Figure 16.
In relation to CPU and memory usage, the only trend noticeable was the correlation between them, when CPU usage increased memory usage decreased and vice versa. After a Pearson test to confirm this correlation, it resulted in a strong negative correlation of −0.928. Figure 17 shows visually their behavior, that can be explained by the way Gmapping manages its resources. Gmapping processes the particles on the fly [48], and this can result in timelapses where CPU is full of other tasks and memory must store these particles while CPU gets some time to process them. The same occur when the CPU has a high availability for processing the particles, releasing the allocated memory.

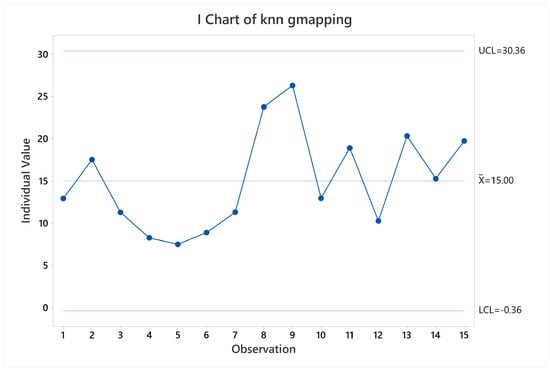

For map accuracy there is no real trend noticeable by the dataset, as shown in Figure 18.

3.2.3. HECTOR-SLAM

A general commentary on HECTOR-SLAM is its highly noticeable susceptibility to environments without irregularities, where HECTOR-SLAM gets completely lost in terms of map and pose accuracy. The empirical rules observed is that it gets lost when interprets that the places are longer than they really are (long corridor issue) or interprets that the robot is stopped in the last place it detected an irregularity.

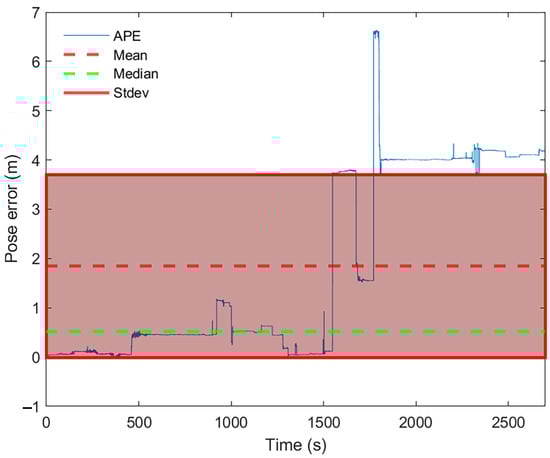

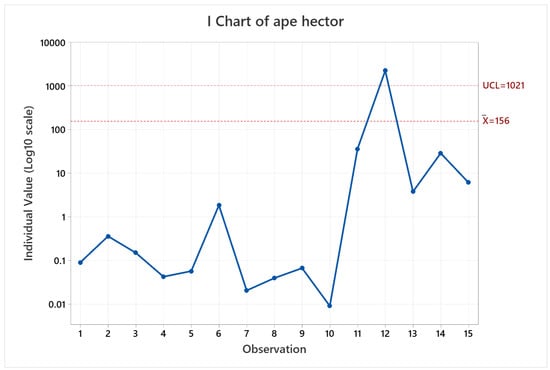

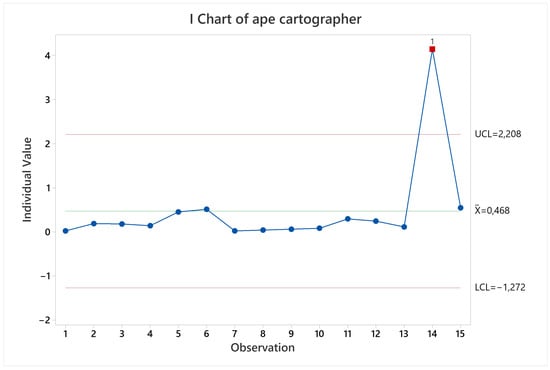

This behavior can be observed mainly in the pose accuracy in Figure 19, with the value obtained in the observation 14 that is the labyrinth arena starting at non-zero coordinate, as the robot begins its movement inside a corridor without irregularities or landmarks to reference itself. This is similar to the results obtained for the Gmapping and Cartographer SLAM algorithms.
Also, as the worst result is obtained for the observation 12 with a peak error value of 2255.05 m, which is the common environments arena (two laps in reverse). In this case, the effect of running two laps instead of one has a negative effect on the metric. The cause is associated with the algorithms difficulty to close the loop for this arena, which should happen at about 1500 s in Figure 20, that represents the timeseries plot for pose error in observation 12. At first, the trial was considered an outlier, however upon repeating the test under the same conditions used for the other trials gave a similar result.

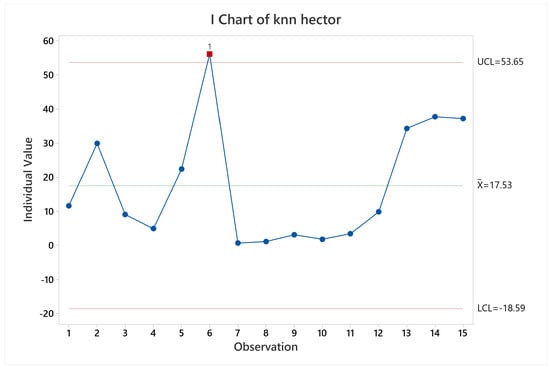

As for the map accuracy, in Figure 21 is visible that the output for common environments arena is better than the training arena, and that training arena is better than the labyrinth arena (compare the visual mean of observations 7–12, 1–6, and 13–15 respectively). This is confirmed by a hypothesis test between them at 90% confidence level, which is associated to the number of irregularities per arena that lets the algorithm create a better representation of the environment when there are more of them present.

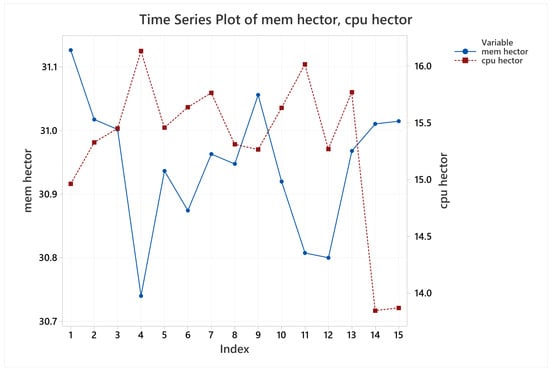

Lastly, in regards of memory and CPU usage, it was verified that there is no wide difference between them for the different scenarios, as Figure 22 shows. It looks like the memory usage is better when repeating the trajectories. In addition, the algorithm is using about 15% of one single core.

3.2.4. KARTO-SLAM

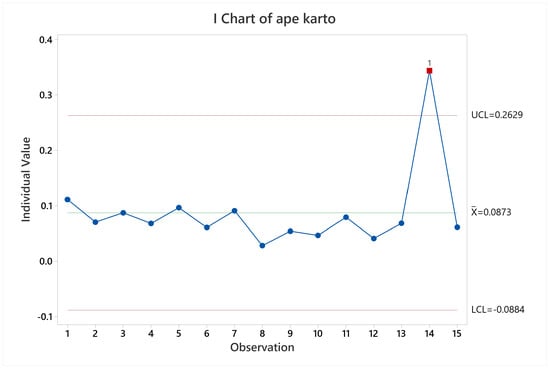

Examining the results for pose accuracy, KARTO-SLAM had a quite stable behavior (see Figure 23), except for observation 14, which is the labyrinth arena starting at non-zero coordinate, the root cause is the lack of irregularities at the beginning of the test, which makes the algorithm wrongly estimate the pose of the robot and quickly accumulate a high error for the pose. This behavior can be seen in Figure 24 where it is clear that, at time zero, the pose accuracy was quite good, however, after a brief time driving the arena, the error goes up and keeps that way almost throughout the whole test, in a similar way as the previously analyzed results of the other SLAM algorithms.

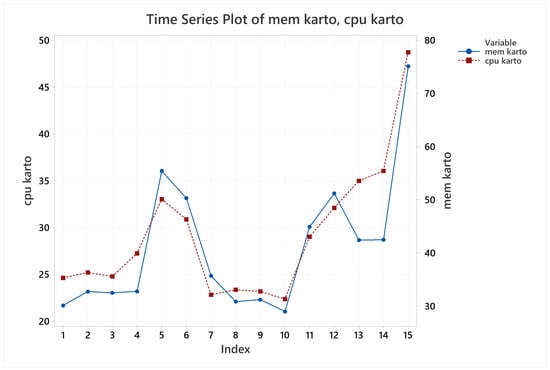

Next, for memory usage it was identified that the longer the test the higher the memory usage, so that two lapped trials spent more memory compared to one lapped trial, it can be seen in Figure 25, observations 5 and 6 are the two lapped trials for training arena, 11 and 12 observations are the two lapped trials for common environments arena, and 15 is the observation for two lapped trial for Labyrinth arena. In addition, it was identified that both CPU and memory usage had a highly evident correlation, confirmed with a Pearson test, giving a correlation of 0.911 with a p-value of 2.4265 × 10 6 .

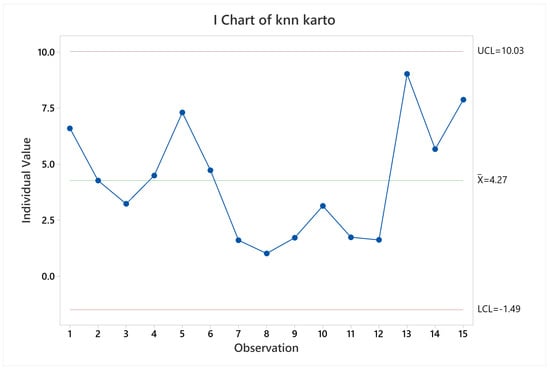

Lastly, for map accuracy it was evidenced and statistically supported that the higher the number of irregularities per area the better the map accuracy. With a 90% confidence level it was confirmed that maps generated with common environments arena gave a more accurate map (lower population mean) than training arena. The same thing occurs for the training arena against labyrinth arena. It can be visually confirmed by looking at the Figure 26, where observations 1 to 6 pertain to training arena, 7 to 12 to common environments arena, and 13 to 15 to labyrinth arena.

3.2.5. RTAB-Map

Regarding pose accuracy, the algorithm behave as KARTO-SLAM did, with satisfactory performance for all the trials excepting trial 14. This can be verified observing Figure 27. The cause is similar to the other SLAM algorithms results, since the error grew up quickly at the beginning of the test and stood the same through the test.

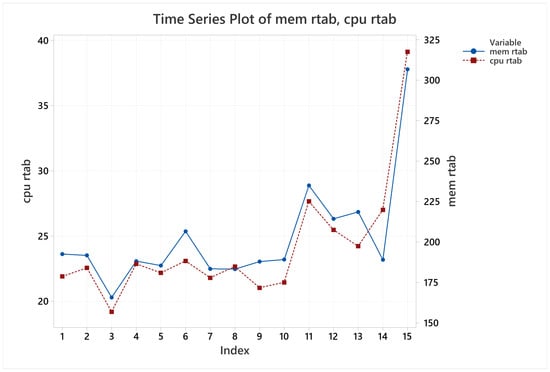

For CPU and memory usage, it was identified a strong direct correlation between them, visually evident through Figure 28, but confirmed with a Pearson correlation test, giving a correlation of 0.942 with a p-value of 1.6380 × 10 7 at 95% confidence level. Visually, it is also noticeable that CPU and memory usage grows when the tests late for longer periods, since observations 5, 6, 11, 12, and 15, which are the two lapped trials, have higher means compared to the trials on the same arena but running only one lap.

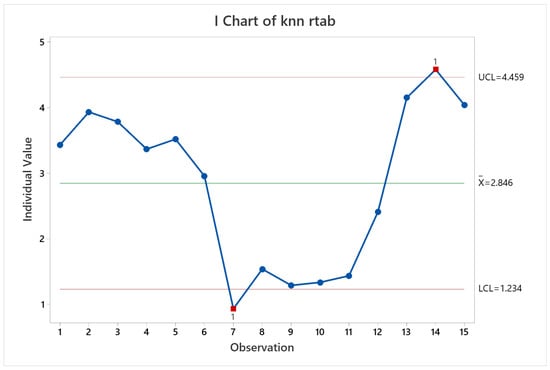

Lastly, in regards of RTAB-Map results analysis, map accuracy was noticeable better performing on arenas with higher density of irregularities per area, since the maps obtained were more accurate for common environments arena than for training arena. Same thing for training arena against labyrinth arena, since the training arena gave better maps than labyrinth arena. The Figure 29 shows all the observations compared with each other.

4. Algorithms Comparison

For algorithms comparison two statistical tools were used, a 2-Sample T and a 2-Sample Standard Deviation using the central limit theorem. They compare the mean and standard deviation of both samples, to conclude about the mean and standard deviation of their populations at certain confidence level, in this case at 90% confidence level.

4.1. Pose Accuracy

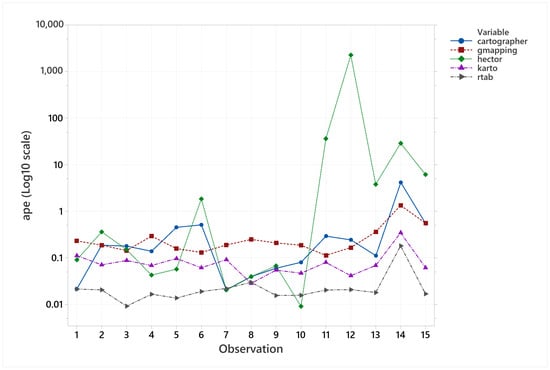

In regards of pose accuracy, it was quite hard to plot all the samples from all the algorithms together because of their range differences. To solve this, a timeseries plot was used showing all of them in separate plots, as it can be seen in Figure 30.
Comparing visually the samples by their ranges, the main result was that RTAB-Map performed better than KARTO-SLAM, which also performed better than Gmapping, followed closely by Cartographer and by far HECTOR-SLAM performing worse than all of them. However, with the dataset obtained, there was only evidence to demonstrate at 90% confidence level that RTAB-MAP population mean was lower than KARTO-SLAM’s population mean, which also had a lower population mean than Gmapping, Cartographer, and HECTOR-SLAM. In addition, there was no evidence to demonstrate any difference on the population mean and standard deviation between Gmapping and Cartographer, only to demonstrate that both were superior to HECTOR-SLAM by their standard deviation, which means that in terms of pose accuracy HECTOR-SLAM would give more variant results through different scenarios than these two.
The data used for this section can be referenced in the Table 11.

4.2. Map Accuracy

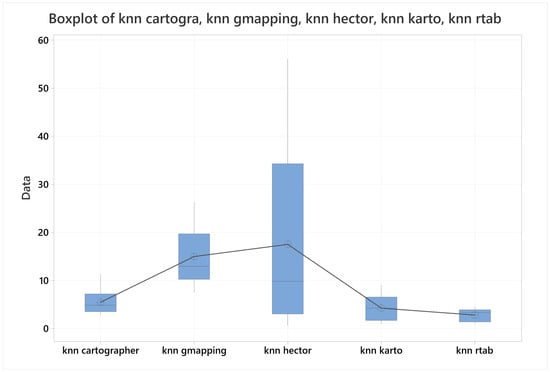

For map accuracy, the data presented in the Figure 31 shows a box plot for all the algorithms together, with a trend line centered on their means. With these results, it was possible to confirm at 90% confidence level that RTAB-MAP outperformed all the other algorithms, followed closely by KARTO-SLAM, then by Cartographer, next by Gmapping, and finally by HECTOR-SLAM, which was impossible to demonstrate its difference towards Gmapping by its mean, but not by its standard deviation.
The data used for this section can be referenced in the Table 12.

4.3. CPU Usage

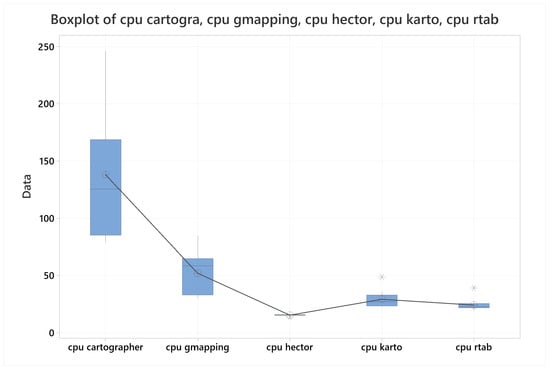

With respect to CPU usage, Figure 32 shows a boxplot representation of all the algorithms with all their sample means. This figure shows that HECTOR-SLAM outmatch the other algorithms, followed closely by RTAB-Map, then by KARTO-SLAM, next by far from Gmapping, and finally by Cartographer. This finds were verified for their means by four hypothesis tests, all of them were demonstrated at 90% confidence level.
The data used for this section can be referenced in the Table 13.

4.4. Memory Usage

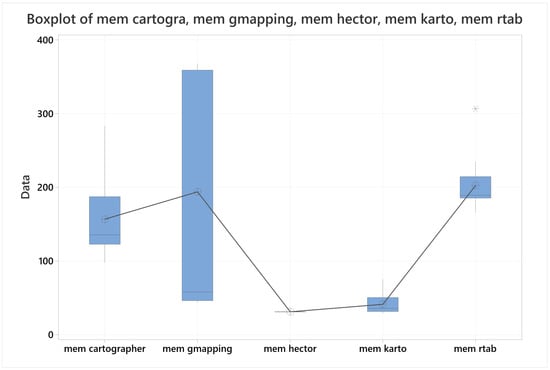

For the last metric, in view of memory usage the data representation used was a set of boxplots with a trendline pointing to their means, as seen in Figure 33. From these results it was demonstrated with 90% of confidence that HECTOR-SLAM is the algorithm that best manages memory resources, followed closely by KARTO-SLAM, then by far by Cartographer, next by RTAB-Map and finally by Gmapping. It was not possible to demonstrate any population difference between Cartographer and Gmapping, neither between RTAB-MAP and Gmapping, however there was enough evidence to demonstrate that Cartographer was better performing than RTAB-Map by their means, and that population standard deviation of Gmapping would be greater than population standard deviation of RTAB-Map, which is the reason Gmapping is considered the worse of the algorithms for this metric.
The data used for this section can be referenced in the Table 14.

4.5. Algorithms Comparison Summary

To summarize based on the previous sections the Table 15 was created. It shows in a numbering scale which algorithm is the best, where one means the best of them. In addition the nomenclature M represents that its superiority or inferiority was demonstrated by a 2-Sample T, and S represents that its superiority or inferiority was demonstrated by a 2-Sample Standard Deviation.
With the Table 15, it can be stated that if map and pose accuracy are priorities, regardless of CPU and memory usage, then RTAB-Map is the preferred algorithm to use. However, if there are limited resources in the mobile robot platform, a better approach could be using HECTOR-SLAM, with the highlight that it is the worse of them regarding map and pose accuracy.
Nevertheless, a different approach can be taken, in order to classify all the algorithms by their means in a range from zero to one hundred, where zero represents the algorithm with the lowest mean, and 100 would be the algorithm with the highest mean. With this classification, KARTO-SLAM comes up as the best choice between all of them, since is the algorithm that shows the lowest average with this methodology. The Equation (6) details this approach, and the results obtained are shown in Table 16.
A v e A l g = 1 4 M e t = P . A c c . M . A c c . 100 X ¯ A l g X ¯ M i n X ¯ M a x X ¯ M i n M e t
where:
  • A v e A l g Is the average to calculate, considering all the metrics.
  • M e t Is the metric to be averaged, either pose accuracy, map accuracy, CPU usage, or memory usage.
  • X ¯ A l g Is the sample mean obtained from the algorithm being analyzed.
  • X ¯ M i n Is the shortest sample mean obtained from any of the algorithms for that metric.
  • X ¯ M a x Is the largest sample mean obtained from any of the algorithms for that metric.

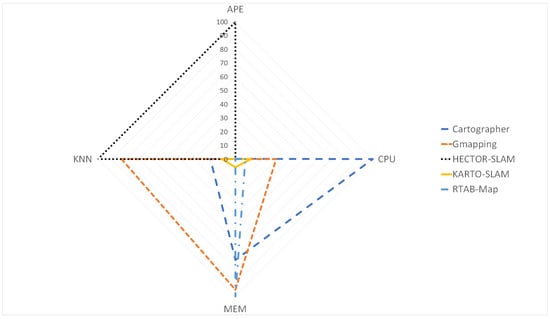

Based on the evidence of Table 16 and Figure 34, the result of evaluating the algorithms by this procedure let to the conclusion that KARTO-SLAM brings the higher performance considering the CPU and memory usage along with map and pose accuracy. Furthermore, if the memory usage is not a limitation, RTAB-MAP has better results in all the other metrics, followed by Cartographer, HECTOR-SLAM and the last one is Gmapping.

5. Conclusions

The following are the main conclusions derived from the results of this work:
  • The proposed methodology is useful to characterize, calibrate, and compare any SLAM algorithm, no matter the robot sensors or SLAM type, as long as the map representation is compatible with the application of the knn-search metric, and the robot pose is obtained in matching measurement units, since the proposed characterization and calibration is based on the final results of the SLAM algorithms, rather than on their internal structure or on the sensors these algorithms use. The method proposed in this paper provides strong statistical evidence, based on the pose error, map accuracy, CPU usage, and memory usage, with descriptive and inferential statistics to bring confidence levels about overall behavior of the algorithms and their comparisons.
  • It was quite noticeable that KARTO-SLAM outperformed all the other algorithms because it balances the use of resources and holds a good SLAM performance, just by looking at Figure 34 or by checking Table 16.
  • Without considering resources usage, the best algorithm is RTAB-Map, which really does an excellent job at mapping and calculating its own pose into the map.
  • HECTOR-SLAM outperformed when saving resources is the feature that matters, providing statistical evidence that it is the one which uses less CPU and memory than the other algorithms, however it is the one that gave the worst results when talking about localization and mapping.
  • Localization metric (pose accuracy) gets worse as obstacle density decreases for all algorithms, and this is something that makes sense, since SLAM algorithms require irregularities to be able to refer the robot to this irregularity, without them, it must trust on its odometry system, which is less accurate because it does not consider wheels slippage, dimensional irregularities in robot model, etc.
  • There was an hypothesis that repeating the trajectories two times would enhance the localization and mapping output. However, there was no enhancement noticed for both these metrics with statistical support.
  • There was provided statistical evidence that, starting at a coordinate without any irregularity for the robot to reference itself, can become a highly important issue that it may not be able to correct in regards to pose accuracy. Confirmed through the experiments performed in the labyrinth arena, when starting at a non-zero coordinate, the pose error grows quickly and all the algorithms had troubles in correcting this failure as the simulation continues, situation that does not happen this way when starting at zero coordinate, where there are good enough irregularities for the robot to locate itself.
As future work, the method can be extended to consider extended test time and bigger areas in the arenas, to determine the best algorithms for these cases of indoor SLAM applications. In addition new metrics can be defined for 3D SLAM and cooperative distributed SLAM algorithms that do not have a compatible map representation for the application of the knn-search metric.

Author Contributions

Conceptualization, L.M.; Formal analysis, K.T., L.R., M.B., J.F. and L.M.; Funding acquisition, L.M.; Investigation, K.T., L.R., M.B., J.F. and L.M.; Methodology, K.T. and L.M.; Project administration, L.M.; Resources, L.M.; Software, K.T.; Supervision, L.M.; Validation, K.T., L.R., M.B., J.F. and L.M.; Visualization, K.T., L.R., M.B., J.F.; Writing—original draft, K.T., L.R., M.B., J.F. and L.M.; Writing—review & editing, K.T. and L.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Vicerrectoría de Investigación de la Universidad de Costa Rica grant number 322-B8-298 and 322-C0-611. The APC was funded by Universidad de Costa Rica.

Data Availability Statement

The data presented in this study are openly available in FigShare at 10.6084/m9.figshare.19769008, reference number [60].

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Bailey, T.; Durrant-Whyte, H. Simultaneous localization and mapping (SLAM): Part I The Essential Algorithms. IEEE Robot. Autom. Mag. 2006, 13, 99–110. [Google Scholar] [CrossRef]
  2. Cadena, C.; Carlone, L.; Carrillo, H.; Latif, Y.; Scaramuzza, D.; Neira, J.; Reid, I.; Leonard, J.J. Past, present, and future of simultaneous localization and mapping: Toward the robust-perception age. IEEE Trans. Robot. 2016, 32, 1309–1332. [Google Scholar] [CrossRef]
  3. Bresson, G.; Alsayed, Z.; Yu, L.; Glaser, S. Simultaneous Localization and Mapping: A Survey of Current Trends in Autonomous Driving. IEEE Trans. Intell. Veh. 2017, 2, 194–220. [Google Scholar] [CrossRef]
  4. Singandhupe, A.; La, H.M. A Review of SLAM Techniques and Security in Autonomous Driving. In Proceedings of the 2019 Third IEEE International Conference on Robotic Computing (IRC), Naples, Italy, 25–27 February 2019; pp. 602–607. [Google Scholar] [CrossRef]
  5. Lee, S.; Kim, H.; Lee, B. An Efficient Rescue System with Online Multi-Agent SLAM Framework. Sensors 2020, 20, 235. [Google Scholar] [CrossRef]
  6. Guth, F.; Silveira, L.; Botelho, S.; Drews, P.; Ballester, P. Underwater SLAM: Challenges, state of the art, algorithms and a new biologically-inspired approach. In Proceedings of the 5th IEEE RAS/EMBS International Conference on Biomedical Robotics and Biomechatronics, Sao Paulo, Brazil, 12–15 August 2014; pp. 981–986. [Google Scholar] [CrossRef]
  7. González-García, J.; Gómez-Espinosa, A.; Cuan-Urquizo, E.; García-Valdovinos, L.G.; Salgado-Jiménez, T.; Cabello, J.A.E. Autonomous Underwater Vehicles: Localization, Navigation, and Communication for Collaborative Missions. Appl. Sci. 2020, 10, 1256. [Google Scholar] [CrossRef]
  8. Zou, D.; Tan, P.; Yu, W. Collaborative visual SLAM for multiple agents:A brief survey. Virtual Real. Intell. Hardw. 2019, 1, 461–482. [Google Scholar] [CrossRef]
  9. Stachniss, C.; Leonard, J.J.; Thrun, S. Simultaneous Localization and Mapping. In Springer Handbook of Robotics; Springer International Publishing: Berlin/Heidelberg, Germany, 2016; pp. 1153–1176. [Google Scholar] [CrossRef]
  10. Simon, D. Optimal State Estimation: Kalman, H Infinity, and Nonlinear Approaches; John Wiley & Sons: Hoboken, NJ, USA, 2006. [Google Scholar]
  11. Marín, L.; Vallés, M.; Soriano, A.; Valera, A.; Albertos, P. Event-Based Localization in Ackermann Steering Limited Resource Mobile Robots. IEEE/ASME Trans. Mechatron. 2014, 19, 1171–1182. [Google Scholar] [CrossRef]
  12. Bailey, T.; Durrant-Whyte, H. Simultaneous localization and mapping (SLAM): Part II State of the Art. IEEE Robot. Autom. Mag. 2006, 13, 108–117. [Google Scholar] [CrossRef]
  13. Metropolis, N.; Ulam, S. The Monte Carlo Method. Am. Stat. Assoc. 1949, 44, 335–341. [Google Scholar] [CrossRef] [PubMed]
  14. Marín, L.; Vallés, M.; Soriano, A.; Valera, A.; Albertos, P. Multi Sensor Fusion Framework for Indoor-Outdoor Localization of Limited Resource Mobile Robots. Sensors 2013, 13, 14133–14160. [Google Scholar] [CrossRef] [PubMed]
  15. Doucet, A.; Freitas, N.d.; Murphy, K.P.; Russell, S.J. Rao-Blackwellised Particle Filtering for Dynamic Bayesian Networks. In Proceedings of the 16th Conference on Uncertainty in Artificial Intelligence, Stanford, CA, USA, 30 June–3 July 2000; Morgan Kaufmann Publishers Inc.: San Francisco, CA, USA, 2000; pp. 176–183. [Google Scholar]
  16. Mohamad Yatim, N.; Buniyamin, N. Particle filter in simultaneous localization and mapping (SLAM) using differential drive mobile robot. J. Teknol. 2015, 77. [Google Scholar] [CrossRef]
  17. Yagfarov, R.; Ivanou, M.; Afanasyev, I. Map comparison of LiDAR-based 2D SLAM algorithms using precise ground truth. In Proceedings of the 2018 15th International Conference on Control, Automation, Robotics and Vision (ICARCV), Singapore, 18–21 November 2018; pp. 1979–1983. [Google Scholar]
  18. Kohlbrecher, S.; Meyer, J.; von Stryk, O.; Klingauf, U. A Flexible and Scalable SLAM System with Full 3D Motion Estimation. In Proceedings of the IEEE International Symposium on Safety, Security and Rescue Robotics (SSRR), Kyoto, Japan, 1–5 November 2011. [Google Scholar]
  19. Grisetti, G.; Kummerle, R.; Stachniss, C.; Burgard, W. A Tutorial on Graph-Based SLAM. IEEE Intell. Transp. Syst. Mag. 2010, 2, 31–43. [Google Scholar] [CrossRef]
  20. Tee, Y.K.; Han, Y.C. Lidar-Based 2D SLAM for Mobile Robot in an Indoor Environment: A Review. In Proceedings of the 2021 International Conference on Green Energy, Computing and Sustainable Technology (GECOST), Miri, Malaysia, 7–9 July 2021; pp. 1–7. [Google Scholar] [CrossRef]
  21. Nüchter, A.; Bleier, M.; Schauer, J.; Janotta, P. Continuous-Time SLAM Improving Google’s Cartographer 3D Mapping. In Latest Developments in Reality-Based 3D Surveying and Modelling; Gonzalez-Aguilera, D., Ed.; MDPI: Basel, Switzerland, 2018; p. 1. [Google Scholar]
  22. Le, X.S.; Fabresse, L.; Bouraqadi, N.; Lozenguez, G. Evaluation of out-of-the-box ROS 2D SLAMs for autonomous exploration of unknown indoor environments. In Proceedings of the International Conference on Intelligent Robotics and Applications, Newcastle, NSW, Australia, 9–11 August 2018; pp. 283–296. [Google Scholar]
  23. Labbé, M.; Michaud, F. RTAB-Map as an open-source LiDAR and visual simultaneous localization and mapping library for large-scale and long-term online operation. J. Field Robot. 2019, 36, 416–446. [Google Scholar] [CrossRef]
  24. Servières, M.; Renaudin, V.; Dupuis, A.; Antigny, N. Visual and Visual-Inertial SLAM: State of the Art, Classification, and Experimental Benchmarking. J. Sens. 2021, 2021, 2054828. [Google Scholar] [CrossRef]
  25. Chen, C.; Zhu, H.; Li, M.; You, S. A Review of Visual-Inertial Simultaneous Localization and Mapping from Filtering-Based and Optimization-Based Perspectives. Robotics 2018, 7, 45. [Google Scholar] [CrossRef]
  26. Macario Barros, A.; Michel, M.; Moline, Y.; Corre, G.; Carrel, F. A Comprehensive Survey of Visual SLAM Algorithms. Robotics 2022, 11, 24. [Google Scholar] [CrossRef]
  27. Huang, L. Review on LiDAR-based SLAM Techniques. In Proceedings of the 2021 International Conference on Signal Processing and Machine Learning (CONF-SPML), Stanford, CA, USA, 14 November 2021; pp. 163–168. [Google Scholar] [CrossRef]
  28. Zhang, J.; Singh, S. LOAM: Lidar Odometry and Mapping in Real-time. In Proceedings of the Robotics: Science and Systems, Berkeley, CA, USA, 12–16 July 2014. [Google Scholar] [CrossRef]
  29. Machado, J.; Portugal, D.; Rocha, R.P. An evaluation of 2D SLAM techniques available in Robot Operating System. In Proceedings of the 2013 IEEE International Symposium on Safety, Security, and Rescue Robotics (SSRR), Linkoping, Sweden, 21–26 October 2013. [Google Scholar] [CrossRef]
  30. Filipenko, M.; Afanasyev, I. Comparison of Various SLAM Systems for Mobile Robot in an Indoor Environment. In Proceedings of the 2018 International Conference on Intelligent Systems (IS), Funchal, Portugal, 25–27 September 2018; pp. 400–407. [Google Scholar]
  31. Ngo, D.T.; Pham, H.A. Towards a Framework for SLAM Performance Investigation on Mobile Robots. In Proceedings of the 2020 International Conference on Information and Communication Technology Convergence (ICTC), Jeju, Korea, 21–23 October 2020; pp. 110–115. [Google Scholar] [CrossRef]
  32. Zhang, Y.; Zhang, T.; Huang, S. Comparison of EKF based SLAM and optimization based SLAM algorithms. In Proceedings of the 2018 13th IEEE Conference on Industrial Electronics and Applications (ICIEA), Wuhan, China, 31 May–2 June 2018. [Google Scholar] [CrossRef]
  33. Kurt-Yavuz, Z.; Yavuz, S. A comparison of EKF, UKF, FastSLAM2.0, and UKF-based FastSLAM algorithms. In Proceedings of the 2012 IEEE 16th International Conference on Intelligent Engineering Systems (INES), Lisbon, Portugal, 13–15 June 2012. [Google Scholar] [CrossRef]
  34. Silva, B.M.F.D.; Xavier, R.S.; Nascimento, T.P.D.; Goncalves, L.M. Experimental evaluation of ROS compatible SLAM algorithms for RGB-D sensors. In Proceedings of the 2017 Latin American Robotics Symposium (LARS) and 2017 Brazilian Symposium on Robotics (SBR), Curitiba, Brazil, 8–11 November 2017. [Google Scholar] [CrossRef]
  35. Marín, L. Modular Open Hardware Omnidirectional Platform for Mobile Robot Research. In Proceedings of the 2018 IEEE 2nd Colombian Conference on Robotics and Automation (CCRA), Barranquilla, Colombia, 1–3 November 2018; pp. 1–6. [Google Scholar] [CrossRef]
  36. TurtleBot 3 Simulation. Available online: https://emanual.robotis.com/docs/en/platform/turtlebot3/simulation/ (accessed on 22 March 2022).
  37. Robot_Pose_Publisher. Available online: https://github.com/trejkev/Robot_Pose_Publisher (accessed on 18 March 2022).
  38. CPU Monitor ROS Node. Available online: https://github.com/alspitz/cpu_monitor (accessed on 24 March 2022).
  39. nav_node. Available online: https://github.com/LauraRincon/nav_node (accessed on 27 March 2022).
  40. Ground-Truth-Generator. Available online: https://github.com/trejkev/Ground-Truth-Generator (accessed on 29 March 2022).
  41. knnsearch_for_SLAM. Available online: https://github.com/trejkev/knnsearch_for_SLAM (accessed on 25 March 2022).
  42. Absolute-Pose-Error. Available online: https://github.com/trejkev/Absolute-Pose-Error (accessed on 20 March 2022).
  43. Topic-CPU-MEM-Usage-Plotter. Available online: https://github.com/trejkev/Topic-CPU-MEM-usage-plotter (accessed on 17 March 2022).
  44. Hess, W.; Kohler, D.; Rapp, H.; Andor, D. Real-time loop closure in 2D LIDAR SLAM. In Proceedings of the 2016 IEEE International Conference on Robotics and Automation (ICRA), Stockholm, Sweden, 16–21 May 2016; pp. 1271–1278. [Google Scholar] [CrossRef]
  45. Duncan, M.L.; Bryant, A.R. Connection Cartographer: Geographically Representing Host-Based Network Connections in Real-Time with a Focus on Usability. In Proceedings of the 2016 International Conference on Collaboration Technologies and Systems (CTS), Orlando, FL, USA, 31 October–4 November 2016; pp. 294–301. [Google Scholar] [CrossRef]
  46. Krinkin, K.; Filatov, A.; yom Filatov, A.; Huletski, A.; Kartashov, D. Evaluation of modern laser based indoor SLAM algorithms. In Proceedings of the 2018 22nd Conference of Open Innovations Association (FRUCT), Jyvaskyla, Finland, 15–18 May 2018; pp. 101–106. [Google Scholar]
  47. Google. Cartographer ROS Tuning Methodology. 2021. Available online: https://google-cartographer-ros.readthedocs.io/en/latest/tuning.html (accessed on 29 March 2022).
  48. Grisetti, G.; Stachniss, C.; Burgard, W. Improved Techniques for Grid Mapping with Rao-Blackwellized Particle Filters. IEEE Trans. Robot. 2007, 23, 34–46. [Google Scholar] [CrossRef]
  49. Gerkey, B. Gmapping Wiki. 2019. Available online: http://wiki.ros.org/gmapping (accessed on 29 April 2022).
  50. Kohlbrecher, S. Hector Mapping Wiki. 2021. Available online: http://wiki.ros.org/hector_mapping (accessed on 29 April 2022).
  51. Xuexi, Z.; Guokun, L.; Genping, F.; Dongliang, X.; Shiliu, L. SLAM Algorithm Analysis of Mobile Robot Based on LiDAR. In Proceedings of the 2019 Chinese Control Conference (CCC), Guangzhou, China, 27–30 July 2019; pp. 4739–4745. [Google Scholar]
  52. Duchon, F.; Hazık, J.; Rodina, J.; Tolgyessy, M.; Dekan, M.; Sojka, A. Verification of SLAM Methods Implemented in ROS. J. Multidiscip. Eng. Sci. Technol. (JMEST) 2019, 6, 10579–10584. [Google Scholar]
  53. Jelìnek, L. Graph-Based SLAM on Normal Distributions Transform Occupancy Map. Bachelor’s Thesis, Matematicko-Fyzikální Fakultam, Univerzita Karlova, Nove Mesto, Czech Republic, 2016. [Google Scholar]
  54. Fix, J. slam_karto. 2019. Available online: http://wiki.ros.org/slam_karto (accessed on 15 March 2022).
  55. Labbe, M.; Michaud, F. Appearance-based loop closure detection for online large-scale and long-term operation. IEEE Trans. Robot. 2013, 29, 734–745. [Google Scholar] [CrossRef]
  56. López Torres, P. Análisis de Algoritmos para Localización y Mapeado simultáneo de Objetos. Master’s Thesis, Departamento de Ingeniería de Sistemas y Automática, Escuela Técnica Superior de Ingeniería, Universidad de Sevilla, Sevilla, Spain, 2016. [Google Scholar]
  57. Das, S. Simultaneous Localization and Mapping (SLAM) using RTAB-MAP. arXiv 2018, arXiv:1809.02989. [Google Scholar]
  58. Labbe, M. RTAB-Map Wiki. 2021. Available online: http://wiki.ros.org/rtabmap_ros (accessed on 29 April 2022).
  59. Valverde, E. Implementación de un Sistema de Mapeo y Localización Simultánea (SLAM) en un Robot Omnidireccional Mecanum. Bachelor’s Thesis, Escuela de Ingeniería Eléctrica, Universidad de Costa Rica, San Jose, Costa Rica, 2018. [Google Scholar]
  60. Trejos, K.; Marín, L. Paper supporting data—2D SLAM Algorithms Characterization Calibration and Comparison Considering Pose Error Map Accuracy CPU Usage and Memory Usage.zip. figshare. Figure. 2022. Available online: https://figshare.com/articles/figure/Paper_supporting_data_-_2D_SLAM_Algorithms_Characterization_Calibration_and_Comparison_Considering_Pose_Error_Map_Accuracy_CPU_Usage_and_Memory_Usage_zip/19769008/1 (accessed on 29 April 2022).
Figure 1. Common environments arena.
Figure 1. Common environments arena.
Sensors 22 06903 g001
Figure 2. Training arena.
Figure 2. Training arena.
Sensors 22 06903 g002
Figure 3. Labyrinth arena.
Figure 3. Labyrinth arena.
Sensors 22 06903 g003
Figure 4. Training arena trajectories.
Figure 4. Training arena trajectories.
Sensors 22 06903 g004
Figure 5. Common environments arena trajectories.
Figure 5. Common environments arena trajectories.
Sensors 22 06903 g005
Figure 6. Labyrinth arena trajectories.
Figure 6. Labyrinth arena trajectories.
Sensors 22 06903 g006

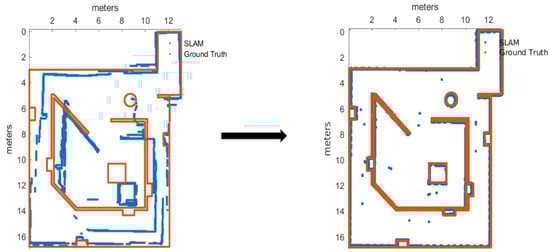

Figure 7. Map before and after the calibration of Cartographer.
Figure 7. Map before and after the calibration of Cartographer.
Sensors 22 06903 g007

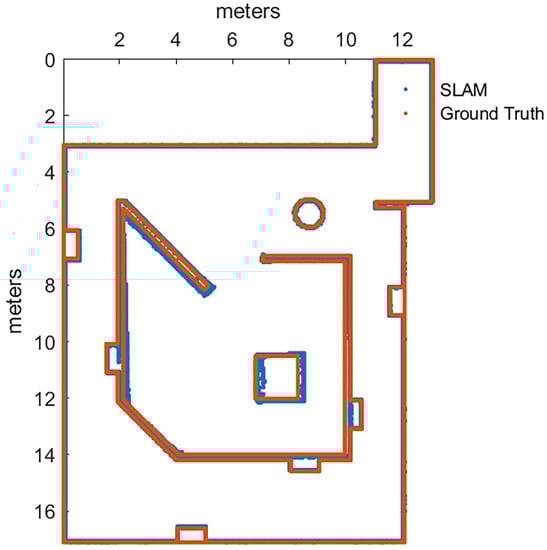

Figure 8. Map built with default parameters for HECTOR-SLAM.
Figure 8. Map built with default parameters for HECTOR-SLAM.
Sensors 22 06903 g008

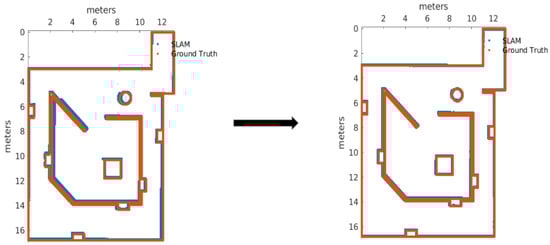

Figure 9. Map before and after the calibration of KARTO-SLAM.
Figure 9. Map before and after the calibration of KARTO-SLAM.
Sensors 22 06903 g009

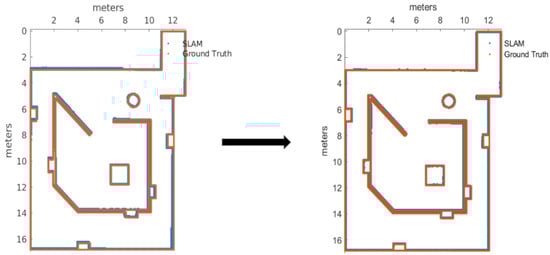

Figure 10. Map before and after the calibration of RTAB-Map.
Figure 10. Map before and after the calibration of RTAB-Map.
Sensors 22 06903 g010
Figure 11. Pose accuracy mean behavior for Cartographer.
Figure 11. Pose accuracy mean behavior for Cartographer.
Sensors 22 06903 g011
Figure 12. CPU usage mean behavior for Cartographer.
Figure 12. CPU usage mean behavior for Cartographer.
Sensors 22 06903 g012
Figure 13. Memory usage mean behavior for Cartographer.
Figure 13. Memory usage mean behavior for Cartographer.
Sensors 22 06903 g013
Figure 14. Map accuracy mean behavior for Cartographer.
Figure 14. Map accuracy mean behavior for Cartographer.
Sensors 22 06903 g014

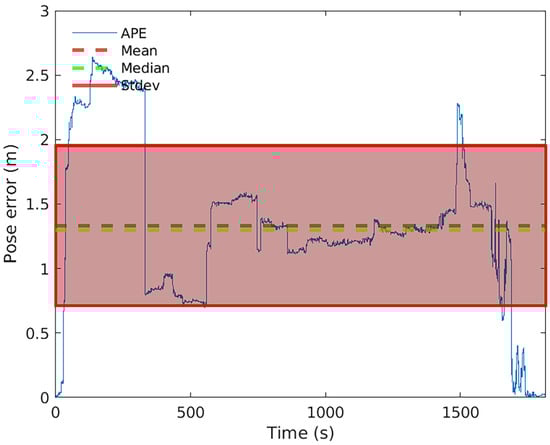

Figure 15. Pose error timeseries evolution for Gmapping on observation 14.
Figure 15. Pose error timeseries evolution for Gmapping on observation 14.
Sensors 22 06903 g015

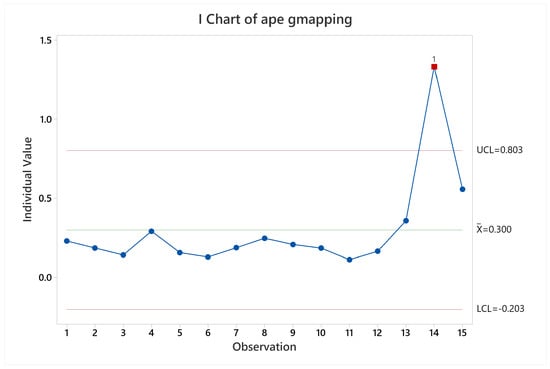

Figure 16. Pose accuracy mean behavior for Gmapping.
Figure 16. Pose accuracy mean behavior for Gmapping.
Sensors 22 06903 g016
Figure 17. CPU and memory usage mean behavior for Gmapping.
Figure 17. CPU and memory usage mean behavior for Gmapping.
Sensors 22 06903 g017
Figure 18. Map accuracy mean behavior for Gmapping.
Figure 18. Map accuracy mean behavior for Gmapping.
Sensors 22 06903 g018
Figure 19. Pose accuracy mean behavior for HECTOR-SLAM.
Figure 19. Pose accuracy mean behavior for HECTOR-SLAM.
Sensors 22 06903 g019
Figure 20. Pose error timeseries evolution for HECTOR-SLAM on observation 12.
Figure 20. Pose error timeseries evolution for HECTOR-SLAM on observation 12.
Sensors 22 06903 g020
Figure 21. Map accuracy mean behavior for HECTOR-SLAM.
Figure 21. Map accuracy mean behavior for HECTOR-SLAM.
Sensors 22 06903 g021
Figure 22. CPU and memory usage timeseries evolution for HECTOR-SLAM.
Figure 22. CPU and memory usage timeseries evolution for HECTOR-SLAM.
Sensors 22 06903 g022
Figure 23. Pose accuracy mean behavior for KARTO-SLAM.
Figure 23. Pose accuracy mean behavior for KARTO-SLAM.
Sensors 22 06903 g023

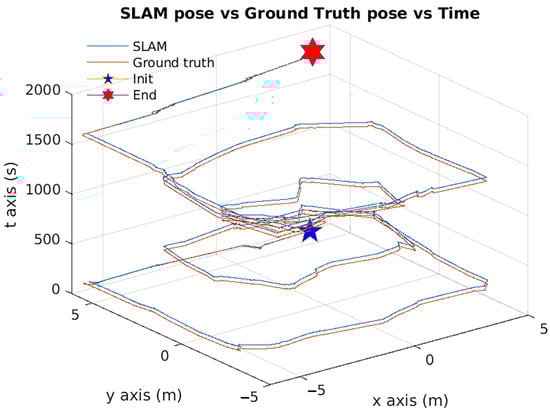

Figure 24. Pose error evolution for KARTO-SLAM on observation 14.
Figure 24. Pose error evolution for KARTO-SLAM on observation 14.
Sensors 22 06903 g024
Figure 25. CPU and memory usage behavior for KARTO-SLAM on all the runs.
Figure 25. CPU and memory usage behavior for KARTO-SLAM on all the runs.
Sensors 22 06903 g025
Figure 26. Map accuracy mean behavior for KARTO-SLAM.
Figure 26. Map accuracy mean behavior for KARTO-SLAM.
Sensors 22 06903 g026

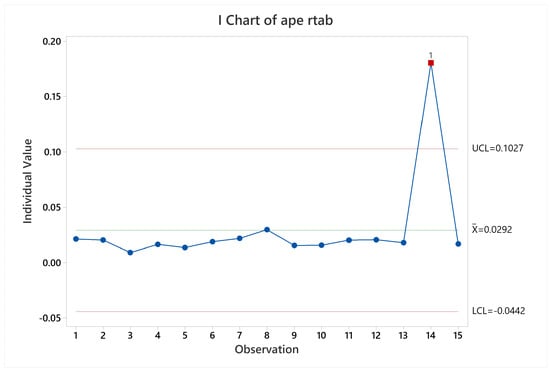

Figure 27. Pose accuracy mean behavior for RTAB-Map.
Figure 27. Pose accuracy mean behavior for RTAB-Map.
Sensors 22 06903 g027
Figure 28. CPU and memory usage means behavior for RTAB-Map.
Figure 28. CPU and memory usage means behavior for RTAB-Map.
Sensors 22 06903 g028
Figure 29. Map accuracy mean behavior for RTAB-Map.
Figure 29. Map accuracy mean behavior for RTAB-Map.
Sensors 22 06903 g029
Figure 30. Pose accuracy mean behavior for all the algorithms together.
Figure 30. Pose accuracy mean behavior for all the algorithms together.
Sensors 22 06903 g030
Figure 31. Boxplot for map accuracy with all the algorithms together.
Figure 31. Boxplot for map accuracy with all the algorithms together.
Sensors 22 06903 g031
Figure 32. Boxplot for CPU usage with all the algorithms together.
Figure 32. Boxplot for CPU usage with all the algorithms together.
Sensors 22 06903 g032
Figure 33. Boxplot for Memory usage with all the algorithms together.
Figure 33. Boxplot for Memory usage with all the algorithms together.
Sensors 22 06903 g033
Figure 34. Radar plot with all the algorithms together.
Figure 34. Radar plot with all the algorithms together.
Sensors 22 06903 g034
Table 1. List of Cartographer parameters.
Table 1. List of Cartographer parameters.
ParameterDescriptionRangeDefault Value
local_slam_pose_translation_weightWeight for translation between consecutive nodes, based in the local SLAM 10 × 10 2 10 × 10 6 10 × 10 5
local_slam_pose_rotation_weightWeight for rotation between consecutive nodes, based in the local SLAM 10 × 10 2 10 × 10 6 10 × 10 5
odometry_translation_weightWeight for translation between consecutive nodes, based in the odometry 10 × 10 2 10 × 10 6 10 × 10 5
ceres_scan_matcher.translation_weightWeight to be applied to the translation, for next-submap joint0.1–1.00.4
ceres_scan_matcher.rotation_weightWeight to be applied to the rotation, for next-submap joint0.1–1.00.3
optimize_every_n_nodesQuantity of inserted nodes that will be used for loop closure optimization40–12090
global_sampling_ratioSampling frequency for nodes trajectory0.0001–0.00050.0003
submaps.resolutionMap resolution in meters0.0001–0.00050.0003
constraint_builder.min_scoreMinimum value for which will be considered that a match was found0.4–0.80.6
Table 2. List of Gmapping parameters.
Table 2. List of Gmapping parameters.
ParameterDescriptionRangeDefault Value
minimumScoreMinimum score for considering the outcome of the scan matching good0–5050
iterationsThe number of iterations of the scanmatcher5–105
lsigmaThe sigma of a beam used for likelihood computation0.075–1.5000.075
ogainGain to be used while evaluating the likelihood, for smoothing the resampling effects3.0–10.03.0
resampleTresholdThe Neff based resampling threshold0.0–0.50.5
particlesNumber of particles in the filter30–10030
Table 3. List of HECTOR-SLAM parameters.
Table 3. List of HECTOR-SLAM parameters.
ParameterDescriptionRangeDefault Value
update_factor_freeThe map update modifier for updates of free cells in the range. A value of 0.5 means no changes0.0–1.00.4
update_factor_ocuppiedThe map update modifier for updates of occupied cells in the range. A value of 0.5 means no changes0.0–1.00.9
map_update_distance_threshThreshold for performing map updates (value in meters)0.01–20.4
map_update_angle_threshThreshold for performing map updates (value in radians)0.01–20.9
map_pub_periodMap publish period (value in seconds)1.00–5.002.00
Table 4. List of KARTO-SLAM parameters.
Table 4. List of KARTO-SLAM parameters.
ParameterDescriptionRangeDefault Value
scan_buffer_sizeSets the length of the scan chain stored for scan matching30–10070
link_match_minimum_response_fineScans are linked only if the correlation response value is greater than this value0.06–0.180.12
loop_match_minimum_chain_sizeWhen the loop closure detection finds a candidate it must be part of a
large set of linked scans. If the chain of scans is less than this value,
it will not attempt to close the loop
5–1510
loop_match_maximum_variance_coarseThe co-variance values for a possible loop closure have to be less
than this value to consider a viable solution. This applies to the coarse search
0.3–0.50.4
loop_match_minimum_response_coarseIf response is larger than this, then initiate loop closure search
at the coarse resolution
0.75–0.850.80
loop_match_minimum_response_fineIf response is larger than this, then initiate loop closure search
at the fine resolution
0.75–0.850.80
correlation_search_space_dimensionSets the size of the search grid used by the matcher0.2–0.40.3
correlation_search_space_smear_deviationThe point readings are smeared by this value in X and Y to
create a smoother response
0.03–0.040.03
loop_search_space_dimensionThe size of the search grid used by the matcher7.0–9.08.0
loop_search_space_smear_deviationThe point readings are smeared by this value in X and Y to
create a smoother response
0.03–0.040.03
distance_variance_penaltyVariance of penalty for deviating from odometry when scan-matching0.2–0.40.3
angle_variance_penaltyVariance of penalty for deviating from odometry when scan-matching0.249–0.4490.349
fine_search_angle_offsetThe range of angles to search during a fine search0.00249–0.004490.00349
coarse_search_angle_offsetThe range of angles to search during a coarse search0.249–0.4490.349
coarse_angle_resolutionResolution of angles to search during a coarse search0.0249–0.04490.0349
minimum_angle_penaltyMinimum value of the angle penalty multiplier so scores do not become too small0.85–0.950.90
minimum_distance_penaltyMinimum value of the distance penalty multiplier so scores do not become too small0.4–0.60.5
use_response_expansionWhether to increase the search space if no good matches are initially foundTrue/FalseFalse
Table 5. List of RTAB-Map parameters.
Table 5. List of RTAB-Map parameters.
ParameterDescriptionRangeDefault Value
TimeThrMaximum time to update a map, in milliseconds with 0 as unlimited time0.0–1.00
MemoryThrMaximum number of nodes in the work memory, where 0 means unlimited number of nodes0.0 - 1.00
DetectionRateDetection ratio of images that RTAB-Map filters, value in Hz0.1–10.01.0
ImageBufferSizeBuffer size to save the data waiting for processing0–101
MaxRetrievedMaximum amount of localizations returned at a time by the long-term memory0–202
CreateIntermediateNodesMaking of not inner nodes into the loop closuretrue/falsefalse
LoopThrTime threshold to execute loop closure0.0–1.00.11
VarianceIgnoredIgnore or not the variation of the restrictionstrue/falsefalse
FilteringStrategyFiltering defined for odometer data, two different strategies can be used, 0 means no filter, 1 means Kalman filter0/10
Table 6. Observation translation to scenarios.
Table 6. Observation translation to scenarios.
ObservationArenaTrajectoryDirection
1Training arenazero coordinateRight
2Training arenazero coordinateReverse
3Training arenanon-zero coordinateRight
4Training arenanon-zero coordinateReverse
5Training arenaTwo lapsRight
6Training arenaTwo lapsReverse
7Common environments arenazero coordinateRight
8Common environments arenazero coordinateReverse
9Common environments arenanon-zero coordinateRight
10Common environments arenanon-zero coordinateReverse
11Common environments arenaTwo lapsRight
12Common environments arenaTwo lapsReverse
13Labyrinth arenazero coordinateNot applicable
14Labyrinth arenanon-zero coordinateNot applicable
15Labyrinth arenaTwo lapsNot applicable
Table 7. Default, tuning and final values for Cartographer.
Table 7. Default, tuning and final values for Cartographer.
Test Values
VariableDefaultMinimumMaximumFinal
optimize_every_n_nodes904012090
local_slam_translation_Weight 10 × 10 5 10 × 10 2 10 × 10 6 10 × 10 6
local_slam_rotation_weight 10 × 10 5 10 × 10 2 10 × 10 6 10 × 10 6
odometry_slam_translation_weight 10 × 10 5 10 × 10 2 10 × 10 6 10 × 10 2
odometry_slam_rotation_weight 10 × 10 5 10 × 10 2 10 × 10 6 10 × 10 5
ceres_scan_matcher.translation_weight0.40.11.00.4
ceres_scan_matcher.rotation_weight0.30.11.00.3
global_sampling_radio0.00030.00010.00050.0003
submaps.resolution0.00030.00010.00050.0003
constraint_builder.min_score0.60.40.80.6
Table 8. Default, tuning and final values for HECTOR-SLAM.
Table 8. Default, tuning and final values for HECTOR-SLAM.
Test Values
VariableDefaultMinimumMaximumFinal
update_factor_free0.400.100.450.40
update_factor_ocuppied0.900.800.990.90
map_update_distance_thresh0.400.101.000.40
map_update_angle_thresh0.900.101.000.90
map_pub_period2.001.005.002.00
Table 9. Default, tuning and final values for KARTO-SLAM.
Table 9. Default, tuning and final values for KARTO-SLAM.
Test Values
VariableDefaultMinimumMaximumFinal
scan_buffer_size703010030
link_match_minimum_response_fine0.120.060.180.18
loop_match_minimum_chain_size1051515
loop_match_maximum_variance_coarse0.40.30.50.3
loop_match_minimum_response_coarse0.800.750.850.75
loop_match_minimum_response_fine0.800.750.850.75
correlation_search_space_dimension0.30.20.40.2
correlation_search_space_smear_deviation0.030.030.040.04
loop_search_space_dimension8.07.09.07.0
loop_search_space_smear_deviation0.030.030.040.04
distance_variance_penalty0.30.20.40.2
angle_variance_penalty0.3490.2490.4490.449
fine_search_angle_offset0.003490.002490.004490.00449
coarse_search_angle_offset0.3490.2490.4490.449
coarse_angle_resolution0.03490.02490.04490.0449
minimum_angle_penalty0.900.850.950.95
minimum_distance_penalty0.50.40.60.4
use_response_expansionFalseFalseTrueTrue
Table 10. Default, tuning and final values for RTAB-MAP.
Table 10. Default, tuning and final values for RTAB-MAP.
Test Values
VariableDefaultMinimumMaximumFinal
TimeThr0010
MemThr0010
DetectionRate1.00.110.00.1
ImageBufferSize10200
MaxRetrieved21101
CreateIntermediateNodesfalsefalsetruefalse
LoopThreshold0.110.001.000.00
VarianceIgnorancefalsefalsetruefalse
FilteringStrategyNo filteringNo filteringKalman filteringNo filtering
Table 11. Observation means for pose accuracy.
Table 11. Observation means for pose accuracy.
ObservationCartographerGmappingHECTOR-SLAMKARTO-SLAMRTAB-Map
10.02130.23040.09000.11130.0219
20.18690.186450.35980.07040.0297
30.17810.14240.14980.08740.0154
40.13850.29250.04240.06800.0157
50.45130.15720.05700.09650.0203
60.51020.13001.84500.06100.0206
Mean0.24770.18980.42400.08240.0206
Standard Deviation0.19080.06180.70570.01930.0052
70.02050.18790.02040.09120.0213
80.03950.24770.03950.02810.0204
90.05970.20870.06670.05430.0091
100.08030.18570.00900.04660.0165
110.29250.112636.21810.07940.0136
120.24240.16552255.05400.04110.0189
Mean0.12250.1847381.93200.05680.0167
Standard Deviation0.11520.0450917.76780.02400.0046
130.11130.35933.78580.06840.0179
144.14191.331728.78470.34380.1803
150.543030.55716.14070.06130.0168
Mean2.21300.749312.90370.15790.0717
Standard Deviation0.79940.514013.80360.16110.0941
Total Mean1.03120.2997155.51090.08730.0363
Total Standard Deviation0.46780.3066580.92970.07430.0515
Table 12. Observation means for map accuracy.
Table 12. Observation means for map accuracy.
ObservationCartographerGmappingHECTOR-SLAMKARTO-SLAMRTAB-Map
111.358812.929611.59996.59963.4305
25.948517.509529.89544.27113.9316
37.235611.27849.06523.2293.7825
46.29318.25234.90114.49643.3662
54.49647.499822.35527.30453.5179
63.30458.871956.08864.73072.9544
Mean6.439511.056922.31765.10523.4972
Standard Deviation2.78213.754618.93001.53600.3426
72.765811.28780.651881.60611.0293
83.567323.73501.09921.01730.9345
94.730726.29223.08911.71841.5389
105.485912.95111.78963.13791.2902
113.366218.88833.39901.74061.3364
127.669110.25349.82641.62091.4362
Mean4.597517.23463.30921.80671.4940
Standard Deviation1.79866.77463.37000.70460.4940
133.931620.313234.30399.02314.1498
144.901115.271837.72835.67194.5795
157.499819.731037.18707.87684.0350
Mean5.444218.438736.40647.52394.2548
Standard Deviation1.84502.75801.84081.70320.2870
Total Mean5.503615.004317.53204.26963.0809
Total Standard Deviation2.26585.818117.47482.56950.1071
Table 13. Observation means for CPU usage.
Table 13. Observation means for CPU usage.
ObservationCartographerGmappingHECTOR-SLAMKartoRTAB-Map
179.948565.776714.961124.636221.9038
279.270964.421315.327125.198322.5627
385.283230.666715.450124.779119.1986
483.948229.974516.131427.258022.8742
5125.593833.063115.456233.040122.1754
6126.673331.869615.636830.882623.0957
Mean96.786342.628615.493827.632421.9684
Standard Deviation22.849717.44260.38523.54941.4257
7157.057364.239615.763822.828321.8038
8106.454364.939915.310823.35622.6580
9103.812658.511115.269023.191021.0382
10168.866464.272715.630522.358221.4474
11226.673385.047716.014429.013427.6719
12225.484281.798415.268432.101027.6719
Mean167.846369.801615.542025.474623.3506
Standard Deviation54.242110.85340.31174.07062.6483
13122.499733.608415.769234.993624.2222
14135.047733.563913.845736.051327.0032
15245.991638.412113.869148.729439.1275
Mean167.846335.194814.494739.924830.1176
Standard Deviation67.96602.78631.10387.64337.9257
Total Mean138.173752.011015.313229.227825.1455
Total Standard Deviation55.875419.64190.66467.10003.4543
Table 14. Observation means for memory usage.
Table 14. Observation means for memory usage.
ObservationCartographerGmappingHECTOR-SLAMKARTO-SLAMRTAB-Map
1103.427852.338031.126130.1372192.5342
298.052446.181331.017332.7514191.6726
3135.3839358.281331.001632.5083165.7151
4133.9238355.869130.739932.7924188.1644
5187.343360.096530.936455.4142185.3953
6185.394368.043730.874150.3001206.5993
Mean140.5875256.801630.949238.9839188.3468
Standard Deviation38.6141160.825010.132910.912313.2967
7133.200043.898330.962935.7139183.4044
8138.242643.996330.947330.8605183.2011
9134.582946.560331.055831.2307187.8639
10101.317643.557330.919628.9994189.1245
11235.899057.826930.807344.9256234.9545
12214.322654.5530.799951.1971214.3226
Mean159.594148.398230.915337.1545198.8118
Standard Deviation52.89976.21580.09808.954021.1739
13122.4997355.252030.967842.4248218.5724
14143.8983358.919131.010342.4906188.9716
15283.2011361.348231.014575.1085306.7033
Mean183.1997358.506430.997553.3413238.0824
Standard Deviation87.26223.06900.025818.851061.2427
Total Mean156.7126193.781230.945441.1236208.4137
Total Standard Deviation53.7130160.70940.103912.752525.7147
Table 15. Final results for all the metrics together.
Table 15. Final results for all the metrics together.
CartographerGmappingHECTOR-SLAMKARTO-SLAMRTAB-Map
Pose accuracy3-MS3-MS4-S2-M1-M
CPU usage5-M4-M1-M3-M2-M
Memory usage3-M5-S1-M2-M4-S
Map accuracy3-M4-S5-S2-M1-M
Table 16. Final results considering all the metrics means together.
Table 16. Final results considering all the metrics means together.
Pose AccuracyCPU UsageMemory UsageMap AccuracyResults
AlgorithmMeanScoreMeanScoreMeanScoreMeanScoreMeanScore
Cartographer0.46780.2821138.1737100156.712673.31895.503618.0957191.696647.9242
Gmapping0.29970.173952.011029.8695193.781294.928915.004482.7887207.761051.9402
HECTOR-SLAM155.510910015.3132030.9454017.532010020050
KARTO-SLAM0.08730.037329.227811.325541.12365.93364.26969.693026.98946.7474
RTAB-Map0.0292024.15117.1934202.47991002.84610107.193426.7984
Min0.0292 15.3132 30.9454 2.8461
Max155.5109 138.1737 202.4799 17.5320
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Trejos, K.; Rincón, L.; Bolaños, M.; Fallas, J.; Marín, L. 2D SLAM Algorithms Characterization, Calibration, and Comparison Considering Pose Error, Map Accuracy as Well as CPU and Memory Usage. Sensors 2022, 22, 6903. https://doi.org/10.3390/s22186903

AMA Style

Trejos K, Rincón L, Bolaños M, Fallas J, Marín L. 2D SLAM Algorithms Characterization, Calibration, and Comparison Considering Pose Error, Map Accuracy as Well as CPU and Memory Usage. Sensors. 2022; 22(18):6903. https://doi.org/10.3390/s22186903

Chicago/Turabian Style

Trejos, Kevin, Laura Rincón, Miguel Bolaños, José Fallas, and Leonardo Marín. 2022. "2D SLAM Algorithms Characterization, Calibration, and Comparison Considering Pose Error, Map Accuracy as Well as CPU and Memory Usage" Sensors 22, no. 18: 6903. https://doi.org/10.3390/s22186903

APA Style

Trejos, K., Rincón, L., Bolaños, M., Fallas, J., & Marín, L. (2022). 2D SLAM Algorithms Characterization, Calibration, and Comparison Considering Pose Error, Map Accuracy as Well as CPU and Memory Usage. Sensors, 22(18), 6903. https://doi.org/10.3390/s22186903

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
