Article

Scintillation Response of Nd-Doped LaMgAl11O19 Single Crystals Emitting NIR Photons for High-Dose Monitoring

by
Daisuke Nakauchi
,
Takumi Kato
,
Noriaki Kawaguchi
and
Takayuki Yanagida
*
Division of Materials Science, Nara Institute of Science and Technology (NAIST), 8916-5 Takayama, Ikoma 630-0192, Nara, Japan
*
Author to whom correspondence should be addressed.
Sensors 2022, 22(24), 9818; https://doi.org/10.3390/s22249818
Submission received: 28 November 2022 / Revised: 8 December 2022 / Accepted: 13 December 2022 / Published: 14 December 2022
(This article belongs to the Section Chemical Sensors)
Browse Figures
Versions Notes

Abstract

:
The Nd-doped LaMgAl11O19 single crystals were synthesized by the floating zone method, and the photoluminescence and scintillation properties were evaluated. Under X-ray irradiation, several sharp emission peaks due to the 4f–4f transitions of Nd3+ were observed at 900, 1060, and 1340 nm in the near-infrared range, and the decay curves show the typical decay time for Nd3+. The samples show good afterglow properties comparable with practical X-ray scintillators. The 1% and 3% Nd-doped LaMgAl11O19 samples show a good linearity in the dynamic range from 6–60,000 mGy/h.

1. Introduction

A scintillator is a phosphor that emits photons with several eV when irradiated by ionizing radiations and has been used in applications such as medical diagnostic [1,2,3], security [4,5,6,7], and resource exploration, etc. [8,9,10,11,12]. A scintillation detector consists of a scintillator that converts ionizing radiations into photons and a photodetector such as a photomultiplier tube or photodiode that converts photons into electrical signals. Since the conversion efficiency from photon to electrical signal depends on the quantum efficiency of the photodetector, phosphors that emit in the UV–visible region, where the above photodetectors have high sensitivity, have been investigated [13,14,15,16].
Since the nuclear accident in Fukushima, various countermeasures using materials have been studied for reconstruction [17,18,19,20]. In recent years, scintillators which exhibit luminescence in the near-infrared (NIR) region have attracted attention for remote monitoring applications in high-dose fields [21,22,23]. Remote monitoring using scintillators and optical fibers has been proposed to avoid radiation damage to semiconductors and electrical circuits of signal amplifiers involved in measurements [21,24,25,26,27,28]. Since the method uses a long optical fiber, the transmission efficiency of scintillation photons in an optical fiber is important. In the NIR region of 800–1700 nm, the transmittance of a quartz fiber is higher than that in the UV–visible region [29,30,31,32,33], and the transmission loss can be suppressed. So far, there have been sporadic studies on NIR-scintillators. In past studies, only emission wavelengths shorter than 1000 nm were monitored because a Si-photodiode was used as the photodetector. On the other hand, InGaAs-based photodiodes enable stable measurement of NIR scintillation photons with wavelengths longer than 1000 nm. In our previous works, various scintillators doped with Nd as an emission center in the NIR region have been developed as candidate materials [34,35,36,37,38].
LaMgAl11O19 has been extensively studied in various phosphor fields such as laser [39,40,41,42] and white LED applications [43,44,45,46,47,48]. Since LaMgAl11O19 has La3+ sites that can be easily substituted with doped rare-earth ions as an emission center, LaMgAl11O19 doped with various trivalent rare-earth ions such as Ce, Nd, Sm, Eu, Dy, Tm, an Yb, etc. [49,50,51,52,53,54,55] has been investigated. In addition, compared with conventional oxide scintillators such as rare-earth-based silicate and aluminate compounds [56,57,58,59,60,61,62,63,64], the composition ratio of rare-earth elements is relatively low, and the main component is Al2O3, so the cost of raw materials can be suppressed. However, no research on the scintillation properties for measuring ionizing radiations has been reported so far. In this study, the Nd-doped LaMgAl11O19 single crystals were synthesized, and the photoluminescence (PL) and scintillation properties were investigated to evaluate the potential applicability for high-dose monitoring applications.

2. Materials and Methods

To begin, 0.1, 0.3, 1, and 3 atomic% Nd-doped LaMgAl11O19 crystals were synthesized by the floating zone method. La2O3 (99.99%), MgO (99.99%), Al2O3 (99.99%), and Nd2O3 (99.99%) were used as raw materials. At first, mixed powders were molded into cylindrical shapes by using hydrostatic pressure and then sintered at 1400 °C for 8 h. After that, the prepared sample was used to grow a single crystal by using a floating zone furnace (FZD0192, Canon Machinery, Kusats, Japan). During the crystal growth, the growth speed was set to 5 mm/h, and the rotation speed was 20 rpm. To demonstrate the crystalline phase of the target compound, powder X-ray diffraction (XRD) patterns were obtained by using a diffractometer (MiniFlex600, Rigaku, Tokyo, Japan).
PL contour spectra and quantum yield (QY) were measured using Quantaurus-QY Plus (C13534, Hamamatsu Photonics, Shizuoka, Japan). The QY was calculated by monitoring emission wavelengths from 800 to 1700 nm under an excitation wavelength of 590 nm with a band width of 10 nm. PL decay curves were measured using Quantaurus-τ (C11367, Hamamatsu Photonics).
Scintillation properties, emission spectra, decay curves, and afterglow under X-rays were measured using laboratory-made setup [65,66]. To evaluate dose rate response, signal intensities were measured under X-rays with various irradiation dose rates by using a laboratory-made setup based on an InGaAs-PIN photodiode (G12180-250A, Hamamatsu Photonics) [35].

3. Results

The synthesized samples were cut into small size, and the large surfaces were polished to the thickness of ~0.5 mm for the following characterizations. The photograph of the Nd-doped LaMgAl11O19 samples is shown in Figure 1. They are visibly transparent, and the 3% Nd-doped sample appears pale purple, while the rests appear colorless. The coloring is due to typical absorption of Nd3+.
The powder XRD patterns of the LaMgAl11O19:Nd crystalline powders are illustrated in Figure 2, and the reference pattern (Crystal Open Database: 2002336) is also shown. The XRD peaks are in good agreement with the reference peaks, and no other peaks ascribed to the impurity phase can be observed. From the patterns, the samples have a single phase of LaMgAl11O19 with a hexagonal symmetry (space group: P63/mmc). No significant peak-shifts owing to Nd-concentration are observed because the ionic radii of La3+ and Nd3+ is close.
In PL evaluation, all the LaMgAl11O19:Nd samples show similar spectral features, and the PL contour spectrum of the 1% Nd-doped samples are shown in Figure 3 as a representative. Two double peaks are observed at ~900 and 1060 nm, and the emission origins are 4F3/2–4I9/2 and 4F3/2–4I11/2, respectively [67]. All the samples show the highest QY under excitation at 580 nm, and the 0.1, 0.3, and 1% Nd-doped LaMgAl11O19 exhibit QY of 91.0%, 73.8%, 72.1%, and 70.9%, respectively. The 0.1% Nd-doped LaMgAl11O19 shows the highest value among the present samples, and QY monotonically decreases with Nd-concentration because of concentration quenching.
Figure 4 illustrates PL decay curves of Nd-doped LaMgAl11O19 monitored at ~900 nm under excitation at ~580 nm. The decay curves were fitted by the least squares method and consist of one exponential decay function. The obtained decay time constants (τ) were 332 μs for 0.1%, 313 μs for 0.3%, 308 μs for 1%, and 290 μs for 3%, respectively. They were almost the same value as the reported decay constant of Nd-doped LaMgAl11O19 (~300 μs [67]) and typical for the 4f–4f transitions of Nd3+ [68]. The decay time monotonically decreases with Nd-concentration. On the basis on the obtained results of QY and τ, the radiative (kf) and nonradiative (knr) decay rates were calculated by using Equations (1) and (2).
kf = QY/τ,
knr = (1 − QY)/τ,
The calculated values are listed in Table 1. kf values are almost the same in all the samples, while knr monotonically increases with the dopant concentration. This trend indicates typical concentration quenching.
Figure 5 show the X-ray-induced emission spectra in the range of UV–visible and NIR regions. A broad emission peak, possibly due to intrinsic luminescence of the host, and an absorption signal due to the 4f–4f (4I9/2–4D1/2, 4D3/2, 4D5/2) transitions of Nd3+ are also observed at 350 nm [69,70,71,72]. In addition, two sharp emission peaks appear at 390 and 410 nm, which are attributable to 2F5/2–4F3/2 and 2F5/2–4F5/2 transitions of Nd3+ [73]. These absorption and emission signals observed at 350–410 nm are the most clearly observed in the 3% Nd–doped sample. Investigation into the intrinsic luminescence is beyond the scope of this study. The spectral shape in the NIR region is almost the same as the PL spectra. Three groups of a few sharp emission peaks are observed at ~900, ~1060 and ~1340 nm, which are ascribed to 4F3/2–4I9/2, 4F3/2–4I11/2, and 4F3/2–4I13/2 transitions of Nd3+.
Figure 6 shows the decay curves under X-ray irradiation. All the decay curves are approximated by a sum of two exponential decay functions. As summarized in Table 2, both the first (τ1) and second (τ2) decay time constants decrease as the dopant concentration increases. Since the obtained decay time constants are close to those in the previous reports on PL decay [74], they are due to emission at ~400 nm (2F5/2–4F3/2 and 2F5/2–4F5/2) and ~900 nm (4F3/2–4I9/2), respectively. The decay time (500–800 μs) corresponding to the emission at ~900 nm is longer than PL decay time (~300 μs) in Figure 3. PL occurs only by electronic transitions at an emission center, while X-ray-induced emission involves an additional energy transport process from a host to an emission center. Therefore, X-ray-induced decay time is longer than PL in most materials. The obtained decay constants are relatively long in comparison with conventional scintillators for the photon-counting applications. However, the decay time is acceptable because the integrated current is read out every few milliseconds in the monitoring applications.
Figure 7 shows the afterglow curves after X-ray irradiation for 2 ms. The afterglow levels at 20 ms (AG) were calculated by following Equation (3):
AG = (I2 − IBG)/(I1 − IBG),
where IBG, I1, and I2 were signal intensity before, during, and after X-ray irradiation, respectively. The afterglow at t = 20 ms was 131 ppm for 0.1%, 62 ppm for 0.3%, 38 ppm for 1%, and 21 ppm for 3%. The obtained values were comparable with practical scintillators with low afterglow such as BGO (~10 ppm [75]). The results demonstrate suitability for monitoring applications.
Figure 8 shows the relationships between X-ray irradiation dose rate and the output signal. The evaluation simply simulates actual measurements in a high-dose field. The tested dose rates were from 6 to 60,000 mGy/h. The 1% and 3% Nd-doped samples show the lowest measurable dose rate of 6 mGy/h among the samples, and the measurable limits of the 0.1% and 0.3% Nd-doped LaMgAl11O19 sample were 60 mGy/h. Considering the afterglow characteristic results, 3% Nd-doped LaMgAl11O19 is the most suitable for detector uses among the samples. Compared with the past study using scintillator-emitting visible photons, the detection limit is superior to that of Pr:Gd2O2S coupled with Si-photodiode (0.8 Gy/h) [21] and comparable with those of some Nd-doped scintillators in our previous works such as GdVO4:Nd (6 mGy/h [35]), Bi4Ge3O12:Nd (10 mGy/h [36]), and SrY2O4:Nd (60 mGy/h [34]). Among them, the ratio of expensive raw materials is relatively small in LaMgAl11O19, which is advantageous from the viewpoint of the reasonable production cost.

4. Conclusions

Nd-doped LaMgAl11O19 single crystals were prepared by the FZ method, and the PL and scintillation properties were investigated. Under X-ray irradiation, several sharp emission peaks due to 4f–4f transitions of Nd3+ were clearly observed in the NIR range. The afterglow levels after X-ray irradiation for 2 ms improve as the Nd-concentration increases. The afterglow levels are comparable to practical X-ray scintillators with low afterglow such as Bi4Ge3O12. From the evaluation of relationships between X-ray irradiation dose rate and output signal, all the samples show a good linearity in the wide dynamic range. The 1% and 3% Nd-doped samples show the lowest detection limit of 6 mGy/h among the samples. Overall, the scintillation output and afterglow properties indicate that the 3% Nd-doped sample is the best among the prepared samples, and Nd-doped LaMgAl11O19 has a potential to be applied to scintillation detectors for monitoring high-dose fields.

Author Contributions

Conceptualization, D.N.; methodology, D.N.; investigation, D.N.; resources, D.N.; data curation, D.N.; writing—original draft preparation, D.N.; writing—review and editing, T.Y.; supervision, T.K.; project administration, T.Y.; funding acquisition, N.K. and T.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Grant-in-Aid for Scientific Research A (22H00309), B (21H03733, 21H03736, and 22H03872), and Exploratory Research (22K18997) from JSPS. A-STEP from JST, Foundation from Research Project of Research Center for Biomedical Engineering, Nippon Sheet Glass Foundation, Terumo Life Science Foundation, Iwatani Naoji Foundation, Kazuchika Okura Memorial Foundation and Konica Minolta Science and Technology Foundation are also acknowledged.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders have no role in the perform of this research including the data collection, data analyses, discussion, preparation of the manuscript.

References

  1. van Eijk, C.W.E. Inorganic scintillators in medical imaging. Phys. Med. Biol. 2002, 47, R85–R106. [Google Scholar] [CrossRef]
  2. van Eijk, C.W.E. Inorganic scintillators in medical imaging detectors. Nucl. Instrum. Methods Phys. Res. A 2003, 509, 17–25. [Google Scholar] [CrossRef]
  3. William, W.; Moses, W.W. Scintillator Requirements for Medical Imaging. In Proceedings of the International Conference on Inorganic Scintillators and Their Applications: SCINT99, Moscow, Russia, 16–20 August 1999; pp. 11–21. [Google Scholar]
  4. Glodo, J.; Wang, Y.; Shawgo, R.; Brecher, C.; Hawrami, R.H.; Tower, J.; Shah, K.S. New Developments in Scintillators for Security Applications. Phys. Procedia 2017, 90, 285–290. [Google Scholar] [CrossRef]
  5. Wells, K.; Bradley, D.A. A review of X-ray explosives detection techniques for checked baggage. Appl. Radiat. Isot. 2012, 70, 1729–1746. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Kim, K.H.; Jun, I.S.; Eun, Y.S. New sandwich type detector module and its characteristics for dual x-ray baggage inspection system. In Proceedings of the 2007 IEEE Nuclear Science Symposium Conference Record, Honolulu, HI, USA, 27 October–3 November 2007; pp. 1191–1194. [Google Scholar]
  7. Mazoochi, A.; Rahmani, F.; Abbasi Davani, F.; Ghaderi, R. A novel numerical method to eliminate thickness effect in dual energy X-ray imaging used in baggage inspection. Nucl. Instrum. Methods Phys. Res. A 2014, 763, 538–542. [Google Scholar] [CrossRef]
  8. Nikitin, A.; Bliven, S. Needs of well logging industry in new nuclear detectors. In Proceedings of the IEEE Nuclear Science Symposuim & Medical Imaging Conference, Knoxville, TN, USA, 30 October–6 November 2010; pp. 1214–1219. [Google Scholar]
  9. Melcher, C.L. Scintillators for well logging applications. Nucl. Instrum. Methods Phys. Res. B 1989, 40–41, 1214–1218. [Google Scholar] [CrossRef]
  10. Melcher, C.L.; Schweitzer, J.S.; Manente, R.S.; Peterson, C.A. Applicability of GSO scintillators for well logging. IEEE Trans. Nucl. Sci. 1991, 38, 506–509. [Google Scholar] [CrossRef]
  11. Zaffalon, M.L.; Cova, F.; Liu, M.; Cemmi, A.; Di Sarcina, I.; Rossi, F.; Carulli, F.; Erroi, A.; Rodà, C.; Perego, J.; et al. Extreme γ-ray radiation hardness and high scintillation yield in perovskite nanocrystals. Nat. Photonics 2022, 16, 860–868. [Google Scholar] [CrossRef]
  12. Chen, Q.; Wu, J.; Ou, X.; Huang, B.; Almutlaq, J.; Zhumekenov, A.A.; Guan, X.; Han, S.; Liang, L.; Yi, Z.; et al. All-inorganic perovskite nanocrystal scintillators. Nature 2018, 561, 88–93. [Google Scholar] [CrossRef]
  13. Dorenbos, P. The quest for high resolution γ-ray scintillators. Opt. Mater. X 2019, 1, 100021. [Google Scholar] [CrossRef]
  14. Weber, M.J. Scintillation: Mechanisms and new crystals. Nucl. Instrum. Methods Phys. Res. A 2004, 527, 9–14. [Google Scholar] [CrossRef]
  15. Holl, I.; Lorenz, E.; Mageras, G. A measurement of the light yield of common inorganic scintillators. IEEE Trans. Nucl. Sci. 1988, 35, 105–109. [Google Scholar] [CrossRef]
  16. van Eijk, C.W.E. Inorganic-scintillator development. Nucl. Instrum. Methods Phys. Res. A 2001, 460, 1–14. [Google Scholar] [CrossRef]
  17. Awual, M.R.; Miyazaki, Y.; Taguchi, T.; Shiwaku, H.; Yaita, T. Encapsulation of cesium from contaminated water with highly selective facial organic–inorganic mesoporous hybrid adsorbent. Chem. Eng. J. 2016, 291, 128–137. [Google Scholar] [CrossRef]
  18. Khandaker, S.; Chowdhury, M.F.; Awual, M.R.; Islam, A.; Kuba, T. Efficient cesium encapsulation from contaminated water by cellulosic biomass based activated wood charcoal. Chemosphere 2021, 262, 127801. [Google Scholar] [CrossRef] [PubMed]
  19. Awual, M.R.; Yaita, T.; Miyazaki, Y.; Matsumura, D.; Shiwaku, H.; Taguchi, T. A Reliable Hybrid Adsorbent for Efficient Radioactive Cesium Accumulation from Contaminated Wastewater. Sci. Rep. 2016, 6, 19937. [Google Scholar] [CrossRef]
  20. Awual, M.R.; Suzuki, S.; Taguchi, T.; Shiwaku, H.; Okamoto, Y.; Yaita, T. Radioactive cesium removal from nuclear wastewater by novel inorganic and conjugate adsorbents. Chem. Eng. J. 2014, 242, 127–135. [Google Scholar] [CrossRef]
  21. Takada, E.; Kimura, A.; Hosono, Y.; Takahashi, H.; Nakazawa, M. Radiation Distribution Sensor with Optical Fibers for High Radiation Fields. J. Nucl. Sci. Technol. 1999, 36, 641–645. [Google Scholar] [CrossRef]
  22. Takada, E. Application of red and near infrared emission from rare earth ions for radiation measurements based on optical fibers. IEEE Trans. Nucl. Sci. 1998, 45, 556–560. [Google Scholar] [CrossRef]
  23. Kimura, A.; Takada, E.; Hosono, Y.; Nakazawa, M.; Takahashi, H.; Hayami, H. New techniques to apple optical fiber image guide to nucileas facilities. J. Nucl. Sci. Technol. 2002, 39, 603–607. [Google Scholar] [CrossRef]
  24. Huston, A.; Justus, B.; Falkenstein, P.; Miller, R.; Ning, H.; Altemus, R. Remote optical fiber dosimetry. Nucl. Instrum. Methods Phys. Res. B 2001, 184, 55–67. [Google Scholar] [CrossRef]
  25. O’Keeffe, S.; McCarthy, D.; Woulfe, P.; Grattan, M.W.D.; Hounsell, A.R.; Sporea, D.; Mihai, L.; Vata, I.; Leen, G.; Lewis, E. A review of recent advances in optical fibre sensors for in vivo dosimetry during radiotherapy. Br. J. Radiol. 2015, 88, 20140702. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Bartesaghi, G.; Conti, V.; Prest, M.; Mascagna, V.; Scazzi, S.; Cappelletti, P.; Frigerio, M.; Gelosa, S.; Monti, A.; Ostinelli, A.; et al. A real time scintillating fiber dosimeter for gamma and neutron monitoring on radiotherapy accelerators. Nucl. Instrum. Methods Phys. Res. A 2007, 572, 228–230. [Google Scholar] [CrossRef]
  27. Vedda, A.; Chiodini, N.; Di Martino, D.; Fasoli, M.; Keffer, S.; Lauria, A.; Martini, M.; Moretti, F.; Spinolo, G.; Nikl, M.; et al. Ce3+-doped fibers for remote radiation dosimetry. Appl. Phys. Lett. 2004, 85, 6356–6358. [Google Scholar] [CrossRef]
  28. Ishikawa, M.; Ono, K.; Sakurai, Y.; Unesaki, H.; Uritani, A.; Bengua, G.; Kobayashi, T.; Tanaka, K.; Kosako, T. Development of real-time thermal neutron monitor using boron-loaded plastic scintillator with optical fiber for boron neutron capture therapy. Appl. Radiat. Isot. 2004, 61, 775–779. [Google Scholar] [CrossRef]
  29. Ding, M. Handbook of Optical Fibers; Springer: Berlin/Heidelberg, Germany, 2018. [Google Scholar]
  30. Christie, S.; Scorsone, E.; Persaud, K.; Kvasnik, F. Remote detection of gaseous ammonia using the near infrared transmission properties of polyaniline. Sensors Actuators B Chem. 2003, 90, 163–169. [Google Scholar] [CrossRef]
  31. Chan, K.; Ito, H.; Inaba, H.; Furuya, T. 10 km-long fibre-optic remote sensing of CH4 gas by near infrared absorption. Appl. Phys. B Photophysics Laser Chem. 1985, 38, 11–15. [Google Scholar] [CrossRef]
  32. Chan, K.; Ito, H.; Inaba, H. Remote sensing system for near-infrared differential absorption of CH4 gas using low-loss optical fiber link. Appl. Opt. 1984, 23, 3415. [Google Scholar] [CrossRef]
  33. Stewart, G.; Jin, W.; Culshaw, B. Prospects for fibre-optic evanescent-field gas sensors using absorption in the near-infrared. Sensors Actuators B Chem. 1997, 38, 42–47. [Google Scholar] [CrossRef]
  34. Fukushima, H.; Akatsuka, M.; Kimura, H.; Onoda, D.; Shiratori, D.; Nakauchi, D.; Kato, T.; Kawaguchi, N.; Yanagida, T. Optical and Scintillation Properties of Nd-doped Strontium Yttrate Single Crystals. Sens. Mater. 2021, 33, 2235. [Google Scholar] [CrossRef]
  35. Akatsuka, M.; Kimura, H.; Onoda, D.; Shiratori, D.; Nakauchi, D.; Kato, T.; Kawaguchi, N.; Yanagida, T. X-ray-induced Luminescence Properties of Nd-doped GdVO4. Sens. Mater. 2021, 33, 2243. [Google Scholar] [CrossRef]
  36. Okazaki, K.; Onoda, D.; Fukushima, H.; Nakauchi, D.; Kato, T.; Kawaguchi, N.; Yanagida, T. Characterization of scintillation properties of Nd-doped Bi4Ge3O12 single crystals with near-infrared luminescence. J. Mater. Sci. Mater. Electron. 2021, 32, 21677–21684. [Google Scholar] [CrossRef]
  37. Akatsuka, M.; Usui, Y.; Nakauchi, D.; Kato, T.; Kawano, N.; Okada, G.; Kawaguchi, N.; Yanagida, T. Scintillation properties of YAlO3 doped with Lu and Nd perovskite single crystals. Opt. Mater. 2018, 79, 428–434. [Google Scholar] [CrossRef]
  38. Nakauchi, D.; Okada, G.; Koshimizu, M.; Yanagida, T. Optical and scintillation properties of Nd-doped SrAl2O4 crystals. J. Rare Earths 2016, 34, 757–762. [Google Scholar] [CrossRef]
  39. Gao, Z.Y.; Xia, G.Q.; Yan, X.; Zhu, J.F.; Xu, X.D.; Wu, Z.M. A high-repetition-rate diode-pumped Q-switched Nd:LaMgAl11O19 laser operating at single wavelength or dual wavelength. Opt. Rev. 2021, 28, 404–410. [Google Scholar] [CrossRef]
  40. Guyot, Y.; Moncorge, R. Excited-state absorption in the infrared emission domain of Nd3+-doped Y3Al5O12, YLiF4, and LaMgAl11O19. J. Appl. Phys. 1993, 73, 8526–8530. [Google Scholar] [CrossRef]
  41. Viana, B.; Garapon, C.; Lejus, A.M.; Vivien, D. Cr3+ → Nd3+ energy transfer in the LaMgAl11O19:Cr, Nd laser material. J. Lumin. 1990, 47, 73–83. [Google Scholar] [CrossRef]
  42. Wang, J.; Zhang, Y.; Guan, X.; Xu, B.; Xu, H.; Cai, Z.; Pan, Y.; Liu, J.; Xu, X.; Xu, J. High-efficiency diode-pumped continuous-wave and passively Q-switched c-cut Nd:LaMgAl11O19 (Nd:LMA) lasers. Opt. Mater. 2018, 86, 512–516. [Google Scholar] [CrossRef]
  43. Min, X.; Fang, M.; Huang, Z.; Liu, Y.; Tang, C.; Wu, X. Luminescent properties of white-light-emitting phosphor LaMgAl11O19:Dy3+. Mater. Lett. 2014, 125, 140–142. [Google Scholar] [CrossRef]
  44. Min, X.; Fang, M.; Huang, Z.; Liu, Y.; Tang, C.; Wu, X. Synthesis and optical properties of Pr3+-doped LaMgAl11O19-A novel blue converting yellow phosphor for white light emitting diodes. Ceram. Int. 2015, 41, 4238–4242. [Google Scholar] [CrossRef]
  45. Min, X.; Fang, M.; Huang, Z.; Liu, Y.; Tang, C.; Wu, X. Luminescence properties and energy-transfer behavior of a novel and color-tunable LaMgAl11O19:Tm3+, Dy3+ phosphor for white light-emitting diodes. J. Am. Ceram. Soc. 2015, 98, 788–794. [Google Scholar] [CrossRef]
  46. Min, X.; Fang, M.; Huang, Z.; Liu, Y.; Tang, C.; Zhu, H.; Wu, X. Preparation and luminescent properties of orange reddish emitting phosphor LaMgAl11O19:Sm3+. Opt. Mater. 2014, 37, 110–114. [Google Scholar] [CrossRef]
  47. Li, W.; Fang, G.; Wang, Y.; You, Z.; Li, J.; Zhu, Z.; Tu, C.; Xu, Y.; Jie, W. Luminescent properties of Dy3+ activated LaMgAl11O19 yellow emitting phosphors for application in white-LEDs. Vacuum 2021, 188, 110215. [Google Scholar] [CrossRef]
  48. Min, X.; Huang, Z.; Fang, M.; Liu, Y.; Tang, C.; Wu, X. Energy Transfer from Sm3+ to Eu3+ in Red-Emitting Phosphor LaMgAl11O19:Sm3+, Eu3+ for Solar Cells and Near-Ultraviolet White Light-Emitting Diodes. Inorg. Chem. 2014, 53, 6060–6065. [Google Scholar] [CrossRef] [PubMed]
  49. Rodnyi, P.A.; Mikhrin, S.B.; Dorenbos, P.; van Der Kolk, E.; van Eijk, C.W.E.; Vink, A.P.; Avanesov, A.G. The observation of photon cascade emission in Pr3+-doped compounds under X-ray excitation. Opt. Commun. 2002, 204, 237–245. [Google Scholar] [CrossRef]
  50. Verstegen, J.M.P.J.; Sommerdijk, J.L.; Verriet, J.G. Cerium and terbium luminescence in LaMgAl11O19. J. Lumin. 1973, 6, 425–431. [Google Scholar] [CrossRef]
  51. Singh, V.; Chakradhar, R.P.S.; Rao, J.L.; Kwak, H.Y. Enhanced blue emission and EPR study of LaMgAl11O19:Eu phosphors. J. Lumin. 2011, 131, 247–252. [Google Scholar] [CrossRef]
  52. Zhu, J.; Xia, Z.; Liu, Q. Synthesis and energy transfer studies of LaMgAl11O19:Cr3+, Nd3+ phosphors. Mater. Res. Bull. 2016, 74, 9–14. [Google Scholar] [CrossRef]
  53. Sommerdijk, J.L.; van der Does de Bye, J.A.W.; Verberne, P.H.J.M. Decay of the Ce3+ luminescence of LaMgAl11O19: Ce3+ and of CeMgAl11O19 activated with Tb3+ or Eu3+. J. Lumin. 1976, 14, 91–99. [Google Scholar] [CrossRef]
  54. Brandle, C.D.; Berkstresser, G.W.; Shmulovich, J.; Valentino, A.J. Czochralski growth and evaluation of LaMgAl11O19 based phosphors. J. Cryst. Growth 1987, 85, 234–239. [Google Scholar] [CrossRef]
  55. Luo, X.; Yang, X.; Xiao, S. Conversion of broadband UV-visible to near infrared emission by LaMgAl11O19: Cr3+, Yb3+ phosphors. Mater. Res. Bull. 2018, 101, 73–82. [Google Scholar] [CrossRef]
  56. Pidol, L.; Kahn-Harari, A.; Viana, B.; Virey, E.; Ferrand, B.; Dorenbos, P.; De Haas, J.T.M.; van Eijk, C.W.E. High efficiency of lutetium silicate scintillators, Ce-doped LPS, and LYSO crystals. IEEE Trans. Nucl. Sci. 2004, 51, 1084–1087. [Google Scholar] [CrossRef]
  57. Pepin, C.M.; Forgues, J.; Kurata, Y.; Shimura, N.; Usui, T.; Takeyama, T.; Ishibashi, H.; Lecomte, R. Physical Characterization of the LabPET TM LGSO and LYSO Scintillators. In Proceedings of the IEEE Nuclear Science Symposium conference record. Nuclear Science Symposium, Honolulu, HI, USA, 27 October–3 November 2007. [Google Scholar]
  58. Gerasymov, I.; Sidletskiy, O.; Neicheva, S.; Grinyov, B.; Baumer, V.; Galenin, E.; Katrunov, K.; Tkachenko, S.; Voloshina, O.; Zhukov, A. Growth of bulk gadolinium pyrosilicate single crystals for scintillators. J. Cryst. Growth 2011, 318, 805–808. [Google Scholar] [CrossRef]
  59. Tanaka, M.; Hara, K.; Kim, S.; Kondo, K.; Takano, H.; Kobayashi, M.; Ishibashi, H.; Kurashige, K.; Susa, K.; Ishii, M. Applications of cerium-doped gadolinium silicate Gd2SiO5:Ce scintillator to calorimeters in high-radiation environment. Nucl. Instrum. Methods Phys. Res. A 1998, 404, 283–294. [Google Scholar] [CrossRef]
  60. Moses, W.W.; Derenzo, S.E.; Fyodorov, A.; Korzhik, M.; Gektin, A.; Minkov, B.; Aslanov, V. LuAlO3:Ce-a high density, high speed scintillator for gamma detection. IEEE Trans. Nucl. Sci. 1995, 42, 275–279. [Google Scholar] [CrossRef]
  61. Mares, J.A.; Beitlerova, A.; Nikl, M.; Solovieva, N.; D’Ambrosio, C.; Blazek, K.; Maly, P.; Nejezchleb, K.; De Notaristefani, F. Scintillation response of Ce-doped or intrinsic scintillating crystals in the range up to 1 MeV. Radiat. Meas. 2004, 38, 353–357. [Google Scholar] [CrossRef]
  62. Iwanowska, J.; Swiderski, L.; Szczesniak, T.; Sibczynski, P.; Moszynski, M.; Grodzicka, M.; Kamada, K.; Tsutsumi, K.; Usuki, Y.; Yanagida, T.; et al. Performance of cerium-doped Gd3Al2Ga3O12 (GAGG:Ce) scintillator in gamma-ray spectrometry. Nucl. Instrum. Methods Phys. Res. A 2013, 712, 34–40. [Google Scholar] [CrossRef]
  63. Moszyński, M.; Wolski, D.; Ludziejewski, T.; Kapusta, M.; Lempicki, A.; Brecher, C.; Wiśniewski, D.; Wojtowicz, A. Properties of the new LuAP:Ce scintillator. Nucl. Instrum. Methods Phys. Res. A 1997, 385, 123–131. [Google Scholar] [CrossRef]
  64. van Eijk, C.W.E.; Andriessen, J.; Dorenbos, P.; Visser, R. Ce3+ doped inorganic scintillators. Nucl. Instrum. Methods Phys. Res. A 1994, 348, 546–550. [Google Scholar] [CrossRef]
  65. Yanagida, T.; Kamada, K.; Fujimoto, Y.; Yagi, H.; Yanagitani, T. Comparative study of ceramic and single crystal Ce:GAGG scintillator. Opt. Mater. 2013, 35, 2480–2485. [Google Scholar] [CrossRef]
  66. Yanagida, T.; Fujimoto, Y.; Ito, T.; Uchiyama, K.; Mori, K. Development of X-ray-induced afterglow characterization system. Appl. Phys. Express 2014, 7, 062401. [Google Scholar] [CrossRef]
  67. Xu, P.; Xia, C.; Di, J.; Xu, X.; Sai, Q.; Wang, L. Growth and optical properties of Co,Nd:LaMgAl11O19. J. Cryst. Growth 2012, 361, 11–15. [Google Scholar] [CrossRef]
  68. Ryadun, A.A.; Rakhmanova, M.I.; Trifonov, V.A.; Pavluk, A.A. Optical and near-infrared luminescence studies of Nd3+- doped CsGd(MoO4)2 crystals. Mater. Lett. 2021, 285, 129062. [Google Scholar] [CrossRef]
  69. Ceci-Ginistrelli, E.; Smith, C.; Pugliese, D.; Lousteau, J.; Boetti, N.G.; Clarkson, W.A.; Poletti, F.; Milanese, D. Nd-doped phosphate glass cane laser: From materials fabrication to power scaling tests. J. Alloys Compd. 2017, 722, 599–605. [Google Scholar] [CrossRef]
  70. Pugliese, D.; Gobber, F.S.; Forno, I.; Milanese, D.; Actis Grande, M. Design and Manufacturing of a Nd-Doped Phosphate Glass-Based Jewel. Materials 2020, 13, 2321. [Google Scholar] [CrossRef]
  71. Cavalli, E.; Zannoni, E.; Belletti, A.; Carozzo, V.; Toncelli, A.; Tonelli, M.; Bettinelli, M. Spectroscopic analysis and laser parameters of Nd3+ in Ca3Sc2Ge3O12 garnet crystals. Appl. Phys. B Lasers Opt. 1999, 68, 677–681. [Google Scholar] [CrossRef]
  72. Mhlongo, M.R.; Koao, L.F.; Motaung, T.; Kroon, R.E.; Motloung, S.V. Analysis of Nd3+ concentration on the structure, morphology and photoluminescence of sol-gel Sr3ZnAl2O7 nanophosphor. Results Phys. 2019, 12, 1786–1796. [Google Scholar] [CrossRef]
  73. Ning, L.; Tanner, P.A.; Harutunyan, V.V.; Aleksanyan, E.; Makhov, V.N.; Kirm, M. Luminescence and excitation spectra of YAG:Nd3+ excited by synchrotron radiation. J. Lumin. 2007, 127, 397–403. [Google Scholar] [CrossRef] [Green Version]
  74. Guyot, Y.; Garapon, C.; Moncorgé, R. Optical properties and laser performance of nearstoichiometric and non-stoichiometric Nd3+-doped LaMgAl11O19 single crystals. Opt. Mater. 1994, 3, 275–286. [Google Scholar] [CrossRef]
  75. Nakauchi, D.; Kato, T.; Kawaguchi, N.; Yanagida, T. Characterization of Eu-doped Ba2SiO4, a high light yield scintillator. Appl. Phys. Express 2020, 13, 122001. [Google Scholar] [CrossRef]
Sensors 22 09818 g001 550
Figure 1. A photograph of the prepared LaMgAl11O19:Nd. The grid shows 2 mm intervals per division.
Figure 1. A photograph of the prepared LaMgAl11O19:Nd. The grid shows 2 mm intervals per division.
Sensors 22 09818 g001
Sensors 22 09818 g002 550

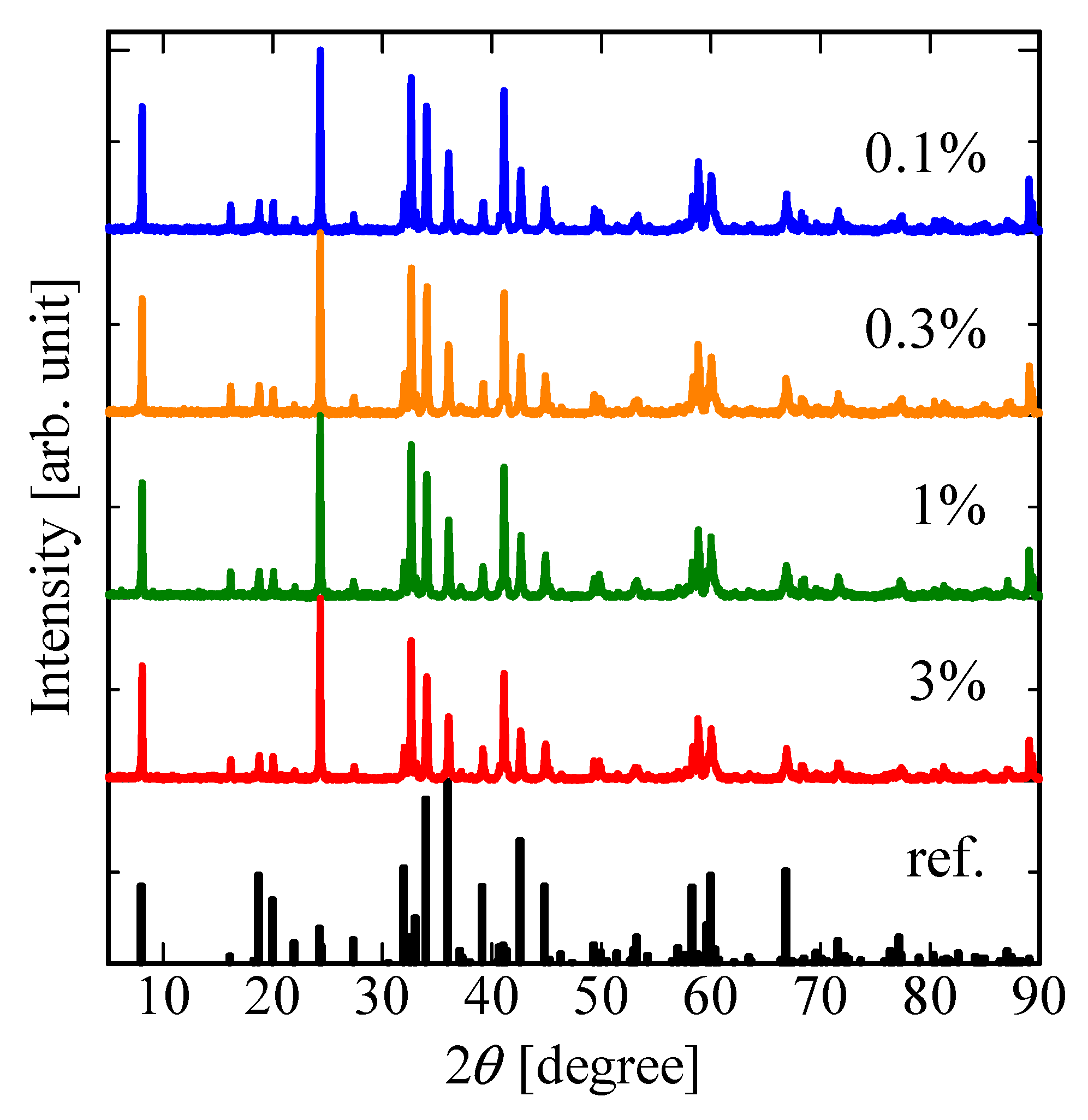

Figure 2. XRD patterns of LaMgAl11O19:Nd.
Figure 2. XRD patterns of LaMgAl11O19:Nd.
Sensors 22 09818 g002
Sensors 22 09818 g003 550

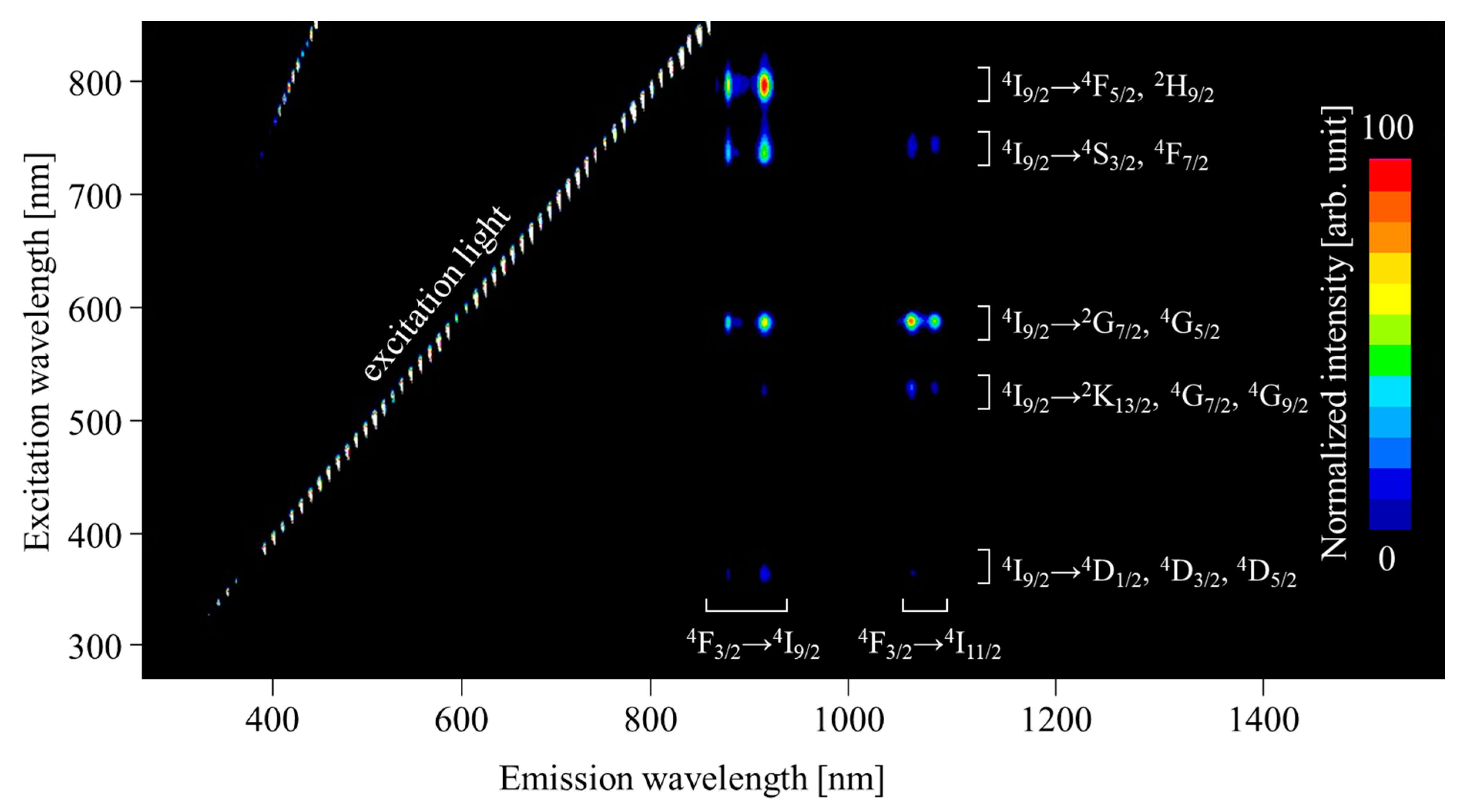

Figure 3. A PL contour spectrum of 1% Nd-doped LaMgAl11O19. Red and blue indicate high and low emission intensity, respectively.
Figure 3. A PL contour spectrum of 1% Nd-doped LaMgAl11O19. Red and blue indicate high and low emission intensity, respectively.
Sensors 22 09818 g003
Sensors 22 09818 g004 550

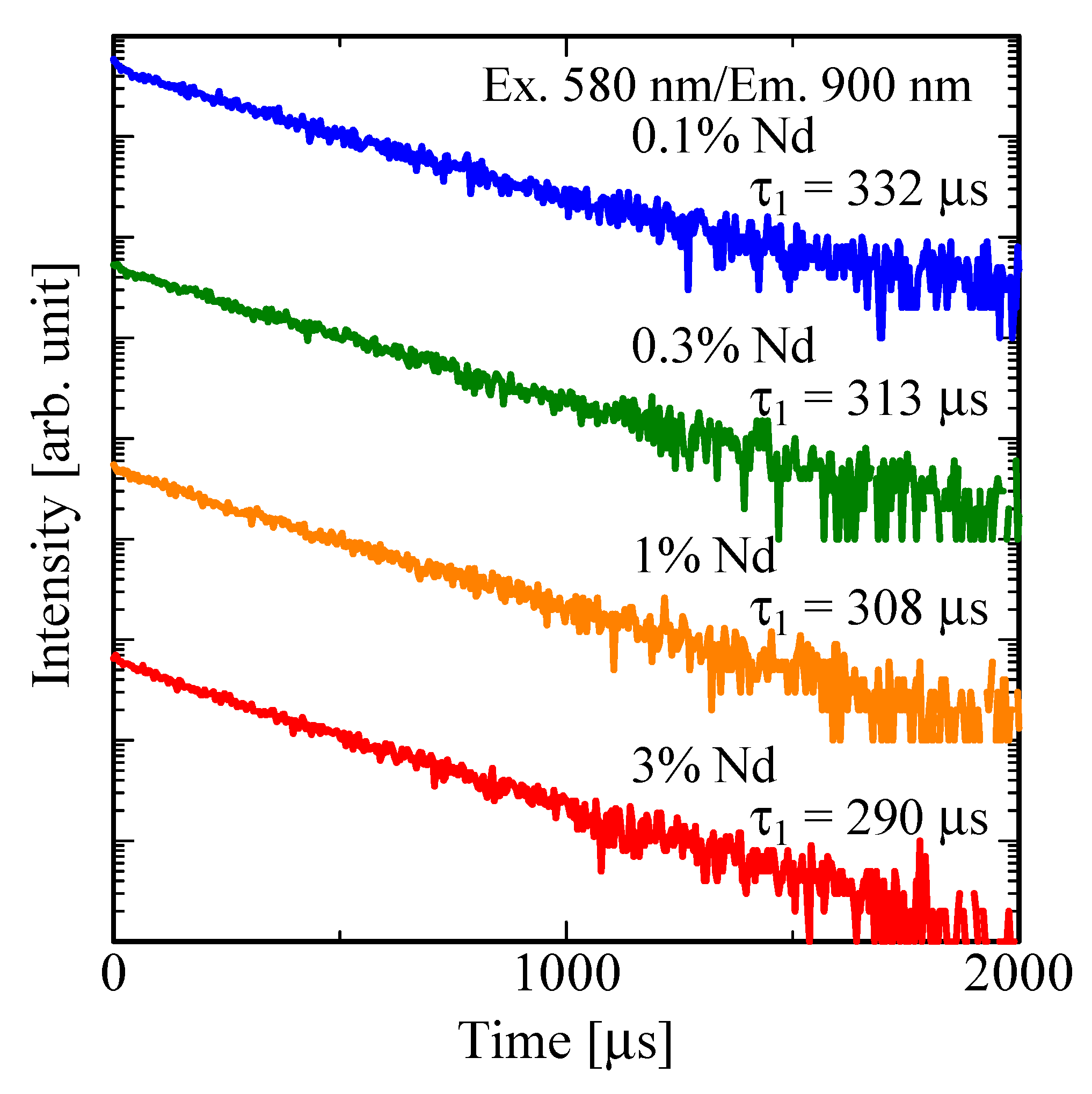

Figure 4. PL decay curves of LaMgAl11O19:Nd monitored at 900 nm when excited at 580 nm.
Figure 4. PL decay curves of LaMgAl11O19:Nd monitored at 900 nm when excited at 580 nm.
Sensors 22 09818 g004
Sensors 22 09818 g005 550
Figure 5. X-ray-induced emission spectra of LaMgAl11O19:Nd in the UV–visible (top) and NIR range (bottom).
Figure 5. X-ray-induced emission spectra of LaMgAl11O19:Nd in the UV–visible (top) and NIR range (bottom).
Sensors 22 09818 g005
Sensors 22 09818 g006 550

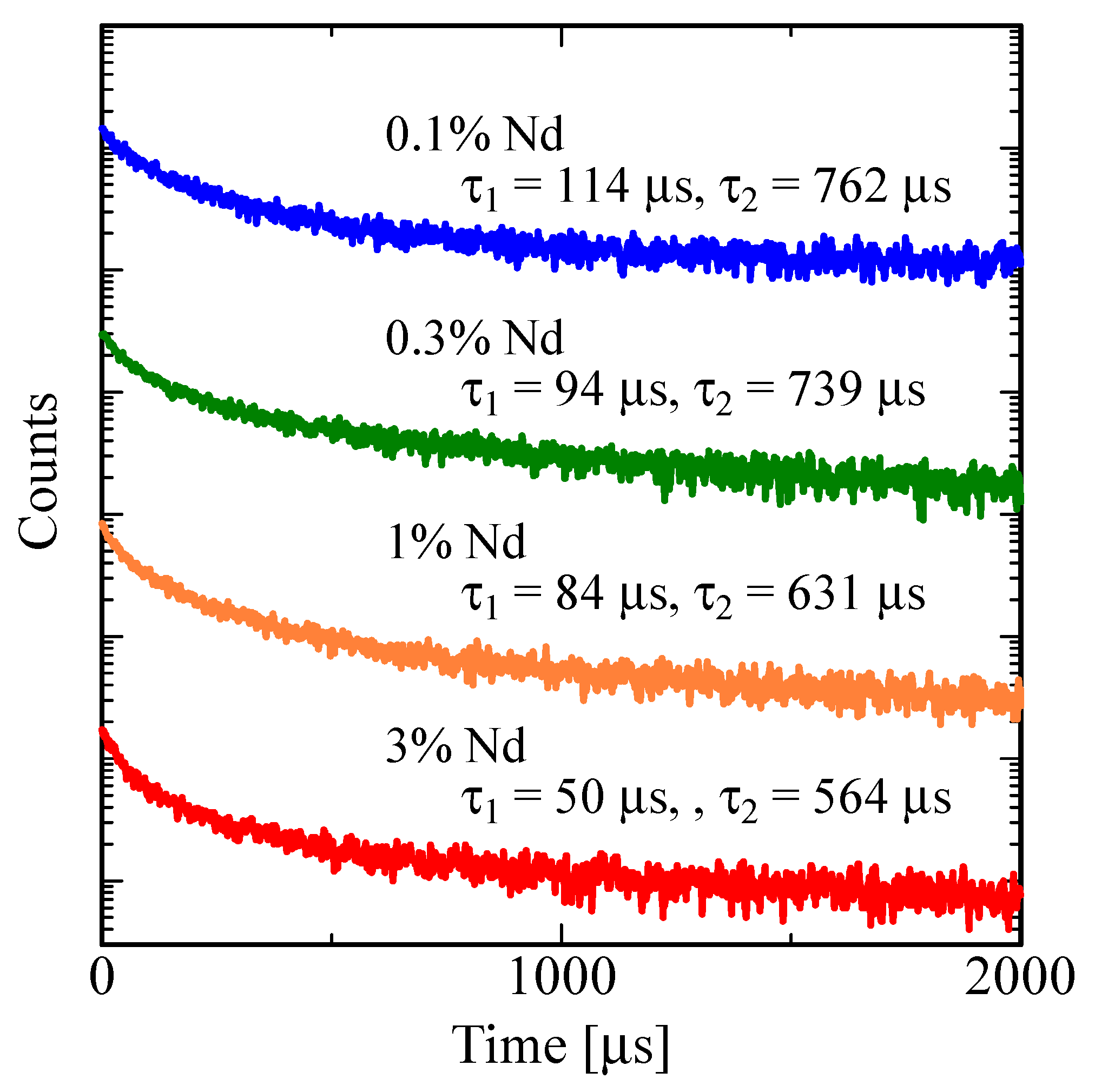

Figure 6. Decay curves of LaMgAl11O19:Nd under X-ray irradiation. The sensitivity of the used photomultiplier tube covers 380–920 nm.
Figure 6. Decay curves of LaMgAl11O19:Nd under X-ray irradiation. The sensitivity of the used photomultiplier tube covers 380–920 nm.
Sensors 22 09818 g006
Sensors 22 09818 g007 550

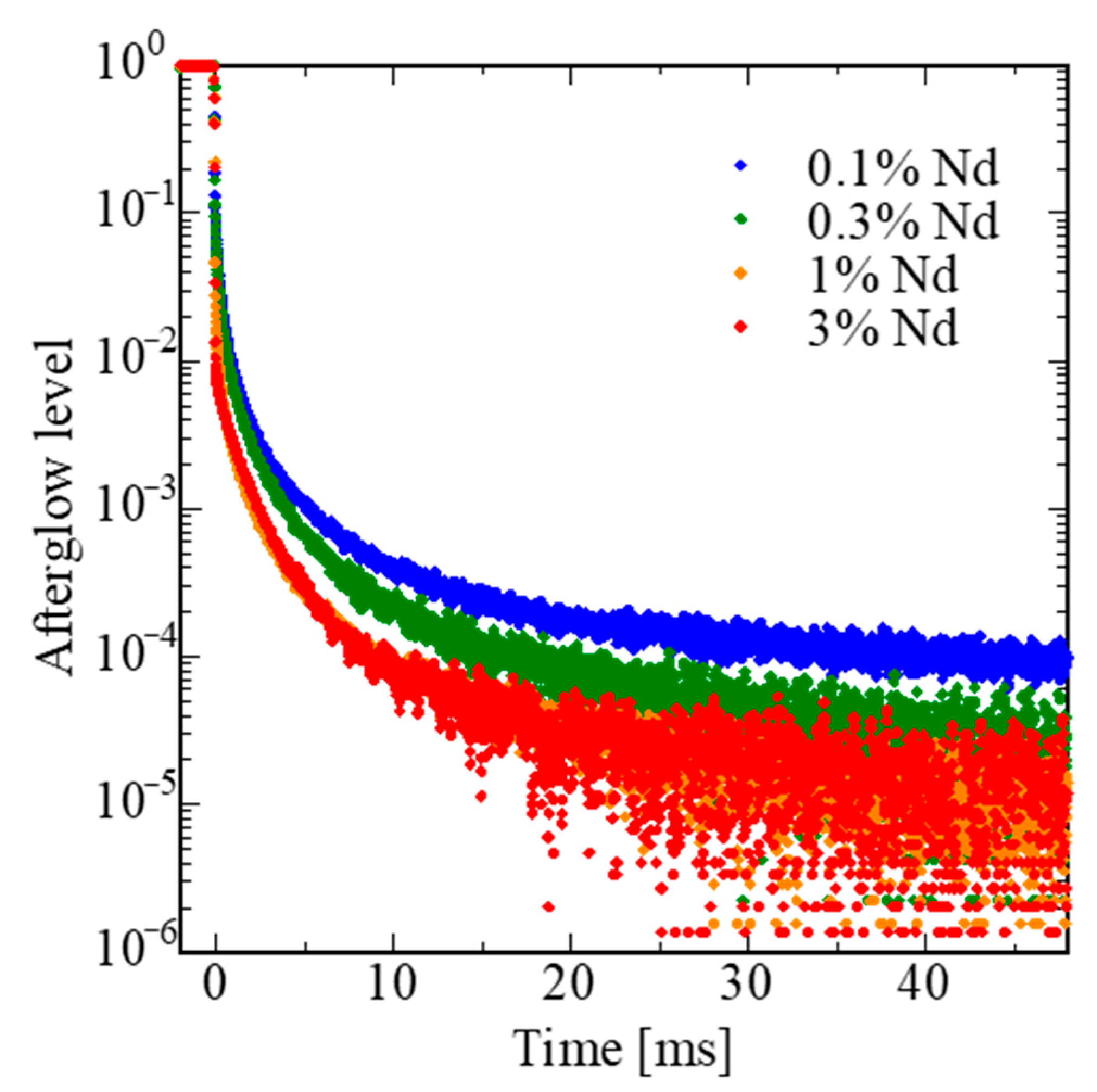

Figure 7. Afterglow curves of LaMgAl11O19:Nd after 2 ms X-ray irradiation.
Figure 7. Afterglow curves of LaMgAl11O19:Nd after 2 ms X-ray irradiation.
Sensors 22 09818 g007
Sensors 22 09818 g008 550

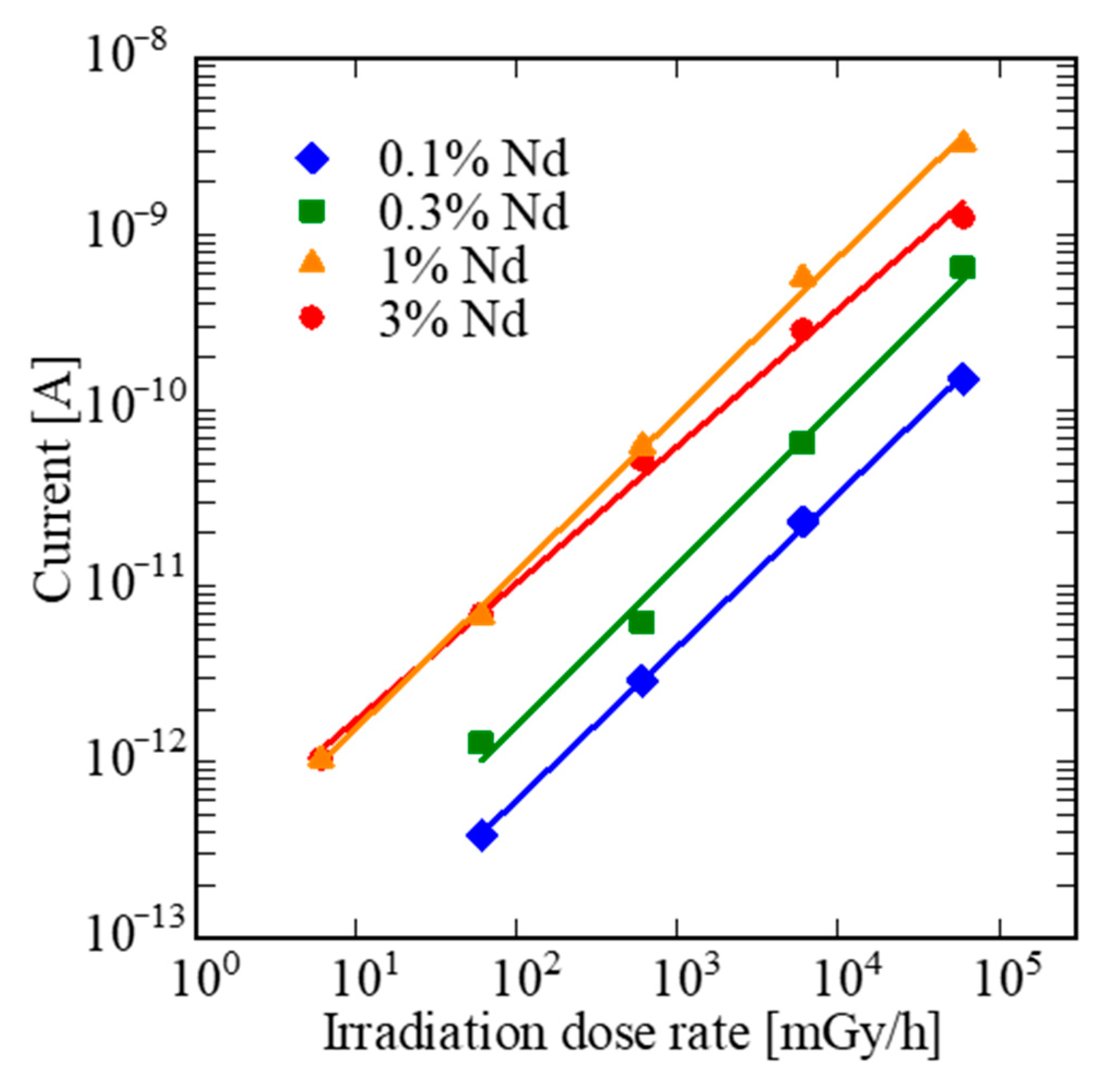

Figure 8. Relationships between dose rate and signal intensity of LaMgAl11O19:Nd.
Figure 8. Relationships between dose rate and signal intensity of LaMgAl11O19:Nd.
Sensors 22 09818 g008
Table
Table 1. PL QY, decay time constant (τ), radiative (kf) and nonradiative decay rates (knr) calculated from PL QY and decay time constant.
Table 1. PL QY, decay time constant (τ), radiative (kf) and nonradiative decay rates (knr) calculated from PL QY and decay time constant.
PL QY [%]τ [s]kf [s−1]knr [s−1]
0.1% Nd91.03.32 × 10−42.74 × 1032.71 × 102
0.3% Nd73.83.13 × 10−42.36 × 1038.37 × 102
1% Nd72.13.08 × 10−42.34 × 1039.06 × 102
3% Nd70.92.90 × 10−42.45 × 1031.00 × 103
Table
Table 2. Decay time constants of first (τ1) and second (τ2) components calculated from the decay curves under X-ray irradiation.
Table 2. Decay time constants of first (τ1) and second (τ2) components calculated from the decay curves under X-ray irradiation.
τ1 [μs]τ2 [μs]
0.1% Nd114762
0.3% Nd94739
1% Nd84631
3% Nd50564
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
