Research on Simultaneous Measurement of Magnetic Field and Temperature Based on Petaloid Photonic Crystal Fiber Sensor

by
Lili Yan
1,
Qichao Wang
1,*,
Bin Yin
1,2,
Shiying Xiao
3,
Haisu Li
3,
Muguang Wang
3,
Xingyu Liu
1 and
Songhua Wu
1,2
1
Faculty of Information Science and Engineering, Ocean University of China, Qingdao 266100, China
2
Laoshan Laboratory, Qingdao 266237, China
3
Institute of Lightwave Technology, Beijing Jiaotong University, Beijing 100044, China
*
Author to whom correspondence should be addressed.
Sensors 2023, 23(18), 7940; https://doi.org/10.3390/s23187940
Submission received: 28 July 2023 / Revised: 1 September 2023 / Accepted: 12 September 2023 / Published: 16 September 2023
(This article belongs to the Special Issue Interferometric Fiber Sensors)
Browse Figures
Versions Notes

Abstract

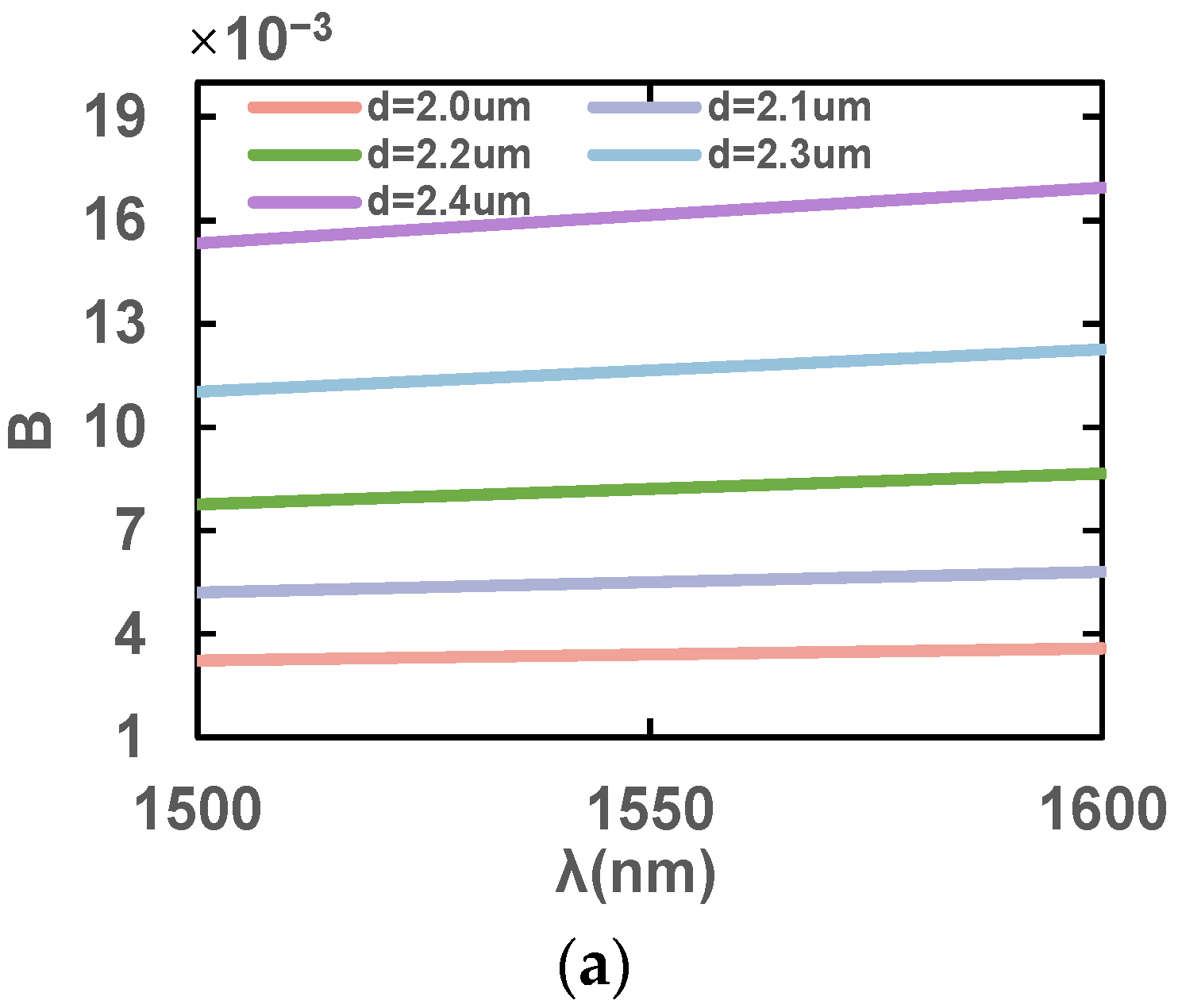

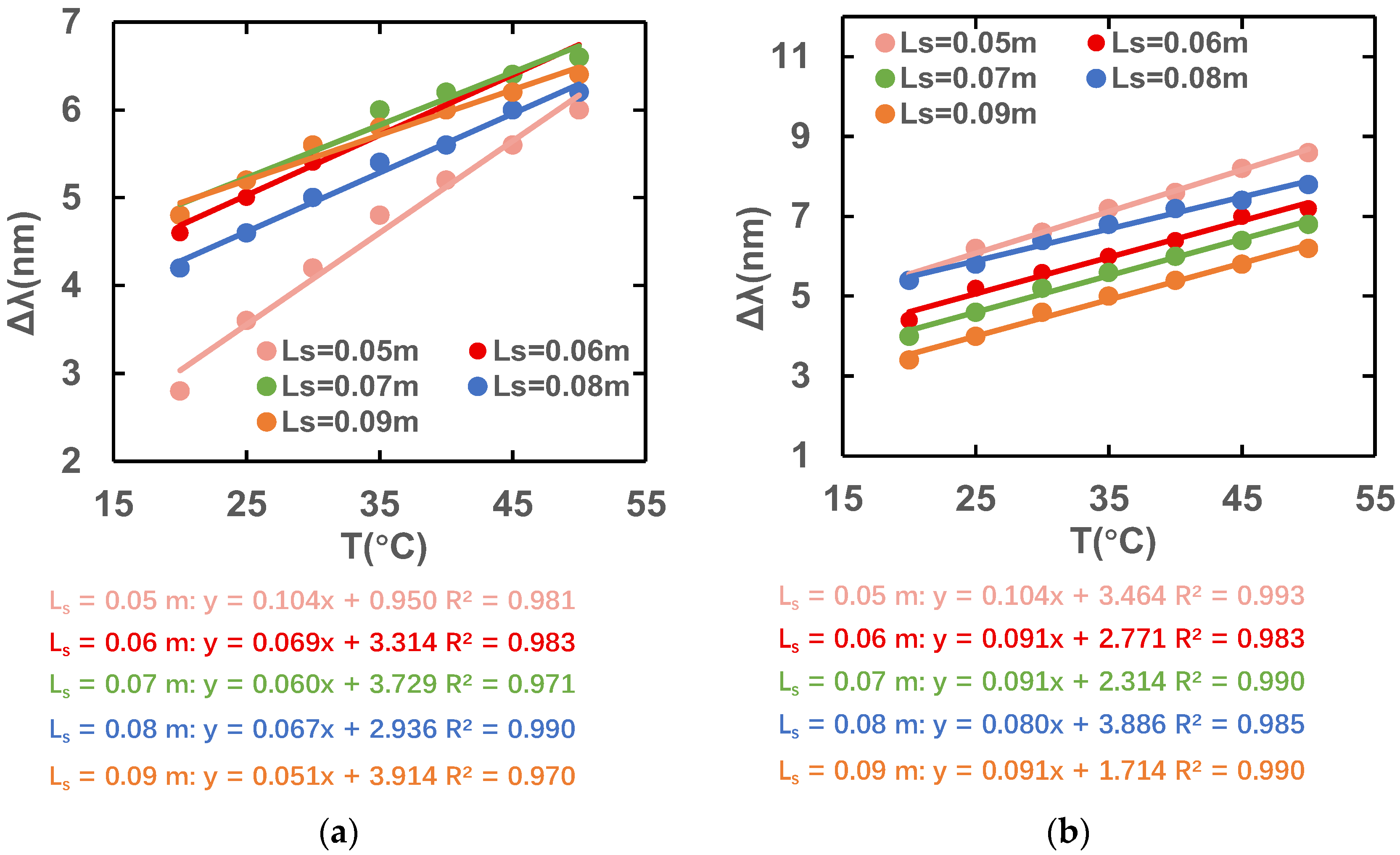

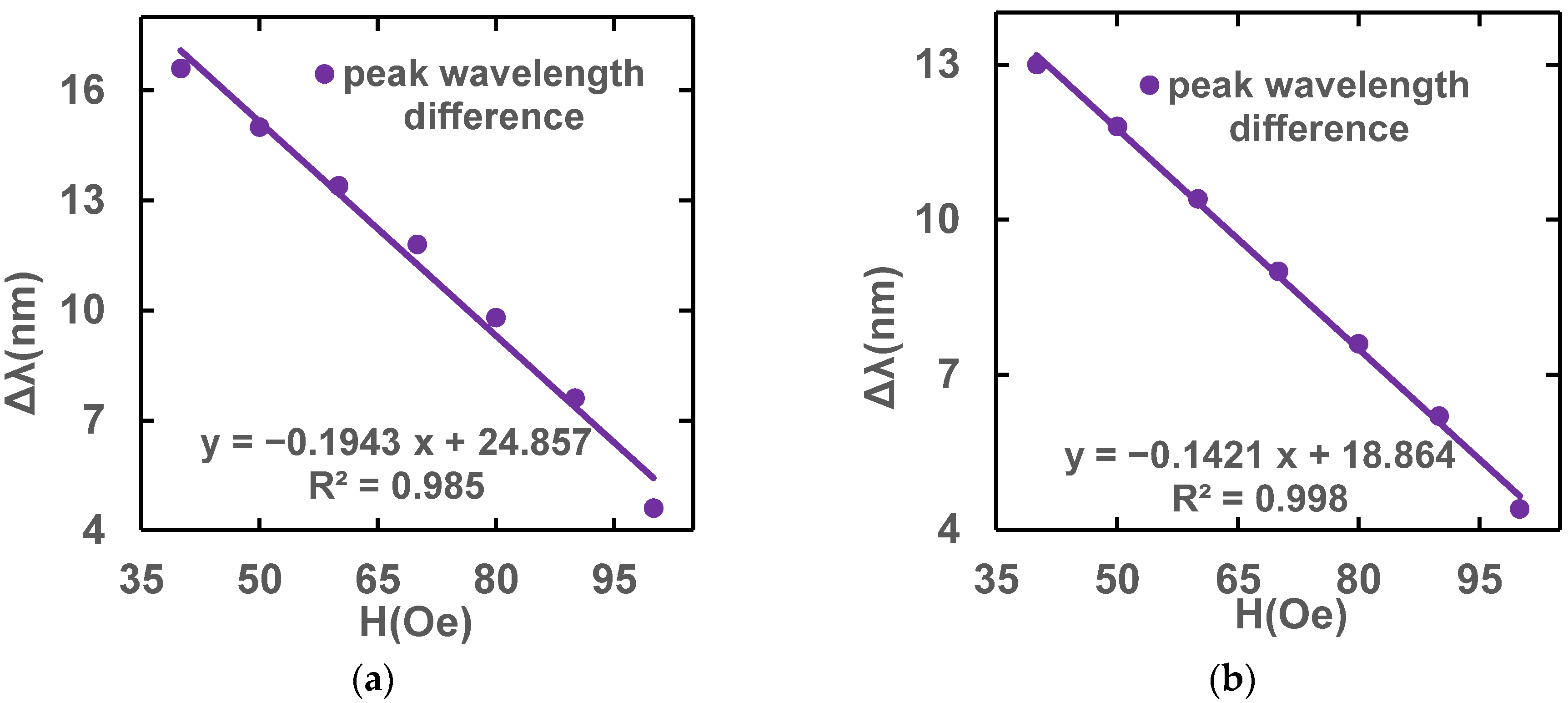

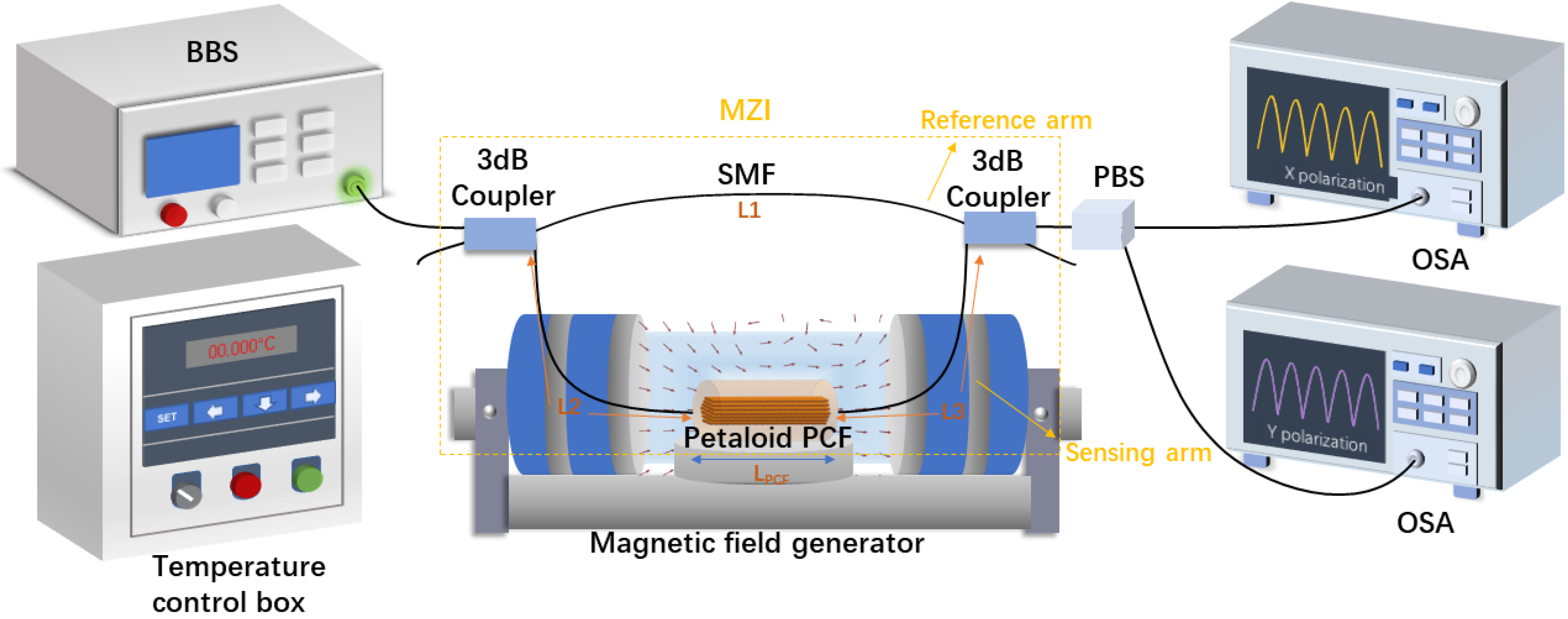

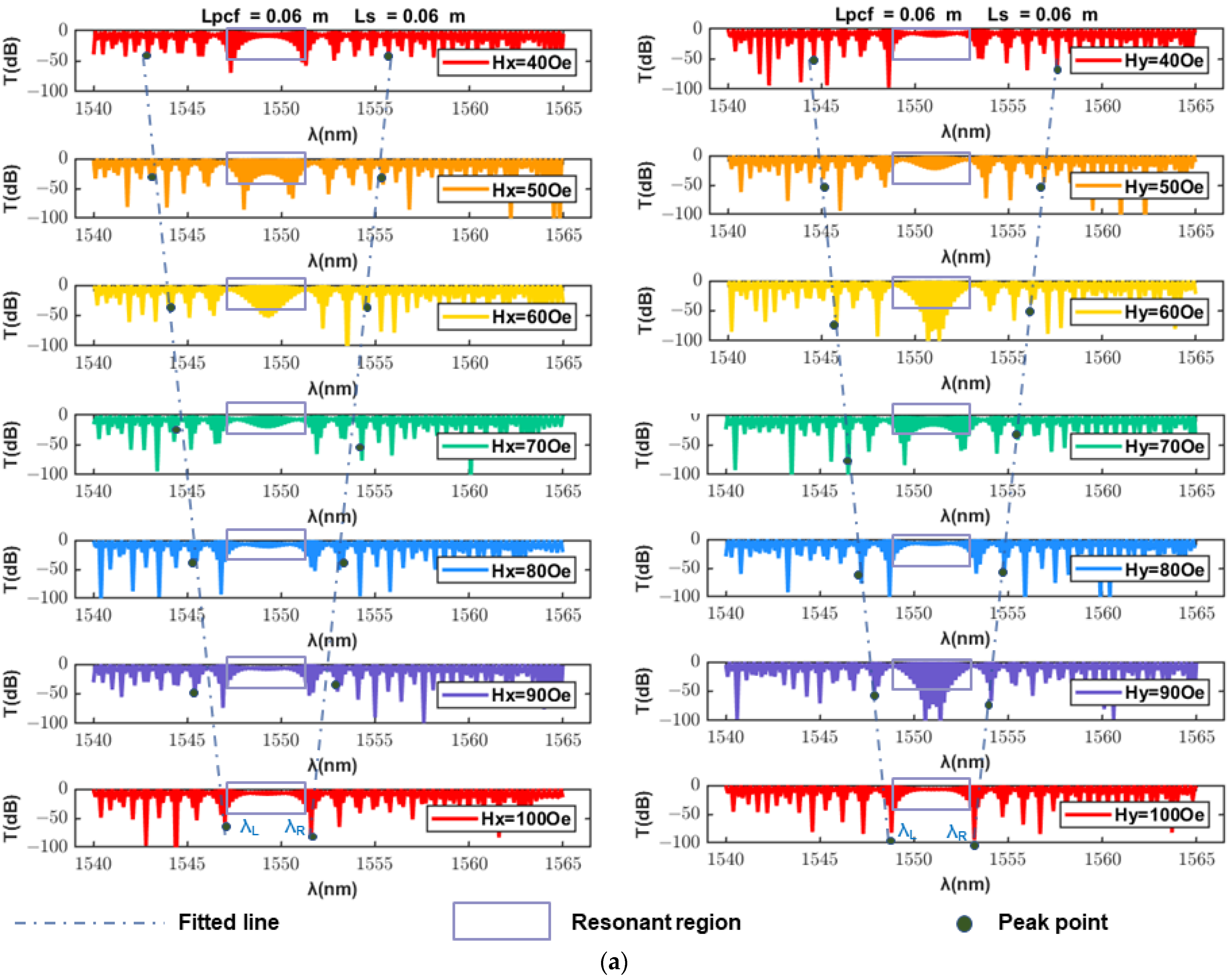

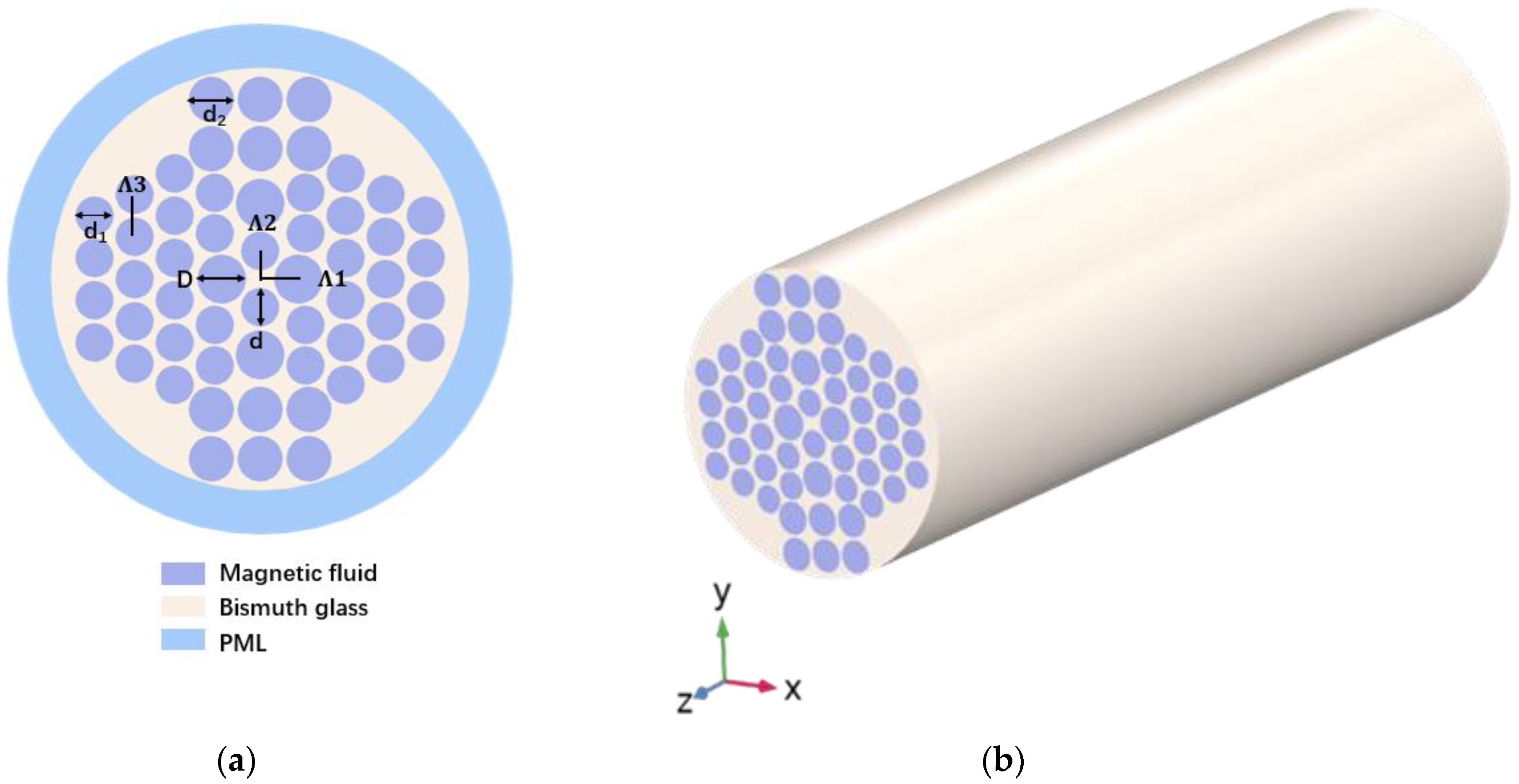

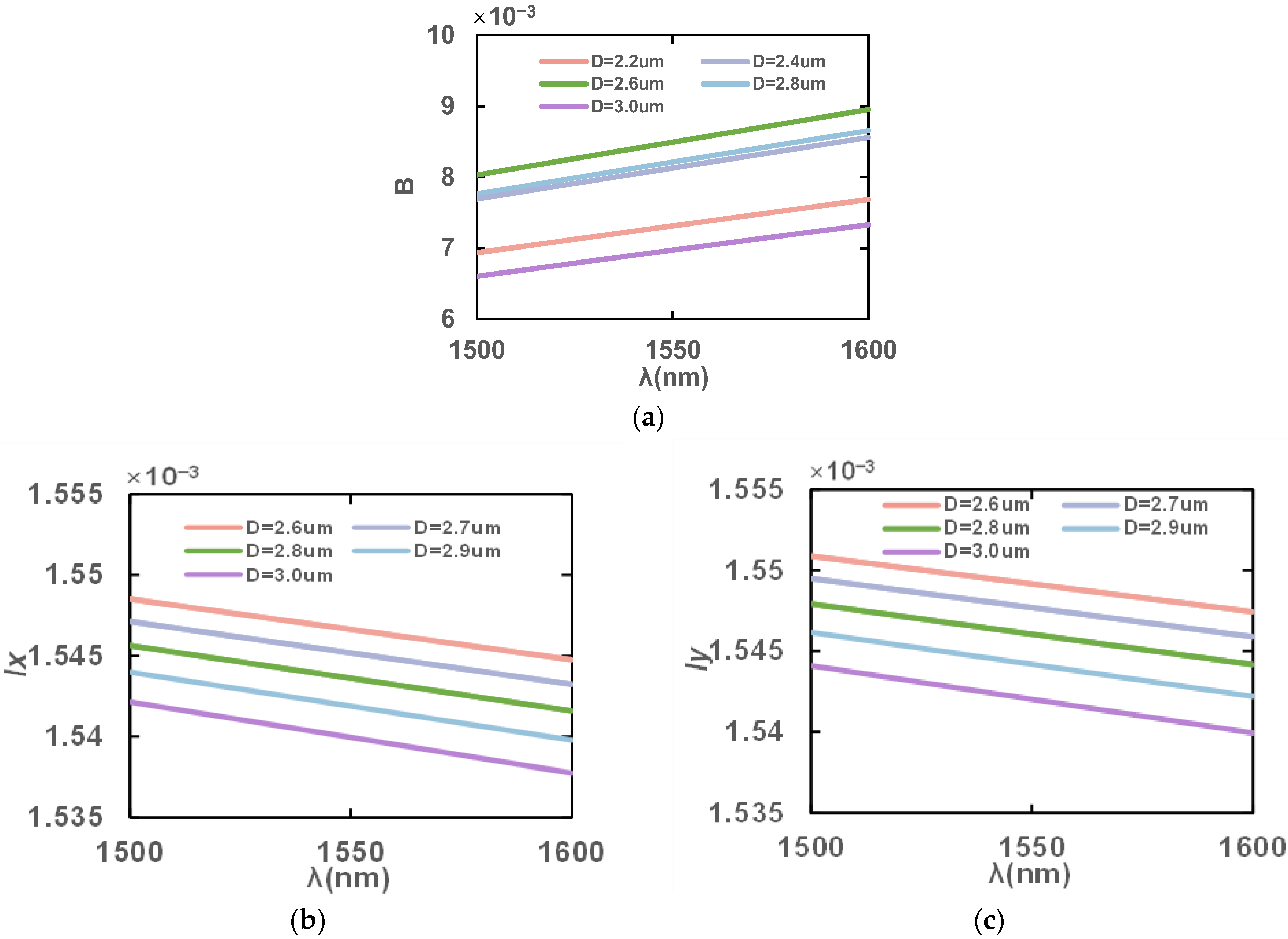

In this paper, we propose and design a magnetic field and temperature sensor using a novel petaloid photonic crystal fiber filled with magnetic fluid. The PCF achieves a high birefringence of more than 1.43 × 10−2 at the wavelength of 1550 nm via the design of material parameters, air hole shape and the distribution of the photonic crystal fiber. Further, in order to significantly improve the sensitivity of the sensor, the magnetic-fluid-sensitive material is injected into the pores of the designed photonic crystal fiber. Finally, the sensor adopts a Mach–Zehnder interferometer structure combined with the ultra-high birefringence of the proposed petaloid photonic crystal fiber. Magnetic field and temperature can be simultaneously measured via observing the spectral response of the x-polarization state and y-polarization state. As indicated via simulation analysis, the sensor can realize sensitivities to magnetic fields and temperatures at −1.943 nm/mT and 0.0686 nm/°C in the x-polarization state and −1.421 nm/mT and 0.0914 nm/°C in the y-polarization state. The sensor can realize the measurement of multiple parameters including temperature and magnetic intensity and has the advantage of high sensitivity.
Keywords: optical fiber magnetic field sensor; high-birefringence photonic crystal fiber; optical fiber interferometer; dual-parameter measurement optical fiber magnetic field sensor; high-birefringence photonic crystal fiber; optical fiber interferometer; dual-parameter measurement
