1. Introduction
The Internet of Things (IoT) encompasses a broad range of applications, spanning from smart homes to smart cities. It embodies the integration of physical objects, such as wireless healthcare devices, agricultural irrigation systems, and smart grid electric panels, with internet connectivity [
1]. The global count of IoT connections is projected to exceed 30 billion by 2025 (IoT active device connections worldwide from 2010 to 2025.
https://www.statista.com/statistics/1101442/iot-number-of-connected-devices-worldwide/, accessed on 10 July 2023), thereby amplifying the attack surface susceptible to security breaches. These breaches primarily include denial-of-service attacks (DoS and DDoS) [
2], as well as unauthorized data extraction, given the frequent collection and exchange of confidential data by IoT devices [
3].
Given the impulse that 5G networks [
4] and Software-Defined Networking (SDN) [
5] allow for IoT expansion [
6], Artificial Intelligence (AI) has been used as a crucial tool for the development of Intrusion Detection (IDS) and Prevention Systems (IPS) [
7,
8]. These AI-empowered systems scrutinize traffic within a host or a network, trigger alerts, and counter potential threats in real time. However, achieving the anticipated high detection rates requires datasets that reflect contemporary attack scenarios and network traffic patterns.
Indeed, the scarcity of recent and robust data collections has been identified as a significant gap in contemporary research [
9,
10,
11]. Given the heterogeneous and resource-constrained nature of IoT devices [
12], popular datasets like CIC-IDS2017 [
13] may not be apt for training necessary machine learning (ML) and deep learning (DL) models, mainly due to the lack of IoT devices in their testbeds. Consequently, alternative datasets have been proposed in the literature, including, but not limited to, Bot-IoT [
14], TON_IoT [
15], CIC IoT [
16], and LATAM-DDoS-IoT [
17].
Nonetheless, while the availability of the aforementioned datasets addresses the issue of suitable data quality for the IoT, the success of AI-based IDSs and IPSs is also contingent upon the chosen training strategy. Supervised learning necessitates copious amounts of labeled data to construct predictive models. In contrast, unsupervised learning does not require such ground truth information, but it presents challenges with generalization [
18], specifically its limited ability to adapt to unseen, related data. This becomes especially relevant in the face of a rapidly evolving threat landscape, with new types of attacks emerging daily.
Self-supervised learning (S-SL) is a promising solution to challenges such as the demand for vast amounts of manually labeled data and the imperative for robust generalization [
19]. In fact, S-SL is also considered suitable for dealing with the problems of small and imbalanced datasets [
20]. This innovative approach bridges supervised and unsupervised learning. Initially, a model undergoes pre-training without labels, employing either auxiliary pretext tasks or contrastive learning, with the objective of capturing latent representations of the knowledge domain. Subsequently, this pre-trained model is fine-tuned using labeled data for specific downstream tasks, like attack detection or malware family classification [
21]. Even though labeled information is still required for this later phase, Few-Shot Learning (FSL) [
22] has demonstrated to be enough to obtain strong performance [
23]. FSL targets obtaining strong learning performance given a limited number of labeled samples in the training set [
22].
S-SL stands as a promising direction for ML advancements [
24]. Today’s landscape features a plethora of models adept at leveraging this pioneering training methodology to extract insights from vast amounts of unlabeled data. Examples include Barlow Twins [
25], SimCLR [
26], Vision Transformers [
27], Bootstrap Your Own Latent (BYOL) [
28], and Momentum Contrast (MoCo) [
29].
Contrastive learning, a training strategy for S-SL, aims to draw similar (or positive) examples closer while distancing dissimilar (or negative) examples [
30]. This method capitalizes on data augmentation techniques to learn robust feature representations.
Therefore, in this manuscript, we create a smart IDS for detecting DDoS attacks against IoT networks using S-SL with the contrastive learning strategy [
31]. Specifically, we compare the linear evaluation, i.e., the training of a fully connected layer on top of frozen representations [
32], of a supervised pre-trained ResNet-34 architecture [
33] with respect to its unsupervised counterpart using MoCo v2 [
34]. Additionally, we detail the procedure for generating images from flow-level network traffic using the Bot-IoT and LATAM-DDoS-IoT datasets.
The conversion process from flow-level traffic into synthetic images was motivated by the success of contrastive learning of visual representations discussed in [
35]. Furthermore, we decided to use the Bot-IoT and the LATAM-DDoS-IoT datasets since they provide attack traffic directed to virtual and physical IoT devices, as well as normal traffic information based on virtual machines and real users from a production network.
In summary, the primary contributions of this research are as follows:
The pioneering of experimentation in IoT networks by leveraging the self-supervised learning paradigm in tandem with synthetic image generation, enabling the application of computer vision (CV) techniques for denial-of-service attack detection;
The pre-training of self-supervised learning models using MoCo v2 on the Bot-IoT and the LATAM-DDoS-IoT datasets, laying the groundwork for fine-tuning in future specialized research tasks;
An optimized training framework for future studies focusing on the contrastive learning of visual representations for the detection of denial-of-service attacks within IoT networks.
The remaining structure of this paper is divided as follows: the related work is presented in
Section 2. In
Section 3, we describe the process of creating the synthetic images, as well as the training of the ResNet-34 and MoCo v2 architectures. The results and discussion are detailed in
Section 4, and the conclusion and future work are presented in
Section 5.
2. Related Work
Here, we present related research on the creation of synthetic images for DDoS attack detection against IoT networks, as well as the learning strategies used to train the corresponding AI-based IDSs/IPSs.
While the existing literature reports various detection techniques, including those that analyze network traffic at the flow-level through recurrent models such as Recurrent Neural Networks, Long Short-Term Memory, and Gated Recurrent Units [
36,
37], our study specifically concentrates on pattern recognition through visual representations, which is a recognized research avenue that holds considerable potential for enhancing security measures in IoT environments [
38,
39,
40].
In [
41], the authors trained a ResNet-34 architecture in a supervised way using the CICDDoS2019 dataset [
42]. This dataset was chosen since it includes 11 different types of denial-of-service attacks (e.g., SYN flood and UDP flood) described by 80 traffic features. To transform the flow-level traffic into images, the authors employed min-max normalization [
43]. Each feature’s value was re-scaled between 0 and 1 and subsequently multiplied by 255. The resulting input images for the model measured 224 × 224 pixels and had three channels. For training, Stochastic Gradient Descent (SGD) [
44] with a learning rate of 0.0001 and with a momentum of 0.9 was used. The model was trained for 10 epochs for binary classification and extended to 50 epochs for multiclass classification. The proposed solution achieved an accuracy of 99.99% and 87.06% for the binary and multiclass problems, respectively. Notably, while the authors devised an AI-based solution for denial-of-service attack detection in IoT networks, they neither tested their model in an environment with IoT devices nor sourced a dataset from IoT traffic. The CICDDoS2019 dataset they used originates from a testbed setup involving a victim web server and Windows PCs.
Reference [
45] proposed an anomaly-based IDS using ResNet-50 with convolutional layers of one dimension. This system was trained using three different datasets, namely the NSL-KDD (NSL-KDD dataset.
https://www.unb.ca/cic/datasets/nsl.html, accessed on 12 July 2023), CIC-IDS2017, and UNSW-NB15 [
46], covering several categories of attacks, including denial-of-service, reconnaissance, and brute force. The input data were not transformed into images, but instead, the sequential traffic was fed into the model for classification purposes. The proposed smart IDS outperformed other AI models, such as Decision Trees, Random Forests, and Support Vector Machines, as in the case of UNSW-NB15, with a maximum accuracy of 92.18% and an F1 score of 89%. Nevertheless, the experiments conducted in the paper ignored the S-SL paradigm, as well as IoT traffic.
The authors of [
18] created a network-based IDS based on S-SL and grayscale images obtained from preprocessing the UNSW-NB15 dataset. Contrastive learning was followed, with a data augmentation policy that included operations such as vertical flipping and random cropping. For the AI approach, the authors utilized the BYOL model, which consists of two neural networks (online and target) that learn from one another through data augmentation. The BoTNet [
47] encoder was selected as the feature extractor, and the generalization ability of the proposed IDS was evaluated with fine-tuning on the NSL-KDD, KDD CUP 99 [
48], CIC-IDS2017, and CIDDS_001 [
49] datasets. Even though these S-SL experiments outperformed purely supervised learning models in some cases by more than 5% in terms of accuracy, this work was not tested on an IoT-related scenario.
In [
50], a custom model based on BYOL was proposed, pre-trained using S-SL and contrastive learning on the UNSW-NB15 dataset. Regarding data augmentation, the authors applied masking, which consisted of randomly assigning a value of zero to a predefined percentage of features of each input sample. The transferability of the proposed model was evaluated under the Bot-IoT dataset, presenting an accuracy of 99.83% and an F1 score of 99.82%. Although there are experiments around the IoT domain, the pre-training phase used the UNSW-NB15 dataset, which may have negatively affected the feature representation quality of the model for IoT networks.
The authors of [
51] used S-SL and contrastive learning along with the UNSW-NB15, CIC-IDS2017, and CSE-CIC-IDS2018 (CSE-CIC-IDS2018 dataset.
https://registry.opendata.aws/cse-cic-ids2018, accessed on 13 July 2023) datasets for creating a network-based IDS using a custom model with a Multi-layer Perceptron (MLP) as the backbone. With respect to the data augmentation strategy, the authors generated adversarial examples based on [
52]. The accuracy for DoS attack detection was 97.63% using the MLP model with the S-SL strategy, compared to the 54.34% accuracy of the MLP model without the S-SL pre-training process. Although these results reflect the potential of S-SL when compared to a purely supervised learning training strategy, the work presented in [
51] might benefit from extending its experimentation to more testbeds, such as those of smart homes and industrial IoT environments.
Table 1 provides a comprehensive breakdown of the studies discussed in this section, analyzed across four distinct aspects. Specifically, the table examines if the proposed IDS was trained via the S-SL approach, the application of contrastive learning, and the use of IoT traffic during the pre-training phase. Based on this review, our manuscript distinguishes itself in the current literature. It emerges as the sole study implementing S-SL with contrastive learning to devise a network-based IDS, pre-trained using IoT traffic and tailored for detecting denial-of-service attacks.
3. Methodology
This section presents the steps we followed to create our smart IDS. In

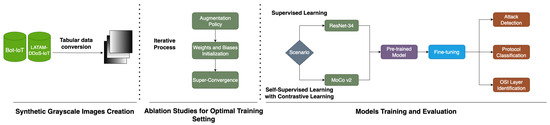

Figure 1, there is a detailed breakdown of the three main phases that comprise this research, namely, the generation of synthetic grayscale images from sequential IoT traffic, then the design and implementation of different ablation studies to find the optimal training setting, and finally, the training and evaluation of models under the supervised learning and S-SL scenarios.
3.1. Synthetic Image Creation
The Bot-IoT and LATAM-DDoS-IoT datasets structure their input samples sequentially. We transformed this traffic into grayscale images to make the instances compatible with our 2D convolutional layers. This conversion involved applying min-max normalization and gamma correction, reshaping the input data, and then multiplying by 255 to represent various pixel intensities (as illustrated in Equation (
1)). We utilized the second feature set proposed by [
53], which comprises 15 statistical variables. These are detailed in
Table 2 and encapsulate crucial data such as the bidirectional flow of packets and bytes exchanged between attackers and victims.
Gamma correction was employed with the aim of enhancing the magnitudes of features following the normalization process, thus preventing potential information loss [
54,
55]. In this process, all values ranging from 0 to 1 are rescaled. Through manual testing, an optimal gamma value of 0.1 was identified. As a result, a feature originally set at
escalates to
, and another feature initially at
is adjusted to
. This transformation not only bolsters the significance of each feature within the pixel grid but also maintains their relative ordering.

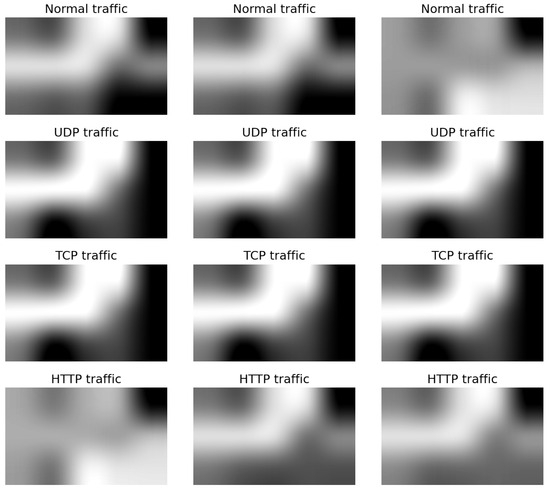

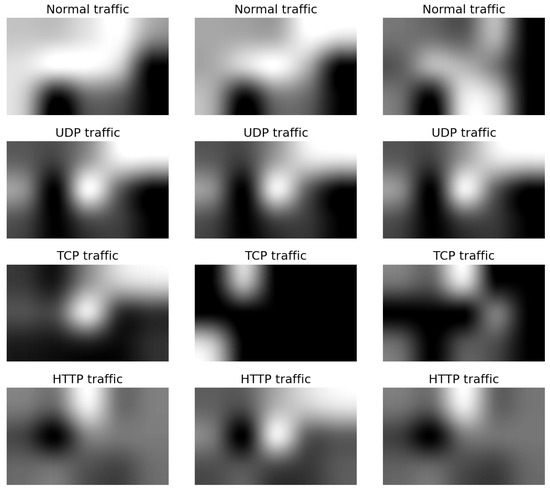

Figure 2 and
Figure 3 show the grids of the different grayscale synthetic images generated from the Bot-IoT and the LATAM-DDoS-IoT datasets, respectively. We show three instances per traffic class for comparison purposes between the samples. Visually, intra-class similarities may be seen in terms of the location of black or white spots in small local regions in the images. The lower the magnitude of a feature translates into a darker spot, whereas the lighter pixels indicate higher feature values. The synthetic image for each input flow is of size 500 × 300.
Although converting sequential traffic into image form introduces an additional processing step in our classification tasks, the relevance of Convolutional Neural Networks in the state of the art has furthered the exploration of data transformation methodologies to leverage these architectures [
39]. Furthermore, the graphical representation of the traffic aids for data visualization purposes.
3.2. Model Training and Evaluation
For this study, we tried two distinct data augmentation policies, both incorporating random cropping, Gaussian blur, and horizontal flipping, with the addition of random noise being the only difference between them. This noise was applied by multiplying each image pixel by a unique random value within the range of 0.8 to 1.2. This approach was inspired by [
56], who found that training AI models on noisy data led to improved accuracy and robustness. We chose to implement MoCo v2 because it can process a large quantity of negative samples without requiring extensive training batches [
34], enabling us to conduct training without TPU support.
The number of samples used for pre-training was 108,452, with a batch size of 128. Given the relatively small batch size, we did not implement MoCo v3 [
57], an incremental advancement over MoCo v1 and MoCo v2, which have been observed to provide diminishing returns with larger batch sizes (e.g., 4096) [
57]. To avoid any related bias due to the training data distribution, we took care of the ratios between classes. Hence, the 108,452 samples from the LATAM-DDoS-IoT are evenly split into 27,113 instances each for the normal, UDP, TCP, and HTTP classes. For the Bot-IoT, the UDP and TCP categories have 42,684 samples each, while the normal and HTTP classes have 7268 and 15,816 instances, respectively, since the Bot-IoT does not provide a sufficient number of flows for these two categories [
14] (see
Figure 4).
Additionally, we conducted an ablation study to assess the effect of initializing model weights and biases using ImageNet [
58] and another study about applying cyclical learning rates [
59]. The latter involved implementing a one-cycle learning rate policy for super-convergence [
60].
Details regarding the pre-training process are as follows:
The SGD optimizer was chosen for MoCo v2, while the Adam optimizer [
61] was employed for the supervised learning approach.
For experiments involving cyclical learning rates, the SGD optimizer was consistently used. Both learning strategies typically employed the cosine annealing learning rate scheduler, except during evaluations of the one-cycle learning rate policy.
Batch normalization yielded means and standard deviations of 0.4367 and 0.2715, respectively, for the LATAM-DDoS-IoT dataset and 0.3414 and 0.2202 for the Bot-IoT dataset.
The details of the fine-tuning process are as follows:
We used a batch size of 32, the Adam optimizer, and the cosine annealing learning rate scheduler.
Overall, both the pre-training and fine-tuning phases spanned 100 epochs each.
ResNet-34 served as the backbone for both the supervised learning paradigm and MoCo v2 in all experiments. The models were designed using PyTorch [
62] and were trained on a multi-GPU Ubuntu system equipped with two Tesla M10 accelerators.
The following metrics were chosen to measure the classification performance: accuracy, precision, recall, and F1 score. See Equations (
2)–(
5) for the definition of these metrics. For a binary classification problem such as attack detection,
stands for true positives (i.e., the number of attacks classified correctly),
refers to true negatives (i.e., the number of normal traffic samples classified accurately),
indicates false positives (i.e., the number of normal traffic samples classified as attacks), and
means false negatives (i.e., the number of attacks classified as normal traffic) [
63].
3.3. Downstream Tasks Definition
We identified three specific downstream tasks:
Attack detection: determining if an input image represents a DDoS attack;
Protocol classification: classifying the input image based on its protocol (either UDP, TCP, HTTP, or standard traffic);
OSI layer identification: recognizing the OSI layer the input image corresponds to, whether it is the transport layer, application layer, or standard traffic.
The multiclass protocol classification setup was also selected as the pre-training task for contrastive learning due to the complexity added by the number of classes (i.e., 4) compared to the other tasks (i.e., 3 classes for OSI layer identification and 2 for binary attack detection).
The proposed OSI layer identification task provides the groundwork to tackle security in a layered approach since each layer presents specific protocols and vulnerabilities. In practical terms, 5G is a potential scenario that benefits from this end-to-end protection, where each OSI layer must properly work to meet the design objectives of increased connectivity, lower latency, and high reliability [
64].
For each downstream task, we employed only 300 labeled images per category. An exception was the OSI layer task, where the transport layer contained 600 samples split evenly between UDP and TCP images. Given the sparsely labeled data, these scenarios present a fitting examination of FSL capabilities for AI models.
It should be noted that the 108,452 instances utilized in the pre-training phase are intended to establish a robust feature representation for the problem of network intrusion within the IoT domain. The limited sample size in the fine-tuning phase is designed to assess the rapid adaptability of our models, leveraging prior knowledge to ensure both robustness and performance [
65].
The results obtained from the different experiments are presented in the next section.
5. Conclusions and Future Work
In this study, we showcased the efficacy of S-SL, positioning it as a suitable alternative to supervised learning in the context of linear classification performance. Leveraging two cutting-edge IoT network datasets, we introduced an innovative downstream task for classifying attacks via the OSI layer. Through comprehensive ablation studies, we outlined an optimized training setting emphasizing an augmentation policy devoid of random noise, with ImageNet initialization and a one-cycle learning rate scheduler. S-SL’s superior generalization aptitude was evident, outclassing supervised learning by over 5% in precision and nearly 1% in F1 score in certain tests.
Our results highlight the promise of S-SL in bolstering the security of IoT networks, thereby laying a foundational groundwork for future research endeavors and technological advancements. While we recognize an inherent limitation in our proposed solution, particularly concerning the computational overhead associated with converting each network flow into an image, our study nonetheless demonstrates the viability of leveraging S-SL to construct robust cybersecurity frameworks.
Looking ahead, we aim to harness S-SL for sequential data, possibly tapping into the capabilities of Transformers [
73]. In addition, we will train with other datasets to capture even further diverse network traffic patterns [
74], and we will experiment with a pretext tasks approach alongside other S-SL models for intrusion detection. Moreover, we plan to test these models under more realistic conditions, such as those from production networks with streaming data, to properly measure the flows/second (as a time performance metric [
53]) each method may classify. Such studies will allow for a more comprehensive comparison against contrastive learning and aid in determining the most suitable S-SL strategy to achieve high detection rates in the cybersecurity domain.
