Review of Chemical Sensors for Hydrogen Sulfide Detection in Organisms and Living Cells

Key Laboratory of Optoelectronic Technology and Systems of Ministry of Education of China, Chongqing University, Chongqing 400044, China
*
Author to whom correspondence should be addressed.
Sensors 2023, 23(6), 3316; https://doi.org/10.3390/s23063316
Submission received: 19 February 2023 / Revised: 15 March 2023 / Accepted: 19 March 2023 / Published: 21 March 2023
(This article belongs to the Section Chemical Sensors)

Abstract

:
As the third gasotransmitter, hydrogen sulfide (H2S) is involved in a variety of physiological and pathological processes wherein abnormal levels of H2S indicate various diseases. Therefore, an efficient and reliable monitoring of H2S concentration in organisms and living cells is of great significance. Of diverse detection technologies, electrochemical sensors possess the unique advantages of miniaturization, fast detection, and high sensitivity, while the fluorescent and colorimetric ones exhibit exclusive visualization. All these chemical sensors are expected to be leveraged for H2S detection in organisms and living cells, thus offering promising options for wearable devices. In this paper, the chemical sensors used to detect H2S in the last 10 years are reviewed based on the different properties (metal affinity, reducibility, and nucleophilicity) of H2S, simultaneously summarizing the detection materials, methods, linear range, detection limits, selectivity, etc. Meanwhile, the existing problems of such sensors and possible solutions are put forward. This review indicates that these types of chemical sensors competently serve as specific, accurate, highly selective, and sensitive sensor platforms for H2S detection in organisms and living cells.

1. Introduction

Hydrogen sulfide (H2S), often regarded as an environmental pollutant, is a colorless, flammable, and toxic gas with a distinct rotten egg smell [1]. In recent years, extensive studies have revealed that H2S is the third gasotransmitter following nitric oxide (NO) and carbon monoxide (CO) [2,3]. H2S is endogenously generated by three principal enzymes: cystathionine-β-synthase (CBS), cystathionine-γ-lyase (CSE), and 3-mercaptopyruvate sulfurtransferase (MST) [4]. Because of its various functions in physiological and pathological processes, H2S detection has become a research hotspot in the field of biology [5]. Currently, H2S is utilized in immune response, signal transduction, and energy production. Endogenous H2S mediates a wide range of physiological functions in the cardiovascular, neuronal, immune, endocrine, and gastrointestinal systems [6] in the aspects of the regulation of blood pressure, neurotransmission, anti-inflammatory effects, vasodilation, antioxidation, and apoptosis [7]. For example, the physiological concentration of H2S in blood lies in the range of 10–100 μM, and a close correlation exists between H2S levels in serum and disease states [8]. Additionally, changes in levels of H2S in the body have been linked to a variety of diseases, such as Alzheimer’s disease, Down syndrome, diabetes, cirrhosis of the liver, and even cancer [9]. Recent studies have unveiled that H2S levels are also closely related to asthma and chronic obstructive pulmonary disease (COPD) [10]. Due to the complex environment of organisms, the detection of H2S may be affected by other competitive analytes [11]; common competitive analytes in organisms and living cells are shown in Figure 1. In order to screen and monitor H2S levels in organisms and living cells and prevent health effects, a reliable, sensitive, and highly selective analytical technique is urgently needed.
At present, H2S detection methods such as electrochemistry, gas chromatography, high-performance liquid chromatography, inductively coupled plasma-atomic emission, UV-visible absorption spectrometry, and fluorescence spectrometry have been developed [12]. Of these, electrochemical sensors possess the unique advantages of high sensitivity, easy miniaturization, quantitative feasibility, low cost, simple operation, etc. [13]. At the same time, fluorescence and colorimetric chemical sensors exhibit the advantages of low cost, visualization, and being non-invasive, which bestow them with an irreplaceable role in the real-time detection of H2S in vivo [14,15,16]. These chemical sensors usually rely on three main properties, including metal affinity, reducibility, and nucleophilicity [17].

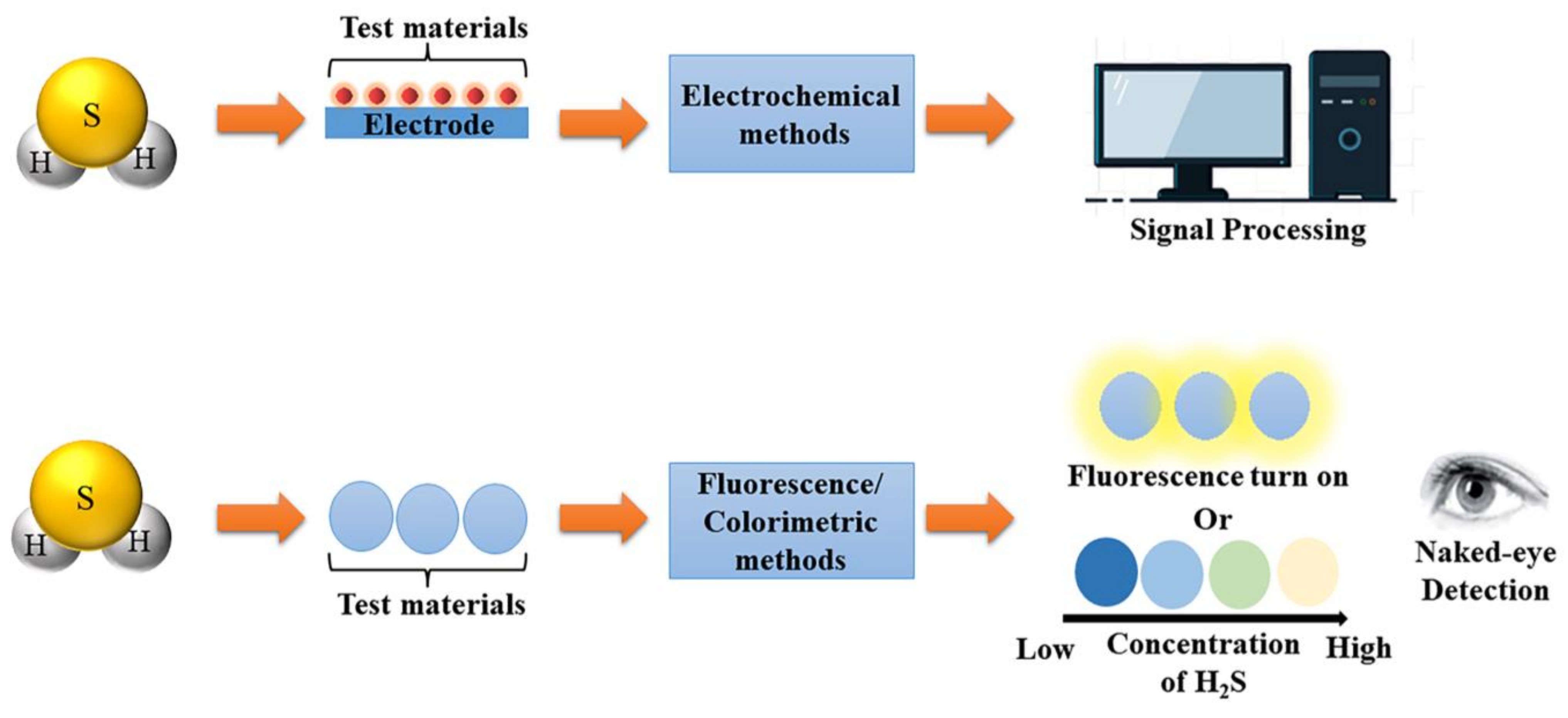

The principle of a chemical sensor for detecting H2S is shown in Figure 2. When H2S is in contact with test materials, corresponding chemical reactions occur with test materials based on different properties of H2S. Generally speaking, in the electrochemical sensor, the resistance of the electrode changes upon the reaction between test materials and H2S so that the electric current and other parameters change. After signal processing, the purpose of quantitative detection of H2S can be achieved. In the fluorescence and colorimetric chemical sensors, different concentrations of H2S after chemical reaction produce different intensity of fluorescence or show different colors.
In this review, our focus is on the recent decade of chemical sensors for the detection of H2S. A search was conducted in the Web of Science database using the keywords “hydrogen sulfide”, “gasotransmitter”, “chemical sensor” and “organism” or “living cells”, and summarized the relevant literature from 2012 to 2022. We classified the articles according to the different properties of H2S. The detection materials, detection methods, linear range (the range in which the final output value of the system is proportional to the concentration or activity of the analyte), limit of detection (the smallest amount or concentration of analyte in the test sample that can be reliably distinguished from zero), and response time (the time required for the sensor to reach 90% of the final stable value) of these chemical sensors are discussed in detail. According to the selectivity, sensitivity, and stability of the sensors, the existing problems of these sensors and possible solutions are proposed. The organization is as follows: Section 2, Section 3 and Section 4 analyze the research of chemical sensors for the detection of H2S, which are classified based on the properties of H2S: metal affinity, reducibility, and nucleophilicity. Section 5 discusses methods to improve the performance of chemical sensors and summarizes the future challenges and development prospects of chemical sensors in the field of biological H2S detection. This review discusses chemical sensors for detecting H2S as a gasotransmitter, which is of great significance for the further innovation and development.

2. Metal Affinity Based H2S Detection

The metal affinity of H2S is mainly manifested in that sulfur ions react with various metal ions (such as Cu2+, Ag+, Pb2+, Zn2+, etc.) to produce metal sulfide precipitation. Because of the short reaction time, it is also the most common way to detect H2S. Table 1 shows some of the chemical sensors based on metal affinity that can be used to detect H2S.
In numerous metal sulfide precipitates, CuS is a very stable substance having a low solubility product constant Ksp = 6.3 × 10−36 [18]. In 2015, Meng et al. [19] developed a new fluorescence chemical sensor based on 7-nitrobenzene-2-oxa-1,3-diazole (NBD) fluorophores and introduced Cu2+. The presence of Cu2+ quenched the fluorescence of fluorophores. When H2S was added, the fluorescence intensity recovered at 519 nm due to the generation of CuS. When the concentration of H2S was in the range of 0–20 μM, the relationship was linear with the intensity of fluorescence emission at 519 nm. Moreover, it had a relatively low detection limit of 0.17 μM, and the sensor was successfully applied in MDA-MB-231 cells in vivo. In 2016, Guo et al. [20] employed EuW10O36·32H2O (Eu-POM) and 1,2-bis(3-hexadecylimidazolium-1-yl) ethane bromide ([C16-2-C16im]Br2) modified with Cu2+ to prepare a supramolecular chemical sensor (CSS). When CuS was formed, the absorbance was increased at 400 nm, accompanied with the conversion of the colorless solution to brown. The linear relationship was between 1.25 μM and 175 μM, and the detection limit was 1.25 μM. In 2018, Wang et al. [21] introduced Cu2+ into naphthalimide-rhodamine B and developed a fluorescence colorimetric sensor called 1-Cu2+ which was applied to the detection of H2S in HeLa cells. When adding H2S to produce CuS, on the one hand, the absorbance decreases at 546 nm, the color of the solution changes from pink to light yellow, and a good linear relationship with 0–80 mM H2S with a detection limit of 0.4 mM was achieved. On the other hand, the fluorescence intensity at 610 nm was quenched, from bright yellow to green, and had a good linear relationship with 0–40 mM H2S, and the detection limit was 0.23 mM. This sensor had a high detection limit and was not suitable for the detection of organisms or cells with low H2S content. Detection limits need to be further improved.
In addition to producing copper sulfide precipitates, silver sulfide (black) and lead sulfide (brown) have obvious color changes; it is also one of the options for detecting H2S. In 2018, Zhao et al. [22] developed a highly selective and sensitive electrochemical sensor based on Au@Ag core-shell nanoparticles (Au@Ag NPs). The electrical activity of Au@Ag NPs provided good electrical conductivity and promoted the formation of Ag2S, resulting in the decrease of differential pulse voltammetry (DPV) peak at 0.26 V. In the range of 0.1 nM to 500 nM, the logarithm of H2S concentration was linear with the DPV peak at 0.26 V. In 2019, Jornet-Martínez et al. [23] proposed a method to detect H2S by supporting silver nanoparticles (AgNPs) on nylon, which can exhibit good color intensity due to the higher retention rate of the nylon carrier. The formation of Ag2S led to further aggregation of monodisperse silver nanoparticles. The absorbance ratio at 550 nm and 415 nm exhibited a linear relationship with the logarithm of H2S at 150–1000 ppbv, and the detection limit was 45 ppb. This sensor can detect H2S at the ppb level, which had a low detection limit. In 2018, Cha et al. [24] made colorimetric chemical sensors using porous Pb(Ac)2 anchored nanofibers (NFs). The schematic diagram of sensor preparation and detection is shown in 1–3 of Figure 3A. It used electrospinning technology to provide a large number of reaction sites for detection. The scanning electron microscope (SEM) image of HTS-Pb(Ac)2@NFs synthesized by electrospinning technology is shown in 1 and 2 of Figure 3B. The formation of PbS changed the color, and the color changed under different H2S concentrations; exposure times are shown in 1–3 of Figure 3C. H2S as low as 400 ppb was detected at a relative humidity of 90%. It was also used to detect H2S in breath samples of patients with bad breath.
In addition, in 2013, Wu et al. [25] developed a phosphor chemical sensor using Mn-doped zinc quantum dots. H2S was added to quench orange phosphor. The fluorescence intensity at 585 nm was linearly related to H2S at 2–100 μM. And the detection limit was 0.3 μM, it was suitable for the detection of H2S content in general physiological conditions. In the above tests, the sensor showed good selectivity in anions and small molecules of mercaptan.
The chemical sensor based on metal affinity of H2S has the following problems. The following discussion summarizes the previous studies and proposes possible solutions.

2.1. Accuracy and Reliability

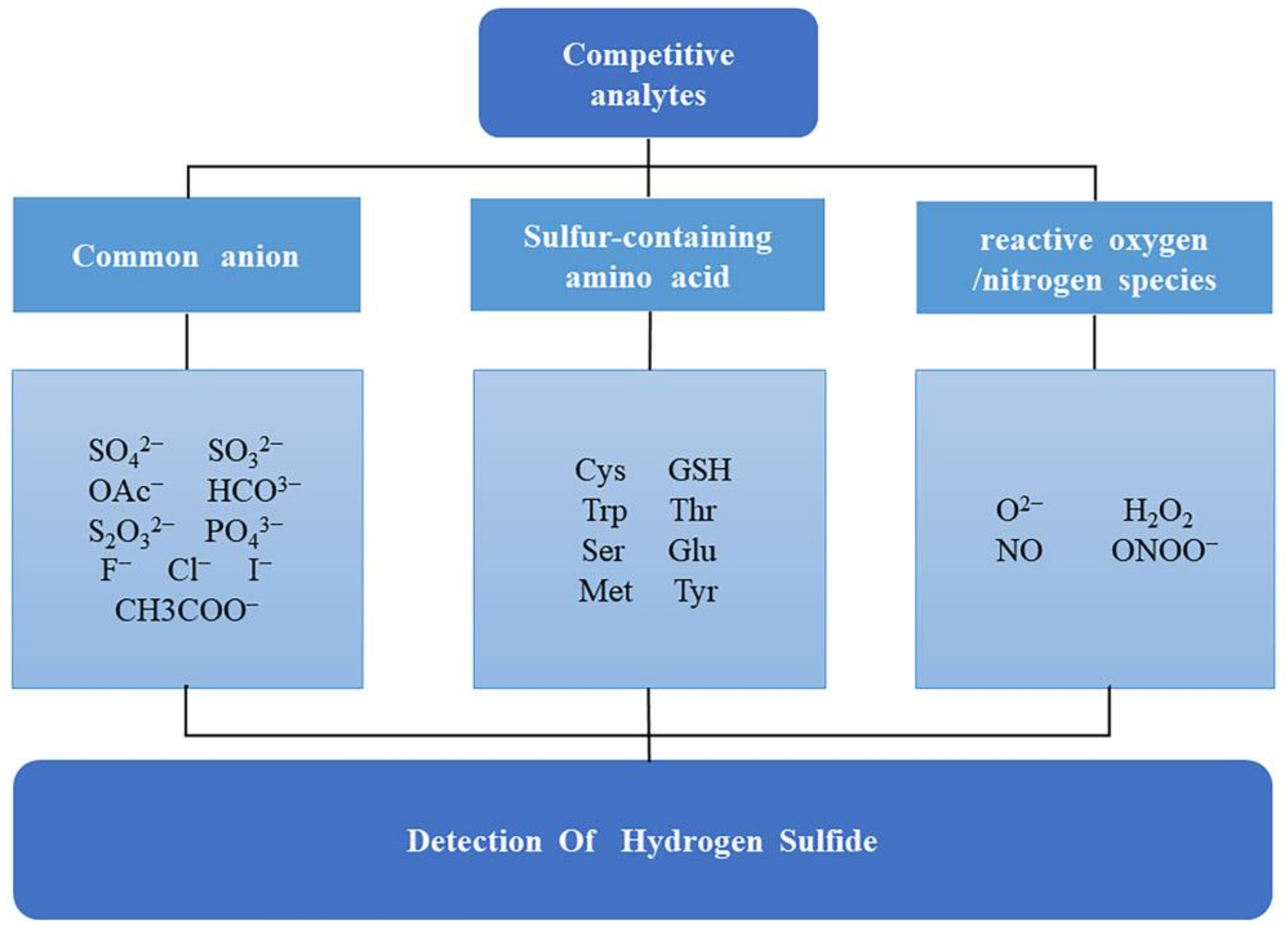

H2S is involved in many physiological and pathological processes, so the accuracy and reliability of sensors need to be improved to make the detection results more convincing and accurate. The ratio detection method plays the role of internal correction, improving the accuracy and reliability of detection. In particular, the fluorescence chemical sensor can effectively reduce background autofluorescence interference and avoid false positives or false negatives [26]. For example, in 2016, Yang et al. [27] developed a ratio fluorescence chemical sensor named HSip-1@AuNCs, using bovine serum albumin–templated gold nanoclusters (BSA-AuNCs) as an internal reference fluorophore and HSip-1 based on aromatic ring Cu2+ complex as a H2S recognition unit. HSip-1@AuNC emitted dual fluorescence at 519 nm and 632 nm, respectively, coming from HSip-1 and AuNCs. CuS was formed after the addition of H2S, which increased the fluorescence intensity at 519 nm but remained unchanged at 632 nm. The linear range was 7–100 μM, the detection limit was 0.73 μM, and it was used for the selective detection of H2S in fetal bovine serum. In 2019, Liu et al. [28] designed a nanoratio fluorescent chemical sensor called Ru-Cu@FITC-MSN, which was prepared by immobilizing a luminescent Ru2+ complex into a fluorescein isothiocyanate (FITC) conjugated water-dispersible mesoporous silica nanoparticle (MSN), and Cu2+ was introduced by the in situ formation method. This sensor showed dual emission bands at 520 nm (FITC) and 600 nm (Ru complex). The addition of H2S restored the quenching fluorescence, increased the fluorescence intensity at 600 nm and kept the fluorescence intensity at 520 nm. The linear range was 0.5–4 μM, the detection limit was 0.36 mM, and the limit of quantification was 1.21 mM. The limits of detection and quantification were at the millimolar level, and it was relatively high and was not conducive to the detection of H2S at lower levels. It showed good selectivity in anions and sulfur-containing amino acids when detecting H2S in breast cancer cells MCF-7. Shang et al. [29] quantitatively detected H2S based on the ratio of the oxidation peak current of Ag to MB. MB acted as an internal reference material, providing built-in correction to avoid interference from internal and external environments.

2.2. Sensitivity

The sensitivity of the sensor has always been one of the key parameters to evaluate its performance. The content of H2S in different parts of the organism is not the same, and sometimes the nanomolar level of H2S needs to be detected according to the actual demand [30], which puts forward a higher requirement for the sensitivity of the sensor. The sensitivity can be greatly improved by the detection methods and test materials.

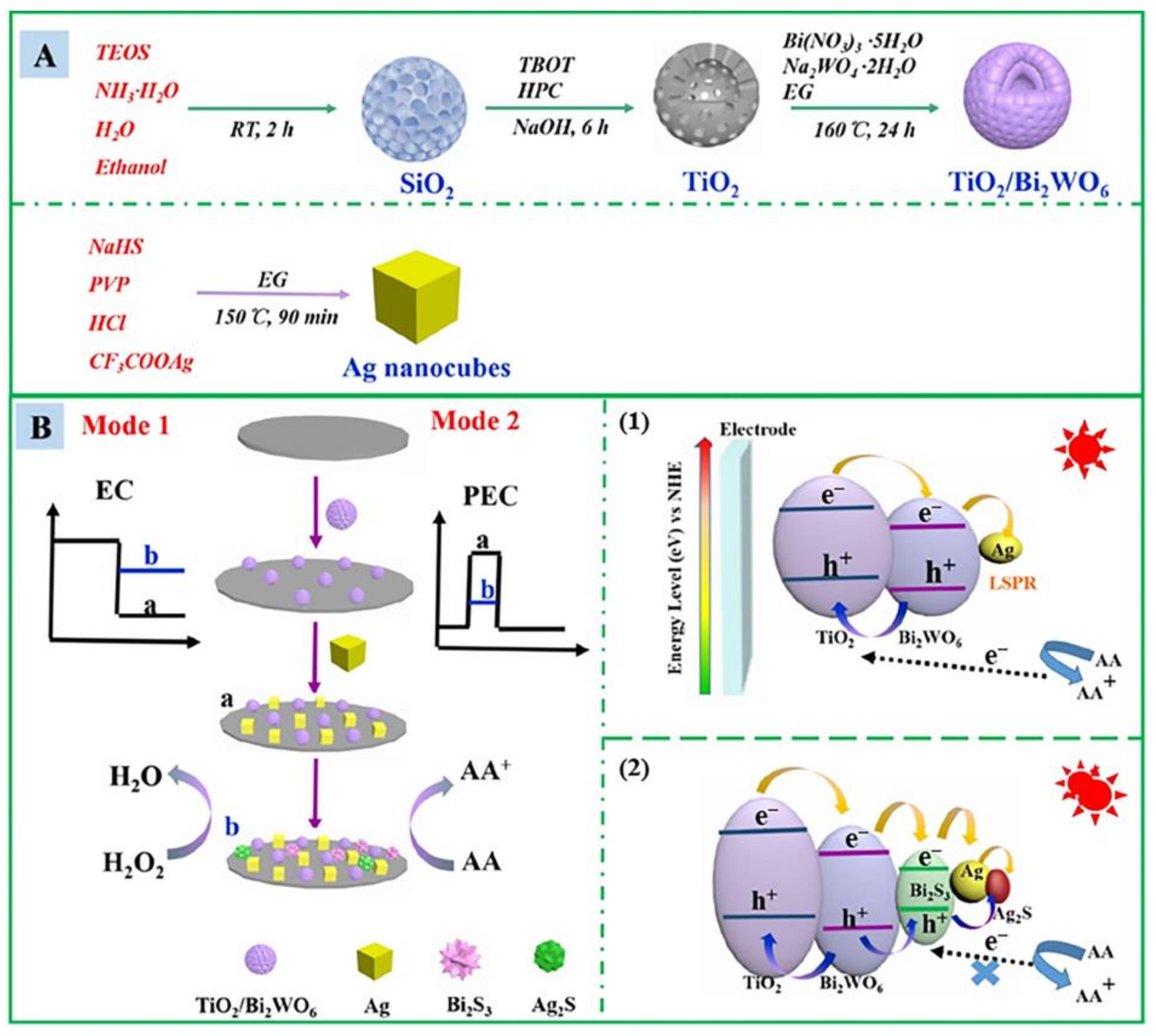

Due to electrochemical (EC) and photoelectrochemical (PEC) signal responses have the advantages of ultra-high sensitivity, low cost, fast detection, etc. In 2021, Xu et al. [31] utilized TiO2/Bi2WO6/Ag heterojunction to prepare a high sensitivity EC-PEC driven dual-mode chemical sensor, the material synthesis is shown in Figure 4A. The sensing process is shown in Figure 4B, and 1–2 in Figure 4B, respectively, show the mechanism of photocurrent signal on–off sensing in the absence and presence of H2S. On the one hand, for electrochemical detection, TiO2/Bi2WO6/Ag displayed a highly electrocatalytic activity toward the reduction of H2O2 through amperometric i–t curve (i–t) due to the nanoenzyme property and synergistic effect, which endowed electrochemical sensing. On the other hand, for photoelectrochemical detection, charge carriers were produced when the light was irradiated onto the TiO2/Bi2WO6/Ag surface electrode. Moreover, the superfast electron transfer is promoted due to the cascade edge level, and the recombination of electron and hole (e−/h+) is effectively inhibited. When H2S was added, due to the generation of Ag2S and Bi2S3, the original catalytic activity is reduced; in addition, due to the mismatch between the energy band level and TiO2, the recombination of photogenerated electrons and holes is accelerated, finally leading to the sharply decreased double signals. This sensor showed a wide linear response between 0.5–200 μM, a detection limit of 0.08 μM, and a good selectivity for common anions and sulfides.
Electrochemiluminescence (ECL), as an electrochemical technology combined with chemiluminescence detection technology, which has the advantages of high sensitivity and simple instrument. In 2022, Chen et al. [32] introduced Ag+ based on cytosine sequence and developed sensors using ECL technology to measure H2S in joint fluid. The formation of Ag2S triggered hybridization chain reaction, which further produced an electrochemical luminescence signal. The linear response over the concentration range of 0.1000–1500 nM, a detection limit of 0.0398 nM, and a good selectivity in the physiological activity of interferes were obtained. After the sensor was placed for a week, the detection signal decreased by less than 6%, showing good stability. However, the response time was 90 min, necessitating a further improvement.
In addition, sensitivity can also be improved by means of transferring detection targets. In 2015, Gao et al. [33] developed a chemical colorimetric sensor based on the core-shell structure Au@TPt-NCs, which used H2O2-3,3′,5,5′-tetramethylbenzidine (TMB) product concentration to achieve indirect detection of H2S concentration in bovine serum. Au@TPt-NCs is a kind of nanocatalyst, and TMB under the catalytic effect produces the product TMBox. When H2S was absorbed by the surface of Pt nanostructure, the surface active site of the catalyst was blocked, the TMBox products were reduced, which further led to the decrease of absorbance at 650 nm, and then the color changed. The detection of 100 nM H2S in 10 μL of solution was finally translated to the detection of 70.79 μM TMBox in 100 μL of solution. Thus, the signal was improved about 7079 times. The linear concentration range was 10−100 nM, the slope of the regression equation was 0.013, and the detection limit was 7.5 nM. A good selectivity, reproducibility, and accuracy were also exhibited.
Mulit-component composite materials can also help improve the sensitivity of sensors due to their excellent properties. In 2022, Li et al. [34] used cellulose nanofiber (CNF)-templated CuO (CuO-C), which was decorated with tungsten disulfide (WS2) nanosheets (W-Cu-C) as the sensing layer of electrochemical sensor for H2S recognition. A schematic diagram of the material preparation procedure is shown in Figure 5. The combination of metal oxide CuO and transition metal dihalide WS2 can significantly sensitize the gas sensor, thus improving the sensitivity of the sensor. On the one hand, CNFs were adopted as the nucleation template of the CuO material to boost the utilization efficiency of the sensing component when interacting with H2S molecules simultaneously augmenting the conducting pathways after its calcination into carbon nanofibers. On the other hand, layered WS2 nanosheets acted as dual roles of sorption-sites supplier and heterojunction ingredients, jointly amplifying the sensing signal. This sensor had a low detection limit of 200 ppb and an ultra-low power consumption of 8 mW, which provided a good choice for wearable devices.
In 2020, Shang et al. [29] used electroactive Ag dendriticnano composites (NCs) as a special recognition element of H2S with methylene blue (MB) as an inner reference molecular, and then combined with graphene oxide (GO) to develop an electrochemical sensor. Dendritic nanostructures have a larger surface area and more active sites while GO possesses a good adsorption capacity, thus improving the sensor sensitivity. Electroactive Ag NCs modified the GCE to act as a selective recognition probe of H2S. Dendritic Ag NCs reacted with H2S to form Ag2S, then reduced the electrochemical oxidation peak current of Ag (0.42 V) and kept the current response of MB constant. GO/MB composite was optimized as an inner reference element to provide a built-in correction for avoiding biomolecular interference. The ratio of Ag and MB oxidation peak current of H2S at 30–500 μM was linear, and the linear range was higher than that of the conventional electrochemical method. The detection limit was 23.88 μM, which was relatively high compared with other sensors that can detect a few tenths of a micromole or even a nanomole of H2S. This sensor showed good selectivity and stability within the detection of H2S in bovine serum.
The application of different detection techniques improves the sensitivity but also puts forward higher requirements for the professionalism of detection personnel. The price of detection materials with excellent performance increases the cost of sensors. Therefore, new methods need to be developed to improve the sensitivity of detecting H2S.

2.3. Biocompatibility

Due to the presence of metals or metal ions in the test material, issues of biocompatibility and toxicity must be considered. Small amounts of metal ions are not toxic. However, at high concentrations of H2S, more metal ions are needed to produce further metal sulfides. The presence of too many metal ions can be toxic to organisms or lead to a decrease in cell activity [35].
In order to solve the problem of biocompatibility and toxicity, it can be solved from two aspects. The first is composites engineering with secondary substances of good biocompatibility and low toxicity. In 2016, Ding et al. [36] developed an electrochemical sensor based on TiO2 to detect endogenous H2S production in stimulating MCF-7 cells with VEGF. The synthesis and detection process of the sensor is shown in the Figure 6A. The surface of TiO2 nanotubes was modified by a layer of thioglycolic acid (TGA) to introduce thiol groups which can adsorb and immobilize Cd ions. Because of the good biocompatibility, TiO2 greatly improves the cell activity when detecting exogenous H2S released by cancer cells. However, the large band gap (3.0–3.2 eV) of TiO2 limits its adsorption mainly in UV range. Figure 6B clearly elucidates the injection of excited electrons from CdS to TiO2. When CdS is generated, it also acts as a visible light sensitizer due to its narrow band gap (2.4 eV), which improves the sensitivity. The SEM images, TiO2 nanotubes, and those treated after with different concentrations of H2S, are shown in 1–3 of Figure 6C.
The sensor has good selectivity and achieves a wide linear range of 10–106 nM with a detection limit of 0.7 nM. The detection limit of nanomole level can realize the accurate detection of H2S at the physiological level of micromole level. In 2020, Hao et al. [37] reported the design of a peptide L (FITC-AhxHis-Glu-Phe-His-NH2) and introduced Cu2+ to design a fluorescent chemical sensor based on L: Cu2+ with good selectivity for H2S detection. Peptide-based chemical sensors are more biocompatible, and they are generally less toxic and exhibit good cellular permeability. High concentration of L: Cu2+ was used to detect H2S in HeLa cells, and the cell viability remained above 95%. After the addition of H2S to produce CuS, the green fluorescence recovered, while a linear relationship between the fluorescence intensity at 520 nm and 0–0.7 μM H2S was achieved, with a detection limit of 68 nM.
The second aspect is to employ metals with good biocompatibility. For example, metal gold, especially gold nanoclusters (Au NCs), has low toxicity and good water solubility and biocompatibility. In 2015, Liang et al. [38] prepared a dual-emission chemical sensor by covalently attaching fluorescent carbon nanoparticles (CNPs) to Au NCs, triggering the sensing mechanism of fluorescence resonance energy transfer (FRET) from CNPs (donor) to Au NCs (acceptor). Ideal reaction results were demonstrated at PH = 7.4 upon the detection of H2S in serum samples. Additionally, good selectivity in anions and amino acids was presented. The formation of Au2S increased the fluorescence intensity at 445 nm and decreased at 575 nm. The detection limit was 18 nM when H2S of 0–60 μM was linearly related to the ratio of the fluorescence intensity at 445 nm and 575 nm. In 2017, Zhang et al. [39] designed a fluorescent chemical sensor based on acetylcysteine-stabilized gold nanoclusters (ACC@AuNCs) to detect H2S in serum samples. Gold nanoclusters (NCs), which can produce unique optical properties and have some special properties such as large Stokes shift, strong fluorescence, high photochemical stability and wide spectrum lines, have been the preferred choice for H2S nanosensors. Figure 7A illustrates the detection process of the fluorescent sensor. This sensor showed higher H2S selectivity as compared to that toward other anions, amino acids, and mercaptans, as shown in Figure 7B. The sensor presented a stable response over the concentration range from 0.002 to 120 μmol/L (Figure 7C) with the detection limit of 1.8 nM/L. Nevertheless, a long detection time remained.
In addition, metal bismuth has non-toxic properties. Bi3+ has been used as a reagent in Pepto-Bismol and other drugs. In 2016, Anal et al. [40] used Bi(OH)3 and its derivatives to capture H2S in breath samples, and the production of Bi2S3 changed the color from white to yellow/brown. This sensor responds to ≥30 ppb H2S in a total volume of 1.35 L of gas, and it is at least two orders of magnitude more sensitive than a commercial H2S test paper based on Pb2+(acetate)2, but this sensor can also detect sulfide and mercaptan, thus lacking good selectivity.
Although the above methods provide good biocompatibility for H2S detection to a certain extent, the sensitive material system increases the complexity and time of preparation. Moreover, metals with good biocompatibility, especially metal nanoparticles, have the disadvantage of high price. Therefore, detecting H2S with metal affinity still needs to be further solved.

2.4. Detection Medium

Many H2S chemical sensors, especially fluorescence or colorimetric chemical sensors, usually realize the H2S detection in a liquid medium. If the detection medium can be transferred from a liquid phase to a solid one, the complexity of detection is greatly simplified, which provides an easy access to non-professionals. At the same time, fluorescence and colorimetric sensing can offer more obvious and clear visual results more suitable for wearable devices. The sensor is made of thin film with a paper base and a H2S-specific detection reagent. The solid detection platform provides a new road for wearable devices.
In 2016, Chen et al. [41] used polystyrene sulfonate (PSS), a strong polyelectrolyte, to prepare red-photoluminescent PSS-penicillamine (PA) copper (Cu) nanocluster (NC) aggregates, which displayed high selectivity and sensitivity toward H2S detection. During the design process, the paper-based microfluidic analysis device was utilized to transfer the detection platform from the solution to the paper base. The device was inexpensive, portable, and requires only a small number of samples (5 μL). In 2019, Sarfraz et al. [42] designed an inexpensive disposable H2S sensor on paper substrate with the diagram shown in the Figure 8.

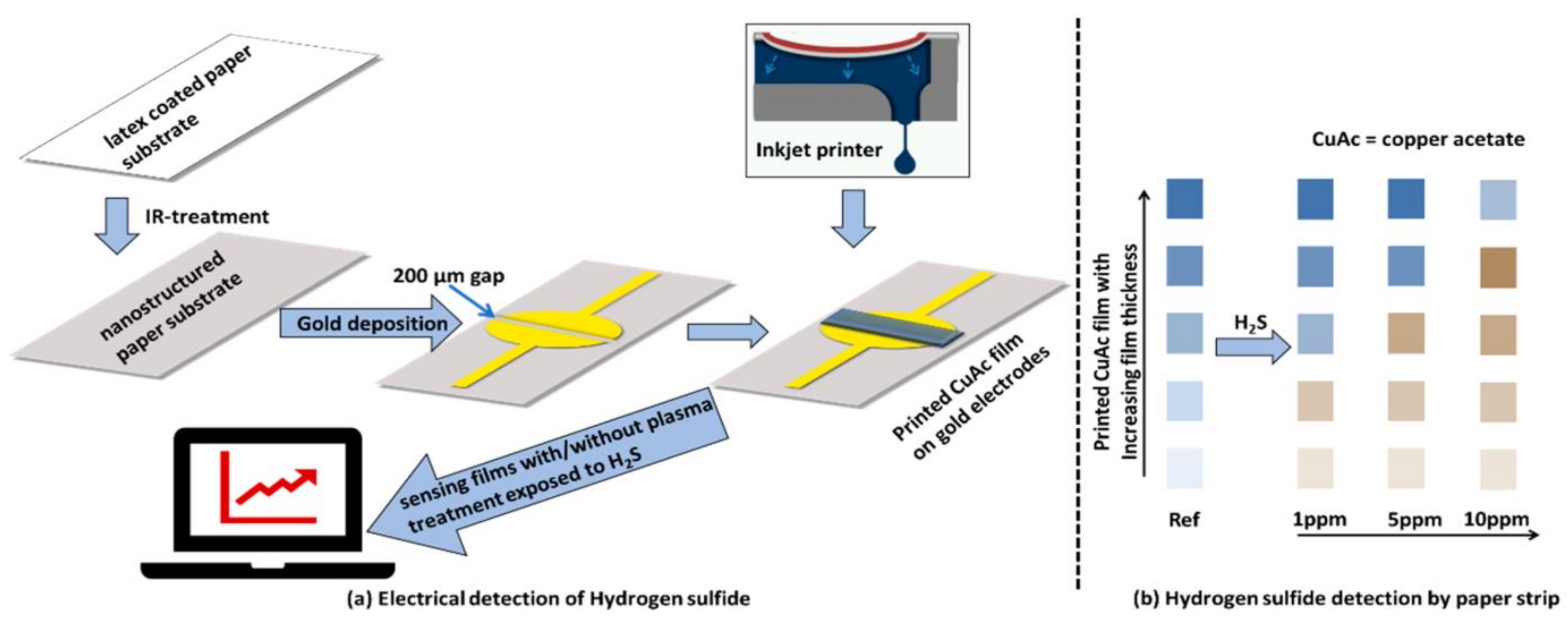

This sensor was produced by inkjet printing copper-acetate-based sensing films on ultra-thin gold film electrodes (UTGFE) with a thickness of 20 nm and gold electrodes (GE) with a thickness of 40 nm. Inkjet printing technology improves the electrode coverage and makes the reaction better. With the increase of H2S concentration, the color of the paper base changed visible to the naked eye (from blue green to gray brown). As low as 1.5 ppm H2S can be detected within 5 min, and the linear range was 0–200 ppm.
In 2022, Ferrer et al. [43] improved the detection device of AgNPs retained on a Nylon surface sensor designed by Jornet-Martinez et al. [23]. A pair of sensors and a magnet were introduced on a 5 × 7 cm bag and applied to the detection of H2S in breath gas, showing a color change from yellow to brown, with a detection limit of 0.019 mg/L and the limit of quantitation of 0.06 mg/L, but when humidity drops below 20%, the sensitivity of the sensor decreased.
Moving the liquid-phase detection medium into the solid one opens up more possibilities for wearables, but most H2S detection is currently performed in liquids where there is less interference. Therefore, when the liquid phase detection is transferred to the solid phase, it is necessary to prevent other gases from affecting the detection, which puts forward higher requirements for the selectivity of the sensor.

2.5. Repeatability

At present, one of the major difficulties in H2S detection is the sensor repeatability. Many sensors are disposable and need to be reprepared before each detection, which cannot be reused, increases the production cost and time to a certain extent. Many researchers have also come up with solutions to this problem.
In 2016, Li et al. [44] prepared porous CuO nanosheets on alumina tubes by a facile hydrothermal method to produce an electrochemical sensor. The 2D sheet-like CuO nanostructures have high anisotropy and nanoscale thickness. The nanoporous structures of CuO sheets could allow a fast and efficient gas adsorption on their surfaces, so the process of adsorption and desorption can be repeated in a short time. This sensor was continuously exposed to 200 ppb H2S 5 times at room temperature, and showed good repeatability after continuous adsorption and desorption process. In 2017, Xu et al. [45] designed and synthesized a novel fluorescent chemical sensor HACBA-Cu2+ with carbazole-hemicyanine fluorophore as signal reporter and N,N,N’-tri(2-pyridylmethyl)ethylenediamin e (TPEA) as binding site. Alternately, added H2S and Cu2+ can achieve an “on-off-on” form of fluorescence cycle, and at least 3 repeat cycles were observed, but the fluorescence intensity decreased after multiple repeats. In the same year, Strianese et al. [46] developed a fluorescent sensor using the zinc porphyrin complex TMPyPZn, which promoted the reversibility of H2S binding with zinc phthalate by adding acetic acid. Although the sensor could be repeated many times, the fluorescence intensity level slowly decreased. In 2018, Dulac et al. [47] developed a fluorescence sensor using the hemoglobin I (HbI) for the clam to detect H2S in plasma. Due to the reversible coordination between H2S and HbI, the addition of argon promotes the reversible reaction and restore the fluorescence.
Although the above methods endowed the sensor with a certain repeatability, most of them realize repeated measurement only in a short time and cannot be detected after long-term storage. In addition, the fluorescence intensity decreases after repeated detection, which makes the performance of the sensor deteriorate. Finally, in order to restore the sensors to their original state, additional chemicals are added, probably bringing toxicity. Therefore, the repeatability of such sensors is still a big problem to be solved in the future.

3. Reducibility Based H2S Detection

H2S chemical sensors based on reducibility can be divided into two categories: one is to reduce azide (-N3) groups to amino (-NH2) under the action of H2S [48,49,50,51] (belongs to reduction-oxidation reaction), commonly used in fluorescent sensors; the other is the reduction-oxidation (REDOX) reaction of H2S with other oxidizing substances [52,53,54], which is often used in electrochemical sensors. Table 2 shows some of the chemical sensors based on reducibility that can be used to detect H2S.
As for, fluorescence sensors, fluorescent dyes containing azide groups are often used as detection materials, which are reduced to amino group under the action of H2S. The originally quenched-fluorophore can restore fluorescence and achieve the detection effect visible to the naked eye. For example, in 2013, Sun et al. [55] used 2-allyl-1,3-dioxo-2,3-dihydro-1h-Benzo[de]isoquinoline 6-sulfonyl azide (AISA) copolymerized with styrene, a fluorescent chemical sensor named PSAISA was designed. In the presence of H2S, sulfonyl azide was reduced to sulfonamide, which enhanced the intensity of fluorescence emission at 530 nm, resulting in the color from colorless to bright yellow. When applied to the detection of H2S in HeLa cells, and good selectivity was achieved in anions and sulfur-containing amino acids. In 2016, Kim et al. [56] designed a fluorescent sensor called AHS based on 2,3-naphthalimide (2,3-NI) to selectively detect H2S in histiocytic lymphoma cells U937. The azide in 2,3-NI was reduced to amino group by H2S, resulting in increased fluorescence intensity at 557 nm and the linear range was 0–80 μM. In 2019, Zhang et al. [57]. coupled the spiropyran derivative to the weakly fluorescent molecule 4-azide-1,8-naphthalic anhydride with ethylenediamine as a tether to synthesize NT-N3-SP for specific monitoring of H2S. The addition of H2S reduced the azide group, the maximal absorption at 370 nm decreased and a new red-shifted absorbance peak at 440 nm was centered, fluorescence intensity increased significantly at 540 nm. Stable detection of H2S can be performed at PH = 3–8, and it has been successfully used to screen H2S in living mice.
In 2022, Jothi et al. [58] used 6-azido-2-(pyridin-2-ylmethyl)-1h-Benzo[de]isoquinoline-1,3(2H)-Dione (NPN-N3) for fluorescence detection of H2S in Escherichia coli cells. A and B in Figure 9, respectively, show the synthesis of NPN-N3 and the emission response mechanism of NPN-N3 to H2S. The azide group of nonfluorescent napthalimide was reduced to amino group under the action of H2S, and the green fluorescence was produced. In Figure 9C, 1–3 shows the change of fluorescence spectrum and the linear relationship after the addition of H2S or different anions, and 4 shows the change of solution color. In addition, the absorbance of the sensor probe decreased at 365 nm and redshifted to 416 nm after H2S exposure, accompanied with naked eye-visible color change from colorless to yellow. This phenomenon indicated that the probe could also be used as a colorimetric sensor.
In addition, due to the reducibility of H2S, REDOX reactions often occur with functional groups or substances with oxidation properties in electrochemical detection. The oxidation products of H2S lead to changing the electrode resistance, and H2S detection is realized through signal processing. For example, in 2018, Jackson et al. [59] used the triple pulse amperometry (TPA) method to electro-oxidize H2S to SO42− at glass carbon electrodes for the detection of potential H2S in biological systems. In 2022, Kim et al. [60] contained carbon-nanofiber (Fe2O3-MPCNF)-based conductive paste (the preparation process is shown in Figure 10A) through an iron oxide-immobilized multiscale pore, and the addition of H2S reacted with the adsorption oxygen functional groups in Fe2O3 to form SO2; the reaction and recovery mechanisms are shown in the Figure 10B. The REDOX reaction produced electrons and entered the carbon structure, causing resistance to increase. The sensor could detect H2S of 0.2–100 ppm at room temperature. This sensor was also combined with the wireless system to realize the wearable wireless H2S detection.
Concerning the reducibility of H2S, the following content summarizes the previous studies and proposes possible solutions.

3.1. Accuracy and Reliability

Due to the complex biological environment, the detection results may be affected by the fluorescence interference when the fluorescence sensors are applied.
Ratio detection can effectively eliminate the background interference and the fluctuation of detection conditions caused by the sample’s own fluorescence or instrument factors and play a role of self-calibration [61] so as to obtain more reliable detection. In 2012, Yu et al. [62] proposed ratio fluorescence sensors based on the structure of CD-naphthalimide (CDs)-azide for selective H2S detection HeLa cells (human cervical cancer cell) and L929 cells (murine aneuploid fibro sarcoma cell). After the azide group was reduced by H2S, the emission intensity ratio of 526 nm to 425 nm increased with the increase of H2S concentration. The fluorescence changed from blue to bright green within 15 min and had a low detection limit of 10 nM, but the sensor did not show a good linearity. In 2019, Youssef et al. [63] added p-azide phenylalanine (pAzF) to fluorescent protein (FPs) to design a ratio fluorescence sensor that showed a good ratio response in mammalian cells. There was a linear relationship between 1–100 μM H2S and the emission intensity ratio of 450 nm to 500 nm. However, this sensor had some limitations, such as decreased cell activity after detection and the incompatible fluorescent dye with cells or cell lines that were difficult to transfect.
A series of methods have also been proposed to solve the problem of interference, when azide is reduced to amino by H2S. In 2016, Yao et al. [64] used time-gated detection in combination with ligand-sensitized complexes of lanthanide cations to eliminate fluorescent interference. In addition, using near-infrared fluorescent dyes to detect cell autofluorescence is not an issue because of low background fluorescence interference. The light used for excitation causes much less photodamage to cells compared to ultraviolet or visible light used in excitation of other dyes. Additionally, a higher signal-to-noise ratio and better tissue penetration were implemented [65]. In 2014, Ozdemir et al. [66] developed a fluorescence sensor based on near-infrared Bodipy dye to detect H2S in MCF-7 cells and FBS cells. Bodipy dyes, which are difluoroboron-cHeLated dipyrromethene derivatives, to be good choices for H2S detection due to their desirable properties, such as high quantum yield, chemical and photochemical stability, high molar absorption coefficient, and they allow direct access to near infrared emission derivatives. Bodipy 5 was obtained by the reaction of aldehyde 4 and 3-ethyl-2,4-dimethylpyrrole, when H2S was added, the azide was reduced to an amine, resulting in fluorescence quenching and a 20 nm redshift. It showed good selectivity in common anions and reactive oxygen/nitrogen species, and the detection limit was 0.34 μM. In 2018, Ji et al. [67] designed a fluorescence sensor based on nimazide to detect H2S in mitochondria. Nimazide was synthesized by introducing sulfonyl azide to the core structure of a QSY-21 dark quencher. On the one hand, nimazide as a near-infrared fluorescent dye can reduce phototoxicity and increase tissue penetration. On the other hand, when its azide functional group is connected with electron-absorbing groups such as sulfonyl groups, its reaction activity to H2S is greatly enhanced, and the reaction speed is three to four orders of magnitude faster than that between aryl azide and H2S. H2S could reduce nimazide into a sulfonamide, which would further cyclize to form a spiral lactam, thereby leading to the decrease of near-infrared fluorescence. The sensor had a wide linear range of 10 nm–10 μM, showing good selectivity among common competitive analytes.
Near-infrared fluorescent dyes can reduce the interference of external fluorescence to a certain extent, but they have the following disadvantages: First of all, the toxicity of dyes needs to be considered, and the number of available dyes is even smaller. Secondly, some near infrared fluorescent dyes have poor chemical and light stability, such as cyanine dyes. Finally, the solubility of many near-infrared fluorescent dyes such as borodipyrrole dyes is difficult to meet the requirements of practical detection [68]. If we want to use near-infrared fluorescent dyes to detect H2S, more research needs to be conducted on dye synthesis.

3.2. Sensitivity

In electrochemical H2S sensors, if the detection material has a larger surface area or specific surface area, it provides more active sites. At the same time, the electrode material has a high conductivity, and the electrode current changes quickly, so that the sensitivity of the electrochemical sensor can be improved to a large extent.
In 2019, Asif et al. [69] designed an extremely sensitive electrochemical sensor with a 2D nanosheet-shaped layered double hydroxide (LDH) wrapped carbon nanotubes (CNTs) nanohybrid (CNTs@LDH), where a series of CNTs@CuMn-LDH nanohybrids with varied amounts of LDH nanosheets grafted on a conductive CNTs backbone had been synthesized via a facile coprecipitation approach. The material synthesis and testing process is shown in the Figure 11A. Nanomaterial non-enzyme electrochemical sensors show excellent performance in sensitivity and anti-interference ability. CNTs@CuMn-LDH had superior surface area (different electron microscope images are shown in 1–4 of Figure 11B), providing more binding active sites for H2S. Meanwhile, the high conductivity of carbon nanotubes improved the efficiency of the oxidation of H2S into S, further greatly improving the sensitivity. This sensor can detect at low potential, reduce the interference of electroactive substances in the organism to detect, and was applied to the H2S secreted by human cells stimulated by VEGF. The linear range was 8 nM–2.9 mM, the detection limit was 0.3 nM. It had wide detection range and low detection limit.
In the same year, Jha et al. [70] reported liquid-exfoliated MoSe2 nanoflakes based stable electrochemical sensor for the detection of H2S in human exhaled gas. The exfoliated MoSe2 nanosheets exhibit P-type behavior and adsorbed oxygen can change the initial conductivity of the sensing material, and thus the sensor had more adsorption sites. Being a reducing agent, H2S donates electron to the MoSe2 nanoflakes, effectively counterdoping, which decreases the current. The detection limit was 6.73 ppb, the limit of quantification was 22.44 ppb, and the sensor sensitivity was 5.57%/ppm, catering for a near-real-time detection. This was a big improvement over the previous H2S gas sensor. In 2021, Liu et al. [71] successfully synthesized multilayer Ti3C2Tx MXene graphene-like structure by simple hydrogen fluoride etching method and fabricated it on glass carbon electrode (GCE) for electrochemical detection of H2S in biological environment. The layered structure of the two-dimensional transition metal carbon/nitide has the advantages of good conductivity and large specific surface area, providing more reaction sites. H2S is oxidized to S on the electrode surface, with a high sensitivity of 0.587 μA μm−1 cm−2 and a wide linear detection range of 100 nM–300 μM. This sensor can detect H2S as low as the nanomolar level.

3.3. Response Time

The essence of REDOX reaction is electron gain, loss, or migration. H2S, as a reducing substance, loses electrons in REDOX reaction. Therefore, if the detection material can be connected with the electron-withdrawing group, the electron loss process of H2S is accelerated to a certain extent, then the response time of the sensor is shortened. The short response time benefits a real-time detection and wearable detection systems.
In 2016, Choi et al. [72] introduced an electron-withdrawing group, fluorine, on the o-position of the ‘N-imide site’ in order to improve the reaction rate. The response time was two times better than that of the sensor without the electron-absorbing group. The sensor was used to selectively detect H2S in macrophage RAW264.7 with a linear range of 0–200 μM and a detection limit less than 0.3 μM. In 2018, Ji et al. [67] connected azide functional groups to sulfonyl electron-withdrawing groups, leading to an accelerated response speed toward H2S. The reaction rate was three to four orders of magnitude faster than the reaction rate between aryl azide and H2S, and it can detect H2S at nanomolar levels. In addition to introducing electron- withdrawing groups, efficient catalytic systems can also reduce response times. In 2018, Kim et al. [73] designed a H2S electrochemical sensor based on semiconductor metal oxides (SMOs), they fabricated superior H2S sensing layers using dual sacrificial biotemplates, i.e., cellulose nanocrystals and apoferritin, in a one-pot synthesis of cocatalysts (PtNa2W4O13) functionalized WO3 nanotubes using electrospinning technique. The dual-catalytic system of Na2W4O13 and bio-inspired Pt catalyst accelerated the reaction of H2S with chemisorbed oxygen, with a response time of 5–10 s, which was improved by 2–6 times as compared with the traditional SMOs sensor. Sensing layers based on electrospun nanofibers can offer high gas accessibility and large surface area, resulting in active interaction of air adsorbates with gas analytes, and it can also shorten the response time to some extent. The detection limit was 3 ppb, which was suitable for H2S detection in the exhaled breath.

3.4. Water Solubility

As is well known, water is the most abundant compound in cells. To increase the water solubility of the corresponding probe in the fluorescent sensor is conducive to real-time in-vivo H2S detection and imaging.
In 2015, Xu et al. [74] introduced a hydrophilic alcoholic group to the naphthalimide core to improve water solubility and showed good cell membrane permeability. This sensor was used for selective detection of H2S in HeLa cells at the cost of long response time of 15 min. In 2018, Zhang et al. [75] designed an Al-MIL-53-NO2 fluorescence sensor from metal-organic framework (MOF)-polymer mixed-matrix membranes (MMMs). The detection materials were evenly distributed within the pores of MOF. Due to the high porosity, the MMMs have good water permeability flux so that H2S in the body can be completely contacted with MOF. In 2019, Ma et al. [76]. used quinoline as fluorophore to improve the water solubility in H2S detection in view of its excellent optical properties, good solubility, and low cytotoxicity. With the addition of H2S, the fluorescence intensity was enhanced 11 times at 533 nm. H2S imaging in HepG-2 cells was successfully applied, and 87.7% of cells remained active after 10 h treatment.

4. Nucleophilicity Based H2S Detection

H2S has strong nucleophilic properties and can attack electrophilic atoms. Therefore, H2S is often used as a nucleophilic reagent to undergo nucleophilic reactions with test materials (such as nucleophilic addition reaction, nucleophilic substitution reaction or thiolysis reaction) [77,78,79,80,81] so as to realize the H2S detection. Table 3 shows some of the chemical sensors based on nucleophilicity that can be used to detect H2S.
In 2014, Yang et al. [82] designed a H2S selective colorimetric and fluorescence sensor based on diethylaminocoumarin–hemicyanine dye. The addition of H2S carries out nucleophilic attack on polarized C=N and electron-poor C=C in the dye, then made the UV-vis absorption of the sensor taking place blue-shift from red to yellow, and the fluorescence of the sensor also changed from red to green. The PH value of 7–11 was the effective detection range when detecting H2S content in HepG2 cells with the low detection limit of 14 nM. This was the first report on the nucleophilic H2S added to the polarized C=N bond and electron-poor C=C bond of the hybrid coumarin–hemicyanine dye.
In 2015, Karakuş et al. [83] designed an ESIPT based fluorescent dye, 3-hydroxyflavone, that was chemically masked by an electrophilic cyanate motif. The cyanate (O-CN) unit acted as the specific recognition motif of H2S. When H2S was added, nucleophilic addition reaction occurred, resulting in the cleavage of carbon and nitrogen triple bond in the masking group, at the same time generated the free hydroxyl group, which promoted the generation of fluorescence. It was stable in PH 4–9 and had a detection limit of 0.25 μM. It was used to detect H2S produced by human lung adenocarcinoma cell A549.
In 2018, Chen et al. [84] developed a chemical sensor containing fluorobenzene group based on coumarin derivatives that can be used for fluorescence and colorimetric detection of H2S. The addition of H2S thiolyses with dinitrophenyl ether in the test material. On the one hand, the absorbance decreases at 320 nm while new absorption occurs at 470 nm, together with the color change from colorless to bright yellow, which can be used for semi-quantitative colorimetric H2S detection. On the other hand, the emission intensity increased at 392 nm after thiolysis and showed a linear relationship with H2S in the range of 0–8 × 10−6 M/L, which could be used for quantitative fluorescence H2S detection. The sensor was used to detect H2S in human breast cancer cells MCF-7 and showed good selectivity and low cytotoxicity.
In 2020, Wang et al. [85] synthesized a novel fluorescent molecule called (E)-6-(4-(diphenylamino)benzylidene)-5-oxo-5,6,7,8-tetrahydronaphthalen-2-yl 2,4-dinitrobenzenesulfonate (BOTD), which was used to design a H2S fluorescence chemical sensor. The BOTD synthesis process is shown in the Figure 12A. In BOTD fluorescent molecule, triphenylamine as a strong electron donor and 6-hydroxy-3,4-dihydronaphthalen-1 (2H)-one conjugated to form a fluorescent probe precursor (BOT) and 2,4-dinitrobenzenesulfonyl (DNS) as a response site. When H2S is added, DNS undergoes nucleophilic reaction with H2S, resulting in the formation of hydroxyl at the end. Electron recovery, obvious yellow–green fluorescence, can be observed by naked eye within 30 s. The reaction process is shown in the Figure 12B. The sensor showed good fluorescence characteristics at PH 6–8, which was suitable for physiological detection. The sensor showed a linear range over 0–50 μM/L, a low detection limit of 27.3 nM/L, and good selectivity in common anions and sulfur-containing amino acids. It was used to detect endogenous and exogenous H2S. BOTD was exploited for imaging in HeLa cells, which is shown in the Figure 12C. After 24 h incubation, the survival rate of cells was 85%, revealing a good biocompatibility.
The following discussion summarizes the previous studies and proposes possible solutions regarding chemical sensor based on nucleophilicity of H2S.

4.1. Accuracy and Reliability

Chemical H2S sensors based on nucleophilic reactions also need to solve the problem of detection reliability. In H2S fluorescence chemical sensor, it is mainly necessary to eliminate the interference caused by the fluorescence. The most commonly used method is to use ratio detection that concurrently plays a role of self-calibration.
In 2019, Mao et al. [86]. designed a ratiometric and near-infrared fluorescence detection method based on isophorone and was successfully applied in cell imaging. After the addition of H2S, the nucleophilic attack was carried out, which showed the emission ratios of fluorescence intensity at 540 and 660 nm (I540/I660) with an obvious enhancement from 0.05 to 13.3, and the color changed from pink to yellow. The self-calibration function of ratio detection and the low interference of near-infrared dye improved the accuracy and reliability. In 2021, Fan et al. [87] constructed a ratio fluorescence H2S sensor with surfactant structure based on fluorescence resonance energy transfer (FRET). Dansyl-based derivative (DBr) is the FRET donor, pyronine Y (PyY) is the FRET receptor and H2S reaction site and particularly adopted cationic hexadecyltrimethylammonium bromide (CTAB) micelles to encapsulate and modulate the fluorophores. H2S addition completely disrupted the weak FRET process from CTAB-encapsulated DBr to PyY, as shown in Figure 13A, leading to the disappearance of PyY fluorescence emission and the recovery of DBr emission. Meanwhile, the fluorescence intensity increased at 528 nm and gradually decreased and disappeared at 569 nm after H2S addition. Under the irradiation of a 365 nm UV lamp, the color of the solution changed from orange to blue–green. The fluorescence intensity and color changes are shown in the Figure 13B. The fluorescence intensity ratio of 528 nm and 569 nm was linearly related to the concentration of H2S, and the linear range was 0–15 μM and 20–100 μM. The detection limit was 110 nm, and it was not interfered with by anions and biological mercaptan. The recovery rate of H2S in human serum was 98.9–102% by ratio detection.
In addition to ratio detection, multi-channel detection is also one of the methods to improve the sensor reliability. In 2013, Wang et al. [88] developed the first organic three-channel based H2S fluorescence sensor. An excited state intramolecular proton transfer (ESIPT) dye was first synthesized from two subunits, 1H-phenanthro[9,10-d]imidazol and 3-hydroxychromone moieties, which were connected by a rigid and conjugated phenyl linker. In general, a single ESIPT dye can provide two different emission channels. The dye synthesized in this work provided emission fluorescence of red and green channels. Then the blue fluorescent dye dinitrobenzene was coupled with the ESIPT dye to synthesize a three-channel organic white-light-emitting dyes. Due to the fluorescence quenching effect of the nitro group, the newly synthesized organic white light-emitting dye is almost non-fluorescent in the three channels. The addition of H2S induced a thiolysis reaction with dinitrobenzene, thus enhancing the fluorescence of the red, green, and blue channels by 20, 10, and 3 times respectively. The fluorescence signals of three different channels can be used to verify each other, which can eliminate potential errors better than two-channel detection. The sensor was used for selective detection of H2S in human osteosarcoma cells MG63 and showed no cytotoxicity when the sensor dye concentration was less than 50 mM. However, the synthesis process of the dye was complicated, and white light may cause photodamage.
In 2015, Zhang et al. [89] designed the first dual-signal molecular H2S sensor using tetraphenylethylene (TPE) as the emission fluorescence source and dinitrobenzene ether as the H2S recognition site, which can provide several detection modes of fluorescence, UV-visible absorption, and vision. H2S reacts with dinitrobenzene ether, forming hydroxyl group and turning on the fluorescence. On the one hand, the absorbance formed a new absorption band at 450 nm, which changed from colorless to brown visually. On the other hand, the fluorescence intensity increased at 480 nm, showing green fluorescence. The results of ultraviolet absorption and fluorescence signal improved the reliability of detection. The linear range of the sensor was 0.1 μM/L–0.8 mm/L, and the detection limit was 12.8 nM/L. It was applied to detect H2S in HeLa cells, and the cells remained 95% active after 12 h. According to the report, the method has been frequently used in H2S detection since then, improving reliability while allowing the results to be visualized.
Although the above detection methods are different, their basic idea is basically the same, that is to let several signals mutually confirm the accuracy and reliability of the changes, so as to make the results more convincing.
In addition to the method of using several signals to support each other, in 2018, Ma et al. [90] designed an electrochemical luminescence (ECL) sensor. The sensor did not change the intensity of ECL but used the wavelength of maximum emission (λmax) shift as a reading to achieve the quantitative detection of H2S. For a given blob, λmax in the ECL spectrum is the unique and intrinsic feature. Therefore, the use of λmax as a reading can effectively avoid the interference of total luminous intensity fluctuations, providing highly reliable quantitative ECL analysis. In this sensor, the ECL luminophore was fabricated by conjugating Ru(bpy)32+-doped silica to oxidized graphene (RuSiO2@GO), and the inner filter absorber was a H2S-responsive chemodosimeter (CouMC). The reaction between H2S and the indolenium C-2 atom of CouMC reduced the absorption of CouMC, while the spectral overlap of the absorption of CouMC and the ECL emission of RuSiO2@GO decreased. The suppressed IFE then induced a spectral blue-shift of the ECL emission of RuSiO2@GO. The H2S sensing process is shown in the Figure 14. In the detection of serum H2S, the recovery rate of ECL method based on spectral shift was 99.2%, and that of the strength method was 47.9%. Compared with that of ECL method based on spectral shift, the detection reliability was greatly improved. However, this detection method requires additional equipment (such as CCD) to assist detection, which complicated the equipment.
The application of detection materials without fluorescent background interference can also improve the reliability of fluorescence chemical sensor detection. In 2015, Peng et al. [91] designed a fluorescence sensor based on lanthanide-doped upconversion nanoparticles (UCNPs) binding to luminescent clusters for selective detection of H2S in serum. The addition of H2S attacks the nucleophilic luminescence group, causing its conjugated structure to be destroyed, leading to fluorescence recovery. UCNPs are often used in biological detection because they have many excellent properties, such as large anti-Stokes shift up to hundreds of nanometers, high light stability, high penetration depth, and most importantly, no automatic fluorescence of biological samples.
In 2017, Yu et al. [92] designed a H2S fluorescence sensor named Cy2-MSNs/Ir1 and optimized the detection methods and materials to improve the sensor reliability. Compared with the intensity-based method, the lifetime-based detection is independent of the probe concentration and can efficiently distinguish the signals of the probe from the autofluorescence in complex biological samples. In addition, iridium Ir1 in the detection material is often used as phosphorescent transition-metal complexes (PTMCs) in the background sensing of complex biological samples. The addition of H2S produces nucleophilic addition reaction with Cy2, which quenches the fluorescence. The sensor was applied to the detection and imaging of H2S in HepG2 hepatoma cells, and the cell activity reached 82% after 24 h, with a low detection limit of 2.7 μM.

4.2. Nucleophilic Reaction Time

In 2019, Huang et al. [93] prepared a new amine compound NBD (7-nitro-1,2,3-benzoxadiazole)-amine as a co-reactant, and synthesized Ru(bpy)32+ doped silica nanoparticles (RuSi NPs) by water-oil microemulsion method.

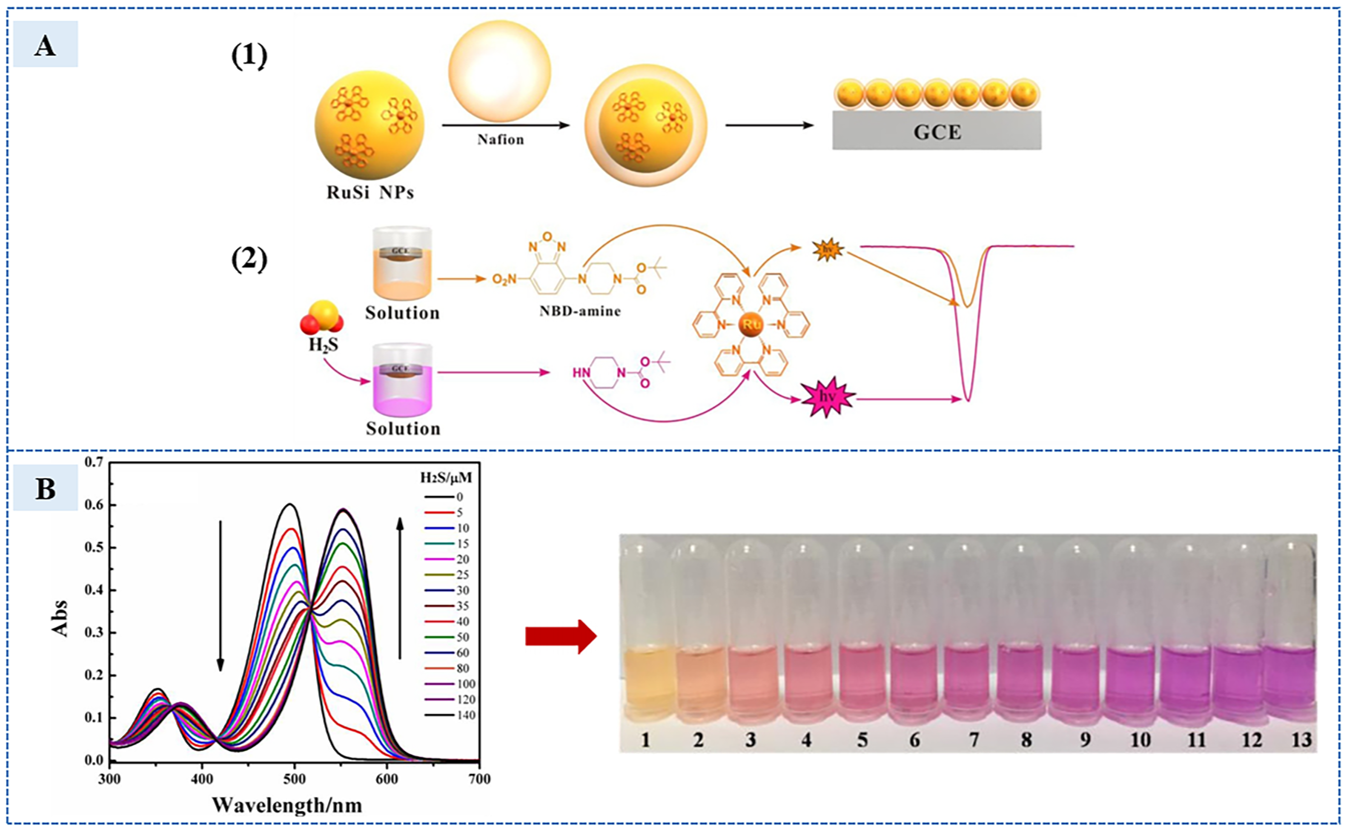

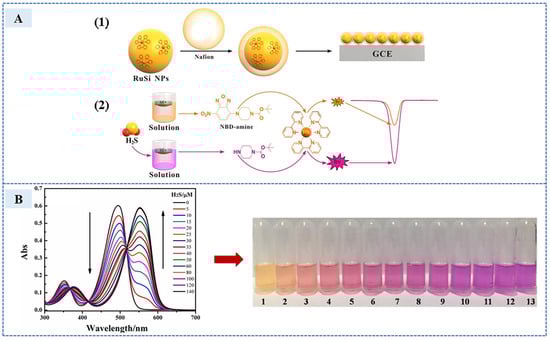

A H2S electrochemiluminescence (ECL) sensor was designed by immobilizing RuSi NPs on the surface of a glass carbon electrode using Nafion. After the addition of H2S, the thiolysis reaction occurs with the co-reactant NBD-amine to produce the thiolysis product NBD-SH-H, which released diamine. Diamine, as a co-reactant, participates in the electron transfer process of amine to ruthenium on the electrode surface, improving the ECL efficiency (RuSi NPs as a luminescent group). The increase in ECL efficiency improved sensor sensitivity. The manufacturing and reaction process of the sensor is shown in 1 and 2 of Figure 15A. The solution color changed from light orange to rose red as the absorbance decreased at 496 nm and a new absorption peak appeared at 555 nm, which is shown in the Figure 15B. The increase of ECL intensity (I) was linearly related to the logarithm of H2S concentration. The linear range was 1 × 10−10–10−5 mol/L, and the detection limit was 1.7 × 10−12 mol/L. It showed good selectivity in the detection of human serum H2S, and the recovery rate reached 100–105%. However, after H2S was added to the sensor, the ECL signal tended to stabilize for 180 min. The reaction time was too long. The long nucleophilic reaction time brings obstacles to real-time detection, which is one of the problems that some H2S sensors need to solve.
Some solutions to the problem of long nucleophilic reaction time are proposed. In 2017, Reja et al. [94] synthesized a molecule with dual nucleophilic center as a fluorescent sensor to increase the speed and reduce reaction time of nucleophilic reaction. In the presence of DIPEA and triphosgene, 2-bromoethanol reacted with methyl-protected fluorescein to obtain dual nucleophilic center molecules. The bromine group acts as the leaving group. When H2S was added, it replaced the bromine group by intermediate SH. Then the second nucleophilic substitution reaction operated, in which the thiol group of the intermediate acted as the nucleophilic reagent to eliminate the thiolactone and made the fluorescein ring open to produce fluorescence. The fluorescence intensity tended to be stable at 50 min, which reduced the nucleophilic reaction time to a certain extent. The sensor was used to detect H2S in C6 glioblastoma and BV-2 microglia cells, and was successfully applied to imaging H2S in rats with a detection limit of 0.13 μM and a linear range of 0–80 μM.
In 2018, Gomathi et al. [95] took 4-methyl-2,6-bis (1,4,5-triphenyl-1H-imidazol-2-yl) phenol as fluorophore and 2,4-Dinitrophenyl ether (DNP) with strong electron-absorbing properties as the identification of H2S, and developed a H2S fluorescence sensor called DFI. Because of the strong electron absorption ability of DNP, it easily underwent nucleophilic substitution reaction. Therefore, DNP group easily enhanced the reaction rate and shorten the reaction time. The addition of H2S results in nucleophilic substitution reaction with DNP, resulting in the fracture of alkoxy bond and the formation of electron-absorbing groups. Afterwards, the excited-state intramolecular proton transfer process occurs and enhances the fluorescence. The fluorescence intensity of the sensor tended to be stable at 16 min, and the reaction time was greatly reduced compared with the above two sensors. However, the nucleophilic substitution reaction process was still slightly hindered due to the steric effect between fluorophore unit and DNP moiety. The sensor was used for selective detection of H2S in HeLa cells. The detection limit was as low as 0.13 nM and a narrow linear range of 0–10 μM was attained.
In addition, in 2021, Zheng et al. [96] synthesized Schiff base ISPBI by condensation reaction with p-phenylenediamine and 6-bromoisatin as the precursors, followed by N-alkylation with n-C8H17Br. The 3,3’-(1,4-Phenylenebis(azaneylylidene)) bis(6-bromo-1-octylindolin-2-one) (C8-ISPBI) colorimetric H2S sensor was obtained. In order to reduce the reaction time, C8-ISPBI used an isatin moiety, and this electron-deficient carbon was an active sensing site vulnerable to nucleophilic addition of H2S. The reaction time stabilized at 15 s, which was greatly reduced compared to the previous fluorescence and colorimetric H2S sensors. The color of the solution changed from light orange to dark pink after nucleophilic addition. C8-ISPBI also showed sensitization effects under practical conditions, such as film-coated paper strips and dyed wearable textiles, providing practical applicability for wearable devices.
The methods reported above are based on the improvement of the sensitive materials. Since organisms and living cells need the materials with good biocompatibility, low toxicity, and good biological activity, there are certain limitations in the design and synthesis of the desired materials. At present, the sensor applied in the detection of H2S has not proposed a better solution to the long nucleophilic reaction time. More endeavors are needed in this aspect in the future.

4.3. Test Material Preparation

When using dyes to detect H2S, the synthesis and preparation of dyes are often complicated. Especially for compound dye, the number of synthesis steps is greater, and the synthesis time is longer. If there is poor stability of the dye, it needs to be re-prepared before each test to address this problem.
In 2020, Noh et al. [97] used squaric acid 3 and N,N-dimethylaniline in one step to synthesize a new rectangular dye for selective detection of H2S. One-step synthesis greatly simplifies the preparation process. However, the synthesis process was a slightly longer. After adding the prepared dye into SiO2 and transferring the detection medium from the liquid phase to the solid phase, the experimental verification can be stored at room temperature for about 10 days, showing a certain stability. Similarly, Fan et al. [87] also prepared dansyl derivative (DBr) by one-step synthesis, but the synthesis process required stirring at room temperature for 24 h and drying for 4 h to complete the preparation.
In view of the complex problem of dye synthesis, no better method has been proposed at present. In most cases, one-step synthesis of dyes simplifies the steps in the preparation process, but the synthesis time is long and cannot show good stability.

5. Summary and Outlook

As one of the gas neurotransmitters, H2S affects many physiological and medical processes. Therefore, there is an increasing need for the detection of H2S in organisms and living cells with high sensitivity, selectivity, fast and reliable detection, and preferable visibility to the naked eye. Electrochemical sensors have high sensitivity, fast detection, and portability. Fluorescent and colorimetric chemical sensors can provide visual detection. Such chemical sensors provide a platform to solve the problem of H2S detection. Several kinds of chemical sensors applied to the detection of H2S are reviewed in detail based on the different properties of H2S, and the existing problems and possible solutions of these sensors are presented. The performance of H2S chemical sensors can be improved from the following aspects:
  • Biocompatibility: Firstly, the detection materials with good biocompatibility and low toxicity should be applied. In addition, it can be combined with secondary substances with good biocompatibility, such as peptide-based substances, among others. Especially when detecting H2S via its metal affinity, metal ions are most likely to reduce cell activity or even cause toxicity to organisms. For this, precious metals, especially precious metal nanostructures such as gold nanoparticles/clusters, can be used, which have good biocompatibility. At present, a green and simple synthesis method has been proposed.
  • Sensitivity: The detection technology with high sensitivity, such as ECL technology, or the combination of several detection technologies, such as PEC technology and EC technology, can be used to improve the sensitivity of the electrochemical sensor. Secondly, the detection materials could be optimized, such as nanomaterials with multi-dimensional structure, which have excellent chemical and optical properties and can provide a larger specific surface area to play the sensitization effect. Alternatively, to employ materials with higher conductivity is instrumental for the improvement of the sensitivity of electrochemical sensors.
  • Reliability: Ratio detection, multi-channel detection, and multi-signal detection improve the reliability of sensors and ensure the accuracy of detection results by mutual evidence. With respect to the fluorescence chemical sensor, in order to solve the problem of false positives/false negatives, apart from the above methods, low background fluorescence interference and non-biological sample automatic fluorescence detection materials are preferable, such as UCNPs, PTMCs, etc.
  • Response time: Detection methods based on the reducibility and nucleophilicity of H2S ultimately lie in the gain and loss of electrons. As a reducing agent and nucleophilic reagent for the loss of electrons, H2S can be introduced into the detection materials to reduce the response time of the sensor by introducing electron-absorbing groups, parent nuclear molecules, or multiple catalytic systems.
In addition, there are several problems and challenges with sensors used to detect H2S:
  • Repeatability: H2S chemical sensors are mostly disposable, especially in fluorescence and colorimetric sensors, which cannot be reused. At present, almost all the repeatable chemical sensors are based on the affinity of H2S toward metal, which can be reused by repeated displacement or reversible reaction. However, the detection can only be repeated several times in a short period of time, which cannot guarantee the long-term stability, and the detection outcome becomes worse after multiple repetitions.
  • Detection medium: At present, the detection of H2S is mostly in the liquid phase because of less interference under this condition. In order to realize the wearable H2S-detection device, it is urgent to transfer the detection medium to the solid phase. In this way, sensors can be combined with materials such as thin films and fibers. At the same time, it is also necessary to improve the detection selectivity to prevent interference of other gases except common anions and biological mercaptans in the solid phase.
  • Detection limits: The amount of H2S in the human body is usually at the micromolar level, but in some systems, it is as low as the nanomolar level. Therefore, the detection limit of H2S sensor should be at least micromolar level, which can meet the detection in most cases. However, it is more necessary to develop sensors with detection limits of nanomolar and below so as to further realize the detection of very low content.
  • Dye preparation: The problem of complex dye preparation often exists when dyes are used to detect H2S. The one-step synthesis method reduces the synthesis steps to a certain extent, but at the cost of long synthesis period wherein poor long-term stability of materials after synthesis always exists. More research should be carried out to this end.
  • Real-time monitoring: Some H2S fluorescence and colorimetric chemical sensors possess long reaction time, which largely hinders the real-time monitoring. Therefore, it is very necessary to further improve the sensor sensitivity and shorten the response time.
In the process of summarizing the recent research advances of H2S chemical sensors for use in organisms and living cells, we realized that the research in this field is insufficient and many problems still need to be overcome. In H2S detection, the outstanding advantages of electrochemical sensors are high sensitivity and convenience. Fluorescent and colorimetric ones are characterized by visualization and suitable for in vivo imaging. If the sensor can be developed that combine with the advantages of the above chemical sensors, it will open up a new way for H2S detection and greatly improve the comprehensive performance of the H2S sensor. In the future, with the development and improvement of new nanomaterials, fluorescent dyes, wireless networks, and high-precision detection technologies, more new chemical sensors with favorable sensing performance will be designed to achieve real-time and visual detection to ensure the safety and health of physiological and pathological processes. Therefore, in this review, we hope to inspire readers to improve the method and open up new ways to further explore novel H2S chemical sensors with excellent properties.

Author Contributions

Conceptualization, X.L. and Y.Z.; methodology, M.Y.; validation, M.Y., K.W. and C.L.; investigation, M.X.; resources, X.S.; data curation, K.W.; writing—original draft preparation, M.Y.; writing—review and editing, X.L. and Y.Z.; supervision, X.L.; project administration, X.L. and Y.Z.; funding acquisition, X.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Natural Science Foundation of Chongqing, China (grant number CSTB2022NSCQ-MSX0560), the National foreign expert project (grant number G2022165024L), Graduate Research and Innovation Foundation of Chongqing, China (grant number CYS22108), Venture & Innovation Support Program for Chongqing Overseas Returnees and Fundamental Research Funds for the Central Universities (grant number 10611CDJXZ238826).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Szabo, C.; Ransy, C.; Módis, K.; Andriamihaja, M.; Murghes, B.; Coletta, C.; Olah, G.; Yanagi, K.; Bouillaud, F. Regulation of Mitochondrial Bioenergetic Function by Hydrogen Sulfide. Part I. Biochemical and Physiological Mechanisms: Biochemistry of H2S and Mitochondrial Function. Br. J. Pharmacol. 2014, 171, 2099–2122. [Google Scholar] [CrossRef] [Green Version]
  2. Gadalla, M.M.; Snyder, S.H. Hydrogen Sulfide as a Gasotransmitter. J. Neurochem. 2010, 113, 14–26. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Szabó, C. Hydrogen Sulphide and Its Therapeutic Potential. Nat. Rev. Drug Discov. 2007, 6, 917–935. [Google Scholar] [CrossRef] [PubMed]
  4. Szabo, C. Gasotransmitters in Cancer: From Pathophysiology to Experimental Therapy. Nat. Rev. Drug Discov. 2016, 15, 185–203. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Li, L.; Rose, P.; Moore, P.K. Hydrogen Sulfide and Cell Signaling. Annu. Rev. Pharmacol. Toxicol. 2011, 51, 169–187. [Google Scholar] [CrossRef] [Green Version]
  6. Dalapati, R.; Balaji, S.N.; Trivedi, V.; Khamari, L.; Biswas, S. A Dinitro-Functionalized Zr(IV)-Based Metal-Organic Framework as Colorimetric and Fluorogenic Probe for Highly Selective Detection of Hydrogen Sulphide. Sens. Actuators B Chem. 2017, 245, 1039–1049. [Google Scholar] [CrossRef]
  7. Oguz, A.; Oguz, M.; Kursunlu, A.N.; Yilmaz, M. A Fully Water-Soluble Calix[4]Arene Probe for Fluorometric and Colorimetric Detection of Toxic Hydrosulfide and Cyanide Ions: Practicability in Living Cells and Food Samples. Food Chem. 2023, 401, 134132. [Google Scholar] [CrossRef]
  8. Peng, H.; Cheng, Y.; Dai, C.; King, A.L.; Predmore, B.L.; Lefer, D.J.; Wang, B. A Fluorescent Probe for Fast and Quantitative Detection of Hydrogen Sulfide in Blood. Angew. Chem. Int. Ed. 2011, 50, 9672–9675. [Google Scholar] [CrossRef] [Green Version]
  9. Lin, V.S.; Chen, W.; Xian, M.; Chang, C.J. Chemical Probes for Molecular Imaging and Detection of Hydrogen Sulfide and Reactive Sulfur Species in Biological Systems. Chem. Soc. Rev. 2015, 44, 4596–4618. [Google Scholar] [CrossRef] [Green Version]
  10. Khattak, S.; Zhang, Q.-Q.; Sarfraz, M.; Muhammad, P.; Ngowi, E.E.; Khan, N.H.; Rauf, S.; Wang, Y.-Z.; Qi, H.-W.; Wang, D.; et al. The Role of Hydrogen Sulfide in Respiratory Diseases. Biomolecules 2021, 11, 682. [Google Scholar] [CrossRef]
  11. Zhang, X.; Zhou, W.; Yuan, Z.; Lu, C. Colorimetric Detection of Biological Hydrogen Sulfide Using Fluorosurfactant Functionalized Gold Nanorods. Analyst 2015, 140, 7443–7450. [Google Scholar] [CrossRef]
  12. Yuan, Z.; Lu, F.; Peng, M.; Wang, C.-W.; Tseng, Y.-T.; Du, Y.; Cai, N.; Lien, C.-W.; Chang, H.-T.; He, Y.; et al. Selective Colorimetric Detection of Hydrogen Sulfide Based on Primary Amine-Active Ester Cross-Linking of Gold Nanoparticles. Anal. Chem. 2015, 87, 7267–7273. [Google Scholar] [CrossRef] [PubMed]
  13. Hu, X.-B.; Liu, Y.-L.; Zhang, H.-W.; Xiao, C.; Qin, Y.; Duo, H.-H.; Xu, J.-Q.; Guo, S.; Pang, D.-W.; Huang, W.-H. Electrochemical Monitoring of Hydrogen Sulfide Release from Single Cells. ChemElectroChem 2016, 3, 1998–2002. [Google Scholar] [CrossRef]
  14. Nagarkar, S.S.; Saha, T.; Desai, A.V.; Talukdar, P.; Ghosh, S.K. Metal-Organic Framework Based Highly Selective Fluorescence Turn-on Probe for Hydrogen Sulphide. Sci. Rep. 2015, 4, 7053. [Google Scholar] [CrossRef] [Green Version]
  15. Wu, X.; Lu, Y.; Liu, B.; Chen, Y.; Zhang, J.; Zhou, Y. A H2S-Triggered Two-Photon Ratiometric Fluorescent Theranostic Prodrug for Bio-Imaging. Chin. Chem. Lett. 2021, 32, 2380–2384. [Google Scholar] [CrossRef]
  16. Yao, L.; Zhang, W.; Yin, C.; Zhang, Y.; Huo, F. A Tracer-Type Fluorescent Probe for Imaging Adenosine Triphosphate under the Stresses of Hydrogen Sulfide and Hydrogen Peroxide in Living Cells. Analyst 2022, 147, 4222–4227. [Google Scholar] [CrossRef]
  17. Kumar, N.; Bhalla, V.; Kumar, M. Recent Developments of Fluorescent Probes for the Detection of Gasotransmitters (NO, CO and H2S). Coord. Chem. Rev. 2013, 257, 2335–2347. [Google Scholar] [CrossRef]
  18. El-Shaheny, R.; Belal, F.; El-Shabrawy, Y.; El-Maghrabey, M. Nanostructures-Based Sensing Strategies for Hydrogen Sulfide. Trends Environ. Anal. Chem. 2021, 31, e00133. [Google Scholar] [CrossRef]
  19. Meng, Q.; Shi, Y.; Wang, C.; Jia, H.; Gao, X.; Zhang, R.; Wang, Y.; Zhang, Z. NBD-Based Fluorescent Chemosensor for the Selective Quantification of Copper and Sulfide in an Aqueous Solution and Living Cells. Org. Biomol. Chem. 2015, 13, 2918–2926. [Google Scholar] [CrossRef] [PubMed]
  20. Guo, Y.; Gong, Y.; Qi, L.; Gao, Y.; Yu, L. A Polyoxometalate-Based Supramolecular Chemosensor for Rapid Detection of Hydrogen Sulfide with Dual Signals. J. Colloid Interf. Sci. 2017, 485, 280–287. [Google Scholar] [CrossRef]
  21. Wang, S.; Ding, H.; Wang, Y.; Fan, C.; Tu, Y.; Liu, G.; Pu, S. An “off–on–off” Sensor for Sequential Detection of Cu2+ and Hydrogen Sulfide Based on a Naphthalimide–Rhodamine B Derivative and Its Application in Dual-Channel Cell Imaging. RSC Adv. 2018, 8, 33121–33128. [Google Scholar] [CrossRef] [Green Version]
  22. Zhao, Y.; Yang, Y.; Cui, L.; Zheng, F.; Song, Q. Electroactive Au@Ag Nanoparticles Driven Electrochemical Sensor for Endogenous H2S Detection. Biosens. Bioelectron. 2018, 117, 53–59. [Google Scholar] [CrossRef] [PubMed]
  23. Ornet-Martínez, N.; Hakobyan, L.; Argente-García, A.I.; Molins-Legua, C.; Campíns-Falcó, P. Nylon-Supported Plasmonic Assay Based on the Aggregation of Silver Nanoparticles: In Situ Determination of Hydrogen Sulfide-like Compounds in Breath Samples as a Proof of Concept. ACS Sens. 2019, 4, 2164–2172. [Google Scholar] [CrossRef] [PubMed]
  24. Cha, J.-H.; Kim, D.-H.; Choi, S.-J.; Koo, W.-T.; Kim, I.-D. Sub-Parts-per-Million Hydrogen Sulfide Colorimetric Sensor: Lead Acetate Anchored Nanofibers toward Halitosis Diagnosis. Anal. Chem. 2018, 90, 8769–8775. [Google Scholar] [CrossRef] [PubMed]
  25. Wu, P.; Zhang, J.; Wang, S.; Zhu, A.; Hou, X. Sensing during In Situ Growth of Mn-Doped ZnS QDs: A Phosphorescent Sensor for Detection of H2S in Biological Samples. Chem. Eur. J. 2014, 20, 952–956. [Google Scholar] [CrossRef] [PubMed]
  26. Bu, D.; Wang, Y.; Wu, N.; Feng, W.; Wei, D.; Li, Z.; Yu, M. A Mitochondrial-Targeted Ratiometric Probe for Detecting Intracellular H2S with High Photostability. Chin. Chem. Lett. 2021, 32, 1799–1802. [Google Scholar] [CrossRef]
  27. Yang, Y.; Lei, Y.; Zhang, X.; Zhang, S. A Ratiometric Strategy to Detect Hydrogen Sulfide with a Gold Nanoclusters Based Fluorescent Probe. Talanta 2016, 154, 190–196. [Google Scholar] [CrossRef] [PubMed]
  28. Liu, J.; Duan, C.; Zhang, W.; Ta, H.T.; Yuan, J.; Zhang, R.; Xu, Z.P. Responsive Nanosensor for Ratiometric Luminescence Detection of Hydrogen Sulfide in Inflammatory Cancer Cells. Anal. Chim. Acta 2020, 1103, 156–163. [Google Scholar] [CrossRef] [PubMed]
  29. Shang, H.; Xu, H.; Wang, C.; Chen, C.; Wang, C.; Jin, L.; Du, Y. A New Ratiometric Electrochemical Sensor Using Electroactive GO/MB/Ag Nanocomposites for H2S Detection in Biological Samples. J. Nanopart. Res. 2020, 22, 75. [Google Scholar] [CrossRef]
  30. Jarosz, A.P.; Yep, T.; Mutus, B. Microplate-Based Colorimetric Detection of Free Hydrogen Sulfide. Anal. Chem. 2013, 85, 3638–3643. [Google Scholar] [CrossRef]
  31. Xu, H.; Shang, H.; Liu, Q.; Wang, C.; Di, J.; Chen, C.; Jin, L.; Du, Y. Dual Mode Electrochemical-Photoelectrochemical Sensing Platform for Hydrogen Sulfide Detection Based on the Inhibition Effect of Titanium Dioxide/Bismuth Tungstate/Silver Heterojunction. J. Colloid Interf. Sci. 2021, 581, 323–333. [Google Scholar] [CrossRef]
  32. Chen, Z.; Chen, G.; Lin, W.; Li, J.; Fang, L.; Wang, X.; Zhang, Y.; Chen, Y.; Lin, Z. Signal-On and Highly Sensitive Electrochemiluminescence Biosensor for Hydrogen Sulfide in Joint Fluid Based on Silver-Ion-Mediated Base Pairs and Hybridization Chain Reaction. Chemosensors 2022, 10, 250. [Google Scholar] [CrossRef]
  33. Gao, Z.; Tang, D.; Tang, D.; Niessner, R.; Knopp, D. Target-Induced Nanocatalyst Deactivation Facilitated by Core@Shell Nanostructures for Signal-Amplified Headspace-Colorimetric Assay of Dissolved Hydrogen Sulfide. Anal. Chem. 2015, 87, 10153–10160. [Google Scholar] [CrossRef]
  34. Li, J.; Zhao, H.; Wang, Y.; Zhang, R.; Zou, C.; Zhou, Y. Mesoporous WS2-Decorated Cellulose Nanofiber-Templated CuO Heterostructures for High-Performance Chemiresistive Hydrogen Sulfide Sensors. Anal. Chem. 2022, 94, 16160–16170. [Google Scholar] [CrossRef]
  35. Viles, J.H. Metal Ions and Amyloid Fiber Formation in Neurodegenerative Diseases. Copper, Zinc and Iron in Alzheimer’s, Parkinson’s and Prion Diseases. Coord. Chem. Rev. 2012, 256, 2271–2284. [Google Scholar] [CrossRef]
  36. Ding, L.; Ma, C.; Li, L.; Zhang, L.; Yu, J. A Photoelectrochemical Sensor for Hydrogen Sulfide in Cancer Cells Based on the Covalently and in Situ Grafting of CdS Nanoparticles onto TiO2 Nanotubes. J. Electroanal. Chem. 2016, 783, 176–181. [Google Scholar] [CrossRef]
  37. Hao, C.; Li, Y.; Fan, B.; Zeng, G.; Zhang, D.; Bian, Z.; Wu, J. A New Peptide-Based Chemosensor for Selective Imaging of Copper Ion and Hydrogen Sulfide in Living Cells. Microchem. J. 2020, 154, 104658. [Google Scholar] [CrossRef]
  38. Liang, M.; Chen, Y.; Zhang, H.; Niu, X.; Xu, L.; Ren, C.; Chen, X. Fluorescence Resonance Energy Transfer-Based Ratiometric Fluorescent Assay for Highly Sensitive and Selective Determination of Sulfide Anions. Analyst 2015, 140, 6711–6719. [Google Scholar] [CrossRef]
  39. Zhang, Y.; Li, M.; Niu, Q.; Gao, P.; Zhang, G.; Dong, C.; Shuang, S. Gold Nanoclusters as Fluorescent Sensors for Selective and Sensitive Hydrogen Sulfide Detection. Talanta 2017, 171, 143–151. [Google Scholar] [CrossRef]
  40. Rosolina, S.M.; Carpenter, T.S.; Xue, Z.-L. Bismuth-Based, Disposable Sensor for the Detection of Hydrogen Sulfide Gas. Anal. Chem. 2016, 88, 1553–1558. [Google Scholar] [CrossRef] [PubMed]
  41. Chen, P.-C.; Li, Y.-C.; Ma, J.-Y.; Huang, J.-Y.; Chen, C.-F.; Chang, H.-T. Size-Tunable Copper Nanocluster Aggregates and Their Application in Hydrogen Sulfide Sensing on Paper-Based Devices. Sci. Rep. 2016, 6, 24882. [Google Scholar] [CrossRef] [Green Version]
  42. Sarfraz, J.; Rosqvist, E.; Ihalainen, P.; Peltonen, J. Electro-Optical Gas Sensor Consisting of Nanostructured Paper Coating and an Ultrathin Sensing Element. Chemosensors 2019, 7, 23. [Google Scholar] [CrossRef] [Green Version]
  43. Carrero-Ferrer, I.; Molins-Legua, C.; Campíns-Falcó, P. Plasmonic Sensor for Hydrogen Sulphide in Saliva: Multisensor Platform and Bag Format. Talanta 2022, 245, 123449. [Google Scholar] [CrossRef] [PubMed]
  44. Li, Z.; Wang, N.; Lin, Z.; Wang, J.; Liu, W.; Sun, K.; Fu, Y.Q.; Wang, Z. Room-Temperature High-Performance H2S Sensor Based on Porous CuO Nanosheets Prepared by Hydrothermal Method. ACS Appl. Mater. Interfaces 2016, 8, 20962–20968. [Google Scholar] [CrossRef] [PubMed]
  45. Xu, Q.; Gu, Z.; Xing, G. Design and Synthesis of a Cu(II)-Complex-Based Carbazole-Hemicyanine Hybrid for Fluorescent Sensing of H2S in SDS Micellar Solution. Tetrahedron 2017, 73, 2123–2130. [Google Scholar] [CrossRef]
  46. Strianese, M.; Lamberti, M.; Pellecchia, C. Chemically Reversible Binding of H2S to a Zinc Porphyrin Complex: Towards Implementation of a Reversible Sensor via a “Coordinative-Based Approach”. Dalton Trans. 2017, 46, 1872–1877. [Google Scholar] [CrossRef] [PubMed]
  47. Dulac, M.; Melet, A.; Galardon, E. Reversible Detection and Quantification of Hydrogen Sulfide by Fluorescence Using the Hemoglobin I from Lucina Pectinata. ACS Sens. 2018, 3, 2138–2144. [Google Scholar] [CrossRef] [PubMed]
  48. Zhou, G.; Wang, H.; Ma, Y.; Chen, X. An NBD Fluorophore-Based Colorimetric and Fluorescent Chemosensor for Hydrogen Sulfide and Its Application for Bioimaging. Tetrahedron 2013, 69, 867–870. [Google Scholar] [CrossRef]
  49. Zheng, K.; Lin, W.; Tan, L. A Phenanthroimidazole-Based Fluorescent Chemosensor for Imaging Hydrogen Sulfide in Living Cells. Org. Biomol. Chem. 2012, 10, 9683–9688. [Google Scholar] [CrossRef]
  50. Sun, W.; Fan, J.; Hu, C.; Cao, J.; Zhang, H.; Xiong, X.; Wang, J.; Cui, S.; Sun, S.; Peng, X. A Two-Photon Fluorescent Probe with near-Infrared Emission for Hydrogen Sulfide Imaging in Biosystems. Chem. Commun. 2013, 49, 3890–3892. [Google Scholar] [CrossRef]
  51. Chen, S.; Chen, Z.; Ren, W.; Ai, H. Reaction-Based Genetically Encoded Fluorescent Hydrogen Sulfide Sensors. J. Am. Chem. Soc. 2012, 134, 9589–9592. [Google Scholar] [CrossRef] [PubMed]
  52. Manibalan, K.; Mani, V.; Chang, P.-C.; Huang, C.-H.; Huang, S.-T.; Marchlewicz, K.; Neethirajan, S. Electrochemical Latent Redox Ratiometric Probes for Real-Time Tracking and Quantification of Endogenous Hydrogen Sulfide Production in Living Cells. Biosens. Bioelectron. 2017, 96, 233–238. [Google Scholar] [CrossRef]
  53. Wang, S.; Liu, X.; Zhang, M. Reduction of Ammineruthenium(III) by Sulfide Enables In Vivo Electrochemical Monitoring of Free Endogenous Hydrogen Sulfide. Anal. Chem. 2017, 89, 5382–5388. [Google Scholar] [CrossRef] [PubMed]
  54. Gatty, H.; Stemme, G.; Roxhed, N. A Miniaturized Amperometric Hydrogen Sulfide Sensor Applicable for Bad Breath Monitoring. Micromachines 2018, 9, 612. [Google Scholar] [CrossRef] [Green Version]
  55. Sun, K.; Liu, X.; Wang, Y.; Wu, Z. A Polymer-Based Turn-on Fluorescent Sensor for Specific Detection of Hydrogen Sulfide. RSC Adv. 2013, 3, 14543–14548. [Google Scholar] [CrossRef]
  56. Kim, G.; Jang, E.; Page, A.M.; Ding, T.; Carlson, K.A.; Cao, H. Investigation of a Sensing Approach Based on a Rapid Reduction of Azide to Selectively Measure Bioavailability of H2S. RSC Adv. 2016, 6, 95920–95924. [Google Scholar] [CrossRef]
  57. Zhang, W.; Huo, F.; Yin, C. Photocontrolled Single-/Dual-Site Alternative Fluorescence Probes Distinguishing Detection of H2S/SO2 In Vivo. Org. Lett. 2019, 21, 5277–5280. [Google Scholar] [CrossRef] [PubMed]
  58. Jothi, D.; Iyer, S.K. A Highly Sensitive Naphthalimide Based Fluorescent “Turn-on” Sensor for H2S and Its Bio-Imaging Applications. J. Photochem. Photobiol. A Chem. 2022, 427, 113802. [Google Scholar] [CrossRef]
  59. Hall, J.R.; Schoenfisch, M.H. Direct Electrochemical Sensing of Hydrogen Sulfide without Sulfur Poisoning. Anal. Chem. 2018, 90, 5194–5200. [Google Scholar] [CrossRef]
  60. Kim, S.G.; Tran, T.V.; Lee, J.S. Iron Oxide-Immobilized Porous Carbon Nanofiber-Based Radio Frequency Identification (RFID) Tag Sensor for Detecting Hydrogen Sulfide. J. Ind. Eng. Chem. 2022, 112, 423–429. [Google Scholar] [CrossRef]
  61. Li, D.-W.; Qu, L.-L.; Hu, K.; Long, Y.-T.; Tian, H. Monitoring of Endogenous Hydrogen Sulfide in Living Cells Using Surface-Enhanced Raman Scattering. Angew. Chem. Int. Ed. 2015, 54, 12758–12761. [Google Scholar] [CrossRef] [PubMed]
  62. Yu, C.; Li, X.; Zeng, F.; Zheng, F.; Wu, S. Carbon-Dot-Based Ratiometric Fluorescent Sensor for Detecting Hydrogen Sulfide in Aqueous Media and inside Live Cells. Chem. Commun. 2013, 49, 403–405. [Google Scholar] [CrossRef] [PubMed]
  63. Youssef, S.; Zhang, S.; Ai, H. A Genetically Encoded, Ratiometric Fluorescent Biosensor for Hydrogen Sulfide. ACS Sens. 2019, 4, 1626–1632. [Google Scholar] [CrossRef]
  64. Yao, Y.; Kong, C.; Yin, L.; Jain, A.D.; Ratia, K.; Thatcher, G.R.J.; Moore, T.W.; Driver, T.G.; Miller, L.W. Time-Gated Detection of Cystathionine γ-Lyase Activity and Inhibition with a Selective, Luminogenic Hydrogen Sulfide Sensor. Chem. Eur. J. 2017, 23, 752–756. [Google Scholar] [CrossRef] [Green Version]
  65. Yeh, H.-W.; Karmach, O.; Ji, A.; Carter, D.; Martins-Green, M.M.; Ai, H. Red-Shifted Luciferase–Luciferin Pairs for Enhanced Bioluminescence Imaging. Nat. Methods 2017, 14, 971–974. [Google Scholar] [CrossRef] [PubMed]
  66. Ozdemir, T.; Sozmen, F.; Mamur, S.; Tekinay, T.; Akkaya, E.U. Fast Responding and Selective Near-IR Bodipy Dye for Hydrogen Sulfide Sensing. Chem. Commun. 2014, 50, 5455–5457. [Google Scholar] [CrossRef] [Green Version]
  67. Ji, A.; Fan, Y.; Ren, W.; Zhang, S.; Ai, H. A Sensitive Near-Infrared Fluorescent Sensor for Mitochondrial Hydrogen Sulfide. ACS Sens. 2018, 3, 992–997. [Google Scholar] [CrossRef] [PubMed]
  68. Silindir-Gunay, M.; Sarcan, E.T.; Ozer, A.Y. Near-infrared Imaging of Diseases: A Nanocarrier Approach. Drug Dev. Res. 2019, 80, 521–534. [Google Scholar] [CrossRef]
  69. Asif, M.; Aziz, A.; Wang, Z.; Ashraf, G.; Wang, J.; Luo, H.; Chen, X.; Xiao, F.; Liu, H. Hierarchical CNTs@CuMn Layered Double Hydroxide Nanohybrid with Enhanced Electrochemical Performance in H2S Detection from Live Cells. Anal. Chem. 2019, 91, 3912–3920. [Google Scholar] [CrossRef]
  70. Jha, R.K.; D’Costa, J.V.; Sakhuja, N.; Bhat, N. MoSe2 Nanoflakes Based Chemiresistive Sensors for Ppb-Level Hydrogen Sulfide Gas Detection. Sens. Actuators B Chem. 2019, 297, 126687. [Google Scholar] [CrossRef] [Green Version]
  71. Liu, X.; He, L.; Li, P.; Li, X.; Zhang, P. A Direct Electrochemical H2S Sensor Based on Ti3C2Tx MXene. ChemElectroChem 2021, 8, 3658–3665. [Google Scholar] [CrossRef]
  72. Choi, S.-A.; Park, C.S.; Kwon, O.S.; Giong, H.-K.; Lee, J.-S.; Ha, T.H.; Lee, C.-S. Structural Effects of Naphthalimide-Based Fluorescent Sensor for Hydrogen Sulfide and Imaging in Live Zebrafish. Sci. Rep. 2016, 6, 26203. [Google Scholar] [CrossRef] [Green Version]
  73. Kim, D.-H.; Jang, J.-S.; Koo, W.-T.; Choi, S.-J.; Cho, H.-J.; Kim, M.-H.; Kim, S.-J.; Kim, I.-D. Bioinspired Cocatalysts Decorated WO3 Nanotube Toward Unparalleled Hydrogen Sulfide Chemiresistor. ACS Sens. 2018, 3, 1164–1173. [Google Scholar] [CrossRef]
  74. Xu, Q.; He, L.; Wei, H.; Lin, W. An ICT-Based Hydrogen Sulfide Sensor with Good Water Solubility for Fluorescence Imaging in Living Cells. J. Fluoresc. 2018, 28, 5–11. [Google Scholar] [CrossRef]
  75. Zhang, X.; Zhang, Q.; Yue, D.; Zhang, J.; Wang, J.; Li, B.; Yang, Y.; Cui, Y.; Qian, G. Flexible Metal-Organic Framework-Based Mixed-Matrix Membranes: A New Platform for H2S Sensors. Small 2018, 14, 1801563. [Google Scholar] [CrossRef] [PubMed]
  76. Ma, T.; Huo, F.; Wen, Y.; Glass, T.E.; Yin, C. A Novel Water-Soluble Fluorescence Probe Based on ICT Lighten for Detecting Hydrogen Sulfide and Its Application in Bioimaging. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2019, 214, 355–359. [Google Scholar] [CrossRef]
  77. Wang, X.; Sun, J.; Zhang, W.; Ma, X.; Lv, J.; Tang, B. A Near-Infrared Ratiometric Fluorescent Probe for Rapid and Highly Sensitive Imaging of Endogenous Hydrogen Sulfide in Living Cells. Chem. Sci. 2013, 4, 2551–2556. [Google Scholar] [CrossRef]
  78. Feng, X.; Zhang, T.; Liu, J.-T.; Miao, J.-Y.; Zhao, B.-X. A New Ratiometric Fluorescent Probe for Rapid, Sensitive and Selective Detection of Endogenous Hydrogen Sulfide in Mitochondria. Chem. Commun. 2016, 52, 3131–3134. [Google Scholar] [CrossRef] [PubMed]
  79. Liu, C.; Peng, B.; Li, S.; Park, C.-M.; Whorton, A.R.; Xian, M. Reaction Based Fluorescent Probes for Hydrogen Sulfide. Org. Lett. 2012, 14, 2184–2187. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  80. Wang, H.; Yang, D.; Tan, R.; Zhou, Z.J.; Xu, R.; Zhang, J.F.; Zhou, Y. A Cyanine-Based Colorimetric and Fluorescence Probe for Detection of Hydrogen Sulfide in Vivo. Sens. Actuators B Chem. 2017, 247, 883–888. [Google Scholar] [CrossRef]
  81. Du, Z.; Song, B.; Zhang, W.; Duan, C.; Wang, Y.-L.; Liu, C.; Zhang, R.; Yuan, J. Quantitative Monitoring and Visualization of Hydrogen Sulfide In Vivo Using a Luminescent Probe Based on a Ruthenium(II) Complex. Angew. Chem. Int. Ed. 2018, 57, 3999–4004. [Google Scholar] [CrossRef] [PubMed]
  82. Yang, Y.; Yin, C.; Huo, F.; Zhang, Y.; Chao, J. A Ratiometric Colorimetric and Fluorescent Chemosensor for Rapid Detection Hydrogen Sulfide and Its Bioimaging. Sens. Actuators B Chem. 2014, 203, 596–601. [Google Scholar] [CrossRef]
  83. Karakuş, E.; Üçüncü, M.; Emrullahoğlu, M. Electrophilic Cyanate as a Recognition Motif for Reactive Sulfur Species: Selective Fluorescence Detection of H2S. Anal. Chem. 2016, 88, 1039–1043. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. Chen, Y.; Shang, X.; Li, C.; Xue, Z.; Chen, H.; Wu, H.; Wang, T. The Synthesis, Crystal, Hydrogen Sulfide Detection and Cell Assement of Novel Chemsensors Based on Coumarin Derivatives. Sci. Rep. 2018, 8, 16159. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  85. Wang, L.; Yang, W.; Song, Y.; Hu, Y. Novel Turn-on Fluorescence Sensor for Detection and Imaging of Endogenous H2S Induced by Sodium Nitroprusside. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2020, 243, 118775. [Google Scholar] [CrossRef] [PubMed]
  86. Ma, T.; Huo, F.; Yin, C. A ‘Naked-Eye’ Ratiometric and NIR Fluorescent Detection for Hydrogen Sulphide with Quick Response and High Selectivity for and Its Bioimaging. Dyes Pigm. 2019, 165, 31–37. [Google Scholar] [CrossRef]
  87. Fan, J.; Wu, E.; Dong, J.; Zhu, R.; Li, M.; Gao, J.; Han, H.; Ding, L. A Minimalist Ratiometric Fluorescent Sensor Based on Non-Covalent Ternary Platform for Sensing H2S in Aqueous Solution and Serum. Colloid Surf. A Physicochem. Eng. Aspects 2021, 616, 126299. [Google Scholar] [CrossRef]
  88. Wang, J.; Lin, W.; Li, W. Three-Channel Fluorescent Sensing via Organic White Light-Emitting Dyes for Detection of Hydrogen Sulfide in Living Cells. Biomaterials 2013, 34, 7429–7436. [Google Scholar] [CrossRef]
  89. Zhang, W.; Kang, J.; Li, P.; Wang, H.; Tang, B. Dual Signaling Molecule Sensor for Rapid Detection of Hydrogen Sulfide Based on Modified Tetraphenylethylene. Anal. Chem. 2015, 87, 8964–8969. [Google Scholar] [CrossRef] [PubMed]
  90. Ma, C.; Wu, W.; Peng, Y.; Wang, M.-X.; Chen, G.; Chen, Z.; Zhu, J.-J. A Spectral Shift-Based Electrochemiluminescence Sensor for Hydrogen Sulfide. Anal. Chem. 2018, 90, 1334–1339. [Google Scholar] [CrossRef]
  91. Peng, J.; Teoh, C.L.; Zeng, X.; Samanta, A.; Wang, L.; Xu, W.; Su, D.; Yuan, L.; Liu, X.; Chang, Y.-T. Development of a Highly Selective, Sensitive, and Fast Response Upconversion Luminescent Platform for Hydrogen Sulfide Detection. Adv. Funct. Mater. 2016, 26, 191–199. [Google Scholar] [CrossRef]
  92. Yu, Q.; Zhang, K.Y.; Liang, H.; Zhao, Q.; Yang, T.; Liu, S.; Zhang, C.; Shi, Z.; Xu, W.; Huang, W. Dual-Emissive Nanohybrid for Ratiometric Luminescence and Lifetime Imaging of Intracellular Hydrogen Sulfide. ACS Appl. Mater. Interfaces 2015, 7, 5462–5470. [Google Scholar] [CrossRef] [PubMed]
  93. Huang, J.; Qu, W.; Zhu, J.; Liu, H.; Wen, W.; Zhang, X.; Wang, S. Electrochemiluminescent Sensor Based on Ru(Bpy)32+-Doped Silica Nanoprobe by Incorporating a New Co-Reactant NBD-Amine for Selective Detection of Hydrogen Sulfide. Sens. Actuators B Chem. 2019, 284, 451–455. [Google Scholar] [CrossRef]
  94. Reja, S.I.; Sharma, N.; Gupta, M.; Bajaj, P.; Bhalla, V.; Parihar, R.D.; Ohri, P.; Kaur, G.; Kumar, M. A Highly Selective Fluorescent Probe for Detection of Hydrogen Sulfide in Living Systems: In Vitro and In Vivo Applications. Chem. Eur. J. 2017, 23, 9872–9878. [Google Scholar] [CrossRef] [PubMed]
  95. Asaithambi, G.; Periasamy, V. Hydrogen Sulfide Detection by ESIPT Based Fluorescent Sensor: Potential in Living Cells Imaging. J. Photochem. Photobiol. A Chem. 2019, 369, 97–105. [Google Scholar] [CrossRef]
  96. Zheng, J.; Noh, H.L.; Chun, H.W.; Oh, B.M.; Lee, J.; Choi, S.-K.; Kim, E.; Jung, D.; Lee, W.S.; Kim, J.H. Highly Sensitive, Selective, and Rapid Response Colorimetric Chemosensor for Naked Eye Detection of Hydrogen Sulfide Gas under Versatile Conditions: Solution, Thin-Film, and Wearable Fabric. Sens. Actuators B Chem. 2021, 341, 130013. [Google Scholar] [CrossRef]
  97. Noh, H.L.; Oh, B.M.; Park, Y.K.; Chun, H.W.; Lee, J.; Kim, J.K.; Zheng, J.; Jung, D.; Lee, W.; Kim, J.H. Chromogenic Detection of Hydrogen Sulfide Using Squarylium-Based Chemosensors. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2020, 239, 118457. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Common competitive analytes in organisms and living cells.
Figure 1. Common competitive analytes in organisms and living cells.
Sensors 23 03316 g001
Figure 2. Diagram of chemical sensors for H2S detection.
Figure 2. Diagram of chemical sensors for H2S detection.
Sensors 23 03316 g002

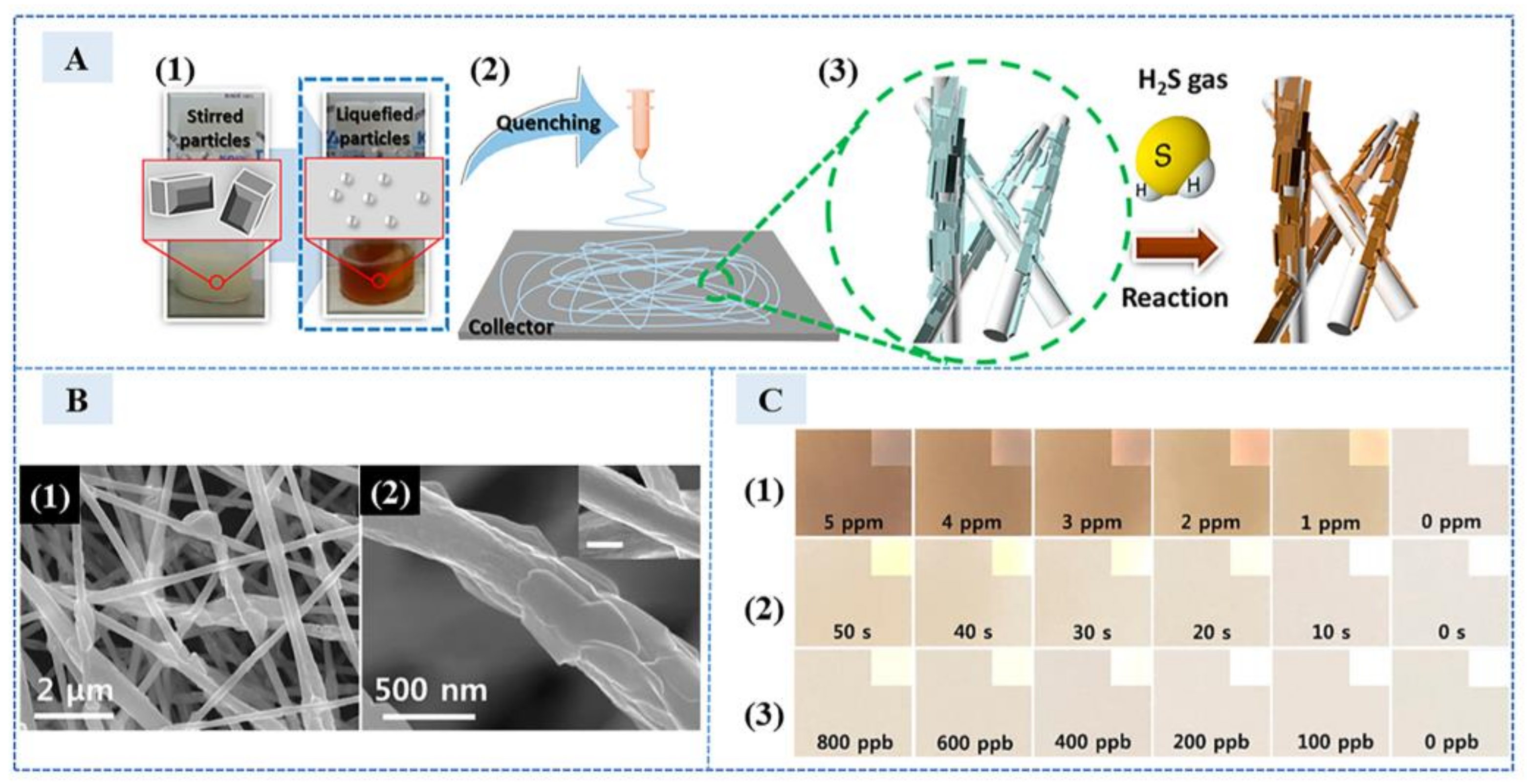

Figure 3. (A) Schematic illustrations of (1) high-temperature stirring (HTS), (2) electrospinning for synthesis of Pb(Ac)2@NFs, and (3) color change of Pb(Ac)2@NFs on exposure to H2S gas molecules. (B) Scanning electron microscopy (SEM) images of (1) HTS-Pb(Ac)2@NFs, (2) a strand of HTS-Pb(Ac)2@NFs (scale bar in the inset corresponds to 500 nm). (C) Photography images of HTS-Pb(Ac)2@NFs after (1) exposure to various concentrations (5−1 ppm) of H2S for 1 min, (2) exposure to 1 ppm of H2S for various exposure times (50−10 s), and (3) exposure to H2S in the concentration range from 800 to 100 ppb for 1 min (the insets indicate images modified to +20% lightness and −40% contrast). (Reprinted with permission from Ref. [24]. 2018, Cha et al.).
Figure 3. (A) Schematic illustrations of (1) high-temperature stirring (HTS), (2) electrospinning for synthesis of Pb(Ac)2@NFs, and (3) color change of Pb(Ac)2@NFs on exposure to H2S gas molecules. (B) Scanning electron microscopy (SEM) images of (1) HTS-Pb(Ac)2@NFs, (2) a strand of HTS-Pb(Ac)2@NFs (scale bar in the inset corresponds to 500 nm). (C) Photography images of HTS-Pb(Ac)2@NFs after (1) exposure to various concentrations (5−1 ppm) of H2S for 1 min, (2) exposure to 1 ppm of H2S for various exposure times (50−10 s), and (3) exposure to H2S in the concentration range from 800 to 100 ppb for 1 min (the insets indicate images modified to +20% lightness and −40% contrast). (Reprinted with permission from Ref. [24]. 2018, Cha et al.).
Sensors 23 03316 g003
Figure 4. (A) Preparation process of TiO2/Bi2WO6 and Ag nanocubes; (B) Schematic illustration of the fabrication of dual-mode sensor for the H2S detection, and the proposed photocurrent signal on–off sensing mechanism based on the TiO2/Bi2WO6/Ag in the absence (1) and presence (2) of H2S. (Reprinted with permission from Ref. [31]. 2021, Xu et al.).
Figure 4. (A) Preparation process of TiO2/Bi2WO6 and Ag nanocubes; (B) Schematic illustration of the fabrication of dual-mode sensor for the H2S detection, and the proposed photocurrent signal on–off sensing mechanism based on the TiO2/Bi2WO6/Ag in the absence (1) and presence (2) of H2S. (Reprinted with permission from Ref. [31]. 2021, Xu et al.).
Sensors 23 03316 g004

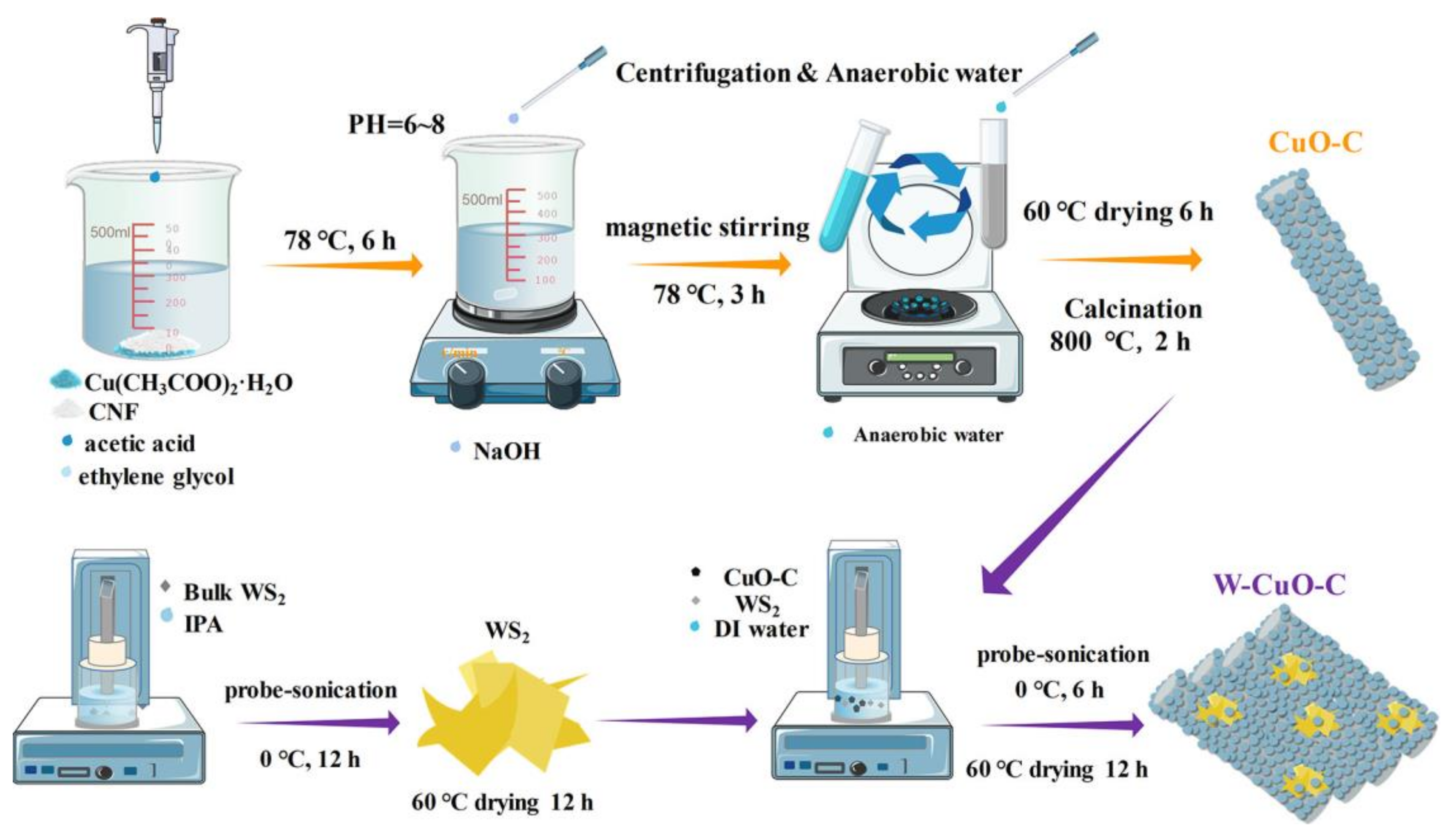

Figure 5. Schematic illustration of material preparation procedures. (Reprinted with permission from Ref. [34]. 2022, Li et al.).
Figure 5. Schematic illustration of material preparation procedures. (Reprinted with permission from Ref. [34]. 2022, Li et al.).
Sensors 23 03316 g005

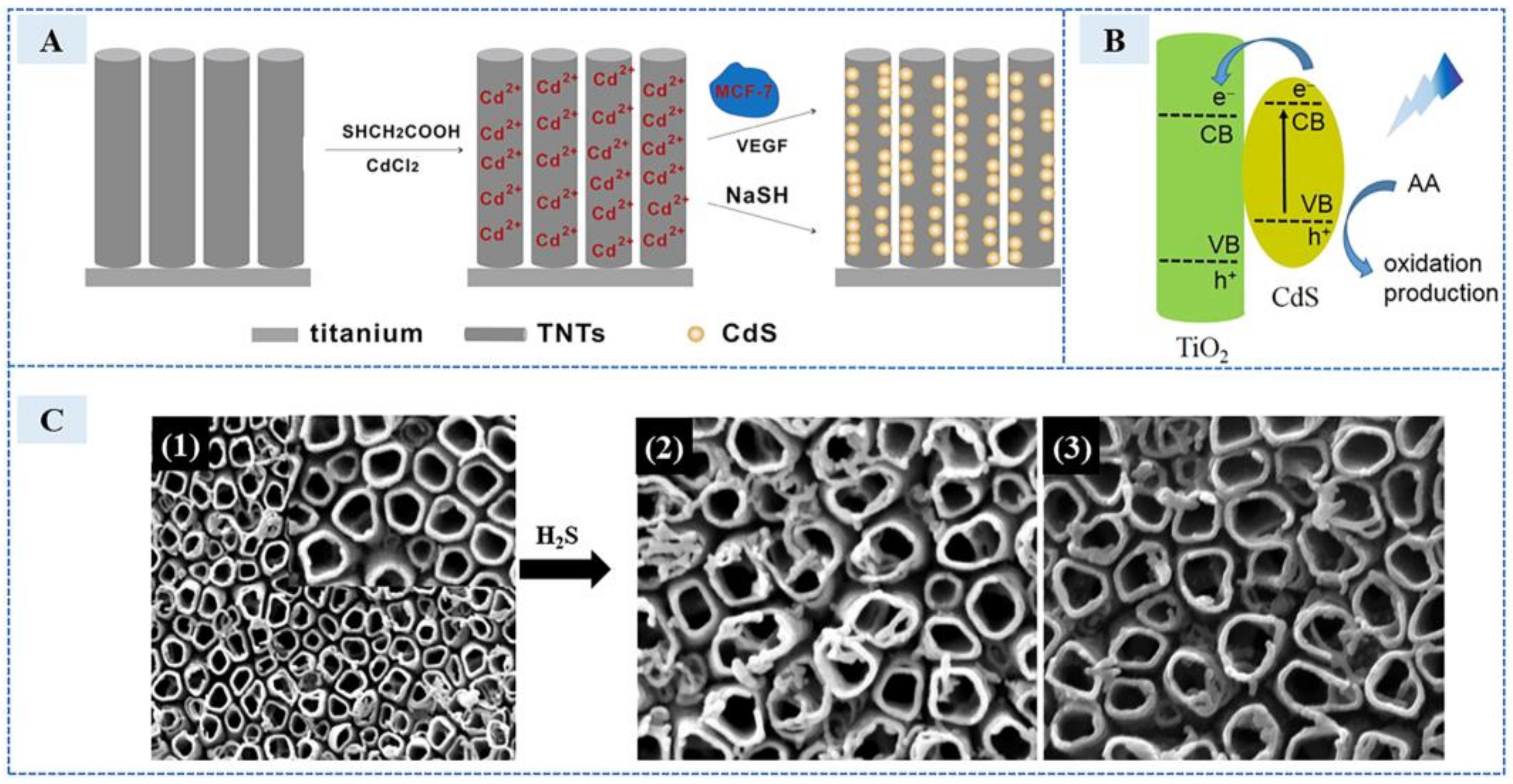

Figure 6. (A) The synthesis and detection process of the sensor. (B) Schematic illustration of photoelectrochemical process. (C) SEM images of (1) TiO2 nanotubes prepared by anodization at 30 V for 30 min, (2) CdS nanoparticles generation onto TiO2 nanotubes after treated with aqueous solution containing 1 mM NaSH (3) MCF-7 cells (108 cells mL−1) with 40 ng/mL VEGF. (Reprinted with permission from Ref. [36]. 2016, Ding et al.).
Figure 6. (A) The synthesis and detection process of the sensor. (B) Schematic illustration of photoelectrochemical process. (C) SEM images of (1) TiO2 nanotubes prepared by anodization at 30 V for 30 min, (2) CdS nanoparticles generation onto TiO2 nanotubes after treated with aqueous solution containing 1 mM NaSH (3) MCF-7 cells (108 cells mL−1) with 40 ng/mL VEGF. (Reprinted with permission from Ref. [36]. 2016, Ding et al.).
Sensors 23 03316 g006

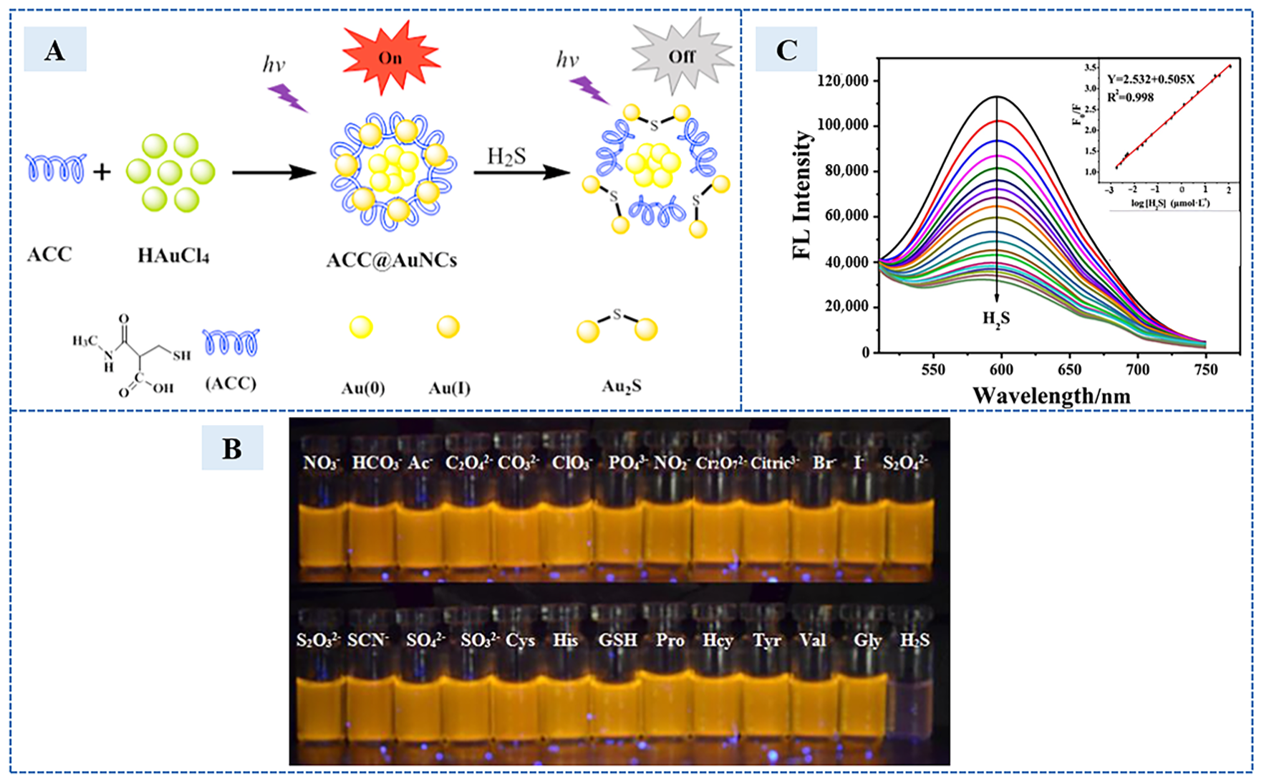

Figure 7. (A) The detection process of the fluorescent sensor. (B) Photographs of ACC@AuNCs with different analytes solution viewed under UV light at 365 nm. (C) Fluorescence responses of the sensors after the addition of H2S (from top to bottom: 0.002–120 μmol L−1). Inset: plot of the fluorescence peak intensity change (F0/F) versus the logarithmic of the concentration of H2S. (Reprinted with permission from Ref. [39]. 2017, Zhang et al.).
Figure 7. (A) The detection process of the fluorescent sensor. (B) Photographs of ACC@AuNCs with different analytes solution viewed under UV light at 365 nm. (C) Fluorescence responses of the sensors after the addition of H2S (from top to bottom: 0.002–120 μmol L−1). Inset: plot of the fluorescence peak intensity change (F0/F) versus the logarithmic of the concentration of H2S. (Reprinted with permission from Ref. [39]. 2017, Zhang et al.).
Sensors 23 03316 g007
Figure 8. Schematic illustration of the development of gas sensing film on nano-structured paper substrate for electrical detection (a) and on specialty-paper substrate for colorimetric detection (b). (Reprinted with permission from Ref. [42]. 2019, Sarfraz et al.).
Figure 8. Schematic illustration of the development of gas sensing film on nano-structured paper substrate for electrical detection (a) and on specialty-paper substrate for colorimetric detection (b). (Reprinted with permission from Ref. [42]. 2019, Sarfraz et al.).
Sensors 23 03316 g008

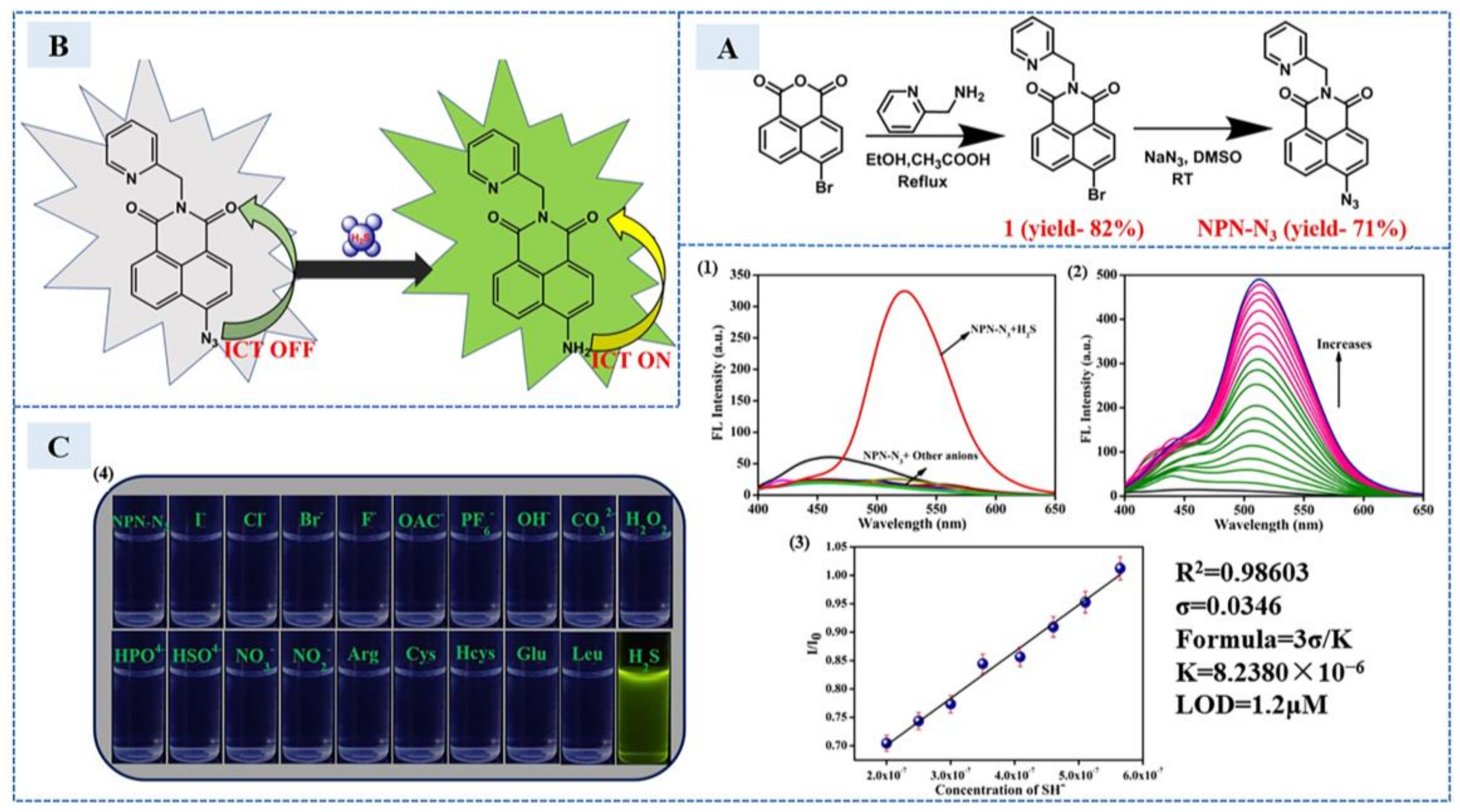

Figure 9. (A) The stepwise synthetic procedure of NPN-N3. (B) The emission response mechanism of NPN-N3 to H2S. (C) (1) Fluorescence spectra of the sensor NPN-N3 (20 μM) in the presence of different anions in acetonitrile/water (8:2 v/v), (2) NPN-N3 (20 μM) fluorescence spectra after progressive addition of H2S. The amounts of H2S were increased between 0 and 80 μM. (3) The linear relation of NPN-N3 for the concentration of H2S in the range of 0–10 μM. (4) The fluorescence color shift of NPN-N3 after adding different anions as seen under the UV light is depicted. (Reprinted with permission from Ref. [58]. 2022, Jothi et al.).
Figure 9. (A) The stepwise synthetic procedure of NPN-N3. (B) The emission response mechanism of NPN-N3 to H2S. (C) (1) Fluorescence spectra of the sensor NPN-N3 (20 μM) in the presence of different anions in acetonitrile/water (8:2 v/v), (2) NPN-N3 (20 μM) fluorescence spectra after progressive addition of H2S. The amounts of H2S were increased between 0 and 80 μM. (3) The linear relation of NPN-N3 for the concentration of H2S in the range of 0–10 μM. (4) The fluorescence color shift of NPN-N3 after adding different anions as seen under the UV light is depicted. (Reprinted with permission from Ref. [58]. 2022, Jothi et al.).
Sensors 23 03316 g009

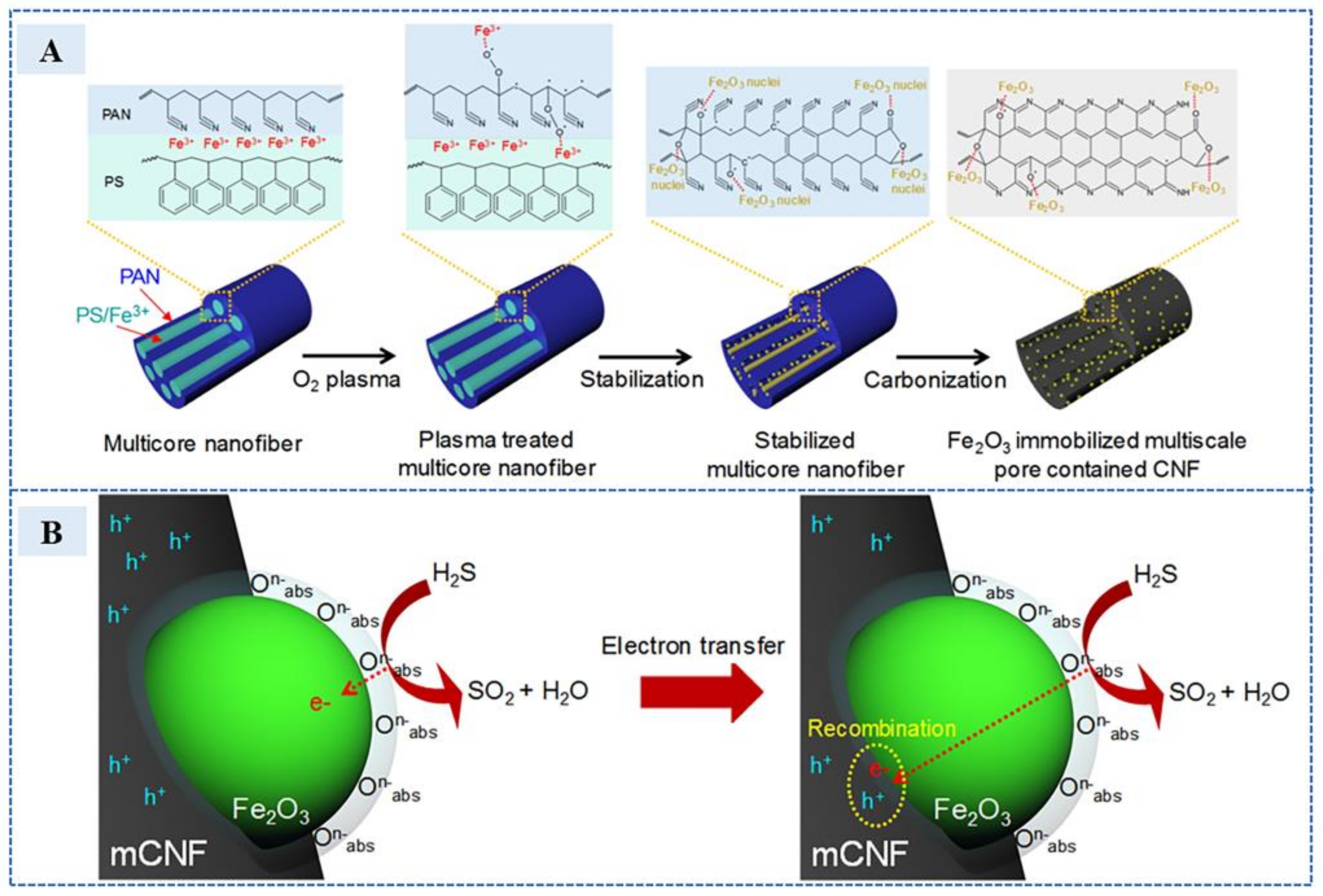

Figure 10. (A) A sequential composite diagram of Fe2O3 immobilized multiscale pore contained carbon nanofiber (Fe2O3-MPCNF). (B) Description of sensing and recovery mechanisms due to chemical reaction of H2S molecules and Fe2O3-MPCNF. (Reprinted with permission from Ref. [60]. 2022, Kim et al.).
Figure 10. (A) A sequential composite diagram of Fe2O3 immobilized multiscale pore contained carbon nanofiber (Fe2O3-MPCNF). (B) Description of sensing and recovery mechanisms due to chemical reaction of H2S molecules and Fe2O3-MPCNF. (Reprinted with permission from Ref. [60]. 2022, Kim et al.).
Sensors 23 03316 g010

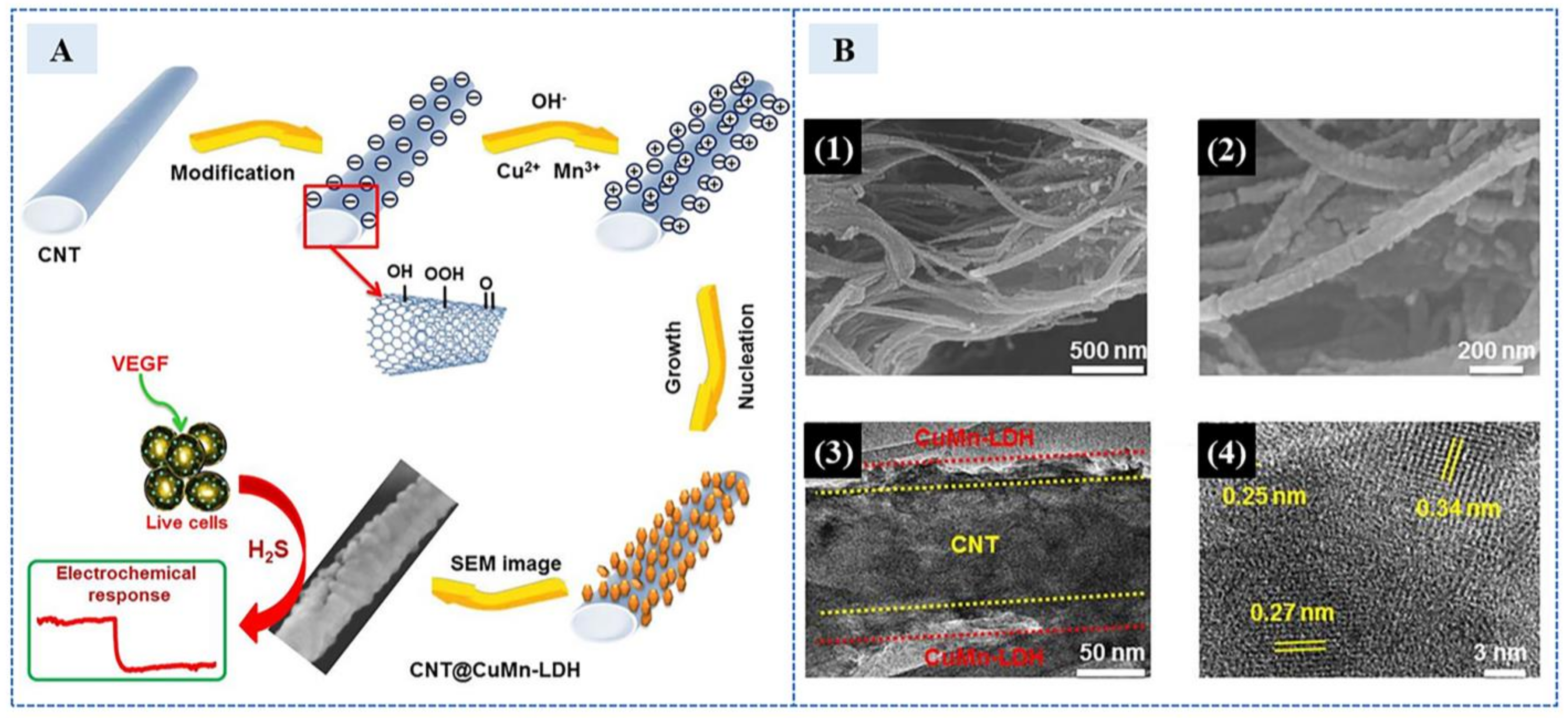

Figure 11. (A) Schematic illustration of various steps involved in the synthesis of hierarchical CNTs@CuMn-LDH nanohybrids and analytical performance for H2S detection. (B) (1,2) SEM images and (3) TEM image of CNTs@CuMn-LDH nanohybrids at different magnifications and (4) HRTEM image of CNTs@CuMn-LDH nanohybrids with lattice fringes of 0.25, 0.27, and 0.34 nm. (Reprinted with permission from Ref. [69]. 2019, Asif et al.).
Figure 11. (A) Schematic illustration of various steps involved in the synthesis of hierarchical CNTs@CuMn-LDH nanohybrids and analytical performance for H2S detection. (B) (1,2) SEM images and (3) TEM image of CNTs@CuMn-LDH nanohybrids at different magnifications and (4) HRTEM image of CNTs@CuMn-LDH nanohybrids with lattice fringes of 0.25, 0.27, and 0.34 nm. (Reprinted with permission from Ref. [69]. 2019, Asif et al.).
Sensors 23 03316 g011

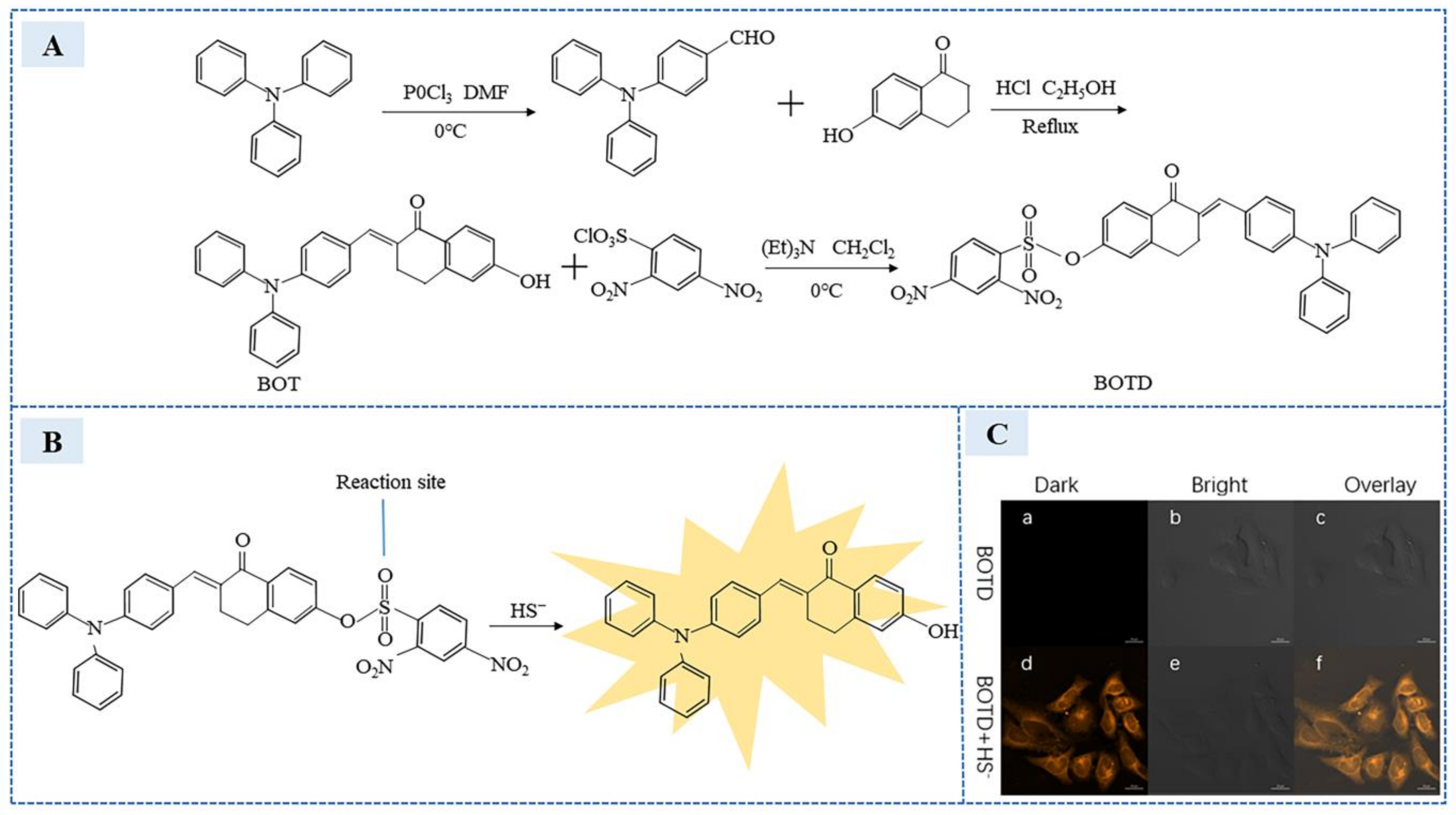

Figure 12. (A) Synthesis route of BOTD. (B) Schematic illustration of BOTD’s sensing towards HS cations. (C) Fluorescence images of HeLa cells (λex = 420 nm, λem = 500–550 nm): (left) dark field; (middle) bright field; and (right) overlay image. (a–c) Images of HeLa cells incubated with BOTD (10 μM/L) for 30 min; (d–f) fluorescence images of cells pre-treated with NaHS (100 μM/L) for 1 h and then incubated with BOTD (10 μM/L) for 30 min. (Reprinted with permission from Ref. [85]. 2020, Wang et al.).
Figure 12. (A) Synthesis route of BOTD. (B) Schematic illustration of BOTD’s sensing towards HS cations. (C) Fluorescence images of HeLa cells (λex = 420 nm, λem = 500–550 nm): (left) dark field; (middle) bright field; and (right) overlay image. (a–c) Images of HeLa cells incubated with BOTD (10 μM/L) for 30 min; (d–f) fluorescence images of cells pre-treated with NaHS (100 μM/L) for 1 h and then incubated with BOTD (10 μM/L) for 30 min. (Reprinted with permission from Ref. [85]. 2020, Wang et al.).
Sensors 23 03316 g012

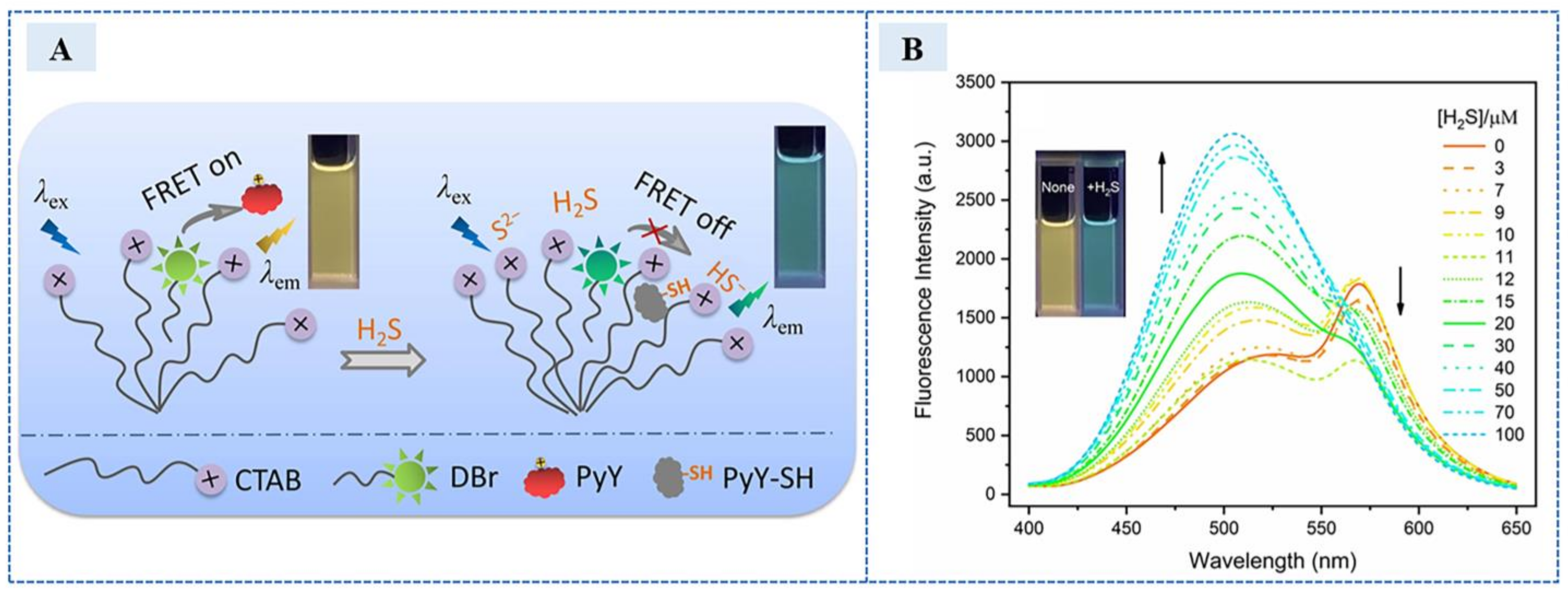

Figure 13. (A) Schematic representation of the dual-fluorophore sensor system for sensing H2S. (B) Fluorescence emission spectra of DBr/PyY/CTAB (10 µM/5 µM/100 µM) upon addition of H2S from 0 to 100 µM (Inset: Photos of the sensor platform before and after addition of 100 µM H2S under the illumination of 365 nm UV lamp). (Reprinted with permission from Ref. [87]. 2021, Fan et al.).
Figure 13. (A) Schematic representation of the dual-fluorophore sensor system for sensing H2S. (B) Fluorescence emission spectra of DBr/PyY/CTAB (10 µM/5 µM/100 µM) upon addition of H2S from 0 to 100 µM (Inset: Photos of the sensor platform before and after addition of 100 µM H2S under the illumination of 365 nm UV lamp). (Reprinted with permission from Ref. [87]. 2021, Fan et al.).
Sensors 23 03316 g013
Figure 14. H2S sensing mechanism of CouMC and schematic diagram of the quantitative detection of H2S by measuring the λmax of the ECL spectra. (Reprinted with permission from Ref. [90]. 2018, Ma et al.).
Figure 14. H2S sensing mechanism of CouMC and schematic diagram of the quantitative detection of H2S by measuring the λmax of the ECL spectra. (Reprinted with permission from Ref. [90]. 2018, Ma et al.).
Sensors 23 03316 g014
Figure 15. (A) Schematic diagram for fabrication of the ECL sensor. (1) The preparation of ECL sensor and (2) the reaction mechanism of ECL sensor. (B) UV–vis spectra of NBD-amine with different concentration of H2S, from 0 to 140 μM and visual color comparison of corresponding solution at different concentration of H2S, 1–13: 0, 5, 10, 15, 20, 25, 30, 35, 40, 50, 60, 80, and 100 μM. (Reprinted with permission from Ref. [93]. 2019, Huang et al.).
Figure 15. (A) Schematic diagram for fabrication of the ECL sensor. (1) The preparation of ECL sensor and (2) the reaction mechanism of ECL sensor. (B) UV–vis spectra of NBD-amine with different concentration of H2S, from 0 to 140 μM and visual color comparison of corresponding solution at different concentration of H2S, 1–13: 0, 5, 10, 15, 20, 25, 30, 35, 40, 50, 60, 80, and 100 μM. (Reprinted with permission from Ref. [93]. 2019, Huang et al.).
Sensors 23 03316 g015
Table 1. Chemical sensors based on metal affinity.
Table 1. Chemical sensors based on metal affinity.
PrecipitationTest MaterialLinear RangeLimit of DetectionResponse TimeRef
CuSNBD/Cu2+0–20 μM0.17 μM[19]
CuS[C16-2-C16im]Br2/Eu-POM/Cu2+1.25–175 μM1.25 μMSeconds[20]
CuSnaphthalimide–rhodamine B/Cu2+0–40 mM/0–80 mM0.23 mM/0.4 mM<30 s[21]
Ag2SAu@Ag NPs0.1–500 nM0.04 nM[22]
Ag2SAgNPs150–1000 ppbv45 ppbv10 min[23]
PbSPb(Ac)2400 ppb1 min[24]
ZnSMn-doped Zn2+ QDs2–100 μM0.3 μM[25]
Table 2. Chemical sensors based on reducibility.
Table 2. Chemical sensors based on reducibility.
Reaction TypeSensor TypeTest MaterialLinear RangeLimit of DetectionResponse TimeRef
azide to aminoFluorescentAISA/poly-2.5 mM-[55]
azide to aminoFluorescent2,3-naphthalimide0–80 μM--[56]
azide to aminoFluorescent4-azide-1,8-naphthalic anhydride/spiropyran-0.101 μM25 min[57]
azide to aminoFluorescentNPN-N3-1.2 μM10 s[58]
REDOXElectrochemicalglassy carbon electrode15 nM–15 μM<100 nM<10 s[59]
REDOXElectrochemicalFe2O3-MPCNF0.2–100 ppm0.2 ppm-[60]
Table 3. Chemical sensors based on nucleophilicity.
Table 3. Chemical sensors based on nucleophilicity.
Reaction TypeTest MaterialLinear RangeLimit of DetectionResponse TimeRef
Nucleophilic additiondiethylaminocoumarin–hemicyanine-14 nM-[82]
Nucleophilic addition3-hydroxyflavone-0.25 μM<60 s[83]
Thiolysiscoumarin derivatives/fluorobenzene0–8 × 10−6 M/L4 × 10−6 mol/L-[84]
Nucleophilic additionBOTD0–50 μM/L27.3 nM/L30 s[85]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yang, M.; Zhou, Y.; Wang, K.; Luo, C.; Xie, M.; Shi, X.; Lin, X. Review of Chemical Sensors for Hydrogen Sulfide Detection in Organisms and Living Cells. Sensors 2023, 23, 3316. https://doi.org/10.3390/s23063316

AMA Style

Yang M, Zhou Y, Wang K, Luo C, Xie M, Shi X, Lin X. Review of Chemical Sensors for Hydrogen Sulfide Detection in Organisms and Living Cells. Sensors. 2023; 23(6):3316. https://doi.org/10.3390/s23063316

Chicago/Turabian Style

Yang, Mengjie, Yong Zhou, Ke Wang, Chunfeng Luo, Mingna Xie, Xiang Shi, and Xiaogang Lin. 2023. "Review of Chemical Sensors for Hydrogen Sulfide Detection in Organisms and Living Cells" Sensors 23, no. 6: 3316. https://doi.org/10.3390/s23063316

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
