Development of a Rapid Measurement Method for Analysis of the NOx Conversion Process Based on Quantum Cascade Laser Absorption Spectroscopy

by
Xi Yang
1,2,
Zhirong Zhang
1,2,3,4,*,
Shuang Yang
2,
Pengshuai Sun
2,
Bian Wu
2,
Hua Xia
2 and
Runqing Yu
1,2
1
School of Environmental Science and Optoelectronic Technology, University of Science and Technology of China, Hefei 230026, China
2
Anhui Provincial Key Laboratory of Photonic Devices and Materials, Anhui Institute of Optics and Fine Mechanics, HFIPS, Chinese Academy of Sciences, Hefei 230031, China
3
Key Lab of Environmental Optics & Technology, Anhui Institute of Optics and Fine Mechanics, HFIPS, Chinese Academy of Sciences, Hefei 230031, China
4
Advanced Laser Technology Laboratory of Anhui Province, Hefei 230037, China
*
Author to whom correspondence should be addressed.
Sensors 2023, 23(8), 3885; https://doi.org/10.3390/s23083885
Submission received: 28 February 2023 / Revised: 7 April 2023 / Accepted: 10 April 2023 / Published: 11 April 2023
(This article belongs to the Section Chemical Sensors)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this study, a method for double-beam quantum cascade laser absorption spectroscopy (DB-QCLAS) was developed. Two mid-infrared distributed feedback quantum cascade laser beams were coupled in an optical cavity for the monitoring of NO and NO2 (NO at 5.26 μm; NO2 at 6.13 μm). Appropriate lines in the absorption spectra were selected, and the influence of common gases in the atmosphere, such as H2O and CO2, was avoided. By analyzing the spectral lines under different pressure conditions, the appropriate measurement pressure of 111 mbar was selected. Under this pressure, the interference between adjacent spectral lines could be effectively distinguished. The experimental results show that the standard deviations for NO and NO2 were 1.57 ppm and 2.67 ppm, respectively. Moreover, in order to improve the feasibility of this technology for detecting chemical reactions between NO and O2, the standard gases of NO and O2 were used to fill the cavity. A chemical reaction instantaneously began, and the concentrations of the two gases were immediately changed. Through this experiment, we hope to develop new ideas for the accurate and rapid analysis of the process of NOx conversion and to lay a foundation for a deeper understanding of the chemical changes in atmospheric environments.

1. Introduction

NO and NO2 are the primary pollutants in the atmosphere, and they mainly result from the burning of fossil fuels, such as during fuel combustion in thermal power plants, exhaust emissions from coal-fired boilers, and vehicle exhaust emissions [1,2,3,4]. Coal combustion exhaust gas is the most important source of NO2 in the atmosphere, and it is the focus of environmental monitoring. The organic nitrogen in coal fuels is easily decomposed and oxidized, leading to higher levels of NO2 during combustion, and NO is also produced during the combustion process [5]. With the increase in the NO concentration in the atmosphere, free radical reactions occur in the stratosphere and destroy the ozone [6,7]. In addition, nitric acid is generated at the bottom of the stratosphere and enters the clouds to form acid precipitation [8,9]. Moreover, it enters the troposphere after atmospheric transmission, and the tropospheric ozone concentration increases after photochemical reactions. Therefore, NO is also an important and easily neglected greenhouse gas [10,11]. NO2 is also one of the causes of acid rain, which leads to surface water acidification, eutrophication, and an increase in contents that are toxic for fish and other aquatic organisms [12,13]. These chemical processes can be described as follows: O2 in the upper atmosphere can become ozone (O3) after absorbing ultraviolet light, O3 can be decomposed (O3 → O2 + O), and O3 reacts with NO (NO + O3 → NO2 + 2O, NO2 + O → NO + O2) [14,15,16]. In order to control the emission of pollutants and deeply understand the actual process of their conversion, it is necessary to simultaneously and rapidly monitor the dynamic changes in NO and NO2 concentrations.
Non-dispersive infrared (NDIR) and differential optical absorption spectroscopy (DOAS) are common measurement methods for the simultaneous measurement of the two gases [17,18,19]. However, the process of measuring NO2 is highly dependent on the algorithm and is subject to many interfering factors. There are also different problems in the application of the direct measurement of NO2 in different industries. Laser absorption spectroscopy technology is based on the Lambert–Beer law, and it is a common method for the detection of trace gases [20,21,22]. With the continuous development of laser technology, the quantum cascade laser (QCL) has extended the measurement band of gas to the mid-infrared region, where there is a stronger absorption strength and more spectral lines [23,24,25,26,27]. Based on these advantages, quantum cascade laser absorption spectroscopy (QCLAS) can provide faster and more accurate monitoring capabilities, and it has become a research hotspot [28]. It has been applied in the fields of environmental monitoring, industrial processes, respiratory gases, and so on [29,30,31,32].
In this study, a gas detection system, based on the mid-infrared quantum cascade absorption spectrum, was developed for the simultaneous analysis of NO and NO2. By setting the pressure and different gas concentration ratios in the gas cell, the changes in NOx absorption spectra under different conditions were obtained through experimental analysis. The stability of the system was also analyzed. Finally, we simply analyzed the reaction process of NO and O2 to verify the feasibility of using QCLAS for realizing the detection of chemical reactions between gases.

2. Experimental System and Methods

2.1. Theory

For laser absorption spectroscopy, the absorption at frequency v is given by the Beer–Lambert law,
I t = I 0 exp − S T C P L φ υ ,
where I0 and It are the incident and transmitted laser intensity, respectively. υ [cm−1] is the wave number corresponding to the absorption line, C is the volume concentration fraction of gas, L [cm] is the optical path, P [atm] is the gas pressure, T [K] is the gas temperature during the measurement, φ(υ) is the absorption linear function normalized by the integral area, and S(T) [cm−2atm−1] is the line intensity of the absorption line when the gas temperature is T.

2.2. Experimental Setup

Figure 1 shows the QCLAS gas detection system. Two room-temperature QCL lasers were controlled by homemade low-noise mid-infrared laser controllers, and the output wavelengths were 5.26 μm for NO and 6.13 μm for NO2. The two collimated laser beams were coupled in the gas cell by using mirrors. The material of the gas cell was corundum, and both sides were sealed with CaF2 window pieces. The interior of the gas cell was cylindrical with a length of 70 cm and a diameter of 3 cm, and the volume of the gas cell was 490 mL. Then, the absorption spectra were focused on a thermoelectrically cooled mercury cadmium telluride photodetector. The two detectors were internally integrated with a multistage semiconductor refrigeration sheet (TEC) and a wedge-shaped zinc selenide window with antireflection film, which could effectively prevent optical interference. Finally, the spectral signals were acquired by using a data acquisition (DAQ) card and processed by a PC with software. The gas distribution system had two gas inlets and one gas outlet, which were connected to pipes. The system was able to control the gas flow and gas mixture ratio to achieve a good gas distribution effect. In addition, the cavity was connected to a mass flowmeter and pump, and the PID control method was adopted for high-precision pressure control. The pressure control circuit controlled the mass flowmeter and cooperated with the vacuum pump to achieve high-precision pressure control, with a control accuracy of ±0.01 mbar. Therefore, we were able to analyze the changes in NO and NO2 gas concentrations in the conversion process under different concentration ratios and pressures.

2.3. Transition Selection

For NO and NO2 molecules, there is a strong line strength in the mid infrared band. In this study, the transitions of NO at 5261.7233 nm, 5261.7235 nm, 5261.7237 nm, 5261.7254 nm, 5261.7256 nm, and 5261.7259 nm were selected based on the HITRAN database. However, because the wavelengths of these six groups were close and exceeded the resolution of the QCL bandwidth, they could be regarded as one group of absorption lines. Similarly, the transitions of NO2 at 6131.1097 nm and 6131.1232 nm were selected, and they were regarded as one group of absorption lines. Figure 2 shows the two gas absorption spectra. The data were derived from the HITRAN 2012 database and calculated for pressures of 1013 mbar (1 atm) and 101.3 mabr (0.1 atm), respectively, at room temperature and with an optical path length of 70 cm [33]. These spectral lines of the gases were selected to avoid the strong spectral lines of other gases, such as H2O and CO2, thus reducing the impact of cross-absorption. The relationship between the wavelength and driving current of the laser at the selected temperature is shown in Figure 2. This was measured by using a wavelength meter, and the wavelength range was able to cover the target wavelength. The drive currents of the lasers for NO and NO2 were 145 mA and 260 mA, respectively. The scanning frequency was 10 Hz.

3. Results and Discussion

Under normal conditions, the output wavelength of a QCL is determined according to the driving current, TEC temperature, and scanning voltage. At room temperature, the standard gas concentrations of 1032 ppm (NO) and 2000 ppm (NO2) were used to fill the cavity, and the different cavity pressures were set. Then, the direct absorption signals, shown in Figure 3a,b, were obtained. The decrease in pressure in the cavity affected the broadening of the spectral lines and reduced the cross-interference between the spectral lines. At the same time, the decrease in pressure also affected the intensity of the absorption signal. Therefore, according to the above analysis, we selected a stable pressure of 111 mbar for the following experiments.
Before each experiment, the cavity and pipeline were purged with pure nitrogen to eliminate the influence of interfering gas on the measurement results. In addition, various concentrations of NO2 and NO were configured with a high-performance gas distributor. During the entire process, the air pressure in the cavity was kept at 111 mbar. The average number of signals was eight. The direct absorption signals for NO and NO2 at different concentrations were measured, as shown in Figure 3c–f. By analyzing the relationships between the concentrations and intensities of the two groups of results, we were able to find that the fitting correlations were 0.993 and 0.998 for R2(NO) and R2(NO2), respectively. They had good linear relationships.
Meanwhile, the detection limits of the system were found by calculating the signal-to-noise ratio of the absorption signals. As shown in Figure 4a,b, the NO concentration was 236 ppm and the signal-to-noise ratio was 22.5, so the detection limit of 10.5 ppm was calculated. Similarly, the NO2 concentration was 167 ppm and the signal-to-noise ratio was 11.4, so the detection limit of 14.6 ppm was calculated. During the experiments, we recorded the relationship between the measured data and time, as shown in Figure 4c,d. We defined the response time of the system according to when the measured value reached 90% (T90) of the set value; this was T90 = 2.3 s for NO and T90 = 2 s for NO2.
For the purpose of analyzing the system’s stability, a mixed gas, consisting of both NO and NO2, was used to fill the absorption cell at a flow rate of 0.2 L/min; the concentration of NO was 545 ppm and that of NO2 was 770 ppm. The concentration data were continuously measured for 40 min, and the results are shown in Figure 5. From the relative histograms of each dataset, which are shown on the right side of Figure 5, it can be seen that the measurement results had a good Gaussian fit. Thus, the standard deviations of NO and NO2 were 1.57 ppm and 2.67 ppm, respectively. It is worth noting that the experiment described in this paper was intended to verify the feasibility of measuring the NOx conversion process. If we would like to achieve a higher accuracy and a lower measurement limit, a longer optical path or cavity ring-down spectroscopy (CRDS) and off-axis integrated cavity output spectroscopy (OA-ICOS) could be used based on the QCL technology [34,35,36].
The next experiment was carried out to verify that the system could monitor the changes in gas concentrations during a chemical reaction. The system was set up by filling it with NO gas at 1032 ppm: the gas flow rate was 0.2 L/min, the NO concentration was stable at 1032 ppm, and the concentration of NO2 was 0. After waiting for a period of time, O2 was used to fill the cell at the time indicated by the purple dotted line. It was found that when O2 was added, it immediately reacted with NO to produce NO2. NO was consumed in the reaction: its concentration decreased and the concentration of NO2 increased, as shown in Figure 6. Due to the slow gas flow, the limitation of the container’s volume and insufficient gas contact, the reaction speed slowed down after a period of time, and the reduction in the NO concentration and the increase in the NO2 concentration tended to become gentle. However, chemical reactions were still slowly occurring. Because the system maintained a dynamic state of intake and exhaust, NO and O2 remained present. Therefore, NO was not completely consumed in the reaction, and the concentration did not drop to 0. By analyzing the data, it was found that when O2 was used to fill the container, the chemical reaction occurred rapidly, and the measured concentrations of the two gases also changed immediately. This was sufficient to prove that the system could quickly monitor the changes in gas concentrations when the reaction began. Two tangent lines were obtained at the inflection points of the two concentration–time curves, as shown in Figure 6, where the NO concentration started to decrease and the NO2 concentration started to increase. The ratio of the slopes of the two tangent lines was 1.058. With reference to the chemical reaction equation (2NO + O2 → 2NO2), the rate at the beginning of the reaction had a certain correlation with the chemical formula, which was close to a 1:1 replacement. Therefore, the system was able to meet the requirements of simultaneous and rapid measurement of changes in gas concentrations during chemical reactions or the evolution of an atmospheric environment.

4. Conclusions

In this study, a dual-beam laser absorption spectroscopy gas detection system was developed based on two QCLs, and it could be used to monitor the changes in the concentrations of NO and NO2 in real time. The performance of the system was analyzed, and there was a good linear relationship between the absorption peaks and the concentrations. The experimental results showed that, for NO and NO2, the detection limits of the system were 10.5 ppm and 14.6 ppm, respectively. To assess the stability of the system, the concentrations of NO and NO2 were measured at the same time over 40 min, and the standard deviations of the concentrations were 1.57 ppm and 2.67 ppm. Therefore, this system is very helpful for monitoring the concentrations of NO and NO2, and it has positive significance for analyzing the conversion of NOx. In the future, we hope to continuously optimize this measurement system to achieve higher measurement accuracy and limits.

Author Contributions

Methodology, X.Y., S.Y. and B.W.; software, P.S.; validation, X.Y.; formal analysis, X.Y. and H.X.; investigation, R.Y.; data curation, X.Y.; writing—original draft, X.Y.; writing—review and editing, Z.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work is supported by the National High Technology Research and Development Program of China (grant no. 2021YFB3201904), the National Natural Science Foundation of China (grant no. 11874363, 41877311, 42005107), and the “Spark” Fund Project of Hefei Institutes of Physics Science, Chinese Academy Sciences, China (grant no. YZJJ2020QN8).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. De Foy, B.; Lu, Z.; Streets, D.G. Satellite NO2 Retrievals Suggest China Has Exceeded Its NOx Reduction Goals from the Twelfth Five-Year Plan. Sci. Rep. 2016, 6, 35912. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Li, J.S.; Reiffs, A.; Parchatka, U.; Fischer, H. In Situ Measurements of Atmospheric CO and Its Correlation with NOx and O3 at a Rural Mountain Site. Metrol. Meas. Syst. 2015, 22, 25–38. [Google Scholar] [CrossRef]
  3. Van der A, R.J.; Mijling, B.; Ding, J.; Koukouli, M.E.; Liu, F.; Li, Q.; Mao, H.Q.; Theys, N. Cleaning up the Air: Effectiveness of Air Quality Policy for SO2 and NOx Emissions in China. Atmos. Chem. Phys. 2017, 17, 1775–1789. [Google Scholar] [CrossRef] [Green Version]
  4. Lal, S.; Patil, R.S. Monitoring of Atmospheric Behaviour of NOx from Vehicular Traffic. Environ. Monit. Assess. 2001, 68, 37–50. [Google Scholar] [CrossRef] [PubMed]
  5. Bian, X.G.; Zhou, S.; Sun, X.Y.; Yu, B.L.; Li, J.S. Continuous Measurement of NO2 in Flue Gas Employing Cavity-Enhanced Spectroscopy Sensing System. Measurement 2022, 201, 111729. [Google Scholar] [CrossRef]
  6. Crutzen, P. The Role of NO and NO2 in the Chemistry of the Troposphere and Stratosphere. Annu. Rev. Earth Planet. Sci. 2003, 7, 443–472. [Google Scholar] [CrossRef]
  7. Monks, P.S.; Archibald, A.T.; Colette, A.; Cooper, O.; Coyle, M.; Derwent, R.; Fowler, D.; Granier, C.; Law, K.S.; Mills, G.E.; et al. Tropospheric Ozone and Its Precursors from the Urban to the Global Scale from Air Quality to Short-Lived Climate Forcer. Atmos. Chem. Phys. 2015, 15, 8889–8973. [Google Scholar] [CrossRef] [Green Version]
  8. Lelieveld, J.; Gromov, S.; Pozzer, A.; Taraborrelli, D. Global Tropospheric Hydroxyl Distribution, Budget and Reactivity. Atmos. Chem. Phys. 2016, 16, 12477–12493. [Google Scholar] [CrossRef] [Green Version]
  9. Wayne, R.P.; Barnes, I.; Biggs, P.; Burrows, J.P.; Canosa-Mas, C.E.; Hjorth, J.; Bras, G.L.; Moortgat, G.K.; Perner, D.; Poulet, G.; et al. The Nitrate Radical: Physics, Chemistry, and the Atmosphere. Atmos. Environ. Part A Gen. Top. 1991, 25, 1–203. [Google Scholar] [CrossRef]
  10. Lammel, G.; Grassl, H. Greenhouse Effect of NOx. Environ. Sci. Pollut. Res. 1995, 2, 40–45. [Google Scholar] [CrossRef]
  11. Ji, X.; Chen, G. Unified Account of Gas Pollutants and Greenhouse Gas Emissions: Chinese Transportation 1978–2004. Commun. Nonlinear Sci. Numer. Simul. 2010, 15, 2710–2722. [Google Scholar] [CrossRef]
  12. Papke, H.; Papen, H. Influence of Acid Rain and Liming on Fluxes of NO and NO2 from Forest Soil. Plant Soil 1998, 199, 131–139. [Google Scholar] [CrossRef]
  13. Mishra, J.; Mishra, K. Effect of SO2 and NO2 Generated Acidification on Nodulation of Alysicarpus monilifer and Phaseolus trilobus (Linn) in Alluvials of UP, India. Natl. Acad. Sci. Lett. 2007, 30, 165–168. [Google Scholar]
  14. Saiz-Lopez, A.; Notario, A.; Albaladejo, J.; McFiggans, G. Seasonal Variation of NOx Loss Processes Coupled to the HNO3 Formation in a Daytime Urban Atmosphere: A Model Study. Water Air Soil Pollut. 2007, 182, 197–206. [Google Scholar] [CrossRef]
  15. Reed, C.; Evans, M.J.; Di Carlo, P.; Lee, J.D.; Carpenter, L.J. Interferences in Photolytic NO2 Measurements: Explanation for an Apparent Missing Oxidant? Atmos. Chem. Phys. 2016, 16, 4707–4724. [Google Scholar] [CrossRef] [Green Version]
  16. Yau, Y.Y.Y.; Geeraert, N.; Baker, D.M.; Thibodeau, B. Elucidating Sources of Atmospheric NOX Pollution in a Heavily Urbanized Environment Using Multiple Stable Isotopes. Sci. Total Environ. 2022, 832, 154781. [Google Scholar] [CrossRef]
  17. De Castro, A.; Meneses, J.; Briz, S.; Lopez, F. Nondispersive Infrared Monitoring of NO Emissions in Exhaust Gases of Vehicles. Rev. Sci. Instrum. 1999, 70, 3156–3159. [Google Scholar] [CrossRef]
  18. Xu, C.; Liu, J.; Ju, L.; Lin, L.; Chao, Y.; Su, H.W. Research of NDIR Applied on Measuring NOx Emission from In-Use Diesel Vehicles. Environ. Monit. China 2019, 35, 28–33. [Google Scholar]
  19. Saiz-Lopez, A.; Adame, J.A.; Notario, A.; Poblete, J.; Bolívar, J.P.; Albaladejo, J. Year-Round Observations of NO, NO2, O3, SO2, and Toluene Measured with a DOAS System in the Industrial Area of Puertollano, Spain. Water Air Soil Pollut. 2009, 200, 277–288. [Google Scholar] [CrossRef]
  20. Zhang, Z.R.; Xia, H.; Dong, F.Z.; Pang, T.; Wu, B. Simultaneous and On-Line Detection of Multiple Gas Concentration with Tunable Diode Laser Absorption Spectroscopy. Opt. Precis. Eng. 2013, 21, 2771. [Google Scholar] [CrossRef]
  21. Kan, R.F.; Liu, W.Q.; Zhang, Y.J.; Liu, J.G.; Dong, F.Z.; Gao, S.H.; Wang, M.; Chen, J. Absorption Measurements of Ambient Methane with Tunable Diode Laser. Acta Phys. Sin. 2005, 54, 1927. [Google Scholar]
  22. Cui, R.; Dong, L.; Wu, H.; Ma, W.; Xiao, L.; Jia, S.; Chen, W.; Tittel, F.K. Three-Dimensional Printed Miniature Fiber-Coupled Multipass Cells with Dense Spot Patterns for Ppb-Level Methane Detection Using a Near-IR Diode Laser. Anal. Chem. 2020, 92, 13034–13041. [Google Scholar] [CrossRef] [PubMed]
  23. Faist, J.; Capasso, F.; Sivco, D.L.; Sirtori, C.; Hutchinson, A.L.; Cho, A.Y. Quantum Cascade Laser. Science 1994, 264, 553–556. [Google Scholar] [CrossRef] [PubMed]
  24. Beck, M.; Hofstetter, D.; Aellen, T.; Faist, J.; Oesterle, U.; Ilegems, M.; Gini, E.; Melchior, H. Continuous Wave Operation of a Mid-Infrared Semiconductor Laser at Room Temperature. Science 2002, 295, 301–305. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Köhler, R.; Tredicucci, A.; Beltram, F.; Beere, H.E.; Linfield, E.H.; Davies, A.G.; Ritchie, D.A.; Iotti, R.C.; Rossi, F. Terahertz Semiconductor-Heterostructure Laser. Nature 2002, 417, 156–159. [Google Scholar] [CrossRef]
  26. McManus, J.B.; Shorter, J.H.; Nelson, D.D.; Zahniser, M.S.; Glenn, D.E.; McGovern, R.M. Pulsed Quantum Cascade Laser Instrument with Compact Design for Rapid, High Sensitivity Measurements of Trace Gases in Air. Appl. Phys. B 2008, 92, 387. [Google Scholar] [CrossRef]
  27. Yang, R.; Hill, C.J.; Wong, C.M. Recent Progress in Development of Mid-IR Interband Cascade Lasers. In Proceedings of the Integrated Optoelectronic Devices 2004, San Jose, CA, USA, 26–29 January 2004; Volume 5365, pp. 218–227. [Google Scholar]
  28. Sobanski, N.; Tuzson, B.; Scheidegger, P.; Looser, H.; Hüglin, C.; Emmenegger, L. A High-Precision Mid-Infrared Spectrometer for Ambient HNO3 Measurements. Sensors 2022, 22, 9158. [Google Scholar] [CrossRef]
  29. Genner, A.; Martín-Mateos, P.; Moser, H.; Lendl, B. A Quantum Cascade Laser-Based Multi-Gas Sensor for Ambient Air Monitoring. Sensors 2020, 20, 1850. [Google Scholar] [CrossRef] [Green Version]
  30. Sobanski, N.; Tuzson, B.; Scheidegger, P.; Looser, H.; Kupferschmid, A.; Iturrate, M.; Pascale, C.; Hüglin, C.; Emmenegger, L. Advances in High-Precision NO2 Measurement by Quantum Cascade Laser Absorption Spectroscopy. Appl. Sci. 2021, 11, 1222. [Google Scholar] [CrossRef]
  31. Zhou, S.; Liu, N.; Shen, C.; Zhang, L.; He, T.; Yu, B.; Li, J. An Adaptive Kalman Filtering Algorithm Based on Back-Propagation (BP) Neural Network Applied for Simultaneously Detection of Exhaled CO and N2O. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2019, 223, 117332. [Google Scholar] [CrossRef]
  32. Nelson, D.; McManus, J.; Herndon, S.; Shorter, J.; Zahniser, M.; Blaser, S.; Hvozdara, L.; Muller, A.; Giovannini, M.; Faist, J. Characterization of a Near-Room-Temperature, Continuous-Wave Quantum Cascade Laser for Long-Term, Unattended Monitoring of Nitric Oxide in the Atmosphere. Opt. Lett. 2006, 31, 2012–2014. [Google Scholar] [CrossRef]
  33. Gordon, I.E.; Rothman, L.S.; Hill, C.; Kochanov, R.V.; Tan, Y.; Bernath, P.F.; Birk, M.; Boudon, V.; Campargue, A.; Chance, K.V.; et al. The HITRAN2016 Molecular Spectroscopic Database. J. Quant. Spectrosc. Radiat. Transf. 2017, 203, 3–69. [Google Scholar] [CrossRef]
  34. Yu, Y.J.; Sanchez, N.P.; Yi, F.; Zheng, C.T.; Ye, W.; Wu, H.P.; Griffin, R.J.; Tittel, F.K. Dual Quantum Cascade Laser-Based Sensor for Simultaneous NO and NO2 Detection Using a Wavelength Modulation-Division Multiplexing Technique. Appl. Phys. B 2017, 123, 164. [Google Scholar] [CrossRef]
  35. Kosterev, A.; Wysocki, G.; Bakhirkin, Y.; So, S.; Lewicki, R.; Fraser, M.; Tittel, F.; Curl, R.F. Application of Quantum Cascade Lasers to Trace Gas Analysis. Appl. Phys. B 2008, 90, 165–176. [Google Scholar] [CrossRef]
  36. Ventrillard, I.; Gorrotxategi-Carbajo, P.; Romanini, D. Part per Trillion Nitric Oxide Measurement by Optical Feedback Cavity-Enhanced Absorption Spectroscopy in the Mid-Infrared. Appl. Phys. B 2017, 123, 180. [Google Scholar] [CrossRef]
Sensors 23 03885 g001 550

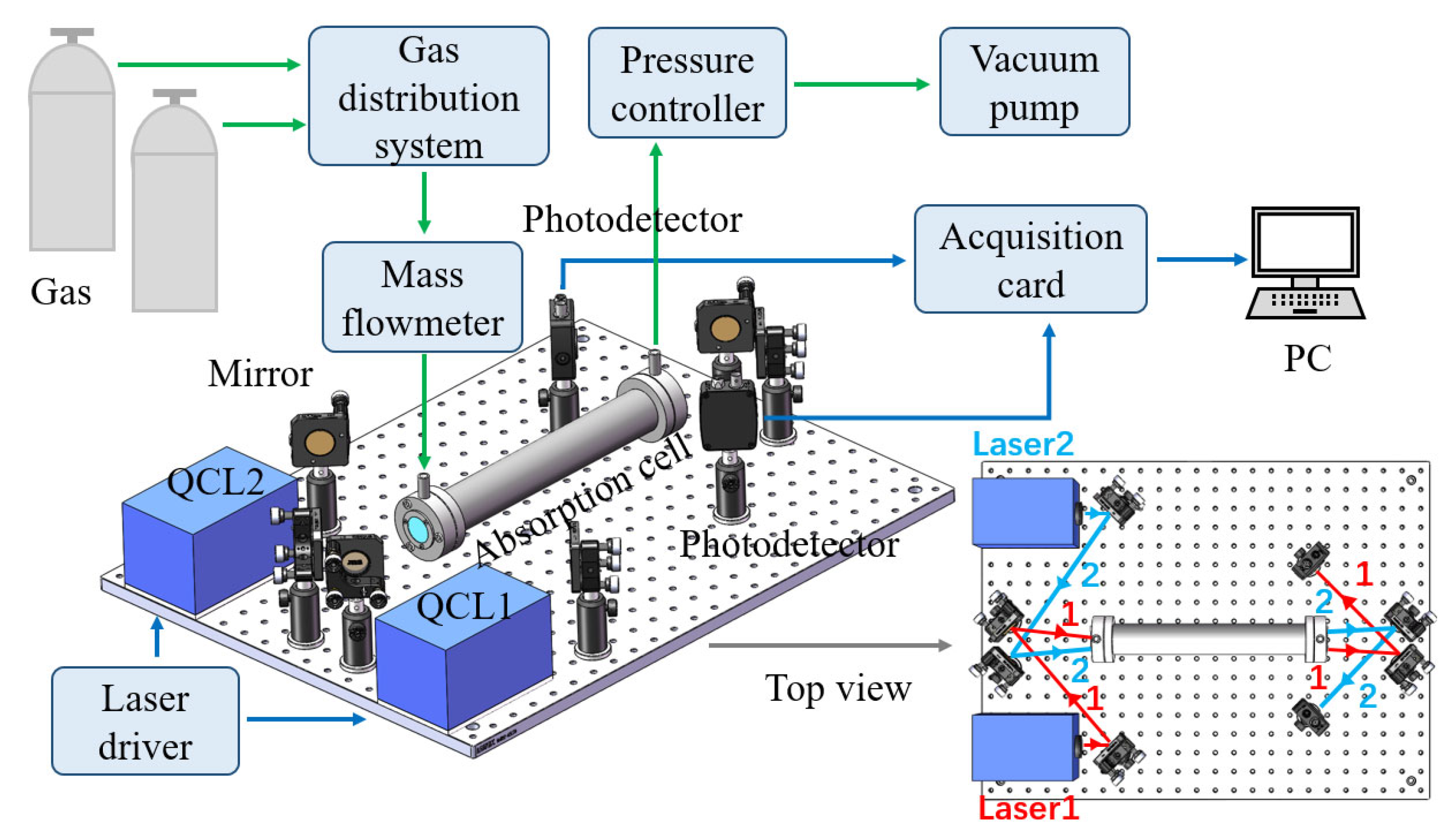

Figure 1. Schematic of the QCLAS gas detection system.
Figure 1. Schematic of the QCLAS gas detection system.
Sensors 23 03885 g001
Sensors 23 03885 g002 550

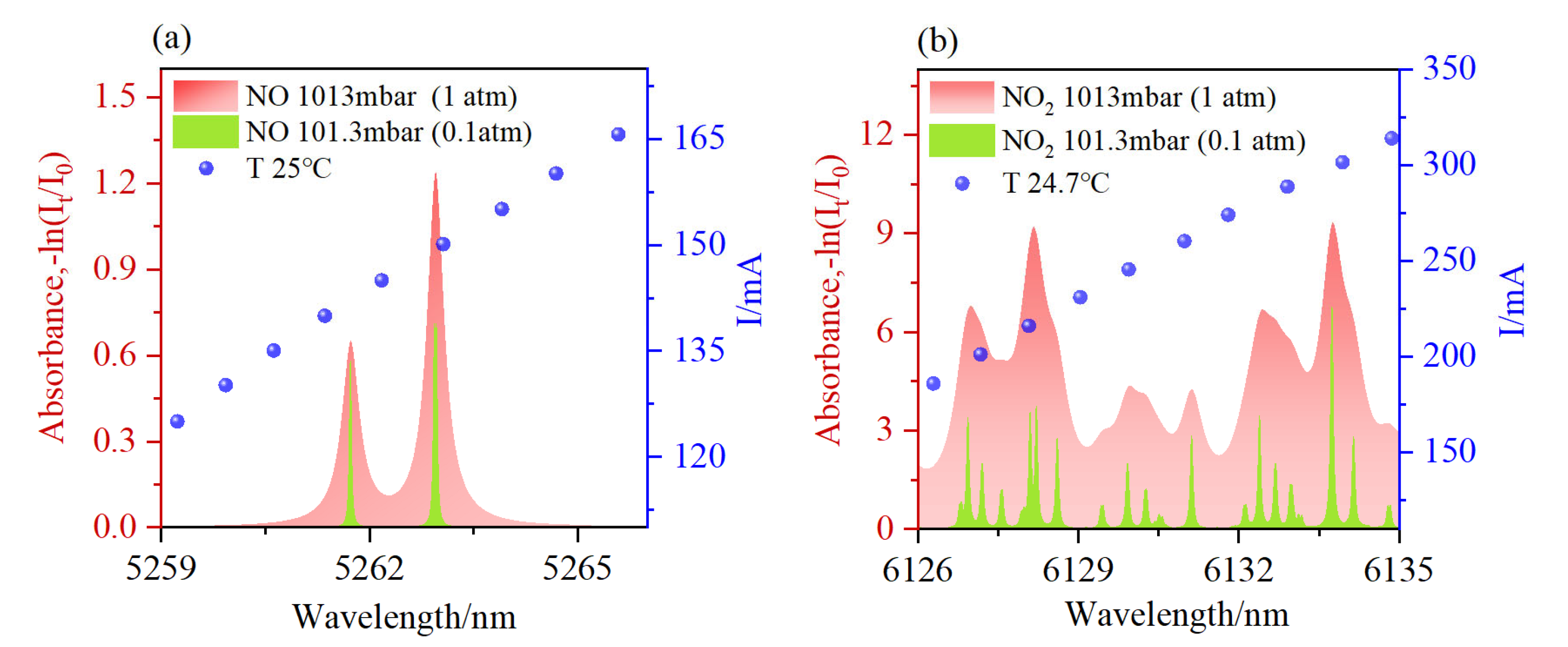

Figure 2. Absorption lines that were simulated based on the HITRAN database. (a) NO spectrum; (b) NO2 spectrum.
Figure 2. Absorption lines that were simulated based on the HITRAN database. (a) NO spectrum; (b) NO2 spectrum.
Sensors 23 03885 g002
Sensors 23 03885 g003 550

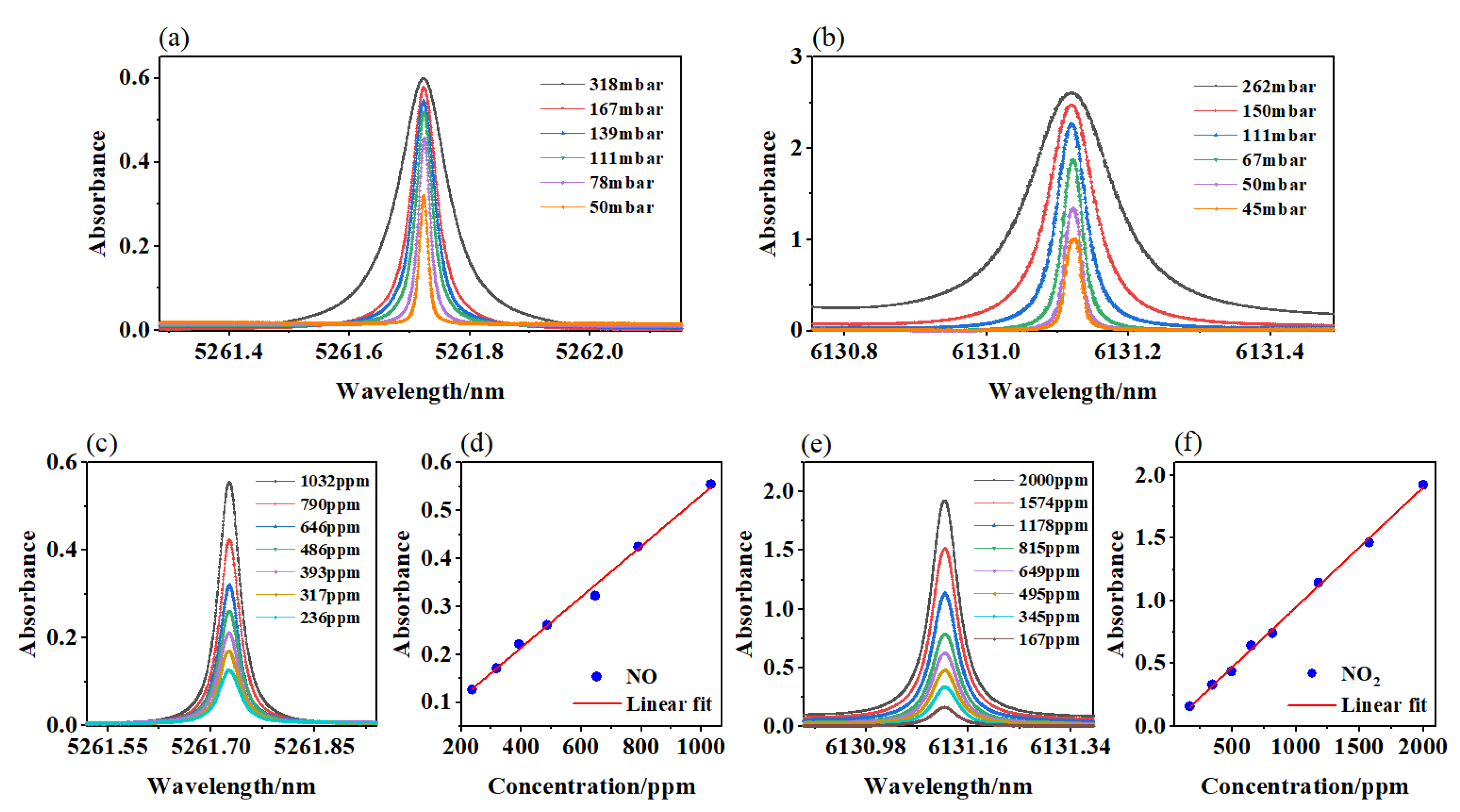

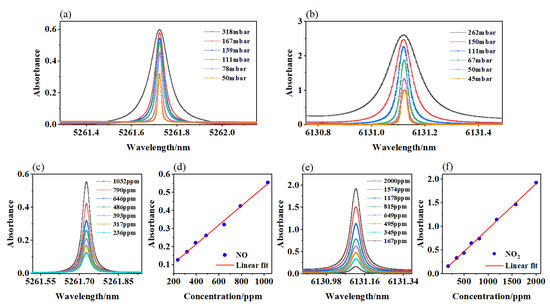

Figure 3. Direct absorption signals at different pressures: (a) NO signals; (b) NO2 signals. (c) The different direct absorption signals of NO. (d) Linear fit between the peak values and concentrations. (e) The different direct absorption signals of NO2. (f) Linear fit between the peak values and concentrations.
Figure 3. Direct absorption signals at different pressures: (a) NO signals; (b) NO2 signals. (c) The different direct absorption signals of NO. (d) Linear fit between the peak values and concentrations. (e) The different direct absorption signals of NO2. (f) Linear fit between the peak values and concentrations.
Sensors 23 03885 g003
Sensors 23 03885 g004 550

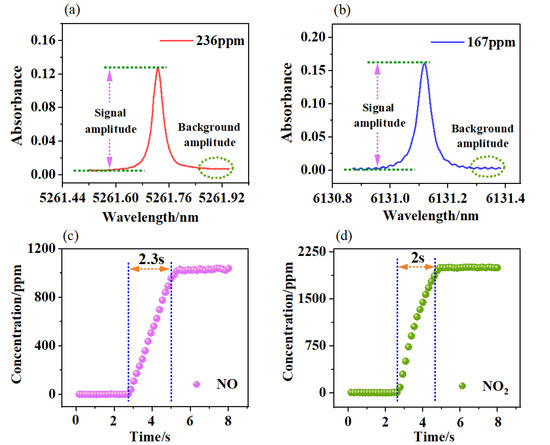

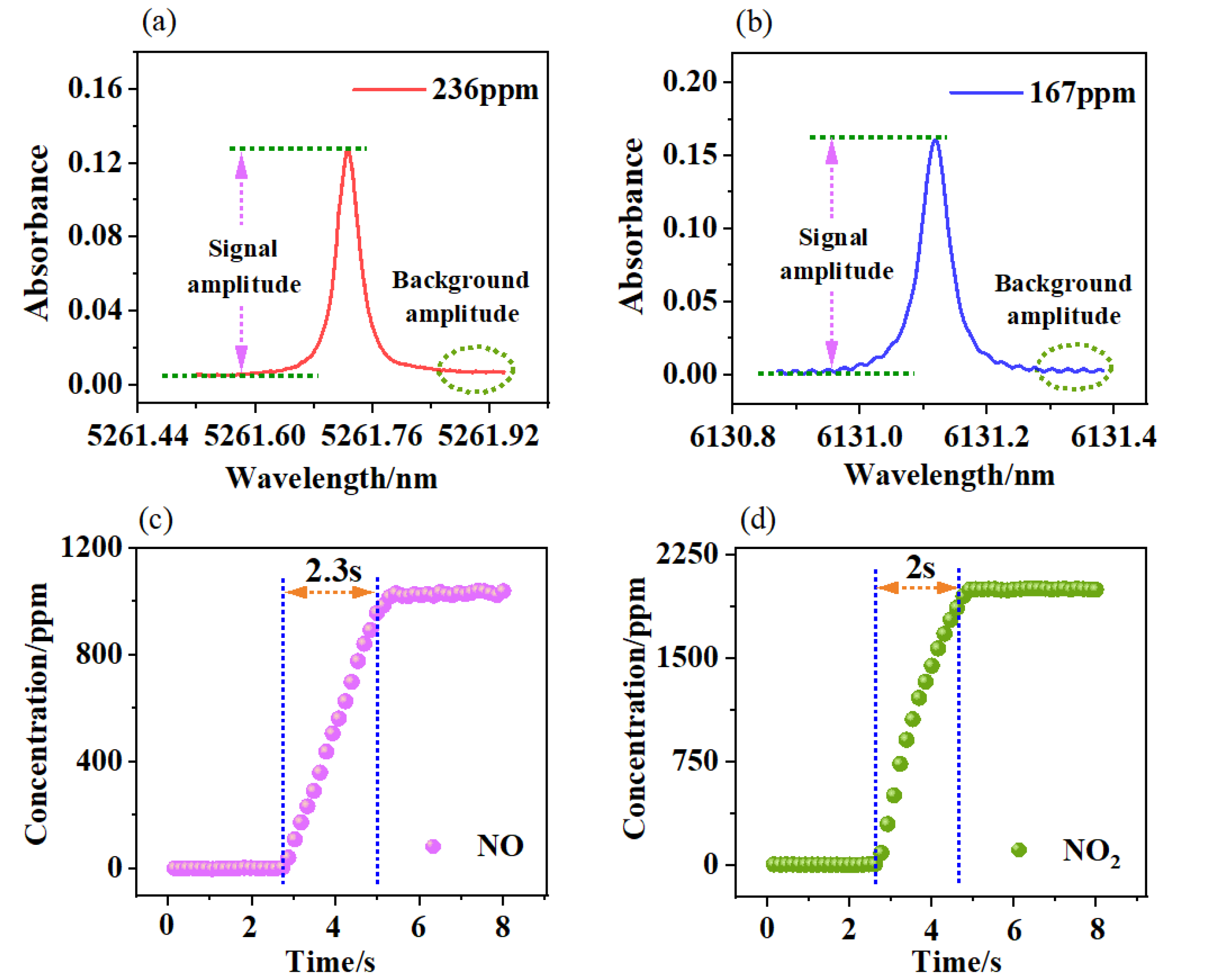

Figure 4. Direct absorption signals for (a) NO and (b) NO2. Response times for the QCLAS system with (c) NO and (d) NO2.
Figure 4. Direct absorption signals for (a) NO and (b) NO2. Response times for the QCLAS system with (c) NO and (d) NO2.
Sensors 23 03885 g004
Sensors 23 03885 g005 550

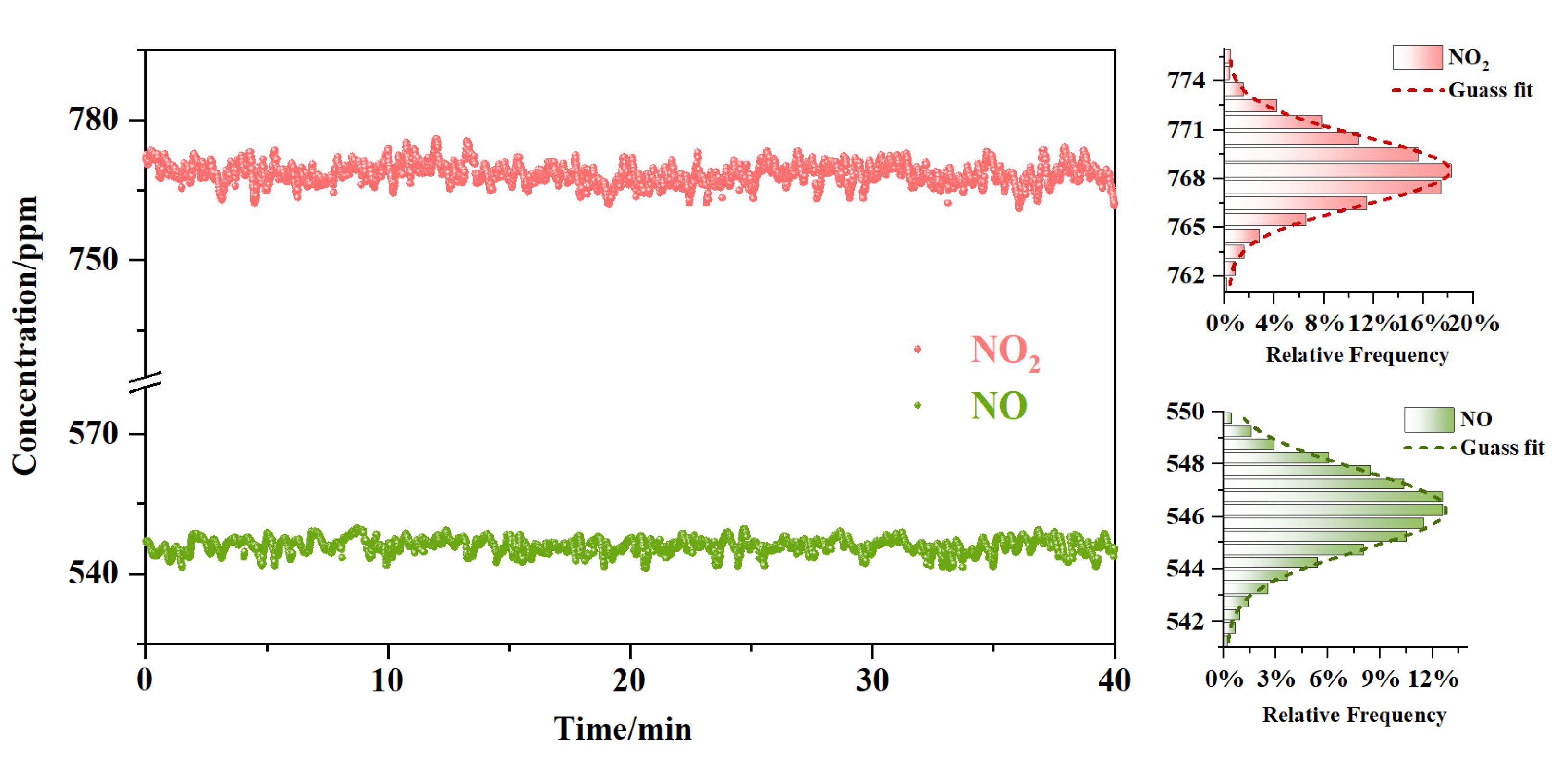

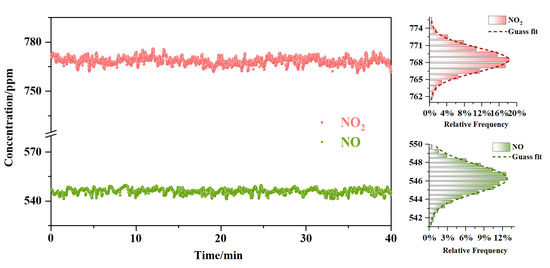

Figure 5. Continuous measurement of the concentrations of NO and NO2 for 40 min.
Figure 5. Continuous measurement of the concentrations of NO and NO2 for 40 min.
Sensors 23 03885 g005
Sensors 23 03885 g006 550

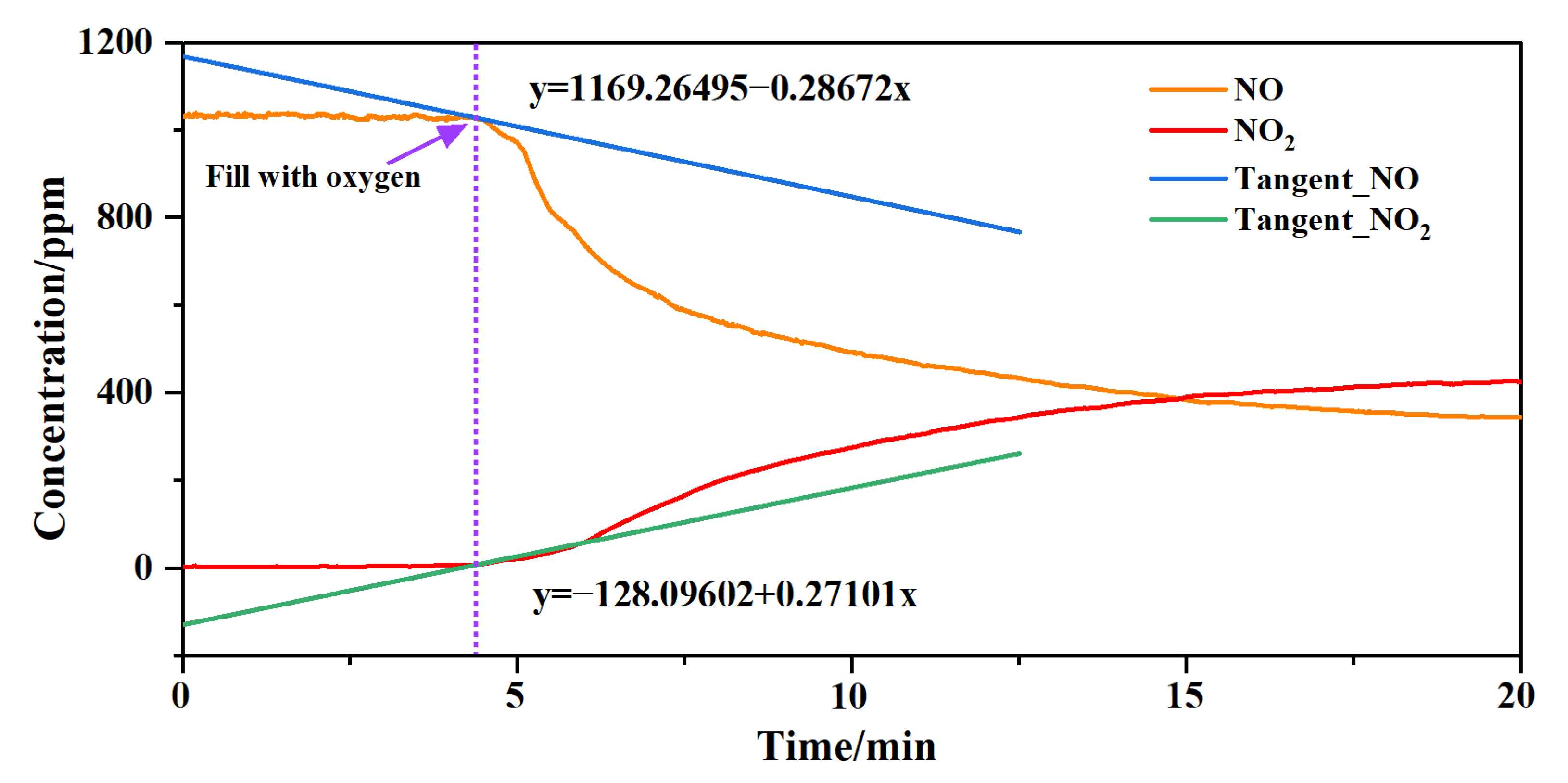

Figure 6. Changes in gas concentration when using O2 to fill an area containing NO.
Figure 6. Changes in gas concentration when using O2 to fill an area containing NO.
Sensors 23 03885 g006
