An ADPLL-Based GFSK Modulator with Two-Point Modulation for IoT Applications

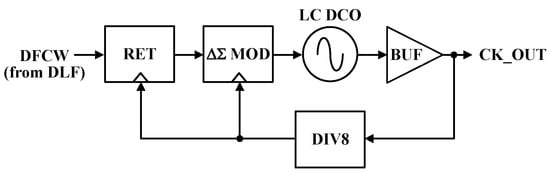

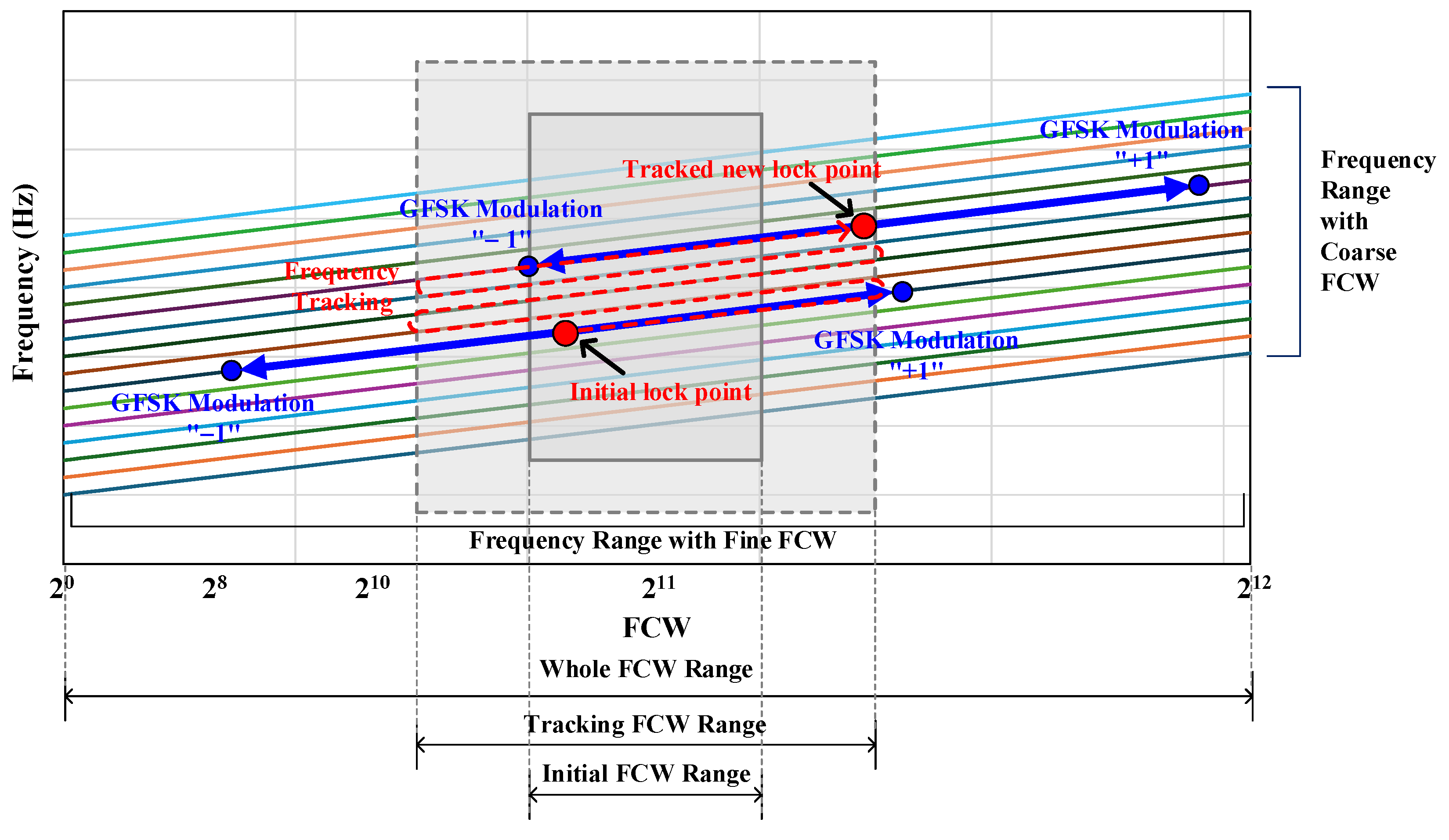

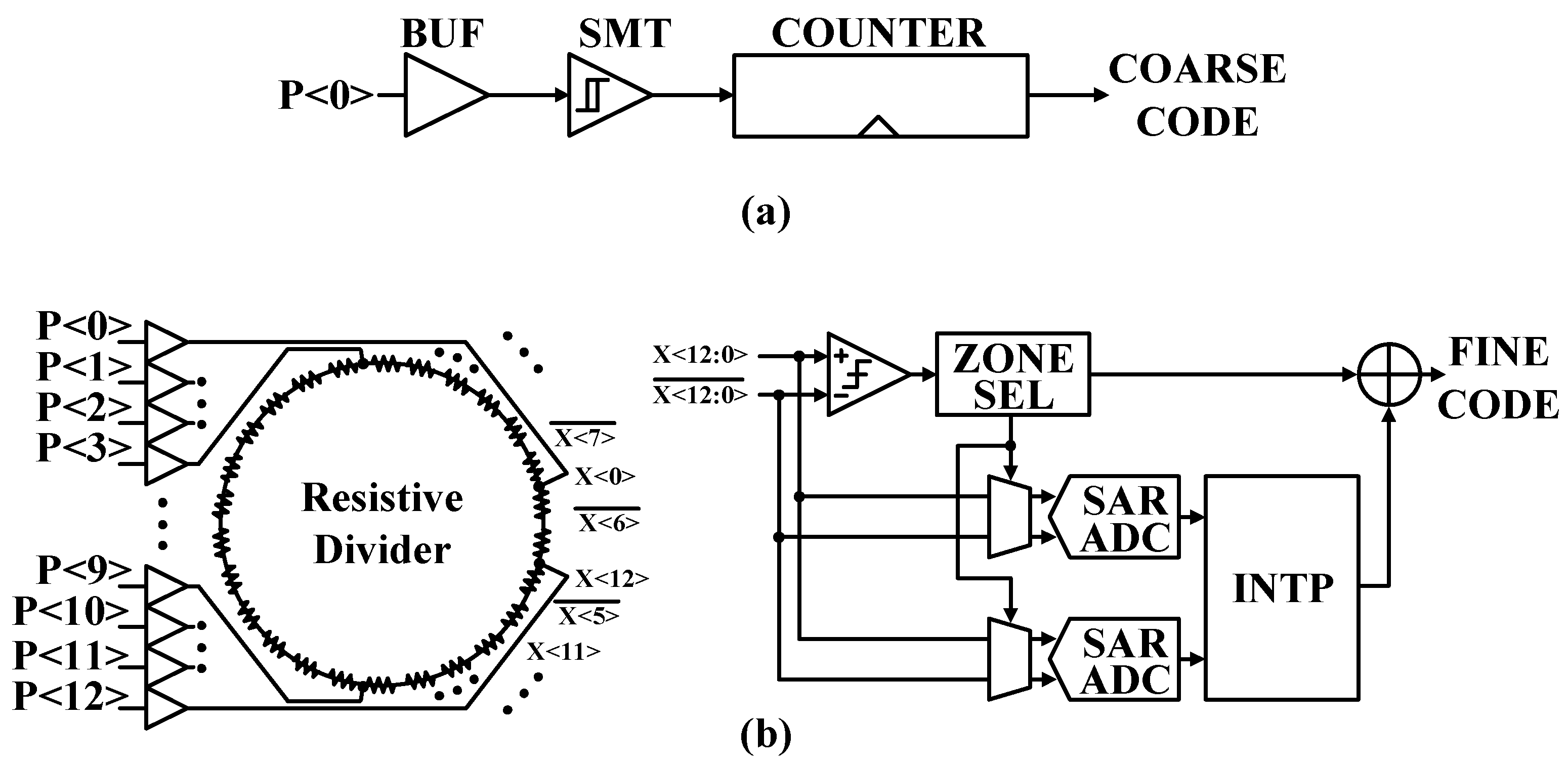

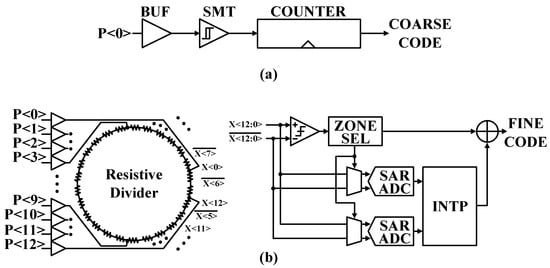

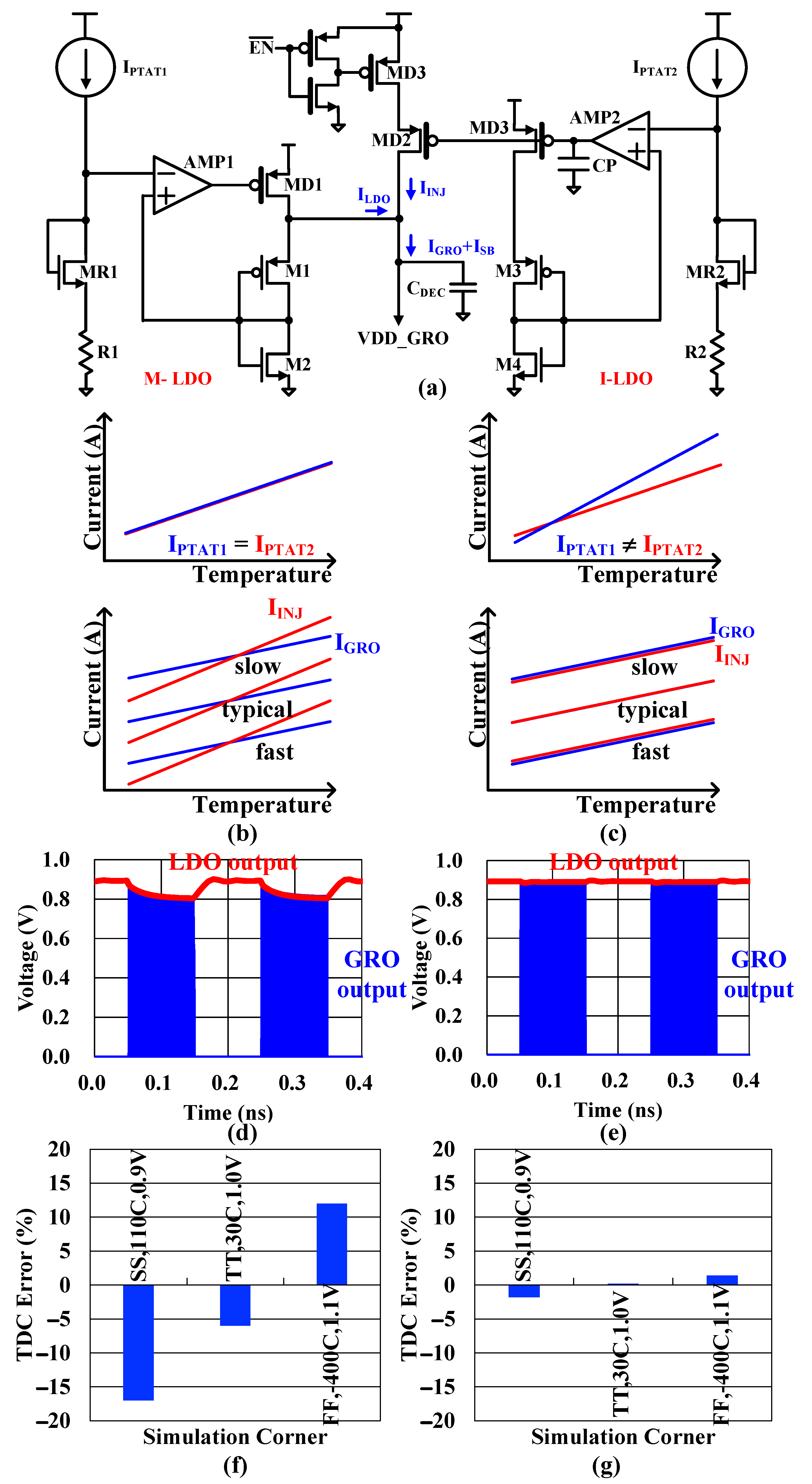

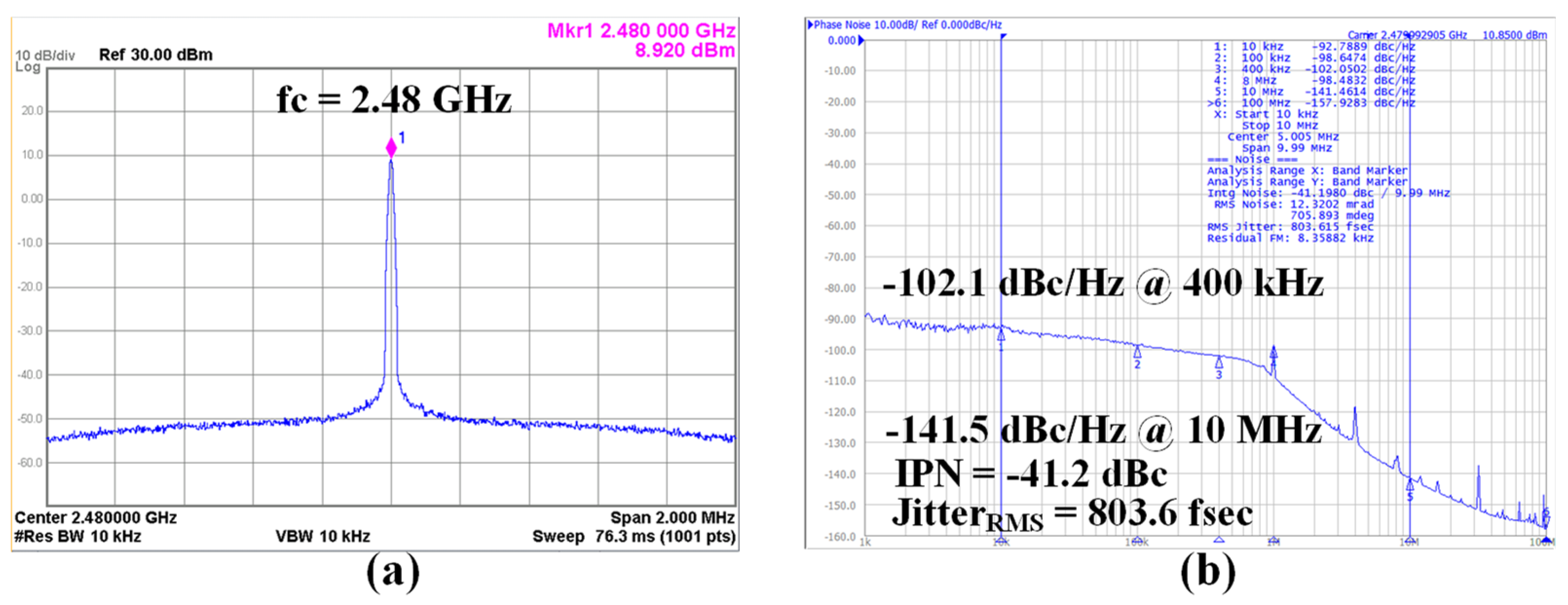

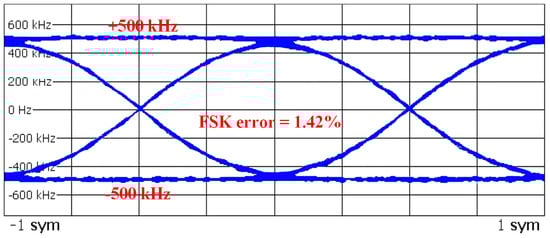

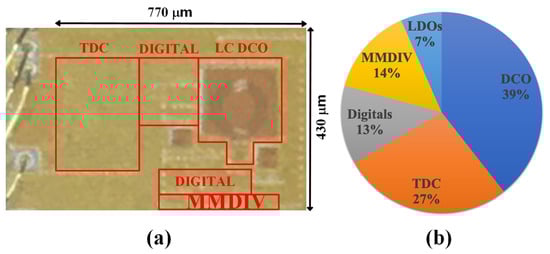

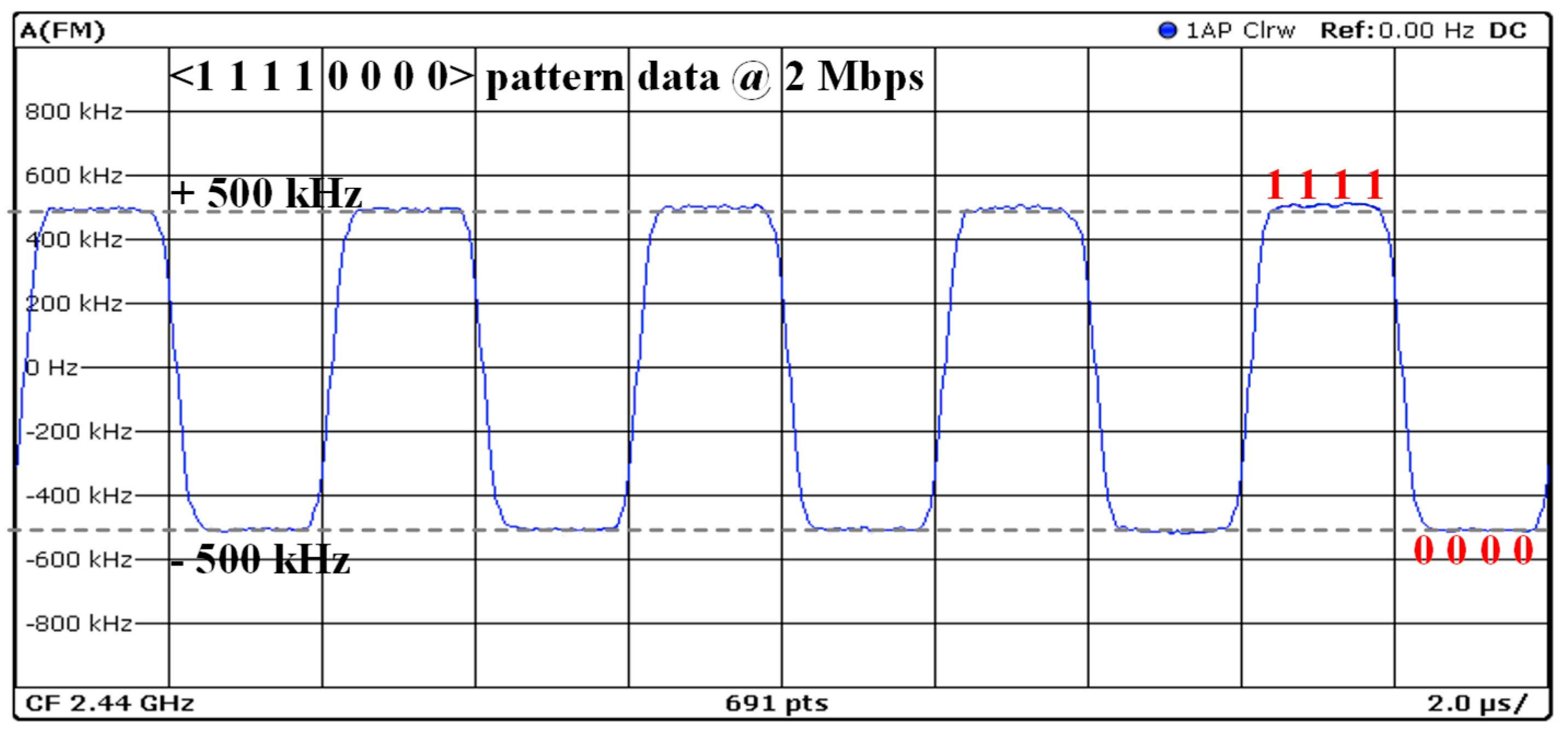

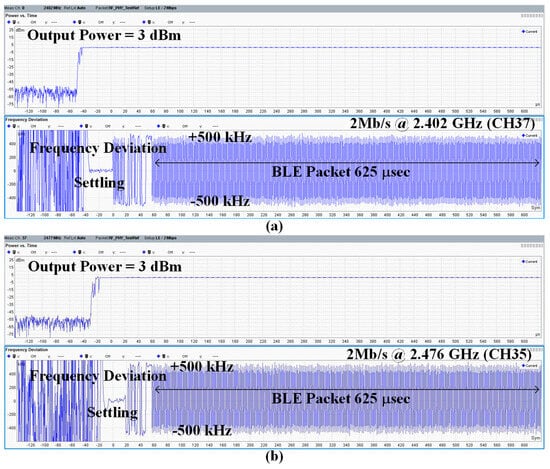

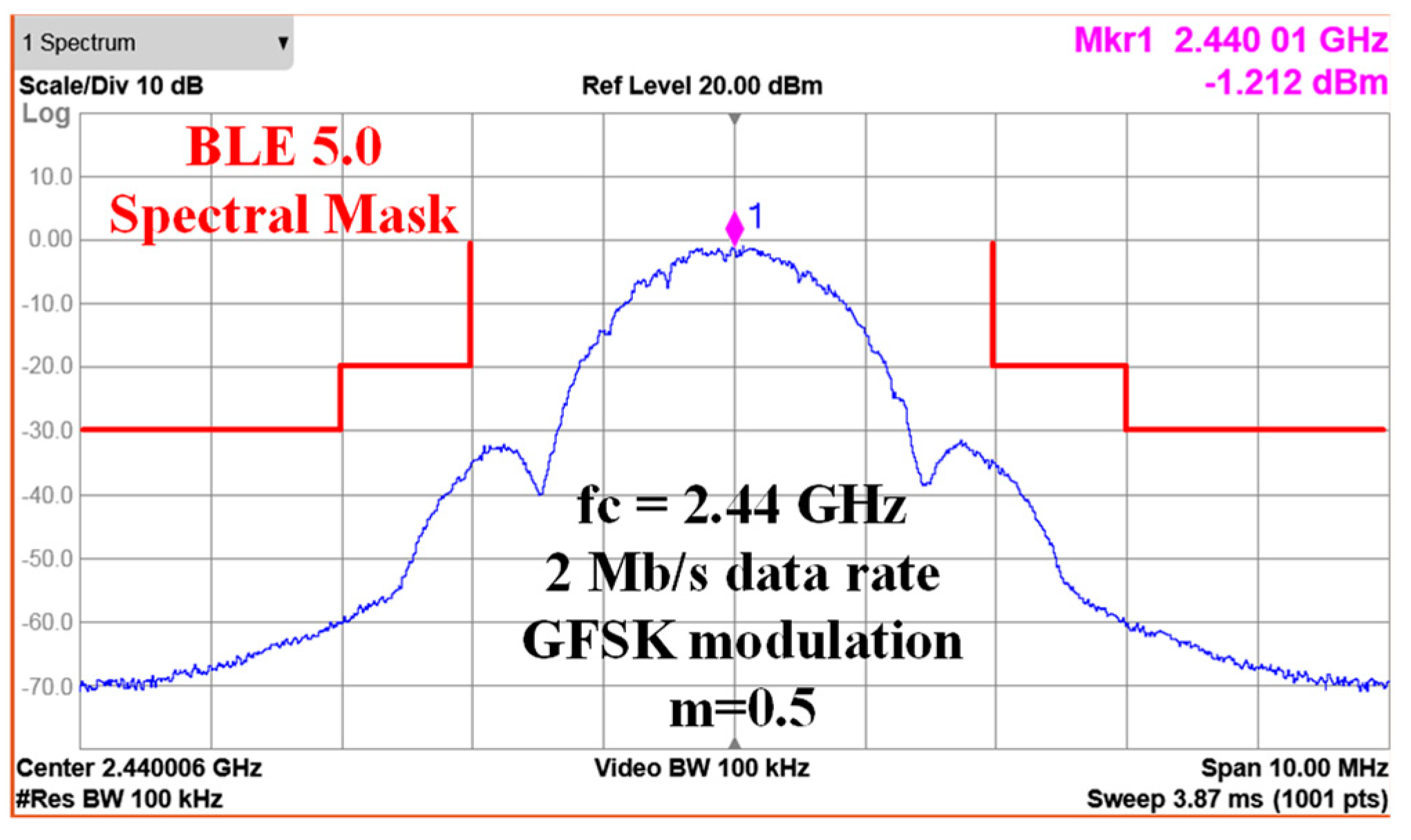

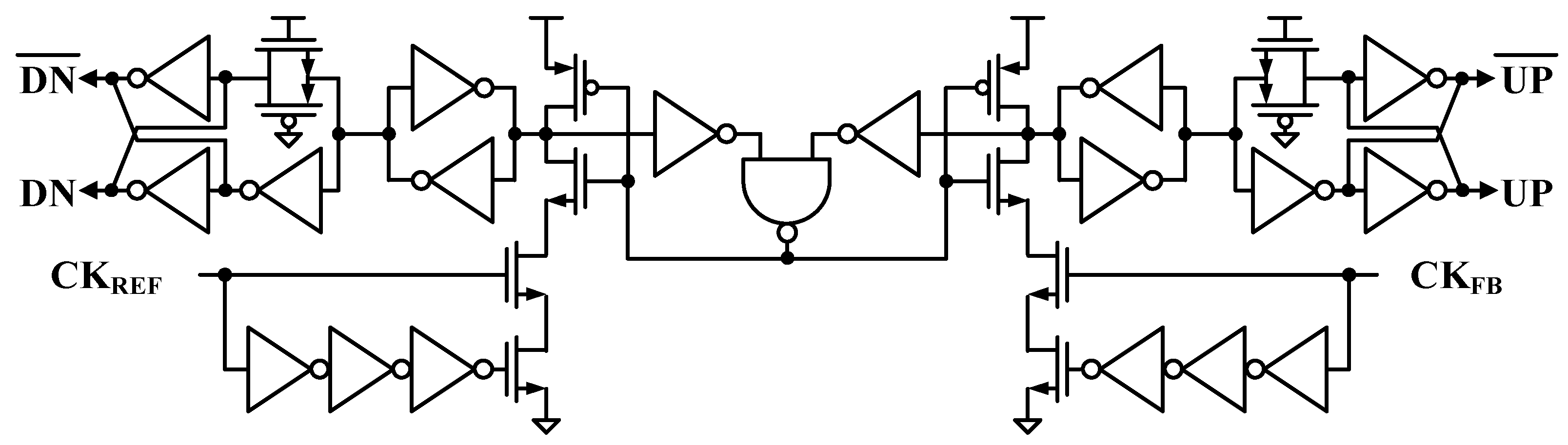

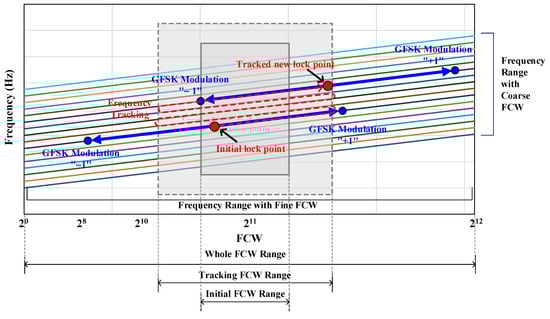

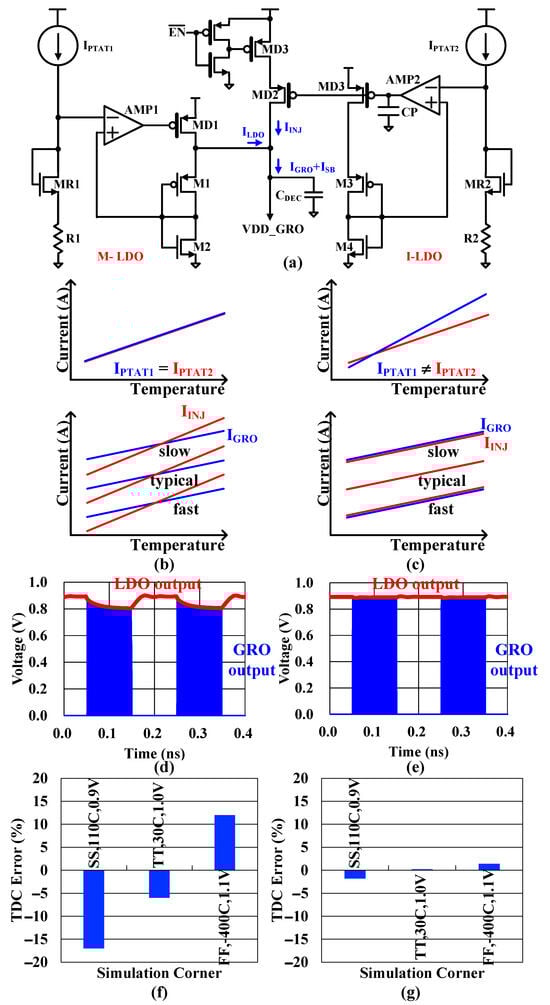

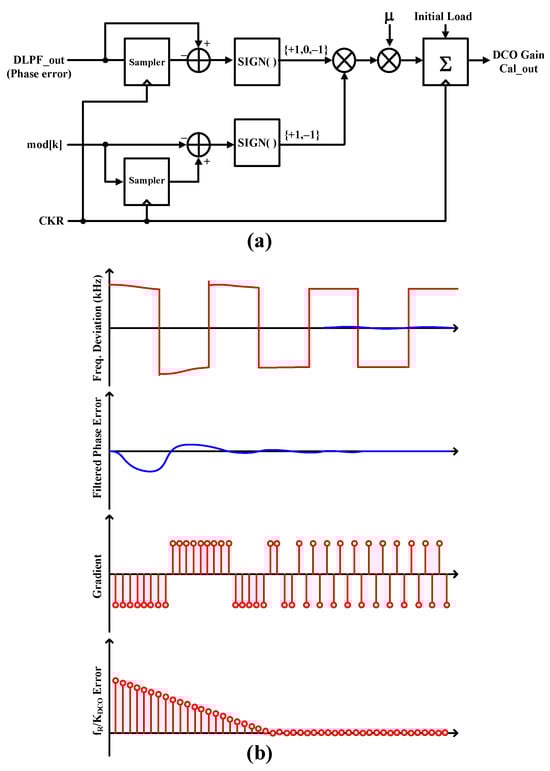

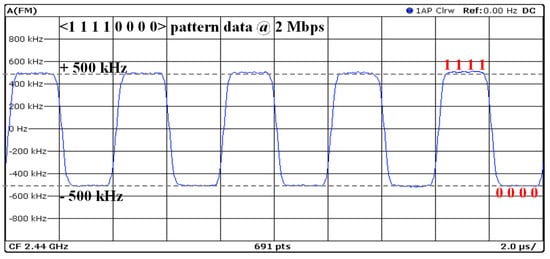

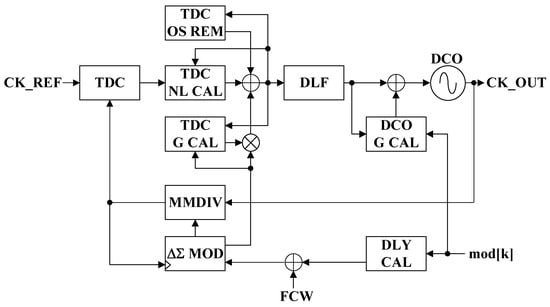

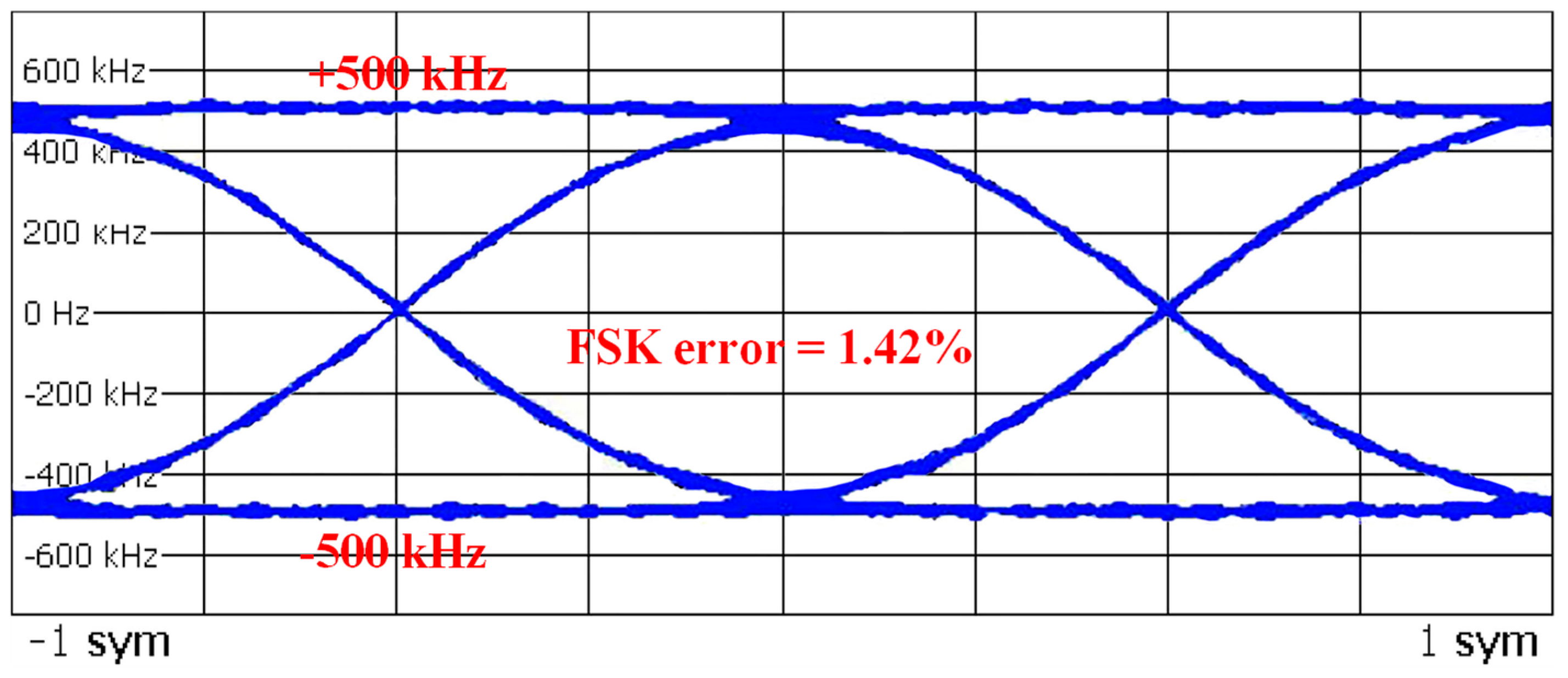

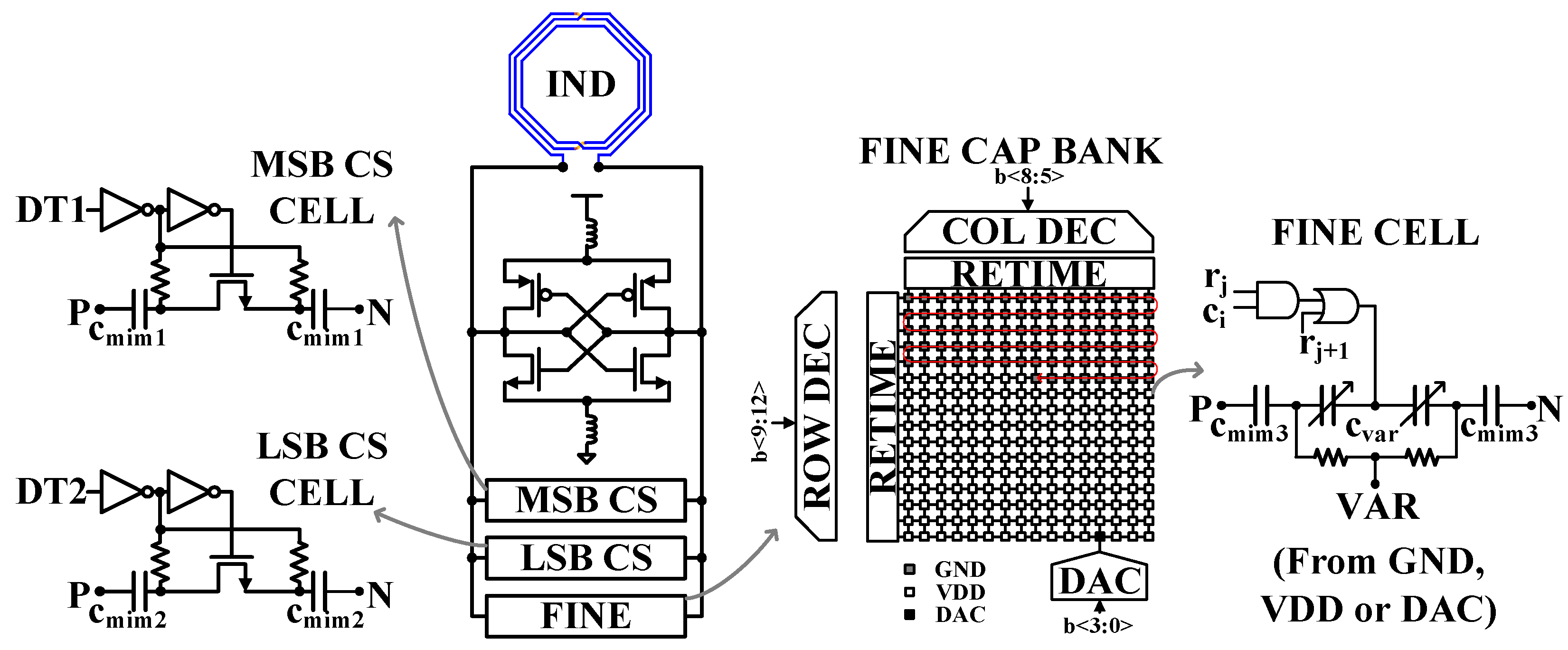

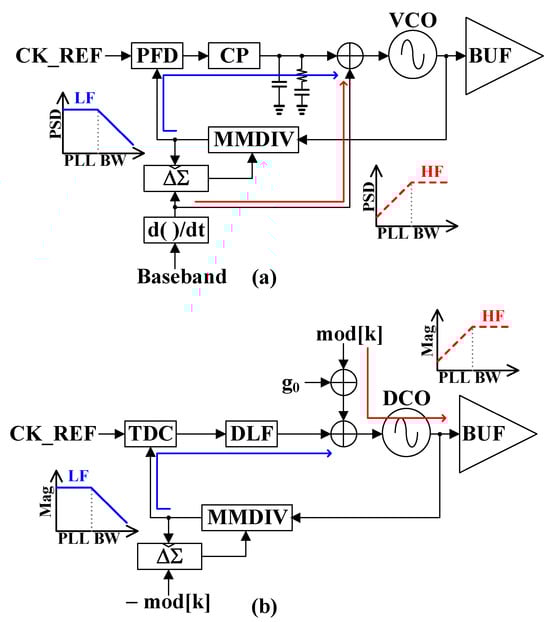

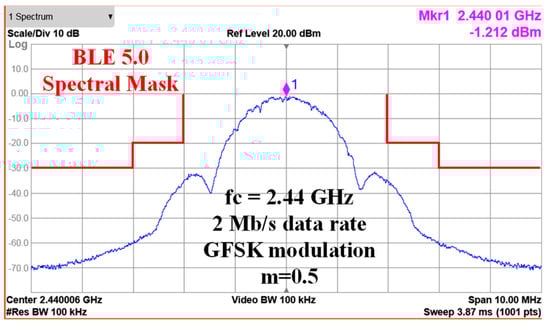

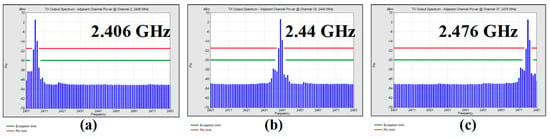

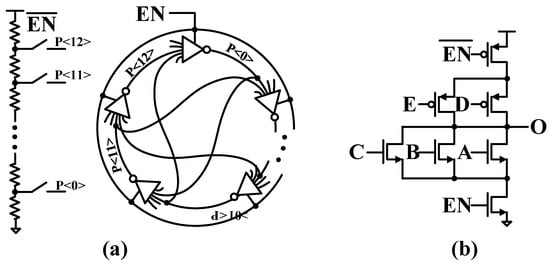

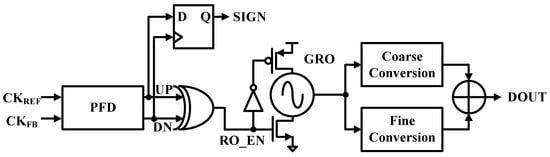

To establish ubiquitous and energy-efficient wireless sensor networks (WSNs), short-range Internet of Things (IoT) devices require Bluetooth low energy (BLE) technology, which functions at 2.4 GHz. This study presents a novel approach as follows: a fully integrated all-digital phase-locked loop (ADPLL)-based Gaussian frequency shift keying (GFSK) modulator incorporating two-point modulation (TPM). The modulator aims to enhance the efficiency of BLE communication in these networks. The design includes a time-to-digital converter (TDC) with the following three key features to improve linearity and time resolution: fast settling time, low dropout regulators (LDOs) that adapt to process, voltage, and temperature (PVT) variations, and interpolation assisted by an analog-to-digital converter (ADC). It features a digital controlled oscillator (DCO) with two key enhancements as follows: ΔΣ modulator dithering and hierarchical capacitive banks, which expand the frequency tuning range and improve linearity, and an integrated, fast-converging least-mean-square (LMS) algorithm for DCO gain calibration, which ensures compliance with BLE 5.0 stable modulation index (SMI) requirements. Implemented in a 28 nm CMOS process, occupying an active area of 0.33 mm², the modulator demonstrates a wide frequency tuning range of from 2.21 to 2.58 GHz, in-band phase noise of −102.1 dBc/Hz, and FSK error of 1.42% while consuming 1.6 mW.
