From Near-Sensor to In-Sensor: A State-of-the-Art Review of Embedded AI Vision Systems
Abstract
:1. Introduction
- Sensors generate massive amounts of data, which can lead to processing and communication bottlenecks in cloud computing.
- Real-time processing requirements often exceed the latency capabilities of cloud computing.
- Computation and communication with or in the cloud, and specifically access to the data generated by computations, require high energy consumption [22].
1.1. Embedded AI Vision Systems Categories

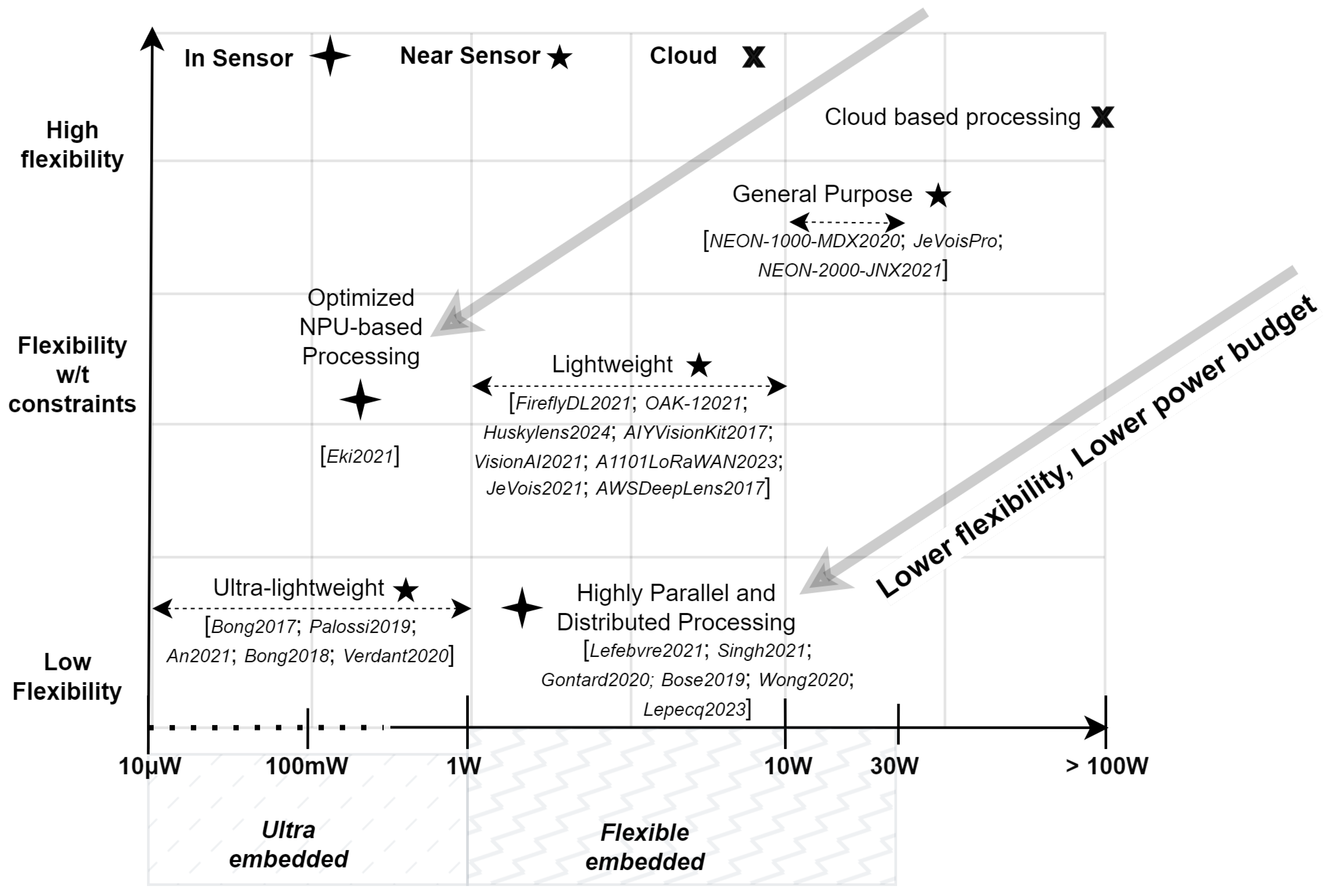

1.2. Design Space: From Near-Sensor to In-Sensor
1.2.1. Near-Sensor AI Vision Systems
1.2.2. In-Sensor AI Vision Systems
2. Metrics and Characteristics
2.1. Image Acquisition Characteristics
2.1.1. Capture Resolution
2.1.2. Processing Resolution
2.2. Pixel-Level Processing
2.2.1. Image Signal Processor
2.2.2. Pre-Processing

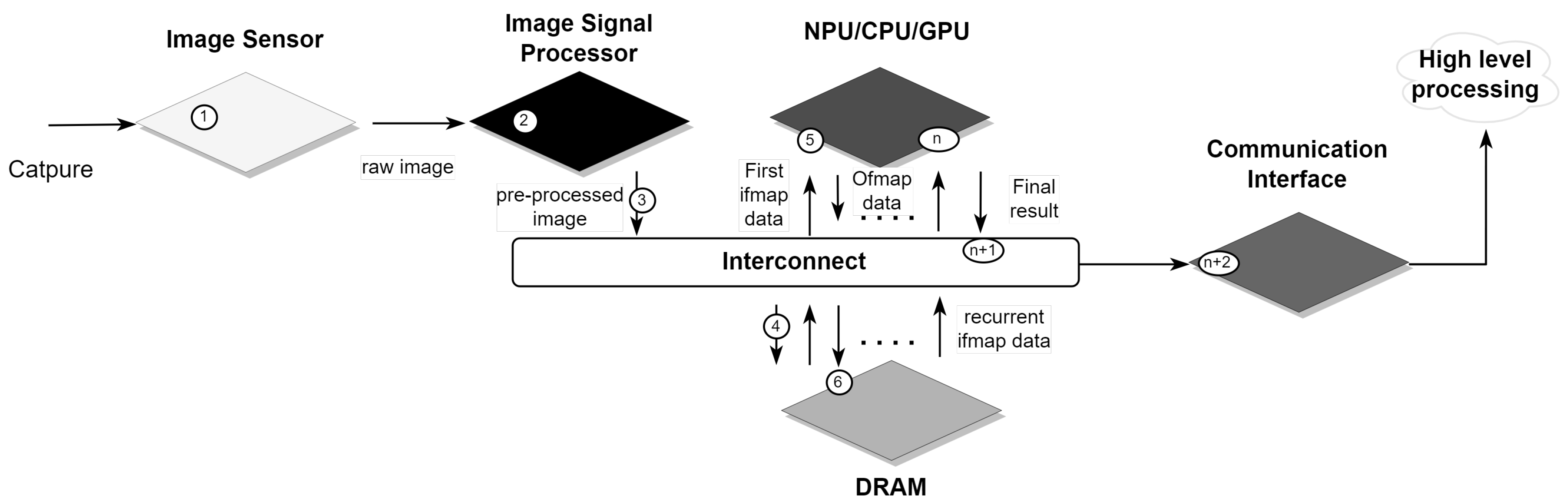

2.3. Bandwidth and Interconnect
2.3.1. Analog-to-Digital Bandwidth
2.3.2. Digital Interconnect Bandwidth
2.4. Memory Resources

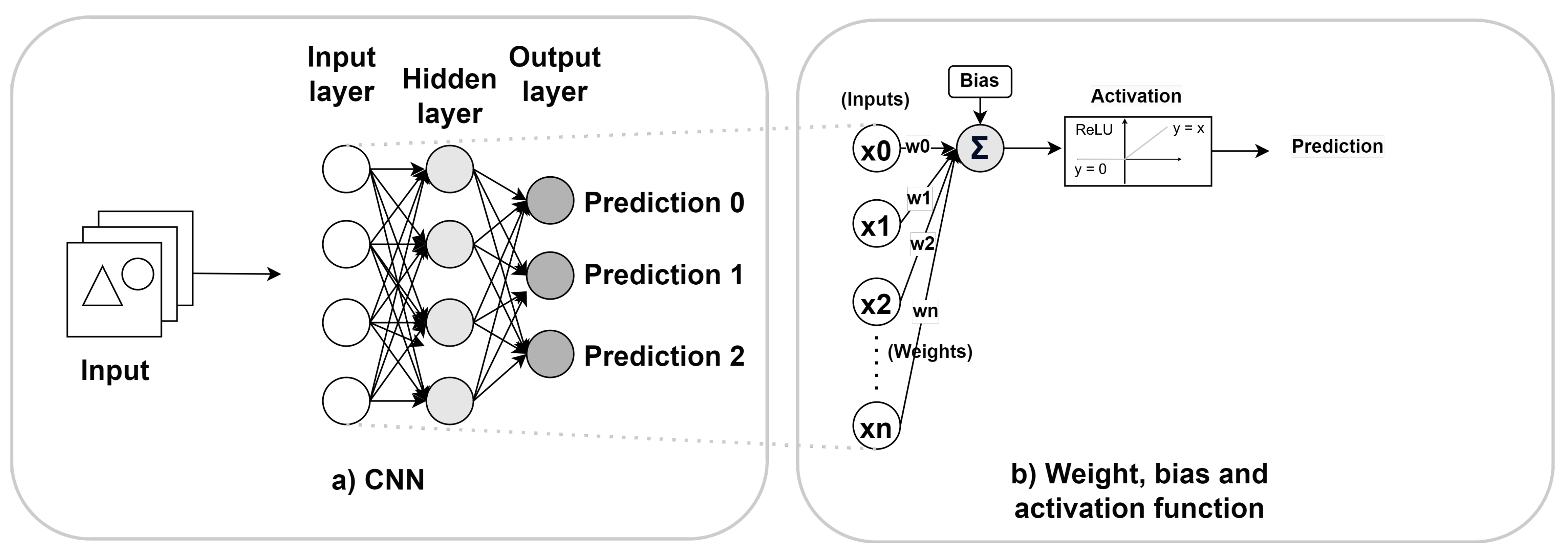

2.5. Convolutional Neural Networks
2.6. Evolution of Embedded Convolutional Neural Networks
- High-Complexity Models (dark gray): These models feature advanced topology and excellent accuracy but require significant layer modifications to adapt to embedded vision systems. These adaptations may include modifying or removing specific components such as Squeeze-and-Excite modules [76] or Swish activation [77] to make better use of complexity-reduction techniques. These models also require potential adaptation in terms of the number of parameters and calculations, which may not be suitable for certain embedded platforms.
- Adaptable Integration Models (light gray): This category includes designs that achieve high accuracy and maintain a manageable computing footprint. However, these models often require adaptations, such as modifications to certain layers, due to the large number of parameters and the computing power they require.
- Optimized for Embedded Use (White): These models are designed specifically for embedded systems, with an emphasis on ease of integration and minimal computational requirements. They use simple computation methods, such as ReLU activation, convolution factorization, and depth-separable convolutions [78], and incorporate techniques such as batch normalization [79] directly into the convolutional layers, as demonstrated by EfficientNet-Lite [59]. Although they can sometimes sacrifice accuracy, their low resource requirements make them ideal for resource-constrained environments.
2.7. AI Processing Unit
2.7.1. Flexibility
- High-flexibility approach: This approach imposes few or no restrictions on the choice of CNNs, allowing for a wide range of models and therefore facilitating a large number of applications.
- Moderate-flexibility approach: This approach focuses on a specific subset of convolutional neural networks, resulting in restrictions on the models and layers available, thus reducing the scope of potential applications.
- Low-flexibility approach: In this approach, the focus is on a particular CNN model, which severely limits adaptability in terms of model architecture and the range of applicable use cases.
2.7.2. Programmability
2.7.3. Software Stacks
2.7.4. AI Processing Unit Types
- General-purpose systems: Using architectures such as CPUs, GPUs, and FPGAs, these systems are characterized by their larger size and ability to deliver high performance across a wide range of AI processing tasks. Although they offer great flexibility and substantial computing power, this comes at the price of their increased power consumption and larger size. They are well suited to the use of full-featured software [95,96] for CNN implementation.
- Lightweight Systems: These systems employ specialized computing architectures like less powerful CPUs [98] or advanced NPUs [36] that focus on energy efficiency for particular tasks. Designed to achieve a balance between performance and power consumption, these architectures are suitable for environments where the highest levels of computational power are not necessary. They often use highly optimized dataflow and specialized software stacks such as TensorFlow Lite [99] and Spinnaker SDK Teledyne [100], tailored for specific, low-power AI applications.
- Ultra-lightweight systems: These systems employ specific computing and processing architectures that are generally designed for a single task, allowing a maximum compromise in favor of systems power consumption and at the expense of system flexibility [30].
2.8. Complexity-Reduction Techniques

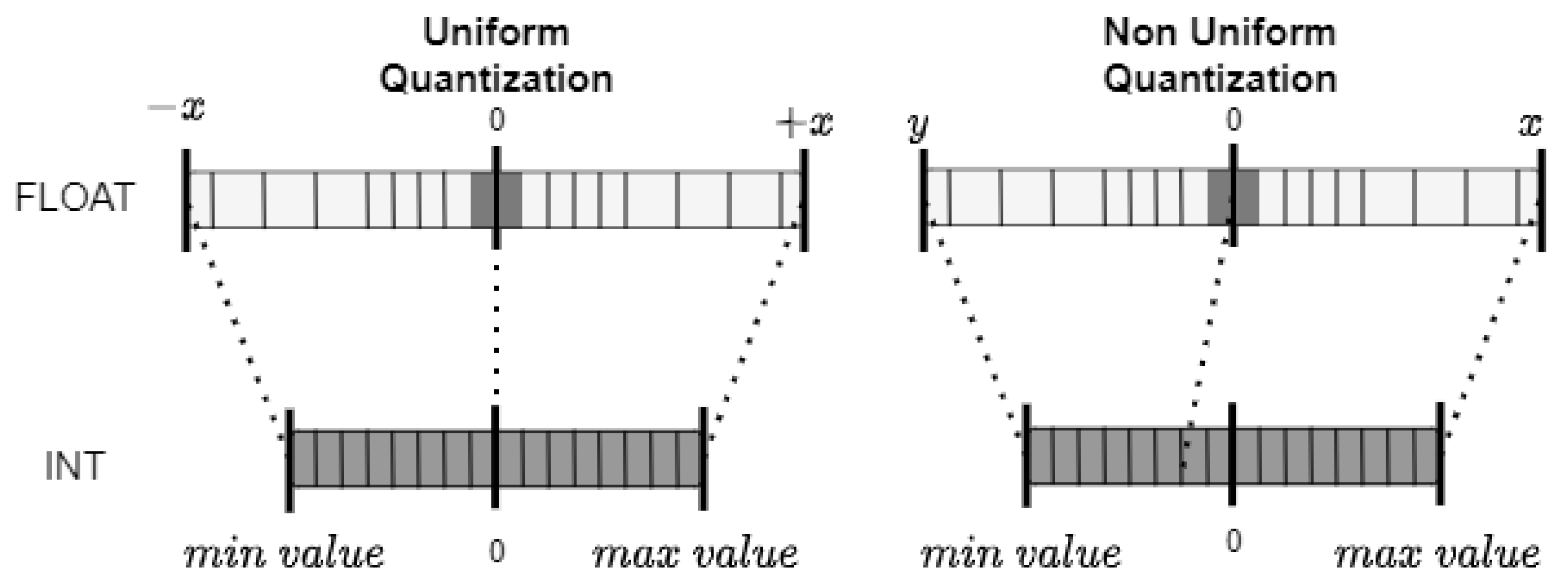

2.8.1. Quantization

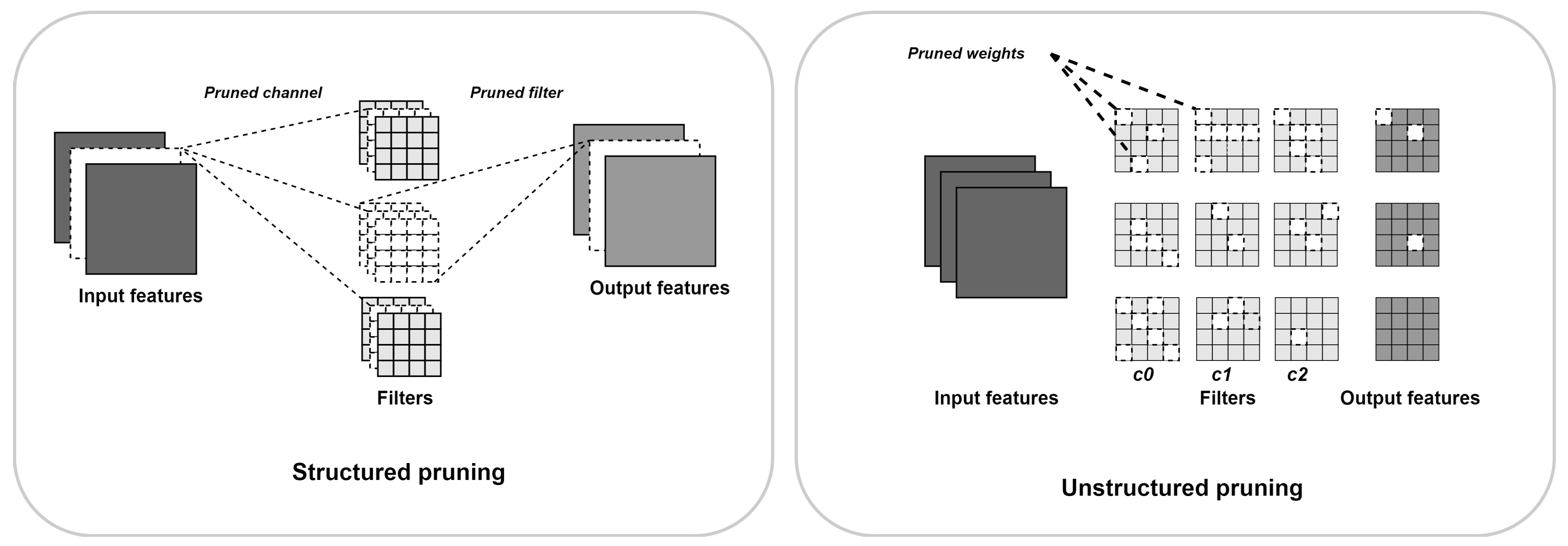

2.8.2. Pruning
2.8.3. AI Vision System Metrics
2.8.4. Frames per Second
2.8.5. System Size
2.8.6. Energy Consumption (Watts)
2.8.7. Energy Efficiency (TOPS/Watt)
2.8.8. Utilization Rate
2.9. Concluding Insights on Metrics and Characteristics of Embedded AI Vision Systems
3. Near-Sensor AI Vision Systems
- General-purpose AI vision systems are designed for high flexibility approaches, requiring significant computing power of general-purpose processing units to process high-complexity models.
- Lightweight AI vision systems are designed for a moderate-flexibility approach to simpler tasks, using less sophisticated adaptable integration models and reduced computing resources with lightweight processing units.
- Ultra-lightweight AI vision systems are designed for low-flexibility approaches and minimal power consumption and size with ultra-lightweight processing units, using basic CNN models optimized for embedded use and minimal processing capabilities.
3.1. General-Purpose AI Vision Systems
3.2. Lightweight AI Vision Systems
3.3. Ultra-Lightweight AI Vision Systems
3.4. Conclusion on Near-Sensor Processing AI Vision Systems
4. In-Sensor AI Vision Systems

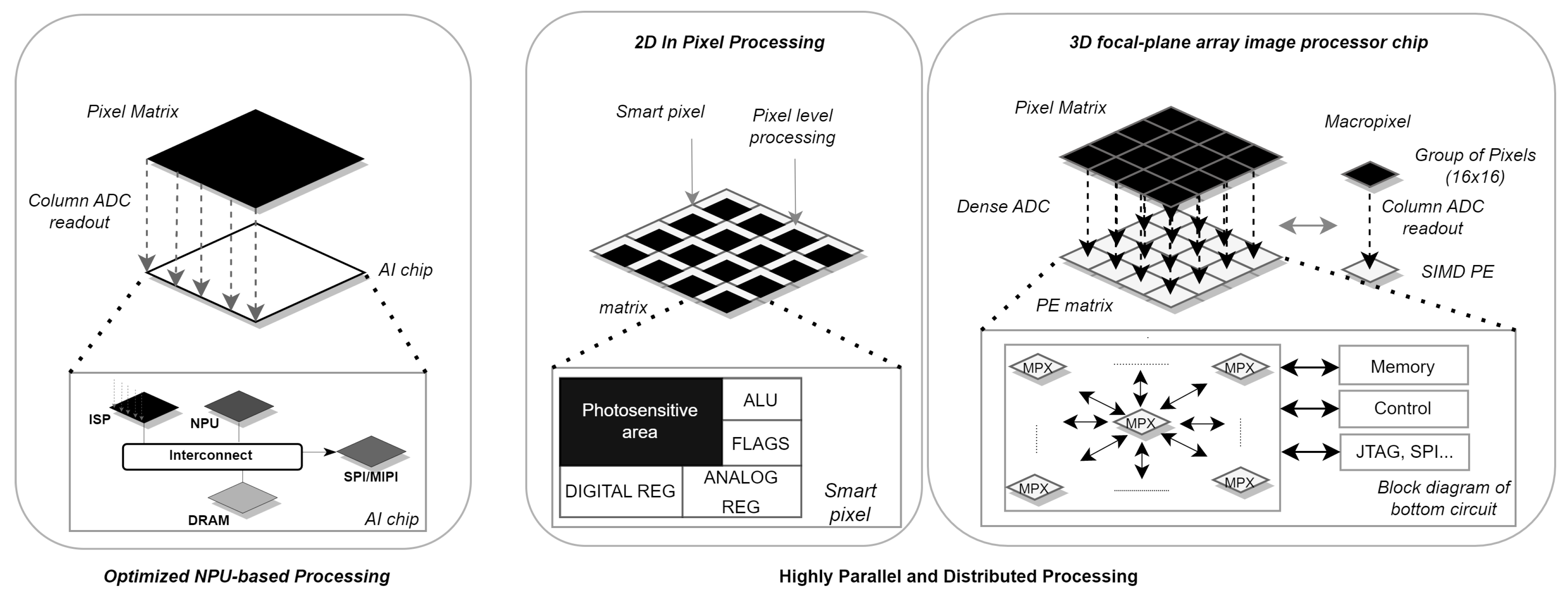

4.1. Introduction to 3D IC Vision Systems
4.2. Optimized NPU-Based Processing
4.2.1. CNN Inference Process
4.2.2. Opportunities for Improvement
4.3. Two-dimensional In-Pixel Processing
4.3.1. CNN Inference Process
4.3.2. Opportunities for Improvement
4.4. Three-Dimensional Focal-Plane Array Image Processor Chip
4.4.1. CNN Inference Process
4.4.2. Opportunities for Improvement
4.5. Conclusion on In-Sensor Processing AI Vision Systems
5. Conclusions
5.1. Near-Sensor Systems
5.2. In-Sensor Systems
6. Perspectives
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
