A 3-D Near-Field Source Localization Approach Based on the Combination of a Phase Interferometer, the Centroid Algorithm and the Perpendicular Foot Algorithm

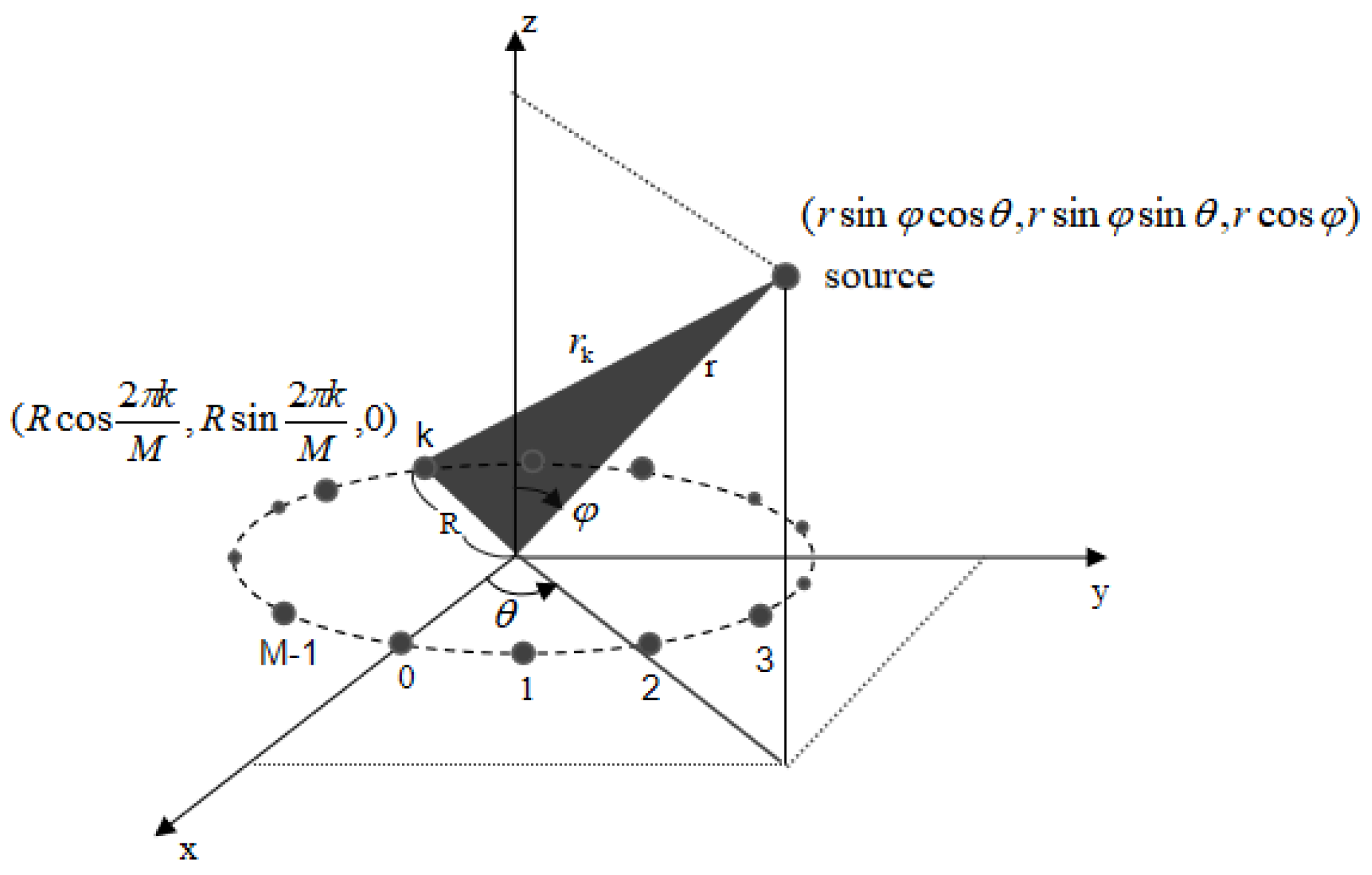

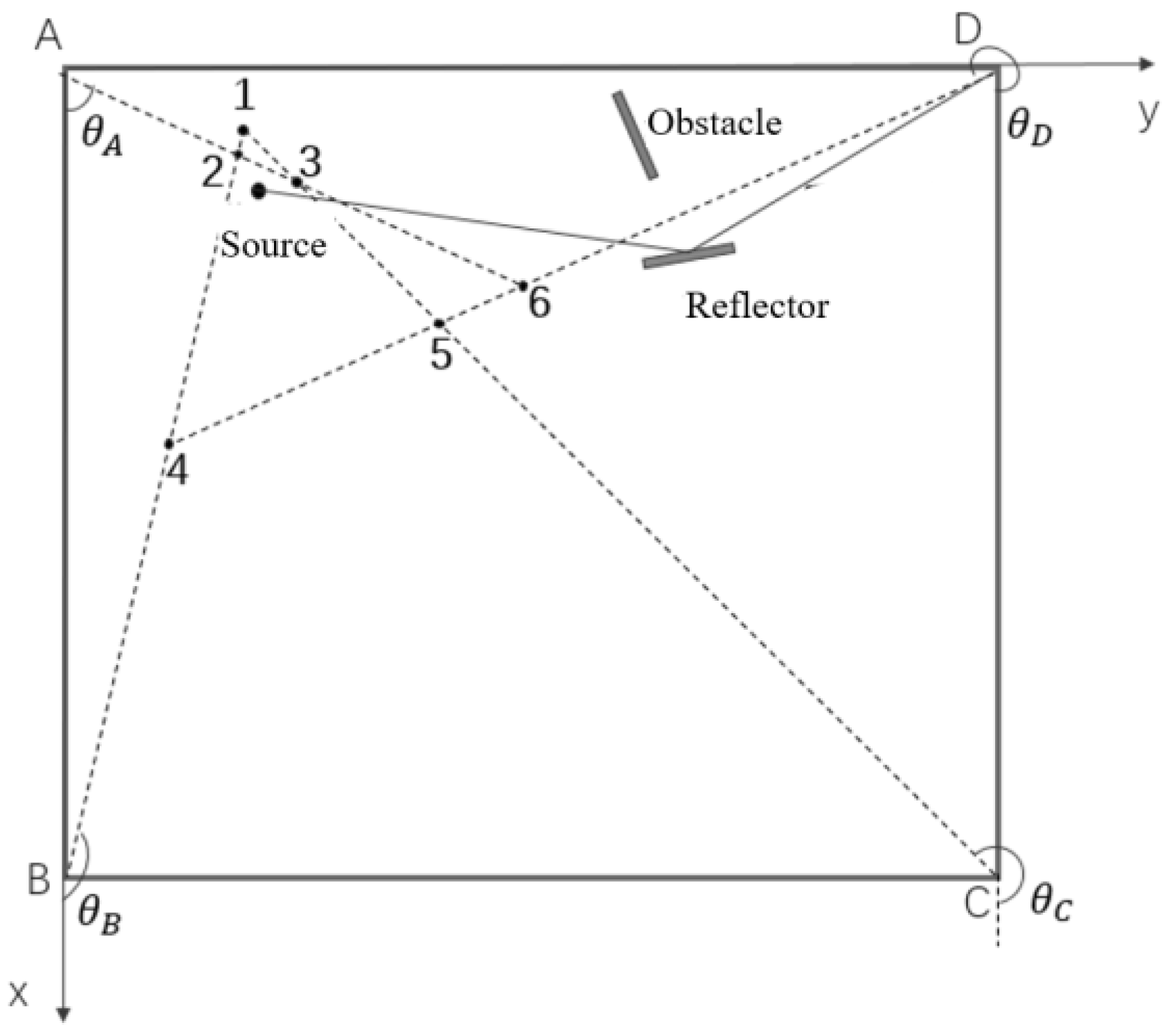

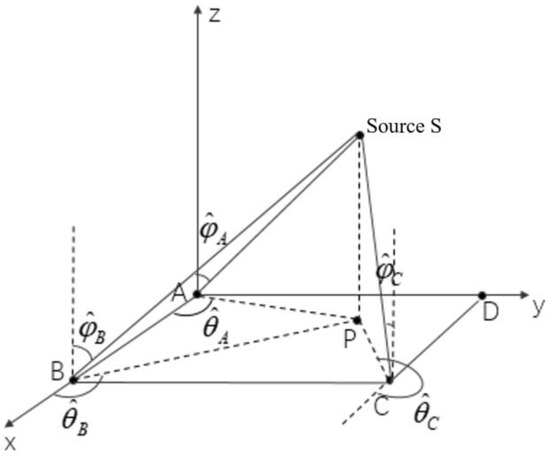

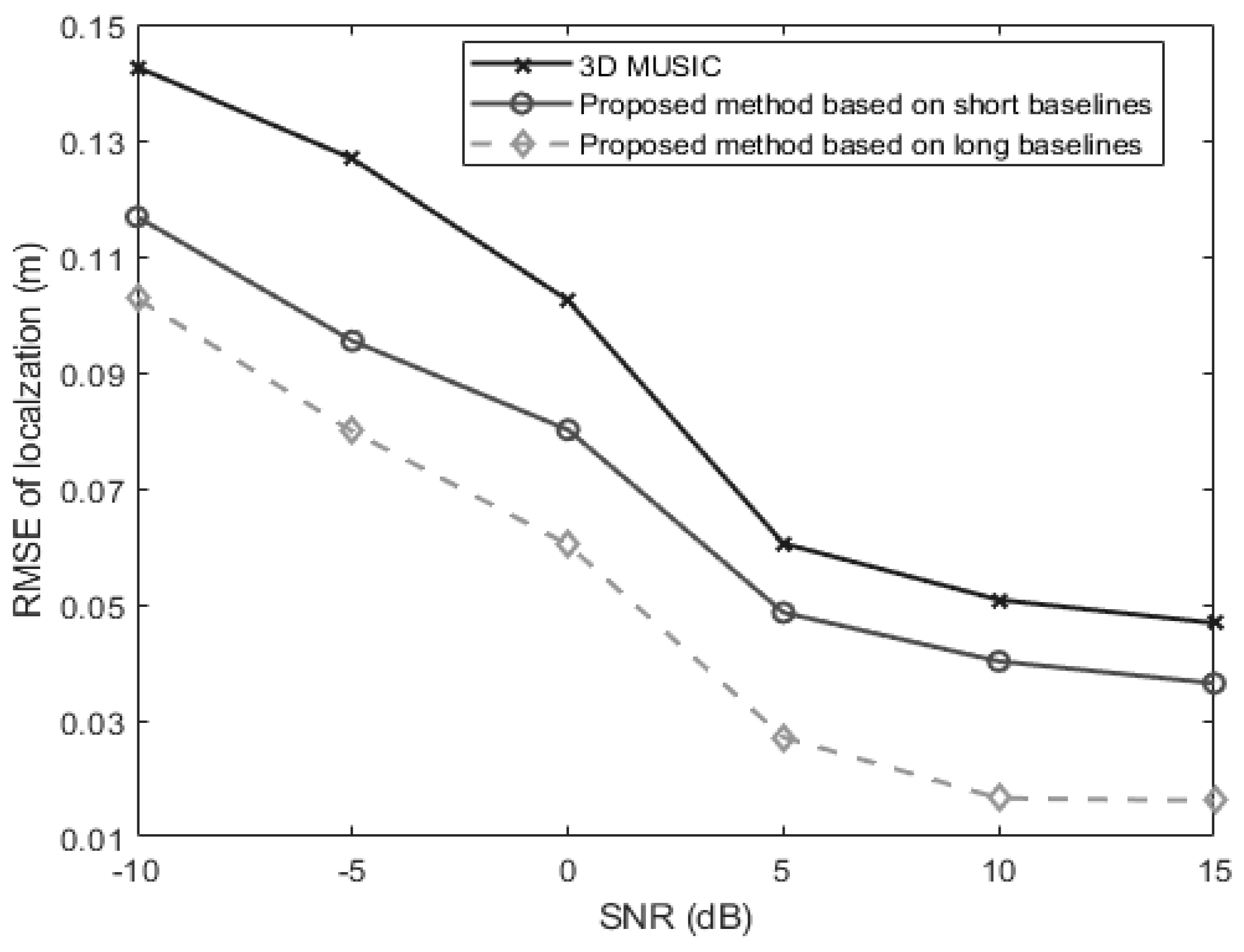

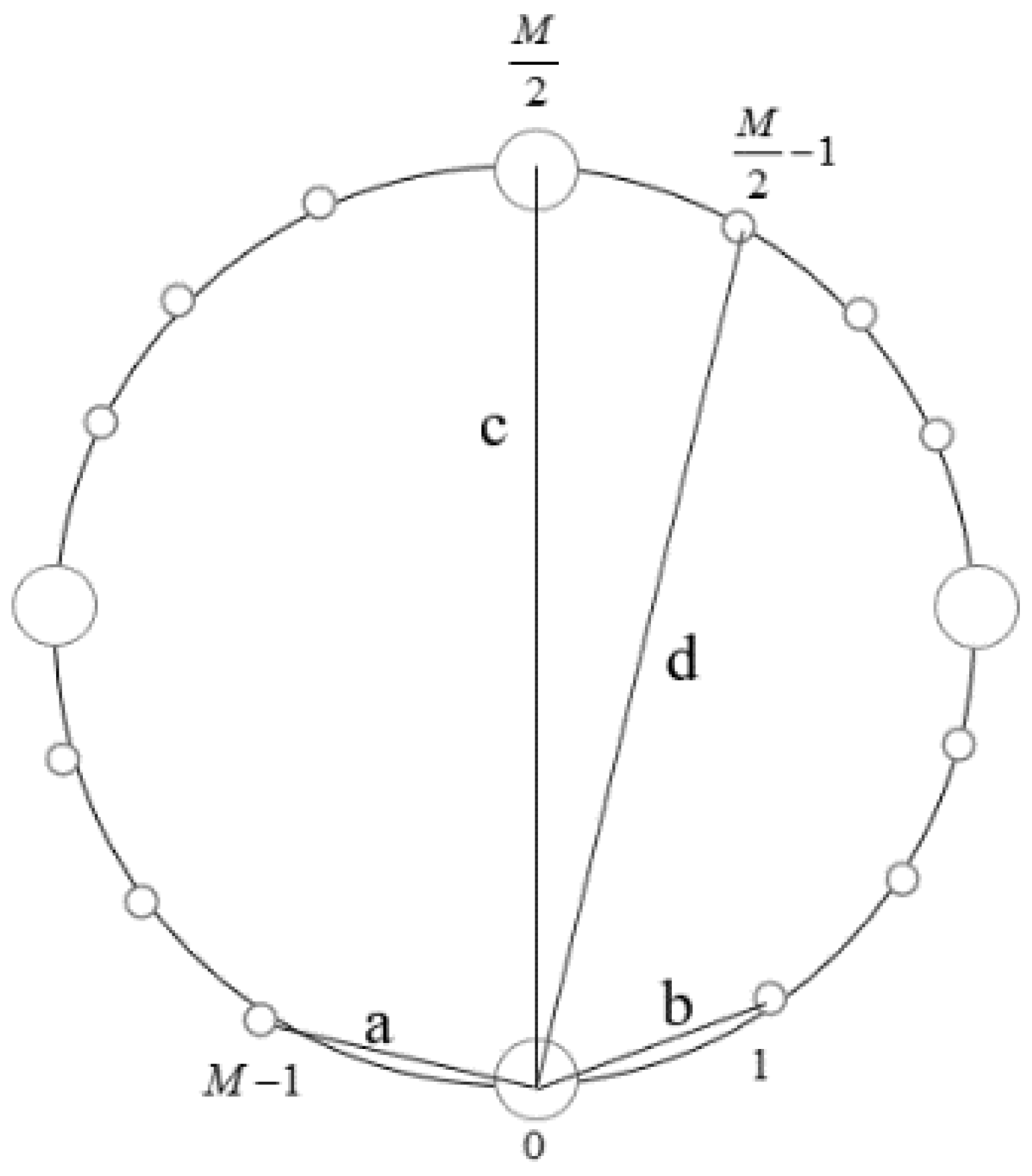

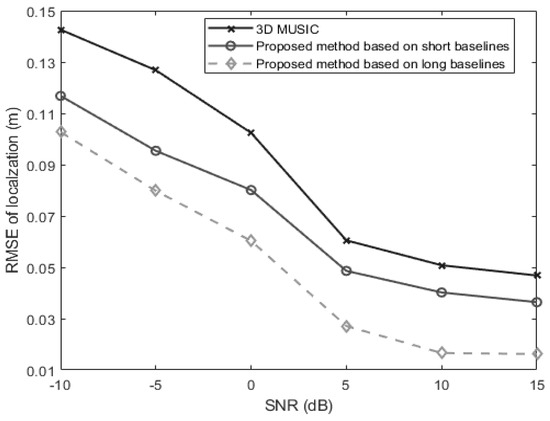

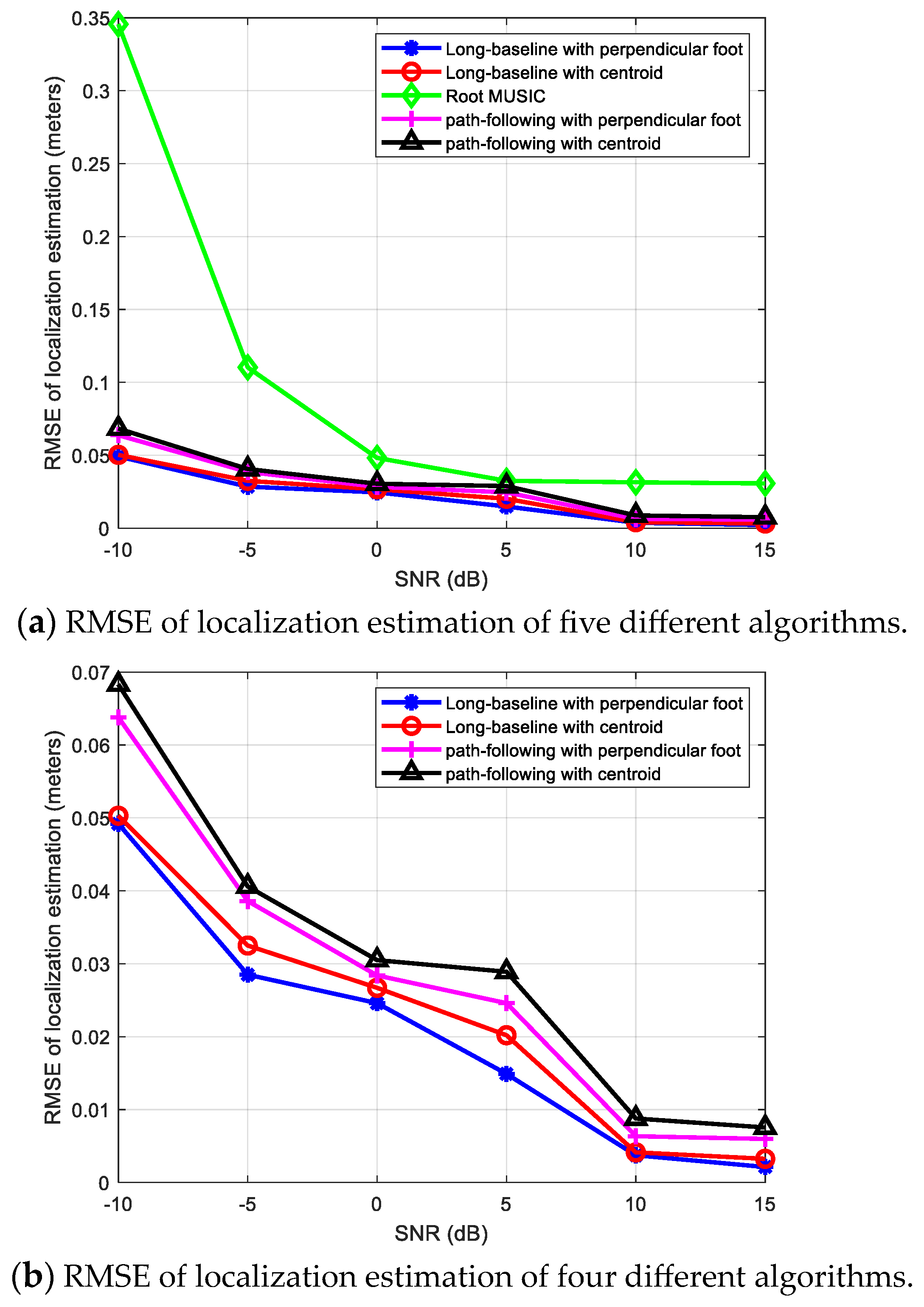

In this study, several 3-dimensional (3-D) parameter estimation and localization algorithms for wireless near-field (NF) sources are proposed employing the uniform circular array (UCA) structure. In the single-base-station case, the algebraic relation is demonstrated between the azimuth angle under the far-field (FF) assumption and the actual NF source firstly. Secondly, two groups of antenna pairs are selected with distances less than half the wavelength, which are called short baselines in the interferometer method. The foregoing short-baseline method is qualified to localize an NF source. In addition, a long-baseline method is also proposed with further research. Two groups of antenna pairs with distances greater than half the wavelength are selected as two long baselines. In the multiple-base-stations case, another two novel algorithms are also proposed. The first one is the centroid algorithm, which is based on the centroid calculation of three estimated source locations. And the second one is the perpendicular foot algorithm, which takes the perpendicular foot within three estimated source locations as the final positioning location. Simulation results illustrate that the proposed algorithms can achieve higher localization accuracy than the conventional 3-D Root MUSIC method. Moreover, the long-baseline method performs better than the short-baseline method. And it is also shown that the proposed perpendicular foot algorithm shows better performance than the proposed centroid algorithm.
