Design of a High-Power Nanosecond Electromagnetic Pulse Radiation System for Verifying Spaceborne Detectors

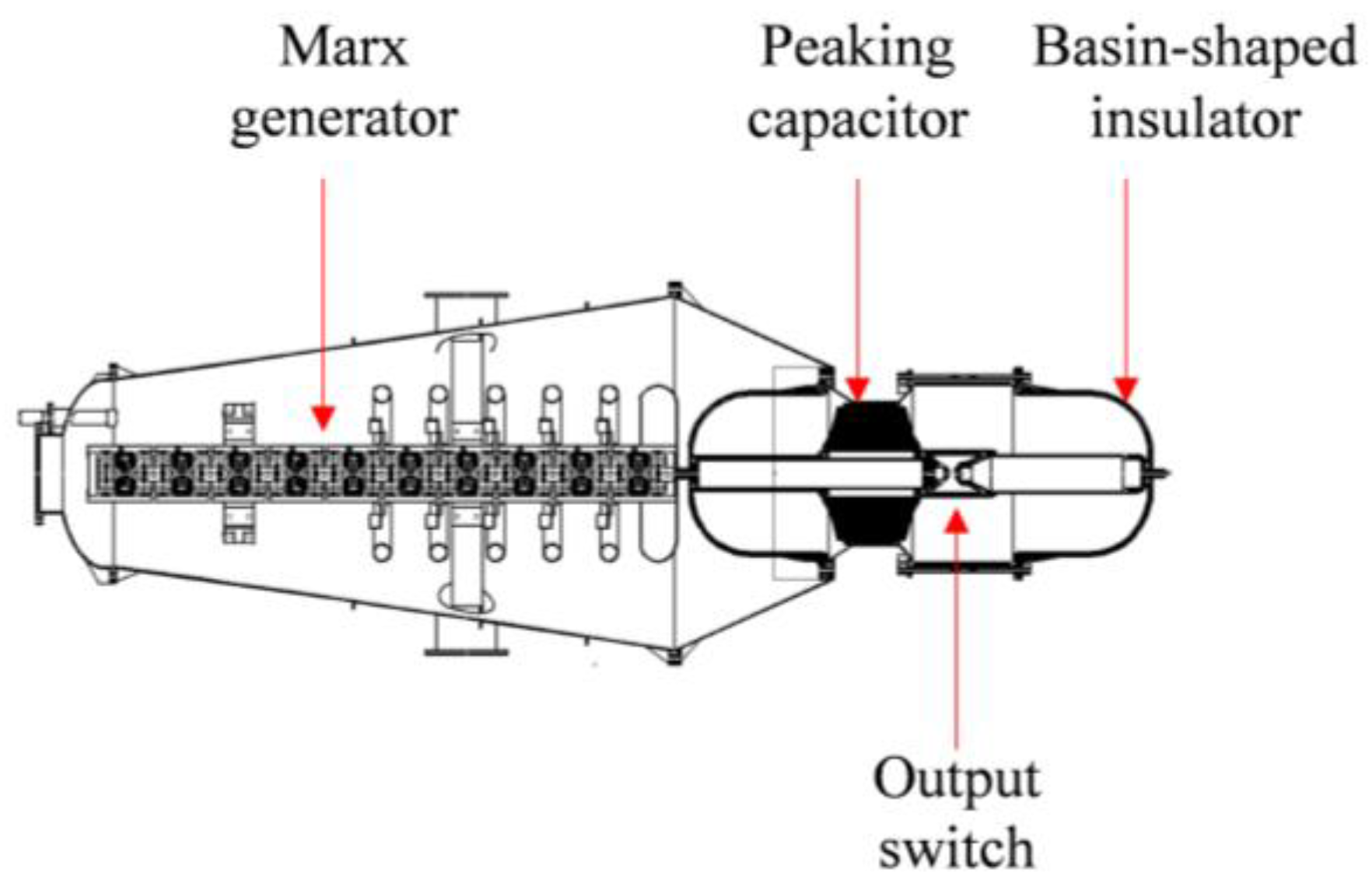

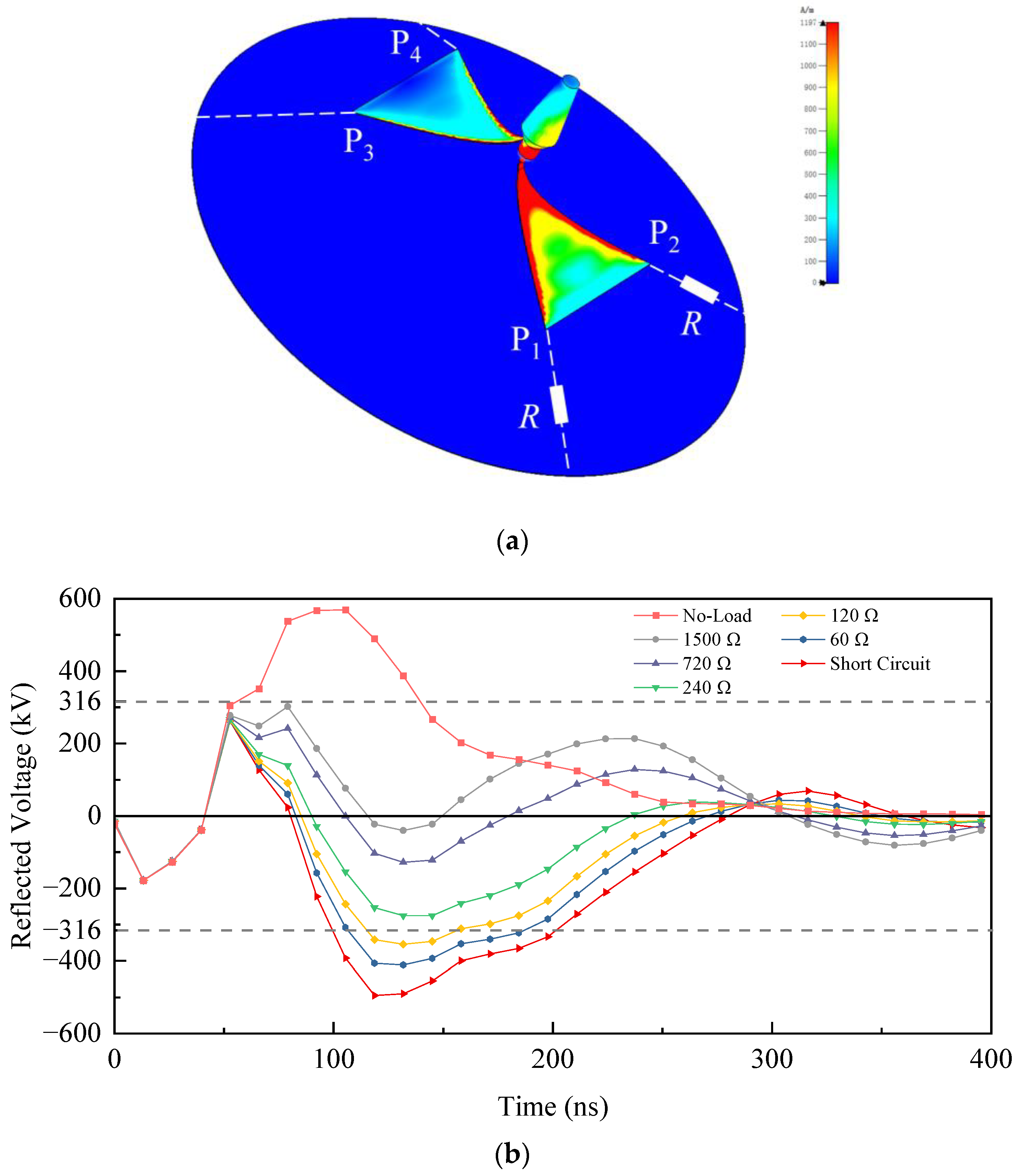

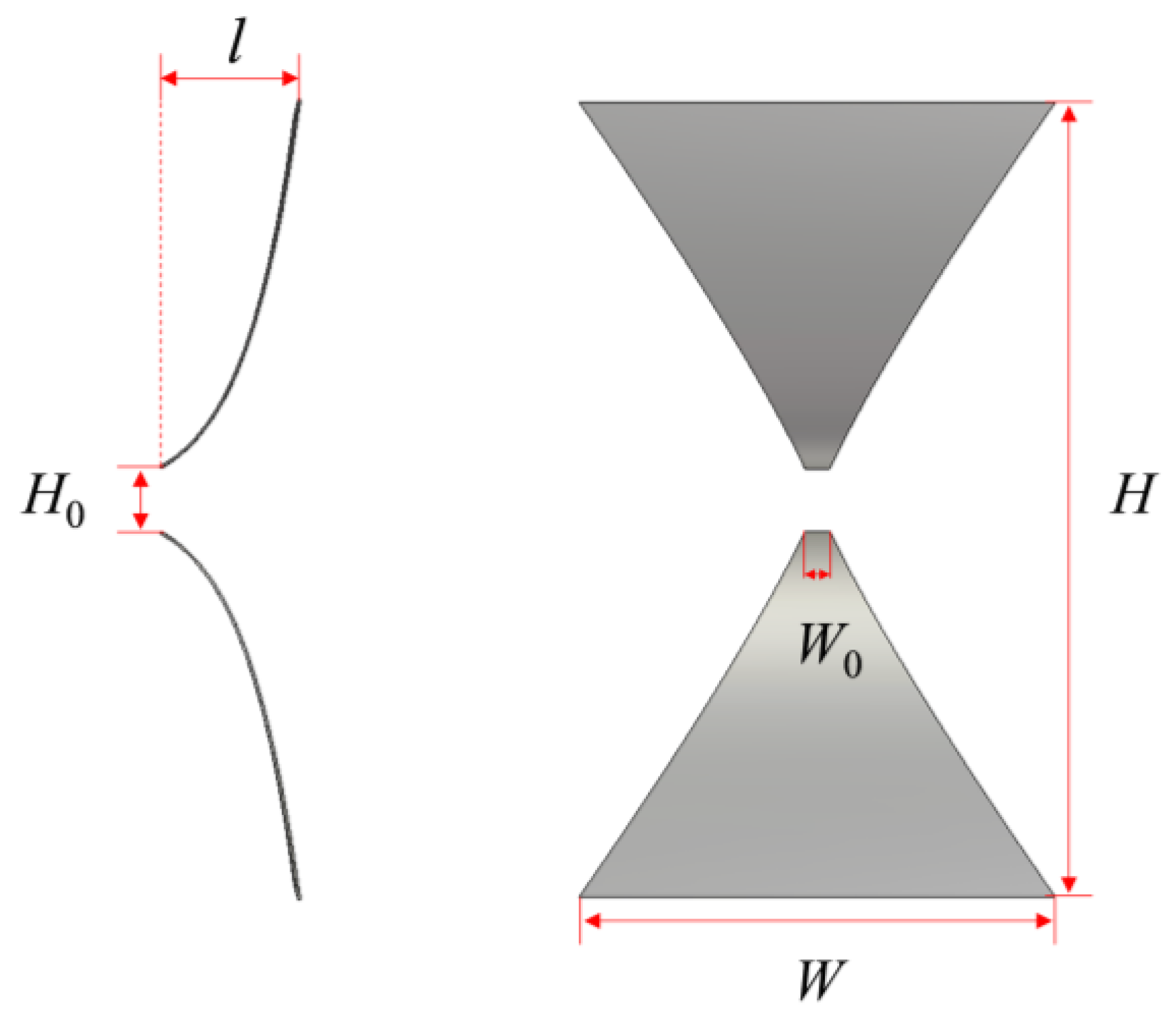

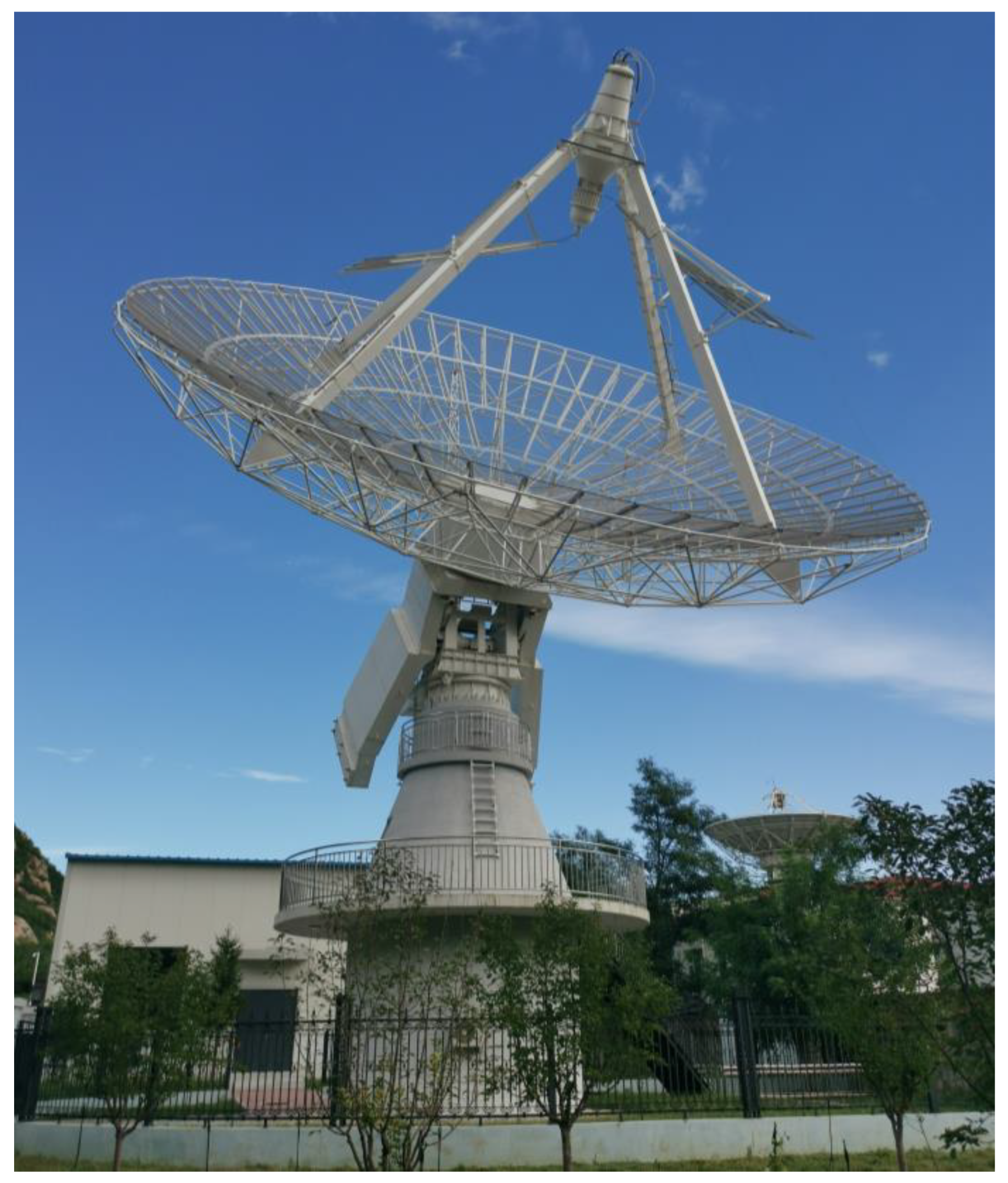

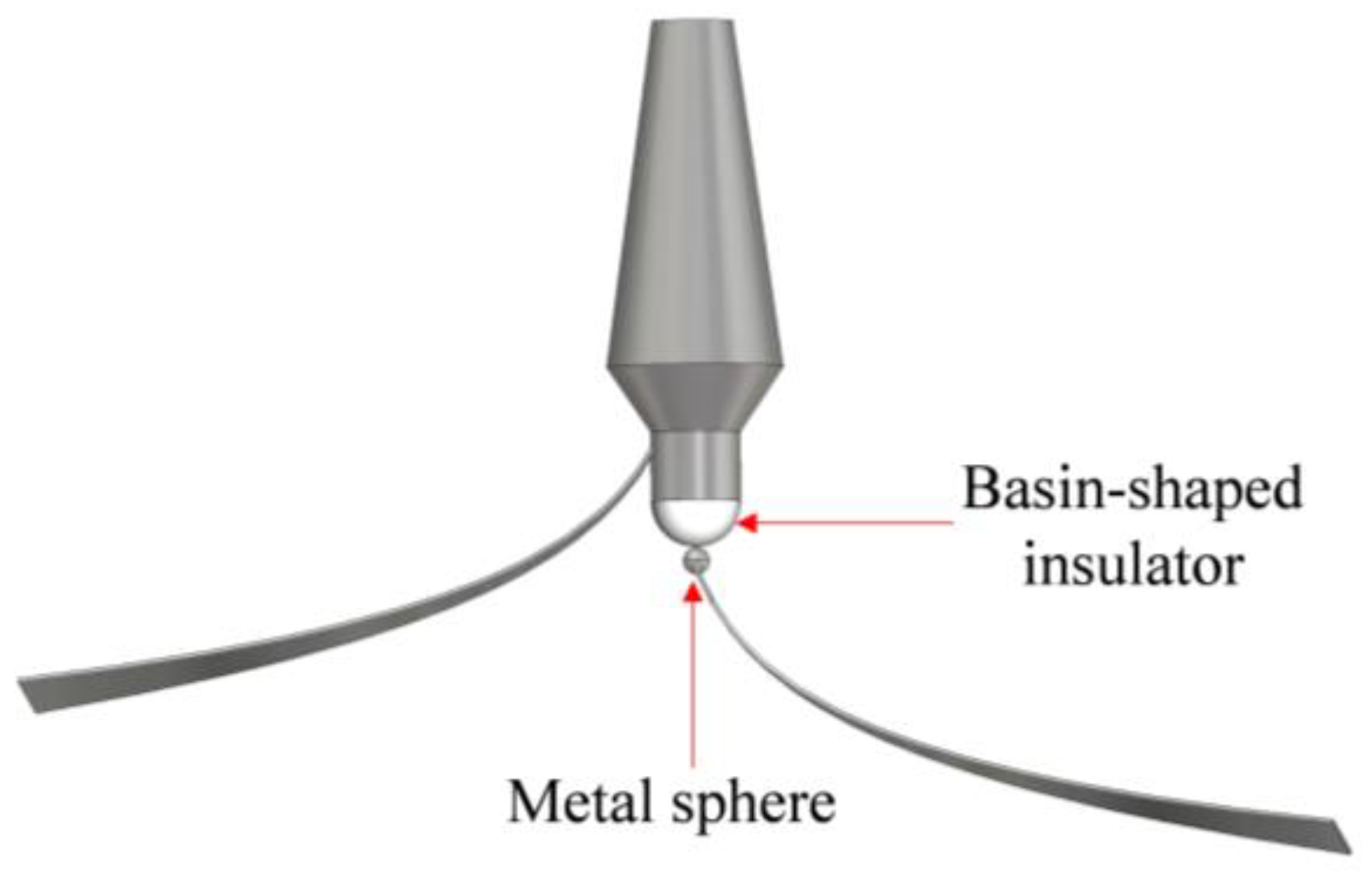

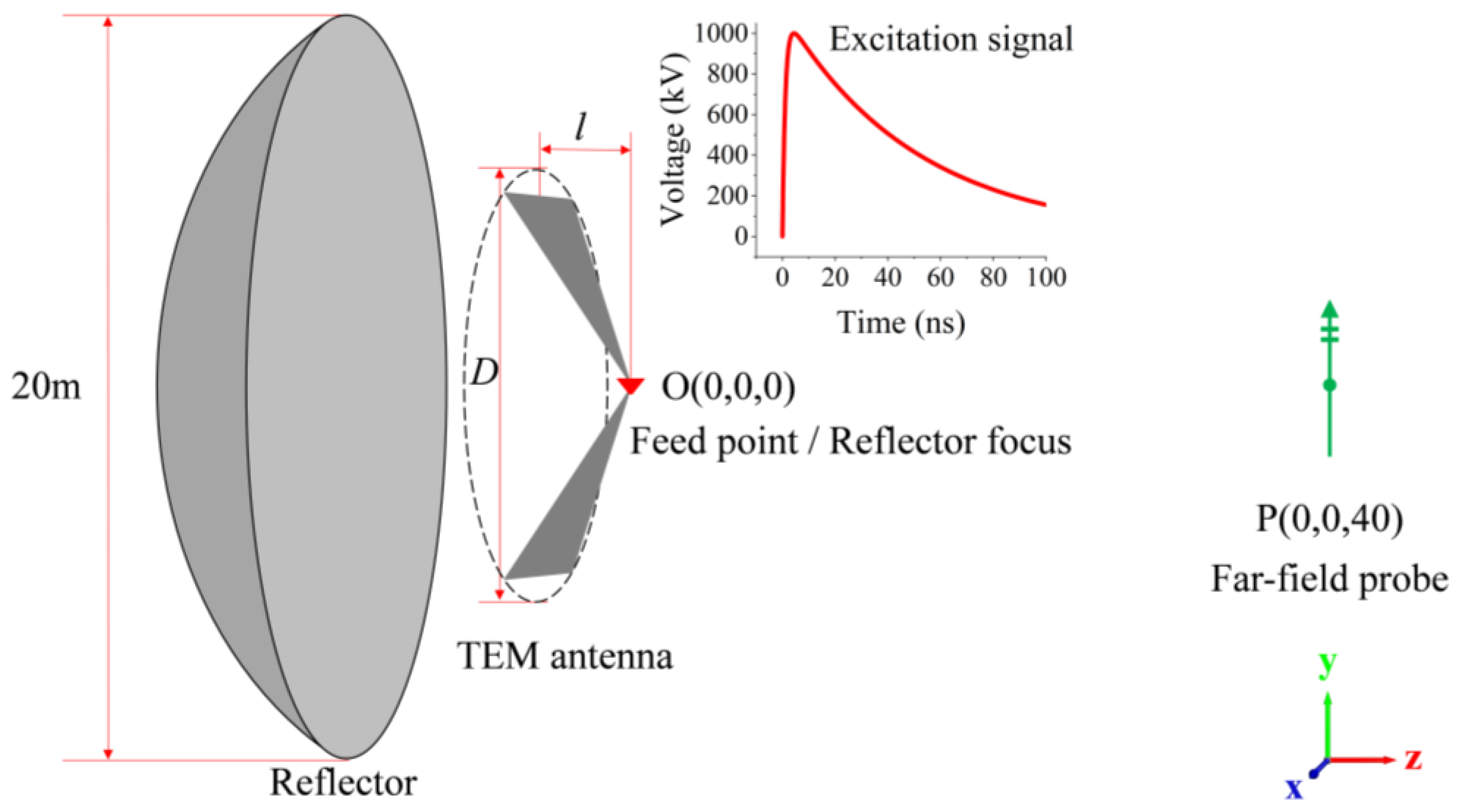

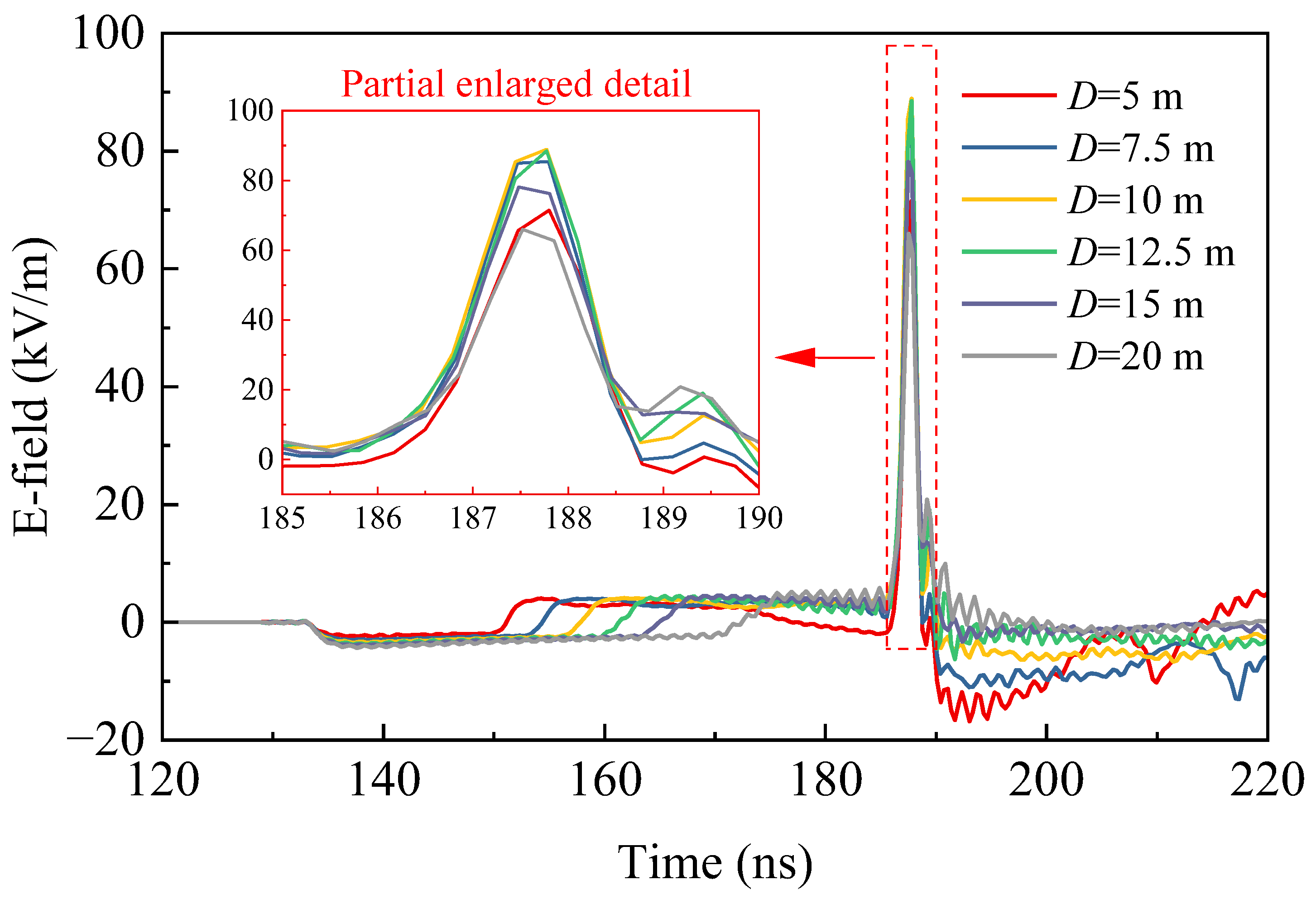

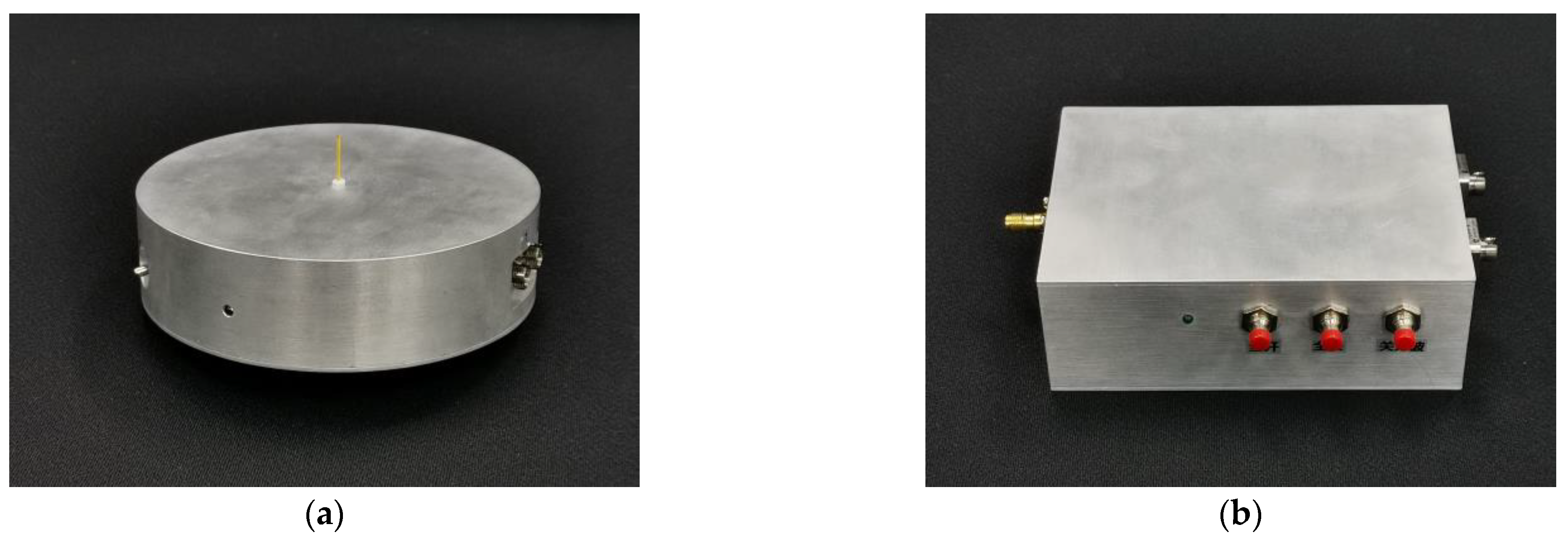

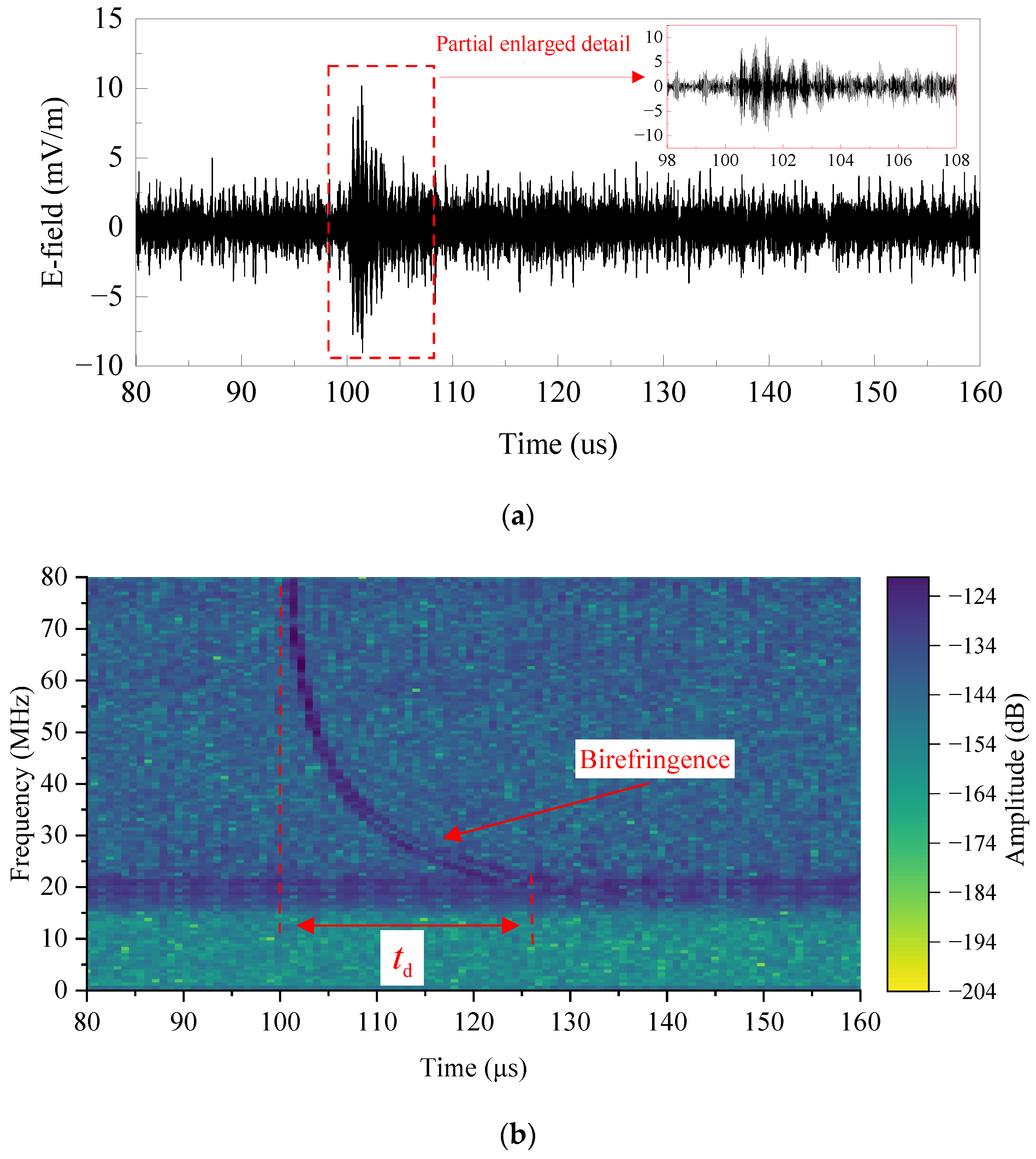

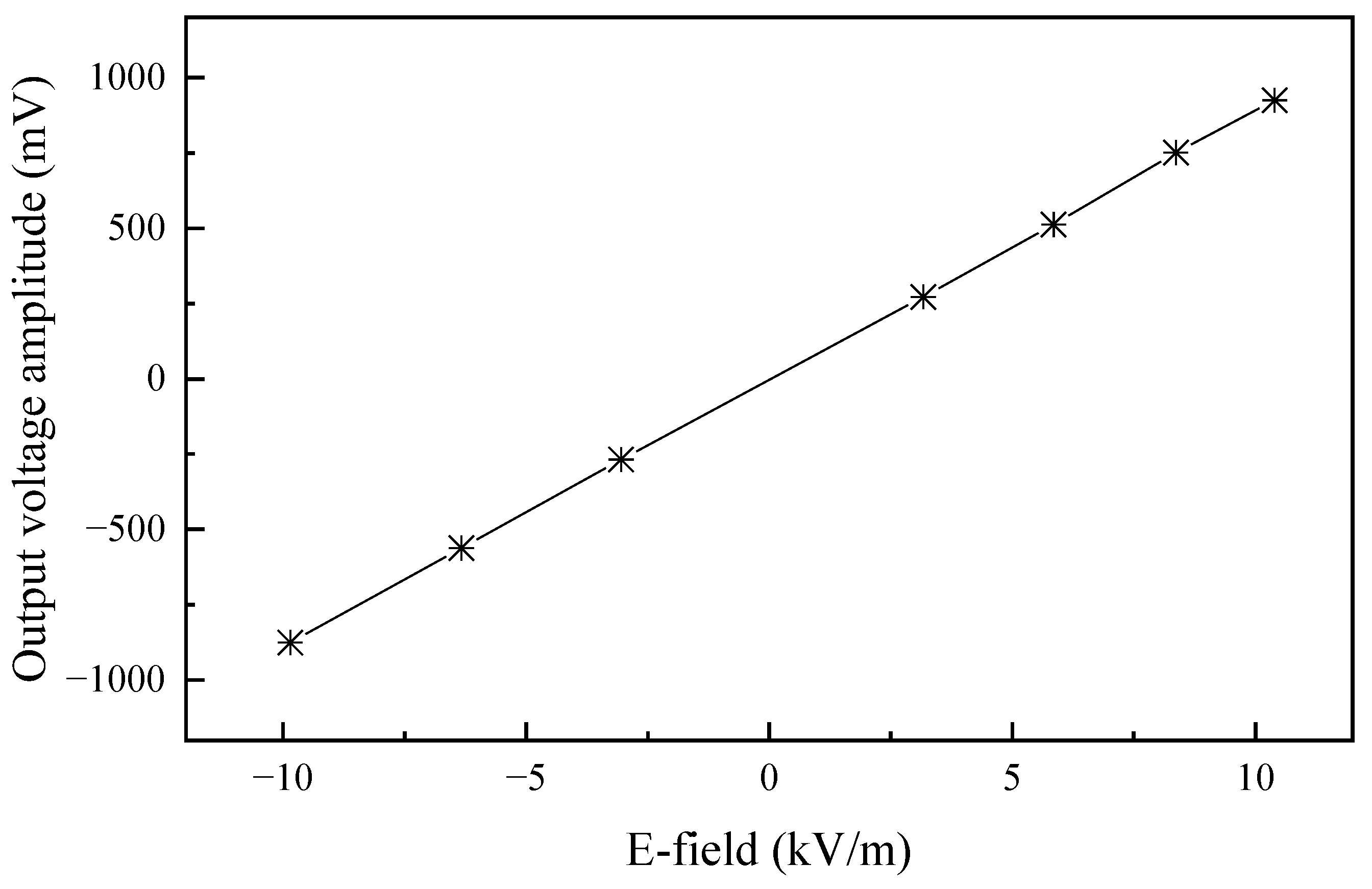

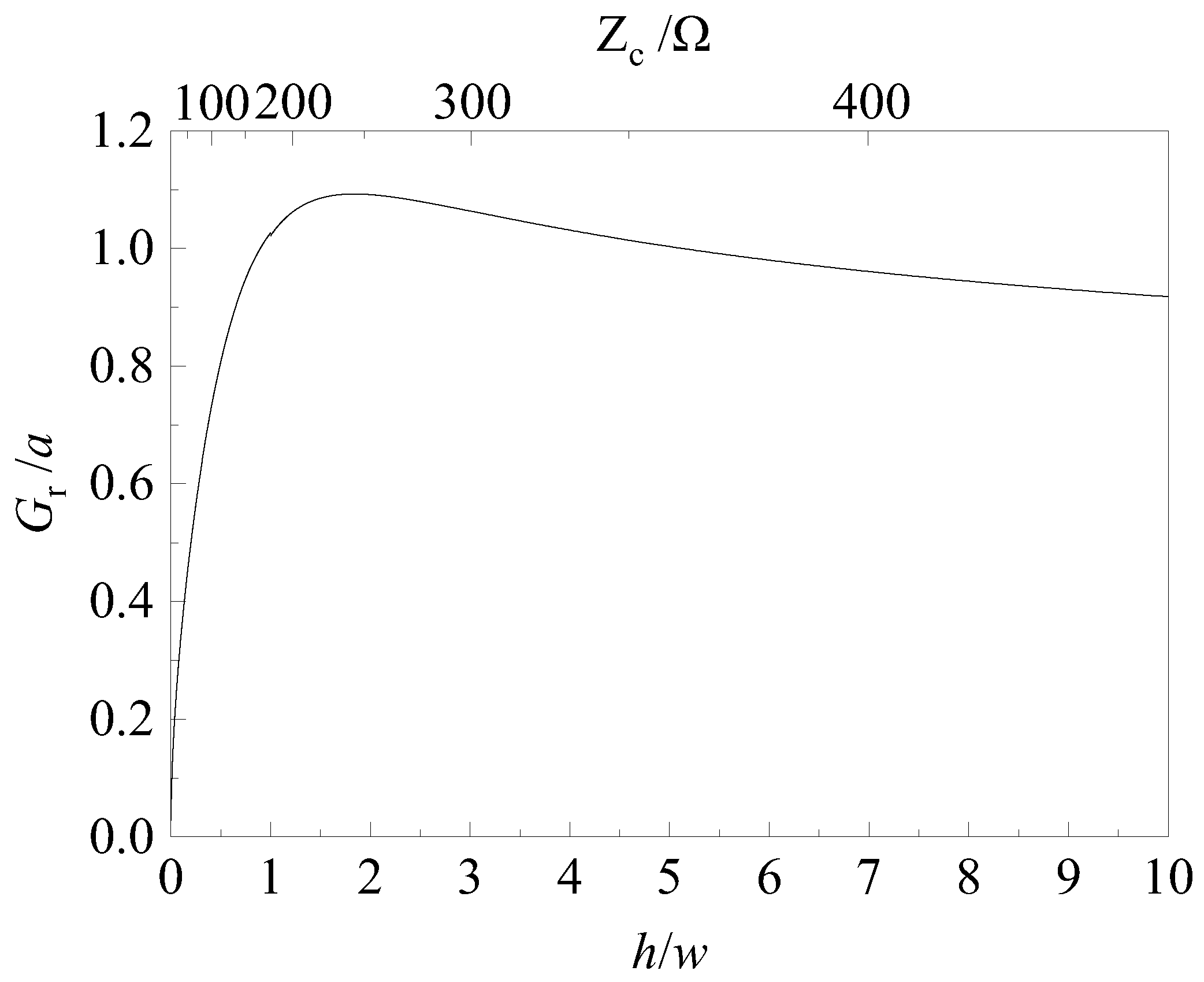

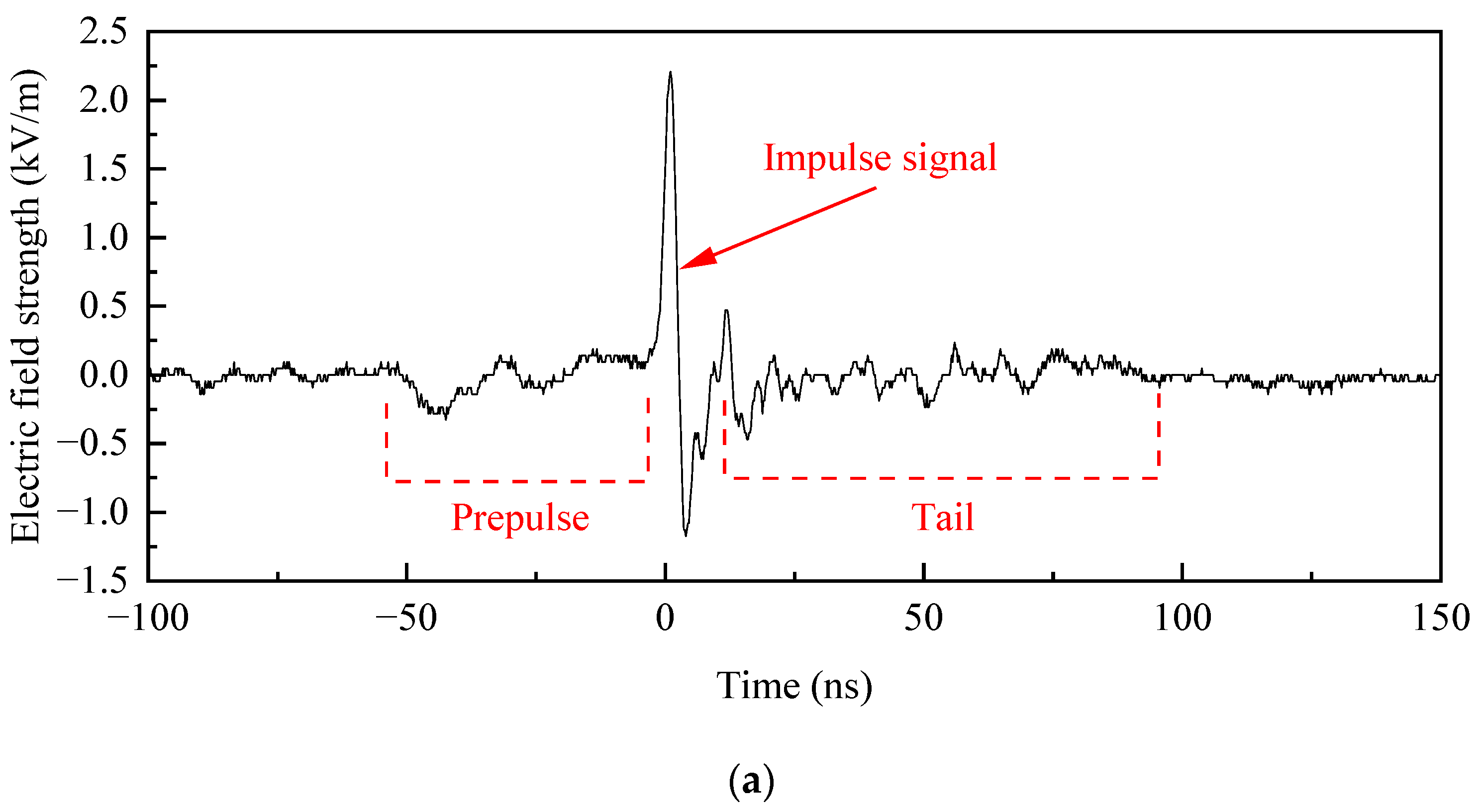

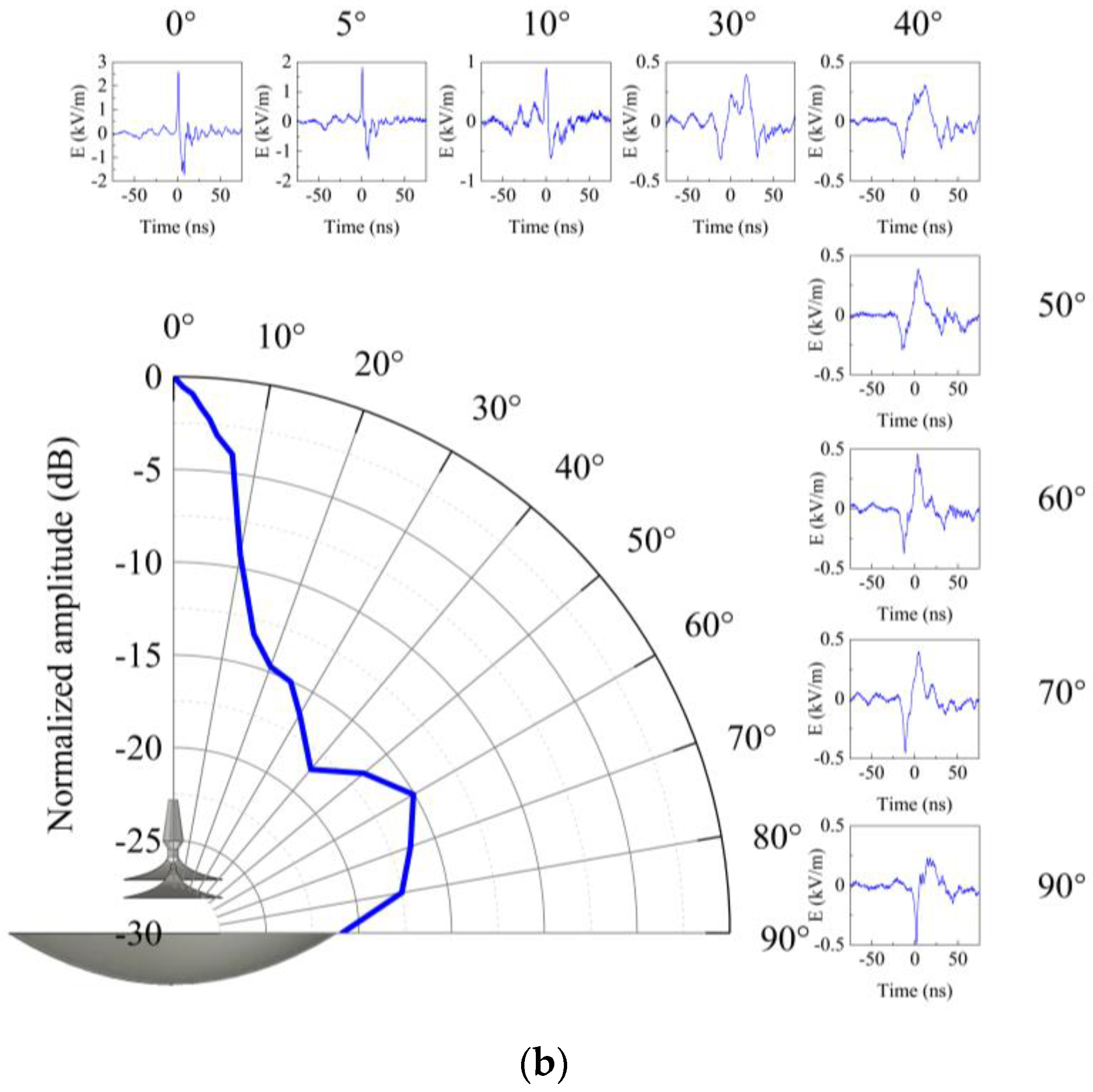

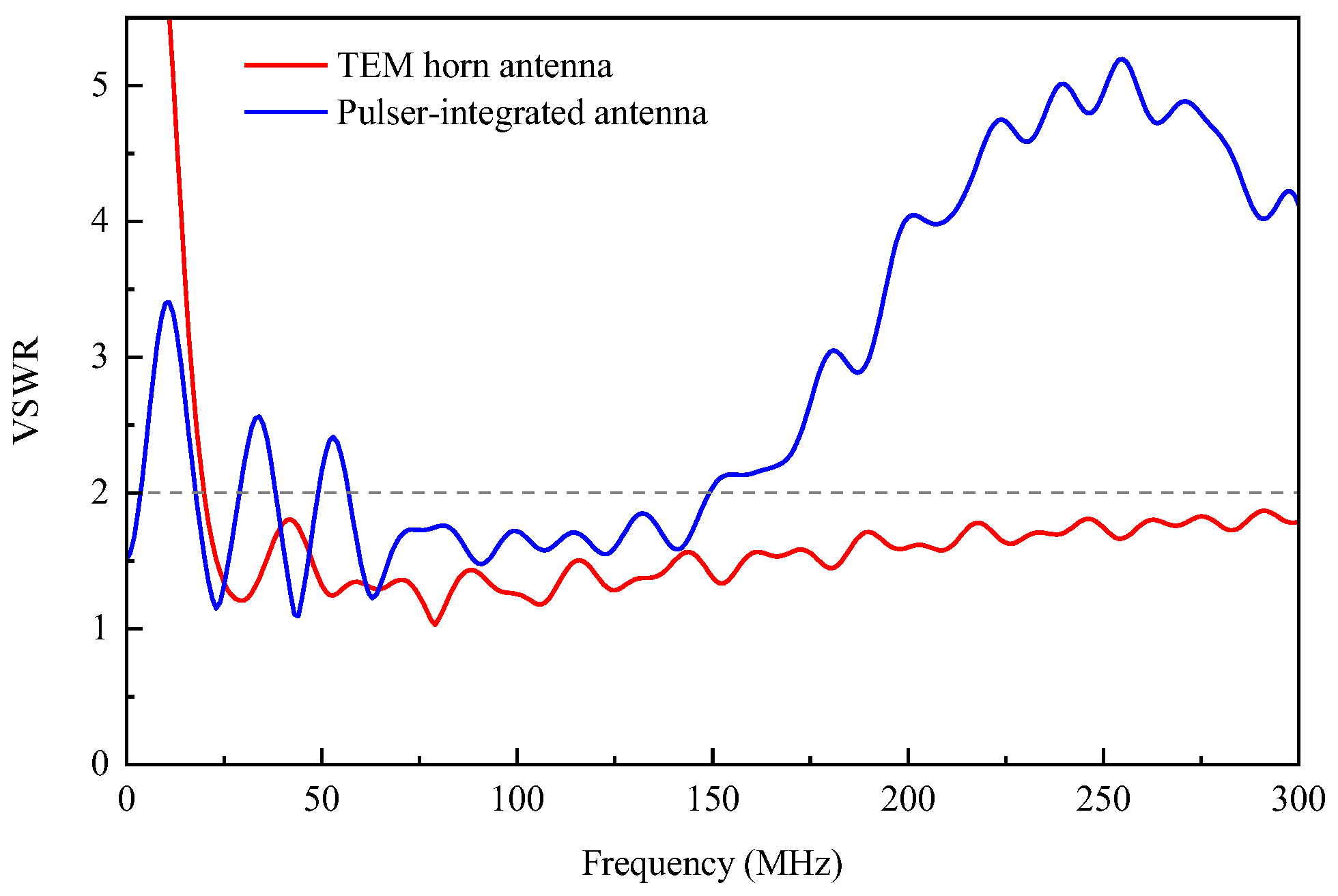

The Spaceborne Global Lightning Location Network (SGLLN) serves the purpose of identifying transient lightning events occurring beneath the ionosphere, playing a significant role in detecting and warning of disaster weather events. To ensure the effective functioning of the wideband electromagnetic pulse detector, which is a crucial component of the SGLLN, it must be tested and verified with specific signals. However, the inherent randomness and unpredictability of lightning occurrences pose challenges to this requirement. Consequently, a high-power electromagnetic pulse radiation system with a 20 m aperture reflector is designed. This system is capable of emitting nanosecond electromagnetic pulse signals under pre-set spatial and temporal conditions, providing a controlled environment for assessing the detection capabilities of SGLLN. In the design phase, an exponentially TEM feed antenna has been designed firstly based on the principle of high-gain radiation. The feed antenna adopts a pulser-integrated design to mitigate insulation risks, and it is equipped with an asymmetric protective loading to reduce reflected energy by 85.7%. Moreover, an innovative assessment method for gain loss, based on the principle of Love’s equivalence, is proposed to quantify the impact of feed antenna on the radiation field. During the experimental phase, a specialized E-field sensor is used in the far-field experiment at a distance of 400 m. The measurements indicate that at this distance, the signal has a peak field strength of 2.2 kV/m, a rise time of 1.9 ns, and a pulse half-width of 2.5 ns. Additionally, the beamwidth in the time domain is less than 10°. At an altitude of 500 km, the spaceborne detector records a signal with a peak field strength of approximately 10 mV/m. Particularly, this signal transformed into a nonlinear frequency-modulated signal in the microsecond range across its frequency spectrum, which is consistent with the law of radio wave propagation in the ionosphere. This study offers a stable and robust radiation source for verifying spaceborne detectors and establishes an empirical foundation for investigating the impact of the ionosphere on signal propagation characteristics.
