Hybrid Multi-Infeed Receiver Line Longitudinal Protection Scheme Based on Voltage Waveform Comprehensive Distance Similarity

Abstract

The coupling of AC and DC power will impact the protective actions on the AC side and pose a threat to the stable operation of the interconnection system. Therefore, a new longitudinal protection method is proposed based on the comprehensive distance similarity of voltage waveforms. Initially, the measured voltage and current data are extracted to calculate the reference voltage, and the voltage waveform fitting is optimized. Subsequently, the Euclidean dynamic time warp (DTW) distance and entropy weight method are utilized to process the voltage waveform, enabling the calculation of its comprehensive distance similarity. This similarity is adopted to determine fault location. A hybrid DC multi-feed AC/DC interconnection system, incorporating a line commutated converter-voltage source converter (LCC-VSC) and a line commutated converter-modular multilevel converter (LCC-MMC), was established in PSCAD, and fault data were simulated and output. The effectiveness of the protection scheme was validated using MATLAB. Simulation results demonstrate that the proposed method can accurately distinguish between faults inside and outside a region. When compared to existing protection methods, it demonstrates superior performance in resisting transition resistance and noise interference, while also mitigating the impact of data asynchronicity. The speed and reliability of the method are further enhanced.

1. Introduction

With the continuous development of China’s socio-economic landscape, the electrical demand is rapidly increasing. In order to balance the rising demand for electricity and resource allocation, China is accelerating the development of the strategies of “west to east power transmission” and “north to south power transmission”. High voltage direct current (HVDC) transmission technology is being utilized in grid development to meet the inevitable requirements of long distances, high capacity, and high voltage levels [1,2].

A line commutated converter (LCC) is suitable for long-distance and high-capacity scenarios. However, due to its semiconductor control, it suffers from the drawback of commutation failure and is generally used at the rectifier end. Conversely, a voltage source converter (VSC), employing fully controlled devices, can resist commutation failure on the inverter side and flexibly control the active and reactive power of the system. Its application in multi-feed systems can enhance operational flexibility at the receiving end and expand transmission capacity [3,4]. However, the application of VSC as a fully controlled device means a higher economic investment. Therefore, the combination of LCC and VSC in multi-infeed DC transmission harnesses the advantages of both to compensate for their respective shortcomings. This becomes especially advantageous in aspects such as multi-AC grid interconnection, multiple power supply, and multiple load connection, fully leveraging the economic and flexible nature of DC transmission. However, the introduction of multi-DC lines for feed-in complicates the system and makes protection prone to false operations [5]. Hence, research is necessary for the relay protection of the receiving end AC system.

Currently, the protection methods for AC transmission lines primarily rely on traditional relay protection principles, including directional protection, distance protection, and differential protection [6]. In comparison to traditional AC transmission, the fault characteristics for AC lines in hybrid multi-infeed DC systems change, prompting scholars to research the applicability of traditional relay protection [7,8,9,10,11,12,13]. For instance, Hao et al. [7] discovered that due to the fact that the protection unit near the inverter side can only identify continuous commutation failures occurring after a fault, it is ineffective at identifying faults where there is no commutation failure after the fault or when there is only one commutation failure. Therefore, when a single transmission corridor structure is used on the AC output side of the inverter side, traditional directional protection is not suitable for AC/DC hybrid interconnected networks. Additionally, continuous commutation failures might lead to severe faults on the AC side of multi-infeed DC systems, causing a sharp increase in the reactive power demand for system fault recovery [7,8,9,10]. This can lead to transient power reversals in neighboring multiple AC lines and the DC system [11,12], while the reverse power flow can lead to potential misoperation of the longitudinal directional protection [13]. Meanwhile, Huang et al. [14] proposed improvements to the protection setting principles of the second zone of distance protection based on fault characteristics but were unable to address errors caused by high-order harmonics. Additionally, Huang et al. [15] presented a rapid fault detection method based on instantaneous active power and fault transient components to alleviate the effects of commutation failures and reactive power compensation. Ma et al. [16] used time-domain differential equations to calculate fault point location, enhancing the protective performance of fault distance measurement, but with poor anti-interference capabilities that are unable to protect the entire length of the line. Moreover, Zheng et al. [17] analyzed the impact of non-periodic components and harmonic components caused by DC feeding on the accuracy of algorithms, resulting in decreased protective operation performance. In summary, the multi-DC system feeding complicates the research for AC line protection at the receiving end of hybrid AC/DC systems, currently highlighting the following limitations: (1) Traditional directional and distance protection strategies are challenging to ensure the reliability of AC protection, and existing protection schemes still have shortcomings. (2) Higher harmonics on the DC side can also affect the reliability of AC protection operations. (3) Currently, there is limited research and analysis on the protection at the AC receiving end, with most of it being qualitative analysis.

This article introduces a new protection principle based on comprehensive voltage waveform analysis for multi-infeed AC/DC hybrid interconnected systems. The key contributions are as follows:

(1)

A novel protection method is proposed that relies on the similarity of voltage waveforms between measuring and reference points. It addresses the issue of unreliable operation of AC protection in AC/DC hybrid systems.

(2)

The Euclidean distance and dynamic time warping (DTW) distance are investigated to assess waveform similarity, thus avoiding the impact of data asynchrony or protection misoperation caused by a single distance metric.

(3)

The least squares method (LSM) is employed to fit the voltage waveform, effectively mitigating interference from high-order harmonics.

The article is structured as follows: Section 2 introduces the measurement method for voltage waveform distance similarity. Section 3 proposes the topology of the hybrid AC/DC multi-infeed interconnected system and analyzes the system’s fault characteristics; it then describes the protection scheme steps and processes. In Section 4, a model is established in PSCAD, and MATLAB is used to simulate and verify the feasibility of the protection scheme. The conclusion is presented in Section 5.

2. Comprehensive Voltage Waveform Similarity Calculation

2.1. Waveform Processing

In the event of an AC fault in the AC/DC hybrid network, the fault phase voltage amplitude rapidly decreases. Additionally, as DC feed-in can bring about high-order harmonic interference, which will affect the electrical measurement of AC side, it is necessary to preprocess the waveforms of measured voltage and reference voltage in order to more visually reflect the trend of chang. For high-order harmonic interference, common engineering methods for treatment currently include wavelet transformation [18], Fast Fourier Transform (FFT), amplitude limiting filtering, median filtering, and other filtering methods. Wavelet transformation can provide high-resolution time-frequency analysis, but the selection of wavelet basis and the setting of decomposition layers may be complex, and the computational complexity is high, increasing processing time and resource consumption. Fast Fourier Transform (FFT) has significant advantages in computational efficiency, but its performance for abrupt and non-stable signals is poor, and its processing capacity for small sample signals is limited, making it limited in application to relay protection methods. Amplitude-limiting filtering and median filtering have poor treatment effects for periodic interferences in AC/DC power grids and are prone to eliminating important waveform information [19]. Therefore, waveform signal processing must ensure both rapid response and the retention of waveform information that reflects trends. In this study, the use of the LSM to fit voltage waveforms meets both of these requirements.

LSM is a mathematical fitting technique that connects discrete points on a plane through a curve. It generally assumes that the curve can be represented by the following:

$$f\left(x\right)=a_0+a_{1}x+a_2{x}^2+a_3{x}^3+\cdots +a_N{x}^b$$

(1)

the unknown coefficients are denoted as a₀, a₁, a₂…a_N, and b in x_b represents the power to which we want to fit.

Assuming the voltage waveform is $\left(x_i,y_i\right)$, $i=\left(1,2,3,\cdots ,m\right)$, where m denotes the number of voltage values, the fitted curve is then given by the following:

$$f^{\prime }\left(x\right)=\min {\displaystyle \sum _i^m{\left[f^{\prime }\left(x_i\right)-y_i\right]}^2}$$

(2)

By fitting the measured voltage and reference voltage waveforms, high-order harmonic interference can be eliminated while retaining the variation trend.

2.2. Euclidean Distance Calculation

Euclidean distance, also known as Euclidean metric, is commonly used to measure the true distance between two points in a space, reflecting the overall distribution characteristics of waveform similarity [20]. The instantaneous values of measured voltages at the protection installation points M and N are extracted. Corresponding reference voltages are calculated using Equation (1), defining the sample time sequences of the measured voltages and the reference voltages as d_M, d_N, d_rM, and d_rN, respectively. Here, $d_M=\left(x_1,x_2,x_3,\cdots ,x_n\right)$, $d_N=\left(y_1,y_2,y_3,\cdots ,y_n\right)$, $d_{rM}=\left(z_1,z_2,z_3,\cdots ,z_n\right)$, $d_{rN}=\left(q_1,q_2,q_3,\cdots ,q_n\right)$, and n represents the number of sample points, which was chosen based on the precision requirements of the protection method. The Euclidean distance of the voltage waveforms between the measured voltages and the corresponding reference voltages at the protection installation points on both sides is given by the following:

$$D_{WM}\left(d_M,d_{rM}\right)=\sqrt{{\displaystyle \sum _{i=1}^n{\left(x_i-z_i\right)}^2}}$$

(3)

$$D_{WN}\left(d_N,d_{rN}\right)=\sqrt{{\displaystyle \sum _{i=1}^n{\left(y_i-q_i\right)}^2}}$$

(4)

where D_WM and D_WN represent the Euclidean distance between the measured voltage and reference voltage waveforms at the installation points on sides M and N, respectively.

2.3. DTW Distance

The DTW method employs the concept of dynamic programming, adjusting the different sample points of sequences through compression and expansion, thus enabling a point in one sequence to match multiple points in another, optimizing the warped path. Therefore, when the DTW algorithm computes distance, it does not require a one-to-one correspondence of values based on the same sample points, unlike the calculation method for Euclidean distance. The DTW algorithm can address issues of sequence asynchrony, better capturing the overall dynamic characteristics of curves and measuring the overall similarity of shapes between sequences [21]. For the sampled sequences d_M and d_rM, an n × m distance matrix D_M is constructed, where the elements are D_M(i, j) as per Equation (5). Similarly, for the sampled sequences d_N and d_rN, an n × m distance matrix D_N is built, with elements being D_N(i, j) as per Equation (4).

$$D_M\left(i,j\right)=\sqrt{{\left(x_i-z_j\right)}^2}\cdots 1\le i\le n,1\le j\le m$$

(5)

$$D_N\left(i,j\right)=\sqrt{{\left(y_i-q_j\right)}^2}\cdots 1\le i\le n,1\le j\le m$$

(6)

where Equation (5) represents the Euclidean distance between the sequences (d_M) and (d_rM) at the sequence points (x_i) and (z_j), while Equation (6) represents the Euclidean distance between the sequences (d_N) and (d_rN) at the sequence points (y_i) and (q_j).

The set composed of each pair of adjacent elements from D_M(i, j) and D_N(i, j) is defined as the bent path of the adopted waveform, denoted by L. Taking path L as an example, the element l_s refers to the coordinates of the s-th point on the path, i.e., l_s = (i, j). Path L must satisfy the following two-part constraints:

(I)

The selected path must include all sampling points.

(II)

Each sample point needs to be matched with the adjacent sample point, such that if l_s = (i, j), l_s+1 = (a, b) satisfies $\left\{\begin{array}{c}0\le a-i\le 1\\ 0\le b-j\le 1\end{array}\right.$.

This yields the DTW distance between the sequences d_M and d_rM, and the DTW distance between the sequences d_N and d_rN:

$$D_{Mdtw}\left(d_M,d_{rM}\right)=\underset{L}{\min }{\displaystyle \sum _{s=1}^{k}D\left(L_s\right)}$$

(7)

$$D_{Ndtw}\left(d_N,d_{rN}\right)=\underset{R}{\min }{\displaystyle \sum _{s=1}^{k}D\left(R_s\right)}$$

(8)

where D(L_s) and D(R_s) represent the cumulative distance of the bent path L and R, while D_Mdtw and D_Ndtw, respectively, denote the waveform DTW distance between the measured voltage and the reference voltage at the installation locations of the protections on both sides.

2.4. Local Dynamic Mapping

In order to better describe the local dynamic characteristics of the voltage waveform, reflecting its trend information at each sampling interval and fully considering the accuracy of the algorithm, the discrete sampling sequences $d_M$, $d_N$, $d_{rM}$, and $d_{rN}$ are transformed into shape sequences of length ${d^{\prime }}_M$, ${d^{\prime }}_N$, ${d^{\prime }}_{rM}$, and ${d^{\prime }}_{rN}$. We take the element x′_i as an example, as shown in Equation (9), where Δt represents the time interval as follows:

$$x_i^{\prime }=\frac{x_{i+1}-x_i}{\Delta t}\cdots \cdots i=1,2,\cdots ,n-1$$

(9)

2.5. Comprehensive Voltage Waveform Similarity Description

This chapter combines the Euclidean distance with the DTW distance to propose a measurement method for the comprehensive voltage waveform similarity that encompasses overall, local, and dynamic characteristics.

$$D_{M\phi }=\alpha D_{WM}\left(d_M,d_{rM}\right)+\beta D_{Mdtw}\left(d_M,d_{rM}\right)+\gamma D_{Mdtw}\left(d_M^{\prime },d_{rM}^{\prime }\right)$$

(10)

$$D_{N\phi }=\alpha D_{WN}\left(d_N,d_{rN}\right)+\beta D_{Ndtw}\left(d_N,d_{rN}\right)+\gamma D_{Ndtw}\left(d_N^{\prime },d_{rN}^{\prime }\right)$$

(11)

where D_Mφ and D_Nφ represent the comprehensive distance similarity of the measured voltage and reference voltage waveforms at the protection installation points on M and N sides, where φ = A, B, C represents the phase sequence index. The smaller the values of D_Mφ and D_Nφ, the higher the similarity of the voltage waveforms. D_WM(d_M, d_rM) and D_WN(d_N, d_rN) reflect the overall distribution characteristics of the voltage waveforms, while D_Mdtw(d_M, d_rM) and D_Ndtw(d_N, d_rN) reflect the overall dynamic characteristics of the voltage waveforms. Additionally, D_Mdtw(d′_M, d′_rM) and D_Ndtw(d′_N, d′_rN) reflect the local dynamic characteristics of the voltage waveforms. α, β, and γ are the weights assigned to each distance measure, and they are based on the actual sampling accuracy requirements and the principle of entropy weighting, their respective values are set to 0.4, 0.3, and 0.3 [21].

3. System Fault Characteristics and Protection Process

3.1. Hybrid DC Multi-Infeed AC/DC Interconnected System Topology Structure

The constructed hybrid AC/DC interconnected system with multiple DC inputs, as shown in Figure 1, features the transmitting end’s DC section consisting of two distinct ±500 kV hybrid DC transmission lines: a bipolar double-end line commutated converter-modular multilevel converter (LCC-MMC) transmission system and a pseudo-bipolar double-end LCC-VSC transmission system. The power supply sides are represented by S₁ and S₂, with equivalent impedances of Z_S1 and Z_S2, respectively. The length of the DC line is shown in the figure, and the line model parameters are provided in the Figure A1 of the Appendix A. The vertical height of the tower is 37 m, and the number of conductors in the DC transmission line is 2. The receiving end’s AC section comprises a 230 kV dual-source system of E_M and E_N, whose equivalent impedances are represented by Z_SM and Z_SN, respectively, with M and N denoting the positions of the protection units on both sides of the line. r_M represents the calculation reference point at end M, and r_N represents the calculation reference point at end N, defining the protection scope from the protection installation point to the reference point on that side. The overlap of the protection scopes at both ends indicates the range for determining internal faults, denoted by the green area in Figure 1. This study focuses primarily on the central section, MN, where f₁ and f₅ represent faults occurring outside the protection scope, f₂ represents a fault occurring solely within the protection scope at end N but outside the reverse area, f₃ represents a fault occurring within the protection scope at both ends M and N, and f₄ represents a fault occurring solely within the protection scope at end M but outside the forward area. The main model parameters are shown in

Table 1. Model parameters.

Parameters	Numerical Value
Terminal voltage EM/EN (/kV)	230
Short-circuit ratio	5
MN line length (/km)	100
Two-terminal out-of-zone line length (/km)	30
Total length at receiving end (/km)	160
Positive-sequence parameters of line R1 (Ω/km)	0.01782
Positive-sequence parameters of line ωL1 (Ω/km)	0.3139
Positive-sequence parameters of line ωC1 (S/km)	3.626 × 10−6
Zero-sequence parameters of line R0 (Ω/km)	0.2952
Zero-sequence parameters of line ωL0 (Ω/km)	1.039
Zero-sequence parameters of line ωC0 (S/km)	2.414 × 10−6

.

In an LCC-VSC system, the rectifier side comprises two sets of twelve-pulse thyristor converters connected in series. The rectifier side direct current is input into the constant current control circuit, which controls the α angle to regulate the rectifier-side converters. On the inverter side, low-cost and highly stable two-level VSC modules are employed. Through vector control, the modulated waves are input into the pulse width modulation (PWM) controller, which then produces the control signals.

In the LCC-MMC system, the rectification side also consists of two groups of twelve-pulse thyristor converters connected in series, and the control method is consistent with that of the LCC-VSC. The inverter side is a three-phase modular multilevel converter. In its topological diagram, the upper and lower bridge arms of each of the ABC three phases are composed of sub-modules SM connected in series. The power and current of the inverter side are input into the inner and outer loop control circuits, and the output signals are sent to the bridge arms to control the inverter side converter. Relevant topological diagrams are shown in the Figure A2 of the Appendix A.

3.2. Reference Voltage Calculation and System Fault Characteristics

The similarity of the voltage waveforms between the measuring point and the reference point is calculated to determine if a fault has occurred, and the position of the reference point needs to be determined. The reference point is usually located outside the protection line to ensure sufficient sensitivity. Additionally, to reduce errors, the reference point should not be too far away; scholars both domestically and abroad typically position it within the range of 1.2 to 2.0 times the length of the protected line [22]. After extensive simulation experiments, it has been found that placing the reference point at 1.3 times the length of the line can meet the experimental requirements outlined in this paper while allowing for flexible adjustments within the range based on specific protection needs and interference considerations.

Compared to traditional purely AC lines, in a multi-infeed interconnected grid, significant non-periodic components are introduced into the DC system after a fault occurs. This results in a more complex variation of electrical quantities in the AC lines. Obtaining accurate voltage phasors through traditional Fourier algorithms no longer guarantees accuracy. Instead, this paper proposes using instantaneous measurement methods to calculate the reference voltage, taking the M-side as an example.

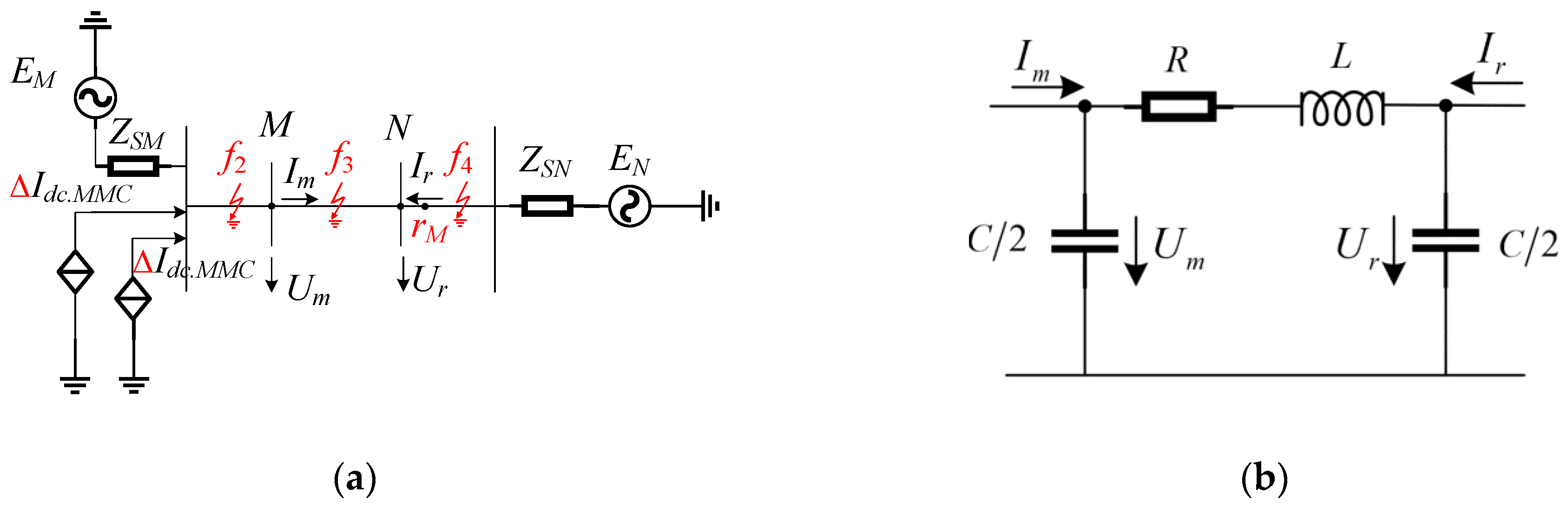

In Figure 2a, the dual-power system consisting of E_M and E_N is depicted, with their respective equivalent impedances denoted as Z_SM and Z_SN. Since the rectification side of the hybrid multi-infeed DC system employs constant current control, and the voltage on the inversion side is determined by the receiving-end AC bus voltage, both can be equivalently represented as voltage-controlled current sources controlled by the receiving end. ΔI_dc.MMC and ΔI_dc.VSC represent the equivalent fault component currents corresponding to the LCC-MMC and LCC-VSC hybrid DC systems, respectively. I_m and Um represent the measured instantaneous current and voltage values, while I_r and U_r represent the reference instantaneous current and voltage values. The notations f₂, f₃, and f₄ indicate faults occurring in the reverse direction outside of the Mr_M zone, within the Mr_M zone, and in the forward direction outside of the Mr_M zone, respectively.

Based on the situation of the completed and ongoing multi-infeed AC/DC hybrid power grid projects, this paper sets a total line length of 160 km, using an equivalent π-type line model considering the electric shunt, as depicted in Figure 2b. After measuring the instantaneous current value I_m and the instantaneous voltage U_m, the reference voltage U_r can be obtained through the differential equation in Equation (12).

$$U_r=U_{\mathrm{m}}-\left[R\left(I_m-\frac{C}{2}\frac{d{U}_{\mathrm{m}}}{dt}\right)+L\frac{d\left(I_m-\frac{C}{2}\frac{d{U}_{\mathrm{m}}}{dt}\right)}{dt}\right]$$

(12)

Under normal operation, the voltage waveforms at the measurement point and reference point are similar. To analyze the fault characteristics of the system at different locations, we take the occurrence of a ground fault as an example and analyze the measured voltage U_m and the reference voltage U_r. We assume the fault occurs at location f₂ as illustrated in Figure 2a, which represents an external fault in the opposite direction of Mr_M, as shown in Figure 3.

At this point in time, the actual current direction is opposite to the measured current direction during normal operation, hence Equation (12) can be rewritten as follows:

$$U_m^{\prime }=-\left[R_f^{\prime }\left(I_m^{\prime }-\frac{C_f^{\prime }}{2}\frac{d{U}_{\mathrm{m}}^{\prime }}{dt}\right)+L_f^{\prime }\frac{d\left(I_m^{\prime }-\frac{C_f^{\prime }}{2}\frac{d{U}_{\mathrm{m}}^{\prime }}{dt}\right)}{dt}\right]$$

(13)

$$U_r^{\prime }=-\left[\begin{array}{l}{I}_m^{\prime }\left(R_f^{\prime }-R_r^{\prime }\right)-\frac{d{U}_{\mathrm{m}}^{\prime }}{dt}\left(R_f\frac{C_f^{\prime }}{2}-R_r\frac{C_r^{\prime }}{2}\right)+\\ L_f^{\prime }\frac{d\left(I_m^{\prime }-\frac{C_f^{\prime }}{2}\frac{d{U}_{\mathrm{m}}^{\prime }}{dt}\right)}{dt}-L_r^{\prime }\frac{d\left(I_m^{\prime }-\frac{C_r^{\prime }}{2}\frac{d{U}_{\mathrm{m}}^{\prime }}{dt}\right)}{dt}\end{array}\right]$$

(14)

where R′_f, L′_f, and C′_f represent the resistance, inductance, and capacitance values from measurement point M to fault point k₁, respectively. R′_r, L′_r, and C′_r represent the resistance, inductance, and capacitance values from measurement point M to reference point r_M, respectively. By comparing the two equations, it can be concluded that although there are differences in the amplitude of the measured voltage U′_m and the reference voltage U′_r, their variation trends are consistent. The computational relationship deduced from Equation (14) is identical to that of Equation (12), indicating that when an external fault occurs in the reverse direction area, the measured voltage and the reference voltage waveforms are similar.

We assume that the fault occurs at position f₄ as shown in Figure 2a, i.e., an external fault in the positive direction of Mr_M, as illustrated in Figure 4.

At this time, the actual current direction is the same as the measured current direction under normal operation, rewriting Equation (12) as follows:

$$U_{\mathrm{m}}^{″}=R_m^{″}\left(I_m^{″}-\frac{C_f^{″}}{2}\frac{d{U}_{\mathrm{m}}^{″}}{dt}\right)+L_f^{″}\frac{d\left(I_m^{″}-\frac{C_f^{″}}{2}\frac{d{U}_{\mathrm{m}}^{″}}{dt}\right)}{dt}$$

(15)

$$U_r^{″}=I_m^{″}\left(R_f^{″}-R_r^{″}\right)-\frac{d{U}_{\mathrm{m}}^{″}}{dt}\left(R_f^{″}\frac{C_f^{″}}{2}-R_r^{″}\frac{C_f^{″}}{2}\right)+L_f^{″}\frac{d\left(I_m^{″}-\frac{C_f^{″}}{2}\frac{d{U}_{\mathrm{m}}^{″}}{dt}\right)}{dt}-L_r^{″}\frac{d\left(I_m^{″}-\frac{C_r^{″}}{2}\frac{d{U}_{\mathrm{m}}^{″}}{dt}\right)}{dt}$$

(16)

where R″_f, L″_f, and C″_f represent the resistance, inductance, and capacitance values from measurement point M to fault point k₃, respectively. R″_r, L″_r, and C″_r respectively represent the resistance, inductance, and capacitance values from measurement point M to reference point r_M. By comparing Equations (15) and (16), it can be observed that although there is a difference in the magnitude of the measured voltage U″_m and the reference voltage U″_r, their variation follows a consistent pattern. The computational relationship derived from Equation (16) is the same as Equation (12), indicating that when an external fault occurs, the measured voltage and the reference voltage waveforms are similar.

We suppose that the fault has occurred at f₃ in the area of Mr_M, as shown in Figure 2a, depicting an internal fault in the Mr_M area, as illustrated in Figure 5.

At this time, the fault branch between M and r_M is increased, and the line structure is disrupted. Based on the characteristic that the distance from measuring point M to reference point r_M is greater than to the fault point during an internal fault, Equation (12) is modified as follows:

$$U_{\mathrm{m}}^{‴}=R_f^{‴}\left(I_m^{‴}-\frac{C_f^{‴}}{2}\frac{d{U}_{\mathrm{m}}^{‴}}{dt}\right)+L_f^{‴}\frac{d\left(I_m^{‴}-\frac{C_f^{‴}}{2}\frac{d{U}_{\mathrm{m}}^{‴}}{dt}\right)}{dt}$$

(17)

$$\begin{array}{c}{U}_r^{‴}=\left[R_r^{‴}\left(I_m^{‴}-\frac{C_r^{‴}}{2}\frac{d{U}_{\mathrm{m}}^{‴}}{dt}\right)+L\frac{d\left(I_m^{‴}-\frac{C_r^{‴}}{2}\frac{d{U}_{\mathrm{m}}^{‴}}{dt}\right)}{dt}\right]-U_{\mathrm{m}}^{‴}\\ =\frac{d{U}_{\mathrm{m}}^{‴}}{dt}\left(R_f^{‴}\frac{C_f^{‴}}{2}-R_r^{‴}\frac{C_r^{‴}}{2}\right)-I_m^{‴}\left(R_f^{‴}-R_r^{‴}\right)+\\ L_f^{‴}\frac{d\left(\frac{C_f^{‴}}{2}\frac{d{U}_{\mathrm{m}}^{‴}}{dt}-I_m^{‴}\right)}{dt}-L_r^{‴}\frac{d\left(\frac{C_f^{‴}}{2}\frac{d{U}_{\mathrm{m}}^{‴}}{dt}-I_m^{‴}\right)}{dt}\end{array}$$

(18)

where R‴_f, L‴_f, and C‴_f represent the resistance value, inductance value, and capacitance value from measuring point M to fault point k₂, respectively. R‴_r, L‴_r, and C‴_r represent the resistance value, inductance value, and capacitance value from measuring point M to reference point r_M. By comparing Equations (17) and (18), it can be inferred that although there are differences in the amplitude of the measured voltage U‴_m and the reference voltage U‴_r, their variation trends remain consistent. Equation (18) deduces an operational relationship opposite to that of Equation (12), indicating that when an internal fault occurs, the measured voltage and the reference voltage waveforms are dissimilar.

In summary, it can be concluded that during an internal fault, the measured voltage and the reference voltage waveforms are dissimilar, whereas during normal operation and external fault occurrence, the voltage waveforms are similar. This provides a theoretical basis for the subsequent use of voltage comprehensive waveform similarity.

3.3. Protection Action Criteria

By employing the calculation method in Section 2.5, the comprehensive waveform similarity at both ends is obtained. From the computed results for the three phases, the maximum values are denoted as MAX(D_Mφ) and MAX(D_Nφ), and a threshold value D_set is established. When the voltage comprehensive waveform similarity exceeds the threshold value, it indicates a dissimilarity between the two voltage waveforms. Considering the topological structure and operational conditions of the AC/DC hybrid system, along with practical engineering requirements and a large volume of simulation data, the threshold value D_set is chosen as 1.2. By comparing the relationship between MAX(D_Mφ), MAX(D_Nφ), and the protection threshold value D_set, fault locations can be further determined.

When MAX(D_Mφ) < D_set and MAX(D_Nφ) > D_set, the fault occurs between protection device M and reference point r_M, that is, the position f₂ in Figure 1 represents an external fault.

When MAX(D_Mφ) > D_set and MAX(D_Nφ) < D_set, the fault occurs between protection device N and the reference point r_N, indicating that the fault location is external, as illustrated in position f₄ in Figure 1.

When MAX(D_Mφ) < D_set and MAX(D_Nφ) < D_set, the fault occurs in areas outside protection devices M and N, i.e., positions f₁ and f₅ in Figure 1 indicate an external fault zone.

When MAX(D_Mφ) > D_set and MAX(D_Nφ) > D_set, the fault is determined to have occurred between the two protective devices, i.e., the location f₃ in Figure 1 indicates an internal fault, triggering the protective action.

When a fault occurs, the fault component of the current will increase or decrease. Based on the magnitude of this sudden change, protection initiation criteria can be established, and the fault component of the current can be extracted using the superposition theorem.

$$\Delta I_s(t)=I_s(t)-I_s(t-T)$$

(19)

where t denotes the sampling instant. I_s(t) represents the actual current value at location s at instant t. ΔI_s(t) stands for the fault component of the current extracted at location s at instant t for protection measurement. T represents the selected pre-fault sampling instant. Considering the system’s operational stability, typically the two sampling cycles before the fault are chosen. Based on the variation in the fault component of the current obtained from Equation (19), the initiation criterion can be obtained as follows:

$$\Delta I_{sM\phi }>0.01k{I}_n$$

(20)

$$\Delta I_{sN\phi }>0.01k{I}_n$$

(21)

where ΔI_sMφ and ΔI_sNφ denote the change in current fault components at the protection installation points on sides M and N, respectively. Here, φ = A, B, C represents the phase sequence index, k is the reliability factor, and I_n stands for the rated line current. As long as any of the judgment conditions in Equations (20) and (21) are satisfied, the calculation of the comprehensive voltage waveform distance similarity can be initiated to further determine the fault area.

Based on the above fault analysis process and the introduction of the protection scheme, the overall protection process can be illustrated as shown in Figure 6, with the specific steps outlined below:

(1)

Run the system model, debug the protection measurement devices, collect electrical signal data, and extract the sampled values of voltage and current for the M and N ends of the AC transmission line using preset sensors.

(2)

Extract transient changes in fault components from the sampled current values at ends M and N and determine if a fault has occurred using a protection initiation criterion. When the criterion is met, it indicates a fault in the system.

(3)

Calculate the reference voltages at both ends based on the sampled voltage and current values and use the method of least squares to fit the waveform trend of the sampled and calculated values, thereby filtering out high-order harmonic interference.

(4)

Derive the comprehensive waveform distance similarity metrics D_Mφ and D_Nφ between the measured voltage and the reference voltage at both ends of the line. Compare the maximum values of D_Mφ and D_Nφ with the protection set value D_set to determine the fault occurrence region.

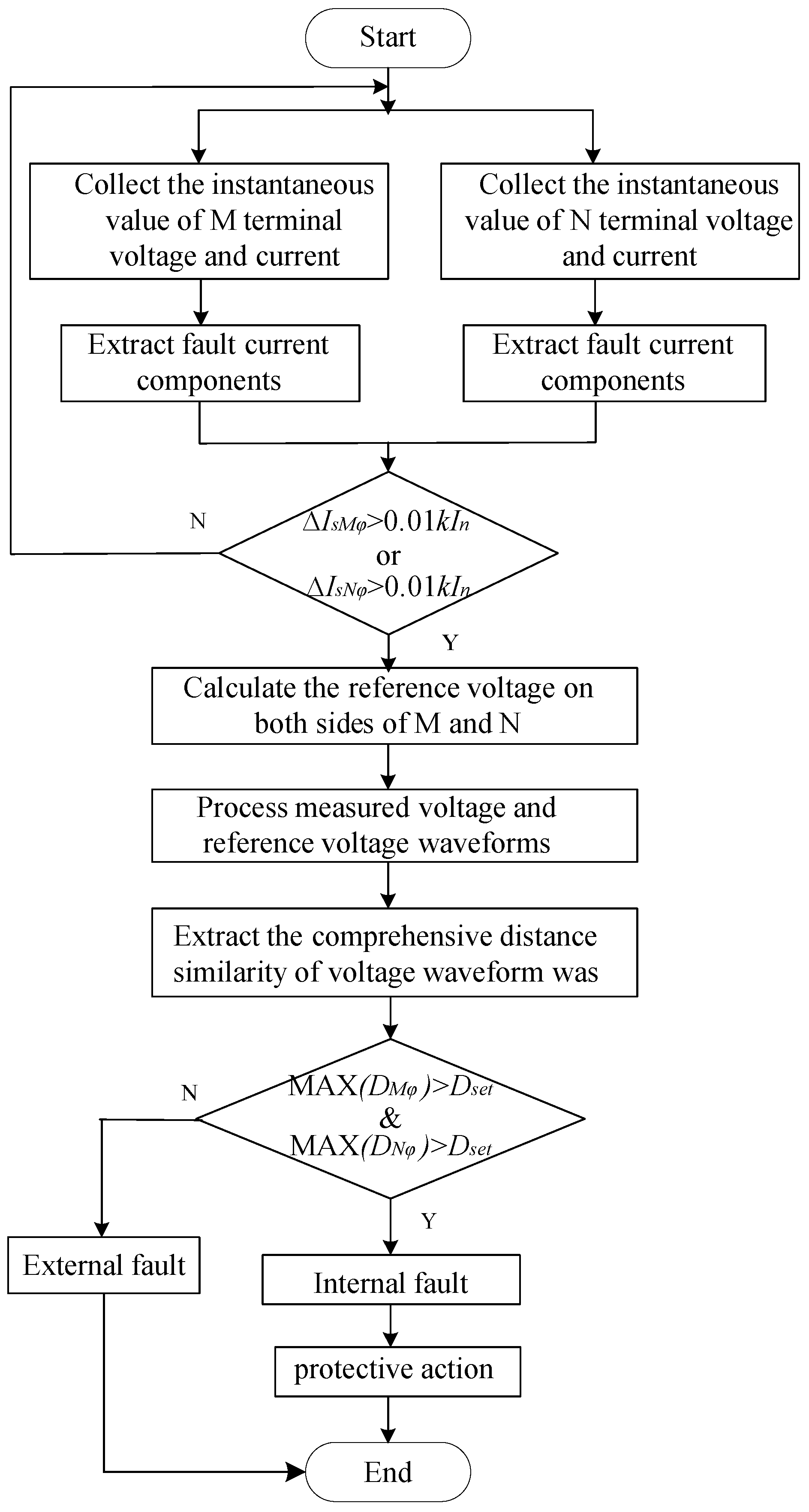

Figure 6. Protection flow chart.

Figure 6. Protection flow chart.

When D_Mφ > D_set and D_Nφ > D_set, the fault is determined to occur between the two protective devices, indicating an internal fault, located at position f₃ in Figure 1; otherwise, it is determined to be an external fault.

4. Experimental Verification

4.1. Introduction to the Experimental Platform

To verify the theoretical analysis and the feasibility of the protection scheme mentioned above, the PSCAD/EMTDC simulation platform is utilized to construct the hybrid DC multi-infeed system, as depicted in Figure 1, for power system simulation. The electrical parameters are adjusted, and various fault occurrences are simulated under different conditions by controlling the fault area, line positions, and other interfering factors. Subsequently, the validation of the protection algorithm is carried out in MATLAB.

The sampling window for calculating the comprehensive voltage distance similarity in this paper is 1 ms, and the sampling frequency for line protection is 10 kHz. Therefore, fault detection requires only 10 sampling points. In practical engineering applications, the synchronization error of the commonly used global positioning system (GPS) synchronization method is less than 2 μs. The protection algorithm investigated in this paper calculates the similarity value within the sampling interval and compares them to find the maximum value, making it possible to accurately identify the fault position within a 1 ms delay, without strict bi-directional timing and communication synchronization.

In conclusion, the simulated duration in this paper is set as 3 s, and the fault occurs at 2.25 s and lasts for 0.05 s. Due to the rapid change in the current fault component, the protection can be activated in about 0.5 ms, while the simulation data collection and the calculation of comprehensive voltage distance similarity can be completed within 2 ms. Considering a certain margin, the proposed method can operate quickly and reliably within 3 ms.

4.2. In-Zone Fault Simulation Result

In the positive direction of the AC line, a phase A-to-ground fault is set at a distance of 50 km. To stabilize the feed-in of the hybrid DC system, the fault is initiated at 2.25 s and lasts for 0.05 s. Taking the data at the M-end as an example, the simulation compares the waveform differences between the normal and fault states of both a pure AC system and a hybrid DC multi-feed system. The simulation window length is 0.025 s, and the simulation results are shown in Figure 7.

In Figure 7, it is evident that after the introduction of multi-feed-in, both the voltage amplitude and phase undergo changes. Additionally, the system, besides experiencing voltage reduction after the fault, is also influenced by higher harmonics, leading to irregular oscillations in the fault waveform. By extracting data from the N-end and computing the reference voltage at both ends, Figure 8 compares the measured voltage and reference voltage waveforms.

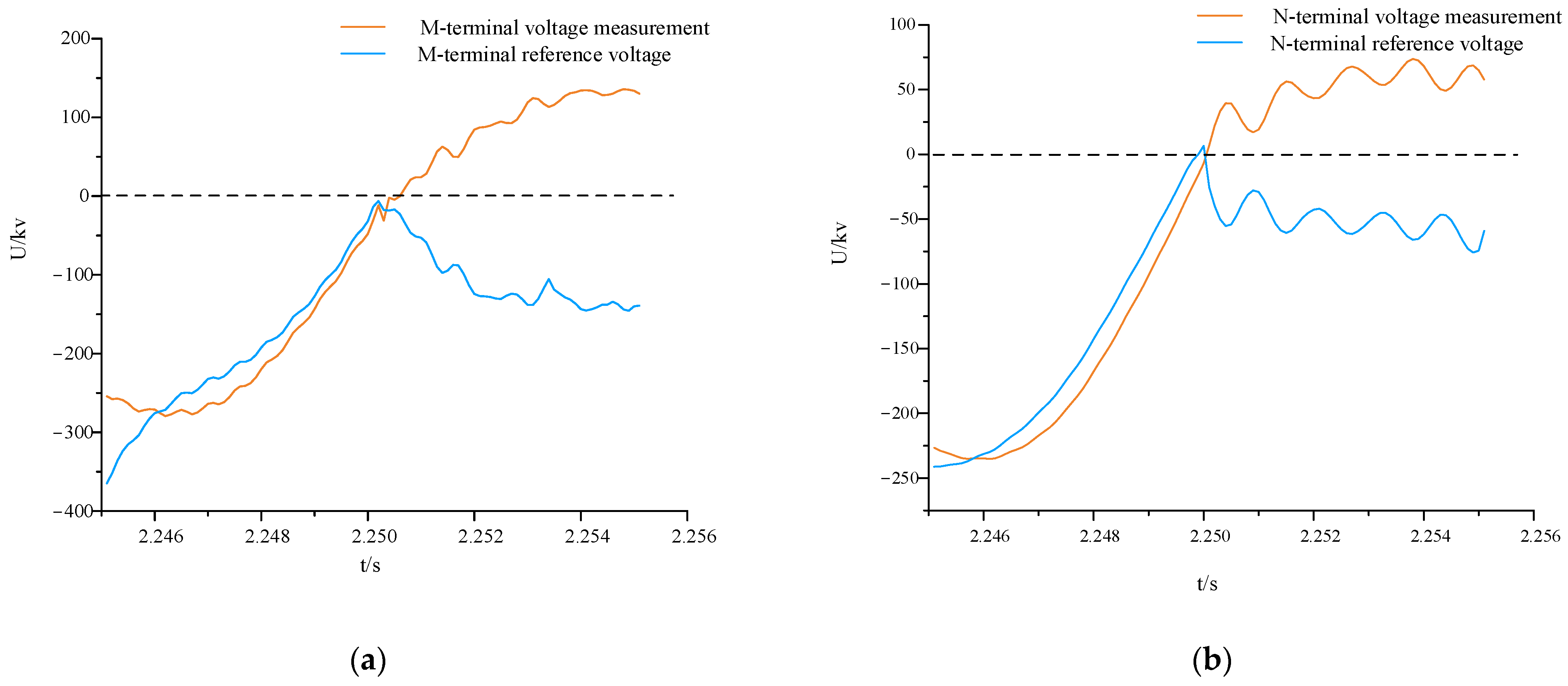

In Figure 8a,b, the measured voltage and reference voltage waveforms at terminals M and N both exhibit an upward trend before the fault occurs, with high waveform similarity. After the fault occurs, the measured voltage continues to rise, while the reference voltage decreases. The magnitudes of voltage fluctuations in both waveforms are quite similar, exhibiting an almost symmetrical relationship around 0 kV, albeit in opposite directions. This aligns with the conclusion drawn in Section 3.2.

For irregular variations in fault waveforms in mixed multi-feed systems, directly applying a similarity algorithm focusing on detailed levels can lead to significant errors. However, after applying the waveform processing method in Section 2.1, waveform optimization can be achieved while retaining trend information, as illustrated in Figure 9.

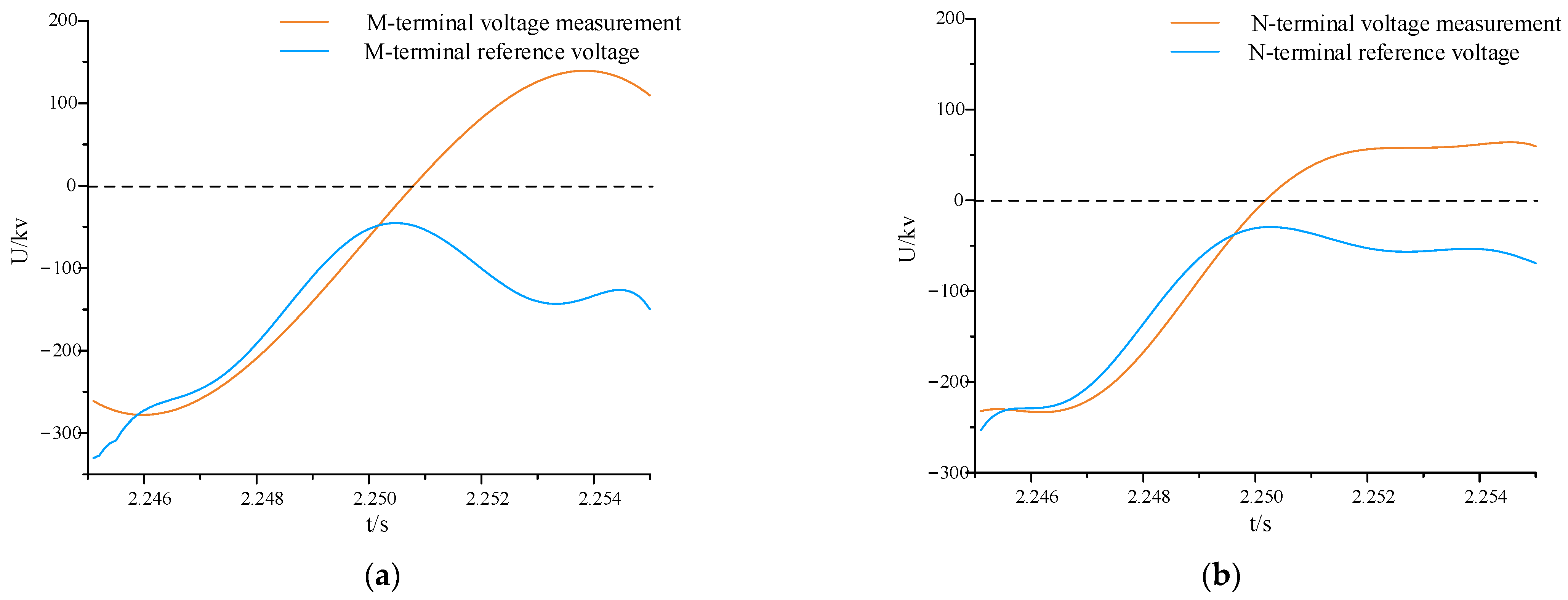

As shown in Figure 9, the processed waveform is smoother and largely retains the trend information of the waveform changes, reducing errors in the subsequent calculation of the comprehensive distance similarity of voltage waveforms.

To study the changes in the comprehensive distance similarity of internal fault waveforms under various operating conditions, faults were set at 50 km in the positive direction of lines M and N, with controlled transition resistance size. This involved simulating single-phase-to-ground faults (A-G), two-phase-to-ground faults (BC-G), three-phase-to-ground faults (ABC-G), and phase-to-phase short-circuit faults (BC). The fault initiation time was set at 2.25 s, with a duration of 0.05 s. Simulation data were tabulated in

Table 2. Comprehensive distance similarity of fault waveforms in area D_MA.

Fault Type	Transition Resistance (Ω)	DMA	DMB	DMC	DNA	DNB	DNC
Single-phase ground fault (AG)	0.01	4.4298	0.3175	0.8093	4.6376	0.2579	0.2792
	50	3.1682	0.3248	0.7994	3.2402	0.2459	0.2690
	100	2.7807	0.3268	0.7998	2.6619	0.2279	0.2612
	500	1.7382	0.3553	0.4257	2.045	0.2027	0.2303
	1000	1.7436	0.3512	0.4125	2.0861	0.2053	0.2339
Double-phase ground fault (BCG)	0.01	0.1387	3.3960	2.5062	0.4000	7.5495	4.4422
	50	0.4916	6.4778	3.7474	0.1258	7.6393	4.1362
	100	0.5539	6.5028	4.8863	0.1434	7.7454	4.1295
	500	0.4442	6.9463	4.5904	0.1367	7.0183	3.9651
	1000	0.4219	6.8553	4.6241	0.1094	7.1028	3.9552
Three-phase ground fault (ABCG)	0.01	5.2445	8.6719	3.0781	6.3565	5.2792	6.3929
	50	4.2174	8.2139	3.0262	4.4252	4.1751	6.8504
	100	3.6431	3.5486	2.8565	3.5486	7.6422	6.8159
	500	2.3411	4.1703	3.1288	2.0772	5.9005	4.9442
	1000	2.2115	4.7501	3.7163	2.0173	5.4799	3.9673
Phase-to-phase short circuit fault (BC)		0.4916	7.4778	4.8882	0.1258	6.6393	4.1362

.

In Table 2, bolded data indicate values greater than the set value, and data marked in red, such as D_MA = 4.4298 and D_NA = 4.6376, represent the maximum values in this dataset. As Table 1 demonstrates, during the occurrence of faults, the comprehensive distance similarity of the faulted phase consistently exceeds the set value D_set, enabling correct action and non-operation for non-faulted phases. All of these are in line with the simulation results and theoretical analysis, meeting the protection requirements.

4.3. Out-of-Zone Fault Simulation Result

Referring to Figure 1, a single-phase bolted fault (f₁) is established 40 km outside the M and N lines in the opposite direction. Voltage and current data from both ends of M and N are extracted, the reference voltage is computed, and waveforms are processed. A comparison of the measured voltages at both ends and the reference voltage waveform is shown in Figure 10.

In Figure 10, the trends in the measured voltage and the reference voltage waveform are consistent, aligning with the conclusion derived from theoretical analysis concerning the similarity of the two voltage waveforms during an external fault. To further investigate the comprehensive distance similarity characteristics of the voltage waveform during external faults under various operating conditions, with reference to Figure 1, f₁ and f₂ are faults set, respectively, 30 km and 10 km outside the opposite direction of the M and N lines, and f₄ and f₅ are faults set, respectively, 10 km and 30 km outside the forward direction of the M and N lines.

These faults simulate single-phase earth faults, two-phase earth faults, and three-phase earth faults. The fault initiation time is set at 2.25 s, with a duration of 0.05 s. The simulated data are summarized in

Table 3. Comprehensive distance similarity of an out-of-zone fault waveform.

Fault Location	Fault Type	DMA	DMB	DMC	DNA	DNB	DNC
f1	(A-G)	0.4191	0.3818	0.8793	0.2577	0.2016	0.3326
	(BC-G)	0.3387	0.7960	0.4305	0.3298	0.6940	0.4132
	(ABC-G)	0.5454	0.5267	0.3940	0.6781	0.8451	0.6219
f2	(A-G)	0.4237	0.3780	0.8514	8.2461	0.2011	0.3291
	(BC-G)	0.3398	0.7862	0.4297	0.3127	4.6844	5.4057
	(ABC-G)	0.5401	0.5227	0.3899	4.6774	5.8057	4.6211
f4	(A-G)	3.4668	0.3669	0.7471	0.1971	0.2014	0.3279
	(BC-G)	0.3598	5.7681	4.4179	0.3177	0.6873	0.4098
	(ABC-G)	4.5129	4.5115	4.4187	0.6228	0.8047	0.6047
f5	(A-G)	0.4795	0.3215	0.7258	0.0904	0.1995	0.2525
	(BC-G)	0.3671	0.7543	0.3938	0.1097	0.6574	0.3561
	(ABC-G)	0.4911	0.4981	0.3477	0.6129	0.7987	0.5917

.

Based on theoretical analysis, when an external fault occurs, the measured voltage and the reference voltage waveform are similar. In Table 3, bold data indicate values greater than the set value, which triggers the protective action. While red data represent maximum values within the dataset. For external faults occurring at f₁ and f₅, the data in Table 3 are all less than the set value (D_set), thus neither end of the protection devices act falsely. In the case of an f₂ external fault, as MAX(D_Mφ) remains consistently less than the set value D_set, both ends of the protection devices remain unaffected. Similarly, when an f₄ external fault occurs, as MAX(D_Nφ) consistently remains less than the set value D_set, both ends of the protection devices remain unaffected. In conclusion, the simulation results for external faults meet the protection requirements.

4.4. Protection Action Status

Currently, in the practical engineering of AC transmission lines, the highest proportion of faults is single-phase-to-ground faults. Taking the occurrence of single-phase high-impedance ground faults as an example, simulated protection data are illustrated in Figure 11.

From Figure 11, it can be visually observed that the operating condition of D_Mφ > D_set and D_Nφ > D_set is satisfied only when an internal fault f₃ occurs. Selecting the setting value D_set = 1.2 provides a certain margin for the calculation results when the waveforms are similar. The proposed method can identify internal and external faults reliably and can meet the protection requirements.

4.5. Anti-Interference Analysis

In actual engineering scenarios, there exist numerous interferences. To test the method’s resistance to interference, this paper introduced a 10 dB noise ratio interference under a 100 Ω grounding fault and simulated different positions within the zone. These positions were at 10%, 50%, and 90% of the total line length. The simulation data are summarized in

Table 4. Simulation results of anti-jamming ability.

Fault Location	Fault Type	DMA	DMB	DMC	DNA	DNB	DNC
10%	(A-G)	6.7142	0.2533	0.0574	5.7713	0.2314	0.2732
	(BC-G)	0.4351	4.4981	4.3163	0.1473	6.8017	4.1781
	(ABC-G)	7.0384	6.9961	6.6941	7.4620	8.0194	6.9814
50%	(A-G)	4.5695	0.2654	0.7600	5.1755	0.2522	0.2696
	(BC-G)	0.4101	3.4312	3.6343	0.1347	7.2423	3.8155
	(ABC-G)	4.8054	4.5203	3.3509	5.4671	6.2985	6.5022
90%	(A-G)	1.9995	0.2467	0.7250	7.2727	0.1836	0.2470
	(BC-G)	0.2174	3.3058	3.1673	0.0571	3.1982	2.0070
	(ABC-G)	4.3491	4.1847	2.7319	5.4894	6.7844	6.0876

:

In Table 4, bold data indicate values greater than the set value, which triggers the protective action. While red data represent maximum values within the dataset. When comparing the interference-added comprehensive distance similarity calculation results at the 50% total line length with the data in Table 2, it is observed that there are varying degrees of increase or decrease in results after the addition of noise interference. For the 10% and 90% total length positions, the comprehensive distance similarity of the fault phase is greater than the setting value D_set, indicating non-rejection of misoperation. Conversely, the comprehensive distance similarity of the non-fault phase is lower than the setting value D_set, demonstrating non-operation. This shows that the proposed method can correctly operate even in the presence of noise interference, meeting the requirements for protection.

4.6. Comparison and Discussion

To demonstrate the superiority of the proposed method, it is compared with [23] and the longitudinal differential protection scheme. Ref. [23] uses the conclusion that reference voltage and measured voltage waveforms have different characteristics during faults inside and outside the area to roughly determine the fault location through the Pearson correlation coefficient. Then, adopting the longitudinal protection logic, it provides a more accurate judgment result. However, Ref. [23] lacks an analysis of the protection scheme’s ability to withstand transition resistance. The longitudinal current differential protection scheme utilizes the assigned values and phases of both sides of the protected line to determine whether a fault has occurred. The criterion is shown in Equation (22).

$$\dot{I_d}>\dot{{KI}_r}$$

(22)

where the differential current $\dot{I_d}=\left|{\dot{I}}_M+{\dot{I}}_N\right|$ and the braking current $\dot{I_r}=\left|{\dot{I}}_M{\dot{I}}_N\right|$ are defined. ${\dot{I}}_M\mathrm{a}\mathrm{n}\mathrm{d}{\dot{I}}_N$ represent the measured currents at both ends of M and N, respectively. K is the braking coefficient, and the operating threshold is set as the maximum unbalanced current.

Regarding the limitations of the proposed method, a comparison section has been added to investigate the performance of various protection schemes in high-resistance grounding scenarios. Three methods were applied to a self-constructed experimental model. Single-phase grounding faults (A-G), two-phase grounding faults (BC-G), three-phase grounding faults, and inter-phase short-circuit faults were simulated at a distance of 50 km from the M-end. The faults occurred at 2.25 s and lasted for 0.05 s. Transition resistances of 100 Ω, 500 Ω, and 1000 Ω were set [24], respectively. Under the same system parameters and fault assumptions, the comparison results of the three schemes are shown in

Table 5. Execution results of different models.

Model		[23]	Longitudinal Differential Protection	Ours
Sampling frequency		4 kHz	4 kHz	10 kHz
Data window		6.25 ms	1 ms	1 ms
Protection operation time		8 ms	4.6 ms	3 ms
The AG protection action situation	100 Ω	no	yes	yes
	500 Ω	no	no	yes
	1000 Ω	no	no	yes
The ABG protection action situation	100 Ω	no	yes	yes
	500 Ω	no	no	yes
	1000 Ω	no	no	yes
The ABCG protection action situation	100 Ω	no	yes	yes
	500 Ω	no	no	yes
	1000 Ω	no	no	yes

.

Since [23]’s sampling frequency is 4 kHz, it requires 25 sampling points with a data window of 6.25 ms, while the proposed method uses 10 sampling points with a data window of 1 ms. Therefore, Ref. [23] has a larger computational burden and slower speed. The current-based differential protection scheme acts at 4.6 ms under a 100 Ω transition resistor, while the proposed method acts at 3 ms. Therefore, the proposed method has a faster speed. By setting different transition resistances and simulating the protection action of the three methods under different transition resistances, it can be concluded that the proposed method can still operate correctly at 1000 Ω, indicating a stronger tolerance for transition resistance.

The structure of modern power grids is becoming increasingly complex, with more and more common scenarios such as multi-infeed, multi-port, and AC/DC hybrid transmission. This protection scheme provides a solution to ensure effective protection under various power grid structures. On the other hand, the scheme can accurately identify the area where a line fault occurs, effectively preventing fault propagation and improving the overall stability of the power grid. At the same time, fault diagnosis is performed through comprehensive distance similarity, ensuring correct operation under different transition resistances and noise interference, satisfying the selectivity, speed, sensitivity, and reliability of relay protection.

In this paper, a sampling frequency of 10 kHz is set, resulting in a large amount of sampled data. The similarity of waveforms is characterized and calculated using both Euclidean distance and Dynamic Time Warping (DTW) distance. The implementation of this method requires a certain amount of computational resources and has high requirements for microprocessors (such as CPU, memory, and GPU). This may limit the application of the proposed method in practical engineering, and further research is needed.

5. Conclusions

In the context of hybrid AC/DC systems, the mutual coupling between AC and DC components can affect the performance of AC-side protection. Aiming at the problem, this article proposes a longitudinal protection scheme that relies on voltage waveform similarity based on an analysis of the voltage fault characteristics of hybrid AC/DC multi-infeed receiving-end AC lines. Through simulation validation, the conclusions can be drawn as follows:

(1)

On one hand, the use of Euclidean distance and Dynamic Time Warping (DTW) distance to characterize waveform similarity avoids the impact of data desynchronization and potential misoperation or refusal to operate caused by relying solely on a single distance metric. On the other hand, the use of least squares fitting for voltage waveforms effectively mitigates the interference from higher-order harmonics.

(2)

The proposed longitudinal protection scheme based on voltage waveform similarity has been validated through simulations, demonstrating correct operation under various fault distances, fault types, transition resistances, and noise disturbances. Compared with other protection schemes, this approach offers faster and more reliable operation within 3 ms, improves speed and adaptability, and is not affected by data desynchronization, thus meeting protection requirements.

(3)

The proposed scheme in this article is built upon an analysis of fault characteristics in multi-infeed AC/DC systems, providing theoretical support for fault protection research in all types of hybrid AC/DC interconnected systems under various fault conditions.
