1. Introduction
Wireless Sensor Networks (WSNs) have changed the way people interact with their environment by providing a cost-effective tool for collecting and delivering the information that supports today’s disruptive Internet of Things (IoT) and Smart City applications [
1,
2,
3]. Specifically, Linear Wireless Sensor Networks (LWSNs), which are WSNs with linear or semi-linear topology, are well suited for monitoring a wide variety of systems, such as transportation networks or utility distribution systems (e.g., water, gas, and electricity), that also have linear or semi-linear structures [
4,
5,
6]. These applications, where timely data collection and decision making are critical, require highly efficient and reliable sensing solutions to monitor the entire area of interest with adequate resolution [
7].
For example, LWSNs will play a crucial role in Smart City applications, such as Smart Water Management (SWM) systems [
8,
9], where pipelines are sensed in a high number of points to measure water-quality parameters, the state of the infrastructure, and consumption. However, as a result of the large amount of traffic generated, the current supporting networks tend to be overloaded, limiting the reliability and scalability of the application [
10,
11]. Moreover, according to [
12], in SWMs, as the number of nodes increases, the packet delivery ratio rapidly decreases, and, as a result, some areas become poorly sensed. This kind of problem has also been observed in other types of Smart City applications supported by LWSNs [
1].
Previous works from multiple research groups, including ours, have proposed energy-efficient MAC protocols that take advantage of the fact that in LWSN data packets flow hop by hop from the node where the sensory data are generated towards the sink node located at one end of the network [
13,
14,
15,
16,
17,
18,
19,
20,
21]. Despite the relevance of these works, they only focus on improving the overall network performance at the expense of the high packet loss probability (PLP) experienced by the data packets that have to travel through multiple relay nodes before reaching the sink. As a result, the network’s reliability and scalability are limited because the data collected by nodes located many hops away from the sink barely reach their destination [
22,
23]. While some previous works have analyzed the reliability of LWSNs in terms of failure, location, or coverage of the nodes [
21,
24,
25], our focus is on improving the network’s reliability and scalability by modifying the MAC protocol, assuming that the nodes are active, and providing proper coverage. In this sense, our proposal is complementary to such works.
We introduce the Distance-Based Queuing (DBQ) scheme for LWSNs, which controls the proportion of local and relay packets transmitted by the nodes to provide the same average PLP and throughput for each node across the whole network. A set of analytical and simulation-based results show that DBQ effectively improves the network’s scalability in terms of its length while also increasing the reliability with which the entire coverage area is monitored. Moreover, the DBQ scheme achieves these goals without degrading the overall network performance or requiring extra signaling. In

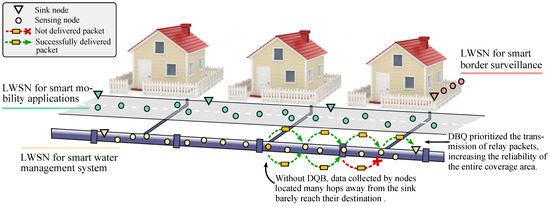

Figure 1 we illustrate the contribution of the DBQ scheme in the context of several Smart City applications, including SWM systems.
The rest of the paper is organized as follows. In
Section 2 we review a representative sample of related work. Then, in
Section 3, we describe our proposed queueing scheme. In
Section 4, we briefly review the MAC protocol (HP-MAC) that we use as a case study to incorporate the DBQ Scheme. Based on the two previous sections, in
Section 5 we develop a mathematical model to evaluate our proposal. In
Section 6 we discuss on the robustness and the potential dynamic implementation of the DBQ Scheme. We discuss relevant numerical results and present our conclusions in
Section 7 and
Section 8, respectively.
2. Related Work
In [
19], the authors present a comprehensive analytical method to evaluate Duty-Cycled, Pipelined-Forwarding (DCPF) MAC protocols for LWSNs. They present expressions to compute throughput, end-to-end packet delay, and energy consumption and apply their model to evaluate the performance of their proposed MAC protocol (PRI-MAC). Considering the same network topology, the authors of [
15] propose an improvement to PRI-MAC by incorporating three algorithms that eliminate contention among nodes located within the same interference range; as a result, the performance in all the evaluated parameters improves significantly. In [
13], the authors propose HP-MAC, which eliminates collisions by implementing distributed elections based on hash functions. The network nodes acquire transmission priorities, and only the node with the highest priority can transmit. As a result, significant gains in throughput and energy consumption are attained.
The authors of [
18] also propose a DCPF MAC protocol (SA-MAC), where nodes selectively awaken depending on node density, traffic load conditions, and the state of the buffers of the receiving node. By implementing this strategy, energy consumption is reduced along the whole network; moreover, since the number of nodes contending for the channel decreases, the throughput and the end-to-end packet delay also improve. Similarly, in [
14], an adaptive sleep/wake-up scheduling approach is proposed; however, in this case, the nodes’ decisions in each time slot are based on reinforcement learning.
The authors of [
16] identified that DCPF networks may suffer from an energy-hole problem, where nodes near the sink node consume an excessive amount of energy. To address this problem, they propose the redundancy-based DCPF (RDCPF) protocol, which involves the deployment of redundant nodes in a LWSN. This approach results in a more uniform distribution of energy consumption throughout the network, thereby increasing the network’s survival time.
In [
17], the authors propose a DCPF MAC protocol (JRAM) that, unlike previous works, assumes that a node has multiple chances to schedule data transmissions per cycle and, consequently, can transmit multiple data packets. As expected, the proposed strategy improves the network performance. The authors also developed a more general analytical model, which can be used to analyze previous DCPF MAC protocols as particular cases.
In [
20,
21], the authors analyze strictly linear WSNs, i.e., networks that consist of a single line of nodes (whereas in [
13,
14,
15,
16,
17,
18,
19] the LWSN is assumed to be dense). The authors propose a routing algorithm that uses implicit acknowledgments to provide reliability and connectivity with energy efficiency, low latency, and fault tolerance.
As observed from the above-described works, multiple research groups have defined the features of MAC protocols that allow LWSNs to operate efficiently regarding energy consumption, throughput, and end-to-end packet delay. They have also developed rigorous analytical evaluation tools. However, these studies do not consider that the performance of different regions of the network can vary significantly. This is particularly true in areas far from the sink, where the nodes may experience poor performance, making the area barely sensed. Our main contribution is addressing this unsolved problem by developing a queue scheme that achieves a homogeneous performance of the LWSN in terms of throughput. We provide mathematical analysis and conduct extensive simulations to demonstrate the effectiveness of our proposal under various traffic conditions. Lastly, it is important to note that our scheme can complement any of the referred MAC protocols.
3. Distance-Based Queuing Scheme
The DBQ scheme is specifically suited for LWSNs that operate with synchronized Duty-Cycled, Pipelined-Forwarding (DCPF) MAC protocols [
13,
14,
15,
16,
17,
18,
19]. In these networks, each node belongs to a grade
, where
i is the node’s hop distance to the sink and
I is the total number of grades in the network, i.e., the network length, as illustrated in
Figure 2. More specifically, grade 1 is composed of the nodes that can reach the sink with a direct transmission, whereas grade 2 contains the nodes that can reach nodes in grade 1 with a direct transmission but not the sink. Packets generated at grade 2 require two hops to reach the sink. Nodes in grade
I are the most remote nodes in the network. In a practical scenario, we can use the Grade Division and Pipelined Scheduling (GDPS) protocol [
26] to compute the hop distance to the sink for each node in the network. This protocol can be applied during the network initialization.
Similar to [
13,
14,
15,
16,
17,
18,
19], we consider a dense LWSN, in which more than one node can exist in each grade. Such a topology differs from strictly linear WSNs, e.g., [
20,
21], in which there exists only one line of nodes.
In LWSNs running a DCPF MAC protocol, the nodes follow a cycle that consists of
slots, which are arranged in the following order: a reception slot, a transmission slot, and
consecutive sleeping slots that are included to reduce energy consumption. The total cycle duration is
seconds, where
T is the duration of one slot. The cycles for the nodes in the network are organized so that the transmission slots of nodes at grade
are synchronized with the reception slots of nodes at grade
i [
13,
19]. This synchronization allows data packets to be relayed from grade
to grade
i in a single slot.
To implement the DBQ scheme, each node requires two FIFO queues: one for serving local packets and another for serving relay packets. When a node gains access to the channel and has packets in both queues, it serves the queue for relay packets with the probability
and the queue for local packets with the probability
. If only one queue has packets, it will be served with a probability of one. While this way of serving transmission queues has been proposed before (e.g., [
13]), the value of
was considered to be constant for each node in the network. However, in this work, we propose selecting
as a function of the nodes’ grade
i. We denote as
the probability of selecting for transmission a packet from the relay buffer in a node at grade
i.
To ensure that the PLP experienced by data packets is the same regardless of their originating node, the probabilities
have to be chosen in such a way that the sink receives roughly the same number of packets from nodes at every grade. We propose setting
to a specific value
, which has the effect of transmitting to the next grade the same number of packets from every grade
, namely, from every upstream grade and the current node’s grade. If all nodes in all grades follow this strategy, the nodes in grade 1 will deliver the same number of packets to the sink from every grade
in the LWSN. This way, the DBQ scheme will homogenize the PLP performance across the entire network, as illustrated in
Figure 2.
To determine the values of , observe that homogenizing the PLP is equivalent to homogenizing the throughput. In order to do this, we define as the relay throughput that is received in the relay buffer of a node at grade i, in packets per cycle, from nodes in grade . Similarly, we define as the locally generated throughput that is queued in a node at grade i. Note that these variables depend on because increasing this probability has the effect of transmitting more relay packets than local ones, which in turn increases and decreases simultaneously.
To achieve a homogeneous throughput, nodes at grade
(which are the most distant nodes from the sink that relay packets) should receive, on average, the same number of packets from grade
I as the number of packets they queue in their local buffers. As a result, the nodes at grade
transmit the same number of packets from grades
I and
to grade
. Similarly, the nodes at grade
should receive, on average, two relay packets from grade
for every packet queued in its local buffer so that nodes in grade
can transmit the same number of packets from grades
I,
, and
to grade
. In general, to make sure that the data packets experience homogeneous throughput across the entire network, a node at grade
i must receive, on average,
relay packets for every packet queued in its local buffer. This means that
should be
times larger than

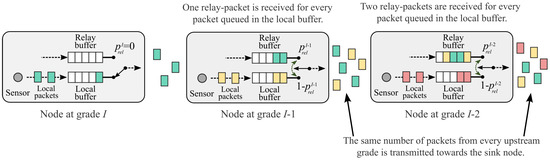

. This concept is illustrated in
Figure 3.
In summary, the throughput per grade is homogeneous across the network if
, for
; i.e., if
=0, for
. Consequently, the problem of calculating the value of
can be restated as finding the root of
which is a function of
and represents the difference between the desired proportions of local and relay throughput.
4. HP-MAC Overview
Since the DBQ scheme is intended to be used with DCPF MAC protocols for LWSNs, we select, as a case study, the collision-free protocol known as Hash-based with Packet-prioritization MAC (HP-MAC) [
13].
In HP-MAC, nodes have two queues of a length
K to serve local and relay packets independently. At the beginning of a transmission slot, every node in the same grade, with queued packets, computes the same set of
N priority tickets (where
N is the number of nodes in a grade). This way, nodes acquire a unique priority transmission number in
, which is used to control access to the channel. A node with priority
k listens to the channel during
mini-slots of duration
. If it does not detect any transmission, it initiates an RTS-CTS-DATA-ACK interchange with a node in the immediate inferior grade. Otherwise, it goes to sleep as soon as a transmission is detected because a node with a higher priority
has accessed the channel.

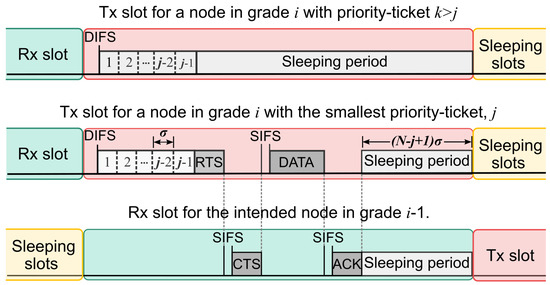

Figure 4 illustrates the frame structure of the contention process from the point of view of a node that detects a busy channel, the node that wins the contention, and the intended receiver node in the next grade.
In HP-MAC, the probability of transmitting a packet in a cycle, for a node in grade
i with queued packets, denoted by
, equals
where
is the probability that none of the queues has packets at the beginning of a transmission slot. The probability of receiving a packet during a cycle, denoted by
, is
and
, since nodes in grade
I do not relay packets.
To obtain
, one can solve a Discrete-Time Markov Chain (DTMC) for every grade
i, whose steady-state solution is denoted by
, for
, and represents the steady-state probabilities of having
m local and
u relay packets in the corresponding queues. This DTMC depends on the probability of generating a local packet during a cycle (
a) and the probability of selecting a packet from the relay queue (
). The DTMC definition, its solution, and its relation with (
2) and (
3) are described in detail in [
13], Section IV.B.
5. Analytical Model for the DBQ Scheme
In this section, we develop expressions to calculate the PLP and throughput for nodes in grade , in terms of , , and , considering an HP-MAC network where nodes implement the DBQ scheme. Then, we propose a method to obtain , for ; i.e., the values of that homogenize the PLP and throughput across the whole network.
Our analytical model is based on the assumption that there are I grades, each consisting of N nodes. We also assume that local packets arrive at every node with a probability equal to a during a cycle. It is important to note that a is a measure of traffic intensity, and we consider it to be a constant for the steady-state analysis.
The expected number of successfully transmitted packets per cycle from grade
to grade
i is
; hence, the throughput from grade
to grade
i is, in general,
where
is the blocking probability (the probability of dropping an incoming packet) in the relay queue of a node in grade
i, which can be expressed as
In particular, the throughput from grade 1 to grade 0,
, represents the network-wide throughput that is delivered to the sink node; therefore, we also denote it as
. Since we assume that the receiving queue in the sink node is infinite, we obtain
In addition, the throughput generated in a node’s local queue is defined as
where
is the blocking probability in the local queue for a node in grade
i and is given by
Given that a packet generated in grade
i has relayed through grades
until reaching the sink, the throughput from grade
i, which reaches the sink node, denoted by
, can be written as
We can derive an alternative expression for calculating
from (
9).
Since new packets are generated in grade
i at rate
; we can compute the probability of losing a packet generated in grade
i, denoted by
, as
Now, we are ready to derive an expression for
(see (
1), (
4), and (
7)) as follows.
where (
12) can be simplified to obtain (
13).
Even though, the dependence on
is not explicit on the right side of (
13); it does exist because
and
are obtained in terms of the DTMC solution, which directly depends on
. The remaining parameters in (
13) are constants or depend on
, which must be previously calculated. Lastly,
must be set to 0 since nodes in grade
I do not relay packets.
As we have mentioned, the roots of are the values of that homogenize the PLP across the network. To find these roots, we note that as increases, decreases, and increases because the priority of the relay packets over the local packets increases; therefore, is a monotonically increasing function with at most one root.
To determine whether
has one root or none, first, we analyze the scenario where the packet arrival rate, considering both local and relay traffic, is large enough to produce a blocking probability larger than zero in at least one of the buffers. In this scenario, which we refer to as high-traffic conditions, if
, then
because relay packets are not allowed to be transmitted, and
is less than 1. Consequently,
is negative, as we can observe from (
13). Analogously, we can conclude that
is positive if
. Based on these arguments, we can conclude that
has one root under high-traffic conditions, which can be found using standard numerical methods. To evaluate every instance of
, as required to implement the numerical method, we need to solve the system of equations comprised (
2), (
3), and the above-mentioned DTMC, for
.
On the other hand, when the packet arrival rate is very low,
and
tend to zero, as well as the corresponding blocking probabilities for nodes in grades larger than
i. Under these low-traffic conditions, the number of received relay packets in grade
i is
times larger than the number of admitted local packets, which means that homogeneous PLP conditions hold for a wide range of values of
and there is no need to find the root of
. Moreover, since under low-traffic conditions
tends to zero, finding its root can be limited by the resolution of the implementation of the numerical method. Therefore, we can simply select
as the ratio of the relay throughput to the total throughput, i.e.,
Lastly, to determine whether a grade i is under high- or low-traffic conditions, we define a parameter , which represents the largest difference between the desired proportions of relay and local throughput that is considered acceptable in terms of homogeneous PLP conditions. If the range of , given by , is smaller than , we consider that the LWSN is under low-traffic conditions. Algorithm 1 summarizes the above-described method.
According to Algorithm 1, the computation time of the proposed method is proportional to the network length
I and to the complexity of the method to find
. For the case of the bisection method, the complexity is
, where
is the maximum error allowed in the solution.
Algorithm 1 Selection of the relay probabilities, . |
|
6. Robustness and Dynamic Implementation of the DBQ Scheme
The solution presented in the previous section to find has been developed for the steady state, which means that it is valid for a constant value of traffic-intensity, a. Under this assumption, the implementation of the DBQ scheme does not require extra signaling, as we have mentioned above, since nodes can be set with during the network-initialization stage. However, our method can also be used considering time-varying traffic. Under such dynamic conditions, it is necessary to continuously measure a and to recalculate if significant variations of a are detected. Since battery and processing capacity are very limited resources in the sensing nodes, the described dynamic recalculation of must be carried on remote servers, hence, requiring a bidirectional interchange of signaling between the servers and the sensing nodes.
Though such a solution may demand more resources from the LWSN (to the detriment of its lifetime), we consider that implementing it is feasible because the features of a particular application are known in advance, and, therefore, a proper network design may avoid extreme traffic variations. Moreover, the dynamic estimation of increases the robustness of the DBQ scheme.
The previous arguments are valid not only in terms of a but also in terms of any other phenomenon that directly or indirectly affects the traffic intensity. As another example, notice that nodes failure decrease the number of nodes per grade, N, which, in turn, increases the average number of relay packets that a node must process. Therefore, in the case of node failure, must be recalculated (the dependence on N is explicit in our model), and the solution is feasible, if failures are maintained under control.
In general, we can affirm that the dynamic implementation of the DBQ scheme increases its robustness, given a proper network design.
7. Numerical Results and Discussion
To evaluate the performance gains achieved by the DBQ scheme, we consider an LWSN with
,
,
,
, and
ms, unless otherwise specified. These values were selected to evaluate the network performance under different traffic conditions and considering realistic settings. For example, in [
9,
27,
28], experimental tests were conducted with tens of sensing nodes and at most three hops along the network. Additionally, in [
29], the authors report a real-world WSN implemented with tens of sensing nodes per sink node. We propose setting the value of
to
, meaning that we consider that the network is operating under homogeneous-PLP conditions if the maximum difference between relay and local throughputs is less than or equal to 0.1% (given that the maximum throughput is 1 packet/cycle). As shown in Algorithm 1, we set
. Then, we estimate
for
. When high-traffic conditions are detected, we obtain the root of
through the bisection method with an error of
.
Table 1 shows a set of numerical results for
under different values of
a. The yellow cells indicate the grades that operate under high-traffic conditions. As expected, these cases occur in the grades closest to the sink, and the number of grades in these conditions increases as the value of
a increases. We observe that, for a given value of
a, the value of
increases as the number of hops required to reach the sink decreases because the aggregated relay traffic is significantly larger than the local traffic. As a result, the priorities of the relay queues in the nodes close to the sink have to be higher than the priorities of the local ones. It is interesting to note that, for a given grade
i, the range of values of
, as a function of
a, is small, which means that the estimation of
must be very precise.
After finding the values of the probabilities
, we set the priorities of the queues with such values. We refer to this version of HP-MAC as HP-MAC/DBQ.

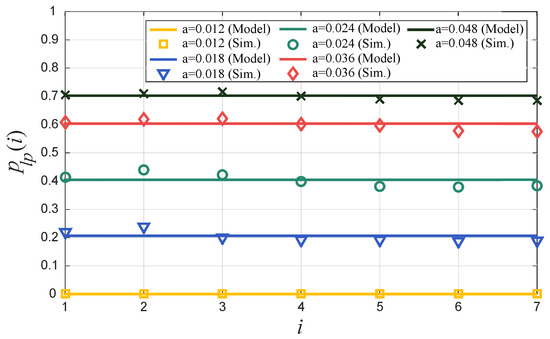

Figure 5 shows the resulting values of
for different traffic intensities,
a. We observe that the DBQ mechanism effectively homogenizes the LWSN’s PLP under a wide range of traffic intensities, validating the effectiveness of our method. The homogeneous performance will allow the LWSN to monitor the whole area of interest with the same quality and resolution, thus preventing the emergence of poorly covered areas.
Figure 5 also shows the results of extensive discrete event simulations (we executed 1
cycles for every set of input parameter values), which confirm the predictions of the analytical model.

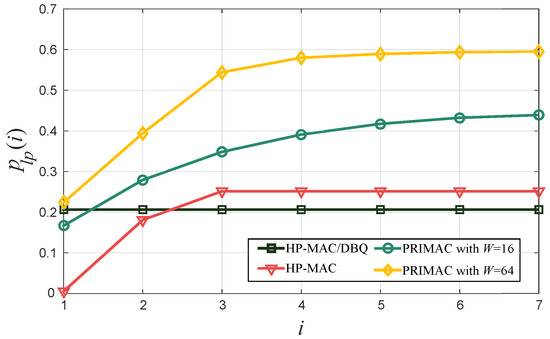

Figure 6 shows the PLP per grade
i attained by our proposal, HP-MAC/DBQ, and two other state-of-the-art protocols, HP-MAC [
13] and PRIMAC [
19]. Since the performance of PRIMAC depends on the size
W of the contention window, we consider two representative values, 16 and 64. As expected, the PLP for HP-MAC and PRIMAC degrades rapidly as the hop distance to the sink increases because data packets can be lost at each hop while competing for network resources with the locally generated data packets. On the other hand, HP-MAC/DBQ outperforms the other protocols for all grades except those closest to the sink, which is the result of assigning more resources to the packets generated upstream.
Similarly,

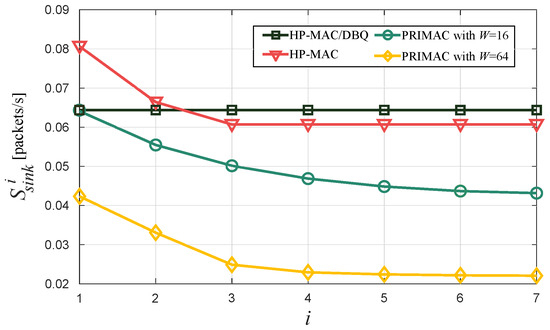

Figure 7 presents the throughput attained by the three protocols. Again, we observe that only HP-MAC/DBQ exhibits a homogeneous throughput across the network and, in general, outperforms the remaining protocols.
In

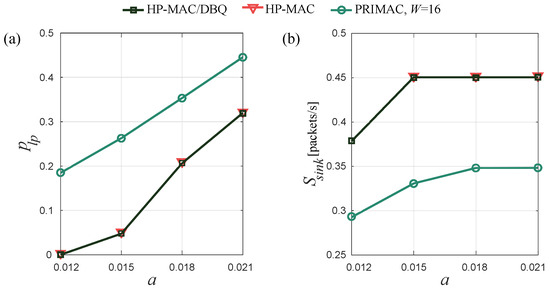

Figure 8a,b, we present the network-wide average PLP and throughput attained by the protocols as
a increases, respectively. The figures show that the overall performance exhibited by HP-MAC/DBQ is equivalent to that of HP-MAC, indicating that the proposed DBQ scheme does not have a negative impact on the network-wide performance of HP-MAC. This is mainly due to two reasons. Firstly, the DBQ scheme does not interfere with the underlying contention avoidance scheme and does not require additional signaling. Secondly, by solving (
13), the DBQ scheme assigns the appropriate amount of network resources to data packets, ensuring that all packets have roughly the same probability of reaching the sink, regardless of their originating grade. The figure also shows that both HP-MAC and HP-MAC/DBQ outperform PRIMAC.
In

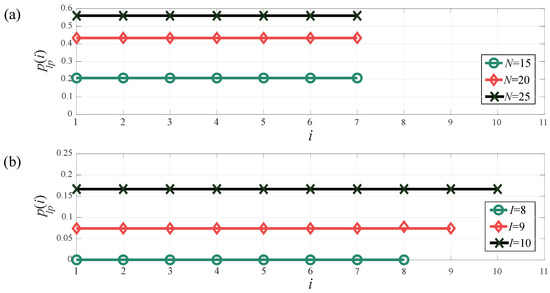

Figure 9a,b, we present the PLP performance of the LWSN in terms of
I and
N, respectively. In these evaluations, we have assumed a value of
. We notice that as an inherent effect of increasing the network size, the PLP increases as
N or
I increases. It is important to note that despite the high-intensity traffic, the uniform performance remains unaffected, which means that
remains constant throughout the network for any given input parameters.
As a result of having a homogeneous PLP, the throughput per grade that reaches the sink,
, is also homogeneous; i.e., it is the same for any grade
i. To illustrate this behavior, we present in
Table 2 and
Table 3 the value of
as well as the value of the network-wide throughput,
, as a function of
N and
I. We observe that as
N increases, both
and
decrease because in HP-MAC, the frame duration increases with
N, hence, reducing the throughput that the network can deliver. On the other hand, when
I increases, the frame duration remains constant, resulting in an increase in
because more packets are generated in the network. Nevertheless, since the network capacity must be shared among a larger number of grades,
decreases. From this analysis, we can conclude that the network-wide throughput is affected by the MAC protocol features (HP-MAC in this case) but not by the incorporation of the DBQ scheme.

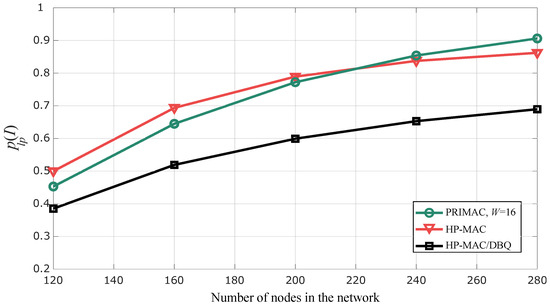

Lastly, to illustrate how our proposal improves the reliability of the network, we show the PLP for the most remote nodes of the network,
, in
Figure 10. For these results, we consider
and
. We observe that, for 120 nodes, all the protocols exhibit similar performances. However, as the total number of nodes increases in the order of hundreds (we increase
N from 15 to 35),
for PRIMAC and HP-MAC tends toward 1, which means that the sensing of the most remote regions of the network becomes very unreliable. By contrast, the implementation of the DBQ scheme maintains a more reliable sensing of the whole network under a wider range of possible scenarios. Evidently, these reliability improvements are limited by the network capacity.
