Review

Recent Progress in Wearable Near-Sensor and In-Sensor Intelligent Perception Systems

by
Jialin Liu
1,2,
Yitao Wang
1,
Yiwei Liu
1,2,
Yuanzhao Wu
1,2,
Baoru Bian
1,2,
Jie Shang
1,2,3,* and
Runwei Li
1,2,3,*
1
CAS Key Laboratory of Magnetic Materials and Devices, Zhejiang Province Key Laboratory of Magnetic Materials and Application Technology, Ningbo Institute of Materials Technology and Engineering, China Academy of Sciences, Ningbo 315201, China
2
College of Materials Science and Opto-Electronic Technology, University of China Academy of Sciences, Beijing 100049, China
3
Materials and Optoelectronics Research Center, University of Chinese Academy of Sciences, Beijing 100049, China
*
Authors to whom correspondence should be addressed.
Sensors 2024, 24(7), 2180; https://doi.org/10.3390/s24072180
Submission received: 2 March 2024 / Revised: 25 March 2024 / Accepted: 27 March 2024 / Published: 28 March 2024
(This article belongs to the Special Issue Wearable and Implantable Electrochemical Sensors)
Browse Figures
Versions Notes

Abstract

:
As the Internet of Things (IoT) becomes more widespread, wearable smart systems will begin to be used in a variety of applications in people’s daily lives, not only requiring the devices to have excellent flexibility and biocompatibility, but also taking into account redundant data and communication delays due to the use of a large number of sensors. Fortunately, the emerging paradigms of near-sensor and in-sensor computing, together with the proposal of flexible neuromorphic devices, provides a viable solution for the application of intelligent low-power wearable devices. Therefore, wearable smart systems based on new computing paradigms are of great research value. This review discusses the research status of a flexible five-sense sensing system based on near-sensor and in-sensor architectures, considering material design, structural design and circuit design. Furthermore, we summarize challenging problems that need to be solved and provide an outlook on the potential applications of intelligent wearable devices.

1. Introduction

With the rapid development of the Internet of Things (IoT), health monitoring devices such as armbands and glasses are becoming more intelligent and accurate. With the pressing need for high accuracy and real-time detection in medical applications, wearable and implantable devices are rapidly developing due to their advantages in directly collecting physiological information [1,2,3,4,5,6,7,8,9,10,11]. Through direct contact with the skin or even organs, wearable sensors can reduce the effect of interference and environmental noise compared to other general sensors. For wearable devices used in health monitoring, some characteristics should be fulfilled, including the following: (1) The device should have good stretching and bending properties to adapt to a range of human daily routines. (2) The device should have good biocompatibility to avoid skin irritation. (3) The device should be lightweight and comfortable to ensure comfort [12,13,14,15,16,17]. Recent research has shown that health monitoring devices have achieved high performance by integrating high-precision wearable sensors and computers [18,19,20]. However, redundant data being output from sensors is inevitable, and this causes a high transmission latency and power consumption to occur between sensors and computing units. To alleviate the shortcomings outlined above, a new computing paradigm proposes integrating some computing units into the sensing unit. Architecture differences and the classification of near/in-sensor computing can be distinguished by the degree of integration [21]. Zhou et al. referred to this part of the computing unit as the front-end processing unit. The front-end processing unit can filter the redundant data and extract the effective data output from the sensors [22,23,24]. In addition, some researchers have proposed a variety of smart sensors that can perform summation operations by designing materials and structures, which are called in-sensor computing system [25,26,27]. As a new generation of smart sensor units, near/in-sensor computing systems have great potential for use in various applications, such as medical equipment, bionic robots and electronic skin.
Devices or circuits with information processing capabilities are required for the front-end processing unit. Memristors and synaptic transistors have emerged as the best choice for front-end processing units in near-sensor computing systems due to their ability to simulate the synapses of neurons [28,29]. If the postsynaptic current generated from redundant sensor data activated in near/in-sensor computing systems is not large enough, this means that it can be filtered out [30,31,32]. Until now, researchers have conducted systematic work on near/in-sensor computing systems, demonstrating the feasibility of tactile, visual, auditory and olfactory systems which use near/in-sensor computing [33,34,35,36,37,38]. However, hard bending or stretching is a general disadvantage in most of the recently proposed near/in-sensor computing systems due to their rigid electronic elements. The equipment used in health monitoring applications should be deformable and biocompatible. Therefore, the challenge of developing materials and electronic components which fulfill both good flexibility and biocompatibility still remains in this field. Additionally, research on memristors and synaptic transistors has primarily focused on rigid metal oxide materials due to the specific mechanisms of current neuromorphic devices. Recently, researchers have discovered the potential of near/in-sensor computing systems in edge computing and progress has been made in the flexibility of all components [39,40]. Due to their different working mechanisms, flexible sensors in system can be identified as piezoresistive, capacitive, piezoelectric or triboelectric sensors [41,42,43,44]. Filling a flexible medium layer with functional filler and depositing a film of functional materials on a flexible substrate are the two main methods of flexible material preparation. Carbon-based materials such as graphene, fullerene, C-nanotubes and carbon quantum dots have been more popular in recent research due to their excellent compatibility with elastic materials [45,46,47,48]. Additionally, metal powders or nanowires such as Cu, Au, Ag and Pt can be selected as functional fillers to confer electrical, magnetic or thermal properties to the functional medium layer. For instance, insulating materials can acquire conductive properties by being coated or mixed with conductive materials [49,50,51]. Notably, the combination of high-performance elastic materials and functional materials has emerged as a novel approach for fabricating high-performance flexible devices. Reducing the thickness of rigid functional materials such as ITO, mica and metal conductors is a method used to obtain stretching and bending properties. For example, metal oxide epitaxial thin films grown on flexible substrates also exhibit good flexibility [52,53,54]. In order to alleviate the concentration of stress, the thickness of rigid materials can be thinned, which can significantly reduce defects. In addition to the material used, designing special structures can also improve the performance of flexible sensors. Flexible sensors typically present an inferior mechanical performance and stability compared to rigid sensors; however, the introduction of microstructures such as pyramids, cylinders, half-spheres and wrinkles significantly enhances the resilience, stability and sensing capabilities of flexible sensors, which can be helpful for the development of high-performance flexible sensors [55,56,57]. Currently, the integration of material design and structural design is the most prevailing approach for designing flexible sensors in near/in-sensor systems.
Neuromorphic devices are an essential component of near/in-sensor systems due to their information-filtering ability and processing capabilities. Like flexible sensors, these devices require good flexibility and stability. Two completely different technical routes can be adopted for the fabrication of flexible memristors and synaptic transistors for use in the system. Flexible memristors are typically prepared by depositing electrodes and functional metal oxide films such as nickel oxide, hafnium oxide and titanium oxide directly onto a flexible substrate [58,59,60]. Nevertheless, for synaptic transistors, researchers are exploring novel flexible functional materials, such as organic semi-conductors, graphene composites and bio-based materials, to replace the semi-conductor layer and substrate in conventional transistor structures [61,62,63]. Furthermore, there are intrinsic differences between memristors and synaptic transistors, influencing researchers’ choices. Memristors can achieve higher integration densities due to their 2-terminal with a simple layered structure, while synaptic transistors offer a better design in terms of flexibility and stability due to their wide range of material selections and gate control mechanisms [64]. Flexible memristors and synaptic transistors have their own advantages in different applications. Research on near/in-sensor computing systems is still in the exploratory stage.
In conclusion, constructing a wearable near/in-sensor perception system is a complex task due to the incorporation of flexible materials, neuromorphic devices and high-performance sensors (Figure 1). Currently, the design of wearable near/in-sensor perception systems is mainly based on material selection and structural design because the tensile and flexural properties of the material can directly determine the flexibility and stability of the system, and the appropriate structural design can help to improve the performance of the components, and, thereby, the whole system. This review focuses on recent advancements in flexible sensors and neuromorphic devices’ utility of near/in-sensor perception systems. Starting with the basic structure and working mechanism, we provide an overview of material design, structure design and near/in-sensor computing systems application. We summarize the main challenges in this sphere and provide an outlook on the application prospects of near/in-sensor computing systems. See Table 1.

2. Near-Sensor and In-Sensor Computing System

In 2020, the research on near/in-sensor computing systems by Zhou et al. indicated that these systems are primarily designed to solve the problem of large amounts of redundant data being exchanged between sensory and computing units [21]. Compared to the conventional sensor–Analog-to-Digital convertor (ADC)–memory–backend architecture, the ADC and memory capabilities of sensory and computing units are replaced by neuromorphic devices in emerging near/in-sensor computing architectures. Neuromorphic devices such as memristors and synaptic transistors can be easily integrated into sensory units due to their simple structure. Additionally, these devices have an extremely low power consumption as they operate in a micro-current [23,65,66,67]. In addition to filtering, the ability neuromorphic devices to perform some information processing exists to some extent. In other words, neuromorphic devices can simulate synapse models to process information input. They have synaptic plasticity and nonvolatile characteristics which allow them to process specific voltage signals as input and store output in resistance form [68,69,70].
The relationship between near-sensor computing and in-sensor computing is progressive. A near-sensor computing system can filter redundant data at the sensing terminal by integrated the partial computing units near to the sensing units. This design significantly reduces the computing stress on computing units and the transmission consumption between sensing units and computing units. The necessity of a multi-functional sensing unit in in-sensor computing systems is to fulfil both ambient signals inputting and perform simple computing. This design eliminates the consumption caused by redundant data transmission. Neuromorphic devices can replace the ADC unit in near/in-sensor computing systems to decrease power consumption further by processing analog signals directly. Numerous experiments have demonstrated that integrating the neuromorphic computing paradigm with near/in-sensor architecture can significantly decrease power consumption by 1~2 orders of magnitude [71,72,73]. As a result, a neuromorphic device with a small size has better prospects for use in the self-powered devices in wearable technology [74].

3. Flexible Near-Sensor Artificial System

The sense organ system is a crucial part of the human body, acting as a primary interface between the body and the external environment. The human body’s sense organ system can be broadly categorized into five types based on their working mechanisms: the tactile system (pressure and strain responsive), the temperature system (somatosensory), the visual system (light responsive), the auditory system (acoustic responsive) and the olfactory and gustatory system (molecular responsive) [75,76]. In comparison to artificial intelligence, the human nervous system is still more energy efficiency [77]. Near/in sensor systems, inspired by human sense organ system, have significant potential in the IoT. To create wearable near/in-sensor systems which are compatible with diverse signal inputs, flexible sensor fabrication often adopts material and structural design approaches. Diverse inputs have their counterpart outputs; therefore, matching sensors and front-end processing units can be a challenge in near/in-sensor computing systems design.

3.1. Flexible Near-Sensor Tactile System

The tactile system is a complex sensor organ system consisting of various receptors such as Pacinian corpuscles, Herbst corpuscles and Merkel disks [78] (Figure 2a). Recent flexible near-sensor system research has been met with the difficulty of integrating individual sensors with these complicated functions. However, research on near-sensor systems with single tactile functions has gradually improved [79]. As a pressure perception system, the four basic pressure perception mechanisms which exist for near-sensor system construction have their own advantages. The piezoresistive mechanism has a simple principle; fundamentally, the resistance of the piezoresistive sensors will be changed along with pressure through a specific function, which is generally negative relevant. Because of their simple structure and wide selection of materials, the preparation and integration of piezoresistive sensor are easy in a large-scale system [80]. The sensor function layer (SFL) is the material between two electrodes which ensures that the piezoresistive sensors are working properly. A flexible SFL with conductivity can be made of some conductive materials such as graphene, carbon nanotubes or carbon nanofiber [81,82,83] and combined with flexible organic polymer materials like polydimethylsiloxane (PDMS), thermoplastic polyurethane (TPU) or resin [84,85,86]. What is more, optimizing the piezoresistive sensors’ performance requires a microstructure design [87,88,89]. Similarly, the design of flexible front-end processing units is also important for implementing near-sensor perception systems. Both neuromorphic devices and logic circuits can filter redundant data from the sensing terminal. Sengupta et al. [90] designed a flexible and stretchable electro-spun carbon nanofiber (CNF) sensor for an intelligent perception system. This sensor has a simple sandwich structure with a PDMS layer by bonding a CNF bundle to copper tape electrodes on two edges and encapsulating them. It will output a voltage of approximately 0–1.2 V in response to a bending angle of 0–90°. This flexible sensor array with a crisscross structure can also be implemented for gesture detection and recognition. A Wheatstone bridge oscillator can generate several numbers of spikes with the voltage output from the sensor (Figure 2b). This mechanism allows pressure and bending signals to be transferred as spikes, and the capacity of the signal will accumulate to reach a threshold and trigger another signal to the back-end units (e.g., Artificial Neural Network). This work testifies to the various gestures involved and allows us to obtain the number of spikes in their curves synchronously. Different curve shapes and diverse gestures are the conditions used for classification. A near-sensor tactile system designed by Liu et al. [91] and Jiang et al. [92], substituting the hardware circuit with a neuromorphic transistor, significantly increased the capabilities of the wearable device. According to this approach, sensors and neuromorphic devices design can become more free, but require more energy consumption and are less wearable. The use of organic material in the preparation of neuromorphic transistors has a better compatibility with near-sensor perception systems compared to hardware circuits (Figure 2c–e). Fang et al. [93] introduced a new perception system with full flexibility, an integrated flexible pressure sensor and a flexible VO2 insulator-metal transition memristor on a polyethylene naphtholate two formic acid glycol ester (PEN) substrate (Figure 2f). This system needs a minimum pressure input of 3.82 kPa and a frequency output of more than 9.6 kHz. The structure of a capacitive sensor is like that of the piezoresistive sensors. The difference between them is the capacitance and resistance, respectively. What this means is that the functional layer can be prepared using non-conductive materials. Kim et al. [94] designed a capacitive sensor with PDMS + Ag flakes + HA, MIBK or Chloroform sinter-free ink as the electrodes and PDMS as the dielectric layer. The sensor can respond to both pressure and stretching (Figure 2g). It shows an excellent strain-insensitive performance, with only 0.002 of sensitivity per 1% strain at 120% stretching and a pressure sensitivity of 0.64 kPa−1 ranging from 0 to 1.8 kPa. A flexible Al/TiO2/Al memristor was used to construct the near-sensor perception system along with a flexible sensor. The weights trained by the neural network were mapped to the conductance of the memristor array, allowing the system to provide feedback on a specific pressure pattern input.
Piezoelectric and triboelectric sensors can operate without a power supply in contrast to piezoresistive and capacitive sensors [95]. A ceramic material is useful due to the strong piezoelectric effect [96,97]. Jung et al. [98] created a flexible artificial mechanoreceptor inspired by human skin. The HZO/TaN memristor and SiO2 electric insulation layer as the memory and HZO w/Al2O3 as the sensor were deposited onto a MICA film layer by plasma-enhanced chemical vapor deposition (Figure 2h). This integration of a sensor and front-end processing units onto a single flexible substrate can decrease the size of the perception system and increase its practicality. The sensor exhibits excellent performance in linearity within the range of 2~25 kPa. This system uses a non-volatile memristor as the front-end processing to demonstrate Braille recognition with an accuracy of up to 90.8% which was verified by deep neural network (DNN) software. Similarly, a triboelectric sensor without a power source can electrify through friction. Han et al. [99] designed a triboelectric nanogenerator (TENG) with an Al/PTFE/Al sandwich structure including a biristor neuron (Figure 2i). When pressure in the range of 3.3~5.3 kPa is applied, a small shift between the Al electrode and polytetrafluoroethylene (PTFE) can produce charges of opposite polarity and current in the circuit. The biristor neuron can output spikes of different frequency with the current generated by TENG. As a result, the TENG–biristor neuron can convert pressure signals into frequency signals, like the tactile receptors in human skin. For MNIST dataset deducing, SNN utility in the back-end unit can achieve an accuracy of 85.8%. Piezoelectric and triboelectric sensors also have a great potential in edge computing due to their self-powering abilities. This system works properly within the circumstances of continuously changing pressure.
Sensors 24 02180 g002

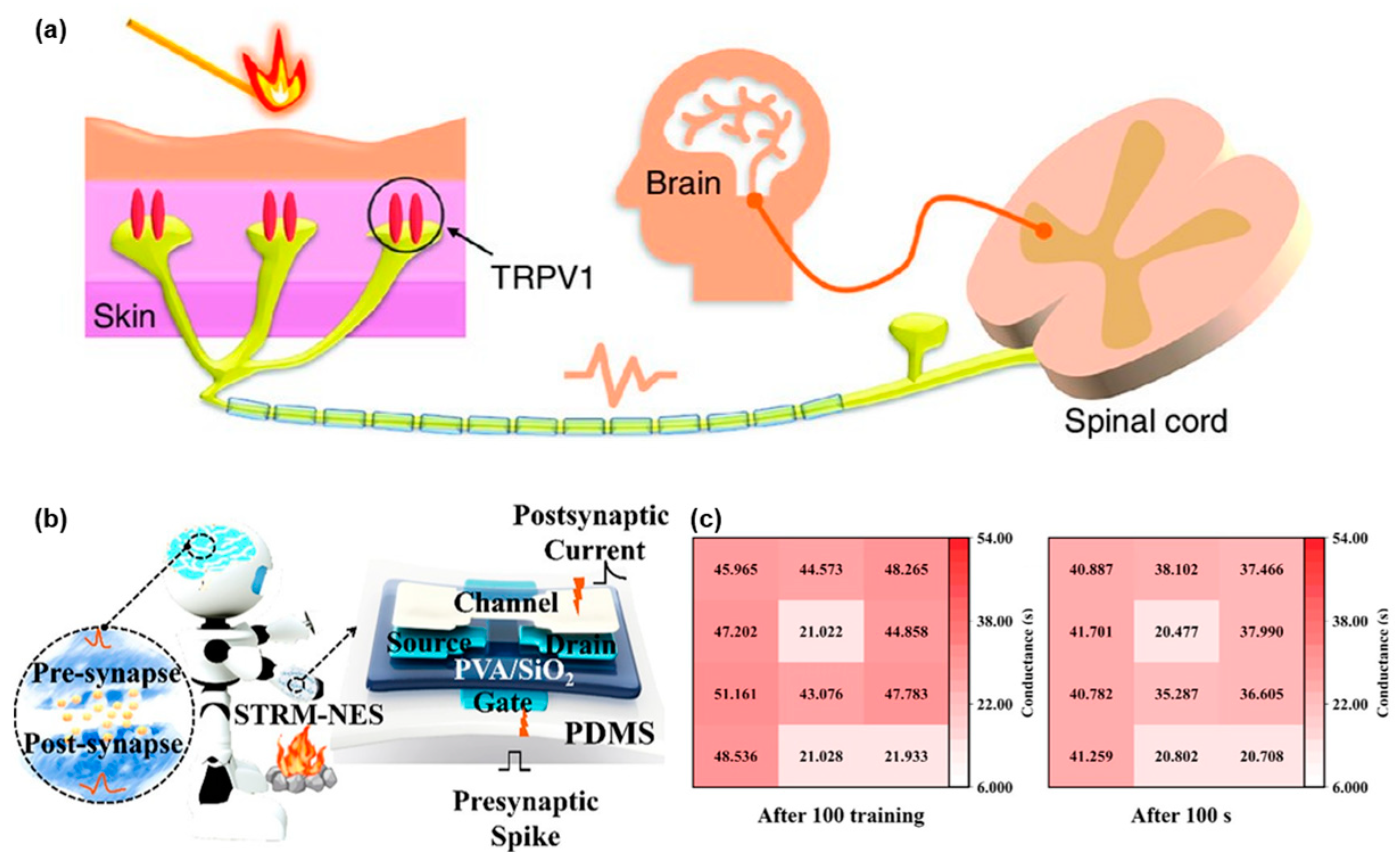

Figure 2. Near-sensor tactile system. (a) Neural pathway of tactile system in human beings. Reprinted with permission from Ref. [99]; Copyright 2022 John Wiley and Sons. (b) Schematic image of intelligent glove with Wheatstone bridge oscillators as front-end processing units. Reprinted with permission from Ref. [90]; Copyright 2022 American Chemical Society. (c) Flexible sensors and ion-gate transistor with signal matching circuit. Reprinted with permission from Ref. [91]; Copyright 2023 John Wiley and Sons. (d) Structural diagram of ion-gate transistor. (e) Flexible sensors and transistor array with spike-coding circuit. Reprinted with permission from Ref. [92]; Copyright 2022 John Wiley and Sons. (f) Structural diagram of memristor as front-end processing unit. Reprinted with permission from Ref. [93]; Copyright 2022 Elsevier. (g) Structural diagram of a flexible sensor used in near-sensor system. Reprinted with permission from Ref. [94]; Copyright 2021 John Wiley and Sons. (h) Diagram of flexible near-sensor system prepared using inorganic materials. Scale bar: 100 nm. Reprinted with permission from Ref. [98]; Copyright 2024 John Wiley and Sons. (i) Self-powered near-sensor system and its synaptic characteristics. Reprinted with permission from Ref. [99]; Copyright 2022 John Wiley and Sons.
Figure 2. Near-sensor tactile system. (a) Neural pathway of tactile system in human beings. Reprinted with permission from Ref. [99]; Copyright 2022 John Wiley and Sons. (b) Schematic image of intelligent glove with Wheatstone bridge oscillators as front-end processing units. Reprinted with permission from Ref. [90]; Copyright 2022 American Chemical Society. (c) Flexible sensors and ion-gate transistor with signal matching circuit. Reprinted with permission from Ref. [91]; Copyright 2023 John Wiley and Sons. (d) Structural diagram of ion-gate transistor. (e) Flexible sensors and transistor array with spike-coding circuit. Reprinted with permission from Ref. [92]; Copyright 2022 John Wiley and Sons. (f) Structural diagram of memristor as front-end processing unit. Reprinted with permission from Ref. [93]; Copyright 2022 Elsevier. (g) Structural diagram of a flexible sensor used in near-sensor system. Reprinted with permission from Ref. [94]; Copyright 2021 John Wiley and Sons. (h) Diagram of flexible near-sensor system prepared using inorganic materials. Scale bar: 100 nm. Reprinted with permission from Ref. [98]; Copyright 2024 John Wiley and Sons. (i) Self-powered near-sensor system and its synaptic characteristics. Reprinted with permission from Ref. [99]; Copyright 2022 John Wiley and Sons.
Sensors 24 02180 g002
In conclusion, the feasibility of a near-sensor tactile system has been verified by a number of studies. Compared to a conventional sensor–ADC–backend system structure, the consumption of the near-sensor tactile system reduces 1~2 orders of magnitude due to the redundant data decline [23]. However, a simpler system with one sensor and one neuromorphic device still faces a clear limit in terms of detecting and recognizing pressure patterns. Therefore, it is necessary to design and construct a stable and uniform flexible near-sensor tactile system array for wearable devices.

3.2. Flexible Near-Sensor Thalposis System

The thalposis system is the part of the somatosensory system which allows humans to avoid frostbite and burns (Figure 3a). In contrast to the tactile system, which is used for object surface topography recognition and engages in daily communication, the temperature perception system only allows humans to sense temperature magnitude. Temperature can be measured by calculating the voltage at two ends of a thermistor or the current through it [100,101]. However, researching the neuromorphic temperature perception system is meaningful for electronic skin design for humanoid robots. A temperature sensor can be roughly categorized as either a thermocouple or a thermistor sensor. A thermocouple sensor calculates temperature by detecting the potential difference between two ends of a metal wire, while a thermistor sensor measures temperature according to changes in the thermistor resistance layer. Both thermocouple sensors and thermistor sensors are used in the sensing units of near-sensor thalposis systems with their own advantages, respectively. Compared to a thermocouple sensor, a thermistor sensor has a higher accuracy and a smaller size, making it capable of detecting slight temperature changes accurately and integrating easily. However, their linearity is not good. Flexible temperature sensors are typically prepared using carbon series materials (such as CNTs, rGO and graphite) and semiconductor films with high temperature coefficients (such as MoS2, MCNO and Ag2S) due to their compatibility with flexible organic polymers [102,103,104,105,106,107]. Thermistor sensors are often used in near-sensor systems because their thermal resistance mechanism and the electrical signal input requirements of their front-end processing units are well studied. Wang et al. [108] introduced a self-healing multimodal electronic skin for deformation and temperature perception. This system has a three-terminal transistor structure with a carbon nanotube (CNT) channel and CNT electrodes. The semi-conducted part and the metallic part are isolated by PVA/SiO2 (Figure 3b) and its temperature detection ranges from 20 °C to 50 °C. Similar to living skin, this system can break down in an environment with a temperature higher than 50 °C. Yet the dispersed PVA chain will cross-link; in other words, it can return back to its normal condition after the temperature returns to below 50 °C. Different temperatures can result in varying drain currents from the transistor. The temperature of the ambient environment affects the conductivity of the transistor array, and the distribution of temperatures can be directly reflected by the distribution of conductivity (Figure 3c).
Current research on near-sensor thalposis systems is still in its primary stages. They are only used to help increase the accuracy of pressure pattern recognition in tactile receptors. However, a high-performance pressure sensor array with a neural network would be better than bioreceptors. Therefore, research into temperature pattern recognition is no longer an urgent priority. However, the near/in-sensor architecture and neuromorphic device offer more unique advantages in classification and recognition. Therefore, thalposis system research should mainly concentrate on preparing large-scale arrays.

3.3. Flexible Near-Sensor Visual System

The visual system allows humans to locate objects and recognize visual information. It is composed of photoreceptors, a visual pathway and a visual center (Figure 4a) [109]. Capturing visual information (i.e., optical signals) and converting neural signal photoreceptors helps the visual center to make judgements and respond in time. Additionally, the visual system can enhance the recognition accuracy of other perception systems. A near-sensor visual system inspired by the human visual system would have the characteristics of a low power consumption and a robust information processing ability [110,111,112]. Thanks to the present technology, a flexible light-sensitive unit for artificial visual systems can be prepared easily. However, designing a near/in-sensor visual system is complex because of the requirements of capturing moving objects and accurately recognizing images. Therefore, the near/in-sensor visual system design focuses on the front-end processing units and back-end units.
The working mechanism of a photosensor is based on the photoelectric effect or photoconductivity of the semiconductor material. Valency electrons in PN junctions absorb photons and transit them into the conduction band with light illumination. This will produce free electrons and holes. In this way, an optical signal can be converted into an electrical signal. Semiconductor materials such as silicon, indium oxide, and carbon series materials combined with flexible organic polymers are used to prepare flexible photosensors [113,114,115,116,117,118]. To improve flexibility, rigid materials are shaped into nano size, such as nanotubes, nanorods and nanowires [119,120]. A strong information processing capability is required for both the front-end units and back-end units. Here, both neuromorphic devices and convolution neural networks (CNNs) are used to recognize optical images input from photosensors accurately. Chen et al. [121] designed a flexible printing platform integrated with a Ni/In2O3 semiconductor micrometer-size wires (SMWs)/Ni photosensor and a Ni/Al2O3/Au nonvolatile memristor on it (Figure 4b). The resistance of the photosensor can switch between a high resistance state and low resistance state under modulating UV light as low as 0.528 mW/cm2. As the photosensor and memristor are connected in parallel, a large enough voltage in the memristor can switch it from the OFF state to the ON state and maintain its state after turning off the power. Furthermore, a large-scale array was developed to identify butterfly and heart-shaped patterns. Inputs of different shapes can be easily distinguished by measuring the current output from the memristor (Figure 4c). Wang et al. [122] integrated a fully organic flexible visual system with an organic heterojunction as a photosensor and an organic synaptic transistor. This system can detect incident light at a wavelength of 850 nm and wavelength of 0.08 mW/cm2. The intensity and irradiated area of the incident light can be visualized by a simple readout of the post-synaptic current (PSC) (Figure 4d,e).
Sensors 24 02180 g004

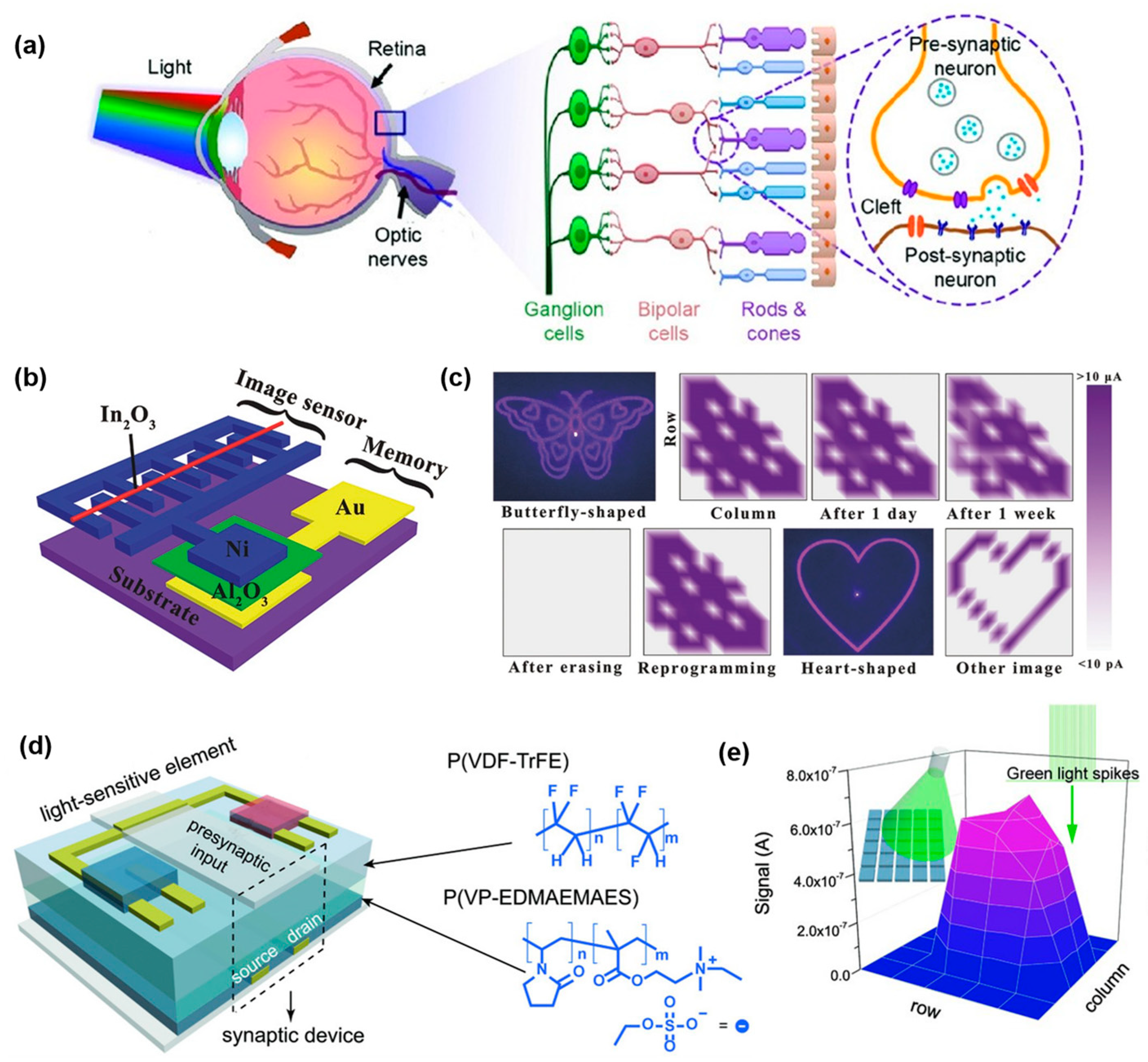

Figure 4. Near-sensor visual system. (a) Neural pathway of visual system in human beings. Reprinted with permission from Ref. [109]; Copyright 2020 John Wiley and Sons. (b) Structural diagram of the image sensor integrated with memristor as front-end processing unit. (c) Devices after modulated by butterfly-shaped and heart-shaped ultra-violet light source and its PSC accordingly. Reprinted with permission from Ref. [121]; Copyright 2018 John Wiley and Sons. (d) Structural diagram of the light-triggered organic neuromorphic device (LOND). (e) Devices triggered by green light spikes and display the illumination region through PSC. Reprinted with permission from Ref. [122]; Copyright 2018 John Wiley and Sons.
Figure 4. Near-sensor visual system. (a) Neural pathway of visual system in human beings. Reprinted with permission from Ref. [109]; Copyright 2020 John Wiley and Sons. (b) Structural diagram of the image sensor integrated with memristor as front-end processing unit. (c) Devices after modulated by butterfly-shaped and heart-shaped ultra-violet light source and its PSC accordingly. Reprinted with permission from Ref. [121]; Copyright 2018 John Wiley and Sons. (d) Structural diagram of the light-triggered organic neuromorphic device (LOND). (e) Devices triggered by green light spikes and display the illumination region through PSC. Reprinted with permission from Ref. [122]; Copyright 2018 John Wiley and Sons.
Sensors 24 02180 g004
Research on artificial visual systems has focused on the in-sensor system benefits of novel materials discovered to have both light-sensitive and brain-like properties. The in-sensor visual system has a smaller size but larger scale integration capability compared to the near-sensor visual system. Section 4.2 will provide a detailed review of the in-sensor visual system.

3.4. Flexible Near-Sensor Olfactory System

The olfactory system helps us to cognize specific objects from their unique scent. Essentially, this system needs to distinguish various molecules and respond accordingly for a proper working condition [123,124]. An olfactory sensor which is inspired by the human olfactory system and based on chemical sensing principle can detect the concentration and type of various molecules through chemically reactions (Figure 5a). To some extent, the design of a flexible sensor depends on the molecules to be detected. For instance, a PDMS/Ppy double layer nanostructure, which is used to detect organic molecules through its triboelectric/gas-sensing coupling effect, can detect acetone concentrations as low as 100 ppm [125]. Similarly, single-walled carbon nanotubes (SWCNTs) combined with olfactory receptor-derived peptides (ORPs) are useful for detecting harmful concentrations of trimethylamine (TMA) with a lower limit of 0.01 ppq [126]. Through the chemical reaction, chemical molecules can transform information into electric signal [127]. Instead of inorganic material, organic material is more prevalent in olfactory sensors due to their greater variety of chemical bonds. Chouhdry et al. [128] designed an organic electrochemical transistor (OECT) with a PEDOT:PSS channel, a poly(ethylene glycol) diacrylate (PEGDA) monomer and a 1-hydroxycyclohexyl phenyl ketone photo initiator as the chemoreceptive material, as well as a gate electrolyte layer. An ion gel made of [EMIM][TSFI] was produced as a gas sensing layer, connected to the gate of the OCET (Figure 5b). This near-sensor olfactory system can detect NO2 concentrations starting from 2.66 ppm. Its output exhibits long-term potentiation and depression effects (Figure 5c). Han et al. [129] designed a type of semiconductor metal oxide gas sensor with SnO3 and WO3, respectively, and a neuron integrated into it with traditional metal oxide semiconductor field effect transistor (MOSFET) chips (Figure 5d). Gas sensors can capture specific gas concentrations with a lower limit of 0.5 ppm via resistance changing and a loop current (Figure 5e). This loop current determines the output frequency from the 1T-neuron. The output of gas sensors made from SnO3 or WO3 can be another input of a neural network for gas recognition and classification (Figure 5f).
The combination of a near-sensor olfactory system and a flexible device as a more intelligent molecular detector has occupied a key seat in current research on harmful gases detection. Flexible gas sensors have a ultra-high quality of detection sensitivity compared to the biological olfactory system, particularly a lower measurable threshold. However, due to the material utility of a gas sensor, only a few gas molecules can be detected through chemical reactions in the sensitive layer. Thus, expanding the range of detectable molecules and designing the back-end unit for molecule classes distinction are still challenges we are currently facing.

3.5. Flexible Near-Sensor Auditory System

The biological auditory system enables humans and other species to locate the source of sound and identify meaningful information (Figure 6a). Similarly, the artificial auditory system can locate a sound source through binaural effects and identify acoustic information by perceiving frequency and amplitude [130,131,132]. Indeed, the auditory sensor converts frequency and amplitude signals into electrical signals for the front-end processing units. For flexible auditory sensors in a near-sensor auditory system, a low detection limit is necessary to detect the small mechanical vibrations caused by sound waves [133,134]. An electromagnetic material is a typical component of an auditory sensor with a high sensitivity and fast response. Additionally, high-sensitivity pressure sensor can be used as auditory sensors due to their ability to detect of micro vibrations [135,136,137,138]. Liu et al. [139] designed a triboelectric nanogenerator (TENG) with an Au/fluorinated ethylene propylene (FEP) film/Kapton film for acoustic signal detection. Furthermore, they developed a synaptic transistor with a PVDT-10 channel and an [LI][TSFI] ion gel dielectric layer (Figure 6b) to capture and accumulate waves in the frequency range of 50–5000 Hz. The TENG can output a voltage of 126 mV/dB. Two TENGs and two field effect synaptic transistors (FESTs) are used to locate and determine the orientation of a sound source by calculating the amplitude ratio of two FESTs (Figure 6c). The FEST can also accurately detect and filter acoustic signals in noisy environments during processing. He et al. [140] designed a multi-gate synaptic transistor with an IGZO channel and a chitosan solid electrolyte film. This transistor can simulate the binaural effects of the human auditory system (Figure 6d,e). Like the disparate position of a human’s two ears, auditory sensor will receive the signals with different strengths according to their position. The distance between the sensors and the sound source can be measured by measuring the postsynaptic current (PSC) produced from audio signals. The approximate position of the sound source can be obtained by calculating the amplitude ratio of the PSC in a synaptic transistor (Figure 6f).
Differently to other systems, research on the artificial auditory system is relatively complete, including as the creation of a flexible device, hardware system and circuit match. Thanks to significant advances in artificial intelligence, the characteristics of acoustic signals extracted by neuromorphic devices can be accurately recognized by a neural network. A higher compatibility of all of the parts in a near/in-sensor system is needed for a wearable intelligent system which is integrated with a perception system.

4. Flexible In-Sensor Artificial System

On the basis of a near-sensor artificial system, the front-end processing unit and sensing unit need to be integrated into in-sensor systems further and entirely. In-sensor computing architecture is smaller and consumes less power than near-sensor computing architecture [141,142]. Sensors that combine sensing, storing and computing functions or sensing and computing functions are referred to as multi-functional sensing units. The in-sensor computing architecture eliminates the redundant data between the sensing and computing units by data pre-processing in the former part [21]. Implementing powerful features into in-sensor artificial systems, such as material selecting and device structure designing, is still a challenge in this field despite their considerable advantages. Replacing electro-resistive materials with other sensing signal-induced resistive materials is a relatively good design solution for the introduction of a novel material to neuromorphic devices. Combining sensors and neuromorphic devices into a unified entity as a new integrated structure is another solution.

4.1. Flexible In-Sensor Tactile System

For an in-sensor tactile system, materials with both stress-response and synaptic characteristics have not yet been proposed. Therefore, integrating pressure-sensitive materials and resistive materials into a single device and designing a rational structure has become the main course of action [143,144]. Jiang et al. [145] designed a flexible multi-functional sensing unit for a complex structure with a PET substrate, Cr/Au bottom electrode, Su8/C-ZnO/Su8 pressure sensitive layer, MoO3 resistive layer and Li/Al upper electrode (Figure 7a). In addition, ZnO nanowire is a common piezoelectric material used for self-power supply instantiation. It can generate a voltage of 0–5 V under a pressure of 0–400 nN. A 6 × 6 piezo memory pixel (PMP) array (Figure 7b) is used to store English letters with considerable durability (Figure 7c). What is more, Kumar et al. [146] designed a PET/ITO/ZnO/NiO flexible film inspired by the mechanoreceptor in human skin. Because of the difference in electron affinity between ZnO and NiO, charges can be trapped in NiO under the pressure, which is similar to the P-N junction. Through this mechanism, the conductance of the device can be modulated by applied pressure (Figure 7d). Specifically, the same number of spikes can generate different currents with different pressures. Additionally, a 3 × 3 array can store English letters. The PSC of the device can be modulated by pressure and strain (Figure 7e). To improve the performance of in-sensor tactile system, a new mechanism for easily preparing materials and integrating multi-functional sensing units is necessary.

4.2. Flexible In-Sensor Visual System

Compared to the near-sensor visual system, the in-sensor visual system has been systematically researched due to the proposal of a wide variety of photo-induced resistive materials [147,148,149,150,151,152]. This means that neuromorphic devices can be modulated by an optical spike being directly dropped into the procedure of electric spike converting. Integrating a single multi-function sensing unit with two functional units (a sensor and a transistor) is beneficial for a further large-scale integration. Zhou et al. [153] designed an Au/modified silk fibroin protein (MSFP)/Au resistive random-access memory (RRAM) with a simple sandwich structure (Figure 8a). The resistance of the device can be transferred from HRS to LRS with a light intensity with a power of greater than 60 mW, and can be transferred to HRS from LRS with a power less than 60 mW (Figure 8b,c). Hardware contrast enhancement and background denoising can be implemented via these features. Li et al. [154] designed a flexible VO2/mica film with Pt electrodes for crossbar array preparation. This VO2-based light-modulated memristor exhibits good bending stability and a long retention time for the conductance state (Figure 8d). Furthermore, this device can be modulated by visible light with an intensity of greater than 1 mW/cm2. Combining the memristor array and artificial neural network (ANN) classifier demonstrates the system’s powerful intelligence in MNIST dataset recognition and motion detection (Figure 8e). Wan et al. [155] designed a multi-gate flexible neuromorphic transistor with a PET/graphene/GO/Au layered structure (Figure 8f). A device with an IZO film as a channel can output different PSCs based on the distance between the channel and gate. By setting reasonable thresholds or changing the position of the gate, different basic logic functions such as AND, OR or XOR can be realized (Figure 8g). Deng et al. [156] designed a Dif-TES-ADT crystal material with the light response characteristic. It was combined with a PVP dielectric layer, Al gate and a Au electrode for manufacture of photo synaptic device (Figure 8h). This device can accumulate light spikes with an incident light intensity ranging from 0.001 to 53μW/cm2. Additionally, they prepared a large-scale array for long-term storage of input optical images (Figure 8i).
Currently, flexible photo-induced resistive materials and circuit designs for in-sensor visual systems have extended, resulting in significant progress. However, the biological visual system has more powerful and complex functions than the function-specific artificial visual system. Furthermore, integrating the visual system with other compatible artificial sensory systems is still a challenging next step.

5. Summary and Outlook

The near/in-sensor computing paradigm is an emerging solution for real-time and data-intensive applications. Processing data directly at the sensor terminal significantly improves the area, time and energy efficiency of hardware. Inspired by the brain, low-level processing such as filtering and denoising can be implemented by neuromorphic devices at the sensor terminal. For the IoT, the near/in-sensor computing architecture is the best choice for wearable application due to its real-time capability and low power consumption. The sensing units and front-end units in near-sensor architecture can be designed separately because of their physical separateness. Therefore, materials such as inorganic films and organic semiconductors can be used for flexible device fabrication. For in-sensor architecture, selecting the flexible material carefully is beneficial for entirely integrating the sensor and the neuromorphic device. Although near/in-sensor systems show great potential in practical applications, most devices are still in an early stage of development. Because of their limited functionality, current near/in-sensor systems can only be used in specific scenarios. Near/in-sensor computing involves multiple disciplines such as materials, circuits and algorithms. The back end is an important part in the design of wearable smart devices. To fully realize a near/in-sensor computing system, all parts of the system must be simultaneously optimized. From near-sensor architecture to in-sensor architecture, to implement high-level processing at the sensor terminal, continuous optimization of the material, device and circuit design is required. This will allow for autonomous monitoring and the analysis of physiological signals without relying on cloud-based resources and will also make implementing wearable devices with a lower power consumption and greater intelligence possible.
From the perspective of developing high performance wearable devices, replacing traditional computing architecture with low-power near/in-sensor computing architecture is extremely possible. The emerging neuromorphic devices have the possibility of realizing near/in-sensor perception systems, but it is hard to achieve an operational stability equivalent to that of MOSFETs. Therefore, devices with a ferroelectric mechanism or three terminals are often used to improve the stability of the system. The design of an in-sensor system is more difficult and complex than that of an near-sensor system. What this means is that more ground-breaking designs with novel structure and mechanism of device are required. Meanwhile, the additional requirement of the design of flexible material is also a problem that needs solving. Because of the advantages of portability and low energy consumption, from the perspective of application and the market, wearable devices with a flexible near/in-sensor system are likely to squeeze the market space of traditional artificial intelligence devices in future market competitions. Due to their portability and user experience, traditional wearable devices have gained a significant market share from rigid device. However, the increasing functionality of these devices means that it takes a higher power consumption to impair the battery life. Furthermore, more generated data need to be uploaded for cloud processing. Traditional wearable devices meet more difficulty in current market environment with these increasing drawbacks. Creating flexible near/in-sensor systems, with an in situ information processing ability, further reduces the power consumption and data transfer latency. These advantages help them to hold the trophy in the wearable device market and make them eligible to compete with AI-based devices. Although traditional architecture combined with ANN is popular in current wearable smart devices, we strongly believe that the next generation of wearable intelligent devices will greatly benefit from the integration of near/in-sensor computing architecture and neuromorphic devices.

Author Contributions

Original draft preparation: J.L.; copyright acquisition: J.L. and Y.W. (Yitao Wang); resource collection: J.L. and Y.W. (Yitao Wang); revision: J.L.; review and editing: Y.L., Y.W. (Yuanzhao Wu), B.B., J.S. and R.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partly supported by the National Natural Science Foundation of China (U22A20248, 52127803, 51931011, 51971233, 62174165, 52201236, M-0152, U20A6001, U1909215 and 52105286), the External Cooperation Program of Chinese Academy of Sciences (174433KYSB20200013), K.C. Wong Education Foundation (GJTD-2020-11), Chinese Academy of Sciences Youth Innovation Promotion Association (Y2022080), “Pioneer” and “Leading Goose” R&D Program of Zhejiang (2022C01032), Zhejiang Provincial Key R&D Program (2021C01183), “High-level talent special support plan” technology innovation leading talent project of Zhejiang Province (2022R52004), Natural Science Foundation of Zhejiang Province (LD22E010002), Zhejiang Provincial Basic Public Welfare Research Project (LGG20F010006), Ningbo Scientific and Technological Innovation 2025 Major Project (2020Z022), Natural Science Foundation of Ningbo (2023J049), China Postdoctoral Foundation (2022M723251).

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

IoTInternet of Things
ADCAnalog-to-Digital Converter
SFLSensor Function Layer
DNNDeep Neural Network
TENGTriboelectric Nanogenerator
CNNConvolutional Neural Network
PSCPostsynaptic Current
ANNArtificial Neural Network
MOSFETMetal Oxide Semiconductor Field Effect Transistor

References

  1. Jayathilaka, W.A.D.M.; Qi, K.; Qin, Y.; Chinnappan, A.; Serrano-García, W.; Baskar, C.; Wang, H.; He, J.; Cui, S.; Thomas, S.W.; et al. Significance of Nanomaterials in Wearables: A Review on Wearable Actuators and Sensors. Adv. Mater. 2019, 31, 1805921. [Google Scholar] [CrossRef] [PubMed]
  2. Lee, W.; Jeon, S.; Oh, S. Wearable sensors based on colloidal nanocrystals. Nano Converg. 2019, 6, 10. [Google Scholar] [CrossRef]
  3. Li, J.; Ding, Q.; Wang, H.; Wu, Z.; Gui, X.; Li, C.; Hu, N.; Tao, K.; Wu, J. Engineering Smart Composite Hydrogels for Wearable Disease Monitoring. Nano-Micro Lett. 2023, 15, 105. [Google Scholar] [CrossRef] [PubMed]
  4. Zhu, J.; Tao, J.; Yan, W.; Song, W. Pathways toward wearable and high-performance sensors based on hydrogels: Toughening networks and conductive networks. Natl. Sci. Rev. 2023, 10, nwad180. [Google Scholar] [CrossRef]
  5. Lee, G.; Wei, Q.; Zhu, Y. Emerging Wearable Sensors for Plant Health Monitoring. Adv. Funt. Mater. 2021, 31, 2106475. [Google Scholar] [CrossRef]
  6. Kulkarni, C.S.; Naniwadekar, M.Y.; Mirzaxmatovna, Y.M.; Athawale, M.V.; Bhadla, M.; Byeon, H. Enhanced ubiquitous system architecture for securing healthcare IoT using efficient authentication and encryption. Int. J. Data Sci. Anal. 2024. [Google Scholar] [CrossRef]
  7. Azizan, A.; Ahmed, W.; Razak, A.H.A. Sensing health: A bibliometric analysis of wearable sensors in healthcare. Health Technol. 2024, 14, 15–34. [Google Scholar] [CrossRef]
  8. Kulkarni, M.B.; Rajagopal, S.; Prieto-Simón, B.; Pogue, B.W. Recent advances in smart wearable sensors for continuous human health monitoring. Talanta 2024, 272, 125817. [Google Scholar] [CrossRef]
  9. Cha, G.D.; Kim, D.H.; Kim, D.C. Wearable and Implantable Light-Emitting Diodes and Their Biomedical Applications. Korean J. Chem. Eng. 2024, 41, 1–24. [Google Scholar] [CrossRef]
  10. Cao, M.; Leng, M.; Pan, W.; Wang, Y.; Tan, S.; Jiao, Y.; Yu, S.; Fan, S.; Xu, T.; Liu, T.; et al. 3D wearable piezoresistive sensor with waterproof and antibacterial activity for multimodal smart sensing. Nano Energy 2023, 12, 108492. [Google Scholar] [CrossRef]
  11. Peng, B.; Zhao, F.; Ping, J.; Ying, Y. Recent Advances in Nanomaterial-Enabled Wearable Sensors: Material Synthesis, Sensor Design, and Personal Health Monitoring. Small 2020, 16, 2002681. [Google Scholar] [CrossRef] [PubMed]
  12. Chen, Y.; Xu, Y.; Gap, Q.; Qian, H.; Yang, R. Fabrication of Wearable Hydrogel Sensors with Simple Ionic-Digital Conversion and Inherent Water Retention. IEEE Sens. J. 2021, 5, 6802–6810. [Google Scholar] [CrossRef]
  13. Kulkarni, M.B.; Ayachit, N.H.; Aminabhavi, T.M.; Pogue, P.W. Recent advances in microfluidics-based paper analytical devices (µPADs) for biochemical sensors: From fabrication to detection techniques. Biochem. Eng. J. 2023, 198, 109027. [Google Scholar] [CrossRef]
  14. Kulkarni, M.B.; Ayachit, N.H.; Aminabhavi, T.M. Biosensors and Microfluidic Biosensors: From Fabrication to Application. Biosensors 2022, 12, 543. [Google Scholar] [CrossRef] [PubMed]
  15. Syversen, A.; Dosis, A.; Jayne, D.; Zhang, Z. Wearable Sensors as a Preoperative Assessment Tool: A Review. Sensors 2024, 24, 482. [Google Scholar] [CrossRef]
  16. Kim, D.; Min, J.; Ko, S.H. Recent Developments and Future Directions of Wearable Skin Biosignal Sensors. Adv. Sens. Res. 2023, 3, 2300118. [Google Scholar] [CrossRef]
  17. Zhang, R.; Jiang, L.; Wu, W. Scalably Nanomanufactured Atomically Thin Materials-Based Wearable Health Sensors. Small Struct. 2022, 3, 2100120. [Google Scholar] [CrossRef]
  18. Yuan, J.; Zhang, Y.; Liu, S.; Zhu, R. Wearable Leg Movement Monitoring System for High-Precision Real-Time Metabolic Energy Estimation and Motion Recognition. Research 2023, 6, 0214. [Google Scholar] [CrossRef]
  19. Gupta, P.; Moghimi, M.J.; Jeong, Y.; Gupta, D.; Inan, O.; Ayazi, F. Precision wearable accelerometer contact microphones for longitudinal monitoring of mechano-acoustic cardiopulmonary signals. npj Digit. Med. 2020, 3, 19. [Google Scholar] [CrossRef] [PubMed]
  20. Li, G.; Sun, F.; Chen, H.; Jin, Y.; Zhang, A.; Du, J. High-Efficiency Large-Area Printed Multilayer Liquid Metal Wires for Stretchable Biomedical Sensors with Recyclability. ACS Appl. Mater. Interfaces 2021, 13, 56961–56971. [Google Scholar] [CrossRef]
  21. Zhou, F.; Chai, Y. Near-sensor and in-sensor computing. Nat. Electron. 2020, 3, 664–671. [Google Scholar] [CrossRef]
  22. Krestinskaya, O.; Salama, K.; James, A.P. Analog Image Denoising with an Adaptive Memristive Crossbar Network. In Proceedings of the 2022 IEEE International Symposium on Circuits and Systems (ISCAS), Austin, TX, USA, 27 May–1 June 2022. [Google Scholar] [CrossRef]
  23. Wang, M.; Tu, J.; Huang, Z.; Wang, T.; Liu, Z.; Zhang, F.; Li, W.; He, K.; Pan, L.; Zhang, X.; et al. Tactile Near-Sensor Analogue Computing for Ultrafast Responsive Artificial Skin. Adv. Mater. 2022, 34, 2201962. [Google Scholar] [CrossRef] [PubMed]
  24. Kumar, M.; Lim, S.; Kim, J.; Seo, H. Picoampere Dark Current and Electro-Opto-Coupled Sub-to-Super-linear Response from Mott-Transition Enabled Infrared Photodetector for Near-Sensor Vision Processing. Adv. Mater. 2023, 35, 2210907. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, Y.; Gong, Y.; Yang, L.; Xiong, Z.; Lv, Z.; Xin, X.; Zhou, Y.; Zhang, B.; Su, C.; Liao, Q.; et al. MXene-ZnO Memristor for Multimodal In-Sensor Computing. Adv. Funct. Mater. 2021, 31, 2100144. [Google Scholar] [CrossRef]
  26. Jang, Y.; Han, J.; Moon, S.; Shin, S.; Han, J.; Cheong, S.; Lee, S.; Hwang, C. A high-dimensional in-sensor reservoir computing system with optoelectronic memristors for high-performance neuromorphic machine vision. Mater. Horiz. 2024, 11, 499–509. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, Y.; Cai, Y.; Wang, F.; Yang, J.; Yan, T.; Li, S.; Wu, Z.; Zhan, X.; Xu, K.; He, J.; et al. A Three-Dimensional Neuromorphic Photosensor Array for Nonvolatile In-Sensor Computing. Nano Lett. 2023, 23, 4524–4532. [Google Scholar] [CrossRef] [PubMed]
  28. Fu, C.; Cui, H.; Ke, S.; Zhu, Y.; Wang, X.; Yang, Y.; Wan, C.; Wan, Q. In2O3 Nanofiber Neuromorphic Transistors for Reservoir Computing. IEEE Electron Device Lett. 2023, 44, 1364–1367. [Google Scholar] [CrossRef]
  29. Frick, J.R.; Sridhar, S.; O’Donnell, S.; Maggard, P.A.; Dougherty, D.B. An interface-controlled Mott memristor in α-RuCl3. Appl. Phys. Lett. 2020, 116, 183501. [Google Scholar] [CrossRef]
  30. Wan, X.; He, Y.; Nie, S.; Shi, Y.; Wan, Q. Biological Band-Pass Filtering Emulated by Oxide-Based Neuromorphic Transistors. IEEE Electron Device Lett. 2018, 39, 1764–1767. [Google Scholar] [CrossRef]
  31. Wang, Z.; Wang, L.; Wu, Y.; Bian, L.; Nagai, M.; Jv, R.; Xie, L.; Ling, H.; Li, Q.; Bian, H.; et al. Signal Filtering Enabled by Spike Voltage-Dependent Plasticity in Metalloporphyrin-Based Memristors. Adv. Mater. 2021, 33, 2104370. [Google Scholar] [CrossRef]
  32. Wan, X.; Gao, F.; Lian, X.; Shi, Z.; Gong, X.; Guo, Y.; Tong, Y. Emulating the Short-Term Plasticity and Filtering of Biological Synapses with IZO-based Electric-Double-Layer Transistors. In Proceedings of the 2018 IEEE 2nd Electron Devices Technology and Manufacturing Conference (EDTM), Kobe, Japan, 13–16 March 2018. [Google Scholar] [CrossRef]
  33. Ok, J.; Park, S.; Jung, Y.; Kim, T. Wearable and Implantable Cortisol-Sensing Electronics for Stress Monitoring. Adv. Mater. 2024, 36, 2211595. [Google Scholar] [CrossRef] [PubMed]
  34. Yang, H.; Li, J.; Xiao, X.; Wang, J.; Li, Y.; Li, K.; Li, Z.; Yang, H.; Wang, Q.; Yang, J.; et al. Topographic design in wearable MXene sensors with in-sensor machine learning for full-body avatar reconstruction. Nat. Commun. 2022, 13, 5311. [Google Scholar] [CrossRef] [PubMed]
  35. Dodda, A.; Trainor, A.; Redwing, J.M.; Das, S. All-in-one, bio-inspired, and low-power crypto engines for near-sensor security based on two-dimensional memtransistors. Nat. Commun. 2022, 13, 3857. [Google Scholar] [CrossRef]
  36. Zeng, T.; Wang, Z.; Lin, Y.; Cheng, Y.; Shan, X.; Tao, Y.; Zhao, X.; Xu, H.; Liu, Y. Doppler Frequency-Shift Information Processing in WOx-Based Memristive Synapse for Auditory Motion Perception. Adv. Sci. 2023, 10, 2300030. [Google Scholar] [CrossRef]
  37. Chen, D.; Zhi, X.; Xia, Y.; Li, S.; Xi, B.; Zhao, C.; Wang, X. A Digital−Analog Bimodal Memristor Based on CsPbBr3 for Tactile Sensory Neuromorphic Computing. Small 2023, 19, 2301196. [Google Scholar] [CrossRef] [PubMed]
  38. Du, Y.; Tang, J.; Li, Y.; Xi, X.; Li, Y.; Li, J.; Huang, H.; Qin, Q.; Zhang, Q.; Gao, B.; et al. Monolithic 3D Integration of Analog RRAM-Based Computing-in-Memory and Sensor for Energy-Efficient Near-Sensor Computing. Adv. Mater. 2023, 2302658. [Google Scholar] [CrossRef]
  39. Zhao, Z.; Tang, J.; Yuan, J.; Li, Y.; Dai, Y.; Yao, J.; Zhang, Q.; Ding, S.; Li, T.; Zhang, R.; et al. Large-Scale Integrated Flexible Tactile Sensor Array for Sensitive Smart Robotic Touch. ACS Nano 2022, 16, 16784–16795. [Google Scholar] [CrossRef] [PubMed]
  40. Feng, G.; Jiang, J.; Li, Y.; Xie, D.; Tian, B.; Wan, Q. Flexible Vertical Photogating Transistor Network with an Ultrashort Channel for In-Sensor Visual Nociceptor. Adv. Funct. Mater. 2021, 31, 2104327. [Google Scholar] [CrossRef]
  41. Yao, H.; Yang, W.; Cheng, W.; Tan, Y.; See, H.; Li, S.; Ali, H.P.A.; Lim, B.Z.H.; Liu, Z.; Tee, B.C.K. Near–hysteresis-free soft tactile electronic skins for wearables and reliable machine learning. Proc. Natl. Acad. Sci. USA 2020, 117, 25352–25359. [Google Scholar] [CrossRef]
  42. Gao, H.; Chen, T. A flexible ultra-highly sensitive capacitive pressure sensor for basketball motion monitoring. Discov. Nano 2023, 18, 17. [Google Scholar] [CrossRef]
  43. Chen, Z.; Wang, Z.; Li, X.; Lin, Y.; Luo, N.; Long, M.; Zhao, N.; Xu, J. Flexible Piezoelectric-Induced Pressure Sensors for Static Measurements Based on Nanowires/Graphene Heterostructures. ACS Nano 2017, 11, 4507–4513. [Google Scholar] [CrossRef] [PubMed]
  44. Zhang, L.; Xue, F.; Du, W.; Han, C.; Zhang, C.; Wang, Z. Transparent paper-based triboelectric nanogenerator as a page mark and anti-theft sensor. Nano Res. 2014, 7, 1215–1223. [Google Scholar] [CrossRef]
  45. Lorencova, L.; Kasak, P.; Kosutova, N.; Jerigova, M.; Noskovicova, E.; Vikartovska, A.; Barath, M.; Farkas, P.; Tkac, J. MXene-based electrochemical devices applied for healthcare applications. Microchim. Acta 2024, 191, 88. [Google Scholar] [CrossRef] [PubMed]
  46. Xu, K.; Jiang, M.; Xue, W.; Liao, N. Ultrasensitive piezoresistive behavior of silicon carbonitride thin films by optimizing nanomorphologies. Mater. Today Nano 2022, 20, 100270. [Google Scholar] [CrossRef]
  47. Ke, K.; Yue, L.; Shao, H.; Yang, M.; Yang, W.; Zloczower, I.M. Boosting electrical and piezoresistive properties of polymer nanocomposites via hybrid carbon fillers: A review. Carbon 2021, 173, 1020–1040. [Google Scholar] [CrossRef]
  48. Helbling, T.; Roman, C.; Hierold, C. Signal-to-Noise Ratio in Carbon Nanotube Electromechanical Piezoresistive Sensors. Nano Lett. 2010, 10, 3350–3354. [Google Scholar] [CrossRef] [PubMed]
  49. Park, M.; Park, J.; Jeong, U. Design of conductive composite elastomers for stretchable electronics. Nano Today 2014, 9, 244–260. [Google Scholar] [CrossRef]
  50. Yun, G.; Tang, S.; Sun, S.; Yuan, D.; Zhao, Q.; Deng, L.; Yan, S.; Hu, H.; Dickey, M.D.; Li, W.H. Liquid metal-filled magnetorheological elastomer with positive piezoconductivity. Nat. Commun. 2019, 10, 1300. [Google Scholar] [CrossRef] [PubMed]
  51. Wang, G.; Ouyang, M.; Huang, Y.; Huang, Y.; Yang, Z.; Guo, B.; Wu, J.; Zhang, M.; Wen, W. Synergistic Superiority of a Silver-Carbon Black-Filled Conductive Polymer Composite for Temperature–Pressure Sensing. Adv. Eng. Mater. 2021, 23, 2001392. [Google Scholar] [CrossRef]
  52. Liu, W.; Wang, H. Flexible oxide epitaxial thin films for wearable electronics: Fabrication, physical properties, and applications. J. Mater. 2020, 6, 385–396. [Google Scholar] [CrossRef]
  53. Dou, X.; Wang, H.; Liu, Z.; Zheng, B.; Zheng, Z.; Liu, X.; Guo, R. Epoxy Resin-Assisted Cu Catalytic Printing for Flexible Cu Conductors on Smooth and Rough Substrates. ACS Appl. Mater. Interfaces 2023, 15, 51915–51925. [Google Scholar] [CrossRef]
  54. Cantarella, G.; Costa, J.; Meister, T.; Ishida, K.; Carta, C.; Ellinger, F.; Lugli, P.; Münzenrieder, N.; Petti, L. Review of recent trends in flexible metal oxide thin-film transistors for analog applications. Flex. Print. Electron. 2020, 5, 033001. [Google Scholar] [CrossRef]
  55. Ding, X.; Rubby, M.F.; Que, S.; Uchayash, S.; Que, L. Facile Process for Fabrication of Silicon Micro–Nanostructures of Different Shapes as Molds for Fabricating Flexible Micro–Nanostructures and Wearable Sensors. ACS Appl. Mater. Interfaces 2023, 15, 12202–12208. [Google Scholar] [CrossRef]
  56. Zheng, H.; Wang, H.; Li, K.; Lin, J.; Chen, A.; Chen, L.; Zou, Z.; Liu, M.; Ji, Y.; Dong, L.; et al. Wearable LIG Flexible Stress Sensor Based on Spider Web Bionic Structure. Coatings 2023, 13, 155. [Google Scholar] [CrossRef]
  57. Lin, J.; Ai, Y.; Li, W.; Peng, Y.; Liu, Y.; He, A.; Nie, H. Flexible multi-modal sensors based on CNT hollow spheres/PDMS composites for human motion recognition and colloid concentration detection. Compos. Sci. Technol. 2023, 237, 110005. [Google Scholar] [CrossRef]
  58. Yan, X.; Zhou, Z.; Zhao, J.; Liu, Q.; Wang, H.; Yuan, G.; Chen, J. Flexible memristors as electronic synapses for neuro-inspired computation based on scotch tape-exfoliated mica substrates. Nano Res. 2018, 11, 1183–1192. [Google Scholar] [CrossRef]
  59. Liu, X.; Qiu, J.; Li, B.; Cao, J.; Si, Z.; Zhang, M.; Liu, M.; Xu, Q.; Chen, Y.; Chen, J.; et al. Highly flexible and robust HfOx-based memristor for wearable in-memory computing. Appl. Phys. Lett. 2023, 123, 253502. [Google Scholar] [CrossRef]
  60. Le, V.; Do, T.; Retamal, J.R.D.; Shao, P.; Lai, Y.; Wu, W.; He, J.; Chuel, Y.; Chu, Y. Van der Waals heteroepitaxial AZO/NiO/AZO/muscovite (ANA/muscovite) transparent flexible memristor. Nano Energy 2019, 56, 322–329. [Google Scholar] [CrossRef]
  61. Fu, Y.; Kong, L.; Chen, Y.; Wang, J.; Qian, C.; Yuan, Y.; Sun, J.; Gao, Y.; Wan, Q. Flexible Neuromorphic Architectures Based on Self-Supported Multiterminal Organic Transistors. ACS Appl. Mater. Interfaces 2018, 10, 26443–26450. [Google Scholar] [CrossRef]
  62. Xu, Y.; Liu, W.; Huang, Y.; Jin, C.; Zhou, B.; Sun, J.; Yang, J. Recent Advances in Flexible Organic Synaptic Transistors. Adv. Electron. Mater. 2021, 7, 2100336. [Google Scholar] [CrossRef]
  63. Li, Q.; Wang, T.; Wang, X.; Chen, L.; Zhu, H.; Wu, X.; Sun, Q.; Zhang, D. Flexible organic field-effect transistor arrays for wearable neuromorphic device applications. Nanoscale 2020, 12, 23150–23158. [Google Scholar] [CrossRef]
  64. He, Y.; Zhu, L.; Zhu, Y.; Chen, C.; Jiang, S.; Liu, R.; Shi, Y.; Wan, Q. Recent Progress on Emerging Transistor-Based Neuromorphic Devices. Adv. Intell. Syst. 2021, 3, 2000210. [Google Scholar] [CrossRef]
  65. Cho, S.; Jo, C.; Kim, Y.; Park, S. Progress of Materials and Devices for Neuromorphic Vision Sensors. Nano-Micro Lett. 2022, 14, 203. [Google Scholar] [CrossRef]
  66. Zhang, Y.; Jia, X.; Xu, J.; Guo, Z.; Zhang, W.; Wang, Y.; Li, P.; Sun, J.; Zhao, Z.; Yang, B.; et al. Near-sensor analog computing system based on low-power and self-assembly nanoscaffolded BaTiO3:Nd2O3 memristor. Nano Today 2024, 55, 102144. [Google Scholar] [CrossRef]
  67. Liu, J.; Tang, W.; Liu, Y.; Yang, H.; Li, X. Almost-Nonvolatile IGZO-TFT-Based Near-Sensor In-Memory Computing. In Proceedings of the 2021 IEEE International Symposium on Circuits and Systems (ISCAS), Daegu, Republic of Korea, 22–28 May 2021. [Google Scholar] [CrossRef]
  68. Zhou, Y.; Wu, H.; Gao, B.; Wu, W.; Xi, Y.; Yao, P.; Zhang, S.; Zhang, Q.; Qian, H. Associative Memory for Image Recovery with a High-Performance Memristor Array. Adv. Funct. Mater. 2019, 29, 1900155. [Google Scholar] [CrossRef]
  69. Yao, P.; Wu, H.; Gao, B.; Tang, J.; Zhang, Q.; Zhang, W.; Yang, J.; Qian, H. Fully hardware-implemented memristor convolutional neural network. Nature 2020, 577, 641–646. [Google Scholar] [CrossRef]
  70. Luo, L.; Dong, Z.; Duan, S.; Lai, C. Memristor-based stateful logic gates for multi-functional logic circuit. IET Circuits Devices Syst. 2020, 14, 811–818. [Google Scholar] [CrossRef]
  71. Li, G. Artificial optical synaptic devices with ultra-low power consumption. Light Sci. Appl. 2023, 12, 24. [Google Scholar] [CrossRef]
  72. Liu, D.; Yu, H.; Chai, Y. Low-Power Computing with Neuromorphic Engineering. Adv. Intell. Syst. 2021, 3, 2000150. [Google Scholar] [CrossRef]
  73. Wang, Z.; Wang, W.; Liu, P.; Liu, G.; Li, J.; Zhao, J.; Zhou, Z.; Wang, J.; Pei, Y.; Zhao, Z.; et al. Superlow Power Consumption Artificial Synapses Based on WSe2 Quantum Dots Memristor for Neuromorphic Computing. Research 2022, 2022, 9752876. [Google Scholar] [CrossRef] [PubMed]
  74. Convi, E.; Donati, E.; Liang, X.; Kappel, D.; Heidari, H.; Payvand, M.; Wang, W. Adaptive Extreme Edge Computing for Wearable Devices. Front. Neurosci. 2021, 15, 611300. [Google Scholar] [CrossRef]
  75. Williams, E.K.; Chang, R.; Strochlic, D.E.; Umans, B.D.; Lowell, B.B.; Liberles, S.D. Sensory Neurons that Detect Stretch and Nutrients in the Digestive System. Cell 2016, 166, 209–221. [Google Scholar] [CrossRef]
  76. Nagi, J. Intrinsic Activity of Odorant Receptors Guides Sensory Map Formation. Cell 2013, 154, 1186–1187. [Google Scholar] [CrossRef]
  77. Landauer, R. Irreversibility and Heat Generation in the Computing Process. IBM J. Res. Dev. 1961, 5, 183–191. [Google Scholar] [CrossRef]
  78. Ikeda, R.; Cha, M.; Ling, J.; Jia, Z.; Coyle, D.; Gu, J. Merkel Cells Transduce and Encode Tactile Stimuli to Drive Aβ-Afferent Impulses. Cell 2014, 157, 664–675. [Google Scholar] [CrossRef]
  79. Ji, X.; Zhao, X.; Tan, M.; Zhao, R. Artificial Perception Built on Memristive System: Visual, Auditory, and Tactile Sensations. Adv. Intell. Syst. 2020, 2, 1900118. [Google Scholar] [CrossRef]
  80. Yang, J.; Mun, J.; Kwon, S.; Park, S.; Bao, Z.; Park, S. Electronic Skin: Recent Progress and Future Prospects for Skin-Attachable Devices for Health Monitoring, Robotics, and Prosthetics. Adv. Mater. 2019, 31, 1904765. [Google Scholar] [CrossRef]
  81. Cao, M.; Su, J.; Fan, S.; Qiu, H.; Su, D.; Li, L. Wearable piezoresistive pressure sensors based on 3D graphene. Chem. Eng. J. 2020, 406, 126777. [Google Scholar] [CrossRef]
  82. Jang, D.; Yoon, H.N.; Seo, J.; Yang, B. Effects of exposure temperature on the piezoresistive sensing performances of MWCNT-embedded cementitious sensor. J. Build. Eng. 2022, 47, 103816. [Google Scholar] [CrossRef]
  83. Tian, G.; Shi, Y.; Deng, J.; Yu, W.; Yang, L.; Lu, Y.; Zhao, Y.; Jin, X.; Ke, Q.; Huang, C. Low-Cost, Scalable Fabrication of All-Fabric Piezoresistive Sensors via Binder-Free, In-Situ Welding of Carbon Nanotubes on Bicomponent Nonwovens. Adv. Fiber Mater. 2024, 6, 120–132. [Google Scholar] [CrossRef]
  84. Du, C.; Ren, Y.; Qu, Z.; Gao, L.; Zhai, Y.; Han, S.; Zhou, Y. Synaptic transistors and neuromorphic systems based on carbon nano-materials. Nanoscale 2021, 13, 7498–7522. [Google Scholar] [CrossRef] [PubMed]
  85. Yu, T.; Wang, D.; Liu, M.; Lei, W.; Shafie, S.; Mohtar, M.N.; Jindapetch, N.; Paphavee, D.V.; Zhao, Z. A carbon conductive filament-induced robust resistance switching behavior for brain-inspired computing. Mater. Horiz. 2024, 11, 1334–1343. [Google Scholar] [CrossRef] [PubMed]
  86. Liu, R.; Kim, J.; Dhakal, P.; Li, W.; Ma, J.; Hou, A.; Merkel, J.; Qiu, J.; Zoran, M.; Wang, S. Neuromorphic properties of flexible carbon nanotube/ polydimethylsiloxane nanocomposites. Adv. Compos. Hybrid Mater. 2023, 6, 14. [Google Scholar] [CrossRef]
  87. Kim, H.; Han, G.; Cho, S.; Woo, J.; Lee, D. Internal Resistor Effect of Multilayer-Structured Synaptic Device for Low-Power Operation. Nanomaterials 2024, 14, 201. [Google Scholar] [CrossRef] [PubMed]
  88. Alluri, N.R.; Raj, N.P.M.J.; Khandelwal, G.; Kim, S. Shape-dependent in-plane piezoelectric response of SnSe nanowall/microspheres. Nano Energy 2021, 88, 106231. [Google Scholar] [CrossRef]
  89. Chen, B.; Wang, X.; Gao, B.; Fang, Z.; Kang, J.; Liu, L.; Liu, X.; Lo, G.; Kwong, D. Highly Compact (4F2) and Well Behaved Nano-Pillar Transistor Controlled Resistive Switching Cell for Neuromorphic System Application. Sci. Rep. 2014, 4, 6863. [Google Scholar] [CrossRef] [PubMed]
  90. Sengupta, D.; Mastella, M.; Chicca, E.; Kottapalli, A.G.P. Skin-Inspired Flexible and Stretchable Electrospun Carbon Nanofiber Sensors for Neuromorphic Sensing. ACS Appl. Electron. Mater. 2022, 4, 308–315. [Google Scholar] [CrossRef] [PubMed]
  91. Liu, X.; Sun, C.; Guo, Z.; Xia, X.; Jiang, Q.; Ye, X.; Zhang, Y.; Zhu, X.; Li, R. Near-Sensor Reservoir Computing for Gait Recognition via a Multi-Gate Electrolyte-Gated Transistor. Adv. Sci. 2023, 10, 2300471. [Google Scholar] [CrossRef] [PubMed]
  92. Jiang, C.; Liu, J.; Yang, L.; Gong, J.; Wei, H.; Xu, W. A Flexible Artificial Sensory Nerve Enabled by Nanoparticle-Assembled Synaptic Devices for Neuromorphic Tactile Recognition. Adv. Sci. 2022, 9, 2106124. [Google Scholar] [CrossRef]
  93. Fang, S.; Han, C.; Liu, W.; Han, Z.; Ma, B.; Cui, Y.; Fan, S.; Li, X.; Wang, X.; Zhang, G.; et al. A bioinspired flexible artificial mechanoreceptor based on VO2 insulator-metal transition memristor. J. Alloys Compd. 2022, 911, 165096. [Google Scholar] [CrossRef]
  94. Kim, S.; Baek, G.; Yoon, J.; Seo, S.; Park, J.; Hahm, D.; Chang, J.; Seong, D.; Seo, H.; Oh, S.; et al. A Bioinspired Stretchable Sensory-Neuromorphic System. Adv. Mater. 2021, 33, 2104690. [Google Scholar] [CrossRef] [PubMed]
  95. Shi, J.; Wang, Z.; Tao, Y.; Xu, H.; Zhao, X.; Lin, Y.; Liu, Y. Self-Powered Memristive Systems for Storage and Neuromorphic Computing. Front. Neurosci. 2021, 15, 662457. [Google Scholar] [CrossRef]
  96. Cheng, Y.; Xu, J.; Li, L.; Cai, P.; Li, Y.; Jiang, Q.; Wang, W.; Cao, Y.; Xue, B. Boosting the Piezoelectric Sensitivity of Amino Acid Crystals by Mechanical Annealing for the Engineering of Fully Degradable Force Sensors. Adv. Sci. 2023, 10, 2207269. [Google Scholar] [CrossRef]
  97. Wang, L.; Ma, Y.; Wang, K.; Ma, Y.; Wang, K.; Lu, B.; Niu, L.; Li, X. Fabrication of a pressure sensor using 3D printed light-cured piezoelectric composites. Sens. Actuators A Phys. 2023, 362, 114586. [Google Scholar] [CrossRef]
  98. Jung, M.; Kim, S.; Hwang, J.; Kim, H.; Kim, Y.; Ahn, J.; Jeon, S. Flexible Artificial Mechanoreceptor Based on Microwave Annealed Morphotropic Phase Boundary of HfxZr1−xO2 Thin Film. Adv. Electron. Mater. 2024, 10, 2300594. [Google Scholar] [CrossRef]
  99. Han, J.; Tcho, I.; Jeon, S.; Yu, J.; Kim, W.; Choi, Y. Self-Powered Artificial Mechanoreceptor Based on Triboelectrification for a Neuromorphic Tactile System. Adv. Sci. 2022, 9, 2105076. [Google Scholar] [CrossRef]
  100. Park, Y.; Park, M.; Lee, J. Reduced Graphene Oxide-Based Artificial Synapse Yarns for Wearable Textile Device Applications. Adv. Funct. Mater. 2018, 28, 1804123. [Google Scholar] [CrossRef]
  101. Li, F.; Liu, H.; Guo, J.; Zhou, X.; Liu, K.; Liang, L.; Pei, X.; Zhou, F.; Huang, F.; Wang, H.; et al. An Artificial Thermal Nociceptor Based on Xanthan Gum-Gated Synaptic Transistors to Emulate Human Thermal Nociception. Adv. Intell. Syst. 2022, 4, 2200233. [Google Scholar] [CrossRef]
  102. Daus, A.; Jaikissoon, M.; Khan, A.I.; Kumar, A.; Grady, R.W.; Saraswat, K.C.; Pop, E. Fast-Response Flexible Temperature Sensors with Atomically Thin Molybdenum Disulfide. Nano Lett. 2022, 22, 6135–6140. [Google Scholar] [CrossRef]
  103. Chen, Z.; Yang, Z.; Tu, T.; Wei, Z.; Ji, C.; Zhao, B.; Yu, T.; Yang, W.; Li, Y. Sandwich-structured flexible PDMS@graphene multimodal sensors capable of strain and temperature monitoring with superlative temperature range and sensitivity. Compos. Sci. Technol. 2023, 232, 109881. [Google Scholar] [CrossRef]
  104. Zhao, X.; Yang, S.; Wen, X.; Huang, Q.; Qiu, P.; Wei, T.; Zhang, H.; Wang, J.; Zhang, D.W.; Shi, X.; et al. A Fully Flexible Intelligent Thermal Touch Panel Based on Intrinsically Plastic Ag2S Semiconductor. Adv. Mater. 2022, 34, 2107479. [Google Scholar] [CrossRef] [PubMed]
  105. Ao, D.; Liu, W.; Chen, Y.; Wei, M.; Jabar, B.; Li, F.; Shi, X.; Zheng, Z.; Liang, G.; Zhang, X.; et al. Novel Thermal Diffusion Temperature Engineering Leading to High Thermoelectric Performance in Bi2Te3-Based Flexible Thin-Films. Adv. Sci. 2022, 9, 2103547. [Google Scholar] [CrossRef] [PubMed]
  106. Song, Y.; Wang, S.; Gao, B.; Chang, A.; Kong, W. Development of a Highly Sensitive and Stable Flexible Temperature Sensor Based on All-Inorganic Mn–Co–Ni–O Thin Films. Adv. Mater. Interfaces 2023, 10, 2202274. [Google Scholar] [CrossRef]
  107. Han, J.; Yun, S.; Yu, J.; Jeon, S.; Choi, Y. Artificial Multisensory Neuron with a Single Transistor for Multimodal Perception through Hybrid Visual and Thermal Sensing. ACS Appl. Mater. Interfaces 2023, 15, 5449–5455. [Google Scholar] [CrossRef] [PubMed]
  108. Wang, Y.; Liu, D.; Zhang, Y.; Fan, L.; Ren, Q.; Ma, S.; Zhang, M. Stretchable Temperature-Responsive Multimodal Neuromorphic Electronic Skin with Spontaneous Synaptic Plasticity Recovery. ACS Nano 2022, 16, 8283–8293. [Google Scholar] [CrossRef] [PubMed]
  109. Han, X.; Xu, Z.; Wu, W.; Liu, X.; Yan, P.; Pan, C. Recent Progress in Optoelectronic Synapses for Artificial Visual-Perception System. Small Struct. 2020, 1, 2000029. [Google Scholar] [CrossRef]
  110. Guo, F.; Song, M.; Wong, M.; Ding, R.; Io, W.; Pang, S.; Jie, W.; Hao, J. Multifunctional Optoelectronic Synapse Based on Ferroelectric Van der Waals Heterostructure for Emulating the Entire Human Visual System. Adv. Funct. Mater. 2022, 32, 2108014. [Google Scholar] [CrossRef]
  111. Kwon, S.; Cho, S.; Kim, M.; Heo, J.; Kim, Y.; Park, S. Environment-Adaptable Artificial Visual Perception Behaviors Using a Light-Adjustable Optoelectronic Neuromorphic Device Array. Adv. Mater. 2019, 31, 1906433. [Google Scholar] [CrossRef] [PubMed]
  112. Sun, L.; Qu, S.; Du, Y.; Yang, L.; Li, Y.; Wang, Z.; Xu, W. Bio-Inspired Vision and Neuromorphic Image Processing Using Printable Metal Oxide Photonic Synapses. ACS Photonics 2023, 10, 242–252. [Google Scholar] [CrossRef]
  113. Xu, X.; Yang, B. Wearable Eu@HOF luminescent fabric as a highly selective and sensitive optical synapse sensor for identification of six laboratory volatile compounds by neuromorphic computing. J. Mater. Chem. A 2022, 10, 15427–15437. [Google Scholar] [CrossRef]
  114. Chowdhury, T.; Taneja, C.; Vasdev, A.; Ghosh, P.; Sheet, G.; Kumar, G.V.P.; Rahman, A. Stacking Engineered Room Temperature Ferroelectricity in Twisted Germanium Sulfide Nanowires. Adv. Electron. Mater. 2022, 8, 2101158. [Google Scholar] [CrossRef]
  115. Ren, Y.; Bu, X.; Wang, M.; Gong, Y.; Wang, J.; Yang, Y.; Li, G.; Zhang, M.; Zhou, Y.; Han, S.T. Synaptic plasticity in self-powered artificial striate cortex for binocular orientation selectivity. Nat. Commun. 2022, 13, 5585. [Google Scholar] [CrossRef]
  116. Su, Q.; Liu, C.; Xue, T.; Zou, Q. Sensitivity-Photo-Patternable Ionic Pressure Sensor Array with a Wearable Measurement Unit. ACS Appl. Mater. Interfaces 2022, 14, 33641–33649. [Google Scholar] [CrossRef]
  117. Zhang, H.; Ju, X.; Chi, D.; Feng, L.; Liu, Z.; Yew, K.; Zhu, M.; Li, T.; Wei, R.; Wang, S.; et al. A neuromorphic bionic eye with broadband vision and biocompatibility using TIPS-pentacene-based phototransistor array retina. Appl. Mater. Today 2023, 33, 101885. [Google Scholar] [CrossRef]
  118. Hu, C.; Wei, Z.; Li, L.; Shen, G. Strategy Toward Semiconducting Ti3C2Tx-MXene:Phenylsulfonic Acid Groups Modified Ti3C2Tx as Photosensitive Material for Flexible Visual Sensory-Neuromorphic System. Adv. Funct. Mater. 2023, 33, 2302188. [Google Scholar] [CrossRef]
  119. Lou, Z.; Shen, G. Flexible Image Sensors with Semiconducting Nanowires for Biomimic Visual Applications. Small Struct. 2021, 2, 2000152. [Google Scholar] [CrossRef]
  120. Hu, G.; An, H.; Xi, J.; Lu, J.; Hua, Q.; Peng, Z. A ZnO micro/nanowire-based photonic synapse with piezo-phototronic modulation. Nano Energy 2021, 89, 106282. [Google Scholar] [CrossRef]
  121. Chen, S.; Lou, Z.; Chen, D.; Shen, G. An Artificial Flexible Visual Memory System Based on an UV-Motivated Memristor. Adv. Mater. 2018, 30, 1705400. [Google Scholar] [CrossRef]
  122. Wang, H.; Zhao, Q.; Ni, Z.; Li, Q.; Liu, H.; Yang, Y.; Wang, L.; Ran, Y.; Guo, Y.; Hu, W.; et al. A Ferroelectric/Electrochemical Modulated Organic Synapse for Ultraflexible, Artificial Visual-Perception System. Adv. Mater. 2018, 30, 1803961. [Google Scholar] [CrossRef] [PubMed]
  123. Vanarse, A.; Osseiran, A.; Rassau, A. A Review of Current Neuromorphic Approaches for Vision, Auditory, and Olfactory Sensors. Front. Neurosci. 2016, 10, 115. [Google Scholar] [CrossRef]
  124. Park, S.; Kwon, O.; Lee, S.; Song, H.; Park, T.; Jang, J. Ultrasensitive Flexible Graphene Based Field-Effect Transistor (FET)-Type Bioelectronic Nose. Nano Lett. 2012, 12, 5082–5090. [Google Scholar] [CrossRef]
  125. Zhong, T.; Zhang, M.; Fu, Y.; Han, Y.; Guan, H.; He, H.; Zhao, T.; Xing, L.; Xue, X.; Zhang, Y.; et al. An artificial triboelectricity-brain-behavior closed loop for intelligent olfactory substitution. Nano Energy 2019, 63, 103884. [Google Scholar] [CrossRef]
  126. Wang, Z.; Ma, W.; Wei, J.; Lan, K.; Yan, S.; Chen, R.; Qin, G. Ultrasensitive Flexible Olfactory Receptor-Derived Peptide Sensor for Trimethylamine Detection by the Bending Connection Method. ACS Sens. 2022, 7, 3513–3520. [Google Scholar] [CrossRef]
  127. Hu, F.; Cao, C.; Han, S.; Wang, D.; Chen, X. An Artificial Olfactory Chemical-Resistant Synapse for Training-Free Gas Recognition. Adv. Mater. Technool. 2024, 2301814. [Google Scholar] [CrossRef]
  128. Chouhdry, H.H.; Lee, D.; Bag, A.; Lee, N. A flexible artificial chemosensory neuronal synapse based on chemoreceptive ionogel-gated electrochemical transistor. Nat. Commun. 2023, 14, 821. [Google Scholar] [CrossRef]
  129. Han, J.; Kang, M.; Jeong, J.; Cho, I.; Yu, J.; Yoon, J.; Park, I.; Choi, Y. Artificial Olfactory Neuron for an In-Sensor Neuromorphic Nose. Adv. Sci. 2022, 9, 2106017. [Google Scholar] [CrossRef]
  130. Yu, J.; Zeng, F.; Wan, Q.; Lu, Z.; Pan, F. Emulation of auditory senses depending on chaotic dynamics of threshold switching memristor. InfoMat 2023, 5, e12458. [Google Scholar] [CrossRef]
  131. Peraza, V.A.; Vicente, J.M.F.; Rams, E.A.M. Bioinspired Auditory Model for Vowel Recognition. Electronics 2021, 10, 2304. [Google Scholar] [CrossRef]
  132. Escudero, E.C.; Peña, F.P.; Vicente, R.P.; Jimenez-Fernandez, A.; Moreno, G.J.; Morgado-Estevez, A. Real-time neuro-inspired sound source localization and tracking architecture applied to a robotic platform. Neurocomputing 2018, 283, 129–139. [Google Scholar] [CrossRef]
  133. Das, S.; Dodda, A.; Das, S. A biomimetic 2D transistor for audiomorphic computing. Nat. Commun. 2019, 10, 3450. [Google Scholar] [CrossRef]
  134. Lee, S.; Kim, J.; Roh, H.; Kim, W.; Chung, S.; Moon, W.; Cho, K. A High-Fidelity Skin-Attachable Acoustic Sensor for Realizing Auditory Electronic Skin. Adv. Mater. 2022, 34, 2109545. [Google Scholar] [CrossRef] [PubMed]
  135. Yun, S.; Han, J.; Lee, S.; Yu, J.; Jeon, S.; Choi, Y. Self-aware artificial auditory neuron with a triboelectric sensor for spike-based neuromorphic hardware. Nano Energy 2023, 109, 108322. [Google Scholar] [CrossRef]
  136. Xu, X.; Yan, B. Bioinspired Luminescent HOF-Based Foam as Ultrafast and Ultrasensitive Pressure and Acoustic Bimodal Sensor for Human–Machine Interactive Object and Information Recognition. Adv. Mater. 2023, 35, 2303410. [Google Scholar] [CrossRef] [PubMed]
  137. Jung, Y.H.; An, J.; Hyeon, D.Y.; Wang, H.S.; Kim, I.; Jeong, C.K.; Park, K.I.; Lee, P.S.; Lee, K.J. Theoretical Basis of Biomimetic Flexible Piezoelectric Acoustic Sensors for Future Customized Auditory Systems. Adv. Funct. Mater. 2024, 34, 2309316. [Google Scholar] [CrossRef]
  138. Lee, S.; Roh, H.; Kim, J.; Chung, S.; Seo, D.; Moon, W.; Cho, K. An Electret-Powered Skin-Attachable Auditory Sensor that Functions in Harsh Acoustic Environments. Adv. Mater. 2022, 34, 2205537. [Google Scholar] [CrossRef] [PubMed]
  139. Liu, Y.; Li, E.; Wang, X.; Chen, Q.; Zhou, Y.; Hu, Y.; Chen, G.; Chen, H.; Guo, T. Self-powered artificial auditory pathway for intelligent neuromorphic computing and sound detection. Nano Energy 2020, 78, 105403. [Google Scholar] [CrossRef]
  140. He, Y.; Nie, S.; Liu, R.; Jiang, S.; Shi, Y.; Wan, Q. Spatiotemporal Information Processing Emulated by Multiterminal Neuro-Transistor Networks. Adv. Mater. 2019, 31, 1900903. [Google Scholar] [CrossRef] [PubMed]
  141. Fu, J.; Nie, C.; Sun, F.; Li, G.; Shi, H.; Wei, X. Bionic visual-audio photodetectors with in-sensor perception and preprocessing. Sci. Adv. 2024, 10, eadk8199. [Google Scholar] [CrossRef]
  142. Mukherjee, S.; Dutta, D.; Ghosh, A.; Koren, E. Graphene-In2Se3 van der Waals Heterojunction Neuristor for Optical In-Memory Bimodal Operation. ACS Nano 2023, 17, 22287–22298. [Google Scholar] [CrossRef]
  143. Liu, G.; Lv, Z.; Batool, S.; Li, M.Z.; Zhao, P.; Guo, L.; Wang, Y.; Zhou, Y.; Han, S.T. Biocompatible Material-Based Flexible Biosensors: From Materials Design to Wearable/Implantable Devices and Integrated Sensing Systems. Small 2023, 19, 2207879. [Google Scholar] [CrossRef]
  144. Chen, B.; Yao, J.; Xia, J.; Yang, R.; Miao, X. A Strain-Sensitive Flexible MoTe2-Based Memristor for Gesture Recognition. IEEE Electron Device Lett. 2023, 44, 622–625. [Google Scholar] [CrossRef]
  145. Jiang, C.; Tan, D.; Sun, N.; Huang, J.; Ji, R.; Li, Q.; Bi, S.; Guo, Q.; Wang, X.; Song, J. 60 nm Pixel-size pressure piezo-memory system as ultrahigh-resolution neuromorphic tactile sensor for in-chip computing. Nano Energy 2021, 87, 1016190. [Google Scholar] [CrossRef]
  146. Kumar, M.; Singh, R.; Kang, H.; Kim, S.; Seo, H. An artificial piezotronic synapse for tactile perception. Nano Energy 2020, 73, 104756. [Google Scholar] [CrossRef]
  147. Sun, K.; Wheeler, C.; Hillier, J.A.; Ye, S.; Zeimpekis, I.; Urbani, A.; Kalfagiannis, N.; Muskens, O.L.; Groot, C.H. Room Temperature Phase Transition of W-Doped VO2 by Atomic Layer Deposition on 200 mm Si Wafers and Flexible Substrates. Adv. Opt. Mater. 2022, 10, 2201326. [Google Scholar] [CrossRef]
  148. Meng, J.; Wang, T.; Zhu, H.; Ji, L.; Bao, W.; Zhou, P.; Chen, L.; Sun, Q.; Zhang, D.W. Integrated In-Sensor Computing Optoelectronic Device for Environment-Adaptable Artificial Retina Perception Application. Nano Lett. 2022, 22, 81–89. [Google Scholar] [CrossRef] [PubMed]
  149. Li, D.; Chen, Y.; Tang, Y.; Liang, K.; Ren, H.; Li, F.; Wang, Y.; Liu, G.; Song, C.; Meng, L.; et al. Solution-Processed Organic–Inorganic Semiconductor Heterostructures for Advanced Hybrid Phototransistors. ACS Appl. Electron. Mater. 2023, 5, 578–592. [Google Scholar] [CrossRef]
  150. Wang, Y.; Chen, S.; Cheng, X.; Chen, W.; Xiong, Z.; Lv, Z.; Wu, C.; Wang, L.; Zhang, G.; Zhu, X.; et al. Neurotransmitter-Mediated Plasticity in 2D Perovskite Memristor for Reinforcement Learning. Adv. Funct. Mater. 2024, 34, 2309807. [Google Scholar] [CrossRef]
  151. Xie, T.; Wang, Q.; Li, M.; Fang, Y.; Li, G.; Shao, S.; Yu, W.; Wang, S.; Gu, W.; Zhao, C.; et al. Carbon Nanotube Optoelectronic Synapse Transistor Arrays with Ultra-Low Power Consumption for Stretchable Neuromorphic Vision Systems. Adv. Funct. Mater. 2023, 33, 2303970. [Google Scholar] [CrossRef]
  152. Guo, Z.; Zhang, J.; Yang, B.; Li, L.; Liu, X.; Xu, Y.; Wu, Y.; Guo, P.; Sun, T.; Dai, S.; et al. Organic High-Temperature Synaptic Phototransistors for Energy-Efficient Neuromorphic Computing. Adv. Mater. 2023, 2310155. [Google Scholar] [CrossRef]
  153. Zhou, G.; Li, J.; Song, Q.; Wang, L.; Ren, Z.; Sun, B.; Hu, X.; Wang, W.; Xu, G.; Chen, X.; et al. Full hardware implementation of neuromorphic visual system based on multimodal optoelectronic resistive memory arrays for versatile image processing. Nat. Commun. 2023, 14, 8489. [Google Scholar] [CrossRef]
  154. Li, G.; Xie, D.; Zhang, Z.; Zhou, Q.; Zhong, H.; Ni, H.; Wang, J.; Guo, E.; He, M.; Wang, C.; et al. Flexible VO2 Films for In-Sensor Computing with Ultraviolet Light. Adv. Funct. Mater. 2022, 32, 2203074. [Google Scholar] [CrossRef]
  155. Wan, C.; Liu, Y.; Feng, P.; Wang, W.; Zhu, L.; Liu, Z.; Shi, Y.; Wan, Q. Flexible Metal Oxide/Graphene Oxide Hybrid Neuromorphic Transistors on Flexible Conducting Graphene Substrates. Adv. Mater. 2016, 28, 5878–5885. [Google Scholar] [CrossRef] [PubMed]
  156. Deng, W.; Zhang, X.; Jia, R.; Huang, L.; Zhang, X.; Jie, J. Organic molecular crystal-based photosynaptic devices for an artificial visual-perception system. NPG Asia Mater. 2019, 11, 77. [Google Scholar] [CrossRef]
Sensors 24 02180 g001
Figure 1. Design thinking diagram for wearable near/in-sensor intelligent systems.
Figure 1. Design thinking diagram for wearable near/in-sensor intelligent systems.
Sensors 24 02180 g001
Sensors 24 02180 g003
Figure 3. Near-sensor thalposis system. (a) Neural pathway of thalposis system in human beings. Reprinted with permission from Ref. [101]; Copyright 2022 John Wiley and Sons. (b) Diagram of stretchable temperature-responsive multimodal neuromorphic electronic skin (STRM-NES). (c) Conductance of the device after training with a letter “P” shaped heat source and its conductance after 100 s. Reprinted with permission from Ref. [108]; Copyright 2022 American Chemical Society.
Figure 3. Near-sensor thalposis system. (a) Neural pathway of thalposis system in human beings. Reprinted with permission from Ref. [101]; Copyright 2022 John Wiley and Sons. (b) Diagram of stretchable temperature-responsive multimodal neuromorphic electronic skin (STRM-NES). (c) Conductance of the device after training with a letter “P” shaped heat source and its conductance after 100 s. Reprinted with permission from Ref. [108]; Copyright 2022 American Chemical Society.
Sensors 24 02180 g003
Sensors 24 02180 g005
Figure 5. Near-sensor olfactory system. (a) Neural pathway of olfactory system in human beings. Reprinted with permission from Ref. [127]; Copyright 2024 John Wiley and Sons. (b) Structural diagram of the NO2 sensitive organic electrochemical transistor (OECT). (c) Electrical characteristics of OECT modulated by 200 ppm NO2 concentration and gate voltage. Reprinted with permission from Ref. [128]; Copyright 2023 Springer Nature. (d) Structural diagram of the SMO gas sensor integrated with transistor neuron. (e) Current response of SnO2 and WO3 gas sensor under same gas stimuli. (f) Frequency response of the device under same gas stimuli. Reprinted with permission from Ref. [129]; Copyright 2022 John Wiley and Sons.
Figure 5. Near-sensor olfactory system. (a) Neural pathway of olfactory system in human beings. Reprinted with permission from Ref. [127]; Copyright 2024 John Wiley and Sons. (b) Structural diagram of the NO2 sensitive organic electrochemical transistor (OECT). (c) Electrical characteristics of OECT modulated by 200 ppm NO2 concentration and gate voltage. Reprinted with permission from Ref. [128]; Copyright 2023 Springer Nature. (d) Structural diagram of the SMO gas sensor integrated with transistor neuron. (e) Current response of SnO2 and WO3 gas sensor under same gas stimuli. (f) Frequency response of the device under same gas stimuli. Reprinted with permission from Ref. [129]; Copyright 2022 John Wiley and Sons.
Sensors 24 02180 g005
Sensors 24 02180 g006

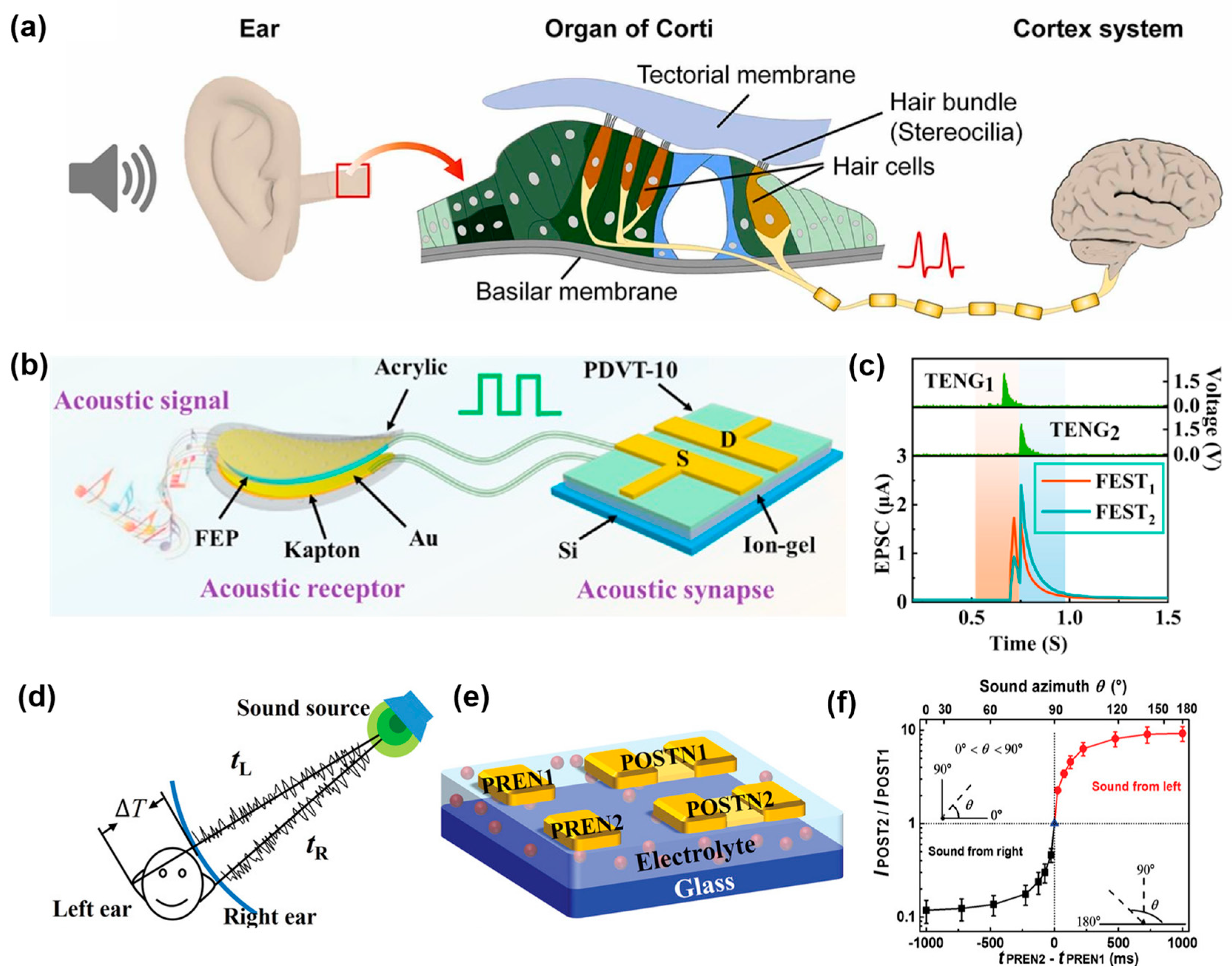

Figure 6. Near-sensor auditory system. (a) Neural pathway of olfactory system in human beings. Reprinted with permission from Ref. [135]; Copyright 2023 Elsevier. (b) Structural diagram of the acoustic sensor connected with synaptic transistor. (c) PSC current of FEST1 and FEST2 when the sound comes from the right direction. Reprinted with permission from Ref. [139]; Copyright 2020 Elsevier. (d) Schematic image of the binaural effect. (e) Structural diagram of dual-gate synaptic transistor. (f) Function of the sound source azimuth estimation by calculating the ratio of the PSC of two transistors. Reprinted with permission from Ref. [140]; Copyright 2019 John Wiley and Sons.
Figure 6. Near-sensor auditory system. (a) Neural pathway of olfactory system in human beings. Reprinted with permission from Ref. [135]; Copyright 2023 Elsevier. (b) Structural diagram of the acoustic sensor connected with synaptic transistor. (c) PSC current of FEST1 and FEST2 when the sound comes from the right direction. Reprinted with permission from Ref. [139]; Copyright 2020 Elsevier. (d) Schematic image of the binaural effect. (e) Structural diagram of dual-gate synaptic transistor. (f) Function of the sound source azimuth estimation by calculating the ratio of the PSC of two transistors. Reprinted with permission from Ref. [140]; Copyright 2019 John Wiley and Sons.
Sensors 24 02180 g006
Sensors 24 02180 g007

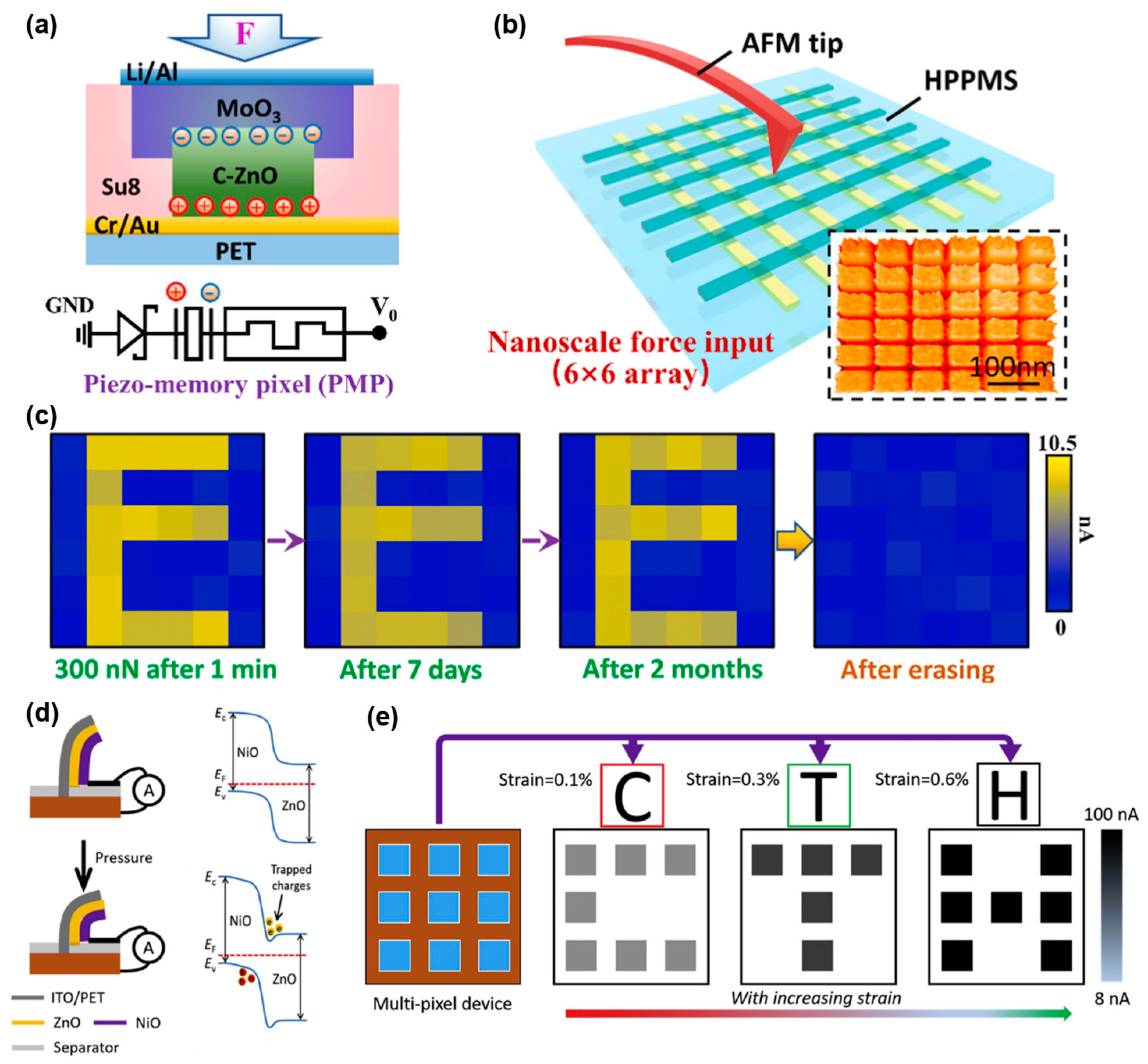

Figure 7. In-sensor tactile system. (a) Schematic image of the PMP. (b) AFM image and diagram of the 6 × 6 array. (c) Pressure signal perception and storage characteristic. Reprinted with permission from Ref. [146]; Copyright 2021 Elsevier. (d) Schematic image of the in-sensor system inspired by the fine hair on the human body. (e) Response of letter “C”, “T”, “H”-shaped pressure inputs under different strain. Reprinted with permission from Ref. [147]; Copyright 2020 Elsevier.
Figure 7. In-sensor tactile system. (a) Schematic image of the PMP. (b) AFM image and diagram of the 6 × 6 array. (c) Pressure signal perception and storage characteristic. Reprinted with permission from Ref. [146]; Copyright 2021 Elsevier. (d) Schematic image of the in-sensor system inspired by the fine hair on the human body. (e) Response of letter “C”, “T”, “H”-shaped pressure inputs under different strain. Reprinted with permission from Ref. [147]; Copyright 2020 Elsevier.
Sensors 24 02180 g007
Sensors 24 02180 g008
Figure 8. In-sensor visual system. (a) Structural diagram of the Au/MSFP/Au light sensor. (b,c) Optical modulation characteristics of the device; positive and negative effects are bounded by 60 mW. Reprinted with permission from Ref. [153]; Copyright 2023 Springer Nature. (d) Data storage capability of the 3 × 3 array with good bending stability. (e) ANN is used as the back end to classify MNIST dataset. Reprinted with permission from Ref. [154]; Copyright 2022 John Wiley and Sons. (f) Structural diagram of the multi-gate transistor. (g) Implementation of AND/OR logic function by multi-gate modulation. Reprinted with permission from Ref. [155]; Copyright 2016 John Wiley and Sons. (h) Structural diagram of a large-scale photo synaptic device array. (i) Storage capability of the photo synaptic device array. Reprinted with permission from Ref. [156]; Copyright 2019 Springer Nature.
Figure 8. In-sensor visual system. (a) Structural diagram of the Au/MSFP/Au light sensor. (b,c) Optical modulation characteristics of the device; positive and negative effects are bounded by 60 mW. Reprinted with permission from Ref. [153]; Copyright 2023 Springer Nature. (d) Data storage capability of the 3 × 3 array with good bending stability. (e) ANN is used as the back end to classify MNIST dataset. Reprinted with permission from Ref. [154]; Copyright 2022 John Wiley and Sons. (f) Structural diagram of the multi-gate transistor. (g) Implementation of AND/OR logic function by multi-gate modulation. Reprinted with permission from Ref. [155]; Copyright 2016 John Wiley and Sons. (h) Structural diagram of a large-scale photo synaptic device array. (i) Storage capability of the photo synaptic device array. Reprinted with permission from Ref. [156]; Copyright 2019 Springer Nature.
Sensors 24 02180 g008
Table 1. Key parameters and functions of different systems.
Table 1. Key parameters and functions of different systems.
System TypeKey ParameterApplication
TactileSensitivity, detection rangePattern recognition
ThalposisDetection rangeTemperature perception, Assistance
VisualDetection limit, conversion rateImage recognition, assistance
OlfactoryDetection limit, molecular speciesMolecular distinguishing
AuditoryDetection limit, frequency rangeLocation, audio recognition
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Liu, J.; Wang, Y.; Liu, Y.; Wu, Y.; Bian, B.; Shang, J.; Li, R. Recent Progress in Wearable Near-Sensor and In-Sensor Intelligent Perception Systems. Sensors 2024, 24, 2180. https://doi.org/10.3390/s24072180

AMA Style

Liu J, Wang Y, Liu Y, Wu Y, Bian B, Shang J, Li R. Recent Progress in Wearable Near-Sensor and In-Sensor Intelligent Perception Systems. Sensors. 2024; 24(7):2180. https://doi.org/10.3390/s24072180

Chicago/Turabian Style

Liu, Jialin, Yitao Wang, Yiwei Liu, Yuanzhao Wu, Baoru Bian, Jie Shang, and Runwei Li. 2024. "Recent Progress in Wearable Near-Sensor and In-Sensor Intelligent Perception Systems" Sensors 24, no. 7: 2180. https://doi.org/10.3390/s24072180

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
