A UNet++-Based Approach for Delamination Imaging in CFRP Laminates Using Full Wavefield
Abstract
1. Introduction
- (1)
- UNet++ is employed to segment the energy distribution in 2D FDS, achieving end-to-end artifact free delamination imaging.
- (2)
- The model trained with multi-frequency FDS demonstrates accurate delamination imaging, even in scenarios with input frequency offsets, while also exhibiting good noise resistance.
- (3)
- The model trained on pure simulation dataset can be used to predict experimental samples with high accuracy. It provides a solution for quantitative detection of invisible delamination damage in CFRP.
2. Dataset Preparation
2.1. Material Properties of Specimen

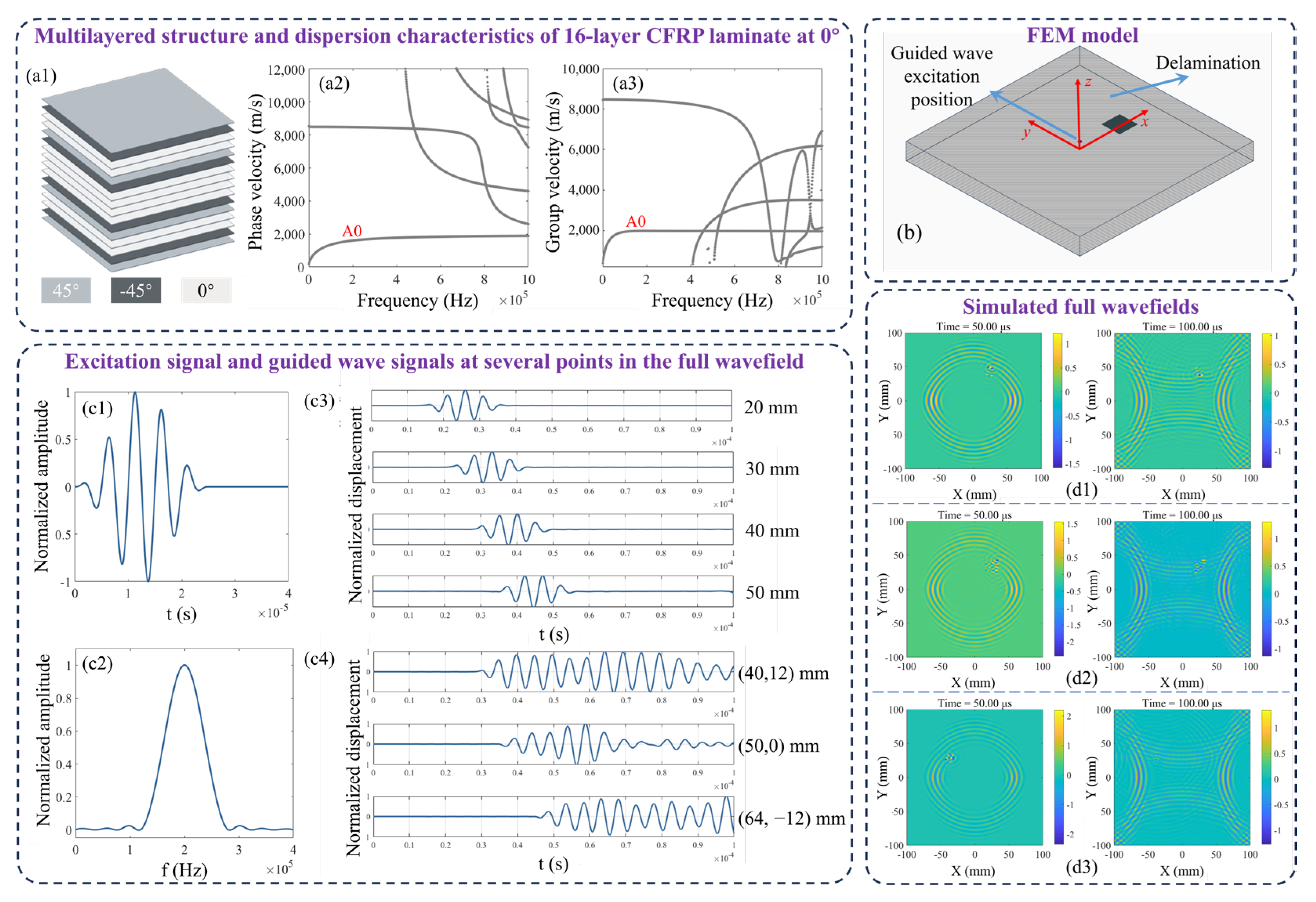

2.2. Numerical Simulation
2.3. Frequency Domain Spectra Extraction
2.4. Flipping Augmentation
2.5. Dataset Labeling and Splitting
3. Delamination Imaging Model Construction, Training, and Evaluation Methods

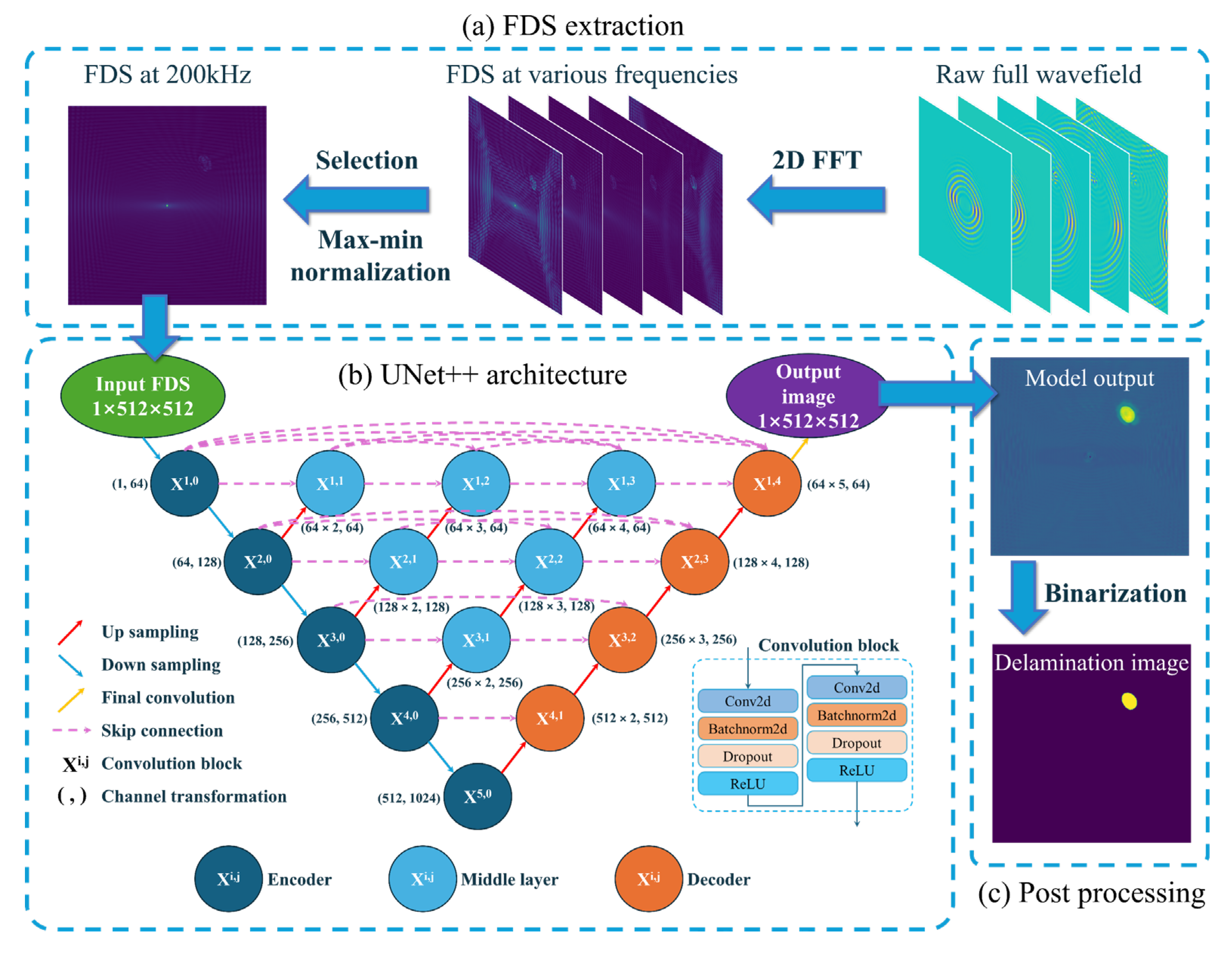

3.1. Neural Network

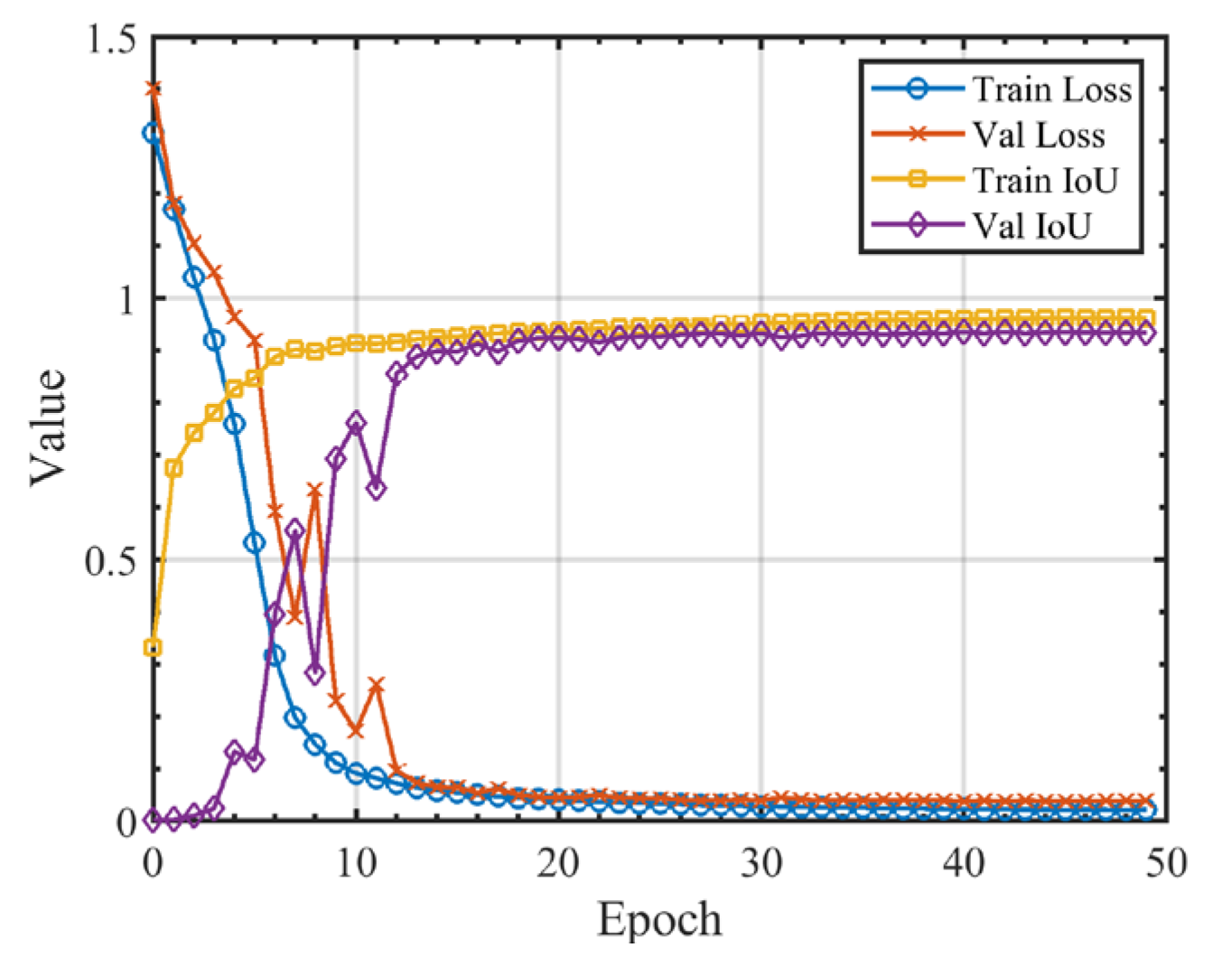

3.2. Training Strategy

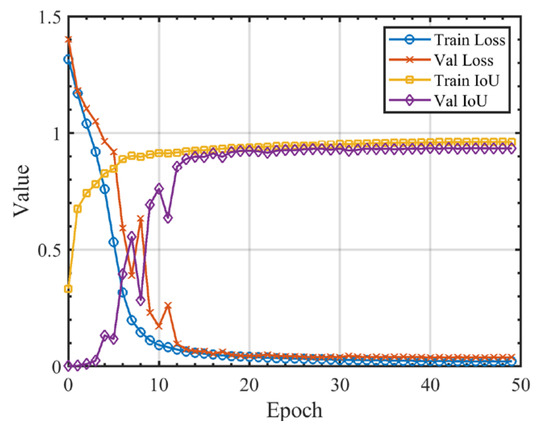

3.3. Performance Evaluation Methods
- (1)
- Penalty for displacement: If there is a spatial offset in the predicted area, the IoU will decrease significantly, even if the size of the predicted area is correct.
- (2)
- Penalty for redundancy: If the prediction includes areas that do not correspond to the target (i.e., non-target areas), the IoU will decrease significantly, even if the target area is correctly covered.
4. Results and Discussion

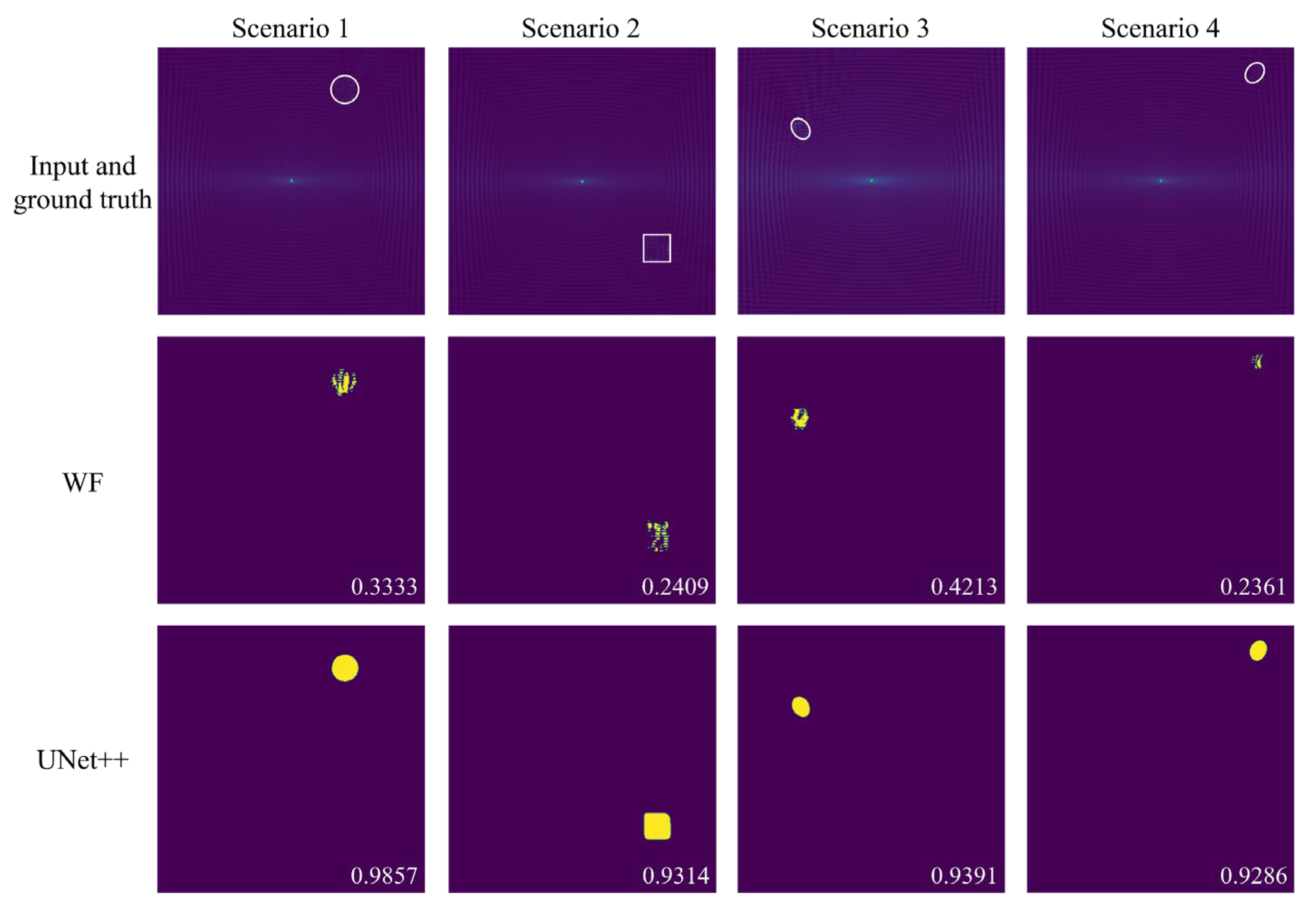

4.1. Generalization in the Simulation Test Set

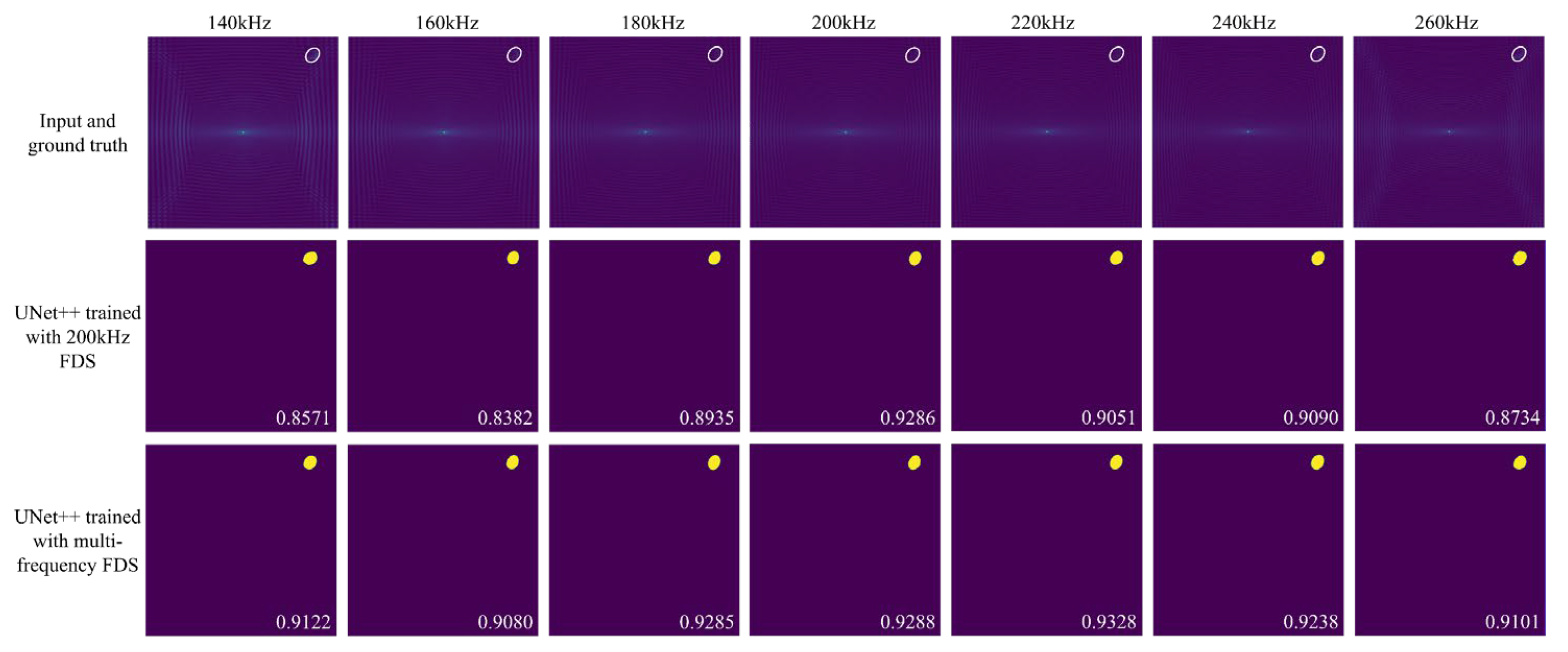

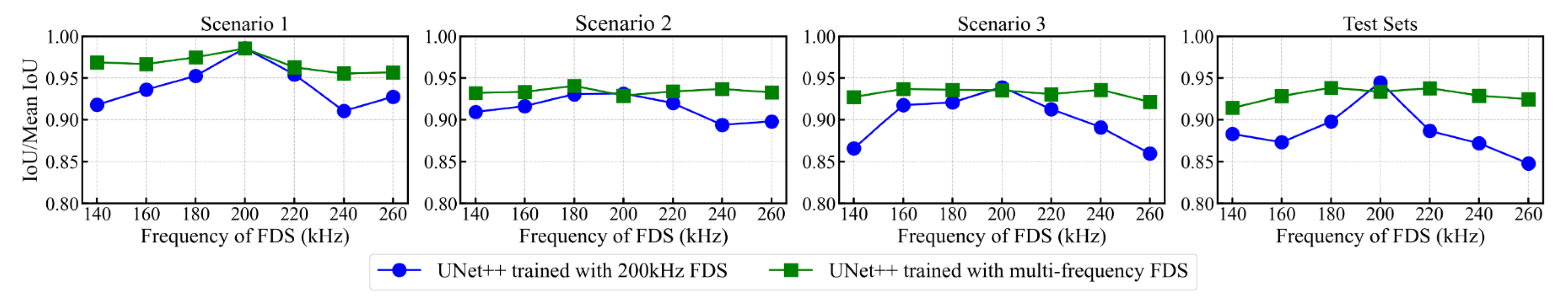

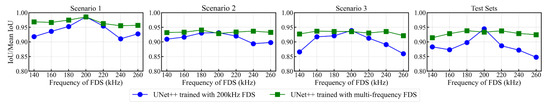

4.2. Generalization on Frequency Offset FDS

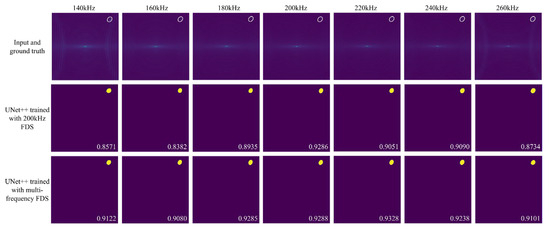

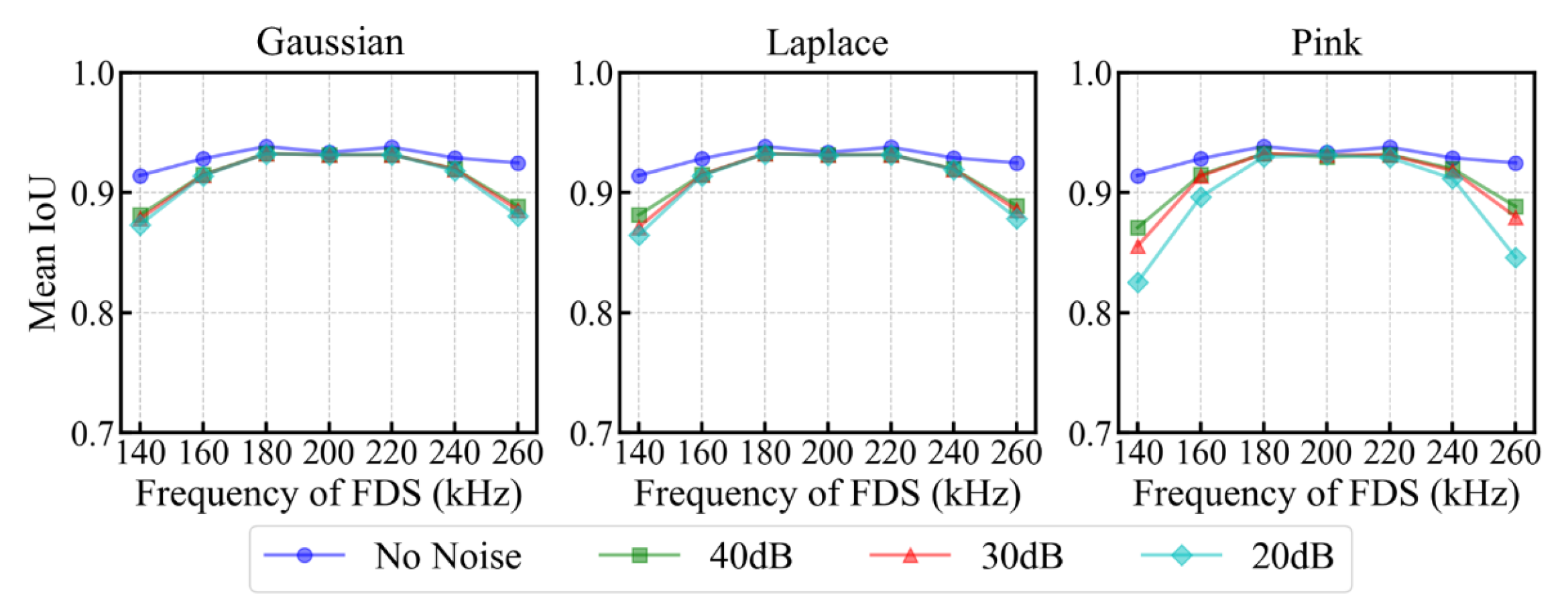

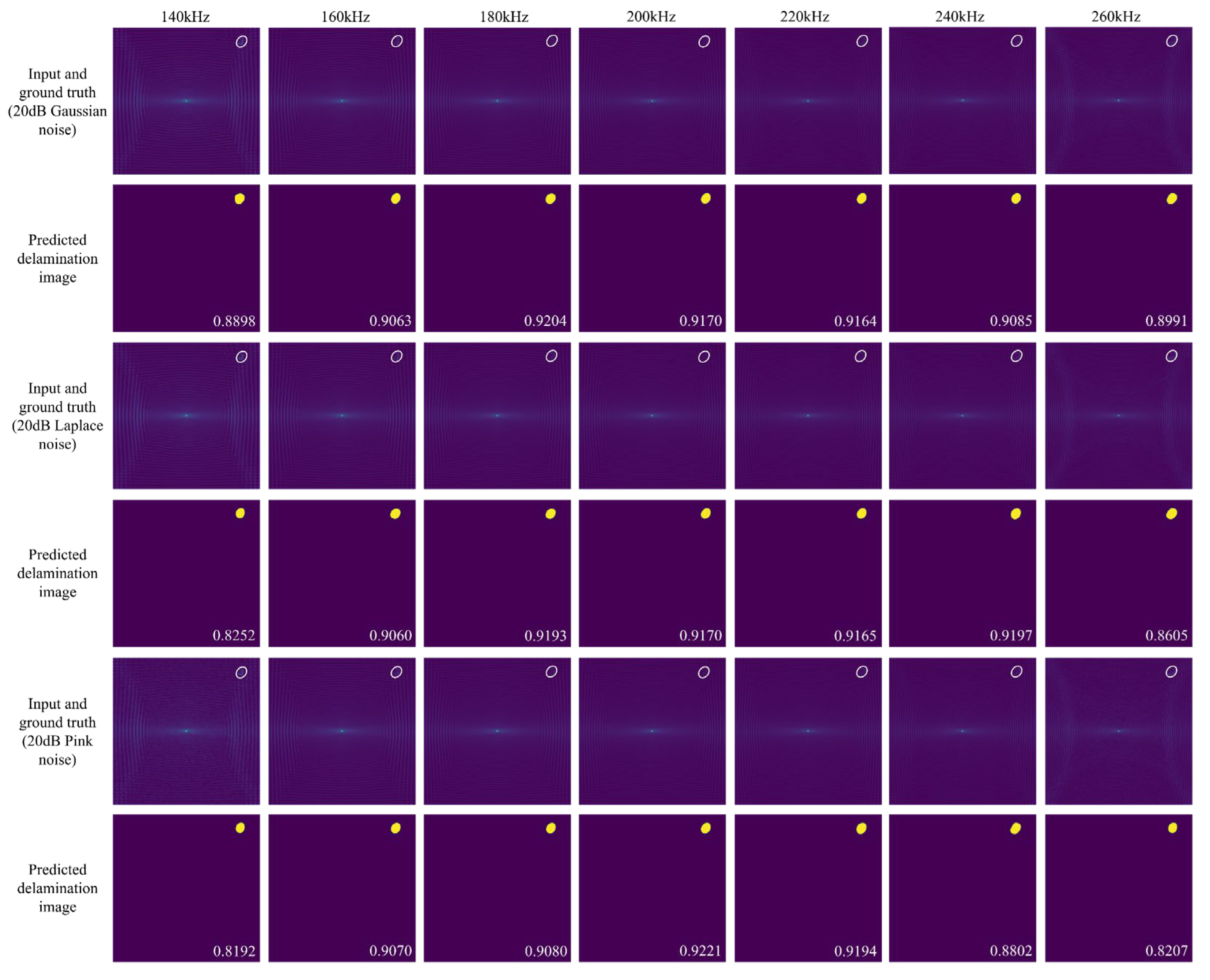

4.3. Robustness Under Noise Interference

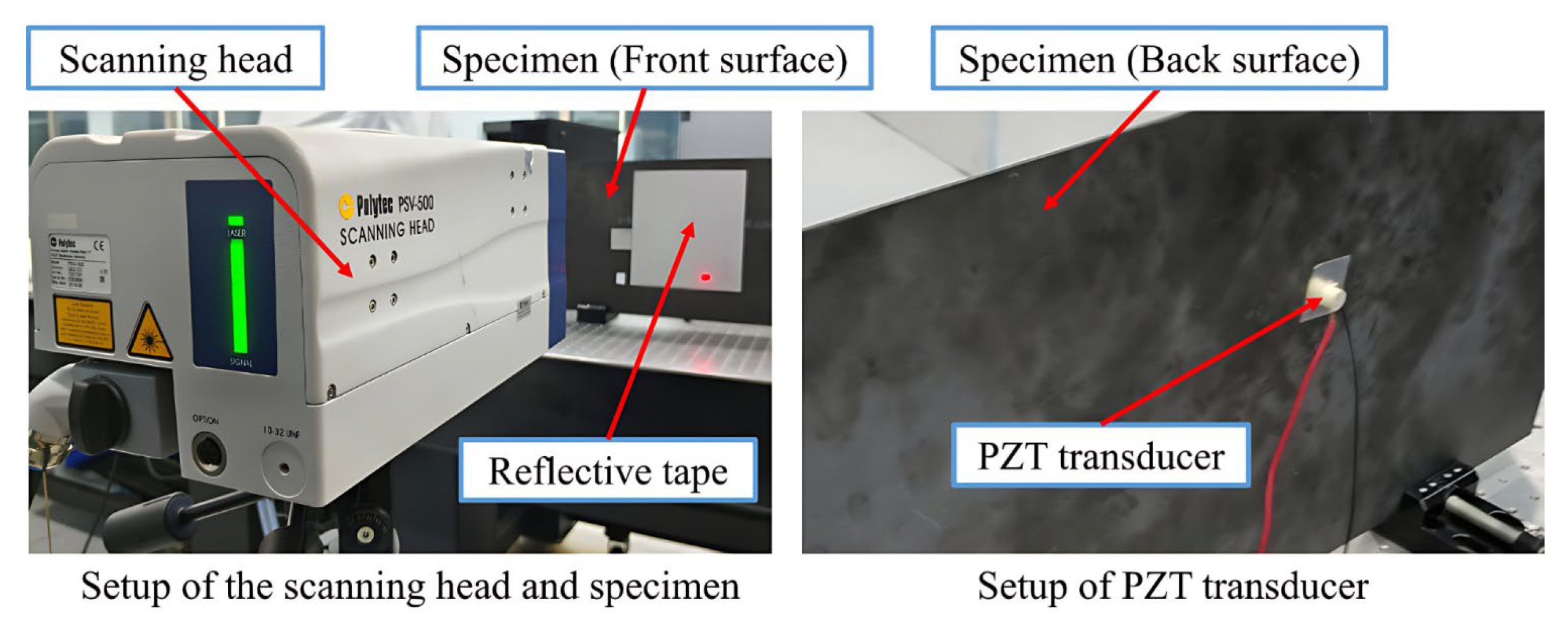

4.4. Experimental Test

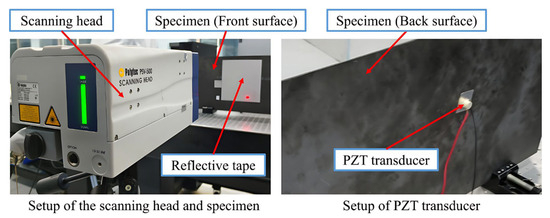

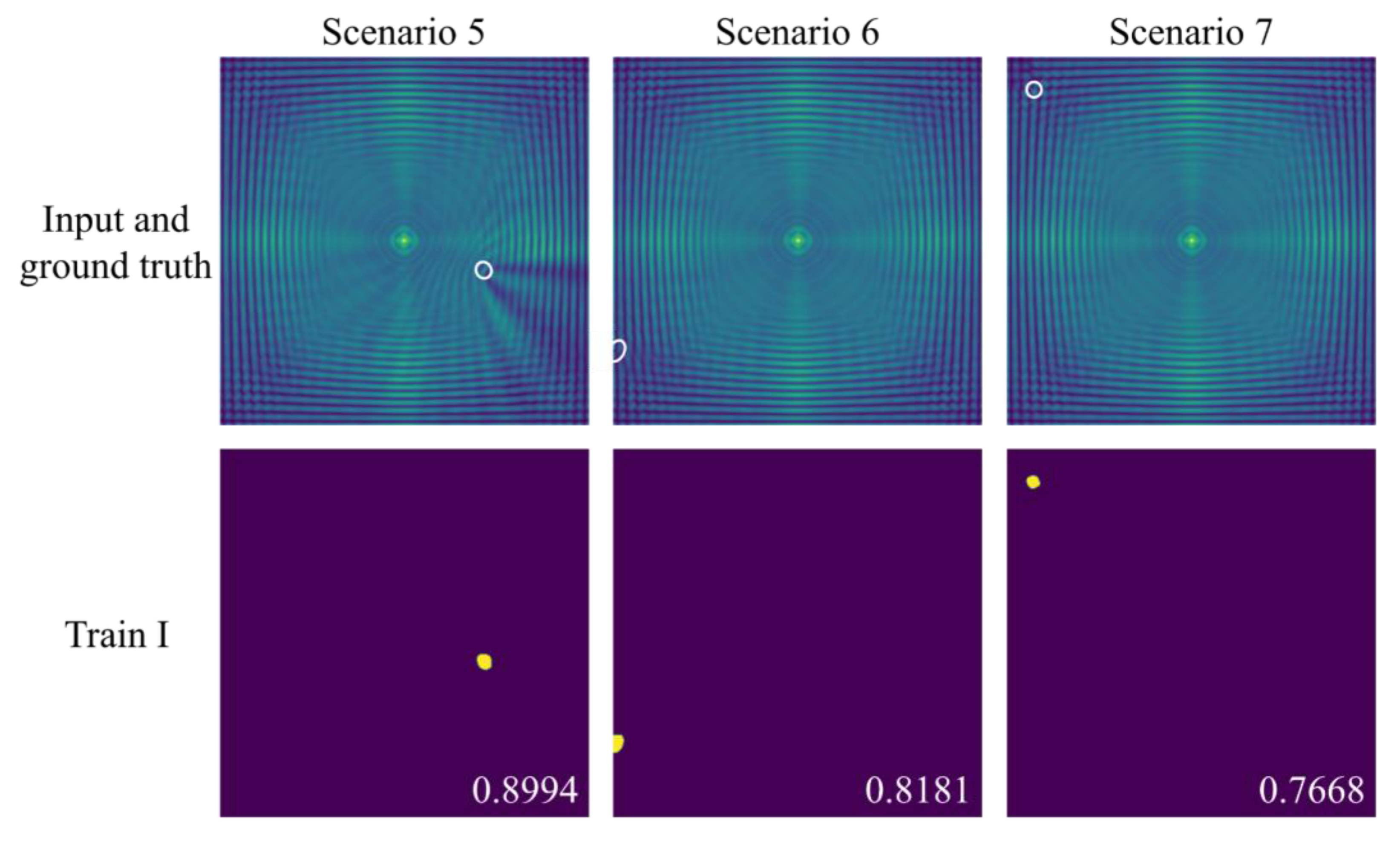

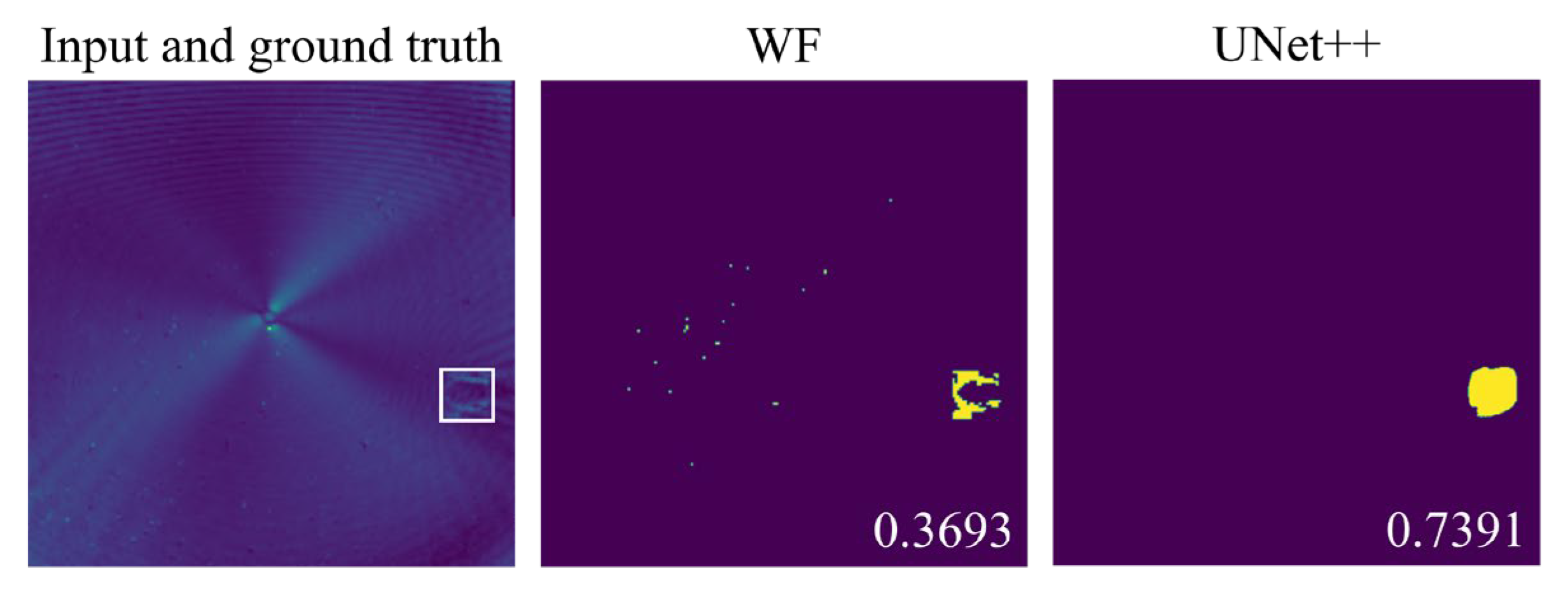

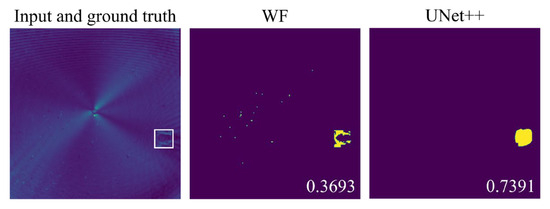

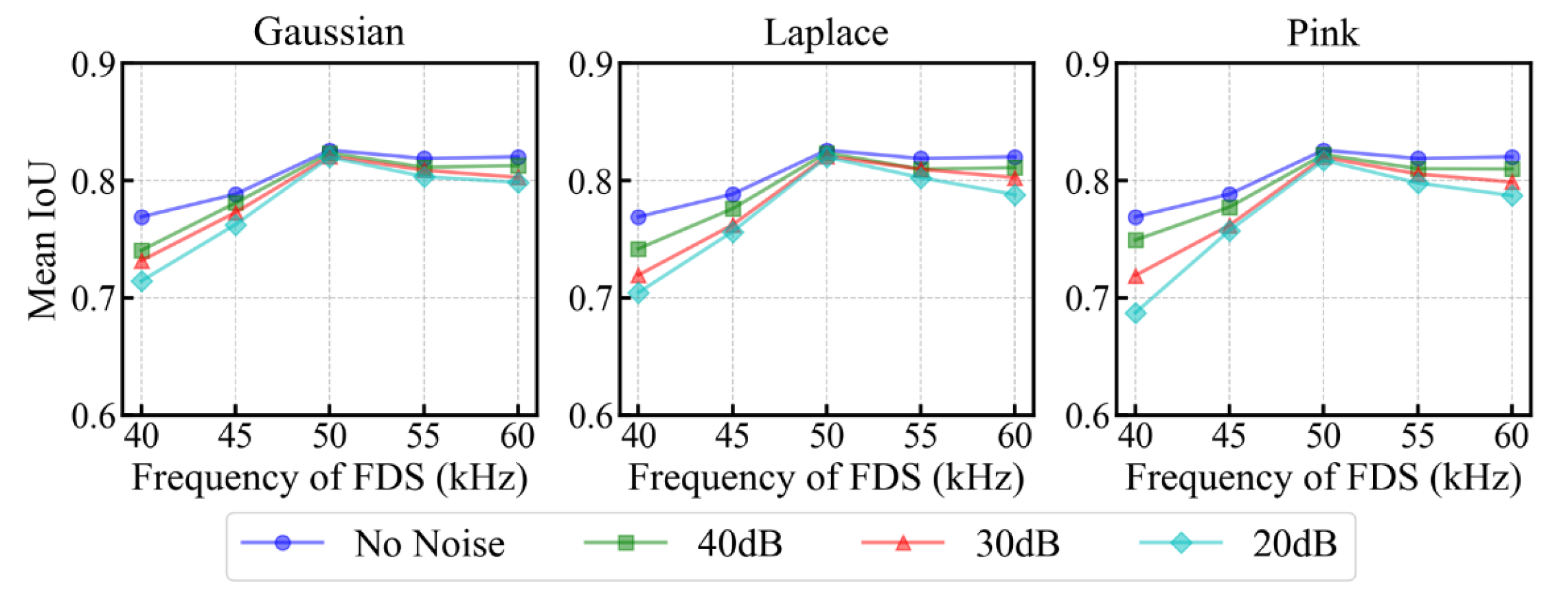

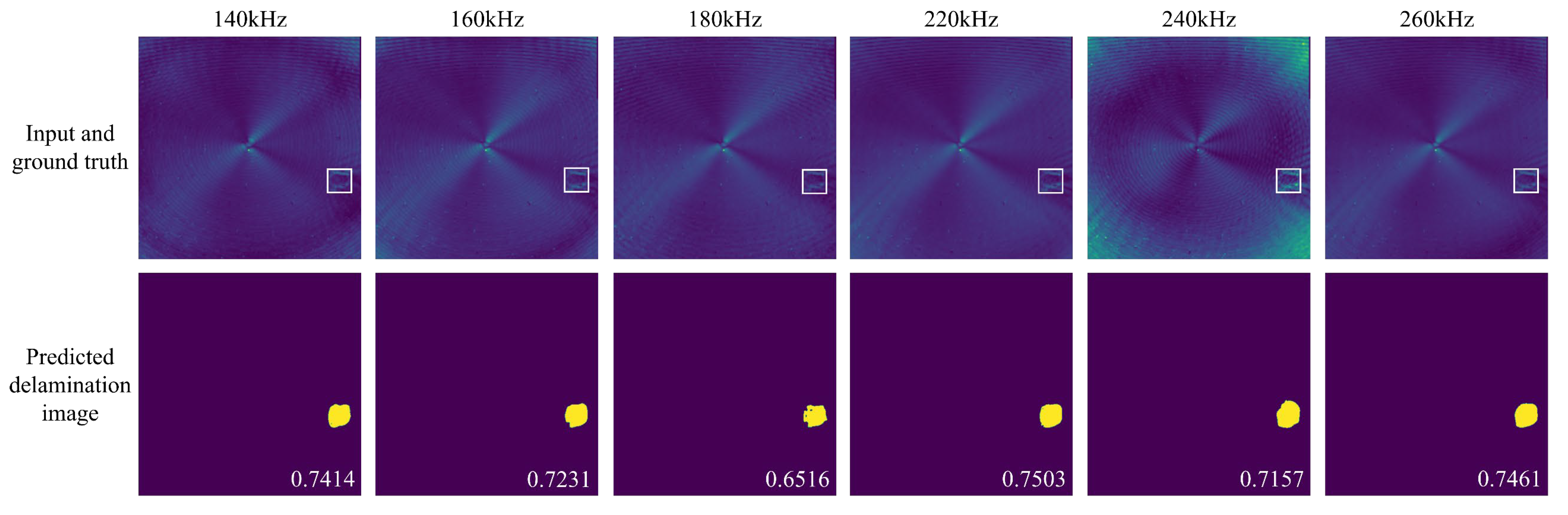

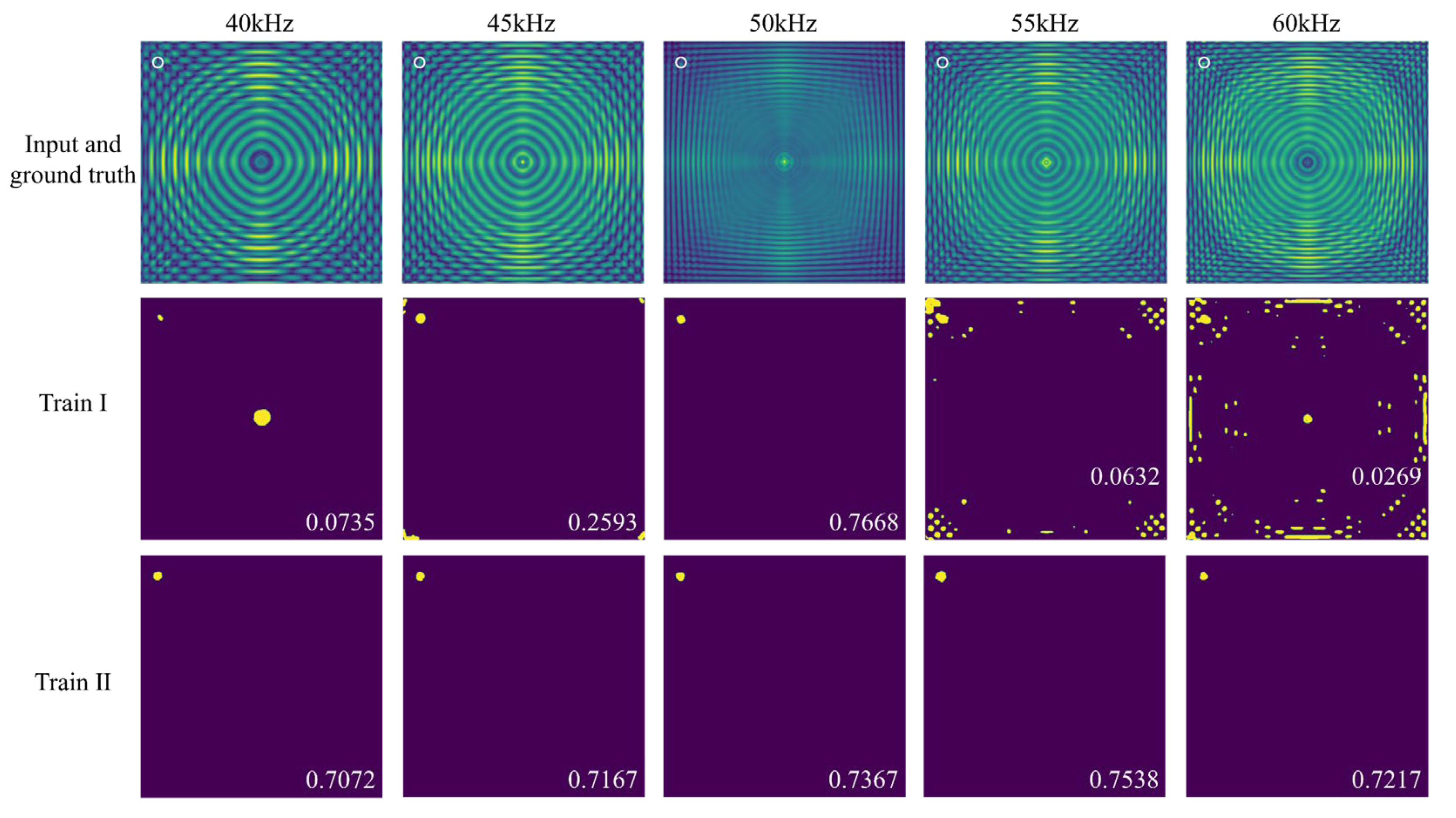

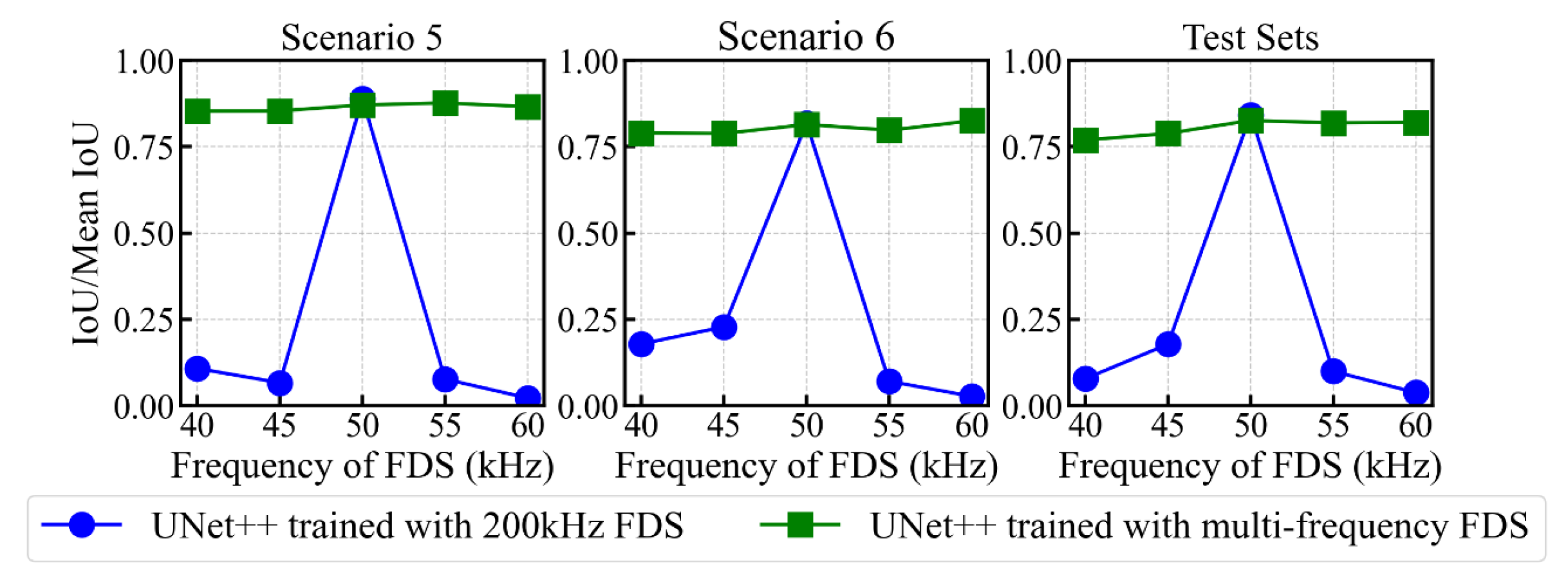

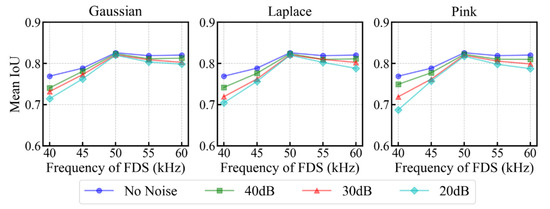

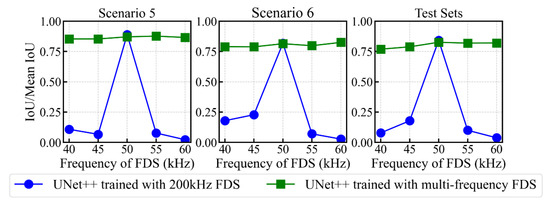

4.5. Generalization on Another Dataset
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
