A Galvanic Sensor for Monitoring the Corrosion Condition of the Concrete Reinforcing Steel: Relationship Between the Galvanic and the Corrosion Currents

by
Elsa Vaz Pereira
1,
Rita Bacelar Figueira
1,
Maria M. Lemos Salta
1 and
Inês T Elias Da Fonseca
2,*
1
Laboratório Nacional de Engenharia Civil (LNEC), Av. do Brasil 101, 1700-066 Lisboa, Portugal
2
Centro de Ciências Moleculares e Materiais (CCMM), DQB, Faculdade de Ciências, Universidade de Lisboa, Campo Grande Ed.C8, 1749-016 Lisboa, Portugal
*
Author to whom correspondence should be addressed.
Sensors 2009, 9(11), 8391-8398; https://doi.org/10.3390/s91108391
Submission received: 27 August 2009 / Revised: 24 September 2009 / Accepted: 16 October 2009 / Published: 26 October 2009
(This article belongs to the Section Chemical Sensors)

Abstract

:
This work reports a study carried out on the design and performance of galvanic and polarization resistance sensors to be embedded in concrete systems for permanent monitoring of the corrosion condition of reinforcing steel, aiming to establish a correlation between the galvanic currents, Igal, and the corrosion currents, Icorr, estimated from the polarization resistance, Rp. Sensors have been tested in saturated Ca(OH)2 aqueous solutions, under a variety of conditions, simulating the most important parameters that can accelerate the corrosion of concrete reinforcing steel, such as carbonation, ingress of chloride ions, presence or absence of O2. For all the conditions, the influence of temperature (20 to 55 °C) has also been considered. From this study, it could be concluded that the galvanic currents are sensitive to the various parameters following a trend similar to that of the Rp values. A relationship between the galvanic and the corrosion current densities was obtained and the limiting values of the Igal, indicative of the state condition of the reinforcing steel for the designed sensor, were established.

Graphical Abstract

1. Introduction

It is well known that steel passivation in concrete is due to the highly alkaline environment (pH: 12.5 to 13.6). However, steel passivity can be destroyed by local acidification, carbonation, ingress of chloride ions and/or depletion of O2, being the corrosion of reinforcements one of the major causes of the degradation of concrete structures in aggressive environments.
Structural deterioration of reinforced concrete structures affected by corrosion is a gradual process consisting of a few different phases during service life, including corrosion initiation, concrete cracking, excessive deflection and final collapse due to loss of structural strength.
In order to assist the development of reliable models that allow the design of new structures durable in aggressive environments and to establish rational maintenance and repair strategies of reinforced concrete structures affected by reinforcement corrosion, various systems for permanently monitoring the corrosion on site have been developed [1-12].
As well documented by Elsener [13] and others [14-20], electrochemical techniques (i.e. half-cell potential measurements, polarization resistance, potentiostatic and galvanostatic transients perturbations, electrochemical impedance spectroscopy, noise analysis, multielectrode systems, etc.) offer several advantages for reinforcement corrosion monitoring.
Song and Saraswathy [16] presented an exhaustive and well-documented review on the electrochemical techniques and sensors from the point of view of corrosion assessment and their application to civil engineering structures. McCarter and Vennesland [15] have also reviewed sensor systems for use in reinforced concrete systems. Zheng et al. [21] and Dickerson et al. [22] have published studies on the development of new permanent corrosion monitoring systems that provide relevant information on the rate of degradation of reinforced concrete in aggressive environments.
In the corrosion initiation period, when the aggressive agents penetrate the concrete cover until reaching the steel, the most relevant parameter is the chloride content, with the corrosion rate being identified as the most relevant parameter in the corrosion propagation period, during which the rebar corrodes until a maximum tolerable level of damage is reached [23].
Reinforcement corrosion rate has been evaluated continuously mainly by galvanic current and polarization resistance measurements. Galvanic macrocell sensors consisting of two dissimilar metals based on the well-known principles of galvanic corrosion were first proposed by Schiessl and Raupach [2]. The capability of these sensors to detect the initiation of corrosion is well-documented [2,3,7], however few studies have been performed on the ability of those sensors to estimate the instantaneous corrosion rate of the reinforcements [14,24].
A galvanic and a polarization resistance sensor to be embedded in concrete systems has been designed and built and its performance tested first in the laboratory, in solutions simulating concrete under aggressive conditions, and thereafter in new and repaired concrete for the evaluation of different surface treatments [5,25].
This paper reports a study on the developed sensors tested in saturated Ca(OH)2 aqueous solutions, under a variety of conditions simulating the most important parameters that can influence the corrosion of concrete reinforcing steel, such as carbonation leading to decreases of pH, ingress of chloride ions and the presence or absence of O2. For all the conditions, the influence of time and temperature (25 to 55 °C) has also been considered. A relationship between the galvanic currents and the corrosion rates of reinforcing steel, under a great variety of controlled laboratorial conditions, was established.
As emphasized by Martinez and Andrade in a recent paper [9], very few studies have been published on the in-situ monitoring of the corrosion rate, under the influence of natural climatic conditions. In fact, as it is well recognized by the authors, the environment at the surface of a rebar embedded in concrete can be significantly different from that seen under controlled laboratory conditions. Another study is now in progress, aiming to test and/or improve the established relationship between the galvanic currents and the corrosion rates of reinforcing steel, in concrete samples and in reinforced structures, using the developed sensors and external probes to measure the corrosion rate of the embedded rebar, under natural climatic conditions.

2. Experimental

Two electrodes compose the galvanic sensor, Igal, the working electrode made of carbon steel and a stainless steel counter electrode [see Figure 1(a)]. The polarization resistance sensor, Rp, presents a third electrode – an activated Ti wire acting as reference electrode [see scheme in Figure 1(b)]. These types of sensors can be used either in solution or in embedded concrete. The chemical composition of the reinforcing steel and of the stainless steel is given in Table 1.
Saturated Ca(OH)2 aqueous solution, pH = 12.5, was used and then successively modified by bubbling CO2, followed by chloride ions addition (3%) and finally N2 bubbling for the removal of the dissolved O2. For each condition, different temperatures, ranging between 20 and 55 °C, have been considered. Figure 2 presents the scheme of the experimental conditions (C1 to C4).
For each condition (C1 to C4), six Rp sensors and six Igal sensors were used. The polarization resistance, Rp, was evaluated using the potentiostatic pulse method [5,20] with the polarization resistance, Rp, calculated from the transients due to the application of a 10 mV anodic potential step for 100 s. The Rp measurements were performed periodically. A Voltalab PGZ 301 potentiostat was used, while the galvanic currents were acquired automatically every hour, using a data acquisition system, Datataker DT505. The temperature was controlled with a Hanna Instrument — HI 92840 C. All sensors were immersed in a closed PVC cell, under thermostatic conditions (see Figure 3).

3. Results and Discussion

Figure 4 is a graphic representation of the average Igal values of the steel working electrode, under the following experimental conditions: C1: satd. Ca(OH)2 solution, pH 12.5; C2: satd. Ca(OH)2 + CO2, pH 9.5; C3: satd. Ca(OH)2 + CO2 + 3% Cl; C4: satd. Ca(OH)2 + CO2 + 3% Cl- + N2 (O2 depletion). For each condition, temperatures of 25, 35 and 55 °C have been set and the corresponding measurements have been performed.
For the steel in the passive state (condition C1), Igal values < 0.1 nA cm−2 were obtained and no variation of Igal with temperature was noticed. As the pH was lowered to 9.5 (condition C2), a passivity breakdown occurred and the process was sensitive to the temperature. A similar behavior was shown for the measurements corresponding to conditions C3 and C4 (Igal rises with temperature). As expected, due to formation of the oxides in the working electrode surface, a decrease of Igal with time was observed for conditions C2, C3 and C4.
Figure 5 gives the measured Igal and the Icorr values estimated with the Rp and the Stern — Geary Equation: Icorr = B/Rp with B equal to 26 and 52 mV, used for the conditions of the passive and active state, respectively [20].
Data show a similar trend of both values, in spite of its magnitude. It should be noted that the values of Igal are currents related with the galvanic process, without further perturbation (free corrosion), while Icorr are currents resulting from small polarization. Figure 6 presents log Igal vs. log Icorr plot, in order to obtain a relationship between both parameters. An almost linear relationship between log Icorr and log Igal, with a slope of ca 1.0, was obtained. The straight line in Figure 6 is described by the Equation: log Icorr (A cm−2) = 1.2 log Igal (A cm-2) + 4.5, with r2 =0.957, which means: Icorr ≈ 109/2 Igal6/5.
Corrosion current densities lower than 0.1 μA cm−2 have been reported as indicative of the reinforcing steel passive state, while currents higher than 1 μA cm−2 have been identified as corresponding to high corrosion rates [20,26]. If the relation Icorr ≈ 109/2 Igal 6/5 was applied to these values, equivalent limiting values using the galvanic currents measured with the proposed sensor could also be tentatively established. The corresponding values are given in Table 2.

4. Conclusions

In this work simple polarization resistance and galvanic sensors, suitable for embedding in concrete for the continuous monitoring of corrosion, were designed and tested in saturated Ca(OH)2 aqueous solutions, carbonated, with chloride addition and with O2 depletion, simulating the concrete pore solution.
All values corresponding to the conditions tested in this study have shown to obey the following relationship: Icorr ≈ 109/2 Igal 6/5. Taking it into account the limits of Igal corresponding to the Icorr values defined in the literature, the values indicative of the condition of the reinforcing steel could be established as Igal < 0.14 nA cm−2 corresponding to Icorr < 0.10 μA cm−2, indicative of the passive condition, and Igal > 1 nA cm−2 corresponding to Icorr > 1 μA cm−2, indicative of the high corrosion rate.
The sensors have been tested in concrete pore solution under a great variety of controlled experimental conditions, and the limiting values of the Igal, indicative of the state condition of the corrosion state of the reinforcing steel, were established. In order to test the developed sensors and the correlation between Igal and Icorr for the estimation of the corrosion rate in real systems, under the climatic conditions, studies in concrete samples and in reinforced structures are presently in progress, using the developed sensors and external probes to measure the corrosion rate of the embedded rebar.

Acknowledgments

The financial support of FCT and FEDER through the program POCI 2010 (Project POCI/ECM/55692/2004) is grateful acknowledged. Financial support from “Fundação para a Ciência e Tecnologia” to “Centro de Ciências Moleculares e Materiais” is also grateful acknowledged.

References

  1. Gurusamy, K.; Geoghegan, M. Corrosion of Reinforcement in Concrete; Page, C.L., Tredaway, K., Bamforth, B.P., Eds.; SCI, Elsevier Applied Science: New York, NY, USA, 1990; p. 333. [Google Scholar]
  2. Schießl, P.; Raupach, M. Monitoring system for the corrosion risk of steel in concrete structures. Concr. Int. 1992, 7, 52–55. [Google Scholar]
  3. Raupach, M. Chloride-induced macrocell corrosion of steel in concrete—theoretical background and practical consequences. Constr. Build. Mater. 1996, 10, 329–338. [Google Scholar]
  4. Climent-Llorca, M.A.; Viqueira-Pèrez, E.; López-Atalaya, M.M. Embeddable Ag/AgCl sensors for in-situ monitoring chloride contents in concrete. Cem. Concr. Res. 1996, 26, 1157. [Google Scholar]
  5. Pereira, E. Corrosion Monitoring in Reinforced Concrete. PhD Thesis, University of Lisboa, Lisbon, Portugal, 2004. [Google Scholar]
  6. Montemor, F.; Alves, J.; Simões, A.; Fernandes, J.; Lourenço, Z.; Costa, A.; Appleton, A.; Ferreira, M.G. Multiprobe chloride sensor for in-situ monitoring of reinforced concrete structures. Cem. Concr. Compos. 2006, 28, 233–236. [Google Scholar]
  7. Schiessl, P. Effectiveness of coatings. Proceedings of International Conference on Repair of Concrete Structures – From theory to practice in a marine environment, Svolver, Norway, May 20–30, 1997; p. 433.
  8. Correia, M.J.; Pereira, E.V.; Salta, M.M.; Fonseca, I. Sensor for oxygen evaluation in concrete. Cem. Concr. Compos. 2006, 28, 226–232. [Google Scholar]
  9. Martinez, I.; Andrade, C. Example of reinforcement corrosion monitoring by embedded sensors in concrete structures. Cem. Concr. Compos. 2009, 31, 454–554. [Google Scholar]
  10. Bassler, R.; Mietz, J.; Raupach, M.; Klinghoffer, O. Corrosion monitoring sensors for durability assessment of reinforced concrete structures. Proc. SPIE 2000, 3988, 32–39. [Google Scholar]
  11. Broomfiled, J.; Davies, K.; Hladky, K. The use of permanent corrosion monitoring in new and existing reinforced concrete structures. Cem. Concr. Compos. 2002, 24, 27–34. [Google Scholar]
  12. Kumar, K.; Muralidharan, S.; Manjula, T.; Karthikeyan, M.S.; Palaniswamy, N. Sensor systems for corrosion monitoring in concrete structures. Sens. Trans. Mag. 2006, 67, 553–560. [Google Scholar]
  13. Elsener, B. Corrosion rate on reinforced concrete structures determined by electrochemical methods. Mater. Sci. Forum 1995, 192–194, 857–866. [Google Scholar]
  14. Yoo, J.H.; Park, Z.T.; Kim, J.G.; Chung, L. Development of a galvanic sensor system for detecting the corrosion damage of the steel embedded in concrete structure: Part 2. Laboratory electrochemical testing of sensors in concrete. Cem. Concr. Res. 2003, 33, 2057–2062. [Google Scholar]
  15. McCarter, W.J.; Vennesland, O. Sensor system for use in reinforced concrete structures. Constr. Build. Mater. 2004, 18, 351–358. [Google Scholar]
  16. Song, H.W.; Saraswathy, V. Corrosion monitoring of reinforced concrete structures — a review. Int. J. Electrochem. Sci. 2007, 2, 1–28. [Google Scholar]
  17. Islam, M.; Daily, S.F. Use of Electrochemical techniques to assess performance of corrosion protection systems for reinforced concrete structures — a review. J. ASTM Int. 2006, 3, 1546–1557. [Google Scholar]
  18. Leelalerkiet, V.; Shimizu, T.; Tomoda, Y.; Ohtsu, M. Estimation of corrosion in reinforced concrete by electrochemical techniques and acoustic emission techniques. J. Adv. Concr. Technol. 2005, 3, 137–147. [Google Scholar]
  19. Smulko, J.M.; Darowicki, K.; Zieliñski, A. Evaluation of reinforcement corrosion rate in concrete structures by electrochemical noise measurements. Russ. J. Electrochem. 2006, 42, 548–552. [Google Scholar]
  20. Andrade, C.; Alonso, C. Corrosion monitoring in the laboratory and on–site. Constr. Build. Mater. 1996, 10, 315–328. [Google Scholar]
  21. Zheng, Z.; Sun, X.; Lei, Y. Monitoring corrosion of reinforcement in concrete structures via fiber Bragg grating sensors. Front. Mech. Eng. China 2009, 4, 316–319. [Google Scholar]
  22. Dickerson, N.; Simonen, J.; Andriga, M.; Wood, S.; Neikirk, D. Wireless low-cost corrosion sensors for reinforced concrete structures. Proc. SPIE 2005, 5765, 1166. [Google Scholar]
  23. Christensen, P.T. Stochastic modeling of the crack initiation time for reinforced concrete structures. Proceedings of ASCE 2000 Structures Congress,, Philadelphia, PA, USA, USA, May 8–10, 2000.
  24. Park, T.; Choy, Y.S.; Kim, J.G.; Chung, L. Development of a galvanic sensor for detecting the corrosion damage of the steel embedded in concrete structures. Part 2. Laboratory electrochemical testing of sensors in concrete. Cem. Concr. Res. 2005, 35, 1814–1819. [Google Scholar]
  25. Figueira, R.; Pereira, E.V.; Salta, M.M.; Fonseca, I.T.E. Long-term efficiency of two organic inhibitors for reinforced concrete. Mater. Sci. Forum 2008, 587–588, 677–681. [Google Scholar]
  26. Raupach, M. Models for the propagation phase of reinforcement corrosion - an overview. Mater. Corros. 2006, 57, 605–613. [Google Scholar]

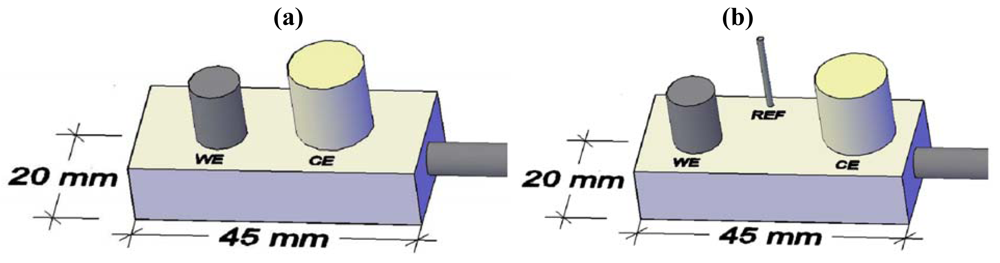

Figure 1. Schemes of the two sensors: (a) galvanic sensor: WE (steel); CE (stainless steel); (b) polarization resistance sensor; WE (steel); CE (stainless steel), RE (Ti/TiO2).
Figure 1. Schemes of the two sensors: (a) galvanic sensor: WE (steel); CE (stainless steel); (b) polarization resistance sensor; WE (steel); CE (stainless steel), RE (Ti/TiO2).
Sensors 09 08391f1
Figure 2. Scheme of the experimental conditions.
Figure 2. Scheme of the experimental conditions.
Sensors 09 08391f2

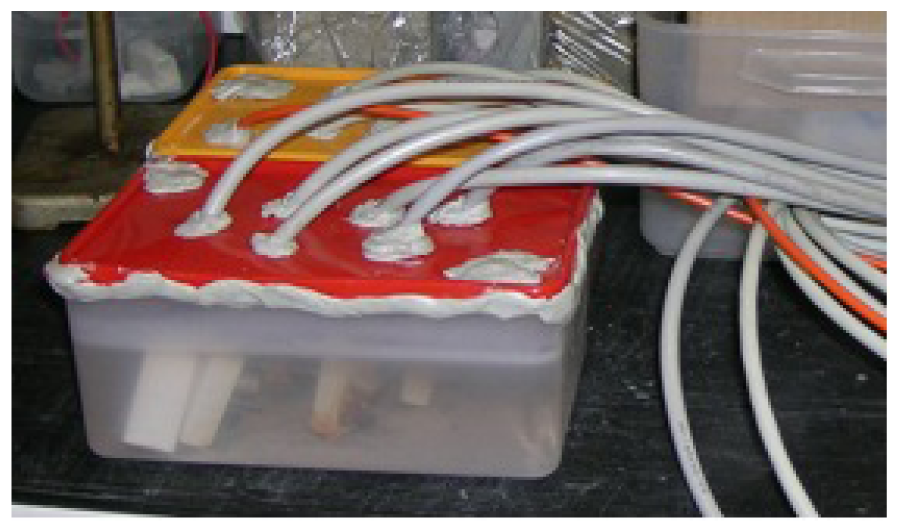

Figure 3. Photo of the PVC cell with the 12 sensors immersed in a thermostated solution.
Figure 3. Photo of the PVC cell with the 12 sensors immersed in a thermostated solution.
Sensors 09 08391f3

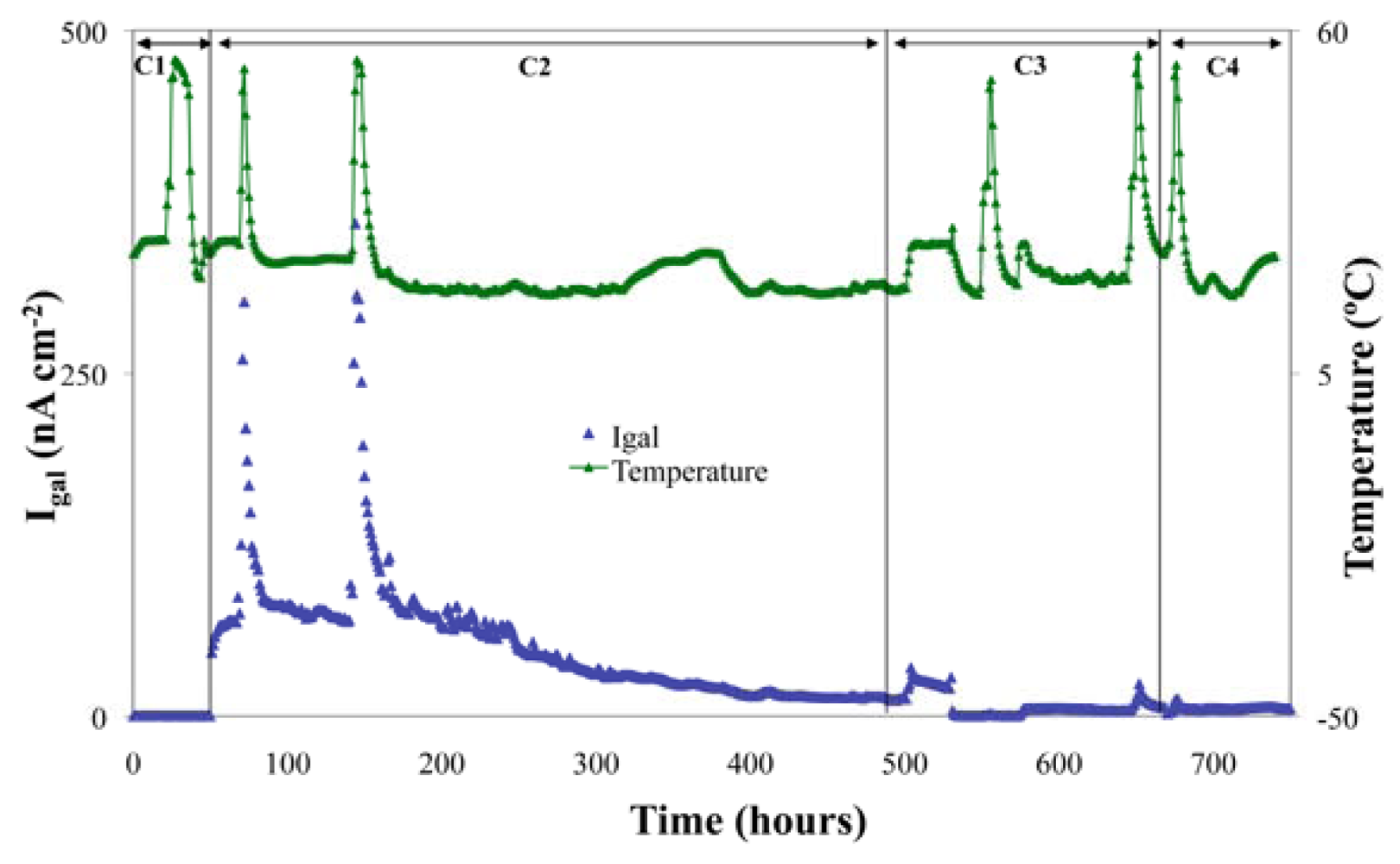

Figure 4. Igal and temperature vs. immersion time for the conditions C1 to C4.
Figure 4. Igal and temperature vs. immersion time for the conditions C1 to C4.
Sensors 09 08391f4
Figure 5. Igal and Icorr as a function of immersion time, under the conditions C1 to C4.
Figure 5. Igal and Icorr as a function of immersion time, under the conditions C1 to C4.
Sensors 09 08391f5

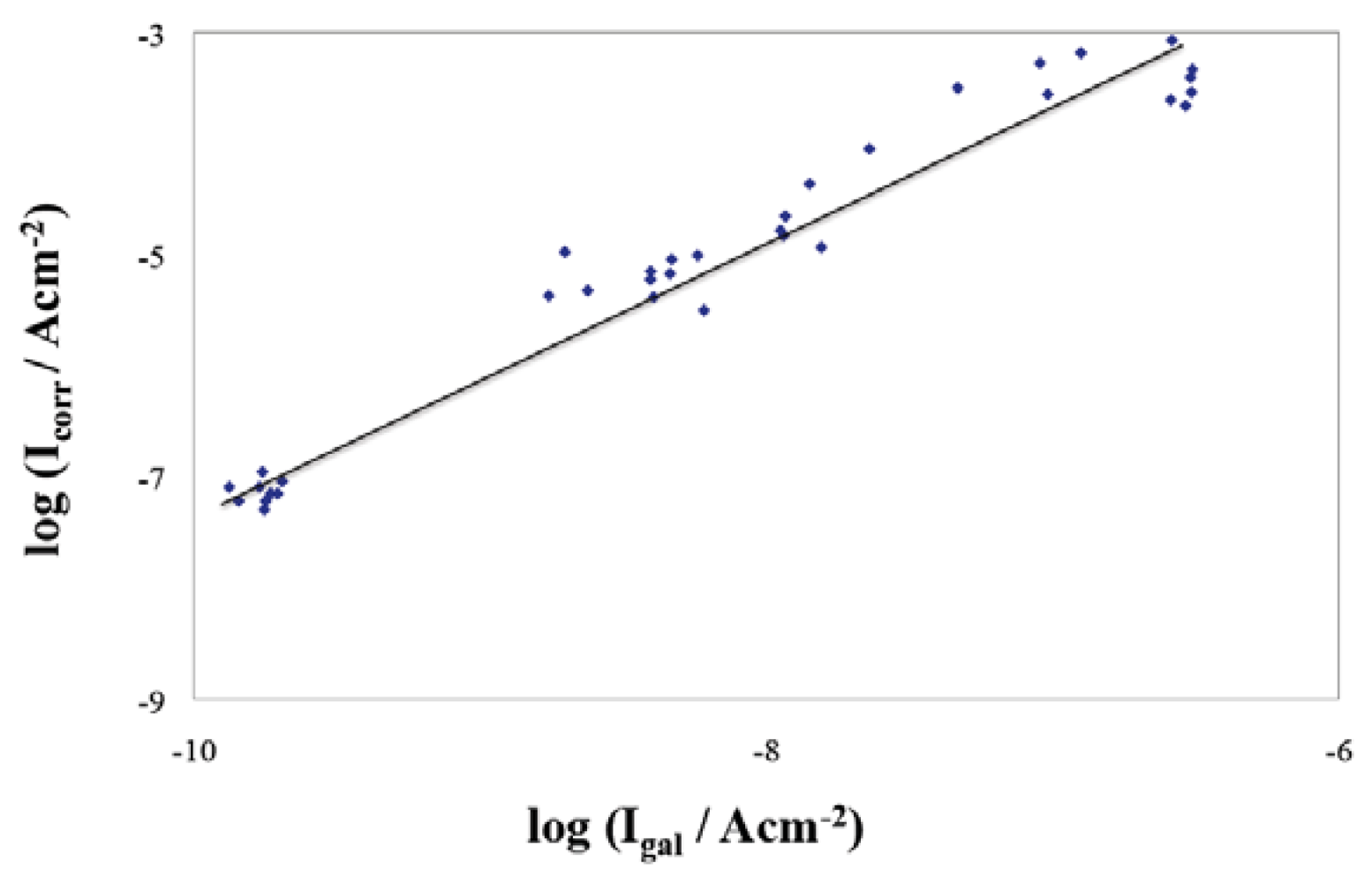

Figure 6. log Igal vs. log Icorr plot.
Figure 6. log Igal vs. log Icorr plot.
Sensors 09 08391f6
Table 1. Chemical composition of the carbon steel and of the stainless steel.
Table 1. Chemical composition of the carbon steel and of the stainless steel.
Elements in %CSiMnPSCrMoNiCuVWNFe
Stainless steel0.030.420.030.03172110.50.060.030.05<68
Carbon steel0.10.20.60.020.030.10.020.20.50.0020.020.0298
Table 2. Values of Igal corresponding to the standard values of Icorr, indicative of the steel corrosion condition.
Table 2. Values of Igal corresponding to the standard values of Icorr, indicative of the steel corrosion condition.
Steel conditionIcorr
(μA cm−2)
Igal
(nA cm−2)
passive state<0.1<0.14
high active corrosion>1>1
