Review

Mannose-Specific Lectins from Marine Algae: Diverse Structural Scaffolds Associated to Common Virucidal and Anti-Cancer Properties

by
Annick Barre
1,
Mathias Simplicien
1,
Hervé Benoist
1,
Els J.M. Van Damme
2 and
Pierre Rougé
1,*
1
Institut de Recherche et Développement, Faculté de Pharmacie, UMR 152 PharmaDev, Université Paul Sabatier, 35 Chemin des Maraîchers, 31062 Toulouse, France
2
Department of Biotechnology, Faculty of Bioscience Engineering, Ghent University, Coupure links 653, B-9000 Ghent, Belgium
*
Author to whom correspondence should be addressed.
Mar. Drugs 2019, 17(8), 440; https://doi.org/10.3390/md17080440
Submission received: 1 July 2019 / Revised: 23 July 2019 / Accepted: 24 July 2019 / Published: 26 July 2019
Browse Figures
Versions Notes

Abstract

:
To date, a number of mannose-specific lectins have been isolated and characterized from seaweeds, especially from red algae. In fact, man-specific seaweed lectins consist of different structural scaffolds harboring a single or a few carbohydrate-binding sites which specifically recognize mannose-containing glycans. Depending on the structural scaffold, man-specific seaweed lectins belong to five distinct structurally-related lectin families, namely (1) the griffithsin lectin family (β-prism I scaffold); (2) the Oscillatoria agardhii agglutinin homolog (OAAH) lectin family (β-barrel scaffold); (3) the legume lectin-like lectin family (β-sandwich scaffold); (4) the Galanthus nivalis agglutinin (GNA)-like lectin family (β-prism II scaffold); and, (5) the MFP2-like lectin family (MFP2-like scaffold). Another algal lectin from Ulva pertusa, has been inferred to the methanol dehydrogenase related lectin family, because it displays a rather different GlcNAc-specificity. In spite of these structural discrepancies, all members from the five lectin families share a common ability to specifically recognize man-containing glycans and, especially, high-mannose type glycans. Because of their mannose-binding specificity, these lectins have been used as valuable tools for deciphering and characterizing the complex mannose-containing glycans from the glycocalyx covering both normal and transformed cells, and as diagnostic tools and therapeutic drugs that specifically recognize the altered high-mannose N-glycans occurring at the surface of various cancer cells. In addition to these anti-cancer properties, man-specific seaweed lectins have been widely used as potent human immunodeficiency virus (HIV-1)-inactivating proteins, due to their capacity to specifically interact with the envelope glycoprotein gp120 and prevent the virion infectivity of HIV-1 towards the host CD4+ T-lymphocyte cells in vitro.

1. Introduction

Lectins have been identified as sugar-binding proteins, in all groups of living organisms including plants, animals, fungi and bacteria, and even in viruses and mycoplasms. Depending on their broad sugar-binding specificity, they have been classified as mannose-, galactose-, N-acetyl-glucosamine-, fucose- and sialic acid-binding lectins, according to the simple sugars that inhibit their carbohydrate-binding properties. In fact, only a few lectins are not inhibited by simple sugars since they only recognize complex glycan chains [1]. Another classification system of lectins in twelve different families is based on the structural organization of the lectin domains, irrespective of their sugar-binding specificities [2].
Compared to other plant and animal man-specific lectins, not much attention has been paid to man-specific seaweed lectins, with the exception of griffithsin, a man-specific lectin isolated from the red alga Griffithsia sp. [3], owing to its outstanding anti-human immunodeficiency virus (HIV) properties. Like other man-specific lectins, griffithsin specifically recognize some of the high-mannose N-glycans exposed at the surface of gp120, thus interfering with the recognition of gp120 by the CD4+ T lymphocytes. In fact, the association of three gp120-gp41 tandems forms the HIV-1-envelope spike, which facilitates HIV-1 entry into cells. The Env spike of HIV-1 consists of a transmembrane trimer of gp41 associated to an extracellular trimer of gp120, offering exposed high-mannose glycans to the CD4 recognition process (see Section 6.1). In addition to griffithsin, other man-specific lectins belonging to different groups of algae including Rhodophyta (red algae), Pheophyceae (brown algae), Xanthophyceae (yellow-green algae), and Chlorophyta (green algae), have been identified and characterized, particularly with respect to their anti-HIV properties [4,5]. In addition to their affinity for high-mannose glycans, both cloning and structural information have become available for a few seaweed lectins.
The present review presents an exhaustive overview on the structure-function relationships of man-specific lectins from seaweeds, particularly in relation with their potential biomedical applications as anti-HIV and anticancer agents.

2. Diversity of Mannose-Binding Lectins in Seaweeds

Mannose-specific lectins have been identified in almost all the different families of higher plants belonging to monocot and dicot groups [6]. In addition to higher plant lectins, other man-specific lectins were found in lower plant species, algae and mushrooms [7]. To date, however, a still discrete number of alga species were successfully investigated with the aim of identifying and characterizing man-specific lectins, susceptible to be used as relevant biomarkers for HIV gp120 and cancer high-mannose glycoforms. In this respect, red algae or Rhodophyta, appear as the most promising source for man-specific lectins (Table 1).

3. Structural Scaffolds of the Man-Specific Seaweed Lectins

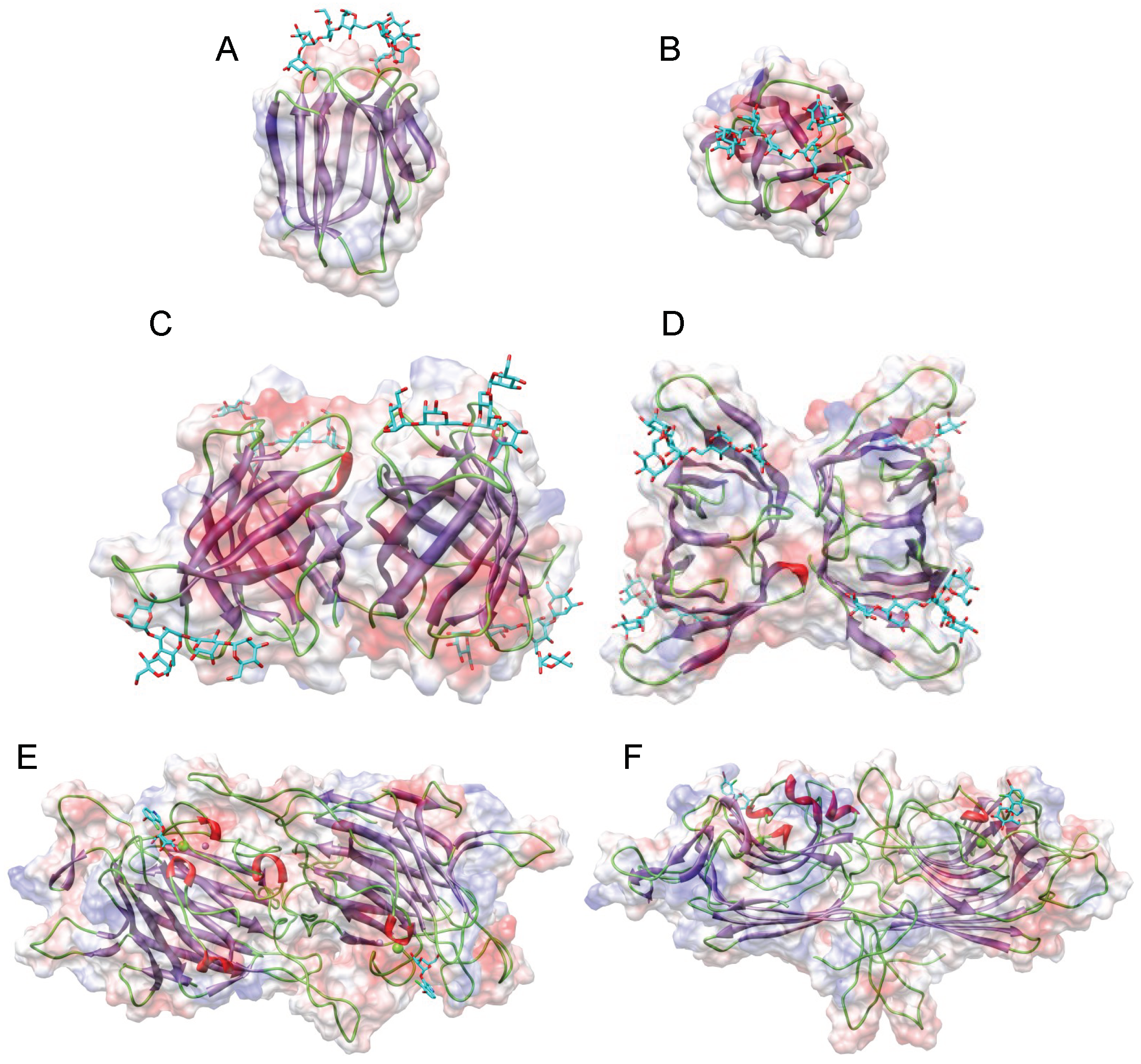

Mannose-specific lectins from seaweeds essentially belong to four distinct structural scaffolds corresponding to monomeric structures that occur as single carbohydrate-binding modules or subsequently arrange in homodimeric structures. In addition, complex proteins with different functions occurring in seaweeds contain a lectin domain corresponding to a carbohydrate-binding module (CBM) with man-specificity, e.g., the legume-lectin like domain in the BU14 protein of Porphyra umbilicalis [20].

3.1. Griffithsin

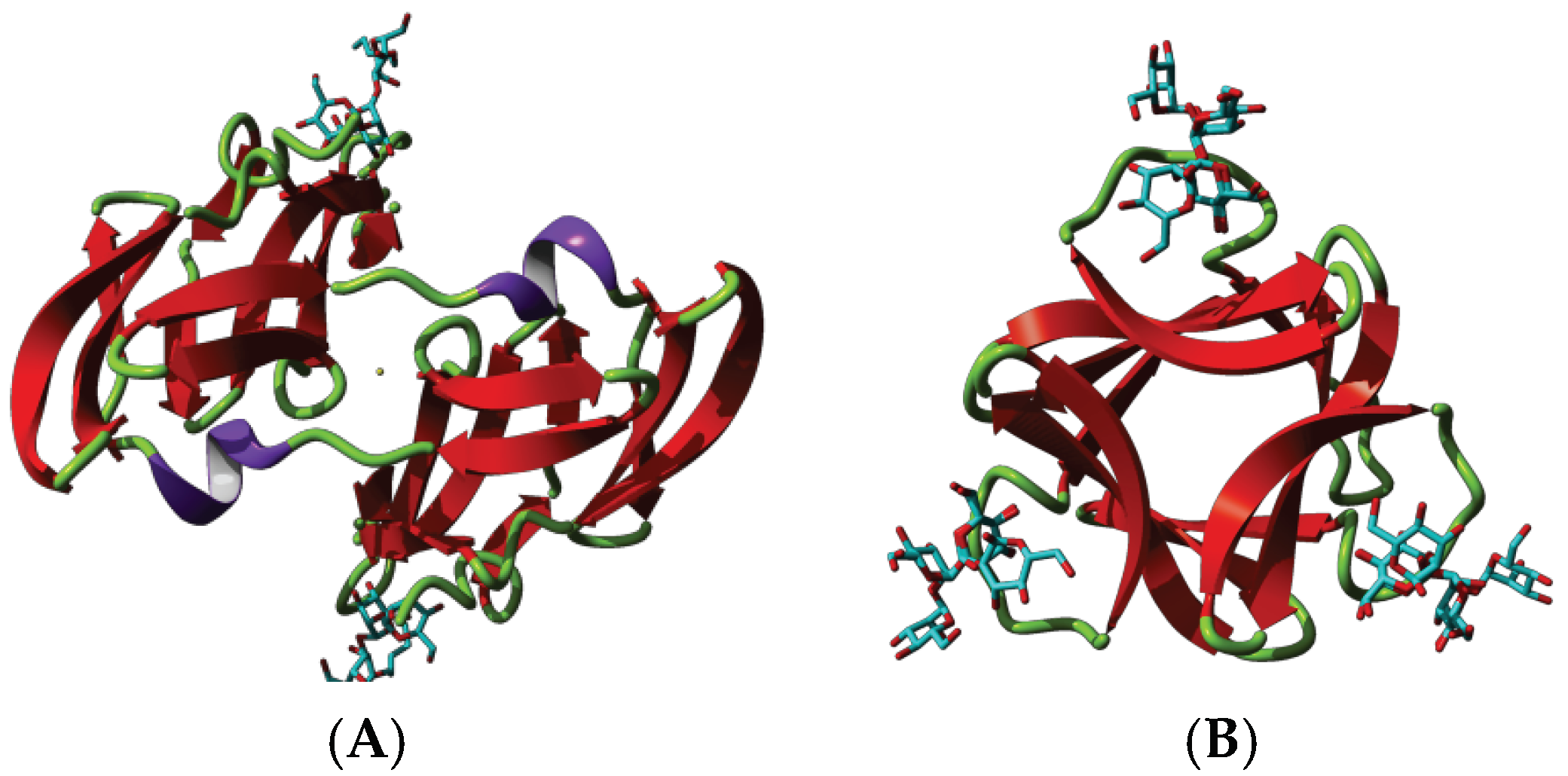

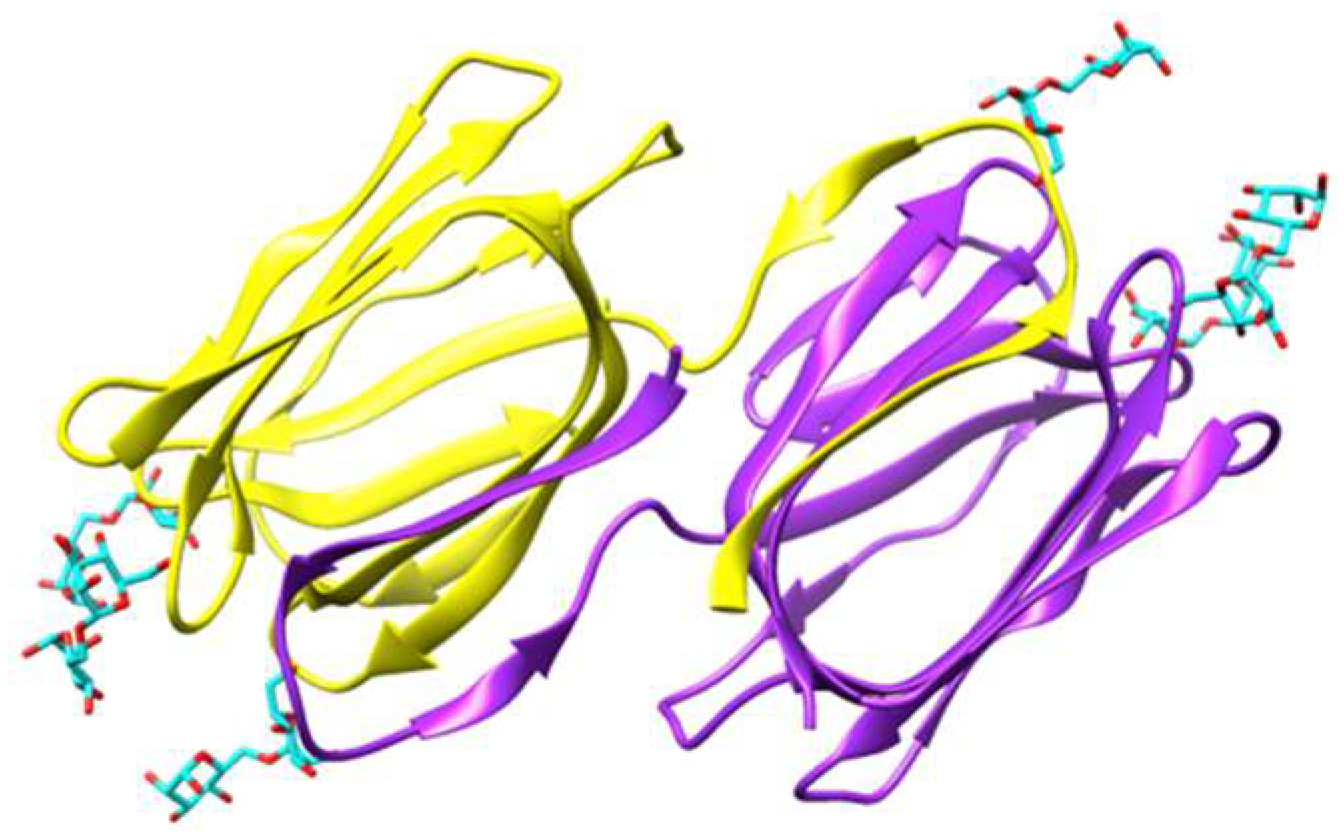

Griffithsin, the man-specific lectin from the red alga Griffithsia sp., was among the first man-specific lectins isolated and characterized from seaweeds [3]. The lectin consists of a single polypeptide chain of 122 amino acids which contains three putative N-glycosylation sites 46NLS, 72NIS and 105NGS. The X-ray crystal structures of griffithsin revealed a β-prism I organization similar to that found in artocarpin [21] and jacalin [22] from the Jackfruit Artocarpus integrifolia, banana lectin [23], and Heltuba from the Jerusalem artichoke Heliantus tuberosus [24] (Figure 1A–C). In fact, the lectin consists of a domain-swapped structure resulting from the symmetrical non covalent arrangement of two identical domains (Figure 2). Three carbohydrate-binding sites (CBS) disposed as a triangle at the edges of the β-prism domain, make the two domain-swapped griffithsin an hexavalent man-specific lectin.

3.2. Oscillatoria Agardhii Agglutinin Homolog (OAAH) Family

The largest phylum of Rhodophyta contains man-specific lectins which possess the Oscillatoria agardhii agglutinin homolog (OAAH) scaffold [25]. The OAAH family comprises the ASL-1 and ASL-2 lectins from Agardhiella subulata [8], EDA-2 and ESA-2 from Eucheuma denticulatum [10], and E. serra [11,12], KAA-2 and KSA-2 from Kappaphycus alvarezeii and K. striatum [13,14], MEL from Meristiella echninocarpa [8], MPA-1 and MPA-2 from Meristotheca papulosa [8], and SfL-1 and SfL-2 .from Solieria filiformis [13]. The so-called OAAH scaffold consists of a single polypeptide chain formed by two repeats of five β-strands, organized in a compact 10-stranded β-barrel structure. Two β-barrels associate perpendicularly to build up the complete molecule (Figure 1C,D). This structural scaffold was first identified in the cyanobacterial Oscillatoria agardhii lectin (PDB code 3OBL) [26,27], and subsequently found in various red algae lectins. Three CBSs occurring at both ends of the OAAH scaffold make all these man-specific red algae lectins with two OAAH scaffolds, tetravalent lectins.

3.3. Legume Lectin-Like Family

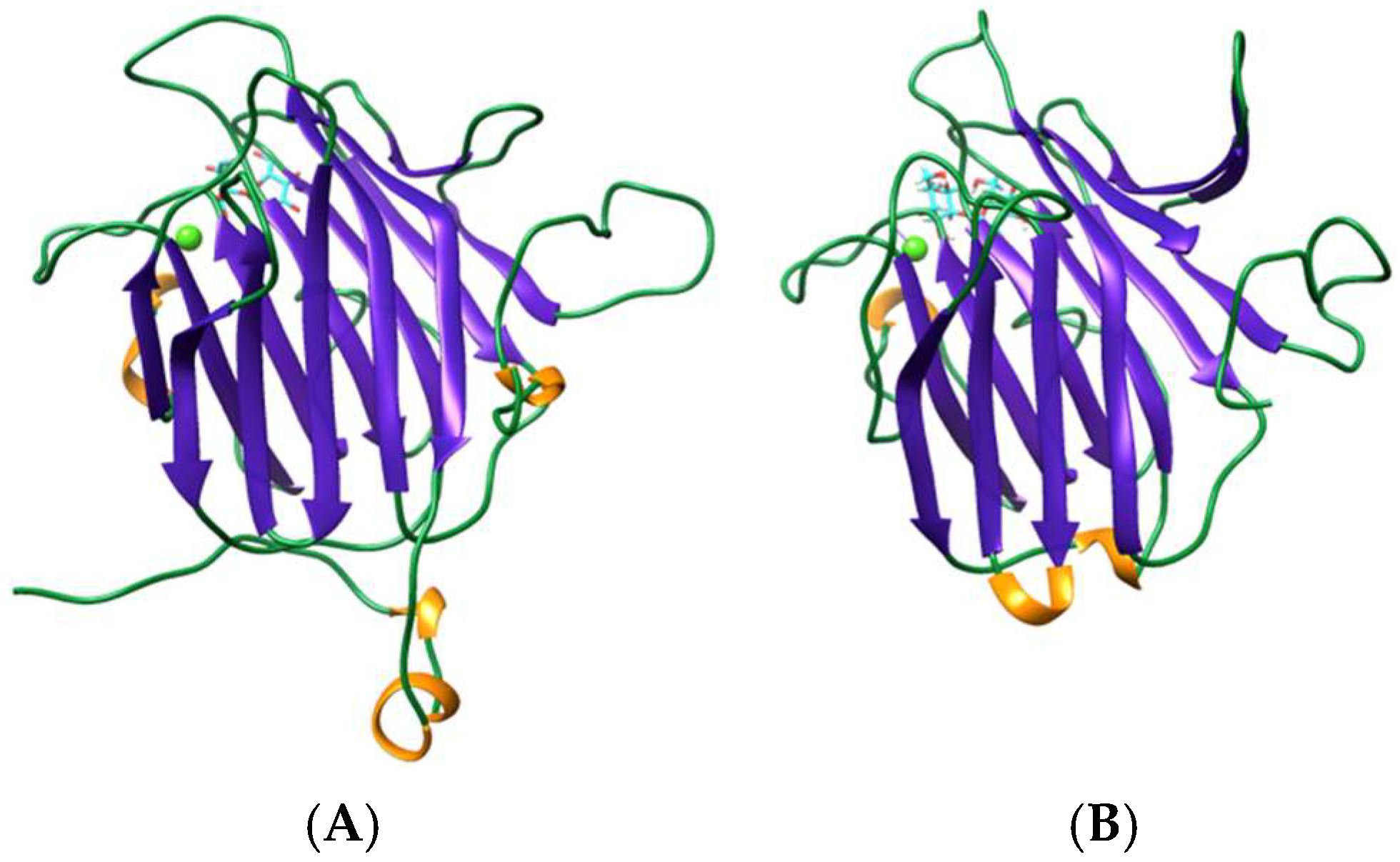

The β-sandwich jelly roll scaffold found in legume lectins (Fabaceae), also occurs in various man-specific lectins from different algae species including the green alga Ostreococcus tauri OtL [17], the brown alga Hydropuntia fisheri HfL, the yellow brown alga Nannochloropsis gaditana NgL [16], and the red alga Porphyra umbilicalis which possesses a BU14 protein containing a typical legume-lectin domain [20] (Table 1). The O. tauri lectin consists of a homodimer resulting from the non-covalent association of two identical protomers. Each protomer consists of a single polypeptide chain organized in two antiparallel β-sheets of six and seven strands, respectively, to form a β-sandwich structure (Figure 1E,F). This three-dimensional organization is reminiscent of the homodimeric lectin from Lathyrus nissolia [28] and L. sphaericus [29] in the viciae tribe of Fabaceae. Red algae lectins differ from other homodimeric two-chain lectins of the Viciae tribe, e.g., pea lectin (Pisum sativum agglutinin PsA) [30], lentil lectin (Lens culinaris agglutinin LcA) [31], yellow vetch lectin (Lathyrus ochrus lectin Lol) [32] (Figure 1B), and the faba bean lectin (Vicia faba agglutinin VfA or favin) [33], which contain protomers cleaved into a light (α) and a heavy (β) chain. However, like other viciae lectins, they possess two identical mannose-binding sites. They also differ from the single-chain legume lectins, which result from the non-covalent association of four protomers to give homotetrameric mannose-binding lectins occurring in the tribes Baphieae (Bowringia mildbraedii agglutinin BMA) [34], Dalbergieae (Centrolobium tomentosum lectin CTL [35], Pterocarpus angolensis lectin PAL [36]), Diocleae (Con A [37], Cymbosema roseum CRL [38], Dioclea grandiflora lectin Con GF [39], and other Dioclea sp. lectins), which exhibit four mannose-binding sites. Other man-specific lectins like HfL from Hydropuntia fisheri, NgL from Nannochloropsis gaditana and the legume-lectin domain of the BU14 protein from Porphyra umbilicalis, more closely resemble the β-sandwich monomeric structure found in the canine ViP36 lectin (PDB code 2DUR) [40] and the rat p58/ERGIC-53 lectin (PDB code 1GV9) [41], which are similarly built up from two β-sheets of six and seven strands of antiparallel β-sheet associated in a β-sandwich structure (Figure 3). In all of these lectins with a jelly roll scaffold, a single CBS occurs at the confluence of the β-sheets, at the top of the β-sandwich structure. Moreover, in all of these legume-related lectins, some of the amino acid residues forming the CBS also serve to coordinate a Ca2+ cation in close proximity, contributing to the conformational stability to the CBS.

3.4. GNA-Like Family

The β-prism-II scaffold, also known as monocot-lectin or GNA-like scaffold, consists of three bundles of four β-strands arranged into a flattened β-prism structure around a central pseudoaxis. A carbohydrate-binding site occurs in a groove located at the center of the bundle of β-strands forming each β-sheet. The man-specific lectin BCA from the brown alga Boodlea coacta, [18], exhibits a similar scaffold (Figure 4), and docking experiments performed in silico suggest that both CBSs of BCA are fully active and readily accommodate a mannose residue (see Section 4.4).

3.5. MFP2-Like Family

The lectin BPL-2 from the green-yellow alga Bryopsis plumosa, has been characterized as a man-specific lectin structurally-related to MFP2, a protein involved in the nematod sperm cell mobility [42]. The lectin consists of three β-harpins which adopt a triangular disposition to form a sort of β-trefoil structure (Figure 4). In silico docking experiments performed with mannose, suggest the occurrence of a single active CBS in the BPL-2 lectin (see Section 4.5).
Other man-specific lectins have been isolated and characterized from other alga species, e.g., HLR40-1 and HLR40-2 from the green alga Halimeda renschii [16], and EPL-1 and EPL-2 from the green alga Enteromorpha (Ulva) prolifera [43], but none of them resembles the already known seaweed lectin families and thus, no information is yet available on their three-dimensional structures.
Lectins with carbohydrate-binding specificities similar to griffithsin, have been isolated and characterized from bacteria, e.g., cyanovirin-N (CV-N) from the cyanobacterium Nostoc ellipsosporum [44], and fungi, e.g., actinohivin (AH) from the Actinomycete Longispora albida [45], which both displayed anti-HIV activity [46]. The cyanovirin-N lectin domain consists of a β-barrel (PDB code 2EZM) [47], whereas the actinovirin lectin domain exhibits a β-trefoil architecture (PDB code 3A07) [48]. The accommodation of high-mannose glycans by both lectins, closely resembles that found in griffithsin and other man-specific seaweed lectins, with a prominent role for the oligosaccharide-binding pocket in the CBSs [49,50], (Figure 5).

4. Mannose-Binding Specificities of Mannose-Binding Seaweed Lectins

Extensive X-ray crystallographic studies of different lectins complexed to simple and complex carbohydrates revealed the occurrence of two types of closely interlinked carbohydrate-binding specificities at the CBS of plant, algal and fungal lectins [7]:
-
A monosaccharide-binding specificity, allowing the lectins to specifically recognize a simple sugar, e.g., mannose, and its derivatives, e.g., α-methylmannoside. This monosaccharide recognition corresponds to the “broad sugar-binding specificity” that allows lectins to accommodate simple sugars in a monosaccharide-binding pocket located within the CBS.
-
An oligosaccharide-binding specificity, allowing the lectins to simultaneously accommodate several sugar units of a complex N-glycan, e.g., high-mannose glycans, also known as the “fine sugar-binding specificity” of the lectins. This oligosaccharide recognition involves the whole surface of the CBS, including the monosaccharide-binding pocket, which also participates in the binding of the complex glycans.

4.1. Griffithsin

The binding of simple sugars (Man, Glc, GlcNAc), dimannoside (α 1,6-mannobiose, maltose) and complex tri-branched high-mannose glycan (Man9GlcNAc2) to griffithsin, has been investigated by X-ray crystallography at atomic resolution (Table 2).
A network of seven hydrogen bonds between O3, O4, O5 and O6 of mannose and Ser27, Tyr28, Asp30 and Gly44 of CBS I, Asp67, Tyr68, Asp70 and Gly90 of CBS II, Asp109, Tyr110 and Asp112 of CBSIII, accommodates the simple sugar in the monosaccharide-binding pocket of the three CBSs located at the top of the griffithsin domain (Figure 6A). Aromatic Tyr28, Tyr68 and Tyr110 residues also participate in stacking interactions with the pyranose ring of the mannose residues, that reinforces the binding of mannose to the CBS. The occurrence of Asp residues in the monosaccharide-binding pocket communicates a strong electronegative character to the griffithsin CBSs (Figure 6B). A very similar binding scheme has been observed in the griffithsin monomer complexed to glucose (PDB code 2NUO) [52], and GlcNAc (PDB codes 2GUE and 2NU5) [51,52].
The binding of disaccharides, α1,6-mannobiose (PDB code 2HYQ) and maltose (PDB code 2HYR) to the griffithsin CBS [53], reveals a very similar binding scheme with a single sugar unit anchored to the monosaccharide-binding pocket via a similar network of hydrogen bonds and stacking interactions with Tyr residues (result not shown). No interaction occurs between the second sugar unit of the disaccharide and the CBS.
The accommodation of more complex sugars by griffithsin, e.g., a tri-antennary high-mannose glycan chain Man9GlcNAc2 (PDB code 3LL2) [54], reveals a multisite interaction between the glycan and CBS II and CBS III of the lectin, the first CBS I remaining vacant and not involved in the interaction with the sugar units of the complex glycan (Figure 6C,D). Only two mannose units located at both ends of the complex high-mannose glycan chain, readily interact with the monosaccharide-binding pocket of CBS II and CBS III via a network of hydrogen bonds and stacking interactions involving the same amino acid residues insuring the anchorage of simple sugars to the CBSs. No contact occurs between other sugar units of the complex glycan and the griffithsin domain (Figure 1A). This multisite binding scheme readily differs from that observed in other plant, algal and fungal lectins, which establish hydrogen bonds and stacking interaction with several sugar units to properly accommodate complex glycans at their extended oligosaccharide-binding site. In this respect, griffithsin uses a similar binding scheme to accommodate both simple sugars, dimannosides and complex high-mannose glycans, which only involves the monosaccharide-binding pockets located at the top of both domains. Finally, the ability to mediate multisite and multivalent interactions with simple sugars accounts for the high affinity and activity of griffithsin toward high-mannose glycans and thus explains the potential anti-viral and anti-cancer activities of the lectin.

4.2. OAAH Lectins

Docking of a two-branched pentamannosyl glycan to the CBS of the modelled EDA-2, the OAAH lectin from the red alga Eucheuma denticulatum, reveals an oligosaccharide-binding scheme very similar to those found in plant lectins, especially in legume lectins, involving an extended area around the monosaccharide-binding pocket. A mannose unit anchors to the monosaccharide-binding pocket while other mannose units interact with amino acid residues located in the vicinity of the pocket via a network of hydrogen bonds and a stacking interaction with the aromatic Trp10 residue (Figure 7A). Like in other lectins, the monosaccharide-binding pocket exhibits a strong electronegative (acidic) character (Figure 7B). Docking experiments performed with other modelled OAAH lectins, e.g., the Solieria filiformis SfL-1 and SfL-2 lectins, revealed a very similar oligosaccharide-binding scheme at the extended CBS of the lectins.

4.3. Legume Lectin-Like Seaweed Lectins

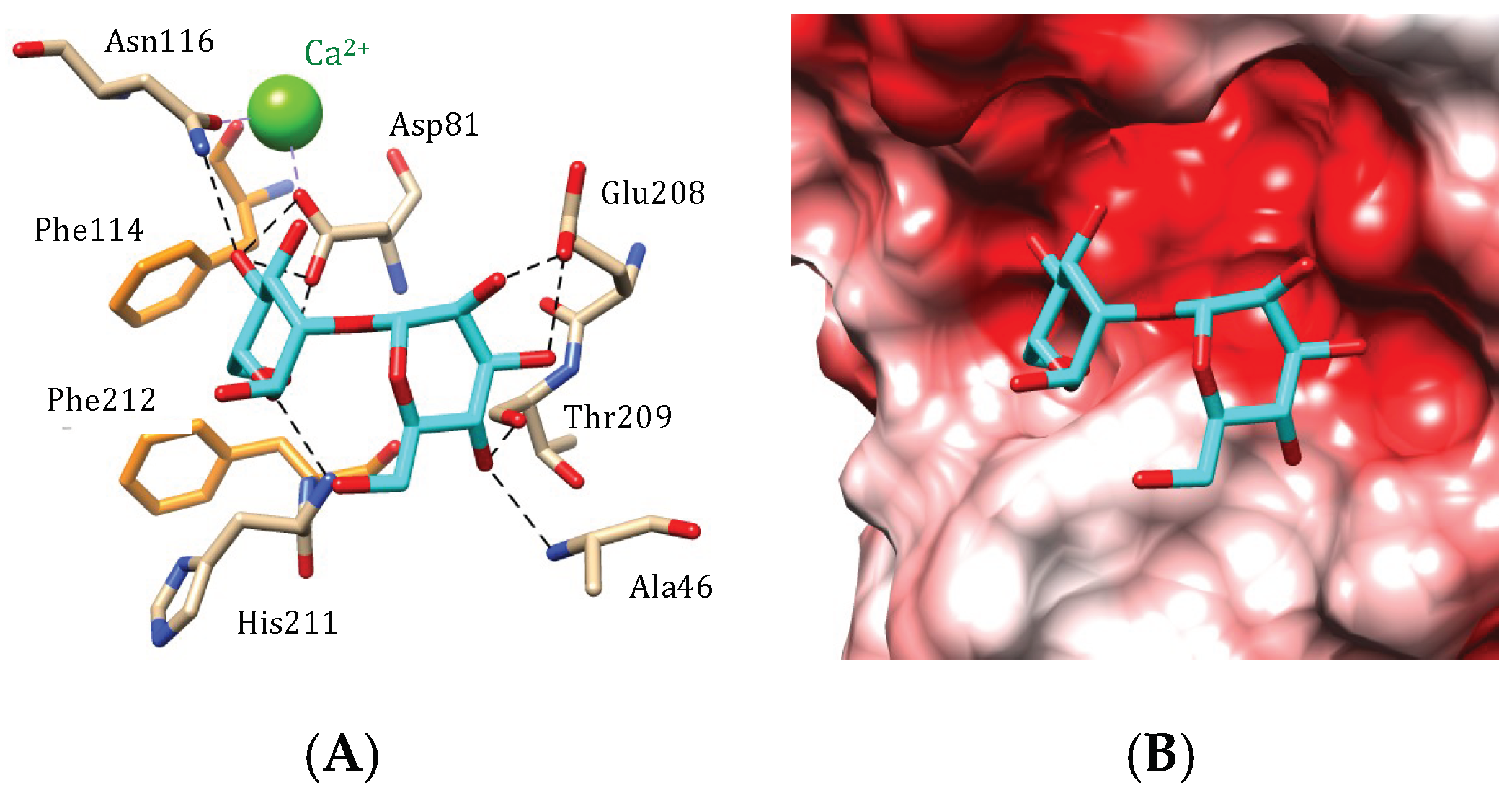

The accommodation of α1,6-mannobioside to the CBS of the Hydropuntia (Gracilaria) fisheri man-specific lectin (HFA), obeys the oligosaccharide-binding scheme found in legume lectins like Con A and Con A-like lectins [2]. Both mannose units of the disaccharide bind to amino acids located in and close to the monosaccharide-binding site via a network of hydrogen bonds. Additional stacking interactions occurring between the pyranose ring of the mannose units and two aromatic Phe112 and Phe114 residues, complete the interaction of the dimannoside with the CBS (Figure 8A).
Like in other man-specific lectins, the monosaccharide-binding pocket displays a pronounced electronegative (acidic) character (Figure 8B). In addition, like in legume lectins, some of the amino acid residues involved in the H-bond network, e.g., Asp81 and Asn116, also serve as ligands for a Ca2+ cation, that reinforces the stability of the CBS and contributes to improve the affinity of the legume lectin-like HFA for mannose and high-mannose glycans.

4.4. GNA-Like Seaweed Lectins

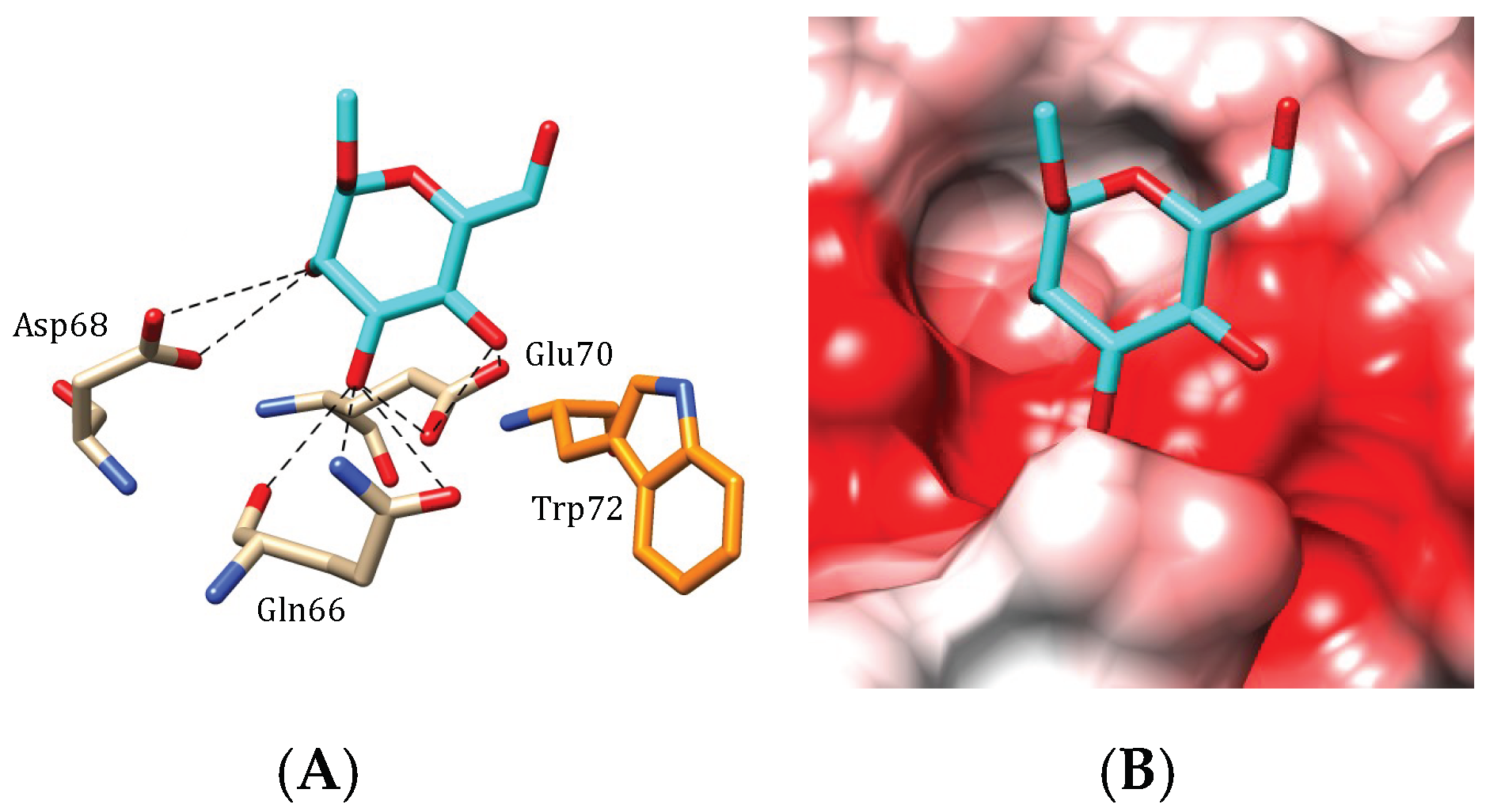

The GNA-like seaweed lectin BCA from the brown alga Boodlea coacta accommodates mannose at the CBS II via a network of hydrogen bonds linking the O2, O3 and O4 of mannose to residues Gln66, Asp68 and Glu70 forming the monosaccharide-binding pocket of the lectin (Figure 9A). An additional stacking between the pyranose ring of mannose and the aromatic Trp72 residue, complete the interaction. This monosaccharide-binding scheme which also occurs at BBS I and GBS III, strikingly resembles those occurring in the lectins from the monocot mannose-binding or GNA-like lectin family [3]. Calculation of the surface electrostatic potential of BCA indicates a pronounced electronegative (acidic) character of the surface area around the CBSs (Figure 9B), and suggests the capacity for BCA to also accommodate oligomannosidic glycans. In fact, investigations on the oligomannoside-specificity of BCA using a centrifugal ultrafiltration-HPLC technique, have shown that BCA only recognizes high-mannose glycan chains displaying α1,2-linked mannose at the non-reducing terminus [18], which can explain the higher affinity of BCA for α1,2-mannose clusters comprising three terminal α1,2-linked mannose units (Figure 10).

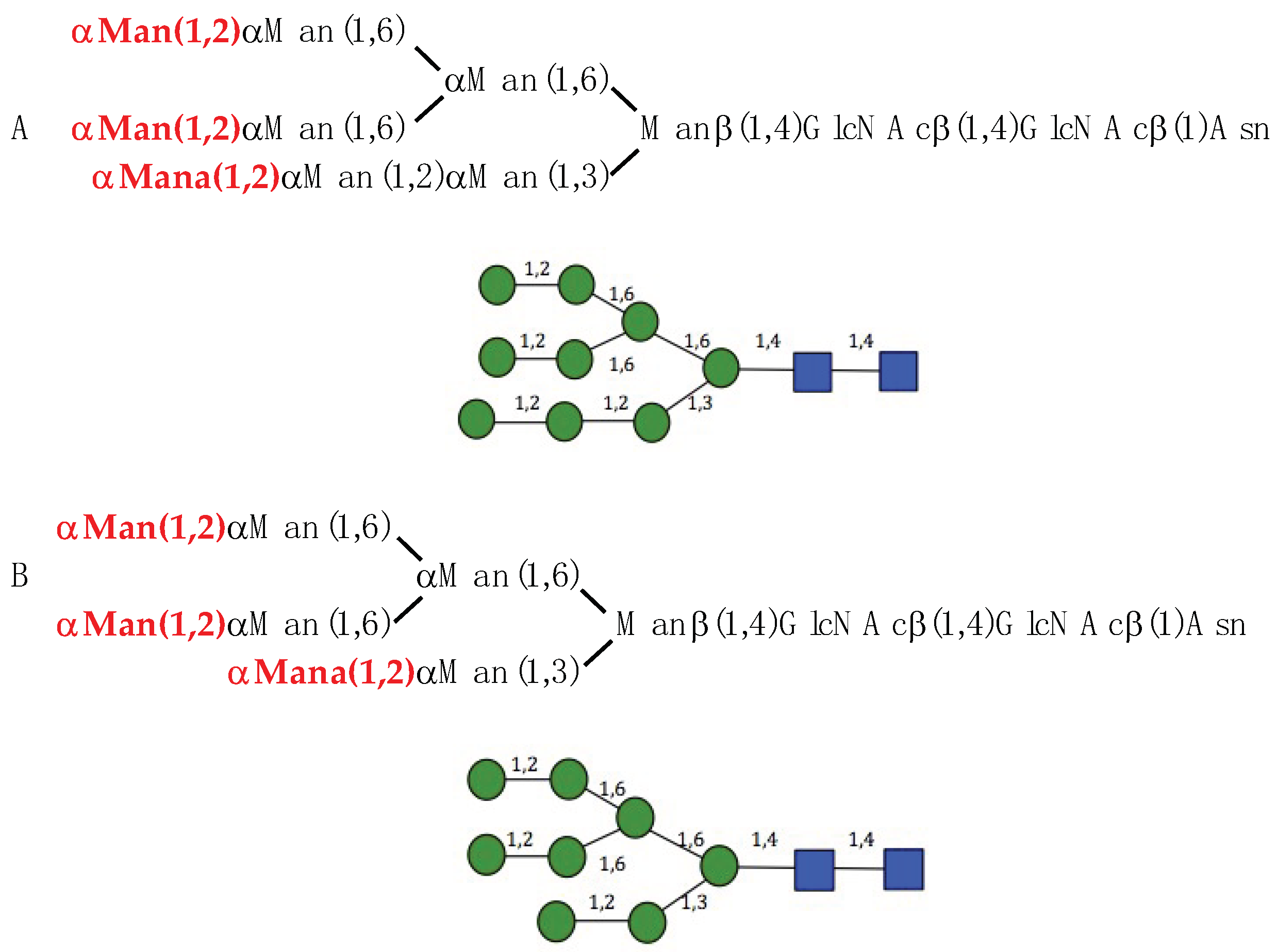

The exclusive specificity for the clusters of terminal α1,2-linked mannose units groups BCA apart from other man-specific seaweed lectins

4.5. MFP2B-Like Seaweed Lectins

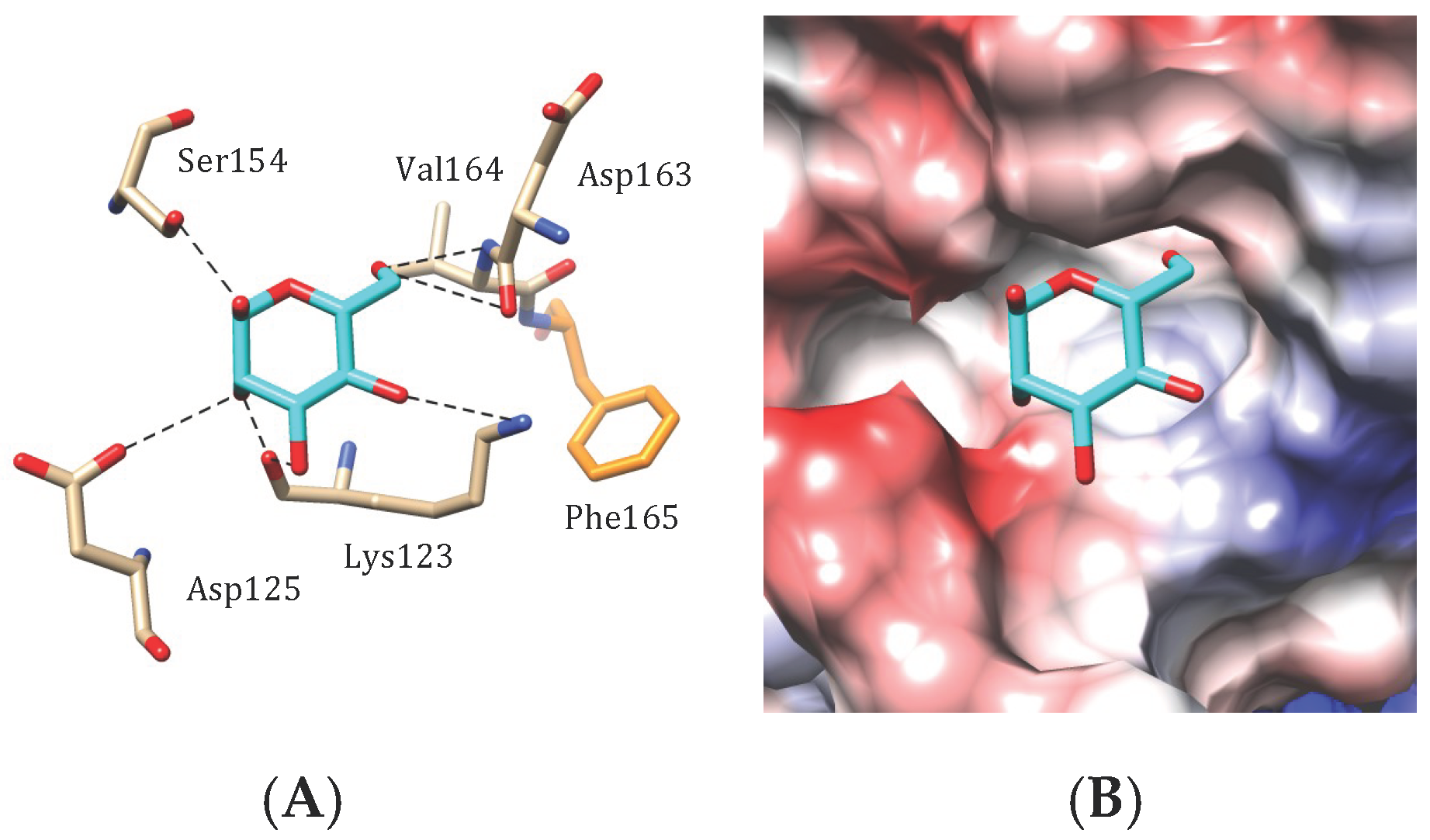

Docking of mannose to the CBS of the modelled BPL-2, the Bryopsis plumosa lectin, suggests a monosaccharide-binding scheme very similar to those observed in other man-specific seaweed lectins (Figure 11A). A network of hydrogen bonds between O1, O2, O3, O4 and O6 of mannose and amino acids Lys123, Asp125, Ser154, Asp163 and Val164 forming a monosaccharide-binding pocket, allows the accommodation of the sugar to the CBS of the lectin. An additional stacking interaction occurs between the pyranose ring of mannose and Phe165. The surface around the monosacchaide-binding pocket exhibits an electronegative (acidic) character (Figure 11B).
Finally, the accommodation of high-mannose glycan chains by the man-specific seaweed lectins consists of a complex interaction process in which the monosaccharide-binding pocket plays a prominent role. Similarly, the mannose-binding pocket of the closely-related bacterial lectin cyanovirin-N [49] and fungal lectin actinohivin [50], plays a key role in the accommodation of high-mannose glycans (see Figure 5).

5. Phylogenetic Relationships between Mannose-Binding Seaweed Lectins and Higher Plants

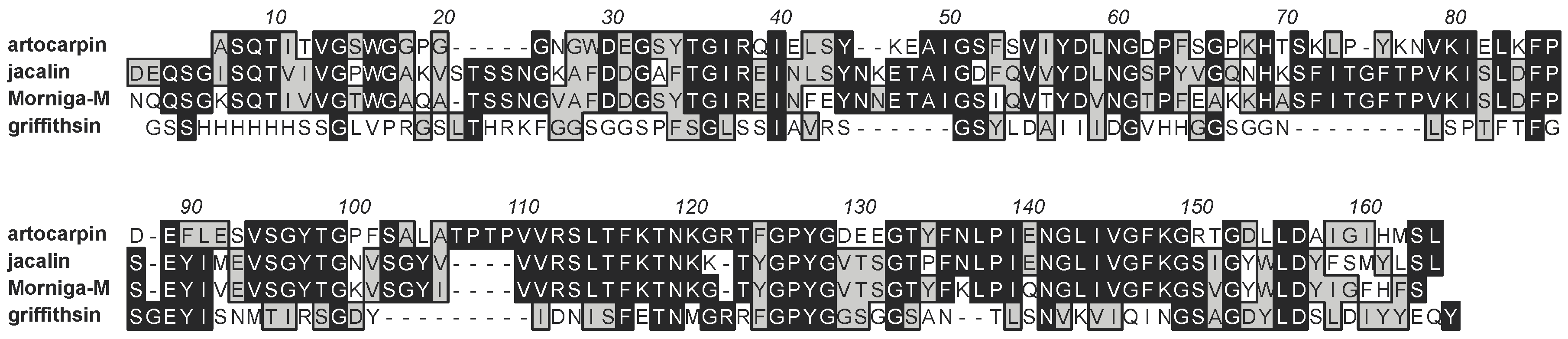

The structural resemblance between man-specific lectins from seaweeds and higher plants, raises questions related to the phylogenetic relationships between these man-specific lectins. Compared to the corresponding lectin domains occurring in higher plants, seaweed lectins display amino acid sequences with some degree of conservation, e.g., the comparison between griffithsin and the β-prism I domain found in jacalin-related lectins from higher plants (Figure 12).

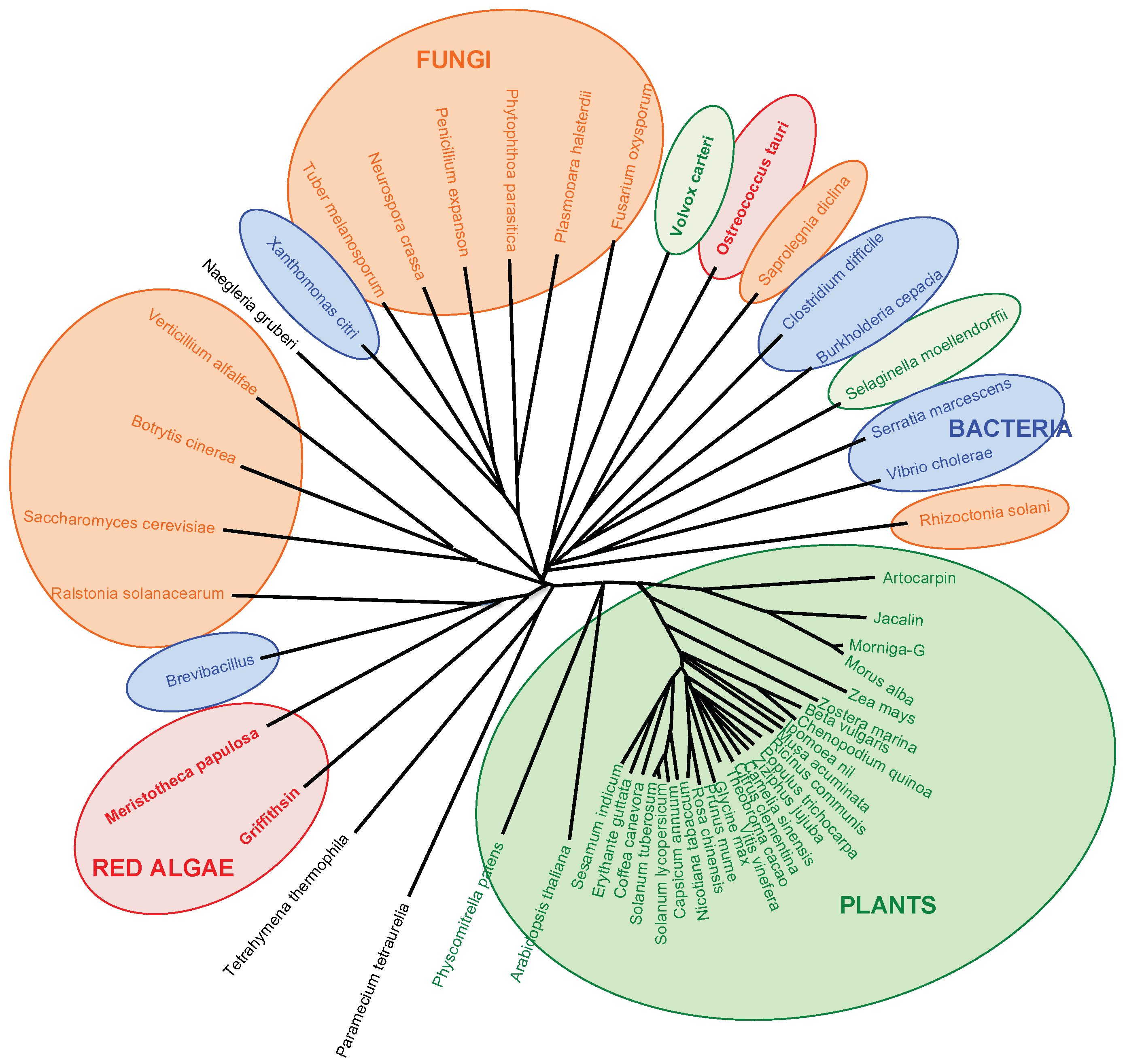

In fact, the jacalin-related β-prism I domain is widespread distributed in all of the living organisms either as an individual lectin, e.g., jacalin or griffithsin, or as a domain associated to other protein components of complex, multidomain proteins from bacteria, fungi and plants, displaying various metabolic functions [20]. In this respect, the man-specific lectins from red algae are more phylogenetically more closely-related to jacalin-related lectins from higher plants, compared to other jacalin-related lectins of fungal or bacterial origin, as shown in the phylogenetic tree built from the multiple amino acid sequence alignment of various jacalin-related lectins from plants, algae, fungi, bacteria and unicellular ciliates (Figure 13). This is not surprising since different genomes of Rhodophyta reveal some close phylogenetic relationships to Viridiplantae [55,56,57,58].
However, depending on the structural scaffold to which they belong, the degree of conservation of the man-specific seaweed lectin domains is extremely variable. Accordingly, the three tandemly arrayed β-prism II domains occurring in BCA, the brown alga Boodlea coacta lectin, share a weak degree of conservation compared to other β-prism II domains found in GNA and GNA-like lectins from higher plants, even though all of these lectin domains display a rather well conserved three-dimensional conformation, particularly of the core β-prism structure.

6. Biomedical Applications for the Man-Specific Seaweed Lectins

Similar to man-specific lectins from higher plants, biomedical applications of man-specific seaweed lectins were especially applied in two directions, namely their virucidal properties against HIV and their anti-cancer properties.

6.1. Mannose-Specific Seaweed Lectins as Virucidal Agents against HIV-I Infection

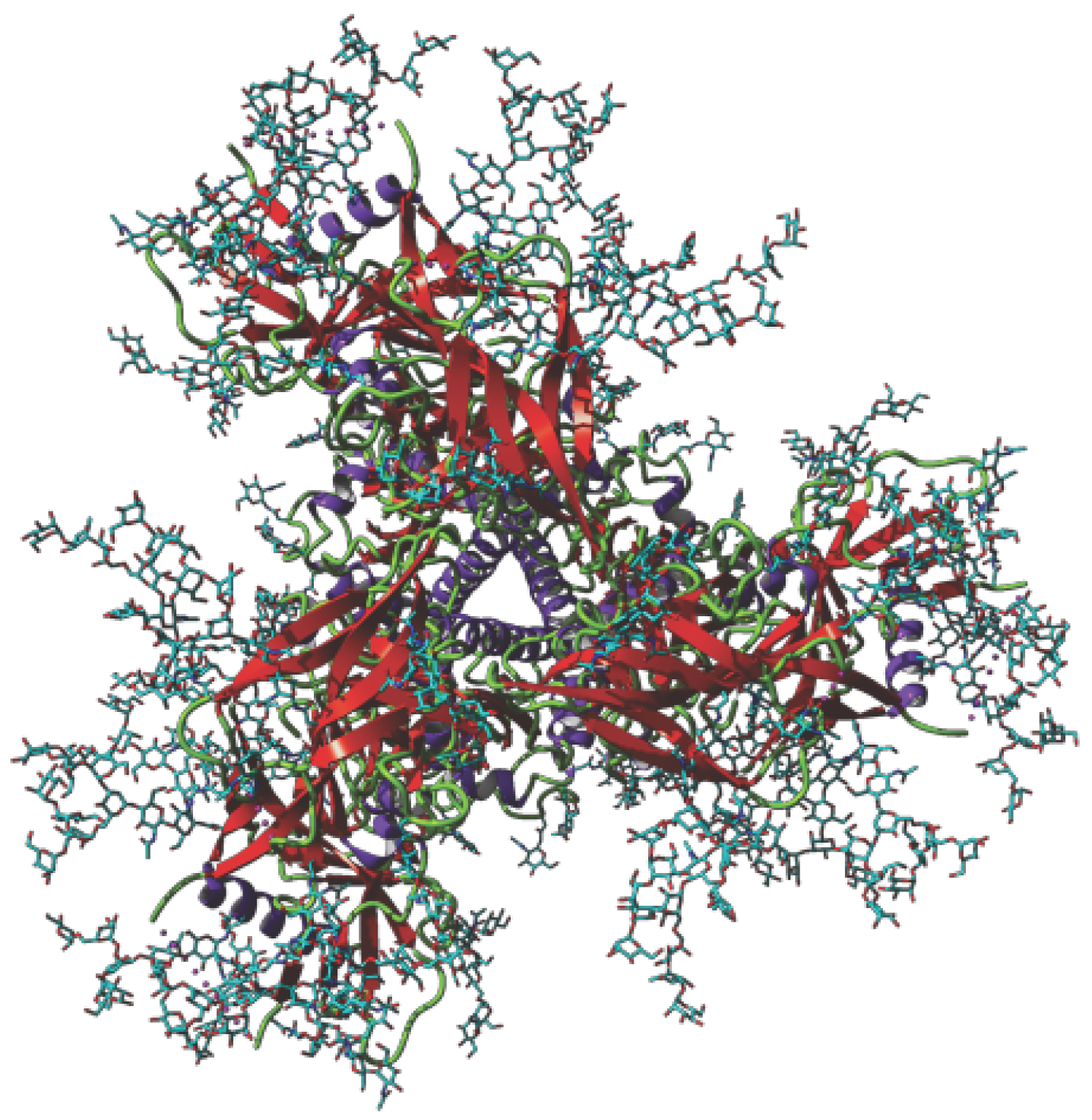

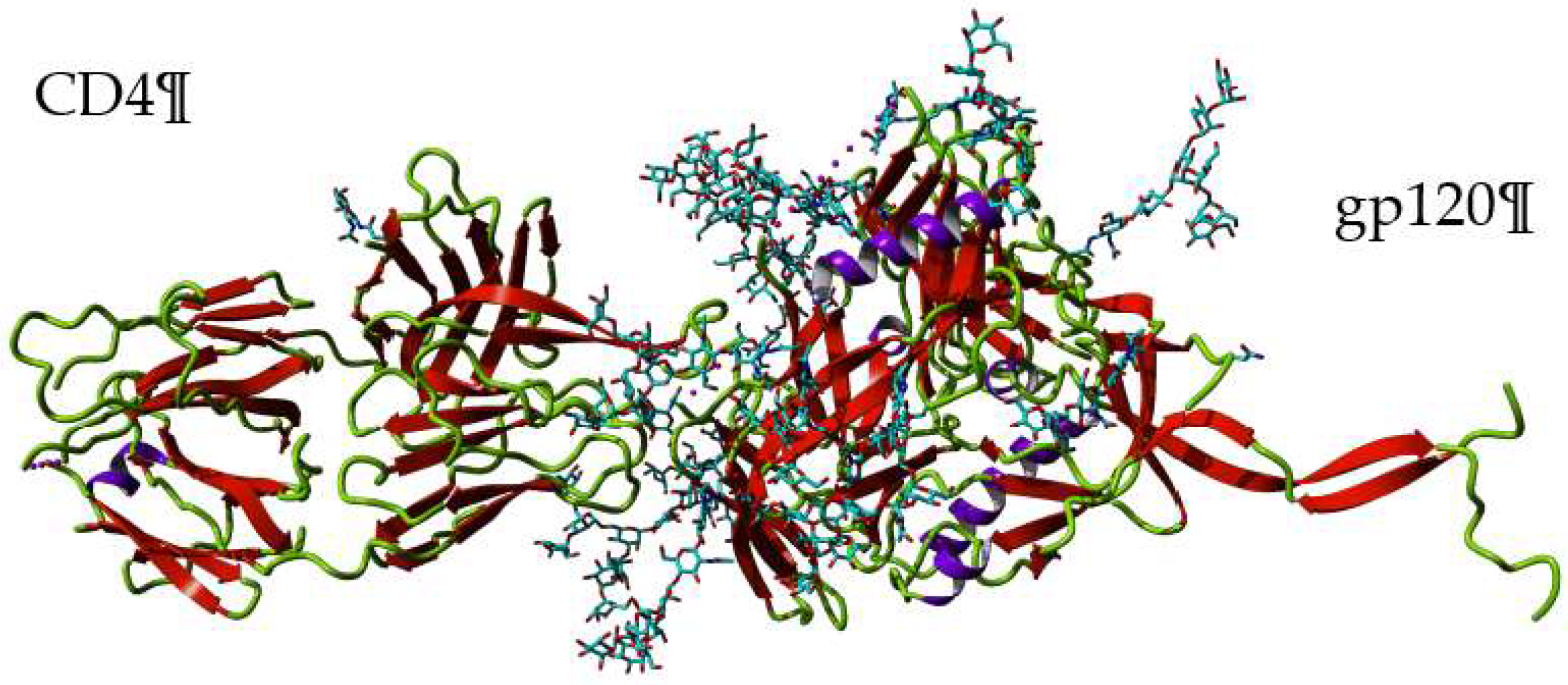

Ever since the high-mannose moiety of N-glycans decorating the HIV-1 gp120 protein has been identified as a target recognized by the CD4+ T-lymphocytes in vitro, a step essential to later promote the virion infection of the host cells, man-specific lectins have been deeply investigated as possible agents able to mask the high-mannose target and thus prevent the HIV infection of the host cells by HIV. In fact, the tandem association of three gp120 molecules with three gp41 molecules forms the HIV-1-envelope spike, which consists of a transmembrane trimer of gp41 associated to an extracellular trimer of gp120 exhibiting the exposed high-mannose glycans necessary for the recognition process of HIV-1 by the CD4+ T-lymphocytes [59], (Figure 14). The tandem association of gp120 to gp41 results from the processing of the precursor gp160 by the host cell proteases.
The specific association of man-specific lectins to the high-mannose glycans of gp120 prevents the subsequent recognition of the HIV-1-envelope spikes by the coreceptors expressing cells, and thus acts as blocking agents for the entry of the HIV-1 virions into the host cells (Figure 15). Accordingly, the removal of two high-mannose N-glycans in gp120 resulted in an improved resistance of HIV-1 to griffithsin, the man-specific lectin from the red alga Griffithsia sp. [60]. In addition to griffithsin, grifonin-1 (GRFN-1), an 18-mer peptide derived from griffithsin, has also been investigated as a blocking agent against HIV-1 [61]. Moreover, other man-specific seaweed lectins were used as blocking agents for the infection in vitro of CD4+ T-lymphocytes by HIV-1 (Table 3).
The-viral activity of griffithsin depends on its enhanced affinity for the high-mannose glycans decorating gp120 in the HIV-1-envelope spike, even at very low concentrations in the picomolar range. Interaction of griffithsin with gp120 does not prevent the recognition of gp120 by CD4 from the CD4+ T-lymphocytes, but prevents gp120 from interacting with its co-receptors, like e.g., DC-SIGN [64], that inhibits the DC-SIGN-mediated capture and transmission of HIV to CD4+ T-lymphocytes [70]. Due to the multivalent character of the griffithsin, which possesses three CBSs in each monomer of the dimeric structure, multiple interactions occurring between the lectin and the high-mannose glycans of gp120 favor the stability of the gp120-DC-SIGN complex and thus prevent the transmission of HIV to the CD4+ T-lymphocytes [54]. Even though griffithsin is considered an efficient and safe anti-viral agent [63,68,76], the smaller 18-mer peptide derived from griffithsin, grifonin-1 (GRFN-1), should be an excellent substitute since it offers an equivalent anti-viral efficacy associated to a strongly reduced cytotoxicity [61].
The ability of griffithsin to interact in vitro with the exposed mannose residues of the N-linked glycans from other envelope viruses, e.g., hepatitis C virus [81,82], herpes virus [71,83], Ebola virus [73], coronavirus [84], and papilloma virus [83], make this carbohydrate-binding agent a potential broad-spectrum tool against various virus infection diseases. In this respect, KAA-2 from the red alga Kappaphycus alvarezii [13,80], and ESA-2 from thered alga Eucheuma serra [85], were shown to inhibit influenza virus infections by interfering with the virus envelope glycoprotein hemagglutinin.
Other Man-specific lectins of cyanobacterial origin were similarly identified as potent anti-HIV-1 proteins via their specific binding to the envelope gp120, as reported especially for actinohivin [48], cyanovirin-N [47], microvirin from Microcystis viridis [86], OAA from Oscillatoria agardhii [26], and scytovirin from Scytonema varium [66].

6.2. Mannose-Specific Lectins as Cancer Biomarkers and Anti-Cancer Drugs

The ability of man-specific plant lectins to discriminate between normal and diseased cancer cells, and specifically recognize the specific changes that have occurred in the high-mannose component covering tumor cells, also exists in man-specific seaweed lectins, allowing these proteins to be used as cytotoxic agents for various malignant cells [5,7]. Accordingly, several man-specific seaweed lectins have been investigated for their cytotoxic activity against various human and mouse cancer cell lines (Table 4).
As reported for plant and fungal lectins [7], the recognition of the altered high-mannose glycans associated to the cancer cells by marine algal lectins, led to programmed cell death through the targeting of different apoptotic and autophagic pathways. At a concentration of 1.2 μg mL−1, ESA from Eucheuma serra provoked the apoptotic cell death of Colo201, HeLa and MCF-7 cells via the induction of the caspase-3-dependent pathway [90]. The expression of caspase-3 was similarly reported for mouse Colo26 and adenocarcinoma cells, treated in vitro and in vivo conditions by the E. serra lectin [91], and for Colo201 cells treated in vitro and in vivo conditions by Span 80 vesicles containing immobilized E. serra agglutinin [92]. The E. serra lectin ESA, also induced the apoptotic cell death of both murine and human osteosarcoma cells [93]. The cytotoxic effects of SfL from the red alga Solieria filiformis on MCF-7, also involve the induction of the apoptotic cell death with an over-expression of caspase-3, -8 and -9 [15].

6.3. Other Biomedical Applications of Mannose-Specific Seaweed Lectins

In addition to their anti-viral and anti-cancer properties, miscellaneous biomedical properties of the Man-specific seaweed lectins were investigated, including their anti-bacterial and anti-nociceptive properties, together with their pro-healing effects. An anti-depressant-like effect was also reported in mice for SFL, the man-specific lectin from the red alga Solieria filiformis, which likely depends on its interference with the dopaminergic system (Table 5).

7. Methods

Pairwise and multiple amino acid sequence comparisons were performed with MacVector, using the CLUSTAL-X program [99]. Hydrophobic cluster analysis (HCA) [100], was performed on HCA plots generated at the RPBS web portal (http://www.mobyle.rpbs.univ-paris-diderot.fr), for the prediction of secondary features along the amino acid sequence of seaweed lectins. An unrooted phylogenetic tree was built up from the multiple alignment of jacalin-related lectins using the uncorrected neighbor joining method integrated in MacVector. No bootstrapping was performed. TreeView 1.6.6 [101], was used to draw the phylogenetic tree of jacalin-related lectins.
Homology modelling of seaweed lectins was performed with the YASARA Structure program [102], using various protein templates from the PDB, depending on the overall structural scaffold to which they belong (e.g., 3OBL of the cyanobacterium Oscillatoria agardhii for modelling the Agardhiella subulata lectin ASL-1, shown in Figure 1). PROCHECK [103], ANOLEA [104], and the calculated QMEAN scores [105,106], were used to assess the geometric and thermodynamic qualities of the three-dimensional models.
For docking experiments, complex glycans were built using the GLYCAM web server [107], and SWEET II web server [108,109]. The autodockVINA module of YASARA Structure [110], was used to dock the carbohydrate ligand (treated as a flexible molecule) to the lectin model (treated as a rigid molecule). Docking experiments were performed at the SwissDock web server (http://www.swissdock.ch) [111,112], as a control for our docking experiments.
Molecular cartoons were drawn with Chimera [113] and YASARA.

8. Discussion

Lectins represent a ubiquitous group of carbohydrate-binding proteins that have been identified in all living organisms [20]. Lectins with various carbohydrate-binding specificities, especially Gal/GalNAc-specific and man-specific lectins, have been characterized in all groups of algae, primarily in green algae or Chlorophyta, brown algae or Ochrophyta, and red algae or Rhodophyta [46]. Except for a few lectins built up from structural scaffolds with no apparent homology with those found in the different classes of plant lectins [114], many other seaweed lectins share structural scaffolds in common with higher plant lectins, e.g., the jacalin-related scaffold, the legume-lectin scaffold and the GNA-like scaffold, irrespective of their carbohydrate-binding specificity. Likely, these structural homologies reflect the phylogenetic relationships that have occurred between higher plants and seaweeds during evolution [20].
Mannose-specific seaweed lectins occur in different phyla of algae but red algae or Rhodophyta, are particularly rich in species containing man-specific lectins [115]. To date, much attention has been paid to red algae lectins because of their potential biomedical properties [5]. In this respect, griffithsin, a lectin with a strong affinity for high-mannose glycans, isolated from the red alga Griffithsia sp. [3], was extensively investigated due to its enhanced anti-viral properties against HIV-1 and other pathogenic enveloped viruses [5]. Compared to other bacterial and plant lectins used as HIV entry inhibitors, griffithsin was reported as an efficient drug, at extremely low concentrations in the picomolar range, and safer toward uninfected cells [63,68,76]. In addition, the smaller substitute, an 18-mer peptide derived from griffithsin, grifonin-1 (GRFN-1), offers an equivalent efficacy associated to an improved safety toward healthy cells [61].
Besides their anti-viral properties, man-specific seaweed lectins also display relevant cytotoxic properties against various cancer cells by virtue of their capacity to target specific changes that have occurred in the high-mannose glycans expressed at the cell surface of cancer cells [116,117,118,119,120,121,122,123,124,125,126,127,128].
In spite of their biomedical potentialities as anti-HIV and anti-cancer drugs, only very few biomedical applications have been initiated with Man-specific seaweed lectins, essentially because of the difficulties inherently associated to the large-scale production of natural products. Even though scalable manufacture has been proposed for griffithsin [63], and high yields of production were previously reported for the isolation of Euchema lectins [9], the large scale production of algal lectins still remains a difficult task associated with unprofitable industrial yields. Additionally, a few topical administrations of griffithsin in combination with Span 80 vesicles [92], and carrageenan [83,129], applications based on the use griffithsin to prevent different enveloped virus infections are rare. Similarly, the synergistic association of griffithsin to the tenofovir, maraviroc and enfuvirtide drugs [64], and other carbohydrate-binding agents (CBAs) like the monoclonal antibody 2G12 and microvirin (MVN) [130], have been proposed in topical microbicide applications. Previously, the Eucheuma serra lectin ESA, had been successfully immobilized on the surface of lipid vesicles and the resulting ESA-bearing lipid vesicles were shown to effectively bind to cancer cell lines Colo201 and HeLa [90]. Delivery of griffithsin from griffithsin-modified electrospun fibers was successfully tested as an efficient and safe delivery scaffold for preventing HIV infection [131]. Recently, the monoclonal antibody 2G12 was simultaneously produced in rice endosperm with griffithsin and cyanovirin-N and, unexpectedly, extracts of transgenic plants expressing both proteins were shown to display an enhanced in vitro binding to gp120 and synergistic HIV-1 neutralization [132].

Author Contributions

A.B., M.S. and H.B. provided the bibliographic information and analyses. P.R. provided the molecular cartoons and the docking pictures. E.J.M.V.D. and P.R. wrote the review.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

CBACarbohydrate-binding agent
CBMCarbohydrate-binding module
CBSCarbohydrate-binding site
Con AConcanavalin A
CVNCyanovirin N
GNAGalanthus nivalis agglutinin
HeltubaHelianthus tuberosus agglutinin
HIVHuman Immunodeficiency virus
LCALens culinaris agglutinin
OAAOscillatoria agardhii agglutinin
PDBProtein data bank
PsAPisum sativum agglutinin
VfAVicia faba agglutinin
