Efficient Extraction and Antioxidant Capacity of Mycosporine-Like Amino Acids from Red Alga Dulse Palmaria palmata in Japan

by
Yuki Nishida
1,
Yuya Kumagai
2,
Shunta Michiba
1,
Hajime Yasui
3 and
Hideki Kishimura
2,*
1
Chair of Marine Chemical Resource Development, Graduate School of Fisheries Sciences, Hokkaido University, Hakodate, Hokkaido 041-8611, Japan
2
Laboratory of Marine Chemical Resource Development, Faculty of Fisheries Sciences, Hokkaido University, Hakodate, Hokkaido 041-8611, Japan
3
Laboratory of Humans and the Ocean, Faculty of Fisheries Sciences, Hokkaido University, Hakodate, Hokkaido 041-8611, Japan
*
Author to whom correspondence should be addressed.
Mar. Drugs 2020, 18(10), 502; https://doi.org/10.3390/md18100502
Submission received: 10 September 2020 / Revised: 28 September 2020 / Accepted: 28 September 2020 / Published: 30 September 2020
(This article belongs to the Special Issue Mycosporine-Like Amino Acids from Marine Resource)
Browse Figures
Versions Notes

Abstract

:
Mycosporine-like amino acids (MAAs) are the ultraviolet (UV)-absorbable compounds, which are naturally produced by cyanobacteria and algae. Not only these algae but also marine organisms utilize MAAs to protect their DNA from UV-induced damage. On the other hand, the content of MAAs in algae was changed by the environmental condition and season. In addition to the UV-protected function, the antioxidant capacity of MAAs can apply to the cosmetic sunscreen materials and anti-cancer for human health. In this study, we developed the efficient extraction method of MAAs from red alga dulse in Usujiri (Hokkaido, Japan) and investigated the monthly variation. We also evaluated the antioxidant capacity. We employed the successive extraction method of water and then methanol extraction. Spectrophotometric and HPLC analyses revealed that the yield of MAAs by 6 h water extraction was the highest among the tested conditions, and the content of MAAs in the sample of February was the most (6.930 µmol g−1 dry weight) among the sample from January to May in 2019. Antioxidant capacity of MAAs such as crude MAAs, the purified palythine and porphyra-334 were determined by 2,2’-azinobis(3-ethylbenzothiazoline 6-sulfonic acid) (ABTS) radical scavenging and ferrous reducing power assays in various pH conditions, showing that the highest scavenging activity and reducing power were found at alkaline condition (pH 8.0).

1. Introduction

Ultraviolet radiation (UVR) is a part of the solar electromagnetic spectrum and defined as wavelengths from 200 to 400 nm composed of ultraviolet A (UVA) (315–400 nm), ultraviolet B (UVB) (280–315 nm), and ultraviolet C (UVC) (200–280 nm). UVR reaching on the Earth’s surface is only a small portion of the entire UVR, which is composed of wavelengths above 290 nm (mainly UVA and up to 10% of UVB) [1,2,3]. In the past few decades, the amount of UVR on the Earth’s surface has been increased due to climate change with the decrease in aerosols and cloud [4,5], resulting in exposure of UVR to a wide variety of biological systems. In human, exposure of UVR induces diseases such as cancer and skin aging by denature of DNA or proteins (e.g., formation of cyclobutane purine/pyrimidine dimers) [6,7]. Therefore, organisms under UVR must take some defense strategies to minimize UV-induced damage [1,8].
Mycosporine-like amino acids (MAAs) are synthesized and accumulated as photoprotective compounds by marine phototrophs (e.g., dinoflagellates, cyanobacteria and macro algae) [1,9,10]. MAAs are nitrogenous secondary metabolites of the low molecular weight (<400 Da) with the maximum absorption ranging from 310 to 360 nm and have the high molar extinction coefficients (28,100 to 50,000 M−1 cm−1) [10,11]. MAAs are composed of a cyclohexanone or cyclohexenimine ring conjugated with amino acids, amino alcohols, or amino groups. MAAs are classified into two types by the core structure of cyclohexanone or cyclohexenimine ring, showing oxo-MAAs or imino-MAAs, respectively. The major oxo-MAAs are mycosporine-glycine and mycosporine-taurine, while major imino-MAAs are shinorine, palythine, asterina-330, porphyra-334, usujirene and palythene [1,10]. According to Hoyer et al. [12], the biosynthesis pattern of MAAs in red alga is classified into three categories: (i) species with no capacity for MAAs biosynthesis; (ii) species with the high content of MAAs permanently; (iii) species changing the content of MAAs with the environmental conditions. While the species of category (i) typically represent red seaweed of lower sublittoral species of category (ii) and (iii) grow from the mid-sublittoral zone to the supralittoral zone [12,13]. Biosynthesis of MAAs is expected to the shikimate pathway and the pentose phosphate pathway, and many MAAs are produced in the synthesis steps [1,10,14,15,16,17]. However, the ratio and product patterns of MAAs are still unclear because of the complicated environmental condition and the lack of knowledge for seaweed’s molecular biology [18].
MAAs have the physicochemical advantage in the point of high melting point, photostability, solubility in water, and organic solvents, stability in a wide range of pH and temperature [9,11,14,19,20,21]. UV-protective compounds are divided into two types: UV-reflective and UV-absorbable. MAAs are UV-absorbable materials and dissipate the energy as heat without generating reactive oxygen species (ROS) [9,10,13,22]. Recently, functions of MAAs have been reported as sunscreens, activators of cells proliferation, anti-cancer agents, anti-photoaging molecules, and stimulators of skin renewal. MAAs are nontoxic and biodegradable compounds. Therefore, MAAs have been attracted attention among various biotechnological industries [1,9,11]. Antioxidant capacity is one of the main functions of MAAs [1,10,21,23]. The in vitro antioxidant capacity has been reported using oxygen radical absorbance capacity (ORAC) assay (measuring hydrogen atom transfer (HAT) reaction) and 2,2′-azino-bis (ABTS) radical scavenging assay (measuring electron transfer (ET) reaction) [10,21,23,24,25]. On the other hand, inconsistencies in strength of antioxidant capacity remain an issue [24,25]. Although research on relationship between the activity and pH has been reported [10,21], antioxidant capacity of MAAs is still controversial.
Among macro algae, dulse (Palmaria palmata) is known to possess MAAs [18,24]. Dulse is a red alga distributed mainly across coastal areas in high-latitude such as Ireland and Atlantic Canada. Dulse also grows well in Hokkaido, Japan. Hakodate, the southern part of Hokkaido, is famous for Kombu farming, and dulse grew there and disturbed growth of Kombu (Laminaria sp.) [26]. Dulse is underused alga in Japan; therefore, the use of dulse was requested. To utilize dulse in Usujiri, Hakodate, Japan, we clarified genetic character [27,28] and showed the nutrient characters (approximately 40 g protein/100 g dried dulse). The major component of proteins is phycoerythrin (PE) [29], and the thermolysin hydrolysate showed the angiotensin-I-converting enzyme inhibitory activity [26,30,31]. The chromophores from PE showed antioxidant capacity [32]. In addition, β-(1→3)-xylosyl-xylobiose prepared from dulse xylan exhibited the prebiotic effect on enteric bacterium [33]. In this way, dulse contains many healthy functional ingredients. On the other hand, seaweeds contain low content of MAAs (up to 14 mg g−1 dry weight) [9,13]. Usujiri dulse grew in the depth of 1–2 m, which is expected a large content of MAAs, since the depth of biotope was a key factor of MAAs synthesis [12]. In order to use MAAs from Usujiri dulse for biotechnological applications, it is necessary to develop the efficient extraction method. However, little has been reported on the efficient extraction from macro algae.
In this study, we first determined the efficient extraction condition to evaluate the content of MAAs of Usujiri dulse and then investigated the monthly variation (January–May 2019). Finally, we evaluated the effects of pH on the antioxidant capacity of MAAs by ABTS radical scavenging and ferrous reducing power assays.

2. Results

2.1. Determination of Extraction Conditions of Dulse MAAs

Although MAAs have been extracted from various kinds of macro and micro algae, the extraction term and condition differed in papers [18,23]. Our preliminary experiments revealed that the water extraction term drastically affected the MAAs yields. Therefore, we attempted to determine the water extraction term of MAAs. Usujiri dulse, which was collected on 13 March 2018, was employed to determine the condition, and water extraction term was investigated for 2 to 24 h. The absorption spectra of dulse crude MAAs solution are shown in Figure 1. The absorption maximum peaks of the six solutions were detected ranging from 325 to 330 nm. The content of MAAs was calculated by integration of absorbance from 310 to 360 nm where MAAs exhibit the absorption maximum. As a result, the solution prepared by water extraction for 6 h showed the highest absorbance as compared with the others.
We then clarified the components of MAAs in Usujiri dulse by high-performance liquid chromatography (HPLC) analysis. Figure 2 shows the chromatogram of dulse crude MAAs solution (6 h). HPLC analysis revealed the presence of six prominent peaks (Peaks a–f) at 4.42, 4.79, 5.27, 7.73, 13.36 and 13.43 min with the absorption maxima (λmax) at 329–331, 319, 325–328, 331, 357, and 358 nm, respectively. To determine the mass of each MAA, the MAAs fractions were collected and subjected to MALDI-TOF/MS analysis. The HPLC-purified MAAs (Peaks a–f) showed a prominent ion peak of protonated molecules ([M + H]+) at m/z 333.2, 245.1, 289.2, 347.1, 285.1, and 285.1, respectively. Based on UV-Vis-absorption spectra and MALDI-TOF/MS analysis, the components of MAAs (Peaks a–f) in Usujiri dulse were identified as shinorine (Peak a; λmax: 329–331 nm; m/z 333.2), palythine (Peak b; λmax: 319 nm; m/z 245.1), asterina-330 (Peak c; λmax: 325–328 nm; m/z 289.2), porphyra-334 (Peak d; λmax: 331 nm; m/z 347.1), usujirene (Peak e; λmax: 357 nm; m/z 285.1), and palythene (Peak f; λmax: 358 nm; m/z 285.1) (Table 1).
We identified six major MAAs (Peaks a–f in HPLC) by HPLC and MALDI-TOF/MS analyses. Using Lambert–Beer law, we prepared a standard curve for each MAA in HPLC peak area and then estimated the content of each MAA by HPLC. The peaks, usujirene and palythene, were not separated by HPLC, but their extinction coefficient was quite similar (Table 1). Therefore, we expressed these MAAs as usujirene + palythene and employed the high extinction coefficient from palythene to avoid the risk of overestimation. Table 2 shows the content of MAAs from dulse at each water extraction term (2, 6, and 24 h). Palythine and porphyra-334 were the major components of Usujiri dulse and occupied more than 90% of total MAAs. Water extraction term did not affect the components of MAAs. There was a significant difference (p < 0.05) in the content of MAAs extracted between 2 and 6 h, and at 2 and 24 h, respectively. Only the content of palythine was increased in the extraction term. We will discuss the reason later in discussion section. The content of MAAs was maximized by 6 h extraction, which was higher than that by 2 h (1.13-fold) and 24 h (1.04-fold). Therefore, we determined the water extraction for 6 h in the following experiments.

2.2. Monthly Variation of MAAs

In the above section, we clarified the importance of water extraction term for MAAs and prepared the standard curve for HPLC analysis. In this section, we investigated the monthly variation of MAAs using samples collected on 23 January, 25 February, 2 April, and 17 May 2019. Dulse crude MAAs solutions were prepared by water extraction for 6 h, and the absorption spectra were measured. The absorption maximum peak of the four solutions was in the range of 328 to 339 nm. The content of MAAs was estimated by integration in the range of 310 to 360 nm. As a result, the sample of 25 February showed the highest absorbance (6.930 µmol g−1 DW), while that of 23 January exhibited the lowest absorbance (2.649 µmol g−1 DW) (Table 3). There was a significant difference (p < 0.05) in the content of MAAs among each month. The monthly variation of the content of MAAs was increased sharply from January to February, stable from February to April, and gradually decreased from April to May.
The molar percentage (mol%) of the content of each MAA in 2019 is shown in Figure 3. The mol% of shinorine (from 1.8 mol% on 17 May to 3.8 mol% on 25 February) and asterina-330 (from 1.3 mol% on January 23 to 1.8 mol% on 2 April) was stable at low values. Palythine, showing the high mol% on 23 January and 17 May, varied from 65 to 33 and 32 mol% on 25 February and 2 April, respectively. On the other hand, porphyra-334 and usujirene + palythene were low mol% on 23 January and 17 May. The mol% of these MAAs was increased on 25 February and 2 April, especially usujirene + palythene were 29-folds increase from 0.9 mol% on 23 to 26 January mol% on 2 April.

2.3. ABTS Radical Scavenging Activity of Dulse MAAs

Antioxidant capacity is one of the main functions of MAAs. Despite many studies, research on the activity related to pH was limited. Torres et al. [10] reported that high antioxidant capacity of imino-MAAs (shinorine and porphyra-334) was found under alkaline condition and ABTS radical scavenging activity of palythine was higher than that of shinorine and porphyra-334. However, effect of pH on palythine was not reported. ABTS radical scavenging assay is based on Reaction 1 (ABTS•+ and MAA• represent ABTS radical cation and MAA radicals, respectively) [37,38]:
ABTS•+ + MAA-H → ABTS + MAA• + H+
The main components of MAAs in Usujiri dulse were palythine and porphyra-334. Therefore, we evaluated pH dependence of ABTS radical scavenging activity using dulse crude MAAs, palythine and porphyra-334, showing the activity in the tested samples (Figure 4). Among measured pH, the antioxidant capacity was increased in the alkaline condition, and the maximum radical scavenging activity was at pH 8.0. The IC50 (the content of MAAs that reduce half of the maximal response of ABTS radical scavenging activity) values of dulse crude MAAs at pH 5.8, 6.6, 7.4, and 8.0 were 0.36, 0.33, 0.28, and 0.14 mg/mL, respectively (Table 4). Palythine and porphyra-334 also showed the highest ABTS radical scavenging activity at alkaline condition (pH 8.0) with the IC50 values of 12.0 and 20.8 µM, respectively. The IC50 value of ascorbic acid, which is known to be an excellent scavenger, was 8.9 µM at pH 8.0, indicating that palythine and porphyra-334 had a great potential for antioxidant materials in red alga. On the other hand, these MAAs exhibited a low activity at low pH. ABTS scavenging acitivity of palythine (72 µM) at pH 5.8 and 6.6 was 0.8 and 24.8%, respectively, and that of porphyra-334 (72 µM) at pH 5.8 and 6.6 was 10.0 and 21.0%, respectively.

2.4. Ferrous Reducing Power of Dulse MAAs

In addition to ABTS radical scavenging activity, ferrous reducing power was also evaluated in the different pH. Ferrous reducing power assay is based on Reactions 2 and 3 (MAA• represents MAA radicals) [37,38]:
Fe(CN)63− + MAA-H → Fe(CN)64− + MAA• + H+
Fe(CN)64− + Fe3+ + K+ → KFe[Fe(CN)6]
Ferrous reducing power of dulse in Usujiri was determined using dulse crude MAAs, palythine and porphyra-334, resulting in the exhibition of ferrous reducing power in samples (Figure 5). The ferrous reducing power was also increased in the alkaline condition, and the maximum ferrous reducing power was at pH 8.0. The content of dulse crude MAAs, which reached the value of OD700 shows 0.10 (MC700 0.10) at pH 5.8, 6.6, 7.4, and 8.0, were 0.17, 0.13, 0.11, and 0.10 mg/mL, respectively (Table 5). Palythine and porphyra-334 also showed the highest ferrous reducing power at alkaline condition (pH 8.0) with the MC7000.10 values of 66.9 and 36.2 µM, respectively. Interestingly, ferrous reducing power of palythine was lower than that of porphyra-334, whereas ABTS scavenging activity of palythin was higher than that of porphyra-334. Comparing the MC7000.10 values of these MAAs with ascorbic acid, ferrous reducing power of MAAs was more than 70-fold lower, showing that the difference in the antioxidant capacity between ascorbic acid and MAAs was larger in ferrous reducing power than that in ABTS radical scavenging activity. Therefore, it was revealed that the radical scavenging activity was important in the antioxidant capacity of MAAs.

3. Discussion

3.1. Efficient Extraction of MAAs from Dulse

In the present study, we determined the efficient extraction condition of MAAs and investigated the monthly variation (January–May 2019) of Usujiri dulse. The present method has the advantage in the content and purity of MAAs. Many studies used methanol only or 50% methanol for extraction solution. Therefore, we compared the content of MAAs by water extraction and methanol only extraction, showing that the content by water extraction was approximately two times higher than that by methanol extraction (Table 6). However, the water extraction contained many proteins and salts. Therefore, we applied methanol only extraction to remove above impurities, resulting in the purity of samples being sufficient for HPLC systems. As a result, 6 h water extraction was suitable, and sample collected at the end of February contained a high content of MAAs. The detected six MAAs were increased from 2 to 6 h water extraction. However, five MAAs were decreased from 6 to 24 h water extraction except for palythine. Usujirene and palythene are unstable in acidic condition, yielding palythine by hydrolysis of cis-trans isomerization form [39,40,41]. Comparing the spectra of 6 and 24 h (Figure 1), the absorbance (357–360 nm) showing the absorption maxima of usujirene and palythene was significantly decreased. In addition, the decrease in usujirene + palythene and increase in palythine from 6 to 24 h were close (Table 2). The increase in palythine would be related to the hydrolysis of usujirene and palythene. On the other hand, the content of shinorine and porphyra-334 was significantly decreased (p < 0.05) from 6 to 24 h. Porphyra-334 was stable in solutions with the broad pH from 1 to 11 for 24 h at room temperature [42]. Sinha et al. [43] reported that shinorine and porphyra-334 were stable at 75 °C for up to 6 h. Coba et al. [44] reported that MAAs were highly stable at room temperature during 24 h at pH 4.5–8.5 at 50 °C. Chaves-Peña et al. [45] reported that the content of MAAs by water extraction and 20% methanol extraction was stable. When we extracted MAAs using methanol only, the content of the MAAs was stable despite of the extraction term (Table 6). Thus, we hypothesized the decrease in shinorine and porphyra-334 comes from enzymatic hydrolysis from dulse components.
The content of MAAs in Usujiri dulse was varied from 2.649 to 6.930 µmol (from 0.735 to 2.081 mg) g−1 DW. On the other hand, the content of MAAs in P. palmata from Galway Bay (Ireland) was from 0.620 on September to 7.340 mg g−1 DW on April [46] revealed that the content of MAAs in dulse was varied and that of Usujiri was low. One of the factors affected the content of MAAs is related to seasonal variation. It was reported that the content of MAAs in red algae Nothogenia fastigiata and Corallina officinalis collected from Bahía Mansa was increased in the high solar radiation (spring and summer season) [9]. Correlation of MAAs and solar radiation was reported in the red seaweed Gracilaria vermiculophylla cultured outdoors, the planktonic organisms from lakes and red algae P. palmata and Devaleraea ramentacea from the Kongsfjorden (Spitsbergen) and P. palmata from Galway Bay (Ireland) [46,47,48,49,50]. Although UVR and erythemal UV show mainly UVA and UVB, respectively, erythemal UV intensity is a good parameter for the representation of UVR. Therefore, we obtained erythemal UV intensity data of Hakodate in 2019 from Japan Meteorological Agency (accessed on 24 August 2020) (JMA: https://www.data.jma.go.jp/gmd/env/uvhp/info_uv.html) (Figure 6a). The monthly mean of maximum erythemal UV intensity in Hakodate gradually increased from January (25.0 mW/m2) to May (112.5 mW/m2). Unfortunately, correlation between MAAs and erythemal UV intensity was not found. Erythemal UV intensity was increased from January to May; however, the content of MAAs was not. We thought that the difference would come from the environmental reason such as lack of nutrients, water temperature, desiccation and thermal stress [9,13,39,51].
Nutrient availability (e.g., nitrogen) also affected the content of MAAs in red algae [9,18,52,53,54]. Usujiri is located at the entrance of Funka Bay. In Funka Bay, the large proliferation of diatoms is observed every spring (spring bloom). NASA’s Ocean Color WEB site provided chlorophyll concentration of the world (https://oceancolor.gsfc.nasa.gov) (accessed on 24 August 2020). Usually, chlorophyll concentration was related to the increase in diatoms and the decrease in the dissolved inorganic nitrogen in the surface layer. To investigate the relationship between chlorophyll concentration and the content of MAAs in Usujiri dulse, we prepared chlorophyll concentration data in 2019 (Figure 6b). The chlorophyll concentration in Funka Bay was increased sharply from January (below 1.0 mg/m3) to March (below 20 mg/m3), decreased sharply March to April (below 1.0 mg/m3) and stable from April to May (below 1.0 mg/m3). Thus, it was clear that spring bloom peak in Funka Bay in 2019 was reached in March, suggesting that the decrease of nitrogen supply from seawater was one of the key factors affected the content of MAAs in Usujiri dulse. Comparing the content of MAAs in Usujiri and Galway Bay (Ireland), Usujiri dulse has more potential to accumulate MAAs. We thought that a multi-year investigation is necessary to clarify the relationship between the accumulation of MAAs in Usujiri dulse and environmental conditions.
Palythine and porphyra-334 were major MAAs in Usujiri dulse. Karsten et al. [55] showed that P. palmata, which grew in a depth of 4 or 10 m, synthesized the equivalent content of shinorine, porphyra-334, and palythine, while the alga that grew at a depth of 2 m synthesized more palythine. We collected Usujiri dulse in the depth of 1 m, suggesting that the high molar percentage of palythine in Usujiri dulse may be related to the water depth. Other characteristic MAAs in Usujiri dulse are the high molar percentage of usujirene + palythene. Usujirene and palythene can absorb strong UVA due to the presence of cis-trans double bond in the structure [23,37,40]. Furthermore, hypothetic pathways for biosynthesis of MAAs showed that porphyra-334 is converted to usujirene [18,39,56]. Athukorala et al. [57] reported that red alga Mastocarpus stellatus was converted porphyra-334 to usujirene with an increase in the UVA exposure. The mol% of usujirene + palythene in Usujiri dulse was increased with erythemal UV intensity from January to April in 2019 (Figure 3 and Figure 6a). Thus, it is likely that porphyra-334 in Usujiri dulse was also converted to usujirene or palythene with an increase in UVA exposure.

3.2. Antioxidant Capacity of MAAs from Dulse

Despite many studies, research on the capacity related to pH was limited. In the present study, it was revealed that dulse crude MAAs, palythine, and porphyra-334 showed the highest scavenging activity and reducing power at alkaline condition in two ET reaction assays (Figure 4 and Figure 5). To our knowledge, this is the first report on the relationship of antioxidant capacity between pH and palythine.

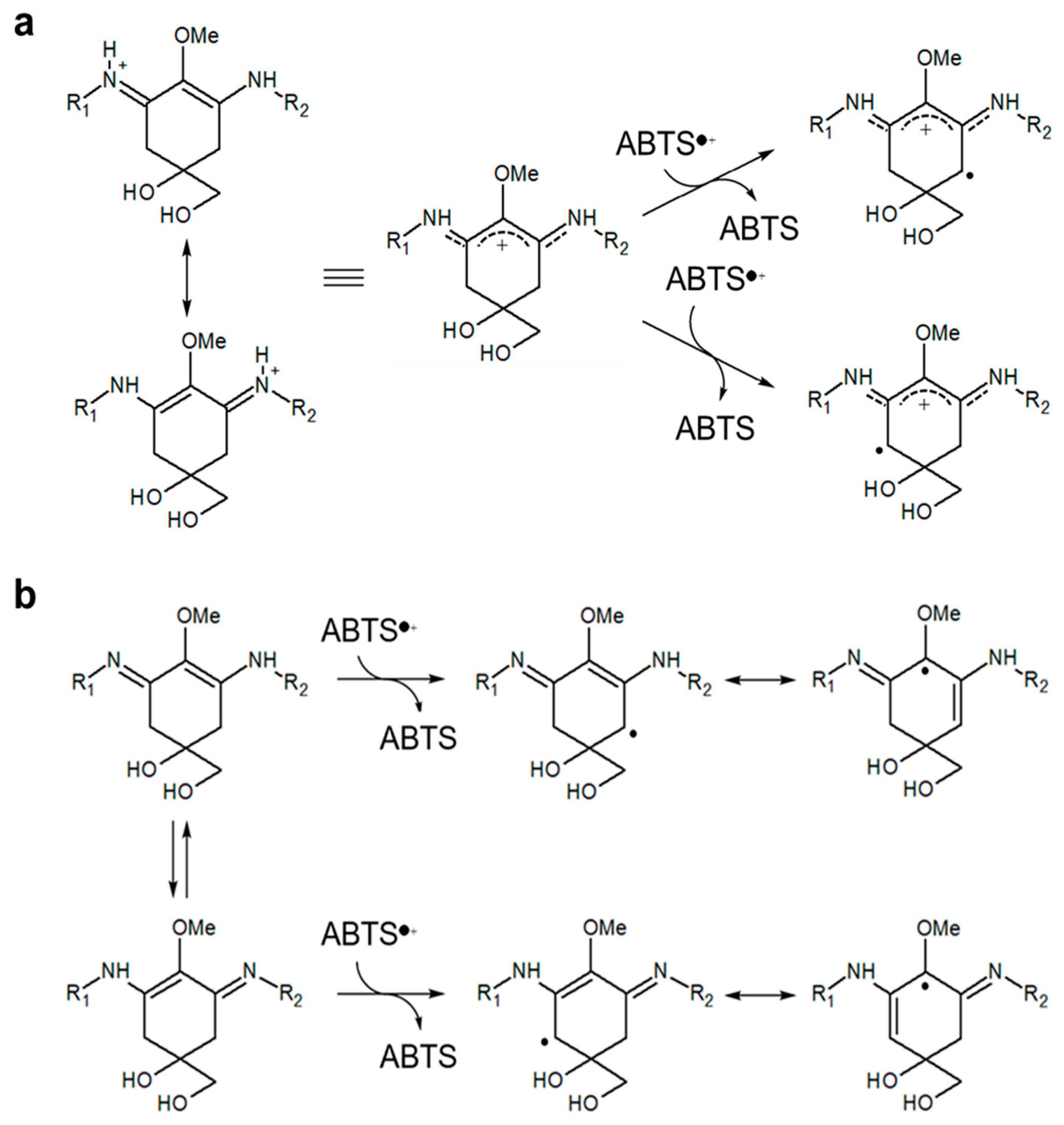

In the ABTS radical scavenging assay, the components of dulse crude MAAs in 0.15 mg/mL were as follows: shinorine (0.3 µM), palythine (2.4 µM), asterina-330 (0.1 µM), porphyra-334 (3.2 µM), and usujirene + palythene (1.3 µM), showing that a total of 7.3 µM MAAs was contained. Although usujirene is a strong antioxidant MAA [23,58,59], the main content of MAAs in Usujiri dulse was palythine and porphyra-334. We applied the antioxidant capacity of the purified MAAs to that of dulse crude MAAs, showing that two MAAs covered approximately 50% of ABTS radical scavenging activity at pH 7.4. On the other hand, the ratio of ABTS radical scavenging activity of MAAs at pH 8.0 was only 25%, indicating that antioxidant substances except for MAAs would be involved in alkali conditions. It is reported that amino acids and phenolic compounds are also known as pH-dependent antioxidants [58,59,60,61]. Phenolic compounds showed the significantly stronger antioxidant capacity than imino-MAAs (shinorine, porphyra-334, palythine, asterina-330 and palythinol) [10]. When we applied the ferrous reducing power of the two purified MAAs to that of dulse crude MAAs, the ratio of the purified MAAs was low (>5%) in the tested pH conditions. Therefore, it was suggested that MAAs were the key antioxidant materials at neutral pH in red algae, and MAAs showed the strong antioxidant capacity in the electron transfer reaction (radical scavenging activity).
Torres et al. [10] demonstrated that high antioxidant capacity of shinorine and porphyra-334 was found in alkaline conditions (pH 9.6). De La Coba et al. [21] reported that MAAs were pH-dependent antioxidants. These authors showed that the IC50 values of MAAs were decreased approximately 6 to 100-fold by the change of pH 6.0 to pH 8.5. Apak et al. [37] pointed out that the alkaline condition may promote the deprotonation of susceptible molecules and concomitantly increase their electron transfer capacity. When hydrogen atoms are abstracted from C-4 and/or C-6 position of methylene, the radical electron is delocalized in cyclohexene groups. Although this delocalization stabilizes the radical species formed, pH conditions changed the delocalization form of MAAs. The radical electrons of imino-MAAs were already delocalized at high pH, resulting in the increase of reactivity (Figure 7b) [38,58]. When imino-MAAs were protonated at low pH, the radical electron cannot widely delocalize, resulting in the decrease of reactivity (Figure 7a). The reactivity showed a good relationship between delocalization and the kinetics of antioxidant capacity of MAAs [10].
Ascorbic acid, an excellent one-electron reducing reagent, exerts pro-oxidant effects in the presence of catalytic metal ions at neutral conditions [62,63,64,65], while ascorbate monoanion (ASH−) generates the strong hydroxyl radical (HO•) through multiple reactions. Namely, ASH- reduces ferric (Fe3+) to ferrous (Fe2+) iron (Reaction 4). Fe2+ readily reacts with O2 and produces superoxide radical (O2•−) (Reaction 5), resulting in the production of H2O2 (Reaction 6). Finally, Fe2+ reacts with H2O2 generating HO• (Reaction 7) in a classic Fenton reaction, which is the reactive and harmful ROS for living body. On the other hand, MAAs showed the low reducing power and moderate radical scavenging activity at neutral conditions (Table 4 and Table 5), suggesting that MAAs might be the superior antioxidants materials in terms of the safety:
AscH− + Fe3+ → Asc•− + Fe2+
Fe2+ + O2 → Fe3+ + O2•−
O2•− + O2•− + 2H+ → H2O2 + O2
Fe2+ + H2O2 → Fe3+ + HO• (Fenton reaction)

4. Materials and Methods

4.1. Algal Material

All dulse samples were collected at 1 m depth in Usujiri, Hakodate, Japan (41°56′N, 40°56′E) on March 2018 and from January to May 2019. After collection, the thalli were washed with tap-water to remove sea salt and epibionts. Soon after, they were lyophilized. Dried algal samples were ground into a fine powder by Wonder Blender WB-1 (Osaka Chemical Co., Osaka, Japan) and stored in the dark at room temperature until analysis.

4.2. Determination of the Extraction Condition of Dulse Crude MAAs

To determine the optimum extraction conditions of MAAs, water extraction time from dulse powder was evaluated. The powdered samples were soaked in 20 volumes (v/w) of distilled water at 4 °C for 2 to 24 h. The water extracts were collected by centrifugation at 4 °C, 27,200 g for 10 min. After centrifugation, the supernatants were lyophilized and soaked in 20 volumes (volume/powdered sample weight) of methanol at 4 °C for 2 h. The MAAs containing methanol extracts were centrifuged at 4 °C, 27,200× g for 15 min, and designated as dulse crude MAAs solutions. The supernatants were evaporated, re-dissolved in water, and lyophilized. Then, the solid samples were designated as dulse crude MAAs and used following experiments.

4.3. Spectrophotometric Analysis of Dulse Crude MAAs Solutions

Dulse crude MAAs solutions were analyzed by the UV-visible ray absorption spectrum using a spectrophotometer (250–400 nm, UV-1800, Shimadzu, Kyoto, Japan).

4.4. Separation of MAAs by HPLC

The dulse crude MAAs were dissolved in ultra pure water containing 0.1% trifluoroacetic acid (TFA) and applied to sequential filtration by Millex-GV (pore size: 0.22 μm) (Merck Millipore, Billerica, MA, USA) and Millex-LG (pore size: 0.20 μm) (Merck Millipore). The filtrated MAAs were isolated by reversed-phase HPLC with a Mightysil RP-18GP column (5 µm, 10 × 250 mm) (Kanto Kagaku, Tokyo, Japan) using an isocratic elution of ultra pure water containing 0.1% TFA for 7 min and a linear gradient of acetonitrile (0–70%) containing 0.1% TFA for 13 min at a flow rate of 4.73 mL/min. The column oven temperature was set at 40 °C. The detection wavelength was set at 330 nm. The peaks having 330 nm were fractionated and evaporated. Then, the purified MAAs were dissolved in an appropriate amount of distilled water.

4.5. Identification of MAAs by MALDI-TOF/MS

The mass-to-charge ratio of MAAs was determined by the Matrix Assisted Laser Desorption/Ionization Time Of Flight Tandem Mass Spectrometry (MALDI-TOF/MS) method using a 4700 Proteomics Analyzer with Denovo Explorer software (Applied Biosystems, Carlsbad, CA, USA). The fractionated MAAs were lyophilized and dissolved in ultra pure water containing 0.1% TFA. Then, the samples were mixed with 5 mg/mL α-cyano-4-hydroxycinnamic acid matrix and detected by positive-mode.

4.6. Calculation of the Content of MAAs in HPLC

The content of individual MAAs was determined using Lambert–Beer law. Using the purified individual MAAs, the relationship between the content of MAAs and HPLC peak area was determined. The results were expressed as µmol g−1 DW (dry weight).

4.7. ABTS Radical Scavenging Assay

ABTS radical scavenging assay was carried out according to the method of Binsan et al. [66] with some modifications. The working solution was prepared by mixing with an equal volume of 14.8 mM ABTS and 5.2 mM potassium persulphate and incubated at room temperature in dark conditions for 12 h. The ABTS reagent having the absorbance at 734 nm of 1.00 ± 0.02 was prepared by the dilution of working solution with 0.2 M phosphate buffer (pH 5.8, 6.6, 7.4, and 8.0). The ABTS radical scavenging assay was performed as follows: 50 µL of sample (dulse crude MAAs or the purified MAAs) or distilled water were mixed with 950 µL of the ABTS reagent or the phosphate buffer. Then, the mixture was incubated at room temperature for 2 h in the dark. After the incubation, the solution was centrifuged at 4 °C, 2000× g for 5 min to remove insoluble, and the supernatant was measured absorbance at 734 nm. ABTS radical scavenging activity (%) was calculated from the equation [1 − (As − Asb)/(Ac − Acb)] × 100, where As is the absorbance of sample mixed with the ABTS reagent, Asb is the absorbance of sample mixed with the phosphate buffer, Ac is the absorbance of distilled water mixed with the ABTS reagent, and Acb is the absorbance of distilled water mixed with the phosphate buffer. Ascorbic acid was used as a standard.

4.8. Ferrous Reducing Power Assay

Ferrous reducing power was determined according to the method of Kuda et al. [67] with some modifications. In addition, 0.4 mL of sample (dulse crude MAAs or the purified MAAs) or distilled water were mixed with 0.4 mL of 0.2 M phosphate buffer (pH 5.8, 6.6, 7.4, and 8.0) and 0.4 mL of 1% potassium ferricyanide. The mixture was incubated at 50 °C for 20 min. Then, 0.4 mL of 10% trichloroacetic acid was added to the reaction mixture. A half volume of samples were extracted and then mixed with 960 µL of 0.017% ferric chloride and incubated for 10 min at room temperature. Absorbance at 700 nm of solutions was measured. Ferrous reducing power (OD) was calculated from the equation As-Asb, where As is the absorbance of sample and Asb is the absorbance of control. Ascorbic acid was used as a standard.

4.9. Abiotic Data in Hakodate (Usujiri)

The monthly mean of daily maximum ultraviolet index (UVI) was obtained from Japan Meteorological Agency (JMA: https://www.data.jma.go.jp/gmd/env/uvhp/info_uv.html). According to the method of JMA, erythemal UV intensity (mW/m2) was calculated by multiplying UVI by 25 times. Data on chlorophyll concentration (mg/m3) of near-surface were obtained from NASA’s Ocean Color WEB (https://oceancolor.gsfc.nasa.gov). All data were recorded in 2019.

4.10. Statistical Analysis

Data are expressed as the mean ± standard error. All values are mean of triplicate analysis. Statistical analysis was carried out using Tukey–Kramer’s multiple comparisons test. All statistical analyses were performed using Statcel 3 software (Version No. 3, OMS Publisher, Tokorozawa, Japan).

5. Conclusions

In the present study, we determined the efficient extraction condition of MAAs and then investigated the monthly variation (January–May 2019) in the content of MAAs in Usujiri dulse. As a result, it was revealed that a large content of MAAs were obtained by water extraction for 6 h from Usujiri dulse collected in late February. We hypothesized that not only solar radiation, but also chlorophyll concentration affected monthly variation in the content of MAAs in Usujiri dulse. It is necessary to conduct a multi-year investigation to validate this hypothesis. Finally, we evaluated the effects of pH on the antioxidant capacity of MAAs from Usujiri dulse by ABTS radical scavenging and ferrous reducing power assays. As a result, it was revealed that dulse crude MAAs, palythine, and porphyra-334 showed the highest scavenging activity and reducing power in alkaline conditions in two ET reaction assays. The pH of our skin is acidic, meaning that antioxidant capacity of MAAs does not show the good potential. On the other hand, the pH of some part of our body is weak alkali such as eye and blood, indicating that MAAs will be good sunscreen and antioxidant materials. This suggests that pH must be considered when using MAAs as antioxidant components in biotechnology products.

Author Contributions

H.K. and H.Y. conceived and designed the research; H.K. and H.Y. contributed to sample collection; Y.N., Y.K., and S.M. performed the experiments and analyzed the data; Y.N., Y.K., and H.K. contributed to writing and editing the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported in part by MEXT/JSPS KAKENHI (Grant No. 18K05810).

Acknowledgments

We gratefully acknowledge the sampling assistant of Palmaria palmata in Japan at Usujiri by Hiroyuki Munehara and Atsuya Miyajima.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chrapusta, E.; Kaminski, A.; Zabaglo, K.; Bober, B.; Adamski, M.; Bialczyk, J. Mycosporine-Like Amino Acids: Potential Health and Beauty Ingredients. Mar. Drugs 2017, 15, 326. [Google Scholar] [CrossRef] [Green Version]
  2. Afaq, F.; Mukhtar, H. Botanical antioxidants in the prevention of photocarcinogenesis and photoaging. Exp. Dermatol. 2006, 15, 678–684. [Google Scholar] [CrossRef]
  3. Rastogi, R.P.; Sinha, R.P. Biotechnological and industrial significance of cyanobacterial secondary metabolites. Biotechnol. Adv. 2009, 27, 521–539. [Google Scholar] [CrossRef] [PubMed]
  4. Lucas, R.M.; Yazar, S.; Young, A.; Norval, M.; De Gruijl, F.R.; Takizawa, Y.; Rhodes, L.E.; Sinclair, C.A.; Neale, R. Human health in relation to exposure to solar ultraviolet radiation under changing stratospheric ozone and climate. Photochem. Photobiol. Sci. 2019, 18, 641–680. [Google Scholar] [CrossRef] [PubMed]
  5. Williamson, C.E.; Neale, P.J.; Hylander, S.; Rose, K.C.; Figueroa, F.L.; Robinson, S.A.; Häder, D.-P.; Wängberg, S.-A.; Worrest, R.C. The interactive effects of stratospheric ozone depletion, UV radiation, and climate change on aquatic ecosystems. Photochem. Photobiol. Sci. 2019, 18, 717–746. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Young, C. Solar ultraviolet radiation and skin cancer. Occup. Med. 2009, 59, 82–88. [Google Scholar] [CrossRef] [Green Version]
  7. Johanna, M.K.; Ross, S.C.B.; Gary, M.H. Cyclobutane pyrimidine dimer formation is a molecular trigger for solar-simulated ultraviolet radiation-induced suppression of memory immunity in humans. Photochem. Photobiol. Sci. 2005, 4, 577–582. [Google Scholar]
  8. Rastogi, R.; Madamwar, D.; Incharoensakdi, A. Sun-screening bioactive compounds mycosporine-like amino acids in naturally occurring cyanobacterial biofilms: Role in photoprotection. J. Appl. Microbiol. 2015, 119, 753–762. [Google Scholar] [CrossRef]
  9. Jofre, J.; Celis-Plá, P.S.M.; Figueroa, F.L.; Navarro, N. Seasonal Variation of Mycosporine-Like Amino Acids in Three Subantarctic Red Seaweeds. Mar. Drugs 2020, 18, 75. [Google Scholar] [CrossRef] [Green Version]
  10. Torres, P.; Santos, J.; Chow, F.; Ferreira, M.J.P.; Santos, D. Comparative analysis of in vitro antioxidant capacities of mycosporine-like amino acids (MAAs). Algal Res. 2018, 34, 57–67. [Google Scholar] [CrossRef]
  11. Fernandes, S.C.M.; Alonso-Varona, A.; Palomares, T.; Zubillaga, V.; Labidi, J.; Bulone, V. Exploiting Mycosporines as Natural Molecular Sunscreens for the Fabrication of UV-Absorbing Green Materials. ACS Appl. Mater. Interfaces 2015, 7, 16558–16564. [Google Scholar] [CrossRef] [PubMed]
  12. Hoyer, K.; Karsten, U.; Sawall, T.; Wiencke, C. Photoprotective substances in Antarctic macroalgae and their variation with respect to depth distribution, different tissues and developmental stages. Mar. Ecol. Prog. Ser. 2001, 211, 117–129. [Google Scholar] [CrossRef] [Green Version]
  13. Diehl, N.; Michalik, D.; Zuccarello, G.C.; Karsten, U. Stress metabolite pattern in the eulittoral red alga Pyropia plicata (Bangiales) in New Zealand – mycosporine-like amino acids and heterosides. J. Exp. Mar. Boil. Ecol. 2019, 510, 23–30. [Google Scholar] [CrossRef]
  14. Shick, J.M.; Dunlap, W.C. Mycosporine-Like Amino Acids and Related Gadusols: Biosynthesis, Accumulation, and UV-Protective Functions in Aquatic Organisms. Annu. Rev. Physiol. 2002, 64, 223–262. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Rastogi, R.P.; Sinha, R.P.; Singh, S.P.; Häder, D.P. Photoprotective compounds from marine organisms. J. Ind. Microbiol. Biotechnol. 2010, 37, 537–558. [Google Scholar] [CrossRef]
  16. Shick, J.M.; Romaine-Lioud, S.; Ferrier-Pages, C.; Gattuso, J.P. Ultraviolet-B radiation stimulates shikimate pathway-dependent accumulation of mycosporine-like amino acids in the coral Stylophora pistillata despite decreases in its population of symbiotic dinoflagellates. Limnol. Oceanogr. 1999, 44, 1667–1682. [Google Scholar] [CrossRef] [Green Version]
  17. Balskus, E.P.; Walsh, C.T. The Genetic and Molecular Basis for Sunscreen Biosynthesis in Cyanobacteria. Science 2010, 329, 1653–1656. [Google Scholar] [CrossRef] [Green Version]
  18. Lalegerie, F.; Stiger-Pouvreau, V.; Connan, S. Temporal variation in pigment and mycosporine-like amino acid composition of the red macroalga Palmaria palmata from Brittany (France): Hypothesis on the MAA biosynthesis pathway under high irradiance. Environ. Boil. Fishes 2020, 32, 2641–2656. [Google Scholar] [CrossRef]
  19. Cockell, C.; Knowland, J. Ultraviolet screening compounds. Biol. Rev. 1999, 74, 311–345. [Google Scholar] [CrossRef]
  20. Bandaranayake, W.M. Mycosporines: Are they nature’s sunscreens? Nat. Prod. Rep. 1998, 15, 159–172. [Google Scholar] [CrossRef]
  21. De La Coba, F.; Aguilera, J.; Figueroa, F.L.; De Gálvez, M.V.; Herrera, E. Antioxidant activity of mycosporine-like amino acids isolated from three red macroalgae and one marine lichen. Environ. Boil. Fishes 2008, 21, 161–169. [Google Scholar] [CrossRef]
  22. Conde, F.R.; Churio, M.S.; Previtali, C.M. The photoprotector mechanism of mycosporine-like amino acids. Excited-state properties and photostability of porphyra-334 in aqueous solution. J. Photochem. Photobiol. B: Boil. 2000, 56, 139–144. [Google Scholar] [CrossRef]
  23. Yuan, Y.V.; Westcott, N.D.; Hu, C.; Kitts, D.D. Mycosporine-like amino acid composition of the edible red alga, Palmaria palmata (dulse) harvested from the west and east coasts of Grand Manan Island, New Brunswick. Food Chem. 2009, 112, 321–328. [Google Scholar] [CrossRef]
  24. Cheewinthamrongrod, V.; Kageyama, H.; Palaga, T.; Takabe, T.; Waditee-Sirisattha, R. DNA damage protecting and free radical scavenging properties of mycosporine-2-glycine from the Dead Sea cyanobacterium in A375 human melanoma cell lines. J. Photochem. Photobiol. B Boil. 2016, 164, 289–295. [Google Scholar] [CrossRef]
  25. Suh, S.-S.; Hwang, J.; Park, M.; Seo, H.H.; Kim, H.-S.; Lee, J.H.; Moh, S.H.; Lee, T.-K. Anti-Inflammation Activities of Mycosporine-Like Amino Acids (MAAs) in Response to UV Radiation Suggest Potential Anti-Skin Aging Activity. Mar. Drugs 2014, 12, 5174–5187. [Google Scholar] [CrossRef] [Green Version]
  26. Furuta, T.; Miyabe, Y.; Yasui, H.; Kinoshita, Y.; Kishimura, H. Angiotensin I Converting Enzyme Inhibitory Peptides Derived from Phycobiliproteins of Dulse Palmaria palmata. Mar. Drugs 2016, 14, 32. [Google Scholar] [CrossRef] [Green Version]
  27. Kumagai, Y.; Miyabe, Y.; Takeda, T.; Adachi, K.; Yasui, H.; Kishimura, H. In Silico Analysis of Relationship between Proteins from Plastid Genome of Red Alga Palmaria sp. (Japan) and Angiotensin I Converting Enzyme Inhibitory Peptides. Mar. Drugs 2019, 17, 190. [Google Scholar] [CrossRef] [Green Version]
  28. Kumagai, Y.; Tsubouchi, R.; Miyabe, Y.; Takeda, T.; Adachi, K.; Yasui, H.; Kishimura, H. Complete sequence of mitochondrial DNA of red alga dulse Palmaria palmata (Linnaeus) Weber & Mohr in Japan. Mitochondrial DNA Part. B 2019, 4, 3177–3178. [Google Scholar] [CrossRef] [Green Version]
  29. Miyabe, Y.; Furuta, T.; Takeda, T.; Kanno, G.; Shimizu, T.; Tanaka, Y.; Gai, Z.; Yasui, H.; Kishimura, H. Structural Properties of Phycoerythrin from Dulse Palmaria palmata. J. Food Biochem. 2016, 41, 12301. [Google Scholar] [CrossRef] [Green Version]
  30. Kitade, Y.; Miyabe, Y.; Yamamoto, Y.; Takeda, H.; Shimizu, T.; Yasui, H.; Kishimura, H. Structural characteristics of phycobiliproteins from red alga Mazzaella japonica. J. Food Biochem. 2017, 42, e12436. [Google Scholar] [CrossRef] [Green Version]
  31. Fitzgerald, C.; Mora, L.; Gallagher, E.; O’Connor, P.; Prieto, J.; Soler-Vila, A.; Hayes, M. Isolation and Characterization of Bioactive Pro-Peptides with in Vitro Renin Inhibitory Activities from the Macroalga Palmaria palmata. J. Agric. Food Chem. 2012, 60, 7421–7427. [Google Scholar] [CrossRef] [PubMed]
  32. Sato, N.; Furuta, T.; Takeda, T.; Miyabe, Y.; Ura, K.; Takagi, Y.; Yasui, H.; Kumagai, Y.; Kishimura, H. Antioxidant activity of proteins extracted from red alga dulse harvested in Japan. J. Food Biochem. 2018, 43, e12709. [Google Scholar] [CrossRef] [PubMed]
  33. Kobayashi, M.; Kumagai, Y.; Yamamoto, Y.; Yasui, H.; Kishimura, H. Identification of a key enzyme for the hydrolysis of β-(1→3)-xylosyl linkage in red alga dulse xylooligosaccharide from Bifidobacterium adolescentis. Mar. Drugs 2020, 18, 174. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Karsten, U.; Sawall, T.; Wiencke, C. A survey of the distribution of UV-absorbing substances in tropical macroalgae. Phycol. Res. 1998, 46, 271–279. [Google Scholar] [CrossRef]
  35. Chuang, L.F.; Chou, H.N.; Sung, P.J. Porphyra-334 Isolated from the Marine Algae Bangia atropurpurea: Conformational Performance for Energy Conversion. Mar. Drugs 2014, 12, 4732–4740. [Google Scholar] [CrossRef] [Green Version]
  36. Conde, F.R.; Carignan, M.O.; Churio, M.S.; Carreto, J.I. In Vitro cis–trans Photoisomerization of Palythene and Usujirene. Implications on the In Vivo Transformation of Mycosporine-like Amino Acids. Photochem. Photobiol. 2003, 77, 146. [Google Scholar] [CrossRef]
  37. Apak, R.; Özyürek, M.; Güçlü, K.; Çapanoğlu, E. Antioxidant Activity/Capacity Measurement. 1. Classification, Physicochemical Principles, Mechanisms, and Electron Transfer (ET)-Based Assays. J. Agric. Food Chem. 2016, 64, 997–1027. [Google Scholar] [CrossRef]
  38. Wada, N.; Sakamoto, T.; Matsugo, S. Multiple Roles of Photosynthetic and Sunscreen Pigments in Cyanobacteria Focusing on the Oxidative Stress. Metabolites 2013, 3, 463–483. [Google Scholar] [CrossRef]
  39. Carreto, J.I.; Carignan, M.O. Mycosporine-Like Amino Acids: Relevant Secondary Metabolites. Chemical and Ecological Aspects. Mar. Drugs 2011, 9, 387–446. [Google Scholar] [CrossRef]
  40. Carreto, J.; Carignan, M.; Daleo, G.R.; Marco, S. Occurrence of mycosporine-like amino acids in the red-tide dinoflagellate Alexandrium excavatum: UV-photoprotective compounds? J. Plankton Res. 1990, 12, 909–921. [Google Scholar] [CrossRef]
  41. Takano, S.; Uemura, D.; Hirata, Y. Isolation and structure of two new amino acids, palythinol and palythene, from the zoanthid. Tetrahedron Lett. 1978, 19, 4909–4912. [Google Scholar] [CrossRef]
  42. Zhang, Z.; Tashiro, Y.; Matsukawa, S.; Ogawa, H. Influence of pH and temperature on the ultraviolet-absorbing properties of porphyra-334. Fish. Sci. 2005, 71, 1382–1384. [Google Scholar] [CrossRef]
  43. Sinha, R.P.; Klisch, M.; Gröniger, A.; Häder, D.-P. Mycosporine-like amino acids in the marine red alga Gracilaria cornea—effects of UV and heat. Environ. Exp. Bot. 2000, 43, 33–43. [Google Scholar] [CrossRef]
  44. De La Coba, F.; Aguilera, J.; Korbee, N.; De Gálvez, M.V.; Herrera-Ceballos, E.; Álvarez-Gómez, F.; Figueroa, F.L. UVA and UVB Photoprotective Capabilities of Topical Formulations Containing Mycosporine-like Amino Acids (MAAs) through Different Biological Effective Protection Factors (BEPFs). Mar. Drugs 2019, 17, 55. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Chaves-Peña, P.; De La Coba, F.; Figueroa, F.L.; Korbee, N. Quantitative and Qualitative HPLC Analysis of Mycosporine-Like Amino Acids Extracted in Distilled Water for Cosmetical Uses in Four Rhodophyta. Mar. Drugs 2019, 18, 27. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Guiheneuf, F.; Gietl, A.; Stengel, D.B. Temporal and spatial variability of mycosporine-like amino acids and pigments in three edible red seaweeds from western Ireland. Environ. Boil. Fishes 2018, 30, 2573–2586. [Google Scholar] [CrossRef]
  47. Barceló-Villalobos, M.; Figueroa, F.L.; Korbee, N.; Álvarez-Gómez, F.; Abreu, M.H. Production of mycosporine-like amino acids form Gracilaria vermiculophylla (Rhodophyta) culture through one year in an integrated multitrophic aquaculture (IMTA) system. Mar. Biotechnol. 2017, 19, 246–254. [Google Scholar] [CrossRef]
  48. Ha, S.Y.; Lee, Y.; Kim, M.S.; Kumar, K.S.; Shin, K.H. Seasonal Changes in Mycosporine-Like Amino Acid Production Rate with Respect to Natural Phytoplankton Species Composition. Mar. Drugs 2015, 13, 6740–6758. [Google Scholar] [CrossRef] [Green Version]
  49. Tartarotti, B.; Sommaruga, R. Seasonal and ontogenetic changes of mycosporine-like amino acids in planktonic organisms from an alpine lake. Limnol. Oceanogr. 2006, 51, 1530–1541. [Google Scholar] [CrossRef] [Green Version]
  50. Aguilera, J.; Dummermuth, A.; Karsten, U.; Schriek, R.; Wiencke, C. Enzymatic defenses against photooxidative stress induced by ultraviolet radiation in Arctic marine macroalgae. Polar Biol. 2002, 25, 432–441. [Google Scholar] [CrossRef] [Green Version]
  51. Jiang, H.; Gao, K.; Helbling, E.W. UV-absorbing compounds in Porphyra haitanensis (Rhodophyta) with special reference to effects of desiccation. Environ. Boil. Fishes 2007, 20, 387–395. [Google Scholar] [CrossRef] [Green Version]
  52. Korbee, N.; Huovinen, P.; Figueroa, F.L.; Aguilera, J.; Karsten, U. Availability of ammonium influences photosynthesis and the accumulation of mycosporine-like amino acids in two Porphyra species (Bangiales, Rhodophyta). Mar. Boil. 2004, 146, 645–654. [Google Scholar] [CrossRef]
  53. Huovinen, P.; Matos, J.; Pinto, I.S.; Figueroa, F.L. The role of ammonium in photoprotection against high irradiance in the red alga Grateloupia lanceola. Aquat. Bot. 2006, 84, 308–316. [Google Scholar] [CrossRef]
  54. Briani, B.; Sissini, M.N.; Lucena, L.A.; Batista, M.B.; Costa, I.O.; Nunes, J.M.C.; Schmitz, C.; Ramlov, F.; Maraschini, M.; Korbee, N.K.; et al. Mycosporine like amino acids (MAAs) in red marine algae and their relations with abiotic factors along southern Atlantic coast. J. Phycol. 2018, 50, 380–390. [Google Scholar] [CrossRef] [PubMed]
  55. Karsten, U.; Wiencke, C. Factors Controlling the Formation of UV-absorbing Mycosporine-like Amino Acids in the Marine Red Alga Palmaria palmata from Spitsbergen (Norway). J. Plant. Physiol. 1999, 155, 407–415. [Google Scholar] [CrossRef]
  56. Carreto, J.I.; Carignan, M.O.; Montoya, N.G. A high-resolution reverse-phase liquid chromatography method for the analysis of mycosporine-like amino acids (MAAs) in marine organisms. Mar. Boil. 2004, 146, 237–252. [Google Scholar] [CrossRef]
  57. Athukorala, Y.; Trang, S.; Kwok, C.; Yuan, Y.V. Antiproliferative and Antioxidant Activities and Mycosporine-Like Amino Acid Profiles of Wild-Harvested and Cultivated Edible Canadian Marine Red Macroalgae. Molecules 2016, 21, 119. [Google Scholar] [CrossRef] [Green Version]
  58. Nakayama, R.; Tamura, Y.; Kikuzaki, H.; Nakatani, N. Antioxidant effect of the constituents of susabinori (Porphyra yezoensis). J. Am. Oil Chem. Soc. 1999, 76, 649–653. [Google Scholar] [CrossRef]
  59. Yuan, Y.V.; Bone, D.E.; Carrington, M.F. Antioxidant activity of dulse (Palmaria palmata) extract evaluated in vitro. Food Chem. 2005, 91, 485–494. [Google Scholar] [CrossRef]
  60. Zheng, L.; Zhao, M.; Xiao, C.; Zhao, Q.; Su, G. Practical problems when using ABTS assay to assess the radical-scavenging activity of peptides: Importance of controlling reaction pH and time. Food Chem. 2016, 192, 288–294. [Google Scholar] [CrossRef]
  61. Labrinea, E.P.; Georgiou, C.A. Stopped-flow method for assessment of pH and timing effect on the ABTS total antioxidant capacity assay. Anal. Chim. Acta 2004, 526, 63–68. [Google Scholar] [CrossRef]
  62. Du, J.; Cullen, J.J.; Buettner, G.R. Ascorbic acid: Chemistry, biology and the treatment of cancer. Biochim. Biophys. Acta Bioenerg. 2012, 1826, 443–457. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Buettner, G.R.; Jurkiewicz, B.A. Catalytic Metals, Ascorbate and Free Radicals: Combinations to Avoid. Radiat. Res. 1996, 145, 532. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Halliwell, B. Vitamin C: Poison, prophylactic or panacea? Trends Biochem. Sci. 1999, 24, 255–259. [Google Scholar] [CrossRef]
  65. Frei, B.; Lawson, S. Vitamin C and cancer revisited. Proc. Natl. Acad. Sci. USA 2008, 105, 11037–11038. [Google Scholar] [CrossRef] [Green Version]
  66. Binsan, W.; Benjakul, S.; Visessanguan, W.; Roytrakul, S.; Tanaka, M.; Kishimura, H. Antioxidative activity of Mungoong, an extract paste, from the cephalothorax of white shrimp (Litopenaeus vannamei). Food Chem. 2008, 106, 185–193. [Google Scholar] [CrossRef]
  67. Kuda, T.; Yano, T. Changes of radical-scavenging capacity and ferrous reducing power in chub mackerel Scomber japonicus and Pacific saury Cololabis saira during 4 °C storage and retorting. LWT 2009, 42, 1070–1075. [Google Scholar] [CrossRef]
Marinedrugs 18 00502 g001 550
Figure 1. Absorption spectra of dulse crude MAAs solutions. Dulse crude MAAs solutions were prepared by different water extraction terms (2 to 24 h) using the sample collected on 13 March 2018. All six solutions were diluted with 20 volumes (v/v) of distilled water. Blue and orange backgrounds represent the absorption maximum (325–330 nm) and the area for calculation of MAAs (310–360 nm), respectively.
Figure 1. Absorption spectra of dulse crude MAAs solutions. Dulse crude MAAs solutions were prepared by different water extraction terms (2 to 24 h) using the sample collected on 13 March 2018. All six solutions were diluted with 20 volumes (v/v) of distilled water. Blue and orange backgrounds represent the absorption maximum (325–330 nm) and the area for calculation of MAAs (310–360 nm), respectively.
Marinedrugs 18 00502 g001
Marinedrugs 18 00502 g002 550
Figure 2. HPLC chromatogram of dulse crude MAAs solution. The data represents 6 h sample showing the typical peaks at retention time of 4.42 min (a), 4.79 min (b), 5.27 min (c), 7.73 min (d), 13.36 min (e), and 13.43 min (f).
Figure 2. HPLC chromatogram of dulse crude MAAs solution. The data represents 6 h sample showing the typical peaks at retention time of 4.42 min (a), 4.79 min (b), 5.27 min (c), 7.73 min (d), 13.36 min (e), and 13.43 min (f).
Marinedrugs 18 00502 g002
Marinedrugs 18 00502 g003 550
Figure 3. Molar percentage of MAAs in 2019. The content of six MAAs, shinorine, palythine, asterina-330, porphyra-334 and usujirene + palythene, was compared in dulse collected on 23 January, 25 February, 2 April and 17 May. The data showed mean values, n = 3.
Figure 3. Molar percentage of MAAs in 2019. The content of six MAAs, shinorine, palythine, asterina-330, porphyra-334 and usujirene + palythene, was compared in dulse collected on 23 January, 25 February, 2 April and 17 May. The data showed mean values, n = 3.
Marinedrugs 18 00502 g003
Marinedrugs 18 00502 g004 550

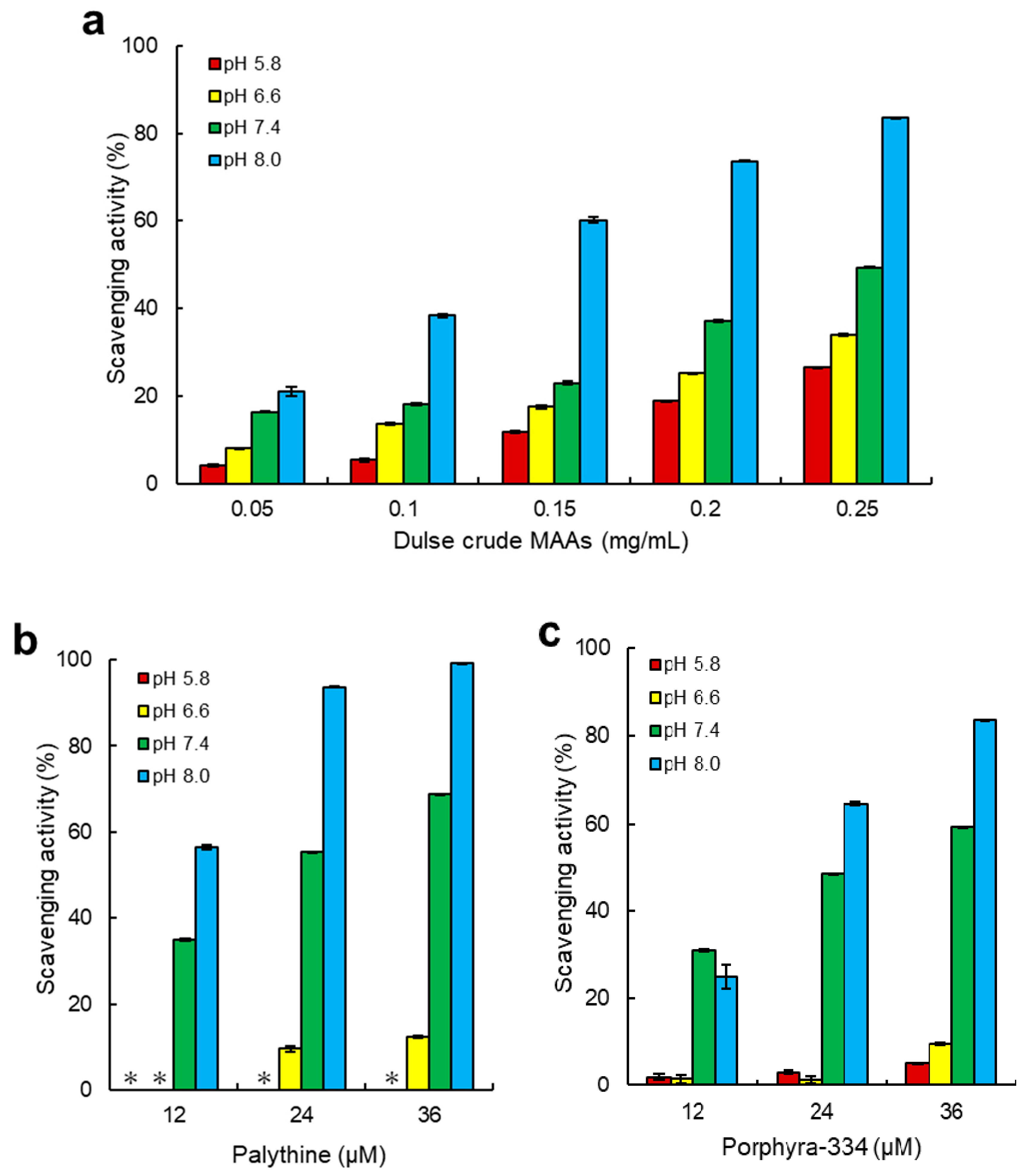

Figure 4. Antioxidant scavenging activity. (a), dulse crude MAAs; (b), palythine; (c), porphyra-334. ABTS radical scavenging assay was performed at pH 5.8, 6.6, 7.4 and 8.0. Data represent mean values ± SE (n = 3). An asterisk (*) indicates the activity was limit of detection. The components of dulse crude MAAs in 0.15 mg/mL was as follows: shinorine (0.3 µM), palythine (2.4 µM), asterina-330 (0.1 µM), porphyra-334 (3.2 µM) and usujirene + palythene (1.3 µM).
Figure 4. Antioxidant scavenging activity. (a), dulse crude MAAs; (b), palythine; (c), porphyra-334. ABTS radical scavenging assay was performed at pH 5.8, 6.6, 7.4 and 8.0. Data represent mean values ± SE (n = 3). An asterisk (*) indicates the activity was limit of detection. The components of dulse crude MAAs in 0.15 mg/mL was as follows: shinorine (0.3 µM), palythine (2.4 µM), asterina-330 (0.1 µM), porphyra-334 (3.2 µM) and usujirene + palythene (1.3 µM).
Marinedrugs 18 00502 g004
Marinedrugs 18 00502 g005a 550Marinedrugs 18 00502 g005b 550

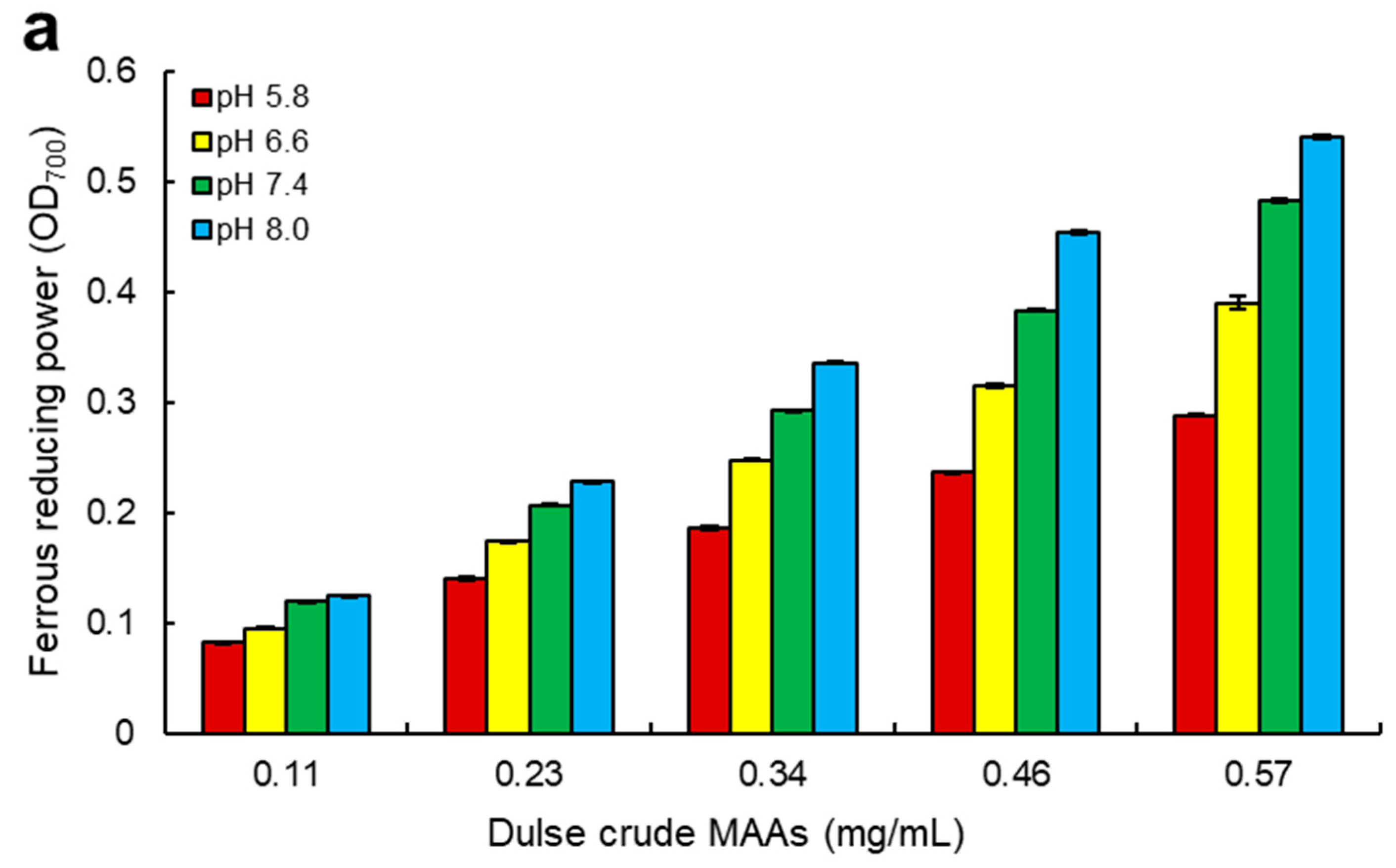

Figure 5. Ferrous reducing power assay. (a), dulse crude MAAs; (b), palythine; (c), porphyra-334. Reducing power assay was performed at pH 5.8, 6.6, 7.4 and 8.0. Data represent mean values ± SE (n = 3). The components of dulse crude MAAs in 0.11 mg/mL were as follows: shinorine (0.22 µM), palythine (1.8 µM), asterina-330 (0.07 µM), porphyra-334 (2.3 µM), and usujirene + palythene (0.95 µM).
Figure 5. Ferrous reducing power assay. (a), dulse crude MAAs; (b), palythine; (c), porphyra-334. Reducing power assay was performed at pH 5.8, 6.6, 7.4 and 8.0. Data represent mean values ± SE (n = 3). The components of dulse crude MAAs in 0.11 mg/mL were as follows: shinorine (0.22 µM), palythine (1.8 µM), asterina-330 (0.07 µM), porphyra-334 (2.3 µM), and usujirene + palythene (0.95 µM).
Marinedrugs 18 00502 g005aMarinedrugs 18 00502 g005b
Marinedrugs 18 00502 g006 550
Figure 6. The monthly mean of daily maximum erythemal UV intensity and chlorophyll concentration. (a) erythemal UV intensity; (b), chlorophyll concentration. These data were obtained from JMA and NASA’s Ocean Color WEB, respectively. All data were recorded in 2019.
Figure 6. The monthly mean of daily maximum erythemal UV intensity and chlorophyll concentration. (a) erythemal UV intensity; (b), chlorophyll concentration. These data were obtained from JMA and NASA’s Ocean Color WEB, respectively. All data were recorded in 2019.
Marinedrugs 18 00502 g006
Marinedrugs 18 00502 g007 550
Figure 7. Putative radical stabilization mechanism of MAAs. Stabilization of ABTS radical was occurred by resonance of radical electron at the C-4 and C-6 position in imino-MAAs. (a) acidic condition; (b) basic condition.
Figure 7. Putative radical stabilization mechanism of MAAs. Stabilization of ABTS radical was occurred by resonance of radical electron at the C-4 and C-6 position in imino-MAAs. (a) acidic condition; (b) basic condition.
Marinedrugs 18 00502 g007
Table
Table 1. The chemical formula of MAAs.
Table 1. The chemical formula of MAAs.
Peak
No. 1		MAAsFormulaExtinction
Coefficient 2
(M−1 cm−1)		Retention Time 3
(min)		λmax 4
(nm)		m/z5
[M + H]+
aShinorineC13H20N2O844,7004.42329–331333.2
bPalythineC10H16N2O536,2004.79319245.1
cAsterina-330C12H20N2O643,5005.27325–328289.2
dPorphyra-334C14H22N2O842,3007.73331347.1
eUsujireneC13H20N2O545,07013.36357285.1
fPalytheneC13H20N2O547,52113.43358285.1
1 Data from Figure 2. 2 Data from [34] (shinorine, palythine and asterina-330), [35] (porphyra-334) and [36] (usujirene and palythene).3 Data from HPLC.4 Data from UV-Vis-absorption. 5 Data from MALDI-TOF/MS.
Table
Table 2. The content of extracted MAAs from dulse at different water extraction term.
Table 2. The content of extracted MAAs from dulse at different water extraction term.
MAAsWater Extraction Term
2 h6 h24 h
Shinorine0.147 ± 0.003 a0.155 ± 0.001 a0.137 ± 0.002 b
Palythine2.519 ± 0.140 b2.964 ± 0.032 a3.130 ± 0.049 a
Asterina-3300.069 ± 0.002 b0.078 ± 0.001 a0.074 ± 0.001 a b
Porphyra-3341.771 ± 0.013 b1.900 ± 0.029 a1.688 ± 0.020 b
Usujirene + Palythene0.258 ± 0.007 a0.276 ± 0.031 a0.131 ± 0.006 b
Total4.764 ± 0.161 b5.372 ± 0.066 a5.160 ± 0.068 a
The content of MAAs at each water extraction term (2, 6, and 24 h) was expressed as µmol g−1 dry weight (DW). The data show mean values ± SE, n = 3. Difference letters in each MAA indicate significant differences in mean value (Tukey–Kramer’s multiple comparisons test, a, b p < 0.05).
Table
Table 3. The content of MAAs in Usujiri dulse.
Table 3. The content of MAAs in Usujiri dulse.
MAAsCollection Date (2019)
January 23February 25April 2May 17
Shinorine0.073 ± 0.001 d0.266 ± 0.002 a0.166 ± 0.001 b0.089 ± 0.001 c
Palythine1.739 ± 0.011 d2.289 ± 0.017 b2.112 ± 0.058 c3.255 ± 0.007 a
Asterina-3300.035 ± 0.000 d0.097 ± 0.002 b0.118 ± 0.001 a0.084 ± 0.000 c
Porphyra-3340.778 ± 0.009 d3.083 ± 0.034 a2.507 ± 0.015 b0.972 ± 0.001 c
Usujirene + Palythene0.024 ± 0.002 d1.194 ± 0.009 b1.720 ± 0.034 a0.572 ± 0.006 c
Total2.649 ± 0.020 d6.930 ± 0.045 a6.623 ± 0.032 b4.972 ± 0.004 c
Dulse was collected on January 23, February 25, April 2, and May 17, 2019. The content of MAAs is expressed as µmol g−1 DW. The data show mean values ± SE, n = 3. Difference letters in each MAA indicate significant differences in mean value (Tukey–Kramer’s multiple comparisons test, a, b, c, d p < 0.05).
Table
Table 4. IC50 value of ABTS radical scavenging assay of MAAs.
Table 4. IC50 value of ABTS radical scavenging assay of MAAs.
CompoundspH
5.86.67.48.0
µMµg/mLµMµg/mLµMµg/mLµMµg/mL
Dulse crude MAAs―360―330―280―140
Palythine>72.0>18>72.0>1823.45.712.02.9
Porphyra-334>72.0>25>72.0>2527.59.520.87.2
Ascorbic acid19.13.419.43.412.42.28.91.6
IC50 value represents as µM and µg/mL. Values are expressed as means of triplicate measurements (n = 3). ―, Not Calculated.
Table
Table 5. Ferrous reducing power assay of MAAs.
Table 5. Ferrous reducing power assay of MAAs.
CompoundspH
5.86.67.48.0
µMµg/mLµMµg/mLµMµg/mLµMµg/mL
Dulse crude MAAs―170―130―110―100
Palythine>82.0>2.0>82.0>2.0>82.0>2.066.916.0
Porphyra-334>82.0>2.0>82.0>2.067.723.036.213.0
Ascorbic acid6.01.13.90.692.10.370.50.088
The value represents the content of MAAs (µM and µg/mL) reached OD700 = 0.10. Values are expressed as means of triplicate measurements (n = 3). ―, Not Calculated.
Table
Table 6. The content of extracted MAAs from dulse at different methanol only extraction term.
Table 6. The content of extracted MAAs from dulse at different methanol only extraction term.
MAAsMethanol Only Extraction Term
2 h6 h24 h
Shinorine0.056 ± 0.006 a0.062 ± 0.000 a0.062 ± 0.000 a
Palythine1.428 ± 0.010 a1.357 ± 0.009 b1.366 ± 0.008 b
Asterina-3300.032 ± 0.001 a0.031 ± 0.000 a0.031 ± 0.000 a
Porphyra-3340.787 ± 0.002 a0.766 ± 0.007 a0.755 ± 0.004 b
Usujirene + Palythene0.127 ± 0.012 a0.122 ± 0.007 a0.114 ± 0.007 a
Total2.429 ± 0.014 a2.329 ± 0.021 b2.327 ± 0.017 b
The content of MAAs at each methanol extraction term (2, 6, and 24 h) was expressed as µmol g−1 dry weight (DW). The data show mean values ± SE, n = 3. Difference letters in each MAA indicate significant differences in mean value (Tukey–Kramer’s multiple comparisons test, a, b p < 0.05).

Share and Cite

MDPI and ACS Style

Nishida, Y.; Kumagai, Y.; Michiba, S.; Yasui, H.; Kishimura, H. Efficient Extraction and Antioxidant Capacity of Mycosporine-Like Amino Acids from Red Alga Dulse Palmaria palmata in Japan. Mar. Drugs 2020, 18, 502. https://doi.org/10.3390/md18100502

AMA Style

Nishida Y, Kumagai Y, Michiba S, Yasui H, Kishimura H. Efficient Extraction and Antioxidant Capacity of Mycosporine-Like Amino Acids from Red Alga Dulse Palmaria palmata in Japan. Marine Drugs. 2020; 18(10):502. https://doi.org/10.3390/md18100502

Chicago/Turabian Style

Nishida, Yuki, Yuya Kumagai, Shunta Michiba, Hajime Yasui, and Hideki Kishimura. 2020. "Efficient Extraction and Antioxidant Capacity of Mycosporine-Like Amino Acids from Red Alga Dulse Palmaria palmata in Japan" Marine Drugs 18, no. 10: 502. https://doi.org/10.3390/md18100502

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
