Syntheses and Glycosidase Inhibitory Activities, and in Silico Docking Studies of Pericosine E Analogs Methoxy-Substituted at C6

Abstract

Inspired by the significant α-glucosidase inhibitory activities of (+)- and (−)-pericosine E, we herein designed and synthesized 16 analogs of these marine natural products bearing a methoxy group instead of a chlorine atom at C6. Four of these compounds exhibited moderate α-glucosidase inhibitory activities, which were weaker than those of the corresponding chlorine-containing species. The four compounds could be prepared by coupling reactions utilizing the (−)-pericosine B moiety. An additional in silico docking simulation suggested that the reason of reduced activity of the C6-methoxylated analogs might be an absence of hydrogen bonding between a methoxy group with the surrounding amino acid residues in the active site in α-glucosidase.

1. Introduction

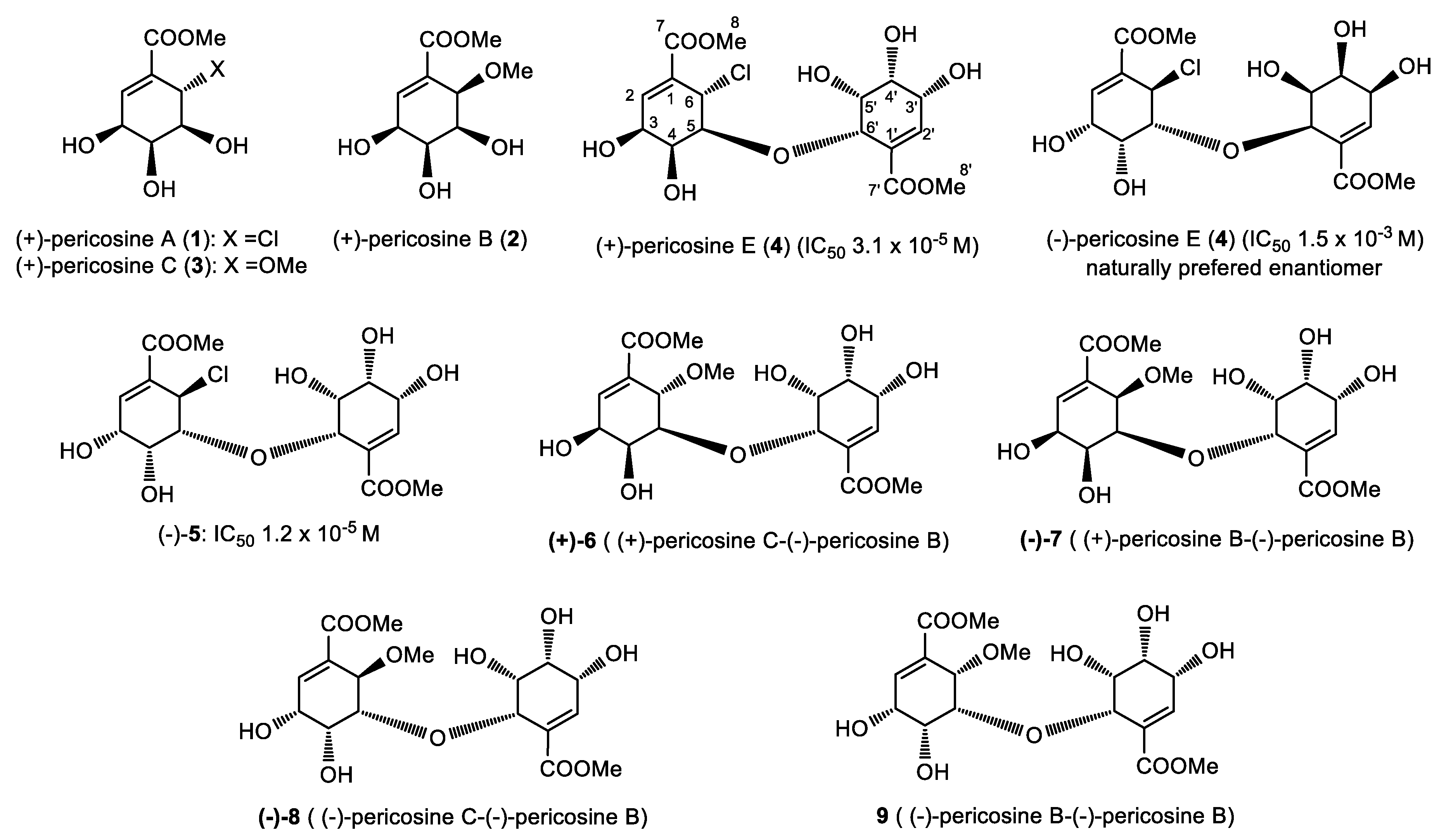

Pericosines A–C and E (1–4) are marine natural products produced by the fungus Periconia byssoides OUPS-N133 derived from sea hare Aplysia kurodai (Figure 1) [1]. The unique carbasugar structures of these species and the significant antitumor activity of pericosine A have drawn increased attention to pericosines A–C (1–3) as synthetic targets and thus inspired numerous synthetic studies [2,3,4,5,6,7,8,9]. Natural pericosine E (4) deserves particular attention, as it features an O-linked carbadisaccharide structure between pericosine A-like and pericosine B-like moieties with opposite absolute configurations and exists as a mixture of enantiomers [1]. In the course of our continuing studies on the total synthesis of marine natural products, we realized the first total syntheses of both enantiomers of 4 and its six stereoisomers, further elucidating their selective α-glucosidase inhibitory activities. The naturally preferred enantiomer (−)-4 was less active (half maximal (50%) Inhibitory Concentration (IC₅₀) = 1.5 × 10⁻³ M) than the minor enantiomer (+)-4 (IC₅₀ = 3.1 × 10⁻⁵ M), while synthetic analogue (−)-5 exhibited the highest α-glucosidase inhibitory activity (IC₅₀ = 1.2 × 10⁻⁵ M, ~50 times lower than that of a positive control, deoxynojirimycin). Thus, pericosine E (4) is a promising seed for a new class of anti-diabetes drugs [10,11].

Considering the above, we herein aimed to design and synthesize pericosine E analogs bearing a methoxy group at C6 instead of a chlorine atom and elucidate the corresponding structure–activity relationships. The design of these targets was inspired by the possible existence of the hitherto unknown naturally occurring pericosine E-type O-linked carbadisaccharides comprising known pericosine B or C units with various combinations of chiralities, as the parent pericosine E is thought to be biologically synthesized from pericosines A and B. Moreover, we aimed to determine whether the replacement of the chlorine atom at C6 with a methoxy group influences enzyme inhibitory activity by electronic effect or size of the substituent. In our previous work, the characteristic structural pattern of pericosine E analogs was denoted as (donor, acceptor)-type for a better understanding of the puzzling stereochemistry with eight chiral centers in each compound. For example, (−)-4 was denoted as (−pA, +pB)-type, as it can be constructed from (−)-pericosine A and (+)-pericosine B moieties. A similar notation was used in the present paper. Inspection of naturally occurring possibilities resulted in the design and synthesis of novel carbadisaccharides 6, 7, 8, and 9, with (+pC, −pB)-, (+pB, −pB)-, (−pC, −pB)-, and (−pB, −pB)-type structures, respectively. The corresponding enantiomers were also synthesized.

Herein, we report the syntheses of sixteen pericosine E analogs bearing a methoxy group at C6 instead of a chlorine atom and evaluate their glycosidase inhibitory activities. In addition, results of the docking simulation on active compounds and α-glucosidase is described.

2. Results and Discussion

2.1. Syntheses of Pericosine E Analogs Methoxy-Substituted at C6

All possible isomers derived from pericosine B or pericosine C were considered. As mentioned in our previous paper, the acceptor of the coupling reaction was limited to trans-epoxide 11 enantiomers [10,11]. (+)-6, (−)-7, (−)-8, and (−)-9 were prepared following a previously reported strategy (Scheme 1). Both enantiomers of 10 and 15, which are synthetic precursors of pericosines C and B respectively, could be used as donor molecules in the Lewis-acid-catalyzed coupling reaction [12,13].

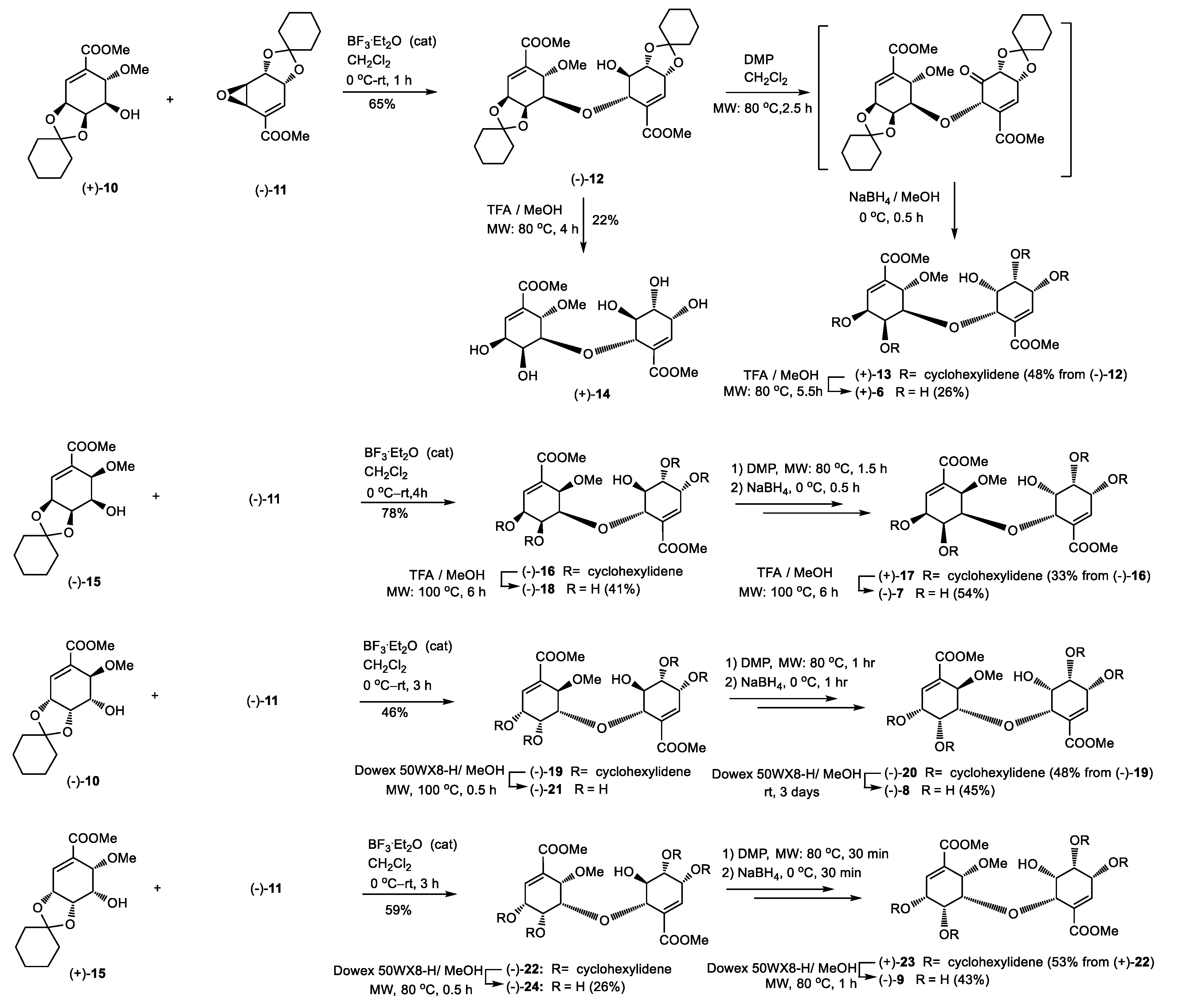

The synthesis of (+)-6, which can be derived from (+)-pericosine C (3) and (−)-pericosine B (2), is discussed below as an example. BF₃-catalyzed coupling between (+)-10 (the precursor of (+)-3) and (−)-11 (the synthetic intermediate of (−)-2) yielded (−)-12 (65%). This compound (i.e., (−)-12) was treated with Dess-Martin periodinane (DMP) to afford a crude ketone that was used in the following reaction without purification by silica gel column chromatography to avoid double bond migration. The crude residue was treated with NaBH₄ in MeOH to afford (+)-13 (48% yield over two steps from (−)-12), which was converted to (+)-6 in 26% yield by microwave (MW)-assisted acidic deprotection. Alternatively, the epimer (+)-14 was prepared by similar deprotection of (−)-12. Other targets, namely, (−)-7–9 and their epimers (−)-18, (−)-21, and (−)-24, were also prepared according to Scheme 1 under variable conditions. The corresponding enantiomers were synthesized by similar methods to afford sixteen C6-methoxylated pericosine E analogs. Both enantiomers of 10, 15, and 11 were prepared as described elsewhere [10,11,12]. The modified selective epoxidation of a cyclohexadiene precursor [10,11] with 1,1,1-trifluorodimethyloxirane to afford anti-epoxide 11 is described in the synthesis of the new compound (−)-15 (see Supplementary Materials: SM-3).

2.2. Evaluation of Glycosidase Inhibitory Activities

The synthesized compounds were subjected to glycosidase inhibitory activity assays (

Table 1. Glycosidase inhibitory activities of the synthesized compounds.

Compound	IC50 (M)
	α-glucosidase (Yeast)	β-glucosidase (Sweet Almond)	α-mannosidase (Jack Bean)	α-galactosidase (Green Coffee Bean)	β-galactosidase (Bovine Liver)
(−)-4 [11]	1.5 × 10−3	NI	NI	-	-
(+)-4 [11]	3.1 × 10−5	NI	NI	-	-
(−)-5 [11]	1.2 × 10−5	NI	NI	-	-
(+)-6	2.8 × 10−3	NI	-	NI	NI
(−)-7	6.2× 10−3	NI	-	NI	NI
(−)-8	7.8 × 10−3	NI	NI	NI	NI
(−)-9	NI	NI	NI	NI	NI
(−)-6	NI	NI	NI	-	-
(+)-7	NI	NI	NI	-	-
(+)-8	NI	NI	NI	NI	NI
(+)-9	NI	NI	NI	NI	1.8 × 10−3
(+)-14	NI	NI	NI	NI	NI
(−)-18	NI	NI	NI	NI	NI
(−)-21	NI	NI	NI	NI	NI
(−)-24	1.7 × 10−3	NI	NI	NI	7.9 × 10−4
(−)-14	NI	NI	NI	-	-
(+)-18	NI	NI	NI	-	-
(+)-21	NI	NI	NI	NI	8.3 × 10−4
(+)-24	NI	NI	NI	NI	5.2 × 10−4
Deoxynojirimycin (DNJ)	6.3 × 10−4	5.5 × 10−4	NI	-	-
	NI	NI	6.4 × 10−4	-	-
Deoxygalactonojirimycin				-	1.4 × 10−4

NI—No inhibition: IC₅₀ > 7.8 × 10⁻³ M; “-”: Not tested.

). Herein, α-galactosidase (from green coffee bean) and β-galactosidase (from bovine lever) were used in addition to the three previously employed glycosidases (α-glucosidase, β-glucosidase, and α-mannosidase) [11]. To facilitate comparison across studies, we used the same batches of the three abovementioned glycosidases as those employed before. Some compounds were not tested against all five enzymes because of the limited amount of materials. The first three rows of Table 1 relate to (−)- and (+)-pericosine E 4 and the most potent compound (−)-5 identified in a previous work.

No compounds showed inhibitory activities against β-glucosidase, α-mannosidase, and α-galactosidase, while α-glucosidase was moderately inhibited by (+)-6, (−)-7, (−)-8, and (−)-24. The most potent compound, (−)-24 (IC₅₀ = 1.7 × 10⁻³ M), showed an activity close to that of (−)-pericosine E (4) (IC₅₀ = 1.5 × 10⁻³ M). However, the replacement of a chlorine atom at C6 with a methoxy group decreased activity in general. For example, the α-glucosidase inhibitory activity of (−)-7 (IC₅₀ = 6.2 × 10⁻³ M) was four-fold lower than that of (−)-4, which had the same relative and absolute configuration. Moreover, the anti-α-glucosidase activity of (−)-8 was approximately 1/600 that of (−)-5. Similarly, compound (+)-8 was not active whereas the corresponding (+)-4 exhibited potent activity. Here, it should be mentioned that these conclusions regarding enzyme activity drawn from the IC₅₀ values in this section are approximate.

The above results imply that original pericosine E analogs containing a chlorine atom at C6 are more potent α-glucosidase inhibitors than their methoxy analogues. Notably, compounds featuring (−)-11 as an acceptor exhibited a certain anti-α-glucosidase activity, except for (−)-18. These findings provided useful information for the design of new molecules with better activities.

Gratifyingly, some synthesized compounds, namely, (+)-9, (−)-24, (+)-21, and (+)-24, showed β-galactosidase inhibitory activities, featuring (+)-11 as an acceptor, except for (−)-24. The opposite preference for high α-glucosidase and β-galactosidase inhibitory activities is interesting and might be valuable for future studies, as the design of new types of β-galactosidase inhibitors is an important and challenging task [14,15,16,17].

2.3. Docking Simulation

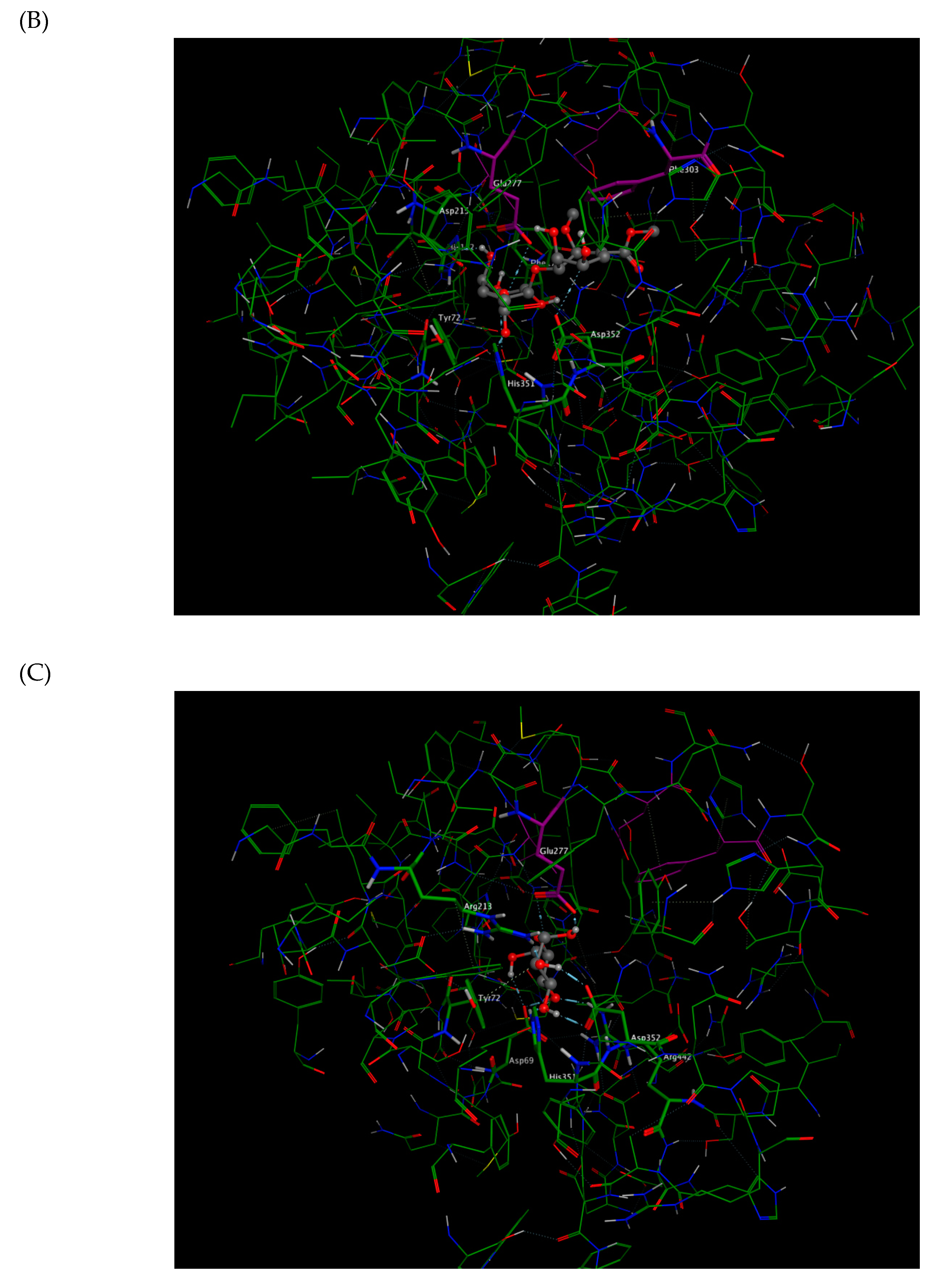

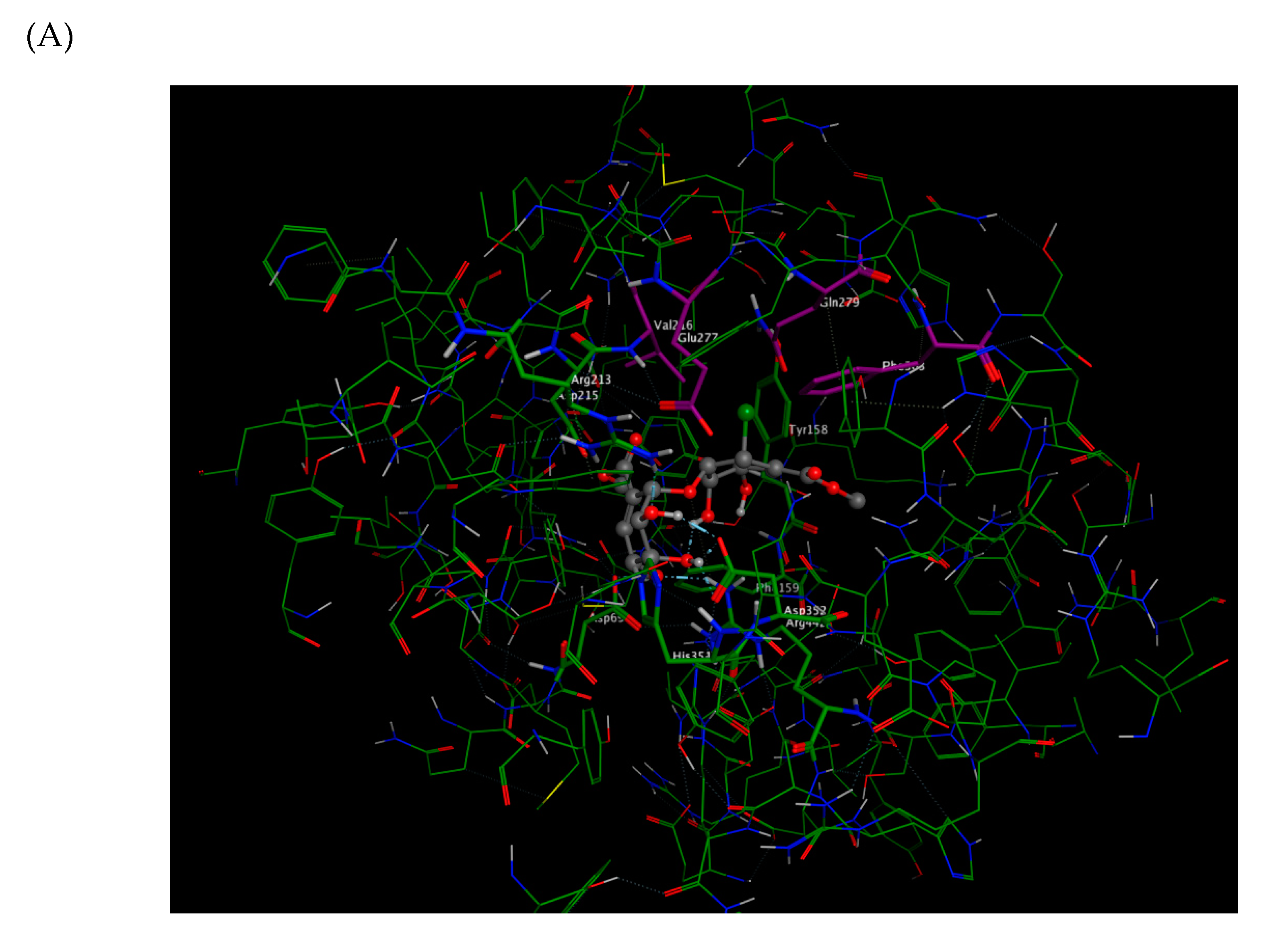

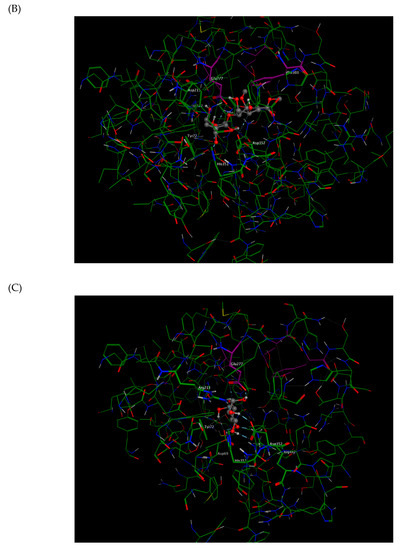

A molecular docking study using the Dock function [18] of Molecular Operating Environment (MOE) version 2018.0101 (Chemical Computing Group Inc., Quebec, Canada) was conducted for better understanding of the inhibitory mechanisms (Figure 2 and Figure 3). The interactions between α-glucosidase (Protein Data Bank (PDB) code 3A4A) [19] with compounds (−)-5 and (−)-24 as well as glucose were investigated using the MOE-Dock.

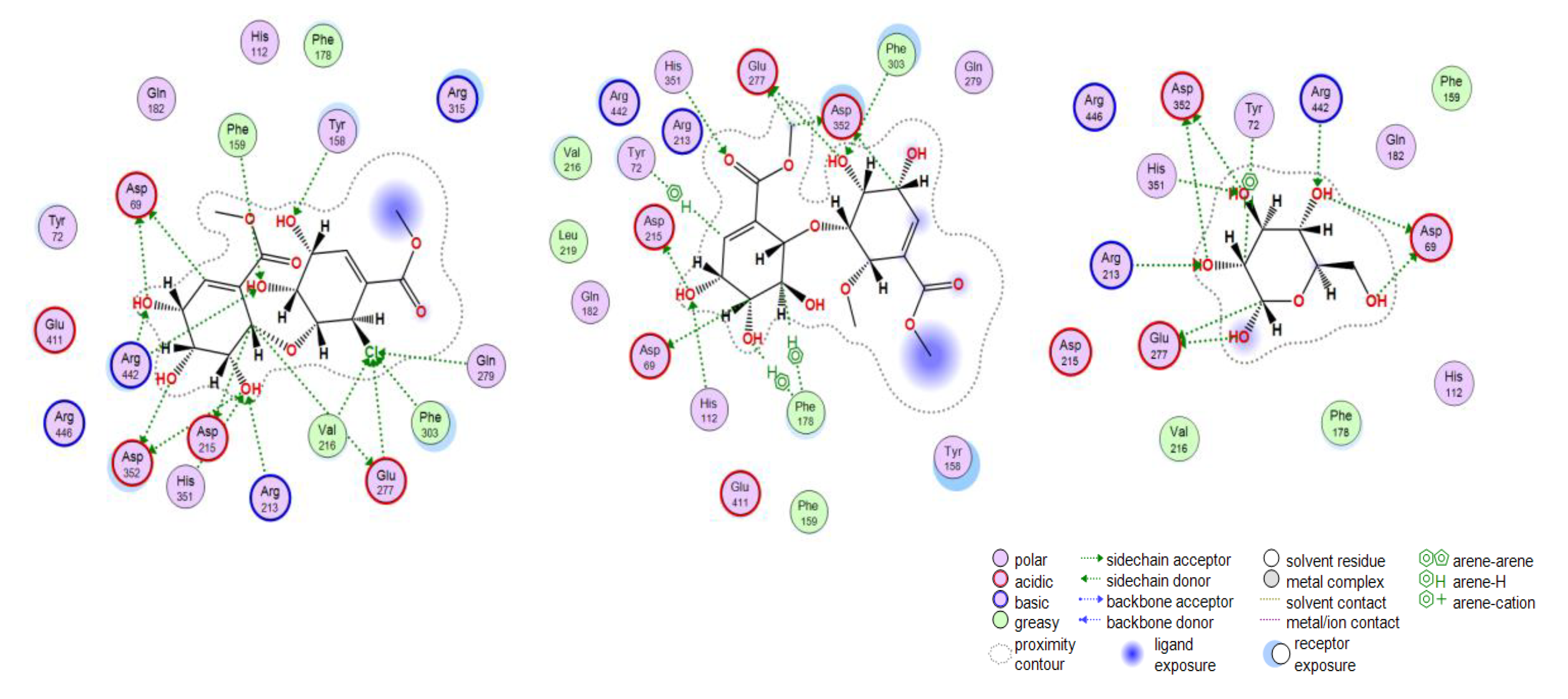

As a result, the peripheral amino acids important for glucose binding were observed to be involved in the binding of compounds (−)-5 and (−)-24. It was shown that the chlorine atom of compound (−)-5 could form hydrogen bonds with the surrounding amino acid residues such as Val216, Glu277, Gln279, and Phe303. No such binding was observed for glucose and the methoxy group of the compound (−)-24. Furthermore, the configurations of compound (−)-5 and compound (−)-24 were quite different, and the surrounding amino acids that bind α-glucosidase were also different.

Tang and co-workers identified 12 amino acid residues, including Val 216, Glu 277, Gln 279, and Phe 303, that interact with the α-glucosidase inhibitors salvianolic acid A and salvianolic acid C. The chlorine-containing compound (−)-5 might inhibit α-glucosidase in a similar binding manner to those inhibitors [20].

Comparisons of affinity scores between different substrates are known to be useful in assessing agonist/antagonist activity [21]. The binding affinity scores of compounds (−)-5, (−)-24, and glucose were −6.8, −4.7, and −8.2 kcal/mol, respectively. Glucose, which is included as a partial residue of natural substrates, exhibited the highest affinity among the three docked compounds. Also, the affinities of compounds (−)-5 and (−)-24 reflected the inhibitory activities, 1.2 × 10⁻⁵ and 1.7 × 10⁻³, respectively. These results indicate that the docking studies were achieved with a certain accuracy. On the other hand, the threshold value of the hydrogen bond strength depicted in Figure 2 was set to −1.0 kcal/mol for glucose and −0.1 kcal/mol for derivatives. Compound (−)-5 is considered to contribute to stronger binding affinity by interacting with more peripheral amino acids than compound (−)-24. However, the accuracy of the docking simulation is limited. It is considered necessary to perform molecular dynamics (MD) simulation to obtain more detailed knowledge.

α-glucosidase 3A4A is one of the crystal structures representative of α-glucosidase and is generally used for the study of this enzyme [22,23,24,25]. On the other hand, α-glucosidase, β-glucosidase, α-mannosidase, α-galactosidase, and β-galactosidase used in this study showed different inhibition profiles against various pericosine derivatives. These results suggest that the steric configurations of amino acids at the ligand-binding site among these enzymes are significantly different. The relationship among the amino acid sequences of the ligand-binding sites and the inhibitory activities will be rigorously evaluated in a subsequent study.

3. Conclusions

We designed and synthesized 16 pericosine E analogs bearing a methoxy group at C6 and tested their inhibitory activities against five glycosidases. Among the 16 compounds, four exhibited lower α-glucosidase inhibitory activities than the corresponding chlorine-containing species. Thus, the chlorine atom at C6 in pericosine E analogs was concluded to play an important role in determining α-glucosidase inhibitory activity. The identified active compounds generally featured the (−)-pB moiety as an acceptor. Contrarily, some compounds mainly comprising the (+)-pB moiety showed β-galactosidase inhibitory activity, with (−)-24 acting as a dual inhibitor. Docking simulation suggested that (−)-24 synthesized in this study binds α-glucosidase in different manner to more potent (−)-5, whose chlorine atom forms hydrogen bonds with the surrounding amino acid residues.

4. Experimental

4.1. General

Infrared (IR) spectra were recorded on a 1720X Fourier transformation-infrared (FT-IR) spectrometer (Perkin Elmer, MA, USA) or an IRAffinity-1S FT-IR spectrometer (Shimadzu, Kyoto, Japan). High-resolution mass spectra (HRMS) were recorded on a JMS-700 (2) mass spectrometer (JEOL, Tokyo, Japan). Nuclear magnetic resonance (NMR) spectra were recorded at 27 °C on 400-MR-DD2 (Agilent Technologies, CA, USA) and 600-DD2 (Agilent Technologies, CA, USA) instruments in CDCl₃ or acetone-d₆ using tetramethylsilane as an internal standard. Specific rotations were measured with a JASCO P-2300 spectrometer (JASCO Co., Tokyo, Japan). Liquid column chromatography was conducted on silica gel (Fuji Silysia FL-60D). Analytical thin layer chromatography (TLC) was performed on Silicagel 70 F₂₅₄ plates (Wako Pure Chemical Industries, Tokyo, Japan), and compounds were detected by dipping the plates into an ethanolic solution of phosphomolybdic acid followed by heating. Microwave (MW)-aided reactions were carried out in a Biotage Initiator^® reactor (PartnerTech Atvidaberg AB for Biotage Sweden AB, Uppsala, Sweden). NaBH₄ and trifluoroacetic acid (TFA) were purchased from Wako Pure Chemical Industries (Wako Pure Chemical Industries, Tokyo, Japan). BF₃·Et₂O was purchased from Sigma-Aldrich Co., LLC (St. Lewis, MO, USA). DMP was purchased from TCI (Tokyo Chemical Industry Co., Ltd., Tokyo, Japan). (−)-Shikimic acid and (−)-quinic acid were purchased from Carbosynth, Ltd. (UK) and Merck (Merck & Co., Inc., Darmstadt, Germany), respectively. α-Glucosidase (yeast, lot 26010), β-glucosidase (sweet almond, lot 81241), α-mannosidase (Jack Bean, lot 055K7047), α-galactosidase (green coffee bean, lot SMBP1296V), β-galactosidase (bovine liver, lot SMBL0488V), and deoxymannojirimycin were purchased from Sigma-Aldrich Co., LLC (St. Lewis, MO, USA). Deoxygalactonojirimycin was purchased from Funakoshi Co., Ltd., Tokyo, Japan). 1-Deoxynojirimycin (DNJ) was isolated from the leaves of Morus alba L. (Procedure for isolation of DNJ is described in Section 4.5.)

4.2. Condensation of 10 or 15 with 11

General procedure (synthesis of (−)-12, Scheme 1): To a solution of (+)-10 (68.4 mg, 0.23 mmol) and anti-epoxide (−)-11 (50.9 mg, 0.15 mmol) in CH₂Cl₂ (0.15 mL) was added BF₃·Et₂O (3 μL, 0.025 mmol) at 0 °C. After 1 h of stirring, the reaction mixture was treated with Et₃N (20 µL, 0.14 mmol) and concentrated under vacuum to afford a crude residue that was purified by silica gel column chromatography (eluent = hexane:EtOAc, 1:1 v/v) to afford (−)-12 (68.8 mg, 65 %) as a colorless oil.

(−)-12: oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ −7.2 (c 1.175, CHCl₃); IR (film) ν_max 3438 (OH), 1726 (C=O), 1658 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 400 MHz, ppm) δ 1.30−1.70 (20H, m), 3.41 (3H, s, 6’-OMe), 3.73 (3H, s, COOMe), 3.75 (3H, s, COOMe), 4.01–4.04 (1H, m, H-5’), 4.21 (1H, overlapped, H-5), 4.23 (1H, overlapped, H-6), 4.25 (1H, overlapped, H-4’), 4.37 (1H, br d, J = 5.4 Hz, H-6’), 4.58 (1H, d, J = 3.3 Hz, 5’-OH), 4.70 (1H, ddd, J = 6.1, 3.9, 0.9 Hz, H-3’), 4.74 (1H, dd, J = 5.6, 2.3 Hz, H-4), 4.78 (1H, ddd, J = 5.7, 2.7, 1.2 Hz, H-3), 6.50 (1H, dd, J = 2.5, 1.0 Hz, H-2), 6.55 (1H, dd, J = 3.7, 1.2 Hz, H-2’); ¹³C-NMR (acetone-d₆, 100 MHz, ppm) δ 24.47 (CH₂), 24.51 (CH₂), 24.69 (CH₂), 24.72 (CH₂), 25.7 (CH₂), 25.8 (CH₂), 35.8 (CH₂), 36.3 (CH₂), 37.6 (CH₂), 38.7 (CH₂), 52.0 (CH₃, C-8), 52.1 (CH₃, C-8’), 60.3 (CH₃, 6’-OMe), 71.6 (CH, C-3’), 72.5 (CH, C-3), 72.8 (CH, C-5’), 74.0 (CH, C-4), 75.9 (CH, C-6), 76.2 (CH, C-4’), 77.0 (CH, C-6’), 80.5 (C, C-5), 111.1 (Cq), 111.3 (Cq), 133.38 (Cq, C-1), 133.42 (CH, C-2), 134.8 (Cq, C-1’), 136.1 (CH, C-2’), 167.39 (Cq, C-7), 167.43 (Cq, C-7’); high-resolution electron impact mass spectrum (HREIMS) m/z calcd for C₂₉H₄₀O₁₁ (M)⁺ 564.2571, found 564.2570.

(+)-12 (51.2 mg, 90 %) was prepared from (−)-10 (30 mg, 0.10 mmol) and (+)-11 (40.0 mg, 0.15 mmol): oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ +7.7 (c 0.43, CHCl₃); IR (film) ν_max 3431 (OH), 1727 (C=O), 1658 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 600 MHz, ppm) δ 1.50−1.70 (20H, m), 3.41 (3H, s, 6’-OMe), 3.73 (3H, s, COOMe), 3.75 (3H, s, COOMe), 4.07 (1H, ddd, J = 6.8, 5.6, 3.5 Hz, H-5’), 4.21 (1H, dd, J = 6.8, 2.9 Hz, H-5), 4.23 (1H, dt, J = 6.8, 1.2 Hz, H-6), 4.25 (1H, t, J = 6.5 Hz, H-4’), 4.37 (1H, ddd, J = 5.6, 1.2, 1.1 Hz, H-6’), 4.60 (1H, d, J = 3.5 Hz, OH), 4.70 (1H, ddd, J = 6.1, 3.8, 1.1 Hz, H-3’), 4.74 (1H, ddd, J = 5.9, 2.9, 0.8 Hz, H-4), 4.78 (1H, ddd, J = 5.9, 3.0, 1.5 Hz, H-3), 6.50 (1H, ddd, J = 3.0, 1.2, 0.9 Hz, H-2), 6.55 (1H, dd, J = 3.8, 1.2 Hz, H-2’); ¹³C-NMR (acetone-d₆, 150 MHz, ppm) δ 24.47 (CH₂), 24.51 (CH₂), 24.68 (CH₂), 24.70 (CH₂), 25.7 (CH₂), 25.8 (CH₂), 35.7 (CH₂), 36.3 (CH₂), 37.6 (CH₂), 38.7 (CH₂), 52.0 (CH₃, C-8 or C-8’), 52.1 (CH₃, C-8 or C-8’), 60.3 (CH₃, 6’-OMe), 71.6 (CH, C-3’), 72.5 (CH, C-3), 72.7 (CH, C-5’), 74.0 (CH, C-4), 75.9 (CH, C-6), 76.2 (CH, C-4’), 77.0 (CH, C-6’), 80.5 (C, C-5), 111.1 (Cq), 111.3 (Cq), 133.4 (Cq, C-1), 133.5 (CH, C-2), 134.7 (Cq, C-1’), 136.1 (CH, C-2’), 167.40 (Cq, C-7), 167.44 (Cq, C-7’); HRMS m/z calcd for C₂₉H₄₀O₁₁ (M)⁺ 564.2571, found 564.2574.

(−)-16 (150.3 mg, 78 %) was prepared from (+)-15 (101.4 mg, 0.34 mmol) and (−)-11 (94.6 mg, 0.36 mmol): oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ −75.6 (c 0.60, CHCl₃); IR (film) ν_max 3477 (OH), 1722 (C=O), 1657 (C=C) cm⁻¹; ¹H-NMR (C₆D₆, 300 MHz, ppm) δ 1.00−1.90 (20 H, m), 3.33 (3H, s, H-8), 3.35 (3H, s, H-8’), 3.67 (3H, s, OMe), 4.02 (1H, d, J = 4.4 Hz, H-6’), 4.04 (1H, dd, J = 21.1, 8.2 Hz, H-5’), 4.16 (1H, dd, J = 4.4, 1.2 Hz, H-5), 4.21 (1H, overlapped, H-4’), 4.27 (1H, dd, J = 6.5, 3.6 Hz, H-3), 4.35 (1H, ddd, J = 6.4, 3.9, 0.5 Hz, H-3’), 4.50 (1H, s, 5’-OH), 4.64 (1H, dd, J = 4.4, 1.2 Hz, H-6), 4.66 (1H, dd, J = 3.6, 1.5 Hz, H-4), 6.57 (1H, dd, J = 3.8, 1.5 Hz, H-2’), 6.79 (1H, d, J = 2.9 Hz, H-2); ¹³C-NMR (acetone-d₆, 75 MHz, ppm) δ 24.7 (CH₂), 24.8 (2 × CH₂), 25.0 (CH₂), 25.7 (CH₂), 26.0 (CH₂), 36.4 (CH₂), 36.6 (CH₂), 38.4 (CH₂), 38.9 (CH₂), 52.1 (2 × CH₃, C-8, 8’), 62.3 (CH₃, 6’-OMe), 72.0 (CH, C-3’), 72.1 (CH, C-4), 73.3 (CH, C-3), 73.6 (CH, C-6), 74.9 (CH, C-5’),77.1 (CH, C-4’), 78.1 (CH, C-6’), 79.4 (CH, C-5), 112.0 (Cq), 112.9 (Cq), 131.6 (Cq, C-1), 132.9 (CH, C-2’), 136.9 (Cq, C-1’), 136.9 (CH, C-2) 166.8 (Cq, C-7), 166.9 (Cq, C-7’); HREIMS m/z calcd for C₂₉H₄₀O₁₁ (M)⁺ 564.2571, found 564.2567.

(+)-16 (76.2 mg, 90%) was prepared from (−)-15 (45.0 mg, 0.15 mmol) and (+)-11 (40.0 mg, 0.15 mmol): oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ +75.4 (c 0.82, CHCl₃); IR (film) ν_max 3488 (OH), 1723 (C=O), 1653 (C=C) cm⁻¹; ¹H-NMR (C₆D₆, 600 MHz, ppm) δ 1.50−1.90 (20H, m), 3.36 (3H, s, COOMe), 3.39 (3H, s, COOMe), 3.66 (3H, s, 6’-OMe), 4.02–4.08 (2H, m, H-5’ and H-6’), 4.15 (1H, dd, J = 4.7, 3.3 Hz, H-5), 4.21 (1H, ddd, J =6.8, 6.7, 2.1 Hz, H-4’), 4.31 (1H, ddd, J = 5.8, 3.2, 0.6 Hz, H-3), 4.39 (1H, ddd, J = 6.4, 3.8, 0.8 Hz, H-3’), 4.47 (1H, s, 5’-OH), 4.62 (1H, d, J = 4.7 Hz, H-6), 4.66 (1H, dd, J = 5.9, 2.7 Hz, H-4), 6.59 (1H, dd, J = 3.6, 1.4 Hz, H-2’), 6.79 (1H, dd, J = 3.2, 0.5 Hz, H-2); ¹³C-NMR (C₆D₆, 150 MHz, ppm) δ 24.1 (2 × CH₂), 24.3 (CH₂), 24.4 (CH₂), 25.2 (CH₂), 25.4 (CH₂), 35.8 (CH₂), 36.1 (CH₂), 37.8 (CH₂), 38.3 (CH₂), 51.56 (CH₃, C-8), 51.60 (CH₃, C-8’), 61.7 (CH₃, 6’-OMe), 71.4 (CH, C-3’), 71.5 (CH, C-4), 72.8 (CH, C-3), 73.1 (CH, C-6), 74.2 (CH, C-5’), 76.5 (CH, C-4’), 77.5 (CH, C-6’), 78.9 (CH, C-5), 111.4 (Cq), 112.4 (Cq), 131.1 (Cq, C-1), 132.5 (CH, C-2’), 136.2 (Cq, C-1’), 136.4 (CH, C-2) 166.2 (Cq, C-7), 166.4.(Cq, C-7’); HREIMS m/z calcd for C₂₉H₄₀O₁₁ (M)⁺ 564.2571, found 564.2570.

(−)-19 (139 mg, 46%) was prepared from (−)-10 (187 mg, 0.70 mmol) and (−)-11 (113 mg, 0.54 mmol): white powder; mp 165–170 °C: ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ −48.4 (c 0.1, CHCl₃); IR (KBr) ν_max 3422 (OH), 1726 (C=O), 1438 (C=C) cm⁻¹; ¹H-NMR (CDCl₃, 600 MHz, ppm) δ 1.30−1.80 (20H, m), 3.71 (3H, s, 6’-OMe), 3.795 (3H, s, COOMe), 3.796 (3H, s, COOMe), 3.91 (1H, ddd, J = 9.4, 7.3, 2.6 Hz, H-5’), 4.05 (1H, dd, J = 8.5, 2.3 Hz, H-5), 4.13 (1H, dd, J = 9.1, 6.5 Hz, H-4’), 4.25 (1H, ddd, J = 7.7, 1.8, 1.4 Hz, H-5’), 4.41 (1H, ddd, J = 8.5, 1.8, 1.7 Hz, H-6), 4.61 (1H, overlapped, H-3’), 4.62 (1H, overlapped, H-3), 4.84 (1H, ddd, J = 5.6, 2.1, 1.2 Hz, H-4), 4.97 (1H, d, J = 2.6 Hz, OH), 6.42 (1H, ddd, J = 2.9, 1.8, 1.3 Hz, H-2), 6.60 (1H, dd, J = 4.4, 2.0 Hz, H-2’); ¹³C-NMR (CDCl₃, 150 MHz, ppm) δ 23.6 (CH₂), 23.8 (CH₂), 23.92 (CH₂), 23.95 (CH₂), 24.9 (CH₂), 25.0 (CH₂), 35.1 (CH₂), 35.8 (CH₂), 37.2 (CH₂), 38.1 (CH₂), 52.0 (CH₃, C-8 or C-8’), 52.1 (CH₃, C-8 or C8’), 61.9 (CH₃, 6’-OMe), 70.7 (CH, C-3), 72.4 (CH, C-3’), 73.4 (CH, C-4), 75.4 (CH, C-5’), 75.7 (CH, C-4’), 76.6 (CH, C-6), 80.0 (CH, C-6’), 82.0 (CH, C-5), 110.8 (Cq), 111.7 (Cq), 130.5 (CH, C-2’), 132.7 (Cq, C-1), 135.4 (CH, C-2), 135.9 (Cq, C-1’), 166.3 (Cq, C-7’), 166.7 (Cq, C-7); HRMS m/z calcd for C₂₉H₄₀O₁₁ (M)⁺ 564.2571, found 564.2570.

(+)-19 (80 mg, 44%) was prepared from (+)-10 (86.0 mg, 0.29 mmol) and (+)-11 (86.2 mg, 0.29 mmol): white powder; mp 165–169 °C: ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ +69.0 (c 0.75, CHCl₃); IR (KBr) ν_max 3408 (OH), 1725 (C=O), 1440 (C=C) cm⁻¹; ¹H-NMR (CDCl₃, 400 MHz, ppm) δ 1.30−1.80 (20H, m), 3.72 (3H, s, OMe), 3.79 (6H, s, 2 × COOMe), 3.91 (1H, dd, J = 8.9, 6.2 Hz), 4.05 (1H, br d, J = 8.1 Hz), 4.13 (1H, dd, J = 8.4, 5.9 Hz), 4.25 (1H, br d, J = 6.5 Hz), 4.41 (1H, br d, J = 7.8 Hz), 4.59–4.65 (2H, m), 4.82–4.86 (1H, m), 5.00–5.03 (1H, m), 6.41 (1H, m), 6.60 (1H, m); ¹³C-NMR (CDCl₃, 100 MHz, ppm) δ 23.6, 23.7, 23.89, 23.92, 24.9, 24.9, 35.1, 35.8, 37.2, 38.1, 52.0, 52.1, 61.9, 70.6, 72.3, 73.4, 75.4, 75.6, 76.6, 80.0, 82.0, 110.8, 111.6, 130.5, 132.6, 135.4, 135.8, 166.2, 166.6; HREIMS m/z calcd for C₂₉H₄₀O₁₁ (M)⁺ 564.2571, found 564.2568.

(−)-22 (42.8 mg, 59%) was prepared from (−)-15 (38.6 mg, 0.13 mmol) and (−)-11 (45.1 mg, 0.17 mmol): oil; [α]_D^22.5 −44.9 (c 0.73, CHCl₃); IR (film) ν_max 3445 (OH), 1717 (C=O), 1653 (C=C) cm⁻¹; ¹H-NMR (CDCl₃, 600 MHz, ppm) δ 1.21−1.74 (20H, m), 3.31 (3H, s, OMe), 3.76 (3H, s, COOMe), 3.82 (3H, s, COOMe), 3.87 (1H, br t, J = 8.5 Hz, H-5’), 4.07 (1H, dd, J = 4.1, 3.0 Hz, H-5), 4.20 (1H, d, J = 7.1 Hz, H-6’), 4.21 (1H, dd, J = 9.1, 6.8 Hz, H-4’), 4.51–4.53 (1H, m, H-4), 4.65 (1H, ddd, J = 6.7, 3.8, 1.1 Hz, H-3’), 4.73 (1H, dd, J = 5.9, 3.8 Hz, H-3), 4.82 (1H, s, -OH), 4.83 (1H, d, J = 4.1 Hz, H-6), 6.71 (1H, dd, J = 3.8, 2.0 Hz, H-2’), 6.97 (1H, dd, J = 3.8, 0.9 Hz, H-2); ¹³C-NMR (CDCl₃, 150 MHz, ppm) δ 23.6 (CH₂), 23.7 (CH₂), 23.9 (CH₂), 25.0 (CH₂), 35.2 (CH₂), 35.7 (CH₂), 37.1 (CH₂), 37.8 (CH₂), 52.0 (CH₃, COOMe), 52.4 (CH₃, COOMe), 56.1 (CH₃, 6-OMe), 68.5 (CH, C-6), 70.8 (CH, C-3’), 72.7 (CH, C-3), 73.1 (CH, C-5’), 73.5 (CH, C-4), 76.0 (CH, C-4’), 78.4 (CH, C-5), 78.5 (CH, C-6’), 111.6 (Cq), 112.0 (Cq), 129.1 (Cq, C-1), 132.4 (CH, C-2’), 135.7 (Cq, C-1’), 140.5 (CH, C-2), 166.3 (Cq, C-7’), 167.0 (Cq, C-7); HREIMS m/z calcd for C₂₉H₄₀O₁₁ (M)⁺ 564.2571, found 564.2573.

(+)-22 (41.5 mg, 63%) was prepared from (+)-15 (34.8 mg, 0.12 mmol) and (+)-11 (34.3 mg, 0.13 mmol): oil; [α]_D^21.5 +51.7 (c 0.73, CHCl₃); IR (film) ν_max 3474 (OH), 1699 (C=O), 1652 (C=C) cm⁻¹; ¹H-NMR (CDCl₃, 400 MHz, ppm) δ 1.21−1.71 (20H, m), 3.30 (3H, s, OMe), 3.76 (3H, s, COOMe), 3.82 (3H, s, COOMe), 3.87 (1H, br t, J = 8.8 Hz, H-5’), 4.07 (1H, dd, J = 4.1, 3.1 Hz, H-5), 4.20 (1H, d, J = 6.9 Hz, H-6’), 4.21 (1H, dd, J = 9.2, 6.9 Hz, H-4’), 4.52 (1H, dd, J =5.7, 2.5 Hz, H-4), 4.66 (1H, br dd, J = 6.3, 3.7 Hz, H-3’), 4.74 (1H, dd, J = 5.9, 3.7 Hz, H-3), 4.83 (1H, d, J = 3.9 Hz, H-6), 4.85 (1H, br s, -OH), 6.72 (1H, dd, J = 3.8, 2.0 Hz, H-2’), 6.98 (1H, br d, J = 3.5 Hz, H-2); ¹³C-NMR (CDCl₃, 100 MHz, ppm) δ 23.55, 23.62, 23.89, 23.91, 25.0, 35.2, 35.7, 37.0, 37.8, 52.0, 52.4, 56.1, 68.4, 70.8, 72.7, 73.0, 73.4, 75.9, 78.3, 78.5, 110.6, 112.0, 129.0, 132.4, 135.7, 140.5, 166.2, 166.9; HREIMS m/z calcd for C₂₉H₄₀O₁₁ (M)⁺ 564.2571, found 564.2571.

4.3. Inversion of Configuration at C5’

General procedure (synthesis of (+)-13, Scheme 1): A microwave vial containing a CH₂Cl₂ solution (2 mL) of (−)-12 (47.6 mg, 0.084 mmol) was treated with DMP (77.0 mg, 0.23 mmol) at 0 °C, sealed, and irradiated in the MW reactor at 80 °C for 2.5 h. After cooling, the reaction mixture was treated with aqueous saturated (sat.) Na₂S₂O₃ (20 mL) and saturated aqueous NaHCO₃ (10 mL) and extracted with tert-butyl methyl ether (3 × 20 mL). The combined organic layers were washed with brine (30 mL) and water (30 mL), dried over MgSO₄, filtered, and concentrated in a vacuum to afford a crude residue containing the desired ketone. To a solution of NaBH₄ (1.0 mg, 0.026 mmol) in MeOH (0.6 mL), a solution of the crude residue in MeOH (2.0 mL) at 0 °C was added dropwise. After 30 min of stirring, the reaction mixture was treated with saturated aqueous NH₄Cl (30 mL) and extracted with CH₂Cl₂ (3 × 30 mL). The combined organic layers were washed with brine (30 mL), dried over MgSO₄, filtered, and concentrated in a vacuum to afford the second crude residue, which was purified by silica gel column chromatography (eluent = hexane:EtOAc, 2:1 v/v) to afford (+)-13 (22.9 mg, 48% from (−)-12) as a colorless oil.

(+)-13: oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ +26.8 (c 1.03, CHCl₃); IR (film) ν_max 3414 (OH), 1721 (C=O), 1658 (C=C) cm⁻¹; ¹H-NMR (CDCl₃, 300 MHz, ppm) δ 1.20−1.90 (20H, m), 3.39 (3H, s, 6’-OMe), 3.70–3.80 (1H, overlapped, H-3), 3.75 (3H, s, COOMe), 3.85 (3H, s, COOMe), 4.18 (1H, dd, J = 5.9, 3.2 Hz, H-5’), 4.31(1H, d, J = 5.9 Hz, H-5), 4.44–4.48 (1H, m, H-6), 4.55 (1H, d, J = 4.9 Hz, H-4’), 4.63 (1H, dd, J = 5.5, 3.5 Hz, H-6’), 4.68–4.74 (2H, m, H-3’, 4), 4.81 (1H, d, J = 11.7 Hz, 5’-OH), 6.72 (1H, br s, H-2), 6.75 (1H, dd, J = 3.2, 0.6 Hz, H-2’); ¹³C-NMR (CDCl₃, 75 MHz, ppm) δ 23.6 (CH₂), 23.7 (CH₂), 23.8 (CH₂), 23.9 (CH₂), 24.9 (CH₂), 25.0 (CH₂), 34.0 (CH₂), 35.7 (CH₂), 36.0 (CH₂), 37.6 (CH₂), 51.9 (CH₃, COOMe), 52.3 (CH₃, COOMe), 59.3 (CH₃, 6’-OMe), 68.0 (CH, C-5’), 71.5 (CH, C-3), 72.4 (CH, C-3’), 73.2 (2 × CH, C4, C-6’), 74.6 (CH, C-6 or C-4’), 74.7 (CH, C-6 or C-4’), 79.7 (CH, C-5), 110.8 (Cq), 111.7 (Cq), 129.7 (Cq, C-1’), 131.3 (Cq, C-1), 137.5 (CH, C-2 or C-2’), 137.7 (CH, C-2 or C-2’), 166.6 (Cq, C-7 or C-7’), 166.7 (Cq, C-7 or C-7’); HREIMS m/z calcd for C₂₉H₄₀O₁₁ (M)⁺ 564.2571, found 564.2570.

(−)-13 (46.3 mg) was prepared in 54% yield from (+)-12 (85.6 mg, 0.15 mmol): oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ −28.3 (c 0.745, CHCl₃); IR (film) ν_max 3363 (OH), 1720 (C=O), 1655 (C=C) cm⁻¹; ¹H-NMR (CDCl₃, 600 MHz, ppm) δ 1.36 −1.80 (20 H, m), 3.39 (3H, s, OMe), 3.73–3.75 (1H, m, H-5’), 3.74 (3H, s, COOMe), 3.84 (3H, s, COOMe), 4.18 (1H, dd, J = 5.9, 3.5 Hz, H-5’), 4.31(1H, d, J = 6.1 Hz, H-5), 4.46 (1H, ddd, J = 6.4, 5.6, 1.1 Hz, H-6), 4.55 (1H, d, J = 5.0 Hz, H-4’), 4.62 (1H, ddd, J = 5.6, 3.2, 0.9 Hz, H-3’), 4.70 (1H, ddd, J = 6.4, 3.2, 0.9 Hz, H-3), 4.72 (1H, dd, J = 6.4, 3.5 Hz, H-4), 6.73 (1H, d, J = 2.3 Hz, H-2), 6.75 (1H, dd, J = 3.2, 1.2 Hz, H-2’); ¹³C-NMR (CDCl₃, 150 MHz, ppm) δ 23.67 (CH₂), 23.73 (CH₂), 23.85 (CH₂), 23.92 (CH₂), 24.97 (CH₂), 25.06 (CH₂), 34.0 (CH₂), 35.8 (CH₂), 36.0 (CH₂), 37.6 (CH₂), 51.8 (CH₃, COOMe), 52.3 (CH₃, COOMe), 59.3 (OMe), 68.1 (CH, C-5’), 71.5 (CH, C-3), 72.4 (CH, C-3’), 73.2 (CH, C-4 or C-6’), 73.3 (CH, C-4 or C-6’), 74.7 (CH, C-6 or C-4’), 74.7 (CH, C-6 or C-4’), 79.6 (CH, C-5), 110.8 (Cq), 111.8 (Cq), 129.8 (Cq, C-1’), 131.3 (Cq, C-1), 137.65 (CH, C-2 or C-2’), 137.70 (CH, C-2 or C-2’), 166.6 (Cq, C-7 or C-7’), 166.7 (Cq, C-7 or C-7’); HRMS m/z calcd for C₂₉H₄₀O₁₁ (M)⁺ 564.2571, found 564.2565.

(+)-17 (34.8 mg, 33%) was prepared from (−)-16 (106.6 mg, 0.19 mmol): oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ +11.7 (c 0.34, CHCl₃); IR (film) ν_max 3309 (OH), 1718 (C=O), 1655 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 300 MHz, ppm) δ 1.20−1.80 (20 H, m), 3.45 (3H, s, 6’-OMe), 3.75 (3H, s, H-8), 3.79 (3H, s, H-8’), 3.91–3.60 (1H, m, H-5’), 4.16 (1H, dd, J = 4.1, 2.9 Hz, H-5), 4.20 (1H, br d, J = 3.8 Hz, H-6), 4.52 (1H, br d, J = 5.3 Hz, H-4’), 4.58 (1H, d, J = 3.9 Hz, H-6’), 4.75 (1H, dd, J = 5.3, 2.9 Hz, H-3’), 4.82 (1H, ddd, J = 6.1, 3.5, 0.6 Hz, H-3), 4.92–4.98 (1H, m, H-4), 6.68 (1H, d, J = 3.5 Hz, H-2), 6.77 (1H, d, J = 2.7 Hz, H-2’); ¹³C-NMR (acetone-d₆, 75 MHz, ppm) δ 23.5 (CH₂), 23.6 (CH₂), 23.7 (CH₂), 23.9 (CH₂), 24.8 (2C, CH₂), 35.2 (CH₂), 35.4 (CH₂), 37.2 (CH₂), 37.5 (CH₂), 51.3 (CH₃, C-8), 51.5 (CH₃, C-8’), 60.5 (CH₃, 6’-OMe), 71.2 (CH, C-5’), 71.6 (CH, C-6’), 72.3 (CH, C-4), 72.5 (CH, C-3’), 72.8 (CH, C-3), 74.9 (2 × CH, C-6, 4’), 79.2 (CH, C-5), 110.8 (Cq, C-1’), 111.0 (Cq, C-1), 129.4 (Cq), 130.5 (Cq), 136.5 (CH, C-2), 138.2 (CH, C-2’), 165.9 (Cq, C-7), 166.6 (Cq, C-7’); HREIMS m/z calcd for C₂₉H₄₀O₁₁ (M)⁺ 564.2571, found 564.2573.

(−)-17 (24.6 mg, 37%) was prepared from (+)-16: oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ −14.5 (c 0.36, CHCl₃); IR (film) ν_max 3518 (OH), 1717 (C=O), 1652 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 600 MHz, ppm) δ 1.25−1.70 (20H, m), 3.45 (3H, s, 6’-OMe), 3.75 (3H, s, COOMe), 3.79 (3H, s, COOMe), 3.94 (2H, ddd, J = 10.9, 5.0, 2.4 Hz, H-5’), 4.15 (1H, dd, J = 4.1, 2.9 Hz, H-5), 4.20 (1H, ddd, J = 4.1, 1.2, 0.9 Hz, H-6), 4.52 (1H, dd, J = 5.3, 2.4 Hz, H-4’), 4.59 (1H, d, J = 5.0 Hz, H-6’), 4.74 (1H, ddd, J = 5.3, 2.9, 0.9 Hz, H-3’), 4.81 (1H, ddd, J = 6.2, 3.5, 0.6 Hz, H-3), 4.95 (1H, ddd, J = 6.1, 2.9, 1.5 Hz, H-4), 6.68 (1H, dd, J = 3.5, 0.9 Hz, H-2), 6.77 (1H, dd, J = 2.9, 1.2 Hz, H-2’); ¹³C-NMR (acetone-d₆, 150 MHz, ppm) δ 24.5 (CH₂), 24.58 (CH₂), 24.65 (CH₂), 24.8 (CH₂), 25.75 (CH₂), 25.78 (CH₂), 36.1 (CH₂), 36.3 (CH₂), 38.2 (CH₂), 38.4 (CH₂), 52.2 (CH₃, C-8), 52.4 (CH₃, C-8’), 61.4 (CH₃, 6’-OMe), 72.1 (CH, C-5’), 72.2 (CH, C-6’), 72.5 (CH, C-4), 73.2 (CH, C-3’), 73.4 (CH, C3), 73.7 (CH, C-6), 75.8 (CH, C-4’), 80.2 (CH, C-5), 111.7 (Cq), 111.9 (Cq), 130.4 (Cq, C-1’), 131.6 (Cq, C-1), 137.3 (C, C-2), 139.1 (C, C-2’), 166.8 (Cq, C-7), 167.5 (Cq, C-7’); HREIMS m/z calcd for C₂₉H₄₀O₁₁ (M)⁺ 564.2571, found 564.2571.

(−)-20 (41.8 mg, 48%) was prepared from (−)-19 (87.2 mg, 0.15 mmol): white powder; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ −23.3 (c 0.44, CHCl₃); IR (KBr) ν_max 3430 (OH), 1725 (C=O), 1653 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 600 MHz, ppm) δ 1.32−1.66 (20H, m), 3.73 (3H, s, 6’-OMe), 3.76 (3H, s, H-8’), 3.78 (3H, s, H-8), 3.88 (1H, ddd, J = 12.6, 5.0, 2.9 Hz, H-5’), 4.08 (1H, dd, J = 8.5, 2.3 Hz, H-5), 4.22 (1H, dt, J = 8.5, 1.7 Hz, H-6), 4.49–4.51 (1H, m, H-4’), 4.63 (1H, d, J = 5.0 Hz, H-6’), 4.66 (1H, d, J = 12.6 Hz, 5’-OH), 4.72 (1H, ddd, J = 5.6, 3.2, 1.2 Hz, H-3’), 4.74 (1H, ddd, J = 5.0.2.9,1.7 Hz, H-3), 4.98 (1H, br ddd, J = 5.0,2.0,1.5 Hz, H-4), 6.31 (1H, dt, J = 3.0, 1.4 Hz, H-2), 6.70 (1H, dd, J = 2.9,1.8 Hz, H-2’); ¹³C-NMR (acetone-d₆, 150 MHz, ppm) δ 23.60 (CH₂), 23.61 (CH₂), 23.8 (CH₂), 24.78 (CH₂), 24.81 (CH₂), 35.4 (CH₂), 35.5 (CH₂), 37.2 (CH₂), 37.5 (CH₂), 51.2 (CH₃, C-8 or C-8’), 51.5 (CH₃, C-8 or C-8’), 61.8 (CH₃, 6’-OMe), 68.5 (CH, C-5’), 71.2 (CH, C-6’), 72.30 (CH, C-3), 72.34 (CH, C-3’), 72.9 (CH, C-6), 75.2 (CH, C-4), 77.0 (CH, C-4’), 81.4 (CH, C-5), 109.7 (Cq), 110.8 (Cq), 129.4 (Cq, C-1’), 132.9 (CH, C-1), 135.3 (Cq, C-2), 137.8 (CH, C-2’), 166.1 (Cq, C-7’), 166.7 (Cq, C-7); HRMS m/z calcd for C₂₉H₄₀O₁₁ (M)⁺ 564.2570, found 564.2570.

(+)-20 (44.6 mg, 51%) was prepared from (+)-19 (79.3 mg, 0.14 mmol): oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ +15.6 (c 0.27, CHCl₃); IR (film) ν_max 3419 (OH), 1725 (C=O), 1652 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 400 MHz, ppm) δ 1.32−1.66 (20H, m), 3.74 (3H, s, OMe), 3.76 (3H, s, C⁷OOMe), 3.78 (3H, s, C^7’OOMe), 3.88 (1H, ddd, J = 12.3, 4.9, 2.9 Hz), 4.10 (1H, dd, J = 8.6, 2.4 Hz), 4.22 (1H, dt, J = 8.4, 1.8 Hz), 4.48–4.52 (1H, m), 4.63 (1H, d, J = 4.7 Hz), 4.67 (1H, d, J = 12.5 Hz), 4.71–4.76 (2H, m), 4.98–5.00 (1H, m), 6.30 (1H, br s), 6.70 (1H, dd, J = 3.1, 1.0 Hz); ¹³C-NMR (acetone-d₆, 100 MHz, ppm) δ 23.58, 23.59, 23.8, 24.75, 24.78, 35.4, 35.5, 37.2, 37.4, 51.2, 51.4, 61.8, 68.5, 71.1, 72.29, 72.33, 72.8, 75.2, 77.0, 81.4, 109.7, 110.8, 129.3, 132.9, 135.3, 137.8, 166.0, 166.6; HREIMS m/z calcd for C₂₉H₄₀O₁₁ (M)⁺ 564.2570, found 564.2573.

(+)-23 (7.5 mg, 53%) was prepared from (−)-22 (14.1 mg, 0.025 mmol): oil: ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{22}$ +24.6 (c 0.26, CHCl₃); IR (film) ν_max 3445 (OH), 1722 (C=O), 1437 (C=C) cm⁻¹; ¹H-NMR (CDCl₃, 600 MHz, ppm) δ 1.29−1.71 (20H, m), 3.44 (3H, s, OMe), 3.87 (1H, br t, J = 3.5 Hz, H-5’), 3.78 (3H, s, COOMe), 3.82 (3H, s, COOMe), 3.99 (1H, dd, J = 4.7, 3.0 Hz, H-5), 4.35 (1H, dd, J = 5.9, 3.0 Hz, H-4), 4.57 (1H, dd, J = 5.2, 3.2 Hz, H-4’), 4.62 (1H, dd, J = 5.3, 3.5 Hz, H-3), 4.64 (1H, d, J = 5.3 Hz, H-6’), 4.72 (1H, dd, J = 5.9, 3.5 Hz, H-3’), 4.76 (1H, d, J = 4.4 Hz, H-6), 6.86 (1H, dd, J = 3.5, 0.9 Hz, H-2), 6.93 (1H, dd, J = 3.8, 0.9 Hz, H-2’); ¹³C-NMR (CDCl₃, 150 MHz, ppm) δ 23.66 (CH₂), 23.73 (CH₂), 23.8 (CH₂), 23.9(CH₂), 25.0 (CH₂), 35.4 (CH₂), 35.5 (CH₂), 37.2 (CH₂), 52.25 (CH₃, COOMe), 52.31 (CH₃, COOMe), 57.9 (CH₃, 6-OMe), 68.4 (CH, C-5’), 69.3 (CH, C-6), 70.9 (CH, C-6’), 72.2 (CH, C-3’), 72.6 (CH, C-3), 73.8 (CH, C-4), 74.6 (CH, C-4’), 76.2 (CH, C-5), 110.85 (Cq), 111.88 (Cq), 129.8 (Cq, C-1), 130.4 (Cq, C-1’), 139.0 (CH, C-2’), 139.0 (CH, C-2), 166.9 (Cq, C-7’), 167.1 (Cq, C-7); HREIMS m/z calcd for C₂₉H₄₀O₁₁ (M)⁺ 564.2571, found 564.2567.

(−)-23 (5.5 mg, 25%) was prepared from (+)-22 (22.1 mg, 0.039 mmol): oil: ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ −29.7 (c 0.26, CHCl₃); IR (film) ν_max 3495 (OH), 1717 (C=O), 1436 (C=C) cm⁻¹; ¹H-NMR (CDCl₃, 400 MHz, ppm) δ 1.25−1.72 (20H, m), 3.44 (3H, s, OMe), 3.75–3.79 (1H, m, H-5’), 3.78 (3H, s, COOMe), 3.82 (3H, s, COOMe), 3.99 (1H, dd, J = 4.3, 2.9 Hz, H-5), 4.35 (1H, dd, J = 5.6, 2.7 Hz, H-4), 4.58 (1H, dd, J = 5.6, 3.2 Hz, H-4’), 4.62–4.65 (2H, overlapped, H-3, H-6’), 4.72 (1H, dd, J = 5.9, 3.6 Hz, H-3’), 4.76 (1H, d, J = 3.4 Hz, H-6), 6.86 (1H, br d, J = 3.0 Hz, H-2), 6.94 (1H, br d, J = 3.5 Hz, H-2’); ¹³C-NMR (CDCl₃, 100 MHz, ppm) δ 23.66, 23.74, 23.8, 23.9, 25.0, 35.4, 35.5, 37.2, 52.29, 52.35, 57.9, 68.4, 69.3, 70.8, 72.2, 72.7, 73.8, 74.6, 76.1,110.9, 111.9, 111.9, 129.8, 130.4, 139.0, 139.1, 166.9, 167.1; HREIMS m/z calcd for C₂₉H₄₀O₁₁ (M)⁺ 564.2571, found 564.2573.

4.4. Deprotection to Carbadisaccharides

General procedure (synthesis of (+)-6 from (+)-13, Scheme 1): A microwave vial containing a methanolic solution (0.5 mL) of (+)-13 (36.0 mg, 0.064 mmol) was charged with TFA (4.5 mL) at 0 °C, sealed, and irradiated in the MW reactor at 80 °C for 5.5 h. After cooling, the reaction mixture was concentrated in a vacuum to afford a crude residue that was purified by silica gel column chromatography (eluent = MeOH:CH₂Cl₂, 2:8 v/v) to afford (+)-6 (6.6 mg, 26%).

(+)-6:oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ +57.8 (c 0.37, EtOH); IR (film) ν_max 3384 (OH), 1718 (C=O), 1653 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 400 MHz, ppm) δ 3.48 (3H, s, 6’-OMe), 3.75 (1H, overlapped, H-5’) 3.75 (3H, s, COOMe), 3.80 (3H, s, COOMe), 3.95(1H, br d, J = 3.1 Hz, H-4’), 4.03 (1H, br s, H-4’), 4.13 (1H, br d, J = 4.7 Hz, H-3), 4.22 (1H, overlapped, H-3’), 4.24 (1H, br d, J = 2.4 Hz, H-5), 4.35 (1H, d, J = 3.1 Hz, H-6), 4.52 (1H, d, J = 3.9 Hz, H-6’), 6.69 (1H, br s, H-2’), 6.88 (1H, d, J = 4.5 Hz, H-2); ¹³C-NMR (acetone-d₆, 100 MHz, ppm) δ 52.1 (CH₃, C-8), 52.4 (CH₃, C-8’), 58.6 (CH₃, 6’-OMe), 65.9 (CH, C-3), 68.0 (CH, C-4), 69.2 (CH, C-3’), 70.5 (CH, C-5’), 72.4 (CH_, C-4’), 76.2 (CH, C-6), 76.8 (CH, C-6’), 82.7 (CH, C-5), 130.0 (Cq, C-1), 130.4 (Cq, C-1’), 141.7 (CH, C-2), 142.7 (CH, C-2’), 167.0 (Cq, C-7’), 167.5 (Cq, C-7); HRFABMS m/z calcd for C₁₇H₂₅O₁₁Na (M + Na)⁺ 427.1216, found 427.1216.

(+)-14 (4.2 mg, 22%) was prepared from (−)-12 (27.0 mg, 0.048 mmol): white powder; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ +27.5 (c 0.095, EtOH); IR (film) ν_max 3361 (OH), 1724 (C=O), 1657 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 600 MHz, ppm) δ 3.48 (3H, s, 6’-OMe), 3.73 (3H, s, COOMe), 3.76 (3H, s, COOMe), 3.88 (1H, ddd, J = 9.7, 5.0, 2.4 Hz, H-4), 3.94 (1H, br dd, J = 10.0, 4.7 Hz, H-4’), 4.04 (1H, ddd, J = 10.5, 5.3, 5.0 Hz, H-3), 4.18 (1H, d, J = 4.7 Hz, H-5), 4.22 (1H, br d, J = 2.9 Hz, H-6’), 4.25 (1H, d, J = 7.3 Hz, -OH), 4.35 (1H, d, J = 10.7 Hz, -OH), 4.40 (1H, d, J = 3.2 Hz, H-6), 4.42 (1H, br ddd, J = 7.3, 3.5, 3.2 Hz, H-3’), 4.47 (1H, ddd, J = 5.6, 3.8, 3.5 Hz, H-5’), 4.67 (1H, d, J = 3.8 Hz, -OH) 6.73 (1H, br d, J = 2.9 Hz, H-2’), 6.87 (1H, d, J = 4.7 Hz, H-2); ¹³C-NMR (acetone-d₆, 150 MHz, ppm) δ 52.1 (2 × CH₃, C8, C8’), 58.8 (CH₃, 6’-OMe), 66.3 (CH, C-3), 66.7 (CH, C-3’), 67.2 (CH, C-4), 69.6 (CH, C-5’), 70.3 (CH, C-4’), 76.0 (CH, C-6), 76.8 (CH, C-6’),81.2 (CH, C-5), 130.4 (Cq, C-1’), 130.5 (Cq, C-1), 141.3 (CH, C-2), 141.5 (CH, C-2’), 167.0 (Cq, C-7’), 167.5 (Cq, C-7); HRFABMS m/z calcd for C₁₇H₂₅O₁₁Na (M + Na)⁺ 427.1216, found 427.1216.

(−)-6 (8.4 mg, 58%) was prepared from (−)-13 (20.2 mg, 0.036 mmol): white powder; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ −61.5 (c 0.22, EtOH); IR (film) ν_max 3392 (OH), 1718 (C=O), 1653 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 600 MHz, ppm) δ 3.47 (3H, s, 6’-OMe), 3.73 (1H, overlapped, H-5’) 3.74 (3H, s, COOMe), 3.80 (3H, s, COOMe), 3.94(1H, dd, J = 5.0, 1.8 Hz, H-4’), 4.03 (1H, br s, H-4’), 4.12 (1H, br dd, J = 5.0, 4.7 Hz, H-3), 4.21 (1H, overlapped, H-3’), 4.22 (1H, dd, J = 3.0, 2.3 Hz, H-5), 4.33 (1H, d, J = 3.2 Hz, H-6), 4.51 (1H, d, J = 4.1 Hz, H-6’), 6.69 (1H, d, J = 1.2 Hz, H-2’), 6.87 (1H, d, J = 4.7 Hz, H-2); ¹³C-NMR (acetone-d₆, 150 MHz, ppm) δ 52.1 (CH₃, C-8), 52.4 (CH₃, C-8’), 58.6 (CH₃, 6’-OMe), 66.0 (CH, C-3), 68.0 (CH_, C-4), 69.2 (CH_, C-3’), 70.5 (CH_, C-5’), 72.4 (CH_, C-4’), 76.2 (CH, C-6), 76.8 (CH, C-6’), 82.7 (CH, C-5), 130.1 (Cq, C-1), 130.5 (Cq, C1’), 141.7 (CH, C-2), 142.6 (CH, C-2’), 167.0 (Cq, C-7’), 167.5 (Cq, C-7); HRFABMS m/z calcd for C₁₇H₂₅O₁₁ (M + H)⁺ 405.1397, found 405.1399.

(−)-14 (11.1 mg, 40%) was prepared from (+)-12 (38.4 mg, 0.068 mmol): white powder; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ −27.6 (c 0.13, EtOH); IR (film) ν_max 3415 (OH), 1720 (C=O), 1655 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 600 MHz, ppm) δ 3.50 (3H, s, 6’-OMe), 3.74 (3H, s, COOMe), 3.78 (3H, s, COOMe), 3.92 (1H, dd, J = 5.0, 2.4 Hz, H-4), 3.96 (1H, br dd, J = 5.0, 4.7 Hz, H-4’), 4.08 (1H, dd, J = 5.0, 4.7 Hz, H-3), 4.15 (1H, dd, J = 2.9, 2.7 Hz, H-5), 4.22 (1H, d, J = 2.9 Hz, H-6’), 4.41 (1H, d, J = 3.2 Hz, H-6), 4.43 (1H, br dd, J = 3.3, 2.9 Hz, H-3’), 4.47 (1H, dd, J = 5.6, 3.2 Hz, H-5’), 6.75 (1H, d, J = 2.6 Hz, H-2’), 6.88 (1H, d, J = 4.7 Hz, H-2); ¹³C-NMR (acetone-d₆, 150 MHz, ppm) δ 52.2 (CH₃, C-8), 52.3 (CH₃, C-8’), 58.8 (CH₃, 6’-OMe), 66.1 (CH, C-3), 66.5 (CH, C-3’), 67.1 (CH, C-4), 69.2 (CH, C-5’), 70.0 (CH, C-4’), 76.0 (CH, C-6), 76.6 (CH, C-6’), 80.9 (CH, C-5), 130.3 (Cq, C-1’), 130.4 (Cq, C-1), 141.4 (CH, C-2), 141.7 (CH-C-2’), 167.2 (Cq, C-7’), 167.6 (Cq, C-7); HRFABMS m/z calcd for C₁₇H₂₅O₁₁ (M + H)⁺ 405.1397, found 405.1391.

(−)-7 (6.2 mg, 54%) was prepared from (+)-17 (16.1 mg, 0.029 mmol): oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ −10.5 (c 0.10, EtOH); IR (film) ν_max 3355 (OH), 1717 (C=O), 1652 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 400 MHz, ppm) δ 3.47 (3H, s, 6’-OMe), 3.77 (3H, s, COOMe), 3.79 (3H, s, COOMe), 3.82–3.86 (1H, m, H-5’), 3.88–4.04 (2H, m, OH, OH), 3.98–4.04 (1H, m, H-4’), 4.09 (1H, br d, J = 2.2 Hz, H-5), 4.18–4.28 (3H, m, OH, H-3’, H-3), 4.32 (1H, d, J = 3.7 Hz, H-6), 4.43–4.49 (1H, m, H-4), 4.67 (1H, d, J = 3.7 Hz, H-6’), 4.66–4.74 (1H, br, OH), 6.73 (1H, d, J = 2.2 Hz, H-2), 6.82 (1H, d, J = 2.0 Hz, H-2’); ¹³C-NMR (acetone-d₆, 100 MHz, ppm) δ 51.6 (CH₃, C-8), 51.7 (CH₃, C-8’), 60.9 (CH₃, 6’-OMe), 68.6 (CH, C-3), 68.9 (CH, C-3’), 69.1 (CH, C-5’), 70.2 (CH, C-4), 72.2 (CH, C-4’), 75.0 (CH, C-6’), 75.4 (CH, C-6), 79.6 (CH, C-5), 129.5 (CH, C-1),129.7 (CH, C-1’),141.4 (CH, C-2), 142.4 (CH, C-2’), 165.9 (Cq, C-7), 166.4 (Cq, C-7’); HREIMS m/z calcd for C₁₇H₂₅O₁₁ (M + H)⁺ 405.1397, found 405.1395.

(−)-18 (5.0 mg, 41%) was prepared from (−)-16 (17.0 mg, 0.030 mmol): oil; R_f = 0.16 (MeOH:CH₂Cl₂ = 1:9 v/v); ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ −21.6 (c 0.275, EtOH); IR (film) ν_max 3357 (OH), 1718 (C=O), 1657 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 400 MHz, ppm) δ 3.31 (1H, d, J = 5.3 Hz, -OH), 3.49 (3H, s, 6’-OMe), 3.70–3.78 (1H, m, H-4’), 3.777 (3H, s, COOMe), 3.779 (3H, s, COOMe), 3.82–3.88 (2H, m, -OH, -OH), 3.99 (1H, dd, J = 3.7, 2.2 Hz, H-5), 4.07 (1H, d, J = 7.0 Hz, -OH), 4.15 (1H, d, J = 8.0 Hz, -OH), 4.20–4.28 (2H, overlapped, H-5’, H-3), 4.32–4.40 (3H, overlapped, H-6, H-6’, H-3’), 4.42–4.48 (1H, m, H-4), 4.56 (1H, d, J = 3.3 Hz, OH) 6.74 (1H, dd, J = 2.4, 1.4 Hz, H-2), 6.77 (1H, d, J = 3.3 Hz, H-2’); ¹³C-NMR (acetone-d₆, 100 MHz, ppm) δ 51.56 (CH₃, C-8), 51.61 (CH₃, C-8’), 61.1 (CH₃, 6’-OMe), 65.9 (CH₂, C-3’), 69.1 (CH₂, C-3), 70.3 (CH₂, C-4), 70.4 (CH₂, C-4’), 71.0 (CH₂, C-5’), 75.5 (CH₂, C-6), 77.7 (CH, C-6’), 79.4 (CH, C-5), 129.2 (CH, C-1), 131.8 (CH, C-1’), 139.1 (CH, C-2’), 141.8 (CH, C-2), 165.8 (Cq, C-7), 166.8 (Cq, C-7’); HREIMS m/z calcd for C₁₇H₂₅O₁₁ (M + H)⁺ 405.1397, found 405.1399.

(+)-7 (6.8 mg, 52%) was prepared from (−)-17 (20.1 mg, 0.036 mmol): oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ +11.4 (c 0.11, EtOH); IR (film) ν_max 3359 (OH), 1717 (C=O), 1652 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 400 MHz, ppm) δ 3.47 (3H, s, 6’-OMe), 3.77 (3H, s, COOMe), 3.79 (3H, s, COOMe), 3.84 (1H, ddd, J = 8.2, 4.1, 2.2 Hz, H-5’), 3.89 (1H, d, J = 7.4 Hz, -OH), 3.94 (1H, d, J = 9.7 Hz, OH), 4.00 (1H, d, J = 9.8 Hz, -OH), 3.98–4.04 (1H, m, H-4’), 4.09 (1H, dd, J = 3.8, 2.3 Hz, H-5), 4.19 (1H, d, J = 8.8 Hz, -OH), 4.22–4.28 (2H, m, H-3’ and H-3), 4.32 (1H, d, J = 4.0 Hz, H-6), 4.43–4.49 (1H, m, H-4), 4.68 (1H, d, J = 8.3 Hz, -OH), 4.67 (1H, d, J = 4.1 Hz, H-6’), 6.73 (1H, dd, J = 2.6, 4.3 Hz, H-2), 6.83 (1H, dd, J = 2.5, 1.3 Hz, H-2’); ¹³C-NMR (acetone-d₆, 100 MHz, ppm) δ 51.6 (CH₃, C-8), 51.7 (CH₃, C-8’), 60.9 (CH₃, 6’-OMe), 68.6 (CH, C-3), 68.9 (CH, C-3’), 69.1 (CH, C-5’), 70.3 (CH, C-4), 72.2 (CH, C-4’), 75.0 (CH, C-6’), 75.4 (CH, C-6), 79.6 (CH, C-5), 129.5 (Cq, C-1), 129.7 (Cq, C-1’), 141.3 (CH, C-2), 142.4 (CH, C-2’), 165.9 (Cq, C-7), 166.4 (Cq, C-7’); HREIMS m/z calcd for C₁₇H₂₄O₁₁ (M)⁺ 404.1319, found 404.1315.

(+)-18 (7.1 mg, 62%) was prepared from (+)-16 (16.1 mg, 0.029 mmol): oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ +24.3 (c 0.36, EtOH); IR (liquid film) ν_max 3361 (OH), 1718 (C=O), 1655 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 400 MHz, ppm) δ 3.31 (1H, d, J = 5.1 Hz, -OH), 3.49 (3H, s, 6’-OMe), 3.70–3.78 (1H, m, H-4’), 3.776 (3H, s, COOMe), 3.778 (3H, s, COOMe), 3.86 (1H, br d, J = 9.5 Hz, -OH), 3.99 (1H, dd, J = 3.7, 2.0 Hz, H-5), 4.07 (1H, br s, -OH), 4.14 (1H, br d, J = 8.2 Hz, -OH), 4.20–4.28 (2H, overlapped, H-5’, H-3), 4.32–4.40 (3H, overlapped, H-6, H-6’, H-3’), 4.42–4.48 (1H, m, H-4), 4.55 (1H, br s, -OH) 6.74 (1H, dd, J = 2.2, 1.4 Hz, H-2), 6.77 (1H, br d, J = 33 Hz, H-2’); ¹³C-NMR (acetone-d₆, 100 MHz, ppm) δ 51.56 (CH_3, C-8), 51.61 (CH_3, C-8’), 61.1 (CH₃, 6’-OMe), 65.9 (CH₂, C-3’), 69.1 (CH₂, C-3), 70.4 (2 × CH_, C-4, C-4’), 71.0 (CH_, C-5’), 75.5 (CH_, C-6), 77.7 (CH, C-6’), 79.4 (CH, C-5), 129.2 (Cq, C-1), 131.8 (Cq, C-1’), 139.1 (CH, C-2’), 141.8 (CH, C-2), 165.8 (Cq, C-7), 166.8 (Cq, C-7’); HREIMS m/z calcd for C₁₇H₂₄O₁₁ (M)⁺ 404.1319, found 404.1317.

(−)-8 (10.3 mg, 45%) was prepared from (−)-20 (31.8 mg, 0.056 mmol): oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ −96.7 (c 0.48, EtOH); IR (film) ν_max 3419 (OH), 1728 (C=O), 1653 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 600 MHz, ppm) δ 3.32 (3H, s, 6-OMe), 3.59–3.78 (1H, m, H-5’), 3.76 (3H, s, COOMe), 3.81 (3H, s, COOMe), 3.96–3.99 (2H, m, H-4, H-4’), 4.13 (1H, br t, J = 4.1 Hz, H-3), 4.33 (1H, dd, J = 4.1, 1.8 Hz, H-5), 4.54 (1H, d, J = 4.1 Hz, H-6), 4.58 (1H, J = 4.2 Hz, H-6’), 6.83 (1H, dd, J = 2.3, 1.5 Hz, H-2’), 6.85 (1H, d, J = 4.1 Hz, H-2); ¹³C-NMR (acetone-d₆, 150 MHz, ppm) δ 52.1 (CH₃, COOMe), 52.5 (CH₃, COOMe), 59.0 (CH₃, -OMe), 66.7 (CH, C-3), 67.8 (CH, C-4), 69.1 (CH, C-3’), 69.7 (CH, C-5’), 72.3 (CH, C-4’), 73.4 (CH, C-6’), 76.5 (CH, C-6), 80.6 (CH, C-5), 130.1 (Cq, C-1’), 130.9 (Cq, C-1), 141.7 (CH, C-2), 143.3 (CH, C-2’), 167.4 (Cq, C-7), 167.5 (Cq, C-7); HRMS m/z calcd for C₁₇H₂₅O₁₁ (M + H)⁺ 405.1397, found 405.1390.

(−)-21 (10.3 mg, 45%) was prepared from (−)-20 (31.8 mg, 0.056 mmol): oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ −215.4 (c 0.35, EtOH); IR (film) ν_max 3393 (OH), 1716 (C=O), 1653 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 600 MHz, ppm) δ 3.35 (3H, s, 6-OMe), 3.75 (1H, dd, J = 6.7, 3.5 Hz, H-4’), 3.77 (3H, s, COOMe), 3.780 (3H, s, COOMe), 4.00 (2H, dd, J = 4.7, 2.0 Hz, H-4), 4.08 (1H, dd, J = 6.7, 4.1 Hz, H-5’), 4.14 (1H, dd, J = 4.7, 4.1 Hz, H-3), 4.28 (1H, dd, J = 4.1, 2,1 Hz, H-5), 4.35 (1H, d, J = 3.8 Hz, H-6’), 4.37 (1H, t, J = 3.8 Hz, H-3’), 4.42 (1H, br d, J = 4.1 Hz, H-6’), 4.35 (1H, J = 3.8 Hz, H-6’), 4.42 (1H, d, J = 3.8 Hz, H-6), 4.35 (1H, J = 3.8 Hz, H-6’), 4.64 (1H, d, J = 7.1 Hz, -OH), 6.81 (1H, d, J = 3.5 Hz, H-2’), 6.83 (1H, d, J = 4.1 Hz, H-2); ¹³C-NMR (acetone-d₆, 150 MHz, ppm) δ 52.2 (CH₃, COOMe), 52.4 (CH₃, COOMe), 59.2 (CH₃, -OMe), 66.4 (CH, C-3’), 66.9 (CH, C-3), 67.9 (CH, C-4), 70.7 (CH, C-4’), 71.8 (CH, C-5’), 76.66 (CH, C-6’), 76.70 (CH, C-6), 81.1 (CH, C-5), 130.8 (Cq, C-1), 131.1 (Cq, C-1’), 141.1 (CH, C-2’), 141.5 (CH, C-2), 167.6 (Cq, C-7), 167.9 (Cq, C-7’); HRMS m/z calcd for C₁₇H₂₅O₁₁ (M + H)⁺ 405.1397, found 405.1393.

(+)-8 (10.5 mg, 33%) was prepared from (+)-20 (44.6 mg, 0.079 mmol): oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ +86.9 (c 0.43, EtOH); IR (film) ν_max 3383 (OH), 1716 (C=O), 1652 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 400 MHz, ppm) δ 3.51 (3H, s, -OMe), 3.76 (3H, s, COOMe), 3.80 (3H, s, COOMe), 3.95–4.00 (2H, m, H-4, H-4’), 4.10–4.14 (2H, m), 4.24–4.28 (1H, m), 4.32 (1H, dd, J = 4.3, 2.0 Hz, H-5), 4.52 (1H, d, J = 4.3 Hz, H-6), 4.59 (1H, d, J = 4.3 Hz, H-6’), 6.81 (1H, d, J = 1.6 Hz, H-2’), 6.84 (1H, d, J = 4.3 Hz, H-2); ¹³C-NMR (acetone-d₆, 100 MHz, ppm) δ 50.7, 51.1, 57.6, 65.3, 66.4, 67.7, 68.3, 70.9, 72.0, 75.1, 79.3, 128.7, 129.4, 140.3, 142.0, 165.9, 166.1; HREIMS m/z calcd for C₁₇H₂₅O₁₁ (M + H)⁺ 405.1397, found 405.1393.

(+)-21 (9.0 mg, 32%) was prepared from (+)-19 (40.0 mg, 0.07 mmol): oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ +211 (c 0.095, EtOH); IR (film) ν_max 3419 (OH), 1716 (C=O), 1653 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 400 MHz, ppm) δ 3.49 (3H, s, 6-OMe), 3.76 (3H, s, COOMe), 3.79 (3H, s, COOMe), 3.83 (1H, br d, J = 7.8 Hz) 3.90–3.39 (2H, m), 4.04–4.14 (2H, m), 4.19–4.24 (1H, m), 4.28 (1H, dd, J = 3.9, 2.9 Hz), 4.36 (1H, d, J = 4.1 Hz), 4.36–4.39 (1H, m), 4.41 (1H, d, J = 3.9 Hz, H-6’), 4.53–4.57 (1H, m), 6.80 (1H, d, J = 3.3 Hz), 6.82 (1H, d, J = 4.3 Hz); ¹³C-NMR (acetone-d₆, 100 MHz, ppm) 52.2, 52.4, 59.2, 66.4, 66.9, 67.8, 70.7, 71.8, 76.6, 76.7, 81.1, 130.7, 131.1, 141.0, 141.1, 167.5, 167.9 HREIMS m/z calcd for C₁₇H₂₅O₁₁ (M)⁺ 405.1396, found 405.1390.

(−)-24 (1.9 mg, 26%) was prepared from (−)-22 (10.2 mg, 0.018 mmol): oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ −20.0 (c 0.05, EtOH); IR (film) ν_max 3403 (OH), 1700 (C=O), 1653 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 600 MHz, ppm) δ 3.56 (3H, s, OMe), 3.70 (1H, dt, J = 7.0, 4.4 Hz, H-4’), 3.72 (1H, d, J = 10.2 Hz, -OH), 3.77 (3H, s, COOMe), 3.78 (3H, s, COOMe), 3.92 (1H, d, J = 6.5 Hz, -OH), 3.94 (1H, d, J = 7.9 Hz, -OH), 4.04 (1H, dd, J = 3.8, 2.1 Hz, H-6), 4.10–4.14 (1H, m, H-3), 4.14 (1H, d, J = 7.1 Hz, OH), 4.23 (1H, br dt, J = 7.9, 4.4 Hz, H-5’), 4.35 (1H, br dt, J = 7.0, 4.1 Hz, H-3’), 4.38 (1H, d, J = 3.8 Hz, 3’-OH), 4.40 (1H, d, J = 4.7 Hz, H-6’), 4.53 (1H, d, J = 3.8 Hz, H-6), 6.70 (1H, dd, J = 2.6, 1.1 Hz, H-2), 6.72 (1H, dd, J = 4.1, 0.9 Hz, H-2’); ¹³C-NMR (acetone-d₆, 150 MHz, ppm) 52.1 (CH₃, -COOMe), 52.2 (CH₃, -COOMe), 61.1(CH₃, -OMe), 66.6 (CH, C-3’), 69.5 (CH, C-3), 70.2 (CH, C-4), 71.1 (CH, C-4’), 71.9 (CH, C-5’), 76.7 (CH, C-6), 78.0 (CH, C-6’), 79.0 (CH, C-5), 130.6 (Cq, C-1), 132.7 (Cq, C-1’), 139.3 (CH, C-2’), 141.8 (CH, C-2), 166.8 (Cq, C-7), 167.6 (Cq, C-7’); HREIMS m/z calcd for C₁₇H₂₄O₁₁ M⁺ 404.1318, found 404.1311.

(−)-9 (2.8 mg, 43%) was prepared from (+)-23 (9.1 mg, 0.016 mmol): oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ −49.0 (c 0.085, CHCl₃); IR (film) ν_max 3420 (OH), 1719 (C=O), 1655 (C=C), 1507 (C=C), 1458 (C=C) cm⁻¹; ¹H-NMR (CDCl₃, 600 MHz, ppm) δ 3.56 (3H, s, OMe), 3.81–3.85 (2H, m, overlapped), 3.819 (3H, s, COOMe), 3.824 (3H, s, COOMe), 3.93 (1H, br s, -OH), 3.94 (1H, d, J = 2.6 Hz, -OH), 4.02–4.04 (1H, m), 4.14–4.17 (1H, m), 4.22–4.23 (1H, m), 4.25 (1H, dd, J = 3.5, 2.1 Hz), 4.35 (1H, m, OH), 4.51 (1H, d, J = 3.5 Hz), 4.63 (1H, d, J = 4.4 Hz), 6.88 (1H, d, J = 4.1 Hz), 6.94 (1H, dd, J = 3.2, 0.9 Hz); ¹³C-NMR (CDCl₃, 150 MHz, ppm) 52.3, 52.5, 59.2, 67.3, 67.8, 69.0, 69.2, 70.5, 73.4, 74.9, 78.7, 129.4, 129.9, 140.2, 141.3, 166.4, 166.7; HREIMS m/z calcd for C₁₇H₂₂O₁₀ (M − H₂O)⁺ 386.1213, found 386.1210.

(+)-24 (5.3 mg, 38%) was prepared from (+)-22 (14.1 mg, 0.023 mmol): oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ +20.7 (c 0.29, EtOH); IR (film) ν_max 3400 (OH), 1702 (C=O), 1652 (C=C) cm⁻¹; ¹H-NMR (acetone-d₆, 400 MHz, ppm) δ 3.56 (3H, s, OMe), 3.71 (1H, dd, J = 7.4, 4.1 Hz, H-4’), 3.77 (3H, s, COOMe), 3.78 (3H, s, COOMe), 4.07 (1H, dd, J = 3.7, 1.8 Hz, H-6), 4.14 (1H, br s, -OH), 4.18 (1H, br s, -OH), 4.23 (1H, dd, J = 7.4, 4.8 Hz, H-5’), 4.35 (1H, br t, J = 4.1 Hz, H-3’), 4.40 (1H, d, J = 4.8 Hz, H-6’), 4.53 (1H, d, J = 3.7 Hz, H-6), 6.70 (1H, dd, J = 2.6, 1.0 Hz, H-2), 6.72 (1H, br d, J = 3.9 Hz, H-2’); ¹³C-NMR (acetone-d₆, 100 MHz, ppm) 52.07, 52.13, 61.1, 66.5, 69.5, 70.1, 71.0, 71.8, 76.5, 78.0, 79.0, 130.5, 132.6, 139.3, 141.8, 166.7, 167.6; HREIMS m/z calcd for C₁₇H₂₂O₁₀ (M − H₂O)⁺ 386.1213, found 386.1209.

(+)-9 (5.5 mg, 73%) was prepared from (−)-23 (10.7 mg, 0.019 mmol): oil; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{20}$ +49.5 (c 0.17, CHCl₃); IR (film) ν_max 3410 (OH), 1719 (C=O), 1655 (C=C), 1506 (C=C), 1456 (C=C) cm⁻¹; ¹H-NMR (CDCl₃, 400 MHz, ppm) δ 3.58 (3H, s, OMe), 3.78–3.84 (2H, m, overlapped), 3.82 (3H, s, COOMe), 3.83 (3H, s, COOMe), 3.90–3.96 (1H, m), 4.40–4.18 (1H, m), 4.12–4.18 (1H, m), 4.20–4.26 (1H, m), 4.29 (1H, dd, J = 3.3, 1.8 Hz), 4.44 (1H, br s, OH), 4.47 (1H, d, J = 3.7 Hz), 4.63 (1H, d, J = 4.1 Hz), 6.87 (1H, d, J = 3.9 Hz), 6.93 (1H, br d, J = 2.9 Hz,); ¹³C-NMR (CDCl₃, 100 MHz, ppm) 52.3, 52.5, 59.2, 67.1, 67.9, 68.8, 69.2, 70.5, 74.6, 75.1, 78.5, 129.4, 130.1, 139.7, 141.4, 166.6, 166.7; HREIMS m/z calcd for C₁₇H₂₅O₁₁ (M + H)⁺ 405.1396, found 405.1395.

4.5. Assays of Glycosidase Inhibitory Activity

Assay of α-Glucosidase Inhibitory Activity

The assay reaction mixture comprised 0.1 M acetate buffer (pH 5.0, 45 μL), 20 mM p-nitrophenyl-α-d-glucopyranoside solution (25 μL), and α-glucosidase solution (25 μL, stock solution of 1.0 mg/mL in 50 mM Tris-HCl-buffer at pH 7.8 diluted 20-fold with 10 mM phosphate buffer at pH 7.0), with the test samples or DNJ (5 μL solution, concentration range 0.1–20 mg/mL). After 20 min incubation at 37 °C, the reaction was quenched by addition of Na₂CO₃ solution (0.5 M, 100 μL). The amount of liberated p-nitrophenol was measured colorimetrically at 400 nm (optical density at 400 nm: ODtest). Inhibition efficiencies (%) were calculated as 100 − 100 × (ODtest − ODblank)/(control ODtest − control ODblank), and IC₅₀ values (Table 1) were obtained from inhibition curves.

Assays of β-glucosidase, α-mannosidase, β-mannosidase, and β-galactosidase inhibitory activities were carried out as above using p-nitrophenyl-β-d-glucopyranoside, p-nitrophenyl-α-d-mannopyranoside, p-nitrophenyl-β-d-mannopyranoside, and p-nitrophenyl-β-d-galactopyranoside as substrates. The corresponding IC₅₀ values are listed in Table 1.

*Isolation of positive control deoxynojirimycin: Dried leaves of Morus alba L. (0.5 kg) were cut finely and then extracted with hot water (10 L) for 2 h. The extracted solution was chromatographed on an Amberlite CG-50 (H⁺-form) column (6.5 mm inside diameter (i.d.) × 30 cm length). After washing the column with water and then 50 % MeOH, the adsorbed material was eluted with 50 % MeOH-28 % ammonia solution (9:1). The eluted fraction was concentrated in vacuo to give a basic fraction (5.0 g). This fraction was chromatographed on a Dowex 50W-X4 column (200–400 mesh, 5.0 mm i.d. × 20 cm ) pretreated with formic acid-ammonium formate buffer (0.2 M ammonia formate, adjusted to pH 5.7 with 1 M formic acid), with stepwise elution (H₂O, H₂O-28% ammonia solution (99:1, 9:1)). The fraction (H₂O-28 % ammonia solution (99:1)) was re-chromatographed on semi-preparative HPLC (column:Shodex NH₂P (4.6 mm i.d. × 250 mm), solvent:CH₃CN-H₂O (80:20), flow rate: 1.0 mL/min, column temperature: ambient). 1-Deoxynojirimycin (40 mg) was finally obtained.

4.6. Docking Simulation

The docking analysis was carried out using α-glucosidase protein (PDB code 3A4A) using the Dock induced-fit function in Molecular Operating Environment (MOE) version 2018.0101 (Chemical Computing Group Inc., Quebec, Canada) to better understand the inhibitory mechanisms. [18,19] The calculation of the binding affinity scoring function was performed with the amber 10:eht force field, triangle matcher as placement, and GBVI/WSA dG as the binding affinity scoring function [26]. In the protein preparation with respect to charged residues in the binding site, the Protonate three dimensional (3D) option in MOE was used to determine the ionization states and add hydrogens to the system [27]. The function of the Protonate 3D allows to assign ionization states and position hydrogens in a macromolecular structure given its 3D coordinates from the crystal structure. Hydrogen atoms are required for all atom molecular mechanics, dynamics, or electrostatic calculations. The addition of hydrogen atoms to a macromolecule is a non-trivial task; generally, one must determine the rotamers of -SH -OH -CH₃ and -NH₃ groups in cysteine (CYS), serine (SER), tyrosine (TYR), threonine(THR), methionine (MET), and lysine (LYS), the ionization states of acids and bases in arginine (ARG), aspartic acid (ASP), glutamic acid (GLU), LYS, histidine (HIS), the tautomers of imidazoles (HIS) and carboxylic acids (ASP, GLU), the protonation state of metal-ligand atoms CYS, HIS, ASP, GLU, etc., and the ionization state of metals.
