Isolation and Characterization of a Novel Cold-Active, Halotolerant Endoxylanase from Echinicola rosea Sp. Nov. JL3085T

by
Jianlong He
1,
Le Liu
2,
Xiaoyan Liu
1 and
Kai Tang
2,*
1
Department of Chemistry and Chemical Engineering, Huaiyin Normal University, Huaian 223300, China
2
State Key Laboratory of Marine Environmental Science, Fujian Key Laboratory of Marine Carbon Sequestration, College of Ocean and Earth Sciences, Xiamen University, Xiamen 361000, China
*
Author to whom correspondence should be addressed.
Mar. Drugs 2020, 18(5), 245; https://doi.org/10.3390/md18050245
Submission received: 29 March 2020 / Revised: 1 May 2020 / Accepted: 3 May 2020 / Published: 6 May 2020
(This article belongs to the Special Issue Marine Enzymes: Sources, Biochemistry and Bioprocesses for Marine Biotechnology – II)
Browse Figures
Versions Notes

Abstract

:
We cloned a xylanase gene (xynT) from marine bacterium Echinicola rosea sp. nov. JL3085T and recombinantly expressed it in Escherichia coli BL21. This gene encoded a polypeptide with 379 amino acid residues and a molecular weight of ~43 kDa. Its amino acid sequence shared 45.3% similarity with an endoxylanase from Cellvibrio mixtus that belongs to glycoside hydrolases family 10 (GH10). The XynT showed maximum activity at 40 °C and pH 7.0, and a maximum velocity of 62 μmoL min−1 mg−1. The XynT retained its maximum activity by more than 69%, 51%, and 26% at 10 °C, 5 °C, and 0 °C, respectively. It also exhibited the highest activity of 135% in the presence of 4 M NaCl and retained 76% of its activity after 24 h incubation with 4 M NaCl. This novel xylanase, XynT, is a cold-active and halotolerant enzyme that may have promising applications in drug, food, feed, and bioremediation industries.

1. Introduction

Hemicellulose, a highly abundant storage polysaccharides found in plants, accounts for 15–35% of the dry weight of plant cells [1]. It is mainly composed of xylan-based hemicellulose, which contains β-d-xylopyranosyl residues attached by β-1,4-glycosidic bonds [2]. Based on different substitutions on the β-d-xylopyranosyl backbone, xylan can be categorized into homoxylan, arabinoxylan, glucuronoxylan, and arabinoglucuronoxylan [3].
Several xylanolytic enzymes, such as α-d-glucuronidase, endo-β-1,4-d-xylanase, α-l-arabinofuranosidase, β-d-xylosidase, and acetylesterase are needed for the complete hydrolysis of xylan [4]. Of these, the endo-β-1,4-d-xylanase enzymes (EC 3.2.1.8) hydrolyzes the β-1,4-glycosidic bonds in the xylose chain. The endoxylanases are classified based on their three-dimensional catalytic domain, as can be determined by their amino acid sequences [5]. In the Carbohydrate-Active Enzyme (CAZy) database, endoxylanases are classified into glycoside hydrolase (GH) families 5, 8, 10, 11, 16, 26, 30, 43, 51 62, 98, and 141 [6], and the predominant families are the GH10 and GH11. The endoxylanases in the GH10 family possess a (β/α)8-barrel fold in their molecular structures, and the endoxylanases in GH11 family have a β-jelly roll fold [7,8].
The metagenomic extraction of xylanases from variable sources, such as bacteria, yeast, fungi, and protozoa have been conducted, and metagenomic extraction using a culture-independent approach, and the environmental DNA of goat rumen contents have also been performed [9,10,11,12,13,14]. Xylanases have been utilized in many industrial and agricultural applications [15]. For instance, thermostable xylanases isolated from thermophilic microbes found in a hot spring have been utilized in the paper industry in various processes, including the kraft process and bio-bleaching of pulp [16,17]. Halotolerant xylanases have also been shown to have better efficiency when used in waste water treatment and paper industry [18,19]. Mesophilic xylanases, the most abundant type of xylanases, are used for clarifying fruit juices, for improving the consistency of beer, and for digesting animal feed stock [20,21]. Some textile and food-based industrial processes, as well as bioremediation, are carried out at low temperatures to stabilize product and avoid product denaturation [8]. Thus, some psychrophilic xylanases have been cloned from organisms found in streambed, Antarctic marine sponges, and seawater [9,10,22], and used in these low-temperature processes. The cold-active, halotolerant xylanase make an excellent additive for the detergent industry [23]. The enzymatic production of prebiotic oligosaccharides has gained more and more interest among researchers. Oligosaccharides can be utilized by the human gut microorganisms, such as Lactobacillus and Bifidobacterium, resulting the improvement of human health [24]. Functional oligosaccharides, including xylo-oligosaccharides (XOS), are difficult to digest in the human small intestine, due to the lack of corresponding digestive enzymes, but they are easily assimilated and metabolized by colon probiotic microorganisms, such as Lactobacillus and Bifidobacterium, so they are considered probiotics. Xylanase is an excellent tool to prepare XOS.
Marine xylanases exhibit some appealing characteristics, including cold adaption, hyperthermostability and halotolerancy, and the absence of cellulase activity, which differentiate them from terrestrial xylanases [22,25,26]. Therefore, marine xylanase can be operated in a wider scope of pH, temperature, and salt concentrations. Herein, we cloned a novel GH10 endoxylanase gene from a halotolerant marine bacterium Echinicola rosea sp. nov. JL3085T [27], and recombinantly expressed it in E. coli. Characterization of the purified recombinant enzyme showed that it is a cold-active and halotolerant endoxylanase. This study is the first report on the identification of an endoxylanase isolated from the genome of a bacterium in the genus Echinicola, which contains an extremely large number of GH genes [28].

2. Results and Discussion

2.1. Production and Purification of Recombinant XynT

The xynT gene (WP_137405116.1), which encodes 379 amino acid residues of a putative endoxylanase, was cloned from the genomic DNA of Echinicola rosea sp. nov. JL3085T. This protein had a theoretical molecular weight of 43275.95 Da, and its isoelectric point was 4.93. After expression and purification of the recombinant XynT, the purified fractions were pooled and then subjected to enzymatic assays.

2.2. Biochemical Characterization of the Recombinant XynT

Hydrolysis of beechwood xylan by the purified recombinant XynT revealed that the primary products were xylotetraose, xylotriose, and xylobiose, and the monosaccharide xylose (X1) was produced at a very low amount, even at a prolonged hydrolysis time (Figure 1). Similar products, but with different concentrations, were obtained when birchwood xylan was used in the hydrolysis (data not shown). These results confirm that the recombinant XynT is a typical endoxylanase, which has no β-xylosidase activity. XynT produce smaller oligosaccharides without producing xylose, and thus, is suitable for the production of XOS.
XynT exhibited the maximum activity at 40 °C when beechwood xylan was used as the substrate (Figure 2a). The enzyme could retain its maximum activity by more than 69%, 51%, and 26% at 10 °C, 5 °C, and 0 °C, respectively. Figure 2b shows the effects of pH on the activity of XynT. XynT was found to be a neutral xylanase that showed optimal activity between pH 6–7, and was enzymatically active at pH 5–8, as it retained activity at above 70% at this pH range.
XynT was stable at 0–40 °C, but after incubation for 2 h at 50 °C, XynT lost its activity by approximately less than 25%, and almost completely lost all of its activity after incubation for 2 h at 60 °C (Figure 2c). Additionally, XynT was stable at pH 4–10; it could retain more than 82% of its maximum activity after incubation at 4 °C for 2 h at this pH range (Figure 2d).
In general, the presence of metals such as Mn2+, Cu2+, Co2+, and Fe3+ can have negative impacts on industrial enzymes. Cu2+ is involved in the catalysis of auto-oxidation of cysteine residues, resulting in the formation of intermolecular and intramolecular disulfide bonds or the formation of sulfenic acid [29]. Cu2+ can also strongly inhibit activity of xylanasesfrom Sorangium cellulosum [30], Geobacillus thermoleovorans [31], and Plectosphaerella cucumerina [32]. Mn2+ has negative effects on activity of xylanases from Lechevalieria sp. [33] and Streptomyces viridochromogenes [34]. Fe3+ and Co2+ can cause dramatic decrease of activity of xylanases from G. mesophila KMM241 [35] and Sorangium cellulosum [30]. In this study, among all the metal ions tested, Ca2+, K+, Zn2+, Cu2+, and Fe3+ (each at 1 mM) showed no apparent effect on the activity of XynT; however, in the presence of Co2+, XynT could retain its activity by 40.94% (Figure 3), and, in the presence of Mn2+ (1 mM), XynT could retain its activity by 12.08%, indicating that Mn2+ had a high negative effect on XynT activity.
Interestingly, the presence of 1–4 M NaCl had positive effects on the activity of XynT (Figure 4a). At 4 M NaCl, the activity of XynT increased by 135%, compared to that in the absence of NaCl, and the activity increased with the increase of concentration of NaCl (Figure 4a). XynT was found to be stable in the presence of NaCl: it retained approximately 76% of its activity in 4 M NaCl, and approximately 107% in 2 M NaCl, after 24h incubation at 20 °C (Figure 4b). These characteristics of XynT were similar to those of other cold-active, halotolerant xylanases isolated from various other microbes (Table 1). Thus, XynT belonged to the cold-active, halotolerant xylanase family. Compared with other xylanases, the cold adaption and halotolerancy of XynT are remarkable. Industrial process conditions are often conducted in extreme pHs and temperature, and the presence of salts may inhibit the enzymatic activity [36]. XynT have potential for industrial usage, especially in the processing of sea food and saline food from marine seaweeds.

2.3. Kinetic Study of XynT

The hydrolysis of beechwood xylan (10 mg/mL) revealed that with the increase of reaction time, xylanase activity increased in the first 20 min. Therefore, the kinetic parameters were determined at a reaction time of 20 min and at temperatures of 10 °C and 40 °C. The Vmax of the isolated XynT was 15 μmoL min−1 mg−1 at 10 °C, and that significantly increased to 62 μmoL min−1 mg−1 at 40 °C (Table 2). The Km value for XynT decreased from 22.7 mM to 15.3 mM, as the temperature increased from 10°C to 40 °C. The kcat values increased with increasing temperature, and the kcat/Km value at 40 °C was 8.3 times higher than that at 10 °C.

2.4. Sequence Analysis and Structural Modeling of XynT

The signal peptide analysis revealed that the cleavage site of the signal peptide in XynT lay between Ala21 and Cys22. This cleavage site produced a 358-residue. BLASTp was used to search the mature XynT sequence in the GenBank protein database, and it showed that XynT belongs to the GH10 family, and contains one catalytic domain, and it does not contain a carbohydrate-binding module. The search also showed that XynT and endoxylanase from Cellvibrio mixtus share the highest similarity (45.3%).
A previous report has shown that, unlike non-halophilic proteins, halotolerant proteins contain an abundance of acidic amino acids on their surfaces [46]. The high water-binding capacity of these acidic amino acids facilitates the formation of a solvation shell on the protein surface, which can keep them hydrated and assist in the adaptation of the proteins to the high salt concentration-induced environmental pressure [23,47]. A halophilic dihydrolipoamide dehydrogenaseenzyme lost its halo-activity when two of the Glu residues in the interface of the enzyme were replaced by neutral amino acids [48]. It was suggested Glu plays a key role of halo-stablity. XynT contains 26 Asp residues and 35 Glu residues, which accounted for 17.1% of the entire amino acid sequence, and is the highest ratio among all amino acids (Table 3). Xylanase (XynA) from Zunongwangia profunda posseses 16.3% acidic amino acids, which activity was significantly increased 140% at 4 M NaCl, however, it only retained ~60% activtiy after 2-h incubation with 4 M NaCl [22]. A halotolerant glucanase from metagenomics of seaweed-associated microbiota posseses 13.8% acidic amino acids, which remained 97% active after a 24-h incubation with 4 M NaCl [11]. These results suggest that high halo-stability of XynT may be associated with its high proportion of acidic amino acids.
To uncover the structure of XynT, the SWISS-MODEL using the crystal structure of CmXyn10B from Cellvibrio mixtus (Protein Data Bank entry: 2cnc.1.A) [49] as the template was employed to build a structural model of mature XynT (residues 22-379). The overall structure of the model had a MolProbity score of 1.73 and a Verify 3D score of 94.8%, indicating that it has good quality. The predicted structure of XynT also possessed the characteristic (β/α)8-barrel fold of GH10 xylanases (Figure 5).
The amino acid sequence of XynT showed 18.7–56.2% similarity with xylanases from Sphingobacterium sp. XynA19 [45], Bacillus sp. Xyn10A [39], Paenibacillus sp. XynBE18 [44], Zunongwangia profunda XynA [22], XynGR40 from goat rumen contents [50], and Flavobacterium johnsoniae Xyn10A [41]. Xylanase family 10 enzymes can catalyze the hydrolysis of substrates through the double displacement mechanism, classifying as retaining enzyme. The multiple sequence alignment of six GH10 xylanases, in addition to comparing their crystal structures, showed that the putative catalytic residues of XynT were Glu164 and Glu269 (Figure 6). The amino acid sequences of XynT, one GH11 xylanase, one GH8 xylanase, and ten GH10 xylanases, among which two xylanases are from fungi, one xylanase is thermophilic, and seven xylanases are psychrophilic, were used to construct a phylogenetic tree (Figure 7). The GH8 xylanase and the GH11 xylanase are the far homologs of GH10 xylanases, whereas two other xylanases are the close homologs. Additionally, the thermophilic xylanase and LaXynA are the far homolog of GH10 xylanases, and other seven psychrophilic xylanases are the close homologs.
XynT also exhibited significant activity even at cold condition. The structural flexibility may contribute to their enhanced enzymatic activity at low temperatures [51]. Some psychrophilic enzymes have low numbers of glycine residues, disulfide bonds, and salt bridges [45]. Similarly, XynT does not contain disulfide bonds, while it contains only 15 salt bridges, and 7.5% Gly residues. Most cold-adapted enzymes, including phosphoglycerate kinase [52], galactosidase [53], and chitobiase [54], have a low Arg/Lys ratio. XynRA2 from R. sacchariphilus, which is a thermophilic xylanase with the optimal temperature of 70 °C, has a high Arg/Lys ratio. Several other psychrophilic enzymes have also been reported to have higher Arg/Lys ratios, compared to their thermostable homologs [51]. Similarly to our results, XynT (Arg/Lys ratio = 0.82) and other psychrophilic xylanases had low Arg/Lys ratios, whereas LaXynA from L. abyssi had a high Arg/Lys ratio of 6.88 (Table 3).

3. Materials and Methods

3.1. Materials

Table S1 lists the bacterial strains, primers, and plasmids that were used in this study. Plasmids were propagated in E. coli DH5α (the transformation hosts) and were subsequently transformed into E. coli BL21 (DE3). Substrates including beechwood xylan, birchwood xylan, xylotetraose (X4), xylotriose (X3), and xylobiose (X2) were procured from Megazyme. All other chemicals were of analytical grade.

3.2. Growth Conditions, Enzymatic Assay, and Determination of Kinetic Parameters

Escherichia coli was grown in LB medium at 37 °C in a flask shaken at 200 rpm. Echinicola rosea JL3085T was grown in 2216E medium (Hopebio, Qingdao, China) at 30 °C in a flask shaken at 200 rpm [55]. Determination of xylanase activity has been previously described [39]. The kinetic parameters, Km, Vmax, and kcat, were determined according to a previously described method [37].

3.3. Cloning, Expression and Purification of E. roseaxynt in E. coli

General molecular biology techniques have been described previously [56]. The pET-22b(+) plasmid was linearized using EcoRI restriction enzyme (TaKaRa, Ohtsu, Japan). The gene sequence of xynT was amplified from genomic DNA using the primers XynT_F and XynT_R. The xynT gene was inserted into the linearized pET-22b(+) using Seamless cloning kit (Beyotime, Shanghai, China) to construct the expression plasmid (pET22b_xynT), and the heat shock method was then used to transform the plasmid into E. coli BL21 (DE3). The restriction digestion, along with DNA sequencing using an ABI3100 (Applied Biosystems, Foster City, California), were used to identify the transformants. Next, the positive transformant (transformant containing pET22b_xynT) was grown in LB medium at 37 °C in the presence of 100 μg/mL ampicillin (Merck, Germany), until an OD600 of 0.6 was achieved. Isopropyl-β-d-1-thiogalactopyranoside (IPTG, 1 mM) was added at 25 °C for 12 h, to induce protein expression.
The sample was centrifuged at 12000× g and 4 °C for 5 min, the cultured supernatant was collected and concentrated using a PierceTM protein concentrator (PES 5K MWCO; ThermoFisher). The recombinant protein was purified from the concentrated supernatant through its His-tagged sequence using the BeyoGoldTM his-tag purification resin (Beyotime, Shanghai, China). The recombinant XynT was separated by SDS–PAGE to determine its molecular mass and purity. The Bradford assay kit was used to determine the protein concentration (Beyotime, Shanghai, China).

3.4. Effect of pH on the Stability of Recombinant XynT

The optimal pH for the enzymatic activity of XynT was determined using buffers with pH 4–10 at 40 °C, and beechwood xylan (1% w/v) was used as the substrate. The enzyme was incubated in buffers with different pH at 4 °C for 2 h and its pH stability was determined based on its residual activity at pH 7. The buffers that were used for this enzymatic assay were McIlvaine buffer, pH 4–8 and 50 mM glycine-NaOH buffer, pH 9–10.

3.5. Effect of Temperature on the Stability of Recombinant XynT

Thermostability was determined in MclIvaine buffer (pH 7) using beechwood xylan (1% w/v) as the substrate at a temperature range of 0 to 70 °C. The residual activity of the enzyme was measured at 40 °C post-incubation for 2 h at 0–60 °C.

3.6. Effect of Metal Ions on the Activity of Recombinant XynT

The effects of different metal ions, including FeCl3, MnSO4, CaCl2, CoCl2, KCl, ZnSO4, and CuSO4 (each at a final concentration of 1 mM), on the activity of XynT were investigated at 40 °C in McIlvaine buffer (pH 7), using beechwood xylan (1% w/v) as the substrate.

3.7. Effect of Salt on the Activity of Recombinant XynT

The effects of different salt concentrations, 0–4 M NaCl, on xylanase activity was evaluated at pH 7 and 40 °C. The halotolerance of the enzyme was evaluated by incubating the enzyme at 20 °C in the presence of 0–4 M NaCl for 24 h, and then measuring its residual activity at 40 °C.
In analysis of hydrolysis, the purified XynT was incubated with beechwood xylan or birchwood xylan at 40 °C in McIlvaine buffer (pH 7) for 2 h or 8 h. Thereafter, the enzyme was removed using a PierceTM protein concentrator (PES 5K MWCO; ThermoFisher). A high-performance anion-exchange chromatography (HPAEC, ICS-3000 system) equipped with a CarboPac MA1 column (Dionex, CA, USA) was used to analyzed the enzyme, and 0.1 M NaOH and 0.2 M NaAc were used as the solvents.

3.8. Putative Structure Analysis

The BLASTp program was used to search the amino acid sequence of XynT against the NCBI database. Homology modeling using SWISS-MODEL was used to generate a three-dimensional model of XynT [57]. The assessment of the predicted model was carried out on Molprobity and Verify 3D [58,59]. SignalP 5.0 was used for signal peptide prediction [60]. Multiple sequence alignment was performed using CLUSTALW and ESPript3.0 [61]. Disulfide bonds and salt bridges (distances ≤ 3.2 Å), were predicted based on a previously described method [12,62]. The model structure was analyzed by Discovery studio software.

4. Conclusions

In this study, we cloned xynT, a novel xylanase gene from a halotolerant bacterium Echinicola rosea sp. nov. JL3085T. Biochemical characterization and structural analysis showed that XynT protein belonged to the cold-active, halotolerant xylanase family, and exhibited a high catalytic activity at high salt concentrations (4 M NaCl), among other known GH family 10 psychrophilic xylanases. XynT could digest xylan to produce smaller oligosaccharides, without producing xylose, thus is suitable for the production of XOS, which could improve the growth prebiotic bacteria of Lactobacillus and Bifidobacterium. XOS of various polymerization degrees would have more potential functions, which is governed by their substitution patterns [23]. But it has been difficult to produce specific XOS using some chemical and physical methods. Enzymatic transformation of xylan into XOS using XynT is a promising technical route for production of various substituted XOS. The presented XynT may be used to study the structure-function relationship in cold-active enzymes, and have potential applications in the bleaching of paper and pulp, bioremediation, food, and the human health sector, especially in seaweeds and medicine processing as a tool to prepare prebiotics.

Supplementary Materials

The following are available online at https://www.mdpi.com/1660-3397/18/5/245/s1, Table S1: Bacterial strains, plasmids, and primers used.

Author Contributions

Conceptualization, K.T.; methodology, J.H. and L.L.; software, L.L.; validation, X.L.; formal analysis; J.H.; investigation, X.L.; resources, K.T.; data curation, J.H. and L.L; writing—original draft preparation, J.H. and L.L.; writing—review and editing, K.T.; visualization, K.T.; supervision, K.T.; project administration, K.T.; funding acquisition, K.T. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the National Natural Science Foundation of China project (91751207, 41776167, U1805242, 41861144018), China Ocean Mineral Resources R & D Association (DY135-E2-1-04).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Limayem, A.; Ricke, S.C. Lignocellulosic biomass for bioethanol production: Current perspectives, potential issues and future prospects. Prog. Energy Combust. Sci. 2012, 38, 449–467. [Google Scholar] [CrossRef]
  2. Koukiekolo, R.; Cho, H.-Y.; Kosugi, A.; Inui, M.; Yukawa, H.; Doi, R.H. Degradation of Corn Fiber by Clostridium cellulovorans Cellulases and Hemicellulases and Contribution of Scaffolding Protein CbpA. Appl. Environ. Microbiol. 2005, 71, 3504–3511. [Google Scholar] [CrossRef] [Green Version]
  3. Naidu, D.S.; Hlangothi, S.P.; John, M. Bio-based products from xylan: A review. Carbohydr. Polym. 2018, 179, 28–41. [Google Scholar] [CrossRef] [PubMed]
  4. Moreira, L.; Filho, E.X.F. Insights into the mechanism of enzymatic hydrolysis of xylan. Appl. Microbiol. Biotechnol. 2016, 100, 5205–5214. [Google Scholar] [CrossRef] [PubMed]
  5. Henrissat, B.; Bairoch, A. Updating the sequence-based classification of glycosyl hydrolases. Biochem. J. 1996, 316, 695–696. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Lombard, V.; Golaconda Ramulu, H.; Drula, E.; Coutinho, P.M.; Henrissat, B. The Carbohydrate-active enzymes database (CAZy) in 2013. Nucleic Acids. Res. 2014, 42, D490–D495. [Google Scholar] [CrossRef] [Green Version]
  7. Wang, K.; Luo, H.-Y.; Tian, J.; Turunen, O.; Huang, H.; Shi, P.; Hua, H.; Wang, C.; Wang, S.; Yao, B. Thermostability Improvement of a Streptomyces Xylanase by Introducing Proline and Glutamic Acid Residues. Appl. Environ. Microbiol. 2014, 80, 2158–2165. [Google Scholar] [CrossRef] [Green Version]
  8. Collins, T.; Gerday, C.; Feller, G. Xylanases, xylanase families and extremophilic xylanases. FEMS Microbiol. Rev. 2005, 29, 3–23. [Google Scholar] [CrossRef] [Green Version]
  9. Lee, C.C.; Smith, M.; Kibblewhite-Accinelli, R.E.; Williams, T.G.; Wagschal, K.; Robertson, G.H.; Wong, D.W.S. Isolation and Characterization of a Cold-Active Xylanase Enzyme from Flavobacterium sp. Curr. Microbiol. 2006, 52, 112–116. [Google Scholar] [CrossRef]
  10. Del-Cid, A.; Ubilla, P.; Ravanal, M.-C.; Medina, E.; Vaca, I.; Levicán, G.; Eyzaguirre, J.; Chávez, R. Cold-Active Xylanase Produced by Fungi Associated with Antarctic Marine Sponges. Appl. Biochem. Biotechnol. 2013, 172, 524–532. [Google Scholar] [CrossRef]
  11. Martin, M.; Biver, S.; Steels, S.; Barbeyron, T.; Jam, M.; Portetelle, D.; Michel, G.; Vandenbol, M. Identification and Characterization of a Halotolerant, Cold-Active Marine Endo-β-1,4-Glucanase by Using Functional Metagenomics of Seaweed-Associated Microbiota. Appl. Environ. Microbiol. 2014, 80, 4958–4967. [Google Scholar] [CrossRef] [Green Version]
  12. Wang, G.; Luo, H.-Y.; Wang, Y.; Huang, H.; Shi, P.; Yang, P.; Meng, K.; Bai, Y.G.; Yao, B. A novel cold-active xylanase gene from the environmental DNA of goat rumen contents: Direct cloning, expression and enzyme characterization. Bioresour. Technol. 2011, 102, 3330–3336. [Google Scholar] [CrossRef] [PubMed]
  13. Béra-Maillet, C.; Devillard, E.; Cezette, M.; Jouany, J.-P.; Forano, E. Xylanases and carboxymethylcellulases of the rumen protozoaPolyplastron multivesiculatum,Eudiplodinium maggiiandEntodiniumsp. FEMS Microbiol. Lett. 2005, 244, 149–156. [Google Scholar] [CrossRef] [Green Version]
  14. Petrescu, I.; Lamotte-Brasseur, J.; Chessa, J.-P.; Ntarima, P.; Claeyssens, M.; Devreese, B.; Marino, G.; Gerday, C. Xylanase from the psychrophilic yeast Cryptococcus adeliae. Extremophiles 2000, 4, 137–144. [Google Scholar] [CrossRef]
  15. Juturu, V.; Wu, J. Microbial xylanases: Engineering, production and industrial applications. Biotechnol. Adv. 2012, 30, 1219–1227. [Google Scholar] [CrossRef]
  16. Karlsson, O.; Pettersson, B.; Westermark, U. Linkages between residual lignin and carbohydrates in bisulphite (Magnefite) pulps. J. Pulp Pap. Sci. 2001, 27, 310–316. [Google Scholar]
  17. Kumar, V.; Marín-Navarro, J.; Shukla, P. Thermostable microbial xylanases for pulp and paper industries: Trends, applications and further perspectives. World J. Microbiol. Biotechnol. 2016, 32, 34. [Google Scholar] [CrossRef]
  18. Zhao, Y.; Luo, H.; Meng, K.; Shi, P.; Wang, G.; Yang, P.; Yuan, T.; Yao, B. A Xylanase Gene Directly Cloned from the Genomic DNA of Alkaline Wastewater Sludge Showing Application Potential in the Paper Industry. Appl. Biochem. Biotechnol. 2011, 165, 35–46. [Google Scholar] [CrossRef] [PubMed]
  19. Zhao, Y.; Meng, K.; Luo, H.; Huang, H.; Yuan, T.; Yang, P.; Yao, B. Molecular and biochemical characterization of a new alkaline active multidomain xylanase from alkaline wastewater sludge. World J. Microbiol. Biotechnol. 2012, 29, 327–334. [Google Scholar] [CrossRef] [PubMed]
  20. Wong, K.K.; Tan, L.U.; Saddler, J.N. Multiplicity of beta-1,4-xylanase in microorganisms: Functions and applications. Microbiol. Rev. 1988, 52, 305–317. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Subramaniyan, S.; Prema, P. Biotechnology of Microbial Xylanases: Enzymology, Molecular Biology, and Application. Crit. Rev. Biotechnol. 2002, 22, 33–64. [Google Scholar] [CrossRef]
  22. Liu, X.; Huang, Z.; Zhang, X.; Shao, Z.; Liu, Z. Cloning, expression and characterization of a novel cold-active and halophilic xylanase from Zunongwangia profunda. Extremophiles 2014, 18, 441–450. [Google Scholar] [CrossRef]
  23. Setati, M.E. Diversity and industrial potential of hydrolase-producing halophilic/halotolerant eubacteria. Afr. J. Biotechnol. 2010, 9, 1555–1560. [Google Scholar] [CrossRef]
  24. Karlsson, E.N.; Schmitz, E.; Linares-Pastén, J.A.; Adlercreutz, P. Endo-xylanases as tools for production of substituted xylooligosaccharides with prebiotic properties. Appl. Microbiol. Biotechnol. 2018, 102, 9081–9088. [Google Scholar] [CrossRef] [Green Version]
  25. Hou, Y.-H.; Wang, T.-H.; Long, H.; Zhu, H.-Y. Novel Cold-adaptive Penicillium Strain FS010 Secreting Thermo-labile Xylanase Isolated from Yellow Sea. Acta Biochim. et Biophys. Sin. 2006, 38, 142–149. [Google Scholar] [CrossRef]
  26. Yu, T.; Anbarasan, S.; Wang, Y.; Telli, K.; Aslan, A.S.; Su, Z.; Zhou, Y.; Zhang, L.; Iivonen, P.; Havukainen, S.; et al. Hyperthermostable Thermotoga maritima xylanase XYN10B shows high activity at high temperatures in the presence of biomass-dissolving hydrophilic ionic liquids. Extremophiles 2016, 20, 515–524. [Google Scholar] [CrossRef]
  27. Zhan, P.; Ye, J.; Lin, X.; Zhang, F.; Lin, D.; Zhang, Y.; Tang, K. Complete genome sequence of Echinicola rosea JL3085, a xylan and pectin decomposer. Mar. Genom. 2019, 100722. [Google Scholar] [CrossRef]
  28. Tang, K.; Lin, Y.; Han, Y.; Jiao, N. Characterization of Potential Polysaccharide Utilization Systems in the Marine Bacteroidetes Gramella Flava JLT2011 Using a Multi-Omics Approach. Front. Microbiol. 2017, 8, 220. [Google Scholar] [CrossRef] [Green Version]
  29. Trimm, J.L.; Salama, G.; Abramson, J.J. Sulfhydryl oxidation induces rapid calcium release from sarcoplasmic reticulum vesicles. J. Biol. Chem. 1986, 261, 16092–16098. [Google Scholar]
  30. Wang, S.-Y.; Hu, W.; Lin, X.-Y.; Wu, Z.-H.; Li, Y.-Z. A novel cold-active xylanase from the cellulolytic myxobacterium Sorangium cellulosum So9733-1: Gene cloning, expression, and enzymatic characterization. Appl. Microbiol. Biotechnol. 2011, 93, 1503–1512. [Google Scholar] [CrossRef]
  31. Verma, D.; Satyanarayana, T. Cloning, expression and applicability of thermo-alkali-stable xylanase of Geobacillus thermoleovorans in generating xylooligosaccharides from agro-residues. Bioresour. Technol. 2012, 107, 333–338. [Google Scholar] [CrossRef]
  32. Liu, Y.-C.; Li, F.; Dong, B.; Wang, B.; Luan, W.; Zhang, X.-J.; Zhang, L.-S.; Xiang, J. Molecular cloning, characterization and expression analysis of a putative C-type lectin (Fclectin) gene in Chinese shrimp Fenneropenaeus chinensis. Mol. Immunol. 2007, 44, 598–607. [Google Scholar] [CrossRef]
  33. Zhou, J.; Gao, Y.; Dong, Y.; Tang, X.; Li, J.; Xu, B.; Mu, Y.; Wu, Q.; Huang, Z. A novel xylanase with tolerance to ethanol, salt, protease, SDS, heat, and alkali from actinomycete Lechevalieria sp. HJ3. J. Ind. Microbiol. Biotechnol. 2012, 39, 965–975. [Google Scholar] [CrossRef]
  34. Liu, Z.; Zhao, X.; Bai, F. Production of xylanase by an alkaline-tolerant marine-derived Streptomyces viridochromogenes strain and improvement by ribosome engineering. Appl. Microbiol. Biotechnol. 2012, 97, 4361–4368. [Google Scholar] [CrossRef] [PubMed]
  35. Guo, B.; Chen, X.-L.; Sun, C.-Y.; Zhou, B.-C.; Zhang, Y.-Z. Gene cloning, expression and characterization of a new cold-active and salt-tolerant endo-β-1,4-xylanase from marine Glaciecola mesophila KMM 241. Appl. Microbiol. Biotechnol. 2009, 84, 1107–1115. [Google Scholar] [CrossRef]
  36. Khandeparker, R.D.; Parab, P.; Amberkar, U. Recombinant Xylanase from Bacillus tequilensis BT21: Biochemical Characterisation and Its Application in the Production of Xylobiose from Agricultural Residues. Food Technol. Biotechnol. 2017, 55, 164–172. [Google Scholar] [CrossRef]
  37. Han, Z.; Shang-Guan, F.; Yang, J. Characterization of a novel cold-active xylanase from Luteimonas species. World J. Microbiol. Biotechnol. 2018, 34, 123. [Google Scholar] [CrossRef]
  38. Teo, S.C.; Liew, K.J.; Shamsir, M.S.; Chong, C.S.; Bruce, N.C.; Chan, K.-G.; Goh, K.M. Characterizing a Halo-Tolerant GH10 Xylanase from Roseithermus sacchariphilus Strain RA and Its CBM-Truncated Variant. Int. J. Mol. Sci. 2019, 20, 2284. [Google Scholar] [CrossRef] [Green Version]
  39. Bai, W.; Xue, Y.; Zhou, C.; Ma, Y. Cloning, expression and characterization of a novel salt-tolerant xylanase from Bacillus sp. SN5. Biotechnol. Lett. 2012, 34, 2093–2099. [Google Scholar] [CrossRef]
  40. Carli, S.; Meleiro, L.P.; Rosa, J.C.; De Moraes, L.A.B.; Jorge, J.A.; Masui, D.C.; Furriel, R.P. A novel thermostable and halotolerant xylanase from Colletotrichum graminicola. J. Mol. Catal. B Enzym. 2016, 133, S508–S517. [Google Scholar] [CrossRef]
  41. Chen, S.; Kaufman, M.G.; Miazgowicz, K.L.; Bagdasarian, M.; Walker, E.D. Molecular characterization of a cold-active recombinant xylanase from Flavobacterium johnsoniae and its applicability in xylan hydrolysis. Bioresour. Technol. 2012, 128, 145–55. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Liu, Q.; Wang, Y.; Luo, H.; Wang, L.; Shi, P.; Huang, H.; Yang, P.; Yao, B. Isolation of a Novel Cold-Active Family 11 Xylanase from the Filamentous Fungus Bispora antennata and Deletion of its N-Terminal Amino Acids on Thermostability. Appl. Biochem. Biotechnol. 2014, 175, 925–936. [Google Scholar] [CrossRef] [PubMed]
  43. Collins, T.; Meuwis, M.-A.; Stals, I.; Claeyssens, M.; Feller, G.; Gerday, C. A Novel Family 8 Xylanase, Functional and Physicochemical Characterization. J. Biol. Chem. 2002, 277, 35133–35139. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Shi, P.; Tian, J.; Yuan, T.; Liu, X.; Huang, H.; Bai, Y.; Yang, P.; Chen, X.; Wu, N.; Yao, B. Paenibacillus sp. Strain E18 Bifunctional Xylanase-Glucanase with a Single Catalytic Domain. Appl. Environ. Microbiol. 2010, 76, 3620–3624. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Zhou, J.; Huang, H.; Meng, K.; Shi, P.; Wang, Y.; Luo, H.; Yang, P.; Bai, Y.; Zhou, Z.; Yao, B. Molecular and biochemical characterization of a novel xylanase from the symbiotic Sphingobacterium sp. TN19. Appl. Microbiol. Biotechnol. 2009, 85, 323–333. [Google Scholar] [CrossRef]
  46. Fukuchi, S.; Yoshimune, K.; Wakayama, M.; Moriguchi, M.; Nishikawa, K. Unique Amino Acid Composition of Proteins in Halophilic Bacteria. J. Mol. Biol. 2003, 327, 347–357. [Google Scholar] [CrossRef]
  47. Burg, B.V.D. Extremophiles as a source for novel enzymes. Curr. Opin. Microbiol. 2003, 6, 213–218. [Google Scholar] [CrossRef]
  48. A Jolley, K.; Russell, R.J.M.; Hough, D.W.; Danson, M.J. Site-Directed Metagenesis and Halophilicity of Dihydrolipoamide Dehydrogenase from the Halophilic Archaeon, Haloferax Volcanii. JBIC J. Biol. Inorg. Chem. 1997, 248, 362–368. [Google Scholar] [CrossRef]
  49. Xie, H.; Flint, J.; Vardakou, M.; Lakey, J.H.; Lewis, R.J.; Gilbert, H.J.; Dumon, C. Probing the Structural Basis for the Difference in Thermostability Displayed by Family 10 Xylanases. J. Mol. Biol. 2006, 360, 157–167. [Google Scholar] [CrossRef]
  50. Zheng, Y.; Li, Y.; Liu, W.; Chen, C.-C.; Ko, T.-P.; He, M.; Xu, Z.; Liu, M.; Luo, H.-Y.; Guo, R.-T.; et al. Structural insight into potential cold adaptation mechanism through a psychrophilic glycoside hydrolase family 10 endo-β-1,4-xylanase. J. Struct. Biol. 2016, 193, 206–211. [Google Scholar] [CrossRef]
  51. Siddiqui, K.S.; Cavicchioli, R. Cold-Adapted Enzymes. Annu. Rev. Biochem. 2006, 75, 403–433. [Google Scholar] [CrossRef] [Green Version]
  52. Bentahir, M.; Feller, G.; Aittaleb, M.; Lamotte-Brasseur, J.; Himri, T.; Chessa, J.-P.; Gerday, C. Structural, Kinetic, and Calorimetric Characterization of the Cold-active Phosphoglycerate Kinase from the AntarcticPseudomonassp. TACII18. J. Biol. Chem. 2000, 275, 11147–11153. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Hoyoux, A.; Jennes, I.; Dubois, P.; Genicot, S.; Dubail, F.; François, J.M.; Baise, E.; Feller, G.; Gerday, C. Cold-Adapted β-Galactosidase from the Antarctic Psychrophile Pseudoalteromonas haloplanktis. Appl. Environ. Microbiol. 2001, 67, 1529–1535. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Lonhienne, T.; Zoidakis, J.; E Vorgias, C.; Feller, G.; Gerday, C.; Bouriotis, V. Modular structure, local flexibility and cold-activity of a novel chitobiase from a psychrophilic antarctic bacterium. J. Mol. Biol. 2001, 310, 291–297. [Google Scholar] [CrossRef] [PubMed]
  55. Liang, P.; Sun, J.; Li, H.; Liu, M.; Xue, Z.; Zhang, Y. Echinicola rosea sp. nov., a marine bacterium isolated from surface seawater. Int. J. Syst. Evol. Microbiol. 2016, 66, 3299–3304. [Google Scholar] [CrossRef]
  56. He, J.; Sakaguchi, K.; Suzuki, T. Acquired Tolerance to Oxidative Stress in Bifidobacterium longum 105-A via Expression of a Catalase Gene. Appl. Environ. Microbiol. 2012, 78, 2988–2990. [Google Scholar] [CrossRef] [Green Version]
  57. Waterhouse, A.; Bertoni, M.; Bienert, S.; Studer, G.; Tauriello, G.; Gumienny, R.; Heer, F.T.; Beer, T.A.P.; Rempfer, C.; Bordoli, L.; et al. SWISS-MODEL: Homology modelling of protein structures and complexes. Nucleic Acids. Res. 2018, 46, W296–W303. [Google Scholar] [CrossRef] [Green Version]
  58. Williams, C.J.; Headd, J.J.; Moriarty, N.W.; Prisant, M.G.; Videau, L.L.; Deis, L.N.; Verma, V.; Keedy, D.A.; Hintze, B.; Chen, V.B.; et al. MolProbity: More and better reference data for improved all-atom structure validation. Protein Sci. 2018, 27, 29–315. [Google Scholar] [CrossRef]
  59. Lüthy, R.; Bowie, J.U.; Eisenberg, D. Assessment of protein models with three-dimensional profiles. Nature 1992, 356, 83–85. [Google Scholar] [CrossRef]
  60. Armenteros, J.J.A.; Tsirigos, K.; Sønderby, C.K.; Petersen, T.N.; Winther, O.; Brunak, S.; Von Heijne, G.; Nielsen, H. SignalP 5.0 improves signal peptide predictions using deep neural networks. Nat. Biotechnol. 2019, 37, 420–423. [Google Scholar] [CrossRef]
  61. Robert, X.; Gouet, P. Deciphering key features in protein structures with the new ENDscript server. Nucleic Acids Res. 2014, 42, W320–W324. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Ceroni, A.; Passerini, A.; Vullo, A.; Frasconi, P. DISULFIND: A disulfide bonding state and cysteine connectivity prediction server. Nucleic Acids Res. 2006, 34, W177–W181. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Marinedrugs 18 00245 g001 550

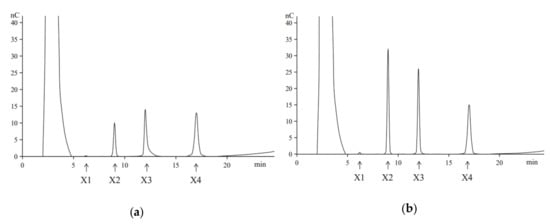

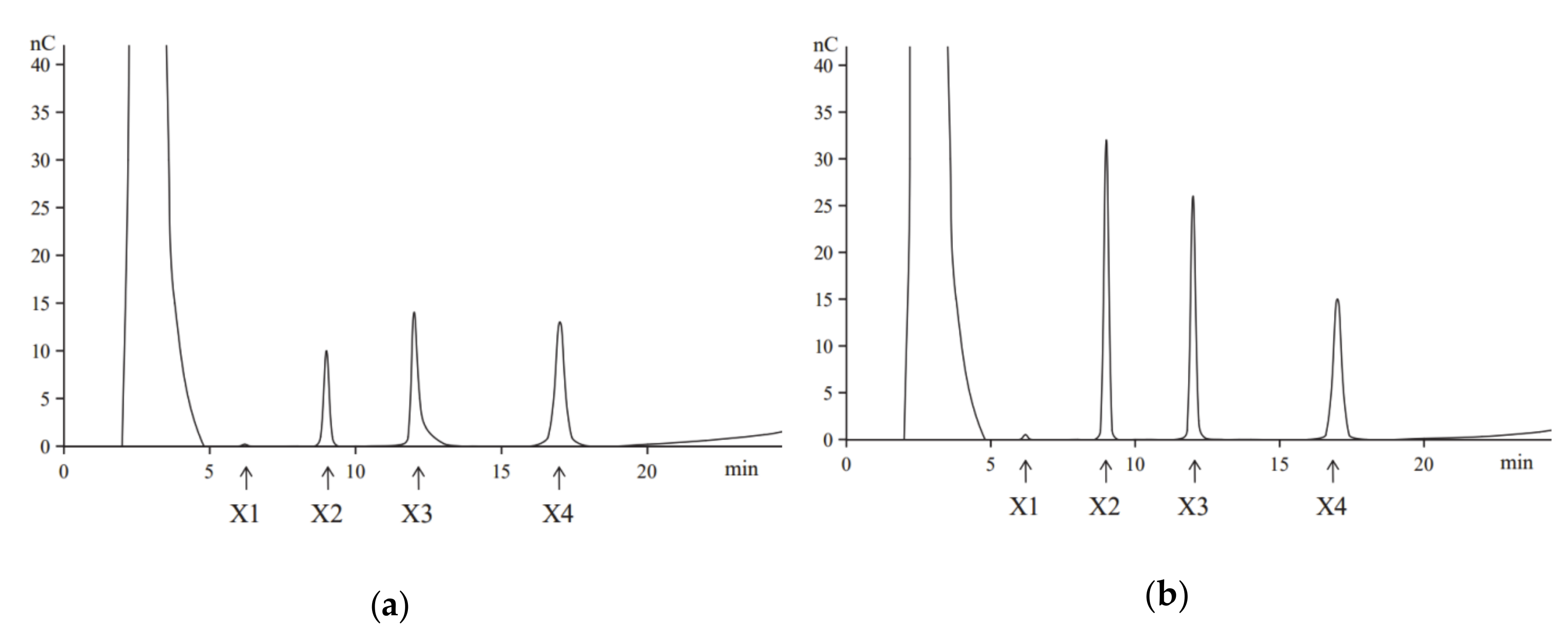

Figure 1. The high-performance anion-exchange chromatography (HPAEC) analysis of the hydrolysis of products of beechwood xylan performed at 40 °C for 2 h (a) or 8 h (b). Arrows indicate the positions of oligosaccharides: xylose (X1), xylobiose (X2), xylotriose (X3), and xylotetraose (X4).
Figure 1. The high-performance anion-exchange chromatography (HPAEC) analysis of the hydrolysis of products of beechwood xylan performed at 40 °C for 2 h (a) or 8 h (b). Arrows indicate the positions of oligosaccharides: xylose (X1), xylobiose (X2), xylotriose (X3), and xylotetraose (X4).
Marinedrugs 18 00245 g001
Marinedrugs 18 00245 g002 550

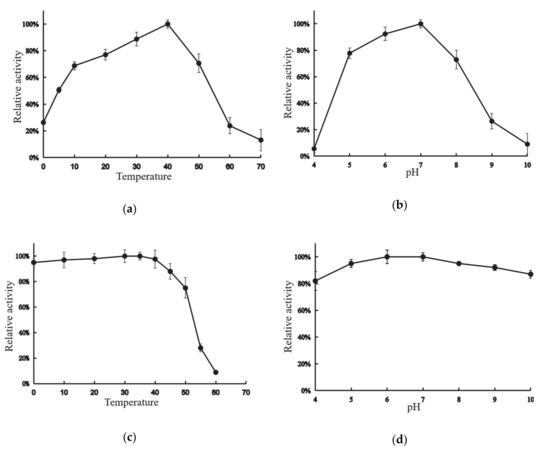

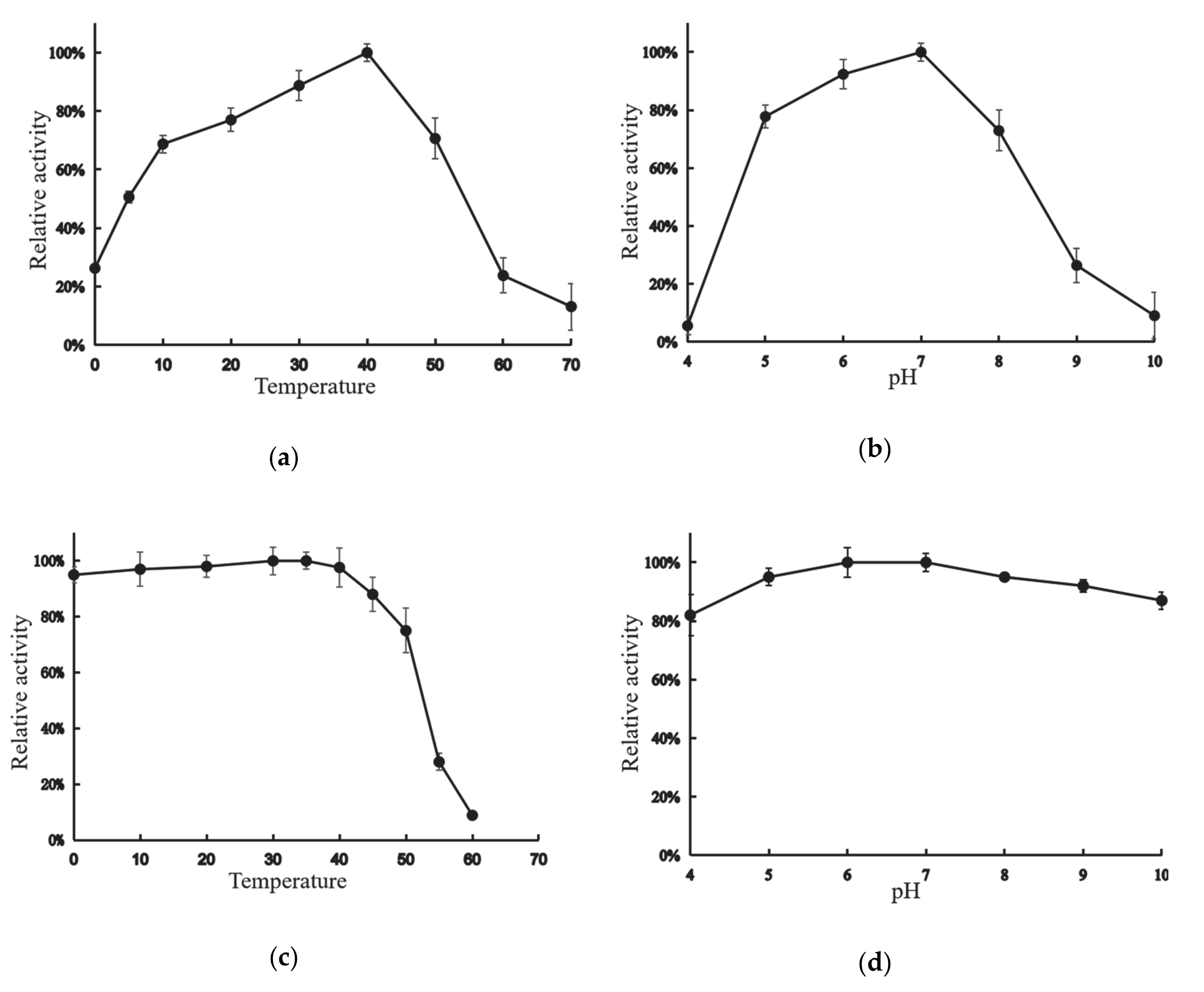

Figure 2. Activity profile of the xylanase gene (XynT) at various pH and temperatures. (a) XynT activity at pH 7 at various temperatures. (b) XynT activity at 40 °C at a different pH. (c) Effect of temperature on the stability of XynT. The residual activity of the enzyme was measured after incubation at 30–60 °C for 2 h, and the residual activity was then assayed under standard conditions. (d) Effect of pH on the stability of XynT. The residual activity of the enzyme was measured after incubation at pH 4–10 for 2 h.
Figure 2. Activity profile of the xylanase gene (XynT) at various pH and temperatures. (a) XynT activity at pH 7 at various temperatures. (b) XynT activity at 40 °C at a different pH. (c) Effect of temperature on the stability of XynT. The residual activity of the enzyme was measured after incubation at 30–60 °C for 2 h, and the residual activity was then assayed under standard conditions. (d) Effect of pH on the stability of XynT. The residual activity of the enzyme was measured after incubation at pH 4–10 for 2 h.
Marinedrugs 18 00245 g002
Marinedrugs 18 00245 g003 550

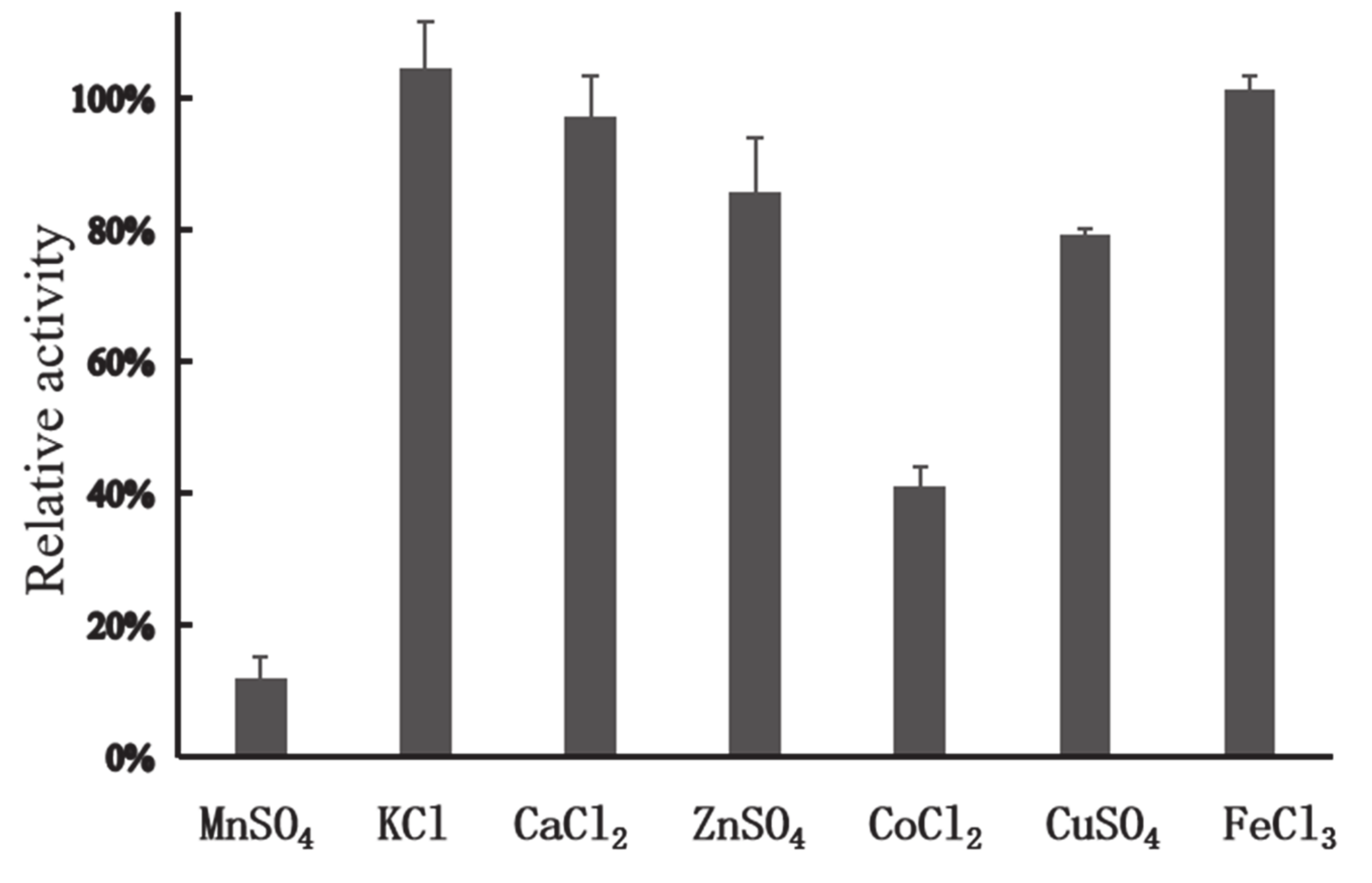

Figure 3. Effect of metal ions on the enzymatic activity of XynT. Effect of different metal ions, including FeCl3, MnSO4, CaCl2, CoCl2, KCl, ZnSO4, and CuSO4 (1 mM), on the activity of XynT was investigated at 40 °C in a MclIvaine buffer (pH 7), using beechwood xylan (1% w/v) as the substrate.
Figure 3. Effect of metal ions on the enzymatic activity of XynT. Effect of different metal ions, including FeCl3, MnSO4, CaCl2, CoCl2, KCl, ZnSO4, and CuSO4 (1 mM), on the activity of XynT was investigated at 40 °C in a MclIvaine buffer (pH 7), using beechwood xylan (1% w/v) as the substrate.
Marinedrugs 18 00245 g003
Marinedrugs 18 00245 g004 550

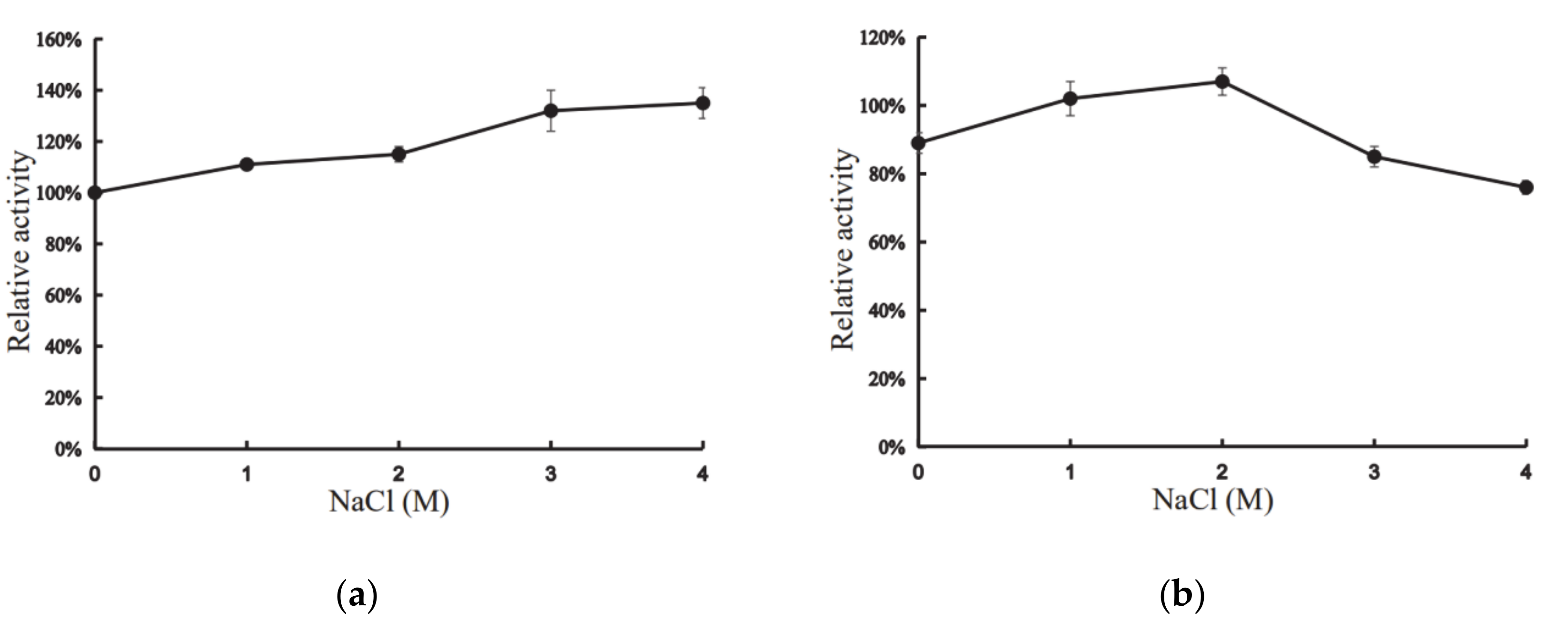

Figure 4. Effect of concentration of NaCl on the activity of XynT. (a) XynT activity at different concentrations of NaCl. (b) Effect of different concentrations of NaCl on the stability of XynT. The residual activity of the enzyme was measured after incubation in different NaCl concentrations for 24 h.
Figure 4. Effect of concentration of NaCl on the activity of XynT. (a) XynT activity at different concentrations of NaCl. (b) Effect of different concentrations of NaCl on the stability of XynT. The residual activity of the enzyme was measured after incubation in different NaCl concentrations for 24 h.
Marinedrugs 18 00245 g004
Marinedrugs 18 00245 g005 550

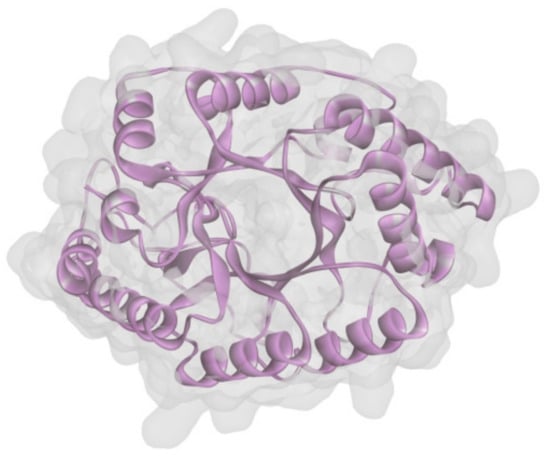

Figure 5. Structure modeling of XynT.
Figure 5. Structure modeling of XynT.
Marinedrugs 18 00245 g005
Marinedrugs 18 00245 g006 550

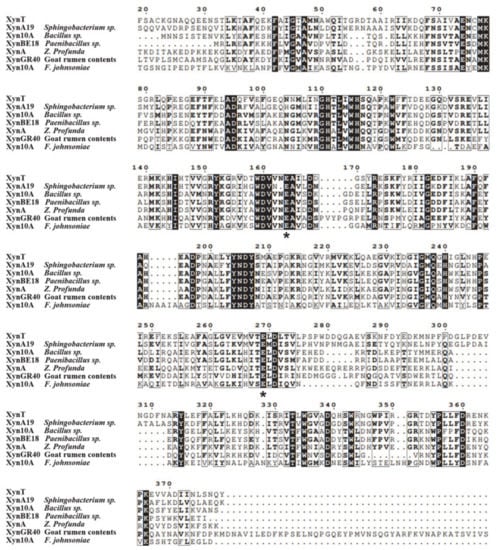

Figure 6. Multiple sequence alignment of XynT with six GH10 cold-active xylanases, including XynA19 from Sphingobacterium sp. TN19, Xyn10A from Bacillus sp. SN5, XynBE18 from Paenibacillus sp. Strain E18, XynA from Zunongwangia profunda, XynGR40 from goat rumen, and Xyn10A from Flavobacterium johnsoniae. Solid black and grey boxes highlight the identical and similar amino acids, respectively. Two conserved catalytic residues (Glu) are asterisked.
Figure 6. Multiple sequence alignment of XynT with six GH10 cold-active xylanases, including XynA19 from Sphingobacterium sp. TN19, Xyn10A from Bacillus sp. SN5, XynBE18 from Paenibacillus sp. Strain E18, XynA from Zunongwangia profunda, XynGR40 from goat rumen, and Xyn10A from Flavobacterium johnsoniae. Solid black and grey boxes highlight the identical and similar amino acids, respectively. Two conserved catalytic residues (Glu) are asterisked.
Marinedrugs 18 00245 g006
Marinedrugs 18 00245 g007 550

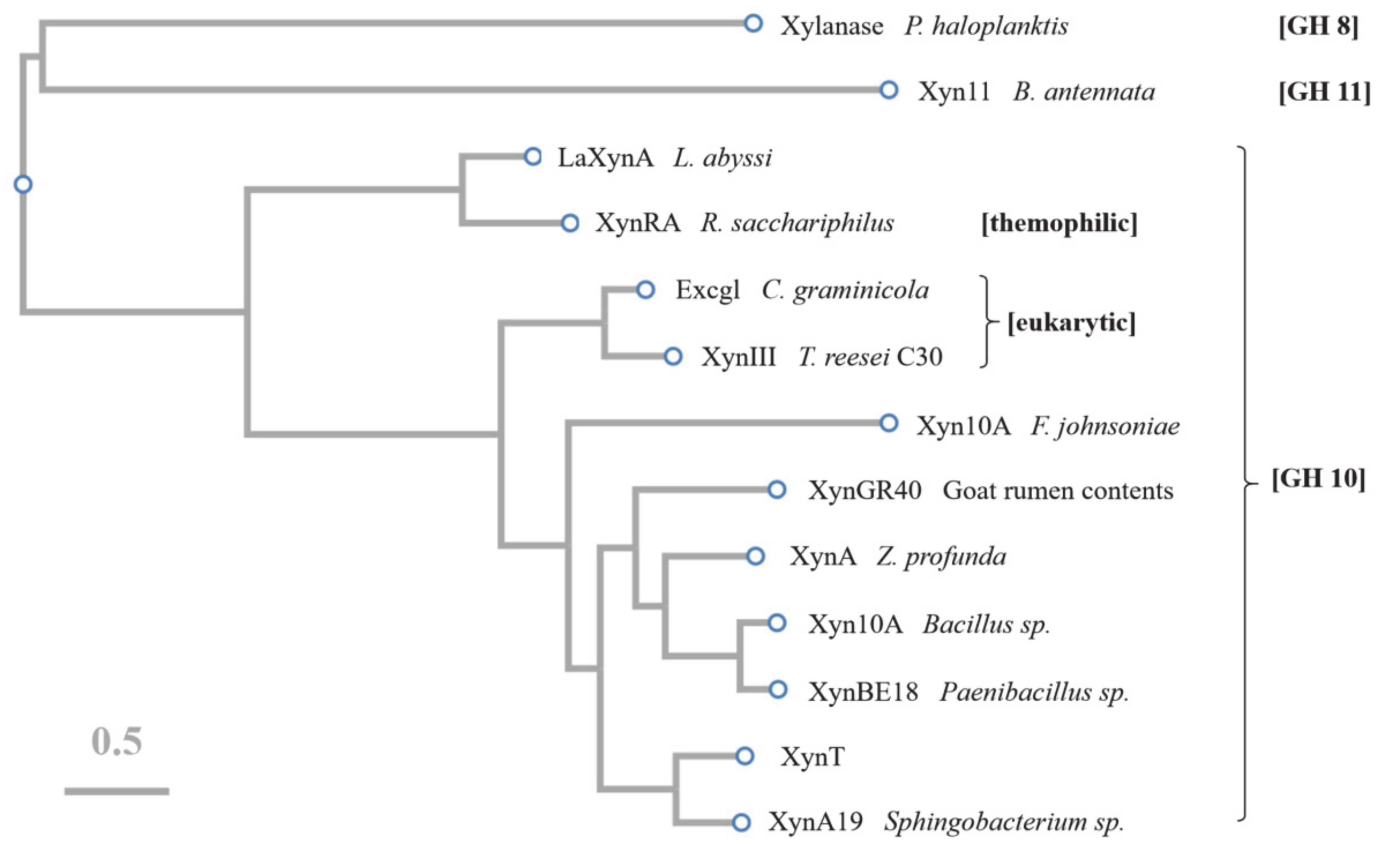

Figure 7. Phylogenetic tree constructed using CLUSTAW of GH11 xylanase (Xyn11) from Bispora antennata, GH8 xylanase from Pseudoalteromonas haloplanktis, GH10 xylanases (LaXynA) from Luteinonase abyssi XH031T, XynRA2 from Roseithermus sacchariphilus Strain RA, Excg1 from Colletotrichum graminicola, XynIII from Trichoderma reesei C30, Xyn10A from Flavobacterium johnsoniae, XynGR40 directly from goat rumen, XynA from Zunongwangia profunda, Xyn10A from Bacillus sp. SN5, XynBE18 from Paenibacillus sp. Strain E18, XynA19 from Sphingobacterium sp. TN19, and XynT presented in this study.
Figure 7. Phylogenetic tree constructed using CLUSTAW of GH11 xylanase (Xyn11) from Bispora antennata, GH8 xylanase from Pseudoalteromonas haloplanktis, GH10 xylanases (LaXynA) from Luteinonase abyssi XH031T, XynRA2 from Roseithermus sacchariphilus Strain RA, Excg1 from Colletotrichum graminicola, XynIII from Trichoderma reesei C30, Xyn10A from Flavobacterium johnsoniae, XynGR40 directly from goat rumen, XynA from Zunongwangia profunda, Xyn10A from Bacillus sp. SN5, XynBE18 from Paenibacillus sp. Strain E18, XynA19 from Sphingobacterium sp. TN19, and XynT presented in this study.
Marinedrugs 18 00245 g007
Table
Table 1. Biochemical characteristics of xylanases.
Table 1. Biochemical characteristics of xylanases.
Xylanase (Source/Microorganism)GHTopt °CpHoptActivity in the Presence of 4 M NaClResidual Activity
at Low Temperature		Refs
XynT (Echinicola rosea sp. nov. JL3085T)10407135%26%, 0 °C; 51%, 5 °CThis study
XynA (Zunongwangia profunda)10306.5140%23%, 0 °C; 38%, 5 °C[22]
LaXynA (Luteinonas abyssi XH031T)10407100%51%, 10 °C[37]
XynRA2 (Roseithermus sacchariphilus Strain RA)10708.594%<30%, 20 °C[38]
Xyn10A (Bacillus sp. SN5)10407<50%~30%, 5 °C; ~30%, 10 °C[39]
Excg1 (Colletotrichum graminicola)10655.5~100% in 3 M NaCl [40]
Xyn10A (Flavobacterium johnsoniae)10308 50%, 4 °C[41]
Xyn11 (Bispora antennata)11355.5 20%, 0 °C; ~40%, 10 °C[42]
XynGR40 (goat rumen contents)10306.5 10%, 0 °C[12]
Xylanase (Pseudoalteromonas haloplanktis)8355.3–8 60%, 5 °C[43]
XynBE18 (Paenibacillus sp. Strain E18)10507–9 ~30%, 30 °C[44]
XynA19 (Sphingobacterium sp. TN19)10456–6.5 <10%, 0 °C[45]
Topt: optimal temperature; pHopt: optimal pH; GH: glycoside hydrolase family.
Table
Table 2. Kinetic parameters of XynT in hydrolysis of beechwood xylan.
Table 2. Kinetic parameters of XynT in hydrolysis of beechwood xylan.
Temperature
°C		Vmax
μmoL min−1 mg−1		Km
mM		kcat
S−1		kcat/Km
S−1 mM
1015 ± 0.722.7 ± 2.79 ± 0.40.4
4062 ± 1.515.3 ± 1.351 ± 1.33.3
Table
Table 3. Amino acid composition and putative parameters affecting the stability and flexibility of xylanases.
Table 3. Amino acid composition and putative parameters affecting the stability and flexibility of xylanases.
Composition/ParameterXynTXynAXynGR40XynA19Xyn10AxylanaseXynRA2LaXynA
Percent Gly (%)7.55.37.66.85.27.39.39.9
Topt (°C)4030304540357040
Arg/Lys ratio0.820.380.50.520.250.435.36.88
Percent alkaline amino acid (%)13.617.913.515.211.410.67.49.3
Percent acidic amino acid (%)17.116.313.71311.4814.714.2
ReferenceThis study[22][12][45][41][43][38][37]
Topt: optimal temperature. Alkaline amino acids include Arginine (Arg), Histidine (His) and Lysine (Lys). Acidic amino acids include Aspartic acid (Asp) and Glutamic acid (Glu).

Share and Cite

MDPI and ACS Style

He, J.; Liu, L.; Liu, X.; Tang, K. Isolation and Characterization of a Novel Cold-Active, Halotolerant Endoxylanase from Echinicola rosea Sp. Nov. JL3085T. Mar. Drugs 2020, 18, 245. https://doi.org/10.3390/md18050245

AMA Style

He J, Liu L, Liu X, Tang K. Isolation and Characterization of a Novel Cold-Active, Halotolerant Endoxylanase from Echinicola rosea Sp. Nov. JL3085T. Marine Drugs. 2020; 18(5):245. https://doi.org/10.3390/md18050245

Chicago/Turabian Style

He, Jianlong, Le Liu, Xiaoyan Liu, and Kai Tang. 2020. "Isolation and Characterization of a Novel Cold-Active, Halotolerant Endoxylanase from Echinicola rosea Sp. Nov. JL3085T" Marine Drugs 18, no. 5: 245. https://doi.org/10.3390/md18050245

APA Style

He, J., Liu, L., Liu, X., & Tang, K. (2020). Isolation and Characterization of a Novel Cold-Active, Halotolerant Endoxylanase from Echinicola rosea Sp. Nov. JL3085T. Marine Drugs, 18(5), 245. https://doi.org/10.3390/md18050245

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
