Discovery and Photoisomerization of New Pyrrolosesquiterpenoids Glaciapyrroles D and E, from Deep-Sea Sediment Streptomyces sp.

Abstract

Two new pyrrolosesquiterpenes, glaciapyrroles D (1) and E (2) were discovered along with the previously reported glaciapyrrole A (3) from Streptomyces sp. GGS53 strain isolated from deep-sea sediment. This study elucidated the planar structures of 1 and 2 using nuclear magnetic resonance (NMR), mass spectrometry (MS), ultraviolet (UV), and infrared (IR) spectroscopic data. The absolute configurations of the glaciapyrroles were determined by Mosher’s method, circular dichroism spectroscopy, and X-ray crystallography. Under 366 nm UV irradiation, the glaciapyrroles were systematically converted to the corresponding photoglaciapyrroles (4–6) via photoisomerization, resulting in the diversification of the glaciapyrrole family compounds. The transformation of the glaciapyrrole Z to E isomers occurred in a 1:1 ratio, based on virtual validation of the photoisomerization of these olefinic compounds by ¹H-NMR spectroscopy and liquid chromatography/mass spectrometry (LC/MS) analysis. Finally, when encapsulated in poly(lactic-co-glycolic acid) nanoparticles, glaciapyrrole E and photoglaciapyrrole E displayed significant inhibitory activity against influenza A virus. This is the first report of antiviral effects from glaciapyrrole family compounds, whose biological functions have only been subjected to limited studies so far.

1. Introduction

Over the past decades, marine natural products have been considered prolific sources of bioactive compounds with structural diversity [1,2]. Since the discovery of salinosporamide A, a drug candidate for treating myeloma, from marine actinomycete (Salinispora tropica), there has been active investigation into the chemistry of actinobacteria in marine habitats [3]. However, because of their limited accessibility, research on actinomycetes from the deep sea is rare, even though these bacteria are expected to possess unique metabolism due to their environment where no light penetrates, and enormous water column pressure exists [4]. To address this issue, we collected sediment samples with a multi-corer from the deep-sea floor (over 2000 m depth) in the East Sea of Korea, and isolated more than 70 actinobacterial strains. Subsequent chemical profiling of the strains based on liquid chromatography/mass spectrometry (LC/MS) revealed that Streptomyces sp. GGS53 produced new pyrrole-bearing sesquiterpenoids, glaciapyrroles D and E (1 and 2), along with the previously reported glaciapyrrole A (3).

During the purification processes for the glaciapyrroles under laboratory conditions, we found that these compounds were slowly degraded to their geometric isomers due to unavoidable exposure to light, which would not occur in the natural deep-sea environment. In pharmacology, the activity of an organic compound is often altered by external stimuli such as non-ionizing light [5]. As examples from natural products, UV radiation on phytochemicals, such as resveratrol, licochalcone A, and tetramethoxystilbene, induced double-bond isomerization to expand their structural diversity in several previous reports [6,7,8]. Therefore, the observed isomerization phenomenon inspired us to apply artificial photoisomerization to diversify the structures of the glaciapyrroles. In a recent study, we photochemically modified the structures of tropolone-bearing sesquiterpenes juniperone A and norjuniperone A and systematically generated new compounds [9]. By analyzing the conversion of the glaciapyrroles through LC/MS connected with a post-column reactor coil and UV source in the present study, we found that the glaciapyrroles were systematically converted to new derivatives, named photoglaciapyrroles (PG), by E/Z isomerization of their double bonds and subsequently focused on characterizing the structures of the new members of the glaciapyrrole family (1 and 2) and their derivatives by photoirradiation, photoglaciapyrroles D and E (4 and 5) (Figure 1). In addition, the biological activity of the glaciapyrrole family has been understudied despite their unique structural features, and only weak cytotoxicity against a few cancer cell lines have been reported. Here, the glaciapyrroles and photoglaciapyrroles were evaluated in viral RNA and plaque reduction assays against influenza A virus (IAV) to determine their antiviral activities. Overall, this paper reports the discovery of new members of the glaciapyrrole family, their systematic conversion to photoglaciapyrroles by photoisomerization, and their antiviral effects against IAV.

2. Results and Discussion

2.1. Structure Determination of Glaciapyrroles

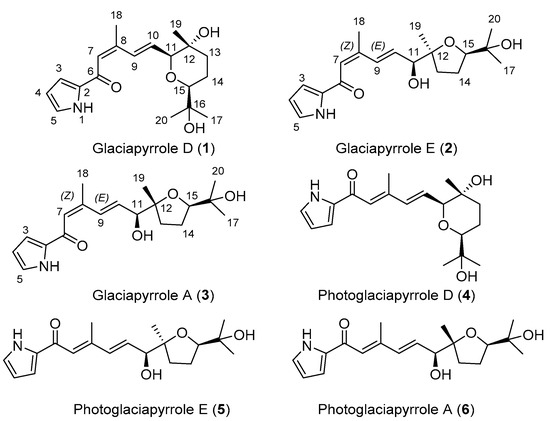

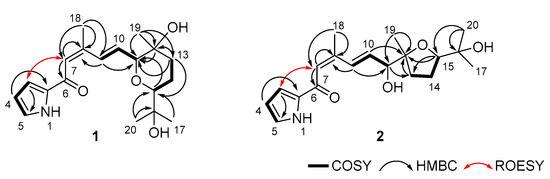

Glaciapyrrole D (1) was obtained as a white powder after purification by systematic fractionation and separation from the extract of Streptomyces sp. (#GGS53) culture. The molecular formula of 1 was established as C₁₉H₂₇NO₄ based on its positive HRFABMS (m/z: [M+H]⁺ calcd for C₁₉H₂₈NO₄ 334.2018; observed 334.2020), suggesting seven degrees of unsaturation. The ¹³C NMR spectrum of 1 exhibited a carbonyl carbon (δ_C 182.4) and eight olefinic carbons (δ_C 150.1, 135.5, 135.4, 130.0, 126.7, 123.1, 117.6, and 111.2), indicating that glaciapyrrole D must have a bicyclic system. Analysis of the ¹³C NMR and multiplicity-edited HSQC spectra of 1 revealed two methine carbons bearing oxygen (δ_C 85.5 and 85.0), two oxygen-bound quaternary carbons (δ_C 72.8 and 70.8), two aliphatic methylene carbons (δ_C 40.0 and 25.0), and four methyl carbons (δ_C 26.2, 25.6, 21.3, and 20.7). The ¹H NMR spectrum acquired in CD₃OD exhibited four methyl (δ_H 2.13, 1.23, 1.23, and 1.10), four aliphatic (δ_H 1.87, 1.72, 1.69, and 1.58), two carbinol (δ_H 3.87 and 3.25), and six double bond protons (δ_H 7.88, 7.06, 7.00, 6.67, 6.37, and 6.24) (

Table 1. NMR data of glaciapyrroles D-E (1-2) in methanol-d₄.

Position	1 a			2 a
	δC	Type	δH, mult (J in Hz)	δC	Type	δH, mult (J in Hz)
1			NH			NH
2	135.5	C		135.3	C
3	117.6	CH	7.00, dd (3.9, 1.4)	117.4	CH	6.98, dd (3.9, 1.3)
4	111.2	CH	6.24, dd (3.9, 2.5)	111.2	CH	6.23, dd (3.9, 2.5)
5	126.7	CH	7.06, dd (2.5, 1.4)	126.6	CH	7.06, dd (2.5, 1.3)
6	182.4	C		182.1	C
7	123.1	CH	6.67, s	123.6	CH	6.68, s
8	150.1	C		149.6	C
9	130.0	CH	7.88, d (16.1, 1.3)	131.5	CH	7.86, d (16.0)
10	135.4	CH	6.37, dd (16.1, 4.3)	137.5	CH	6.21, dd (16.0, 6.8)
11	85.0	CH	3.87, dd (4.3, 1.3)	79.2	CH	4.16, dd (6.8, 1.0)
12	70.8	C		86.8	C
13a	40.0	CH2	1.90–1.86, m	33.6	CH2	2.17, ddd (12.4, 8.6, 6.0)
13b			1.71–1.67, m			1.58, dt (12.4, 8.0)
14a	25.0	CH2	1.75–1.71, m	27.5	CH2	1.96–1.89, m
14b			1.61–1.56, m
15	85.5	CH	3.25, dd (11.4, 2.2)	86.4	CH	3.84, t (7.3)
16	72.8	C		72.6	C
17	25.6	CH3	1.23, s	27.3	CH3	1.12, s
18	21.3	CH3	2.13, s	21.3	CH3	2.10, s
19	20.7	CH3	1.10, s	24.1	CH3	1.17, s
20	26.2	CH3	1.23, s	25.8	CH3	1.24, s

^a 1H 600 MHz, ¹³C 150 MHz. δ_H and δ_C values referenced to internal solvent for CD₃OD at 3.31 ppm and 49.0 ppm.

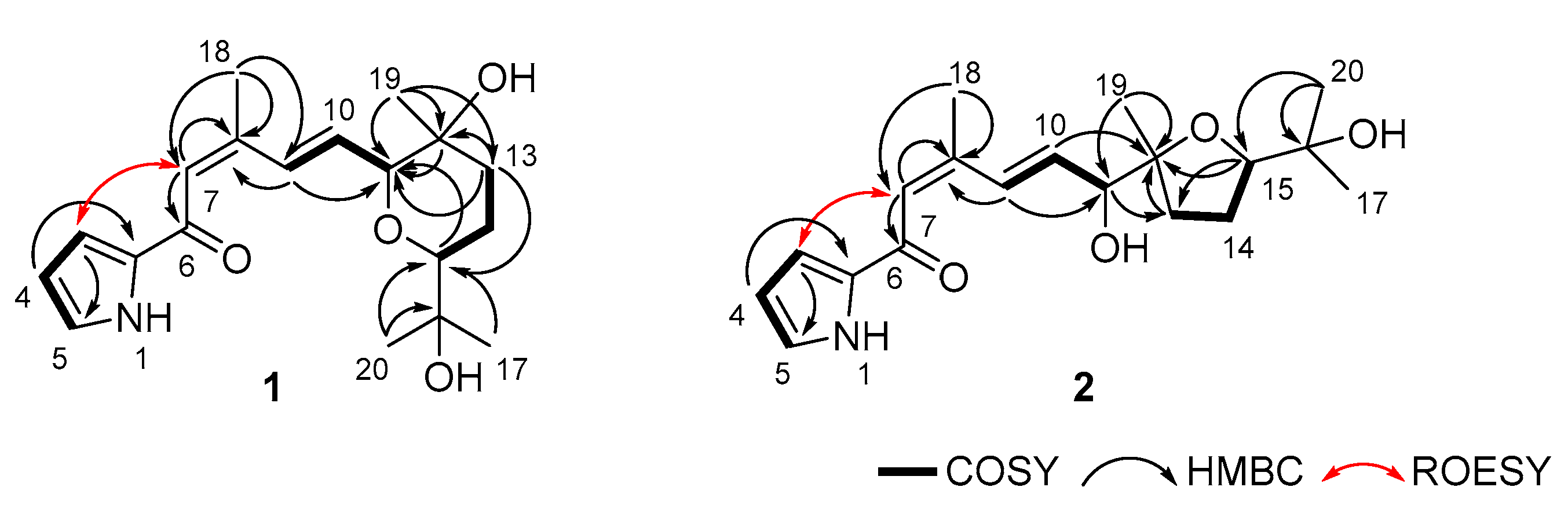

). Although the molecular formula contained 27 protons, the ¹H NMR spectrum only showed 24 of them; hence, glaciapyrrole D should possess three exchangeable protons. Analysis of the COSY NMR spectrum revealed three partial fragments of 1 (Figure 2). The COSY correlations of the three double bond protons (H-3 (δ_H 7.00), H-4 (δ_H 6.24), and H-5 (δ_H 7.06)) suggested a C-3-C-4-C-5 spin system. The coupling constants between H-3 and H-4 (³J_HH = 3.9 Hz) and between H-4 and H-5 (³J_HH = 2.5 Hz) indicated that this spin system belongs to a five-membered pyrrole ring. Another partial fragment, including H-9 (δ_H 7.88, d, ³J_HH = 16.1 Hz), H-10 (δ_H 6.37, dd, ³J_HH = 16.1, 4.3 Hz), and H-11 (δ_H 3.87, d, ³J_HH = 4.3 Hz) was assigned based on the COSY correlations of H-10 with H-9 and H-11. The large coupling constant (16.1 Hz) established the E geometry between H-9 and H-10. The other partial structure, connected from C-13 to C-15, was determined by the continuous COSY correlations from H₂-13 (δ_H 1.87 and 1.69) to H-15 (δ_H 3.25) through H₂-14 (δ_H 1.72 and 1.58). The two spin systems of C-9-C-11/C-13-C-15 were assembled using HMBC correlations from H-11 and H₂-13 to C-12 (δ_C 70.8). The two singlet methyl groups of H₃-17 and H₃-20 were connected to the same oxygen-bearing quaternary carbon C-16 (δ_C 72.8) by their HMBC couplings with C-16. HMBC correlations between H₃-17 and H₃-20 with the C-15 (δ_C 85.5) indicated the presence of a 2-hydroxy-2-propyl group. Furthermore, long-range HMBC correlations from H-15 to C-11 (δ_C 85.0) revealed a tetrahydropyran ring with a terminal isopropyl alcohol functional group (Figure 2). The HMBC correlation from singlet methyl protons H₃-19 to C-11, 12, and 13 supported the connectivity of C-19 to C-12 (δ_C 70.8). HMBC correlations from singlet methyl H₃-18 (δ_H 2.13) to C-7, C-8 (δ_C 150.1), and C-9 extended the partial structure to C-7 via C-8. The HMBC from the olefinic proton H-7 to the carbonyl carbon C-6 (δ_C 182.4) established an α,β-unsaturated carbonyl group by connecting C-6 to C-7. Although a long-range HMBC correlation from the methyl protons H₃-18 to C-6 supported the assembled substructure from C-6 to C-20, no additional HMBC peaks at C-6 were detected from the unconnected pyrrole moiety. We then utilized ROESY correlations between H-7 and H-3 and connected the pyrrole to C-6. Based on the molecular formula, the two alcohols were assigned to oxygen-bearing carbons C-12 and C-16.

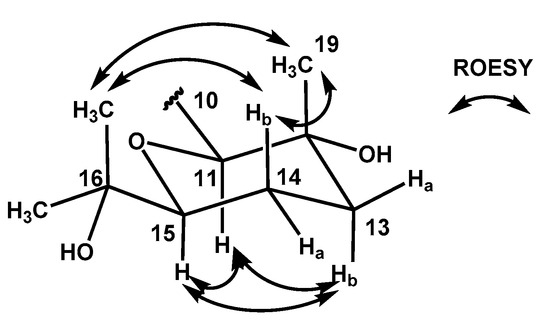

Precise analysis of the ROESY NMR correlations and ¹H-¹H coupling constants of 1 established the relative configuration of the tetrahydropyran moiety. H-15 (δ_H 3.25) displayed a doublet of a doublet, and its large coupling constant was measured as 11.4 Hz, which led to the assignment of this proton to an axial position. H-15 was strongly correlated with H-11 (δ_H 3.87) and H-13b (δ_H 1.69) in the ROESY NMR spectrum, indicating that H-11 and H-13 are also located at axial positions. H₃-19 (δ_H 1.10) displayed a strong ROESY correlation with H-14b (δ_H 1.58), leading to their assignments at axial positions on opposite side of H-11 and H-15 (Figure 3). Therefore, the relative configuration of the tetrahydropyran unit was determined as 11S*, 12R*, and 15S*.

Glaciapyrrole D (1) does not have any functional group for derivatization with axillary chiral reagents, so as to apply the modified Mosher’s method to determine its absolute configuration. Therefore, electronic circular dichroism (ECD) was used instead for its configurational analysis. The experimental ECD spectrum exhibited the Cotton effects at 220 and 280 nm. Two enantiomers were constructed based on the established relative configurations and then structurally optimized using density functional theory (DFT) modeling for ECD calculations. The calculated ECD spectra of the two enantiomers support 11S, 12R, and 15S configuration for 1 (Figure S41).

Glaciapyrrole E (2) was purified as a white powder. Its molecular formula was deduced to be C₁₉H₂₇NO₄ from the positive mode HRFABMS (m/z [M+H]⁺ calcd for C₁₉H₂₈NO₄ 334.2018 found 334.2021). The ¹H and ¹³C NMR spectra of 2 were similar to those of 1, displaying the signals for the pyrrole conjugated with dienone and the isopropyl alcohol moiety. However, the ¹H and ¹³C NMR resonances corresponding to the tetrahydropyran moiety in 1 were noticeably changed in the NMR spectra of 2 (Table 1). Further detailed analysis of the 2D NMR data revealed the modification of the ring structure in 2. H₂-14 was correlated with H₂-13 and H-15 in COSY NMR data, establishing the C-13-C-14-C-15 connectivity. H₃-19 displayed HMBC correlations with C-11, C-12, and C-13, which led to the assignment of this 3-carbon chain adjacent to C-12 by connecting C-12 and C-13. Next, C-15 was located next to C-16 based on the HMBC correlation to C-15 from the gem-dimethyl protons (H₃-17 and H₃-20). Finally, a tetrahydrofuran was constructed by the crucial H-15/C-12 HMBC correlation through an ether linkage, elucidating the planar structure of 2.

Although the planar structure of 2 was identical to that of previously reported glaciapyrrole A (3), 2 eluted much later than 3 in our reversed-phase chromatography analysis. We crystallized 2 in ethyl acetate/hexane to yield a single block type crystal, which diffracted as a monoclinic system for more rigorous structural determination. Single-crystal X-ray diffraction analysis confirmed the planar structure of 2 and determined the relative configuration as 11S*, 12S*, 15R*, whereas 3 possesses an 11S*, 12R*, 15R* configuration. Therefore, 2 (Figure 4) is a 12-epimer of 3 (CCDC Deposition Number 2132067).

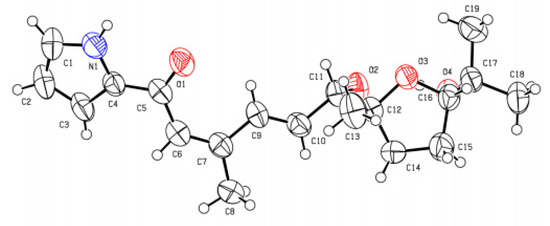

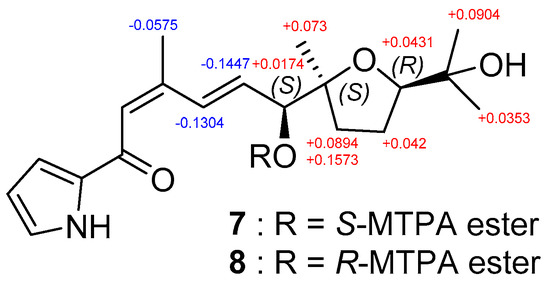

The modified Mosher’s method was applied to determine the absolute configuration of 2 [10]. We derivatized the hydroxy group at C-11 using R- and S-α-methoxy-α-(trifluoromethyl)phenylacetyl chloride (MTPA-Cl) to produce S- and R-MTPA esters (7 and 8), respectively. Analysis of ¹H and COSY NMR spectra enabled the assignment of the ¹H NMR chemical shifts of 7 and 8 and the calculation of their Δδ_S−R values. Based on the Δδ_S−R values, the stereogenic center at C-11 was determined to be S (Figure 5). The relative configuration established by X-ray crystallography concurrently assigned the 11S, 12S, and 15R configuration to 2.

2.2. Photoirradiation of Glaciapyrroles

Glaciapyrrole A (3) [11] was also obtained from the fermentation of Streptomyces sp. GGS53 along with glaciapyrroles D and E (1–2). During the experiment in a laboratory environment, the photoactivity of the glaciapyrroles was recognized, and a series of experiments were performed to confirm this observation. First, we checked the photoreactivity of the glaciapyrroles by using a post column photolytic reactor with a 366 nm (8 W) UV source on the front line of the LC/MS column. After confirming the photoreactivity of the glaciapyrroles with LC/MS, an optimization process was performed to establish effective photoreaction conditions in a preparative scale. To optimize the photoirradiation conditions, experiments were conducted with various substrate concentrations, irradiation durations, and UV wavelengths. Glaciapyrroles A, D, and E were dissolved in EtOH at 10, 5, or 1 mM, and these solutions were irradiated under 254 or 366 nm UV light at an output power of 8 W for 0, 10, 20, 30, or 40 min. During the optimization processes, the glaciapyrroles were nonspecifically degraded under 254 nm UV radiation, whereas they were systematically converted to specific products under 366 nm. The photoirradiation reactions were monitored by LC/MS. The highest conversion ratios (approximately 50%) were observed under the conditions of 1 mM, 366 nm, and 40 min.

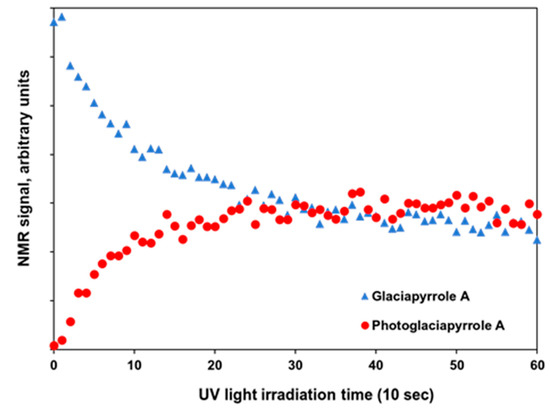

Time-resolved photoisomerization of the glaciapyrroles was monitored in situ by LED-illuminated NMR spectroscopy [12]. Glaciapyrrole A (10 mM) was dissolved in 400 μL of CD₃OD. The solution was transferred to an amberized NMR tube, and a coaxial tube of quartz glass was inserted into the tube. Then, an optical fiber coupled with the UV-LED illuminator was inserted into a coaxial tube to guide 366 nm light from the UV-LED illuminator into the sample in the NMR spectrometer. A series of ¹H NMR spectra were recorded under UV irradiation every 10 sec to monitor the photoisomerization progress. Figure 6 plots the integrated intensity of each H-9 signal of photoglaciapyrrole A and glaciapyrrole A according to the UV irradiation time. The exponential decrease in glaciapyrrole A under UV irradiation implies first-order photochemical reaction kinetics. After 200 sec of UV irradiation, the reactant and product reached an equilibrium state (Figure 6). The equilibrium state was also observed when purified photoglaciapyrrole A (6) was photoisomerized reversely to glaciapyrrole A (3) by UV 366 nm (Figure S42), indicating that glaciapyrrole A and photoglaciapyrrole A undergo systematic reversible photoisomerization (Figure S43). Subsequently, glaciapyrroles D and E (1–2) were systematically converted to photoglaciapyrroles D and E (4–5) under the optimized conditions, respectively.

2.3. Structure Determination of Photoglaciapyrroles

Photoglaciapyrrole D (4) was purified from the photoreaction mixture of 1 as a white powder, and its molecular formula was determined to be C₁₉H₂₇NO₄ using HRFABMS (m/z: [M+H]⁺ calcd for C₁₉H₂₈NO₄ 334.2018; found 334.2022). Interpretation of the ¹H, ¹³C, COSY, HSQC, and HMBC NMR data indicated that the gross structure of 4 was identical to that of 1 (

Table 2. NMR data of photoglaciapyrroles D, E and A (4–6) in methanol-d₄.

Position	4 a			5 a			6 a
	δC	Type	δH, mult (J in Hz)	δC	Type	δH, mult (J in Hz)	δC	Type	δH, mult (J in Hz)
1			NH			NH			NH
2	135.7	C		135.6	C		135.6	C
3	117.2	CH	7.01, d (3.8)	117.3	CH	7.01, d (3.8)	117.2	CH	6.99, d (3.7)
4	111.2	CH	6.24, dd (3.8, 2.5)	111.2	CH	6.24, dd (3.8, 2.5)	111.2	CH	6.24, dd (3.7, 2.5)
5	126.5	CH	7.06, d (2.5)	126.6	CH	7.07, d (2.5)	126.5	CH	7.06, d (2.5)
6	183.0	C		182.8	C		182.9	C
7	124.9	CH	6.79, s	125.3	CH	6.80, s	125.0	CH	6.78, s
8	151.5	C		151.1	C		151.2	C
9	135.6	CH	6.61, d (15.7)	136.8	CH	6.57, d (15.8)	136.3	CH	6.54, d (16.0)
10	134.3	CH	6.38, dd (15.7, 4.3)	136.6	CH	6.27, dd (15.8, 6.2)	136.9	CH	6.29, dd (16.0, 6.0)
11	85.0	CH	3.87, d (4.3)	78.8	CH	4.21, d (6.2)	78.4	CH	4.16, d (6.0)
12	70.8	C		86.9	C		86.7	C
13a	40.1	CH2	1.90–1.87, m	33.6	CH2	2.18–2.14, m	34.7	CH2	2.15–2.10, m
13b			1.71–1.67, m			1.61–1.57, m			1.65–1.62, m
14a	25.1	CH2	1.75–1.72, m	27.6	CH2	1.97–1.91, m (2H)	27.7	CH2	1.91–1.87, m
14b			1.61–1.55, m						1.85–1.80, m
15	85.6	CH	3.26, dd (11.3, 1.9)	86.5	CH	3.85, dd (7.3)	88.5	CH	3.85, dd (9.7, 5.9)
16	72.8	C		72.7	C		72.3	C
17	25.7	CH3	1.24, s	25.9	CH3	1.13, s	26.3	CH3	1.18, s
18	14.5	CH3	2.35, s	14.6	CH3	2.34, s	14.6	CH3	2.33, s
19	20.7	CH3	1.11, s	24.1	CH3	1.18, s	23.7	CH3	1.16, s
20	26.0	CH3	1.25, s	27.3	CH3	1.25, s	25.1	CH3	1.16, s

^a 1H 850 MHz, ¹³C 212.5 MHz. δ_H and δ_C values referenced to internal solvent for CD₃OD at 3.31 ppm and 49.0 ppm.

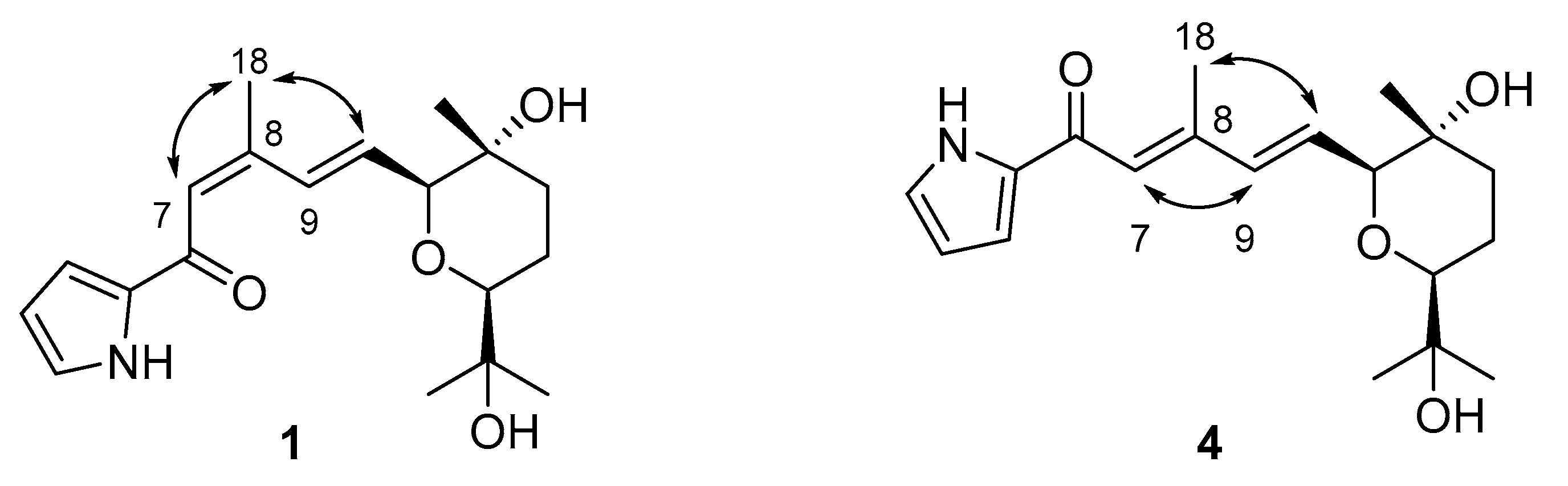

). However, a detailed analysis of the ¹³C NMR chemical shifts revealed that C-9 (δ_C 135.6) and C-18 (δ_C 14.5) displayed distinctively different chemical shifts in 4 compared to those carbons (δ_C 130.0 and 21.3) in 1, indicating a possible geometric change around these carbons. Isomerization of the double-bond geometry was confirmed by ROESY correlations. Glaciapyrrole D (1) with 7Z configuration displayed H-7/H₃-18 ROESY correlation, whereas photoglaciapyrrole D (4) exhibited an H-7/H-9 ROESY cross peak that led to the assignment of a 7E configuration (Figure 7).

Photoglaciapyrrole E (5) was isolated as a product of the photoreaction of 2. Its molecular formula was deduced to be C₁₉H₂₇NO₄ using HRFABMS (m/z: [M+H]⁺ calcd for C₁₉H₂₈NO₄ 334.2018; observed 334.2021). The double-bond geometry of 5 was also established as 7E and 9E by analyzing the ¹³C and ROESY NMR spectra. Photoglaciapyrrole A (6) was obtained as a white powder by photoirradiation of 3. Analysis of ¹³C and ROESY NMR data revealed the double-bond geometries of photoglaciapyrrole A as 7E and 9E, which are identical to those of photoglaciapyrroles D and E (4 and 5).

2.4. Evaluation of Antiviral Activity with Encapsulated Poly(lactic-co-glycolic acid) Nanoparticles

Influenza viruses are classified into types A, B, C, and D based on their nucleic acid and protein composition. Influenza A virus (IAV) has a wide range of hosts and lacks the proofreading function in its RNA polymerase; hence, research on IAV has been gaining importance [13,14,15]. The H1N1, H2N2, and H3N2 subtypes of IAV were responsible for many human cases in previous global influenza pandemics [16]. IAV infects people of all ages through the respiratory pathway, causing fever, headaches and chills, which in severe cases can lead to complications [17]. The negative-sense, single-stranded RNA genome of IAV contains approximately 13,500 bases. This genome is divided into eight segments and encodes at least 17 proteins, including envelope glycol protein (HA), neuraminidase (NA), three polymerases (PA, PB1, and PB2), nucleoprotein (NP), matrix protein (M1), ion channel protein (M2), nonstructural proteins (NS1 and NS2), as well as the recently discovered NS3, M42, PA-N182, and PA-N155 [13,18]. Many antiviral drugs have been developed to target these viral proteins, the viral RNA, or host factors involved in virus replication [14]. However, IAV has not been fully controlled and continues to cause significant disease burden [19]. In our initial screening of 1–6 for antiviral activity, glaciapyrrole E (2) and photoglaciapyrrole E (5) displayed antiviral effects, whereas the other four congeners were not active.

In addition to significant bioactivity, drugs should also be delivered using efficient methods for clinical applications. Poly(lactic-co-glycolic acid) (PLGA) is a polymer approved by the US FDA and EMA for safe administration. Recently, it has received significant attention in biomedical applications owing to its excellent biocompatibility and biodegradability. In particular, PLGA-based nanoparticles (PLGA-NPs) have many advantages in drug delivery systems, such as the controlled and sustained release of entrapped drugs, facile surface modification, ease for long-term storage [20,21,22]. Considering the unique characteristics of PLGA NPs, we fabricated PLGA NPs containing glaciapyrroles or photoglaciapyrroles (Gla-PLGA NPs) to investigate their bioactivities.

To effectively evaluate the antiviral effects of glaciapyrrole E (2) and photoglaciapyrrole E (5), Gla-PLGA NPs were formulated on a NanoAssemblr using a microfluidic mixing approach. Encapsulation was achieved by dissolving glaciapyrrole E and photoglaciapyrrole E in the solvent phase together with the PLGA polymer and formulating NPs by mixing it with poly(vinyl alcohol) (PVA) as a stabilizer in the aqueous phase. Because the aqueous and solvent phases were rapidly and precisely mixed in this process, Gla-PLGA NPs were precipitated in a controlled manner at the desired size with a narrow size distribution. As shown in

Table 3. Size properties and encapsulation efficiency of Gla-PLGA NPs.

Sample	Size	Poly Disperse Index (PDI)	Encapsulation Efficiency (%)
GlaE-PLGA NPs	96.3 ± 3.5	0.08 ± 0.03	14.4 ± 2.3
pGlaE-PLGA NPs	108.7 ± 2.5	0.12 ± 0.07	24.6 ± 1.5
PLGA NPs	72.4 ± 5.8	0.12 ± 0.07	-

, the hydrodynamic diameters of PLGA NPs (blank), GlaE-PLGA NPs (glaciapyrrole E), and pGlaE-PLGA NPs (photoglaciapyrrole E) were 72.4, 96.3, and 108.7 nm, respectively. The encapsulation efficiencies of glaciapyrrole E and photoglaciapyrrole E in the NPs were found to be 14.4% and 24.6%, respectively. This increase in particle size after encapsulation was potentially due to the adsorption of glaciapyrrole E and photoglaciapyrrole E on the porous surface of PLGA NPs.

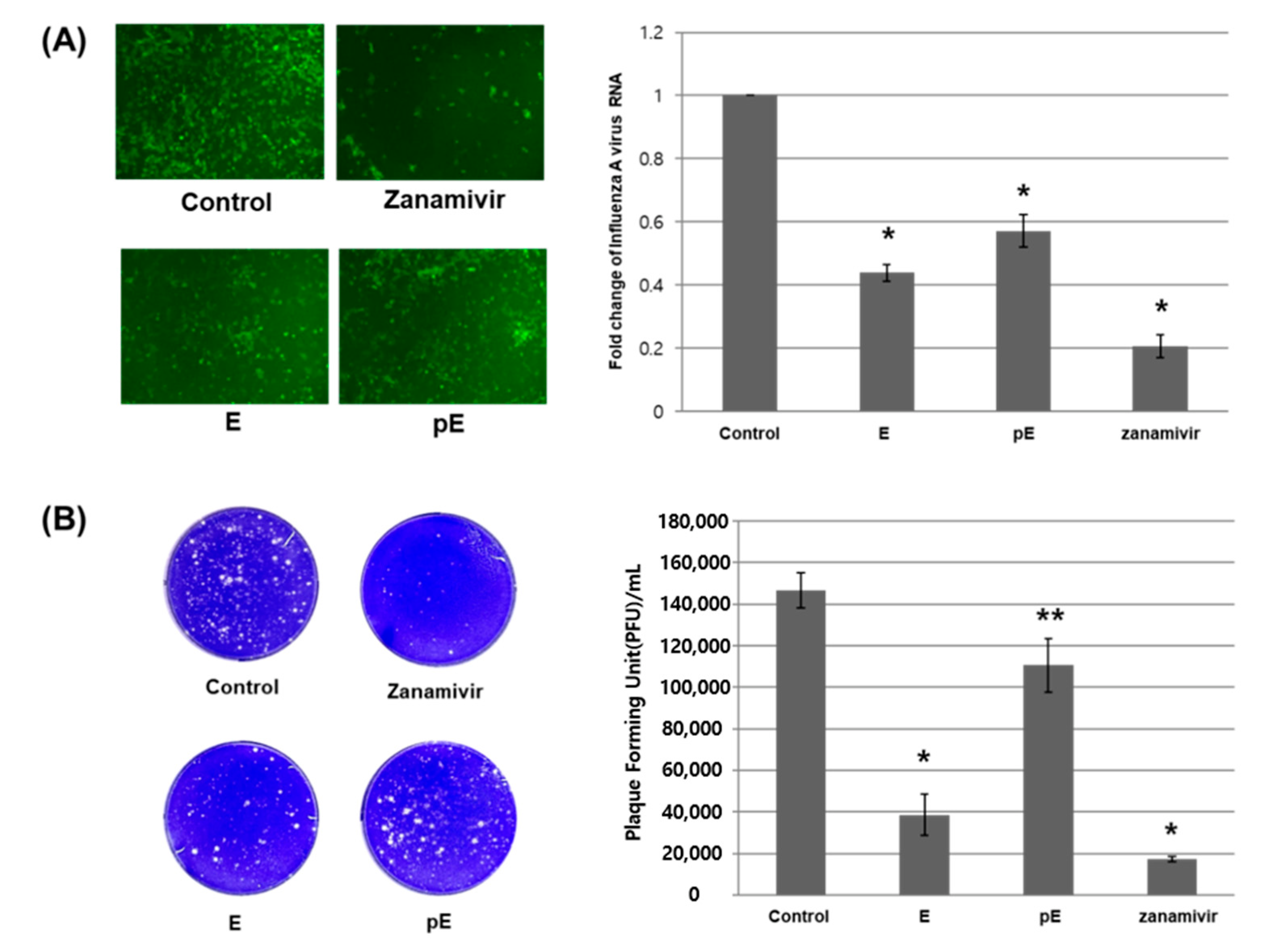

Mardin–Darby canine kidney (MDCK) cells were inoculated with IAV at a multiplicity of infection (MOI) of 0.005, followed by treatment with 200 μM of GlaE-PLGA NPs, 200 μM of pGlaE-PLGA NPs, 1 μM of zanamivir (an anti-influenza virus drug as the positive control), or empty particles (negative control). After 24 h of inoculation, green fluorescent protein (GFP) images were captured using fluorescence, and the amount of IAV RNA in cells was estimated using qRT-PCR. In cells treated with the GlaE-PLGA NPs (E) and pGlaE-PLGA NPs (pE), the amount of HEV RNA was about 50% lower than that in the control treatment group (Figure 8A). To ascertain the inhibitory effects of glaciapyrrole E and photoglaciapyrrole E, we re-infected the supernatant at 48 h after inoculation. Based on results from the plaque reduction assay (Figure 8B), photoglaciapyrrole E decreased the viral titer by 25% compared to the control treatment group, whereas glaciapyrrole E reduced the viral titer by more than 70%.

3. Materials and Methods

3.1. General Experimental Procedures

Optical rotation values were measured at 25 °C using a JASCO P-2000 polarimeter (Tokyo, Japan) with a 1 cm cell. UV and IR spectra were obtained using a Perkin-Elmer Lambda 35 spectrophotometer (Waltham, MA, USA) and a JASCO FT/IR-4200 spectrometer (Tokyo, Japan), respectively. Circular dichroism (CD) spectra were acquired on an Applied Photophysics Chirascan V100 CD spectrometer (Leatherhead, UK) using a 1 mm CD cell. NMR spectra were collected using Bruker Avance 600 and 850 MHz NMR spectrometers (Billerica, MA, USA) located at the National Center for Inter-University Research Facilities (NCIRF), Seoul National University. Low-resolution electrospray ionization (ESI) data were acquired using an Agilent Technologies 6130 quadrupole mass spectrometer (Santa Clara, CA, USA) coupled with an Agilent Technologies 1200-series HPLC with a reversed-phase C₁₈ column (Phenomenex Luna, 100 × 4.6 mm). High-resolution FAB mass spectrometric data were obtained using a JEOL JMS 700 mass spectrometer (Tokyo, Japan) at the National Center for Inter-University Research Facilities (NCIRF). HPLC isolation was performed on a Gilson 321 (Middleton, WI, USA) equipped with a UV detector Gilson UV-Vis-151 (Middleton, WI, USA). X-ray crystallographics were collected on a Rigaku R-AXIS RAPID diffractometer (Tokyo, Japan) using graphite-monochromated Mo Kα radiation (λ = 0.71075 Å).

3.2. Bacterial Isolation

A deep-sea sediment core (Station 1; ca. 60 cm long) was collected with a multi-corer in the East Sea of Korea (37°12.0486′, 130°25.0889′, ca. 2163 m in water depth) during the RV Araon test cruise in June 2014. The sediment sample (1 g) was diluted in 12 mL of sterilized solar salt water (1:3 dilution), vortexed, and spread onto one of the following actinomycete isolation agar: A4 medium (1 L of seawater, 18 g of agar, and 100 mg/L of cycloheximide), A5 medium (750 mL of seawater, 250 mL of distilled H₂O, 18 g of agar, and 100 mg/L of cycloheximide), A6 medium (1 L of seawater, 18 g of agar, and 5 mg/L of polymyxin B sulfate), A7 medium (1 L of seawater, 18 g of agar, and 5 mg/L of kanamycin), and chitin-based agar. GGS53 was isolated on the A7 agar medium. The strain culture was repeatedly applied to the solid A1 medium to obtain a single strain. The 16S rDNA sequencing analysis data (GenBank accession number: OK037580) obtained from COSMO Co., Ltd., (Seoul, Korea), revealed that GGS53 is most closely related to Streptomyces niveus (99% identity), identifying the strain as a Streptomyces sp.

3.3. Cultivation and Extraction

The GGS53 strain was cultured in 30 mL of A1 medium (10 g of starch, 4 g of peptone, 1 g of calcium carbonate, and 2 g of yeast extract in 1 L of solar salt water) in a 125-mL Erlenmeyer flask. After 5 days of fermentation on a rotary shaker at 170 rpm at 28 °C, 10 mL of the culture was inoculated in 1 L of A1 medium in 2.8 L Fernbach flasks (48 × 1 L for a total volume of 48 L). The large culture was incubated at 170 rpm and 28 °C. After five days, the whole culture was extracted with EtOAc. The EtOAc layer was separated and dried over anhydrous sodium sulfate. The entire extraction process was repeated twice. The EtOAc extract was enriched in vacuo to yield 3.2 g of dried material.

3.4. Isolation of Glaciapyrrole D, E, and A (1–3)

Celite-adsorbed GGS53 extract was loaded on a 5 g Sep-Pak C₁₈ cartridge and fractionated using a step elution with combinations of H₂O and MeOH (20, 40, 60, 80, and 100% aqueous MeOH). The glaciapyrroles were detected in the 60% MeOH fraction. To isolate the glaciapyrroles, the 60% fraction was chromatographed by semipreparative reversed-phase HPLC (YMC-ODS column, 10 × 250 mm, flow rate 3.3 mL/min, UV 330 nm detection) under isocratic 40% aqueous CH₃CN condition. Glaciapyrroles D, E, and A were eluted at 13, 21, and 16 min, respectively. Glaciapyrrole E was further purified using semipreparative reversed-phase HPLC (YMC-ODS column, 10 × 250 mm, flow rate 3.3 mL/min, UV 330 nm detection) using an isocratic 63% aqueous MeOH condition (retention time: 18 min). Glaciapyrrole D (1) (10 mg), glaciapyrrole E (2) (8 mg), and glaciapyrrole A (3) (15 mg) were obtained as pure compounds.

Glaciapyrrole D (1). White powder; ${[\alpha ]}_{\mathrm{D}}^{\mathrm{25}}$ +14 (c 0.1, MeOH); UV (MeOH) λ_max (log ε) 207 (3.99) nm, (log ε) 334 (4.13) nm; IR (neat) ν_max 3395, 3255, 2974, 1633, 1615, 1573, 1449, 1406, 1312, 1115 cm⁻¹; ¹H and ¹³C NMR data, see Table 1; HRFABMS m/z 334.2020 [M+H]⁺ (calculated for C₁₉H₂₈NO₄, 334.2018).

Glaciapyrrole E (2). White powder; ${[\alpha ]}_{\mathrm{D}}^{\mathrm{25}}$ −40 (c 0.1, MeOH); UV (MeOH) λ_max (log ε) 204 (3.91) nm, (log ε) 333 (4.12) nm; IR (neat) ν_max 3343, 3273, 2972, 1633, 1615, 1572, 1448, 1406, 1315, 1115 cm⁻¹; ¹H and ¹³C NMR data, see Table 1; HRFABMS m/z 334.2021 [M+H]⁺ (calculated for C₁₉H₂₈NO₄, 334.2018).

3.5. X-ray Crystallographic Data of glaciapyrrole E (2)

Colorless block crystal, C₁₉H₂₇NO₄, M_r = 333.41, monoclinic, space group C 2 (#5), a = 22.435(5) Å, b = 6.2694(12) Å, c = 15.341(3) Å, α = 90°, β = 118.86(3)°, γ = 90°, V = 1889.8(8) ų, T = 23.0 °C, 2θ_max = 2.47, Z = 4, crystal dimensions = 0.200 × 0.110 × 0.110 mm, F₀₀₀ = 720.00, The final R₁ value 0.0511 (wR₂ = 0.1702) for 3334 all reflections (I > 2.00σ(I)).

3.6. Photoirradiation

Photoirradiation of glaciapyrroles was performed using a MicroSolv Technology Corp (Leland, NC, USA) post column photolytic reactor at 366 nm (8 W). The EtOH solution of the glaciapyrroles (30 mL, 1 mM) was placed in a petri dish (90 × 15 mm), kept 35 mm away from the lamp, and irradiated for 40 min. The EtOH solution was analyzed every 10 min using LC/MS. After 40 min of photoirradiation, the ratio of glaciapyrrole to photoglaciapyrrole was found to stabilize at 1:1. Glaciapyrrole A (3) and photoglaciapyrrole A (6) were isolated by semi-preparative reversed-phase HPLC (YMC-ODS column, 10 × 250 mm, flow rate 3.3 mL/min, UV 330 nm detection) using an isocratic 36% aqueous CH₃CN condition. Glaciapyrrole A and photoglaciapyrrole A were eluted at 23 and 15 min, respectively. Glaciapyrrole D (1), photoglaciapyrrole D (4), glaciapyrrole E (2), and photoglaciapyrrole E (5) were also purified by HPLC (isocratic 33% aqueous CH₃CN, t_R = 24 and 18 min for 1 and 4; isocratic 38% aqueous CH₃CN, t_R = 22 and 16 min for 2 and 5, respectively).

Photoglaciapyrrole D (4). White powder; ${[\alpha ]}_{\mathrm{D}}^{\mathrm{25}}$ +17 (c 0.1, MeOH); UV (MeOH) λ_max (log ε) 204 (3.76) nm, (log ε) 333 (4.04) nm; IR (neat) ν_max 3403, 3276, 2975, 1618, 1578, 1542, 1409, 1385, 1313, 1113 cm⁻¹; ¹H and ¹³C NMR data, see Table 1; HRFABMS m/z 334.2022 [M+H]⁺ (calculated for C₁₉H₂₈NO₄, 334.2018).

Photoglaciapyrrole E (5). White powder; ${[\alpha ]}_{\mathrm{D}}^{\mathrm{25}}$ −21 (c 0.1, MeOH); UV (MeOH) λ_max (log ε) 201 (4.13) nm, (log ε) 332 (4.27) nm; IR (neat) ν_max 3388, 3274, 2971, 1618, 1577, 1407, 1313, 1111 cm⁻¹; ¹H and ¹³C NMR data, see Table 1; HRFABMS m/z 334.2021 [M+H]⁺ (calculated for C₁₉H₂₈NO₄, 334.2018).

Photoglaciapyrrole A (6). White powder; ${[\alpha ]}_{\mathrm{D}}^{\mathrm{25}}$ +12 (c 0.1, MeOH); UV (MeOH) λ_max (log ε) 203 (3.81) nm, (log ε) 333 (4.10) nm; IR (neat) ν_max 3417, 3272, 2973, 1619, 1579, 1408, 1313, 1113 cm⁻¹; ¹H and ¹³C NMR data, see Table 1; HRFABMS m/z 334.2017 [M+H]⁺ (calculated for C₁₉H₂₈NO₄, 334.2018).

3.7. MTPA Esterification of Glaciapyrrole E

Glaciapyrrole E (2, 1.5 mg) was transferred to each of two 20 mL vials that had been completely dried under high vacuum for 5 h. First, Ar gas was injected into each vial, and 1 mL of completely distilled pyridine was added. The reaction mixture was then stirred at room temperature for 5 min. After 5 min, R- and S-α-methoxy-α-(trifluoromethyl)phenylacetyl chloride (MTPA-Cl) (25 μL) were separately added. The reactions were terminated after 15 min by adding 50 μL of MeOH. The mixtures were then injected into a reversed-phase HPLC (YMC-ODS column, 10 × 250 mm, flow rate 2 mL/min, UV 330 nm detection). The products were purified under a step gradient solvent system (50–90% aqueous CH₃CN for 30 min, 90% aqueous CH₃CN from 30 to 60 min, and 100% CH₃CN from 60 to 80 min). The S-MTPA ester (7) and R-MTPA ester (8) eluted at 32.3 and 33 min, respectively. The molecular formula of the two products were determined to be C₂₉H₃₅F₃NO₆ by ESI-MS ([M+H]⁺ m/z at 549). The Δδ_S−R values of the S- and R-MTPA esters were calculated based on analyzing their ¹H and COSY NMR spectral data.

S-MTPA ester of glaciapyrrole D (7). White powder; ¹H NMR (500 MHz, CD₃OD-d₄) δ 7.80 (1H, d, J = 16.2 Hz), 7.49–7.45 (2H, m), 7.37–7.30 (3H, m), 7.08 (1H, dd, J = 2.4, 1.3 Hz), 6.99 (1H, dd, J = 3.8, 1.3 Hz), 6.71 (1H, s), 6.25 (1H, dd, J = 3.8, 2.4 Hz), 6.17 (1H, dd, J = 16.2, 6.8 Hz), 5.55 (1H, d, J = 6.8 Hz), 3.84 (1H, dd, J = 8.4, 6.5 Hz), 3.56 (3H, s), 2.06 (3H, s), 2.01–1.83 (3H, m), 1.77 (1H, m),1.24 (3H, s), 1.19 (3H, s), 1.15 (3H, s)

R-MTPA ester of glaciapyrrole D (8). White powder; ¹H NMR (500 MHz, CD₃OD-d₄) δ 7.93 (1H, d, J = 16.2 Hz), 7.56–7.52 (2H, m), 7.47–7.38 (3H, m), 7.08 (1H, dd, J = 2.4, 1.3 Hz), 7.01 (1H, dd, J = 3.8, 1.3 Hz), 6.74 (1H, s), 6.32 (1H, dd, J = 16.2, 6.7 Hz), 6.25 (1H, dd, J = 3.8, 2.4 Hz), 5.53 (1H, d, J = 6.8 Hz), 3.80, (1H, dd, J = 8.4, 6.5 Hz), 3.60 (3H, s), 2.12 (3H, s), 1.90–1.18 (3H, m), 1.60 (1H, m), 1.15 (3H, s), 1.12 (3H, s), 1.11 (3H, s)

3.8. ECD Calculation

Possible enantiomers of 1 were generated based on ROESY NMR data using Avogadro 1.2.0, and their geometries were optimized in the ground-state based on density functional theory (DFT) calculation using Turbomole X 4.3.2. The B3LYP/DFT level and def-SV(P) basis set were used for the calculations. The ECD spectra were simulated by overlapping each transition, where σ is the width of the band at the height of 1/e. ΔEi is the excitation energy, and Ri is the rotatory strength for transition i. In this calculation, the σ value was 0.10 eV.

$$\Delta ϵ\left(E\right)=\frac{1}{2.297\times {10}^{-39}}\frac{1}{\sqrt{2\pi \sigma }}{\displaystyle \sum }_i^A\Delta E_i{R}_i{e}^{[-{(E-\Delta E_i)}^2/\left(2\sigma {)}^2\right]}$$

3.9. Synthesis and Characterization of Gla-PLGA NPs

Gla-PLGA NPs were produced using the NanoAssemblr Platform (Precision NanoSystems Inc., Vancouver, BC, Canada) in a Y-shaped staggered herringbone micromixer with a width of 300 μm and a height of 130 μm. The NPs were synthesized by dissolving 2 mg of PLGA and 2 mg of GlaE (or pGlaE) in 1 mL of CH₃CN. The resulting mixture was injected into one inlet port on the NanoAssemblr Platform. Simultaneously, 1 mL of PVA solution (2% w/v) was injected into the other inlet port of the platform. Under a flow rate ratio of 1:1 and a total flow rate of 8 mg/min condition, Gla-PLGA NPs were fabricated using the NanoAssemblr Platform. The produced samples were dialyzed against 1 L PBS using a dialysis bag (MWCO-10 kDa) for 12 h, replacing the dialysis medium twice in the first 4 h, followed by lyophilization with 2% trehalose. The size of Gla-PLGA NPs was measured using a particle size analyzer (Nano ZS90, Malvern Instruments, Worcs, UK). The encapsulation efficiency of Gla into PLGA NPs was determined using LC/MS quantitative analysis after the capsulation disruption with solvent. Gla-PLGA NPs were dissolved in MeOH, and LC/MS analysis was performed with a column Phenomenex C₁₈ (4.6 × 150 mm, flow rate 0.7 mL/min, UV 310 nm detection). The mobile phases were MeOH and H₂O with 10 mM ammonium formate, and the analytical condition was a linear gradient from 60% aqueous MeOH to 100% MeOH in 20 min. All samples were analyzed based on a standard curve of free GlaE and pGlaE, respectively. The following equation was used to calculate the encapsulation efficiency of Gla-PLGA NPs.

Encapsulation efficiency (%) = (weight of the drug in nanoparticles/weight of the feeding drugs) × 100

3.10. Cells and Viruses

Mardin–Darby canine kidney(MDCK) cells, and influenza A virus PR8-GFP were provided by Prof. Man-Seong Park (Korea University). MDCK cells were cultured in Minimum Essential Medium (MEM; Hyclone) supplemented with 10% FBS and 1% P/S.

3.11. Quantitative RT-PCR (qRT-PCR)

Quantitative analysis of IAV RNA in cells was isolated using a total RNA prep kit (Biofact, Daejeon Korea) and reverse-transcribed to cDNA using a TOPscript™ cDNA Synthesis kit (Enzynomics, Daejeon, Korea). Real-time PCR was performed using the 1X HOT FIREPol EvaGreen qPCR Mix Plus (Solis BioDyne, Tartu, Estonia). The primer sequences used for amplification were as follows: IAV M1, 5′-GACCAATCCTGTCACCTCTGAC-3′ (forward) and 5′-AGGGCATTTTGGACAAACCGTCTA-3′ (reverse); and Canis lupus familiaris glyceraldehyde-3-phosphate dehydrogenase (GAPDH), 5′-CCAGGGCTGCTTTTAACTCTGG-3′ (forward) and 5′-ACTGTGCCGTGGAATTTGCCG-3′ (reverse).

3.12. Plaque Assay

MDCK cells were infected with IAV and treated with Gla (200 µM) or zanamivir (1 µM). After 48 h of infection, cell supernatants were collected for virus titration. They were then inoculated with serial diluted supernatant and incubated at 37 °C for an hour, then a mixture of 4% agarose was added and 2× DMEM 0.4% BSA, 25 mM HEPES, and 1% P/S was added. After 2 days, 10% formaldehyde was treated for 2 h and then dyed with 0.3% crystal violet to observe.

3.13. Cell Viability Assay

Cell viability was analyzed using MTT (Sigma, Ronkonkoma, NY, USA), as described previously [23].

3.14. In-Situ LED-Illuminated NMR Spectroscopy

In-situ LED-illuminated NMR spectra were recorded using a Bruker Avance-III 400 MHz NMR spectrometer (Billerica, MA, USA) equipped with a BBO probe. UV light (366 nm) was generated from a five-channel UV-LED illuminator (Prizmatix, Holon, Israel). An optic fiber (1 m length and 1000 μm core size), whose distal part corresponds to the NMR detection range was sandblasted for uniform light irradiation [24]. A single pulse experiment (zg30) was employed for NMR spectrum acquisition. A series of ¹H spectra were acquired at intervals of 10 s under continuous UV light irradiation. Each ¹H spectrum was obtained for 4 s with one scan number.

4. Conclusions

Two new pyrrolosesquiterpenes, glaciapyrrole D (1) and glaciapyrrole E (2), were discovered from Streptomyces sp. in deep-sea sediment. The structures of 1 and 2 were determined by the analyzing the combined spectroscopic data, crystallographic data, chiroptical chemical derivatization, and ECD calculation results. 1 bears a tetrahydropyran moiety, whereas 2 contains a tetrahydrofuran substructure derived from alternative cyclization of the sesquiterpenoid chains. The tetrahydropyran structure has not been reported for the glaciapyrrole class before, indicating its structural uniqueness. Furthermore, we designed the experiments for systematic conversion of the glaciapyrroles to the corresponding photoglaciapyrroles by UV photoirradiation. Applying this photoirradiation method, the photoreactivity of the glaciapyrroles was identified, and the photoinduced double-bond isomerization led to structural diversification of these pyrrole-bearing sesquiterpenoids. The NanoAssemblr platform was used to efficiently investigate the biological activity of the glaciapyrrole family compounds, which have only been subjected to limited studies before. Specifically, the generation of encapsulated PLGA nanoparticles allowed us to evaluate their antiviral effects for the first time. Glaciapyrrole E and photoglaciapyrrole E displayed inhibitory activity against influenza A virus, with a higher activity with glaciapyrrole E. These results highlight the potential of combining the study of actinobacteria in deep-sea habitats with photochemical structural diversification for utilizing bioactive molecules.
