Comparative Assessment of Nitrogen Concentration Effect on Microalgal Growth and Biochemical Characteristics of Two Chlorella Strains Cultivated in Digestate

by
Savvas Giannis Mastropetros
1,
Eleni Koutra
1,
Mohammed Amouri
2,
Majda Aziza
2,
Sameh Samir Ali
3,4 and
Michael Kornaros
1,*
1
Laboratory of Biochemical Engineering & Environmental Technology (LBEET), Department of Chemical Engineering, University of Patras, 26504 Patras, Greece
2
Centre de Développement des Energies Renouvelables (CDER), BP. 62, Route de l’Observatoire, Algiers 16340, Algeria
3
School of the Environment and Safety Engineering, Biofuels Institute, Jiangsu University, Xuefu Road 301, Zhenjiang 212013, China
4
Botany Department, Faculty of Science, Tanta University, Tanta 31527, Egypt
*
Author to whom correspondence should be addressed.
Mar. Drugs 2022, 20(7), 415; https://doi.org/10.3390/md20070415
Submission received: 5 June 2022 / Revised: 23 June 2022 / Accepted: 23 June 2022 / Published: 25 June 2022
(This article belongs to the Section Marine Biotechnology Related to Drug Discovery or Production)
Browse Figures
Versions Notes

Abstract

:
Microalgae have been recently recognized as a promising alternative for the effective treatment of anaerobic digestion effluents. However, to date, a widely applied microalgae-based process is still absent, due to several constraints mainly attributed to high ammonia concentrations and turbidity, both hindering microalgal growth. Within this scope, the purpose of the present study was to investigate the performance of two Chlorella strains, SAG 211-11b and a local Algerian isolate, under different nitrogen levels, upon ammonia stripping. The experiments were performed on cylindrical photobioreactors under controlled pH (7.8 ± 0.2) and temperature (25 ± 2 °C). Cultures were monitored for biomass production and substrate consumption. After sampling at the beginning of the stationary phase of growth (12th day) and after the maturation of the cells (24th day), an analysis of the produced biomass was conducted, in terms of its biochemical components. The local isolate grew better than C. vulgaris 211-11b, resulting in 1.43 mg L−1 biomass compared to 1.02 mg L−1 under 25 mg NH4-N L−1, while organic carbon and nutrient consumption varied between the two strains and different conditions. Concerning biomass quality, a high initial NH4-N concentration led to high protein content, while low nitrogen levels favored fatty acid (FA) accumulation, though the production of pigments was inhibited. In particular, the protein content of the final biomass was determined close to 45% of the dry weight in all experimental scenarios with adequate nitrogen, while proteins decreased, and the fatty acids approached 20% in the case of the local isolate grown on the substrate with the lowest initial ammonium nitrogen (25 mg NH4-N L−1). The novelty of the present work lies in the comparison of a microalga with industrial applications against a local isolate of the same species, which may prove to be even more robust and profitable.

Graphical Abstract

1. Introduction

Currently, the application of anaerobic digestion for wastewater treatment and biogas production is expanding. According to the Global Bioenergy Statistics 2020 of the World Bioenergy Association, 59.3 billion m3 of biogas was produced globally in 2018, whilst it is predicted that biogas needs will reach 29.5 GW in 2022 [1]. The excess biogas production through anaerobic digestion results in a dramatic increase in effluents, called digestates. This type of by-product is enriched with remarkable levels of nitrogen, phosphorous and organic substances depending on the composition of the substrates used [2]. After an analysis of 213 different liquid digestates, an average ammonium nitrogen concentration was determined close to 2 g L−1, forming a C:N ratio of around 6.5, while phosphorus oxide levels were 0.39% w/w, based on digestate fresh weight [3]. Although digestates can be used as efficient fertilizers and soil conditioners, they can be harmful to natural ecosystems due to their high ammonia and organic content, resulting in eutrophication phenomena in aquatic ecosystems [4,5]. Moreover, anaerobic effluents may contain critical amounts of sulfides and arsenic, up to 1.9 and 0.07 mg L−1, respectively, with potentially toxic effects on flora and fauna [6]. Therefore, the effective management of anaerobic digestion effluents prior to disposal represents a critical challenge [7]. However, physicochemical treatment for reducing digestates’ pollutants seems to be significantly costly and unsustainable. In contrast, biological processes are under investigation in order to provide an effective and environmentally friendly solution to digestate management [8].
Within this scope, microalgal cultures are considered as a promising alternative to common digestate treatment methods, as they effectively consume inorganic and organic components provided by effluents [9]. In addition, the harvested biomass usually contains high amounts of lipids, polysaccharides, proteins and other secondary metabolites, including pigments, vitamins and phenolic compounds, that are characterized by high antioxidant activity [10,11]. Microalgae-based polyunsaturated fatty acids (PUFAs) include eicosapentanoic acid (EPA), docosahexaenoic acid (DHA) and other nutritionally important omega-3s, while the neutral triacyl-glycerides (TAGs) are more suitable for transesterification and biodiesel production [12]. Furthermore, carbohydrates found either in intracellular plastids as energy storage materials or in the microalgal cell wall could be exploited for bioethanol production [13]. Finally, microalgal proteins are characterized by high nutritional value, due to the high variety of included amino acids [14]. Despite the remarkable microalgal performance in digestates, there are still important obstacles that hinder process scale-up, including high operating costs, inefficient harvesting and the sensitivity of many species to culture conditions [15]. Interestingly, both total nitrogen and phosphorus can be totally consumed, but the Chemical Oxygen Demand (COD) reduction ranges from 70 to 90%, as previously reviewed [16], showing that not all the organic load is biodegradable.
The use of low-cost substrates, such as digestates, coupled to microalgae biorefinery could enhance the profitability of microalgal cultivation [17]. However, high nitrogen levels remain a challenge for effective microalgal growth. In general, ammonia dissolved in the growth medium is more harmful for microalgae cells than ammonium cations [18]. Moreover, studies argue that toxicity tolerance levels vary from species to species [19,20]. Indicatively, the growth of Chlorella sp. in a food waste anaerobic effluent, which contained 3.8 g NH4-N L−1, was severely inhibited as a function of the illuminance intensity and the turbidity of the digestate provided, due to the cells’ requirements for light [21]. Furthermore, the productivity of an outdoor microalgae consortium was reduced by 21%, when the ammonium concentration of a piggery-originated digestate was doubled from 0.8 to 1.6 g L−1. Thus, CO2 supplementation was necessary to alleviate this effect [22].
Therefore, several pretreatment methods are usually applied prior to digestate use, in order to reduce effluent toxicity and promote microalgal growth. Struvite precipitation is also a common wastewater treatment method to mainly recover soluble phosphorus, after magnesium addition. Although up to 90% phosphorus recovery can be observed through this process, the removal of the potentially harmful ammonium nitrogen cannot exceed 40% [3]. Targeting more satisfactory nitrogen recovery, exceeding 90%, membranes can be used for the micro-, ultra- and nano-filtration of kitchen and food waste digestate [23]. However, despite the great recovery efficiency, membranes’ operational costs should be reduced [3,23]. Moreover, a variety of adsorbents have been studied regarding their ability to remove ammonium from digestates. Zeolite, which is the most common, has a capacity of 19 g NH4+ kg−1, but it is not characterized by selectivity and pores are often blocked by ions, such as Mg2+ and Ca2+ [24]. Interestingly, ammonia stripping has been successfully applied to piggery wastewater, agricultural effluents and landfill leachate [25,26,27]. However, regarding digestates, though it is possible to remove up to 90% ammonia [28], it is necessary to estimate all the factors that affect its optimization. Ammonia stripping is a physicochemical procedure that allows the conversion of ammonium cations to ammonia gas dissolved in water, which can be subsequently removed from the liquid phase through aeration. Since the ammonia–ammonium equilibrium depends directly on the temperature and pH of the medium [29], an increase in both pH and temperature is highly recommended in order to achieve a satisfactory ammonia removal rate. Continuous ammonia stripping experiments on digestate have previously shown that an air to liquid ratio of 1850 and pH of 10.5 induced 92.8% ammonium removal. In contrast, a temperature increase from 30 °C to 70 °C did not notably affect the process [28]. Lastly, ammonia recovery is performed by a strong acid trap, which prevents ammonia from being released into the atmosphere. Instead, ammonium salts can be formed that can be used as soil conditioners and fertilizers [30].
In recent years, considerable research interest has also been attracted in the isolation and identification of native species of microalgae and cyanobacteria. Local isolates could be found in different habitats, in salt water, freshwater and several types of wastewaters. In addition to microscopy methods, molecular markers are also used for the identification procedure (e.g., 18S rDNA and ITS genes) [31]. As the strains found in nature are likely to exhibit rare characteristics due to long-term adaptation to harsh conditions, more studies are needed for their performance on tested substrates. Local isolates may outperform their conventional competitors in bioproducts’ recovery applications such as the preparation of high-protein food supplements and biodiesel production from fatty acids [31,32].
Within this scope, the purpose of the present study was to evaluate the performance of two strains of the industrial microalgal genus Chlorella, on a digestate derived from the anaerobic digestion of a mixture of expired food products (meat, bread, fruit and vegetables) and hydrolysate of used disposable nappies. Such substrates are challenging due to their high ammonium nitrogen concentration, which can inhibit photosynthesis [33]. A comparison between C. vulgaris (SAG 211-11b) and an Algerian isolate was made regarding cultivation under different initial concentrations of ammonium nitrogen, applied after ammonia stripping. The comparison of already exploited microalgae with new strains, which were locally isolated, is an important contribution in the international literature, as it leads to the expansion of the current knowledge. Furthermore, digestate remediation and the potential use of the produced biomass were evaluated, in order to determine the most effective method for the concomitant digestate treatment and valuable biomass production.

2. Results and Discussion

2.1. Nutrients and COD Consumption

Both Chlorella strains, 211-11b and the local isolate, were cultivated in digestate with defined nutrient concentrations after ammonia stripping, as described in Table 1. The applied stripping process affected the digestate characteristics, causing slight alterations in COD and total phosphorous (TP) content, especially in the case of 25 mg L−1 of initial NH4-N concentration, as it required the longest period in the stripping column (3 days). However, the consumption of nutrients during the microalgal growth was of greater interest. Firstly, the initial COD values of cultures decreased the longer the ammonia stripping process lasted. The COD removal did not significantly depend on the cultivated strain, but on the amount of NH4-N initially provided in the culture. The COD removal was notably lower for the cultures with the limiting amount of NH4-N and did not exceed 60%. C. vulgaris, when tested on piggery wastewater, decreased COD levels by 99%, corresponding to 480 mg L−1 removal [34], while in the present study, a COD reduction of approximately 3 g L−1 was observed. Concerning NH4-N, the greatest nitrogen removal was observed in the experiments with the minimum initial nitrogen concentration and no statistically important difference between the two strains was detected. The nitrogen-sufficient C. vulgaris 211-11b cultures showed around 100 mg NH4-N L−1 removal, in contrast to the local isolate cultures that exhibited even 193 mg L−1 reduction. Comparable results (up to 240 mg L−1) were reported in C. vulgaris cultures with paper-derived digestate [35]. Moreover, cultivation of C. vulgaris in diluted digestate of piggery waste and corn caused the removal of around 100 mg NH4-N L−1 [36]. Nitrogen became the limiting nutrient for the growth of both strains, only at an initial concentration of 25 mg L−1. In contrast, almost complete phosphorous removal was observed in all tested cultures, in accordance with previous studies regarding pulp and paper digestate with TP of 8 mg L−1 [35], while C. vulgaris can demonstrate phosphate removal of up to 30 mg L−1 [36]. In the present study, at a nitrogen surplus, 500 mg NH4-N L−1, microalgal growth was probably restricted either by the limiting light penetration or the complete consumption of the biodegradable organic matter.

2.2. Microalgal Growth under Different Initial Concentrations of Ammonium Nitrogen

Both Chlorella strains were cultivated in digestate that had previously been stripped of NH4-N to evaluate the impact of initial ammonium content on microalgae performance. For each experimental scenario, biomass production, productivity and the maximum specific growth rate (μmax) were determined, as shown in Table 2. The average values of the biomass concentration during the stationary phase (Figure 1) of the cultures are presented as the maximum biomass achieved. Biomass production seemed to depend on both the used strain and the qualitative characteristics of the substrate (p < 0.05). Examining the cases per strain, the local isolate showed a higher concentration of biomass compared to the C. vulgaris 211-11b in untreated digestate, while no statistical difference was found between the two strains in cultures with 25 mg NH4-N L−1. The highest biomass accumulation was observed in cases of initial 25 mg NH4-N L−1. In addition, the local isolate was characterized by higher productivity in both untreated digestate and in nitrogen-limiting substrates. Unfortunately, the behavior of the results for the intermediate concentrations of NH4-N was not clear after the statistical analysis. More repetitions of the same experiment would make it easier to draw conclusions. Both strains yielded close to 0.1 g L−1 day−1 under all tested conditions (Table 2). With a decreasing initial NH4-N concentration, a decrease in the maximum specific growth rate was observed, resulting in μmax values of 0.15 and 0.13 d−1 for C. vulgaris 211-11b and the local isolate, respectively, under 25 mg NH4-N L−1. When nitrogen was not the limiting growth factor, the maximum specific growth rate increased to 0.24 d−1 for C. vulgaris 211-11b and 0.26 d−1 for the local isolate (Table 2).
The results of the present work were comparable with previous findings for C. vulgaris cultivated in 50% dairy digestate, resulting in a biomass concentration of 2.8 g L−1 and biomass productivity of 0.4 g L−1 day−1, while the highest growth rate was observed in 25% loading [37]. In addition, when 10% agro-waste digestate was used as a substrate, the biomass yield, maximum biomass productivity and maximum growth rate reached 0.57 g L−1, 0.032 g L−1 day−1 and 0.161 day−1, respectively [38]. Compared to previous studies, the growth rate of Chlorella vulgaris was slightly higher in 10% municipal wastewater digestate enriched with cheese whey, 0.84 d−1, while the biomass concentration reached 1.24 g L−1 during cultivation in 100% digestate derived from food waste and nappy hydrolysate [39].

2.3. Pigments

Pigments represent valuable microalgal compounds used in autotrophic metabolism and photosynthesis. In the present study, chlorophyll a, chlorophyll b and carotenoids were spectrophotometrically estimated throughout the cultivation of both Chlorella strains. Pigment concentrations on the 12th and 24th days of growth under batch cultivation in digestate with different initial NH4-N contents are listed in Table 3. Pigment production appeared to be affected by the NH4-N concentration, but also the light provided in each culture should be taken into consideration. After ammonia stripping, the digestate became slightly less dark and part of its turbidity was possibly lost. As a result, cells in cultures with the pretreated substrate were probably exposed to greater irradiance. The correlation between digestate color and light intensity was studied in more detail by Marcilac et al. [40]. A high concentration of pigments was observed at the end of growth, the static phase, as initially microalgae were consuming the organic substrate available in the digestate. C. vulgaris 211-11b showed high pigment production in the culture with 250 mg NH4-N L−1, reaching 38.5 mg L−1 or 6.04% w/w of dry biomass weight. Similarly, the produced pigments of the local isolate reached a concentration of 65.1 mg L−1, equal to 6.02% w/w of dry biomass weight, without prior ammonia stripping. However, the intracellular pigments declined over time under nitrogen limitation, as shown in Table 3. Total chlorophylls and carotenoids of C. vulgaris reached 14.2 and 12.9 μg L−1, respectively, in mixotrophic cultures with centrate wastewater, under illumination of 10–15 μmol photons m−2 s−1 [41]. Higher radiation (100 μmol photons m−2 s−1) for long periods caused a decrease in chlorophyll a, while it enhanced the accumulation of β-carotene in C. vulgaris cultivated in a synthetic medium [42]. Moreover, radiation up to 220 μmol photons m−2 s−1 was applied in batches to determine the dependence of chlorophyll on the NH4-N concentration. Under this applied radiation intensity, digestate derived from food waste, containing 400 mg NH4-N L−1, was used for the cultivation of C. vulgaris, which resulted in 28 mg chlorophyll L−1. By increasing the NH4-N levels to 1000 mg L−1, chlorophyll a decreased to 14.9 mg L−1 after 7 days of growth [43].

2.4. Biomass Composition

On the 12th and the 24th days of growth (Figure 1), the produced biomass was harvested and lyophilized in order to determine potential differences in the main intracellular components between the late exponential (12th day) and mature (24th day) phase, with the prospect of investigating potential exploitation routes. As shown in Figure 2 and Figure 3, both species mainly consisted of proteins, the formation of which appeared to be favored by the high levels of NH4-N. The proteins of both strains approached 50% w/w of dry biomass weight under a high NH4-N concentration but decreased to 30% w/w in cultures with only 25 mg NH4-N L−1. As shown in previous studies, proteins in C. vulgaris were close to 50%, carbohydrates were almost 20% and lipids did not exceed 10% of dry cell weight [44]. Based on the results of the present study, when nitrogen became limiting, the accumulation of intracellular carbohydrates and lipids was enhanced. Lipids of both strains were increased between the 12th and 24th days of cultivation, regardless of the initial NH4-N content; however, different increment rates were observed between cultures. In particular, the most remarkable lipid production observed was 18.57% w/w in the case of the local isolate on the 24th day of the nitrogen-limited culture. In contrast, proteins reached up to 60%, while carbohydrates ranged between 25% and 35%, and lipids were only 3% upon nutrient consumption in swine digestate [45]. However, carbohydrates increased against proteins, and fatty acids reached 16.3% under limiting conditions [45]. Lastly, small percentages of the dry biomass were determined as inorganic matter, referred to as ash.

2.5. Fatty Acid (FA) Content and Composition Profile

Fatty acids from microalgae have great potential for a variety of applications, including in the food industry, nutraceutics and biofuel production [46]. In particular, C. vulgaris has given remarkable results, regarding cellular lipid content, simultaneously with wastewater processing. Indicatively, the lipid accumulation reached 37% of dry weight, during cultivation under semi-continuous mode with the addition of poultry compost [47]. Moreover, fatty acids up to 24.5% were noted in batch cultures using diluted agro-waste digestate [38]. Concerning the results of the present study, lipid accumulation under different growth conditions is depicted in Figure 4. Microalgal growth in digestate with different NH4-N L−1 after ammonia stripping verified that nutrient limitation led to an increase in FAs per dry biomass weight. Palmitic (C16:0), oleic (C18:1) and linoleic (C18:2) acids were mainly detected. By comparing the two strains, C. vulgaris 211-11b exhibited high accumulation levels of alpha-linoleic acid (C18:3n3) (Figure 4A,B), while the local isolate presented elevated percentages of linoleic acid (C18:2) (Figure 4C,D). Both alpha-linoleic and linoleic acid occasionally reached 40% of the total fatty acids detected. Palmitic acid was found in large amounts in both microalgal cells. Under nitrogen depletion, palmitic acid accounted for 3.6% of C. vulgaris 211-11b dry weight and reached 4.2% in the case of the local isolate. In Figure 4B,D, the above percentages correspond to 25% and 22.5% of total fatty acids for the C. vulgaris 211-11b and the local isolate, respectively. Similar to these results, the above fatty acids are listed as some of the most usual in C. vulgaris biomass [44,48].

3. Materials and Methods

3.1. Anaerobic Digestion Effluent

The digestate used in this study originated from the anaerobic digestion of a mixture of expired food products and hydrolysate of used disposable nappies, performed at pilot scale. Anaerobic digestion took place at mesophilic conditions (37 ± 2 °C), in two-stage Continuous Stirred-Tank Reactors (CSTR), where the acidification tank was operating at HRT of 2 days, while, for methanogenesis, HRT was retained at 20 days [49]. After digestate collection, the pretreatment followed included centrifugation (Z 32 HK, Hermle AG, Gosheim, Germany) at 4500 rpm for 7 min and filtration through Whatman glass microfiber filters, GF/F, in order to valorize the solid part for compost production [50] and the liquid part for microalgae cultivation.

3.2. Chlorella Strains and Cultivation Conditions

For the present study, two different microalgal strains were used (Figure 5), including Chlorella vulgaris (211-11b), obtained from the SAG Culture Collection (University of Göttingen), and a local Algerian isolate of the same genus [51]. Both strains were kept in BG-11 (73816, Sigma-Aldrich) enriched with trace metal solution (Mix A5 with Co 92942, Sigma-Aldrich). Storage cultures were at room temperature (25 °C), while fluorescent light of approximately 25 μmol photons m−2 s−1 was provided. Prior to inoculation in digestate, pre-cultures of 400 mL total volume, in BG-11 with trace metal solution supplementation, were developed at 25 °C under cool white fluorescent illumination of 200 μmol photons m−2 s−1. Furthermore, in order to supply CO2, atmospheric air was provided at a flow rate of 0.5 L min −1. After 7 days of biomass growth, the microalgal cells were harvested, centrifuged and inoculated in photobioreactors loaded with pretreated digestates. The initial biomass concentration was defined by the determination of the total chlorophylls with a concentration of 1.5 mg L−1.

3.3. Photobioreactors and Experimental Conditions

Microalgal cultures took place in lab-scale photobioreactors (PBRs), made from Schott-type glass. The photobioreactors, of 1.2 L working volume, were operated at batch mode, under continuous stirring of 250 rpm. In addition, air supply was provided at a rate of 0.5 L min−1 by air pumps, while LED strips were attached around the cylindrical reactors to provide 40 μmol photons m−2 s−1. Both temperature and pH were adjusted at 25 ± 2 °C and 7.8 ± 0.2, respectively, by an automatic controller (sc200, Hach). Undiluted digestate was used as a substrate for all the experimental scenarios, after ammonia stripping pretreatment. Four different concentrations of ammonium nitrogen were tested for each microalgal strain studied. Sampling was carried out daily and then every 2 or 3 days in order to construct biomass growth graphs and estimate the maximum specific growth rate and productivity. However, adequate volumes of sample for biomass characterization were taken on the 12th day of growth to determine the biochemical composition after exponential cell growth and then the mature biomass was collected in its entirety on the 24th day.

3.4. Digestate Pretreatment through Ammonia Stripping

Lab-scale ammonia stripping was carried out inside a plexiglass tube of 34 cm height and 8 cm inner diameter. Moreover, 1 L digestate was processed each time, under aeration flow of approximately 2.5 L min −1. The temperature remained at 40 °C via heat exchange between warm water and digestate through the plexiglass cylindrical surface, and the pH value was initially regulated at 12 by adding 6 N NaOH. Notably, the duration of the process ranged from a few hours to a few days, depending on the desired ammonia removal.

3.5. Analytical Methods

3.5.1. Biomass Growth

Biomass concentration was estimated as dry cell weight per culture volume, according to Standard Methods for the determination of total suspended solids (TSS) [52]. The maximum specific growth rate (μmax) was also calculated by the slope of the logarithmic plot of dry weight (DW) as a function of time. Moreover, the productivity of each batch cultivation was estimated as mg L−1 day−1, based on the slope of the exponential growth, using DW plots versus time.

3.5.2. Microalgal Pigments

Chlorophyll a, chlorophyll b and total carotenoids of wet biomass harvested through centrifugation were estimated after extraction using N, N’-dimethylformamide (DMF) at 25 °C for 20 min. Absorbance at four different wavelengths (480 nm, 646.3 nm, 663.8 nm and 750 nm) was determined spectrophotometrically (Varian Cary 50) and subsequently used according to the available equations [53]. The concentration of chlorophylls in green microalgae cultures is considered to be proportional to the biomass concentration and, at the same time, pigments are an indication of cell vitality [54].

3.5.3. Nutrients and COD Analysis

COD and nutrient determination were performed both for digestate characterization and during microalgal cultivation, in order to evaluate digestate remediation, using filtered samples (Whatman GF/F). Organic carbon, estimated through the Chemical Oxygen Demand (COD) assay, ammonium nitrogen (NH4-N), total phosphorous (TP), total solids (TS), volatile solids (VS), total suspended solids (TSS) and volatile suspended solids (VSS) were measured according to Standard Methods [52], while the detailed methods can be found in older studies related to the production and processing of digestates [55].

3.5.4. Biomass Composition

After the biomass had been collected from the PBRs and washed with distilled water, it was lyophilized (Telstar, LyoQuest), and the intracellular proteins, carbohydrates, lipids and inorganic components (determined as % ash, free from VSS) were estimated. Biomass proteins were defined through the semi-micro Kjeldahl method [52], quantifying total Kjeldahl nitrogen (TKN) and using a conversion to protein factor of 6.25 [56,57]. The carbohydrates were estimated by the phenol–sulfuric acid assay [58]. Lipid analysis was based on the conversion of fatty acids (FAs) into fatty acid methyl esters (FAMEs) via in-situ transesterification, as previously described [59]. Analysis of FAMEs was performed by gas chromatography (Agilent Technologies, 7890A), where samples were delivered through a capillary column (DB-WAX, 10m × 0.1 mm × 0.1 μm) to a Flame Ionization Detector (FID). For the analysis, temperature reached 230 °C in the column and 250 °C at both the injector and the detector. Helium was used as a carrier gas with average velocity of 30.3 cm s−1. To quantify the produced FAMEs, a reference standard (FAMQ-005, Accustandard) and an internal standard solution (C17: 0, Sigma) were used. Lastly, the percentage of ash was determined gravimetrically through the vs. assay [52], while the total biomass composition was calculated on a dry weight basis, by taking into consideration the moisture content that was measured through the TS assay [52].

3.5.5. Statistical Analysis

One-way Analysis of Variance (ANOVA) with p value equal to 0.05 was carried out in order to understand how the initial NH4-N concentration affected the performance of the two Chlorella strains. The Minitab 19 software was used to statistically group the results after Tukey’s test (p = 0.05).

4. Conclusions

Cultivation of microalgae in digestates is a potentially effective digestate bioremediation method. However, high nitrogen levels often necessitate a pretreatment step prior to microalgal cultivation. In the present study, ammonia stripping was applied, as an easily applicable and low-cost nitrogen recovery method, followed by microalgal growth. Although both Chlorella strains exhibited satisfactory adaptability and growth in all the initial NH4-N concentrations tested, results were improved by reducing the digestate’s nitrogen content. Lastly, the Algerian isolate of Chlorella sp. showed a remarkable biomass composition, while, besides high protein content, intracellular carbohydrates and fatty acids were also accumulated, with potential added-value applications. Although total phosphorus was completely removed in all cultures, NH4-N was fully consumed only in media with an initial concentration of 25 mg NH4-N L−1. The local isolate exhibited higher biomass production than C. vulgaris 211-11b in untreated digestate (1.07 against 0.63 g L−1) and showed the highest fatty acid content (18.57% w/w) under nitrogen-limiting conditions.

Author Contributions

Conceptualization, M.K.; methodology, S.G.M., M.A. (Mohammed Amouri), M.A. (Majda Aziza) and M.K.; software, S.G.M.; validation, E.K. and M.K.; formal analysis, S.G.M., E.K. and S.S.A.; investigation, S.G.M., E.K., M.A. (Mohammed Amouri), M.A. (Majda Aziza) and S.S.A.; resources, M.K.; data curation, M.K.; writing—original draft preparation, S.G.M. and E.K.; writing—review and editing, M.K.; visualization, S.G.M. and E.K.; supervision, M.K.; project administration, M.K.; funding acquisition, M.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the Euro-Mediterranean Cooperation through ERANET Joint Activities and Beyond, ERANETMED INCO.2003-3.1, and specifically by the Operational Programme “Competitiveness, Entrepreneurship and Innovation” (NSRF 2014–2020, Greece), Project “BIOSOL—Development and demonstration of a hybrid CSP-biomass gasification boiler system” (ERANETMED_ENERG-11-75, Grant Agreement N° 609475, MIS Τ3ΕΡA-00047).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. World Bioenergy Association. Global Bioenergy Statistics 2020; World Bioenergy Association: Stockholm, Sweden, 2020. [Google Scholar]
  2. Korbag, I.; Omer, S.M.S.; Boghazala, H.; Abusasiyah, M.A.A. Recent Advances of Biogas Production and Future Perspective; IntechOpen: London, UK, 2020; ISBN 1839626690. [Google Scholar]
  3. Vaneeckhaute, C.; Lebuf, V.; Michels, E.; Belia, E.; Vanrolleghem, P.A.; Tack, F.M.G.; Meers, E. Nutrient Recovery from Digestate: Systematic Technology Review and Product Classification. Waste Biomass Valorization 2017, 8, 21–40. [Google Scholar] [CrossRef] [Green Version]
  4. Tambone, F.; Orzi, V.; D’Imporzano, G.; Adani, F. Solid and Liquid Fractionation of Digestate: Mass Balance, Chemical Characterization, and Agronomic and Environmental Value. Bioresour. Technol. 2017, 243, 1251–1256. [Google Scholar] [CrossRef] [PubMed]
  5. Logan, M.; Visvanathan, C. Management Strategies for Anaerobic Digestate of Organic Fraction of Municipal Solid Waste: Current Status and Future Prospects. Waste Manag. Res. 2019, 37, 27–39. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Qiu, Z.; Zheng, T.; Dai, Q.; Chen, J. Sulfide and Arsenic Compounds Removal from Liquid Digestate by Ferric Coagulation and Toxicity Evaluation. Water Environ. Res. 2019, 91, 1613–1623. [Google Scholar] [CrossRef] [PubMed]
  7. Tigini, V.; Franchino, M.; Bona, F.; Varese, G.C. Is Digestate Safe? A Study on Its Ecotoxicity and Environmental Risk on a Pig Manure. Sci. Total Environ. 2016, 551–552, 127–132. [Google Scholar] [CrossRef]
  8. Dahlin, J.; Nelles, M.; Herbes, C. Biogas Digestate Management: Evaluating the Attitudes and Perceptions of German Gardeners towards Digestate-Based Soil Amendments. Resour. Conserv. Recycl. 2017, 118, 27–38. [Google Scholar] [CrossRef]
  9. Yang, S.; Xu, J.; Wang, Z.M.; Bao, L.J.; Zeng, E.Y. Cultivation of Oleaginous Microalgae for Removal of Nutrients and Heavy Metals from Biogas Digestates. J. Clean. Prod. 2017, 164, 793–803. [Google Scholar] [CrossRef]
  10. Bule, M.H.; Ahmed, I.; Maqbool, F.; Bilal, M.; Iqbal, H.M.N. Microalgae as a Source of High-Value Bioactive Compounds. Front. Biosci. Sch. 2018, 10, 197–216. [Google Scholar] [CrossRef] [Green Version]
  11. Markou, G.; Wang, L.; Ye, J.; Unc, A. Cultivation of Microalgae on Anaerobically Digested Agro-Industrial Wastes and by-Products. In Application of Microalgae in Wastewater Treatment; Springer: Berlin/Heidelberg, Germany, 2019; pp. 147–172. [Google Scholar]
  12. Kim, J.; Yoo, G.; Lee, H.; Lim, J.; Kim, K.; Kim, C.W.; Park, M.S.; Yang, J.W. Methods of Downstream Processing for the Production of Biodiesel from Microalgae. Biotechnol. Adv. 2013, 31, 862–876. [Google Scholar] [CrossRef]
  13. Ho, S.H.; Chen, C.Y.; Chang, J.S. Effect of Light Intensity and Nitrogen Starvation on CO 2 Fixation and Lipid/Carbohydrate Production of an Indigenous Microalga Scenedesmus Obliquus CNW-N. Bioresour. Technol. 2012, 113, 244–252. [Google Scholar] [CrossRef]
  14. Ejike, C.E.C.C.; Collins, S.A.; Balasuriya, N.; Swanson, A.K.; Mason, B.; Udenigwe, C.C. Prospects of Microalgae Proteins in Producing Peptide-Based Functional Foods for Promoting Cardiovascular Health. Trends Food Sci. Technol. 2017, 59, 30–36. [Google Scholar] [CrossRef]
  15. Zhu, L.; Yan, C.; Li, Z. Microalgal Cultivation with Biogas Slurry for Biofuel Production. Bioresour. Technol. 2016, 220, 629–636. [Google Scholar] [CrossRef] [PubMed]
  16. Xia, A.; Murphy, J.D. Microalgal Cultivation in Treating Liquid Digestate from Biogas Systems. Trends Biotechnol. 2016, 34, 264–275. [Google Scholar] [CrossRef]
  17. Zhang, T.Y.; Hu, H.Y.; Wu, Y.H.; Zhuang, L.L.; Xu, X.Q.; Wang, X.X.; Dao, G.H. Promising Solutions to Solve the Bottlenecks in the Large-Scale Cultivation of Microalgae for Biomass/Bioenergy Production. Renew. Sustain. Energy Rev. 2016, 60, 1602–1614. [Google Scholar] [CrossRef]
  18. Källqvist, T.; Svenson, A. Assessment of Ammonia Toxicity in Tests with the Microalga, Nephroselmis Pyriformis, Chlorophyta. Water Res. 2003, 37, 477–484. [Google Scholar] [CrossRef]
  19. Praveen, P.; Guo, Y.; Kang, H.; Lefebvre, C.; Loh, K.C. Enhancing Microalgae Cultivation in Anaerobic Digestate through Nitrification. Chem. Eng. J. 2018, 354, 905–912. [Google Scholar] [CrossRef]
  20. Collos, Y.; Harrison, P.J. Acclimation and Toxicity of High Ammonium Concentrations to Unicellular Algae. Mar. Pollut. Bull. 2014, 80, 8–23. [Google Scholar] [CrossRef]
  21. Chuka-ogwude, D.; Ogbonna, J.; Borowitzka, M.A.; Moheimani, N.R. Screening, Acclimation and Ammonia Tolerance of Microalgae Grown in Food Waste Digestate. J. Appl. Phycol. 2020, 32, 3775–3785. [Google Scholar] [CrossRef]
  22. Ayre, J.M.; Moheimani, N.R.; Borowitzka, M.A. Growth of Microalgae on Undiluted Anaerobic Digestate of Piggery Effluent with High Ammonium Concentrations. Algal Res. 2017, 24, 218–226. [Google Scholar] [CrossRef] [Green Version]
  23. Fernandes, F.; Silkina, A.; Fuentes-Grünewald, C.; Wood, E.E.; Ndovela, V.L.S.; Oatley-Radcliffe, D.L.; Lovitt, R.W.; Llewellyn, C.A. Valorising Nutrient-Rich Digestate: Dilution, Settlement and Membrane Filtration Processing for Optimisation as a Waste-Based Media for Microalgal Cultivation. Waste Manag. 2020, 118, 197–208. [Google Scholar] [CrossRef]
  24. Shi, L.; Simplicio, W.S.; Wu, G.; Hu, Z.; Hu, H.; Zhan, X. Nutrient Recovery from Digestate of Anaerobic Digestion of Livestock Manure: A Review. Curr. Pollut. Rep. 2018, 4, 74–83. [Google Scholar] [CrossRef]
  25. Zhang, L.; Lee, Y.W.; Jahng, D. Ammonia Stripping for Enhanced Biomethanization of Piggery Wastewater. J. Hazard. Mater. 2012, 199–200, 36–42. [Google Scholar] [CrossRef] [PubMed]
  26. Sigurnjak, I.; Brienza, C.; Snauwaert, E.; De Dobbelaere, A.; De Mey, J.; Vaneeckhaute, C.; Michels, E.; Schoumans, O.; Adani, F.; Meers, E. Production and Performance of Bio-Based Mineral Fertilizers from Agricultural Waste Using Ammonia (Stripping-)Scrubbing Technology. Waste Manag. 2019, 89, 265–274. [Google Scholar] [CrossRef] [PubMed]
  27. Guo, J.S.; Abbas, A.A.; Chen, Y.P.; Liu, Z.P.; Fang, F.; Chen, P. Treatment of Landfill Leachate Using a Combined Stripping, Fenton, SBR, and Coagulation Process. J. Hazard. Mater. 2010, 178, 699–705. [Google Scholar] [CrossRef]
  28. Guštin, S.; Marinšek-Logar, R. Effect of PH, Temperature and Air Flow Rate on the Continuous Ammonia Stripping of the Anaerobic Digestion Effluent. Process Saf. Environ. Prot. 2011, 89, 61–66. [Google Scholar] [CrossRef]
  29. Lei, X.; Sugiura, N.; Feng, C.; Maekawa, T. Pretreatment of Anaerobic Digestion Effluent with Ammonia Stripping and Biogas Purification. J. Hazard. Mater. 2007, 145, 391–397. [Google Scholar] [CrossRef]
  30. Bonmatí, A.; Flotats, X. Air Stripping of Ammonia from Pig Slurry: Characterisation and Feasibility as a Pre- or Post-Treatment to Mesophilic Anaerobic Digestion. Waste Manag. 2003, 23, 261–272. [Google Scholar] [CrossRef]
  31. Ashour, M.; Elshobary, M.E.; El-Shenody, R.; Kamil, A.W.; Abomohra, A.E.F. Evaluation of a Native Oleaginous Marine Microalga Nannochloropsis Oceanica for Dual Use in Biodiesel Production and Aquaculture Feed. Biomass Bioenergy 2019, 120, 439–447. [Google Scholar] [CrossRef]
  32. Zaki, M.A.; Ashour, M.; Heneash, A.M.M.; Mabrouk, M.M.; Alprol, A.E.; Khairy, H.M.; Nour, A.M.; Mansour, A.T.; Hassanien, H.A.; Gaber, A.; et al. Potential Applications of Native Cyanobacterium Isolate (Arthrospira Platensis NIOF17/003) for Biodiesel Production and Utilization of Its Byproduct in Marine Rotifer (Brachionus Plicatilis) Production. Sustainability 2021, 13, 1769. [Google Scholar] [CrossRef]
  33. Abeliovich, A.; Azov, Y. Toxicity of Ammonia to Algae in Sewage Oxidation Ponds. Appl. Environ. Microbiol. 1976, 31, 801–806. [Google Scholar] [CrossRef] [Green Version]
  34. Zheng, H.; Wu, X.; Zou, G.; Zhou, T.; Liu, Y.; Ruan, R. Cultivation of Chlorella Vulgaris in Manure-Free Piggery Wastewater with High-Strength Ammonium for Nutrients Removal and Biomass Production: Effect of Ammonium Concentration, Carbon/Nitrogen Ratio and PH. Bioresour. Technol. 2019, 273, 203–211. [Google Scholar] [CrossRef] [PubMed]
  35. Tao, R.; Kinnunen, V.; Praveenkumar, R.; Lakaniemi, A.M.; Rintala, J.A. Comparison of Scenedesmus Acuminatus and Chlorella Vulgaris Cultivation in Liquid Digestates from Anaerobic Digestion of Pulp and Paper Industry and Municipal Wastewater Treatment Sludge. J. Appl. Phycol. 2017, 29, 2845–2856. [Google Scholar] [CrossRef]
  36. Franchino, M.; Tigini, V.; Varese, G.C.; Mussat Sartor, R.; Bona, F. Microalgae Treatment Removes Nutrients and Reduces Ecotoxicity of Diluted Piggery Digestate. Sci. Total Environ. 2016, 569–570, 40–45. [Google Scholar] [CrossRef]
  37. Zhu, S.; Feng, S.; Xu, Z.; Qin, L.; Shang, C.; Feng, P.; Wang, Z.; Yuan, Z. Cultivation of Chlorella Vulgaris on Unsterilized Dairy-Derived Liquid Digestate for Simultaneous Biofuels Feedstock Production and Pollutant Removal. Bioresour. Technol. 2019, 285, 121353. [Google Scholar] [CrossRef] [PubMed]
  38. Koutra, E.; Grammatikopoulos, G.; Kornaros, M. Selection of Microalgae Intended for Valorization of Digestate from Agro-Waste Mixtures. Waste Manag. 2018, 73, 123–129. [Google Scholar] [CrossRef] [PubMed]
  39. Koutra, E.; Mastropetros, S.G.; Ali, S.S.; Tsigkou, K.; Kornaros, M. Assessing the Potential of Chlorella Vulgaris for Valorization of Liquid Digestates from Agro-Industrial and Municipal Organic Wastes in a Biorefinery Approach. J. Clean. Prod. 2021, 280, 124352. [Google Scholar] [CrossRef]
  40. Marcilhac, C.; Sialve, B.; Pourcher, A.M.; Ziebal, C.; Bernet, N.; Béline, F. Digestate Color and Light Intensity Affect Nutrient Removal and Competition Phenomena in a Microalgal-Bacterial Ecosystem. Water Res. 2014, 64, 278–287. [Google Scholar] [CrossRef]
  41. Ge, S.; Qiu, S.; Tremblay, D.; Viner, K.; Champagne, P.; Jessop, P.G. Centrate Wastewater Treatment with Chlorella Vulgaris: Simultaneous Enhancement of Nutrient Removal, Biomass and Lipid Production. Chem. Eng. J. 2018, 342, 310–320. [Google Scholar] [CrossRef]
  42. Seyfabadi, J.; Ramezanpour, Z.; Khoeyi, Z.A. Protein, Fatty Acid, and Pigment Content of Chlorella Vulgaris under Different Light Regimes. J. Appl. Phycol. 2011, 23, 721–726. [Google Scholar] [CrossRef]
  43. Nwoba, E.G.; Mickan, B.S.; Moheimani, N.R. Chlorella Sp. Growth under Batch and Fed-Batch Conditions with Effluent Recycling When Treating the Effluent of Food Waste Anaerobic Digestate. J. Appl. Phycol. 2019, 31, 3545–3556. [Google Scholar] [CrossRef]
  44. Daneshvar, E.; Antikainen, L.; Koutra, E.; Kornaros, M.; Bhatnagar, A. Investigation on the Feasibility of Chlorella Vulgaris Cultivation in a Mixture of Pulp and Aquaculture Effluents: Treatment of Wastewater and Lipid Extraction. Bioresour. Technol. 2018, 255, 104–110. [Google Scholar] [CrossRef] [PubMed]
  45. Michelon, W.; Da Silva, M.L.B.; Mezzari, M.P.; Pirolli, M.; Prandini, J.M.; Soares, H.M. Effects of Nitrogen and Phosphorus on Biochemical Composition of Microalgae Polyculture Harvested from Phycoremediation of Piggery Wastewater Digestate. Appl. Biochem. Biotechnol. 2016, 178, 1407–1419. [Google Scholar] [CrossRef] [PubMed]
  46. Koutra, E.; Economou, C.N.; Tsafrakidou, P.; Kornaros, M. Bio-Based Products from Microalgae Cultivated in Digestates. Trends Biotechnol. 2018, 36, 819–833. [Google Scholar] [CrossRef]
  47. Tan, X.B.; Lam, M.K.; Uemura, Y.; Lim, J.W.; Wong, C.Y.; Ramli, A.; Kiew, P.L.; Lee, K.T. Semi-Continuous Cultivation of Chlorella Vulgaris Using Chicken Compost as Nutrients Source: Growth Optimization Study and Fatty Acid Composition Analysis. Energy Convers. Manag. 2018, 164, 363–373. [Google Scholar] [CrossRef]
  48. Yusof, Y.A.M.; Basari, J.M.H.; Mukti, N.A.; Sabuddin, R.; Muda, A.R.; Sulaiman, S.; Makpol, S.; Ngah, W.Z.W. Fatty Acids Composition of Microalgae Chlorella Vulgaris Can Be Modulated by Varying Carbon Dioxide Concentration in Outdoor Culture. African J. Biotechnol. 2011, 10, 13536–13542. [Google Scholar] [CrossRef]
  49. Tsigkou, K.; Tsafrakidou, P.; Zagklis, D.; Panagiotouros, A.; Sionakidis, D.; Zontos, D.M.; Zafiri, C.; Kornaros, M. Used Disposable Nappies and Expired Food Products Co-Digestion: A Pilot-Scale System Assessment. Renew. Energy 2021, 165, 109–117. [Google Scholar] [CrossRef]
  50. Tsigkou, K.; Zagklis, D.; Tsafrakidou, P.; Zafiri, C.; Kornaros, M. Composting of Anaerobic Sludge from the Co-Digestion of Used Disposable Nappies and Expired Food Products. Waste Manag. 2020, 118, 655–666. [Google Scholar] [CrossRef]
  51. Amouri, M. Enhancing Microalgae Cultivation Using Biowastes as Growth Media for High Added-Value Co-Products Generation. Res. Sq. 2021, 1–13. [Google Scholar] [CrossRef]
  52. Clesceri, L.S.; Greenberg, A.E.; Eaton, A.D. Standard Methods for Examination of Water and Wastewater, 20th ed.; American Public Health Association, American Water Works Association, Water Environment Federation: Washington, DC, USA, 1999. [Google Scholar]
  53. Wellburn, A.R. The Spectral Determination of Chlorophylls a and b, as Well as Total Carotenoids, Using Various Solvents with Spectrophotometers of Different Resolution. J. Plant Physiol. 1994, 144, 307–313. [Google Scholar] [CrossRef]
  54. Bhuyar, P.; Yusoff, M.M.; Rahim, M.H.A.; Sundararaju, S.; Maniam, G.P.; Govindan, N. Effect of Plant Hormones on the Production of Biomass and Lipid Extraction for Biodiesel Production from Microalgae Chlorella sp. J. Microbiol. Biotechnol. Food Sci. 2020, 9, 671–674. [Google Scholar] [CrossRef]
  55. Tsigkou, K.; Kornaros, M. Development of a High-Rate Anaerobic Thermophilic Upflow Packed Bed Reactor for Efficient Bioconversion of Diluted Three-Phase Olive Mill Wastewater into Methane. Fuel 2022, 310, 122263. [Google Scholar] [CrossRef]
  56. Batista, A.P.; Gouveia, L.; Bandarra, N.M.; Franco, J.M.; Raymundo, A. Comparison of Microalgal Biomass Profiles as Novel Functional Ingredient for Food Products. Algal Res. 2013, 2, 164–173. [Google Scholar] [CrossRef] [Green Version]
  57. Jones, D.B. Factors for Converting Percentages of Nitrogen in Foods and Feeds into Percentages of Protein; US Department of Agriculture: Washington, DC, USA, 1931. [Google Scholar]
  58. Dubois, M.; Gilles, K.A.; Hamilton, J.K.; Rebers, P.A.; Smith, F. Colorimetric Method for Determination of Sugars and Related Substances. Anal. Chem. 1956, 28, 350–356. [Google Scholar] [CrossRef]
  59. Levine, R.B.; Costanza-Robinson, M.S.; Spatafora, G.A. Neochloris Oleoabundans Grown on Anaerobically Digested Dairy Manure for Concomitant Nutrient Removal and Biodiesel Feedstock Production. Biomass Bioenergy 2011, 35, 40–49. [Google Scholar] [CrossRef]
Marinedrugs 20 00415 g001 550

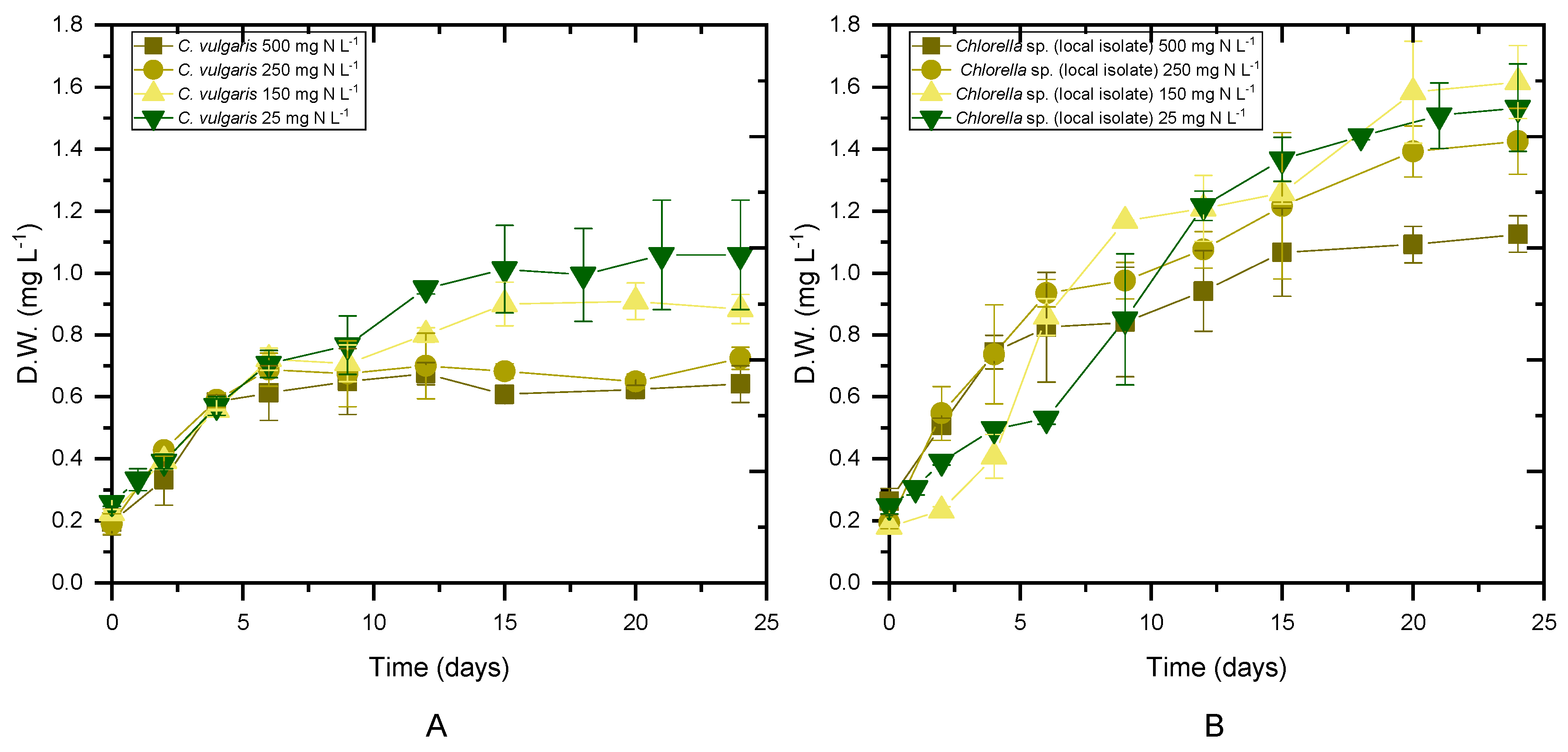

Figure 1. Biomass growth as a function of time for different initial concentrations of NH4-N. ((A) Biomass of C. vulgaris 211-11b, (B) biomass of local isolate Chlorella sp.).
Figure 1. Biomass growth as a function of time for different initial concentrations of NH4-N. ((A) Biomass of C. vulgaris 211-11b, (B) biomass of local isolate Chlorella sp.).
Marinedrugs 20 00415 g001
Marinedrugs 20 00415 g002 550

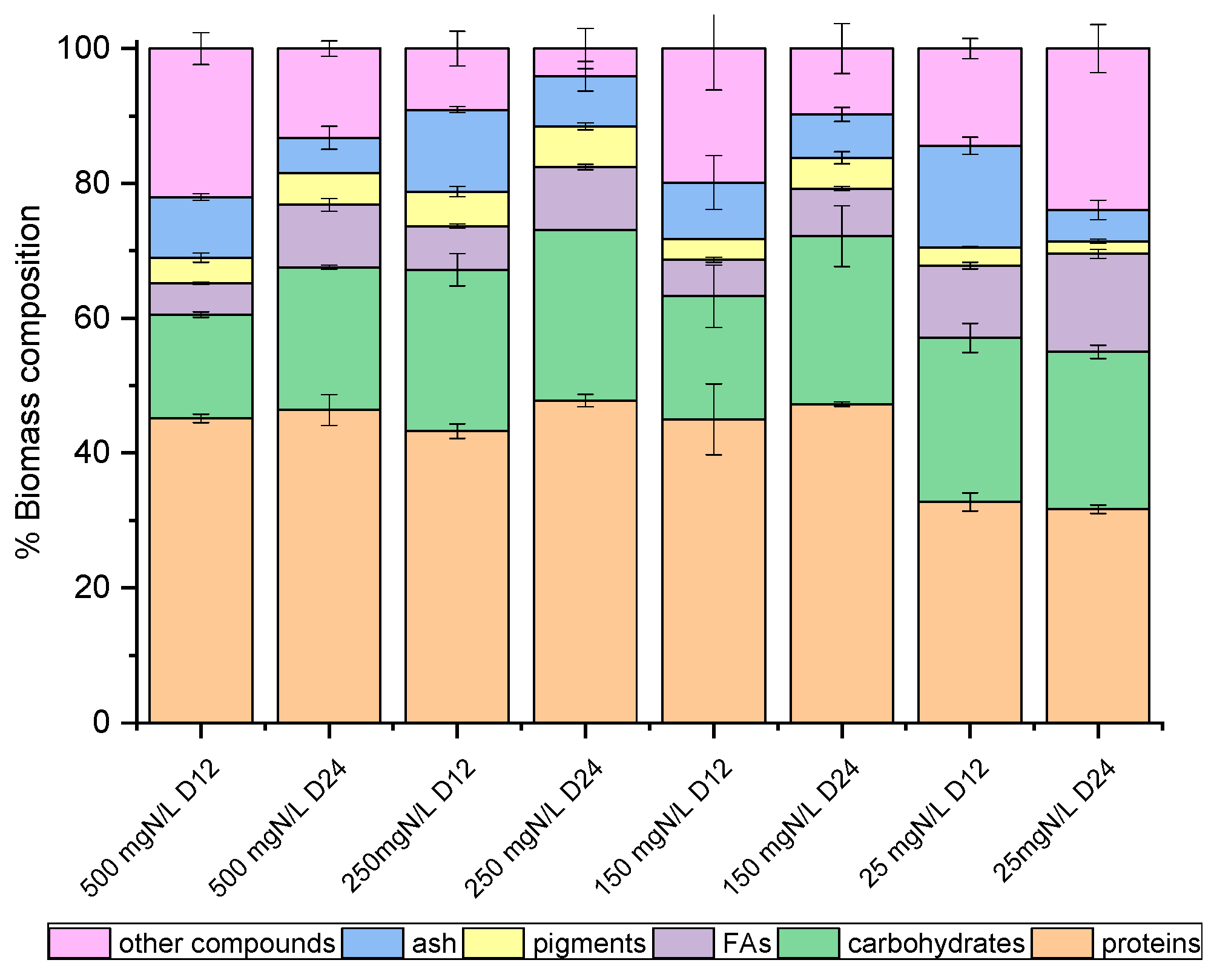

Figure 2. Biomass composition (%) of C. vulgaris 211-11b, on dry weight basis, as determined on the 12th and 24th days of growth.
Figure 2. Biomass composition (%) of C. vulgaris 211-11b, on dry weight basis, as determined on the 12th and 24th days of growth.
Marinedrugs 20 00415 g002
Marinedrugs 20 00415 g003 550

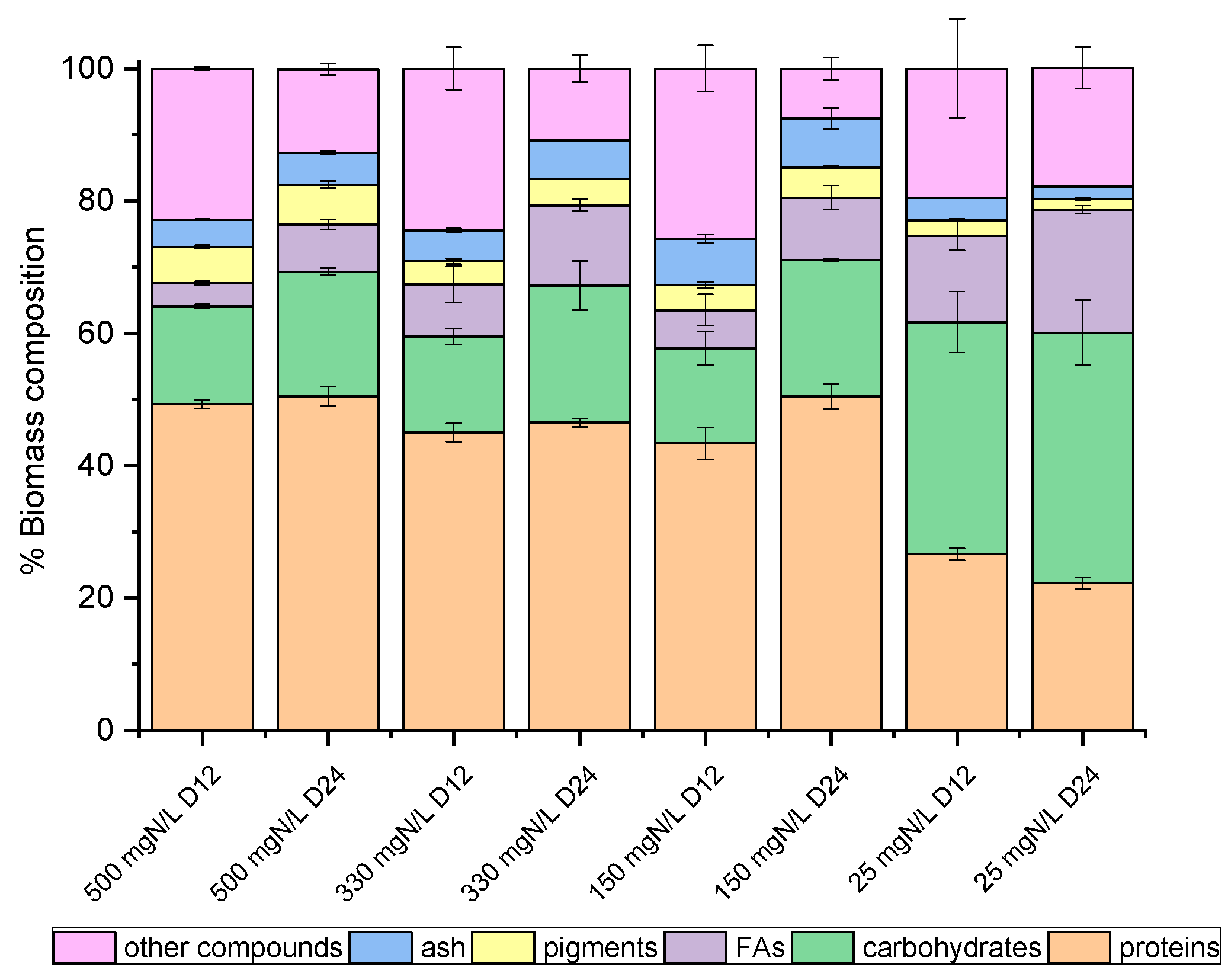

Figure 3. Biomass composition (%) of Chlorella sp. (local isolate), on dry weight basis, as determined on the 12th and 24th days of growth.
Figure 3. Biomass composition (%) of Chlorella sp. (local isolate), on dry weight basis, as determined on the 12th and 24th days of growth.
Marinedrugs 20 00415 g003
Marinedrugs 20 00415 g004 550

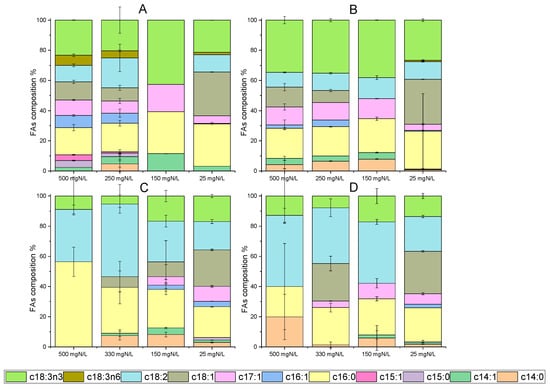

Figure 4. Identification of fatty acids (FAs) in dry biomass of C. vulgaris 211-11b and Chlorella sp. (local isolate) on the 12th and 24th days of growth. Data are given as percentages (%) of total fatty acids detected ((A) FAs for C. vulgaris 211-11b on the 12th day, (B) FA composition for C. vulgaris 211-11b on 24th day, (C) FA composition for Chlorella sp. (local isolate) on 12th day, (D) FA composition for Chlorella sp. (local isolate) on 24th day).
Figure 4. Identification of fatty acids (FAs) in dry biomass of C. vulgaris 211-11b and Chlorella sp. (local isolate) on the 12th and 24th days of growth. Data are given as percentages (%) of total fatty acids detected ((A) FAs for C. vulgaris 211-11b on the 12th day, (B) FA composition for C. vulgaris 211-11b on 24th day, (C) FA composition for Chlorella sp. (local isolate) on 12th day, (D) FA composition for Chlorella sp. (local isolate) on 24th day).
Marinedrugs 20 00415 g004
Marinedrugs 20 00415 g005 550
Figure 5. Pictures of the two Chlorella strains using the laboratory optical microscope Nikon ECLIPSE E200 (magnification: x100/1.25) ((A) picture of C. vulgaris 211-11b from a storage culture, (B) picture of the Algerian isolate Chlorella sp. from a storage culture).
Figure 5. Pictures of the two Chlorella strains using the laboratory optical microscope Nikon ECLIPSE E200 (magnification: x100/1.25) ((A) picture of C. vulgaris 211-11b from a storage culture, (B) picture of the Algerian isolate Chlorella sp. from a storage culture).
Marinedrugs 20 00415 g005
Table
Table 1. Digestate remediation, in terms of COD, NH4-N and TP removal, for each strain and initial ammonium nitrogen concentration examined. Data are presented for the beginning and the end of cultivation, as means ± SD (n = 2).
Table 1. Digestate remediation, in terms of COD, NH4-N and TP removal, for each strain and initial ammonium nitrogen concentration examined. Data are presented for the beginning and the end of cultivation, as means ± SD (n = 2).
C. vulgaris (211-11b)Chlorella sp. (Local Isolate)
(mg L−1)500 mg L−1 NH4-N250 mg L−1 NH4-N150 mg L−1 NH4-N25 mg L−1 NH4-N500 mg L−1 NH4-N330 mg L−1 NH4-N150 mg L−1 NH4-N25 mg L−1 NH4-N
CODInitial conc.3195.7 ± 112.92616.5 ± 39.52783.7 ± 120.21510.0 ± 5.03493.6 ± 20.52837.0 ± 72.82297.0 ± 63.61176.1 ± 46.9
Removal (%)90.8 ± 4.8 a82.2 ± 3.5 a86.5 ± 5.7 a57.5 ± 0.3 b89.6 ± 1.2 a84.6 ± 3.4 a85.2 ± 4.2 a58.2 ± 4.8 b
NH4-NInitial conc.499.0 ± 1.4247.0 ± 1.4145.0 ± 4.123.7 ± 0.4487.0 ± 5.7324.0 ± 9.9147.8 ± 9.524.7 ± 0.3
Removal (%)19.7 ± 0.8 e39.1 ± 3.0 d67.2 ± 5.4 b,c96.2 ± 2.7 a39.7 ± 2.3 d50.5 ± 3.6 c,d81.9 ± 11.1 a,b98.4 ± 1.7 a
TPInitial conc.9.2 ± 0.57.8 ± 0.37.7 ± 0.212.6 ± 0.112.9 ± 1.011.1 ± 1.410.0 ± 0.910.1 ± 1.0
Removal (%)88.0 ± 9.9100.0 ± 8.6 a93.5 ± 3.6 a65.9 ± 2.4 a92.2 ± 10.5 a89.2 ± 17.6 a91 ± 12.9 a88.1 ± 13.2 a
Means that do not share a letter are significantly different.
Table
Table 2. Biomass production (g DW L−1), maximum growth rate (μmax, d−1) and exponential growth phase productivity (g L−1 d−1) of C. vulgaris 211-11b and the local isolate under different initial NH4-N levels.
Table 2. Biomass production (g DW L−1), maximum growth rate (μmax, d−1) and exponential growth phase productivity (g L−1 d−1) of C. vulgaris 211-11b and the local isolate under different initial NH4-N levels.
C. vulgaris (211-11b)Chlorella sp. (Local Isolate)
500 mg L−1
NH4-N		250 mg L−1
NH4-N		150 mg L−1
NH4-N		25 mg L−1
NH4-N		500 mg L−1
NH4-N		250 mg L−1
NH4-N		150 mg L−1
NH4-N		25 mg L−1
NH4-N
Biomass Conc. (g L−1)0.63 ± 0.04 c0.69 ± 0.05 c0.86 ± 0.06 b,c1.02 ± 0.14 a,b,c1.07 ± 0.06 a,b,c1.34 ± 0.18 a,b1.38 ± 0.2 a1.43 ± 0.10 a
μmax (day−1)0.23 ± 0.00 a,b0.24 ± 0.02 a,b0.19 ± 0.08 a,b0.15 ± 0.01 a,b0.26 ± 0.03 a0.25 ± 0.00 a,b0.24 ± 0.00 a,b0.13 ± 0.02 b
Productivity (g L−1 d−1)0.08 ± 0.00 a,b0.10 ± 0.01 a,b0.07 ± 0.02 b0.07 ± 0.00 b0.12 ± 0.00 a,b0.13 ± 0.03 a0.10 ± 0.00 a,b0.08 ± 0.00 a,b
Means that do not share a letter are significantly different.
Table
Table 3. Concentration of pigments, chlorophylls a, b (Ca+b) and total carotenoids (Crt), in C. vulgaris 211-11b and the local isolate cultures. Outset concentrations of chlorophylls a, b and total carotenoids were 1.5 and 0.3 mg L−1, respectively, for all initial NH4-N concentrations.
Table 3. Concentration of pigments, chlorophylls a, b (Ca+b) and total carotenoids (Crt), in C. vulgaris 211-11b and the local isolate cultures. Outset concentrations of chlorophylls a, b and total carotenoids were 1.5 and 0.3 mg L−1, respectively, for all initial NH4-N concentrations.
C. vulgaris (211-11b)Chlorella sp. (Local Isolate)
500 mg L−1
NH4-N		250 mg L−1
NH4-N		150 mg L−1
NH4-N		25 mg L−1
NH4-N		500 mg L−1
NH4-N		250 mg L−1
NH4-N		150 mg L−1
NH4-N		25 mg L−1
NH4-N
(mg L−1)Ca+bCrtCa+bCrtCa+bCrtCa+bCrtCa+bCrtCa+bCrtCa+bCrtCa+bCrt
Day 1221.5 ± 2.9 c,d3.7 ± 0.4 C30.4 ± 0.0 b,c5.1 ± 0.1 A,B,C19.3 ± 0.3 d5.1 ± 0.2 A,B,C19.5 ± 2.8 c,d3.7 ± 0.5 C45.2 ± 7.4 a7.4 ± 1.1 A33.5 ± 0.1 b4.8 ± 0.2 A,B,C39.4 ± 0.5 a,b7.3 ± 1.7 A,B21.2 ± 0.0 c,d4.3 ± 0.0 B,C
Day 2426.5 ± 3.6 c,d,e3.7 ± 0.2 D,E38.5 ± 1.8 b,c5.2 ± 0.3 C,D33.2 ± 3.8 c,d7.6 ± 1.2 B16.6 ± 0.5 e2.8 ± 0.5 E65.1 ± 6.0 a11.1 ± 0.4 A52.7 ± 4.6 a,b6.4 ± 0.8 B,C57.8 ± 3.7 a12.7 ± 0.1 A19.1 ± 1.1 d,e4.3 ± 0.1 C,D,E
Means that do not share a letter are significantly different.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mastropetros, S.G.; Koutra, E.; Amouri, M.; Aziza, M.; Ali, S.S.; Kornaros, M. Comparative Assessment of Nitrogen Concentration Effect on Microalgal Growth and Biochemical Characteristics of Two Chlorella Strains Cultivated in Digestate. Mar. Drugs 2022, 20, 415. https://doi.org/10.3390/md20070415

AMA Style

Mastropetros SG, Koutra E, Amouri M, Aziza M, Ali SS, Kornaros M. Comparative Assessment of Nitrogen Concentration Effect on Microalgal Growth and Biochemical Characteristics of Two Chlorella Strains Cultivated in Digestate. Marine Drugs. 2022; 20(7):415. https://doi.org/10.3390/md20070415

Chicago/Turabian Style

Mastropetros, Savvas Giannis, Eleni Koutra, Mohammed Amouri, Majda Aziza, Sameh Samir Ali, and Michael Kornaros. 2022. "Comparative Assessment of Nitrogen Concentration Effect on Microalgal Growth and Biochemical Characteristics of Two Chlorella Strains Cultivated in Digestate" Marine Drugs 20, no. 7: 415. https://doi.org/10.3390/md20070415

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
