Article

A Novel Bacterium-Like Particle-Based Vaccine Displaying the SUDV Glycoprotein Induces Potent Humoral and Cellular Immune Responses in Mice

by
Shengnan Xu
1,2,
Cuicui Jiao
2,
Hongli Jin
2,3,
Wujian Li
2,3,
Entao Li
2,4,
Zengguo Cao
2,3,
Zhikang Shi
1,2,
Feihu Yan
2,
Shengnan Zhang
2,5,
Hongbin He
6,
Hang Chi
2,7,
Na Feng
2,7,
Yongkun Zhao
2,7,
Yuwei Gao
2,7,
Songtao Yang
2,7,
Jianzhong Wang
1,*,
Hualei Wang
2,3,7 and
Xianzhu Xia
2,7,*
1
College of Animal Science and Technology, Jilin Agricultural University, Changchun 130118, China
2
Key Laboratory of Jilin Province for Zoonosis Prevention and Control, Military Veterinary Research Institute, Academy of Military Medical Sciences, Changchun 130122, China
3
Key Laboratory of Zoonosis Research, Ministry of Education, College of Veterinary Medicine, Jilin University, Changchun 130062, China
4
College of Veterinary Medicine, South China Agricultural University, Guangzhou 510642, China
5
College of Wildlife and Protected Area, Northeast Forestry University, Harbin 150040, China
6
Key Laboratory of Animal Resistant Biology of Shandong, Ruminant Diseases Research Center, College of Life Sciences, Shandong Normal University, Jinan 250014, China
7
Jiangsu Co-innovation Center for Prevention and Control of Important Animal Infectious Diseases and Zoonoses, Yangzhou 225000, China
*
Authors to whom correspondence should be addressed.
Viruses 2019, 11(12), 1149; https://doi.org/10.3390/v11121149
Submission received: 23 October 2019 / Revised: 1 December 2019 / Accepted: 7 December 2019 / Published: 11 December 2019
(This article belongs to the Section Viral Immunology, Vaccines, and Antivirals)
Browse Figures
Versions Notes

Abstract

:
Sudan virus (SUDV) causes severe lethal hemorrhagic fever in humans and nonhuman primates. The most effective and economical way to protect against Sudan ebolavirus disease is prophylactic vaccination. However, there are no licensed vaccines to prevent SUDV infections. In this study, a bacterium-like particle (BLP)-based vaccine displaying the extracellular domain of the SUDV glycoprotein (eGP) was developed based on a gram-positive enhancer matrix-protein anchor (GEM-PA) surface display system. Expression of the recombinant GEM-displayed eGP (eGP-PA-GEM) was verified by Western blotting and immunofluorescence assays. The SUDV BLPs (SBLPs), which were mixed with Montanide ISA 201VG plus Poly (I:C) combined adjuvant, could induce high SUDV GP-specific IgG titers of up to 1:40,960 and robust virus-neutralizing antibody titers reached 1:460. The SBLP also elicited T-helper 1 (Th1) and T-helper 2 (Th2) cell-mediated immunity. These data indicate that the SBLP subunit vaccine has the potential to be developed into a promising candidate vaccine against SUDV infections.

Graphical Abstract

1. Introduction

Ebolaviruses, members of the family Filoviridae, cause severe hemorrhagic fever in primates and respiratory disease in pigs, and induce high morbidity and mortality [1,2,3]. The 2014 outbreak in Western Africa was the largest Ebola virus disease (EVD) outbreak in history, resulting in 11,291 deaths and receiving unprecedented attention worldwide [4]. Unfortunately, an EVD outbreak occurred again in 2018 in eastern Democratic Republic of Congo and, as of August 2019, a total of 2997 EVD cases had been reported, including 2892 confirmed cases with 1998 deaths (overall case fatality rate of 67%) [5]. Since the first outbreak was reported in 1976, five different species of ebolaviruses, including Ebola virus (EBOV), Sudan virus (SUDV), Reston virus (RESTV), Bundibugyo virus (BDBV), and Taï Forest virus (TAFV,) have been identified and their genomic sequences differ by ~35–45% [2]. Excluding EBOV, SUDV has the highest mortality and outbreak rates among the species of ebolaviruses. SUDV has emerged at least six times with average mortality rates of up to 53.76% [6,7]. Multiple vaccines and monoclonal antibodies against EBOV have been developed, but very few of them can effectively prevent and control SUDV infection [8]. Therefore, there is an urgent need to develop a safe and efficacious vaccine against SUDV.
The EBOV genome encodes nine structural proteins, including the surface envelope glycoprotein (GP) as the only membrane protein [9]. The mature GP protein forms homotrimers on the surface of infected cells and virions, which is crucial for receptor binding, viral entry, and host immunity induction, making GP an ideal vaccine target [10]. A number of candidate vaccines for EBOV have demonstrated protection against lethal EBOV challenge in animal models and progressed to clinical trials, and most of these vaccines, including DNA vaccines [11], vaccines based on viral vectors, such as recombinant adenovirus [12] and vesicular stomatitis virus (VSV) [13], and protein-based vaccines, such as virus-like particles (VLPs) [14], have been based on GP. Most notably, a number of the candidate vaccines currently under clinical phase evaluation are viral vector-based vaccines [15,16]. While recombinant vesicular stomatitis virus (rVSV)-based and recombinant adenovirus type-5 vector (rAd5)-based EBOV candidate vaccines have been shown to be highly efficacious against EBOV infection and transmission, numerous side effects, such as fever, acute arthritis, and skin lesions, have been reported [15,17,18]. In addition, preexisting antibodies, costs, and side effects should also be considered. In contrast, EBOV subunit vaccines may offer a relatively safe alternative for inducing immune responses against an antigen of interest [19,20]. However, EBOV subunit vaccines would face hurdles related to immunogenicity, thus requiring selection of the antigen delivery vector and an appropriate adjuvant or even adjuvant combinations [15].
Displaying heterologous pathogen-derived proteins on the surface of bacteria is an effective and safe way to enhance the immunogenicity of a vaccine [21]. Gram-positive enhancer matrix-protein anchor (GEM-PA), a novel surface display system, has a wide range of biotechnological applications, especially in the development of vaccine delivery systems [21]. The GEM-PA surface display system consist of GEM particles based on nonliving and nongenetically modified gram-positive Lactococcus lactis (L. lactis) bacteria and a PA derived from the L. lactis peptidoglycan hydrolase AcmA [22]. Antigens fused with the PA can be anchored effectively and stably to the peptidoglycan of GEM particles and induce antigen-specific immune responses [23]. Furthermore, a vaccine approach based on the GEM-PA surface display system eliminates the risk of including recombinant DNA in the vaccine [24,25]. As a safe, effective, inexpensive, multifunctional platform with a high loading capacity for protein antigens, the GEM-PA surface display system has been applied to a Middle East respiratory syndrome-related coronavirus vaccine [26], a respiratory syncytial virus vaccine, and porcine circovirus type 2 vaccines [25], among others.
In this study, we developed a novel bacterium-like particle (BLP) vaccine displaying the SUDV glycoprotein by using the GEM-PA surface display system.

2. Materials and Methods

2.1. Construction and Expression of Recombinant Baculoviruses

A novel microconsensus (Con) SUDVGP construct was designed through Weblogo, a web-based application. PA gene sequences were obtained from GenBank (GenBank: U17696.1, corresponding to nucleotides 904–1488). All of the genes were codon-optimized for the highest possible expression levels in insect cells and biochemically synthesized (Sangon Biotech, Shanghai, China). The eGP-PA fusion gene was amplified by PCR using synthetic oligonucleotide primers as listed in Table 1 and cloned into XbaI- and KpnI-linearized pFastBac1 vector by ClonExpress Ultra One Step Cloning Kit (Vazyme Biotech). PFastBac1-eGP-PA was then transformed into Escherichia coli DH10Bac competent cells to generate recombinant bacmids. Spodoptera frugiperda (Sf9; Gibco, Grand Island, NY, USA) insect cells were transfected with the recombinant bacmids using Cellfectin II Reagent following the Bac-to-Bac Expression Systems manual (Invitroge, Waltham, MA, USA). Recombinant baculoviruses (rBV-eGP-PA) were harvested at 5 days post transfection and defined as the first passage 1 (P1) premaster virus. These viruses were expanded in Sf9 cells to generate virus stocks.

2.2. Expression Analyses of Recombinant Baculoviruses

For indirect immunofluorescence assay (IFA) analysis, Sf9 cells were grown in 24-well plates and infected with rBV-eGP-PA for 48 h and then fixed with 80% cold acetone for 30 min at room temperature (RT). Subsequently, the cells were incubated with a 1:500 dilution of a mouse anti-SUDV-GP1 monoclonal antibody (prepared and stored in our laboratory; only reacts specifically with SUDV GP) in a buffer containing 1% bovine serum albumin (BSA) for 1 h at RT. After three washes with phosphate buffered saline (PBS) containing 0.05% Tween 20 (PBST), a 1:200 dilution of a fluorescein isothiocyanate (FITC)-labeled goat anti-mouse IgG antibody (Sigma, St. Louis, MO, USA) was added with 0.3% Evans blue for 1 h at RT. The cells were observed with a fluorescence microscope after washing.
For Western blotting (WB), expressed fusion protein (eGP-PA) was separated by 10% SDS-PAGE under denaturing conditions, and the proteins were transferred to a nitrocellulose (NC) membrane (GE Healthcare Life Sciences, Freiburg, Germany) for immunoblot analysis with the mouse anti-SUDV-GP1 monoclonal antibody. Detection was then performed with a horseradish peroxide (HRP)-conjugated goat anti-mouse antibody and enhanced chemiluminescence.

2.3. Preparation of SUDV BLP (SBLP) Vaccine

The preparation of GEM particles has been described in detail elsewhere [26]. Briefly, L. lactis MG1363 cells were cultured in M17 broth (Oxoid) supplemented with 0.5% glucose at 30 °C. GEM particles were obtained by boiling harvested L. lactis in 10% trichloroacetic acid (TCA) for 30 min, followed by extensive washing with PBS. One unit (U) was defined as 2.5 × 109 GEM particles. Finally, the GEM particles were resuspended in PBS and stored at −80 °C until use.
Preparation of the GEM-based vaccine was conducted as follow: supernatants, following supersonic schizolysis containing the eGP-PA fusion protein, were mixed with GEM particles for 30 min at RT. After binding, the eGP-PA-GEM complexes were collected, washed five times with sterile PBS, and resuspended in PBS to produce SBLP, which were the GEM particles displaying the eGP antigen on their surface. The target was determined by using a GP-specific antibody for WB. The amount of bound eGP-PA was compared to BSA standards by analysis of the SDS-PAGE results using software Quantity One.

2.4. Identification of GEM Particle Binding

For the SDS-PAGE and WB analyses of the GEM particles, the eGP-PA-GEM complexes were treated with 5× SDS loading buffer for 10 min at 100 °C, separated using 10% SDS-PAGE gel, and then transferred onto a nitrocellulose (NC) membrane for WB analysis with the mouse anti-SUDV-GP1 monoclonal antibody. For IFA analysis, GEM particles with bound eGP-PA were blocked with 3% BSA for 30 min at 37 °C. Then, incubations with the primary antibody (mouse anti-SUDV-GP1 monoclonal antibody) and secondary antibody (FITC-labeled goat anti-mouse IgG) were performed as previously described (Section 2.2), and the particles were viewed and imaged using a Zeiss microscope with incident UV illumination and a Zeiss Axiovision digital imaging system (Zeiss, Oberkochen, Germany).

2.5. Immunizations of Mice and the Associated Ethics Statement

In total, two batches of BALB/c mice (six- to eight-weeks-old females) were purchased from the Changchun Institute of Biological Products Co., Ltd. (Changchun, China) and immunized. Poly (I:C) (Sigma, USA), aluminum hydroxide (Alum; Thermo, USA), and Montanide ISA 201VG (ISA 201VG; Seppic, France) were purchased. All research was in compliance with the Welfare and Ethics of Laboratory Animals of China (GB 14925-2001), and protocols were approved by the Animal Welfare and Ethics Committee of the Veterinary Institute at the Academy of Military Medical Sciences (JSY-DW-2018-02).
In batch I, mice were randomly divided into 6 groups and immunized as shown in Table 2. In batch II, mice were randomly divided into 3 groups and then vaccinated with 10 μg eGP-PA-GEM alone or with ISA 201VG plus Poly (I:C) compound adjuvant. In the two batches of animal experiments, all of the mice in the control group received both the same volume of PBS at the same time points. Immunizations were performed on study days 0 and 21. Blood samples were collected at two, four, and five weeks post immunization.

2.6. Analysis of Mouse Antibody Titers by Indirect ELISA

Immune sera were collected and analyzed for SUDV-specific antibodies by indirect enzyme-linked immunosorbent assay (ELISA). Briefly, the assays were performed in 96-well polystyrene microtiter plates (Corning Costar, USA) that were precoated with purified GP proteins at a concentration of 2 μg/mL overnight at 4 °C and blocked for 1.5 h at 37 °C. Serial dilutions of the serum samples were incubated at 37 °C for 1.5 h, and the secondary antibodies included HRP-conjugated goat anti-mouse IgG, HRP-conjugated IgG1, and HRP-conjugated IgG2a, which were incubated at 37 °C for 1 h. To develop the colorimetric reaction, the substrate tetramethylbenzidine (Sigma, USA) was added to each well and then the reaction was stopped with 2 M H2SO4. The absorbance was read at 450 nm. Titers were determined as the highest dilution at which the mean absorbance of the sample was 2-fold greater than the mean absorbance of the same dilution of control serum.

2.7. Pseudovirion Neutralization Assay

The neutralizing activity of sera from vaccinated mice against pseudoviruses containing an SUDV GP, based on a human immunodeficiency virus backbone, was analyzed as described in previous studies [27]. Briefly, diluted serum samples were added to Huh7 cells, followed by the addition of 100× 50% tissue-culture infective dose (TCID50) of pseudotype virus (prepared in a volume equal to that of the serum samples), which were incubated at 37 °C for 1 h before addition to the Huh7 cells. After a 5 h incubation, the medium was replaced with DMEM containing 10% FBS. The plates were incubated for 48 h at 37 °C and luciferase activity was measured using Infinite M200. Neutralizing activity is expressed as the percentage reduction in luciferase activity between the sample wells and control wells: ((luciferase activity in the control well – luciferase activity in the sample well)/(luciferase activity in the control well)) × 100%. The 50% neutralization dose (ND50) was calculated using GraphPad Prism.

2.8. IFN-γ, IL-4, and TNF-α ELISpot Assays

Splenocytes were isolated from vaccinated mice at 8 days after the second vaccination. The cells were cultured in Roswell Park Memorial Institute (RPMI) 1640 medium (Gibco, San Diego, CA, USA) containing 10% FBS and then stimulated with or without purified SUDV GP antigen (10 μg/mL). Following an incubation at 37 °C in 5% CO2 for 36 h, the splenocytes producing interferon-gamma (IFN-γ), interleukin 4 (IL-4) or tumor necrosis factor alpha (TNF-α) were measured using mouse enzyme-linked immunospot (ELISpot) kits (Mouse IFN-γ/IL-4 ELISpot kit, Mabtech AB, Stockholm, Sweden) according to the manufacturer’s instructions. The spot-forming cells (SFCs) were counted using an automated ELISpot reader (AID ELISPOT reader-iSpot, AID GmbH, GER).

2.9. ELISA Measurement of Cytokine Secretion

To detect the levels of the cytokines interleukin 2 (IL-2), IL-4, interleukin 10 (IL-10), IFN-γ, and TNF-α, splenocytes were isolated from vaccinated mice at 8 days after the second vaccination and then cultured (1 × 106 cells/mL) with stimulation as described above. After 48 h, the supernatants of the stimulated cells were evaluated using murine IL-2, IL-4, IL-10, IFN-γ, and TNF-α ELISA kits (Mabtech AB, Sweden) according to the manufacturer’s instructions.

2.10. Statistical Analysis

Statistical analysis was performed using GraphPad Prism software (GraphPad Software, La Jolla, CA, USA). Significant differences between two means were determined by an unpaired Student’s t-test. Data are presented as the mean ± standard error unless otherwise indicated. Statistical significance is indicated as * p < 0.05, ** p < 0.01, *** p < 0.001, and **** p < 0.0001.

3. Results

3.1. Expression of SUDV eGP-PA Fusion Protein

As shown in Figure 1A, according to sequence preference characteristics, we designed a new synthetic microconsensus GP based on all strains of SUDV from 1976–2012 that were available on the National Center for Biotechnology Information (NCBI) website. The strategy for designing the eGP-PA fusion protein, in which eGP is fused to the PA with a linker, is shown in Figure 1B. IFA results showed that, compared to control cells, Sf9 cells expressing the eGP-PA fusion protein emitted strong green fluorescence (Figure 1C). WB showed that eGP-PA was successfully expressed and present as a 130 KDa protein in supernatants and precipitates after supersonic schizolysis (Figure 1D,E). Furthermore, as shown in Figure 1D, the mouse anti-SUDV-GP1 monoclonal antibody only reacted specifically with SBLP. All these results indicated that the recombinant eGP-PA protein reacted with anti-SUDV-GP1 monoclonal antibodies with good antigenicity (Figure 1C–E).

3.2. Location of the Fusion Protein on GEM Particles

The production process for SBLP is shown in Figure 2A. A cell-free extract containing eGP-PA was mixed with GEM particles, and, after washing, the particles were subjected to SDS-PAGE analysis (Figure 2B). Analysis by Quantity One indicated that 1 U of GEM particles could bind approximately 65.2 μg of the eGP-PA fusion protein (data not shown). The surface location of eGP-PA on the GEM particles was also analyzed by WB (Figure 2C) and IFA (Figure 2D) with anti-SUDV-GP1 monoclonal antibody. The WB results showed that the eGP-PA fusion protein was bound to GEM particles. Moreover, microscopic observation indicated that, compared with the GEM particles alone, the combination of the GEM particles and eGP-PA fusion protein emitted strong green fluorescence. Therefore, the above results indicated that the eGP-PA fusion protein was anchored to GEM particles.

3.3. Antibody Responses Induced by SBLP

To select the most effective adjuvant from among ISA 201VG plus Poly (I:C), Poly (I:C), Alum, and ISA 201VG for SBLP immunization, 2 weeks after immunization, sera samples were obtained and analyzed (Figure 3A). The results showed that all mice immunized with SBLP had significantly stronger SUDV GP-specific IgG and neutralizing antibody titers than mice immunized with PBS or GEM. In particular, the SBLP + 2 + P group had significantly higher anti-SUDV GP IgG titers than the SBLP alone group (p < 0.0001) (Figure 3B). Furthermore, when the sera samples from vaccinated mice were tested for neutralizing activity, compared with other adjuvant groups, the group immunized with ISA 201VG plus Poly (I:C) as an adjuvant had greater neutralization across the most dilutions. (Figure 3B,C). Therefore, the ISA 201VG plus Poly (I:C) compound adjuvant was selected for further vaccination experiments in mice.
Then, we further compared the antibody responses against SUDV GP induced by SBLP with ISA 201VG plus Poly (I:C) and those induced by SBLP. Pseudotyped virus neutralization assay data showed that the SBLP + 2 + P group exhibited stronger neutralizing antibodies than the SBLP group (Figure 3D). ELISA results showed that sera from mice immunized with SBLP with ISA 201VG plus Poly (I:C) strongly reacted with the SUDV GP protein after receiving a second immunization, reaching endpoint titers of up to 1:40,960 (Figure 3E). By contrast, the antibody levels in sera from SBLP immunized mice showed no significant differences between the samples harvested at 1 week or 2 weeks after the second immunization, indicating that the antibody response plateaued (Figure 3E). A similar phenomenon was also found for sera SUDV GP-specific IgG1 (Figure 3F) and IgG2a (Figure 3F) antibodies at 5 weeks post immunization in mice immunized with SBLP with ISA 201VG plus Poly (I:C) and SBLP. Interestingly, the ratios of IgG2a/IgG1 of SBLP with ISA 201VG plus Poly (I:C) were no significant differences than those of SBLP (Figure 3G), indicating that the SBLP induced a mixed T-helper 1 (Th1) and T-helper 2 (Th2) immune responses.

3.4. Antigen-Specific Cellular Immune Responses

After confirming that SBLP with ISA 201VG plus Poly (I:C) successfully induced an enhanced antibody responses in mice, we next evaluated the T-cell responses in mice following vaccination. The IFN-γ, IL-4, and TNF-α secretion by mouse splenocytes was measured in ELISpot assays. As shown in Figure 4, the SFCs indicative of IFN-γ, IL-4, or TNF-α production by splenocytes from mice immunized with SBLP with ISA 201VG plus Poly (I:C) were significantly more than those from mice immunized with SBLP, indicating that both the Th1 and Th2 arms of adaptive immunity were activated.

3.5. SBLP Vaccine-Enhanced Splenocyte Cytokine Secretion

To further investigate antigen-specific cellular immune responses, the cytokines secreted by splenocytes were assayed using commercial ELISA kits. The levels of the cytokine IL-2, IL-4, IL-10, IFN-γ, and TNF-α secreted by splenocytes from the mice in the SBLP with ISA 201VG plus Poly (I:C) or SBLP alone group were significantly higher than those secreted by splenocytes from the mice in the PBS group (Figure 5). The secretion of IFN-γ, TNF-α, and IL-2 was associated with a Th1 profile, whereas the secretion of IL-4 and IL-10 were associated with a Th2 immune response. These data demonstrated that the SBLP vaccine enhanced the secretion of both type 1 cytokines and type 2 cytokines in splenocytes, especially in the presence of adjuvants.

4. Discussion

The resurgence of the 2018 EVD epidemic in eastern DRC reminds us that there is still the threat of filovirus infection around the world. Subunit vaccines are a promising platform to prevent EBOV infection due to their relative safety, induction of effective immune responses, and available methods for high-level production [28]. GP is a promising candidate antigen for an EBOV protein vaccine. Currently, most EBOV vaccines target the viral GP antigen. Notably, previous studies have shown that subunit vaccines based on eGP were able to protect vaccinated mice against lethal EBOV challenge [29,30]. Bazzill, J. D. et al. [31] proved that a recombinant EBOV antigen (eGP) incorporated into lipid-based nanoparticles could efficiently generate germinal center B cells and polyfunctional T cells while eliciting robust neutralizing antibody responses. Furthermore, the absence of the signal sequence and transmembrane domain facilitated protein expression [10]. Considering the immune effect and protein expression, we chose the soluble extracellular domain of the GP protein as the target immunogen in this study.
The novel exogenous antigen delivery system in this study was based on nonliving, nongenetically modified L. lactis cells designated GEM particles. L. lactis has a long history of use in foods and is recognized as safe [32]. These particles can bind to externally-added heterologous antigens by means of PA with a high loading capacity and high affinity [22]. In addition, chimeric anchor fusion proteins can efficiently, strongly, and selectively bind to GEM particles in culture medium at RT within a short time period without the need for additional purification steps [33]. It is easier to obtain purified antigens in a BLP-based vaccine than in a virus-like particle (VLP) vaccine [26]. Therefore, the cost of production for vaccines using the GEM-PA surface display system will be low. Based on the above advantages, the GEM-PA surface display system has been applied for the development of a variety of vaccines [21]. In the present study, we developed a novel SBLP vaccine by using the GEM-PA surface display system. We found that the SBLP were immunogenic, especially in promoting Th1- and Th2-type immune responses. However, some studies have shown that immunization with unadjuvanted GP nanoparticle vaccines by intramuscular (IM) injection induces IgG1 antibodies but not IgG2a antibodies against GP [27,34,35]. Therefore, we assumed that this outcome might be related to the presence of GEM particles, which can induce Th1-type immune responses when used as a vaccine adjuvant [36,37,38]. This skewing might be the result of an interaction with Toll-like receptor (TLR)-2 by the peptidoglycan present in the GEM particles as TLR-2 activation can shift the immune response toward a Th1-type response [39,40]. As far as we know, this is the first report that an eGP-based SUDV subunit vaccine can induce a mixed Th1/Th2 immune response without an adjuvant. The importance of a mixed Th1 and Th2 response in mediating protection against lethal EBOV infection has been demonstrated in several reports [41,42,43,44,45].
To further improve the immune effect of the SBLP vaccine, we used ISA 201VG mixed with Poly (I:C) as an adjuvant. ISA 201VG, which was developed for commercial products made with water-in-oil-in-water emulsions, can effectively improve immune response and protection [46]. Poly (I:C) has been demonstrated to be a potent adjuvant with the ability to enhance host innate and adaptive immune responses [36,47,48]. Immunization of mice with ISA 201VG mixed with Poly (I:C)-adjuvanted SBLP resulted in significant increases in SUDV GP-specific IgG, IgG1, and IgG2a and SUDV pseudotyped virus-neutralizing antibody titers, which are considered to be important correlates of protection [34,49]. We used the ratio of IgG1 to IgG2a as an indirect method to evaluate induced Th1- and Th2-type biases, respectively, in immune responses. Interestingly, the ratio of IgG2a/IgG1 showed no significant difference between SBLP alone and with an adjuvant. However, in most studies, ISA 201VG and Poly (I:C) adjuvants induced a Th1-polarized immune response [50,51]. We assumed that the presence of the GEM particles may change this bias. Further investigations are warranted to confirm the immunological adjuvant function of the GEM particles in the SBLP subunit vaccine.
EBOV vaccines should simultaneously stimulate the specific humoral and cellular immunity essential for effective vaccination [52,53,54]. The protective cellular immune response is associated with the production of several cytokines, including IFN-γ, TNF-α, IL-2, IL-4, and IL-10 [10,55]. Our results showed that SBLP resulted in significant increases in the secretion of these cytokines and that these levels also significantly increased in the presence of the ISA 201VG plus Poly (I:C) adjuvant. Our results further proved that SBLP can boost immune responses through Th1 and Th2 pathways, which are considered to be important correlates of protection [41,42,43,44,45].
In conclusion, we successfully constructed an SBLP vaccine displaying the eGP protein antigen in this study. Our results clearly demonstrated that SBLP with ISA 201VG plus Poly (I:C) had high immunogenicity and could elicit robust specific humoral and cellular immunity in vaccinated mice. While protective efficacy evaluation of SBLP vaccines in animal models must be performed in a future study, our results strongly support the potential of GEM-PA particles as a display and delivery system for subunit vaccine development. Additionally, efforts are underway to optimize the SBLP primary immune response effect.

Author Contributions

X.X., H.W, S.X., and J.W. designed the experiments. S.X., C.J., H.J., W.L., Z.S., E.L., and S.Z. performed the experiments. Z.C., F.Y., H.C., N.F., and Y.Z. analyzed the data. S.X. wrote the manuscript. X.X., H.W., S.Y., Y.G., H.C., J.W., H.J., N.F., F.Y., H.H., and Z.C. reviewed the manuscript.

Funding

This work was supported by the National Science and Technology Major Project of the Ministry of Science and Technology of China (grants 2015ZX09102025), National Natural Science Foundation of China (31802223), and “Thirteen Five-year Plan” for Sci & Tech Research Program of Jilin Education Department of P.R. China (JJKH20190943KJ).

Acknowledgments

In this section you can acknowledge any support given which is not covered by the author contribution or funding sections. This may include administrative and technical support, or donations in kind (e.g., materials used for experiments).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results

References

  1. Sylvain, B.; Delphine, P.; Lisa, O.; Toni, R.; Lamine, K.; N’Faly, M.; Barrè, S.; Mamadou Saliou, S.; Sakoba, K.T.; Hilde, D.C. Emergence of Zaire Ebola virus disease in Guinea. N. Engl. J. Med. 2014, 371, 1418–1425. [Google Scholar]
  2. Murin, C.D.; Bruhn, J.F.; Bornholdt, Z.A.; Copps, J.; Stanfield, R.; Ward, A.B. Structural Basis of Pan-Ebolavirus Neutralization by an Antibody Targeting the Glycoprotein Fusion Loop. Cell Rep. 2018, 24, 2723–2732. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Kobinger, G.P.; Anders, L.; James, N.; Richardson, J.S.; Darryl, F.; Greg, S.; Kevin, T.; Ami, P.; Weingartl, H.M. Replication, pathogenicity, shedding, and transmission of Zaire ebolavirus in pigs. J. Infect. Dis. 2011, 204, 200–208. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. de la Calle-Prieto, F.; Arsuaga-Vicente, M.; Mora-Rillo, M.; Arnalich-Fernandez, F.; Arribas, J.R. Ebola virus disease: Update. Enferm. Infecc. Y Microbiol. Clin. 2016, 34, 452. [Google Scholar] [CrossRef] [PubMed]
  5. World Health Organization. Ebola virus disease. Available online: https://www.who.int/en/news-room/fact-sheets/detail/ebola-virus-disease (accessed on 8 December 2019).
  6. Awah, P.K.; Boock, A.U.; Kum, K.A. Ebola Virus Diseases in Africa: A commentary on its history, local and global context. Pan Afr. Med J. 2015, 22 (Suppl 1), 18. [Google Scholar]
  7. Albariño, C.G.; Shoemaker, T.; Khristova, M.L.; Wamala, J.F.; Muyembe, J.J.; Balinandi, S.; Tumusiime, A.; Campbell, S.; Cannon, D.; Gibbons, A. Genomic analysis of filoviruses associated with four viral hemorrhagic fever outbreaks in Uganda and the Democratic Republic of the Congo in 2012. Virology 2013, 442, 97–100. [Google Scholar] [CrossRef] [Green Version]
  8. Dias, J.M.; Kuehne, A.I.; Abelson, D.M.; Bale, S.; Wong, A.C.; Halfmann, P.; Muhammad, M.A.; Fusco, M.L.; Zak, S.E.; Kang, E. A shared structural solution for neutralizing ebolaviruses. Nat. Struct. Mol. Biol. 2012, 18, 1424–1427. [Google Scholar] [CrossRef] [PubMed]
  9. Volchkov, V.E.; Volchkova, V.A.; Dolnik, O.; Feldmann, H.; Klenk, H.D. Polymorphism of Filovirus Glycoproteins. Adv. Virus Res. 2005, 64, 359–381. [Google Scholar]
  10. Qiu-Dong, S.; Shi-Hua, H.; Yao, Y.; Feng, Q.; Xue-Xin, L.; Zhi-Yuan, J.; Qing-Ling, M.; Xue-Ting, F.; Rui-Guang, T.; Jonathan, A. Intranasal vaccination with ebola virus GP amino acids 258–601 protects mice against lethal challenge. Vaccine 2018, 36, 6053–6060. [Google Scholar]
  11. Grant-Klein, R.J.; Altamura, L.A.; Badger, C.V.; Bounds, C.E.; Van Deusen, N.M.; Kwilas, S.A.; Vu, H.A.; Warfield, K.L.; Hooper, J.W.; Hannaman, D. Codon-optimized filovirus DNA vaccines delivered by intramuscular electroporation protect cynomolgus macaques from lethal Ebola and Marburg virus challenges. Hum. Vaccin. Immunother. 2015, 11, 1991–2004. [Google Scholar] [CrossRef]
  12. Stanley, D.A.; Honko, A.N.; Asiedu, C.; Trefry, J.C.; Lau-Kilby, A.W.; Johnson, J.C.; Hensley, L.; Ammendola, V.; Abbate, A.; Grazioli, F. Chimpanzee adenovirus vaccine generates acute and durable protective immunity against ebolavirus challenge. Nat. Med. 2014, 20, 1126–1129. [Google Scholar] [CrossRef]
  13. Agnandji, S.T.; Huttner, A.; Zinser, M.E.; Njuguna, P.; Dahlke, C.; Fernandes, J.F.; Yerly, S.; Dayer, J.A.; Kraehling, V.; Kasonta, R. Phase 1 Trials of rVSV Ebola Vaccine in Africa and Europe - Preliminary Report. N. Engl. J. Med. 2016, 374, 1647. [Google Scholar] [CrossRef] [PubMed]
  14. Warfield, K.L.; Swenson, D.L.; Olinger, G.G.; Kalina, W.V.; Aman, M.J.; Bavari, S. Ebola Virus-Like Particle-Based Vaccine Protects Nonhuman Primates against Lethal Ebola Virus Challenge. J. Infect. Dis. 2007, 196 (Suppl 2), S430. [Google Scholar] [CrossRef] [Green Version]
  15. Martins, K.A.; Jahrling, P.B.; Bavari, S.; Kuhn, J.H. Ebola Virus Disease Candidate Vaccines Under Evaluation in Clinical Trials. Expert Rev. Vaccines 2016, 15, 1101–1112. [Google Scholar] [CrossRef] [PubMed]
  16. Lambe, T.; Bowyer, G.; Ewer, K.J. A review of Phase I trials of Ebola virus vaccines: What can we learn from the race to develop novel vaccines? Philos. Trans. of the R. Soc. B Biol. Sci. 2017, 372, 20160295. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Henaorestrepo, A.M.; Camacho, A.; Longini, I.M.; Watson, C.H.; Edmunds, W.J.; Egger, M.; Carroll, M.W.; Dean, N.E.; Diatta, I.; Doumbia, M. Efficacy and effectiveness of an rVSV-vectored vaccine in preventing Ebola virus disease: Final results from the Guinea ring vaccination, open-label, cluster-randomised trial (Ebola Ça Suffit!). Lancet 2016, 386, 857–866. [Google Scholar] [CrossRef]
  18. Suder, E.; Furuyama, W.; Feldmann, H.; Marzi, A.; De, W.E. The vesicular stomatitis virus-based Ebola virus vaccine: From concept to clinical trials. Hum. Vaccin. Immunother. 2018, 14, 1–18. [Google Scholar] [CrossRef] [Green Version]
  19. Ríos-Huerta, R.; Monreal-Escalante, E.; Govea-Alonso, D.O.; Angulo, C.; Rosales-Mendoza, S. Expression of an immunogenic LTB-based chimeric protein targeting Zaire ebolavirus epitopes from GP1 in plant cells. Plant Cell Rep. 2016, 36, 1–11. [Google Scholar] [CrossRef]
  20. Konduru, K.; Shurtleff, A.C.; Bradfute, S.B.; Nakamura, S.; Bavari, S.; Kaplan, G. Ebolavirus Glycoprotein Fc Fusion Protein Protects Guinea Pigs against Lethal Challenge. PLoS ONE 2016, 11, e0162446. [Google Scholar] [CrossRef]
  21. Sang, Y.L.; Choi, J.H.; Xu, Z. Microbial cell-surface display. Trends Biotechnol. 2003, 21, 45–52. [Google Scholar]
  22. Bosma, T.; Kanninga, R.; Neef, J.; Audouy, S.; Van Roosmalen, M.; Steen, A.; Buist, G.; Kok, J.; Kuipers, O.; Robillard, G. Novel surface display system for proteins on non-genetically modified gram-positive bacteria. Appl. Environ. Microbiol. 2006, 72, 880–889. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Wang, D.; Lu, J.; Yu, J.; Hou, H.; Leenhouts, K.; Roosmalen, M.L.V.; Gu, T.; Jiang, C.; Kong, W.; Wu, Y. A Novel PspA Protein Vaccine Intranasal Delivered by Bacterium-Like Particles Provides Broad Protection Against Pneumococcal Pneumonia in Mice. Immunol. Investig. 2018, 47, 1–13. [Google Scholar] [CrossRef] [PubMed]
  24. Van Roosmalen, M.L.; Rolf, K.; Mohamed, E.K.; Jolanda, N.; Sandrine, A.; Tjibbe, B.; Anneke, K.; Eduard, P.; Anton, S.; Jan, K. Mucosal vaccine delivery of antigens tightly bound to an adjuvant particle made from food-grade bacteria. Methods 2006, 38, 144–149. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Li, P.C.; Qiao, X.W.; Zheng, Q.S.; Hou, J.B. Immunogenicity and immunoprotection of porcine circovirus type 2 (PCV2) Cap protein displayed by Lactococcus lactis. Vaccine 2016, 34, 696–702. [Google Scholar] [CrossRef]
  26. Li, E.; Chi, H.; Huang, P.; Yan, F.; Zhang, Y.; Liu, C.; Wang, Z.; Li, G.; Zhang, S.; Mo, R.; et al. A Novel Bacterium-Like Particle Vaccine Displaying the MERS-CoV Receptor-Binding Domain Induces Specific Mucosal and Systemic Immune Responses in Mice. Viruses 2019, 11, 799. [Google Scholar] [CrossRef] [Green Version]
  27. Liu, Y.; Ye, L.; Lin, F.; Gomaa, Y.; Flyer, D.; Carrion, R.; Patterson, J.L.; Prausnitz, M.R.; Smith, G.; Glenn, G. Intradermal immunization by Ebola virus GP subunit vaccines using microneedle patches protects mice against lethal EBOV challenge. Sci. Rep. 2018, 8, 11193. [Google Scholar] [CrossRef]
  28. Wu, X.-X.; Yao, H.-P.; Wu, N.-P.; Gao, H.-N.; Wu, H.-B.; Jin, C.-Z.; Lu, X.-Y.; Xie, T.-S.; Li, L.-J. Ebolavirus Vaccines: Progress in the Fight Against Ebola Virus Disease. Cell Physiol. Biochem. 2015, 37, 1641–1658. [Google Scholar] [CrossRef]
  29. Lehrer, A.T.; Wong, T.A.S.; Lieberman, M.M.; Humphreys, T.; Clements, D.E.; Bakken, R.R.; Hart, M.K.; Pratt, W.D.; Dye, J.M. Recombinant proteins of Zaire ebolavirus induce potent humoral and cellular immune responses and protect against live virus infection in mice. Vaccine 2017, 36, S0264410X17301482. [Google Scholar] [CrossRef]
  30. Krishnamurthy, K.; Bradfute, S.B.; Jerome, J.; Mohanraj, M.; Siham, N.; Sufi, M.; Wood, S.C.; Sina, B.; Kaplan, G.G. Ebola virus glycoprotein Fc fusion protein confers protection against lethal challenge in vaccinated mice. Vaccine 2011, 29, 2968–2977. [Google Scholar]
  31. Bazzill, J.D.; Stronsky, S.M.; Kalinyak, L.C.; Ochyl, L.J.; Steffens, J.T.; Van Tongeren, S.A.; Cooper, C.L.; Moon, J.J. Vaccine nanoparticles displaying recombinant Ebola virus glycoprotein for induction of potent antibody and polyfunctional T cell responses. Nanomedicine 2019, 18, 414–425. [Google Scholar] [CrossRef]
  32. Salminen, S.; Wright, A.V.; Morelli, L.; Marteau, P.; Brassart, D.; Vos, W.M.D.; Fondén, R.; Saxelin, M.; Collins, K.; Mogensen, G. Demonstration of safety of probiotics — A review. Int. J. Food Microbiol. 1998, 44, 93–106. [Google Scholar] [CrossRef]
  33. Cheng, H.; Chen, J.; Cai, Z.; Du, L.; Hou, J.; Qiao, X.; Zheng, Q. Development of GEM-PA-nanotrap for purification of foot-and-mouth disease virus. Vaccine 2019, 37, 3205–3213. [Google Scholar] [CrossRef] [PubMed]
  34. Waranyoo, P.; Dye, J.M.; Jacquelyn, K.; Khanrat, P.; Pratt, W.D.; Arntzen, C.J.; Qiang, C.; Mason, H.S.; Herbst-Kralovetz, M.M. A nonreplicating subunit vaccine protects mice against lethal Ebola virus challenge. Proc. Natl. Acad. Sci. USA 2011, 108, 20695–20700. [Google Scholar]
  35. Bengtsson, K.L.; Song, H.; Stertman, L.; Liu, Y.; Flyer, D.C.; Massare, M.J.; Xu, R.H.; Zhou, B.; Lu, H.; Kwilas, S.A. Matrix-M adjuvant enhances antibody, cellular and protective immune responses of a Zaire Ebola/Makona virus glycoprotein (GP) nanoparticle vaccine in mice. Vaccine 2016, 34, 1927–1935. [Google Scholar] [CrossRef] [Green Version]
  36. Pérez-Girón, J.V.; Alan, B.V.; Ebrahim, H.; Sergio, G.M.; Cruz, J.L.G.; Anja, L.; Paula, R.; Albrecht, R.A.; Adolfo, G.S.; César, M.O.F. Mucosal polyinosinic-polycytidylic acid improves protection elicited by replicating influenza vaccines via enhanced dendritic cell function and T cell immunity. J. Immunol. 2014, 193, 1324–1332. [Google Scholar] [CrossRef]
  37. Audouy, S.A.L.; Saskia, V.S.; Roosmalen, M.L.; van Eduard, P.; Rolf, K.; Jolanda, N.; Silvia, E.O.; Nieuwenhuis, E.E.S.; Adrian, P.V.; Kees, L. Development of lactococcal GEM-based pneumococcal vaccines. Vaccine 2007, 25, 2497–2506. [Google Scholar] [CrossRef]
  38. Saluja, V.; Visser, M.R.; Ter Veer, W.; Roosmalen, M.L.; van Leenhouts, K.; Hinrichs, W.L.J.; Huckriede, A.; Frijlink, H.W. Influenza antigen-sparing by immune stimulation with Gram-positive enhancer matrix (GEM) particles. Vaccine 2010, 28, 7963–7969. [Google Scholar] [CrossRef]
  39. Saluja, V.; Amorij, J.P.; Roosmalen, M.L.V.; Leenhouts, K.; Huckriede, A.; Hinrichs, W.L.J.; Frijlink, H.W. Intranasal Delivery of Influenza Subunit Vaccine Formulated with GEM Particles as an Adjuvant. Aaps J. 2010, 12, 109–116. [Google Scholar] [CrossRef] [Green Version]
  40. Florence, B.; Mensink, R.P.; Karin, V.D.H.; Adriaan, D.; Jogchum, P. TLR2 activation is essential to induce a Th1 shift in human peripheral blood mononuclear cells by plant stanols and plant sterols. J. Biol. Chem. 2010, 285, 2951–2958. [Google Scholar]
  41. Qiu, X.; Lisa, F.; Alimonti, J.B.; Leno, M.P.; Friedericke, F.; Daryl, D.; Ute, S.; Heinz, F.; Jones, S.M.; Derya, U. Mucosal Immunization of Cynomolgus Macaques with the VSVΔG/ZEBOVGP Vaccine Stimulates Strong Ebola GP-Specific Immune Responses. PLoS ONE 2009, 4, e5547. [Google Scholar] [CrossRef]
  42. Shoufeng, R.; Qimei, W.; Liya, C.; Xuejing, Y.; Cuicui, X.; Feng, T.; Leavenworth, J.W.; Liang, S.; Liu, W. Alphavirus Replicon DNA Vectors Expressing Ebola GP and VP40 Antigens Induce Humoral and Cellular Immune Responses in Mice. Front. Microbiol. 2018, 8, 2662. [Google Scholar]
  43. Choi, J.H.; Schafer, S.C.; Zhang, L.; Kobinger, G.P.; Juelich, T.; Freiberg, A.N.; Croyle, M.A. A Single Sublingual Dose of an Adenovirus-Based Vaccine Protects against Lethal Ebola Challenge in Mice and Guinea Pigs. Mol. Pharm. 2012, 9, 156–167. [Google Scholar] [CrossRef] [Green Version]
  44. Lai, C.Y.; Strange, D.P.; Wong, T.A.; Lehrer, A.T.; Verma, S. Ebola Virus Glycoprotein Induces an Innate Immune Response In vivo via TLR4. Front. Microbiol. 2017, 8, 1571. [Google Scholar] [CrossRef] [Green Version]
  45. Callendret, B.; Vellinga, J.; Wunderlich, K.; Rodriguez, A.; Steigerwald, R.; Dirmeier, U.; Cheminay, C.; Volkmann, A.; Brasel, T.; Carrion, R. A prophylactic multivalent vaccine against different filovirus species is immunogenic and provides protection from lethal infections with Ebolavirus and Marburgvirus species in non-human primates. PLoS ONE 2018, 13, e0192312. [Google Scholar]
  46. Ibrahim, E.S.; Gamal, W.M.; Hassan, A.I.; Mahdy, E.D.; Hegazy, A.Z.; Abdel-Atty, M.M. Comparative study on the immunopotentiator effect of ISA 201, ISA 61, ISA 50, ISA 206 used in trivalent foot and mouth disease vaccine. Vet. World 2015, 8, 1189–1198. [Google Scholar] [CrossRef]
  47. Thomas, M.; Wang, Z.; Sreenivasan, C.C.; Hause, B.M.; Renukaradhya, G.J.; Li, F.; Francis, D.H.; Kaushik, R.S.; Khatri, M. Poly I:C adjuvanted inactivated swine influenza vaccine induces heterologous protective immunity in pigs. Vaccine 2015, 33, 542–548. [Google Scholar] [CrossRef]
  48. Mcnally, B.; Willette, M.; Ye, F.; Partidasanchez, S.; Flaño, E. Intranasal Administration of dsRNA Analog Poly(I:C) Induces Interferon-α Receptor-Dependent Accumulation of Antigen Experienced T Cells in the Airways. PLoS ONE 2012, 7, e51351. [Google Scholar] [CrossRef] [Green Version]
  49. Marzi, A.; Engelmann, F.; Feldmann, F.; Haberthur, K.; Shupert, W.L.; Brining, D.; Scott, D.P.; Geisbert, T.W.; Kawaoka, Y.; Katze, M.G. Antibodies are necessary for rVSV/ZEBOV-GP-mediated protection against lethal Ebola virus challenge in nonhuman primates. Proc. Natl. Acad. Sci. USA 2013, 110, 1893–1898. [Google Scholar] [CrossRef] [Green Version]
  50. Mehrizi, A.A.; Rezvani, N.; Zakeri, S.; Gholami, A.; Babaeekhou, L. Poly(I:C) adjuvant strongly enhances parasite-inhibitory antibodies and Th1 response against Plasmodium falciparum merozoite surface protein-1 (42-kDa fragment) in BALB/c mice. Med. Microbiol. Immunol. 2018, 207, 1–16. [Google Scholar] [CrossRef]
  51. Jang, S.I.; Lillehoj, H.S.; Lee, S.H.; Lee, K.W.; Park, M.S.; Bauchan, G.R.; Lillehoj, E.P.; Bertrand, F.; Dupuis, L.; Deville, S. Immunoenhancing effects of Montanide ISA oil-based adjuvants on recombinant coccidia antigen vaccination against Eimeria acervulina infection. Vet. Parasitol. 2010, 172, 221–228. [Google Scholar] [CrossRef]
  52. Darryl, F.; Geisbert, T.W.; Heinz, F. Progress in filovirus vaccine development: Evaluating the potential for clinical use. Expert Rev. Vaccines 2011, 10, 63–77. [Google Scholar]
  53. Gary, W.; Richardson, J.S.; Stéphane, P.; Ami, P.; Xiangguo, Q.; Judie, A.; Jeff, H.; Yi, Z.; Ayato, T.; Heinz, F. Immune parameters correlate with protection against ebola virus infection in rodents and nonhuman primates. Sci. Transl. Med. 2012, 4, 158ra146. [Google Scholar]
  54. Gary, W.; Kobinger, G.P.; Xiangguo, Q. Characterization of host immune responses in Ebola virus infections. Expert Rev. Clin. Immunol. 2014, 10, 781–790. [Google Scholar]
  55. Gai, W.; Zheng, X.; Wang, C.; Wang, H.; Zhao, Y.; Wang, Q.; Wong, G.; Zhang, W.; Feng, N.; Qiu, B. Marburg virus-like particles by co-expression of glycoprotein and matrix protein in insect cells induces immune responses in mice. Virol. J. 2017, 14, 204. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Viruses 11 01149 g001 550

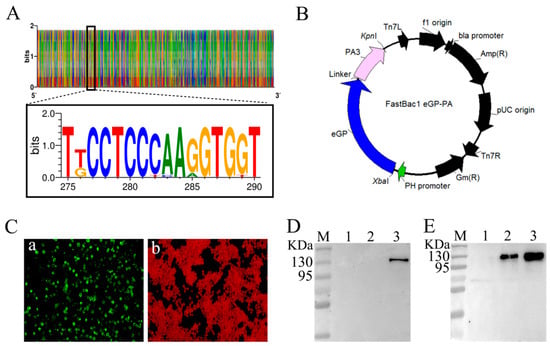

Figure 1. Construction and detection of a recombinant baculovirus. (A) Eighteen SUDVsequence logo of differences and preference characteristics. (B) Schematic of the recombinant baculovirus expressing the SUDV eGP-PA fusion protein. (C) IFA detection of eGP-PA expression in baculovirus-infected Sf9 insect cells (magnification of microscopy images, 200×). Cells were infected with the recombinant baculoviruses in (a) and were mock infected in (b). (D) WB analysis of antibody specificity. M: molecular weight marker; Lane 1: Marburg virus (MARV) virus-like particles; Lane 2: EBOV bacterium-like particles; Lane 3: recombinant baculovirus (rBV-eGP-PA)-infected Sf9 cell lysate. (E) WB analysis of eGP-PA fusion protein expression format. M: molecular weight marker; Lane 1: culture medium supernatant; Lane 2: precipitate following supersonic schizolysis; Lane 3: supernatant following supersonic schizolysis.
Figure 1. Construction and detection of a recombinant baculovirus. (A) Eighteen SUDVsequence logo of differences and preference characteristics. (B) Schematic of the recombinant baculovirus expressing the SUDV eGP-PA fusion protein. (C) IFA detection of eGP-PA expression in baculovirus-infected Sf9 insect cells (magnification of microscopy images, 200×). Cells were infected with the recombinant baculoviruses in (a) and were mock infected in (b). (D) WB analysis of antibody specificity. M: molecular weight marker; Lane 1: Marburg virus (MARV) virus-like particles; Lane 2: EBOV bacterium-like particles; Lane 3: recombinant baculovirus (rBV-eGP-PA)-infected Sf9 cell lysate. (E) WB analysis of eGP-PA fusion protein expression format. M: molecular weight marker; Lane 1: culture medium supernatant; Lane 2: precipitate following supersonic schizolysis; Lane 3: supernatant following supersonic schizolysis.
Viruses 11 01149 g001
Viruses 11 01149 g002 550

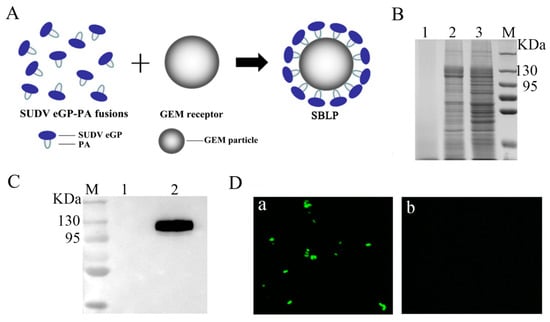

Figure 2. Characterization of eGP-PA binding with GEM particles. (A) Schematic diagram of the production of SBLP. The eGP fragment of interest was fused at its C terminus with the LysM motif (PA). The PA bound noncovalently to the peptidoglycan of BLPs. (B) SDS-PAGE analysis of the binding of eGP-PA fusion protein with GEM particles. M: molecular weight marker; Lane 1: GEM particles; Lane 2: recombinant eGP-PA fusion protein bound to GEM particles; Lane 3: recombinant eGP-PA fusion protein. (C) WB analysis of the binding of eGP-PA fusion protein with GEM particles. M: molecular weight marker; Lane 1: GEM particles; Lane 2: recombinant eGP-PA fusion protein bound to GEM particles. (D) IFA analysis of the binding of the eGP-PA fusion protein with GEM particles (magnification of microscopy images, 1000×). a: eGP-PA-GEM complexes. b: GEM particles.
Figure 2. Characterization of eGP-PA binding with GEM particles. (A) Schematic diagram of the production of SBLP. The eGP fragment of interest was fused at its C terminus with the LysM motif (PA). The PA bound noncovalently to the peptidoglycan of BLPs. (B) SDS-PAGE analysis of the binding of eGP-PA fusion protein with GEM particles. M: molecular weight marker; Lane 1: GEM particles; Lane 2: recombinant eGP-PA fusion protein bound to GEM particles; Lane 3: recombinant eGP-PA fusion protein. (C) WB analysis of the binding of eGP-PA fusion protein with GEM particles. M: molecular weight marker; Lane 1: GEM particles; Lane 2: recombinant eGP-PA fusion protein bound to GEM particles. (D) IFA analysis of the binding of the eGP-PA fusion protein with GEM particles (magnification of microscopy images, 1000×). a: eGP-PA-GEM complexes. b: GEM particles.
Viruses 11 01149 g002
Viruses 11 01149 g003 550

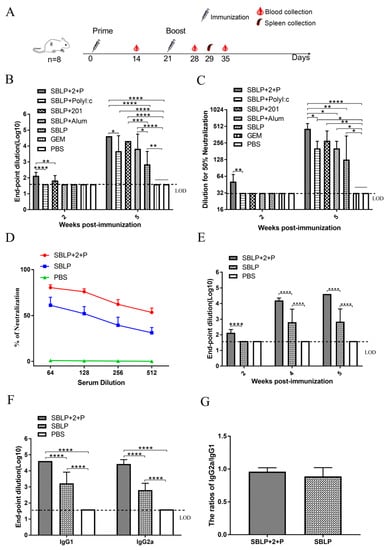

Figure 3. Serum antibody responses induced by SUDV SBLP. Serum samples were collected by retro-orbital plexus puncture at weeks 2, 4, and 5. EBOV GP-specific total IgG, IgG1, and IgG2a antibody responses were measured by indirect ELISA with the purified GP protein and are displayed as the end-point dilution titers. The horizontal dotted line in the figure indicates the limit of detection (LOD). n = 8 mice/group/time point. Data are shown as the mean ± SD and were analyzed by one-way ANOVA. * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001. (A) Schematic of the experiment. (B,C) Analysis of serum antibody titers induced by different adjuvants by ELISA and neutralization of SUDV GP-pseudotyped virus. Neutralizing antibody titers were measured with Huh7 cells and 100× TCID50 of pseudotyped virus. (D) Neutralization of the SUDV GP-pseudotyped virus. Serum samples were collected at 2 weeks after the second immunization. (E) Total anti-SUDV IgG antibody titers of SBLP with ISA 201VG plus Poly (I/C) and SBLP immunized mice at weeks 2, 4, and 5. (F) Serum anti-SUDV antibody subclass responses detected at 2 weeks after the second immunization. (G) Ratios of IgG2a/IgG1.
Figure 3. Serum antibody responses induced by SUDV SBLP. Serum samples were collected by retro-orbital plexus puncture at weeks 2, 4, and 5. EBOV GP-specific total IgG, IgG1, and IgG2a antibody responses were measured by indirect ELISA with the purified GP protein and are displayed as the end-point dilution titers. The horizontal dotted line in the figure indicates the limit of detection (LOD). n = 8 mice/group/time point. Data are shown as the mean ± SD and were analyzed by one-way ANOVA. * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001. (A) Schematic of the experiment. (B,C) Analysis of serum antibody titers induced by different adjuvants by ELISA and neutralization of SUDV GP-pseudotyped virus. Neutralizing antibody titers were measured with Huh7 cells and 100× TCID50 of pseudotyped virus. (D) Neutralization of the SUDV GP-pseudotyped virus. Serum samples were collected at 2 weeks after the second immunization. (E) Total anti-SUDV IgG antibody titers of SBLP with ISA 201VG plus Poly (I/C) and SBLP immunized mice at weeks 2, 4, and 5. (F) Serum anti-SUDV antibody subclass responses detected at 2 weeks after the second immunization. (G) Ratios of IgG2a/IgG1.
Viruses 11 01149 g003
Viruses 11 01149 g004 550

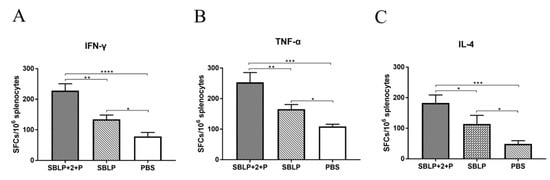

Figure 4. ELISpot analysis of IFN-γ, IL-4, and TNF-α secretion by mouse splenocytes. The splenocytes were collected from each group 8 days after the second immunization treated and analyzed. The secretion of (A) IFN-γ, (B) IL-4, and (C) TNF-α was measured by using ELISpot kit. Data are shown as the mean ± SD and were analyzed using one-way ANOVA (* p < 0.05, ** p < 0.01, *** p < 0.001).
Figure 4. ELISpot analysis of IFN-γ, IL-4, and TNF-α secretion by mouse splenocytes. The splenocytes were collected from each group 8 days after the second immunization treated and analyzed. The secretion of (A) IFN-γ, (B) IL-4, and (C) TNF-α was measured by using ELISpot kit. Data are shown as the mean ± SD and were analyzed using one-way ANOVA (* p < 0.05, ** p < 0.01, *** p < 0.001).
Viruses 11 01149 g004
Viruses 11 01149 g005 550

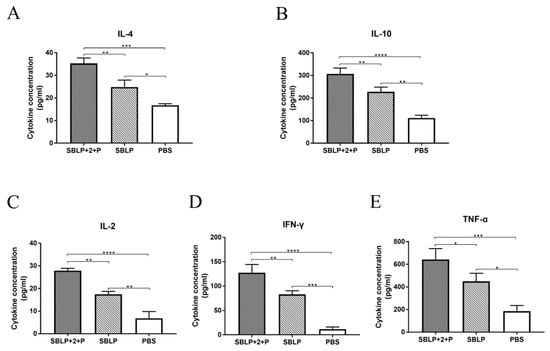

Figure 5. Quantities of IL-2, IL-4, IL-10, IFN-γ and TNF-α secreted by splenocytes. Splenocytes were prepared from 3 mice per group at 8 days after the second vaccination. Cell-free supernatants were harvested at 48 h after incubation and measured to determine the levels (pg/mL) of (A) IL-4, (B) IL-10, (C) IL-2, (D) IFN-γ, and (E) TNF-α via commercial ELISA kits. Data are shown as the mean ± SD and were analyzed using one-way ANOVA (* p < 0.05, ** p < 0.01, *** p < 0.001 and **** p < 0.0001).
Figure 5. Quantities of IL-2, IL-4, IL-10, IFN-γ and TNF-α secreted by splenocytes. Splenocytes were prepared from 3 mice per group at 8 days after the second vaccination. Cell-free supernatants were harvested at 48 h after incubation and measured to determine the levels (pg/mL) of (A) IL-4, (B) IL-10, (C) IL-2, (D) IFN-γ, and (E) TNF-α via commercial ELISA kits. Data are shown as the mean ± SD and were analyzed using one-way ANOVA (* p < 0.05, ** p < 0.01, *** p < 0.001 and **** p < 0.0001).
Viruses 11 01149 g005
Table
Table 1. Sequences of the primers used in the present study.
Table 1. Sequences of the primers used in the present study.
PrimerSequence (5’–3’)Restriction Enzyme Site
eGP F 1CTTACATCTATGCGGCCGCTTCTAGAATGCTACTAGTAAATCAGTCACACCAXbaI
Linker-eGP RACCAGAACCACCACCAGAACCACCACGCCAGCCAGTCCACCAATTATCAT-
Linker-PA F 2GGTGGTTCTGGTGGTGGTTCTGGTGATGGTGCTTCTTCAG-
Linker-PA R 1TAGTACTTCTCGACAAGCTTGGTACCTTACTTGATACGCAGGTATTGACCGATCKpnI
1 The sequences of restriction enzyme sites are underlined and italicized. 2 The middle linker (Gly-Gly-Ser-Gly) x2 base sequences are underlined.
Table
Table 2. The mouse vaccination protocols.
Table 2. The mouse vaccination protocols.
GroupnImmunization RouteAntigenAdjuvant
SBLP + 2 + P8intramuscular10 μg eGP-PA-GEM201VG + Poly(I:C)
SBLP + 2018intramuscular10 μg eGP-PA-GEM201VG
SBLP + PolyI:C8intramuscular10 μg eGP-PA-GEMPoly (I:C)
SBLP + Alum8intramuscular10 μg eGP-PA-GEMAlum
SBLP8Intramuscular10 μg eGP-PA-GEM-
GEM8intramuscularGEM-
PBS8intramuscularPBS-

Share and Cite

MDPI and ACS Style

Xu, S.; Jiao, C.; Jin, H.; Li, W.; Li, E.; Cao, Z.; Shi, Z.; Yan, F.; Zhang, S.; He, H.; et al. A Novel Bacterium-Like Particle-Based Vaccine Displaying the SUDV Glycoprotein Induces Potent Humoral and Cellular Immune Responses in Mice. Viruses 2019, 11, 1149. https://doi.org/10.3390/v11121149

AMA Style

Xu S, Jiao C, Jin H, Li W, Li E, Cao Z, Shi Z, Yan F, Zhang S, He H, et al. A Novel Bacterium-Like Particle-Based Vaccine Displaying the SUDV Glycoprotein Induces Potent Humoral and Cellular Immune Responses in Mice. Viruses. 2019; 11(12):1149. https://doi.org/10.3390/v11121149

Chicago/Turabian Style

Xu, Shengnan, Cuicui Jiao, Hongli Jin, Wujian Li, Entao Li, Zengguo Cao, Zhikang Shi, Feihu Yan, Shengnan Zhang, Hongbin He, and et al. 2019. "A Novel Bacterium-Like Particle-Based Vaccine Displaying the SUDV Glycoprotein Induces Potent Humoral and Cellular Immune Responses in Mice" Viruses 11, no. 12: 1149. https://doi.org/10.3390/v11121149

APA Style

Xu, S., Jiao, C., Jin, H., Li, W., Li, E., Cao, Z., Shi, Z., Yan, F., Zhang, S., He, H., Chi, H., Feng, N., Zhao, Y., Gao, Y., Yang, S., Wang, J., Wang, H., & Xia, X. (2019). A Novel Bacterium-Like Particle-Based Vaccine Displaying the SUDV Glycoprotein Induces Potent Humoral and Cellular Immune Responses in Mice. Viruses, 11(12), 1149. https://doi.org/10.3390/v11121149

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
