Infection Load and Prevalence of Novel Viruses Identified from the Bank Vole Do Not Associate with Exposure to Environmental Radioactivity

by
Jenni Kesäniemi
1,
Anton Lavrinienko
2,
Eugene Tukalenko
3,
Tapio Mappes
2,
Phillip C. Watts
2 and
Jaana Jurvansuu
1,*
1
Finland Ecology and Genetics Research Unit, University of Oulu, 90014 Oulu, Finland
2
Department of Biological and Environmental Science, University of Jyväskylä, 40014 Jyväskylä, Finland
3
National Research Center for Radiation Medicine of the National Academy of Medical Science, 02000 Kyiv, Ukraine
*
Author to whom correspondence should be addressed.
Viruses 2020, 12(1), 44; https://doi.org/10.3390/v12010044
Submission received: 5 December 2019 / Revised: 27 December 2019 / Accepted: 27 December 2019 / Published: 30 December 2019
(This article belongs to the Special Issue Virus Ecology and Evolution: Current Research and Future Directions)
Browse Figures
Versions Notes

Abstract

:
Bank voles (Myodes glareolus) are host to many zoonotic viruses. As bank voles inhabiting areas contaminated by radionuclides show signs of immunosuppression, resistance to apoptosis, and elevated DNA repair activity, we predicted an association between virome composition and exposure to radionuclides. To test this hypothesis, we studied the bank vole virome in samples of plasma derived from animals inhabiting areas of Ukraine (contaminated areas surrounding the former nuclear power plant at Chernobyl, and uncontaminated areas close to Kyiv) that differed in level of environmental radiation contamination. We discovered four strains of hepacivirus and four new virus sequences: two adeno-associated viruses, an arterivirus, and a mosavirus. However, viral prevalence and viral load, and the ability to cause a systemic infection, was not dependent on the level of environmental radiation.

1. Introduction

Metagenomic analyses of rodent fecal and pharyngeal viromes indicate that rodents host a diverse community of DNA and RNA viruses, with viral diversity apparently depending on host taxonomy more than geographical location, although rodent viruses can often shift between hosts [1,2]. The bank vole (Myodes glareolus), a small rodent that is common in woodland habitats throughout much of Europe and northwest Asia, is an zoonotic hyper-reservoir [3]. Bank voles host disease-causing viruses such as Puumala hantavirus [4], flavivirus tick borne encephalitis virus [5], orthonairovirus Crimean–Congo hemorrhagic fever virus [6], cowpox virus [7], and picornavirus Ljungan virus [8]; moreover, bank voles harbor paramyxoviruses [9,10], alphacoronaviruses [11], polyomaviruses [12], herpesviruses [13,14], anelloviruses [15], and hepaciviruses [16]. As bank voles host a diverse and important viral community, this species is an ideal model in which to study the potential effects of environmental factors on virus community and population dynamics. For example, anthropogenically driven environmental changes have been shown to affect Puumala hantaviral transmission in rodents including bank vole [17,18].
The effects of environmental radiation on host–viral dynamics in natural systems are unknown. While high doses (in excess of several kilograys, kGy) of ionizing radiation inactivate viruses [19,20], exposure to lower doses (2.5–25 Gy) can activate replication in some viruses, such as cytomegalovirus [21], endogenous retroviruses [22], human immunodeficiency virus [23], hepatitis B virus [24,25], Epstein–Barr virus [26,27], reovirus [28], herpes simplex virus [29], parvoviruses [30,31], and poliovirus [32]. Virus activation by irradiation may be facilitated by radiation-mediated immunosuppression that makes the host more susceptible to virus infection and replication [33,34,35], or by radiation-induced activation of the DNA repair proteins that some viruses utilize in their replication [36,37]. Wild bank voles exposed to chronic low-dose (up to 20 µGy/h) environmental radiation show activated transcription of DNA repair proteins [38] and inhibited apoptosis [39], and show signs of immunosuppression [40]. As these processes may support virus replication, we predicted an elevated viral load in bank voles inhabiting areas contaminated by radionuclides compared with uncontaminated areas.
To test our prediction, we isolated and characterized the virome from plasma samples from bank voles inhabiting (1) the Chernobyl exclusion zone (CEZ) and (2) from areas close to Kyiv, Ukraine, where the habitat is not contaminated by radionuclides. The CEZ is an area surrounding the former Chernobyl nuclear power plant that presents a mosaic of areas contaminated by radionuclides [41]. We identified four novel virus sequences in bank voles: Myodes glareolus adeno-associated viruses 1 and 2, Myodes glareolus arterivirus 1, and Myodes glareolus mosavirus 1. We also identified four new hepacivirus strains. Counter to our expectations, we found no evidence of an association between exposure to environmental radiation and either viral load (of plasma, and also derived from liver and spleen transcriptomes) or prevalence in bank voles.

2. Materials and Methods

2.1. Animals

Bank voles were collected in July and October 2016. Bank voles were caught at 20 trapping locations within northern Ukraine (Tables S1–S3, Figure 1), using Ugglan Special2 live traps (Grahnab, Sweden) as previously described [42]. Briefly, at each location, 16 traps were placed in a 4 × 4 grid, with an intertrap distance of 20 m. The trapping period was up to three consecutive nights in each location. Traps were initially set in the late afternoon and animals were collected early each following morning. Captured animals were taken to a laboratory, where body mass and sex were recorded for all individuals. Blood sample was taken from the retro-orbital sinus with EDTA-treated capillaries (Hirschmann Laborgeräte, Germany) into EDTA-containing tubes (MiniCollector, Greiner Bio-One). Animals were humanely euthanized by cervical dislocation. Collected blood samples were centrifuged at 2000 g for 10 min, after which the supernatant was pipetted into sterile 1.5 mL tubes and frozen at −20 °C until further processing. Environmental radiation levels at each trapping location were measured at 1 cm above the ground using a Geiger–Mueller dosimeter (Gamma-Scout, Germany). In addition, every individual was subjected to γ-spectrometry (SAM 940, Berkeley Nucleonics) to estimate whole-body radionuclide (137Cs) burden and internal radiation exposure (see the Appendix A for details on estimates of the total absorbed radiation dose rates).

2.2. Virus Identification

Virus particles were isolated from pooled plasma samples. A total 100 µL of plasma was pooled from bank voles collected from the Kyiv control area (east: N = 9 and west: N = 8) or CEZ area (west: N = 10) (Figure 1, Table S1). Samples were centrifuged at 10,000 g for 10 min and supernatant was treated with universal nuclease (125 U/mL, Thermofisher, Waltham, MA, USA) at room temperature for 10 min. Samples were then filtered (0.45 µm) and centrifuged with a 38% sucrose cushion at 175,000 g for 3 h. Virus DNA and RNA was isolated from the pellet using a GeneJET Viral DNA/RNA Purification Kit (ThermoFisher). Double-stranded cDNA was synthesized with Maxima H Minus Double-Stranded cDNA Synthesis Kit (ThermoFisher); the samples were concentrated with PureLinkTM PCR Micro PCR kit, and sent for sequencing (100 bp paired-end reads on an Illumina HiSeq4000) to BGI Tech Solutions (Hong Kong, China).
Raw reads were deposited on the National Center for Biotechnolgy Information’s (NCBI) Sequence Read Archive (SRA) (bioproject ID: PRJNA557363). Servers and software for bioinformatic processing and analysis were provided by The Finnish IT center for Science (www.csc.fi). Adaptor sequences and low quality reads were removed using Trimmomatic [43]. Trinity v2.3.2 [44] was used to build contigs, CAP3 [45] was used to collapse overlapping contigs, Blastx v2.3.0 [46] and NCBI viral refseq (downloaded 01.05.2019) were used to identify contigs with virus sequences in them, and NOVOplasty [47] was used to lengthen the viral contigs. Read alignments on virus sequences were inspected with IGV [48], and only apparently complete or nearly complete (MgAAV2) virus sequences were used in further analysis. ORFfinder (www.ncbi.nlm.nih.gov/orffinder), Blastp (nr), and Hhpred [49] were used to identify coding regions and hypothetical protein function. mFold [50] was used to predict secondary RNA and DNA structures and TMHMM Server v. 2.0 (www.cbs.dtu.dk/services/TMHMM) was used to predict transmembrane domains. Remapping and mapping of reads from the transcriptome data to virus sequences was done with BWA [51].
Phylogenetic clustering of new viral genomes was achieved by aligning the five most similar polymerase sequences as identified by Blastp (nr) with Muscle [52] using neighbour-joining, Poisson correction, and 500 replicate bootstraps, as implemented in MEGA7 [53]. All positions containing gaps and missing data were eliminated.

2.3. qPCR

Virus DNA and RNA was isolated with GeneJET Viral DNA/RNA Purification Kit (ThermoFisher) from 100 µl of plasma (Kyiv east: Nfemales = 9, Nmales = 10; Kyiv west: Nfemales = 10; CEZ east: Nfemales = 3, Nmales = 9; and CEZ west: Nfemales = 17, Nmales = 10; Tables S2 and S3, and Figure 1b,c). Prevalences and load of DNA viruses were quantified by qPCR on RNAse A- (ThermoFisher) treated and cleaned (GeneJET PCR purification Kit, ThermoFisher) DNA samples. To analyze RNA viruses, cDNA was made with RevertAid First Strand cDNA Synthesis Kit and random primers (ThermoFisher). Virus cDNA and RNAse-A-treated virus preparations were analyzed by qPCR with virus-specific primers (Table S6) using EvaGreen (Solis BioDyne), as recommended by the manufacturer. We used a purified (GeneJet gel Extraction kit, ThermoFisher) and quantified Phusion-amplified (ThermoFisher) PCR products as qPCR standards. Only results with more than 100 virus molecules per 2 µL sample were analyzed.

2.4. Statistical Analysis

All statistical analyses were done in R v3.5.0 (www.r-project.org).

3. Results

3.1. Virus Identification from the Next-Generation Sequencing Data

We isolated virus particles for sequencing from plasma of female bank voles collected from two areas near Kyiv (Kyiv Nwest = 9, Kyiv Neast = 8), where there is no elevated level of radiation, and from a site within the Chernobyl exclusion zone (CEZ Nwest = 10), where soil was contaminated with radionuclides (Figure 1A, Table S1). After next-generation sequencing on an Illumina platform, we assembled contigs from the pooled sequencing data using Trinity. Potential virus sequences were identified by their similarity to known viral proteins in NCBI GenBank database. We identified eight complete or nearly complete virus sequences (Table 1), which were classified according to their genomic organization and phylogenetic relationship to known mammalian viruses (Figure 2a–h): Myodes glareolus adeno-associated virus 1 (MgAAV1, Genbank ID = MN242366), Myodes glareolus adeno-associated virus 2 (MgAAV2, Genbank ID = MN242367), Myodes glareolus arterivirus 1 (MgAV1, Genbank ID = MN242368), Myodes glareolus hepacivirus 2–5 (MgHV2–5, Genbank IDs = MN242369, MN242370, MN242371, and MN242372 respectively), and Myodes glareolus mosavirus 1 (MgMV1, Genbank ID = MN242373).

3.2. Adeno-Associated Viruses

Parvoviridae are linear, single-stranded DNA viruses with a genome of 4–6 kb that codes for structural proteins (capsid) and replication protein (REP). Parvoviruses are non-enveloped viruses with two terminal hairpin structures, which prime replication [39]. Parvoviruses infect vertebrate (Parvovirinae) and invertebrate (Densovirinae) hosts [40]. The subfamily Parvovirinae is divided into eight genera based on the proteins they transcribe: Amdoparvovirus, Aveparvovirus, Bocaparvovirus, Dependoparvovirus, Erythroparvovirus, Copiparvovirus, Protoparvovirus, and Tetraparvovirus [54]. Dependoparvoviruses encode an additional small assembly-activating protein (AAP) from an alternative reading frame overlapping the structural protein. We found two parvovirus sequences with replication protein similarities to adeno-associated viruses of Dependoparvovirus genera; Myodes glareolus adeno-associated virus 1 (MgAAV1) and 2 (MgAAV2) had 4927 nt and 4517 nt long genomes, respectively (Figure 2a). MgAAV1 and 2 had 72% of identity between their replication proteins. According to International Committee on Taxonomy of Viruses (ICTV), the species demarcation criteria for dependoparvoviruses is less than 85% sequence identity on REP proteins, and thus MgAAV1 and 2 represent separate species. In the phylogenetic analysis, MgAAV1 and 2 sequences clustered with murine adeno-associated virus 1 and 2 (identified from fecal samples of New York city house mice [55]) and then with bovine, caprine, and human adeno-associated viruses [56] (Figure 2b). MgAAV1 had three open reading frames (ORFs) coding for 113 aa, 593 aa, and 716 aa long proteins. The smallest ORF of MgAAV1 encoded a protein similar to the AAP protein of human adeno-associated virus (ASW20948.1, 72% query cover, 61% identity), while the 593 aa long protein was similar to the REP of human adeno-associated virus 1 (AWB14637.1, 99% cover, 54.4% identity); MgAAV1′s largest protein was similar to murine adeno-associated virus 2 capsid (AWB14640.1, 100% cover, 63.7% identity). Similarly, MgAAV2 had three ORFs: 137 aa, 556 aa, and 729 aa in length. They were coding proteins similar to AAP of corn snake parvovirus (AKM49968.1, 97% cover, 54.3% identity), murine adeno-associated virus 1 REP (AWB14637.1, 87% cover, 62% identity), and capsid protein of bovine adeno-associated virus (AJE25863.1, 100% cover, 73% identity). Both viruses had inverted repeats in their genome: MgAAV1 at positions 1–330 nt and 4597–4927 nt and MgAAV2 at position 1–60. Since the 3′ hairpin structure of MgAAV2 was absent, the genome sequence was only partially reconstructed.

3.3. Arterivirus

Arteriviruses are enveloped, positive-strand RNA viruses in the order of Nidovirales. The Arteriviridae infect mammals, including Grey red-backed voles [1]. Arteriviruses infect macrophages and the infection can be asymptotic, persistent, or disease-associated [57]. Arterivirus genome is polycistronic, poly-adenylated, and codes for 11 proteins. We found nine ORFs from MgAV1, with the largest proteins (2491 and 1410 aa ORFs) similar to replicase polyprotein 1a and 1b of the Grey red-backed vole arterivirus 1 (YP009214659.1, 99% cover, 64% and 81.6% identity, respectively) (Figure 2c). MgAV1 clustered in phylogenetic analysis with the arterivirus identified from Grey red-backed vole [1] (Figure 2d) and is thus, according to ICTV nomenclature guidelines, best described as an unassigned species within the Arteriviridae family. The remaining ORFs of MgAV1 were (in order from the 5′ end): envelope protein E (70 aa, 100% cover, 55.7% identity with Clarke’s vole YP009551704.1), envelope glycoprotein 2 (232 aa, 74% coverage, 51.5% identity with Clarke’s vole YP009551705.1), envelope glycoprotein 3 (265 aa, 76% coverage, 39.5% identity with Clarke’s vole YP009551706.1), envelope glycoprotein 4 (183 aa, 98% coverage, 46.7% identity with Clarke’s vole YP009551707.1), envelope glycoprotein 5 (221 aa, 86% cover, 84.9% identity with Grey red-backed vole YP009214664.1), envelope protein 5a (45 aa, 100% cover, 66.7% identity with a long-tailed dwarf hamster YP009337028.1), membrane protein (174 aa, 100% cover, 91.4% identity with Grey red-backed vole YP009214665.1), and nucleocapsid protein (122 aa, 100% cover, 89.4% identity with Grey red-backed vole YP009214666.1). Surprisingly, our draft genome MgAV1 sequence did not contain the nonstructural protein 2 transframe fusion product (nsp2TF), which most of the identified arteriviruses had. The MgAV1 sequence had a 19 nt long poly-A tail. ICTV species demarcation criteria states that each arterivirus species is host-specific.

3.4. Hepaciviruses

Hepaciviruses are positive-strand RNA viruses that belong to the Flaviviridae family. Hepaciviruses infect a range of mammals, including bank voles [16]. From the three already identified bank vole hepaciviruses, one species has been suggested to cause liver inflammation [16]. We found four new hepacivirus sequences, which had genome sizes of 8900 (MgHV2), 8838 (MgHV3), 8829 (MgHV4), and 8828 (MgHV5) nt (Figure 2e). The bank vole hepaciviruses were most similar in nucleotide sequence to each other (100% cover, 85.5–89.9% identity) and then to bank vole hepacivirus F (100% coverage, 79.4–79.7% identity, NC_038427.1, isolated from a bank vole in the Netherlands [14]). In phylogenetic analysis, the Ukrainian bank vole hepacivirus strains clustered with hepacivirus F (YP009506358.1) and then to other rodent hepaciviruses (Figure 2f). Hepacivirus genome encodes for a multifunctional polyprotein that is comprised of four structural (C, E1, E2, p7/p13) and seven non-structural proteins (NS2, NS3, NS3, NS4a, NS4b, NS5a, and NS5b), which are cleaved by viral and host proteases [45]. Using Blastp, we identified conserved domains in each of the novel MgHV for structural nucleocapsid core protein (C) and envelope protein 1 (E1) and non-structural conserved domains for protease/helicase/NTPase (NS3), NS4a, NS5a, and RNA-dependent RNA polymerase (NS5b). HHpred analysis of the protein sequence found sequence similarity with hepatitis C virus envelope protein E2 (6MEHC, e-value = 3.1 × 10−25) and p7 (3ZD0, e-value = 0.015). According to ICTV guidelines, hepaciviruses with less than 0.25 amino acid p-distances (i.e., amino acid changes per sequence length) in a conserved region of NS3 are conspecific [58]. Since the NS3 region p-distances were less than 0.05 between MgHVs and hepacivirus F isolated from a bank vole captured from the Netherlands, the Ukrainian hepaciviruses we identified are strains of hepacivirus F.

3.5. Mosavirus

Mosavirus (mouse stool associated picornavirus) is a novel genus in the Picornaviridae family. There are currently only four identified mosavirus genomes, and thus the genus is not yet well defined. The first described mosavirus genome was isolated from a stool sample of North American canyon mouse (Peromyscus crinitus) [2], the second genome from a stool sample of a Hungarian European roller (Coracias garrulus garrulus) [59], the third genome from a stool sample of Himalayan marmot (Marmota himalayana) [60], and the fourth, partial genome from pharyngeal/anal swabs of Chinese long-tailed field mouse (Apodemus syhaticus) [1]. As European rollers are known to prey upon rodents, it was speculated that the mosavirus may have been derived from an infected prey [59]. The Ukrainian bank vole mosavirus genome is 9762 nt long (Figure 2g). Mosaviruses are positive-strand RNA viruses and code for a multifunctional polyprotein cleaved into four capsid proteins (VP1-VP4), three proteases (L, 2A, and 3C), and seven replication-associated proteins (2B, 2C, 3A, 3B1, 3B2, 3C, and 3D). The MgMV1 sequence coded for a protein of 2365 aa, which was a most similar to the mosavirus sequence derived from the European roller (YP009026384, 95% cover, 49.7% identity). We identified conserved domains similar to three picornavirus capsid protein domains (VP1-VP3), protease 3C, and RNA-dependent RNA polymerase 3D. Hhpred analysis of the MgMV1 found similarities to leader protease (L, 6FFA_A, e-value = 6.4 × 10−14) and VP4 (5C8C_B, e-value = 8.1 × 10−46) of foot-and-mouth disease virus and protease 2A of human poliovirus 1 (5Z3Q_D, e-value = 3.0 × 10−16). Foot-and-mouth disease virus and poliovirus are both picornaviruses. The Ukrainian bank vole mosavirus clustered with the type A mosaviruses (Figure 2h), and thus was similar to those found in the canyon mouse and European roller.

3.6. Viral Loads in Plasma

We collected plasma samples from bank voles inhabiting two control areas near Kyiv (Kyiv east: Nfemales = 9, Nmales = 10, and Kyiv west: Nfemales = 10) and two sites in the Chernobyl exclusion zone (CEZ east: Nfemales = 3, Nmales = 9 and CEZ west: Nfemales = 17, Nmales = 10) (Figure 1b,c, and Tables S2 and S3). Virus particles were isolated from plasma, quantified by qPCR, and blotted separately for male and female bank voles according to collection site (Figure 3a,b). We did not analyze viral particle load for MgHV2, because we were not able to design specific primers for its genome. We did not find consistent statistical differences in plasma virus amounts between environmental-radiation-exposed and control populations (Tables S4 and S5), nor did we find any significant correlations between whole-body internal, external, or total absorbed dose rates (mGy/day) data derived from individual-level γ-spectrometry and virus plasma amounts (Tables S2, S3 and S5, and Appendix A). However, we found some statistically significant differences in virus amounts between sampling sites: males had significantly more plasma MgHV4 virus particles in CEZ west than in control areas (Holm’s adjusted p-value in pairwise Wilcoxon rank sum test = 0.0092). In females, MgAAV1 amounts in plasma were significantly lower in CEZ west animals than in animals collected from CEZ east (p = 0.044) or from control east (p = 0.033). In addition, MgAAV2 plasma amounts in females were lower in the CEZ west than in control east area (p = 0.033).
Although female and male plasma samples were collected several months apart (July–September, 2016), the plasma virus amounts were similar between the sexes at each collection site. The only statistically significant difference in plasma viral load between females and males was that females had more MgAV1 in plasma than males in control east (p = 0.043). Median values for virus plasma amounts for all animals (irrespective of host collections site or sex) were MgAAV1 = 241, MgAAV2 = 1695, MgAV1 = 4182, MgHV3 = 166, MgHV4 = 205.5, MgHV5 = 282.5, and MgMV1 = 375.6 (Figure 3a,b).

3.7. Viral Prevalence in the Populations

Virus prevalences in plasma samples were analyzed separately for each sex and across populations (Figure 4a,b). The most prevalent viruses, MgAV1 and MgAAV2, were detected from almost all (i.e., 50–100%) of the bank vole samples, while the least prevalent virus, MgHV3, was detected in only 10–40% of the bank vole plasma samples. Virus prevalences did not differ significantly between samples from the Chernobyl exclusion zone and the control sites except for hepaciviruses, which were more prevalent in male (but not female) bank voles inhabiting the CEZ than in control areas. In general, virus prevalences were similar between sexes. Significant differences were found with Fisher’s exact test only between males and females for MgMV1 (p-value = 0.0167) and MgAAV1 (p-value = 0.0132). Males had MgMV1 more frequently than females and females had MgAAV1 more frequently than males.

3.8. Plasma Loads of the Adeno-Associated Viruses Correlated Positively with Each Other

Because we identified two adeno-associated viruses, in which replication may depend on a helper virus [61], we studied pairwise correlations between the virus loads (Figure 4c), as we assumed that the amounts of the potential helper virus would correlate positively with the amounts of the adeno-associated viruses. There was a strong positive correlation between the amounts of the two adeno-associated viruses (Spearman correlation = 0.697, Holm’s method adjusted p-value < 0.0001), and also between MgAV1 and MgHV5 (correlation = 0.462, p-value = 0.0013) and MgMV1 (correlation = 0.428, p-value = 0.0047). The correlation analyses were done also separately for males and females (Figure S1A,B), and the only consistent correlation was between amounts of MgAAV1 and MgAAV2.

3.9. Virus Sequences in Bank Vole Liver and Spleen Transcriptomes

We used spleen and liver RNA-sequencing data for bank voles from Ukraine [40] (NCBI SRA: SRP15797) to test whether the plasma viruses were able to produce systemic infection. Since the RNA-sequencing data were poly-A selected and the genomes of mosavirus and hepacivirus sequences did not have a clear poly-A track, our analysis might have underestimated viral load by showing fewer virus sequences than actually existed in the samples for these viruses. Spleen and liver RNAseq (transcriptome) data comprised sequence data for 40 female bank voles collected from the same locations as the samples for this study (i.e., two control locations near Kyiv, and two locations within the Chernobyl exclusion zone). Five animals had properly paired virus reads in their liver and/or spleen samples (Figure 5), all from the Kyiv east location. Notably, animal number 726 had all except MgAAV2 viruses in high amounts in its liver, and MgAV1, MgHV2, and MgMV1 in its spleen. Only MgAV1 was found in all of the five virus-positive animals, and it had the highest read amounts (on average, 6310 reads per sample). There were no properly paired virus reads in the samples from the two CEZ areas (N = 20) or the other control location near Kyiv (N = 10).
To estimate whether viruses had caused long-term adverse effects in these five animals, we compared their body condition index to the animals without virus reads in spleen or liver [40,62]. The body condition index was calculated as the standardized residual values from a linear regression of weight against head width, where positive values reflect better body condition. We found no significant differences in the body condition index between the animals with or without virus reads (N = 40, Mann–Whitney: U = 61, p = 0.298).
To investigate the presence of the newly classified virus strains in other bank vole populations, we also searched for the virus sequences from all available wild bank vole liver and spleen transcriptomes (NBCI bioproject IDs: PRJNA429463 from England and the Netherlands, PRJNA249058 from Switzerland, and PRJNA222572 from Poland and PRJNA429463 from Sweden). We identified all of the eight virus sequences from five Swedish adult bank vole spleens (Figure S2). There were fewer aligned reads in the samples from Sweden than in those from Ukraine. In addition, hepaciviruses, not MgAV1, were the most abundant virus type in the Swedish bank voles (Figure S2).

4. Discussion

We identified four new bank vole virus genomes from three families, increasing the known diversity of viruses in bank voles to nearly 20 species [1,6,7,8,9,10,11,12,13,14,15,16]. The new virus genomes were not endemic to Ukraine, but were present also in Swedish bank voles, raising the possibility that these viruses are present in bank voles throughout much of their geographic range. It has been estimated that viral numbers in zoonotic reservoir species are underestimated due to inadequate sampling [63], especially in species like bank voles, which are abundant and widely distributed and may thus have many sympatric interactions that promote virus diversity [64]. Wu et al. [1] studied Chinese rodent viromes using a metagenomic analysis of pharyngeal and anal swabs, and among the rodents studied were the bank vole congeners the Grey red-backed vole (Myodes rufocanus) and the Northern red-backed vole (M. rutilus). Similar to Wu et al. [1], we found parvoviruses, mosavirus, and arterivirus from bank vole plasma, but in contrast to the study by Wu et al. [1], we also detected hepaciviruses but did not find astro-, corona-, or hantaviruses. These differences in virome composition may reflect the more restricted area of sampling and our use of plasma rather than pharyngeal and anal swabs. Thus, a greater diversity of bank vole viruses are likely to be uncovered given an increased sampling effort across the bank vole’s geographic distribution.
The two adeno-associated parvoviruses, MgAAV1 and MgAAV2, are the first known parvoviruses from bank voles. A positive correlation in MgAAV1 and MgAAV2 plasma viral load within individuals implies that their replication is regulated by a common factor, such as through the action of a (presently unknown) helper virus or some inherent feature of the host that allows both viruses to become co-abundant. Adeno-associated viruses are not known to be pathogenic, which is in line with our results, as the prevalence and plasma particle amounts of MgAAV2 were the highest among the identified viruses, yet the read amounts in the RNAseq data from liver and spleen were among the lowest, indicating that the viruses did not infect the tissues. Viral pathogenesis generally requires the virus to be able to spread in the body and multiply to large enough numbers.
The arterivirus MgAV1 had very high prevalence (90–100%) and particle amounts in plasma samples in comparison to other viruses; however, unlike the adeno-associated viruses, MgAV1 also had the highest read amounts in spleen and liver transcriptomes, indicating that it may have caused infection. Spleen and liver are lined with macrophages that ingest pathogens and activate immune defenses. Several viruses, including arteriviruses [57], infect macrophages to gain access to internal organs and to establish a persistent infection [65]. For example, porcine reproductive and respiratory syndrome virus, which is phylogenetically similar to MgAV1, causes reproductive disorders, pneumonia, and growth reduction in swine through infection of alveolar macrophages and cells of monocyte/macrophage lineage [57]. In bank voles, viral genetic material can be found from liver and spleen transcriptomes because the viruses have either (i) been transported there in blood, (ii) been engulfed by resident macrophages, or (iii) infected other resident cells. For example, bank vole hepacivirus F and some adeno-associated virus strains can infect hepatocytes [16,66]. Thus, the high amounts of virus sequence reads detected in liver and spleen transcriptome may indicate virus tropisms to macrophages, pathogenic potential, or both. Additionally, the mosavirus MgMV1 was found in bank vole blood, spleen, and liver. Tropisms of mosaviruses are not yet known, as only four mosavirus sequences have been identified thus far [1,2,59,60]. However, our results show that the MgMV1 mosavirus is not food-associated and that it may cause active viremia.
The fact that fewer animals (12.5%) had detectable amounts of virus in their liver and spleens (transcriptome analysis) than in plasma (where virus particle prevalences were >50% according to qPCR analysis) indicates that these apparently common (at least in the Ukrainian bank voles) viruses rarely become systemic. Interestingly, the animals that had viral genetic material in their liver or spleen were apparently infected by most of the viruses, which may indicate generally poor health or a compromised immune system, which aided virus replication and infection. However, the five Ukrainian bank voles from the transcriptome analysis that had viruses in spleen and/or liver did not have lower body condition index compared to the animals without viruses in these tissues, indicating that these animals had not suffered from poor body condition for extended period of time. Thus, the pathogenic potential of the identified viruses remains unresolved.
Counter to our expectations, we found no significant differences in virus characteristics between bank voles from high environmental radiation and control areas. Significant differences in plasma viral load and prevalence among collection sites could indicate that viral dynamics are more dependent on the local ecology and demography of the host population rather than radionuclide contamination.

Supplementary Materials

The following are available online at https://www.mdpi.com/1999-4915/12/1/44/s1: Figure S1: Pairwise correlation of plasma virus particle amounts in males and females; Figure S2: Virus amounts in Swedish bank vole spleen transcriptome samples; Table S1: Bank vole females collected on October 2016 used for NGS, Table S2: Female bank vole samples used in virus qPCR analysis; Table S3: Male bank vole samples used in virus qPCR analysis; Table S4: Pairwise comparisons of virus amounts between females of Chernobyl exclusion zone and control populations; Table S5: Pairwise comparisons between absorbed dose rates and virus amounts; Table S6: Virus-specific qPCR primers used in this study.

Author Contributions

Conceptualization, J.J.; methodology, J.J.; validation, J.J.; formal analysis, J.K., J.J.; investigation, J.K., A.L., E.T., J.J.; resources, E.T., T.M., P.C.W. and J.J.; data curation, J.J.; writing—original draft preparation, J.J.; writing—review and editing, J.K., A.L., E.T., P.C.W. and J.J.; visualization, A.L., E.T. and J.J.; funding acquisition, T.M., P.C.W. and J.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Kone foundation grant to J.J. and by the Finnish Academy to PCW (287153, 324602) and TM (268670, 324605).

Acknowledgments

We would like to thank Katja Lerner for technical assistance, and Timothy A. Mousseau, Gennadi Milinevsky, Igor Chizhevsky, Serhii Kirieiev, Anatoly Nosovsky and Maksym Ivanenko for logistic support and help in organizing fieldwork.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Appendix A

Appendix A.1. DOSIMETRY

Appendix A.1.1. External Absorbed Dose Rate Estimations

We measured ambient radiation levels with the use of a hand-held Geiger counter (Gamma-Scout, GmbH & Co., Germany), placed at 1 cm above the ground.We took at least 9 measurements at each trapping location and used the mean value for each location in the analysis. The ambient dose rate measurements are thought to give a reasonable approximation of the external absorbed dose rates for bank, however such approximations could underestimate external radiation dose rates in case of other species. With the use of implanted thermo-luminescent dosimeters for direct measurement of the external absorbed doses (as well as absorbed dose rate) for bank voles inhabiting the Chernobyl Exclusion Zone we provide empirical support for such estimations (Lavrinienko et al., submitted). Thus, the external absorbed dose rates were (mean ± SD): 0.00495 ± 0.00175 mGy/day for the bank voles captured from the Kiev east and west areas, and 0.44814 ± 0.26044 mGy/day for voles inhabiting the Chernobyl east and west areas.

Appendix A.1.2. Internal Absorbed Dose Rate Estimations

To estimate internal radiation dose rate due to the radiocaesium contamination, 137Cs activity was measured in each bank vole individual with the SAM 940 radionuclide identifier system (Berkeley Nucleonics Corporation, San Rafael, CA, USA) equipped with a 3″ × 3″ NaI detector. The detector was enclosed in 10 cm thick lead shielding to reduce the noise from background radioactivity. The system was calibrated with reference standard sources. With corrections for laboratory background, the 137Cs activity of whole bodies was evaluated from the obtained spectra in the energies range 619–707 keV (with caesium photopeak at 662 keV) with the use of the phantom with known activity and geometry similar to the samples. Given the additional time animals spent from capture to the actual processing, the initial 137Cs activity (at the trapping timepoint) was calculated with the model A = beλx, where: A is calculated initial caesium activity; b is activity that was measured in animal bodies; x is time in hours (after trapping and before sacrificing); e is 2.72; λ is elimination constant.
According to for each measurement the critical detectable level (decision threshold) was found as Lc = k[Rb/Tb(1 + Tb/Ts]1/2, where: Lc is critical level; k is 1.65 (coefficient, which determine 0.05 probability of type I error or false positive); Rb is counting rate of background, Tb is time of background measurement, Ts is time of sample measurement. The caesium activities above the critical level (decision threshold) were used for internal dose rate estimation; otherwise, the 137Cs activity was treated as a zero.
An individual internal absorbed dose from incorporated caesium-137 acquired during one day was calculated as:
D int = A ∗ C u ∗ ( ∑ i ϕ i ∗ E i ∗ f i )
where: Dint is the absorbed dose rate due to internal exposure from 137Cs (mGy/day); A is the activity of 137Cs incorporated in the animal body (Bq/kg); Cu is the unit conversion coefficient; ϕi is the absorbed fractions for electron, positron or photon of the specific energy line Ei self-absorption in tissue for the 137Cs source which is uniformly distributed throughout homogeneous sphere of mass 20 g of unit density and tissue-equivalent composition (Stabin et al., 2000); fi is the intensity (or emission frequency) of the specific energy line Ei (MeV) emitted per decay of 137Cs and it daughter radionuclide 137mBa (ICRP Publication 38, 1983), the sum is taken over all electron, positron and photon energies Ei of 137Cs spectrum (see also Chesser et al., 2000).
Thus, the internal absorbed dose rates from 137Cs were: ranging from 0.0 to 0.00149 mGy/day in animals captured from Kiev east and west areas, and in range of 0.00328-1.74251 mGy/day from Chernobyl east and west areas.Despite of considerable contribution of 90Sr to the total internal absorbed dose, which is considered to be similar to that from 137Cs (Beresford et al., 2018), in our study we neglected it because of characteristics of this beta-emitting radionuclide (tissue-specific strontium distribution: 90Sr deposits mainly in bones).

Appendix A.1.3. Total Absorbed Dose Rate Estimations

The total absorbed dose rates were estimated as the sum of the internal and external absorbed dose rates estimates for each animal.

References

  1. Wu, Z.; Lu, L.; Du, J.; Yang, L.; Ren, X.; Liu, B.; Jiang, J.; Yang, J.; Dong, J.; Sun, L.; et al. Comparative analysis of rodent and small mammal viromes to better understand the wildlife origin of emerging infectious diseases. Microbiome 2018, 6, 178. [Google Scholar] [CrossRef]
  2. Phan, T.G.; Kapusinszky, B.; Wang, C.; Rose, R.K.; Lipton, H.L.; Delwart, E.L. The fecal viral flora of wild rodents. PLoS Pathog. 2011, 7, e1002218. [Google Scholar] [CrossRef] [Green Version]
  3. Han, B.A.; Schmidt, J.P.; Bowden, S.E.; Drake, J.M. Rodent reservoirs of future zoonotic diseases. Proc. Natl. Acad. Sci. USA 2015, 112, 7039–7044. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Avšič Županc, T.; Korva, M. Hantavirus Infections. Emerg. Infect. Dis. Clin. Case Stud. 2014, 21, e6–e16. [Google Scholar]
  5. Achazi, K.; Růžek, D.; Donoso-Mantke, O.; Schlegel, M.; Ali, H.S.; Wenk, M.; Schmidt-Chanasit, J.; Ohlmeyer, L.; Rühe, F.; Vor, T.; et al. Rodents as Sentinels for the Prevalence of Tick-Borne Encephalitis Virus. Vector-Borne Zoonotic Dis. 2011, 11, 641–647. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Földes, F.; Madai, M.; Németh, V.; Zana, B.; Papp, H.; Kemenesi, G.; Bock-Marquette, I.; Horváth, G.; Herczeg, R.; Jakab, F. Serologic survey of the Crimean-Congo haemorrhagic fever virus infection among wild rodents in Hungary. Ticks Tick. Borne. Dis. 2019, 10, 101258. [Google Scholar] [CrossRef]
  7. Hazel, S.M.; Bennett, M.; Chantrey, J.; Bown, K.; Cavanagh, R.; Jones, T.R.; Baxby, D.; Begon, M. A longitudinal study of an endemic disease in its wildlife reservoir: Cowpox and wild rodents. Epidemiol. Infect. 2000, 124, 551–562. [Google Scholar] [CrossRef]
  8. Niklasson, B.; Kinnunen, L.; Hörnfeldt, B.; Hörling, J.; Benemar, C.; Olof Hedlund, K.; Matskova, L.; Hyypiä, T.; Winberg, G. A new picornavirus isolated from bank voles (Clethrionomys glareolus). Virology 1999, 255, 86–93. [Google Scholar] [CrossRef] [Green Version]
  9. Alkhovsky, S.; Butenko, A.; Eremyan, A.; Shchetinin, A. Genetic characterization of bank vole virus (BaVV), a new paramyxovirus isolated from kidneys of bank voles in Russia. Arch. Virol. 2018, 163, 755–759. [Google Scholar] [CrossRef]
  10. Vanmechelen, B.; Bletsa, M.; Laenen, L.; Lopes, A.R.; Vergote, V.; Beller, L.; Deboutte, W.; Korva, M.; Avšič Županc, T.; Goüy de Bellocq, J.; et al. Discovery and genome characterization of three new Jeilongviruses, a lineage of paramyxoviruses characterized by their unique membrane proteins. BMC Genom. 2018, 19, 617. [Google Scholar] [CrossRef] [Green Version]
  11. Tsoleridis, T.; Chappell, J.G.; Onianwa, O.; Marston, D.A.; Fooks, A.R.; Monchatre-Leroy, E.; Umhang, G.; Müller, M.A.; Drexler, J.F.; Drosten, C.; et al. Shared common ancestry of rodent alphacoronaviruses sampled globally. Viruses 2019, 11, 125. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Nainys, J.; Timinskas, A.; Schneider, J.; Ulrich, R.G.; Gedvilaite, A. Identification of two novel members of the tentative GenusWukipolyomavirus in Wild Rodents. PLoS ONE 2015, 10, e0140916. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Wágnerová, M.; Chalupková, A.; Hrabovská, Z.; Ancicová, L.; Mistríková, J. Possible role of different animal species in maintenance and spread of murine gammaherpesvirus 68 in the nature. Acta Virol. 2015, 59, 14–19. [Google Scholar] [CrossRef] [Green Version]
  14. Knowles, S.C.L.; Fenton, A.; Pedersen, A.B. Epidemiology and fitness effects of wood mouse herpesvirus in a natural host population. J. Gen. Virol. 2012, 93, 2447–2456. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Nishiyama, S.; Dutia, B.M.; Stewart, J.P.; Meredith, A.L.; Shaw, D.J.; Simmonds, P.; Sharp, C.P. Identification of novel anelloviruses with broad diversity in UK rodents. J. Gen. Virol. 2014, 95, 1544–1553. [Google Scholar] [CrossRef] [PubMed]
  16. Drexler, J.F.; Corman, V.M.; Müller, M.A.; Lukashev, A.N.; Gmyl, A.; Coutard, B.; Adam, A.; Ritz, D.; Leijten, L.M.; van Riel, D.; et al. Evidence for Novel Hepaciviruses in Rodents. PLoS Pathog. 2013, 9, e1003438. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Voutilainen, L.; Savola, S.; Kallio, E.R.; Laakkonen, J.; Vaheri, A.; Vapalahti, O.; Henttonen, H. Environmental change and disease dynamics: Effects of intensive forest management on Puumala hantavirus infection in boreal bank vole populations. PLoS ONE 2012, 7, e39452. [Google Scholar] [CrossRef] [Green Version]
  18. Tian, H.; Yu, P.; Bjørnstad, O.N.; Cazelles, B.; Yang, J.; Tan, H.; Huang, S.; Cui, Y.; Dong, L.; Ma, C.; et al. Anthropogenically driven environmental changes shift the ecological dynamics of hemorrhagic fever with renal syndrome. PLoS Pathog. 2017, 13, e1006198. [Google Scholar] [CrossRef]
  19. Lee, K.I.; Lee, J.S.; Jung, H.H.; Lee, H.Y.; Moon, S.H.; Kang, K.T.; Shim, Y.B.; Jang, J.W. Inactivation of enveloped and non-enveloped viruses in the process of chemical treatment and gamma irradiation of bovine-derived grafting materials. Xenotransplantation 2012, 19, 365–369. [Google Scholar] [CrossRef]
  20. Hume, A.J.; Ames, J.; Rennick, L.J.; Duprex, W.P.; Marzi, A.; Tonkiss, J.; Mühlberger, E. Inactivation of RNA viruses by gamma irradiation: A study on mitigating factors. Viruses 2016, 8, 204. [Google Scholar] [CrossRef]
  21. Ohagen, A.; Gibaja, V.; Horrigan, J.; Lunderville, D.; Jayarama, V.; Marcello, J.; Chapman, J.; Lazo, A. Induction of latent human cytomegalovirus by conventional gamma irradiation and prevention by treatment with INACTINE PEN110. Vox Sang. 2004, 87, 1–9. [Google Scholar] [CrossRef] [PubMed]
  22. Agoni, L.; Lenz, J.; Guha, C. Variant Splicing and Influence of Ionizing Radiation on Human Endogenous Retrovirus K (HERV-K) Transcripts in Cancer Cell Lines. PLoS ONE 2013, 8, e76472. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Manome, Y.; Yao, X.J.; Kufe, D.W.; Cohen, E.A.; Fine, H.A. Selective effects of DNA damaging agents on HIV long terminal repeat activation and virus replication in vitro. J. Acquir. Immune Defic. Syndr. Hum. Retrovirol. 1996, 11, 109–116. [Google Scholar] [CrossRef] [PubMed]
  24. Chia, H.C.; Chen, P.J.; Lee, P.H.; Cheng, A.L.; Hsu, H.C.; Cheng, J.C.H. Radiation-induced hepatitis B virus reactivation in liver mediated by the bystander effect from irradiated endothelial cells. Clin. Cancer Res. 2007, 13, 851–857. [Google Scholar] [CrossRef] [Green Version]
  25. Huang, W.; Zhang, W.; Fan, M.; Lu, Y.; Zhang, J.; Li, H.; Li, B. Risk factors for hepatitis B virus reactivation after conformal radiotherapy in patients with hepatocellular carcinoma. Cancer Sci. 2014, 105, 697–703. [Google Scholar] [CrossRef]
  26. Westphal, E.M.; Blackstock, W.; Feng, W.; Israel, B.; Kenney, S.C. Activation of lytic Epstein-Barr virus (EBV) infection by radiation and sodium butyrate in vitro and in vivo: A potential method for treating EBV-positive malignancies. Cancer Res. 2000, 60, 5781–5788. [Google Scholar]
  27. Nandakumar, A.; Uwatoko, F.; Yamamoto, M.; Tomita, K.; Majima, H.J.; Akiba, S.; Koriyama, C. Radiation-induced Epstein-Barr virus reactivation in gastric cancer cells with latent EBV infection. Tumor Biol. 2017, 39, 1–9. [Google Scholar] [CrossRef] [Green Version]
  28. McEntee, G.; Kyula, J.N.; Mansfield, D.; Smith, H.; Wilkinson, M.; Gregory, C.; Roulstone, V.; Coffey, M.; Harrington, K.J. Enhanced cytotoxicity of reovirus and radiotherapy in melanoma cells is mediated through increased viral replication and mitochondrial apoptotic signalling. Oncotarget 2016, 7, 48517–48532. [Google Scholar] [CrossRef] [Green Version]
  29. Mezhir, J.J.; Advani, S.J.; Smith, K.D.; Darga, T.E.; Poon, A.P.W.; Schmidt, H.; Posner, M.C.; Roizman, B.; Weichselbaum, R.R. Ionizing radiation activates late herpes simplex virus 1 promoters via the p38 pathway in tumors treated with oncolytic viruses. Cancer Res. 2005, 65, 9479–9484. [Google Scholar] [CrossRef] [Green Version]
  30. Walz, C.; Schlehofer, J.R.; Flentje, M.; Rudat, V.; Zur Hausen, H. Adeno-associated virus sensitizes HeLa cell tumors to gamma rays. J. Virol. 1992, 66, 5651–5657. [Google Scholar]
  31. Alexander, I.E.; Russell, D.W.; Spence, A.M.; Miller, A.D. Effects of Gamma Irradiation on the Transduction of Dividing and Nondividing Cells in Brain and Muscle of Rats by Adeno-Associated Virus Vectors. Hum. Gene Ther. 1996, 7, 841–850. [Google Scholar] [CrossRef]
  32. Levine, S. The effect of X-irradiation on the yield of poliovirus. Virology 1960, 10, 257–267. [Google Scholar] [CrossRef]
  33. Murphy, B.; Glasgow, L. Factors modifying host resistance to viral infection. 3. Effect of whole body x-irradiation on experimental encephalomyocarditis virus infection in mice. J. Exp. Med. 1968, 127, 1035–1052. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Bradish, C.J.; Titmuss, D.; Fitzgeorge, R. The sensitivity to γ-irradiation of the phases of the virus-host interaction: Studies with strains of Semliki forest virus in mice. J. Gen. Virol. 1980, 48, 39–51. [Google Scholar] [CrossRef] [PubMed]
  35. Hasegawa, H.; Kadowaki, S.E.; Takahashi, H.; Iwasaki, T.; Tamura, S.I.; Kurata, T. Protection against influenza virus infection by nasal vaccination in advance of sublethal irradiation. Vaccine 2000, 18, 2560–2565. [Google Scholar] [CrossRef]
  36. Hollingworth, R.; Grand, R.J. Modulation of DNA damage and repair pathways by human tumour viruses. Viruses 2015, 7, 2542–2591. [Google Scholar] [CrossRef] [PubMed]
  37. Luo, Y.; Qiu, J. Parvovirus infection-induced DNA damage response. Future Virol. 2013, 8, 245–257. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Jernfors, T.; Kesäniemi, J.; Lavrinienko, A.; Mappes, T.; Milinevsky, G.; Møller, A.P.; Mousseau, T.A.; Tukalenko, E.; Watts, P.C. Transcriptional Upregulation of DNA Damage Response Genes in Bank Voles (Myodes glareolus) Inhabiting the Chernobyl Exclusion Zone. Front. Environ. Sci. 2018, 5, 59. [Google Scholar] [CrossRef] [Green Version]
  39. Mustonen, V.; Kesäniemi, J.; Lavrinienko, A.; Tukalenko, E.; Mappes, T.; Watts, P.C.; Jurvansuu, J. Fibroblasts from bank voles inhabiting Chernobyl have increased resistance against oxidative and DNA stresses. BMC Cell Biol. 2018, 19, 17. [Google Scholar] [CrossRef]
  40. Kesäniemi, J.; Jernfors, T.; Lavrinienko, A.; Kivisaari, K.; Kiljunen, M.; Mappes, T.; Watts, P.C. Exposure to environmental radionuclides is associated with altered metabolic and immunity pathways in a wild rodent. Mol. Ecol. 2019, 28, 4620–4635. [Google Scholar] [CrossRef]
  41. Chesser, R.K.; Bondarkov, M.; Baker, R.J.; Wickliffe, J.K.; Rodgers, B.E. Reconstruction of radioactive plume characteristics along Chernobyl’s Western Trace. J. Environ. Radioact. 2004, 71, 147–157. [Google Scholar] [CrossRef]
  42. Lavrinienko, A.; Mappes, T.; Tukalenko, E.; Mousseau, T.A.; Møller, A.P.; Knight, R.; Morton, J.T.; Thompson, L.R.; Watts, P.C. Environmental radiation alters the gut microbiome of the bank vole Myodes glareolus. ISME J. 2018, 12, 2801–2806. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Bolger, A.M.; Lohse, M.; Usadel, B. Trimmomatic: A flexible trimmer for Illumina sequence data. Bioinformatics 2014, 30, 2114–2120. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Grabherr, M.G.; Haas, B.J.; Yassour, M.; Levin, J.Z.; Thompson, D.A.; Amit, I.; Adiconis, X.; Fan, L.; Raychowdhury, R.; Zeng, Q.; et al. Trinity: Reconstructing a full-length transcriptome without a genome from RNA-Seq data. Nat. Biotechnol. 2013, 29, 644–652. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Huang, X.; Madan, A. CAP3: A DNA sequence assembly program. Genome Res. 1999, 9, 868–877. [Google Scholar] [CrossRef] [Green Version]
  46. Camacho, C.; Coulouris, G.; Avagyan, V.; Ma, N.; Papadopoulos, J.; Bealer, K.; Madden, T.L. BLAST+: Architecture and applications. BMC Bioinform. 2009, 10, 421. [Google Scholar] [CrossRef] [Green Version]
  47. Dierckxsens, N.; Mardulyn, P.; Smits, G. NOVOPlasty: De novo assembly of organelle genomes from whole genome data. Nucleic Acids Res. 2016, 45, e18. [Google Scholar]
  48. Thorvaldsdóttir, H.; Robinson, J.T.; Mesirov, J.P. Integrative Genomics Viewer (IGV): High-performance genomics data visualization and exploration. Brief. Bioinform. 2013, 14, 178–192. [Google Scholar] [CrossRef] [Green Version]
  49. Zimmermann, L.; Stephens, A.; Nam, S.Z.; Rau, D.; Kübler, J.; Lozajic, M.; Gabler, F.; Söding, J.; Lupas, A.N.; Alva, V. A Completely Reimplemented MPI Bioinformatics Toolkit with a New HHpred Server at its Core. J. Mol. Biol. 2018, 430, 2237–2243. [Google Scholar] [CrossRef]
  50. Markham, N.R. Mfold web server for nucleic acid folding and hybridization prediction. Nucleic Acids Res. 2003, 31, 3406–3415. [Google Scholar]
  51. Li, H.; Durbin, R. Fast and accurate short read alignment with Burrows-Wheeler transform. Bioinformatics 2009, 25, 1754–1760. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Edgar, R.C. MUSCLE: Multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 2004, 32, 1792–1797. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular Evolutionary Genetics Analysis Version 7.0 for Bigger Datasets Brief communication. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [Green Version]
  54. Mietzsch, M.; Pénzes, J.J.; Agbandje-Mckenna, M. Twenty-five years of structural parvovirology. Viruses 2019, 11, 362. [Google Scholar] [CrossRef] [Green Version]
  55. Williams, S.H.; Che, X.; Garcia, J.A.; Klena, J.D.; Lee, B.; Muller, D.; Ulrich, W.; Corrigan, R.M.; Nichol, S.; Jain, K.; et al. Viral diversity of house mice in New York City. MBio 2018, 9, e01354-17. [Google Scholar] [CrossRef] [Green Version]
  56. Qiu, J.; Cheng, F.; Pintel, D. Molecular characterization of caprine adeno-associated virus (AAV-Go.1) reveals striking similarity to human AAV5. Virology 2006, 356, 208–216. [Google Scholar] [CrossRef]
  57. Snijder, E.J.; Kikkert, M.; Fang, Y. Arterivirus molecular biology and pathogenesis. J. Gen. Virol. 2013, 94, 2141–2163. [Google Scholar] [CrossRef]
  58. Smith, D.B.; Becher, P.; Bukh, J.; Gould, E.A.; Meyers, G.; Monath, T.; Muerhoff, A.S.; Pletnev, A.; Rico-Hesse, R.; Stapleton, J.T.; et al. Proposed update to the taxonomy of the genera Hepacivirus and Pegivirus within the Flaviviridae family. J. Gen. Virol. 2016, 97, 2894–2907. [Google Scholar] [CrossRef]
  59. Reuter, G.; Boros, Á.; Kiss, T.; Delwart, E.; Pankovics, P. Complete genome characterization of mosavirus (family Picornaviridae) identified in droppings of a European roller (Coracias garrulus) in Hungary. Arch. Virol. 2014, 159, 2723–2729. [Google Scholar] [CrossRef]
  60. Luo, X.L.; Lu, S.; Jin, D.; Yang, J.; Wu, S.S.; Xu, J. Marmota himalayana in the Qinghai-Tibetan plateau as a special host for bi-segmented and unsegmented picobirnaviruses article. Emerg. Microbes Infect. 2018, 7, 20. [Google Scholar] [CrossRef] [Green Version]
  61. Geoffroy, M.-C.; Salvetti, A. Helper Functions Required for Wild Type and Recombinant Adeno- Associated Virus Growth. Curr. Gene Ther. 2005, 5, 265–267. [Google Scholar] [CrossRef]
  62. Schulte-Hostedde, A.I.; Millar, J.S.; Hickling, G.J. Evaluating body condition in small mammals. Can. J. Zool. 2001, 79, 1021–1029. [Google Scholar] [CrossRef]
  63. Anthony, S.J.; Epstein, J.H.; Murray, K.A.; Navarrete-Macias, I.; Zambrana-Torrelio, C.M.; Solovyov, A.; Ojeda-Flores, R.; Arrigo, N.C.; Islam, A.; Khan, S.A.; et al. A strategy to estimate unknown viral diversity in mammals. MBio 2013, 4, e00598-13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Guy, C.; Thiagavel, J.; Mideo, N.; Ratcliffe, J.M. Phylogeny matters: Revisiting “a comparison of bats and rodents as reservoirs of zoonotic viruses”. R. Soc. Open Sci. 2019, 6, 181182. [Google Scholar] [CrossRef] [Green Version]
  65. Nikitina, E.; Larionova, I.; Choinzonov, E.; Kzhyshkowska, J. Monocytes and Macrophages as Viral Targets and Reservoirs. Int. J. Mol. Sci. 2018, 19, 2821. [Google Scholar] [CrossRef] [Green Version]
  66. Sands, M.S. AAV-mediated liver-directed gene therapy. Methods Mol. Biol. 2011, 807, 141–157. [Google Scholar]
Viruses 12 00044 g001 550

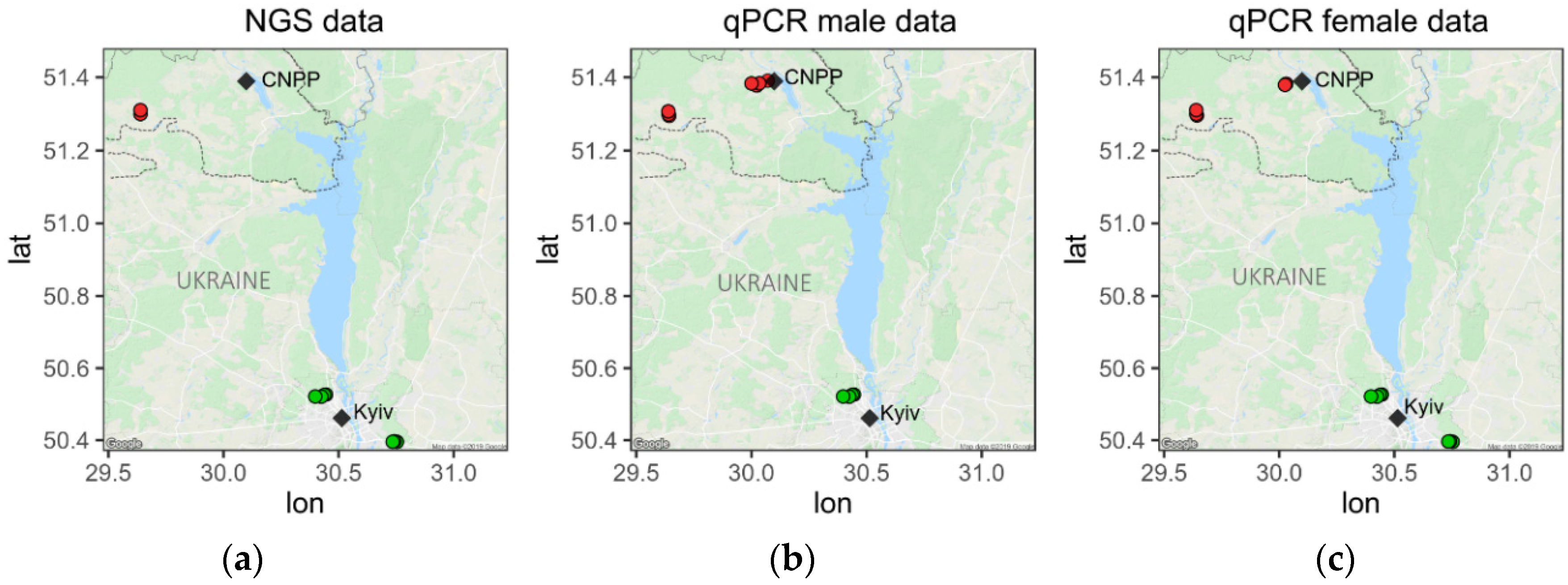

Figure 1. Sample collection sites for the (a) next-generation sequencing and quantitative PCR studies of (b) males and (c) females. Map of the study areas with bank vole trapping locations shown by points. The control areas (green) near Kyiv, and areas contaminated with radionuclides (red) within the Chernobyl exclusion zone in Ukraine are shown. Dashed line represent the border around the exclusion zone in Ukraine (area of ~2050 km2). Figure was created using ggmap v.3.0 package in R. CNPP shows the location of the Chernobyl nuclear power plant.
Figure 1. Sample collection sites for the (a) next-generation sequencing and quantitative PCR studies of (b) males and (c) females. Map of the study areas with bank vole trapping locations shown by points. The control areas (green) near Kyiv, and areas contaminated with radionuclides (red) within the Chernobyl exclusion zone in Ukraine are shown. Dashed line represent the border around the exclusion zone in Ukraine (area of ~2050 km2). Figure was created using ggmap v.3.0 package in R. CNPP shows the location of the Chernobyl nuclear power plant.
Viruses 12 00044 g001
Viruses 12 00044 g002 550

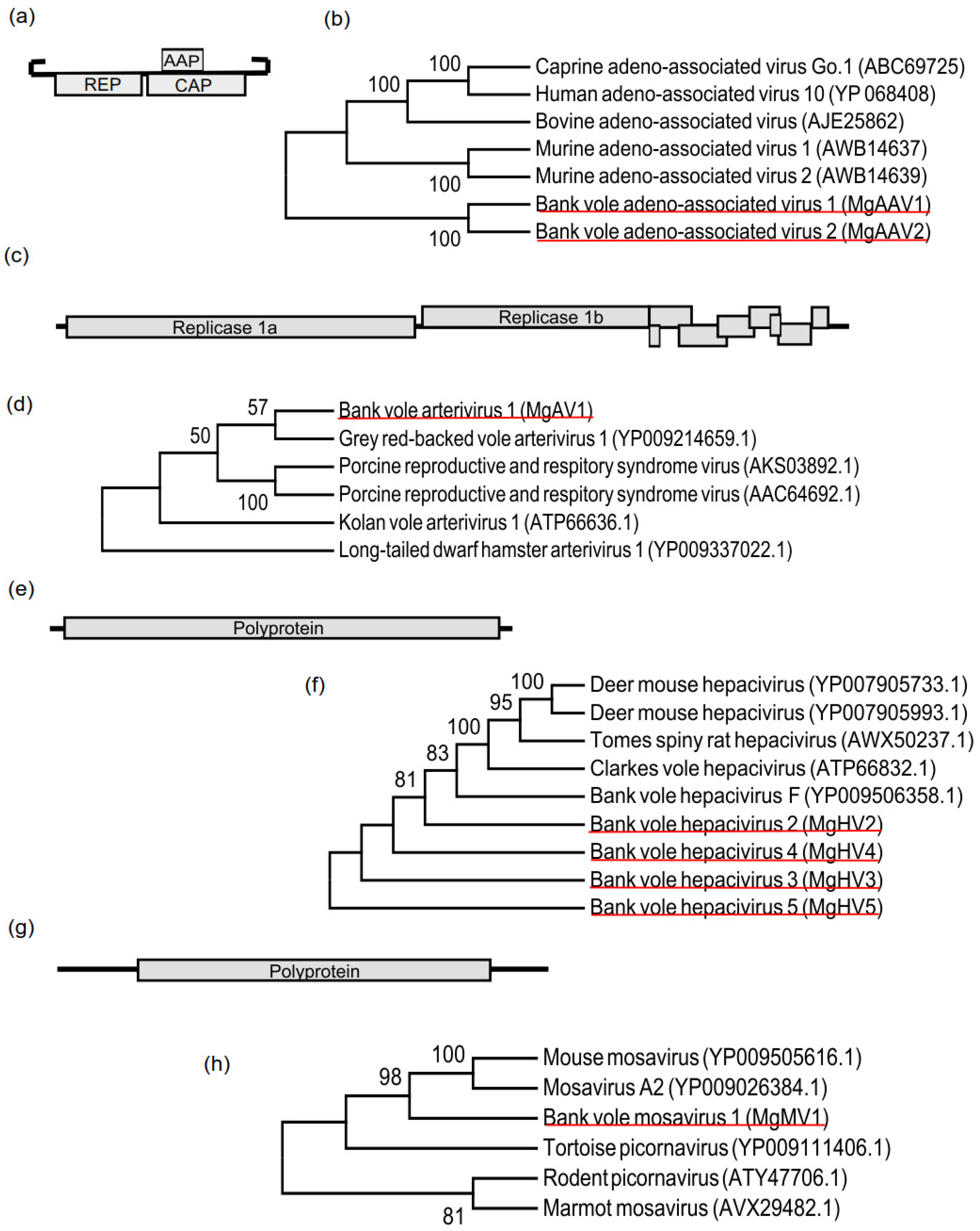

Figure 2. Genome organization and phylogenetic clustering of identified bank vole viruses: (a) and (b) MgAAV1 and MgAAV2, (c) and (d) MgAV1, (e) and (f) MgHV2–5, and (g) and (h) MgMV1. Virus genomes are drawn to scale: the largest virus, MgAV1, is 15.4 kb and the smallest, MgAAV, is 4.5 kb. Lines denote virus genomic sequence and boxes denote open reading frames. Different reading frames are presented by boxes aligning above, below, or on the line. Phylogenetic tree is a bootstrap consensus tree and the percentage of replicate trees (N = 500) in which taxa clustered together are shown next to the branches (only percentages over 50 are shown).
Figure 2. Genome organization and phylogenetic clustering of identified bank vole viruses: (a) and (b) MgAAV1 and MgAAV2, (c) and (d) MgAV1, (e) and (f) MgHV2–5, and (g) and (h) MgMV1. Virus genomes are drawn to scale: the largest virus, MgAV1, is 15.4 kb and the smallest, MgAAV, is 4.5 kb. Lines denote virus genomic sequence and boxes denote open reading frames. Different reading frames are presented by boxes aligning above, below, or on the line. Phylogenetic tree is a bootstrap consensus tree and the percentage of replicate trees (N = 500) in which taxa clustered together are shown next to the branches (only percentages over 50 are shown).
Viruses 12 00044 g002
Viruses 12 00044 g003 550

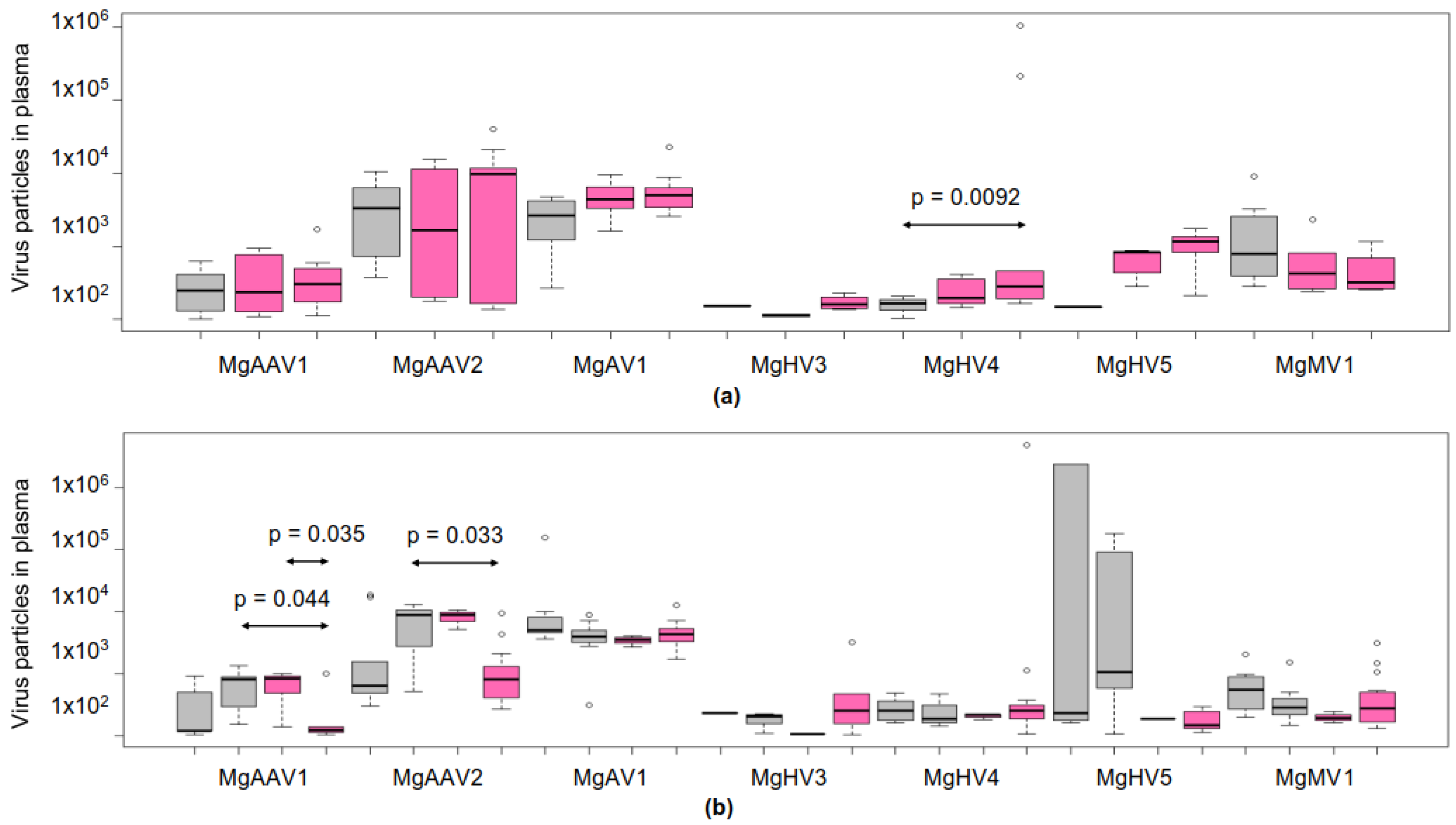

Figure 3. Number of plasma virus particles by qPCR in (a) males and (b) females collected from control (grey) and Chernobyl exclusion zone (pink) areas. For DNA viruses MgAAV1 and MgAAV2, the virus particle amounts were equal to 7 µL of plasma and for RNA viruses to 6 µL of plasma. The virus amounts were statistically compared pairwise using Wilcoxon rank sum test. Holm’s adjusted p-values are shown for groups that significantly differed from each other.
Figure 3. Number of plasma virus particles by qPCR in (a) males and (b) females collected from control (grey) and Chernobyl exclusion zone (pink) areas. For DNA viruses MgAAV1 and MgAAV2, the virus particle amounts were equal to 7 µL of plasma and for RNA viruses to 6 µL of plasma. The virus amounts were statistically compared pairwise using Wilcoxon rank sum test. Holm’s adjusted p-values are shown for groups that significantly differed from each other.
Viruses 12 00044 g003
Viruses 12 00044 g004 550

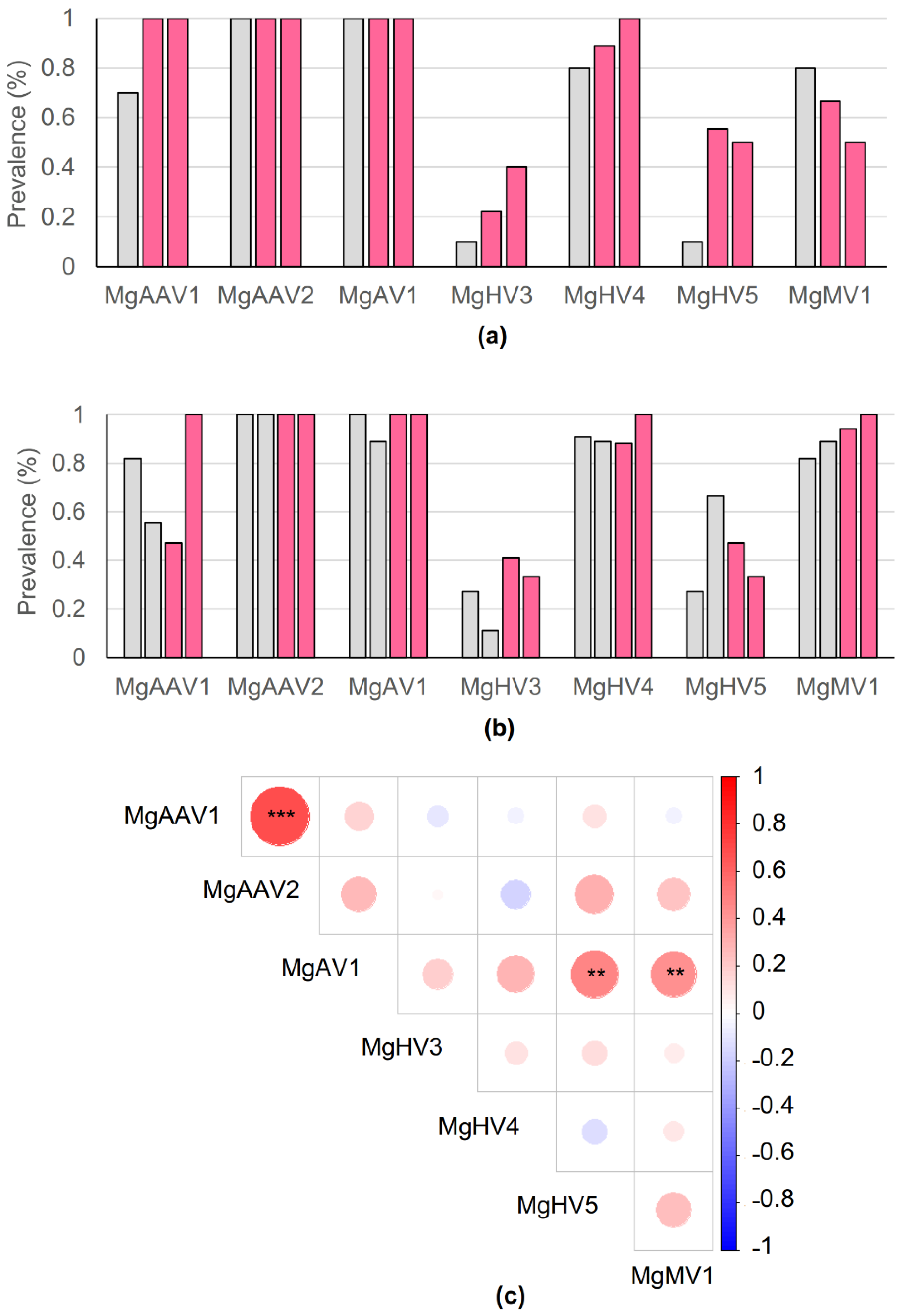

Figure 4. Prevalence of identified bank vole plasma viruses in (a) males and (b) females collected from control (grey) and Chernobyl exclusion zone (pink) areas. (c) Pairwise correlation of plasma virus particle amounts in all bank vole samples (N = 69) were studied by Spearman’s correlation coefficient. Positive correlations are shown in red and negative in blue. Magnitude of Holm’s adjusted p-values are represented by the size of the colored square. Significant values are marked with asterisks: *** p-value < 0.001 and ** p-value < 0.01.
Figure 4. Prevalence of identified bank vole plasma viruses in (a) males and (b) females collected from control (grey) and Chernobyl exclusion zone (pink) areas. (c) Pairwise correlation of plasma virus particle amounts in all bank vole samples (N = 69) were studied by Spearman’s correlation coefficient. Positive correlations are shown in red and negative in blue. Magnitude of Holm’s adjusted p-values are represented by the size of the colored square. Significant values are marked with asterisks: *** p-value < 0.001 and ** p-value < 0.01.
Viruses 12 00044 g004
Viruses 12 00044 g005 550

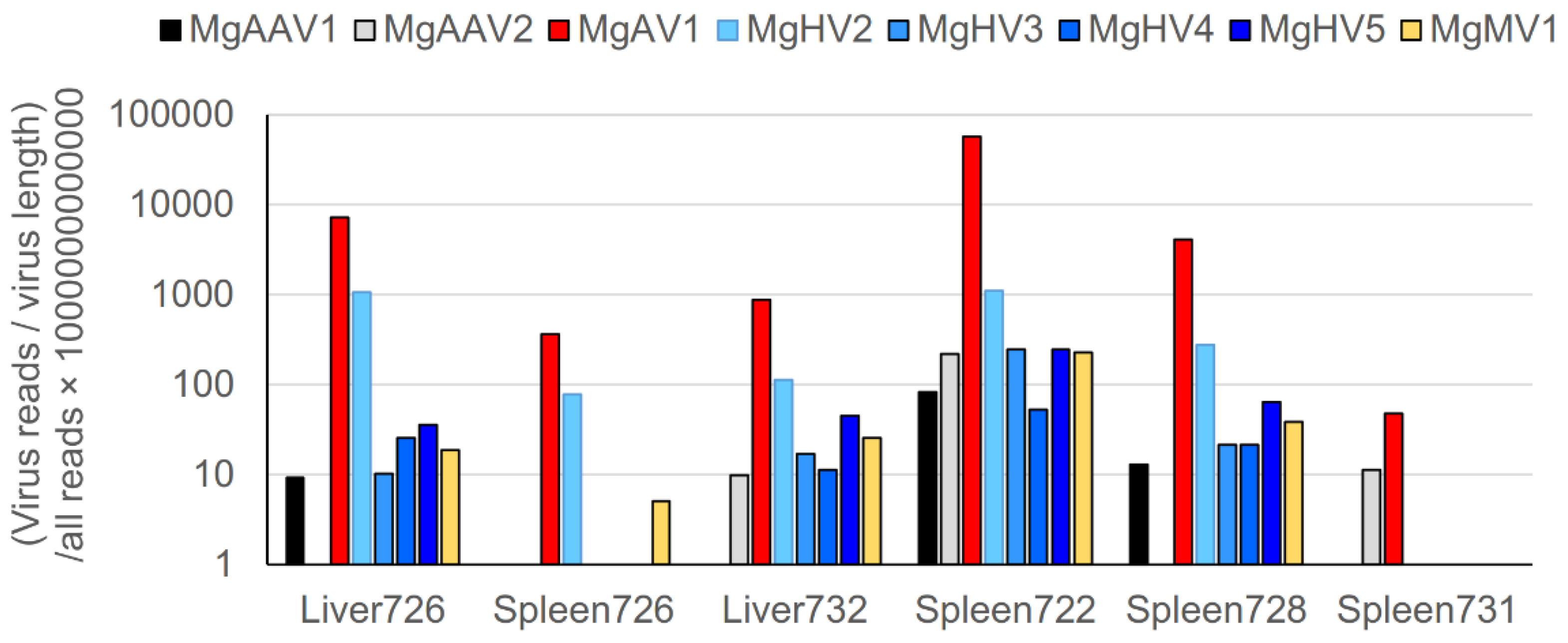

Figure 5. Virus read amounts in bank vole liver and spleen transcriptome samples. Properly paired virus sequences were standardized by dividing the amount of virus-specific reads with virus length and all raw reads, and multiplying by 1012.
Figure 5. Virus read amounts in bank vole liver and spleen transcriptome samples. Properly paired virus sequences were standardized by dividing the amount of virus-specific reads with virus length and all raw reads, and multiplying by 1012.
Viruses 12 00044 g005
Table
Table 1. Remapping reads to the identified virus sequences. Only properly paired reads are shown.
Table 1. Remapping reads to the identified virus sequences. Only properly paired reads are shown.
VirusGenbank IDLength (nt)Reads Kyiv WestReads Kyiv EastReads CEZAll ReadsAverage Coverage
MgAAV1MN242366492716261310175735.66
MgAAV2MN242367451701108102121026.79
MgAV1MN24236815,397043,566043,566282.95
MgHV2MN2423698900272,99400272,9943067.35
MgHV3MN2423708838143,029414,1517,165,7657,722,94587,383.40
MgHV4MN242371883896110332,312,3322,314,32626,186.08
MgHV5MN24237288280196,7420196,7422228.61
MgMV1MN2423739762436353792489990102.34

Share and Cite

MDPI and ACS Style

Kesäniemi, J.; Lavrinienko, A.; Tukalenko, E.; Mappes, T.; Watts, P.C.; Jurvansuu, J. Infection Load and Prevalence of Novel Viruses Identified from the Bank Vole Do Not Associate with Exposure to Environmental Radioactivity. Viruses 2020, 12, 44. https://doi.org/10.3390/v12010044

AMA Style

Kesäniemi J, Lavrinienko A, Tukalenko E, Mappes T, Watts PC, Jurvansuu J. Infection Load and Prevalence of Novel Viruses Identified from the Bank Vole Do Not Associate with Exposure to Environmental Radioactivity. Viruses. 2020; 12(1):44. https://doi.org/10.3390/v12010044

Chicago/Turabian Style

Kesäniemi, Jenni, Anton Lavrinienko, Eugene Tukalenko, Tapio Mappes, Phillip C. Watts, and Jaana Jurvansuu. 2020. "Infection Load and Prevalence of Novel Viruses Identified from the Bank Vole Do Not Associate with Exposure to Environmental Radioactivity" Viruses 12, no. 1: 44. https://doi.org/10.3390/v12010044

APA Style

Kesäniemi, J., Lavrinienko, A., Tukalenko, E., Mappes, T., Watts, P. C., & Jurvansuu, J. (2020). Infection Load and Prevalence of Novel Viruses Identified from the Bank Vole Do Not Associate with Exposure to Environmental Radioactivity. Viruses, 12(1), 44. https://doi.org/10.3390/v12010044

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
