Isolation and Characterization of Lytic Bacteriophages Active against Clinical Strains of E. coli and Development of a Phage Antimicrobial Cocktail

by
Pavel Alexyuk
*,
Andrey Bogoyavlenskiy
,
Madina Alexyuk
,
Kuralay Akanova
,
Yergali Moldakhanov
and
Vladimir Berezin
Laboratory of Antiviral Protection, Department of Virology, Research and Production Center for Microbiology and Virology, Almaty 050010, Kazakhstan
*
Author to whom correspondence should be addressed.
Viruses 2022, 14(11), 2381; https://doi.org/10.3390/v14112381
Submission received: 2 September 2022 / Revised: 22 October 2022 / Accepted: 25 October 2022 / Published: 28 October 2022
(This article belongs to the Special Issue Viruses versus Bacteria—Novel Approaches to Phage Therapy as a Tool against Multidrug-Resistant Pathogens)
Browse Figures
Versions Notes

Abstract

:
Pathogenic E. coli cause urinary tract, soft tissue and central nervous system infections, sepsis, etc. Lytic bacteriophages can be used to combat such infections. We investigated six lytic E. coli bacteriophages isolated from wastewater. Transmission electron microscopy and whole genome sequencing showed that the isolated bacteriophages are tailed phages of the Caudoviricetes class. One-step growth curves revealed that their latent period of reproduction is 20–30 min, and the average value of the burst size is 117–155. During co-cultivation with various E. coli strains, the phages completely suppressed bacterial host culture growth within the first 4 h at MOIs 10−7 to 10−3. The host range lysed by each bacteriophage varied from six to two bacterial strains out of nine used in the study. The cocktail formed from the isolated bacteriophages possessed the ability to completely suppress the growth of all the E. coli strains used in the study within 6 h and maintain its lytic activity for 8 months of storage. All the isolated bacteriophages may be useful in fighting pathogenic E. coli strains and in the development of phage cocktails with a long storage period and high efficiency in the treatment of bacterial infections.

1. Introduction

Nosocomial infections are one of the main problems of modern healthcare. They are present in almost all hospitals, cause significant harm to the health of patients and bring about large economic losses. According to the World Health Organization, around ten million hospitalized patients worldwide die or become disabled every year due to poor medical practices in handling nosocomial infections. According to rough estimates, in developed countries, from 5 to 10% of patients in medical institutions suffer from nosocomial infections, in developing countries their number can reach 25% [1,2,3]. Nosocomial infections increase the duration of the inpatients’ hospital stay by two to three times, the cost of treatment by three to four times and the risk of death by five to seven times [4]. Direct financial losses from nosocomial infections, according to the WHO, annually amount to approximately 7 billion euros in Europe and 6.5 billion dollars in the United States [5].
The observed escalation of the problem of nosocomial infections is connected to the global spread of antibiotic resistance among microorganisms which results from uncontrolled and injudicious use of antibacterial drugs both in medicine and in various sectors of the food industry and agriculture [6,7]. According to the WHO, the growing bacterial resistance to antibiotics may devalue many of the achievements in medicine and epidemiology made to fight infectious diseases in the 20th century.
One of the main sources of nosocomial infections are microorganisms of the Enterobacteriaceae family, among which pathogenic strains of E. coli are of particular importance.
E. coli is a widespread commensal Gram-negative bacterium found in the gastrointestinal tract of humans and many warm-blooded animals. However, in the total mass of safe E. coli strains, there are pathogenic serotypes of E. coli that can cause infections of the intestinal tract and extraintestinal pathogenic E. coli (ExPEC). ExPEC can cause both community-acquired and hospital-acquired infections, such as urinary tract, soft tissue and central nervous system infections, and can lead to peritonitis and pneumonia [8,9,10,11,12]. Every year, hundreds of millions of people around the world suffer from diseases induced by pathogenic strains of E. coli [13,14]. Such strains are of particular danger to hospitalized patients with weakened immune systems. Nosocomial infections caused by E. coli can lead to the development of acute bacteremia and sepsis, cause organ failure and even death [15,16].
E. coli can be divided into eight main phylogenetic groups: A, B1, B2, C, D, E, F, I. Non-pathogenic, commensal E. coli strains that are the main representatives of the mammalian gastrointestinal tract belong to groups A and B1. Pathogenic E. coli strains, causative agents of intestinal infections, belong to groups A, B1, D. ExPEC mainly belong to groups B2 and D. E. coli strains of group E are closely related to group D, and those of group F to group B2. E. coli strains that are phenotypically the same but have diverse genomes are assigned to a separate branch I [17,18].
Uropathogenic strains of E. coli (UPEC), which belong to ExPEC, are responsible for up to 50% of cases of nosocomial urinary tract infections [19]. This is due to the systematic use of catheters on which bacteria reproduce and form UPEC biofilms leading to infection of patients [20]. UPEC infections are responsible for approximately 40,000 deaths and at least $2.6 billion in healthcare costs in the United States alone [21]. The isolated UPECs have diverse phenotypes and genotypes with different virulence factors: adhesins, toxins, iron acquisition systems, and defense against host immunity. In addition, nosocomial strains of UPEC are multidrug resistant, insensitive to first, second, and third generation antibiotics, which greatly complicates the fight against these pathogens using traditional methods [22].
The most common causative agents of Gram-negative bacterial neonatal meningitis are ExPEC strains of the B2 phylogroup (E.coli K1) [23]. Mortality from this infection is 10–15%, and neurological complications develop in 30–50% of cases [24]. Infection of newborns with such strains of E. coli mainly occurs in hospitals through the use of nasogastric tubes for feeding. Bacterial biofilms with a high degree of resistance to antibacterial agents are formed on these feeder probes [25,26]. To cross the blood–brain barrier, E. coli strains must possess virulence factors enabling them to bind to, enter, and survive in meningeal cells. Presumably the genetic determinants of such virulence factors are ibeA, sfaS, cnf1, gimA and ompA [27].
E. coli strains that grow on the tubes for artificial lung ventilation (ALV) systems and form biofilms there, are one of the main causative agents of nosocomial pneumonia [28]. This disease affects between 7% and 40% of critically ill patients [29]. Mortality among such patients increases by an average of 6%, and the duration of their stay in intensive care units by 10–12 days [30]. Most ExPEC strains isolated from ventilators belong to the B2 phylogroup and possess the sfa/foc, papGIII, hlyC, cnf1, and iroN virulence genes and resistance to amoxicillin, amoxicillin/clavulanic acid, aztreonam, ciprofloxacin chloramphenicol, and colistin [31].
In addition, constant contact with humans has led a large number of E. coli strains to develop resistance to almost all known classes of antibiotics. E. coli serotypes such as O157, O26, O45, O103, O111, O121 and O145 are known to be multidrug resistant and are one of the main causes of foodborne infections [32,33].
The widespread treatment of intestinal infections with first-line antibiotics, such as co-trimoxazole, amoxicillin, and amoxicillin in combination with clavulanic acid, has brought about the development of resistance to these drugs in E. coli [34]. The use of relatively new classes of broad-spectrum antibiotics, fluoroquinolones and cephalosporins, has led to the development of β-lactamase activity in E. coli, which also enables it to successfully resist these classes of antibiotics [35,36,37].
The situation is further complicated by the fact that at present, there is a reduction in funding for the development of new antibiotics and a subsequent decrease in the research activity. If this trend persists, it will eventually lead to the exhaustion of available options for combating resistant bacterial infections [38].
In such conditions, the danger of resistant nosocomial infections is becoming rampant, and research to find alternative ways to combat them is becoming increasingly relevant. Bacteriophages are considered the most promising alternative to antibiotics.
Bacteriophages are viruses that infect bacteria. Given the nature of bacteriophages as natural enemies of bacteria, their use as therapeutic agents to fight bacterial infections began shortly after their discovery by Felix D’Herelle [39]. However, after antibiotics were discovered and introduced into clinical practices, the interest in bacteriophages as a means of combating pathogenic bacteria declined sharply. Until the 1990s, the clinical use of bacteriophages was practiced mainly in Russia, Georgia and Poland [40,41,42].
But due to the global spread of multidrug resistance, the interest in bacteriophages as antibacterial agents and the related research activities have increased significantly over the past twenty years [43,44]. The advantage of bacteriophages is that they are very widespread and are present in all known ecosystems; according to rough estimates, their numbers on Earth reach 1030 viral particles, which makes them a virtually unlimited source for the search and isolation of new strains [40,45]. In addition, bacteriophages have a high specificity, which allows preservation of beneficial microflora when they are used to combat pathogens. Additionally, they are non-toxic and harmless for patients, possess the ability to self-replicate in host bacteria, and are able to penetrate into biofilms and lyse them [46,47,48].
Bacteriophages are used in agriculture to combat bacterial infections of cultivated plants and animals, and in medicine for disinfection of diagnostic equipment when chemical and thermal sterilization methods cannot be applied [41,49,50,51,52,53,54]. There are many examples of the successful use of bacteriophages as antibacterial agents [44,55].
Manohar P. et al. isolated and described the myPSH1131 bacteriophage that lysed 31 strains of pathogenic E. coli. In vivo experiments on the model of G. mellonella larvae showed that a single introduction of myPSH1131 phage to E. coli infected larvae increased their lifespan from 24 to 36 h. When the phage was administered three or four times, the mortality reduced to zero, confirming the complete eradication of the E. coli [50].
Montso P.K. et al. isolated eight bacteriophages from cattle feces that were able to infect a wide range of E. coli strains isolated from the environment. The isolated phages possessed high lytic activity and stability which made them potential agents for phage therapy [14].
Korf I. et al. showed the ability of a phage cocktail consisting of six previously isolated bacteriophages to lyse E. coli biofilms. Their research showed that unlike the use of single bacteriophages, the use of a phage cocktail prevented the development of phage resistance in E. coli strains [46].
But the use of bacteriophages in human therapy requires a cautious approach. Despite certain advantages of phage therapy, there are a number of negative factors that must be taken into account [56]. First, due to the high specificity of phages to their hosts, mass treatment of just one type of pathogenic bacteria requires an extensive collection of various bacteriophages to ensure the availability of the most effective lytic strain in each specific case. Secondly, not all the phages can be used for therapeutic purposes: it is not advisable to use bacteriophage strains with lysogeny or strains containing genes encoding bacterial toxins and genes conferring antibiotic resistance to bacteria. Thirdly, bacteria can develop resistance to bacteriophages, which must be taken into consideration during long-term phage therapy.
Therefore, successful introduction and application of phage therapy in mass medicine, requires constant replenishment of the collections with safe and effective strains of lytic bacteriophages. It is also necessary to study and develop different methods of using bacteriophages in the treatment of bacterial infections. One of the widely used methods in phage therapy is the use of mixtures consisting of different strains of bacteriophages—phage cocktails. This method can significantly reduce the development of bacterial resistance to phages, as well as increase the applicability of phage preparations against various bacterial infections [57,58].
The purpose of this study was to isolate bacteriophages capable of lysing clinical strains of E. coli from the environment, study their biological properties and investigate the properties of a cocktail consisting of the isolated phages.

2. Materials and Methods

2.1. Bacterial Strains

Nine different strains of E. coli (Table 1) were used in the study. A total of eight of them were clinical strains provided by the bacterial laboratory of the Central Clinical Hospital JSC in Almaty. Information on antibiotic resistance of these eight strains obtained by using the microbiological analyzer VITEK 2 (bioMérieux) was also provided by the JSC. One strain of E. coli 15,597 was purchased from ATCC.

2.2. Isolation of Bacteriophages

Bacteriophages were isolated from wastewater samples obtained from a sewage collector of Shymkent, Kazakhstan and from sewage disposal fields of Konaev, Kazakhstan.
The wastewater samples were obtained from the depth of 15–20 cm using sterile 500 mL containers. The aqueous samples were transported and stored at a temperature of 4–8 °C in opaque packaging and were not exposed to direct sunlight. To inactivate pathogenic microorganisms, chloroform was added to the aqueous samples at the concentration of 0.1% and allowed to sit for 24 h at a temperature of 4–8 °C. The samples were then filtered through a paper filter and through a 0.45 μm bacterial filter (Sartolab® RF 500, Sartorius, Goettingen, Germany). Then the samples were stored in sterile conditions in a dark place at a temperature of 4–8 °C.
The aqueous samples were enriched with bacteriophages using the methods described by Merabishvili M. et al. [59]: 1 mL of 10× nutrient broth (Nutrient Broth, Himedia, Thane, India), 1 mL of indicator bacteria suspension with a turbidity of 1 McFarland (108 CFU/mL) and 100 µL of 1% MgSO4 were added to 10 mL of the prepared filtrate. The mixture was cultivated for 18–24 h at 37 °C with aeration. The resulting phage lysate was centrifuged, the obtained supernatant was filtered through 0.45 µm bacterial filters (Nalgene Syringe Filter, Thermo Scientific, MA, USA).

2.3. Determination of Bacteriophage Titer

Bacteriophages were titrated using the double-layer agar technique (DLA or Gratia method) [60]. 1 mL of the sample was mixed with 2.5 mL of 0.7% nutrient agar (Nutrient Agar “Himedia”, India) and 1 mL of indicator bacteria suspension with a turbidity of 1 McFarland containing 108 CFU/mL. The prepared mixture was poured into Petri dishes on the surface of a previously prepared 2% nutrient agar and incubated for 18–24 h at 37 °C. The same mixture was used as a control but with 1 mL of sterile phosphate buffer instead of the aqueous sample. At the end of the incubation period, single PFUs were observed.

2.4. Pure Bacteriophages Isolation

Pure lines of bacteriophages were isolated using the methods described by Montso P.K., et al. [14]. After PFUs were formed on the double layer of agar, a clear lysis zone of a certain morphotype was selected at the maximum dilution of the phage lysate, picked up from the agar and placed in 5 mL of sterile nutrient broth, incubated for 2 h at 37 °C, after which the procedure of enrichment with bacteriophages was carried out, and again titrated on double-layer agar. Subsequently, newly formed PFUs were selected at the maximum dilution and a clear lysis zone of the same morphotype was picked up from the agar to be seeded again following the above method. This complete cycle was repeated at least 3 times until PFUs of only one morphotype were obtained.

2.5. Bacteriophage Propagation

40 mL of sterile nutrient broth was poured into sterile 50 mL test tubes, then 500 µL of propagated bacteriophage and 5 mL of a 24 h culture of host bacteria were added and cultivated for 24 h at 37 °C. After the cultivation, the phage lysate was purified by centrifugation, resulting supernatant was filtered through bacterial filters, and the precipitate was discarded.

2.6. Concentration of Bacteriophages by Ultracentrifugation

The bacteriophages were sedimented from the phage lysate by centrifugation at 100,000× g for 90 min at 4 °C in an Avanti J-30i centrifuge (Beckman Coulter, CA, USA). The resulting bacteriophage sediment was dissolved in a minimum volume of PBS (1 mL) [61].

2.7. Transmission Electron Microscopy Analysis

The structure of the isolated bacteriophages was studied by transmission electron microscopy (TEM) at an instrumental magnification of 60–120 thousand times and a voltage of 100 kV using a JEM-2100 microscope (JEOL, Tokyo, Japan). 10 µL of each purified phage lysate was spotted on formvar coated copper grid (Polysciences, Inc., Hirschberg an der Bergstrasse, Germany) for 5 min. Then, 3% phosphotungstic acid (pH 6.8) was used to stain the samples, and excess solution was removed.

2.8. Phage DNA Isolation and Genome Sequencing

Genomic DNA was isolated from the phage lysate according to the PureLink viral DNA/RNA minikit manual (Thermo Fisher Scientific, MA, USA). The DNA library was prepared using the Nextera XT DNA Sample Preparation Kit (Illumina, CA, USA). Whole genome sequencing was performed using the Illumina MiSeq sequencing platform using kit v3.

2.9. Bioinformatics Analysis

Low quality reads were filtered out and adapters trimmed using Trimmomatic from the Genome Detective tool [62,63]. Genomes were assembled from paired reads using SPAdes 3.12.0 [64]. The average read length after trimming was 286 bp. The genomes were assembled to an average depth of more than 1000 [65]. The physical ends of the viral genomes were identified by comparing the total length coverage of the genomes of the studied viruses and closely related viruses in the NCBI database using nBLAST [66], namely Escherichia phage APCEc01 (NC_029091) with 100% query coverage and 97.97% identity for the vB_EcoM_SCS57 phage, Escherichia phage VB_EcoS-Golestan (NC_042084) with 100% query coverage and 99.51% identity for vB_EcoS_SCS44 phage, Escherichia phage vB_EcoS_ACG-M12 (JN986845.1) with 100% query coverage and 93.36% identity for vB_EcoS_SCS31 phage, Escherichia phage ECML-134 (JX128259.1) with 100% query coverage and 98.17% identity for vB_EcoM_SCS4 phage, Escherichia phage NTEC3 (OK539620.1) with 100% query coverage and 96.7% identity for vB_EcoS_SCS92 phage, Escherichia phage vB_EcoP_F (NC_047808.1) with 100% query coverage and 98.76% identity for the vB_EcoP_FFK3 phage. Then, closely related sequences were imported into Geneious Prime to generate a phylogenetic tree using the following default parameters: CLUSTAL-W aligner and the Geneious Tree Builder. Comparisons of multiple phage genome sequences were visualized using the BLAST Ring Image Generator (BRIG) with default settings [67]. Open-reading frames were predicted using the ORF finder tool (https://www.ncbi.nlm.nih.gov/orffinder/; accessed on 1 September 2022) using methionine and alternative initiation codons as start codons. The putative coding sequences (CDSs) were predicted using BLASTp of the predicted ORFs against the NCBI non-redundant protein sequences (nr) database. To increase the confidence in the predicted ORFs and CDSs, they were compared to those predicted through PHASTER [68]. The genome maps of the investigated bacteriophages were generated using Geneious Prime software.

2.10. Assessment of the Lytic Activity Level of Bacteriophages

The level of lytic activity of isolated bacteriophages was determined by their co-cultivation with indicator bacteria in microplates. A series of sequential 10-fold dilutions of the initial phage lysate was prepared to obtain the values of multiple infection (multiplicity of infection (MOI)) in the range from 10−7 to 1. 150 μL of LB, 50 μL of a phage-containing sample and 50 μL of a bacterial suspension containing 108 CFU/mL (turbidity of 1 McFarland) were put into the wells of the microplate. Samples containing 50 µL of sterile LB instead of bacteriophages were used as a control for the growth of the bacterial test culture. As a negative control, a sample containing only 200 µL of sterile LB and 50 µL of the original phage lysate was used. Cultivation was carried out at 37 °C in an Infinite® 200 PRO plate reader (Tecan, Männedorf, Switzerland). The dynamics of bacterial growth was assessed by the change in the optical density of the suspension at 600 nm. Microplates were scanned every 30 min during the entire cultivation period [69]. Each experiment was repeated 3 times.

2.11. Host Range Determination

Host ranges were determined by co-cultivation of isolated bacteriophages with various E. coli strains in microplates. The titer of the bacteriophages was 108 PFU/mL, and the titer of the bacteria was 108 CFU/mL. Cultivation was carried out in an Infinite® 200 PRO plate reader (Tecan, Mennedorf, Switzerland) at 37 °C as described above. Each experiment was repeated 3 times.

2.12. Development of a Bacteriophage Cocktail

To form the phage cocktail, equal volumes of the phage lysates of the isolated strains were mixed, and the resulting cocktail was passed through a 0.45 μm bacterial filter. The concentration of each bacteriophage strain was 108 viral particles per mL.

2.13. Investigation of the Bacteriophage Cocktail Stability after Storage

The bacteriophage cocktail was kept for 8 months using three different methods of storage: (1) in sterile conditions at room temperature, (2) in sterile conditions at 4–8 °C, (3) in a freeze-dried state with the addition of a stabilization medium (0.8 M sucrose solution). The stability of the biopreparations was determined based on their lytic activity. Lytic activity was assessed every month for each storage method by co-cultivating the phage cocktail with a bacterial test culture in a microplate.

2.14. Statistics and Graphic Display of Results

The statistical analysis of the results was performed using Statistica 10.0 and Microsoft Excel. Microsoft Office was then used to create tabular and graphic representation of the findings. Student’s unpaired t-test was used to evaluate the difference between the test sample and the untreated control. Values for all of the parameters were expressed as the mean ± the standard deviation (SD). p-values less than 0.05 were considered statistically significant.

3. Results

3.1. Isolation and Characterization of E. coli Bacteriophages

Six strains of bacteriophages were isolated from the wastewater samples by successive selective passages on double agar. E. coli 444, E. coli 3957, E. coli 4231, E. coli 3992 strains were used to isolate one bacteriophage each, and E. coli 753 was used to isolate two bacteriophages. Five strains of bacteriophages were isolated from the samples obtained from the sewage collector of Shymkent, Kazakhstan. One strain of bacteriophage came from the samples obtained from the sewage disposal fields of Konaev, Kazakhstan. The isolated bacteriophages were designated as: vB_EcoM_SCS4, vB_EcoS_SCS44, vB_EcoM_SCS57, vB_EcoS_SCS92, vB_EcoS_SCS31, vB_EcoP_FFK3. When infected with the isolated bacteriophages, the initial host strains produced plaques of 2–4 mm in diameter with a halo of up to 8 mm (Figure 1, Table 2).
Electron microscopy showed (Figure 2) that all the isolated bacteriophages were 150–200 nm long, had heads and tails of different lengths, and hence belonged to the Caudoviricetes class of tailed bacteriophages. vB_EcoM_SCS4, vB_EcoM_SCS57 had elongated hexagonal heads and tails surrounded by a contractile sheath, which morphologically characterized them as representatives of the myoviruses group (Figure 2A,C). Phages vB_EcoS_SCS44, vB_EcoS_SCS92, vB_EcoS_SCS31 had hexagonal heads and elongated flexible non-contractile tails and belonged to the siphoviruses group (Figure 2B–E). The vB_EcoP_FFK3 phage had a hexagonal head and a short tail characteristic of the podoviruses group (Figure 2F).

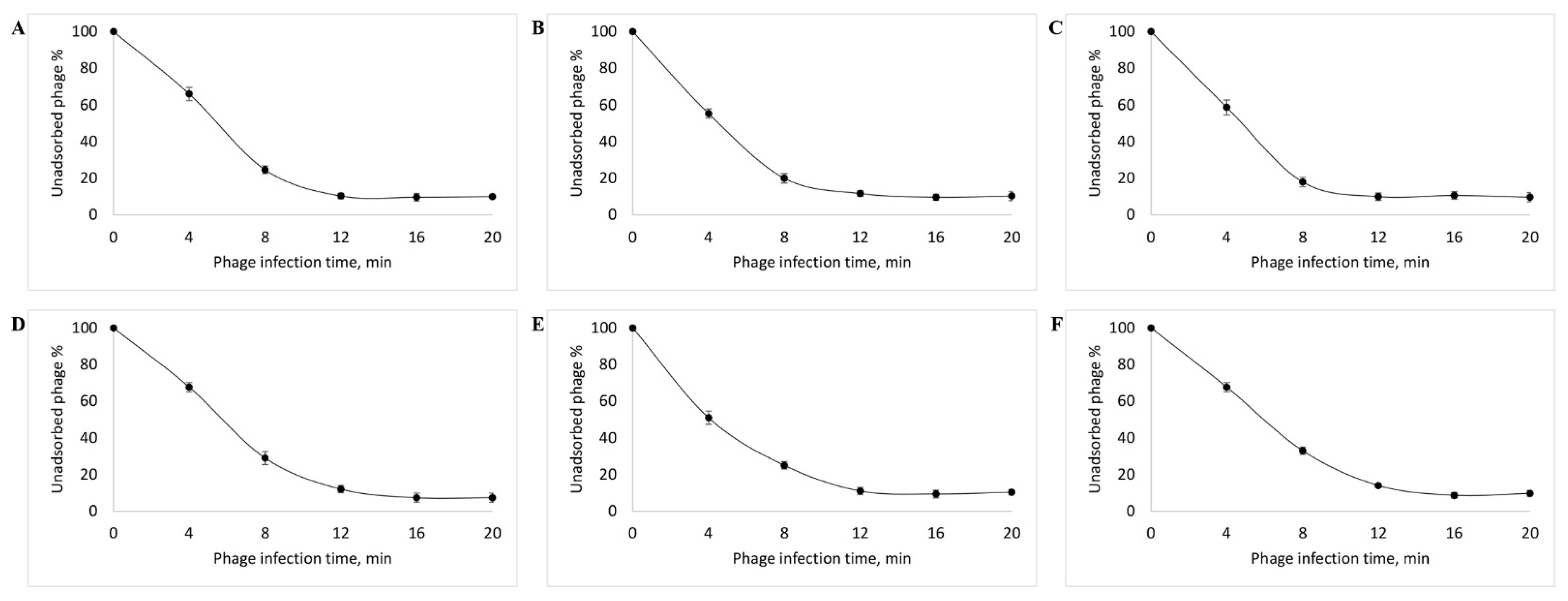

The study of virus adsorption revealed that, in case of all the isolated bacteriophages, about 90% of the virus particles were adsorbed into the host cell within 10 min (Figure 3).

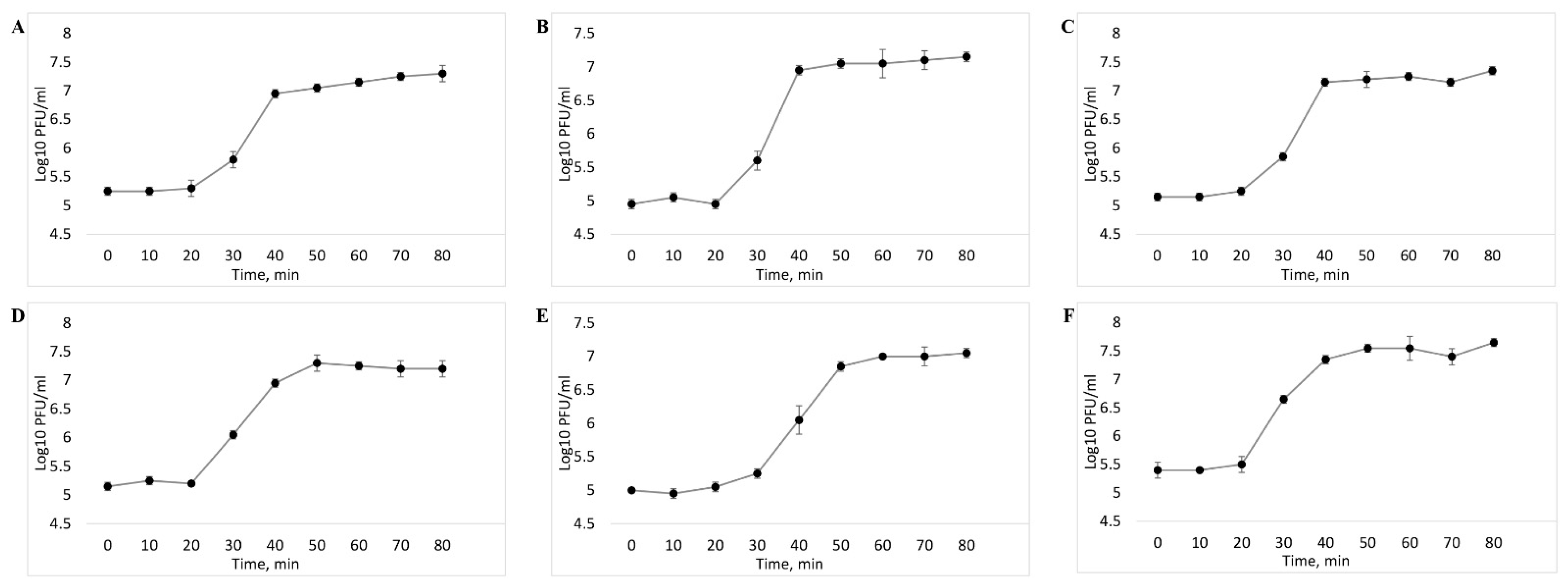

One-step growth curve made it possible to establish that the latent period of five out of the six investigated bacteriophages averaged 20 min. It was followed by a rise lasting from minute 20 to minute 40, after which it reached a plateau (Figure 4A–D,F). vB_EcoS_SCS31 phage had the latent phase of 30 min, followed by a burst size period between minute 30 and minute 50 (Figure 4E).

3.2. Bioinformatics Analysis and Characterization of the Bacteriophages’ Genome

After genome sequencing of six isolated bacteriophages, multiple alignment was carried out using the Mauve program (Figure 5), which clearly showed that the studied viruses belonged to four groups.

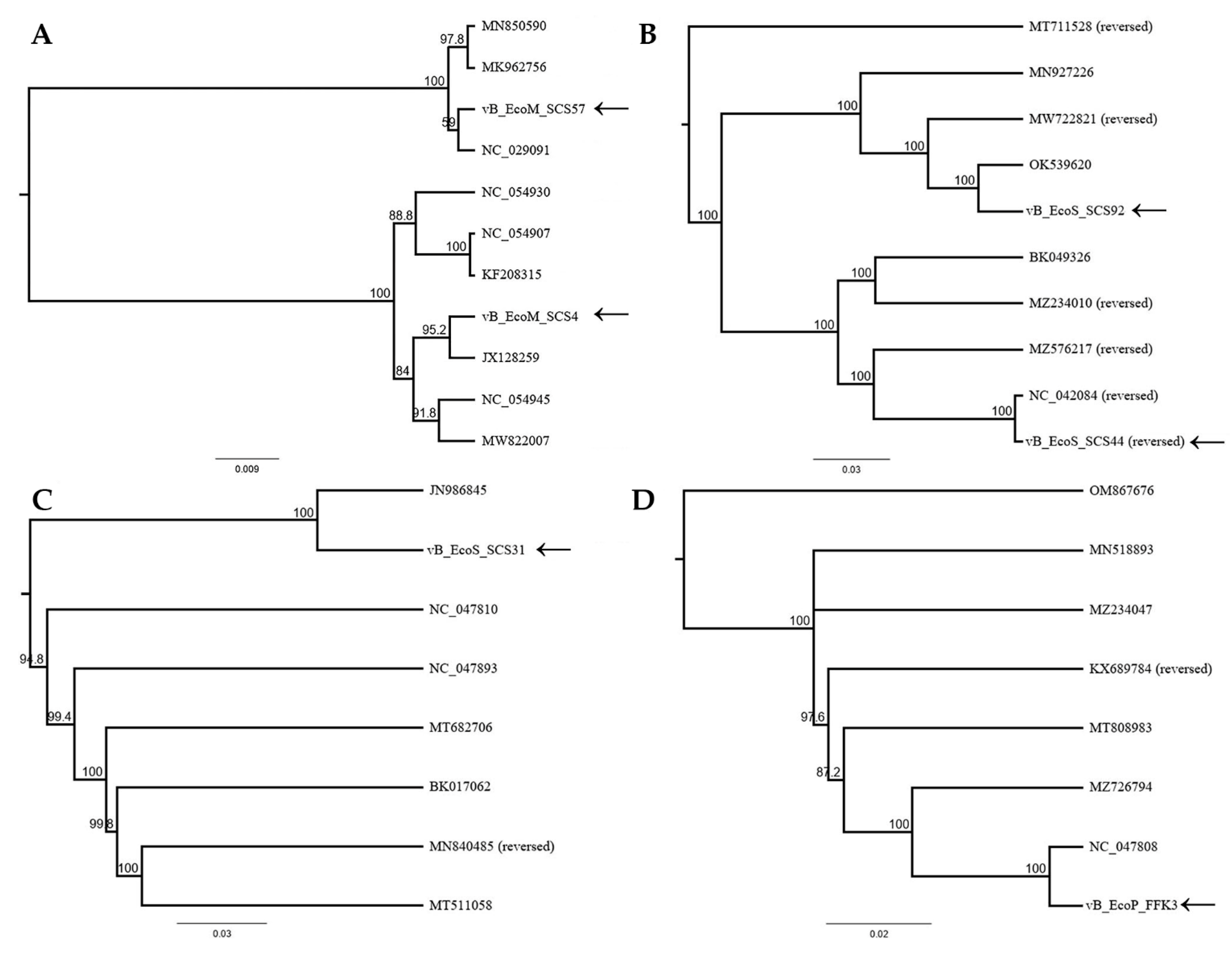

The studied bacteriophages possessed a dsDNA genome and belonged to four families of the Caudoviricetes class: two of them belonged to the Straboviridae family (vB_EcoM_SCS4, genome length of 166,783 bp and vB_EcoM_SCS57, genome length of 168,771 bp), two to the Guernseyvirinae subfamily(vB_EcoS_SCS44, genome length of 44,829 bp and vB_EcoS_SCS92 genome length of 44,240 bp), one to the Drexlerviridae family (vB_EcoS_SCS31 genome length of 46,054 bp), and one to Autographiviridae family (vB_EcoP_FFK3, genome length of 39,300 bp). The complete genomes of the vB_EcoM_SCS4, vB_EcoM_SCS57, vB_EcoS_SCS44, vB_EcoS_SCS92, vB_EcoS_SCS31, vB_EcoP_FFK3 phages were sequenced and deposited into the NCBI GenBank database (GenBank Acc. No. ON506924, OM960734, ON001686, ON548432, ON081052, ON548433, respectively). BLASTn analysis and construction of phylogenetic trees using major capsid protein sequences of the investigated phages and closely related phages from the NCBI database confirmed that the genomes of the isolated bacteriophages were different from one another, and belong to the corresponding families of the Caudoviricetes class (Figure 6).

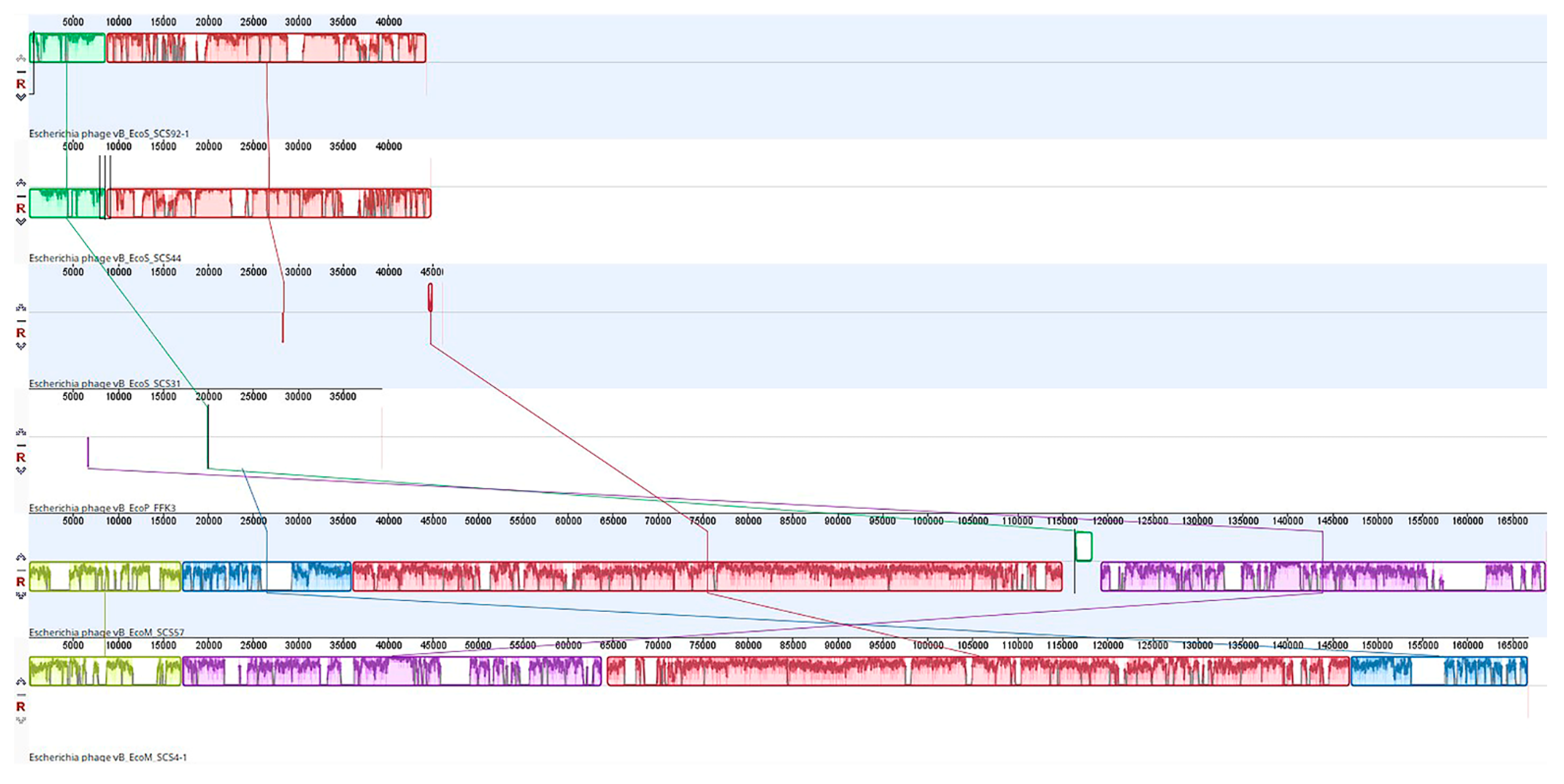

In addition, we carried out a comparative analysis of the whole-genome sequences of the investigated phages with the same phages used in the phylogenetic analyses. Similar to the results of the major capsid protein analysis, phages vB_EcoM_SCS57, vB_EcoM_SCS4, vB_EcoS_SCS92, vB_EcoS_SCS44, vB_EcoS_SCS31 and vB_EcoP_FFK3 grouped with the phages Escherichia phage APCEc01 (NC_029091.1), Escherichia phage ECML-134 (JX128259), Escherichia phage NTEC3 (OK539620.1), Escherichia phage VB_EcoS-Golestan (NC_042084), Escherichia phage vB_EcoS_ACG-M12 (JN986845.1), Escherichia phage vB_EcoP_F (NC_047808.1), respectively, and shared lower similarity with other phages (Figures S1–S6).
Open reading frames (ORF) prediction using the standard genetic code identified 272 putative protein-coding genes (Table 3). The 123 predicted proteins had assigned functions in the vB_EcoM_SCS57 phage genome. This phage had 231 open reading frames on the leading strand and 41 ORFs on the complementary strand. In addition, 149 genes encoding hypothetical proteins and 123 functional genes were identified in vB_EcoM_SCS57, of which 84 ORFs were located on the leading strand and 39 ORFs on the complementary strand. vB_EcoM_SCS4 had 269 genes encoding 47 functional proteins, with 28 ORFs on the leading strand and 19 ORFs on the complementary strand.
In the genomes of vB_EcoS_SCS44 and vB_EcoS_SCS92 phages, 78 and 72 putative protein-coding genes, respectively, were identified. In the vB_EcoS_SCS44 phage sequence, 34 of the predicted proteins had assigned functions with 22 located on the leading strand and 12 on the complementary strand, while in the bacteriophage vB_EcoS_SCS92 genome, out of 72 predicted proteins, 28 had assigned functions (20 on the complementary strand, and 8 on the leading strand).
The vB_EcoS_SCS31 phage genome consisted of 78 putative genes, 54 of which encoded hypothetical proteins, and 24 proteins with assigned functions, 20 of which were located on the leading strand and 4 on the complementary one.
Open reading frame prediction in the whole-genome sequence of the vB_EcoP_FFK3 phage revealed 48 genes, 29 of which encoded proteins with assigned functions, all located on the leading strand.
The functional genes of all six phages are presented on genetic maps (Supplementary Figures S7–S12). Functional proteins in the studied phages were assigned functions such as cell lysis proteins, DNA replication/transcription/repair proteins, structural proteins, and DNA packaging proteins.

3.3. Determination of the Level of Lytic Activity

The level of lytic activity of isolated bacteriophages was assessed by the ability of different doses of viruses to suppress the growth of the same number of bacteria (MOI 10−7–1). The titer of the initial samples of bacteriophages was 108 viral particles per 1 mL. For each studied bacteriophage, the original bacterial host strain was used as a test culture. The dynamics of bacterial growth during co-cultivation with the bacteriophage was determined in microplates using a multichannel spectrophotometer for 6 h.

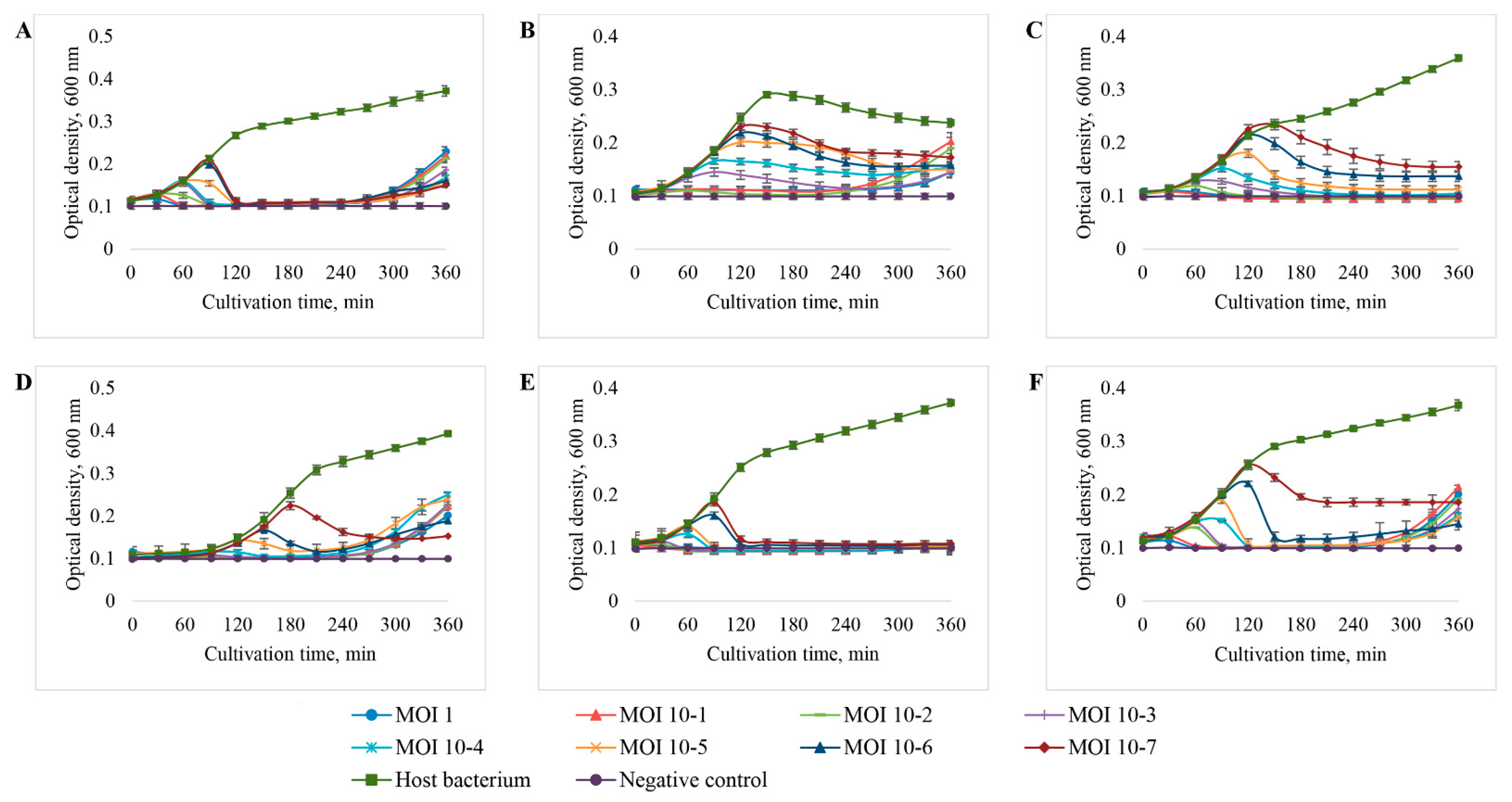

As a result of the study, it was found (Figure 7, Table 4) that the vB_EcoM_SCS4 and vB_EcoS_SCS31 bacteriophages possessed the highest lytic activity and were able to completely suppress the growth of bacterial cultures at all the MOIs used (Figure 7A,E). Bacteriophages vB_EcoS_SCS92 and vB_EcoP_FFK3 completely suppressed the growth of bacterial cultures at MOI 10−6 to 1, while the inhibition of bacterial growth at MOI 10−7 was approximately at the level of 70 and 60%, respectively (Figure 7D,F). Bacteriophage vB_EcoM_SCS57 completely suppressed the growth of the bacterial test culture at MOI 10−5 to 1, while the growth of the bacterial culture at MOI 10−6 and 10−7 was inhibited by 85 and 80%, respectively (Figure 7C). Bacteriophage vB_EcoS_SCS44 had the lowest lytic activity which completely suppressed the growth of the bacterial test culture at MOI 10−3 to 1, while the inhibition of bacterial growth at MOI 10−7 to 10−4 made 50–70% (Figure 7B).
The most rapid inhibition of the growth of bacterial cultures was recorded at MOI values of 1. At MOI values of 1, all the isolated bacteriophages showed complete inhibition of host bacteria growth even after the first 30 min of cultivation, and after an hour of cultivation, the optical density of experimental samples decreased to the level of the negative control.
After 4.5 h of co-cultivation of host bacteria with bacteriophages vB_EcoM_SCS4, vB_EcoS_SCS44, vB_EcoS_SCS92, v_BEcoP_FFK3, re-growth of bacterial cultures was recorded. In the samples with vB_EcoM_SCS57 and vB_EcoS_SCS31 bacteriophages, no re-growth of bacterial cultures was observed during the entire cultivation period.
Given their maximum efficiency, MOI values of 1 were used for further studies of the isolated bacteriophages.

3.4. Host Range Analysis

The range of hosts of isolated bacteriophages was determined on eight clinical E. coli strains—444, 753, 3957, 3992, 4231, 4238, 4320, 4325—and one E. coli strain 15,597 purchased from ATCC. The activity of phages in relation to the E. coli used was assessed by the changes in the growth dynamics of the bacterial cultures. Cultivation of bacteria with the addition of the studied phages was carried out for 6 h. The MOI value was 1 in all cases. The dynamics of bacterial growth was assessed by the change in the optical density of the culture medium at 600 nm.

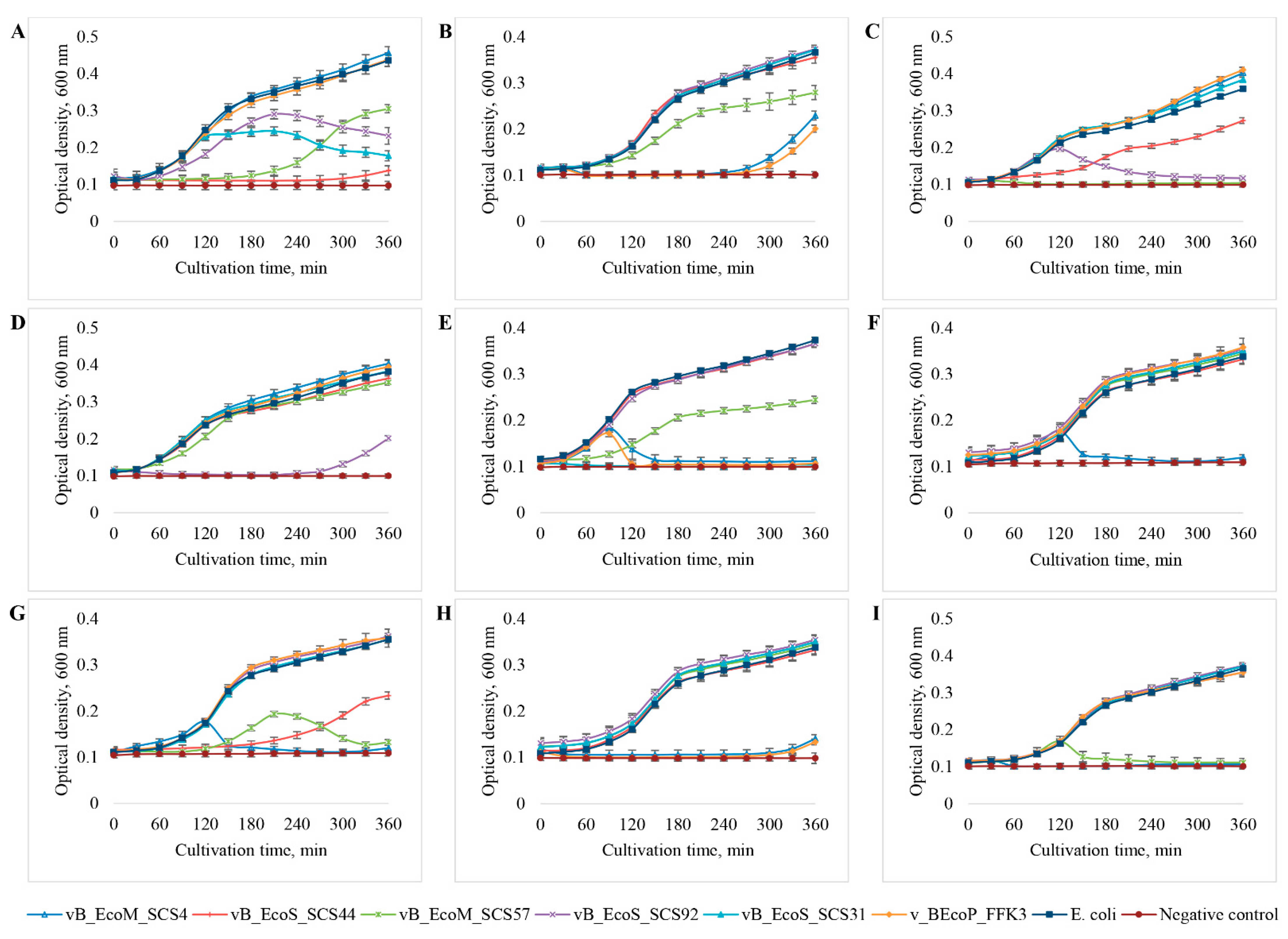

As a result of the study, it was found (Figure 8, Table 5) that the vB_EcoM_SCS4 bacteriophage had the widest range of hosts: it completely suppressed the growth of six out of nine E. coli strains used. The vB_EcoM_SCS57 bacteriophage also suppressed the growth of six E. coli strains, but the growth of E. coli 753 and 4231 was not completely suppressed by this bacteriophage—only by 30% and 50%, respectively. Bacteriophages vB_EcoP_FFK3, vB_EcoS_SCS92 and vB_EcoS_SCS44 were able to lyse three out of nine studied E. coli strains: 753, 4231 and 4325, while the vB_EcoP_FFK3 phage completely suppressed the growth of these three bacterial strains. The vB_EcoS_SCS92 phage completely inhibited the growth of E. coli 3957, 3992 and suppressed the growth of E. coli 444 by 40–50%. The vB_EcoS_SCS44 phage completely inhibited the growth of only the host bacterium (E. coli 444) and also partially suppressed the growth of E. coli 3957 and 4320 strains—by about 50%. Bacteriophage vB_EcoS_SCS31 had the minimum range of hosts: in addition to the host bacterium, it partially lysed E. coli 444.

3.5. Development of the Bacteriophage Cocktail and Determination of Its Efficiency and Spectrum of Lytic Activity against E. coli

The bacteriophage cocktail included all six isolated bacteriophages: vB_EcoM_SCS4, vB_EcoS_SCS44, vB_EcoM_SCS57, vB_EcoS_SCS92, vB_EcoS_SCS31 and v_BEcoP_FFK3.
To form the cocktail, each of the bacteriophage strains were added at the concentration of 108 viral particles per ml. The total concentration of phages in the cocktail was 6 × 108. The efficiency and activity spectrum of the phage cocktail were determined for nine previously used E. coli strains (444, 753, 3957, 3992, 4231, 4238, 4320, 4325, 15597). To achieve MOI 1, the concentration of bacterial cultures was 108 cells per 1 mL, which corresponds to a turbidity of 1 McFarland. The activity of the phage cocktail was also assessed by the change in the optical density of the culture medium during 6 h of co-incubation with bacterial cultures.

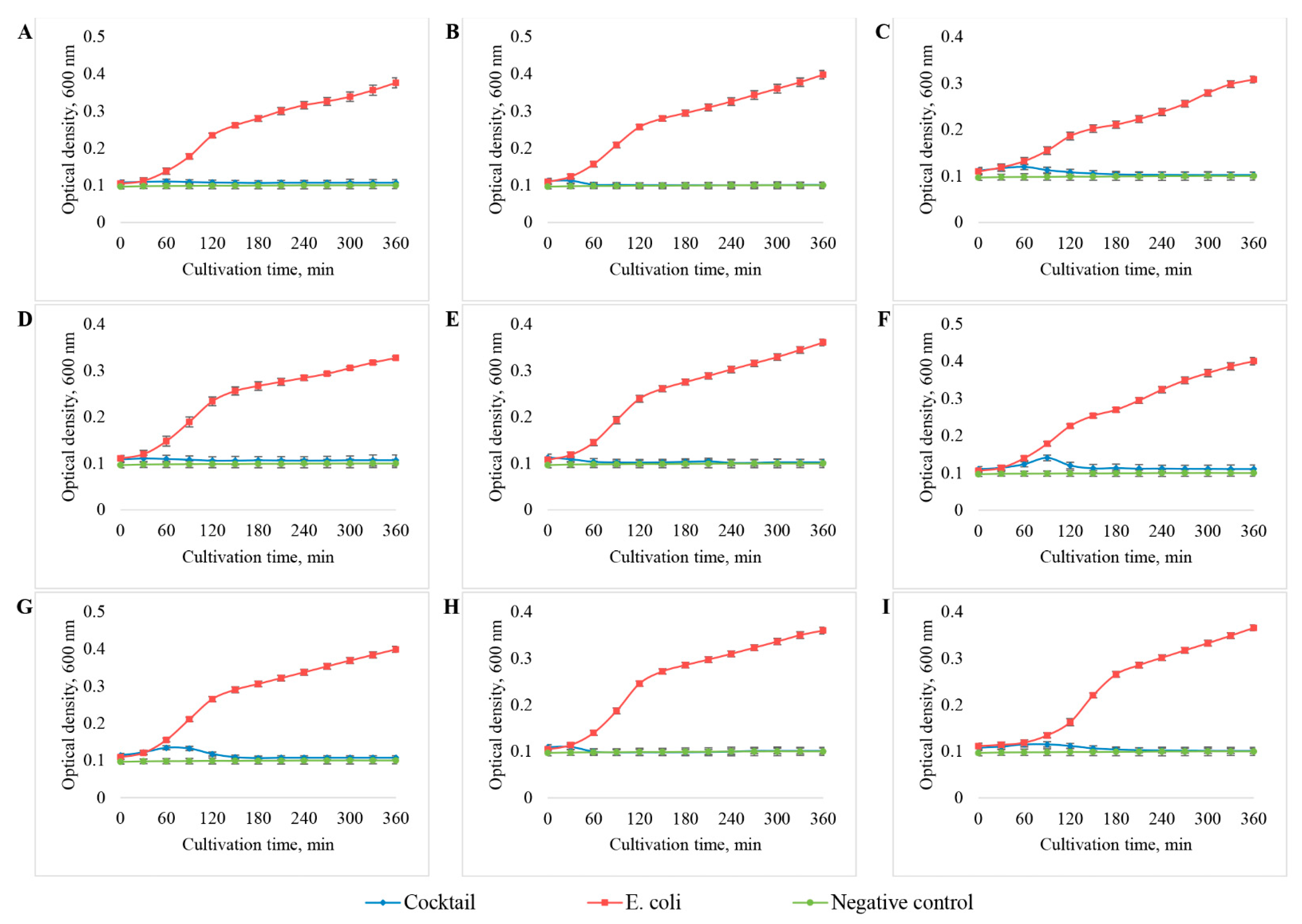

It was shown (Figure 9) that a cocktail formed from the isolated E. coli bacteriophages completely suppressed the growth of all the used E. coli cultures throughout the entire cultivation period.

3.6. Comparative Study of the Efficiency of E. coli Bacteriophage Cocktail Storage Methods

The E. coli bacteriophage cocktail was stored using three methods: (1) storage in sterile conditions at room temperature, (2) storage in sterile conditions at 4–8 °C, (3) storage in a freeze-dried state with the addition of a stabilization medium (0.8 M sucrose solution).
The storage period was 8 months. Storage efficiency was determined by the change in the level of lytic activity of the cocktail over the course of the storage time. The lytic activity of the cocktail was evaluated by the ability to 100% inhibit the growth of the bacterial test culture. The E. coli 15,597 strain obtained from ATCC was used as test culture. The cocktail was tested at eight different concentrations, from the initial to seven consecutive 10-fold dilutions. The turbidity of the bacterial suspension was adjusted to 1 McFarland standard before use, therefore, MOI values from 10−7 to 1 were obtained. The lytic activity of the cocktail was tested once a month throughout the entire storage period. Quantitative determination of bacterial growth during co-cultivation with the phage cocktail was made in microplates using a multichannel spectrophotometer for 6 h.

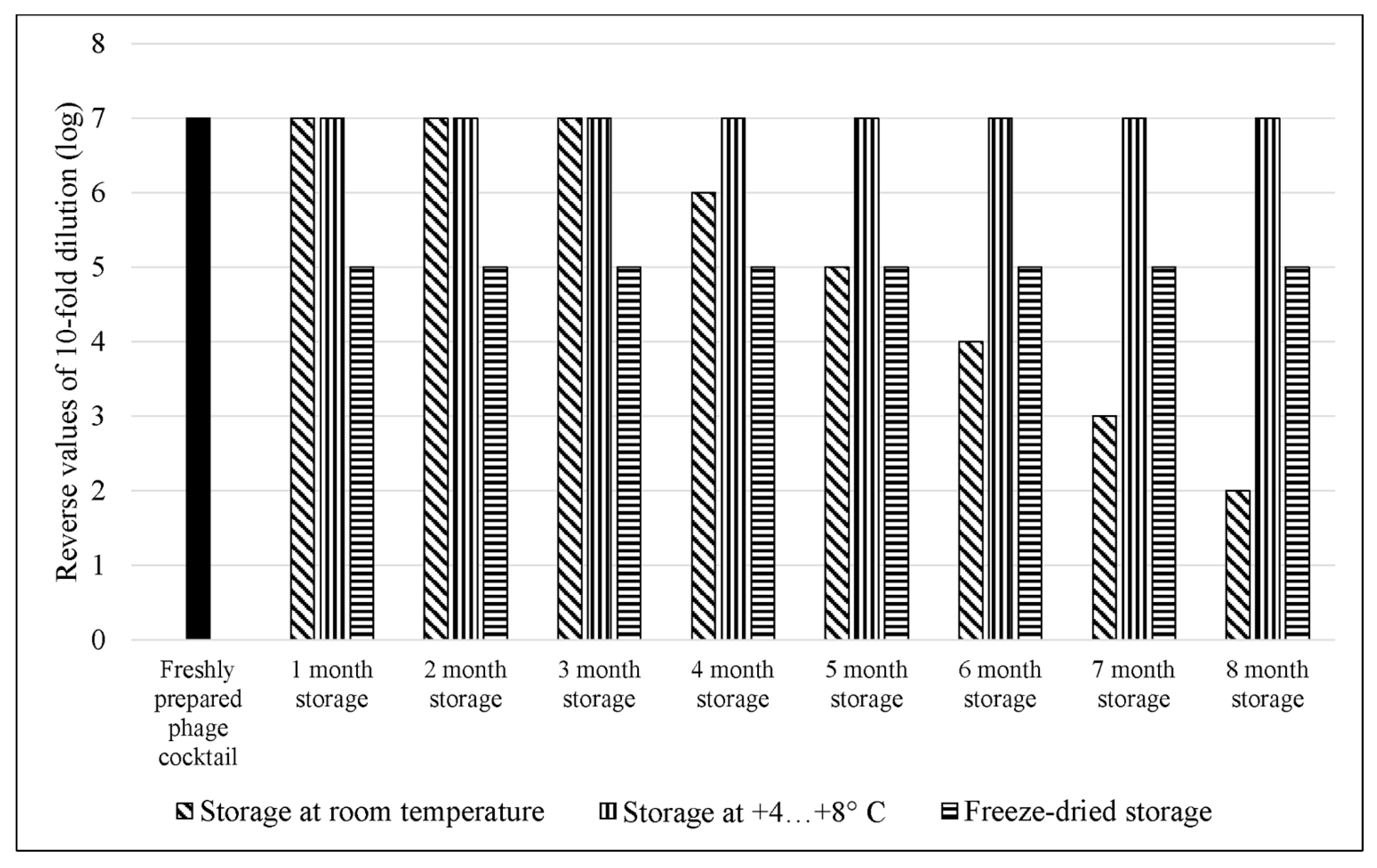

The study showed (Figure 10) that a freshly prepared cocktail of anti-E. coli bacteriophages inhibited the growth of the bacterial test culture by 100% at a concentration of 10 viral particles per 1 mL (MOI of 10−7). The same lytic activity of the cocktail was observed after 8 months of storage in sterile conditions at 4–8 °C. The storage of the bacteriophage cocktail in sterile conditions at room temperature allowed it to maintain its maximum lytic activity during the first 3 months. After that, the activity decreased by 1 log with each month of storage, and after 8 months of storage at room temperature, 100% growth inhibition of the bacterial test culture was observed at MOI 10−2. After freeze-drying, the lytic activity of the cocktail reduced by 2 log, and complete lysis of the bacterial culture was recorded at MOI 10−5; the freeze-dried cocktail then maintained this level of lytic activity throughout the entire storage period.

4. Discussion

There are many examples of successful clinical use of phage therapy for combating bacterial infections, including their antibiotic-resistant forms [44,70]. But it is necessary to take into account the high specificity of bacteriophages to their hosts. On the one hand, it is an advantage since during phage therapy only pathogenic target bacteria are lysed and beneficial or neutral microflora do not suffer. But on the other hand, it necessitates the selection of the most effective bacteriophages or a phage cocktail for each specific case of bacterial infection. In this connection, it is necessary to constantly search for and isolate new lytic bacteriophages, replenish and to expand the existing collections.
The aim of this study was to isolate bacteriophages capable of lysing clinical strains of E. coli. Urban sewage wastewater is the richest source of human variants of E. coli and their bacteriophages, so it was decided to isolate the bacteriophages from such reservoirs, especially since this approach had repeatedly produced positive results in various studies [71,72,73,74]. As a result, six bacteriophages capable of lysing clinical strains of E. coli were isolated on five clinical strains of E. coli.
Transmission electron microscopy showed that all the isolated phages could be classified as members of the Caudoviricetes class, typical bacteriophages that infect E. coli. Their morphological features—hexagonal heads and tails of different lengths—were characteristic of viruses of this class [75]. Phages vB_EcoM_SCS4 and vB_EcoM_SCS57 had an elongated hexagonal head with a diameter of approximately 90–100 nm and a contractile tail of approximately 100–110 nm in length; in both cases, the basal plate with short tail filaments was clearly visible. The images of the vB_EcoM_SCS57 phage clearly show long tail filaments. Phages of such structure belong to the myoviruses group, the most typical and studied representatives of E. coli bacteriophages [42]. Bacteriophages vB_EcoS_SCS44, vB_EcoS_SCS92 and vB_EcoS_SCS31 had a 50–60 nm hexagonal head and a 100–150 nm long non-contractile tail. The vB_EcoS_SCS44 and vB_EcoS_SCS92 phages had well-defined side tail protein filaments in the images, and the vB_EcoS_SCS31 phage had a flexible tail. Such structural features correspond to the phages of the siphoviruses group, whose representatives are typical E. coli viruses and are often isolated on this type of bacteria [76,77]. Bacteriophage vB_EcoP_FFK3 had a hexagonal head of about 100 ± 0.5 nm and a short non-contractile tail of about 50 ± 0.5 nm in length—the structure typical for phages of the podoviruses group, which are also representatives of enterobacteria viruses and are isolated on E. coli cultures [78,79].
All the bacteriophages isolated in this study possessed a high adsorption rate (8–10 min) which ensured their rapid reproduction [80]. At a high adsorption rate, phages meet the host more often and attack it faster; this leads to rapid lysis and thereby increases the therapeutic effect of such bacteriophages [81].
One-step growth experiments showed that all the isolated phages have a short latent period (20–30 min) and an average burst size of more than 100 PFU per cell. The obtained data confirmed the high level of reproduction of the studied phages and, hence, their capability to quickly lyse host bacteria and massively spread among them [58]. Bacteriophages with a short latency period and a high burst size are considered highly lytic and are most preferred for uses in phage therapy.
The results of whole genome sequencing of isolated bacteriophages made it possible to clarify their taxonomic affiliation. It was shown that all isolated bacteriophages belonged to the Caudoviricetes class [75]. The data obtained confirm the results of TEM; the structure of the isolated phages fully corresponds to their taxonomic affiliation.
The prediction of open reading frames made it possible to establish that the genome of the isolated bacteriophages did not encode genes of lysogeny factors (genes of transposases, integrases, prophages, etc.) and antibiotic resistance [82].
In determining the level of lytic activity, it was found that the isolated bacteriophages were able to completely lyse their host bacteria at MOI 10−7–10−3 and inhibit the growth of bacteria by at least 50% at minimum concentrations. The ability of the phages to completely inhibit the growth of bacterial cells for at least 4 h at such low concentrations indicates their high antibacterial activity.
In addition, when performing these experiments, it was found that in the case of vB_EcoM_SCS4, vB_EcoS_SCS44, vB_EcoS_SCS92 and v_BEcoP_FFK3, bacterial culture re-growth was recorded after an average of 4.5 h of cultivation. This fact indicates that the lysis was not 100% and there remained some bacteria resistant to phage infection which gradually multiplied or new resistant strains had time to form, as described in the studies of Kim M et al. and Kocharunchitt C et al. [83,84]. Lower concentrations of phages either did not lead to re-growth of bacteria within 6 h of observation (vB_EcoS_SCS44, _BEcoP_FFK3), or bacterial growth was detected at a later stage (vB_EcoM_SCS4, vB_EcoS_SCS92). This can mean that the infection was weaker, and, as a consequence, resistant bacteria accumulated more slowly [85,86].
In the case of bacteriophages vB_EcoM_SCS57 and vB_EcoS_SCS31 bacteria re-growth was not recorded at any of the MOIs used. This can be explained either by insufficient incubation time to form resistance in bacteria and enable re-growth, or, in the case of vB_EcoS_SCS31 phage, by the actual 100% lysis of bacteria.
The high specificity of bacteriophages to their hosts requires an individual approach to each individual case and to each patient, which increases the time and cost of obtaining a stable positive effect in phage therapy of bacterial infections [87]. In this connection, it is necessary to determine the possible spectrum of hosts in therapeutic bacteriophages for their further prompt and effective use.
Studies performed to determine the host spectrum of isolated E. coli bacteriophages showed that none of the bacteriophage strains studied had the ability to lyse all the bacterial cultures used. Therefore, a phage cocktail was the most appropriate solution as it increased the spectrum of antibacterial activity.
vB_EcoM_SCS4 and vB_EcoM_SCS57 had the broadest host range among the studied bacteriophages. These phages are myoviruses: both membrane proteins of the porin family and lipopolysaccharide (LPS) nuclei can serve as secondary adsorption receptors for them, and this increases the number of bacteria they infect. In turn, only porin family proteins are adsorption receptors for siphoviruses, while podoviruses only bind to LPS nuclei [88]. Therefore, phages of these two groups potentially have a narrower spectrum of hosts.
With the mass spread of phage therapy, preparations with a broad host spectrum will be favored as this simplifies their application and reduces the production cost. The most proven method of increasing the spectrum of affected bacteria is developing cocktails consisting of bacteriophage strains of different families with different lytic activity [89,90].
In addition, the use of phage cocktails reduces or even precludes the probability of bacteria developing resistance to them during the period of therapy, which significantly increases its effectiveness [46,91,92].
A phage cocktail was formed from the isolated bacteriophages and its spectrum of activity on nine clinical strains of E. coli (444, 753, 3957, 3992, 4231, 4238, 4320, 4325, 15597) was determined. The results showed that the developed cocktail completely suppressed the growth of all the E. coli strains used during the entire period of cultivation. No secondary bacterial growth was detected, indicating the combined ability of the cocktail phages to overcome the resistance mechanisms of the lysed E. coli strains.
There are several hypotheses explaining such synergy of bacteriophages in the cocktail. Latka A. et al. in their studies suggest that co-infection with several phages involves the synthesis of various enzymes of polysaccharide depolymerization capable of damaging bacterial cell walls, facilitating phage access to the cytoplasmic membrane of the cells and intensifying the infection process [93]. Mangalea M.R. et al. suggest that due to compromised adaptability, changes in the bacterial genome aimed at developing simultaneous resistance to various bacteriophages from the cocktail may lead to a reduced reproduction rate, virulence and resistance to adverse factors [94].
In any case, the synergistic effect of phage cocktails makes it possible to significantly expand the range of affected bacteria and suppress their growth more effectively without causing a rapid development of phage-resistant forms. These properties of bacteriophage cocktails have been demonstrated both in our study and in many other similar studies [95,96,97].
When considering the possibility of mass use of phage preparations in the therapy of bacterial infections, special attention should be paid to the methods of their storage. These methods should ensure the preservation of high lytic properties of bacteriophages for long periods of time and be cost-effective both for storage and transportation.
A comparative investigation of three methods of storage of the developed cocktail of E. coli bacteriophages was performed in the course of the study: (1) storage in sterile conditions at room temperature; (2) storage in sterile conditions at 4–8 °C; (3) storage in a freeze-dried state with the addition of a stabilization medium (0.8 M sucrose solution).
The results showed that storage of the developed E. coli bacteriophage cocktail in sterile conditions at 4–8 °C fully preserved its original level of lytic activity. Freeze-dried cocktail reduced its lytic activity by 2 logs as compared to the freshly prepared one, but retained this level of activity throughout the entire storage period. Apparently, due to the formation of ice crystals and/or a sudden change in phase state during freeze drying, bacteriophage capsids were damaged, and this decreased the infectious titer of the cocktail [98]. The addition of sucrose stabilized the phage particles to a large extent during sublimation drying, but the destruction could not be completely avoided [99]. Storing the bacteriophage cocktail in the initial state at room temperature gradually reduced its lytic activity. This suggests a gradual degradation of phage particles takes place under such storage conditions, as was shown in earlier studies [100,101].
Thus, it was found that the initial lytic qualities of the bacteriophage cocktail are best preserved when stored in sterile conditions and at a constant temperature of 4–8 °C. However, this method requires maintaining a constant temperature, which increases the risks and economic costs. If the temperature regime is violated, the lytic activity will decrease. Freeze-drying is a more stable and cost-effective method of storage which allows the lytic activity of the phage cocktail to be preserved for a long time under standard conditions. However, it should be kept in mind that the freeze-drying process reduces the phage cocktail activity by 2 logs, even in the presence of a 0.8M sucrose solution. Hence, the initial concentration of phage particles in the freeze-dried preparation should be at least 107 per 1 mL, since 105 viral particles per 1 mL is considered an effective therapeutic cocktail concentration.

5. Conclusions

In the presented studies, six bacteriophages isolated from wastewater and capable of lysing clinical E. coli strains were investigated. The obtained results showed that the isolated bacteriophages had a high lytic activity and are promising candidates for the treatment of E. coli infections. In addition, a cocktail was developed from the isolated phages, which made it possible to increase the level of lytic activity and the host range. The possibility of long-term storage of the cocktail while maintaining its high lytic activity was also shown; this reduces the cost of producing such antibacterial preparations and makes their wider use possible.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/v14112381/s1, Figure S1: Genome map of the vB_EcoM_SCS57; Figure S2: Genome map of the vB_EcoM_SCS4; Figure S3: Genome map of the vB_EcoS_SCS92; Figure S4: Genome map of the vB_EcoS_SCS44; Figure S5: Genome map of the vB_EcoS_SCS31; Figure S6: Genome map of the vB_EcoP_FFK3; Figure S7: BRIG representation reflecting the complete genomic comparison of other phages against vB_EcoM_SCS57 phage; Figure S8: BRIG representation reflecting the complete genomic comparison of other phages against vB_EcoM_SCS4 phage; Figure S9: BRIG representation reflecting the complete genomic comparison of other phages against vB_EcoS_SCS92 phage; Figure S10: BRIG representation reflecting the complete genomic comparison of other phages against vB_EcoS_SCS44 phage; Figure S11: BRIG representation reflecting the complete genomic comparison of other phages against vB_EcoS_SCS31 phage; Figure S12: BRIG representation reflecting the complete genomic comparison of other phages against vB_EcoP_FFK3 phage.

Author Contributions

Conceptualization, P.A., A.B. and M.A.; formal analysis A.B.; methodology, investigation, validation, visualization P.A. and M.A.; investigation, resources K.A. and Y.M.; project administration, funding acquisition, P.A.; supervision, V.B.; writing—original draft, P.A.; Writing—review and editing, all authors. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Ministry of Education and Science of the Republic of Kazakhstan, grant number: AP08855753.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The genome sequences were deposited in GenBank under the accession numbers OM960734, ON001686, ON081052, ON506924, ON548432, ON548433. The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Divatia, J.V.; Pulinilkunnathil, J.G.; Myatra, S.N. Nosocomial Infections and Ventilator-Associated Pneumonia in Cancer Patients. Oncol. Crit. Care 2019, 1419–1439. [Google Scholar] [CrossRef]
  2. Behnke, M.; Hansen, S.; Leistner, R.; Diaz, L.A.P.; Gropmann, A.; Sohr, D.; Gastmeier, P.; Piening, B. Nosocomial Infection and Antibiotic Use. Dtsch. Ärztebl. Int. 2013, 110, 627–633. [Google Scholar] [CrossRef] [Green Version]
  3. Leaper, D.J.; Van Goor, H.; Reilly, J.; Petrosillo, N.; Geiss, H.K.; Torres, A.J.; Berger, A. Surgical Site Infection–a European Perspective of Incidence and Economic Burden. Int. Wound J. 2004, 1, 247–273. [Google Scholar] [CrossRef]
  4. Khan, H.A.; Baig, F.K.; Mehboob, R. Nosocomial Infections: Epidemiology, Prevention, Control and Surveillance. Asian Pac. J. Trop. Biomed. 2017, 7, 478–482. [Google Scholar] [CrossRef]
  5. World Health Organization. Regional Office for the Eastern Mediterranean Eastern Mediterranean Health Journal. East. Mediterr. Health J. 2020, 26, 136–245. [Google Scholar]
  6. Vivas, R.; Barbosa, A.A.T.; Dolabela, S.S.; Jain, S. Multidrug-Resistant Bacteria and Alternative Methods to Control Them: An Overview. Microb. Drug Resist. 2019, 25, 890–908. [Google Scholar] [CrossRef]
  7. Iwu, C.D.; Korsten, L.; Okoh, A.I. The Incidence of Antibiotic Resistance within and beyond the Agricultural Ecosystem: A Concern for Public Health. MicrobiologyOpen 2020, 9, e1035. [Google Scholar] [CrossRef]
  8. Chang, R.Y.K.; Wallin, M.; Lin, Y.; Leung, S.S.Y.; Wang, H.; Morales, S.; Chan, H.-K. Phage Therapy for Respiratory Infections. Adv. Drug Deliv. Rev. 2018, 133, 76–86. [Google Scholar] [CrossRef]
  9. Cabal, A.; García-Castillo, M.; Cantón, R.; Gortázar, C.; Domínguez, L.; Álvarez, J. Prevalence of Escherichia coli Virulence Genes in Patients with Diarrhea and a Subpopulation of Healthy Volunteers in Madrid, Spain. Front. Microbiol. 2016, 7, 641. [Google Scholar] [CrossRef] [Green Version]
  10. Rahimzadeh, G.; Resch, G.; Rezai, M.S.; Nemati Hevelaee, E. Characterization and Lytic Activity of Isolated Escherichia coli Bacteriophages against Escherichia coli in Vitro. Iran. J. Med. Sci. 2020, 45, 298–303. [Google Scholar] [CrossRef]
  11. Barichello, T.; Fagundes, G.D.; Generoso, J.S.; Elias, S.G.; Simões, L.R.; Teixeira, A.L. Pathophysiology of Neonatal Acute Bacterial Meningitis. J. Med. Microbiol. 2013, 62, 1781–1789. [Google Scholar] [CrossRef]
  12. Hoffman, O.; Weber, R.J. Pathophysiology and Treatment of Bacterial Meningitis. Ther. Adv. Neurol. Disord. 2009, 2, 1–7. [Google Scholar] [CrossRef] [Green Version]
  13. Chanishvili, N. Chapter 1-Phage Therapy—History from Twort and d’Herelle Through Soviet Experience to Current Approaches. In Advances in Virus Research; Łobocka, M., Szybalski, W., Eds.; Bacteriophages, Part B; Academic Press: Cambridge, MA, USA, 2012; Volume 83, pp. 3–40. [Google Scholar]
  14. Montso, P.K.; Mlambo, V.; Ateba, C.N. Characterization of Lytic Bacteriophages Infecting Multidrug-Resistant Shiga Toxigenic Atypical Escherichia coli O177 Strains Isolated From Cattle Feces. Front. Public Health 2019, 7, 355. [Google Scholar] [CrossRef]
  15. Chhibber, S.; Kaur, P.; Gondil, V.S. Simple Drop Cast Method for Enumeration of Bacteriophages. J. Virol. Methods 2018, 262, 1–5. [Google Scholar] [CrossRef]
  16. Manges, A.R.; Geum, H.M.; Guo, A.; Edens, T.J.; Fibke, C.D.; Pitout, J.D.D. Global Extraintestinal Pathogenic Escherichia coli (ExPEC) Lineages. Clin. Microbiol. Rev. 2019, 32, e00135-18. [Google Scholar] [CrossRef]
  17. Baldy-Chudzik, K.; Bok, E.; Mazurek, J. Well-known and new variants of pathogenic Escherichia coli as a consequence of the plastic genome. Postepy Hig. Med. Dosw. Online 2015, 69, 345–361. [Google Scholar] [CrossRef]
  18. Sarowska, J.; Futoma-Koloch, B.; Jama-Kmiecik, A.; Frej-Madrzak, M.; Ksiazczyk, M.; Bugla-PLoSkonska, G.; Choroszy-Krol, I. Virulence Factors, Prevalence and Potential Transmission of Extraintestinal Pathogenic Escherichia coli Isolated from Different Sources: Recent Reports. Gut Pathog. 2019, 11, 10. [Google Scholar] [CrossRef] [Green Version]
  19. Pitout, J.D.D. Extraintestinal Pathogenic Escherichia coli: A Combination of Virulence with Antibiotic Resistance. Front. Microbiol. 2012, 3, 9. [Google Scholar] [CrossRef] [Green Version]
  20. Kaper, J.B.; Nataro, J.P.; Mobley, H.L.T. Pathogenic Escherichia coli. Nat. Rev. Microbiol. 2004, 2, 123–140. [Google Scholar] [CrossRef]
  21. Russo, T.A.; Johnson, J.R. Medical and Economic Impact of Extraintestinal Infections Due to Escherichia coli: Focus on an Increasingly Important Endemic Problem. Microbes Infect. 2003, 5, 449–456. [Google Scholar] [CrossRef]
  22. Ramírez-Castillo, F.Y.; Moreno-Flores, A.C.; Avelar-González, F.J.; Márquez-Díaz, F.; Harel, J.; Guerrero-Barrera, A.L. An Evaluation of Multidrug-Resistant Escherichia coli Isolates in Urinary Tract Infections from Aguascalientes, Mexico: Cross-Sectional Study. Ann. Clin. Microbiol. Antimicrob. 2018, 17, 34. [Google Scholar] [CrossRef]
  23. Alkeskas, A.; Ogrodzki, P.; Saad, M.; Masood, N.; Rhoma, N.R.; Moore, K.; Farbos, A.; Paszkiewicz, K.; Forsythe, S. The Molecular Characterisation of Escherichia coli K1 Isolated from Neonatal Nasogastric Feeding Tubes. BMC Infect. Dis. 2015, 15, 449. [Google Scholar] [CrossRef] [Green Version]
  24. de Louvois, J.; Halket, S.; Harvey, D. Neonatal Meningitis in England and Wales: Sequelae at 5 Years of Age. Eur. J. Pediatr. 2005, 164, 730–734. [Google Scholar] [CrossRef]
  25. Mehall, J.R.; Kite, C.A.; Saltzman, D.A.; Wallett, T.; Jackson, R.J.; Smith, S.D. Prospective Study of the Incidence and Complications of Bacterial Contamination of Enteral Feeding in Neonates. J. Pediatr. Surg. 2002, 37, 1177–1182. [Google Scholar] [CrossRef]
  26. Hurrell, E.; Kucerova, E.; Loughlin, M.; Caubilla-Barron, J.; Hilton, A.; Armstrong, R.; Smith, C.; Grant, J.; Shoo, S.; Forsythe, S. Neonatal Enteral Feeding Tubes as Loci for Colonisation by Members of the Enterobacteriaceae. BMC Infect. Dis. 2009, 9, 146. [Google Scholar] [CrossRef] [Green Version]
  27. Huang, S.-H.; Jong, A.Y. Cellular Mechanisms of Microbial Proteins Contributing to Invasion of the Blood–Brain Barrier. Cell. Microbiol. 2001, 3, 277–287. [Google Scholar] [CrossRef]
  28. El-Mokhtar, M.A.; Daef, E.; Mohamed Hussein, A.A.R.; Hashem, M.K.; Hassan, H.M. Emergence of Nosocomial Pneumonia Caused by Colistin-Resistant Escherichia coli in Patients Admitted to Chest Intensive Care Unit. Antibiotics 2021, 10, 226. [Google Scholar] [CrossRef]
  29. Torres, A.; Aznar, R.; Gatell, J.M.; Jiménez, P.; González, J.; Ferrer, A.; Celis, R.; Rodriguez-Roisin, R. Incidence, Risk, and Prognosis Factors of Nosocomial Pneumonia in Mechanically Ventilated Patients. Am. Rev. Respir. Dis. 1990, 142, 523–528. [Google Scholar] [CrossRef]
  30. Koulenti, D.; Tsigou, E.; Rello, J. Nosocomial Pneumonia in 27 ICUs in Europe: Perspectives from the EU-VAP/CAP Study. Eur. J. Clin. Microbiol. Infect. Dis. Off. Publ. Eur. Soc. Clin. Microbiol. 2017, 36, 1999–2006. [Google Scholar] [CrossRef]
  31. La Combe, B.; Clermont, O.; Messika, J.; Eveillard, M.; Kouatchet, A.; Lasocki, S.; Corvec, S.; Lakhal, K.; Billard-Pomares, T.; Fernandes, R.; et al. Pneumonia-Specific Escherichia coli with Distinct Phylogenetic and Virulence Profiles, France, 2012–2014. Emerg. Infect. Dis. 2019, 25, 710–718. [Google Scholar] [CrossRef] [Green Version]
  32. Gould, L.H.; Mody, R.K.; Ong, K.L.; Clogher, P.; Cronquist, A.B.; Garman, K.N.; Lathrop, S.; Medus, C.; Spina, N.L.; Webb, T.H.; et al. Increased Recognition of Non-O157 Shiga Toxin–Producing Escherichia coli Infections in the United States During 2000–2010: Epidemiologic Features and Comparison with E. coli O157 Infections. Foodborne Pathog. Dis. 2013, 10, 453–460. [Google Scholar] [CrossRef] [PubMed]
  33. Barilli, E.; Vismarra, A.; Villa, Z.; Bonilauri, P.; Bacci, C. ESβL E. coli Isolated in Pig’s Chain: Genetic Analysis Associated to the Phenotype and Biofilm Synthesis Evaluation. Int. J. Food Microbiol. 2019, 289, 162–167. [Google Scholar] [CrossRef] [PubMed]
  34. Coque, T.M.; Baquero, F.; Cantón, R. Increasing Prevalence of ESBL-Producing Enterobacteriaceae in Europe. Eurosurveillance 2008, 13, 19044. [Google Scholar] [CrossRef] [PubMed]
  35. Cross, T.; Schoff, C.; Chudoff, D.; Graves, L.; Broomell, H.; Terry, K.; Farina, J.; Correa, A.; Shade, D.; Dunbar, D. An Optimized Enrichment Technique for the Isolation of Arthrobacter Bacteriophage Species from Soil Sample Isolates. J. Vis. Exp. JoVE 2015, 98, 52781. [Google Scholar] [CrossRef] [Green Version]
  36. Li, Q.; Lee, J.Y.; Castillo, R.; Hixon, M.S.; Pujol, C.; Doppalapudi, V.R.; Shepard, H.M.; Wahl, G.M.; Lobl, T.J.; Chan, M.F. NB2001, a Novel Antibacterial Agent with Broad-Spectrum Activity and Enhanced Potency against β-Lactamase-Producing Strains. Antimicrob. Agents Chemother. 2002, 46, 1262–1268. [Google Scholar] [CrossRef] [Green Version]
  37. Ma, J.; Liu, J.-H.; Lv, L.; Zong, Z.; Sun, Y.; Zheng, H.; Chen, Z.; Zeng, Z.-L. Characterization of Extended-Spectrum β-Lactamase Genes Found among Escherichia coli Isolates from Duck and Environmental Samples Obtained on a Duck Farm. Appl. Environ. Microbiol. 2012, 78, 3668–3673. [Google Scholar] [CrossRef] [Green Version]
  38. Croxen, M.A.; Finlay, B.B. Molecular Mechanisms of Escherichia coli Pathogenicity. Nat. Rev. Microbiol. 2010, 8, 26–38. [Google Scholar] [CrossRef]
  39. Dedrick, R.M.; Guerrero-Bustamante, C.A.; Garlena, R.A.; Russell, D.A.; Ford, K.; Harris, K.; Gilmour, K.C.; Soothill, J.; Jacobs-Sera, D.; Schooley, R.T.; et al. Engineered Bacteriophages for Treatment of a Patient with a Disseminated Drug Resistant Mycobacterium Abscessus. Nat. Med. 2019, 25, 730–733. [Google Scholar] [CrossRef]
  40. Gill, J.J.; Hyman, P. Phage Choice, Isolation, and Preparation for Phage Therapy. Curr. Pharm. Biotechnol. 2010, 11, 2–14. [Google Scholar] [CrossRef]
  41. Nobrega, F.L.; Costa, A.R.; Kluskens, L.D.; Azeredo, J. Revisiting Phage Therapy: New Applications for Old Resources. Trends Microbiol. 2015, 23, 185–191. [Google Scholar] [CrossRef] [Green Version]
  42. Keen, E.C. A Century of Phage Research: Bacteriophages and the Shaping of Modern Biology. BioEssays News Rev. Mol. Cell. Dev. Biol. 2015, 37, 6–9. [Google Scholar] [CrossRef] [PubMed]
  43. Abedon, S.T.; García, P.; Mullany, P.; Aminov, R. Editorial: Phage Therapy: Past, Present and Future. Front. Microbiol. 2017, 8, 981. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Kortright, K.E.; Chan, B.K.; Koff, J.L.; Turner, P.E. Phage Therapy: A Renewed Approach to Combat Antibiotic-Resistant Bacteria. Cell Host Microbe 2019, 25, 219–232. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Abedon, S.T.; Kuhl, S.J.; Blasdel, B.G.; Kutter, E.M. Phage Treatment of Human Infections. Bacteriophage 2011, 1, 66–85. [Google Scholar] [CrossRef] [Green Version]
  46. Korf, I.H.E.; Kittler, S.; Bierbrodt, A.; Mengden, R.; Rohde, C.; Rohde, M.; Kroj, A.; Lehnherr, T.; Fruth, A.; Flieger, A.; et al. In Vitro Evaluation of a Phage Cocktail Controlling Infections with Escherichia coli. Viruses 2020, 12, 1470. [Google Scholar] [CrossRef] [PubMed]
  47. Górski, A.; Międzybrodzki, R.; Łobocka, M.; Głowacka-Rutkowska, A.; Bednarek, A.; Borysowski, J.; Jończyk-Matysiak, E.; Łusiak-Szelachowska, M.; Weber-Dąbrowska, B.; Bagińska, N.; et al. Phage Therapy: What Have We Learned? Viruses 2018, 10, 288. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Chibeu, A.; Lingohr, E.J.; Masson, L.; Manges, A.; Harel, J.; Ackermann, H.-W.; Kropinski, A.M.; Boerlin, P. Bacteriophages with the Ability to Degrade Uropathogenic Escherichia coli Biofilms. Viruses 2012, 4, 471–487. [Google Scholar] [CrossRef] [Green Version]
  49. Endersen, L.; O’Mahony, J.; Hill, C.; Ross, R.P.; McAuliffe, O.; Coffey, A. Phage Therapy in the Food Industry. Annu. Rev. Food Sci. Technol. 2014, 5, 327–349. [Google Scholar] [CrossRef]
  50. Manohar, P.; Tamhankar, A.J.; Lundborg, C.S.; Ramesh, N. Isolation, Characterization and in Vivo Efficacy of Escherichia Phage MyPSH1131. PLoS ONE 2018, 13, e0206278. [Google Scholar] [CrossRef]
  51. Carvalho, C.; Costa, A.R.; Silva, F.; Oliveira, A. Bacteriophages and Their Derivatives for the Treatment and Control of Food-Producing Animal Infections. Crit. Rev. Microbiol. 2017, 43, 583–601. [Google Scholar] [CrossRef] [Green Version]
  52. Culot, A.; Grosset, N.; Gautier, M. Overcoming the Challenges of Phage Therapy for Industrial Aquaculture: A Review. Aquaculture 2019, 513, 734423. [Google Scholar] [CrossRef]
  53. Buttimer, C.; McAuliffe, O.; Ross, R.P.; Hill, C.; O’Mahony, J.; Coffey, A. Bacteriophages and Bacterial Plant Diseases. Front. Microbiol. 2017, 8, 34. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Moye, Z.D.; Woolston, J.; Sulakvelidze, A. Bacteriophage Applications for Food Production and Processing. Viruses 2018, 10, 205. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Gordillo Altamirano, F.L.; Barr, J.J. Phage Therapy in the Postantibiotic Era. Clin. Microbiol. Rev. 2019, 32, e00066-18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Kakasis, A.; Panitsa, G. Bacteriophage Therapy as an Alternative Treatment for Human Infections. A Comprehensive Review. Int. J. Antimicrob. Agents 2019, 53, 16–21. [Google Scholar] [CrossRef]
  57. Brüssow, H. Phage Therapy: The Escherichia coli Experience. Microbiology 2005, 151, 2133–2140. [Google Scholar] [CrossRef] [Green Version]
  58. Khan Mirzaei, M.; Nilsson, A.S. Isolation of Phages for Phage Therapy: A Comparison of Spot Tests and Efficiency of Plating Analyses for Determination of Host Range and Efficacy. PLoS ONE 2015, 10, e0118557. [Google Scholar] [CrossRef] [Green Version]
  59. Merabishvili, M.; Pirnay, J.-P.; Verbeken, G.; Chanishvili, N.; Tediashvili, M.; Lashkhi, N.; Glonti, T.; Krylov, V.; Mast, J.; Van Parys, L.; et al. Quality-Controlled Small-Scale Production of a Well-Defined Bacteriophage Cocktail for Use in Human Clinical Trials. PLoS ONE 2009, 4, e4944. [Google Scholar] [CrossRef]
  60. Des Relations Numériques Entre Bactéries Lysogènes et Particules de Bactériophages. Available online: https://orbi.uliege.be/bitstream/2268/267857/1/Des%20relations%20num%C3%A9riques%20entre%20bact%C3%A9ries%20lysog%C3%A8nes%20et%20particules%20de%20bact%C3%A9riophages.pdf (accessed on 2 September 2022).
  61. Molecular Cloning: A Laboratory Manual. 2nd ed. Volumes. 1, 2 and 3|Sigma-Aldrich. Available online: http://www.sigmaaldrich.com/ (accessed on 2 September 2022).
  62. Bolger, A.M.; Lohse, M.; Usadel, B. Trimmomatic: A Flexible Trimmer for Illumina Sequence Data. Bioinformatics 2014, 30, 2114–2120. [Google Scholar] [CrossRef] [Green Version]
  63. Vilsker, M.; Moosa, Y.; Nooij, S.; Fonseca, V.; Ghysens, Y.; Dumon, K.; Pauwels, R.; Alcantara, L.C.; Vanden Eynden, E.; Vandamme, A.-M.; et al. Genome Detective: An Automated System for Virus Identification from High-Throughput Sequencing Data. Bioinformatics 2019, 35, 871–873. [Google Scholar] [CrossRef] [Green Version]
  64. Bankevich, A.; Nurk, S.; Antipov, D.; Gurevich, A.A.; Dvorkin, M.; Kulikov, A.S.; Lesin, V.M.; Nikolenko, S.I.; Pham, S.; Prjibelski, A.D.; et al. SPAdes: A New Genome Assembly Algorithm and Its Applications to Single-Cell Sequencing. J. Comput. Biol. 2012, 19, 455–477. [Google Scholar] [CrossRef] [PubMed]
  65. Kearse, M.; Moir, R.; Wilson, A.; Stones-Havas, S.; Cheung, M.; Sturrock, S.; Buxton, S.; Cooper, A.; Markowitz, S.; Duran, C.; et al. Geneious Basic: An Integrated and Extendable Desktop Software Platform for the Organization and Analysis of Sequence Data. Bioinformatics 2012, 28, 1647–1649. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Deng, W.; Nickle, D.C.; Learn, G.H.; Maust, B.; Mullins, J.I. ViroBLAST: A Stand-Alone BLAST Web Server for Flexible Queries of Multiple Databases and User’s Datasets. Bioinformatics 2007, 23, 2334–2336. [Google Scholar] [CrossRef] [PubMed]
  67. Alikhan, N.-F.; Petty, N.K.; Ben Zakour, N.L.; Beatson, S.A. BLAST Ring Image Generator (BRIG): Simple Prokaryote Genome Comparisons. BMC Genom. 2011, 12, 402. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Furuno, M.; Kasukawa, T.; Saito, R.; Adachi, J.; Suzuki, H.; Baldarelli, R.; Hayashizaki, Y.; Okazaki, Y. CDS Annotation in Full-Length CDNA Sequence. Genome Res. 2003, 13, 1478–1487. [Google Scholar] [CrossRef] [Green Version]
  69. Alves, D.R.; Perez-Esteban, P.; Kot, W.; Bean, J.E.; Arnot, T.; Hansen, L.H.; Enright, M.C.; Jenkins, A.T.A. A Novel Bacteriophage Cocktail Reduces and Disperses P Seudomonas Aeruginosa Biofilms under Static and Flow Conditions. Microb. Biotechnol. 2015, 9, 61–74. [Google Scholar] [CrossRef] [Green Version]
  70. Wittebole, X.; De Roock, S.; Opal, S.M. A Historical Overview of Bacteriophage Therapy as an Alternative to Antibiotics for the Treatment of Bacterial Pathogens. Virulence 2014, 5, 226–235. [Google Scholar] [CrossRef]
  71. Chakraborty, S.; von Mentzer, A.; Begum, Y.A.; Manzur, M.; Hasan, M.; Ghosh, A.N.; Hossain, M.A.; Camilli, A.; Qadri, F. Phenotypic and Genomic Analyses of Bacteriophages Targeting Environmental and Clinical CS3-Expressing Enterotoxigenic Escherichia coli (ETEC) Strains. PLoS ONE 2018, 13, e0209357. [Google Scholar] [CrossRef] [Green Version]
  72. Korf, I.H.E.; Meier-Kolthoff, J.P.; Adriaenssens, E.M.; Kropinski, A.M.; Nimtz, M.; Rohde, M.; van Raaij, M.J.; Wittmann, J. Still Something to Discover: Novel Insights into Escherichia coli Phage Diversity and Taxonomy. Viruses 2019, 11, 454. [Google Scholar] [CrossRef] [Green Version]
  73. Necel, A.; Bloch, S.; Nejman-Faleńczyk, B.; Grabski, M.; Topka, G.; Dydecka, A.; Kosznik-Kwaśnicka, K.; Grabowski, Ł.; Jurczak-Kurek, A.; Wołkowicz, T.; et al. Characterization of a Bacteriophage, VB_Eco4M-7, That Effectively Infects Many Escherichia coli O157 Strains. Sci. Rep. 2020, 10, 3743. [Google Scholar] [CrossRef] [Green Version]
  74. Alexyuk, M.S.; Bogoyavlenskiy, A.P.; Alexyuk, P.G.; Moldakhanov, Y.S.; Turmagambetova, A.S.; Anarkulova, E.I.; Berezin, V.E. Complete Genome Sequence of VB_EcoP_PR_Kaz2018, a T7-Like Bacteriophage. Microbiol. Resour. Announc. 2019, 8, e01323-19. [Google Scholar] [CrossRef] [PubMed]
  75. Maffei, E.; Shaidullina, A.; Burkolter, M.; Heyer, Y.; Estermann, F.; Druelle, V.; Sauer, P.; Willi, L.; Michaelis, S.; Hilbi, H.; et al. Systematic Exploration of Escherichia coli Phage–Host Interactions with the BASEL Phage Collection. PLoS Biol. 2021, 19, e3001424. [Google Scholar] [CrossRef]
  76. Badawy, S.; Baka, Z.A.M.; Abou-Dobara, M.I.; El-Sayed, A.K.A.; Skurnik, M. Biological and Molecular Characterization of FEg-Eco19, a Lytic Bacteriophage Active against an Antibiotic-Resistant Clinical Escherichia coli Isolate. Arch. Virol. 2022, 167, 1333–1341. [Google Scholar] [CrossRef] [PubMed]
  77. Abdelrahman, F.; Rezk, N.; Fayez, M.S.; Abdelmoteleb, M.; Atteya, R.; Elhadidy, M.; El-Shibiny, A. Isolation, Characterization, and Genomic Analysis of Three Novel E. coli Bacteriophages That Effectively Infect E. coli O18. Microorganisms 2022, 10, 589. [Google Scholar] [CrossRef]
  78. Vera-Mansilla, J.; Sánchez, P.; Silva-Valenzuela, C.A.; Molina-Quiroz, R.C. Isolation and Characterization of Novel Lytic Phages Infecting Multidrug-Resistant Escherichia coli. Microbiol. Spectr. 2022, 10, e01678-21. [Google Scholar] [CrossRef] [PubMed]
  79. Olsen, N.S.; Forero-Junco, L.; Kot, W.; Hansen, L.H. Exploring the Remarkable Diversity of Culturable Escherichia coli Phages in the Danish Wastewater Environment. Viruses 2020, 12, 986. [Google Scholar] [CrossRef] [PubMed]
  80. Shao, Y.; Wang, I.-N. Bacteriophage Adsorption Rate and Optimal Lysis Time. Genetics 2008, 180, 471–482. [Google Scholar] [CrossRef] [Green Version]
  81. Pereira, C.; Duarte, J.; Costa, P.; Braz, M.; Almeida, A. Bacteriophages in the Control of Aeromonas Sp. in Aquaculture Systems: An Integrative View. Antibiotics 2022, 11, 163. [Google Scholar] [CrossRef]
  82. Dalmasso, M.; Strain, R.; Neve, H.; Franz, C.M.A.P.; Cousin, F.J.; Ross, R.P.; Hill, C. Three New Escherichia coli Phages from the Human Gut Show Promising Potential for Phage Therapy. PLoS ONE 2016, 11, e0156773. [Google Scholar] [CrossRef] [Green Version]
  83. Kim, M.; Ryu, S. Characterization of a T5-Like Coliphage, SPC35, and Differential Development of Resistance to SPC35 in Salmonella Enterica Serovar Typhimurium and Escherichia coli. Appl. Environ. Microbiol. 2011, 77, 2042–2050. [Google Scholar] [CrossRef] [Green Version]
  84. Kocharunchitt, C.; Ross, T.; McNeil, D.L. Use of Bacteriophages as Biocontrol Agents to Control Salmonella Associated with Seed Sprouts. Int. J. Food Microbiol. 2009, 128, 453–459. [Google Scholar] [CrossRef]
  85. Fischer, S.; Kittler, S.; Klein, G.; Glünder, G. Impact of a Single Phage and a Phage Cocktail Application in Broilers on Reduction of Campylobacter Jejuni and Development of Resistance. PLoS ONE 2013, 8, e78543. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Tsonos, J.; Vandenheuvel, D.; Briers, Y.; De Greve, H.; Hernalsteens, J.-P.; Lavigne, R. Hurdles in Bacteriophage Therapy: Deconstructing the Parameters. Vet. Microbiol. 2014, 171, 460–469. [Google Scholar] [CrossRef]
  87. Hong, Y.; Thimmapuram, J.; Zhang, J.; Collings, C.K.; Bhide, K.; Schmidt, K.; Ebner, P.D. The Impact of Orally Administered Phages on Host Immune Response and Surrounding Microbial Communities. Bacteriophage 2016, 6, e1211066. [Google Scholar] [CrossRef] [Green Version]
  88. Nobrega, F.L.; Vlot, M.; de Jonge, P.A.; Dreesens, L.L.; Beaumont, H.J.E.; Lavigne, R.; Dutilh, B.E.; Brouns, S.J.J. Targeting Mechanisms of Tailed Bacteriophages. Nat. Rev. Microbiol. 2018, 16, 760–773. [Google Scholar] [CrossRef] [PubMed]
  89. Chan, B.K.; Abedon, S.T. Chapter 1-Phage Therapy Pharmacology: Phage Cocktails. In Advances in Applied Microbiology; Laskin, A.I., Sariaslani, S., Gadd, G.M., Eds.; Academic Press: Cambridge, MA, USA, 2012; Volume 78, pp. 1–23. [Google Scholar]
  90. O’Flynn, G.; Ross, R.P.; Fitzgerald, G.F.; Coffey, A. Evaluation of a Cocktail of Three Bacteriophages for Biocontrol of Escherichia coli O157:H7. Appl. Environ. Microbiol. 2004, 70, 3417–3424. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  91. Chan, B.K.; Abedon, S.T.; Loc-Carrillo, C. Phage Cocktails and the Future of Phage Therapy. Future Microbiol. 2013, 8, 769–783. [Google Scholar] [CrossRef]
  92. Hall, A.R.; De Vos, D.; Friman, V.-P.; Pirnay, J.-P.; Buckling, A. Effects of Sequential and Simultaneous Applications of Bacteriophages on Populations of Pseudomonas Aeruginosa In Vitro and in Wax Moth Larvae. Appl. Environ. Microbiol. 2012, 78, 5646–5652. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  93. Latka, A.; Maciejewska, B.; Majkowska-Skrobek, G.; Briers, Y.; Drulis-Kawa, Z. Bacteriophage-Encoded Virion-Associated Enzymes to Overcome the Carbohydrate Barriers during the Infection Process. Appl. Microbiol. Biotechnol. 2017, 101, 3103–3119. [Google Scholar] [CrossRef] [Green Version]
  94. Mangalea, M.R.; Duerkop, B.A. Fitness Trade-Offs Resulting from Bacteriophage Resistance Potentiate Synergistic Antibacterial Strategies. Infect. Immun. 2020, 88, e00926-19. [Google Scholar] [CrossRef] [Green Version]
  95. Kifelew, L.G.; Warner, M.S.; Morales, S.; Vaughan, L.; Woodman, R.; Fitridge, R.; Mitchell, J.G.; Speck, P. Efficacy of Phage Cocktail AB-SA01 Therapy in Diabetic Mouse Wound Infections Caused by Multidrug-Resistant Staphylococcus Aureus. BMC Microbiol. 2020, 20, 204. [Google Scholar] [CrossRef] [PubMed]
  96. Liu, S.; Hon, K.; Bouras, G.S.; Psaltis, A.J.; Shearwin, K.; Wormald, P.-J.; Vreugde, S. APTC-C-SA01: A Novel Bacteriophage Cocktail Targeting Staphylococcus Aureus and MRSA Biofilms. Int. J. Mol. Sci. 2022, 23, 6116. [Google Scholar] [CrossRef]
  97. Naghizadeh, M.; Karimi Torshizi, M.A.; Rahimi, S.; Dalgaard, T.S. Synergistic Effect of Phage Therapy Using a Cocktail Rather than a Single Phage in the Control of Severe Colibacillosis in Quails. Poult. Sci. 2019, 98, 653–663. [Google Scholar] [CrossRef] [PubMed]
  98. Rosner, D.; Clark, J. Formulations for Bacteriophage Therapy and the Potential Uses of Immobilization. Pharmaceuticals 2021, 14, 359. [Google Scholar] [CrossRef] [PubMed]
  99. Ly, A.; Carrigy, N.B.; Wang, H.; Harrison, M.; Sauvageau, D.; Martin, A.R.; Vehring, R.; Finlay, W.H. Atmospheric Spray Freeze Drying of Sugar Solution With Phage D29. Front. Microbiol. 2019, 10, 488. [Google Scholar] [CrossRef] [PubMed]
  100. Clark, W.A. Comparison of Several Methods for Preserving Bacteriophages. Appl. Microbiol. 1962, 10, 466–471. [Google Scholar] [CrossRef]
  101. González-Menéndez, E.; Fernández, L.; Gutiérrez, D.; Rodríguez, A.; Martínez, B.; García, P. Comparative Analysis of Different Preservation Techniques for the Storage of Staphylococcus Phages Aimed for the Industrial Development of Phage-Based Antimicrobial Products. PLoS ONE 2018, 13, e0205728. [Google Scholar] [CrossRef]
Viruses 14 02381 g001 550
Figure 1. The plaques of isolated bacteriophages: vB_EcoM_SCS4 (A), vB_EcoS_SCS44 (B), vB_EcoM_SCS57 (C), vB_EcoS_SCS92 (D), vB_EcoS_SCS31 (E), vB_EcoP_FFK3 (F).
Figure 1. The plaques of isolated bacteriophages: vB_EcoM_SCS4 (A), vB_EcoS_SCS44 (B), vB_EcoM_SCS57 (C), vB_EcoS_SCS92 (D), vB_EcoS_SCS31 (E), vB_EcoP_FFK3 (F).
Viruses 14 02381 g001
Viruses 14 02381 g002 550
Figure 2. Electron microscopy of bacteriophages E. coli: vB_EcoM_SCS4, ×120,000 (A), vB_EcoS_SCS44, ×100,000 (B), vB_EcoM_SCS57, ×100,000 (C), vB_EcoS_SCS92, ×120,000 (D), vB_EcoS_SCS31, ×100,000 (E), vB_EcoP_FFK3, ×100,000 (F).
Figure 2. Electron microscopy of bacteriophages E. coli: vB_EcoM_SCS4, ×120,000 (A), vB_EcoS_SCS44, ×100,000 (B), vB_EcoM_SCS57, ×100,000 (C), vB_EcoS_SCS92, ×120,000 (D), vB_EcoS_SCS31, ×100,000 (E), vB_EcoP_FFK3, ×100,000 (F).
Viruses 14 02381 g002
Viruses 14 02381 g003 550
Figure 3. Adsorption rate of the vB_EcoM_SCS4 (A), vB_EcoS_SCS44 (B), vB_EcoM_SCS57 (C), vB_EcoS_SCS92, (D), vB_EcoS_SCS31 (E), vB_EcoP_FFK3 (F) bacteriophages.
Figure 3. Adsorption rate of the vB_EcoM_SCS4 (A), vB_EcoS_SCS44 (B), vB_EcoM_SCS57 (C), vB_EcoS_SCS92, (D), vB_EcoS_SCS31 (E), vB_EcoP_FFK3 (F) bacteriophages.
Viruses 14 02381 g003
Viruses 14 02381 g004 550
Figure 4. One-step growth curve of the vB_EcoM_SCS4 (A), vB_EcoS_SCS44 (B), vB_EcoM_SCS57 (C), vB_EcoS_SCS92, (D), vB_EcoS_SCS31 (E), vB_EcoP_FFK3 (F) bacteriophages.
Figure 4. One-step growth curve of the vB_EcoM_SCS4 (A), vB_EcoS_SCS44 (B), vB_EcoM_SCS57 (C), vB_EcoS_SCS92, (D), vB_EcoS_SCS31 (E), vB_EcoP_FFK3 (F) bacteriophages.
Viruses 14 02381 g004
Viruses 14 02381 g005 550
Figure 5. Alignment of the complete genomes of the isolated phages.
Figure 5. Alignment of the complete genomes of the isolated phages.
Viruses 14 02381 g005
Viruses 14 02381 g006 550
Figure 6. Phylogenetic trees of the studied phages: Straboviridae family (A), Guernseyvirinae subfamily (B), Drexlerviridae family (C), Autographiviridae family (D).
Figure 6. Phylogenetic trees of the studied phages: Straboviridae family (A), Guernseyvirinae subfamily (B), Drexlerviridae family (C), Autographiviridae family (D).
Viruses 14 02381 g006
Viruses 14 02381 g007 550
Figure 7. The effect of E. coli bacteriophages at MOI from 10−7 to 1 on the growth of the host bacterium: (A) vB_EcoM_SCS4, (B) vB_EcoS_SCS44, (C) vB_EcoM_SCS57, (D) vB_EcoS_SCS92, (E) vB_EcoS_SCS31, (F) v_BEcoP_FFK3.
Figure 7. The effect of E. coli bacteriophages at MOI from 10−7 to 1 on the growth of the host bacterium: (A) vB_EcoM_SCS4, (B) vB_EcoS_SCS44, (C) vB_EcoM_SCS57, (D) vB_EcoS_SCS92, (E) vB_EcoS_SCS31, (F) v_BEcoP_FFK3.
Viruses 14 02381 g007
Viruses 14 02381 g008 550
Figure 8. Growth dynamics of various strains of E. coli—444 (A), 753 (B), 3957 (C), 3992 (D), 4231 (E), 4238 (F), 4320 (G), 4325 (H), 15,597 (I) in the presence of the studied bacteriophages.
Figure 8. Growth dynamics of various strains of E. coli—444 (A), 753 (B), 3957 (C), 3992 (D), 4231 (E), 4238 (F), 4320 (G), 4325 (H), 15,597 (I) in the presence of the studied bacteriophages.
Viruses 14 02381 g008
Viruses 14 02381 g009 550
Figure 9. Growth dynamics of various E. coli strains: 444 (A), 753 (B), 3957 (C), 3992 (D), 4231 (E), 4238 (F), 4320 (G), 4325 (H), 15,597 (I) in the presence of the bacteriophage cocktail.
Figure 9. Growth dynamics of various E. coli strains: 444 (A), 753 (B), 3957 (C), 3992 (D), 4231 (E), 4238 (F), 4320 (G), 4325 (H), 15,597 (I) in the presence of the bacteriophage cocktail.
Viruses 14 02381 g009
Viruses 14 02381 g010 550
Figure 10. The concentration of viral particles in the E. coli bacteriophages cocktail required to completely inhibit the growth of the bacterial culture depending on the duration and method of storage. The E. coli 15,597 strain obtained from ATCC was used as the test culture. Each experiment was performed in triplicate.
Figure 10. The concentration of viral particles in the E. coli bacteriophages cocktail required to completely inhibit the growth of the bacterial culture depending on the duration and method of storage. The E. coli 15,597 strain obtained from ATCC was used as the test culture. Each experiment was performed in triplicate.
Viruses 14 02381 g010
Table
Table 1. E. coli strains used in the study.
Table 1. E. coli strains used in the study.
E. coli StrainsAntibiotic ResistanceOrganization Providing Bacterial Strains
444CFZ, CAZ, LVX, CIP, AZM, PIPJSC “Central Clinical Hospital”, Almaty
753PEN, fluoroquinolones I-III generation, TMP
3957AMP, PIP, GEN, SXT
3992CIP, LVX
4231Resistance to the antibiotics used has not been identified
4238AMP, CXM, CTX, CAZ, FEP, GEN, CIP, LVX, SXT
4320Resistance to the antibiotics used has not been identified
4325AMP, CIP, LVX
15597−ATCC
AMP—ampicillin (penicillins), AZM—azithromycin (macrolides), CAZ—ceftazidime (cephalosporins III), CFZ—cefazolin (cephalosporins I), CIP—ciprofloxacin (fluoroquinolones II), CTX—cefotaxime (cephalosporins III), CXM—cefuroxime (cephalosporins II), FEP—cefepime (cephalosporins IV), GEN—gentamicin (aminoglycosides), LVX—levofloxacin (fluoroquinolones III), PEN—penicillins, PIP—piperacillin (ureidopenicillins), SXT—trimethoprim-sulfamethoxazole, TMP—trimethoprim.
Table
Table 2. Designation of isolated bacteriophages and description of the plaques.
Table 2. Designation of isolated bacteriophages and description of the plaques.
Bacteriophage StrainBacteriophage Isolation PlaceHost Bacterium StrainPlaques
vB_EcoM_SCS4Sewage collector of Shymkent, KazakhstanE. coli 753Limpid plaque ≈4 mm in diameter with a slight halo up to 8 mm
vB_EcoS_SCS44E. coli 444Limpid plaque with a diameter of ≈2 mm without halo
vB_EcoM_SCS57E. coli 3957Limpid plaque with a diameter of ≈1.5 mm without halo
vB_EcoS_SCS92E. coli 3992Limpid plaque with a diameter of ≈2 mm without halo
vB_EcoD_SCS31E. coli 4231Limpid plaque with a diameter of ≈4 mm with a pronounced halo up to 6 mm
vB_EcoP_FFK3Sewage disposal fields of Konaev, KazakhstanE. coli 753A limpid plaque ≈4 mm in diameter with a slight halo up to 7 mm.
Table
Table 3. Key feature of the genomes.
Table 3. Key feature of the genomes.
PhagesLength (bp)No. of ORFsNo. of tRNAsGC Content (%)
vB_EcoM_SCS57168,771272237.6
vB_EcoM_SCS4166,783269035.4
vB_EcoS_SCS9244,24072051.0
vB_EcoS_SCS4444,82978050.6
vB_EcoS_SCS3146,05478143.5
vB_EcoP_FFK349,30048049.8
Table
Table 4. The level of lytic activity of the E. coli bacteriophages.
Table 4. The level of lytic activity of the E. coli bacteriophages.
E. coli Bacteriophage StrainMOI
110−110−210−310−410−510−610−7
vB_EcoM_SCS4++ *++++++++++++++
vB_EcoS_SCS44++++++++++++
vB_EcoM_SCS57++++++++++++++
vB_EcoS_SCS92+++++++++++++++
vB_EcoS_SCS31++++++++++++++++
v_BEcoP_FFK3+++++++++++++++
*++—suppression of the growth of the bacterial test culture by 90–100%; +—suppression of the growth of the bacterial test culture by 50–90%. 100% inhibition of bacterial growth—optical density value of samples without the addition of bacterial suspension (negative control), 0% inhibition of growth of bacteria—optical density value of samples without the addition of phage lysates (positive control).
Table
Table 5. Host range of E. coli bacteriophages.
Table 5. Host range of E. coli bacteriophages.
Bacteriophage
Strain		Clinical Strains of E. coli
44475339573992423142384320432515597
vB_EcoM_SCS4− *+++−−+++++++++++++++
vB_EcoS_SCS44+++−++−−−++−−
vB_EcoM_SCS57+++++++−++−+++−+++
vB_EcoS_SCS92++−++++++−−−−−
vB_EcoS_SCS31++−−−+++−−−−
v_BEcoP_FFK3−+++−−+++−−+++−
*—+++—inhibition of bacterial culture growth by 90–100%; ++—inhibition of bacterial culture growth by 90–50%; +—inhibition of bacterial culture growth by 20–50%; −—lack of inhibition of bacterial culture growth. 100% inhibition of bacterial growth—optical density value of samples without the addition of bacterial suspension (negative control), 0% inhibition of growth of bacteria—optical density value of samples without the addition of phage lysates (positive control).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Alexyuk, P.; Bogoyavlenskiy, A.; Alexyuk, M.; Akanova, K.; Moldakhanov, Y.; Berezin, V. Isolation and Characterization of Lytic Bacteriophages Active against Clinical Strains of E. coli and Development of a Phage Antimicrobial Cocktail. Viruses 2022, 14, 2381. https://doi.org/10.3390/v14112381

AMA Style

Alexyuk P, Bogoyavlenskiy A, Alexyuk M, Akanova K, Moldakhanov Y, Berezin V. Isolation and Characterization of Lytic Bacteriophages Active against Clinical Strains of E. coli and Development of a Phage Antimicrobial Cocktail. Viruses. 2022; 14(11):2381. https://doi.org/10.3390/v14112381

Chicago/Turabian Style

Alexyuk, Pavel, Andrey Bogoyavlenskiy, Madina Alexyuk, Kuralay Akanova, Yergali Moldakhanov, and Vladimir Berezin. 2022. "Isolation and Characterization of Lytic Bacteriophages Active against Clinical Strains of E. coli and Development of a Phage Antimicrobial Cocktail" Viruses 14, no. 11: 2381. https://doi.org/10.3390/v14112381

APA Style

Alexyuk, P., Bogoyavlenskiy, A., Alexyuk, M., Akanova, K., Moldakhanov, Y., & Berezin, V. (2022). Isolation and Characterization of Lytic Bacteriophages Active against Clinical Strains of E. coli and Development of a Phage Antimicrobial Cocktail. Viruses, 14(11), 2381. https://doi.org/10.3390/v14112381

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
