1. Introduction
Foot-and-mouth disease (FMD), caused by the foot-and-mouth disease virus (FMDV), is a highly contagious infectious vesicular disease of cloven-hoofed animals including cattle, pigs, sheep, and many wildlife species. FMDV is currently divided into seven serotypes, namely O, A, C, Asia1, and SAT (Southern African Territory) 1, 2 and 3. Although serotype C FMDV is now considered to be extinct outside of the laboratory, other serotype viruses remain endemic in Africa and southern Asia [
1]. In China, FMDV serotypes A and O, are responsible for the outbreaks and have brought massive losses to both the social economy and the livestock industry [
2]. According to the data statistics, US
$6.5–US
$21 billion is spent on production losses and vaccination of FMDV every year globally [
3].
FMDV is a member of the Picornaviridae family which is a group of non-enveloped, single-strand, positive-sense small RNA viruses [
4]. FMDV genome is surrounded by an icosahedral capsid and is approximately 8500 nt consisting of two untranslated regions (UTR) as well as a single open reading frame (ORF). The ORF encodes 4 structural proteins, namely VP1, VP2, VP3, and VP4, which assemble into the icosahedral capsid, and 11 non-structural proteins, such as Lab, Lb, 2A, 2B, 2C, 3A, 3B1, 3B2, 3B3, 3C and 3D [
5]. The 3D gene encodes the viral RNA-dependent RNA polymerase (RdRP) and possesses highly conservative features in the sequence of different serotypes and subtypes of FMDV. Therefore, it allows us to establish FMDV pan-detection methods, such as the RT-qPCR recommended by World Organization for Animal Health (WOAH), the conventional RT-PCR, loop-mediated isothermal amplification (LAMP) and recombinase polymerase amplification (RPA) while the VP1 coding gene is the target for typing and molecular epidemiology [
6].
Currently, WOAH recommends conventional and quantitative RT-PCR for fast diagnosis. However, those methods are heavily dependent on specific types of equipment and professionals which make them unsuitable for pen-side detection [
7]. FMDV can rapidly spread among herds, and therefore pen-side tests characterized by time-saving, simple operation, and inexpensive instrument requirements for virus detection would be helpful in epidemic control and prevention, and eventually disease eradication [
8]. LAMP, a gene amplification technique relying on the strand displacement function of Bst DNA polymerase under constant temperature conditions, is largely different from traditional nucleic acid amplification methods, such as PCR and qPCR under variable temperatures [
9]. LAMP can significantly shorten the time for obtaining results (less than 1 h) and greatly decrease the dependence on professional amplifiers (heat block enough). What is more, a set of six primers (outer primers F3, B3, inner primers FIP, BIP, and loop primers Floop, Bloop) specially attaches to eight different regions of the target gene to make LAMP assay highly sensitive and specific, and naked-eye visualization based on the generation of a huge amount of amplicons [
10,
11]. This unique superiority confers LAMP as the ideal approach for epidemic pen-side detection.
Up to now, several different kinds of reverse transcription LAMP (RT-LAMP) assays for FMDV detection have been established, such as the classical RT-LAMP with the appearance of a ladder-like pattern of bands when amplicons were electrophoresed on an agarose-gel [
12,
13]; RT-LAMP with the aid of a real-time turbidimeter to detect amplification products [
14]; RT-LAMP performed on the portable real-time fluorometer for the field application and confirmed the results according to the anneal derivative temperature (Ta) [
15]; probe-based real-time RT-LAMP assay [
7] or the visual RT-LAMP (RT-vLAMP) examined with a directly naked-eye observation by adding SYBR Green I or hydroxy naphthol blue (HNB) as a colorimetric indicator [
16,
17]. Among those assays, the visual RT-LAMP is in the spotlight due to its potential for field in-site tests. However, the lack of sharp color changes makes them difficult to be distinguished with the naked eye, limiting their pen-side test application.
In this research, we established a new visual RT-LAMP assay based on the conserved 3D gene to achieve rapid and convenient detection of all seven serotypes (pan-serotypic) of FMDV at a pen-side level by providing a sharp color shift. The pre-added chromogenic agent-neutral red could visualize the detection results by presenting a striking color contrast between positive and negative reactions due to the pH drop based on the production of a huge amount of amplicons. The color of the positive tubes changed from light orange to pink while the negative tubes remained the same. In addition, the specificity, sensitivity, and clinical evaluation with field samples of the new visual RT-LAMP assay were investigated to confirm whether it offers reliable detection of FMDV.
2. Materials and Methods
2.1. Preparation of FMDV 3D RNA Transcript Standard
A 500 nt segment of the 3′ end region of the 3D gene with high homology between all serotypes was selected as the target region after the alignment (MEGA 7.0) [
18] of the FMDV 3D sequences. A total of 39 such DNA fragments (500 bp) representing seven serotypes were commercially synthesized to establish the pan-serotypic FMDV naked-eye visual RT-LAMP. Their accession number in Genbank were shown in
Table 1. The T7 sequence 5′-TAATACGACTCACTATAGGG-3′ was added to the 5′ terminal of the segment, which was used for the in vitro transcription of RNA subsequently. The 39 synthesized 3D gene DNA fragments were cloned into a pUC57 cloning vector (Tsingke Biotechnology Co., Ltd., Xian, China). The 3D-pUC57 recombinant plasmids were extracted as the templates and then those 3D DNA fragments with T7 sequence were amplified by PCR with universal forward primers (pUC57-3DF) 5′-TAATACGACT CACTATAGGGGCATC-3′ and reverse primer (pUC57-3DR) 5′-TGCGTCACCGCACACGGCGTT-3′ under the following conditions: 95 °C, 5 min; (95 °C, 30 s; 56 °C, 30 s; 72 °C, 45 s) × 36 cycles and final extension at 72 °C for 10 min. After that, the 520 bp 3D amplicons (including the 20 bp T7 sequence) were purified using Takara MiniBest Agarose Gel DNA Extraction kit ver4.0 (Takara, Dalian, China) and then were subject to in vitro transcription. The generated RNA was cleaned according to the instruction manual (Takara, In Vitro Transcription T7 kit, Dalian, China; Takara, RNA mini cleaning kit, Dalian, China) after removing amplicon debris by enzyme digestion.
To prepare the 3D RNA transcript standard, the concentrations of the acquired RNA transcripts were determined using NanoDrop 2000 (Thermo Fisher Scientific, Wilmington, DE, USA) and the copy numbers of the RNA transcripts were calculated. Ten-fold dilutions were carried out from 107 to 101 copies/µL and the diluted RNA transcripts were then used as standards for determining the analytical sensitivity of the assays.
2.2. Viruses and Nucleic Acid Samples
The genome of the contagious pustular dermatitis virus (ORFV), sheep pox virus/goat pox virus (SPPV/GTPV), bovine viral diarrhea virus (BVDV), blue tongue virus (BTV), and classical swine fever virus (CSFV) were obtained from the infected cell culture supernatant using MiniBest Viral RNA/DNA Extraction Kit Ver.5.0 (Takara, Code No.9766, Dalian, China). The genome of the Seneca Valley virus (SVV), highly pathogenic porcine reproductive and respiratory syndrome virus (HP-PRRSV), porcine circovirus type 2 (PCV2), porcine parvovirus (PPV), pseudorabies virus (PRV), inactivated FMDVs including serotype O, A, Asia1 and SAT2, and the 36 FMDV negative clinical samples were all preserved and provided by National/WOAH FMD Reference Laboratory, Lanzhou Veterinary Research Institute, Chinese Academy of Agricultural Sciences (LVRI, CAAS). The RNAs of 21 FMDV (unknown serotype) positive clinical samples were provided by the National/WOAH FMD Reference Laboratory. The detailed information on these materials was listed in
Table S1.
2.3. Primer Design

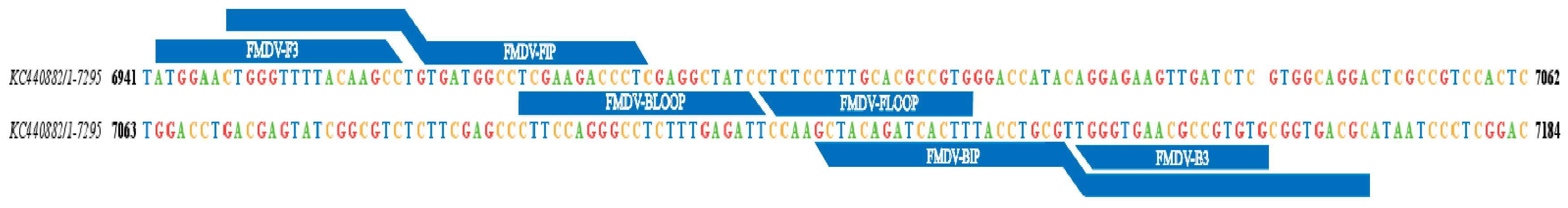

To ensure visual RT-LAMP assay established here was suitable for all serotypes of FMDV detection, all full-length 3D genes retrieved from Genbank were aligned by MEGA7.0 [
18] and 500 nt segment at the 3′ end of 3D was selected as the primer design region. Six sets of primers were designed using Primer Explorer 5.0 (PrimerExplorer V5 Software.
http://primerexplorer.jp/lampv5e/index.html, accessed on 10 June 2022) as candidate primers finally. Each set consisted of three primer pairs F3/B3:FIP/BIP:Floop/Bloop. All these primers were commercially synthesized (Tsingke Biotechnology Co., Ltd., Xian, China).
2.4. RT-qPCR and Conventional RT-PCR Methods
The RT-qPCR (targeting the 3D gene) assay recommended by (WOAH) (CHAPTER 3.1.8. FOOT AND MOUTH DISEASE (INFECTION WITH FOOT AND MOUTH DISEASE VIRUS). Available online:
https://www.woah.org/fileadmin/Home/eng/Health_standards/tahm/3.01.08_FMD.pdf (accessed on 19 August 2022) was carried out as per the procedures using One Step (TaqMan probes) RT-qPCR Kit (MyLab Biotechnology Co., Ltd., Beijing, China). A total of 25 µL reaction system including 2× One Step RT-qPCR mix 12.5 µL, Enzyme mix 0.5 µL, 0.5 µL F primer (10 µM), 0.5 µL R primer (10 µM), 0.5 µL FAM probe (10 µM), 1 µL template RNA and 9.5 µL DNase/RNase free ddH2O was incubated in CFX96 Touch real-time PCR detection system (Bio-Rad, Foster city, CA, USA) under the following condition: 50 °C, 30 min (reverse transcription); 95 °C, 3 min; (95 °C, 10 s; 55 °C, 30 s) × 50 cycles. The results were judged by the threshold cycle (Ct) of the fluorescent reporter. Ct values below the cut-off value (CT < 40) were considered positive.
The primers with the production of 208 bp amplicon for the agarose gel-based RT-PCR targeting the 5′ end region of the 3D gene [
19] were used in our study. Seven full-length 3D genes (GenBank accession number KC440882, MF461724, AF274010, MF782478, AY593845, AF540910, KF647850, representing serotype O, A, C, Asia1, SAT1, SAT2 and SAT3, respectively) were synthesized and then copied into RNA via transcription described in
Section 2.1 above to serve as the template. A total of 1 µL the RNA transcript was added to the total reaction system (25 µL) consisting of 2× One Step RT-qPCR mix 12.5 µL, Enzyme mix 0.5 µL, 1 µL (10 µM) each of forward and reverse primer and 9 µL DNase/RNase free ddH
2O. Amplification occurred under the following condition: 50 °C, 30 min (reverse transcription); 95 °C, 5 min; (95 °C, 10 s; 56 °C, 30 s; 72 °C, 45 s) × 36 cycles and a final extension at 72 °C for 10 min. The RT-PCR amplification products were detected by 2.5% agarose gel electrophoresis.
2.5. The Identification of ORFV, SPPV/GTPV, PRV, PCV2, BVDV, SVV, CSFV, BTV, PRRSV, and PPV by PCR or RT-PCR
For the confirmation of DNA viruses including ORFV, SPPV/GTPV, PRV, PCV2, and PPV, the PCR was conducted, and the reaction mixtures (20 µL) were comprised of Taq DNA polymerase 1 µL, 2× buffer 10 µL, F/R primer (10 µM) 1 µL, DNA template 1–2 µL and ddH
2O up to 20 µL. The reaction tubes were incubated under the conditions described in
Table S2. For the self-identification of RNA viruses including BVDV, SVV, CSFV, BTV, and PRRSV, the RT-PCR was conducted and the reaction mixtures (20 µL) were comprised of Prime Script One Step Enzyme Mix 0.8 µL, 2× One Step buffer 10 µL, F/R primer (10 µM) 1 µL, RNA template 1–2 µL and ddH
2O up to 20 µL. The reactions were performed under the conditions described in
Table S3. The primer sequences were listed in
Table S4.
2.6. Establishment and Optimization of the Visual RT-LAMP Assay

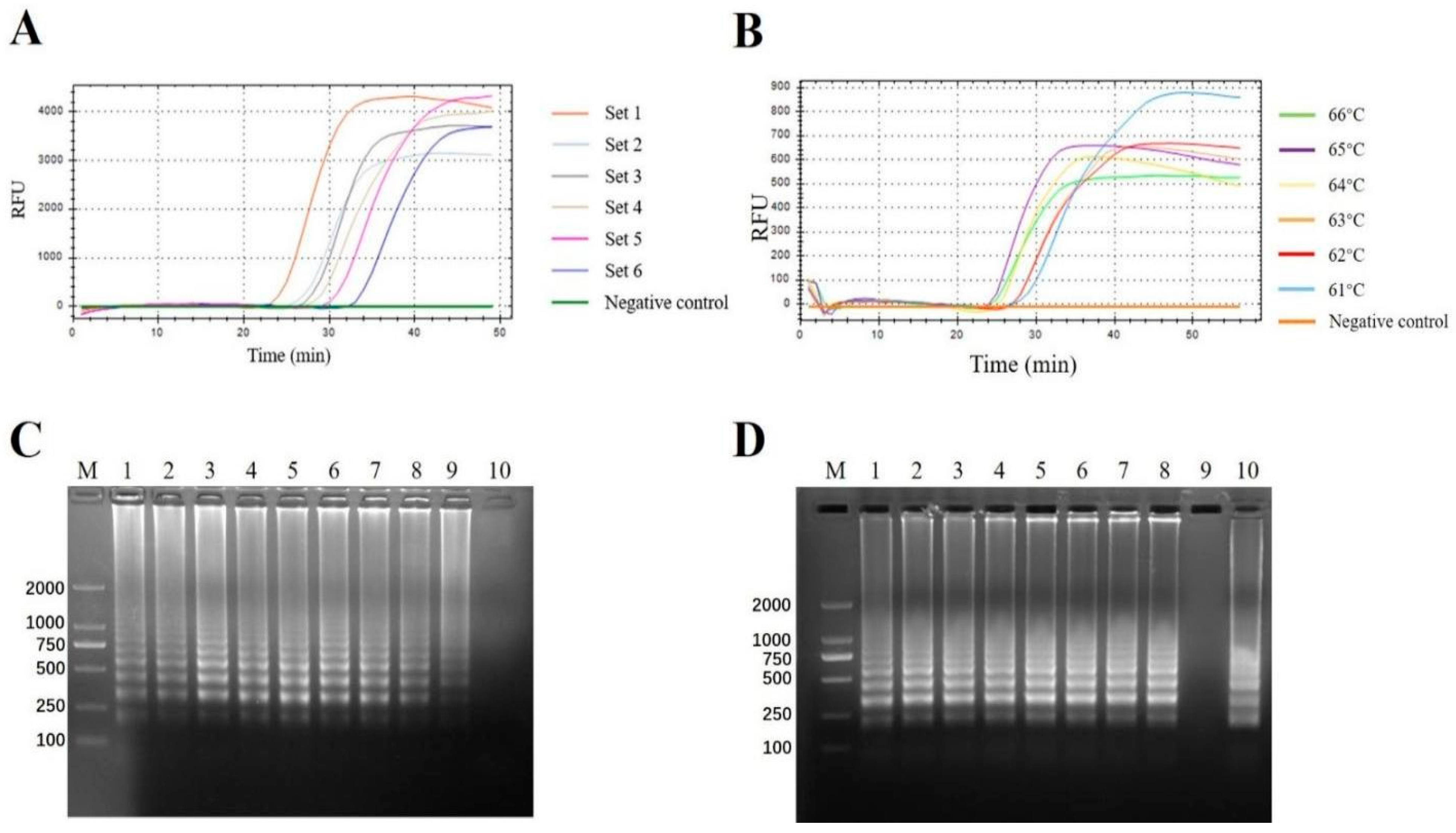

Firstly, we established the visual RT-LAMP assay with Eva green fluorescence and 39 3D RNA transcripts representing seven FMDV serotypes by running in CFX96 Touch real-time PCR detection system (Bio-Rad). A total of 20 µL reaction system consisted of 10 µL of 2× RT-LAMP buffer mixture (Mylab Medical Technology Co., Ltd., Beijing, China), 1 µL (8 U) Bst DNA polymerase (New England Biolabs Inc., Ipswich, UK), 1 µL 20 × Eva green (Biotium Inc., Fremont, CA, USA), 0.04 µL (100 µM) each of F3 and B3 primers, 0.5 µL (100 µM) each of FIP and BIP inner primers, 0.11 µL (100 µM) each of loop primers Floop and Bloop, 1 µL 3D RNA transcript template (105 copies/µL) and DNase/RNase free ddH2O up to 20 µL. The RT-LAMP reaction was carried out at 60 °C for 60 min. The relative fluorescence units (RFU) were proportionate to the amplification efficiency and were regarded as the selection criterion. To optimize the primers, 6 sets of candidate primers were designed based on an alignment of the 500 nt highly conserved region at the 3′ end of the 3D gene. To determine the optimal reaction temperature of the assay, temperatures from 59 °C to 66 °C at 1 °C intervals were tested. To investigate the optimal time, the reaction mixtures were incubated from 30 min to 70 min. After reaction completion, the amplicons were also subject to gel electrophoresis on 2.5% agarose gel.
2.7. Comparison of the Chromogenic Agents among HNB, Calcein, SYBR Green, Neutral Red, Cresol Red, and Bromothymol Blue (BTB) for the Naked-Eye Visual RT-LAMP Assay

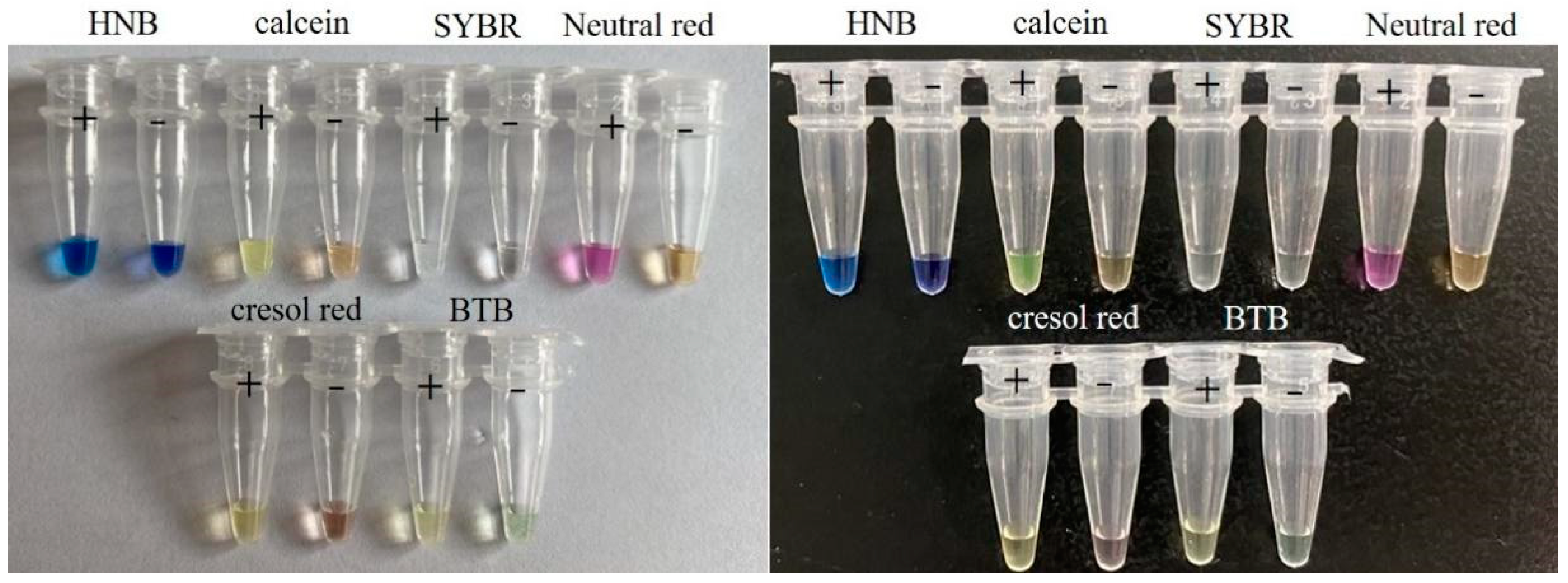

To achieve the naked-eye visual RT-LAMP assay, HNB, calcein, SYBR green I, neutral red, cresol red, and BTB were screened to work as the indicator dye. The assay with HNB or calcein or SYBR green I was performed in a total 20 µL reaction system described previously only with the replacement of Eva green by 2 µL (1 mM) HNB or 1 µL calcein or 1 µL SYBR green I (500 µM). The naked-eye visual RT-LAMP assay with neutral red or BTB or cresol red was carried out with 2× RT-LAMP buffer mixture (pH = 8.5) (Mylab Medical Technology Co., Ltd., Beijing, China), and 1 µL (500 µM) neutral red or 1 µL BTB or 2.4 µL (500 µM) of cresol red as the dye. The other components were the same as that of the visual RT-LAMP mentioned above. All the reactions happened at 61 °C for 55 min with the primers of Set 1 as the optimal candidates and were followed by 80 °C for 5 min in the PCR Amplifier or taking out the tubes less than 20 min after the reaction completion in the isothermal heat block.
2.8. Analytical Sensitivity and Specificity of the Naked-Eye Visual RT-LAMP Assay
To estimate the limit of detection (LOD) of the naked-eye visual RT-LAMP assay, the 3D RNA transcript standard of each serotype of FMDV was 10-fold serially diluted in PBS, and 1 µL was used as the template to achieve a final copy number ranging from 107 to 100 copies, tested in triplicate, to determine LOD. The RT-PCR, and the RT-qPCR were compared by also testing the RNA standard dilutions in triplicate.

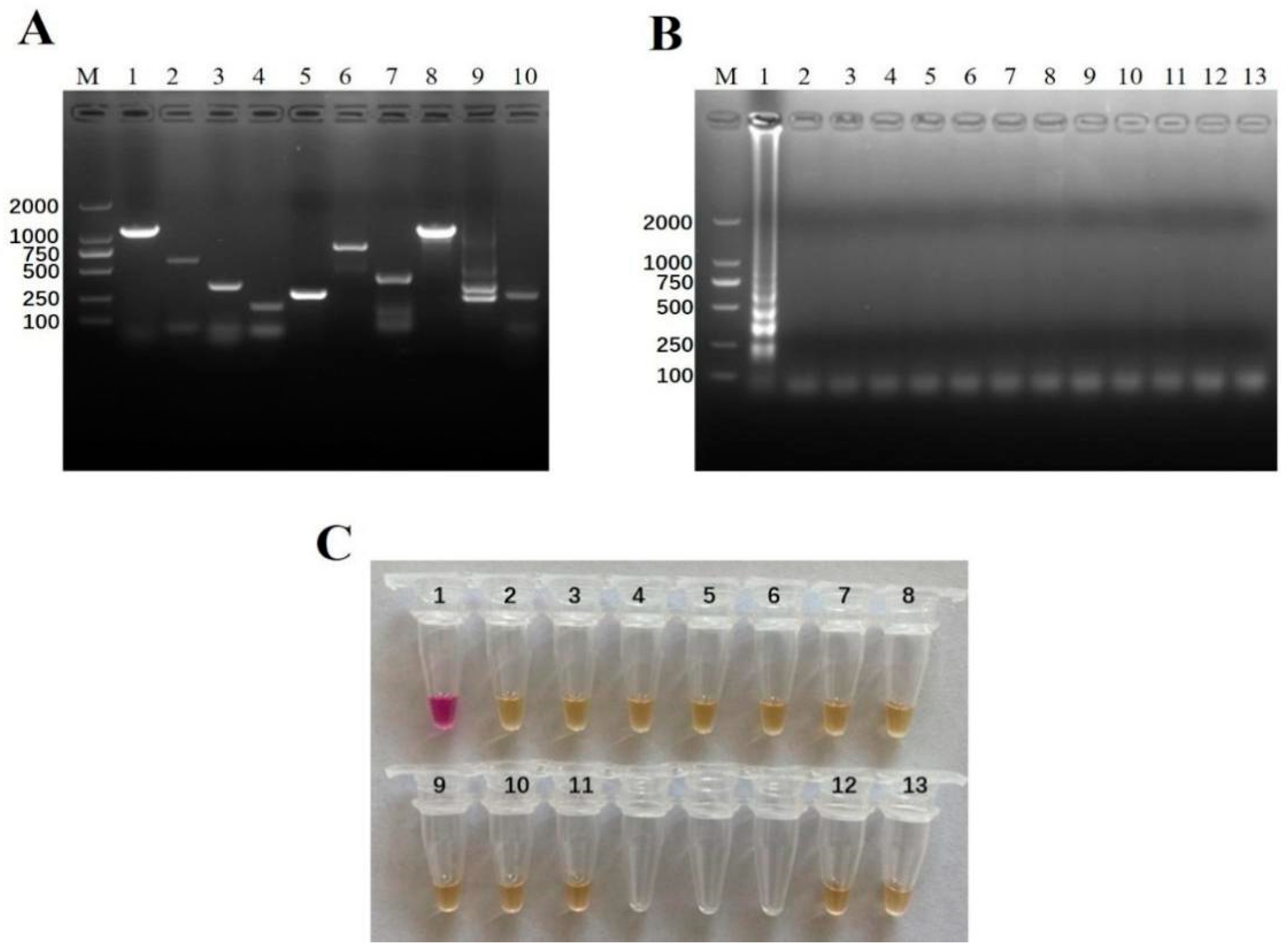

The analytical specificity for the FMDV naked-eye visual RT-LAMP was investigated by its tests of the genomic materials of ORFV, SPPV/GTPV, PRV, PCV2, BVDV, SVV, CSFV, BTV, PRRSV, and PPV which represent most common viral pathogens or cause similar clinical symptoms in livestock herds in China mainland. All genomic materials were confirmed before the performance.
2.9. Evaluation of the Naked-Eye Visual RT-LAMP Assay with Field Samples
A total of 59 archived and field-collected clinical samples (seen in
Table S1) were used to estimate the diagnostic sensitivity and specificity of the naked-eye visual RT-LAMP assay on the fast extracted genomic materials. The viral RNA was manually purified with the magnetic bead method using FineMag Quick Viral DNA/RNA Kit and magnetic stand provided by Genfine Biotech Co., LTD., (Changzhou, China) according to the instruction. Each sample was also subject to both the conventional RT-PCR [
19] and the RT-qPCR recommended by WOAH to evaluate their performance.
4. Discussion
At present, FMD is still one of the main influential diseases in the livestock industry in China which results in a substantial economic burden. Recently, a new strain of serotype O lineages, O/ME-SA/Ind2001, has been discovered in China in 2017, indicating the deficiencies existing in our prevention and control system, especially in border areas [
20]. Furthermore, FMDV serotype SAT 1–3 is a persistent risk of being introduced into China, which is a potential threat to the safety of animal husbandry [
21]. As FMD-susceptible species are easy to be infected in groups, the less costly, time-saving, and convenient pen-side diagnostic tools could lay a solid foundation for the early detection and prevention of the spread of the mutual infection of FMDV.
In our study, we established a naked-eye visual RT-LAMP assay for the detection of the seven distinct serotypes of FMDV based on the highly conserved region at the 3′ terminal of the 3D gene. Our visual RT-LAMP could be conducted at 61 °C in less than 1 h. In comparison with the variable temperature amplification methods such as PCR and qPCR, the constant amplification can be carried out in a cheap heat block or a regular water bath, conferring LAMP the potential to meet point-of-care testing (POCT). Among all sorts of LAMP methods, naked-eye visual detection outperforms others in terms of POCT in less developed regions. To realize the visualization of the detection results, we screened several different indicator dyes that almost represent all kinds of dyes including metal-sensitive dyes, intercalating dyes, and pH-sensitive dyes. As the results were shown, neutral red outperformed other dyes such as HNB, calcein, SYBR green I, cresol red, and BTB, which made this method very suitable for the pen-side test. In addition, to simplify the operation and avoid contamination, neutral red was added together with other reagents to establish a one-step reaction system.
Theoretically, RT-LAMP possesses high sensitivity due to the particularity of the primers including outer, inner, and Loop primers, and the features of Bst polymerase enzyme with high efficient strand displacement [
22,

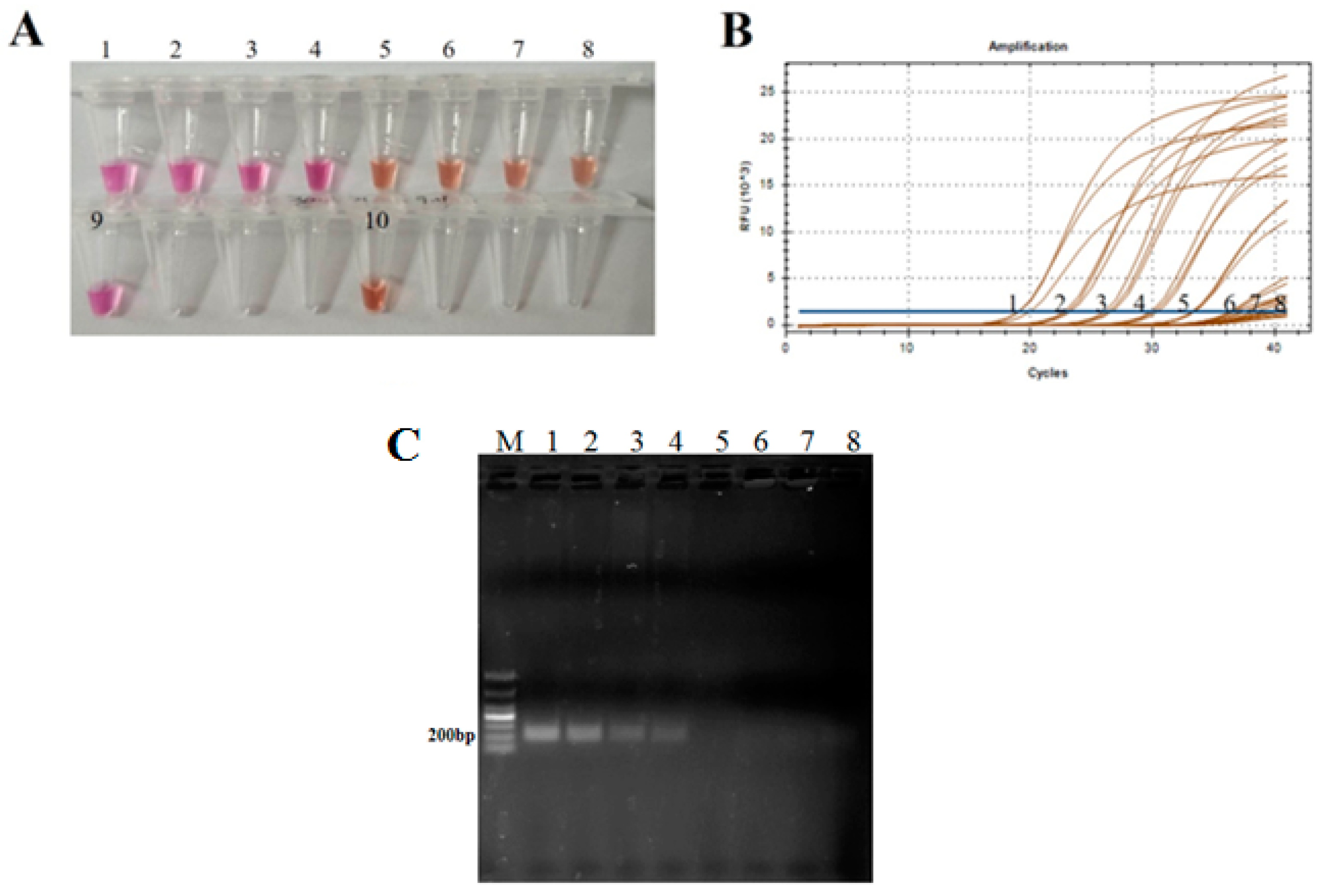

23]. To prove this, a comparative evaluation of analytical and clinical sensitivity was carried out among the naked-eye visual RT-LAMP, the conventional RT-PCR referenced [
19] and the RT-qPCR recommended by WOAH. Among the three methods, our visual RT-LAMP and the RT-qPCR target the 3′ end region of the 3D gene, and the RT-PCR targets the 5′ terminal of the 3D gene. A ten-fold dilution series (10
7–10
0 copies/µL) of the seven full-length 3D RNA transcripts of FMDV representing seven distinct serotypes and the 59 clinical specimens were subject to the three methods at the same time. LOD of our visual RT-LAMP, the RT-qPCR, and the RT-PCR were 10
4, 10
3 and 10
4 copies/µL, respectively, showing a similar sensitivity between the visual RT-LAMP and the RT-PCR but around ten-fold lower than the RT-qPCR. Usually, the LOD of PCR is around 10 to 100 times lower than that of qPCR. As for clinical sample testing, our visual RT-LAMP showed the same detection capability for FMDV positive materials (22/23) as RT-PCR with 1 missing (No. 9 with Ct value of 34.6) when compared with the RT-qPCR examination. Those results indicated that the visual RT-PCR has a similar detection sensitivity as the conventional RT-PCR. The reason for the lower LOD than that of the RT-qPCR may be caused by the mismatching LAMP primers. Although the selected fragment at the 3′ end of the 3D gene is a highly conserved region, there are still some mismatches, which may lead to incomplete binding between primers and templates and result in lower LOD. Furthermore, naked-eye examination is usually less sensitive than a fluorescent signal of qPCR, which may be another main factor giving risen to lower LOD of visual LAMP.
To verify whether the established method could successfully distinguish FMDV from other viruses (ORFV, SPPV/GTPV, and SVV) causing vesicular diseases, some common swine viruses (PRRSV, CSFV, PRV, PPV, and PCV2) and some common bovine viruses (BVDV and BTV), the genomes of these viruses isolated from cytotoxic suspension were tested using the visual RT-LAMP assay. The pan-serotypic FMDV naked-eye visual RT-LAMP assay established here did not show cross-reaction with ORFV, SPPV/GTPV, SVV, PRRSV, CSFV, PRV, PPV, PCV2, BVDV, and BTV, showing good analytical specificity. Due to the extinction of swine vesicular disease and rare cases of vesicular stomatitis in China, these two pathogens were excluded from the specificity analysis in our study. The 3′ end of 3D is so well-conserved that several FMDV pan-detection methods with satisfactory specificity (see details in review article [
6]) were successfully developed based on this region. In addition, there was no cross-reaction with the African swine fever virus which first appeared in the Autumn of 2018 in China [
24].
The pan-serotypic FMDV naked-eye visual RT-LAMP established in this study generally showed good concordance with the RT-qPCR and the RT-PCR when they were used to test nucleic acids quickly extracted from clinical samples by magnetic bead method with on-site application potency. In comparison with the RT-PCR and the RT-qPCR, the naked-eye visual RT-LAMP is more suitable for pen-side tests because it has more distinct advantages, such as ease of use (one-step reaction system), less-professional operators (no result data processing and naked-eye examination only), cheap instruments (heat block or water bath only), and rapidity (1 h reaction period). Furthermore, we have been working to achieve more simple isolation of genomes from a clinical specimen and dry powder of the reaction mixture which are two main challenges to be solved before the pan-serotypic FMDV naked-eye visual RT-LAMP is applied in the field, especially in the undeveloped region.
