In Silico and In Vitro Evaluation of Some Amidine Derivatives as Hit Compounds towards Development of Inhibitors against Coronavirus Diseases

by
Ahmed H. E. Hassan
1,*,
Selwan M. El-Sayed
1,
Mizuki Yamamoto
2,
Jin Gohda
2,
Takehisa Matsumoto
3,
Mikako Shirouzu
3,
Jun-ichiro Inoue
4,
Yasushi Kawaguchi
2,5,
Reem M. A. Mansour
1,
Abtin Anvari
6 and
Abdelbasset A. Farahat
6,7,*
1
Department of Medicinal Chemistry, Faculty of Pharmacy, Mansoura University, Mansoura 35516, Egypt
2
Research Center for Asian Infectious Diseases, Institute of Medical Science, The University of Tokyo, Tokyo 108-8639, Japan
3
Drug Discovery Structural Biology Platform Unit, RIKEN Center for Biosystems Dynamics Research, Kanagawa 230-0045, Japan
4
Infection and Advanced Research Center (UTOPIA), The University of Tokyo Pandemic Preparedness, Tokyo 108-8639, Japan
5
Division of Molecular Virology, Department of Microbiology and Immunology, The Institute of Medical Science, The University of Tokyo, Tokyo 108-8639, Japan
6
Master of Pharmaceutical Sciences Program, California Northstate University, 9700 W Taron Dr., Elk Grove, CA 95757, USA
7
Department of Pharmaceutical Organic Chemistry, Faculty of Pharmacy, Mansoura University, Mansoura 35516, Egypt
*
Authors to whom correspondence should be addressed.
Viruses 2023, 15(5), 1171; https://doi.org/10.3390/v15051171
Submission received: 9 March 2023 / Revised: 4 May 2023 / Accepted: 12 May 2023 / Published: 15 May 2023
(This article belongs to the Special Issue Novel Antiviral Agents: Synthesis, Molecular Modelling Studies and Biological Investigation)
Browse Figures
Review Reports Versions Notes

Abstract

:
Coronaviruses, including SARS-CoV-2, SARS-CoV, MERS-CoV and influenza A virus, require the host proteases to mediate viral entry into cells. Rather than targeting the continuously mutating viral proteins, targeting the conserved host-based entry mechanism could offer advantages. Nafamostat and camostat were discovered as covalent inhibitors of TMPRSS2 protease involved in viral entry. To circumvent their limitations, a reversible inhibitor might be required. Considering nafamostat structure and using pentamidine as a starting point, a small set of structurally diverse rigid analogues were designed and evaluated in silico to guide selection of compounds to be prepared for biological evaluation. Based on the results of in silico study, six compounds were prepared and evaluated in vitro. At the enzyme level, compounds 10–12 triggered potential TMPRSS2 inhibition with low micromolar IC50 concentrations, but they were less effective in cellular assays. Meanwhile, compound 14 did not trigger potential TMPRSS2 inhibition at the enzyme level, but it showed potential cellular activity regarding inhibition of membrane fusion with a low micromolar IC50 value of 10.87 µM, suggesting its action could be mediated by another molecular target. Furthermore, in vitro evaluation showed that compound 14 inhibited pseudovirus entry as well as thrombin and factor Xa. Together, this study presents compound 14 as a hit compound that might serve as a starting point for developing potential viral entry inhibitors with possible application against coronaviruses.

Graphical Abstract

1. Introduction

Coronaviruses (CoVs) are a family of viruses known to cause respiratory, enteric, and neurogenic diseases. To date, seven human coronaviruses (hCoVs) are known. The outbreaks of severe acute respiratory syndrome (SARS-CoV) in 2002, Middle East respiratory syndrome (MERS-CoV) in 2012, and COVID-19 (SARS-CoV-2) by the end of 2019 highlight the serious threats of coronaviruses infections. Health emergencies were declared as a result of epidemics and/or pandemics caused by these viruses. SARS-CoV emerged in China and spread to 29 countries, while MERS-CoV was identified in Jordan and spread in 27 countries with 80% of the reported cases in Saudi Arabia [1,2]. In addition, the new SARS-CoV-2 that emerged in China and causes COVID-19 has spread globally. As of March 2020, the World Health Organization (WHO) declared COVID-19 as a global pandemic. It resulted in more than 660 million reported COVID-19 cases and more than six million reported deaths. The real number is estimated to be much higher as many cases were not documented. Despite devising vaccines against SARS-CoV-2, they do not provide enough protection but reduce the risk of developing severe symptoms. Furthermore, such vaccines become less effective against the emerging variants as SARS-CoV-2 continuously mutates. Therefore, even vaccinated people are still prone to catch infections especially when exposed to the emerging viral mutant variants such as omicron, delta and other variants harboring diverse mutations particularly within spike (s) proteins [3,4,5]. Unfortunately, at least 65 million people suffer long COVID which is a post-COVID syndrome characterized by the persistence of SARS-CoV-2 symptoms for weeks or even months after catching infection [6,7,8]. Despite some therapeutic agents targeting viral proteins having been developed, such as those targeting main protease, resistant strains of the continuously mutating virus might evolve [9,10]. To circumvent these insufficiencies of the currently available therapeutics targeting the viral proteins that are subjected to mutations, it might be beneficial to address novel agents relying instead on host-based processes required or exploited for viral infection [11,12,13].
In principle, infection by coronaviruses including SARS-CoV, MERS-CoV, SARS-CoV-2, and influenza A viruses involves a common initial process of viral entry into the cell that starts with the binding of the viral S protein to the angiotensin-converting enzyme-2 (ACE2) receptor on the host cells. Subsequently, proteolysis of the S protein by the action of host proteases leads to viral fusion with the cell and entry of the viral RNA-encoded genome. In this process, transmembrane protease serine-2 (TMPRSS2) plays a crucial role [14]. Only subsequent to entry, can the virus recruit normal cellular functions for production of its proteins and genome to replicate. Accordingly, developing inhibitors of the fusion and entry steps would protect against new cell infections and would stall the propagation and replication of the virus. Intercepting such a conserved host-dependent process could offer more advantages than targeting the continuously mutating viral proteins. In lieu, inhibitors of the proteolytic activity of TMPRSS2 could be promising inhibitors of viral fusion and entry, and could be promising host-based targeted therapy against coronaviruses including SARS-CoV, MERS-CoV, SARS-CoV-2, and influenza A viruses. Such agents would be expected to circumvent limitation of viral resistance because of viral mutations [15,16,17,18].

2. Materials and Methods

2.1. In Silico Docking Study

A molecular docking study was performed using the crystal structure of TMPRSS2 deposited in Protein Data Bank (PDB: 7MEQ) employing standard computational protocols as described in Supplementary Materials [19,20,21,22,23,24,25,26,27].

2.2. Chemistry

Compounds 5, 11, and 12 were reported previously [28,29]. Compounds 8–10 were prepared following well-established chemical reactions as detailed in the Supplementary Materials.

2.3. Cells and Materials

A pair of previously described 293FT-based reporter cell lines that constitutively express individual split reporters (DSP1-7 and DSP8-11 proteins, Supplementary Figure S1a) were maintained in Dulbecco’s modified Eagle’s medium (DMEM) containing 10% fetal bovine serum (FBS) and 1 μg/mL puromycin. TMPRSS2 expressing VeroE6 cells (VeroE6-TMPRSS2) were maintained in Eagle’s minimum essential medium (EMEM) containing 15% fetal bovine serum (FBS) as described previously [30]. See Supplementary Figure S2 for recombinant enzymes and substrates used in enzyme assays.

2.4. Cell Fusion Assay Using Dual Split Proteins (DSP)

As shown in Supplementary Figure S1b, a DSP-assay was employed to perform a SARS-CoV-2 S protein/TMPRSS2/ACE2 assay for a quantitative investigation of ACE2/TMPRSS2-dependant SARS-CoV-2 S protein-mediated membrane fusion (S2TA assay). Co-transfection assay (CoTF assay) was also applied to investigate TMPRSS2-independent inhibition of membrane fusion (Supplementary Figure S1c). All tests were performed according to the reported protocol [31]. Briefly, for the S2TA assay, effector cells expressing S protein with DSP8-11 and target cells expressing ACE2 and TMPRSS2 with DSP1-7 were seeded in 10 cm plates and incubated overnight. Cells were treated with 6 μM EnduRen (Promega, WI, USA), a substrate for Renilla luciferase (RL), for 2 h. To test the effect of the inhibitor, 1 μL of the compound dissolved in DMSO was added to the 384-well plates (Greiner Bioscience, Frickenhausen, Germany). Next, 50 μL of each single cell suspension (effector and target cells) was added to the 384-well plates using a Multidrop dispenser (Thermo Fisher Scientific, MA, USA). After incubation at 37 °C in 5% CO2 for 4 h, RL activity was measured using a Centro xS960 luminometer (Berthold, Bad Wildbad, Germany). For the CoTF assay, cells expressing DSP1-7 and DSP8-11 were used to evaluate the effect of compounds on TMPRSS2-independent inhibition of cell fusion or reduction in measured luminescence and fluorescence that might arise from effect on DSP reassociation.

2.5. Enzyme Assays

In these assays, TMPRSS2 and thrombin were used at final concentrations of 0.3 and 3 nM, respectively. Factor Xa was used at a final concentration of 3 or 12 nM. Peptides with a fluorescence quenching pair (Dabcyl and Edans) at both ends were used as substrates for each enzyme (see Supplemental Figure S2). To test the effect of compounds on enzyme activity, enzyme and compound were mixed in 90 μL of assay buffer (20 mM Tris-HCl (pH 8.0), 150 mM NaCl) at 1.25 times the final concentration in a 96-well plate. After incubation for 30 min at room temperature, 80 μL of the mixture was added to 20 μL of 50 μM substrate solution prepared from the assay buffer. Fluorescence was read every 5 min at room temperature using CLARIOstar Plus (BMG LABTECH, Ortenberg, Germany) at an excitation wavelength of 340 nm and an emission wavelength of 490 nm. The IC50 values of the compound were calculated using Prism version 9.0 (GraphPad Software, CA, USA).

2.6. Pseudovirus Assay

To produce replication-deficient vesicular stomatitis virus (VSV), BHK cells expressing T7 RNA polymerase were transfected with T7 promoter-driven expression plasmids for VSV proteins (pBS-N/pBS-P/pBS-L/pBS-G) and pΔG-Luci (a plasmid encoding VSV genomic RNA lacking the G gene and encoding firefly luciferase) as described previously [32,33]. At 48 h post-transfection, the supernatants were harvested. The 293T cells were then transfected with an expression plasmid for S protein or VSV G using calcium phosphate precipitation. At 16 h post-transfection, cells were infected with replication-deficient VSV at a multiplicity of infection (MOI) of 1. At 2 h post-infection, cells were washed and incubated for another 16 h before supernatants containing pseudovirus were harvested. For the infection assay, VeroE6-TMPRSS2 cells were seeded in 96-well plates (2 × 104 cells/well) and incubated overnight. Cells were pretreated with inhibitors for 1 h prior to pseudovirus infection. Luciferase activity was measured 16 h after infection using the Bright-Glo Luciferase Assay System or ONE-Glo Luciferase Assay System (Promega) and the Centro xS960 luminometer (Berthold, Bad Wildbad, Germany).

2.7. Cell Toxicity Assay

To test the toxicity of the compounds, VeroE6-TMPRSS2 cells were treated with the compounds and cell viability was analyzed using the Celltiter-Glo luminescent cell viability assay (G7570, Promega) 24 h after treatment according to the manufacturer’s protocol.

3. Results

3.1. Design Rational

Hit discovery and confirmation is an indispensable first step in early drug discovery [34,35,36,37,38]. While a hit compound would show the desired type of activity, its activity might be of low potential and/or it can possess undesirable effects. Later on, in the drug discovery and development pipeline, hits might be developed into lead compounds that are subjected to optimization steps before achieving a preclinical agent. Unless a hit compound is discovered, it is hard to proceed in this drug discovery pipeline. Such a hit compound might be discovered through a variety of strategies that might utilize high-throughput screening, fragment-based methods, focused libraries, or repurposing molecules, as well as others. In lieu, it might be desirable to identify some hit TMPRSS2 inhibitor compounds to be advanced later in the drug discovery pipeline of new antiviral agents against coronaviruses.
Repurposing is one the drug discovery strategies that has been successfully applied [39,40,41,42]. Briefly, in such a strategy, compounds or drugs that have been studied for a certain therapeutic use would be re-investigated for a different therapeutic purpose. Adopting this method, repurposing of the anticoagulant drug nafamostat (1, Figure 1) and the anti-acute pancreatitis camostat (2, Figure 1) showed that they can potentially inhibit TMPRSS2-dependent viral entry, and they underwent clinical trials as possible COVID-19 treatments [15,17,43,44,45]. Nevertheless, they suffered drawbacks and limitations that stalled further advancement. Both nafamostat (1) and camostat (2) are irreversible covalent TMPRSS2 inhibitors where the ester moiety undergoes nucleophilic attack by Ser441 amino acid after the initial binding step of the drug within the binding site. While the ester moiety enables this second step of establishing a covalent bond with the TMPRSS2, it is also responsible for metabolic liability of nafamostat (1) and camostat (2) proved by their short plasma half-life of less than 1 and 23.1 min, respectively [15,46,47]. In addition, covalent inhibitors are notorious for high risk and toxicities because of off-target interactions [48]. Accordingly, rapid metabolic deactivation and off-target inhibition consequences could be major obstacles for development of covalent TMPRSS2 inhibitors despite their potent activity. Despite less potency, it might be desirable to identify reversible TMPRSS2 inhibitor hit compounds that would possibly open a gateway for development of a common treatment for SARS-CoV-2, SARS-CoV, MERS-CoV, and influenza A viruses.
Analysis of structural features of nafamostat (1) and camostat (2) shows that, in addition to the common central ester group, they contain a common left 4-guanidinophenyl moiety that might play a critical role in binding to the target protein [43,49,50]. Referring to X-ray crystal structure (PDB ID: 7MEQ), this 4-guanidinophenyl moiety is found covalently bound as a result of nucleophilic attack on ester moiety by the Ser441 amino acid of TMPRSS2. While nafamostat (1) possesses an amidinonaphthyl fragment on the right of the central ester moiety, camostat (2) has a phenyl moiety bearing a longer aliphatic substituent. Despite this right moiety being a leaving moiety that is absent in the X-ray crustal structure, it might affect the first step of ligand binding prior to the subsequent step of establishing the covalent binding. This might be supported by the found higher potency of nafamostat relative to camostat [51]. Guanidine and amidine are two closely related functional groups that differ by only one nitrogen atom. In literature, several amide-based peptidomimetics incorporating amidine or guanidine functionalities were reported as TMPRSS2 inhibitors, such as 3-amidinophenylalanyl-derived inhibitor 3 [52,53] and ketobenzothiazole-containing diguanidine inhibitor 4 [54,55]. However, it is known that amide-based peptidomimetics, despite being potent inhibitors, have disappointing activity because of their metabolic liabilities and poor pharmacokinetics [56,57]. In this regard, the small molecule non-peptidomimetic inhibitors (AKA class C and D mimetics) offer more advantages [58,59,60,61,62]. Interestingly, it was found that the small molecules pentamidine (5) and propamidine (6), in which the right amidinoaryl feature was conserved in the form of 4-amidinophenyl moiety and the left 4-guanidinophenyl moiety was converted also into 4-amidinophenyl moiety while the covalent binding-responsible and metabolically labile central ester moiety was replaced by flexible alkyl chains of variable lengths, were found to possess TMPRSS2 inhibitory activity [50,51].
Deployment of in silico methods for drug discovery and design prior to synthesis and biological evaluation enables efficient utilization of limited resources as it helps to eliminate the likely-to-fail ligands and directs synthetic and biological evaluation efforts towards possibly promising compounds. In this regard, it might be helpful to establish a small focused library of compounds based on available data for in silico investigation prior to synthesis and in vitro testing [37]. Considering the structural features of nafamostat (1), camostat (2), amidinophenylalanyl-derived inhibitor 3, and ketobenzothiazole-containing diguanidine inhibitor 4, coupled with those of pentamidine (5) and propamidine (6), a small, focused library of eight compounds (7–14, Figure 1) was designed for in silico study prior to synthesis and evaluation. While the covalent binding-responsible and metabolically labile central ester moiety no longer exists in pentamidine (5) and propamidine (6), the flexibility of their central alkyl chain translates into probability of multiple conformers. In fact, the desired biological activity might be associated with some conformers while other conformers do not contribute to the desired bioactivity and, even worse, might trigger undesirable effects and/or toxicity. Therefore, rigidification of flexible moieties might be helpful if the new structure is conformationally locked in a configuration that mimics the conformer mediating the desired activity. Accordingly, the six-membered phenyl or pyridinyl as well as the five-membered furanyl aromatic moieties were introduced as rigid central moieties replacing the flexible alkyl chains of pentamidine (5) and propamidine (6). As biological evaluation showed that the size of the central moiety impacts the activity of pentamidine (5) and propamidine (6) where pentamidine turned out to be more active than propamidine [51], compounds incorporating the larger three rings-based rigid system 2,6-bisphenylpyridine, were considered as a central moiety to investigate the size impact. In addition to unsubstituted amidines, the effect of substituent introduction as well as incorporation of the amidine moiety into a cyclic moiety such as tetrahydropyrimidine were also considered. Furthermore, the aromatic ring bearing the amidine group in the terminal right and left moieties varied between the monocyclic phenyl moiety and the heterobicyclic benzimidazolyl moiety. A literature search showed that most of these postulated structurally diverse compounds were previously synthesized and explored as antiparasitic agents [28,29,63,64]. Accordingly, their re-investigation as TMPRSS2 inhibitors might be considered as a repurposing effort. The established small library was subjected to in silico study followed by in vitro evaluations to confirm their activity as possible hit compounds for development of therapeutics against coronaviruses diseases.

3.2. In Silico Evaluation

Prior to preparation and evaluation of members of the established small library, compounds were subjected to in silico evaluation to advance only the structures predicted to possess the desired bioactivity, and eliminate those likely not active. Accordingly, a molecular docking study was conducted using the reported crystal structure of TMPRSS2 (PDB ID: 7MEQ) and the docked poses and binding interactions of these compounds within the substrate binding site of TMPRSS2 were examined. The reported crystal structure of TMPRSS2 showed that the left 4-guanidinobenzoyl fragment of nafamostat was covalently bound through the hydrolyzed ester moiety to Ser441, which is one of the TMPRSS2 catalytic triad residues (Asp435, Ser441, and His296). This fragment of nafamostat establishes a network of favorable interactions that involve the hydrogen bond between its carbonyl and Gln438 and Gly439 residues in addition to hydrogen bonding interactions between the guanidine functionality with Asp435, Ser436, Gly464 and Gly472 residues. In fact, the presence of a guanidinium moiety in a structure of proposed inhibitor was found to be crucial to the binding with TMPRSS2 [17,65].
While the investigated eight compounds could dock into the substrate binding site (Figure 2), binding scores of compounds 7–9 possessing the five-membered furan ring as central moiety coupled with phenyl moiety as the aromatic ring bearing the amidine group in the terminal right and left moieties were, in general, relatively lower than compounds 10–14 possessing the six-membered phenyl or pyridine containing central moieties coupled with benzimidazole as the aromatic ring bearing the amidine group in the terminal right and left moieties (Table 1). Amongst furan-based compounds 7–9, only compound 7 having unsubstituted amidines could establish an interaction with one of the catalytic triad amino acid residues (Asp435). Meanwhile, compounds 8 and 9, in which the amidine is substituted or incorporated within a cycle, despite a higher binding score relative to compound 7, could not establish any interaction with the catalytic triad. Interestingly, in silico results showed that compounds 10–14, possessing the six-membered phenyl or pyridine containing central moieties and moieties coupled with benzimidazole as the aromatic ring bearing the amidine groups, could establish one or more favorable interactions with the catalytic triad amino acid residues (Table 1). Binding scores of compounds 11 and 14, possessing isopropyl-substituted amidine moieties, were higher than corresponding compounds 10 and 13 possessing unsubstituted amidine moieties. Furthermore, compounds 13 and 14 with the larger three rings-based system 2,6-bisphenylpyridine central moiety showed higher binding scores relative to corresponding compounds 10 and 11 having the smaller pyridine ring as central moiety. As the catalytic triad residues (Asp435, Ser441, and His296) are crucial for activity of TMPRSS2, a predicted interaction with at least one of these residues would translate into a significant inhibitory activity, and the established interactions by compounds 7 and 10–14 with triad residues and other amino acids were further scrutinized. The catalytic Asp435 was the most frequent triad residue involved in favorable interactions with compounds 7 and 10–14; specifically, with the amidine moieties. It is noteworthy to mention that such interaction with Asp435 was amongst the potential interactions detected in the X-ray crystal structure of TMPRSS2 with the nafamostat fragment (PDB ID: 7MEQ). However, interaction with Asp435 was not predicted for compound 14, having the highest docking score, but instead interactions with the other two catalytic triad residues Ser441 and His296 were predicted. Favorable interactions with Ser441 were also predicted for compounds 12 and 13 while favorable interaction with His296 was the only triad interaction predicted for compound 11. Meanwhile, Asp435 was the sole triad residue involved in two favorable interactions with compounds 10 and one favorable interaction with compound 7. In addition to interactions with triad residues, favorable interactions of the amidine moiety with Ser436 (for compounds 7, 12, 13, and 14) and Gly464 (for compounds 7 and 10) were predicted. Such interactions with Ser436 and Gly464 were amongst the potential detected interactions for the guanidine moiety of nafamostat fragment in the X-ray crystal structure (PDB ID: 7MEQ).
Based on these results, compounds 8 and 9, which missed all interactions with the catalytic triad residue were excluded from further biological evaluation. As compounds 7 and 10–14 were predicted to establish a more or less diverse interaction pattern with one or more catalytic triad residues (one Asp435 interaction for compound 7, two Asp435 interaction for compound 10, Asp435 and Ser441 interactions for compounds 12 and 13, Ser441 and His296 interactions for compound 14, and one His296 interaction for compound 11) coupled with calculated favorable binding scores, they were advanced to biological evaluation to assess their inhibitory activity on TMPRSS2.

3.3. Chemistry

Synthesis of compounds 7, 13, and 14 was reported previously [28,29]. Synthesis of compounds 10–12 is outlined in Scheme 1. 4-Amidino-1,2-phenylenediamine derivatives 16 were prepared from commercially available 3,4-diaminobenzonitrile by applying Pinner reaction conditions [66]. Bis-Aldehydes 15 were reacted with 4-amidino-1,2-phenylenediamine derivatives 16 in ethanol in the presence of sodium metabisulphite to furnish the crude final compounds [67]. After sodium hydroxide treatment, crude compounds were converted to the hydrochloride salt by stirring with ethanolic HCl to furnish the desired compounds 10–12 as HCl salts.

3.4. In Vitro Evaluations

3.4.1. TMPRSS2 Inhibition Assay

Based on in silico calculations, compounds 7 and 10–14 that could establish interactions with one or more of the catalytic triad residues were advanced for in vitro evaluation to assess their inhibitory activity on TMPRSS2. For comparison, pentamidine and nafamostat were used as reference standard compounds. While nafamostat, the covalent irreversible inhibitor showed less than 1 nM IC50 value, pentamidine exhibited nearly 40 µM IC50. Interestingly, the low micromolar IC50 values of compounds 12 and 10 were comparable to the reference pentamidine (Table 2), suggesting their potential inhibitory activity against TMPRSS2. Structurally, both compounds 12 and 10 have 6-amidinobenzimidazol-2-yl moieties bearing no substituents on the amidine fragment, but compound 12 has the six-membered phenyl moiety as the molecule’s central moiety instead of the six-membered pyridine moiety of compound 10. In comparison, compound 11 having the same structure as compound 10 but having N-isopropyl substituents at the amidine moieties, possessed a considerably lower potency relative to compound 10. The results showed that increasing the size of the central moiety of compounds 10 and 11 from the one ring-based pyridine ring to the three rings-based 2,6-bisphenylpyridine system in compounds 13 and 14 resulted in a high decrease in TMPRSS2 inhibitory activity. Thus, compounds 13 and 14 showed high micromolar IC50 values (Table 2). Comparing results of compounds 13 and 14 considering their structures, it can be inferred that introduction of N-isopropyl substituents at the amidine moieties (compound 14) resulted in lowering the potency relative to the N-unsubstituted structure (compound 13). Similarly, compound 7 having the smaller 4-amidinophenyl moiety as left and right moieties coupled with the five-membered furan ting as a central moiety possessed a low potency reflected by the found high micromolar IC50 value (Table 2).

3.4.2. Cell Fusion Assays

To assess the inhibitory effect of compounds 7 and 10–14, the previously developed SARS-CoV-2 S protein/TMPRSS2/ACE2 assay (S2TA assay) for quantitation of the impact on ACE2/TMPRSS2-dependant SARS-CoV-2 S protein-mediated membrane fusion utilizing “Dual Split Protein (DSP)” reporter complex [31] was used (Supplementary Figure S1). As used target cells encompass DSP1-7 while effector cells encompass DSP8-11, fusion of effector cells with target cells will bring DSP together, resulting in reassociation to form functional Renilla luciferase (RL) and green fluorescent protein (GFP), which can be detected by luminescence or fluorescence. As tested compounds might elicit TMPRSS2-independent effects on membrane fusion, or affects reassociation of DSP proteins and, thus, the measured luminescence or fluorescence signals, an assay employing cells co-transfected with DSP1-7 and DSP8-11 was employed (CoTF assay) to account for the inhibition of membrane fusion mediated by targets other than TMPRSS2. In addition to compounds 7 and 10–14, pentamidine and nafamostat were used as reference standard compounds. As compounds 7, 10–14 and pentamidine exhibited micromolar IC50 values, their percent inhibition values were first assessed at 100 µM concentration. The results are summarized in Table 2.
The reference compounds pentamidine and nafamostat triggered an inhibition percent of 71.30 and 89.32%, respectively, at 100 µM concentration, and an IC50 value of 32.27 µM and 7.1 nM, respectively, in S2TA assay. It was interesting to find that compounds 10, 13 and 14 triggered high inhibition percentages of 89.53, 93.98, and 97.33%, respectively, which were relatively higher than pentamidine, Table 2. However, the TMPRSS2 enzymatic assay showed that compound 10 exhibited a comparable IC50 value to that of pentamidine, while compounds 13 and 14 were impotent TMPRSS2 inhibitors. Since the employed DSP assay evaluated the inhibitory effect not only on TMPRSS2 but also on various mechanisms required for membrane fusion of SARS-CoV-2 in cells, it might be possible that compounds 13 and 14 inhibited membrane fusion through other mechanisms. Noteworthy, it was reported that multiple membrane serine proteases can replace TMPRSS2 for membrane fusion [68]. Nevertheless, DSP assay can be used to evaluate the effects of compounds in cellular assay with high throughput and without the use of infectious viral particles, and various SARS-CoV-2 inhibitors have been found using this assay [30,31,69]. Although compound 10 has the one ring-based central moiety while compounds 13 and 14 have the larger three rings-based central moiety, all of them share the presence of a pyridine ring in the central moiety. Despite predicted close in silico binding scores and the measured close IC50 value for TMPRSS2 inhibition, compound 12 possessing phenyl-based central moiety showed modest inhibition percent in DSP assay compared with the corresponding compound 10 possessing pyridine-based central moiety that showed potential activity (Table 2). This result reinforces the inferred contribution of mechanisms other than TMPRSS2 to the outcome of the DSP assay. In the case of compound 7 possessing the five-membered furan ring as the central moiety which was an impotent TMPRSS2 inhibitor (Table 2), it showed a low inhibition percent of 39.91%. Meanwhile, compound 11 which differed from compound 10 only by having isopropyl-substituted amidine moieties and possessed lower TMPRSS2 potency relative to compound 10, was revealed to elicit a low inhibitory activity of 44.17% (Table 2). While IC50 values of low ineffective compounds 7, 11 and 12 were above 100 µM, compounds 10, 13 and 14 which triggered high inhibition percentages elicited better IC50 values than the 32.27 µM IC50 value of the reference reversible TMPRSS2 inhibitor pentamidine. Thus, compounds 10, 13 and 14 possessed the more potent IC50 values of 10.87, 13.70, and 16.93, respectively. Next, evaluation of compounds 7 and 10–14, pentamidine and nafamostat in CoTF assay, revealed that all of them had more than 100 µM IC50 values except for compounds 14, 13 and 10 that showed IC50 values of 30.97, 37.00 and 37.84 µM, respectively.

3.4.3. Pseudovirus Entry and Cell Viability Assays

To evaluate the capability of the tested compounds to inhibit viral entry into cells, SARS-CoV-2 pseudovirus infection was assessed in the presence of compounds 7 and 10–14, pentamidine and nafamostat. Initially, their percent inhibition values were first assessed at 100 µM concentration before assessing their IC50 values. Cellular viability was assessed to confirm that inhibition results were not because of cell death. The results are summarized in Table 3.
As shown in Table 3, neither the tested compounds, pentamidine or nafamostat showed potential cytotoxic activity, as IC50 values for inhibition of cellular viabilities were more than 100 µM. While the standard pentamidine showed 69.48% inhibition of pseudovirus infection at 100 µM concentration and an IC50 value of 45 µM, only compound 14 showed a considerable 77.44% inhibition at 100 µM concentration and IC50 value of 83.66 µM. All other tested compounds possessed low percentage inhibition values of less than 21% at the 100 µM concentration. As compound 14 had a disappointing >100 IC50 value for TMPRSS2 in enzymatic assay but considerable activities in cellular DSP and pseudovirus entry assays, it might be inferred that its inhibitory activity could be mediated through molecular targets other than TMPRSS2. Meanwhile, the low micromolar TMPRSS2 inhibitory activity found for compounds 10–12 at the enzymatic level is not sufficient to trigger considerable activity at the cellular level. However, these compounds might serve as hit starting point compounds for development of more potential inhibitors.

3.4.4. Thrombin and Factor Xa Enzyme Inhibition Assays

Coagulopathy is a serious complication of coronavirus infections including SARS-CoV-2, SARS-CoV-1, MERS-CoV and others [70,71]. Formation of blood clots might result in thromboembolism that could be life-threatening. In this regard, a compound that inhibits thrombin or factor Xa might be double-edged. It might minimize the risk of thromboembolism, yet it might also be associated with a bleeding risk. As for the overlap of TMPRSS2, thrombin and factor Xa substrates [72], compounds 7 and 10–14, pentamidine and nafamostat were subjected to enzymatic assays for the inhibition of thrombin and factor Xa to assess their possible inhibitory effects. The outcome is summarized in Table 4.
While nafamostat inhibited thrombin with a nanomolar IC50 value of 34.1 nM, it also inhibited factor Xa but with a low micromolar IC50 value of 1.74 µM. Meanwhile, pentamidine might be relatively less capable of triggering bleeding while still inhibiting thrombin and factor Xa with a low micromolar IC50 value of 1.51 and 6.22 µM, respectively. Amongst evaluated compounds, compound 14, which was the most effective inhibitor of viral infection despite it not being a potential TMPRSS2 inhibitor, possessed comparable IC50 values to those of pentamidine for the inhibition of thrombin and factor Xa (Table 4). Compound 13 had greater potential to inhibit thrombin and factor Xa relative to compound 14 but was still comparable to pentamidine. Structurally, compound 13 was relevant to compound 14 but had unsubstituted amidine moieties. Meanwhile, compounds 10, 11 and 12, which had the most potential amongst tested compounds to inhibit TMPRSS2, showed submicromolar to low micromolar IC50 values for thrombin inhibition which were still comparable to pentamidine. However, compounds 10 and 11, having pyridine ring as a central moiety, were greater potential inhibitors of factor Xa relative to compound 13 having the central phenyl ring instead of the pyridine. In comparison with compounds 10–14, compound 7, having the furan ring as a central moiety with the smaller 4-amidinophenyl moiety as left and right moieties, lacked potential thrombin inhibitory activity and also had 5-fold less potential factor Xa inhibitor relative to pentamidine (Table 4).

4. Discussion

Coronaviruses are notorious for triggering outbreaks of epidemic viral infections which are characterized by being contagious and morbid such as MERS-CoV, SARS-CoV, and SARS-CoV-2. Despite the attempted development of vaccines and therapeutics targeting viral proteins, continuous viral mutation raises major issues that challenge such efforts. As coronaviruses require a conserved host-based mechanism for viral entry, targeting this mechanism rather than other viral-dependent mechanisms might offer common and effective tools against coronaviruses. TMPRSS2 is involved in this process of host-dependent mechanism of viral entry into the lung epithelial cell in vitro [73] and in vivo [74]. While nafamostat and camostat were discovered as potential TMPRSS2 inhibitors, they are metabolically labile, covalent inhibitors and, furthermore, failed clinical studies [75,76,77]. To circumvent limitations of covalent inhibitors and metabolic liability of nafamostat and camostat, development of a reversible TMPRSS2 inhibitor lacking the central ester group responsible for metabolic instability and irreversible covalent inhibition might be a promising strategy despite the anticipated lower potency. Considering similarity of the structural features of pentamidine with nafamostat, camostat, ketobenzothiazole-containing and amidinophenylalanine-derived peptidomimetic inhibitors, pentamidine might offer a suitable starting point to develop potential TMPRSS2 inhibitors. However, the central alkyl chain of pentamidine renders it a flexible molecule with multiple conformers. Structure rigidification via replacement of the flexible moieties by cyclic fragments would result in a beneficial conformational lock. To identify new hit molecules, a small set of eight compounds (7–14) were designed with diverse structural features considering size of the introduced cyclic central moiety and the terminal aryl moiety bearing the amidine moiety in addition to the absence/presence of substituents at the amidine moiety or incorporation into a ring. Considering that the utility of conducting in silico studies in initial steps to guide the selection of structures more likely to possess desired activity and to reduce the workload and discovery costs, in silico study was conducted for compounds (7–14) using the reported crystal structure of TMPRSS2 (PDB ID: 7MEQ). In silico results predicted that compounds 7–9 incorporating the five-membered furan ring as the central moiety were less able to establish interactions with residues of the catalytic triad than compounds 10–14 possessing central moieties incorporating a six-membered ring. Meanwhile, compounds 14 and 13 were also able to establish interactions with catalytic triad residues with calculated good binding scores. Based on interactions and binding scores, in silico study enabled the filtering-out of compounds 8 and 9 from further consideration. Consequently, compounds 7 and 10–14 were advanced for preparation and in vitro evaluation. The found in vitro low TMPRSS2 inhibitory activity for TMPRSS2 inhibition by compound 7 possessing the five-membered furan ring-based central moiety was in agreement with its predicted in silico low binding score. In vitro assay for TMPRSS2 inhibition confirmed the influential role for the size of the central moiety as compounds 10–12, possessing one six-membered-based central moieties, had potential low micromolar activity comparable to pentamidine, while compounds 14 and 13, possessing the larger three rings-based rigid system 2,6-bisphenylpyridine as central moiety, showed low TMPRSS2 inhibitory activity. Meanwhile, the presence of N-isopropyl substituents at the amidine moieties had a negative influence on TMPRSS2 inhibitory activity. As cellular activity is very important, a known experimental model from the literature for quantification of the inhibitory activity of a compound on membrane fusion and cell entry employed using DSP was addressed [31]. Surprisingly, compounds 14, 13, despite not being potential TMPRSS2 inhibitors, were the most active compounds triggering high inhibition percentages and low micromolar IC50 values in the conducted cell-based assay. Meanwhile, compound 10, possessing potentially low micromolar IC50 for TMPRSS2 inhibition in enzymatic assay was less active, and compounds 11 and 12, possessing also potential TMPRSS2 inhibitory activity were of low cellular activity. Considering that this assay evaluated the inhibitory effect not only on TMPRSS2 but also on various mechanisms involved for membrane fusion of SARS-CoV-2 in cells, coupled with the reported finding that multiple membrane serine proteases can replace TMPRSS2 for membrane fusion [68], it might be inferred that compounds 14 and 13 might act by mechanisms other than TMPRSS2 inhibition. These findings emphasize the importance of evaluating the effects of compounds in cellular assay as it can help to identify potential compounds with different molecular targets. Structure analysis considering these results revealed that compounds 14, 13, and 11, sharing the presence of the six-membered pyridine ring in their central moiety, and 14 and 13, having the larger 2,6-bis(phenyl)pyridine moiety, were the most active. Meanwhile, phenyl-based central moiety afforded the less potent compound 12. To check for activity that might arise from inhibition of molecular targets other than TMPRSS2, as well as checking for reduction in measured luminescence and fluorescence that might arise from the effect on DSP reassociation, a CoTF assay was performed. Compounds 14, 13 and 10 showed IC50 values of 30.97, 37.00 and 37.84 µM in the CoTF assay, respectively. IC50 values for the CoTF assay were higher than the IC50 values for the TMPRSS2-dependent membrane fusion assay (S2TA assay), indicating that these compounds have inhibitory effects on membrane fusion, but their inhibitory activity is possibly accompanied by TMPRSS2-independent inhibition of membrane fusion or effects on reassociation of reporter DSP proteins. Therefore, the compounds’ effects on pseudovirus entry and cell viability assays were assessed. All tested compounds showed no potential cytotoxic activity. The results showed again that compound 14, lacking potential TMPRSS2 inhibition, was the most active inhibitor for pseudovirus entry amongst the tested compounds, while other compounds including the most effective TMPRSS2 inhibitors 10–12 exhibited low inhibitory activity for pseudovirus entry. This reinforces the conclusion that compound 14 has an inhibitory activity on viral entry not associated with TMPRSS2 inhibition. As coagulopathy and formation of blood clots is a serious complication of coronaviruses infections, inhibition of thrombin and factor Xa might have some benefits. However, inhibition of thrombin and factor Xa also bears bleeding risks. Consequently, thrombin and factor Xa inhibition by tested compounds was checked. Except for compound 7 that did not show potential inhibition of thrombin and factor Xa, all other tested compounds triggered thrombin and factor Xa inhibition comparable to the drug pentamidine. Similar to the systemically-used drug pentamidine, monitoring bleeding risks should be considered upon the use of this class of compounds. In conclusion, compound 14 might serve as a hit compound that might require further development into lead compounds against cellular entry of coronaviruses.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/v15051171/s1, new compounds synthesis procedures. Figure S1: Cell-based membrane fusion assay for SARS-Cov-2 S protein using the DSP reporter; Figure S2: Enzymes and substrates for enzyme assays.

Author Contributions

Conceptualization, A.H.E.H. and A.A.F.; methodology, A.H.E.H. and A.A.F.; validation, S.M.E.-S., R.M.A.M. and A.A.; formal analysis, M.Y., J.G., T.M., M.S., J.-i.I. and Y.K.; investigation, A.H.E.H., S.M.E.-S., R.M.A.M. and A.A.; resources, A.H.E.H. and A.A.F.; data curation, S.M.E.-S., R.M.A.M. and A.A.; writing—original draft preparation, A.H.E.H. and S.M.E.-S.; writing—review and editing, M.Y., J.G., J.-i.I. and Y.K.; visualization, A.H.E.H. and S.M.E.-S.; supervision, A.A.F.; project administration, A.H.E.H. and A.A.F. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported, in part, by the Japanese Society for the Promotion of Science (18K15235, 20K07610 and 23K06571 to M.Y.) and from the Japan Agency for Medical Research and Development (AMED) [Program of Japan Initiative for Global Research Network on Infectious Diseases (JGRID) JP22wm0125002 to Y.K., Japan Program for Infectious Diseases Research and Infrastructure JP22wm0325052 to M.Y., Research Program on Emerging and Re-emerging Infectious Diseases JP21fk0108562 to M.Y. and Research on Development of New Drugs JP22ak0101165 to M.Y.].

Data Availability Statement

No data were used in this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chang, L.; Yan, Y.; Wang, L. Coronavirus Disease 2019: Coronaviruses and Blood Safety. Transfus. Med. Rev. 2020, 34, 75–80. [Google Scholar] [CrossRef] [PubMed]
  2. Zhu, Z.; Lian, X.; Su, X.; Wu, W.; Marraro, G.A.; Zeng, Y. From SARS and MERS to COVID-19: A brief summary and comparison of severe acute respiratory infections caused by three highly pathogenic human coronaviruses. Respir. Res. 2020, 21, 224. [Google Scholar] [CrossRef] [PubMed]
  3. Notarte, K.I.; Catahay, J.A.; Velasco, J.V.; Pastrana, A.; Ver, A.T.; Pangilinan, F.C.; Peligro, P.J.; Casimiro, M.; Guerrero, J.J.; Gellaco, M.M.L.; et al. Impact of COVID-19 vaccination on the risk of developing long-COVID and on existing long-COVID symptoms: A systematic review. EClinicalMedicine 2022, 53, 101624. [Google Scholar] [CrossRef] [PubMed]
  4. Zheng, C.; Shao, W.; Chen, X.; Zhang, B.; Wang, G.; Zhang, W. Real-world effectiveness of COVID-19 vaccines: A literature review and meta-analysis. Int. J. Infect. Dis. 2022, 114, 252–260. [Google Scholar] [CrossRef]
  5. Iacopetta, D.; Ceramella, J.; Catalano, A.; Saturnino, C.; Pellegrino, M.; Mariconda, A.; Longo, P.; Sinicropi, M.S.; Aquaro, S. COVID-19 at a Glance: An Up-to-Date Overview on Variants, Drug Design and Therapies. Viruses 2022, 14, 573. [Google Scholar] [CrossRef]
  6. Davis, H.E.; McCorkell, L.; Vogel, J.M.; Topol, E.J. Long COVID: Major findings, mechanisms and recommendations. Nat. Rev. Microbiol. 2023, 21, 133–146. [Google Scholar] [CrossRef]
  7. Fernández-de-las-Peñas, C. Long COVID: Current definition. Infection 2022, 50, 285–286. [Google Scholar] [CrossRef]
  8. Raveendran, A.V.; Jayadevan, R.; Sashidharan, S. Long COVID: An overview. Diabetes Metab. Syndr. Clin. Res. Rev. 2021, 15, 869–875. [Google Scholar] [CrossRef]
  9. Parigger, L.; Krassnigg, A.; Schopper, T.; Singh, A.; Tappler, K.; Köchl, K.; Hetmann, M.; Gruber, K.; Steinkellner, G.; Gruber, C.C. Recent changes in the mutational dynamics of the SARS-CoV-2 main protease substantiate the danger of emerging resistance to antiviral drugs. Front. Med. 2022, 9, 1061142. [Google Scholar] [CrossRef]
  10. Jiao, Z.; Yan, Y.; Chen, Y.; Wang, G.; Wang, X.; Li, L.; Yang, M.; Hu, X.; Guo, Y.; Shi, Y.; et al. Adaptive Mutation in the Main Protease Cleavage Site of Feline Coronavirus Renders the Virus More Resistant to Main Protease Inhibitors. J. Virol. 2022, 96, e00907–e00922. [Google Scholar] [CrossRef]
  11. Kumari, M.; Lu, R.-M.; Li, M.-C.; Huang, J.-L.; Hsu, F.-F.; Ko, S.-H.; Ke, F.-Y.; Su, S.-C.; Liang, K.-H.; Yuan, J.P.-Y.; et al. A critical overview of current progress for COVID-19: Development of vaccines, antiviral drugs, and therapeutic antibodies. J. Biomed. Sci. 2022, 29, 68. [Google Scholar] [CrossRef] [PubMed]
  12. Lei, S.; Chen, X.; Wu, J.; Duan, X.; Men, K. Small molecules in the treatment of COVID-19. Signal Transduct. Target. Ther. 2022, 7, 387. [Google Scholar] [CrossRef] [PubMed]
  13. Mei, M.; Tan, X. Current Strategies of Antiviral Drug Discovery for COVID-19. Front. Mol. Biosci. 2021, 8, 671263. [Google Scholar] [CrossRef]
  14. Mahoney, M.; Damalanka, V.C.; Tartell, M.A.; Chung, D.h.; Lourenço, A.L.; Pwee, D.; Mayer Bridwell, A.E.; Hoffmann, M.; Voss, J.; Karmakar, P.; et al. A novel class of TMPRSS2 inhibitors potently block SARS-CoV-2 and MERS-CoV viral entry and protect human epithelial lung cells. Proc. Natl. Acad. Sci. USA 2021, 118, e2108728118. [Google Scholar] [CrossRef] [PubMed]
  15. Zhu, H.; Du, W.; Song, M.; Liu, Q.; Herrmann, A.; Huang, Q. Spontaneous binding of potential COVID-19 drugs (Camostat and Nafamostat) to human serine protease TMPRSS2. Comput. Struct. Biotechnol. J. 2021, 19, 467–476. [Google Scholar] [CrossRef] [PubMed]
  16. Gil, C.; Ginex, T.; Maestro, I.; Nozal, V.; Barrado-Gil, L.; Cuesta-Geijo, M.Á.; Urquiza, J.; Ramírez, D.; Alonso, C.; Campillo, N.E.; et al. COVID-19: Drug Targets and Potential Treatments. J. Med. Chem. 2020, 63, 12359–12386. [Google Scholar] [CrossRef]
  17. Fraser, B.J.; Beldar, S.; Seitova, A.; Hutchinson, A.; Mannar, D.; Li, Y.; Kwon, D.; Tan, R.; Wilson, R.P.; Leopold, K.; et al. Structure and activity of human TMPRSS2 protease implicated in SARS-CoV-2 activation. Nat. Chem. Biol. 2022, 18, 963–971. [Google Scholar] [CrossRef]
  18. Wettstein, L.; Kirchhoff, F.; Münch, J. The Transmembrane Protease TMPRSS2 as a Therapeutic Target for COVID-19 Treatment. Int. J. Mol. Sci. 2022, 23, 1351. [Google Scholar] [CrossRef]
  19. Hassan, A.H.E.; Kim, H.J.; Park, K.; Choi, Y.; Moon, S.; Lee, C.H.; Kim, Y.J.; Cho, S.B.; Gee, M.S.; Lee, D.; et al. Synthesis and Biological Evaluation of O6-Aminoalkyl-Hispidol Analogs as Multifunctional Monoamine Oxidase-B Inhibitors towards Management of Neurodegenerative Diseases. Antioxidants 2023, 12, 1033. [Google Scholar] [CrossRef]
  20. Hassan, A.H.E.; Wang, C.Y.; Lee, H.J.; Jung, S.J.; Kim, Y.J.; Cho, S.B.; Lee, C.H.; Ham, G.; Oh, T.; Lee, S.K.; et al. Scaffold hopping of N-benzyl-3,4,5-trimethoxyaniline: 5,6,7-Trimethoxyflavan derivatives as novel potential anticancer agents modulating hippo signaling pathway. Eur. J. Med. Chem. 2023, 256, 115421. [Google Scholar] [CrossRef]
  21. Gulia, K.; Hassan, A.H.E.; Lenhard, J.R.; Farahat, A.A. Escaping ESKAPE resistance: In vitro and in silico studies of multifunctional carbamimidoyl-tethered indoles against antibiotic-resistant bacteria. R. Soc. Open Sci. 2023, 10, 230020. [Google Scholar] [CrossRef] [PubMed]
  22. Elkamhawy, A.; Paik, S.; Ali, E.M.H.; Hassan, A.H.E.; Kang, S.J.; Lee, K.; Roh, E.J. Identification of Novel Aryl Carboxamide Derivatives as Death-Associated Protein Kinase 1 (DAPK1) Inhibitors with Anti-Proliferative Activities: Design, Synthesis, In Vitro, and In Silico Biological Studies. Pharmaceuticals 2022, 15, 1050. [Google Scholar] [CrossRef] [PubMed]
  23. Hassan, A.H.E.; Kim, H.J.; Gee, M.S.; Park, J.-H.; Jeon, H.R.; Lee, C.J.; Choi, Y.; Moon, S.; Lee, D.; Lee, J.K.; et al. Positional scanning of natural product hispidol’s ring-B: Discovery of highly selective human monoamine oxidase-B inhibitor analogues downregulating neuroinflammation for management of neurodegenerative diseases. J. Enzyme Inhib. Med. Chem. 2022, 37, 768–780. [Google Scholar] [CrossRef] [PubMed]
  24. Lee, H.-H.; Shin, J.-S.; Chung, K.-S.; Kim, J.-M.; Jung, S.-H.; Yoo, H.-S.; Hassan, A.H.E.; Lee, J.K.; Inn, K.-S.; Lee, S.; et al. 3ʹ,4ʹ-Dihydroxyflavone mitigates inflammatory responses by inhibiting LPS and TLR4/MD2 interaction. Phytomedicine 2023, 109, 154553. [Google Scholar] [CrossRef] [PubMed]
  25. Hassan, A.H.E.; Park, K.T.; Kim, H.J.; Lee, H.J.; Kwon, Y.H.; Hwang, J.Y.; Jang, C.-G.; Chung, J.H.; Park, K.D.; Lee, S.J.; et al. Fluorinated CRA13 analogues: Synthesis, in vitro evaluation, radiosynthesis, in silico and in vivo PET study. Bioorg. Chem. 2020, 99, 103834. [Google Scholar] [CrossRef]
  26. El-Demerdash, A.; Al-Karmalawy, A.A.; Abdel-Aziz, T.M.; Elhady, S.S.; Darwish, K.M.; Hassan, A.H.E. Investigating the structure–activity relationship of marine natural polyketides as promising SARS-CoV-2 main protease inhibitors. RSC Adv. 2021, 11, 31339–31363. [Google Scholar] [CrossRef]
  27. Hassan, A.H.E.; Lee, K.-T.; Lee, Y.S. Flavone-based arylamides as potential anticancers: Design, synthesis and in vitro cell-based/cell-free evaluations. Eur. J. Med. Chem. 2020, 187, 111965. [Google Scholar] [CrossRef]
  28. Paul, A.; Nanjunda, R.; Kumar, A.; Laughlin, S.; Nhili, R.; Depauw, S.; Deuser, S.S.; Chai, Y.; Chaudhary, A.S.; David-Cordonnier, M.-H.; et al. Mixed up minor groove binders: Convincing A·T specific compounds to recognize a G·C base pair. Bioorg. Med. Chem. Lett. 2015, 25, 4927–4932. [Google Scholar] [CrossRef]
  29. Anbazhagan, M.; Boykin, D.W.; Stephens, C.E. Direct Conversion of Amidoximes to Amidines via Transfer Hydrogenation. Synthesis 2003, 2003, 2467–2469. [Google Scholar] [CrossRef]
  30. Yamamoto, M.; Gohda, J.; Kobayashi, A.; Tomita, K.; Hirayama, Y.; Koshikawa, N.; Seiki, M.; Semba, K.; Akiyama, T.; Kawaguchi, Y.; et al. Metalloproteinase-Dependent and TMPRSS2-Independent Cell Surface Entry Pathway of SARS-CoV-2 Requires the Furin Cleavage Site and the S2 Domain of Spike Protein. mBio 2022, 13, e00519–e00522. [Google Scholar] [CrossRef]
  31. Yamamoto, M.; Kiso, M.; Sakai-Tagawa, Y.; Iwatsuki-Horimoto, K.; Imai, M.; Takeda, M.; Kinoshita, N.; Ohmagari, N.; Gohda, J.; Semba, K.; et al. The Anticoagulant Nafamostat Potently Inhibits SARS-CoV-2 S Protein-Mediated Fusion in a Cell Fusion Assay System and Viral Infection In Vitro in a Cell-Type-Dependent Manner. Viruses 2020, 12, 629. [Google Scholar] [CrossRef] [PubMed]
  32. Tani, H.; Komoda, Y.; Matsuo, E.; Suzuki, K.; Hamamoto, I.; Yamashita, T.; Moriishi, K.; Fujiyama, K.; Kanto, T.; Hayashi, N.; et al. Replication-Competent Recombinant Vesicular Stomatitis Virus Encoding Hepatitis C Virus Envelope Proteins. J. Virol. 2007, 81, 8601–8612. [Google Scholar] [CrossRef] [PubMed]
  33. Tani, H.; Shiokawa, M.; Kaname, Y.; Kambara, H.; Mori, Y.; Abe, T.; Moriishi, K.; Matsuura, Y. Involvement of Ceramide in the Propagation of Japanese Encephalitis Virus. J. Virol. 2010, 84, 2798–2807. [Google Scholar] [CrossRef] [PubMed]
  34. Hassan, A.H.E.; Mahmoud, K.; Phan, T.-N.; Shaldam, M.A.; Lee, C.H.; Kim, Y.J.; Cho, S.B.; Bayoumi, W.A.; El-Sayed, S.M.; Choi, Y.; et al. Bestatin analogs-4-quinolinone hybrids as antileishmanial hits: Design, repurposing rational, synthesis, in vitro and in silico studies. Eur. J. Med. Chem. 2023, 250, 115211. [Google Scholar] [CrossRef]
  35. Hassan, A.H.E.; Phan, T.-N.; Choi, Y.; Moon, S.; No, J.H.; Lee, Y.S. Design, Rational Repurposing, Synthesis, In Vitro Evaluation, Homology Modeling and In Silico Study of Sulfuretin Analogs as Potential Antileishmanial Hit Compounds. Pharmaceuticals 2022, 15, 1058. [Google Scholar] [CrossRef]
  36. Hassan, A.H.E.; Phan, T.-N.; Yoon, S.; Lee, C.J.; Jeon, H.R.; Kim, S.-H.; No, J.H.; Lee, Y.S. Pyrrolidine-based 3-deoxysphingosylphosphorylcholine analogs as possible candidates against neglected tropical diseases (NTDs): Identification of hit compounds towards development of potential treatment of Leishmania donovani. J. Enzyme Inhib. Med. Chem. 2021, 36, 1922–1930. [Google Scholar] [CrossRef]
  37. Elkamhawy, A.; Paik, S.; Hassan, A.H.E.; Lee, Y.S.; Roh, E.J. Hit discovery of 4-amino-N-(4-(3-(trifluoromethyl)phenoxy)pyrimidin-5-yl)benzamide: A novel EGFR inhibitor from a designed small library. Bioorg. Chem. 2017, 75, 393–405. [Google Scholar] [CrossRef]
  38. Hassan, A.H.E.; Phan, T.-N.; Moon, S.; Lee, C.H.; Kim, Y.J.; Cho, S.B.; El-Sayed, S.M.; Choi, Y.; No, J.H.; Lee, Y.S. Design, synthesis, and repurposing of O6-aminoalkyl-sulfuretin analogs towards discovery of potential lead compounds as antileishmanial agents. Eur. J. Med. Chem. 2023, 251, 115256. [Google Scholar] [CrossRef]
  39. Farag, A.K.; Hassan, A.H.E.; Ahn, B.S.; Park, K.D.; Roh, E.J. Reprofiling of pyrimidine-based DAPK1/CSF1R dual inhibitors: Identification of 2,5-diamino-4-pyrimidinol derivatives as novel potential anticancer lead compounds. J. Enzyme Inhib. Med. Chem. 2020, 35, 311–324. [Google Scholar] [CrossRef]
  40. Elkamhawy, A.; Hassan, A.H.E.; Paik, S.; Sup Lee, Y.; Lee, H.-H.; Shin, J.-S.; Lee, K.-T.; Roh, E.J. EGFR inhibitors from cancer to inflammation: Discovery of 4-fluoro-N-(4-(3-(trifluoromethyl)phenoxy)pyrimidin-5-yl)benzamide as a novel anti-inflammatory EGFR inhibitor. Bioorg. Chem. 2019, 86, 112–118. [Google Scholar] [CrossRef]
  41. Kang, S.; Lee, J.M.; Jeon, B.; Elkamhawy, A.; Paik, S.; Hong, J.; Oh, S.-J.; Paek, S.H.; Lee, C.J.; Hassan, A.H.E.; et al. Repositioning of the antipsychotic trifluoperazine: Synthesis, biological evaluation and in silico study of trifluoperazine analogs as anti-glioblastoma agents. Eur. J. Med. Chem. 2018, 151, 186–198. [Google Scholar] [CrossRef] [PubMed]
  42. Hassan, A.H.E.; Yoo, S.Y.; Lee, K.W.; Yoon, Y.M.; Ryu, H.W.; Jeong, Y.; Shin, J.-S.; Kang, S.-Y.; Kim, S.-Y.; Lee, H.-H.; et al. Repurposing mosloflavone/5,6,7-trimethoxyflavone-resveratrol hybrids: Discovery of novel p38-α MAPK inhibitors as potent interceptors of macrophage-dependent production of proinflammatory mediators. Eur. J. Med. Chem. 2019, 180, 253–267. [Google Scholar] [CrossRef] [PubMed]
  43. Fujimoto, K.J.; Hobbs, D.C.F.; Umeda, M.; Nagata, A.; Yamaguchi, R.; Sato, Y.; Sato, A.; Ohmatsu, K.; Ooi, T.; Yanai, T.; et al. In Silico Analysis and Synthesis of Nafamostat Derivatives and Evaluation of Their Anti-SARS-CoV-2 Activity. Viruses 2022, 14, 389. [Google Scholar] [CrossRef] [PubMed]
  44. Vardhan, S.; Sahoo, S.K. Virtual screening by targeting proteolytic sites of furin and TMPRSS2 to propose potential compounds obstructing the entry of SARS-CoV-2 virus into human host cells. J. Tradit. Complement. Med. 2022, 12, 6–15. [Google Scholar] [CrossRef] [PubMed]
  45. Yan, Y.; Yang, J.; Xiao, D.; Yin, J.; Song, M.; Xu, Y.; Zhao, L.; Dai, Q.; Li, Y.; Wang, C.; et al. Nafamostat mesylate as a broad-spectrum candidate for the treatment of flavivirus infections by targeting envelope proteins. Antivir. Res. 2022, 202, 105325. [Google Scholar] [CrossRef]
  46. Midgley, I.; Hood, A.J.; Proctor, P.; Chasseaud, L.F.; Irons, S.R.; Cheng, K.N.; Brindley, C.J.; Bonn, R. Metabolic fate of 14C-camostat mesylate in man, rat and dog after intravenous administration. Xenobiotica 1994, 24, 79–92. [Google Scholar] [CrossRef]
  47. Tsukagoshi, S. Pharmacokinetics studies of nafamostat mesilate (FUT), a synthetic protease inhibitor, which has been used for the treatments of DIC and acute pancreatitis, and as an anticoagulant in extracorporeal circulation. Gan Kagaku Ryoho 2000, 27, 767–774. [Google Scholar]
  48. González-Bello, C. Designing Irreversible Inhibitors—Worth the Effort? ChemMedChem 2016, 11, 22–30. [Google Scholar] [CrossRef]
  49. Hempel, T.; Raich, L.; Olsson, S.; Azouz, N.P.; Klingler, A.M.; Hoffmann, M.; Pöhlmann, S.; Rothenberg, M.E.; Noé, F. Molecular mechanism of inhibiting the SARS-CoV-2 cell entry facilitator TMPRSS2 with camostat and nafamostat. Chem. Sci. 2021, 12, 983–992. [Google Scholar] [CrossRef]
  50. Huang, X.; Pearce, R.; Omenn, G.S.; Zhang, Y. Identification of 13 Guanidinobenzoyl- or Aminidinobenzoyl-Containing Drugs to Potentially Inhibit TMPRSS2 for COVID-19 Treatment. Int. J. Mol. Sci. 2021, 22, 7060. [Google Scholar] [CrossRef]
  51. Peiffer, A.L.; Garlick, J.M.; Wu, Y.; Soellner, M.B.; Brooks, C.L.; Mapp, A.K. TMPRSS2 inhibitor discovery facilitated through an in silico and biochemical screening platform. bioRxiv 2021. [Google Scholar] [CrossRef]
  52. Meyer, D.; Sielaff, F.; Hammami, M.; Böttcher-Friebertshäuser, E.; Garten, W.; Steinmetzer, T. Identification of the first synthetic inhibitors of the type II transmembrane serine protease TMPRSS2 suitable for inhibition of influenza virus activation. Biochem. J. 2013, 452, 331–343. [Google Scholar] [CrossRef] [PubMed]
  53. Pilgram, O.; Keils, A.; Benary, G.E.; Müller, J.; Merkl, S.; Ngaha, S.; Huber, S.; Chevillard, F.; Harbig, A.; Magdolen, V.; et al. Improving the selectivity of 3-amidinophenylalanine-derived matriptase inhibitors. Eur. J. Med. Chem. 2022, 238, 114437. [Google Scholar] [CrossRef] [PubMed]
  54. Colombo, É.; Désilets, A.; Duchêne, D.; Chagnon, F.; Najmanovich, R.; Leduc, R.; Marsault, E. Design and Synthesis of Potent, Selective Inhibitors of Matriptase. ACS Med. Chem. Lett. 2012, 3, 530–534. [Google Scholar] [CrossRef]
  55. Beaulieu, A.; Gravel, É.; Cloutier, A.; Marois, I.; Colombo, É.; Désilets, A.; Verreault, C.; Leduc, R.; Marsault, É.; Richter, M.V. Matriptase Proteolytically Activates Influenza Virus and Promotes Multicycle Replication in the Human Airway Epithelium. J. Virol. 2013, 87, 4237–4251. [Google Scholar] [CrossRef]
  56. Patrick, G.L. Plasmepsins as targets for antimalarial agents. In Antimalarial Agents; Patrick, G.L., Ed.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 217–270. [Google Scholar]
  57. Nanjappan, S.K.; Surendran, S.; Paul, D. Pharmacokinetics and pharmacodynamics of peptidomimetics. In Peptide and Peptidomimetic Therapeutics; Qvit, N., Rubin, S.J.S., Eds.; Academic Press: Cambridge, MA, USA, 2022; pp. 195–211. [Google Scholar]
  58. Trabocchi, A. Principles and applications of small molecule peptidomimetics. In Small Molecule Drug Discovery; Trabocchi, A., Lenci, E., Eds.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 163–195. [Google Scholar]
  59. Pelay-Gimeno, M.; Glas, A.; Koch, O.; Grossmann, T.N. Structure-Based Design of Inhibitors of Protein–Protein Interactions: Mimicking Peptide Binding Epitopes. Angew. Chem. Int. Ed. 2015, 54, 8896–8927. [Google Scholar] [CrossRef]
  60. Li Petri, G.; Di Martino, S.; De Rosa, M. Peptidomimetics: An Overview of Recent Medicinal Chemistry Efforts toward the Discovery of Novel Small Molecule Inhibitors. J. Med. Chem. 2022, 65, 7438–7475. [Google Scholar] [CrossRef]
  61. Tamanini, E.; Buck, I.M.; Chessari, G.; Chiarparin, E.; Day, J.E.H.; Frederickson, M.; Griffiths-Jones, C.M.; Hearn, K.; Heightman, T.D.; Iqbal, A.; et al. Discovery of a Potent Nonpeptidomimetic, Small-Molecule Antagonist of Cellular Inhibitor of Apoptosis Protein 1 (cIAP1) and X-Linked Inhibitor of Apoptosis Protein (XIAP). J. Med. Chem. 2017, 60, 4611–4625. [Google Scholar] [CrossRef]
  62. Kumar, R.; Bavi, R.; Jo, M.G.; Arulalapperumal, V.; Baek, A.; Rampogu, S.; Kim, M.O.; Lee, K.W. New compounds identified through in silico approaches reduce the α-synuclein expression by inhibiting prolyl oligopeptidase in vitro. Sci. Rep. 2017, 7, 10827. [Google Scholar] [CrossRef]
  63. Trent, J.O.; Clark, G.R.; Kumar, A.; Wilson, W.D.; Boykin, D.W.; Hall, J.E.; Tidwell, R.R.; Blagburn, B.L.; Neidle, S. Targeting the Minor Groove of DNA:  Crystal Structures of Two Complexes between Furan Derivatives of Berenil and the DNA Dodecamer d(CGCGAATTCGCG)2. J. Med. Chem. 1996, 39, 4554–4562. [Google Scholar] [CrossRef]
  64. Das, B.P.; Boykin, D.W. Synthesis and antiprotozoal activity of 2,5-bis(4-guanylphenyl)furans. J. Med. Chem. 1977, 20, 531–536. [Google Scholar] [CrossRef] [PubMed]
  65. Moumbock, A.F.; Tran, H.T.; Lamy, E.; Günther, S. BC-11 is a covalent TMPRSS2 fragment inhibitor that impedes SARS-CoV-2 host cell entry. Arch. Pharm. 2022, 356, e2200371. [Google Scholar] [CrossRef] [PubMed]
  66. Paul, A.; Kumar, A.; Nanjunda, R.; Farahat, A.A.; Boykin, D.W.; Wilson, W.D. Systematic synthetic and biophysical development of mixed sequence DNA binding agents. Org. Biomol. Chem. 2017, 15, 827–835. [Google Scholar] [CrossRef] [PubMed]
  67. Depauw, S.; Lambert, M.; Jambon, S.; Paul, A.; Peixoto, P.; Nhili, R.; Marongiu, L.; Figeac, M.; Dassi, C.; Paul-Constant, C.; et al. Heterocyclic Diamidine DNA Ligands as HOXA9 Transcription Factor Inhibitors: Design, Molecular Evaluation, and Cellular Consequences in a HOXA9-Dependant Leukemia Cell Model. J. Med. Chem. 2019, 62, 1306–1329. [Google Scholar] [CrossRef]
  68. Fuentes-Prior, P. Priming of SARS-CoV-2 S protein by several membrane-bound serine proteinases could explain enhanced viral infectivity and systemic COVID-19 infection. J. Biol. Chem. 2021, 296, 100135. [Google Scholar] [CrossRef]
  69. Kandeel, M.; Yamamoto, M.; Tani, H.; Kobayashi, A.; Gohda, J.; Kawaguchi, Y.; Park, B.K.; Kwon, H.-J.; Inoue, J.-i.; Alkattan, A. Discovery of New Fusion Inhibitor Peptides against SARS-CoV-2 by Targeting the Spike S2 Subunit. Biomol. Ther. 2021, 29, 282–289. [Google Scholar] [CrossRef]
  70. Giannis, D.; Ziogas, I.A.; Gianni, P. Coagulation disorders in coronavirus infected patients: COVID-19, SARS-CoV-1, MERS-CoV and lessons from the past. J. Clin. Virol. 2020, 127, 104362. [Google Scholar] [CrossRef]
  71. Mackman, N.; Antoniak, S.; Wolberg, A.S.; Kasthuri, R.; Key, N.S. Coagulation Abnormalities and Thrombosis in Patients Infected with SARS-CoV-2 and Other Pandemic Viruses. Arterioscler. Thromb. Vasc. Biol. 2020, 40, 2033–2044. [Google Scholar] [CrossRef]
  72. Kastenhuber, E.R.; Mercadante, M.; Nilsson-Payant, B.; Johnson, J.L.; Jaimes, J.A.; Muecksch, F.; Weisblum, Y.; Bram, Y.; Chandar, V.; Whittaker, G.R.; et al. Coagulation factors directly cleave SARS-CoV-2 spike and enhance viral entry. eLife 2022, 11, e77444. [Google Scholar] [CrossRef]
  73. Hoffmann, M.; Kleine-Weber, H.; Schroeder, S.; Krüger, N.; Herrler, T.; Erichsen, S.; Schiergens, T.S.; Herrler, G.; Wu, N.-H.; Nitsche, A.; et al. SARS-CoV-2 Cell Entry Depends on ACE2 and TMPRSS2 and Is Blocked by a Clinically Proven Protease Inhibitor. Cell 2020, 181, 271–280.e278. [Google Scholar] [CrossRef]
  74. Iwata-Yoshikawa, N.; Kakizaki, M.; Shiwa-Sudo, N.; Okura, T.; Tahara, M.; Fukushi, S.; Maeda, K.; Kawase, M.; Asanuma, H.; Tomita, Y.; et al. Essential role of TMPRSS2 in SARS-CoV-2 infection in murine airways. Nat. Commun. 2022, 13, 6100. [Google Scholar] [CrossRef] [PubMed]
  75. Quinn, T.M.; Gaughan, E.E.; Bruce, A.; Antonelli, J.; O’Connor, R.; Li, F.; McNamara, S.; Koch, O.; MacKintosh, C.; Dockrell, D.; et al. Randomised controlled trial of intravenous nafamostat mesylate in COVID pneumonitis: Phase 1b/2a experimental study to investigate safety, Pharmacokinetics and Pharmacodynamics. eBioMedicine 2022, 76, 103856. [Google Scholar] [CrossRef]
  76. Kinoshita, T.; Shinoda, M.; Nishizaki, Y.; Shiraki, K.; Hirai, Y.; Kichikawa, Y.; Tsushima, K.; Shinkai, M.; Komura, N.; Yoshida, K.; et al. A multicenter, double-blind, randomized, parallel-group, placebo-controlled study to evaluate the efficacy and safety of camostat mesilate in patients with COVID-19 (CANDLE study). BMC Med. 2022, 20, 342. [Google Scholar] [CrossRef]
  77. Gunst, J.D.; Staerke, N.B.; Pahus, M.H.; Kristensen, L.H.; Bodilsen, J.; Lohse, N.; Dalgaard, L.S.; Brønnum, D.; Fröbert, O.; Hønge, B.; et al. Efficacy of the TMPRSS2 inhibitor camostat mesilate in patients hospitalized with COVID-19-a double-blind randomized controlled trial. eClinicalMedicine 2021, 35, 100849. [Google Scholar] [CrossRef] [PubMed]
Viruses 15 01171 g001 550

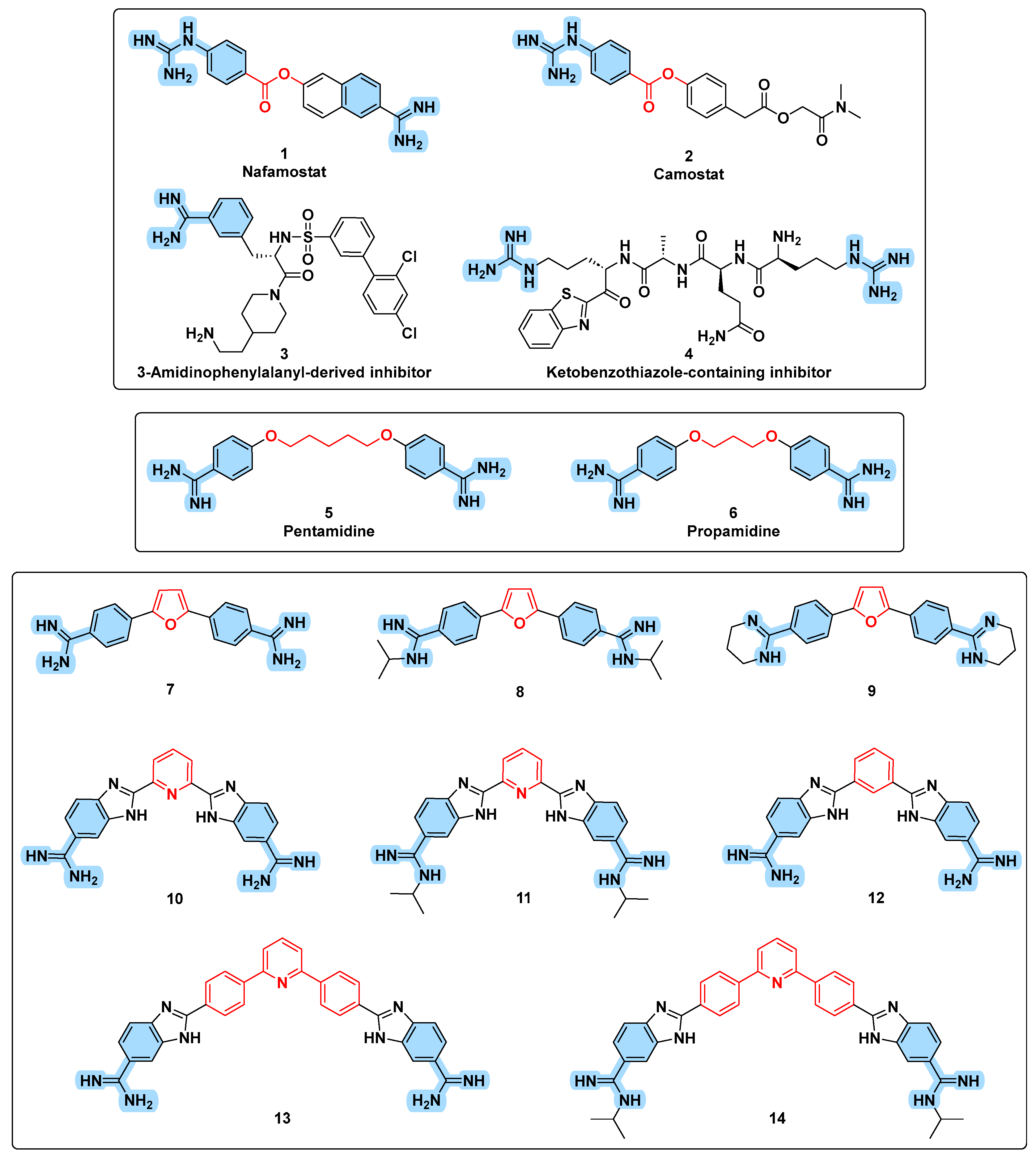

Figure 1. Chemical structure of nafamostat (1), camostat (2), 3-amidinophenylalanyl-derived inhibitor (3), ketobenzothiazole-containing diguanidine inhibitor (4), pentamidine (5), propamidine (6), and eight investigated compounds as TMPRSS2 inhibitors (7–14).
Figure 1. Chemical structure of nafamostat (1), camostat (2), 3-amidinophenylalanyl-derived inhibitor (3), ketobenzothiazole-containing diguanidine inhibitor (4), pentamidine (5), propamidine (6), and eight investigated compounds as TMPRSS2 inhibitors (7–14).
Viruses 15 01171 g001
Viruses 15 01171 g002 550
Figure 2. Predicted binding modes and interactions of compounds (7–14) within the binding site of TMPRSS2 (PDB ID: 7MEQ): (A) predicted pose of compound 7 (left) and schematic representation (right) of established interactions within the active site of TMPRSS2; (B) predicted pose of compound 8 (left) and schematic representation (right) of established interactions within the active site of TMPRSS2; (C) predicted pose of compound 9 (left) and schematic representation (right) of established interactions within the active site of TMPRSS2; (D) predicted pose of compound 10 (left) and schematic representation (right) of established interactions within the active site of TMPRSS2; (E) predicted pose of compound 11 (left) and schematic representation (right) of established interactions within the active site of TMPRSS2; (F) predicted pose of compound 12 (left) and schematic representation (right) of established interactions within the active site of TMPRSS2; (G) predicted pose of compound 13 (left) and schematic representation (right) of established interactions within the active site of TMPRSS2; (H) predicted pose of compound 14 (left) and schematic representation (right) of established interactions within the active site of TMPRSS2.
Figure 2. Predicted binding modes and interactions of compounds (7–14) within the binding site of TMPRSS2 (PDB ID: 7MEQ): (A) predicted pose of compound 7 (left) and schematic representation (right) of established interactions within the active site of TMPRSS2; (B) predicted pose of compound 8 (left) and schematic representation (right) of established interactions within the active site of TMPRSS2; (C) predicted pose of compound 9 (left) and schematic representation (right) of established interactions within the active site of TMPRSS2; (D) predicted pose of compound 10 (left) and schematic representation (right) of established interactions within the active site of TMPRSS2; (E) predicted pose of compound 11 (left) and schematic representation (right) of established interactions within the active site of TMPRSS2; (F) predicted pose of compound 12 (left) and schematic representation (right) of established interactions within the active site of TMPRSS2; (G) predicted pose of compound 13 (left) and schematic representation (right) of established interactions within the active site of TMPRSS2; (H) predicted pose of compound 14 (left) and schematic representation (right) of established interactions within the active site of TMPRSS2.
Viruses 15 01171 g002
Viruses 15 01171 sch001 550
Scheme 1. Reagents and conditions: (a) (i) Na2S2O5, EtOH-H2O, reflux; (ii) NaOH/H2O, EtOH/HCl.
Scheme 1. Reagents and conditions: (a) (i) Na2S2O5, EtOH-H2O, reflux; (ii) NaOH/H2O, EtOH/HCl.
Viruses 15 01171 sch001
Table
Table 1. The docking scores and type of binding interactions of the target compounds (7–14) with the crystal structure of TMPRSS2 (PDB ID: 7MEQ).
Table 1. The docking scores and type of binding interactions of the target compounds (7–14) with the crystal structure of TMPRSS2 (PDB ID: 7MEQ).
CompoundBinding Score 1Established Interactions
7−5.7172Three hydrogen bonds between (Gly464, Cys465, and Ser436) and the protons of one amidine group.
Hydrogen bond between His279 with a proton of the other amidine group.
Attractive charge between Asp435 and one amidine group.
π-sulfur interaction between Cys465 and the phenyl (linker) group.
8−6.5412Hydrogen bond between His279 with protons of one amidine group.
π-σ interaction between Val280 and the phenyl (linker) group.
π-alkyl interaction between Val280 and the furan central ring.
Alkyl interaction between Cys465 and isopropyl substitution on one amidine group.
9−6.0349C-H bond between Ser436 and protons of the tetrahydropyrimidine ring.
C-H bond between Gly464 and protons of the tetrahydropyrimidine ring.
π-alkyl interaction between Val280 and the phenyl (linker) group.
Alkyl interaction between Cys465 and the tetrahydropyrimidine ring.
10−6.2871Salt bridge between Asp435 and one amidine group.
Three hydrogen bonds between (Asp435, Gly464, and Trp461) and the protons of one amidine group.
Two hydrogen bonds between His279 and the other amidine group.
Two amide-π stacked interactions between Cys437 and the benzimidazole ring.
Amide-π stacked interactions between Trp461 and the benzimidazole ring.
11−7.4058Hydrogen bond between Cys465 with protons of one amidine group.
Hydrogen bond between Gly391 with protons of the other amidine group.
Alkyl interaction between Cys465 and isopropyl substitution on one amidine group.
π-π T-shaped interaction between His296 and the benzimidazole ring.
π -alkyl interaction between Val280 and the benzimidazole ring.
12−6.4987Salt bridge between Asp435 and one amidine group.
Two hydrogen bonds between Ser436 and (the same) amidine group.
Hydrogen bond between Ser441 with a proton of the benzimidazole ring.
π-alkyl interaction between Val280 and the benzimidazole ring.
13−7.6965Salt bridge between Asp435 and one amidine group.
Hydrogen bond between Ser436 and (the same) amidine group.
Hydrogen bond between Ser441 with a proton of the benzimidazole ring.
Hydrogen bond between His279 with a proton of the other benzimidazole ring.
π-donor hydrogen bond between Thr393 with a proton of the benzimidazole ring.
π-alkyl interaction between Val278 with the (same) benzimidazole ring.
π-σ interaction between Val278 with the (same) benzimidazole ring.
π-alkyl interaction between Val280 and the phenyl (linker) group.
π-alkyl interaction between Val280 and the pyridine central ring.
Amide-π stacked interaction between Cys437 and the benzimidazole ring.
14−8.4438Two hydrogen bonds between Ser441 and Ser436 with a proton of one amidine group.
Hydrogen bond between His279 with a proton of the benzimidazole ring.
Two π-alkyl interaction between Val278 with the (same) benzimidazole ring.
π-π interaction between His296 with the (other) benzimidazole ring.
π-alkyl interaction between Val278 with the phenyl (linker) group.
π-alkyl interaction between Val280 with the phenyl (linker) group.
π-alkyl interaction between Val280 with the pyridine central ring.
π-donor hydrogen bond between Thr393 with a proton of the benzimidazole ring.
π-sulfur interaction between Cys281 with the phenyl (linker) group.
1 Binding score was calculated in kcal/mol.
Table
Table 2. Results of in vitro TMPRSS2 enzymatic assay, the two DSP-assays (S2TA and CoTF), and cellular viability for the selected set of compounds 7, 10–14 and the reference nafamostat and pentamidine.
Table 2. Results of in vitro TMPRSS2 enzymatic assay, the two DSP-assays (S2TA and CoTF), and cellular viability for the selected set of compounds 7, 10–14 and the reference nafamostat and pentamidine.
CompoundTMPRSS2
IC50 (µM)		S2TA AssayCoTF Assay
IC50 (µM)
% Inhibition 1IC50 (µM)
782.739.91>100>100
105.5789.5316.9337.84
11>10 244.17>100>100
124.8955.42>100>100
1372.493.9813.7037.00
14>10097.3310.8730.97
Pentamidine3.9871.3032.27>100
Nafamostat<0.00189.320.007115>100
1 % Inhibition at 100 µM concentration. 2 Exact IC50 value could not be determined because of the compound’s fluorescence interference at higher concentrations.
Table
Table 3. Results of SARS-CoV-2 pseudovirus entry assays and cell viability of compounds 7, 10–14 and the reference nafamostat and pentamidine.
Table 3. Results of SARS-CoV-2 pseudovirus entry assays and cell viability of compounds 7, 10–14 and the reference nafamostat and pentamidine.
CompoundSARS-CoV-2 PseudovirusCell Viability Inhibition
IC50 (µM)
% Inhibition 1IC50 (µM)
72.66>100>100
1019.57>100>100
1127.02>100>100
1217.07>100>100
1320.53>100>100
1477.4483.66>100
Pentamidine69.4845>100
Nafamostat87.340.06>100
1 % Inhibition at 100 µM concentration.
Table
Table 4. Results of thrombin and factor Xa enzyme inhibition assays by compounds 7, 10–14 and the reference nafamostat and pentamidine.
Table 4. Results of thrombin and factor Xa enzyme inhibition assays by compounds 7, 10–14 and the reference nafamostat and pentamidine.
CompoundIC50 (µM)
ThrombinFactor Xa
779.130.9
100.9215.93
11>1 1>1 1
120.86234.1
130.9294.89
142.25>10 1
Pentamidine1.516.22
Nafamostat0.03411.74
1 Exact IC50 value could not be determined because of the compound’s fluorescence interference at higher concentrations.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Hassan, A.H.E.; El-Sayed, S.M.; Yamamoto, M.; Gohda, J.; Matsumoto, T.; Shirouzu, M.; Inoue, J.-i.; Kawaguchi, Y.; Mansour, R.M.A.; Anvari, A.; et al. In Silico and In Vitro Evaluation of Some Amidine Derivatives as Hit Compounds towards Development of Inhibitors against Coronavirus Diseases. Viruses 2023, 15, 1171. https://doi.org/10.3390/v15051171

AMA Style

Hassan AHE, El-Sayed SM, Yamamoto M, Gohda J, Matsumoto T, Shirouzu M, Inoue J-i, Kawaguchi Y, Mansour RMA, Anvari A, et al. In Silico and In Vitro Evaluation of Some Amidine Derivatives as Hit Compounds towards Development of Inhibitors against Coronavirus Diseases. Viruses. 2023; 15(5):1171. https://doi.org/10.3390/v15051171

Chicago/Turabian Style

Hassan, Ahmed H. E., Selwan M. El-Sayed, Mizuki Yamamoto, Jin Gohda, Takehisa Matsumoto, Mikako Shirouzu, Jun-ichiro Inoue, Yasushi Kawaguchi, Reem M. A. Mansour, Abtin Anvari, and et al. 2023. "In Silico and In Vitro Evaluation of Some Amidine Derivatives as Hit Compounds towards Development of Inhibitors against Coronavirus Diseases" Viruses 15, no. 5: 1171. https://doi.org/10.3390/v15051171

APA Style

Hassan, A. H. E., El-Sayed, S. M., Yamamoto, M., Gohda, J., Matsumoto, T., Shirouzu, M., Inoue, J. -i., Kawaguchi, Y., Mansour, R. M. A., Anvari, A., & Farahat, A. A. (2023). In Silico and In Vitro Evaluation of Some Amidine Derivatives as Hit Compounds towards Development of Inhibitors against Coronavirus Diseases. Viruses, 15(5), 1171. https://doi.org/10.3390/v15051171

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
