Antitoxin ε Reverses Toxin ζ-Facilitated Ampicillin Dormants

by
María Moreno-del Álamo
,
Chiara Marchisone
and
Juan C. Alonso
*
Department of Microbial Biotechnology, Centro Nacional de Biotecnología, CNB-CSIC, 3 Darwin Str., 28049 Madrid, Spain
*
Author to whom correspondence should be addressed.
Toxins 2020, 12(12), 801; https://doi.org/10.3390/toxins12120801
Submission received: 5 November 2020 / Revised: 7 December 2020 / Accepted: 9 December 2020 / Published: 15 December 2020
(This article belongs to the Special Issue Toxin-Antitoxin Systems in Pathogenic Bacteria)
Browse Figures
Versions Notes

Abstract

:
Toxin-antitoxin (TA) modules are ubiquitous in bacteria, but their biological importance in stress adaptation remains a matter of debate. The inactive ζ-ε2-ζ TA complex is composed of one labile ε2 antitoxin dimer flanked by two stable ζ toxin monomers. Free toxin ζ reduces the ATP and GTP levels, increases the (p)ppGpp and c-di-AMP pool, inactivates a fraction of uridine diphosphate-N-acetylglucosamine, and induces reversible dormancy. A small subpopulation, however, survives toxin action. Here, employing a genetic orthogonal control of ζ and ε levels, the fate of bacteriophage SPP1 infection was analyzed. Toxin ζ induces an active slow-growth state that halts SPP1 amplification, but it re-starts after antitoxin expression rather than promoting abortive infection. Toxin ζ-induced and toxin-facilitated ampicillin (Amp) dormants have been revisited. Transient toxin ζ expression causes a metabolic heterogeneity that induces toxin and Amp dormancy over a long window of time rather than cell persistence. Antitoxin ε expression, by reversing ζ activities, facilitates the exit of Amp-induced dormancy both in rec+ and recA cells. Our findings argue that an unexploited target to fight against antibiotic persistence is to disrupt toxin-antitoxin interactions.
Keywords:
toxin-antitoxin system; cell wall inhibition; persistence; nucleotide hydrolysis; uridine diphosphate-N-acetylglucosamine
Key Contribution: The understanding of bacterial persistence might enable us to devise treatments against such threat. Toxin ζ, which is a UNAG-dependent ATPase, interferes with purine nucleotide homeostasis, and this physiological heterogeneity induces reversible dormancy and a subpopulation of survivors. Transient ζ expression indirectly reduces Amp persistence without massive autolysis. Antitoxin ε expression reverses toxin action and induces the exit of cells from an Amp dormant state. A deeper understanding of the metabolic state to inhibit toxin action, which sensitizes bacterial cells to different antibiotics, and disruption of antitoxin-mediated reversion of toxic action, are crucial to overcome antibiotic persistence.

1. Introduction

Bacteria have evolved complex regulatory controls and a diverse repertoire of cell transition states in response to various environmental stresses. In order to survive, cells slow down their growth rate and redirect their metabolic resources, until conditions improve and growth can increase [1]. It was shown early in Staphylococcus aureus that a large bacterial fraction is unable to survive to lethal doses of penicillin but a subpopulation survives, showing a biphasic inactivation curve [2,3]. It was proposed that in the presence of phenotypic heterogeneity (noise at the level of transcription of key genes during the life cycle), stochastic and antibiotic-induced stress leads to a non-genetic phenotypic “antibiotic insensitive” state, which was termed as persistence [3,4,5,6].Persisters have been featured throughout due to their important role in bacterial infections. In the Proteobacteria Phylum (Escherichia coli being the best-characterized representative) starvation-induced (p)ppGpp contributes to antibiotic persistence, whereas in bacteria of the Firmicutes phylum, the persistence effectors are more complex [7,8,9,10]. It has been proposed that in S. aureus the bona fide persistence effector is ATP depletion [11], but treatment with ATP synthesis inhibitors also induces (p)ppGpp accumulation and decreases GTP levels [12]. In Bacillus subtilis, which is the best-characterized representative of the Firmicutes phylum, the synthase-hydrolase RelA, and the two small alarmone synthases SasA (also termed RelP or YwaC) and SasB (RelQ or YjbM) downregulate ATP and GTP levels, increase (p)ppGpp, and indirectly the cyclic 3,5-diadenosine monophosphate (c-di-AMP) pools [13,14]. Antibiotic persistence might be controlled by deregulating (p)ppGpp and c-di-AMP pools [10,15]. In response to antibiotics that target cell wall biosynthesis, as the bactericidal β-lactam ampicillin (Amp), (p)ppGpp and c-di-AMP synthesis are induced in B. subtilis cells [16]. Furthermore, the sasA transcripts are increased by certain classes of cell-wall-active antibiotics (Amp among them) that trigger a membrane stress, and increase (p)ppGpp and c-di-AMP levels [13,17].
Bacterial toxin-antitoxin (TA) modules, which are ubiquitous across a broad range of extrachromosomal elements and are present in bacterial and archaeal chromosomes, are operons encoding a toxin that interferes with vital cell processes and an antitoxin that counteracts toxin action [18,19,20,21]. The type I to VI TA modules, which are classified according to the nature of the antitoxin and to their mode of toxin inhibition, are implicated in the fine tuning of multiple cellular functions and are associated with cell survival under different stress conditions [20,21]. The largest group is formed by type II TAs, which were first described as loci that enforce the maintenance of plasmids via post-segregational killing [22], and their ability to stabilize their mobile elements is considered as a selfish property [21,23]. In a type II TA system, which comprises a pair of genes coding for two proteins, the antitoxin forms a tight complex with the toxin to avoid its action [18,19,20,21,23]. Under certain stress conditions, the unstable antitoxin is rapidly degraded by host ATP-dependent proteases, freeing the proteolytically stable toxin [18,20]. The free toxin, which targets essential cellular processes such as RNA, DNA and protein synthesis, cell division, general stress response, etc., triggers a biphasic cell inactivation curve [24].
A variant of the HipAB type II TA system, rather than deletion of hipBA operon, has been shown to contribute to the formation of antibiotic persistence in E. coli cells. The hipA7 mutation, which maps in the HipA toxin, produces a high fraction of persisters [7,25]. HipA activates the stringent response, and by increasing (p)ppGpp levels, leads to persister formation [26,27,28]. However, a strong link between the induction of TA systems and antibiotic persistence is missing, and further work is needed to establish whether physiological levels of a toxin contribute to antibiotic persistence [23,29,30,31]. Deletion of E. coli- and B. subtilis-encoded chromosomal type II TA systems have no effect on antibiotic persistence [12,31].
The type II TAs of the ζ-ε superfamily, which is among one of the most broadly distributed TA modules in nature, are found in major human and plant pathogens. TAs of this superfamily are composed of two toxin monomers (with ζ and PezT as representatives), that interact with their cognate dimeric ε2/PezA2 antitoxin forming an inactive ζε2ζ or PezT-PezA2-PezT complex [32,33]. ζ/PezT interacts with its activator/substrate, the peptidoglycan precursor uridine diphosphate-N-acetylglucosamine (UNAG) [34]. UNAG is an essential precursor of bacterial cell wall biosynthesis [34]. The structures of the inactive ζε2ζ or PezT-PezA2-PezT complex, alone or UNAG bound, have been reported [32,33,34,35]. The interaction of the antitoxin with the toxin sterically blocks ATP-Mg2+ binding by the ζ/PezT toxin, but not with UNAG [32,33,34,35]. Therefore, the interactions with ATP and ε2/PezA2 are mutually exclusive [32,33]. The structure of the inactive ζε2ζ or PezT-PezA2-PezT complex, both alone or UNAG bound, has been reported [32,33,34,35]. Toxin ζ hydrolyses ATP in the presence of UNAG and phosphorylates a small fraction of UNAG, rendering it irreversibly inactive [15,34,36,37].
Transient toxin ζ expression, at or near physiological concentrations, leads to several cellular responses in B. subtilis cells growing in S7 minimal medium, at 37 °C with aeration. At early stages of transient toxin ζ expression (up to 15 min), the ζ UNAG-dependent ATPase decreases the ATP pool, and indirectly it alters the intracellular ATP/GTP ratios [37,38]. Such perturbation affects the concentration of the transcription initiation nucleoside triphosphates (ATP, GTP), and indirectly regulates RNA polymerase transcription initiation [39]. This mechanism, which is crucial for rapid adjustment of gene expression in response to environmental changes [40], alters the expression of ~2% of total B. subtilis genes (among those, it induces relA and comGA gene expression) [38]. However, an increased expression of SOS response genes or proteases that selectively induce cell-cycle arrest is not observed [38]. At 15–30 min times, the concerted action of relA and comGA increases the (p)ppGpp pool and indirectly the levels of the essential c-di-AMP second messenger [15,38]. Toxin ζ expression induces a cellular dormant state, but a reduced subpopulation, which shows no genetic modification, survives toxin action [10,15,38]. At 30–90 min, the synthesis of macromolecules (DNA, RNA, proteins) is inhibited and the membrane potential is impaired, with ~35% of total cells transiently stained with propidium iodide (an indicator of membrane compromised cells) [38]. At 90–120 min, the cell wall biosynthesis is reduced by ζ-mediated phosphorylation of a small UNAG fraction, leading to the accumulation of unreactive UNAG-3P [34,38]. In addition, (p)ppGpp mediates the inhibition of peptidoglycan metabolism [41]. Antitoxin ε expression blocks ATP binding by toxin ζ, thereby inhibiting its ATPase and phosphotransferase activities. Antitoxin ε reverses the toxic effect exerted by ζ in cell proliferation, and only ~10% of total cells remained stained with propidium iodide [38,42,43]. This is consistent with the fact that the toxin ζ action is reversible by nature even in distantly related bacteria, such as E. coli and B. subtilis cells [38,43]. Transient toxin ζ expression sensitizes cells to Amp treatment, and antitoxin ε expression reverses the ζ-induced dormant state, and the steady state condition is re-established [15,38,43]. The reversibility of ζ action upon longer periods of time in the presence of Amp is unknown. Therefore, we have re-examined the mode of action of toxin ζ, at or near physiological concentrations in B. subtilis cells growing in the minimal S7 medium, to understand how toxin ζ contributes to reduce Amp persistence.
In this study, we show that toxin ζ induces a dormant although still metabolically active state. The study of SPP1 in cells where toxin ζ is expressed reveals that ζ induces an active slow-growth rather than a growth-arrested condition and abortive infection. Amp addition at twice the minimum inhibitory concentration (2× MIC) halts B. subtilis proliferation, leading to a biphasic time-inactivation curve, which is maintained by a long period of time. Transient toxin ζ expression sensitizes cells to Amp action during a long time period. Antitoxin ε expression switches back ζ-induced dormancy, and promotes the exit of toxin-facilitated Amp dormants without observing a point of no return. Inactivation of recA, which suppresses the SOS response, marginally reduced the relative rate of antibiotic persistence. Transient ε expression reverses the negative effect of the toxin and indirectly awakes Amp dormants to levels observed in the rec+ control. This toxin-mediated sensitization of bacterial cells to Amp and the understanding of the conditions that inhibit antitoxin action will facilitate targeted engineering of their activity towards the development of anti-persistence agents.

2. Results and Discussion

2.1. Experimental Rationale

Resistance, tolerance, and persistence are independent solutions used by bacteria to survive an antibiotic action (Supplementary Figure S1) [1]. A bacterial population resistant to antimicrobial, which grows under drug pressure, uses mutation-associated defense mechanisms (such as antibiotic inactivation/modification, increased efflux, or target modification) to confer a resistant phenotype with or without a fitness cost (Figure S1) [19,44,45]. Persistence is a special case of tolerance, and often the two terms are interchangeable [45]. Tolerance is the general ability of a population to survive a longer antibiotic treatment without a significant change in the MIC (Figure S1, dotted line), whereas persistence represents a subpopulation of cells that can survive the antibiotic treatment (Figure S1, dotted vs. orange broken dotted line) [1].
The growth of susceptible bacteria is challenged by the addition of an antibiotic (e.g., Amp), but a subpopulation of stochastic variants, by undergoing a period of slow- or non-growth, escapes the antibiotic action, leading to a bimodal time-inactivation curve of cell persistence (Figure S1, orange broken dotted line) [1]. In B. subtilis, the mechanisms responsible for antibiotic persistence have not been delineated, and the fate of persistents after a prolonged exposure to the antibiotic before returning to permissive conditions is poorly understood. Here, Amp-induced cell-wall stress, by inducing sasA expression (one of the two small alarmone synthases), reduces the GTP pool and increases c-di-AMP and ppGpp levels [10,13,17]. This state might be transient and all cells might “awake” after removal of the antibiotic.
In previous studies, the number of toxin ζ and antitoxin ε molecules from a S. pyogenes plasmid-borne ε-ζ TA cassette was determined in the B. subtilis host grown in the minimal S7 medium [43,46]. An orthogonal control of ζ and ε was constructed by placing the ζ gene under the control of an isopropyl-β-D-thiogalactoside (IPTG) inducible promoter (lacI, Phspζ, spc cassette), was ectopically integrated into the B. subtilis amy locus (Table 1) [38]. The antitoxin ε gene, which reads from a xylose (Xyl)-inducible promoter (xylR, PxylAε, cat cassette), was cloned into the middle-low-copy number pCB799 plasmid (~8 copies/cell) [38]. In B. subtilis, BG1125 pCB799 cells grown in S7 are prone to genome rearrangements, by transcriptional escape of the ζ gene from the Phsp promoter. The Xyl concentration required to reduce genome rearrangements was estimated to be 0.005% [10,38]. BG1125 (pCB799) grows in the S7 medium with 0.005% Xyl at 37 °C with a doubling time of (58 ± 2 min) (Figure S2) [38].
Then, the IPTG concentration necessary to express similar levels of toxin from the native system, and the Xyl concentration necessary to express sufficient ε2 to inactivate the toxin ζ action was estimated [38]. Transient toxin ζ expression, at or near physiological concentrations, induces reversible cell dormancy. Here, a large cell fraction enters into a toxin-induced dormant state that cannot form colonies since they minimize their metabolic activity. By contrast, a small subpopulation escapes the toxin ζ action without diminishing their metabolic activity. When the inducer of toxin expression was removed, the cells exited the transient dormant state and formed colonies, leading to bimodal toxin survivors (Figure S1, blue broken dotted line) rather than toxin tolerants (Figure S1) [15]. These cells that escape the toxin ζ action show no genetic changes [38].
Transient toxin ζ expression sensitizes cells to the Amp treatment [10,15]. In the BG1125 [pCB799] strain, the presence of IPTG or Xyl does not affect the MIC for Amp [10]. The fate of the Amp persisters, which are sensitized by toxin ζ is unknown. At least two types of mechanisms can be envisioned. First, toxin-induced dormancy sensitizes cells to Amp action. Second, ζ-induced dormancy and stochastic slow growth cells trigger a viable but not-culturable state. In the latter condition, normal culturable cells stochastically lost their ability to grow on media, but remain viable [47]. If the first hypothesis is correct, antitoxin ε expression inactivates ζ, and indirectly reverses Amp dormants, as depicted in Figure S1 (red dotted curve). However, if the latter hypothesis is correct, transient ε2 expression should reverse toxin-induced dormancy, but it should play no role on the exit from stochastic viable but the not-culturable state. These experiments performed here should contribute to understand the mechanism of genesis and exit of Amp persistence.

2.2. Toxin ζ Induces a Slow-Growth Active State

In γ-Proteobacteria, deletion of chromosomally-encoded type II TA loci neither confers a fitness benefit nor influences stress tolerance [48,49]. Similarly, deletion of B. subtilis-encoded type II TA systems has no effect on antibiotic persistence [12]. To gain insight on the molecular and physiological bases of toxin-induced dormancy, dormant cells were infected with a lytic bacteriophage (phage) and the infective cycle was followed.
Except TA systems that abort infection of a specific phage in selected hosts [50], and those phages that encode bona fide TA systems [23], it has been observed that overexpression of type II toxins contributes to abortive infection and causes exclusion of lytic phages from the bacterial population [26,51]. It has been also shown that in the arms race of a bacterium and its phage, a λ lytic variant was able to infect and kill survival bacteria, despite their dormancy state [52], and that T4 infection inactivates MazF toxin activity [53]. In contrast, it has been also shown that phage λ cannot overcome a toxin treat, since toxin overexpression, acting as a defense mechanism, protects the bacterial culture by increasing (p)ppGpp levels, and the alarmone might antagonize λ phage development [54]. Moreover, toxin RnlA overexpression cleaves phage T4 mRNAs to antagonize T4 amplification [55]. Therefore, phage infection of toxin-induced dormant cells can be a powerful tool to understand the physiology of toxin-induced dormancy and to address how the toxin ζ expression sensitizes cells to toxin ζ expression.
A set of isogenic B. subtilis strains, lacking prophages (SPβ and PBSX), conjugative genetic elements, CRISPR-Cas and restriction systems, and having a deficiency in the rsbV gene, whose function is crucial for the activation of RNA polymerase σB-mediated general stress response [56], were used to characterize the impact of toxin ζ expression on cell dormancy (Table 1). The BG1127 (pCB799) strain (in the presence or absence of IPTG, doubling time 59 ± 3 min) and BG1125 (pCB799) strain (in the absence of IPTG, doubling time 58 ± 2 min) grown in the minimal S7 medium supplemented with traces of Xyl (0.005%) at 37 °C with shaking had a similar doubling time (Figure S2). Both cell cultures reached a plateau at ~3.5 × 109 cells mL−1 (Figure S2). By contrast, if IPTG (2 mM) was added at OD560 = 0.2, the growth curve of the BG1125 (pCB799) strain was halted and after 720 min the OD560 was not significantly decreased (Figure 1 and Figure S2), but the plating efficiency was significantly reduced (Figure 2A) [38].
BG1125 (pCB799) cells were grown in the minimal S7 medium supplemented with 0.005% Xyl, to OD560 = 0.2 at 37 °C with shaking. At this time (-20 min), the culture was divided, 2 mM IPTG (time zero) was added to a half, and both cultures were incubated for 20 min to allow toxin-induced dormancy. The total number of cells were measured as colony-forming units (CFUs) by plating them on LB plates lacking IPTG (Figure 1A and Figure S3). At -5 min, both cell cultures, containing or not IPTG, were infected with phage SPP1 at a multiplicity of infection (moi) of 1 (to minimize the noise of free phages), and incubated for further 5 min. Then, free phages were removed by centrifugation, and this time was considered as 0 min in our experiment. At 0 min, the number of cells was measured by plating on LB agar plates and plaque-forming units (PFUs), to determine the number of infected centers, cells were measured by plating appropriate dilutions of the culture in a lawn of exponentially growing BG214 cells (indicator strain) onto LB-Mg (supplemented with 10 mM MgCl2) plates (Figure 1A,B). In parallel, free phages from the supernatant of centrifugation were determined, to test whether centrifugation was sufficient to remove them or polyclonal anti-SPP1 antibodies were necessary to the inactive free phages. Since in the minus IPTG condition the number of total cells minus free phages was not significantly different from the number of infected centers, we have omitted the use of polyclonal anti-SPP1 antibodies.
After 20 min of toxin induction IPTG, CFUs were reduced by ~1000-fold at a time when compared to the parallel culture in the absence of IPTG (Figure 1A and Figure S3, black vs. grey bar). After infection with SPP1, the proportion of infected centers measured as PFUs was similar in the minus and plus IPTG conditions (Figure 1B, black and grey bars), suggesting that a large fraction of dormant cells were infected by SPP1. In the absence (grey bar) and presence of IPTG (black bar), the phage titer, which correlates to the cell population infected by SPP1, was similar and in good agreement with the expected for a one-hit kinetic. From the input phages, ~71% and ~67% infected the cells, respectively, defining the infected centers (Figure 1B) and ~30% were recovered from the supernatant after centrifugation. In parallel, the total number of cells at -20, 0, 60, and 120 min in the absence of phage SPP1 was also measured as CFUs by plating them on LB plates lacking IPTG (Figure S3).
The SPP1 infection cycle takes 35–45 min in cells growing in the minimal medium, thus the infected cells were incubated for 60 min, and then the relative number of progeny phage per infected cell (burst size) was deduced for the minus and plus IPTG conditions. At 60 min and in the presence of IPTG, cells remained in the dormant state (Figure 1A vs. Figure S3), suggesting that SPP1 does not encode (a) gene(s) whose function can neutralize toxin ζ action. At 60 min, the phage SPP1 titer from cultures where the toxin had been induced was similar to the number of infected cells at 0 min. However, in the absence of IPTG, the PFUs greatly increased. The SPP1 relative burst size (the ratio of the total number of SPP1 progeny to the number of input phage) from three independent experiments was quantified by counting cells and phages taking in to account the supernatant of the cultures (Figure 1A,B). The SPP1 burst size significantly increased (~80 SPP1 phages/infected cell). These results suggest that SPP1, upon infecting toxin-dormant cells neither enters in the amplification cycle nor promotes the exit of the dormant state.
To test whether dormant cells antagonize or cannot support SPP1 amplification or if dormant cells can support SPP1 amplification upon toxin neutralization at 60 min post-infection, Xyl (0.5%) was added to induce antitoxin ε expression, and the cultures were incubated for further 60 min. At 120 min, the number of total cells and the SPP1 burst-size were quantified as described above. In the presence of IPTG and Xyl, the yield of SPP1 phage in cells expressing both ζ and ε genes (between 60 to 120 min) was significantly increased (~110 SPP1 phages/predicted infected cell), calculated from the PFU obtained and the number of infected centers at 60 min (Figure 1B). This suggests that only when infected cells exit toxin-induced dormancy, by the anti-toxin action, SPP1 was amplified. In the only Xyl condition (i.e., no toxin induced), the number of total cells increased (58 ± 2 min doubling time), but the phage titer did not, suggesting that these cells enter in a state that might not be further infected by the SPP1 phage.
These data altogether suggest that: (i) SPP1 infected toxin-induced dormant cells with a similar efficiency as normally growing cells (Figure 1B, time zero); (ii) ζ-induced dormancy does not impair phage absorption, but delays the SPP1 lytic cycle; (iii) toxin ζ-induced dormancy is a metabolically active state rather than a growth-arrested state leading to abortive infection; (iv) SPP1 does not undergo an abortive infection; and v) upon toxin ζ inactivation, by antitoxin ε expression, the exit of ζ-induced dormancy facilitates a viral infective cycle.

2.3. Discrete Subpopulations of Toxin ζ Survivors and Amp Persisters

The subpopulation of cells that survive an antibiotic treatment, are termed persisters [1,45]. The rate of killing by Amp is strictly proportional to the rate of bacterial growth, and Amp persistence is associated with a pre-existing phenotypic switching to a stochastic non-growing state (or leftover cells from high-stress stationary-phase inoculums) [57,58]. To analyze the interconnection between toxin survivors and Amp persisters and whether a prolonged growth arrest causes an irreversible cell cycle arrest (point of no return), we have used BG1125 (pCB799) cells (Table 1).
BG1125 (pCB799) cells were grown in the minimal S7 medium, supplemented with 0.005% Xyl, to OD560 = 0.2 at 37 °C with shaking, and then 2 mM IPTG (0 min) was added to induce toxin expression, and the reaction incubated for 900 min (Figure 2A). Toxin ζ expression quickly reduced the cell plating efficiency showing a biphasic time-inactivation curve (Figure 2A, blue empty rhombs), suggesting that toxin ζ expression reaches a steady-state in a short time and it remains for at least 900 min. It is likely that toxin ζ expression induces a slow-growth active state, but a rare fraction (3–6 × 10−5) exits this dormant state and survives, or a preexisting population of non-growing cells are insensitive to toxin action (type I-like persisters) (see [59]). Alternatively, expression of the ζ gene triggers the expression of any of the type I and/or type II TA modules present in the background, and the loss of cell viability and the observed surviving cells arise via the overlapping activation of multiple toxins, even with different activities.
To test whether the frequency of survivors may increase in response to the spontaneous induction of other chromosomally encoded toxins present in the background, IPTG was removed, by washing the culture with the pre-warmed S7 medium, containing 0.5% Xyl (to induce antitoxin ε expression), and cells were preincubated for 15 min before plating on LB plates containing 0.5% Xyl, but lacking IPTG. Antitoxin ε expression reversed ζ-induced dormancy, by significantly increasing cell viability nearly to full values almost similar to the time of IPTG addition (Figure 2A, blue filled rhombs). Similar results are observed when IPTG is not removed from the medium [15]. It is likely that: (i) Toxin ζ-induced dormancy rather than cell lysis, as judged by the non-significant variation in the OD560 = 0.2 during a 720-min interval (Figure S2); (ii) toxin ζ is not triggering a spontaneous induction of toxins from TA systems present in the background; and (iii) toxin ζ transiently halts DNA replication and triggers a phenotypic heterogeneity [38]. In addition, the expression of the antitoxin ε expression reversed ζ-induced growth arrest even after a prolonged dormancy (equivalent to ~15 mass doubling periods) (Figure 2A, blue filled rhombs).
To address whether antibiotic persisters are produced due to a stochastic entrance into the stationary phase, the overnight culture was extensively diluted and BG1125 (pCB799) cells were grown in the minimal S7 medium, supplemented with 0.005% Xyl, to OD560 = 0.2 at 37 °C with shaking. It is expected that <0.3% of the total cells in the actively growing inoculum are old cells from the stationary-phase inoculum. Amp (at 2× MIC, 3 μg mL−1) was added, and the culture was maintained up to 900 min. At indicated times, the cells were washed to remove the antibiotic, and plated in LB lacking Amp. The removal of Amp was sufficient to reveal that a large fraction of cells (>99% of total cells) cannot form colonies upon exposure to bacteriolytic Amp (Figure 2A, filled orange squares). As stated, the rate of Amp killing is proportional to the rate of bacterial growth [57], with >80% of total Amp-treated cells being stained with propidium iodide [10], which stains the membrane compromised cells. A small cell fraction (1–0.5 × 10−2 survivals), however, regained the ability to form colonies upon antibiotic removal (Figure 2A, filled orange squares). Similar results were observed when the overnight culture was less extensively diluted (~6% old cells), suggesting that old cells from the stationary-phase inoculum poorly contribute to the Amp persistence fraction.
Upon exposure to Amp for at least 900 min of incubation, cells survive following antibiotic removal (Figure 2A) rather than becoming metabolically inactive by entering a path of no return as described upon toxin MazF overexpression [60]. The culturable cells were still sensitive to Amp action, thus we have to believe that after prolonged incubation to the antibiotic there were no genetic changes [10].

2.4. Transient Toxin ζ Expression and Amp Addition Reduce the Subpopulation of Persisters

Transient toxin ζ expression sensitizes cells to the presence of different antibiotics [10,37]. At least two mechanisms can be envisioned: (i) Toxin dormants are sensitive to antibiotic action and stochastically enter in a viable but not-culturable state with resuscitation independent of antitoxin expression; or (ii) antibiotic persistence is the sum of stochastic and transient antibiotic-induced dormants with resuscitation dependent of antitoxin expression. To test the above hypotheses, BG1125 (pCB799) cells were grown in S7 medium, supplemented with 0.005% Xyl, to OD560 = 0.2 at 37 °C with shaking. Then, 2 mM IPTG and 3 μg mL−1 Amp were added, and at indicated times cells were washed and plated in the absence of both IPTG and Amp. A typical biphasic decline curve was observed (Figure 2A, purple empty circles). Amp and toxin action significantly decreased the proportion of survivals (1–2 × 10−7) when compared to only ζ (3–6 × 10−5 survivors) or only Amp (1–0.5 × 10−2 persisters) (Figure 2A, purple empty circles vs. blue empty rhombs and orange filled squares). The persistent cells stochastically switch back to a growing state, upon plating in the absence of IPTG and Amp, with the fraction of persisters remaining nearly constant for ~900 min (Figure 2A, purple empty circles). It is likely that: (i) Amp persisters are in an active state that allows toxin expression; (ii) toxin ζ expression does not increase antibiotic persistence; (iii) toxin expression triggers a network of intracellular stress responses that significantly increases cell dormancy; and (iv) toxin-induced dormancy facilitates Amp dormants that resuscitate upon antitoxin expression.

2.5. Transient Antitoxin ε Expression Reverses ζ-Facilitated Exit of Amp Dormants

To test whether transient ζ expression enhances Amp efficacy with the cells entering in a viable but not-culturable state or if ζ expression induces dormancy of Amp persisters, BG1125 (pCB799) cells were grown in the minimal S7 medium, supplemented with 0.005% Xyl, to OD560 = 0.2 at 37 °C with shaking. Then, 2 mM IPTG and Amp (3 μg mL−1) were added and the cells incubated up to 900 min (Figure 2A, purple empty circles). At indicated times, IPTG and Amp were removed by washing the culture with the pre-warmed S7 medium, containing 0.5% Xyl to induce antitoxin ε expression, and cells were preincubated (15 min) before plating (Figure 2A, purple filled circles). The antitoxin ε recovered cell proliferation to levels equivalent to that of Amp persisters, even after 900 min of toxin ζ and Amp action (Figure 2A, purple filled circles). These data altogether suggest that: (i) Toxin ζ expression and Amp addition induce prolonged dormancy (at least for 15 h) rather than programmed-cell death, as reported for the E. coli MazEF and RelBE locus (reviewed in [61]); (ii) ζ-induced dormancy is insensitive to Amp action; (iii) toxin-induced dormant cells awake and form colonies even after 15 h of toxin and Amp action, rather than triggering cell lysis or inducing a viable but not-culturable state (Figure 2A, purple filled circles); and (iv) the orthogonal control of ζ and ε2 levels revealed that a TA system can be an important element in coping with Amp stress; and (v) toxin survivors and Amp persistence are not epistatic.

2.6. Toxin ζ Expression Induces Amp Dormancy in Non-Growing Cells

To re-evaluate whether Amp persisters are produced due to a stochastic entrance into the stationary phase or upon transient toxin ζ expression, and if toxin expression or Amp addition to stationary phase cells affects the persistence level and its subsequent exit, high-density slow- or non-growing stationary phase B. subtilis BG1125 (pCB799) cells, which grew overnight in the S7 medium supplemented with 0.005% Xyl, were used. The overnight culture was normalized to ~1 × 109 cells mL−1 with the pre-warmed S7 medium, supplemented with 0.005% Xyl and split. Amp (3 μg mL−1), IPTG (2 mM), or both Amp and IPTG were added and the cells incubated up to 240 min. At the indicated times, IPTG, Amp, or both were removed from the medium and the culture was plated on LB plates. Since in the absence of both, Amp and IPTG, the number of cells did not significantly increase at 240 min (Figure 2B, filled grey triangles) and BG1125 (pCB799) cells grown in S7 supplemented with 0.005% Xyl usually had an usual lag-time of 30–45 min (Figure S2), we assume that the high-density cells remain in the stationary phase during the experimental period.
The MIC for Amp was estimated using low-density cells (1–3 × 106 cells mL−1 for 16 h, at 37 °C), and no correction by per-cell in the Amp concentration was performed. At a variable time, and upon removal of the antibiotic, a significant fraction could not form colonies, but a subpopulation of cells persisted to Amp action (3–5 × 10−2 survivals). As expected, the proportion of persisters was significantly higher than in exponentially growing cells (Figure 2A vs. Figure 2B, filled orange squares). This is consistent with the observation that the rate of killing of Amp is strictly proportional to the rate of bacterial growth [57]. Similar results were observed in the presence of 6 μg mL−1 Amp (data not shown). It is likely that the lower proportion of cell death might correlate with the less proportion of metabolically active cells in the stationary phase, but in the only Xyl condition the cells are not proliferating.
In the presence of IPTG, the subpopulation of toxin ζ (3–6 × 10−5 survivals) did not significantly increase during time and was similar in both, exponential growth and stationary phase (Figure 2A,B, empty blue rhombs). Similar results were observed when a low-lived ζ variant (ζY83C) is used [10], suggesting that when toxin ζ is expressed, it triggers dormancy in high-density stationary phase cells. When Amp and IPTG were added, a low proportion of high-density stationary phase cells survive toxin ζ and Amp action (4–7 × 10−8 survivals) (Figure 2B, empty purple circles).
To test whether the expression of ε antitoxin also reverses the effect of ζ-mediated dormancy in high-density non-growing cells, Xyl was added at the indicated times. The expression of ε antitoxin reversed the effect of the ζ toxin (3–5 × 10−1 survivals) and partially reversed toxin and Amp (4–5 × 10−2 survivals) (Figure 2B, filled blue rhombs and purple circles). It is likely that: (i) Toxin ζ induces a reversible dormant state in high-density, non-growing cells rather than entering in a stochastic viable but not-culturable state; (ii) there are two different subpopulations of Amp persisters: Stochastic (3–5 × 10−2 survivals) and toxin-induced (4–7 × 10−8 survivals); and iii) antitoxin expression reverses the apparent sensitization of toxin dormants to Amp action.

2.7. RecA Inactivation Does not Alter the Antitoxin Awake of Toxin and Amp Dormants

Toxin-induced dormants are metabolically active slow-growing cells, and this may enhance the development of heritable genetic changes, since many of the stress-response programs involved in the survival of persisters can also accelerate genome-wide mutagenesis [58]. In Proteobacteria, both stochastic and stress-induced slow-growth persisters have been shown to depend on the SOS responses [58,62]. Furthermore, the SOS response induces the expression of certain type I and II TA modules in a subpopulation of E. coli [5,63].
In Proteobacteria and Firmicutes, bactericidal antibiotics (e.g., Amp), regardless of the drug-target interaction, induce changes in cellular metabolism that promote the production of highly deleterious hydroxyl radicals, leading to cell killing [64]. Amp-induced hydroxyl radicals, may damage template bases and introduce single strand nicks. These nicks, through DNA replication, can be converted into one-ended double-strand breaks (DSBs), that cause a significant induction of the SOS response [64,65] and maintenance of Amp persistence in E. coli cells [66]. However, DNA damage caused by sublethal doses of a fluoroquinolone in E. coli promotes persistence, but not Amp [5]. The recombinase recA, which is a central player in the SOS response, contributes to the repair of the damaged template bases that escape specialized repair, and of the nicks that are converted in one-ended DSBs during DNA replication [67,68]. The contribution of the SOS response to the DSB repair, however, differs substantially between E. coli and B. subtilis cells. In B. subtilis, the inability to induce the SOS response does not compromise the DSB repair [69].
In E. coli cells, recA plays a critical role in the appearance of apoptotic phenotypes and in pushing the cell towards its death [65], and inactivation of recA potentiates killing by different antibiotics, Amp among them [64]. In B. subtilis cells, transient toxin ζ expression [38,43] or extended cell cycle arrest [70] does not induce the SOS response. To test whether recA inactivation sensitizes cells to toxin or Amp, a ΔrecA mutation was mobilized onto the B. subtilis BG1125 (pCB1226) strain by SPP1-mediated generalized transduction, rendering the BG1889 (pCB1226) strain (Table 1). Plasmid pCB1226 is a derivative of pCB799, but the ermC gene was selectively inactivated so that the ΔrecA mutation could be introduced in B. subtilis BG1125 (pCB1226) cells by ErmR selection (Table 1).
BG1889 (pCB1226) cells were grown in S7 medium, supplemented with 0.005% Xyl, to OD560 = 0.2 at 37 °C with shaking. CFUs at this OD560 are 3–6 × 106 cells mL−1, in agreement with previous reports showing that in B. subtilis only 10–20% of ΔrecA cells can form colonies in plates in the absence of DNA damage [71]. Then, IPTG (2 mM), Amp (3 μg mL−1), or both IPTG and Amp were added (0 min), and the culture was maintained for 900 min (Figure 3). In the absence of ITPG and presence of traces of Xyl (0.005%), the BG1889 (pCB1226) cells had a poor fitness, formed small-size colonies, and the plating efficiency was reduced ~100-fold after 900 min of incubation (Figure 3, filled grey triangles). This result indicates that a significant proportion of ΔrecA cells may have a prolonged defect in DNA repair and chromosomal segregation, which reduces cell viability during prolonged growth.
The number of Amp persisters and toxin survivors during the first 120 min was lower ~2 × 10−3 and ~4 × 10−6, respectively, but persistence to both Amp and toxin (~4 × 10−7 frequency of persisters) in the ΔrecA context (Figure 3, orange filled squares and blue empty rhomb vs. grey filled triangles) was similar to that of the rec+ control (see Figure 2A). The decrease of toxin survivors and Amp persisters was observed at 900 min (~7 × 10−9) after correction of the poor viability of the BG1889 (pCB1226) strain in the absence of IPTG and Amp (Figure 3, purple empty circles vs. grey filled triangles). What is the significance of such large variations in persisters to both toxin and Amp action in the ΔrecA context? First, to measure persisters, the culture was concentrated ~100-fold. Second, under this experimental condition, the relative persistence frequency is similar to the spontaneous mutation rate. Finally, B. subtilis has multiple forms of differentiation and development, thus we cannot rule out that any uncontrolled condition might affect the outcome.
Transient antitoxin ε expression, by the addition of Xyl, reversed toxin action and the plating efficiency was increased to levels similar to the control strain in the absence of any treatment (Figure 3, blue filled rhombs vs. grey filled triangles). When Xyl was added to cells treated with both Amp and IPTG, the expression of ε antitoxin reversed the effect of ζ toxin and facilitated the exit of Amp dormants (Figure 3, purple filled circles). It is likely, therefore, that: (i) RecA inactivation, which impairs the SOS response, does not significantly increase the number of Amp or toxin survivors; (ii) recA inactivation reduces toxin or Amp persistence, suggesting that Amp-induced hydroxyl radicals accumulation is not significantly deleterious when compared to the recA control without Amp and IPTG (Figure 3, orange filled squares and blue empty rhombs vs. grey filled triangles); and (iii) recA does not induce an apoptotic phenotype upon Amp treatment, and recA inactivation does not sensitize cells to both toxin ζ and Amp action.

3. Conclusions

This study provides new insights that allow us to unravel the mechanisms underlying the mode of action of the toxin ζ dormancy and indirectly of toxin and Amp dormants. Transient toxin ζ expression, at or near physiological concentrations, induces a slow-growth dormant state, and a small fraction of cells (persisters) is insensitive to the toxin action in rec+ and recA backgrounds. Toxin ζ-induced dormant cells can be infected with the lytic phage SPP1 with a similar efficiency as exponentially growing cells, but the amplification cycle is halted. Neutralization of the toxin, by inducing antitoxin expression, allows dormant cells to exit this state and this allows phage amplification. It is likely that toxin dormants are metabolically active rather than in a growth-arrested state.
Amp action kills ~99% of susceptible cells, but stochastic Amp persisters (frequency of 1–0.5 × 10−2) can form colonies upon removal of the antibiotic. Toxin survivors are significantly rare (~3 × 10−5), and in the presence of Amp the proportion of bacterial Amp and toxin survivors was further reduced (by 100–200-fold), suggesting a non-epistatic effect. To further evaluate the viable but non-culturable state hypothesis, we inactivated recA. In E. coli cells, recA contributes to apoptotic cell death in Amp treated cells [64], but the proportion of Amp persisters was not affected in the absence of recA [5]. In B. subtilis cells, toxin ζ and Amp persistence are not significantly affected in recA cells when compared to rec+ control, and transient antitoxin ε expression is necessary and sufficient to switch off toxin-induced dormancy, and to awake the fraction of toxin-facilitated Amp-induced persisters both in the rec+ and recA cells. We propose that in exponentially growing cells, two different subpopulations of Amp persisters are found, stochastic and toxin-induced dormancy, that also induce long term Amp dormancy.

4. Materials and Methods

4.1. Bacterial Strains and Plasmids

The bacterial strains and plasmids used in this study are listed in Table 1. All B. subtilis strains are isogenic with BG214. The strain BG1125 bearing lacI-Phsp wtζ and pCB799-borne xylR-PxylA wtε ermC cat cassette were previously reported (Table 1) [38]. The BG1885 strain was constructed in three steps. First, by site-directed mutagenesis (QuickChange Kit, Stratagene) using pCB799 as a template, the ermC gene was inactivated to render pCB1226. Second, the lacI-Phsp wtζ cassette was mobilized into BG214 cells bearing pCB1226-borne xylR-PxylA wtε cat cassette with selection for CmR. Third, the null recA::Erm gene was mobilized by chromosomal transformation into competent BG214 (pCB1226) cells with selection for ErmR (Table 1). Integration by double crossover was analyzed by PCR.
Toxin ζ gene expression (transcribed from Phsp) is regulated by IPTG (Calbiochem, Madrid, Spain) addition and the expression of ε gene (transcribed from PxylA) is regulated by Xyl (Sigma-Aldrich, St. Louis, MO, USA) addition [38].

4.2. Growth Conditions

BG1125 (pCB799) and BG1125 (pCB1226) cells were grown to a mid-exponential phase (OD560 = 0.2) in S7 medium supplemented with methionine, tryptophan, and 0.005% Xyl at 37 °C with shaking [43]. Under this condition, cells grew in S7 medium, with a doubling time of 50–60 min. Transient toxin and/or antitoxin expression was induced by IPTG (2 mM) and/or Xyl (0.5%) addition. Before plating, cells were centrifuged and resuspended in the fresh LB medium to remove the inductor or the antibiotic, and dilutions were plated on LB agar plates. The survival rate was derived from the number of CFUs in a given condition relative to the CFU of the non-induced/non-antibiotic-treated control. All plates were incubated for 20 h at 37 °C.
The lytic SPP1 phage was used to test the toxin effect. BG1125 bearing lacI-Phsp wtζ and pCB799-borne xylR-PxylA wtε gene were grown to a mid-exponential phase at 37 °C in S7 medium, supplemented with methionine, tryptophan, 0.005% Xyl, and 10 mM MgCl2. Toxin expression was induced by adding IPTG 2mM and after 15 min cells were infected with phage SPP1 at a multiplicity of infection (moi) of 1 in the presence or absence of IPTG. After 5 min, cells were centrifuged to remove unabsorbed phages and resuspended in S7 medium with 10 mM MgCl2 (0 min) and the culture was incubated for 60 or 120 min. The inducers were removed by washing, and the phage titer (PFUs) was calculated by plating the appropriate dilution deposited in a lawn of exponentially growing BG214 cells onto LB plates supplemented with 10 mM MgCl2 (LB-Mg) to measure PFUs as described [72]. The plates were then incubated for 18–20 h at 37 °C.
The MIC for Amp (Sigma-Aldrich, St. Louis, MO, USA) was estimated by exposing 1–3 × 106 cells mL−1 (16 h, 37 °C) in the minimal S7 medium, with an increasing Amp concentration under shaking (240 rpm). The minimal concentration that gave no growth overnight (1.5 μg mL−1) was defined as MIC. The Amp concentration used was twice the MIC (2× MIC) or 3 μg mL−1.

Supplementary Materials

The following data are available online at https://www.mdpi.com/2072-6651/12/12/801/s1, Figure S1: Graphic illustration of the distinct responses that may occur after Amp and toxin ζ action, Figure S2. Growth curves of BG1127 (pCB799) and BG1125 (pCB799) strains in the presence or absence of IPTG, Figure S3. BG1125 (pCB799) in the presence or the absence of IPTG.

Author Contributions

M.M.-d.Á. and J.C.A. designed the experiments; M.M.-d.Á. and C.M. performed the experiments, J.C.A. coordinated the research; M.M.-d.Á. and J.C.A. interpreted the data; M.M.-d.Á., C.M. and J.C.A. drafted the manuscript; and J.C.A. wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Spanish Ministerio de Ciencia e Innovación/Agencia Estatal de Investigación (MCI/AEI)/FEDER, EU) PGC2018-097054-B-I00 to J.C.A.

Acknowledgments

We thank Silvia Ayora and Rubén Torres for critical reading and comments on the manuscript.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Balaban, N.Q.; Helaine, S.; Lewis, K.; Ackermann, M.; Aldridge, B.; Andersson, D.I.; Brynildsen, M.P.; Bumann, D.; Camilli, A.; Collins, J.J.; et al. Definitions and guidelines for research on antibiotic persistence. Nat. Rev. Microbiol. 2019, 17, 441–448. [Google Scholar] [CrossRef] [Green Version]
  2. Hobby, G.L.; Meyer, K.; Chaffee, E. Observations on the mechanism of action of penicillin. Proc. Soc. Exp. Biol. Med. 1942, 50, 281–285. [Google Scholar] [CrossRef]
  3. Bigger, J.W. Treatment of staphylococcal infections with penicillin. Lancet 1944, 244, 497–500. [Google Scholar] [CrossRef]
  4. Johnson, P.J.; Levin, B.R. Pharmacodynamics, population dynamics, and the evolution of persistence in Staphylococcus aureus. PLoS Genet. 2013, 9, e1003123. [Google Scholar] [CrossRef] [Green Version]
  5. Dörr, T.; Lewis, K.; Vulic, M. SOS response induces persistence to fluoroquinolones in Escherichia coli. PLoS Genet. 2009, 5, e1000760. [Google Scholar] [CrossRef] [Green Version]
  6. Wu, Y.; Vulic, M.; Keren, I.; Lewis, K. Role of oxidative stress in persister tolerance. Antimicrob. Agents Chemother. 2012, 56, 4922–4926. [Google Scholar] [CrossRef] [Green Version]
  7. Korch, S.B.; Henderson, T.A.; Hill, T.M. Characterization of the hipA7 allele of Escherichia coli and evidence that high persistence is governed by (p)ppGpp synthesis. Mol. Microbiol. 2003, 50, 1199–1213. [Google Scholar] [CrossRef]
  8. Nguyen, D.; Joshi-Datar, A.; Lepine, F.; Bauerle, E.; Olakanmi, O.; Beer, K.; McKay, G.; Siehnel, R.; Schafhauser, J.; Wang, Y.; et al. Active starvation responses mediate antibiotic tolerance in biofilms and nutrient-limited bacteria. Science 2011, 334, 982–986. [Google Scholar] [CrossRef] [Green Version]
  9. Amato, S.M.; Orman, M.A.; Brynildsen, M.P. Metabolic control of persister formation in Escherichia coli. Mol. Cell 2013, 50, 475–487. [Google Scholar] [CrossRef] [Green Version]
  10. Tabone, M.; Lioy, V.S.; Ayora, S.; Machon, C.; Alonso, J.C. Role of toxin ζ and starvation responses in the sensitivity to antimicrobials. PLoS ONE 2014, 9, e86615. [Google Scholar] [CrossRef] [Green Version]
  11. Conlon, B.P.; Rowe, S.E.; Gandt, A.B.; Nuxoll, A.S.; Donegan, N.P.; Zalis, E.A.; Clair, G.; Adkins, J.N.; Cheung, A.L.; Lewis, K. Persister formation in Staphylococcus aureus is associated with ATP depletion. Nat. Microbiol. 2016, 1, 16051. [Google Scholar] [CrossRef] [Green Version]
  12. Fung, D.K.; Barra, J.T.; Schroeder, J.W.; Ying, D.; Wang, J.D. A shared alarmone-GTP switch underlies triggered and spontaneous persistence. bioRxiv 2020. [Google Scholar] [CrossRef]
  13. Nanamiya, H.; Kasai, K.; Nozawa, A.; Yun, C.S.; Narisawa, T.; Murakami, K.; Natori, Y.; Kawamura, F.; Tozawa, Y. Identification and functional analysis of novel (p)ppGpp synthetase genes in Bacillus subtilis. Mol. Microbiol. 2008, 67, 291–304. [Google Scholar] [CrossRef]
  14. Kriel, A.; Brinsmade, S.R.; Tse, J.L.; Tehranchi, A.K.; Bittner, A.N.; Sonenshein, A.L.; Wang, J.D. GTP dysregulation in Bacillus subtilis cells lacking (p)ppGpp results in phenotypic amino acid auxotrophy and failure to adapt to nutrient downshift and regulate biosynthesis genes. J. Bacteriol. 2014, 196, 189–201. [Google Scholar] [CrossRef] [Green Version]
  15. Moreno-Del Alamo, M.; Tabone, M.; Lioy, V.S.; Alonso, J.C. Toxin ζ triggers a survival response to cope with stress and persistence. Front. Microbiol. 2017, 8, 1130. [Google Scholar] [CrossRef] [Green Version]
  16. Libby, E.A.; Reuveni, S.; Dworkin, J. Multisite phosphorylation drives phenotypic variation in (p)ppGpp synthetase-dependent antibiotic tolerance. Nat. Commun. 2019, 10, 5133. [Google Scholar] [CrossRef] [Green Version]
  17. Eiamphungporn, W.; Helmann, J.D. The Bacillus subtilis σM regulon and its contribution to cell envelope stress responses. Mol. Microbiol. 2008, 67, 830–848. [Google Scholar] [CrossRef] [Green Version]
  18. Gerdes, K.; Maisonneuve, E. Bacterial persistence and toxin-antitoxin loci. Annu. Rev. Microbiol. 2012, 66, 103–123. [Google Scholar] [CrossRef]
  19. Page, R.; Peti, W. Toxin-antitoxin systems in bacterial growth arrest and persistence. Nat. Chem. Biol. 2016, 12, 208–214. [Google Scholar] [CrossRef]
  20. Yamaguchi, Y.; Inouye, M. Regulation of growth and death in Escherichia coli by toxin-antitoxin systems. Nat. Rev. Microbiol. 2011, 9, 779–790. [Google Scholar] [CrossRef]
  21. Diaz-Orejas, R.; Espinosa, M.; Yeo, C.C. The Importance of the expendable: Toxin-antitoxin genes in plasmids and chromosomes. Front. Microbiol. 2017, 8, 1479. [Google Scholar] [CrossRef]
  22. Ogura, T.; Hiraga, S. Mini-F plasmid genes that couple host cell division to plasmid proliferation. Proc. Natl. Acad. Sci. USA 1983, 80, 4784–4788. [Google Scholar] [CrossRef] [Green Version]
  23. Fraikin, N.; Goormaghtigh, F.; Van Melderen, L. Type II toxin-antitoxin systems: Evolution and revolutions. J. Bacteriol. 2020, 202, e00763-19. [Google Scholar] [CrossRef] [Green Version]
  24. Alonso, J.C.; Balsa, D.; Cherny, I.; Christensen, S.K.; Espinosa, S.; Francuski, D.; Gazit, E.; Gerdes, K.; Hitchin, E.; Martín, M.T.; et al. Bacterial Toxin-Antitoxin Systems as Targets for the Development of Novel Antibiotics; ASM Press: Washington, DC, USA, 2007; pp. 313–329. [Google Scholar]
  25. Moyed, H.S.; Bertrand, K.P. HipA, a newly recognized gene of Escherichia coli K-12 that affects frequency of persistence after inhibition of murein synthesis. J. Bacteriol. 1983, 155, 768–775. [Google Scholar] [CrossRef] [Green Version]
  26. Bokinsky, G.; Baidoo, E.E.; Akella, S.; Burd, H.; Weaver, D.; Alonso-Gutierrez, J.; Garcia-Martin, H.; Lee, T.S.; Keasling, J.D. HipA-triggered growth arrest and β-Lactam tolerance in Escherichia coli are mediated by RelA-dependent ppGpp synthesis. J. Bacteriol. 2013, 195, 3173–3182. [Google Scholar] [CrossRef] [Green Version]
  27. Germain, E.; Castro-Roa, D.; Zenkin, N.; Gerdes, K. Molecular mechanism of bacterial persistence by HipA. Mol. Cell 2013, 52, 248–254. [Google Scholar] [CrossRef]
  28. Kaspy, I.; Rotem, E.; Weiss, N.; Ronin, I.; Balaban, N.Q.; Glaser, G. HipA-mediated antibiotic persistence via phosphorylation of the glutamyl-tRNA-synthetase. Nat. Commun. 2013, 4, 3001. [Google Scholar] [CrossRef] [Green Version]
  29. Vogwill, T.; Comfort, A.C.; Furio, V.; MacLean, R.C. Persistence and resistance as complementary bacterial adaptations to antibiotics. J. Evol. Biol. 2016, 29, 1223–1233. [Google Scholar] [CrossRef]
  30. Ramisetty, B.C.; Ghosh, D.; Roy Chowdhury, M.; Santhosh, R.S. what is the link between stringent response, endoribonuclease encoding type II toxin-antitoxin systems and persistence? Front. Microbiol. 2016, 7, 1882. [Google Scholar] [CrossRef] [Green Version]
  31. Goormaghtigh, F.; Fraikin, N.; Putrins, M.; Hallaert, T.; Hauryliuk, V.; Garcia-Pino, A.; Sjodin, A.; Kasvandik, S.; Udekwu, K.; Tenson, T.; et al. Reassessing the role of type II toxin-antitoxin systems in formation of Escherichia coli type II persister cells. MBio 2018, 9, e00640-18. [Google Scholar] [CrossRef] [Green Version]
  32. Khoo, S.K.; Loll, B.; Chan, W.T.; Shoeman, R.L.; Ngoo, L.; Yeo, C.C.; Meinhart, A. Molecular and structural characterization of the PezAT chromosomal toxin-antitoxin system of the human pathogen Streptococcus pneumoniae. J. Biol. Chem. 2007, 282, 19606–19618. [Google Scholar] [CrossRef] [Green Version]
  33. Meinhart, A.; Alonso, J.C.; Strater, N.; Saenger, W. Crystal structure of the plasmid maintenance system ε/ζ: Functional mechanism of toxin ζ and inactivation by ε2ζ2 complex formation. Proc. Natl. Acad. Sci. USA 2003, 100, 1661–1666. [Google Scholar] [CrossRef] [Green Version]
  34. Mutschler, H.; Gebhardt, M.; Shoeman, R.L.; Meinhart, A. A novel mechanism of programmed cell death in bacteria by toxin-antitoxin systems corrupts peptidoglycan synthesis. PLoS Biol. 2011, 9, e1001033. [Google Scholar] [CrossRef]
  35. Meinhart, A.; Alings, C.; Strater, N.; Camacho, A.G.; Alonso, J.C.; Saenger, W. Crystallization and preliminary X-ray diffraction studies of the εζ addiction system encoded by Streptococcus pyogenes plasmid pSM19035. Acta Cryst. D Biol. Cryst. 2001, 57, 745–747. [Google Scholar] [CrossRef] [Green Version]
  36. Moreno-Del Alamo, M.; Tabone, M.; Munoz-Martinez, J.; Valverde, J.R.; Alonso, J.C. Toxin ζ reduces the ATP and modulates the uridine diphosphate-N-acetylglucosamine pool. Toxins 2019, 11, 29. [Google Scholar] [CrossRef] [Green Version]
  37. Tabone, M.; Ayora, S.; Alonso, J.C. Toxin ζ reversible induces dormancy and reduces the UDP-N-acetylglucosamine pool as one of the protective responses to cope with stress. Toxins 2014, 6, 2787–2803. [Google Scholar] [CrossRef] [Green Version]
  38. Lioy, V.S.; Machon, C.; Tabone, M.; Gonzalez-Pastor, J.E.; Daugelavicius, R.; Ayora, S.; Alonso, J.C. The ζ toxin induces a set of protective responses and dormancy. PLoS ONE 2012, 7, e30282. [Google Scholar] [CrossRef] [Green Version]
  39. Krasny, L.; Gourse, R.L. An alternative strategy for bacterial ribosome synthesis: Bacillus subtilis rRNA transcription regulation. EMBO J. 2004, 23, 4473–4483. [Google Scholar] [CrossRef] [Green Version]
  40. Kriel, A.; Bittner, A.N.; Kim, S.H.; Liu, K.; Tehranchi, A.K.; Zou, W.Y.; Rendon, S.; Chen, R.; Tu, B.P.; Wang, J.D. Direct regulation of GTP homeostasis by (p)ppGpp: A critical component of viability and stress resistance. Mol. Cell 2012, 48, 231–241. [Google Scholar] [CrossRef] [Green Version]
  41. Eymann, C.; Homuth, G.; Scharf, C.; Hecker, M. Bacillus subtilis functional genomics: Global characterization of the stringent response by proteome and transcriptome analysis. J. Bacteriol. 2002, 184, 2500–2520. [Google Scholar] [CrossRef] [Green Version]
  42. Lioy, V.S.; Rey, O.; Balsa, D.; Pellicer, T.; Alonso, J.C. A toxin-antitoxin module as a target for antimicrobial development. Plasmid 2010, 63, 31–39. [Google Scholar] [CrossRef]
  43. Lioy, V.S.; Martin, M.T.; Camacho, A.G.; Lurz, R.; Antelmann, H.; Hecker, M.; Hitchin, E.; Ridge, Y.; Wells, J.M.; Alonso, J.C. pSM19035-encoded ζ toxin induces stasis followed by death in a subpopulation of cells. Microbiology 2006, 152, 2365–2379. [Google Scholar] [CrossRef] [Green Version]
  44. McKeegan, K.S.; Borges-Walmsley, M.I.; Walmsley, A.R. Microbial and viral drug resistance mechanisms. Trends Microbiol. 2002, 10, S8–S14. [Google Scholar] [CrossRef]
  45. Brauner, A.; Fridman, O.; Gefen, O.; Balaban, N.Q. Distinguishing between resistance, tolerance and persistence to antibiotic treatment. Nat. Rev. Microbiol. 2016, 14, 320–330. [Google Scholar] [CrossRef]
  46. Camacho, A.G.; Misselwitz, R.; Behlke, J.; Ayora, S.; Welfle, K.; Meinhart, A.; Lara, B.; Saenger, W.; Welfle, H.; Alonso, J.C. In vitro and in vivo stability of the ε2ζ2 protein complex of the broad host-range Streptococcus pyogenes pSM19035 addiction system. Biol. Chem. 2002, 383, 1701–1713. [Google Scholar] [CrossRef]
  47. Ayrapetyan, M.; Williams, T.C.; Oliver, J.D. Bridging the gap between viable but non-culturable and antibiotic persistent bacteria. Trends Microbiol. 2015, 23, 7–13. [Google Scholar] [CrossRef]
  48. LeRoux, M.; Culviner, P.H.; Liu, Y.J.; Littlehale, M.L.; Laub, M.T. Stress can induce transcription of toxin-antitoxin systems without activating toxin. Mol. Cell 2020, 79, 280–292e288. [Google Scholar] [CrossRef]
  49. Rosendahl, S.; Tammana, H.; Brauera, A.; Remma, M.; Hõraka, R. Pseudomonas putida chromosomal toxin-antitoxin systems carry neither clear fitness benefits nor big costs. bioRxiv 2020. [Google Scholar] [CrossRef] [Green Version]
  50. Dy, R.L.; Przybilski, R.; Semeijn, K.; Salmond, G.P.; Fineran, P.C. A widespread bacteriophage abortive infection system functions through a Type IV toxin-antitoxin mechanism. Nucleic Acids Res. 2014, 42, 4590–4605. [Google Scholar] [CrossRef]
  51. Hazan, R.; Engelberg-Kulka, H. Escherichia coli mazEF-mediated cell death as a defense mechanism that inhibits the spread of phage P1. Mol. Genet. Genom. 2004, 272, 227–234. [Google Scholar] [CrossRef]
  52. Pearl, S.; Gabay, C.; Kishony, R.; Oppenheim, A.; Balaban, N.Q. Nongenetic individuality in the host-phage interaction. PLoS Biol. 2008, 6, e120. [Google Scholar] [CrossRef] [Green Version]
  53. Alawneh, A.M.; Qi, D.; Yonesaki, T.; Otsuka, Y. An ADP-ribosyltransferase Alt of bacteriophage T4 negatively regulates the Escherichia coli MazF toxin of a toxin-antitoxin module. Mol. Microbiol. 2016, 99, 188–198. [Google Scholar] [CrossRef]
  54. Lyzen, R.; Kochanowska, M.; Wegrzyn, G.; Szalewska-Palasz, A. Transcription from bacteriophage lambda PR promoter is regulated independently and antagonistically by DksA and ppGpp. Nucleic Acids Res. 2009, 37, 6655–6664. [Google Scholar] [CrossRef] [Green Version]
  55. Koga, M.; Otsuka, Y.; Lemire, S.; Yonesaki, T. Escherichia coli rnlA and rnlB compose a novel toxin-antitoxin system. Genetics 2011, 187, 123–130. [Google Scholar] [CrossRef] [Green Version]
  56. Pane-Farre, J.; Quin, M.B.; Lewis, R.J.; Marles-Wright, J. Structure and function of the stressosome signalling hub. Subcell Biochem. 2017, 83, 1–41. [Google Scholar] [CrossRef]
  57. Tuomanen, E.; Cozens, R.; Tosch, W.; Zak, O.; Tomasz, A. The rate of killing of Escherichia coli by β-lactam antibiotics is strictly proportional to the rate of bacterial growth. J. Gen. Microbiol. 1986, 132, 1297–1304. [Google Scholar] [CrossRef] [Green Version]
  58. Cohen, N.R.; Lobritz, M.A.; Collins, J.J. Microbial persistence and the road to drug resistance. Cell Host Microbe 2013, 13, 632–642. [Google Scholar] [CrossRef] [Green Version]
  59. Balaban, N.Q.; Merrin, J.; Chait, R.; Kowalik, L.; Leibler, S. Bacterial persistence as a phenotypic switch. Science 2004, 305, 1622–1625. [Google Scholar] [CrossRef] [Green Version]
  60. Amitai, S.; Yassin, Y.; Engelberg-Kulka, H. MazF-mediated cell death in Escherichia coli: A point of no return. J. Bacteriol. 2004, 186, 8295–8300. [Google Scholar] [CrossRef] [Green Version]
  61. Franch, T.; Gerdes, K. Programmed cell death in bacteria: Translational repression by mRNA end-pairing. Mol. Microbiol. 1996, 21, 1049–1060. [Google Scholar] [CrossRef]
  62. Levin, B.R.; Rozen, D.E. Non-inherited antibiotic resistance. Nat. Rev. Microbiol. 2006, 4, 556–562. [Google Scholar] [CrossRef]
  63. Dörr, T.; Vulic, M.; Lewis, K. Ciprofloxacin causes persister formation by inducing the TisB toxin in Escherichia coli. PLoS Biol. 2010, 8, e1000317. [Google Scholar] [CrossRef] [Green Version]
  64. Kohanski, M.A.; Dwyer, D.J.; Hayete, B.; Lawrence, C.A.; Collins, J.J. A common mechanism of cellular death induced by bactericidal antibiotics. Cell 2007, 130, 797–810. [Google Scholar] [CrossRef] [Green Version]
  65. Dwyer, D.J.; Camacho, D.M.; Kohanski, M.A.; Callura, J.M.; Collins, J.J. Antibiotic-induced bacterial cell death exhibits physiological and biochemical hallmarks of apoptosis. Mol. Cell 2012, 46, 561–572. [Google Scholar] [CrossRef] [Green Version]
  66. Cui, P.; Niu, H.; Shi, W.; Zhang, S.; Zhang, W.; Zhang, Y. Identification of genes involved in bacteriostatic antibiotic-induced persister formation. Front. Microbiol. 2018, 9, 413. [Google Scholar] [CrossRef] [Green Version]
  67. Ayora, S.; Carrasco, B.; Cardenas, P.P.; Cesar, C.E.; Canas, C.; Yadav, T.; Marchisone, C.; Alonso, J.C. Double-strand break repair in bacteria: A view from Bacillus subtilis. FEMS Microbiol. Rev. 2011, 35, 1055–1081. [Google Scholar] [CrossRef] [Green Version]
  68. Kowalczykowski, S.C. An overview of the molecular mechanisms of recombinational DNA repair. Cold Spring Harb. Perspect. Biol. 2015, 7, a016410. [Google Scholar] [CrossRef] [Green Version]
  69. Simmons, L.A.; Goranov, A.I.; Kobayashi, H.; Davies, B.W.; Yuan, D.S.; Grossman, A.D.; Walker, G.C. Comparison of responses to double-strand breaks between Escherichia coli and Bacillus subtilis reveals different requirements for SOS induction. J. Bacteriol. 2009, 191, 1152–1161. [Google Scholar] [CrossRef] [Green Version]
  70. Arjes, H.A.; Kriel, A.; Sorto, N.A.; Shaw, J.T.; Wang, J.D.; Levin, P.A. Failsafe mechanisms couple division and DNA replication in bacteria. Curr. Biol. 2014, 24, 2149–2155. [Google Scholar] [CrossRef] [Green Version]
  71. Sanchez, H.; Kidane, D.; Reed, P.; Curtis, F.A.; Cozar, M.C.; Graumann, P.L.; Sharples, G.J.; Alonso, J.C. The RuvAB branch migration translocase and RecU Holliday junction resolvase are required for double-stranded DNA break repair in Bacillus subtilis. Genetics 2005, 171, 873–883. [Google Scholar] [CrossRef] [Green Version]
  72. Valero-Rello, A.; Lopez-Sanz, M.; Quevedo-Olmos, A.; Sorokin, A.; Ayora, S. Molecular mechanisms that contribute to horizontal transfer of plasmids by the bacteriophage SPP1. Front. Microbiol. 2017, 8, 1816. [Google Scholar] [CrossRef]
Toxins 12 00801 g001 550

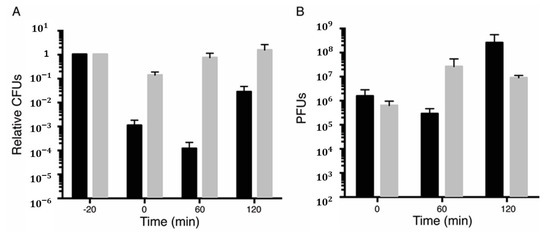

Figure 1. Toxin dormants infected with the lytic phage SPP1 are metabolically active. Survival rate of BG1125 (pCB799) cells infected by the SPP1 phage after ζ toxin induction. BG1125 (pCB799) cells were grown in the minimal S7 medium, containing traces of Xyl (0.005%) and 10 mM MgCl2 to OD560 = 0.2 at 37 °C. At this time (-20 min) the culture was divided in two. To one half, IPTG (2 mM) was added (black bars) to induce ζ expression (-20 min) and incubated for 15 min. After 15 min, phage SPP1 at moi = 1 was added to both cultures and cells were incubated for further 5 min. At 0 min, cells were centrifuged to remove unadsorbed phages and resuspended in S7 medium, containing 0.005% Xyl and 10 mM MgCl2. Colony-forming units (CFUs) were counted plating on a LB agar (time 0) and both infected cultures were incubated for further 60 min (60 min). At 60 min, 0.5% Xyl was added to induce antitoxin ε expression to neutralize toxin action, and both infected cultures were incubated for further 60 min (120 min). At 0, 60, and 120 min, samples were withdrawn and plated in LB agar plates lacking IPTG to count CFUs (A), or in a lawn of exponentially growing BG214 cells onto LB plates supplemented with 10 mM MgCl2 to measure PFUs (B). Data are shown as mean ± standard error of the mean (SEM), from >3 independent experiments.
Figure 1. Toxin dormants infected with the lytic phage SPP1 are metabolically active. Survival rate of BG1125 (pCB799) cells infected by the SPP1 phage after ζ toxin induction. BG1125 (pCB799) cells were grown in the minimal S7 medium, containing traces of Xyl (0.005%) and 10 mM MgCl2 to OD560 = 0.2 at 37 °C. At this time (-20 min) the culture was divided in two. To one half, IPTG (2 mM) was added (black bars) to induce ζ expression (-20 min) and incubated for 15 min. After 15 min, phage SPP1 at moi = 1 was added to both cultures and cells were incubated for further 5 min. At 0 min, cells were centrifuged to remove unadsorbed phages and resuspended in S7 medium, containing 0.005% Xyl and 10 mM MgCl2. Colony-forming units (CFUs) were counted plating on a LB agar (time 0) and both infected cultures were incubated for further 60 min (60 min). At 60 min, 0.5% Xyl was added to induce antitoxin ε expression to neutralize toxin action, and both infected cultures were incubated for further 60 min (120 min). At 0, 60, and 120 min, samples were withdrawn and plated in LB agar plates lacking IPTG to count CFUs (A), or in a lawn of exponentially growing BG214 cells onto LB plates supplemented with 10 mM MgCl2 to measure PFUs (B). Data are shown as mean ± standard error of the mean (SEM), from >3 independent experiments.
Toxins 12 00801 g001
Toxins 12 00801 g002 550

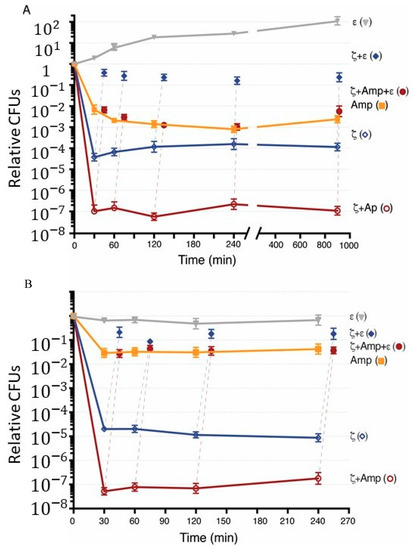

Figure 2. Toxin ζ induces reversible dormancy, and facilitates Amp dormancy. (A), BG1125 (pCB799) cells were grown in the S7 medium, containing traces of Xyl (0.005%) at 37 °C and the cultures were divided. Then, IPTG (2 mM) to induce ζ expression, Amp (at 2× MIC, 3 μg mL−1), or both IPTG and Amp were added (0 min), and the cultures were incubated for 900 min. At various times, samples were withdrawn, centrifuged, and plated on LB agar plates to count ζ (empty blue rhomb), Amp (filled orange square), or both ζ and Amp survivals (empty purple circles). At 30, 60, 120, 240, and 900 min, aliquots were taken and 0.5% Xyl was added to induce antitoxin ε expression, and the cultures were incubated for 15 min before plating in LB agar plates containing Xyl, but lacking IPTG (filled blue rhomb) or both IPTG and Amp (filled purple circle). The vertical broken lines join the original point (ζ or ζ + Amp) with the reversed condition after ε expression. (B) An overnight culture of BG1125 (pCB799) cells grown in the S7 medium, containing traces of Xyl (0.005%) was normalized to ~1 × 109 cells mL−1 (37 °C) and the cultures were divided. Xyl (0.5%) to induce ε expression as the control was added. IPTG to induce toxin, Amp, or both IPTG and Amp was added (0 min), and the cultures were incubated for 240 min. At various times, samples were withdrawn and plated in LB agar plates lacking IPTG (empty blue rhomb), Amp (filled orange square), or both IPTG and Amp (empty purple circles). At various times, 0.5% Xyl was added to induce antitoxin expression, and the cultures were incubated for 15 min before plating. Samples were withdrawn and plated in LB agar plates containing Xyl, but lacking IPTG (filled blue rhomb) or both IPTG and Amp (filled purple circle). The vertical broken lines join the original point (ζ or ζ + Amp) with the reversed condition after ε expression. Data are shown as mean ± standard error of the mean (SEM), from >4 independent experiments.
Figure 2. Toxin ζ induces reversible dormancy, and facilitates Amp dormancy. (A), BG1125 (pCB799) cells were grown in the S7 medium, containing traces of Xyl (0.005%) at 37 °C and the cultures were divided. Then, IPTG (2 mM) to induce ζ expression, Amp (at 2× MIC, 3 μg mL−1), or both IPTG and Amp were added (0 min), and the cultures were incubated for 900 min. At various times, samples were withdrawn, centrifuged, and plated on LB agar plates to count ζ (empty blue rhomb), Amp (filled orange square), or both ζ and Amp survivals (empty purple circles). At 30, 60, 120, 240, and 900 min, aliquots were taken and 0.5% Xyl was added to induce antitoxin ε expression, and the cultures were incubated for 15 min before plating in LB agar plates containing Xyl, but lacking IPTG (filled blue rhomb) or both IPTG and Amp (filled purple circle). The vertical broken lines join the original point (ζ or ζ + Amp) with the reversed condition after ε expression. (B) An overnight culture of BG1125 (pCB799) cells grown in the S7 medium, containing traces of Xyl (0.005%) was normalized to ~1 × 109 cells mL−1 (37 °C) and the cultures were divided. Xyl (0.5%) to induce ε expression as the control was added. IPTG to induce toxin, Amp, or both IPTG and Amp was added (0 min), and the cultures were incubated for 240 min. At various times, samples were withdrawn and plated in LB agar plates lacking IPTG (empty blue rhomb), Amp (filled orange square), or both IPTG and Amp (empty purple circles). At various times, 0.5% Xyl was added to induce antitoxin expression, and the cultures were incubated for 15 min before plating. Samples were withdrawn and plated in LB agar plates containing Xyl, but lacking IPTG (filled blue rhomb) or both IPTG and Amp (filled purple circle). The vertical broken lines join the original point (ζ or ζ + Amp) with the reversed condition after ε expression. Data are shown as mean ± standard error of the mean (SEM), from >4 independent experiments.
Toxins 12 00801 g002
Toxins 12 00801 g003 550

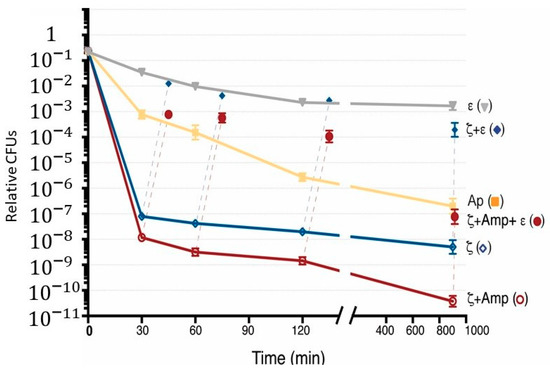

Figure 3. Inactivation of recA does not affect the frequency of ζ survivors and Amp persisters. BG1889 (pCB799) cells were grown in the minimal S7 medium, containing traces of xylose (Xyl; 0.005%) to OD560 = 0.2 (with CFUs of 1–3 × 106 cells mL−1) at 37 °C. Then, the cultures were divided. To the indicated cultures, Xyl (0.5%) to induce ε expression as the control, IPTG (2 mM) to induce ζ expression, Amp (3 μg mL−1) or both IPTG and Amp were added (0 min), and the cultures were incubated for 900 min. At various times, samples were withdrawn and plated in LB agar plates. At various times, aliquots were taken and 0.5% Xyl was added to induce antitoxin expression, and the cultures were incubated for 15 min before being plated in LB agar plates containing Xyl, but lacking IPTG (filled blue rhomb), or both IPTG and Amp (filled purple circle). Data are shown as mean ± standard error of the mean (SEM), from >4 independent experiments.
Figure 3. Inactivation of recA does not affect the frequency of ζ survivors and Amp persisters. BG1889 (pCB799) cells were grown in the minimal S7 medium, containing traces of xylose (Xyl; 0.005%) to OD560 = 0.2 (with CFUs of 1–3 × 106 cells mL−1) at 37 °C. Then, the cultures were divided. To the indicated cultures, Xyl (0.5%) to induce ε expression as the control, IPTG (2 mM) to induce ζ expression, Amp (3 μg mL−1) or both IPTG and Amp were added (0 min), and the cultures were incubated for 900 min. At various times, samples were withdrawn and plated in LB agar plates. At various times, aliquots were taken and 0.5% Xyl was added to induce antitoxin expression, and the cultures were incubated for 15 min before being plated in LB agar plates containing Xyl, but lacking IPTG (filled blue rhomb), or both IPTG and Amp (filled purple circle). Data are shown as mean ± standard error of the mean (SEM), from >4 independent experiments.
Toxins 12 00801 g003
Table
Table 1. Bacterial strains used.
Table 1. Bacterial strains used.
StrainRelevant GenotypeReference
BG214trpCE metA5 amyE1 ytsJ1 rsbV37 xre1 xkdA1 attSPβ, attICEBs1Lab. Collection
BG1127+ lacI, Phsp a, spc, [pCB799-borne xylR, PxylAε b, ermC, cat][38]
BG1125+ lacI, Phspζ a, spc, [pCB799-borne xylR, PxylAε b, ermC, cat][38]
BG1125+ lacI, Phspζ a, spc, [pCB1226-borne xylR, PxylAε b, cat]This work
BG1889+ lacI, Phspζ a, spc, ΔrecA (recA:erm) [pCB1226-borne xylR, PxylAε b, cat]This work
All B. subtilis strains are isogenic with the BG214 strain. a The Phsp promoter is under the control of the LacI repressor. b The PxylA promoter is under the control of the XylR repressor.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Moreno-del Álamo, M.; Marchisone, C.; Alonso, J.C. Antitoxin ε Reverses Toxin ζ-Facilitated Ampicillin Dormants. Toxins 2020, 12, 801. https://doi.org/10.3390/toxins12120801

AMA Style

Moreno-del Álamo M, Marchisone C, Alonso JC. Antitoxin ε Reverses Toxin ζ-Facilitated Ampicillin Dormants. Toxins. 2020; 12(12):801. https://doi.org/10.3390/toxins12120801

Chicago/Turabian Style

Moreno-del Álamo, María, Chiara Marchisone, and Juan C. Alonso. 2020. "Antitoxin ε Reverses Toxin ζ-Facilitated Ampicillin Dormants" Toxins 12, no. 12: 801. https://doi.org/10.3390/toxins12120801

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
