Natural Occurrence of Alternaria Fungi and Associated Mycotoxins in Small-Grain Cereals from The Urals and West Siberia Regions of Russia

by
Aleksandra S. Orina
1,*,
Olga P. Gavrilova
1,
Nadezhda N. Gogina
2,
Philipp B. Gannibal
1 and
Tatiana Yu. Gagkaeva
1
1
Laboratory of Mycology and Phytopathology, All-Russian Institute of Plant Protection, 196608 St. Petersburg, Russia
2
Laboratory of Biochemical Analysis, All-Russian Scientific Research and Technological Institute of Poultry, 141311 Sergiev Posad, Russia
*
Author to whom correspondence should be addressed.
Toxins 2021, 13(10), 681; https://doi.org/10.3390/toxins13100681
Submission received: 19 August 2021 / Revised: 20 September 2021 / Accepted: 23 September 2021 / Published: 25 September 2021
(This article belongs to the Special Issue Co-occurrence and Combinatory Effects of Alternaria Mycotoxins)
Browse Figures
Versions Notes

Abstract

:
Alternaria fungi dominate the grain microbiota in many regions of the world; therefore, the detection of species that are able to produce mycotoxins has received much attention. A total of 178 grain samples of wheat, barley and oat obtained from the Urals and West Siberia regions of Russia in 2017–2019 were included in the study. Grain contamination with Alternaria fungi belonging to sections Alternaria and Infectoriae was analysed using qPCR with specific primers. The occurrence of four mycotoxins produced by Alternaria, AOH, AME, TEN, and TeA, was defined by HPLC-MS/MS. Alternaria DNA was found in all analysed grain samples. The prevalence of DNA of Alternaria sect. Alternaria fungi (range 53 × 10−4–21,731 × 10−4 pg/ng) over the DNA of Alternaria sect. Infectoriae (range 11 × 10−4‒4237 × 10−4 pg/ng) in the grain samples was revealed. Sixty-two percent of grain samples were contaminated by at least two Alternaria mycotoxins. The combination of TEN and TeA was found most often. Eight percent of grain samples were contaminated by all four mycotoxins, and only 3% of samples were free from the analysed secondary toxic metabolites. The amounts varied in a range of 2–53 µg/kg for AOH, 3–56 µg/kg for AME, 3–131 µg/kg for TEN and 9–15,000 µg/kg for TeA. To our knowledge, a new global maximum level of natural contamination of wheat grain with TeA was detected. A positive correlation between the amount of DNA from Alternaria sect. Alternaria and TeA was observed. The significant effects of cereal species and geographic origin of samples on the amounts of DNA and mycotoxins of Alternaria spp. in grain were revealed. Barley was the most heavily contaminated with fungi belonging to both sections. The content of AOH in oat grain was, on average, higher than that found in wheat and barley. The content of TEN in the grain of barley was lower than that in wheat and similar to that in oat. The content of TeA did not depend on the cereal crop. The effect of weather conditions (summer temperature and rainfall) on the final fungal and mycotoxin contamination of grain was discussed. The frequent co-occurrence of different Alternaria fungi and their mycotoxins in grain indicates the need for further studies investigating this issue.
Keywords:
grain; Alternaria; fungi; DNA; mycotoxins; co-occurrence
Key Contribution: The ubiquitous presence of Alternaria spp. belonging to sections Alternaria and Infectoriae and their mycotoxins in the grain of wheat; barley and oats in the Urals and West Siberia was demonstrated.

1. Introduction

Alternaria Nees is a genus of ubiquitous fungi appearing on a wide range of substrates [1]. Most Alternaria species are pathogens responsible for plant diseases [2], but others can also live in plant tissue asymptomatically as endophytes [3,4]. Infection of crops with Alternaria spp. is common and can cause significant economic losses [5]. The contamination of crops with Alternaria fungi and the subsequent accumulation of their toxic metabolites in food and feed have been thoroughly investigated [6,7].
Many recent studies have demonstrated the predominance of Alternaria spp. in the mycobiota of cereal grains grown around the world [8,9,10,11,12,13]. Moreover, most of these Alternaria strains belong to A. section Alternaria Lawrence, Gannibal, Peever & Pryor and A. sect. Infectoriae Woudenb. & Crous [10,14], whereas species from sections Pseudoalternaria D.P. Lawr., Rotondo & Gannibal and Panax D.P. Lawr., Gannibal, Peever & B.M. Pryor appear sporadically [15,16,17].
In addition to the classic mycological methods for determining grain contamination with fungi, molecular approaches based on polymerase chain reaction (PCR), including real-time PCR, are currently actively used. The method allows quick and objective assessment of the quantitative presence of various fungal species in grain based on the content of their DNA, thereby eliminating errors at the taxonomic level [8,18,19].
Alternaria mycotoxins are widely found in a variety of food and feed [20]. The number of mycotoxins produced by Alternaria fungi has reached at least 70 compounds [21]. The most common of them in grain are alternariol (AOH), alternariol monomethyl ether (AME), tentoxin (TEN), and tenuazonic acid (TeA), which are often analysed and detected [14,22,23,24,25,26]. Presumably, AOH and AME have genotoxic, mutagenic and carcinogenic effects in humans and animals [20]. TeA is an inhibitor of protein synthesis and is a more toxic compound than AOH and AME [27]. TEN is relatively weakly toxic to mammals, but it is also a nonspecific phytotoxin and inhibits the development of chloroplasts, causing chlorosis of host plant tissues [27].
As a result of toxicological studies, it was proposed to introduce a restriction on the content of TeA at 500 µg/kg in infant food [28]. In June 2019, a draft EU Commission Recommendation on the monitoring of three Alternaria mycotoxins (AOH, AME, TeA) in food was issued: benchmark values in cereal-based foods for infants and children were 5 µg/kg for AOH and AME and 500 µg/kg for TeA [29]. There is no state standard regulating the content of Alternaria mycotoxins in food and feed in Russia.
The monitoring of grain infection with Alternaria fungi is always relevant because these organisms are able to produce mycotoxins, which can negatively affect grain consumers [27,30]. The potential for the production of mycotoxins by Alternaria spp. strains may differ significantly and depends greatly on environmental conditions [30,31]. The Alternaria species belonging to various Alternaria sections differ significantly in their toxin-producing ability [30,32,33,34] and pose different risks when contaminating food.
In Russia, several studies of occurrence of Alternaria fungi and their mycotoxins in grain cultivated in different regions have been carried out [10,14,35,36]. Previously, mycotoxins produced by Alternaria fungi were detected in grain samples mostly obtained from the central and southern regions of the European part of Russia and from the Urals; at the same time, information on grain contamination with Alternaria mycotoxins in Siberia was fragmentary [14,35,36]. It was noted that grain samples from the main grain-producing regions of Russia, such as the Southern European and North Caucasus regions, are less contaminated with Alternaria mycotoxins than those from the Central European, Volga, Urals and Siberian regions [36].
The main grain crop cultivated in the Urals and West Siberia regions is spring wheat, which is grown on ~60% of the total sown area of cereal crops in Russia. Oats (~50%) and barley (~24%) are also widely grown in these regions [37].
The aims of the present study were to determine the contamination of grain of spring wheat, barley and oat grown in the Urals and West Siberia regions of Russia in 2017–2019 by Alternaria fungi and their mycotoxins and to reveal the key factors affecting their distribution.

2. Results

2.1. The Approbation of The qPCR Protocol

The parameters of the adapted qPCR for analysis of the DNA content of A. sect. Alternaria fungi were 99.0% efficient, R2 = 0.999, and a slope of −3.35. The parameters of the adapted qPCR for analysis of the DNA content of A. sect. Infectoriae were 101.1%, R2 = 0.997, and slope −3.30. The level of specificity of the analysis is presented in Table 1. The amplification of the target DNA was detected at 11.2 ± 0.6 cycles for primers AAF2/AAR3 and at 21.1 ± 0.7 cycles for primers AinfF3/AinfR4. Nonspecific DNA amplification was detected after 32 cycles for both primer sets.

2.2. Content of Alternaria DNA in the Grain Samples

The qPCR results showed that all analysed grain samples were contaminated with DNA from both Alternaria sections. The amounts of A. sect. Alternaria DNA varied from 53 × 10−4 to 21,731 × 10−4 pg/ng, while the amounts of A. sect. Infectoriae DNA were in the range of 11 × 10−4–4237 × 10−4 pg/ng (Table 2).
Obviously, the amounts of DNA from Alternaria fungi belonging to sect. Alternaria were significantly more abundant in all analysed grain samples than in A. sect. Infectoriae. The differences in the average amounts reached 2.2–16.2 times. At the same time, a positive correlation (r = 0.46, p < 0.001) was found between the amounts of Alternaria fungi DNA from these two sections.

2.3. Content of Alternaria Mycotoxins in the Grain Samples

Five grain samples (four barley and one wheat) were free of Alternaria mycotoxins. Most grain samples (62%) were contaminated with a combination of any two mycotoxins. However, 16% and 8% of grain samples were contaminated by three (mostly the combination of AOH + TEN + TeA) and four mycotoxins, respectively.
Generally, mycotoxin AOH was found in 27% of grain samples, AME was detected in 12% of grain samples, and their content ranged from 2‒53 and 3‒56 µg/kg, respectively (Table 3). TEN turned out to be the most common Alternaria mycotoxin and was found in 90% of grain samples at levels of 3‒131 µg/kg. TeA was found in 85% of grain samples, and its content was 9‒14,963 µg/kg, which on average exceeded the content of other analysed Alternaria mycotoxins by 10‒27 times. The proportion of grain samples containing TeA in amounts >500 µg/kg, which is higher than the future recommended limit [28], was 4% of all analysed samples. Most of them originated from West Siberia. The maximum contents of Alternaria mycotoxins were detected in the grain samples from West Siberia: AOH—oat, Novosibirsk oblast, 2019; AME—wheat, Krasnoyarsky Krai, 2017; TEN—wheat, Altai Krai, 2017; and TeA—wheat, Altai Krai, 2018.
The combination of TEN and TeA was identified most often. The co-occurrence of AOH and AME was detected fairly rarely, and, as a rule, the AME content was lower than the AOH content. A significant positive correlation (r = 0.66, p < 0.001) between the contents of these two mycotoxins was revealed. As expected, a slight positive correlation between the contents of AOH and TeA was also detected (r = 0.17, p < 0.02).
A strong positive correlation between the content of A. sect. Alternaria DNA and TeA was revealed (r = 0.63, p < 0.001), which allows us to assume that these fungi are the main producers of this mycotoxin in cereal grains in the observed territory. The connection between the amount of A. sect. Infectoriae DNA and TEN contents was revealed (r = +0.31, p = 0.008) when the grain samples from the Urals were analysed separately. No other significant correlations between the content of mycotoxins and their potential producers were established.

2.4. Factors Affecting Grain Contamination

The results of the statistical analysis revealing the impact of different factors on the final content of fungal DNA in grain samples are summarized in Table 4.
The key factors affecting the contamination of grain with A. sect. Alternaria fungi were the cereal species and geographic origin of the samples. At the same time, the incidence of A. sect. Infectoriae fungi in grain samples was significantly related to cereal species and weather conditions prevailing in crop years. In the case of mycotoxin contamination of grain, the origin of the samples was not significant, in contrast to the other two factors. The cereal species confidently affected grain contamination with AOH and TEN, and the crop year conditions were important for the accumulation of AME and TEN.

2.4.1. The Effect of Cereal Crop Species

The amounts of Alternaria spp. DNA belonging to the two sections differed significantly by cereal grain (Figure 1). The barley contained significantly more A. sect. Alternaria DNA (3233 × 10−4 pg/ng) than oat (1781 × 10−4 pg/ng) and wheat (2521 × 10−4 pg/ng). The highest average amount of A. sect. Infectoriae DNA was also found in barley (729 × 10−4 pg/ng), which was 1.6 times more than that in wheat (445 × 10−4 pg/ng) and 4.9 times more than that in oat (148 × 10−4 pg/ng).
The comparison of different cereals according to their contamination with Alternaria mycotoxins revealed that the occurrence of all mycotoxins was more frequent in oat grain (Table 5).

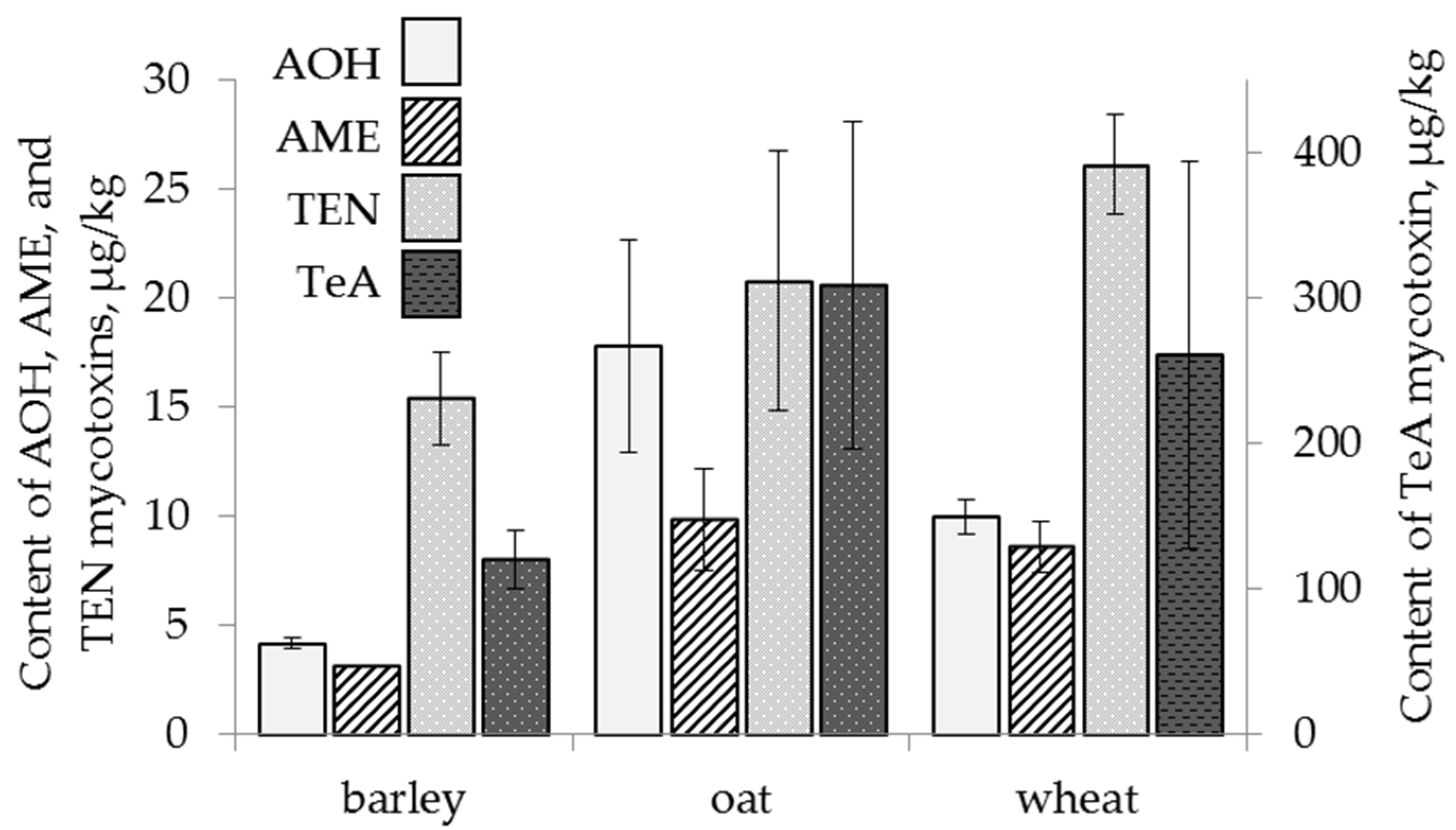

The content of AOH in oat grain samples was significantly higher (18 ± 5 µg/kg) than that found in wheat and barley. Barley was less contaminated with AOH and TEN than wheat (Figure 2). The mycotoxin AME was present only in one barley sample. The content of TEN in barley samples was, on average, lower (15 ± 2 µg/kg) than that in wheat and similar to that in oat. The difference between the average amounts of AME and TEN in wheat and oat grain samples was not detected. The content of TeA did not differ on average in the grain samples of all three cereals and reached 261 ± 133 µg/kg for wheat, 120 ± 20 µg/kg for barley and 309 ± 112 µg/kg for oat.

2.4.2. The Effect of Geographical Origin

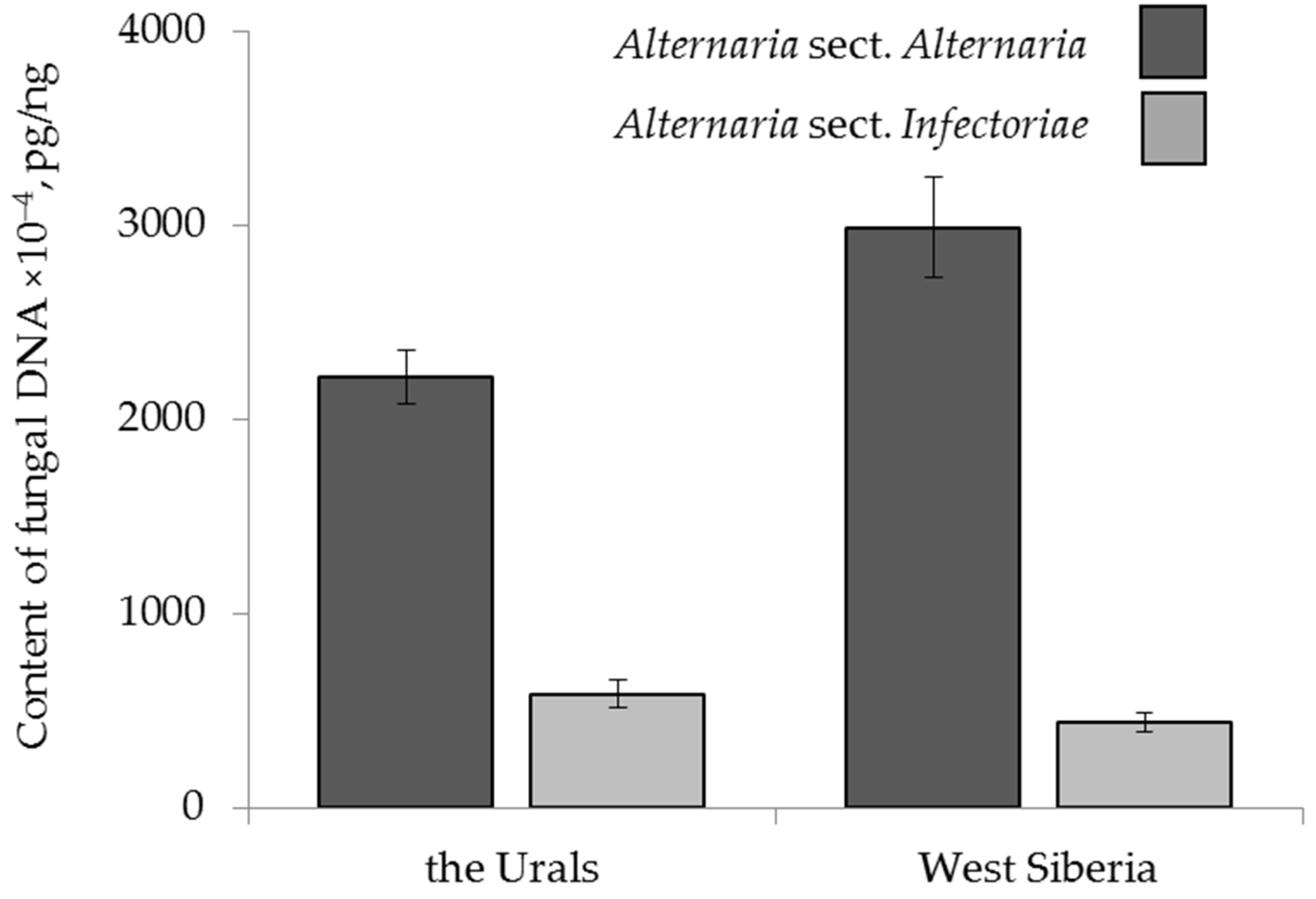

The amount of A. sect. Alternaria DNA in grain from the Urals averaged (2215 ± 139) × 10−4 pg/ng, while in grain from West Siberia, the content of these fungi was significantly higher at (2989 ± 262) × 10−4 pg/ng. The amounts of A. sect. Infectoriae DNA in grain samples from the Urals and West Siberia were lower, and there was no significant difference between them: (587 ± 139) × 10−4 and (440 ± 90) × 10−4 pg/ng, respectively (Figure 3).

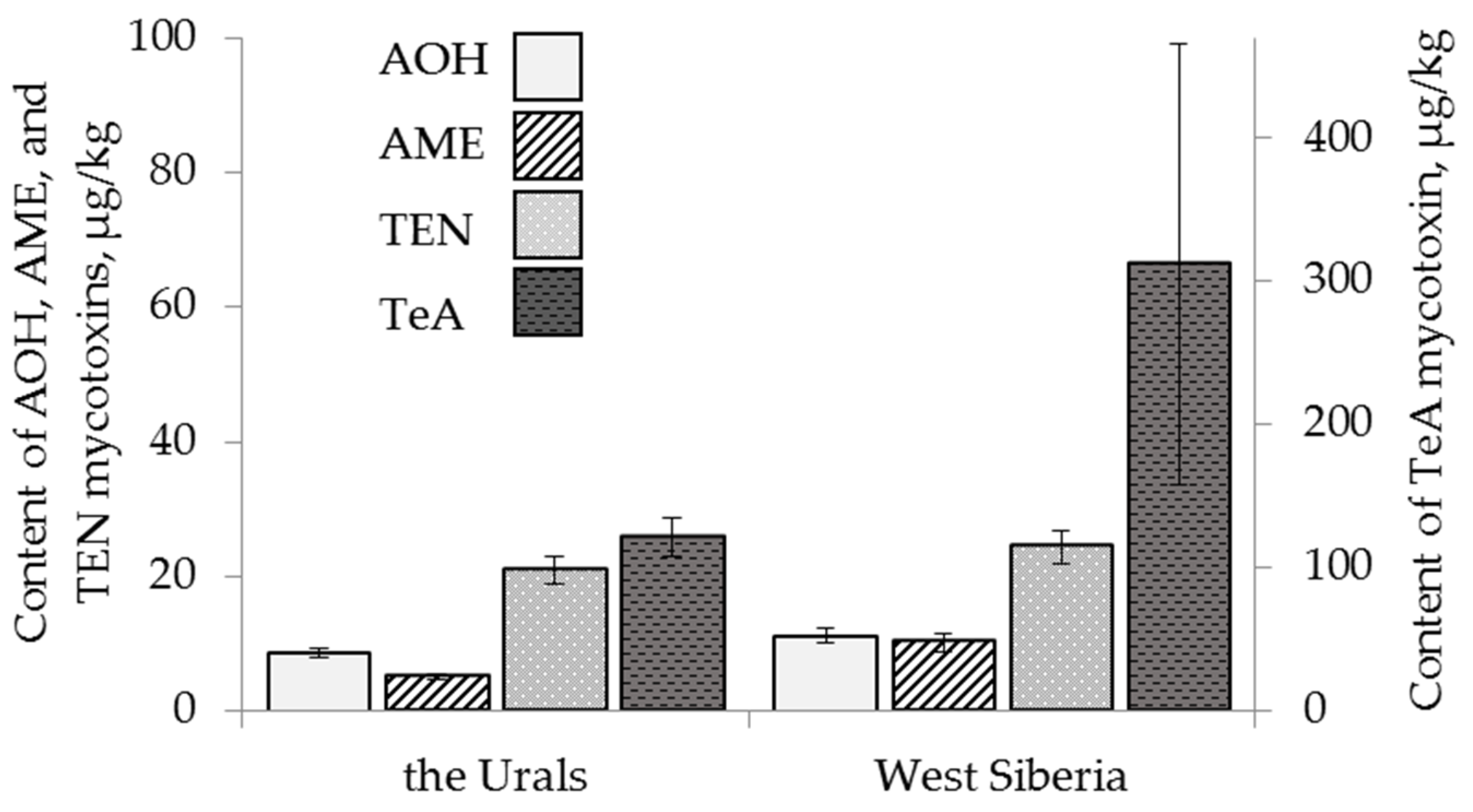

Mycotoxins AOH and AME were more frequent in grain from the West Siberia region (30% and 15% of samples, respectively) than in grain from the Urals (23% and 9%, respectively). The frequency of occurrence of TEN and TeA in grain from two regions was similar: TEN in 91% of the samples from the Urals and in 89% of the samples from West Siberia and TeA in 85% of the samples in each region. The contents of AOH, AME and TEN in grain from West Siberia (11, 10 and 21 µg/kg), on average, were similar to those in grain from the Urals (9, 5 and 24 µg/kg). At the same time, the TeA content in grain from West Siberia was 312 ± 154 µg/kg, which was 2.6 times higher than that in grain from the Urals (121 ± 14 µg/kg), but this difference was not significant.

2.4.3. The Effect of Year

The years 2017–2019 were characterized by different weather conditions: a gradual decrease in the average summer temperature by 0.5 °C was noted during this period. In 2018, there was 25‒35% less precipitation than in 2017 and 2019.

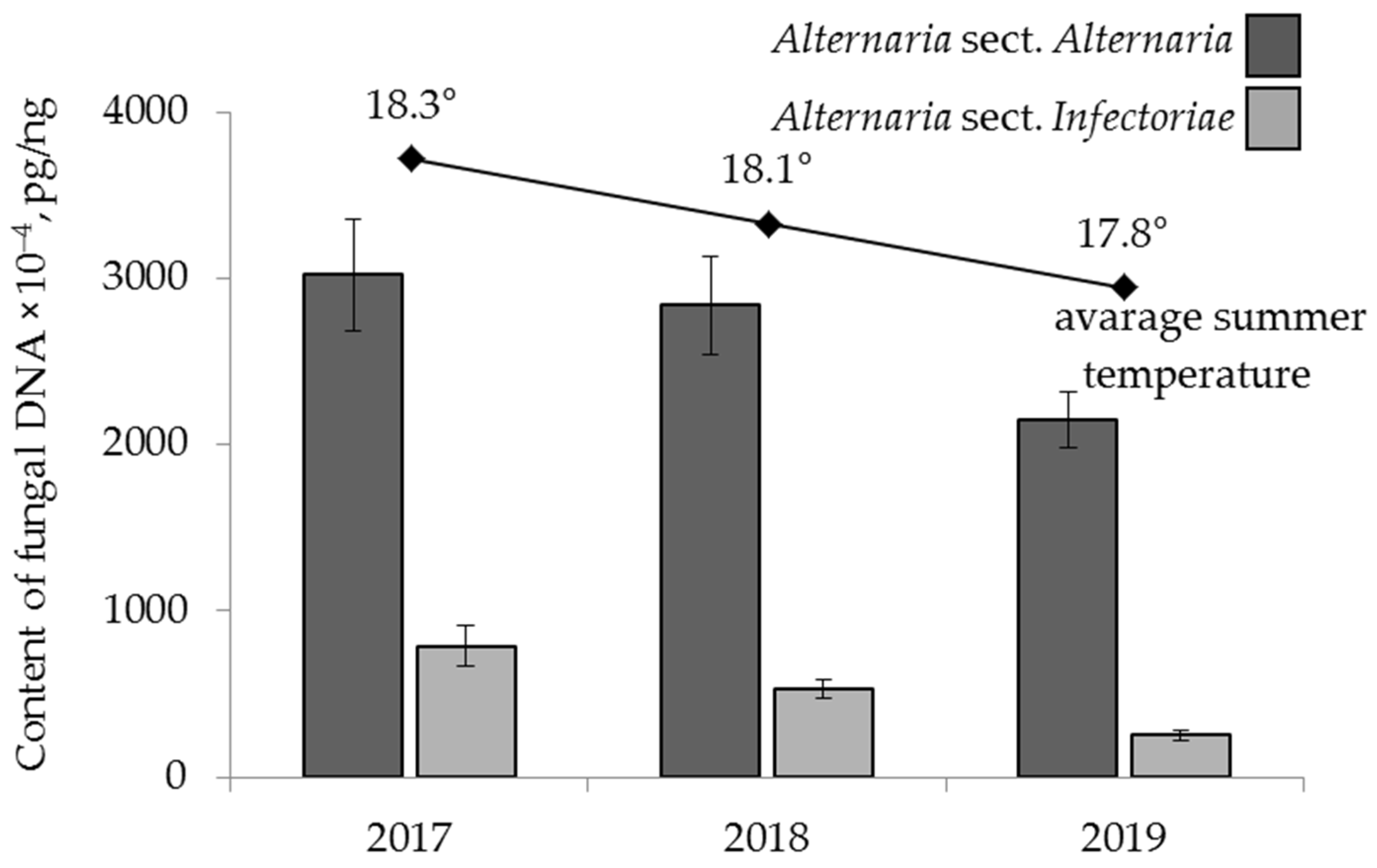

The amounts of DNA from the analysed fungi in the grain harvested in these years varied significantly. A substantial decrease in the amount of A. sect. Infectoriae DNA in grain, from 789 × 10−4 pg/ng in 2017 to 252 × 10−4 pg/ng in 2019, was observed (Figure 4). A similar trend was also found for the amount of A. sect. Alternaria DNA, from 3021 × 10−4 pg/ng in 2017 to 2150 × 10−4 pg/ng in 2019.
The analysis of weather conditions during the vegetation period of the examined cereals in the three years investigated here revealed that only the average rainfall in July had a significant effect on the contamination of grain with fungi of A. sect. Infectoriae (r = 0.24, p < 0.001). At the same time, the DNA content of A. sect. Alternaria was positively correlated with average temperature (r = 0.31, p < 0.001) and rainfall (r = 0.19, p < 0.001) in June. In July, the correlations were negative, and the relationships between the average monthly temperature and rainfall and the DNA content of A. sect. Alternaria obtained in grain were r = −0.19 at p = 0.01 and r = −0.21 at p = 0.01. Rainfall in August also negatively affected grain infection by the fungi (r = −0.17, p = 0.005).
Among the analysed mycotoxins, the content of TEN showed a similar trend, decreasing both in occurrence in grain (from 100% to 80% of samples) and in the average content (from 36 µg/kg to 9 µg/kg) in the period 2017–2019 (Figure 5). The content of TEN had a significant correlation only with the average temperature in June (r = +0.25, p < 0.001) and did not depend on climatic factors in other months. The significant correlation between the content of other mycotoxins in the grain and weather conditions during the vegetation period of 2017–2019 was not established.
The lowest occurrence of AOH and AME in the grain was observed among samples harvested in 2018 (22% and 9% of samples, respectively), while the highest occurrence of AOH and AME in the grain was found in samples from 2017 (39% and 22% of samples). Among grain samples harvested in 2019, AOH and AME were detected in 25% and 11% of the samples, respectively. The average AME content in the grain harvested in 2018 was 4 µg/kg, while in 2019 and 2017, this value was 2.0–2.9 times higher.
The occurrence of TeA in the samples harvested in 2017 and 2019 turned out to be similar (95% and 98% of the samples), while in the samples harvested in 2018, it was lower (73%). However, in the samples harvested in 2018, the average TeA content (409 µg/kg) was 3.1–3.8 times higher than that in the samples harvested in 2017 and 2019.

3. Discussion

Alternaria spp. are abundantly present in the grain mycobiota in the Urals and West Siberia regions of Russia [14,38] and neighbouring territories such as Kazakhstan [39] and China [34]. Until recently, A. sect. Alternaria fungi were thought to be evenly distributed in Russia, while A. sect. Infectoriae species were often found in Europe, rarely in the Urals and Siberia, and were absent in the Russian Far East [40]. However, our study demonstrated the significant abundance of A. sect. Infectoriae fungi in grain in the Urals and West Siberia regions, which is consistent with the recent results of a mycological analysis of grain grown in these regions [34].
The accurate morphological identification of Alternaria spp. is difficult due to the vagueness of species boundaries [32,41,42]. In this research, for the first time, the use of specific primers for the molecular detection of fungi belonging to two Alternaria sections, Alternaria and Infectoriae, allowed us to establish the contamination of grain with those fungi through DNA content and to comprehensively analyse the occurrence of different Alternaria fungi in cereals. The specificity of primers previously developed for qualitative analysis [43,44] was confirmed during qPCR. Thus, the quantitative detection of Alternaria DNA in grain was carried out at the level of two sections, Alternaria and Infectoriae, whereas earlier, a similar study was focused on the genus level [8]. The difference in Ct of detection is explained by the location of the annealing sites in the genome. The primer set AAF2/AAR3 amplified the fragment of the high-copy ITS region [43]. The primer set AinfF3/AinfR4 was designed based on the sequence of specific DNA fragments obtained by UP-PCR, which is probably a single- or oligo-copy genome locus [44].
DNA of Alternaria fungi of both sections was found in all analysed grain samples. A significant positive correlation between the amounts of A. sect. Alternaria and A. sect. Infectoriae DNA in grain was revealed, which indicates that both groups of species need very similar conditions for their development. The predominance of A. sect. Alternaria fungi over A. sect. Infectoriae in the analysed grain samples was observed: the amount of Alternaria spp. DNA from sect. Alternaria was more than 5 times higher than that of A. sect. Infectoriae. Notably, A. sect. Infectoriae fungi are often characterized by a higher growth rate [45], and these fungi are dominant in wheat, barley and oats grown in Norway [46] and Australia [9]. At the same time, A. sect. Alternaria fungi form a denser pigmented mycelium [31] and abundant sporulation [47], which likely provides a competitive advantage in the conditions of the Urals and West Siberia. The prevalence of A. sect. Alternaria fungi was also noted in grain from Hebei Province in China [34]. These fungi are widespread in wheat and barley grains in Asia and produce the main Alternaria mycotoxins, such as AOH, AME, and TeA [34,48]. In our study, a strong positive correlation between the contents of A. sect. Alternaria DNA and TeA was revealed, which indicates the key role of these fungi as the main producers of TeA in grain, at least in the observed territory. However, there was no reliable connection between the amount of A. sect. Infectoriae DNA and any analysed mycotoxins in grain. The proportion of Alternaria spp. from the sections Alternaria and Infectoriae in the grain mycobiota can vary and largely depends on weather conditions, as well as on the host plant [10,46], which finally determines the contamination of grain with mycotoxins.
Most grain samples were contaminated with at least two Alternaria mycotoxins, and only 3% of analysed grain samples were free from mycotoxins. Recently, the predominance of Alternaria mycotoxins (mainly TEN) in grain samples from the Urals and Siberia region of Russia has also been shown [14,36]. In our study, TeA and TEN were found more often than AOH and AME in the grain samples from both regions, which corresponds to previous reports indicating these Alternaria mycotoxins are the most common in grain grown in Asia [22,34].
Consistent with previously published data [23,49], the amounts of AOH, AME and TEN were, as a rule, lower than the amounts of TeA in the same grain samples and did not exceed 100 µg/kg. The amounts of AOH and AME in the analysed grain reached 53 µg/kg and 56 µg/kg, respectively, when, previously, the maximum detected amount of AOH in Russia was 675 µg/kg in wheat from the North Caucasus region and 397 µg/kg in barley from the Central European region [35]. The authors noted the unequal distribution of abundances of AOH in grain samples. Half of the data were less than the median value, and the largest amounts of AOH exceeded the threshold concentrations calculated for the 90th percentile, which indicated the possibility of its abnormally high accumulation.
Only in two grain samples did the amount of TEN exceed 100 µg/kg. TeA was detected in significant amounts, more than the recommended benchmark value of 500 µg/kg [29], in eight grain samples. Meanwhile, TeA is an acutely toxic substance with oral LD50 values ranging from 81 to 225 mg/kg bw for mice [50]. One wheat sample from West Siberia (Altai Krai) contained TeA in an extremely high amount of 15,000 µg/kg. To our knowledge, this is the highest recorded natural contamination of wheat grain with this mycotoxin. Previously, the highest amounts of TeA were detected in wheat grain in Argentina—8814 µg/kg [51], Germany—4179 µg/kg [52], and China—6432 µg/kg [53], 3331 µg/kg [22] and 3634 µg/kg [34]. In our study, the grain sample of wheat from Altai Krai that was contaminated by the maximal amount of TeA also contained the maximum quantity of A. sect. Alternaria DNA.
The co-occurrence of AOH and AME with TeA was found in 10% of the analysed grain samples. This phenomenon was observed repeatedly, and it has been shown that the TeA content was higher than that of other mycotoxins [22,23,26,34,54]. A significant positive correlation between AOH and AME, which are derivatives of the same chemical precursor dibenzopyrone, and between AOH and TeA was revealed. Recently, similar statistically significant correlations between different Alternaria toxins were revealed in wheat grain samples and wheat-based products from China [22,55]. The main danger of the co-occurrence of Alternaria mycotoxins is synergistic for additive interactions between these toxic metabolites that may enhance the negative health effects of consumers [55].
In our study, the significant effects of cereal species, geographic origin of samples and weather conditions during the vegetation season on fungal and mycotoxin contamination were established.
According to quantitative analysis of average DNA levels, barley grain was the most heavily contaminated by Alternaria spp., as opposed to oats. The mycological analysis of grain grown in Greece showed a similar result: barley grain was the most heavily infected with Alternaria fungi, in contrast with wheat and oat grain [56].
Very likely, the amount of fungal DNA in grain barely reflects the amounts of corresponding mycotoxins. Over three years, oat grain samples were, on average, the most heavily contaminated with mycotoxins, despite being the least infected. Barley grain was the least contaminated cereal and contained the lowest average amounts of mycotoxins. A similar result was obtained when 76 grain samples from southern Norway were analysed: the occurrence of TEN and TeA in oat grain was significantly higher than that in barley and wheat, although the detected contents of these mycotoxins were low [54]. The analysis of 110 grain samples from Latvia revealed the more significant contamination of oat grain by AOH and AME compared to rye, winter wheat, and barley [57]. Under laboratory conditions during artificial inoculation, a significant effect of the grain substrate on the accumulated levels of mycotoxin by A. alternata (Fr.) Keissl. strains has also been shown [58].
The prevalence of AOH and its accumulated amounts, in comparison with TeA and AME, in barley grain was also revealed, but the authors noted a significant effect of weather conditions on the occurrence of mycotoxins [25].
The abundance of fungi belonging to A. sect. Alternaria was significantly higher in grain samples from West Siberia than in grain samples from the Urals. Perhaps this can be explained by the difference in climatic conditions: the summer temperature in West Siberia, over a three-year average, was 1.3 °C higher. The difference between the contamination of grain with fungi of A. sect. Infectoriae from the two observed regions was not revealed.
The analysis of weather conditions during different vegetation periods revealed that the DNA content of A. sect. Alternaria fungi in grain positively correlated with average temperature and average rainfall in June but had a negative relation in July‒August. Warm and humid weather during the periods of wheat flowering, sprouting and heading (late April to June) in Anhui Province in China was favourable to cereal infection by Alternaria fungi [22]. In the case of DNA analysis of A. sect. Infectoriae, only the abundance of the average rainfall in July had a significant effect on infection of grain. Among the four mycotoxins, a significant positive correlation with the average temperature in June was revealed only for TEN.
Weather influenced the level and distribution of Alternaria mycotoxin contamination of grain in Argentina when wetter conditions during the wheat‒growing season with heavy rainfall in August and December led to high concentrations of mycotoxins [51]. Regardless of climatic conditions, TeA was always present in wheat grain from Serbia, with different frequencies and at different concentrations [59], but in the year with the highest amount of precipitation (up to 170% increased amount of rainfall compared to long-term annual precipitation data), fungal growth and production of AOH and TeA increased and were observed to have the highest values.
Previously, it was revealed that the number of Alternaria spp. conidia in field air and the amount of Alternaria DNA in cereal plant tissue were higher with a lower humidity and a higher temperature [60]. Most likely, the penetration of Alternaria spp. into the grains occurs at the early stages of plant growth in June, which is favoured by high temperature and the absence of competitors. The revealed trends should be compared with the results obtained under other climatic conditions for other cereal crops.

4. Conclusions

For the first time, grain contamination with Alternaria fungi was analysed using qPCR at the section level. The ubiquitous presence of Alternaria spp. belonging to sections Alternaria and Infectoriae and their mycotoxins in the grain of wheat, barley and oats in the Urals and West Siberia was demonstrated. The prevalence of DNA of A. sect. Alternaria fungi over the DNA of A. sect. Infectoriae in the grain samples was revealed.
The 97% grain samples were contaminated with at least one Alternaria mycotoxin. The new global maximum level of natural contamination of wheat grain with TeA (15,000 µg/kg) was detected. The relationship between grain infection, which was determined as the abundance of fungal DNA, and the content of mycotoxins in certain species of cereal was established. Frequent co-contamination of grain with Alternaria mycotoxins and the revealed extremely high TeA content in wheat grain showed the necessity of further research addressing this problem as well as the development of measures to control grain contamination with Alternaria mycotoxins.

5. Materials and Methods

5.1. Grain Samples and Weather Conditions of Vegetation Seasons in the Analysed Regions

The sampling was carried out by the specialists of the Russian Agricultural Center in accordance with the standard protocol adopted in Russia. In total, 75 grain samples of cereal crops grown in four locations in the Urals (Chelyabinsk, Kurgan, Tyumen, and Sverdlovsk regions) and 103 grain samples from five locations in West Siberia (Altai Krai, the southern part of Krasnoyarsk Krai, Kemerovo, Novosibirsk, and Omsk regions) in 2017–2019 were analysed. Grain samples were represented by 116 wheat, 49 barley and 13 oat samples.
The available data on climatic conditions in the Urals and West Siberia regions in 2017–2019 are presented in Table 6.

5.2. Grinding Samples

From each grain sample 20 g was taken and then homogenized in a grinding chamber of a batch mill with a tube mill control (IKA, Königswinter, Germany) for extraction of DNA and mycotoxins. The ground cereal flour was stored at –20 °C until DNA and mycotoxins were extracted.

5.3. DNA Extraction and Concentration Measurement

The extraction of total DNA from 200 mg of flour sample, as well as from the mycelium of Alternaria spp. strains, was performed using the Genomic DNA Purification Kit (Thermo Fisher Scientific, Vilnius, Lithuania) according to the adapted protocol. Total concentrations of DNA were determined using a Qubit 2.0 Fluorometer with a Quant-iT dsDNA HS Assay Kit (Thermo Fisher Scientific, Waltham, MA, USA). The DNA of the fungal strains was diluted to a concentration of 10 ng/µL and used to construct a calibration curve. The DNA isolated from analysed grain samples was aligned to 2‒50 ng/µL.

5.4. Detection of Fungal DNA Content in Grain Using qPCR

The amounts of DNA from Alternaria fungi belonging to sections Alternaria and Infectoriae were determined using SYBR Green qPCR with primers designed for the qualitative detection of Alternaria spp. belonging to the two sections and adapted for the quantitative analysis of their presence in the grain samples (Table 7). The reaction was carried out in a 20 µL volume containing 4 µL of 5×qPCRmix-HS SYBR master mix (Evrogen, Moscow, Russia), each primer at 500 nM, and 2 µL of DNA solution. All qPCR assays were performed using a CFX 96 Real-Time System thermocycler (BioRad, Hercules, CA, USA). Fold differences and standard errors were calculated from the Ct values using the Bio-Rad CFX Manager 1.6 software package. To determine the sensitivity and specificity of the analysis, the DNA of 12 strains stored in the Laboratory of Mycology and Phytopathology of the All-Russian Institute of Plant Protection (St. Petersburg, Russia) were selected. Among the samples were strains of the genus Alternaria of the sections Alternaria, Infectoriae, and Pseudoalternaria, as well as fungi of the genera Bipolaris Shoemaker, Cladosporium Link, Fusarium Link, and Trichothecium Link, common representatives of the cereal grain mycobiota. The content of Alternaria spp. DNA in grain samples was presented as the ratio of fungal DNA to total DNA isolated from each sample (pg/ng). The quantification value of 5 × 10−4 pg of fungal DNA in one ng of total DNA was established as the threshold of the low limit of DNA in a sample, which can be quantitatively determined with high precision.

5.5. Analysis of Secondary Metabolites of Fungi by HPLC-MS/MS

The mycotoxins analysis was carried out according to the standard method [61]. Metabolites were extracted from 5 g of cereal flour by adding 20 mL of extraction solvent (acetonitrile/water/acetic acid, 79:20:1, v/v/v) and mixing on a PSU-20 rotary shaker (Biosan, Riga, Latvia) for 90 min. Two independent extractions were prepared for each sample. Then, the extracts were centrifuged for 2 min at 3000 rpm (Polycom CLn-16, Moscow, Russia). Five hundred microlitres of each extract without any purification was transferred into glass vials, and 500 μL of a solution of acetonitrile:water:acetic acid 20:79:1 was added. Then, the vials were sealed and shaken for 30 s on a Vortex Genius3 (IKA, Germany). For analysis, 5 μL of each extract solution was taken by an Agilent autosampler (Agilent Technologies, Germany). Two injections were performed in the LC-MS.
The elution was carried out in binary gradient mode with a flow rate of 1000 μL/min. Both mobile phases contained 5 mM ammonium acetate and were composed of methanol/water/acetic acid 10:89:1 (v/v/v; eluent A) and 97:2:1 (v/v/v; eluent B), respectively. After an initial time of 1.5 min at 100% A, the proportion of B was increased linearly to 50% within 3 min. Further linear increase of B to 100% within 12.0 min was followed by a hold time of 5 min at 100% B and 3.5 min column re-equilibration at 100% A. The injection volume was 5 μL. ESI-MS/MS was performed in the scheduled multiple reaction monitoring (sMRM) mode negative polarity in two separate chromatographic runs. The target cycle time was 1000 ms, the MS pause time was 3 ms, and the detection window width was 40 and 52 s in the negative ESI mode.
Detection and quantification of four mycotoxins produced by Alternaria fungi were performed on an AB SCIEX Triple Quad™ 5500 MS/MS system (Applied Biosystems, Foster City, CA, USA) equipped with a TurboV electrospray ionization (ESI) source and a 1290 series UHPLC system (Agilent Technologies, Waldbronn, Germany). Chromatographic separation was carried out at 25 °C using a Gemini® C18 column, 150 × 4.6 mm (Phenomenex, Torrance, CA, USA). The contents of four mycotoxins, AOH, AME, TEN, and TeA, produced by Alternaria fungi were determined in the extracts. For the quantitative detection of mycotoxins in grain the matrix-matched calibration techniques using standard solutions of mycotoxins (Romer Labs, Tulln, Austria) were applied. The parameters of the HPLC-MS/MS method for the analysed mycotoxins are presented in Table 8.
The limit of detection (LOD) for the analysed mycotoxins was established by 20 measurements of each pure matrix and calculation of the average value. The limit of quantification (LOQ) for the analysed mycotoxins was determined by adding each analysed mycotoxin to a pure matrix. When the S/N (signal to noise) value of 20 parallel measurements was above five and the reproducibility was above 80%, the LOQ for each matrix was established. The LOD and LOQ for the analysed mycotoxins are presented in Table 9.

5.6. Statistical Analysis

Microsoft Excel 2010 was used to calculate the average values and the confidence intervals at a significance level of p < 0.05. The analysis of data variance and the correlation analysis of quantitative traits expressed by the Pearson coefficient (r) at a significance level of p < 0.05 were carried out with the STATISTICA 10.0 program.

Author Contributions

Data curation, O.P.G. and A.S.O.; Formal analysis, A.S.O. and O.P.G.; Investigation, A.S.O., O.P.G., T.Y.G. and N.N.G.; Methodology, T.Y.G. and A.S.O.; Project administration, P.B.G.; Supervision, T.Y.G.; Validation, T.Y.G., O.P.G. and A.S.O.; Visualization, A.S.O. and O.P.G.; Writing—original draft, A.S.O. and O.P.G.; Writing—review & editing, T.Y.G. and P.B.G. All authors have read and agreed to the published version of the manuscript.

Funding

The study was supported by the Russian Science Foundation (project No. 19-76-30005).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Acknowledgments

We are grateful to the managers of the Russian Branch of Syngenta and Bayer Crop Science for their help with the grain sample collection.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, and interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Ostry, V. Alternaria mycotoxins: An overview of chemical characterization, producers, toxicity, analysis and occurrence in foodstuffs. World Mycotoxin J. 2008, 1, 175–188. [Google Scholar] [CrossRef]
  2. Thomma, B.P.H.J. Alternaria spp.: From general saprophyte to specific parasite. Mol. Plant. Pathol. 2003, 4, 225–236. [Google Scholar] [CrossRef] [PubMed]
  3. Polizzotto, R.; Andersen, B.; Martini, M.; Grisan, S.; Assante, G.; Musetti, R. A polyphasic approach for the characterization of endophytic Alternaria strains isolated from grapevines. J. Microbiol. Methods 2012, 88, 162–171. [Google Scholar] [CrossRef] [PubMed]
  4. Noor, A.; Nava, A.; Cooke, P.; Cook, D.; Creamer, R. Evidence of non-pathogenic relationship of Alternaria section Undifilum endophytes within three host locoweed plants species. Botany 2018, 96, 187–200. [Google Scholar] [CrossRef] [Green Version]
  5. Mamgain, A.; Roychowdhury, R.; Tah, J. Alternaria pathogenicity and its strategic controls. Res. J. Biol. 2013, 1, 1–9. [Google Scholar]
  6. Patriarca, A. Alternaria in food products. Curr. Opin. Food Sci. 2016, 11, 1–9. [Google Scholar] [CrossRef]
  7. Escrivá, L.; Oueslati, S.; Font, G.; Manyes, L. Alternaria mycotoxins in food and feed: An overview. J. Food Qual. 2017, 2017, 1569748. [Google Scholar] [CrossRef] [Green Version]
  8. Kulik, T.; Treder, K.; Załuski, D. Quantification of Alternaria, Cladosporium, Fusarium and Penicillium verrucosum in conventional and organic grains by qPCR. J. Phytopathol. 2015, 163, 522–528. [Google Scholar] [CrossRef]
  9. Barkat, E.; Hardy, G.; Ren, Y.; Calver, M.; Bayliss, K. Fungal contaminants of stored wheat vary between Australian states. Australas. Plant. Pathol. 2016, 45, 621–628. [Google Scholar] [CrossRef] [Green Version]
  10. Gannibal, P.B. Factors affecting Alternaria appearance in grains in European Russia. Sel’skokhozyaistvennaya Biol. 2018, 53, 605–615. [Google Scholar] [CrossRef]
  11. Gashgari, R.; Ameen, F.; Al-Homaidi, E.; Gherbawy, Y.; Al Nadhari, S.; Vijayan, V. Mycotoxigenic fungi contaminating wheat; toxicity of different Alternaria compacta strains. Saudi J. Biol. Sci. 2019, 26, 210–215. [Google Scholar] [CrossRef] [PubMed]
  12. Somma, S.; Amatulli, M.T.; Masiello, M.; Moretti, A.; Logrieco, A.F. Alternaria species associated to wheat black point identified through a multilocus sequence approach. Int. J. Food Microbiol. 2019, 293, 34–43. [Google Scholar] [CrossRef] [PubMed]
  13. Puvača, N.; Bursic, V.; Gorica, V.; Budakov, D.; Petrovic, A.; Merkuri, J.; Avantaggiato, G.; Cara, M. Ascomycete fungi (Alternaria spp.) characterization as major feed grains pathogens. J. Agron. Technol. Eng. Manag. 2020, 3, 499–505. [Google Scholar]
  14. Orina, A.S.; Gavrilova, O.P.; Gagkaeva, T.Y.; Gannibal, P.B. Micromycetes Alternaria spp. and Bipolaris sorokiniana and mycotoxins in the grain from the Ural region. Mikol. Fitopatol. 2020, 54, 365–377. (In Russian) [Google Scholar] [CrossRef]
  15. Kwaśna, H.; Kosiak, B. Lewia avenicola sp. nov. and its Alternaria anamorph from oat grain, with a key to the species of Lewia. Mycol. Res. 2003, 107, 371–376. [Google Scholar] [CrossRef]
  16. Kwaśna, H.; Ward, E.; Kosiak, B. Lewia hordeicola sp. nov. from barley grain. Mycologia 2006, 98, 662–668. [Google Scholar] [CrossRef]
  17. Poursafar, A.; Ghosta, Y.; Orina, A.S.; Gannibal, P.B.; Javan-Nikkhah, M.; Lawrence, D.P. Taxonomic study on Alternaria sections Infectoriae and Pseudoalternaria associated with black (sooty) head mold of wheat and barley in Iran. Mycol. Prog. 2018, 17, 343–356. [Google Scholar] [CrossRef]
  18. Kumar, A.; Karre, S.; Dhokane, D.; Kage, U.; Hukkeri, S.; Kushalappa, A.C. Real-time quantitative PCR based method for the quantification of fungal biomass to discriminate quantitative resistance in barley and wheat genotypes to Fusarium head blight. J. Cereal Sci. 2015, 64, 16–22. [Google Scholar] [CrossRef]
  19. Kulik, T.; Bilska, K.; Żelechowski, M. Promising perspectives for detection, identification, and quantification of plant pathogenic fungi and oomycetes through targeting mitochondrial DNA. Int. J. Mol. Sci. 2020, 21, 2645. [Google Scholar] [CrossRef] [Green Version]
  20. Alexander, J.; Benford, D.; Boobis, A.; Ceccatelli, S.; Cottrill, B.; Cravedi, J.-P.; Di Domenico, A.; Doerge, D.; Dogliotti, E.; Edler, L.; et al. Scientific opinion on the risks for animal and public health related to the presence of Alternaria toxins in feed and food. EFSA J. 2011, 9, 2407–2504. [Google Scholar] [CrossRef]
  21. Arcella, D.; Eskola, M.; Gómez Ruiz, J.A. Dietary exposure assessment to Alternaria toxins in the European population. EFSA J. 2016, 14, 4654. [Google Scholar] [CrossRef]
  22. Xu, W.; Han, X.; Li, F.; Zhang, L. Natural occurrence of Alternaria toxins in the 2015 wheat from Anhui province, China. Toxins 2016, 8, 308. [Google Scholar] [CrossRef] [Green Version]
  23. Fraeyman, S.; Croubels, S.; Devreese, M.; Antonissen, G. Emerging Fusarium and Alternaria mycotoxins: Occurrence, toxicity and toxicokinetics. Toxins 2017, 9, 228. [Google Scholar] [CrossRef] [Green Version]
  24. Topi, D.; Tavcar-Kalcher, G.; Pavšič-Vrtač, K.; Babič, J.; Jakovac-Strajn, B. Alternaria mycotoxins in grains from Albania: Alternariol, alternariol monomethyl ether, tenuazonic acid and tentoxin. World Mycotoxin J. 2018, 12, 1–12. [Google Scholar] [CrossRef]
  25. Castañares, E.; Pavicich, M.; Dinolfo, M.; Moreyra, F.; Stenglein, S.; Patriarca, A. Natural occurrence of Alternaria mycotoxins in malting barley grains in the main producing region of Argentina. J. Sci. Food Agri. 2020, 100, 1004–1011. [Google Scholar] [CrossRef]
  26. Babič, J.; Tavčar-Kalcher, G.; Celar, F.A.; Kos, K.; Knific, T.; Jakovac-Strajn, B. Occurrence of Alternaria and other toxins in cereal grains intended for animal feeding collected in Slovenia: A three-year study. Toxins 2021, 13, 304. [Google Scholar] [CrossRef] [PubMed]
  27. Lou, J.; Fu, L.; Peng, Y.; Zhou, L. Metabolites from Alternaria fungi and their bioactivities. Molecules 2013, 18, 5891–5935. [Google Scholar] [CrossRef] [PubMed]
  28. Rychlik, M.; Lepper, H.; Weidner, C.; Asam, S. Risk Evaluation of the Alternaria mycotoxin tenuazonic acid in foods for adults and infants and subsequent risk management. Food Control 2016, 68, 181–185. [Google Scholar] [CrossRef]
  29. Food Chemistry Institute of the Association of the German Confectionery Industry. Alternaria Toxins: Occurrence, Toxicity, Analytical Methods, Maximum Levels. 2020. Available online: https://www.lci-koeln.de/deutsch/veroeffentlichungen/lci-focus/alternaria-toxins-occurrence-toxicity-analytical-methods-maximum-levels (accessed on 17 August 2021).
  30. Tralamazza, S.M.; Piacentini, K.C.; Iwase, C.H.T.; de Oliveira Rocha, L. Toxigenic Alternaria species: Impact in cereals worldwide. Curr. Opin. Food Sci. 2018, 23, 57. [Google Scholar] [CrossRef]
  31. Andersen, B.; Krøger, E.; Roberts, R.G. Chemical and morphological segregation of Alternaria arborescens, A. infectoria and A. tenuissima species-groups. Mycol. Res. 2002, 106, 170–182. [Google Scholar] [CrossRef]
  32. Zwickel, T.; Kahl, S.M.; Rychlik, M.; Müller, M.E.H. Chemotaxonomy of mycotoxigenic small-spored Alternaria fungi—Do multitoxin mixtures act as an indicator for species differentiation? Front. Microbiol. 2018, 9, 1368. [Google Scholar] [CrossRef] [Green Version]
  33. Masiello, M.; Somma, S.; Susca, A.; Ghionna, V.; Logrieco, A.F.; Franzoni, M.; Ravaglia, S.; Meca, G.; Moretti, A. Molecular identification and mycotoxin production by Alternaria species occurring on durum wheat, showing black point symptoms. Toxins 2020, 12, 275. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Jiang, D.; Wei, D.; Li, H.; Wang, L.; Jiang, N.; Li, Y.; Wang, M. Natural occurrence of Alternaria mycotoxins in wheat and potential of reducing associated risks using magnolol. J. Sci. Food Agric. 2021, 101, 3071–3077. [Google Scholar] [CrossRef] [PubMed]
  35. Kononenko, G.P.; Burkin, A.A.; Zotova, E.V. Mycotoxilogical monitoring. Part 2. Wheat, barley, oat and maize grain. Vet. Segodnya 2020, 2, 139–145. [Google Scholar] [CrossRef]
  36. Kiseleva, M.G.; Sedova, I.B.; Chalyy, Z.A.; Zakharova, L.P.; Aristarkhova, T.V.; Tutelyan, V.A. Multi-mycotoxin screening of food grain produced in Russia in 2018. Sel’skokhozyaistvennaya Biol. 2021, 56, 559–577. [Google Scholar] [CrossRef]
  37. Federal State Statistics Service. Bulletins on the State of Agriculture (Electronic Versions). Available online: https://www.gks.ru/compendium/document/13277 (accessed on 17 August 2021). (In Russian).
  38. Toropova, E.Y.; Kirichenko, A.A.; Kazakova, O.A.; Porsev, I.N. Alternaria disease of grain of spring wheat and barley in Western Siberia and Eastern Trans-Urals. Zashchita I Karantin Rasteniy 2015, 1, 20–22. (In Russian) [Google Scholar]
  39. Turzhanova, A.; Khapilina, O.N.; Tumenbayeva, A.; Shevtsov, V.; Raiser, O.; Kalendar, R. Genetic diversity of Alternaria species associated with black point in wheat grains. Peer J. 2020, 5, e9097. [Google Scholar] [CrossRef]
  40. Gannibal, P.B. Alternaria disease of grain—modern view of the problem. Zashchita I Karantin Rasteniy 2014, 6, 11–15. (In Russian) [Google Scholar]
  41. Woudenberg, J.H.C.; Groenewald, J.Z.; Binder, M.; Crous, P. Alternaria redefined. Stud. Mycol. 2013, 75, 171–212. [Google Scholar] [CrossRef] [Green Version]
  42. Woudenberg, J.H.; Seidl, M.F.; Groenewald, J.Z.; de Vries, M.; Stielow, J.B.; Thomma, B.P.; Crous, P.W. Alternaria section Alternaria: Species, formae speciales or pathotypes? Stud. Mycol. 2015, 82, 1–21. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Konstantinova, P.; Bonants, P.J.M.; van Gent-Pelzer, M.P.E.; van der Zouwen, P.; van den Bulk, R. Development of specific primers for detection and identification of Alternaria spp. in carrot material by PCR and comparison with blotter and plating assays. Mycol. Res. 2002, 106, 23–33. [Google Scholar] [CrossRef]
  44. Gannibal, P.B.; Yli-Mattila, T. Morphological and UP-PCR analyses and design of a PCR assay for differentiation of Alternaria infectoria species-group. Mikol. I Fitopatol. 2007, 41, 313–322. [Google Scholar]
  45. Andersen, B.; Thrane, U. Differentiation of Alternaria infectoria and Alternaria alternata based on morphology, metabolite profiles, and cultural characteristics. Can. J. Microbiol. 1996, 42, 685–689. [Google Scholar] [CrossRef]
  46. Kosiak, B.; Torp, M.; Skjerve, E.; Andersen, B. Alternaria and Fusarium in Norwegian grains of reduced quality—a matched pair sample study. Int. J. Food Microbiol. 2004, 93, 51–62. [Google Scholar] [CrossRef]
  47. Lawrence, D.P.; Gannibal, P.B.; Peever, T.L.; Pryor, B.M. The sections of Alternaria: Formalizing species-group concepts. Mycologia 2013, 105, 530–546. [Google Scholar] [CrossRef] [Green Version]
  48. Nguyen, T.T.T.; Kim, J.; Jeon, S.J.; Lee, C.W.; Magan, N.; Lee, H.B. Mycotoxin production of Alternaria strains isolated from Korean barley grains determined by LC-MS/MS. Int. J. Food Microbiol. 2018, 268, 44–52. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Scott, P.M.; Zhao, W.; Feng, S.; Lau, B.P. Alternaria toxins aternariol and alternariol monomethyl ether in grain foods in Canada. Mycotoxin Res. 2012, 28, 261–266. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Crudo, F.; Varga, E.; Aichinger, G.; Galaverna, G.; Marko, D.; Dall’Asta, C.; Dellafiora, L. Co-occurrence and combinatory effects of Alternaria mycotoxins and other xenobiotics of food origin: Current scenario and future perspectives. Toxins 2019, 11, 640. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Azcarate, M.P.; Patriarca, A.; Terminiello, L.; Fernández, P.V. Alternaria toxins in wheat during the 2004 to 2005 Argentinean harvest. J. Food Prot. 2008, 71, 1262–1265. [Google Scholar] [CrossRef] [PubMed]
  52. Müller, M.E.; Korn, U. Alternaria mycotoxins in wheat—A 10 years survey in the northeast of Germany. Food Control 2013, 34, 191–197. [Google Scholar] [CrossRef]
  53. Li, F.; Yoshizawa, T. Alternaria mycotoxins in weathered wheat from China. J. Agric. Food Chem. 2000, 48, 2920–2924. [Google Scholar] [CrossRef] [PubMed]
  54. Uhlig, S.; Eriksen, G.S.; Hofgaard, I.S.; Krska, R.; Beltrán, E.; Sulyok, M. Faces of a changing climate: Semi-quantitative multi-mycotoxin analysis of grain grown in exceptional climatic conditions in Norway. Toxins 2013, 5, 1682–1697. [Google Scholar] [CrossRef] [PubMed]
  55. Zhao, K.; Shao, B.; Yang, D.; Li, F.; Zhu, J. Natural occurrence of Alternaria toxins in wheat based products and their dietary exposure in China. PLoS ONE 2015, 10, e0132019. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Logrieco, A.; Bottalico, A.; Solfrizzo, M.; Mule, G. Incidence of Alternaria species in grains from Mediterranean countries and their ability to produce mycotoxins. Mycologia 1990, 82, 501–505. [Google Scholar] [CrossRef]
  57. Reinholds, I.; Jansons, M.; Fedorenko, D.; Pugajeva, I.; Zute, S.; Bartkiene, E.; Bartkevics, V. Mycotoxins in cereals and pulses harvested in Latvia by nanoLC-Orbitrap MS. Food Addit. Contam. Part B 2021, 14, 115–123. [Google Scholar] [CrossRef]
  58. Zwickel, T.; Kahl, S.M.; Klaffke, H.; Rychlik, M.; Müller, M.E. Spotlight on the underdogs—An analysis of underrepresented Alternaria mycotoxins formed depending on varying substrate, time and temperature conditions. Toxins 2016, 8, 344. [Google Scholar] [CrossRef] [Green Version]
  59. Janić Hajnal, E.; Orčić, D.; Torbica, A.; Kos, J.; Mastilović, J.; Škrinjar, M. Alternaria toxins in wheat from the autonomous province of Vojvodina, Serbia: A preliminary survey. Food Addit. Contam. Part A 2015, 32, 361–370. [Google Scholar] [CrossRef]
  60. Schiro, G.; Verch, G.; Grimm, V.; Müller, M.E.H. Alternaria and Fusarium fungi: Differences in distribution and spore deposition in a topographically heterogeneous wheat field. J. Fungi 2018, 4, 63. [Google Scholar] [CrossRef] [Green Version]
  61. Malachová, A.; Sulyok, M.; Beltrán, E.; Berthiller, F.; Krska, R. Optimization and validation of a quantitative liquid chromatography-tandem mass spectrometric method covering 295 bacterial and fungal metabolites including all regulated mycotoxins in four model food matrices. J. Chromatogr. A 2014, 1362, 145–156. [Google Scholar] [CrossRef] [Green Version]
Toxins 13 00681 g001 550

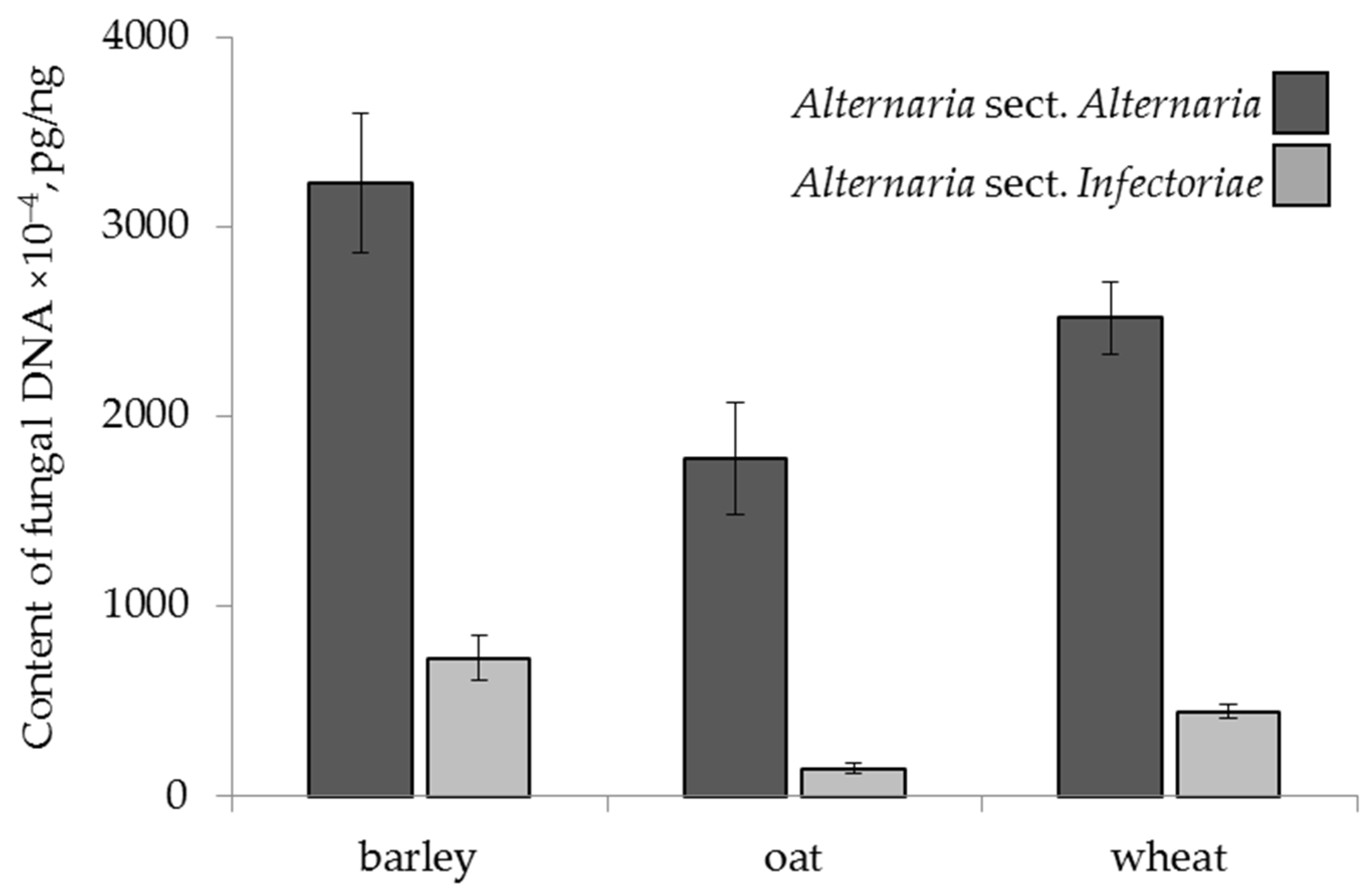

Figure 1. The DNA content of two sections of Alternaria fungi in the grain samples of the different cereals. The bars indicate confidence intervals with a 95% significance level.
Figure 1. The DNA content of two sections of Alternaria fungi in the grain samples of the different cereals. The bars indicate confidence intervals with a 95% significance level.
Toxins 13 00681 g001
Toxins 13 00681 g002 550
Figure 2. The content of Alternaria mycotoxins in the grain samples of the different cereals. The bars indicate confidence intervals with a 95% significance level. AOH: alternariol, AME: alternariol monomethyl ether, TEN: tentoxin, TeA: tenuazonic acid.
Figure 2. The content of Alternaria mycotoxins in the grain samples of the different cereals. The bars indicate confidence intervals with a 95% significance level. AOH: alternariol, AME: alternariol monomethyl ether, TEN: tentoxin, TeA: tenuazonic acid.
Toxins 13 00681 g002
Toxins 13 00681 g003 550
Figure 3. The DNA content of two sections of Alternaria fungi in the grain samples collected from the Urals and West Siberia in 2017–2019. The bars indicate confidence intervals with a 95% significance level.
Figure 3. The DNA content of two sections of Alternaria fungi in the grain samples collected from the Urals and West Siberia in 2017–2019. The bars indicate confidence intervals with a 95% significance level.
Toxins 13 00681 g003
Toxins 13 00681 g004 550
Figure 4. The DNA content of two sections of Alternaria fungi in the grain samples. The bars indicate confidence intervals with a 95% significance level.
Figure 4. The DNA content of two sections of Alternaria fungi in the grain samples. The bars indicate confidence intervals with a 95% significance level.
Toxins 13 00681 g004
Toxins 13 00681 g005 550
Figure 5. The content of Alternaria mycotoxins in the grain samples. The bars indicate confidence intervals with a 95% significance level. AOH: alternariol, AME: alternariol monomethyl ether, TEN: tentoxin, TeA: tenuazonic acid.
Figure 5. The content of Alternaria mycotoxins in the grain samples. The bars indicate confidence intervals with a 95% significance level. AOH: alternariol, AME: alternariol monomethyl ether, TEN: tentoxin, TeA: tenuazonic acid.
Toxins 13 00681 g005
Table
Table 1. Specificity of qPCR for detection of Alternaria spp. DNA.
Table 1. Specificity of qPCR for detection of Alternaria spp. DNA.
Strain IDFungiResults of qPCR with Primer Pairs (Ct 1)
AAF2/AAR3AinfF3/AinfR4
MFP556081A. tenuissima (sect. Alternaria)10.933.7
MFP028011Alternaria sp. (sect. Alternaria)11.534.4
MFP094121Alternaria sp. (sect. Pseudoalternaria)34.635.5
MFP457051Alternaria sp. (sect. Pseudoalternaria)32.937.7
MFP094331Alternaria sp. (sect. Infectoriae)34.120.8
MFP778011Alternaria sp. (sect. Infectoriae)35.521.5
MFG59013Bipolaris sorokinianan.d. 2n.d.
MFG232100Cladosporium sp.n.d.34.5
MFG60204Fusarium avenaceumn.d.35.4
MFG102100F. culmorumn.d.n.d.
MFG11039F. sporotrichioidesn.d.n.d.
MFG14000Trichothecium roseumn.d.38.8
1 Ct—amplification cycle corresponding to the cross of fluorescence curve with the threshold; 2 n.d.—absence of amplification products.
Table
Table 2. The content of Alternaria DNA in the grain samples of different cereals from the Urals and West Siberia.
Table 2. The content of Alternaria DNA in the grain samples of different cereals from the Urals and West Siberia.
CerealRegionCrop Year (Number of Samples)The Range of Alternaria DNA Amounts ×10−4, pg/ng of Total DNA
A. sect. AlternariaA. sect. Infectoriae
wheatthe Urals2017 (13)881–3079117–2388
2018 (23)736–458036–1462
2019 (10)1165–382655–544
West Siberia2017 (26)1027–6442158–877
2018 (21)1213–21,73191–1187
2019 (23)426–385135–1204
barleythe Urals2018 (15)497–556826–3616
2019 (8)361–714643–1051
West Siberia2017 (2)12,721; 96954237; 2746
2018 (15)53–10,526252–1472
2019 (9)820–4776103–535
oatthe Urals2018 (2)1093; 145288; 326
2019 (4)313–332311–227
West Siberia2018 (5)905–347279–327
2019 (2)624; 526139; 91
Table
Table 3. The content of mycotoxins produced by Alternaria fungi in the grain samples of different cereals from the Urals and West Siberia regions of Russia.
Table 3. The content of mycotoxins produced by Alternaria fungi in the grain samples of different cereals from the Urals and West Siberia regions of Russia.
RegionYear of Crop
(No. of Samples)		Number of Contaminated Samples/
Range of Mycotoxin Amounts, µg/kg
AOHAMETENTeA
wheat
the Urals2017 (13)3/2–4nd/013/4–4813/15–226
2018 (23)6/3–263/5–521/3–7916/35–454
2019 (10)1/15nd 1/07/5–1910/19–97
West Siberia2017 (26)13/2–449/3–5626/9–13126/17–545
2018 (21)7/3–142/3; 420/4–8316/37–14,963
2019 (23)6/7–173/4–617/3–3623/16–241
barley
the Urals2018 (15)3/2–81/314/5–8013/15–593
2019 (8)1/3nd/07/5–107/14–570
West Siberia2017 (2)nd/0nd/02/9; 12nd/0
2018 (15)nd/0nd/013/5–387/30–349
2019 (9)2/4; 5nd/07/3–69/9–113
oat
the Urals2018 (2)1/191/32/16; 212/65; 228
2019 (4)2/11; 132/4; 114/3–153/59–276
West Siberia2018 (5)1/4nd/05/13–885/164–405
2019 (2)2/7; 531/222/15; 152/280; 1579
1 nd—none of the samples contained mycotoxin.
Table
Table 4. The effect of different factors on the content of Alternaria DNA and mycotoxins in grain.
Table 4. The effect of different factors on the content of Alternaria DNA and mycotoxins in grain.
FactorsAnalysed Parameters
A. sect. Alternaria DNAA. sect. Infectoriae DNAAOHAMETENTeA
cereal speciesF 1 = 3.50
p = 0.03		F = 7.48
p = 0.001		F = 7.25
p = 0.0009		ns 2F = 3.32
p = 0.04		ns
geographic originF = 6.03
p = 0.02		nsnsnsnsns
crop yearnsF = 12.03
p = 0.00001		nsF = 3.06
p = 0.049		F = 9.48
p = 0.002		ns
1 F—value of Fisher test; p—significance level; 2 ns—marked not significant values.
Table
Table 5. The occurrence of Alternaria mycotoxins in the grain samples of the different cereals.
Table 5. The occurrence of Alternaria mycotoxins in the grain samples of the different cereals.
Cereals
(No. of Samples)		The Proportion of Samples Containing Mycotoxin, %
AOHAMETENTeA
Barley (49)1228873
Oat (13)463110092
Wheat (116)31159090
Table
Table 6. Weather data during the growing season of 2017–2019 in the Urals and West Siberia regions (https://rp5.ru/, accessed on 20 July 2021).
Table 6. Weather data during the growing season of 2017–2019 in the Urals and West Siberia regions (https://rp5.ru/, accessed on 20 July 2021).
RegionYearMonthAverage Month Temperature, °CAverage Summer Temperature, °CRainfall, mmDays with Precipitation
the Urals2017June+16.6+17.77219
July+18.510919
August+18.05713
2018June+15.0+17.53619
July+21.09013
August+16.56519
2019June+15.9+17.56418
July+20.37514
August+16.48518
West Siberia2017June+20.2+18.95014
July+19.09423
August+17.56916
2018June+19.9+18.66416
July+18.95214
August+17.12613
2019June+16.6+18.14816
July+19.38312
August+18.56117
Table
Table 7. The primers and the protocols of quantitative PCR used in this study.
Table 7. The primers and the protocols of quantitative PCR used in this study.
TargetThe PrimersPrimer Sequence (5′ → 3′)ProtocolReferences
A. sect.
Alternaria		AAF2TGCAATCAGCGTCAGTAACAAA50° for 2 min; 95° for 10 min; [95° for 15 s; 67° for 60 s; 72° for 5 s] × 40[43]
AAR3ATGGATGCTAGACCTTTGCTGAT
A. sect.
Infectoriae		AinfF3CTCGATGTCCGCCTCAGTAG50° for 2 min; 95° for 10 min; [95° for 15 s; 65° for 60 s; 72° for 3 s] × 40[44]
Table
Table 8. Parameters of HPLC-MS/MS method.
Table 8. Parameters of HPLC-MS/MS method.
AnalyteRetention Time, minMS/MS Parameters
m/z Q1m/z Q3 1DP (V) 2CE (V) 3CXP (V) 4
Alternariol (AOH)9.67257.0213.0/215.0−100−34/−36−11/−11
Alternariolmethylether (AME)11.40271.0256.0/227.0−95−32/−50−13/−9
Tentoxin (TEN)8.84413.3141.0/271.1−105−30/−24−11/−24
Tenuazonic acid (TeA)8.04196.1139.0/112.1−120−28/−28−7/−7
1 quantifier/qualifier specific product ions; 2 declustring potential; 3 collision energy; 4 cell exit potential.
Table
Table 9. Precision, limits of detection (LODs), and limits of quantification (LOQ) for the analysed mycotoxins in cereal matrix.
Table 9. Precision, limits of detection (LODs), and limits of quantification (LOQ) for the analysed mycotoxins in cereal matrix.
AnalytePrecision (±), %LOD, µg/kgLOQ, µg/kg
Alternariol (AOH)10–21
wheat 0.792.39
barley 0.822.46
oat 0.822.60
Alternariolmethylether (AME)7–23
wheat 0.692.15
barley 0.702.15
oat 0.822.67
Tentoxin (TEN)8–11
wheat 0.792.00
barley 0.822.15
oat 0.822.22
Tenuazonic acid (TeA)13–21
wheat 6.314.80
barley 3.409.00
oat 18.4451.25
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Orina, A.S.; Gavrilova, O.P.; Gogina, N.N.; Gannibal, P.B.; Gagkaeva, T.Y. Natural Occurrence of Alternaria Fungi and Associated Mycotoxins in Small-Grain Cereals from The Urals and West Siberia Regions of Russia. Toxins 2021, 13, 681. https://doi.org/10.3390/toxins13100681

AMA Style

Orina AS, Gavrilova OP, Gogina NN, Gannibal PB, Gagkaeva TY. Natural Occurrence of Alternaria Fungi and Associated Mycotoxins in Small-Grain Cereals from The Urals and West Siberia Regions of Russia. Toxins. 2021; 13(10):681. https://doi.org/10.3390/toxins13100681

Chicago/Turabian Style

Orina, Aleksandra S., Olga P. Gavrilova, Nadezhda N. Gogina, Philipp B. Gannibal, and Tatiana Yu. Gagkaeva. 2021. "Natural Occurrence of Alternaria Fungi and Associated Mycotoxins in Small-Grain Cereals from The Urals and West Siberia Regions of Russia" Toxins 13, no. 10: 681. https://doi.org/10.3390/toxins13100681

APA Style

Orina, A. S., Gavrilova, O. P., Gogina, N. N., Gannibal, P. B., & Gagkaeva, T. Y. (2021). Natural Occurrence of Alternaria Fungi and Associated Mycotoxins in Small-Grain Cereals from The Urals and West Siberia Regions of Russia. Toxins, 13(10), 681. https://doi.org/10.3390/toxins13100681

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
